Docker for PHP Developers Chris Tankersley @dragonmantank php[tek] 2018 1

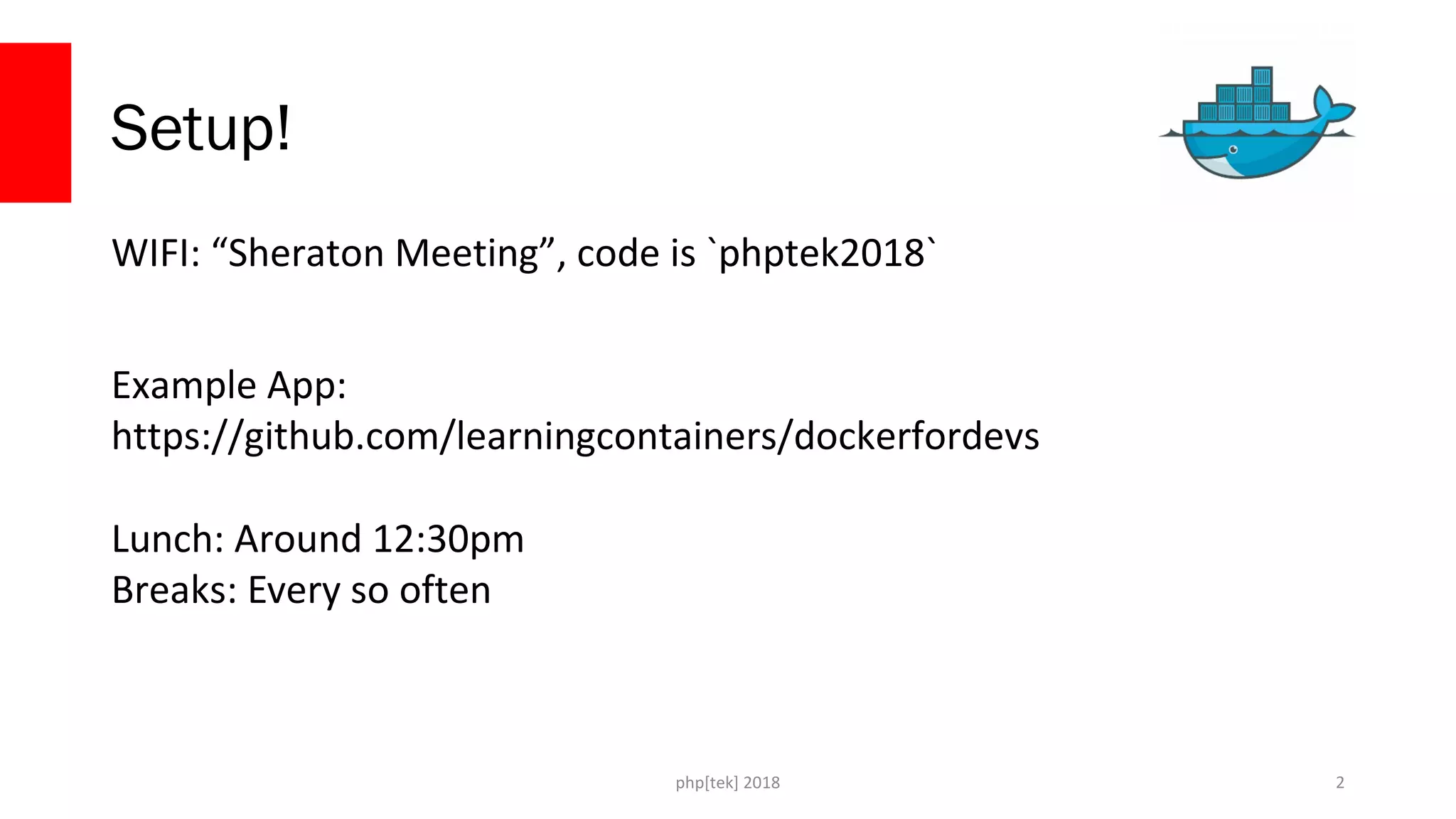

php[tek] 2018 Setup! WIFI: “Sheraton Meeting”, code is `phptek2018` Example App: https://github.com/learningcontainers/dockerfordevs Lunch: Around 12:30pm Breaks: Every so often 2

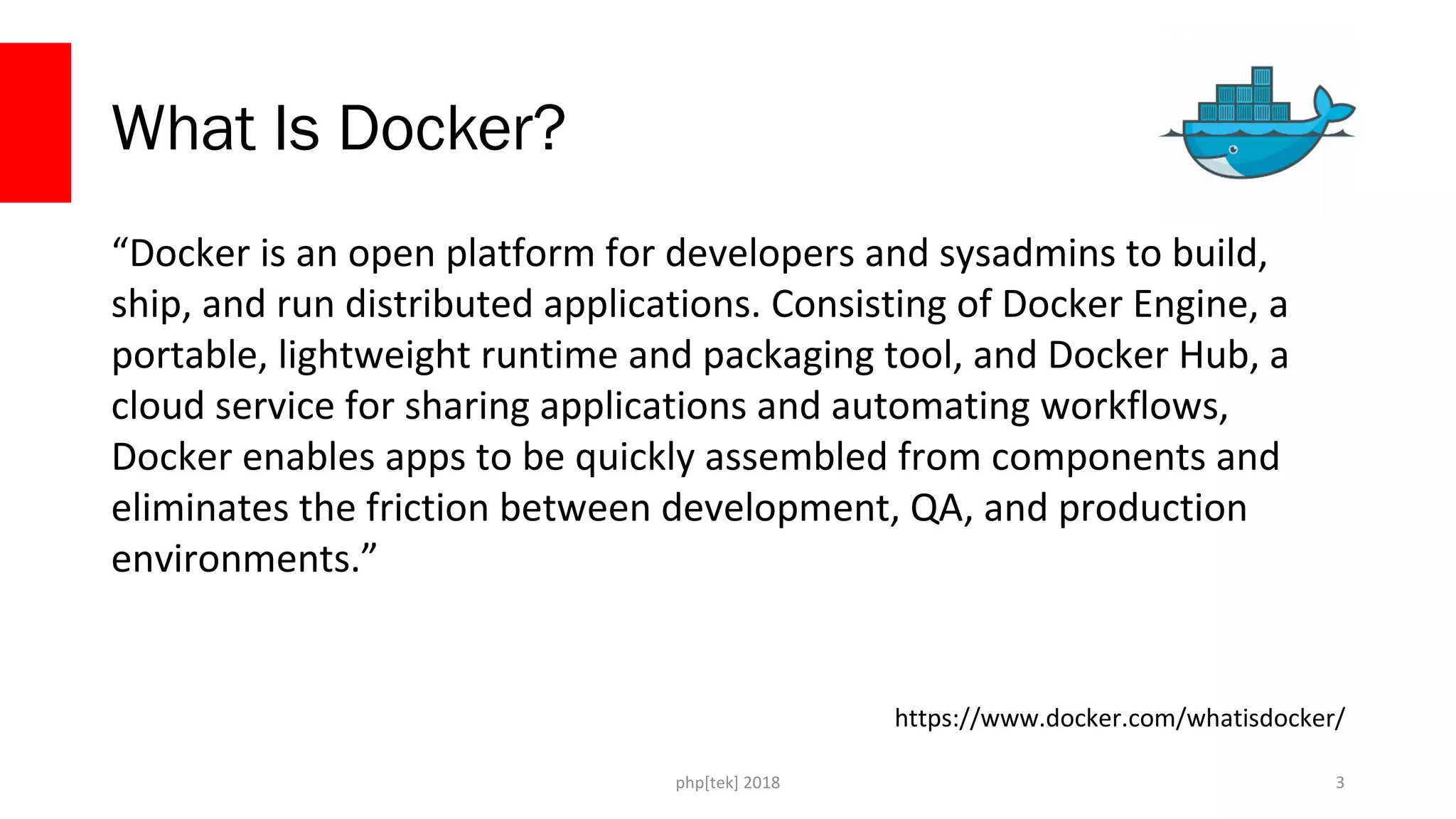

php[tek] 2018 What Is Docker? “Docker is an open platform for developers and sysadmins to build, ship, and run distributed applications. Consisting of Docker Engine, a portable, lightweight runtime and packaging tool, and Docker Hub, a cloud service for sharing applications and automating workflows, Docker enables apps to be quickly assembled from components and eliminates the friction between development, QA, and production environments.” 3 https://www.docker.com/whatisdocker/
php[tek] 2018
php[tek] 2018 What is a Container? 5
php[tek] 2018 Normal Bare-Metal Server 6 CPU RAM HD Network Operating System nginx PHP DB

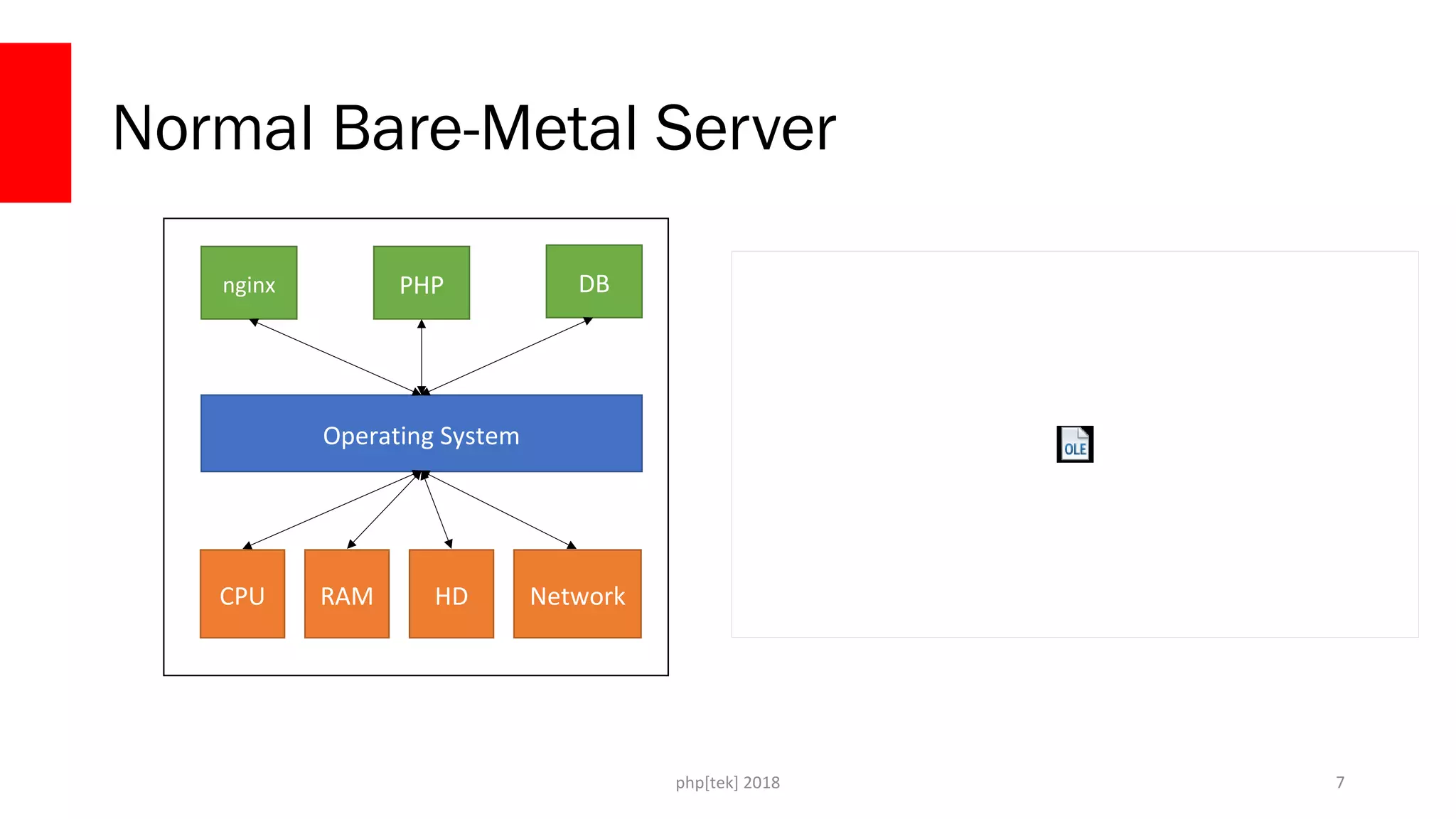

php[tek] 2018 Normal Bare-Metal Server 7 CPU RAM HD Network Operating System nginx PHP DB

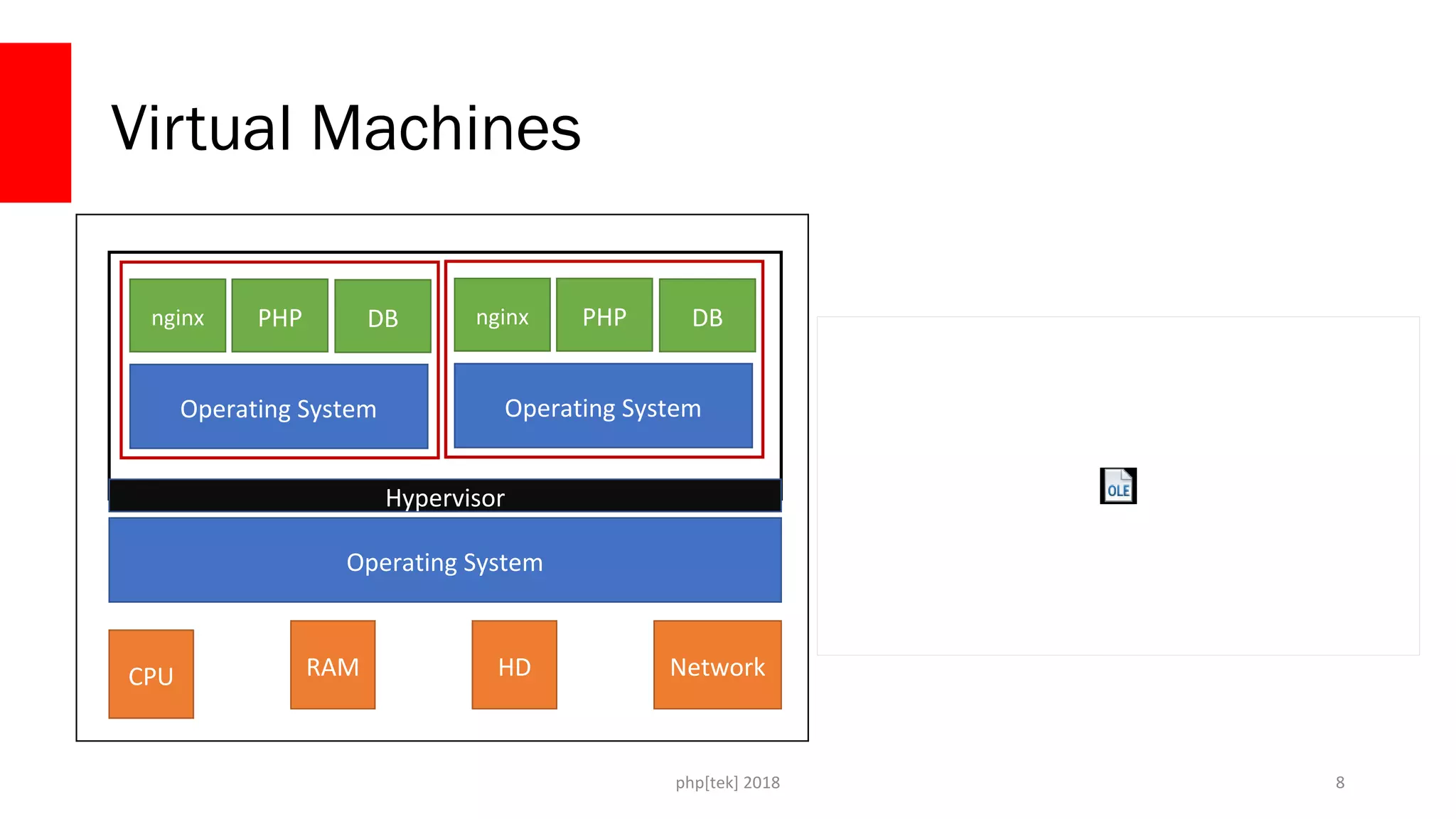

php[tek] 2018 Virtual Machines 8 CPU RAM HD Network Operating System nginx PHP DB Operating System nginx PHP DB Operating System Hypervisor
php[tek] 2018 Containers 9 CPU RAM HD Network Operating System nginxnginx PHP DB PHP DB
php[tek] 2018 Containers vs VMs

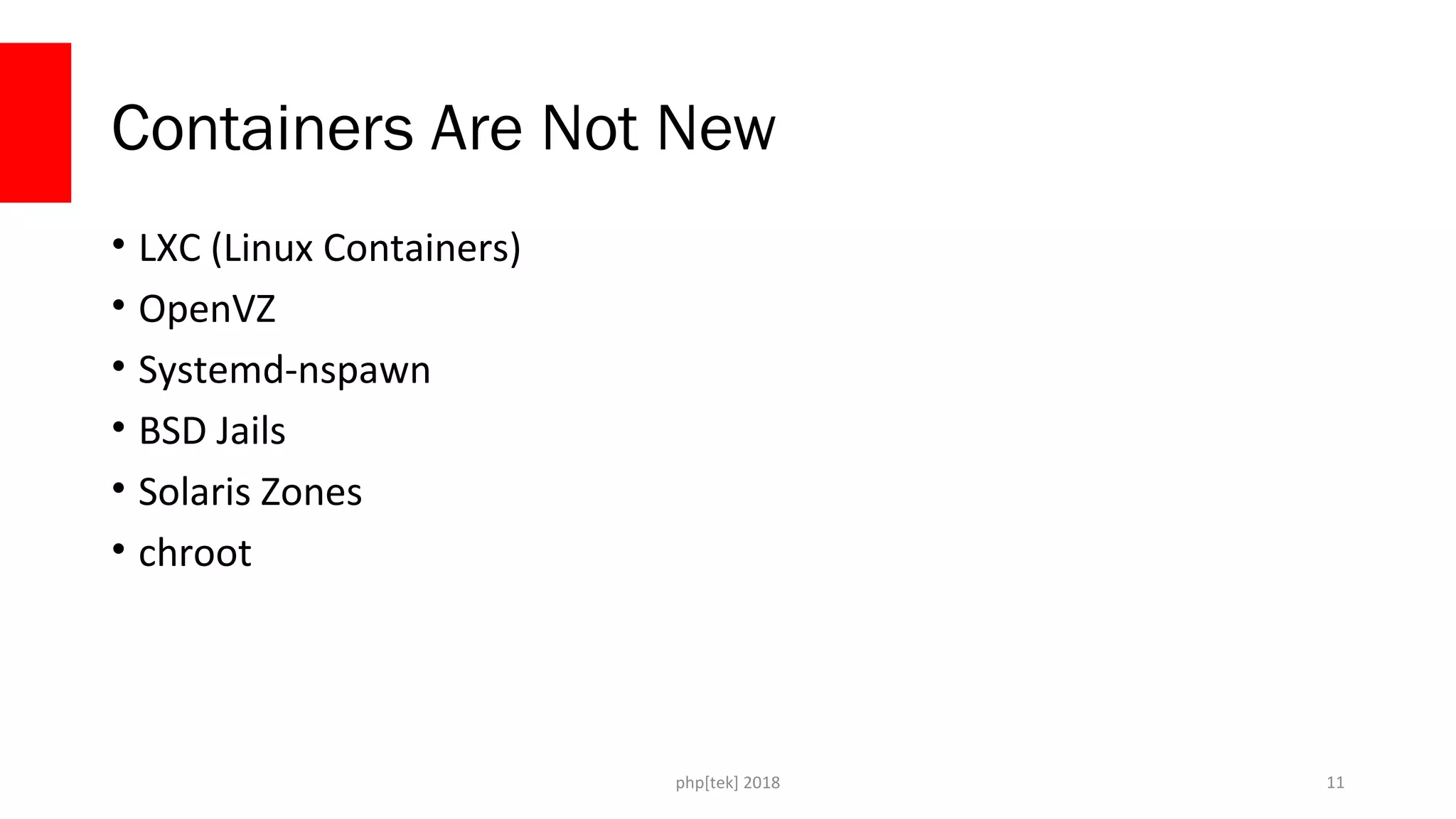

php[tek] 2018 Containers Are Not New ‱ LXC (Linux Containers) ‱ OpenVZ ‱ Systemd-nspawn ‱ BSD Jails ‱ Solaris Zones ‱ chroot 11

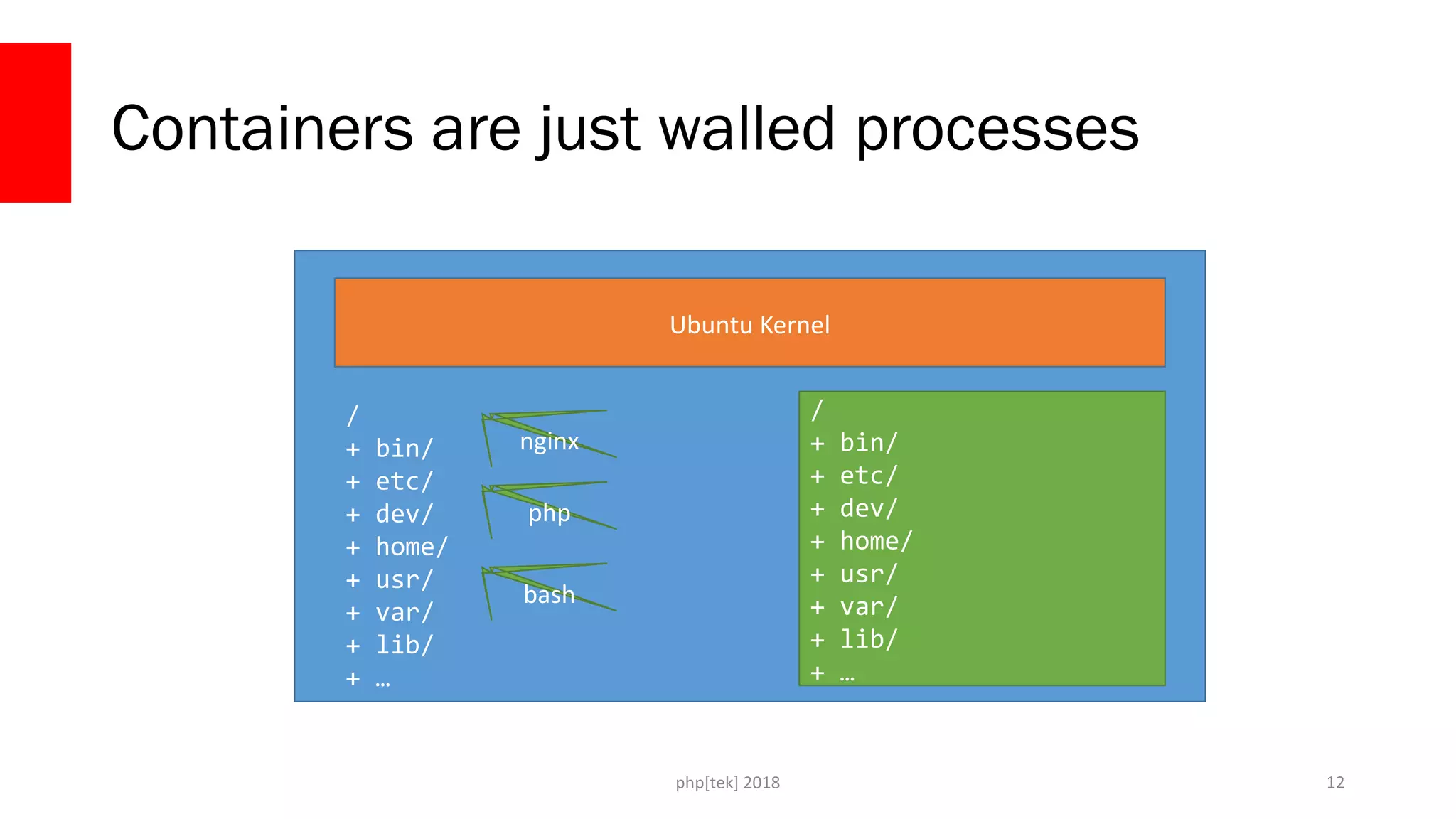

php[tek] 2018 Containers are just walled processes 12 Ubuntu Kernel / + bin/ + etc/ + dev/ + home/ + usr/ + var/ + lib/ +
 nginx bash / + bin/ + etc/ + dev/ + home/ + usr/ + var/ + lib/ +
 php
php[tek] 2018 What is Docker? 13
php[tek] 2018 Docker is an Ecosystem 14 Docker Engine
php[tek] 2018 Docker is an Ecosystem 15 Docker ComposeDocker Machine Docker Swarm

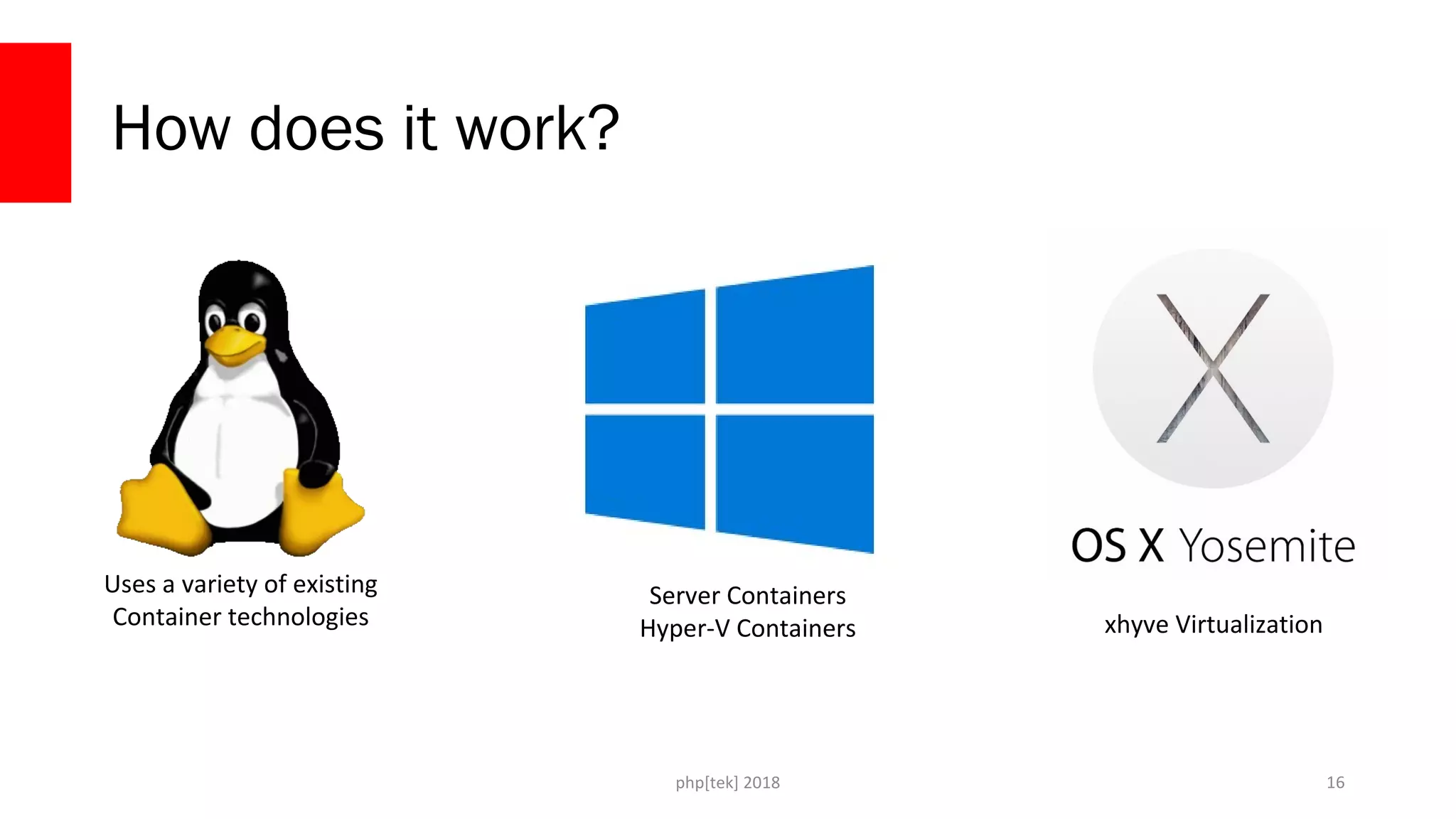

php[tek] 2018 How does it work? 16 Uses a variety of existing Container technologies Server Containers Hyper-V Containers xhyve Virtualization
php[tek] 2018 Sorry OSX < 10.10 and Windows < 10 Users Docker Toolbox 17
php[tek] 2018 Let’s use Docker 18

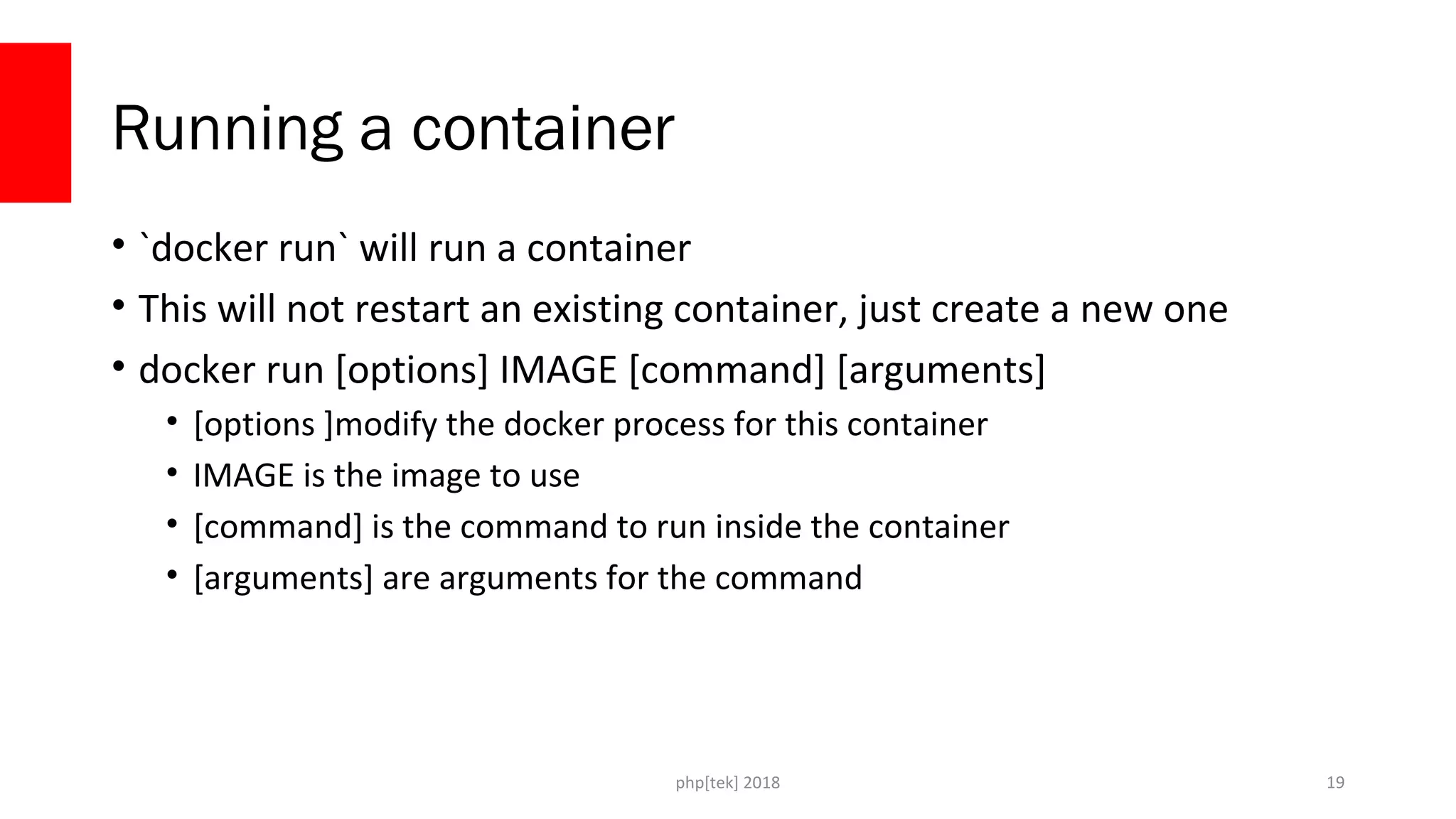

php[tek] 2018 Running a container ‱ `docker run` will run a container ‱ This will not restart an existing container, just create a new one ‱ docker run [options] IMAGE [command] [arguments] ‱ [options ]modify the docker process for this container ‱ IMAGE is the image to use ‱ [command] is the command to run inside the container ‱ [arguments] are arguments for the command 19

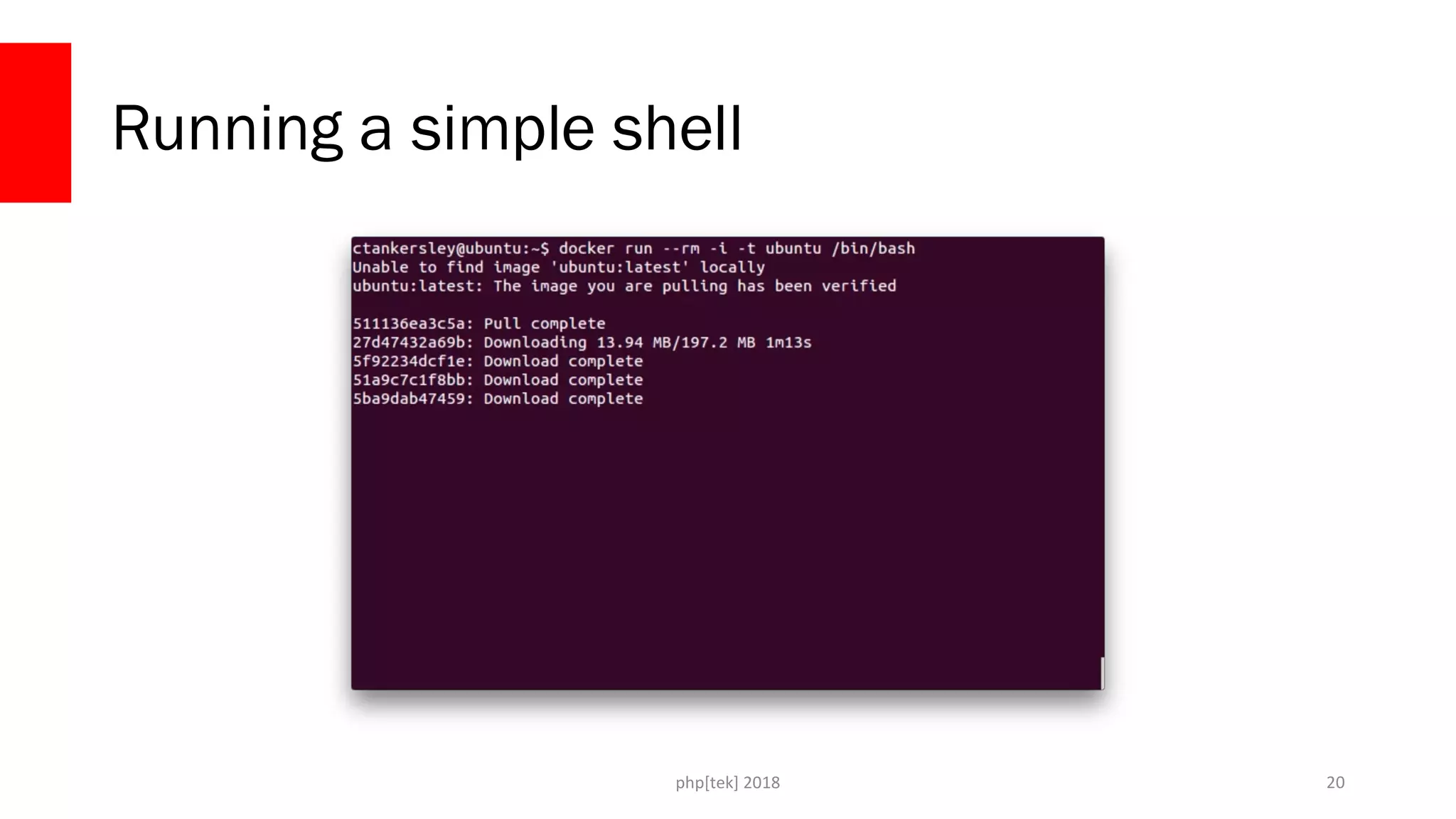

php[tek] 2018 Running a simple shell 20

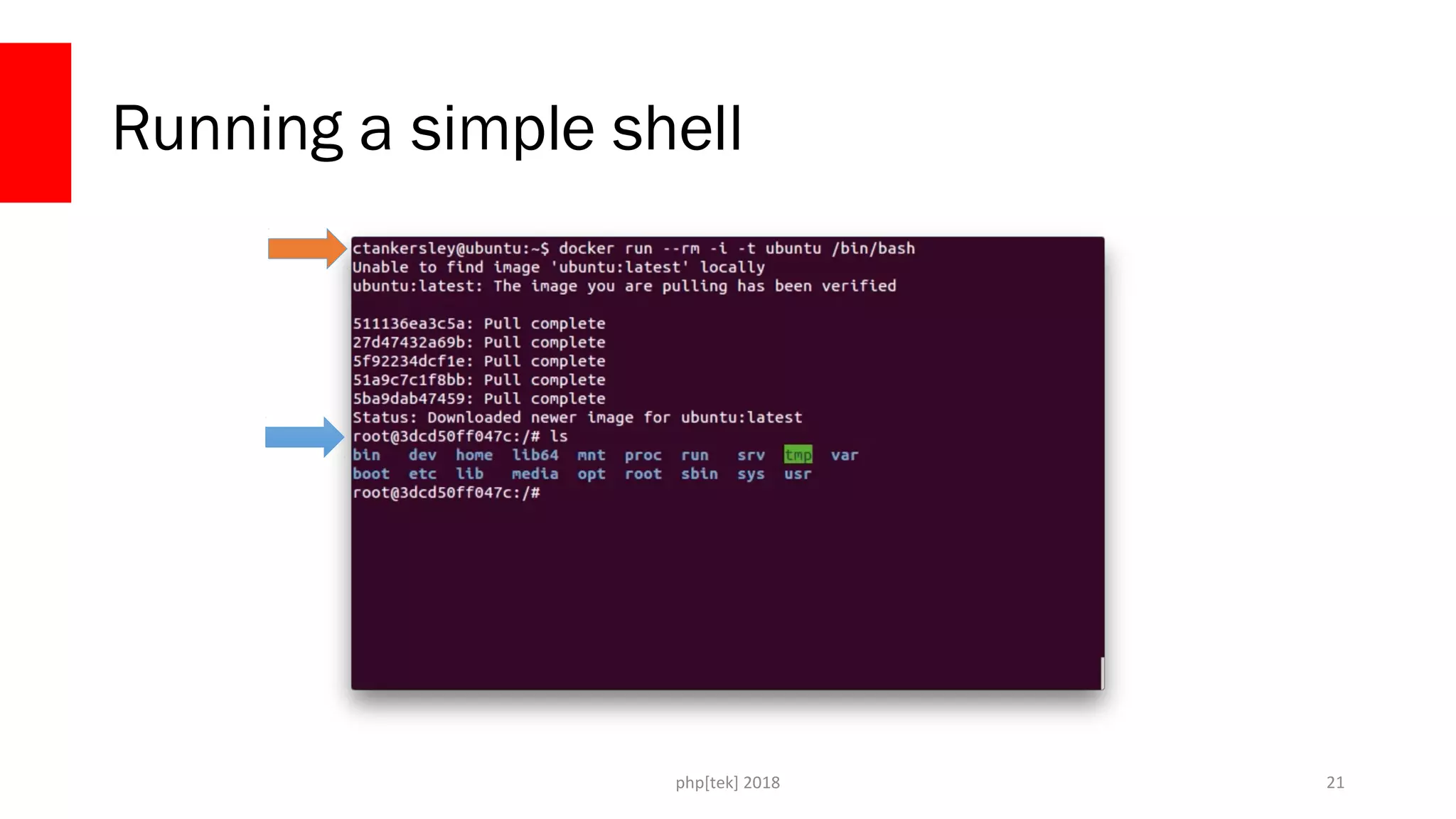

php[tek] 2018 Running a simple shell 21
php[tek] 2018 Running a simple shell 22
php[tek] 2018 What’s Going On? 23 Ubuntu Kernel / + bin/ + etc/ + dev/ + home/ + usr/ + var/ + lib/ +
 nginx bash / + bin/ + etc/ + dev/ + home/ + usr/ + var/ + lib/ +
 php

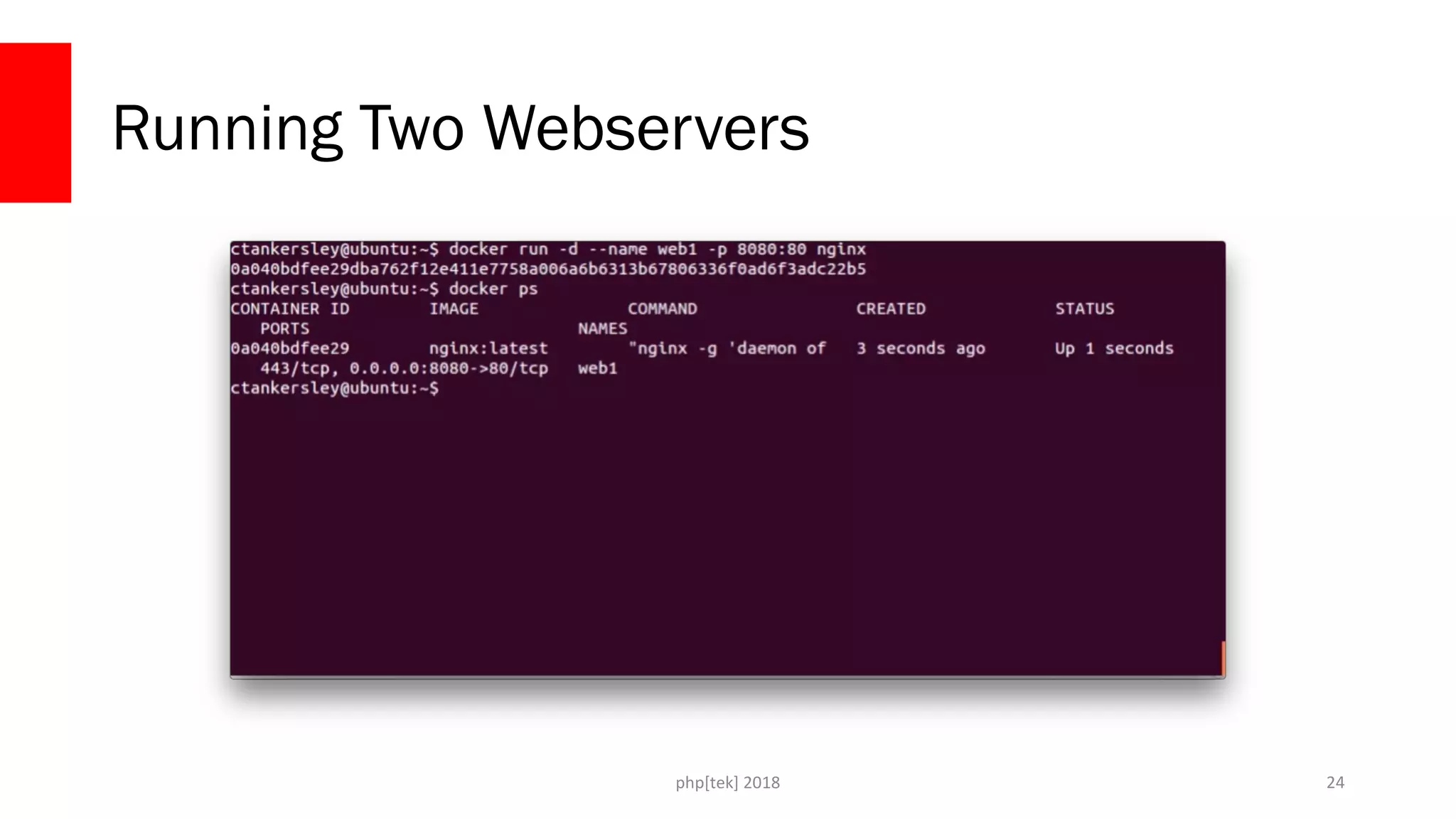

php[tek] 2018 Running Two Webservers 24

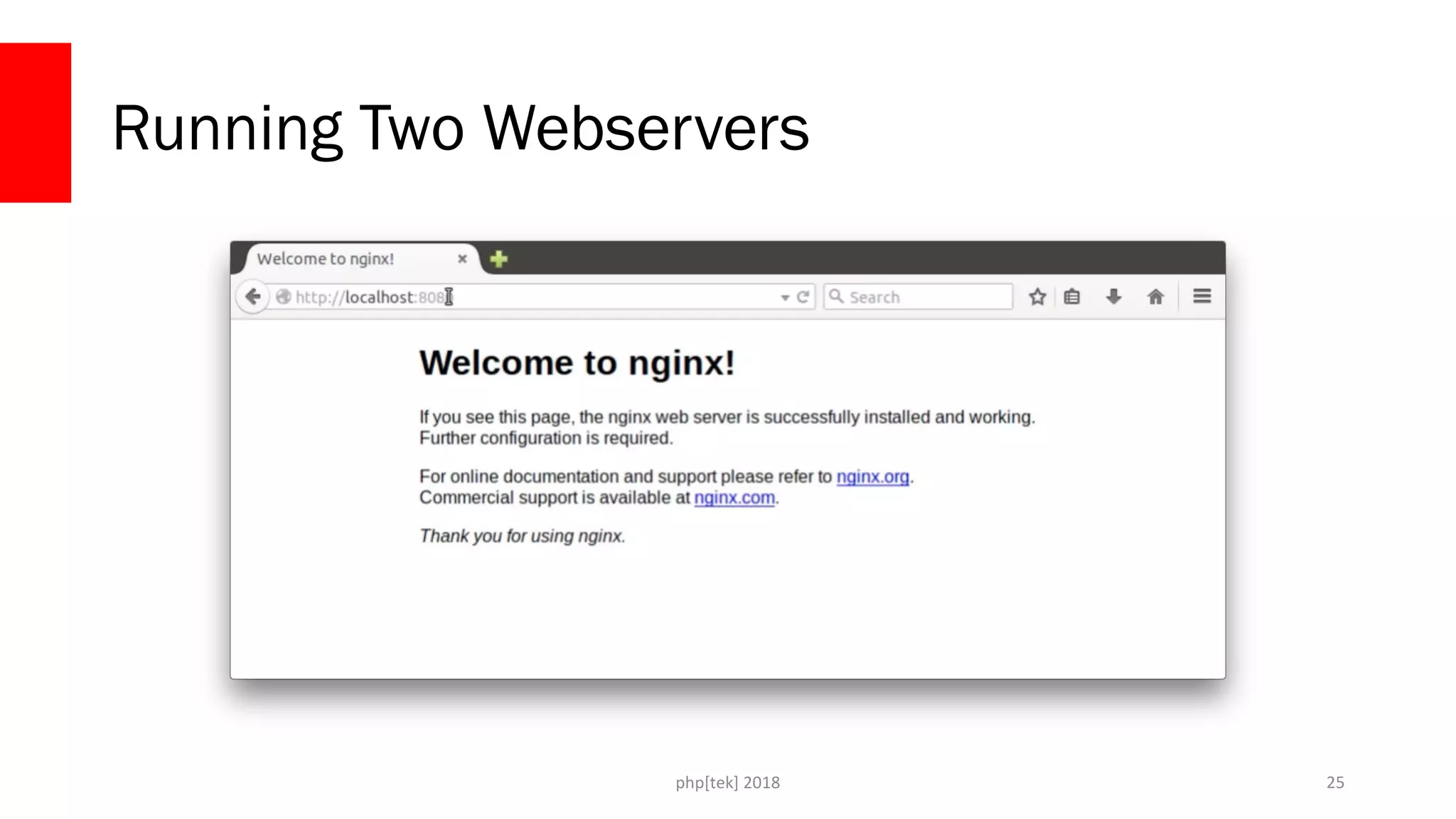

php[tek] 2018 Running Two Webservers 25
php[tek] 2018 Running Two Webservers 26

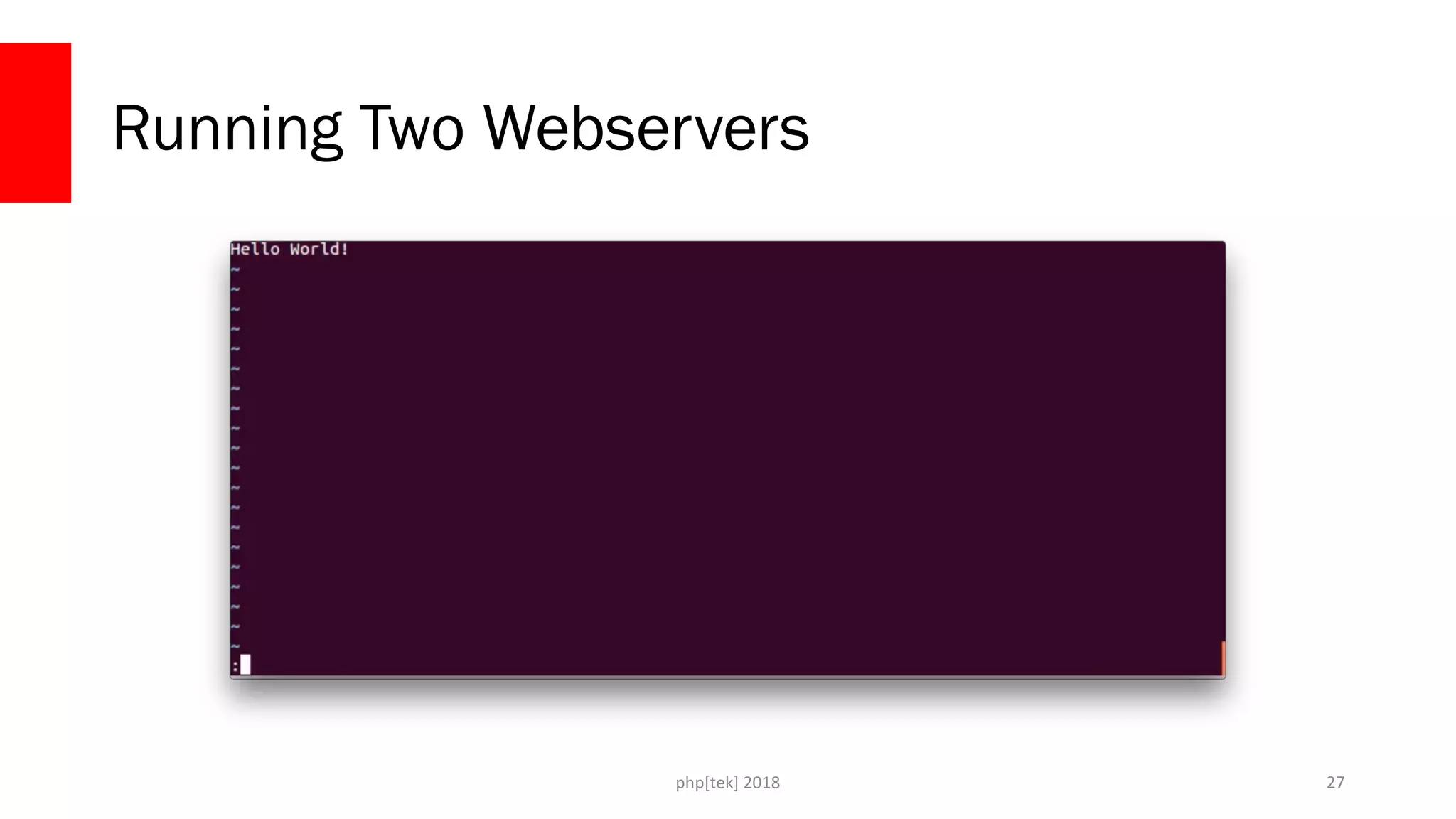

php[tek] 2018 Running Two Webservers 27

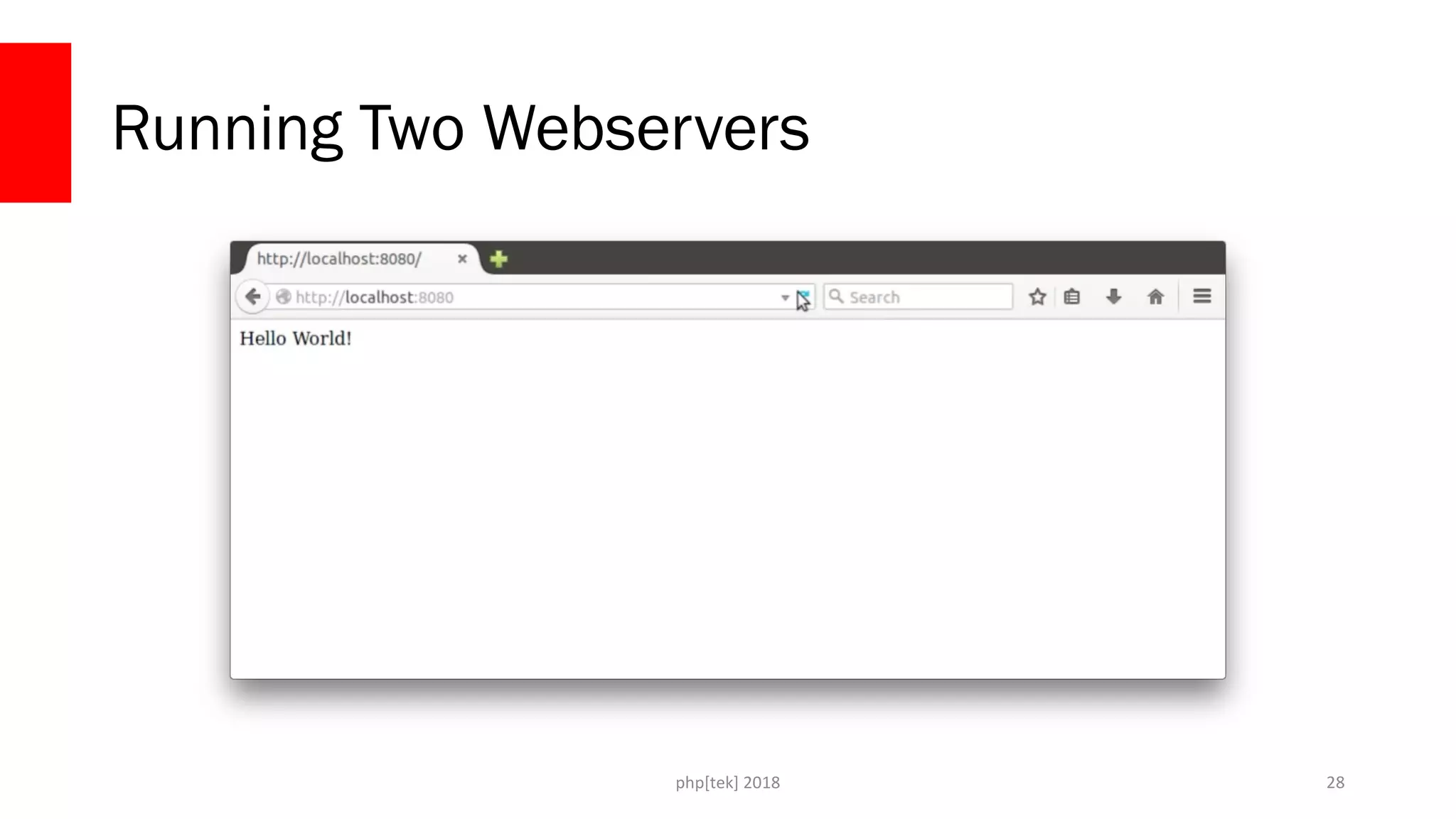

php[tek] 2018 Running Two Webservers 28

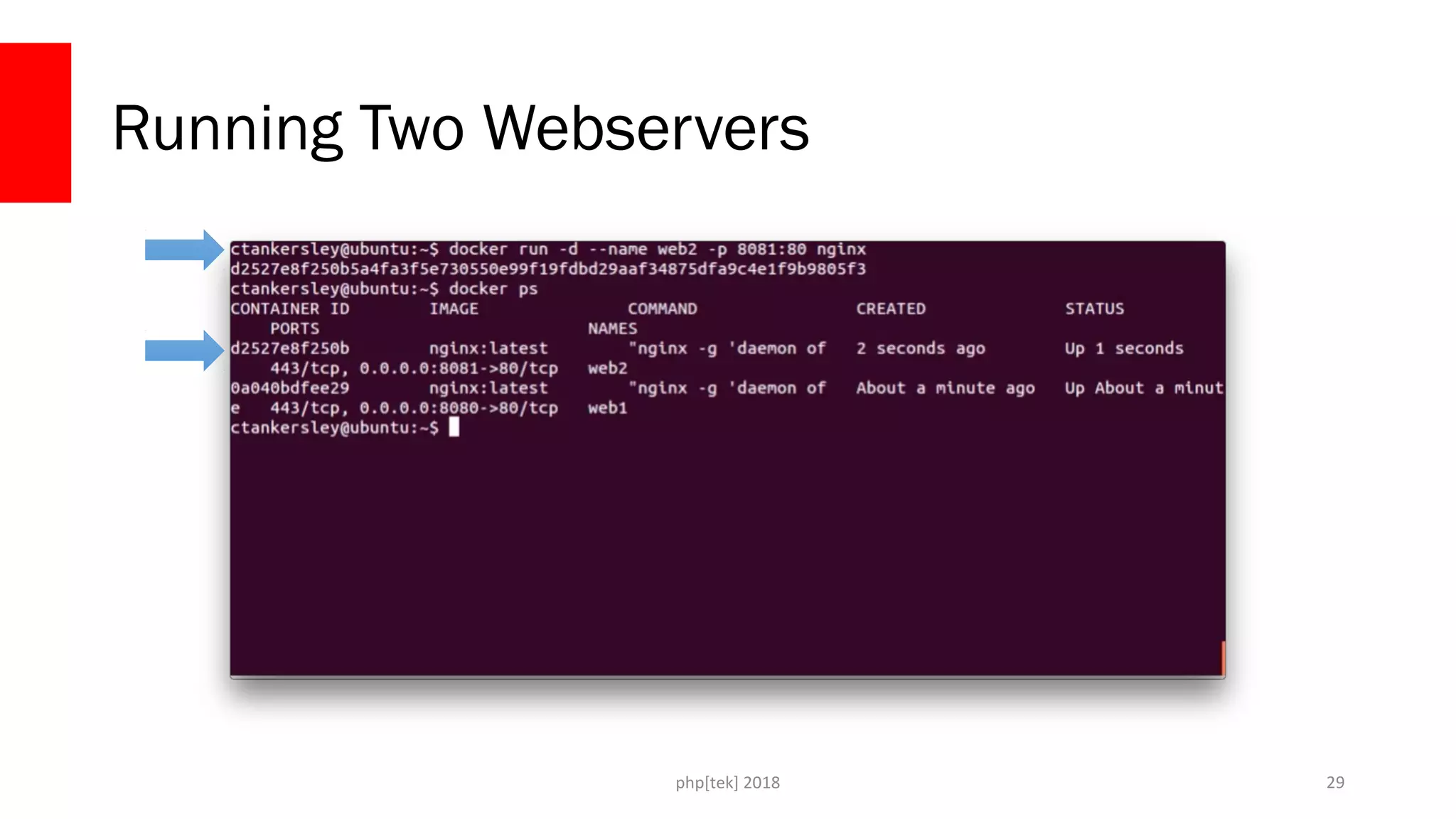

php[tek] 2018 Running Two Webservers 29
php[tek] 2018 Running Two Webservers 30

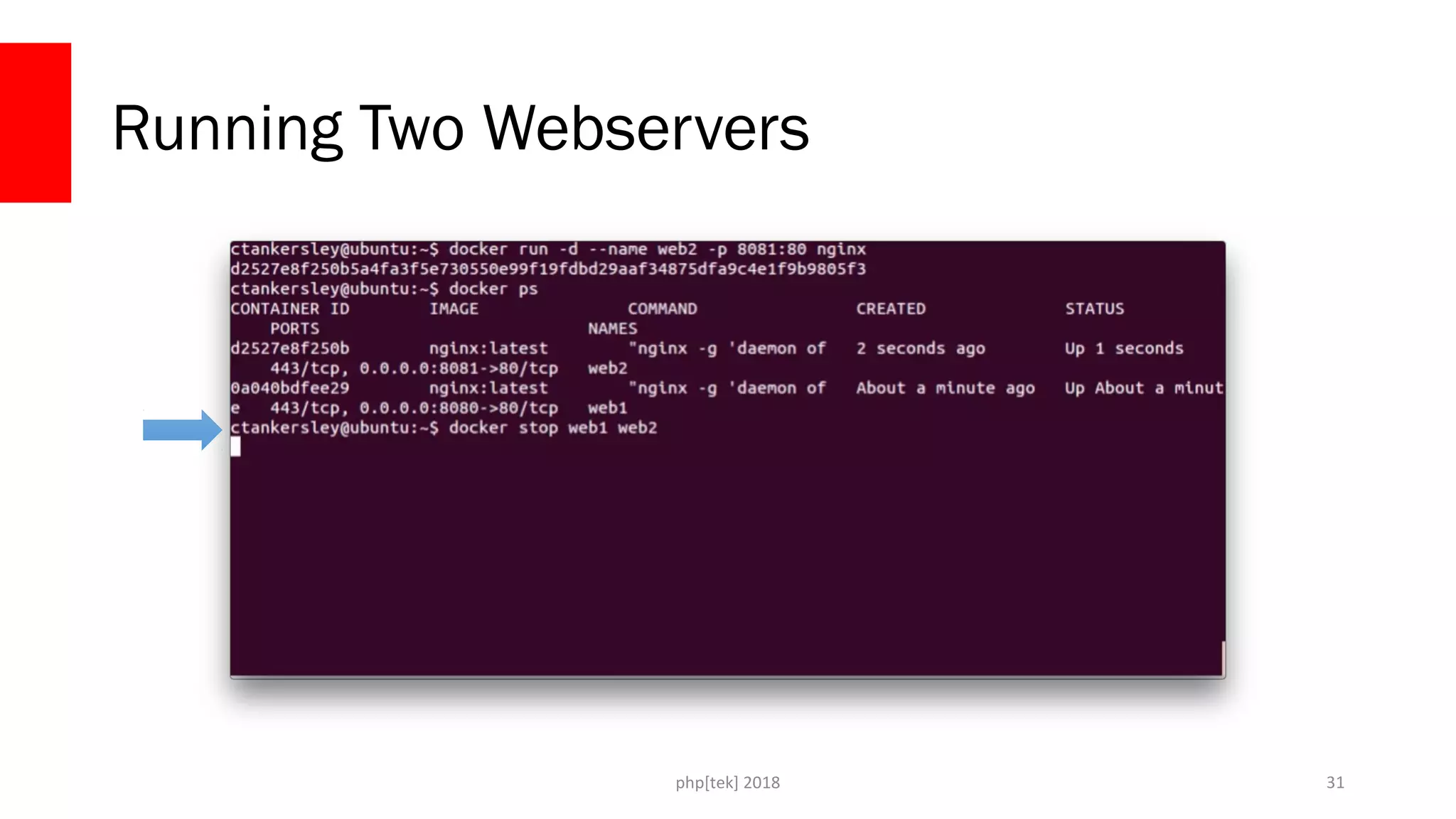

php[tek] 2018 Running Two Webservers 31

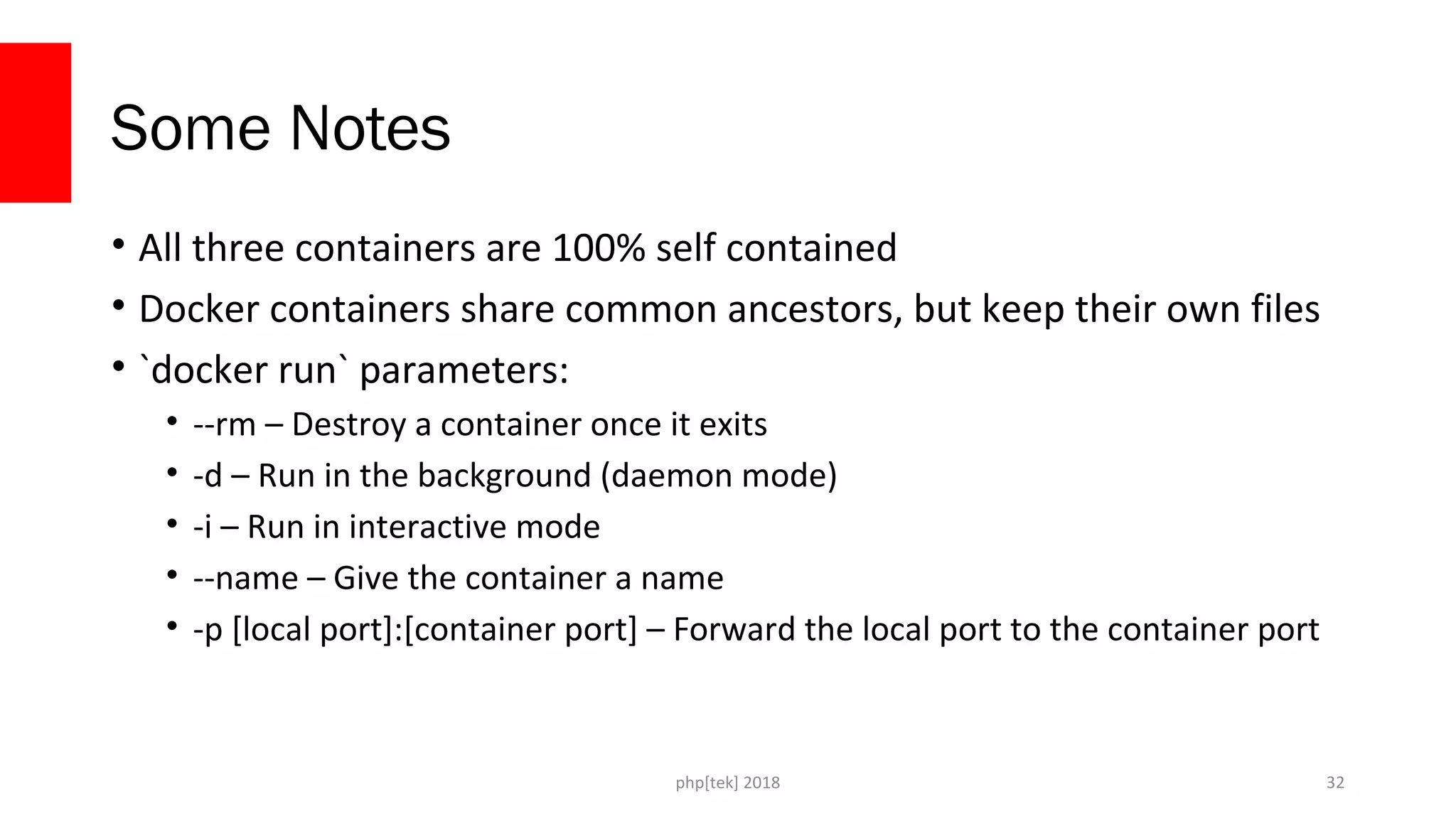

php[tek] 2018 Some Notes ‱ All three containers are 100% self contained ‱ Docker containers share common ancestors, but keep their own files ‱ `docker run` parameters: ‱ --rm – Destroy a container once it exits ‱ -d – Run in the background (daemon mode) ‱ -i – Run in interactive mode ‱ --name – Give the container a name ‱ -p [local port]:[container port] – Forward the local port to the container port 32

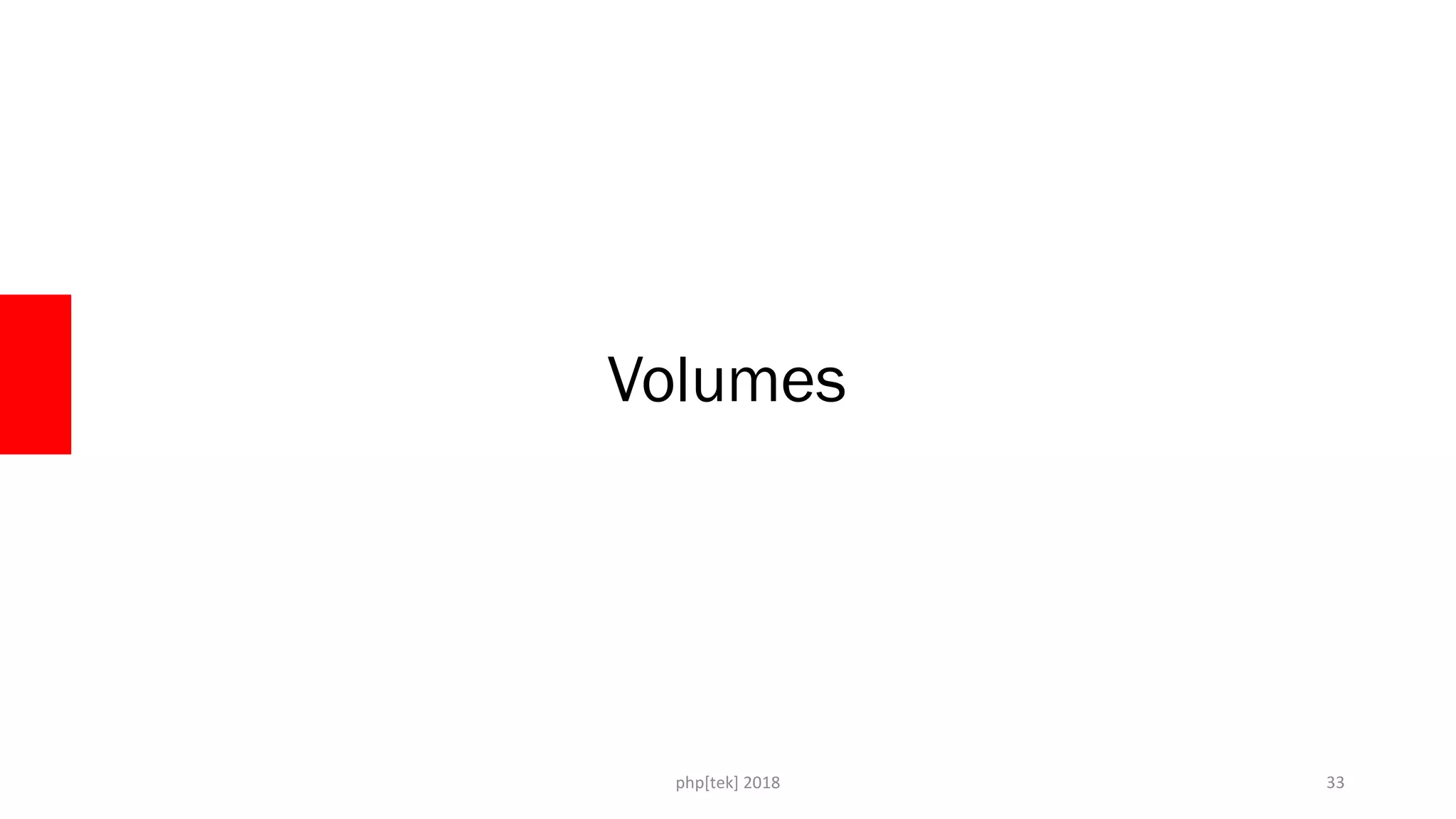

php[tek] 2018 Volumes 33

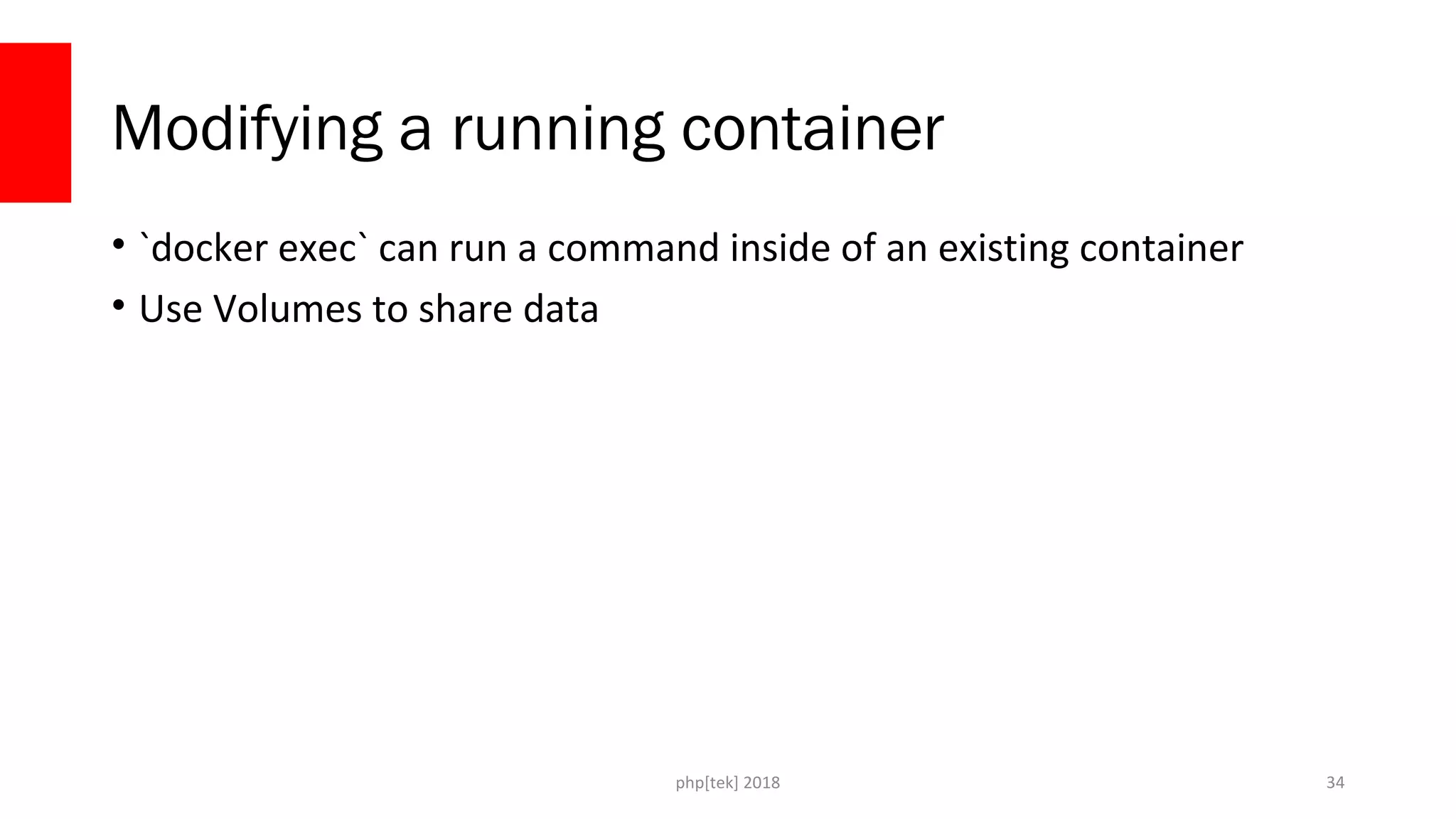

php[tek] 2018 Modifying a running container ‱ `docker exec` can run a command inside of an existing container ‱ Use Volumes to share data 34

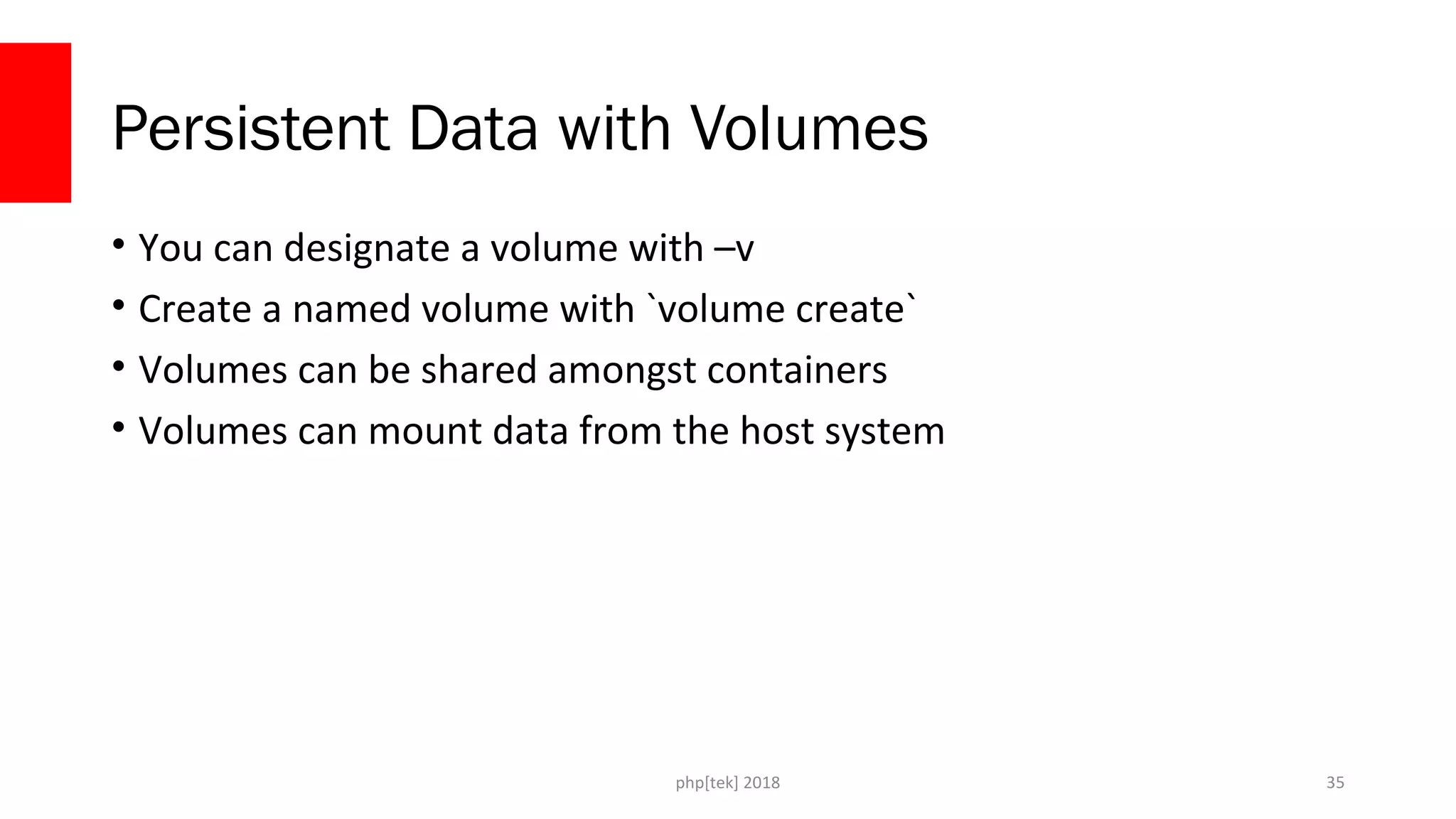

php[tek] 2018 Persistent Data with Volumes ‱ You can designate a volume with –v ‱ Create a named volume with `volume create` ‱ Volumes can be shared amongst containers ‱ Volumes can mount data from the host system 35

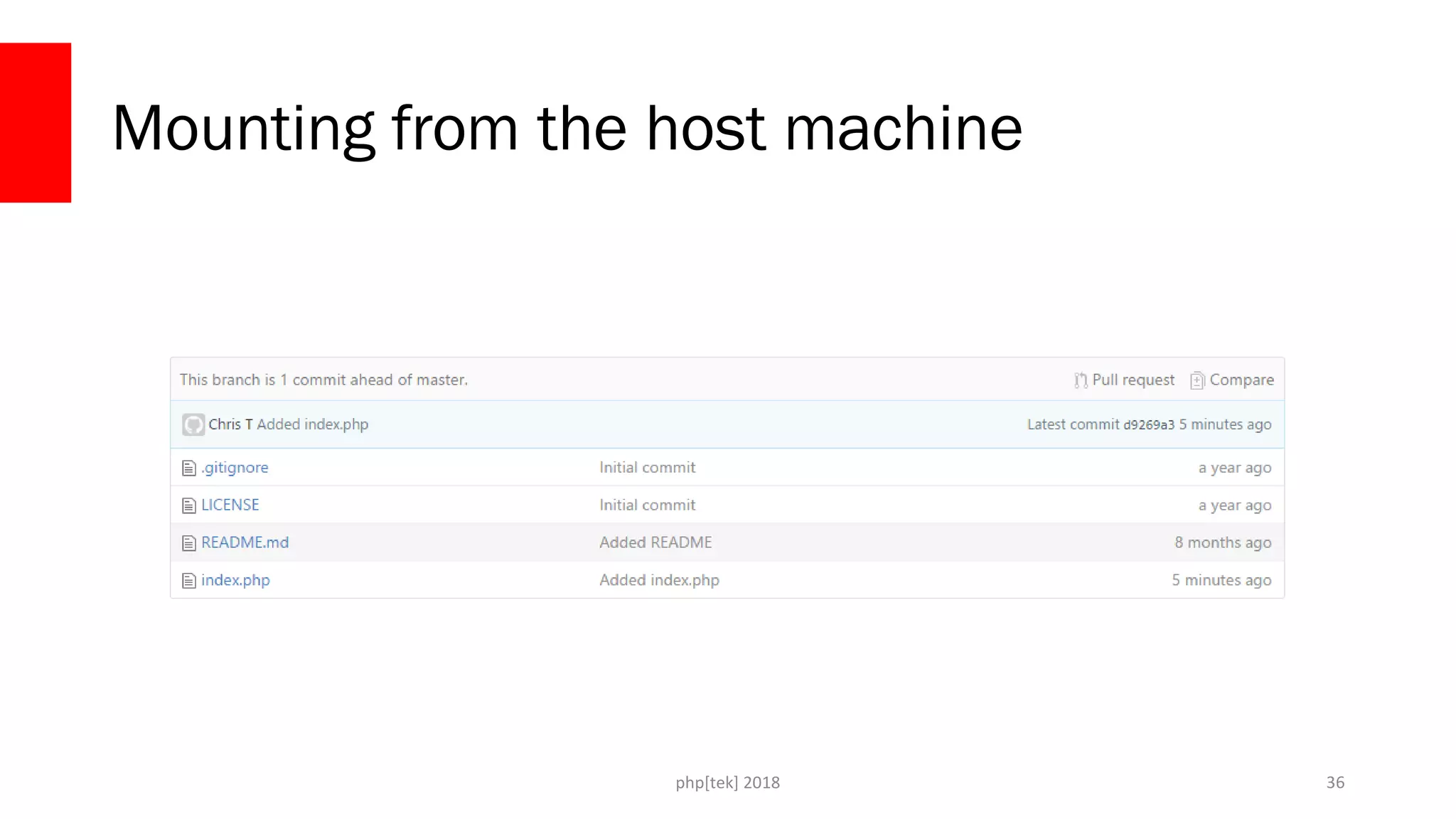

php[tek] 2018 Mounting from the host machine 36

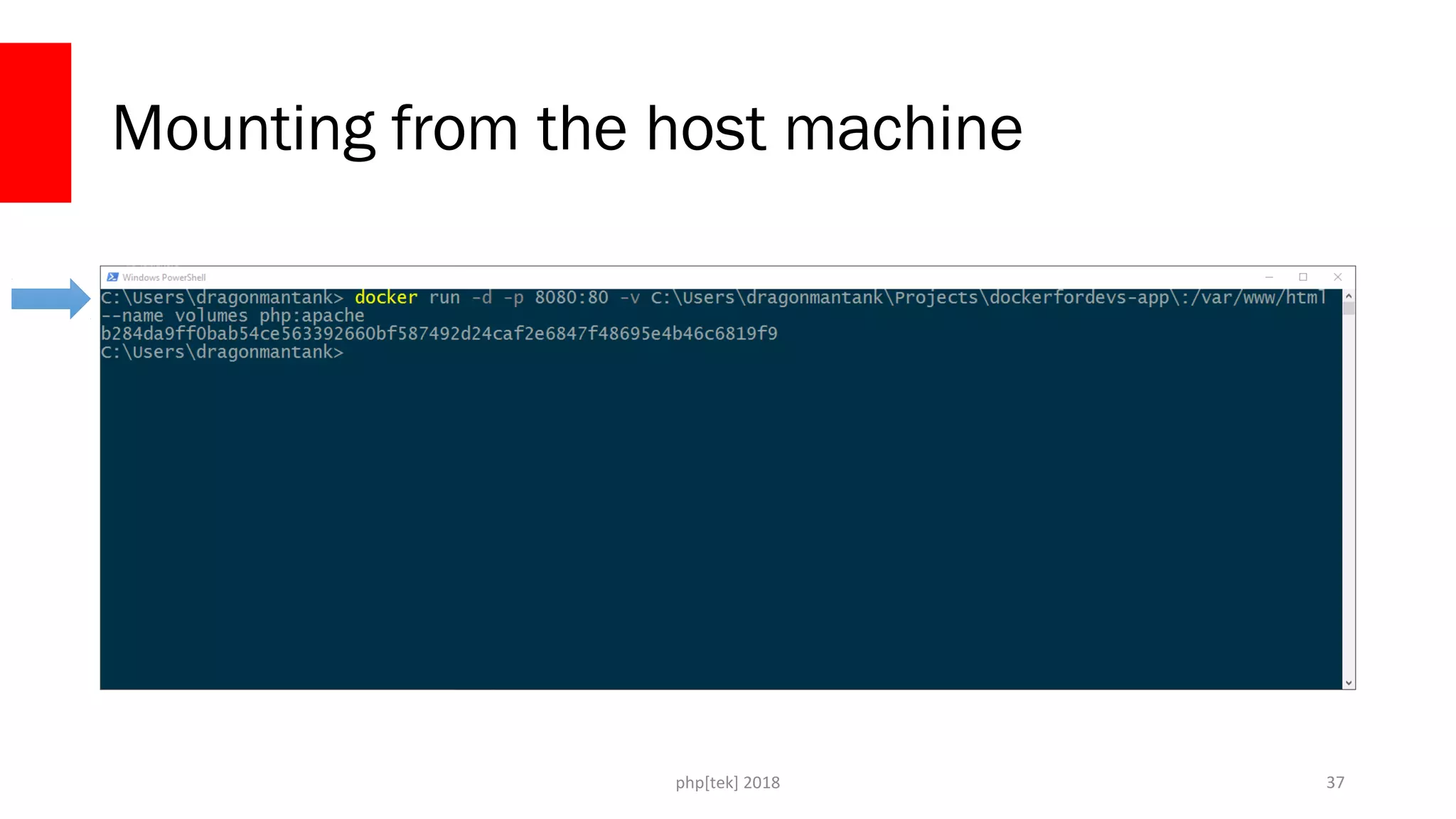

php[tek] 2018 Mounting from the host machine 37

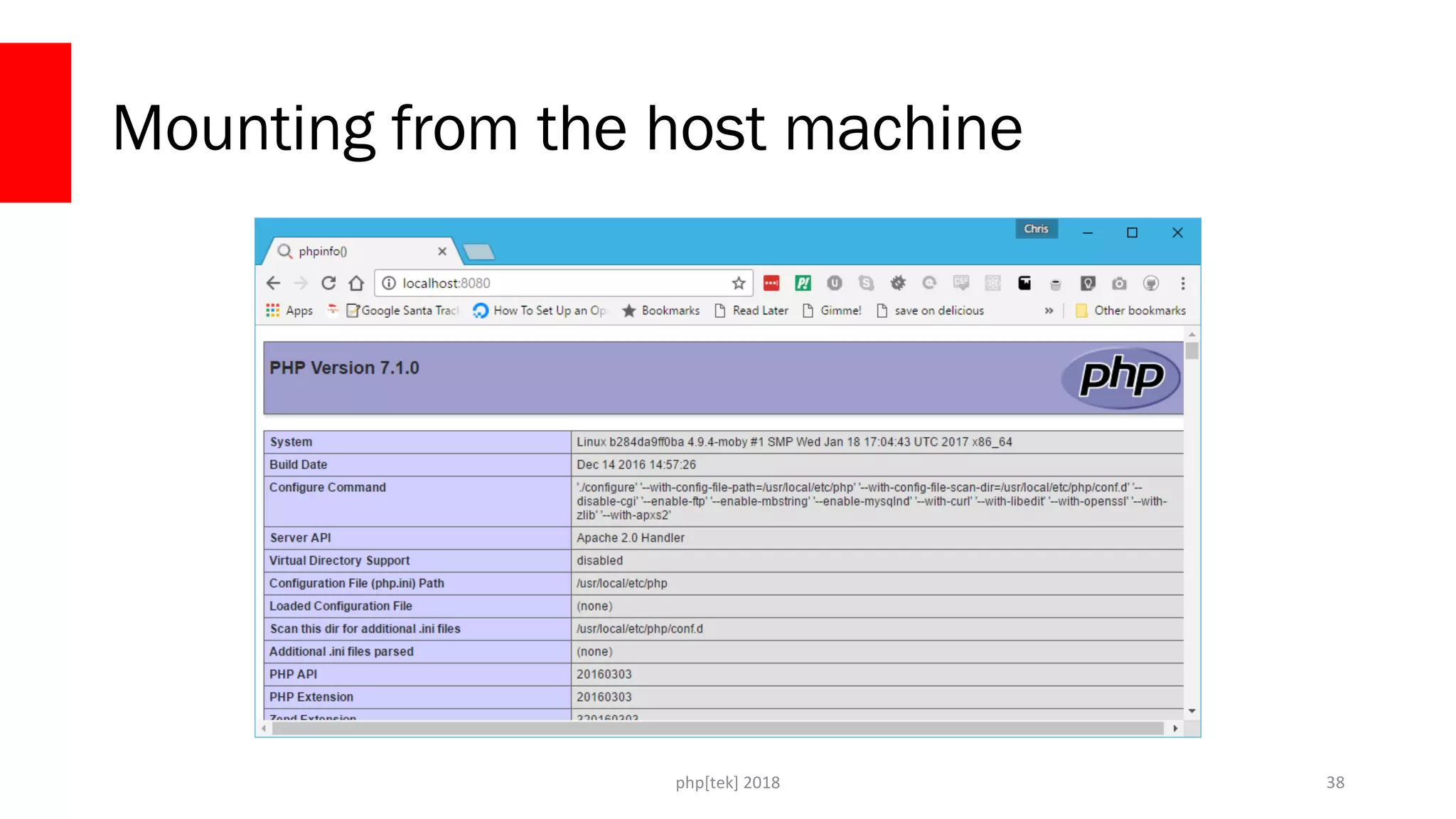

php[tek] 2018 Mounting from the host machine 38

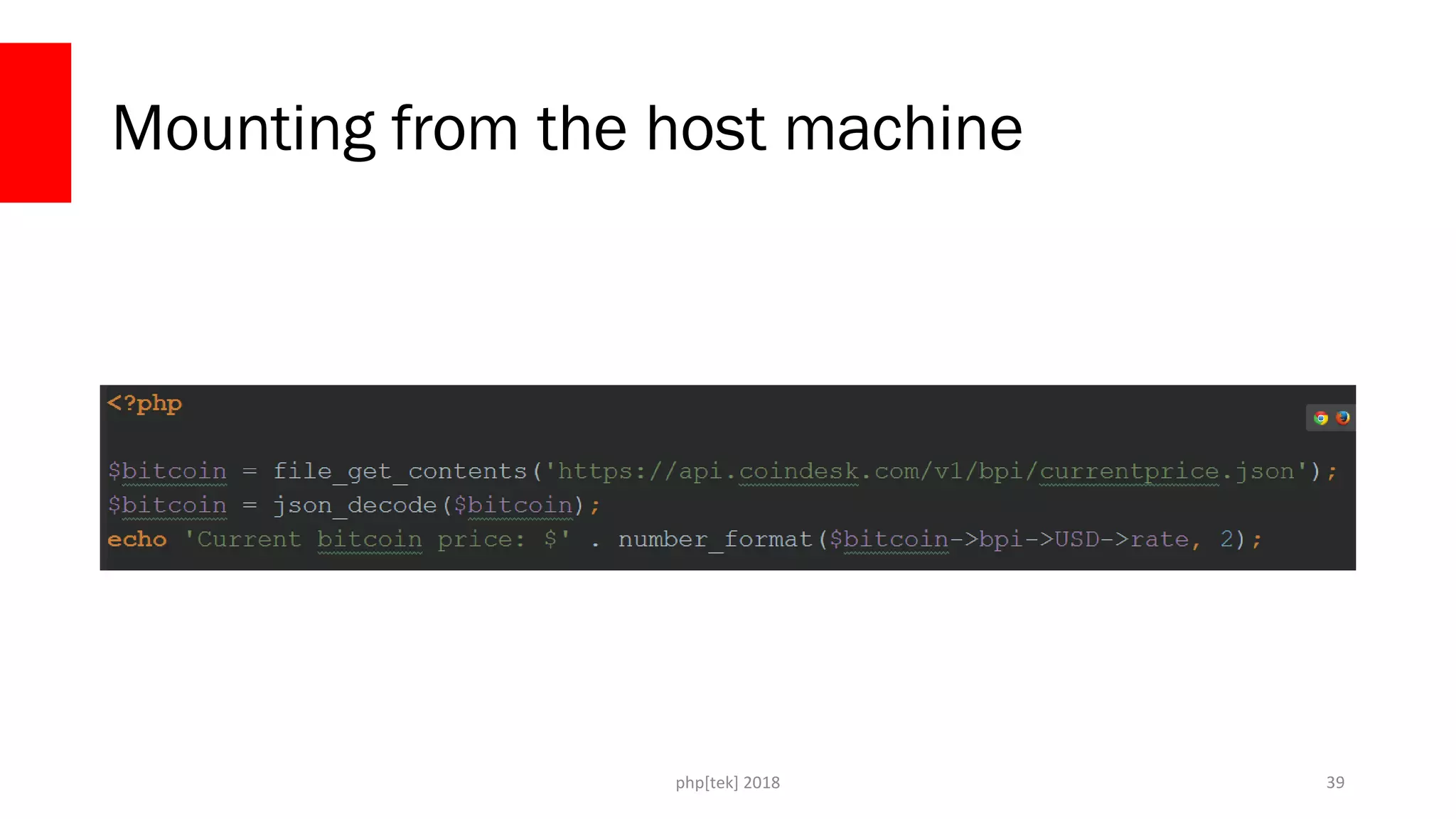

php[tek] 2018 Mounting from the host machine 39

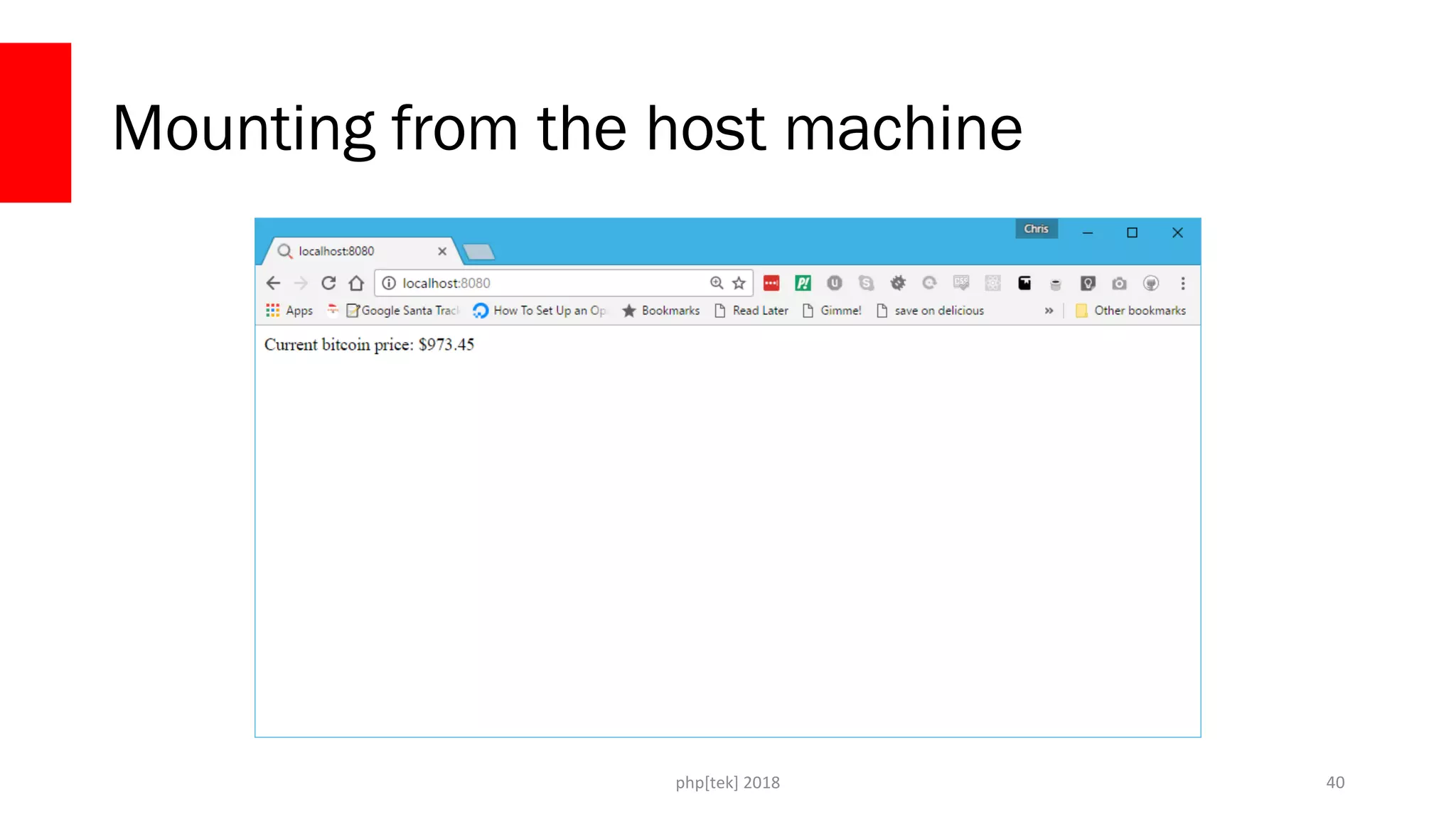

php[tek] 2018 Mounting from the host machine 40

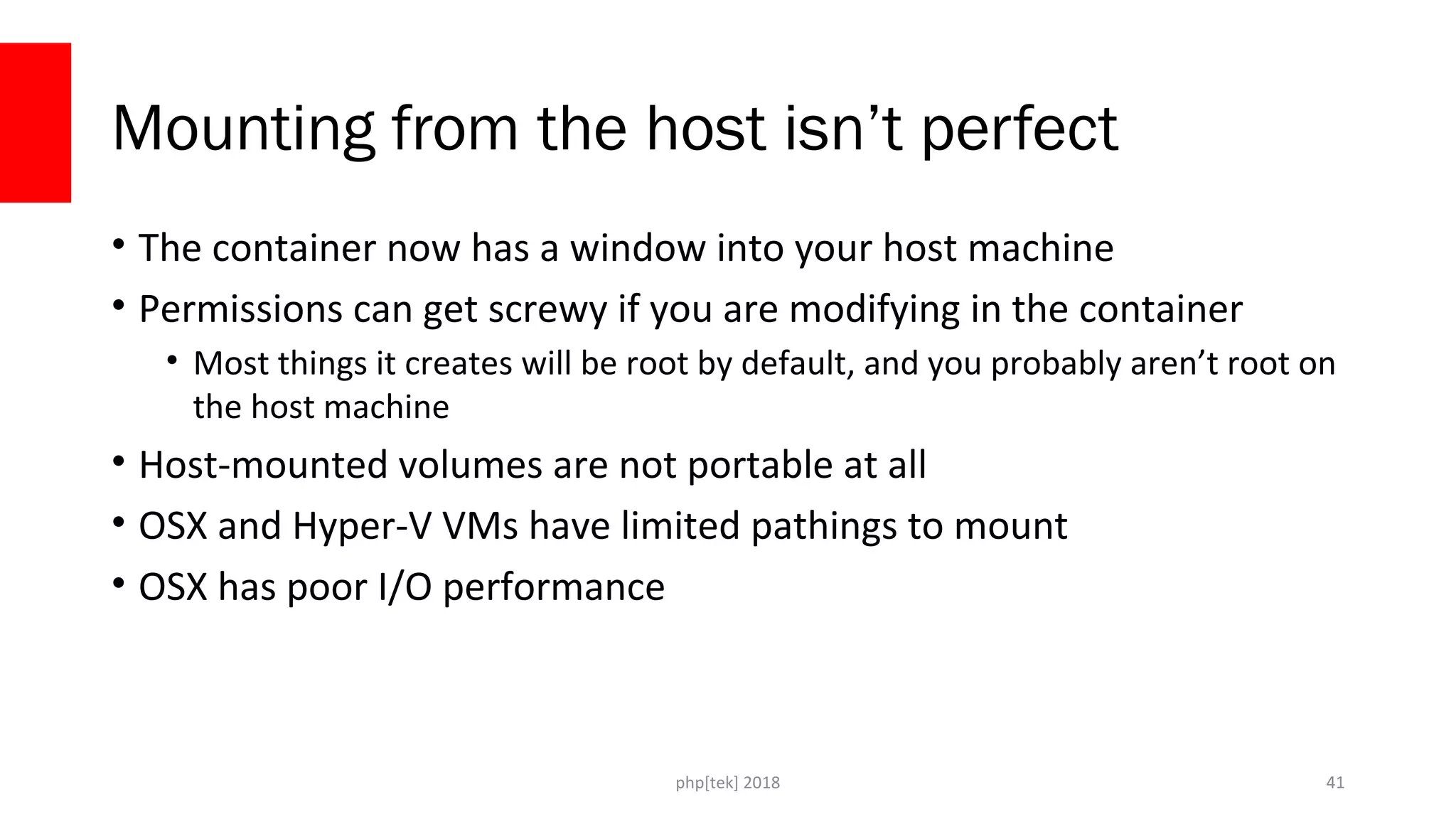

php[tek] 2018 Mounting from the host isn’t perfect ‱ The container now has a window into your host machine ‱ Permissions can get screwy if you are modifying in the container ‱ Most things it creates will be root by default, and you probably aren’t root on the host machine ‱ Host-mounted volumes are not portable at all ‱ OSX and Hyper-V VMs have limited pathings to mount ‱ OSX has poor I/O performance 41
php[tek] 2018 Named Data Volumes ‱ Creates a space that becomes persistent ‱ Can be mounted anywhere inside your images ‱ Have our app containers use the data volume to store data ‱ Use ‘editor containers’ to go in and modify data when needed 42

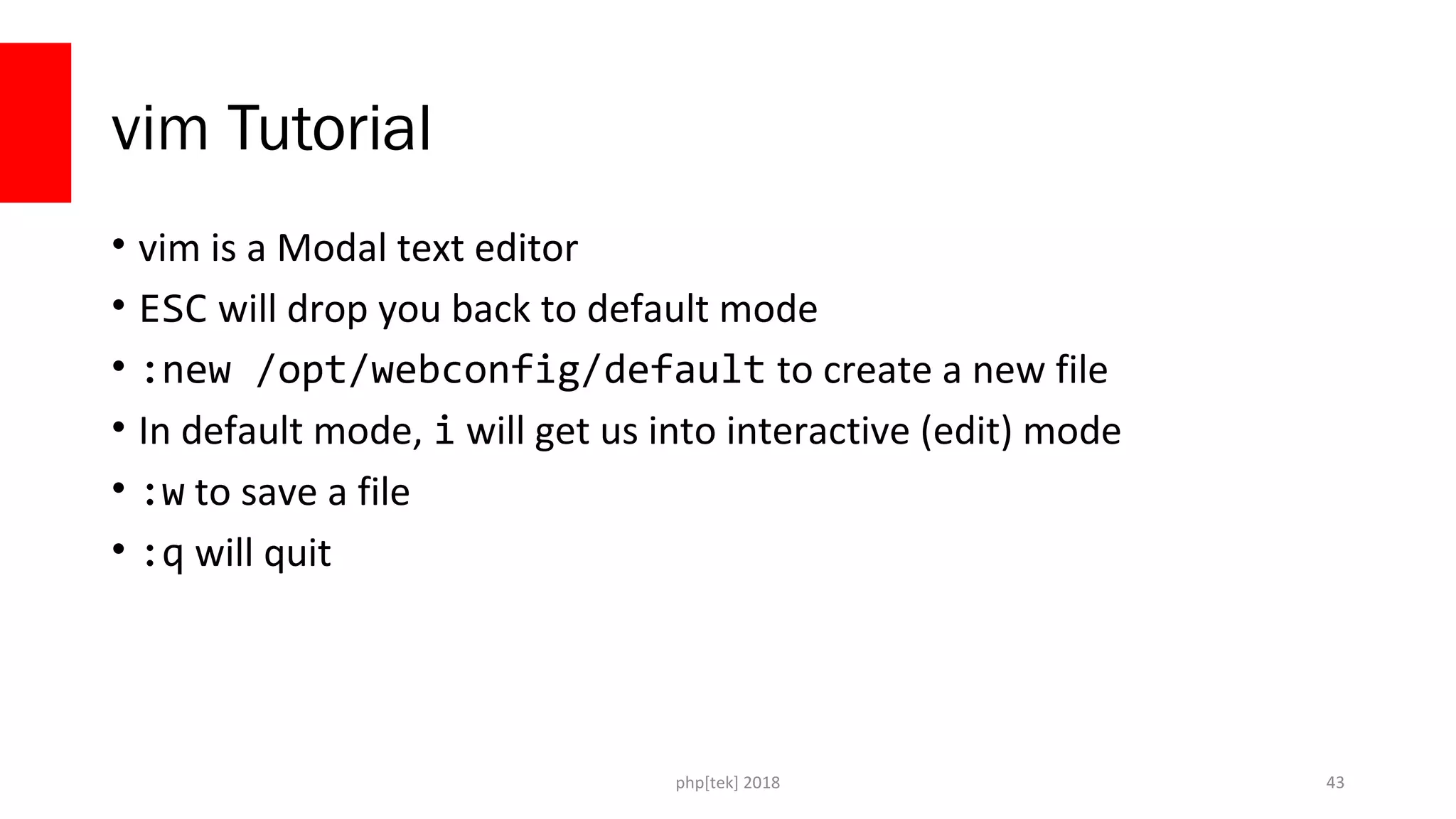

php[tek] 2018 vim Tutorial ‱ vim is a Modal text editor ‱ ESC will drop you back to default mode ‱ :new /opt/webconfig/default to create a new file ‱ In default mode, i will get us into interactive (edit) mode ‱ :w to save a file ‱ :q will quit 43

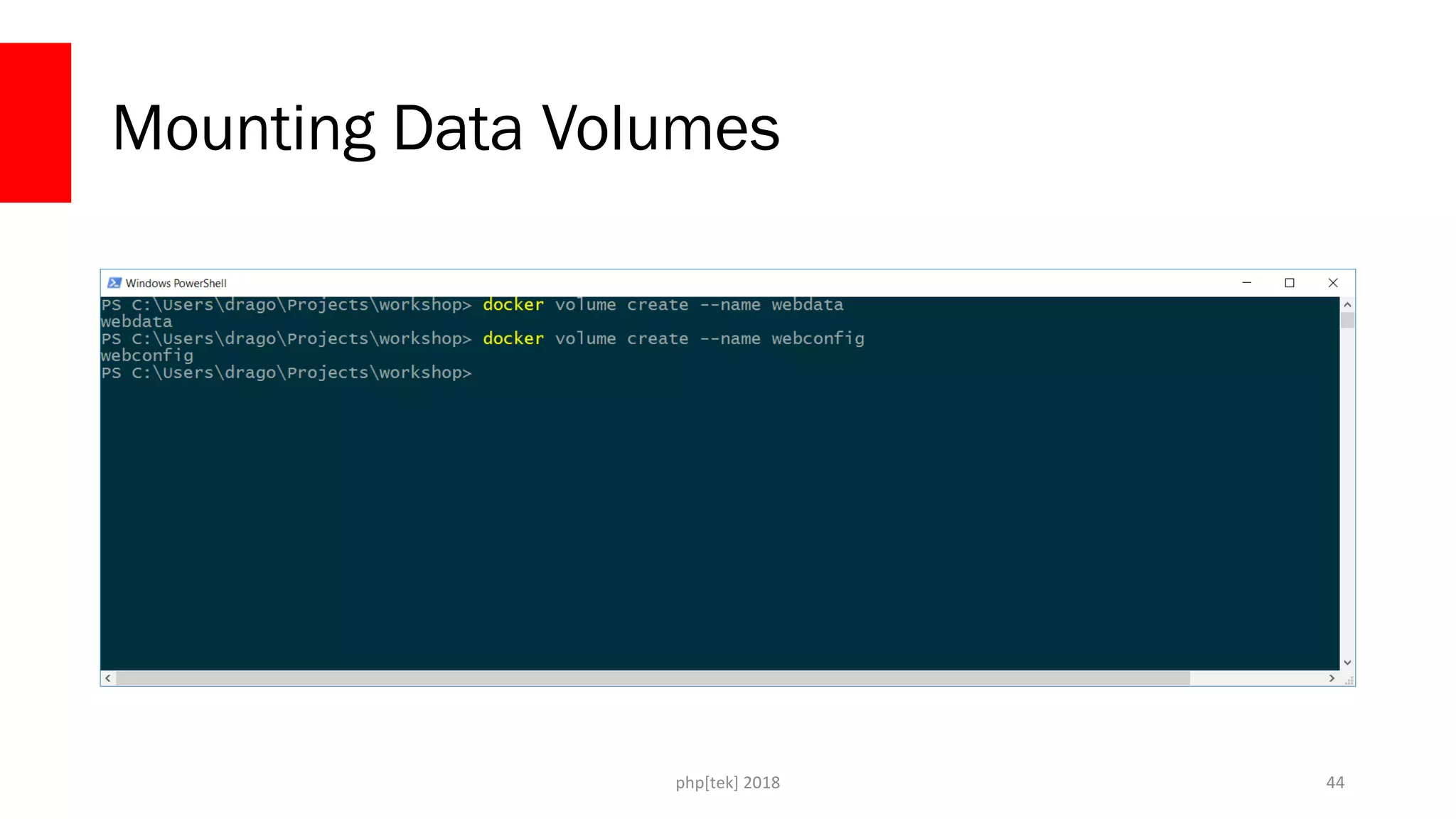

php[tek] 2018 Mounting Data Volumes 44

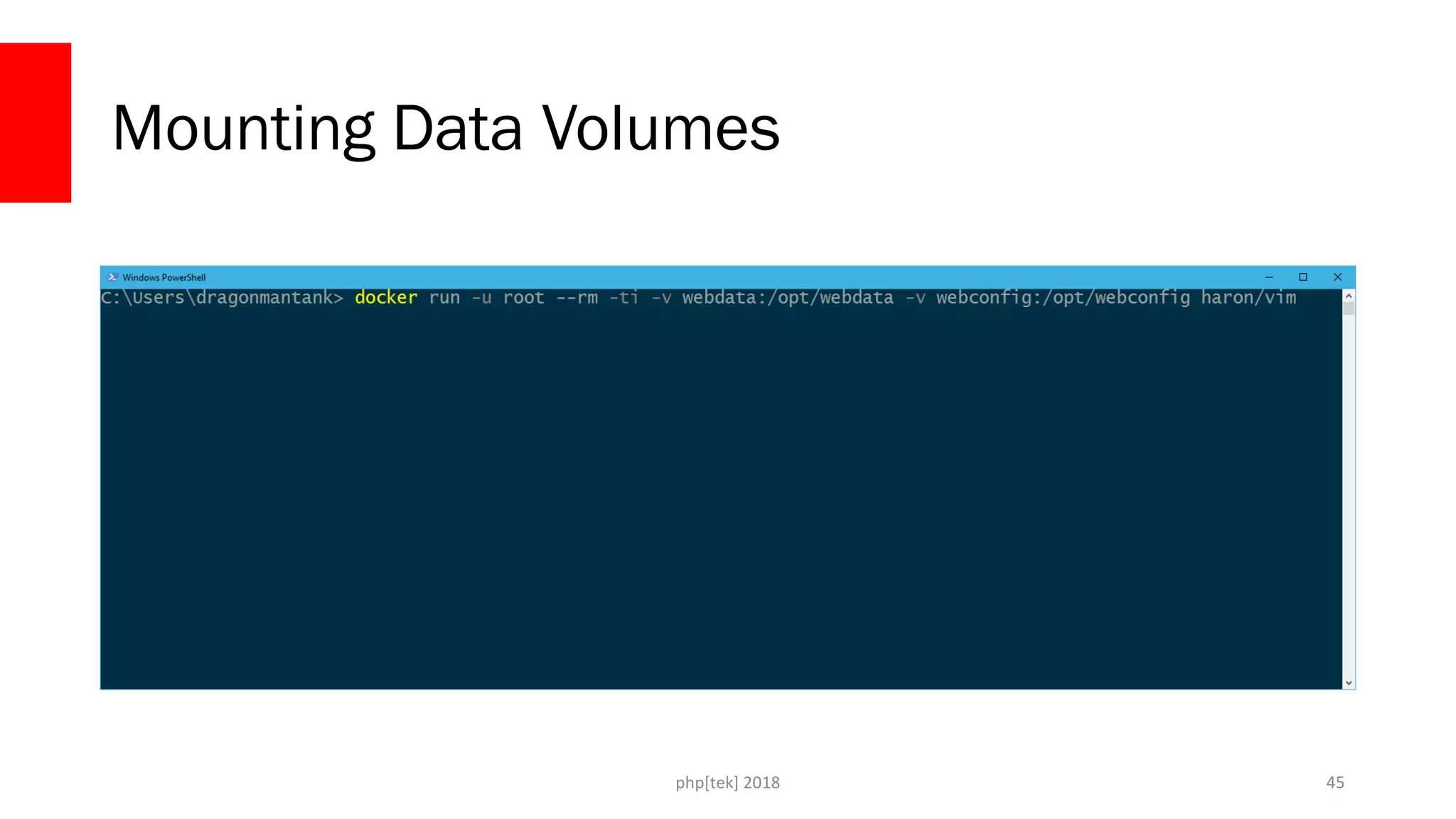

php[tek] 2018 Mounting Data Volumes 45

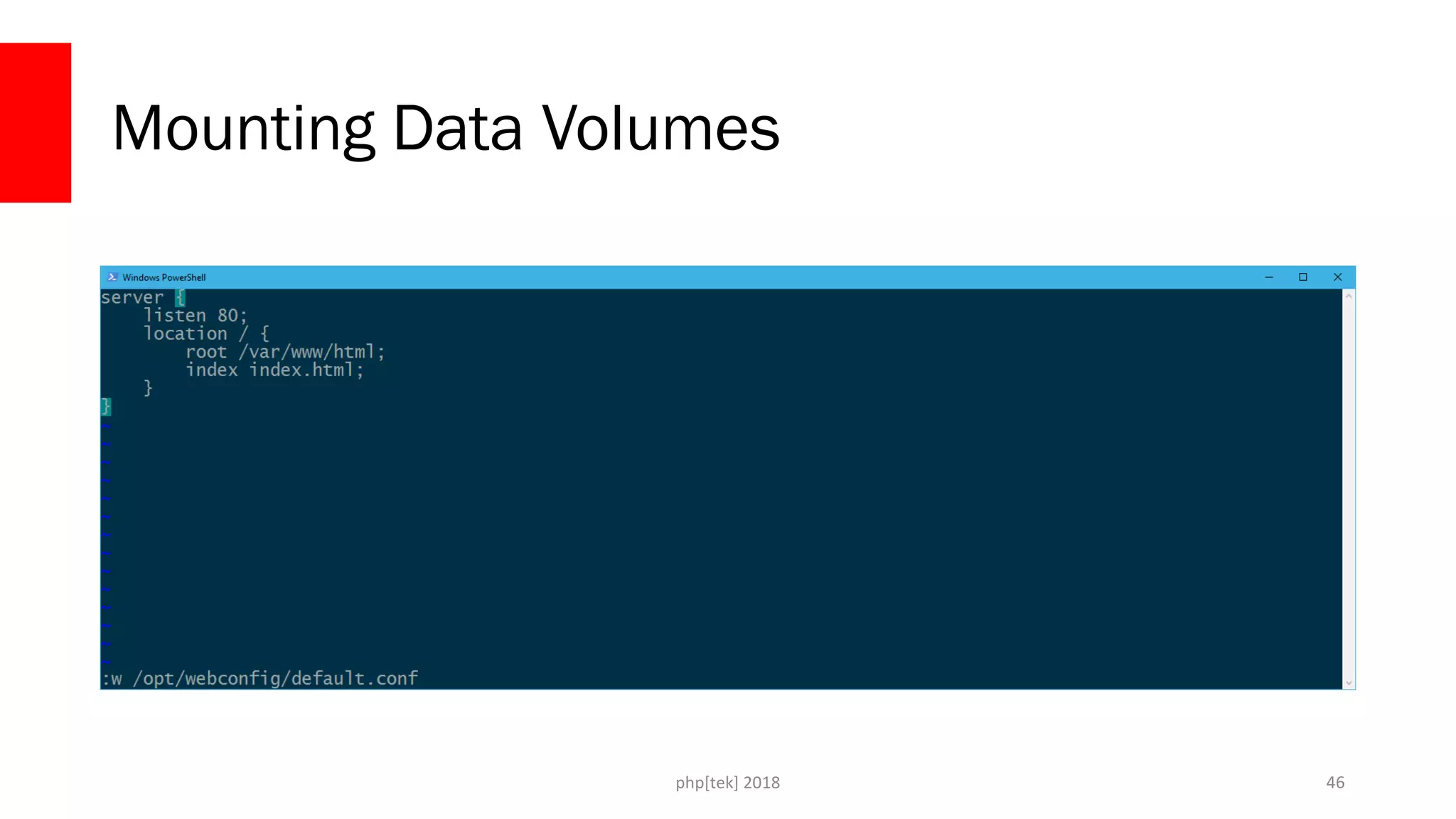

php[tek] 2018 Mounting Data Volumes 46

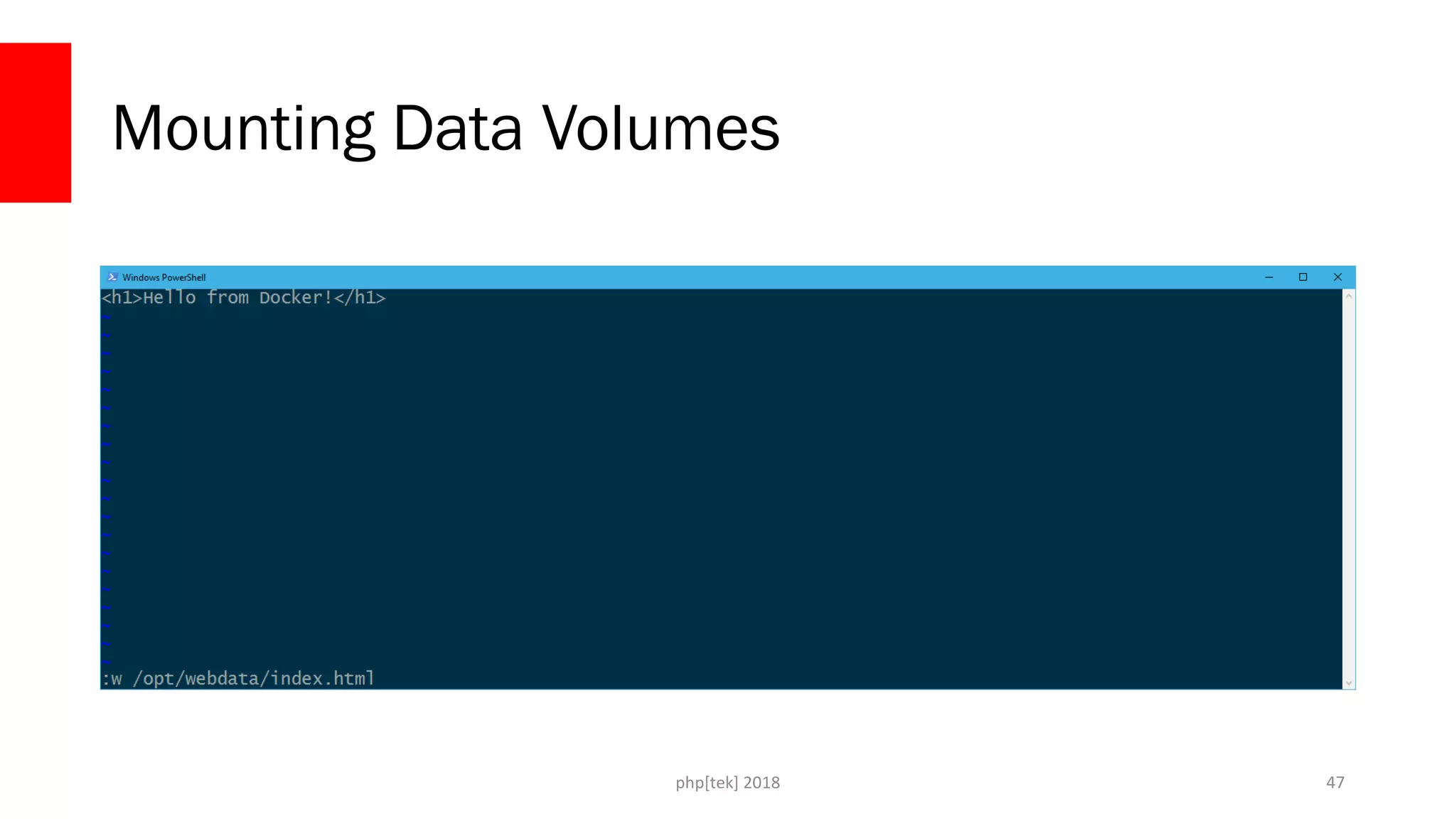

php[tek] 2018 Mounting Data Volumes 47

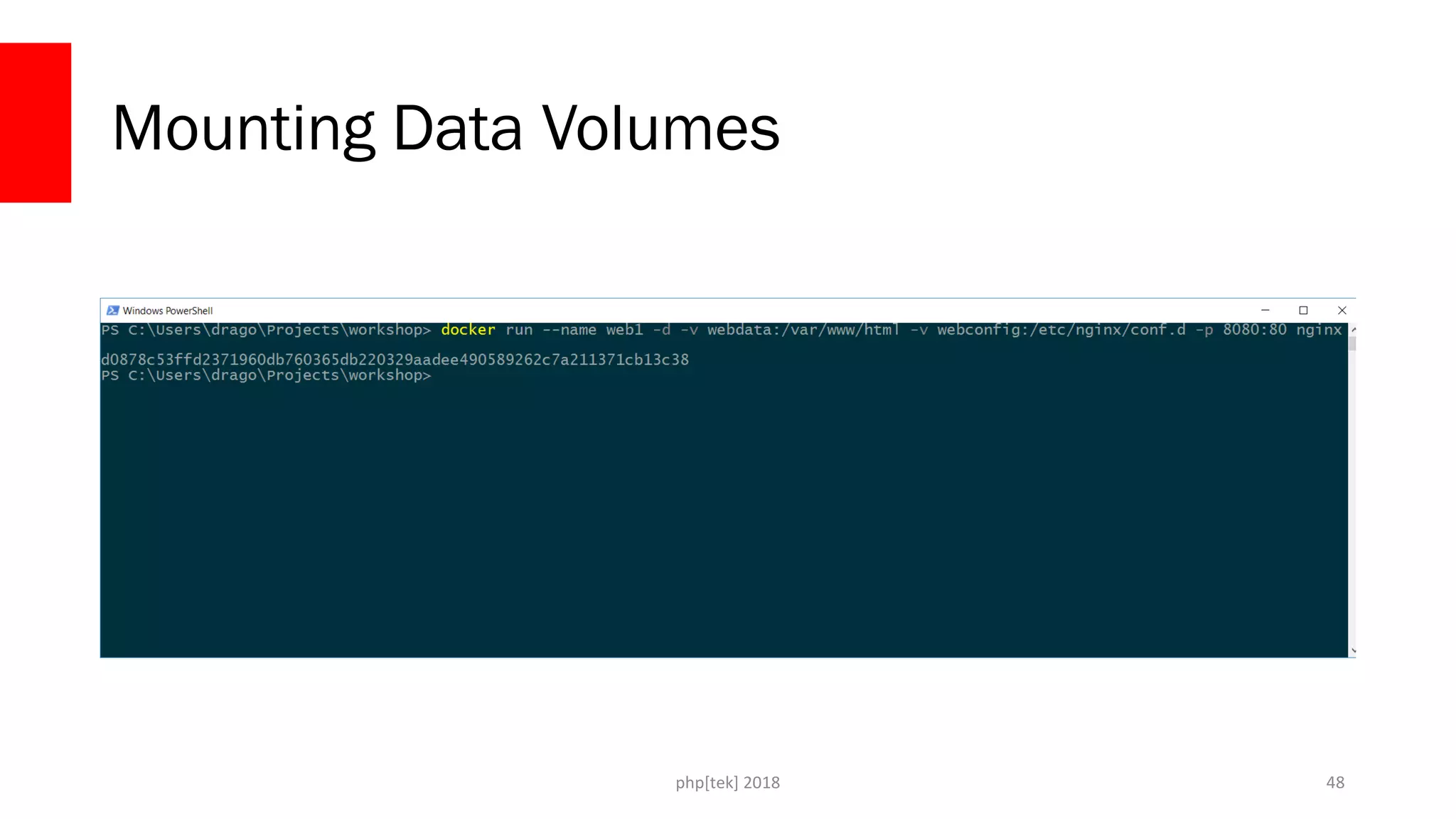

php[tek] 2018 Mounting Data Volumes 48

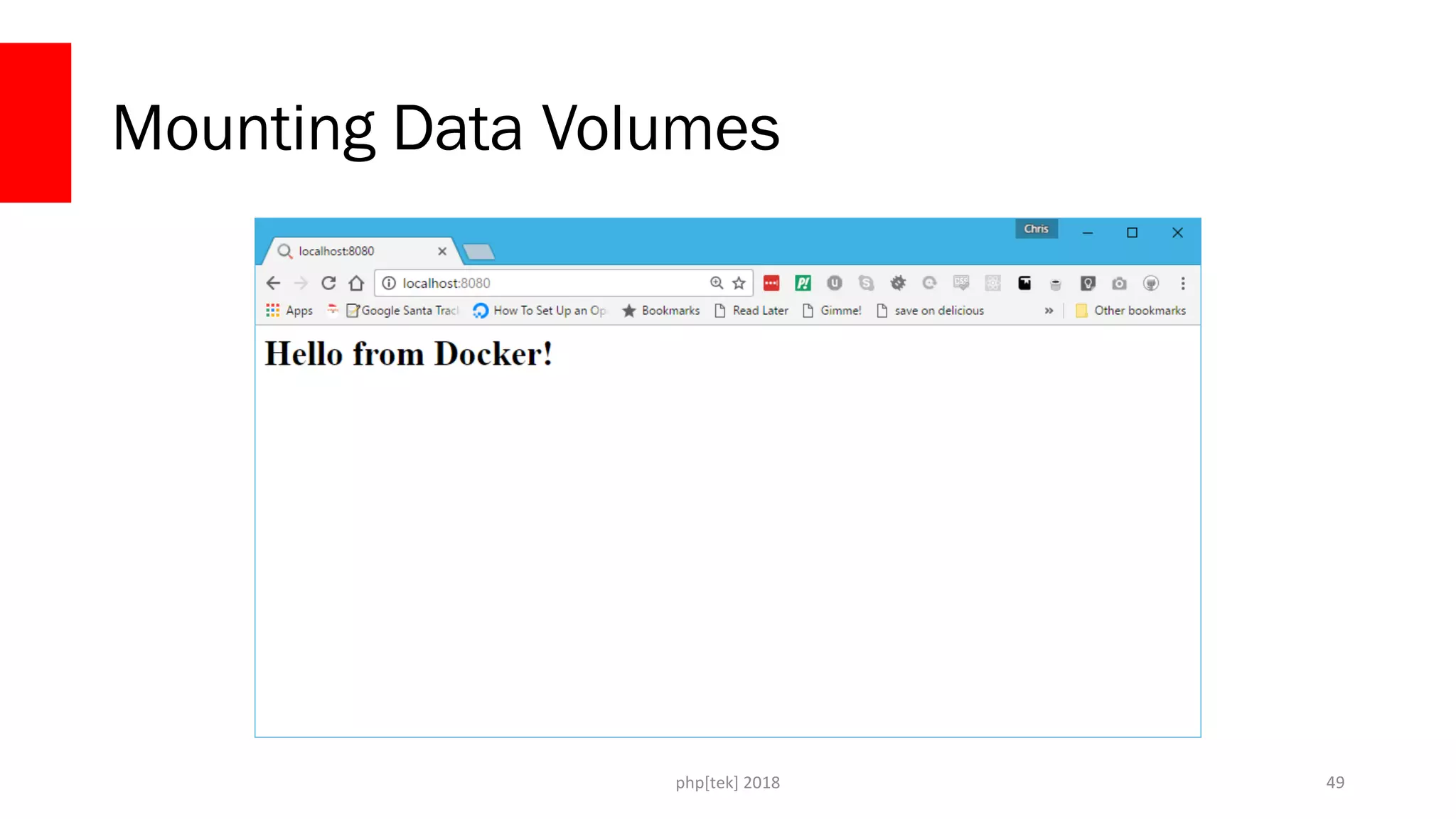

php[tek] 2018 Mounting Data Volumes 49

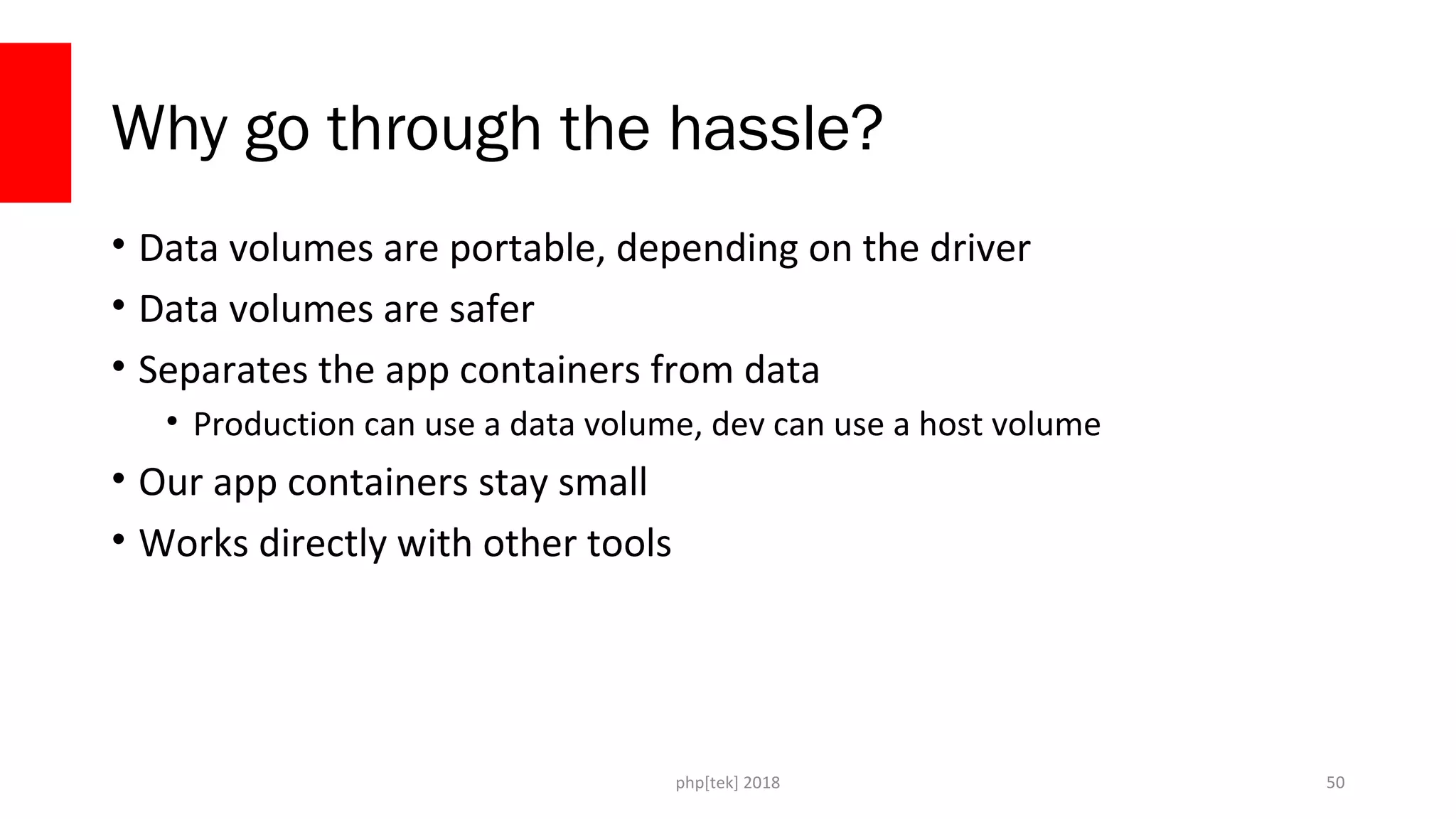

php[tek] 2018 Why go through the hassle? ‱ Data volumes are portable, depending on the driver ‱ Data volumes are safer ‱ Separates the app containers from data ‱ Production can use a data volume, dev can use a host volume ‱ Our app containers stay small ‱ Works directly with other tools 50
php[tek] 2018 Networking 51
php[tek] 2018 Networking ‱ Docker can create multiple network “pools” ‱ Each container gets an IP address ‱ Containers can be attached to multiple networks ‱ Docker network allow service discovery inside networks 52

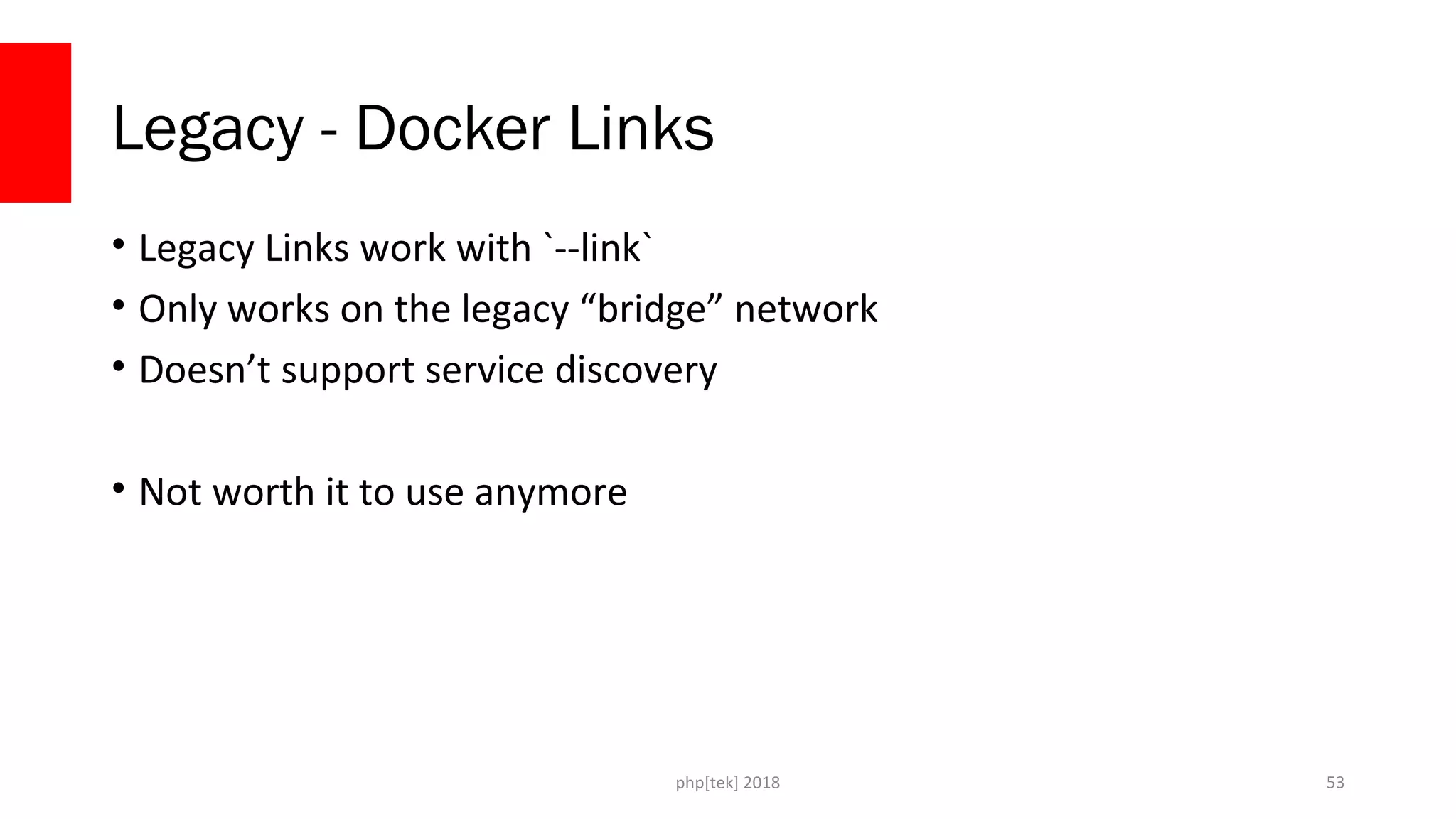

php[tek] 2018 Legacy - Docker Links ‱ Legacy Links work with `--link` ‱ Only works on the legacy “bridge” network ‱ Doesn’t support service discovery ‱ Not worth it to use anymore 53

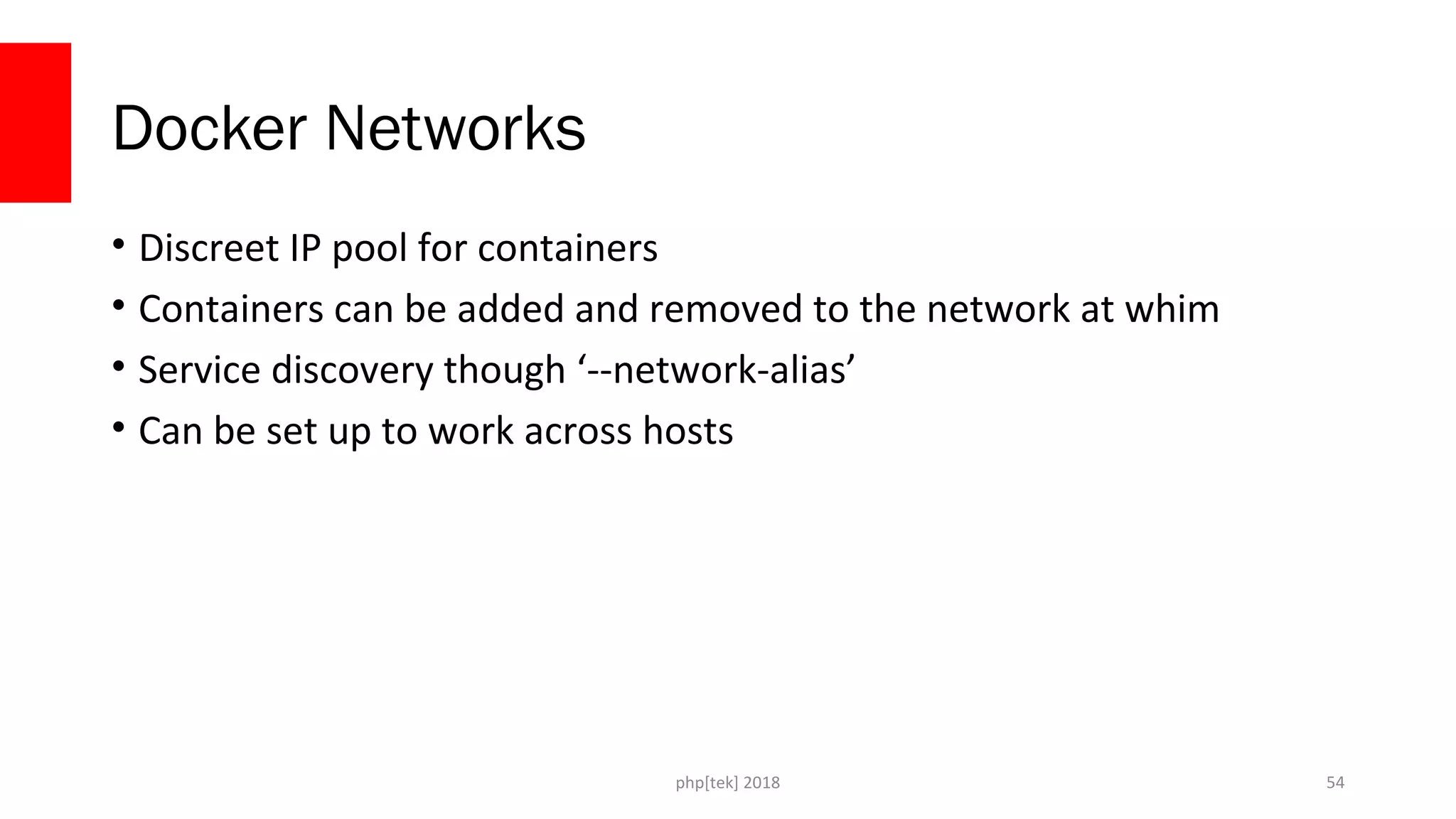

php[tek] 2018 Docker Networks ‱ Discreet IP pool for containers ‱ Containers can be added and removed to the network at whim ‱ Service discovery though ‘--network-alias’ ‱ Can be set up to work across hosts 54

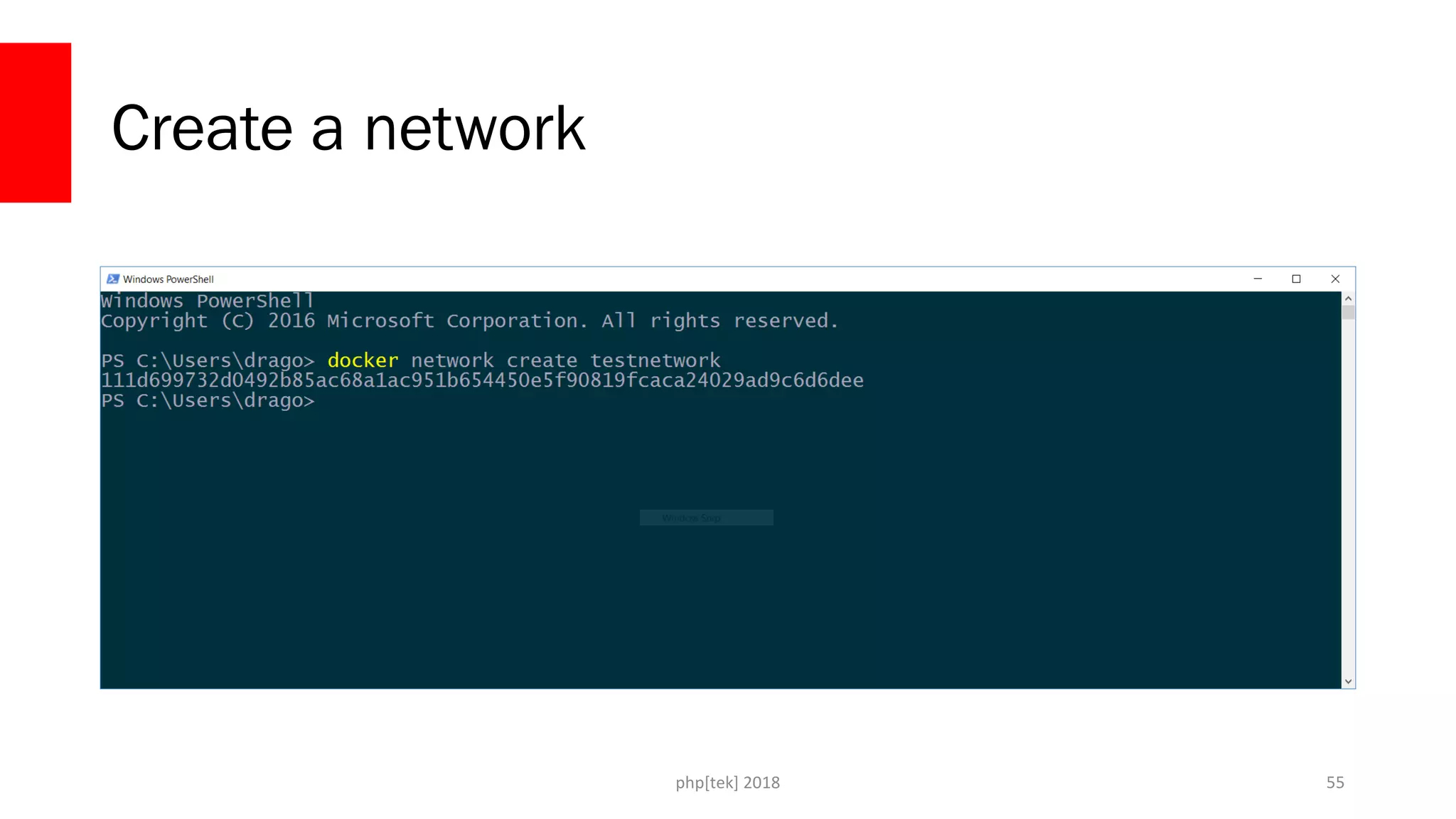

php[tek] 2018 Create a network 55

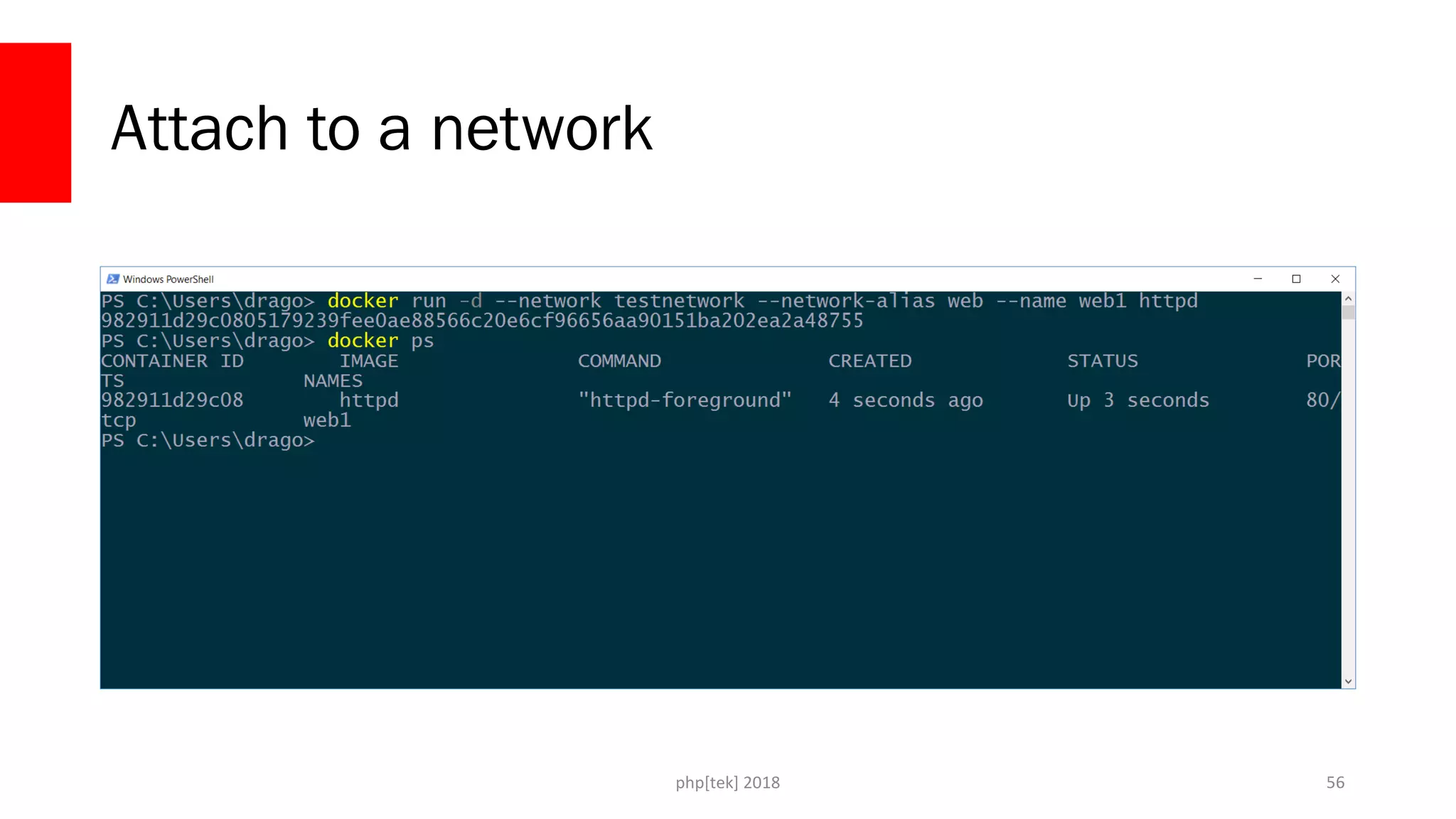

php[tek] 2018 Attach to a network 56

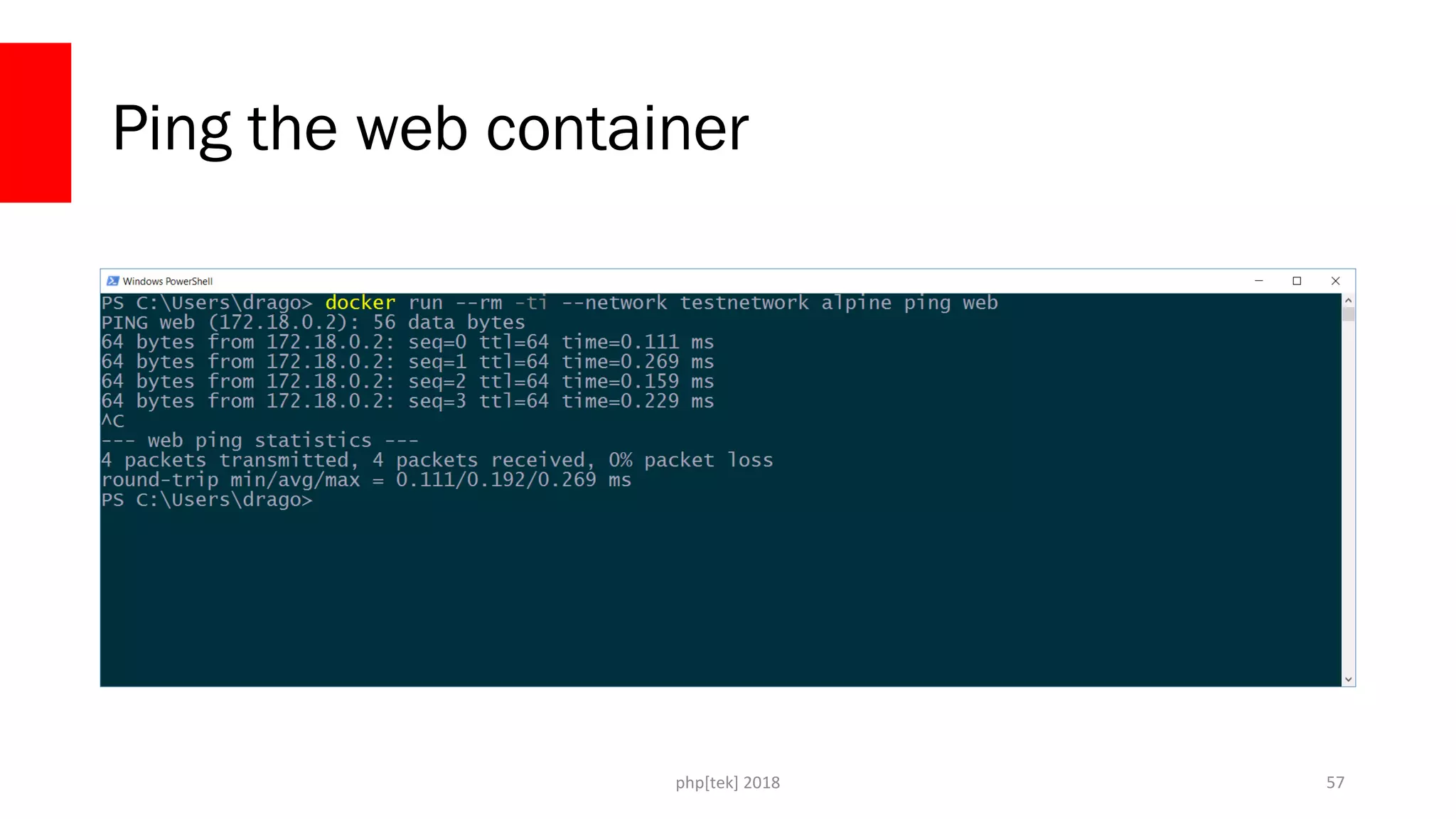

php[tek] 2018 Ping the web container 57

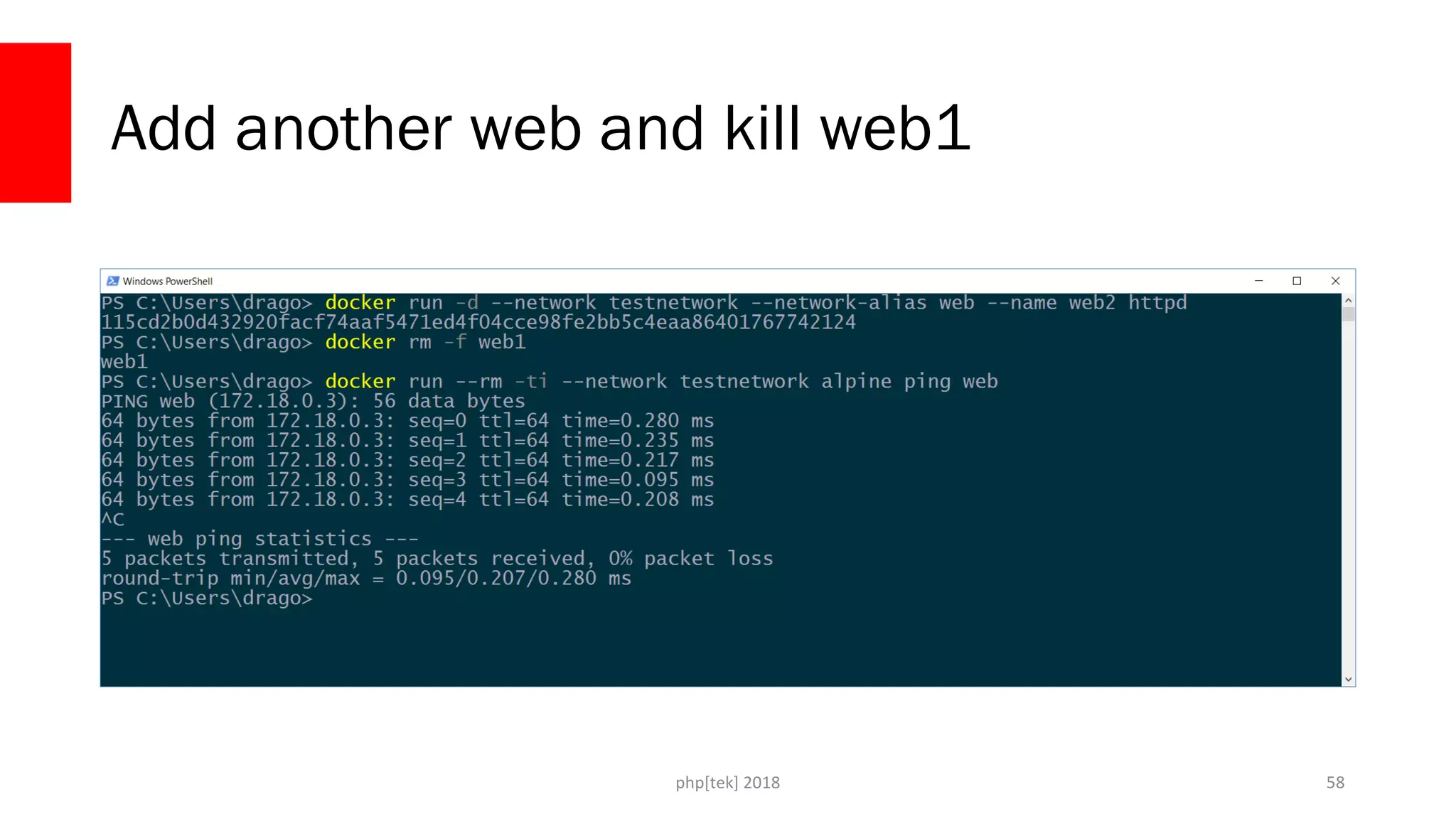

php[tek] 2018 Add another web and kill web1 58
php[tek] 2018 BREAK TIME! WOO! 59
php[tek] 2018 Other Helpful Commands 60

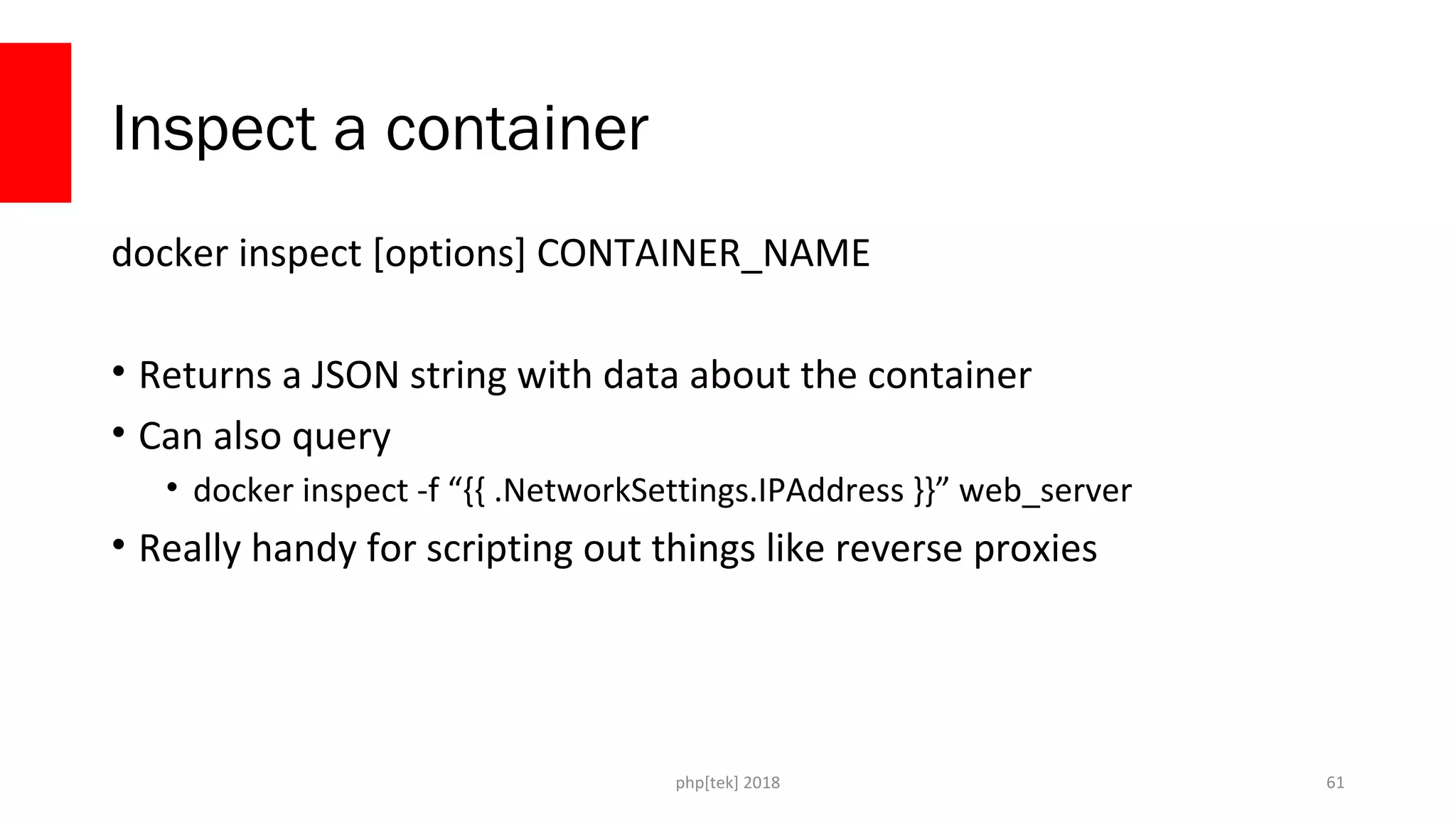

php[tek] 2018 Inspect a container docker inspect [options] CONTAINER_NAME ‱ Returns a JSON string with data about the container ‱ Can also query ‱ docker inspect -f “{{ .NetworkSettings.IPAddress }}” web_server ‱ Really handy for scripting out things like reverse proxies 61

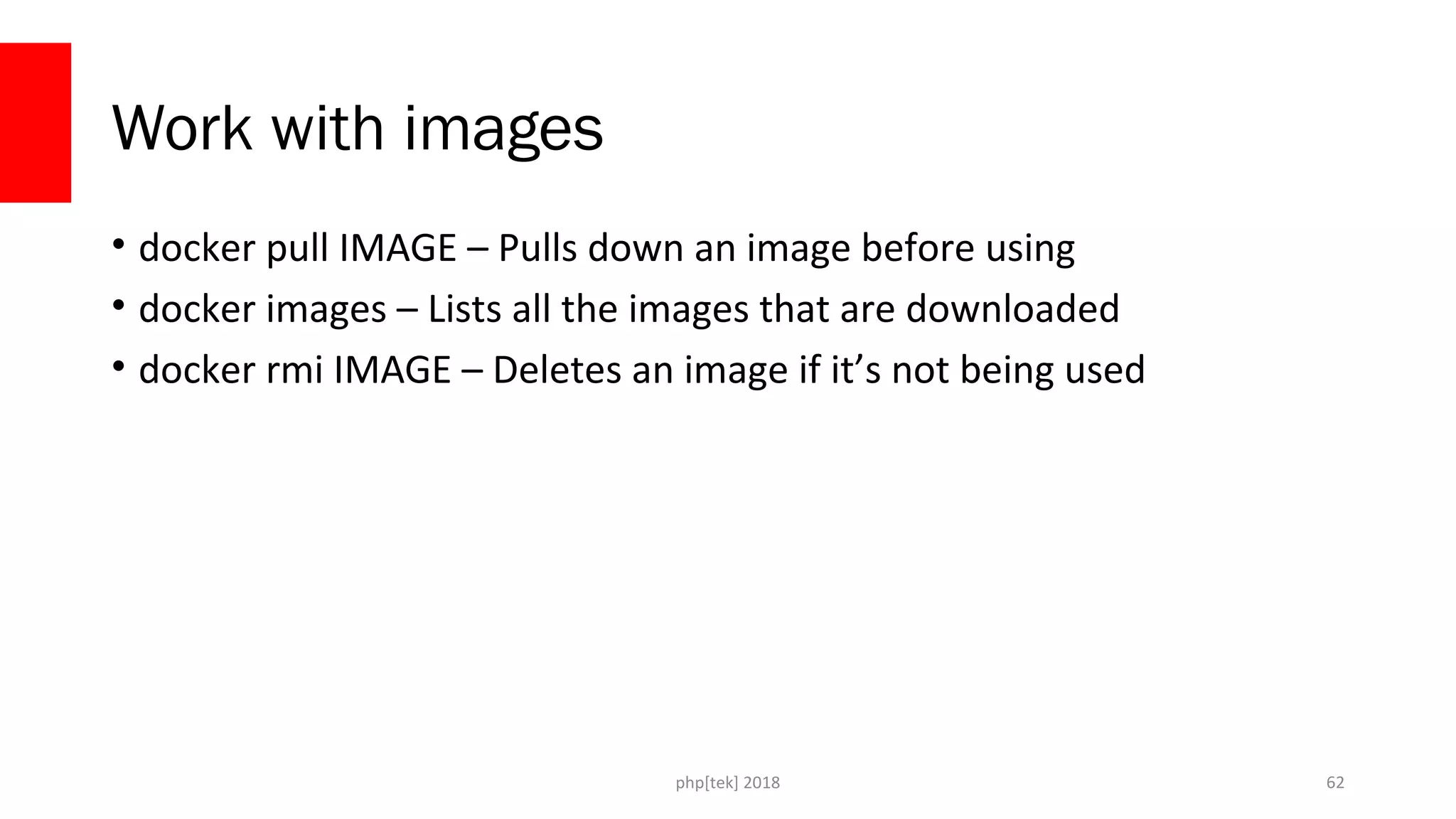

php[tek] 2018 Work with images ‱ docker pull IMAGE – Pulls down an image before using ‱ docker images – Lists all the images that are downloaded ‱ docker rmi IMAGE – Deletes an image if it’s not being used 62
php[tek] 2018 Containerizing An Application 63

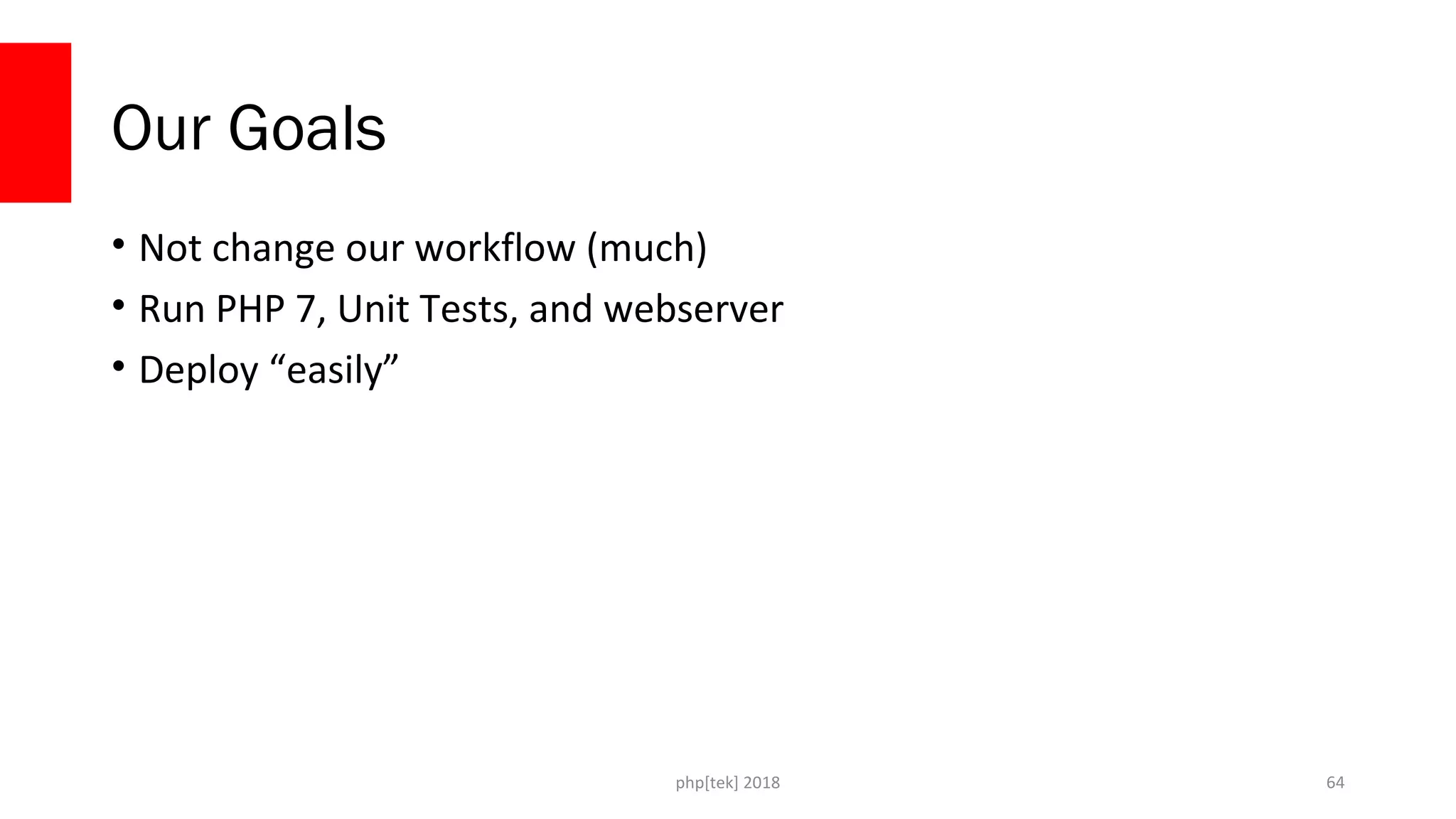

php[tek] 2018 Our Goals ‱ Not change our workflow (much) ‱ Run PHP 7, Unit Tests, and webserver ‱ Deploy “easily” 64

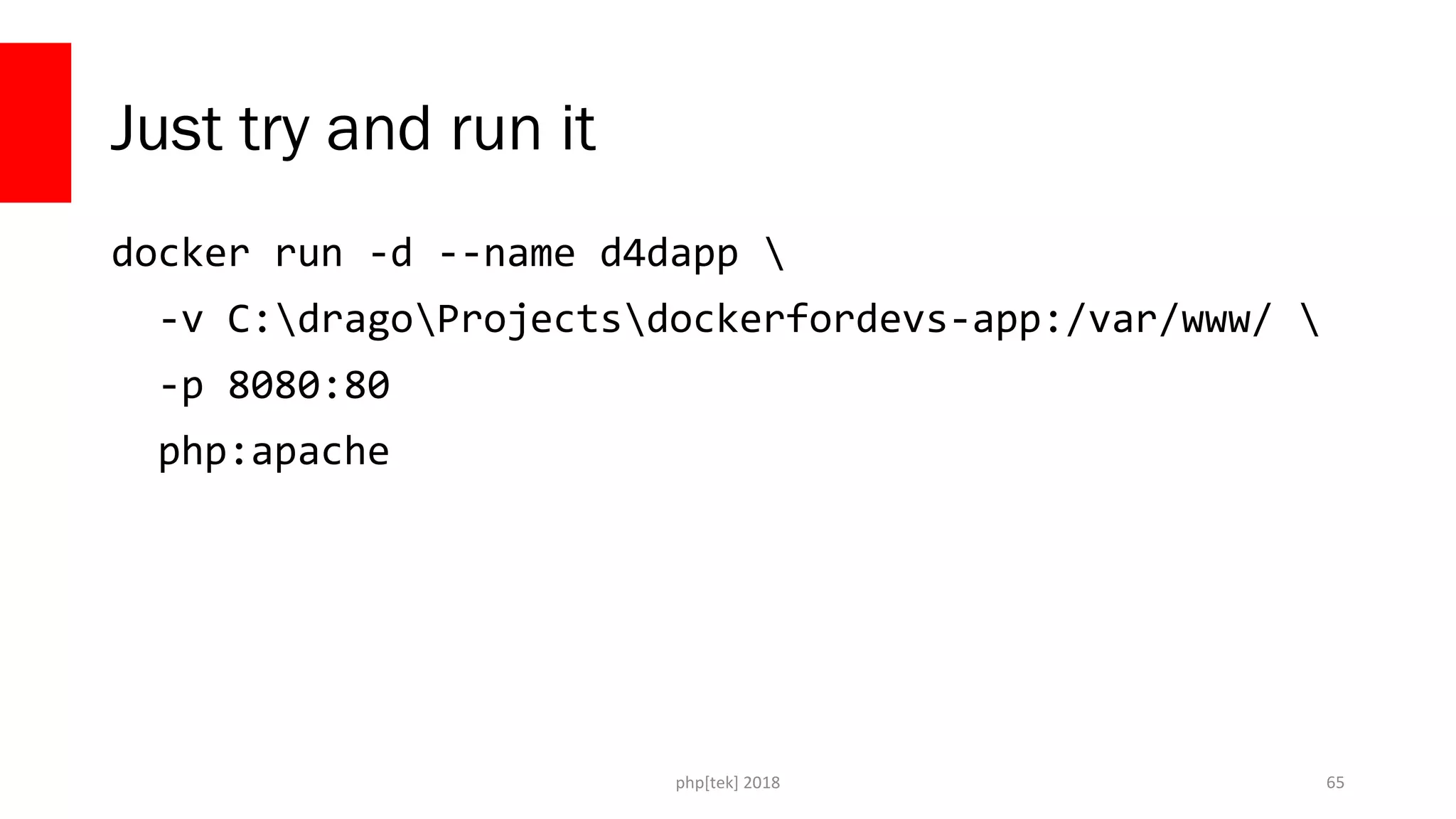

php[tek] 2018 Just try and run it docker run -d --name d4dapp -v C:dragoProjectsdockerfordevs-app:/var/www/ -p 8080:80 php:apache 65
php[tek] 2018 66

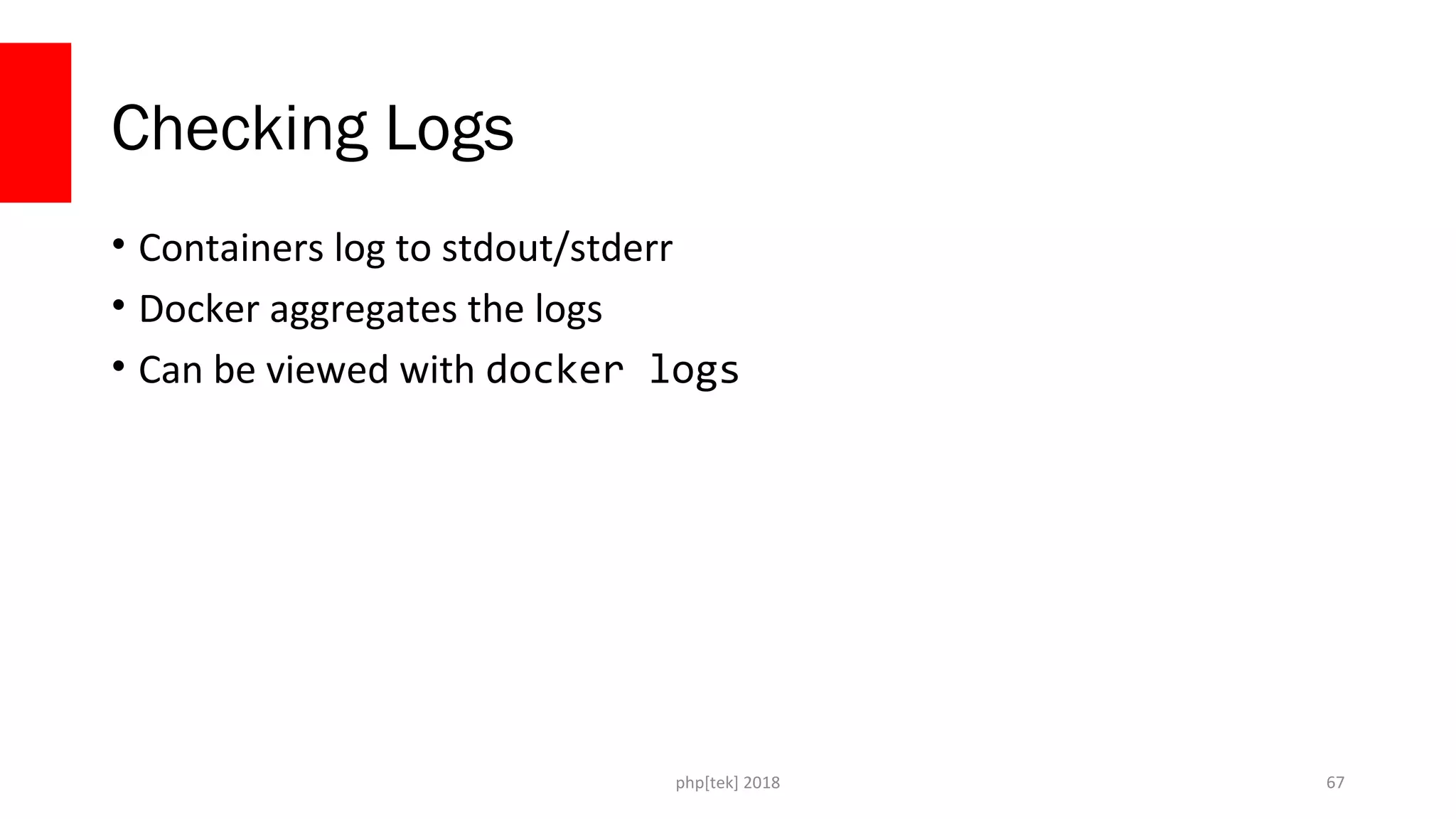

php[tek] 2018 Checking Logs ‱ Containers log to stdout/stderr ‱ Docker aggregates the logs ‱ Can be viewed with docker logs 67
php[tek] 2018 Oops 68
php[tek] 2018 Custom Images ‱ PHP images are pretty bare ‱ Lots of times need to install extensions 69

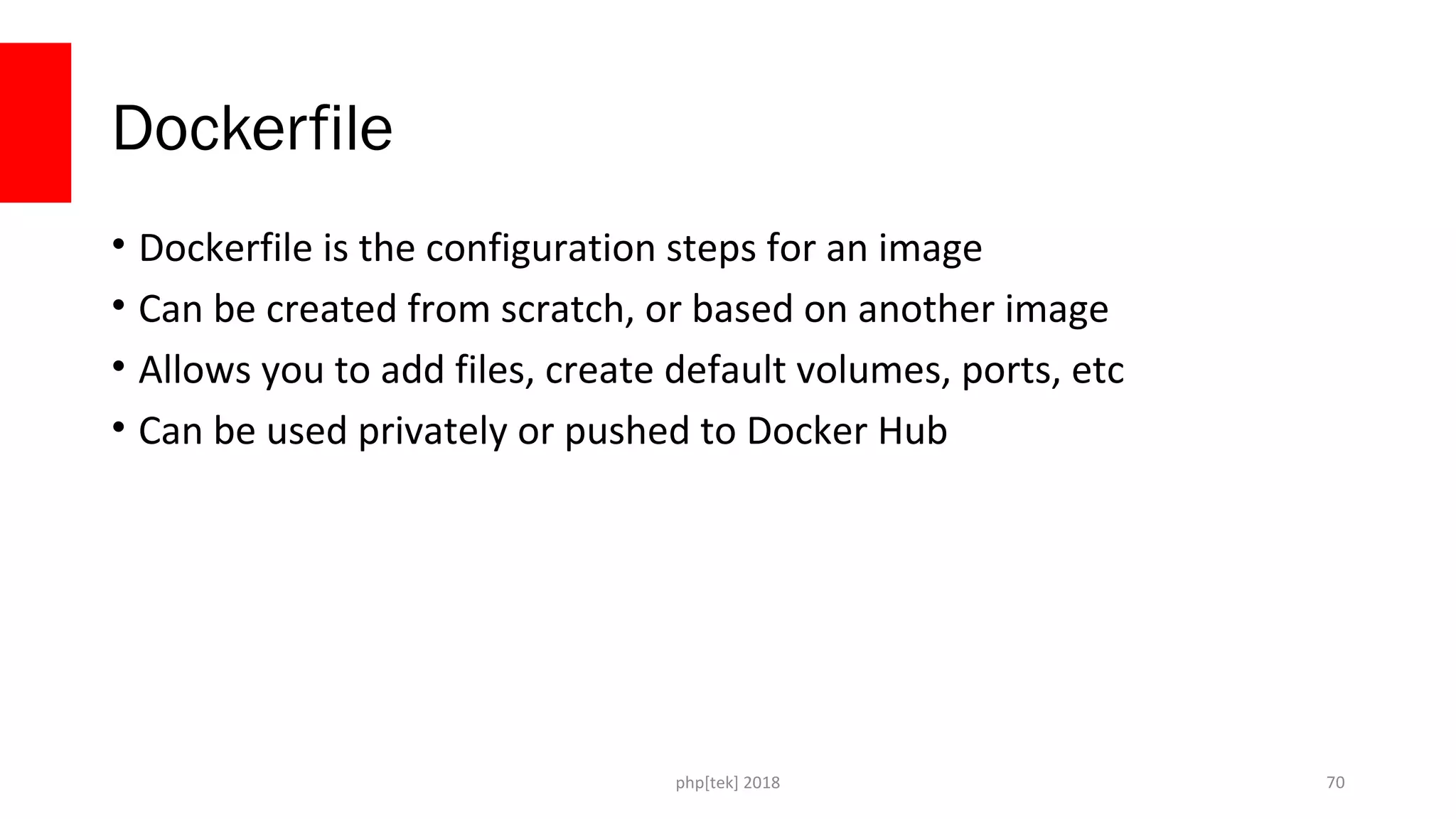

php[tek] 2018 Dockerfile ‱ Dockerfile is the configuration steps for an image ‱ Can be created from scratch, or based on another image ‱ Allows you to add files, create default volumes, ports, etc ‱ Can be used privately or pushed to Docker Hub 70

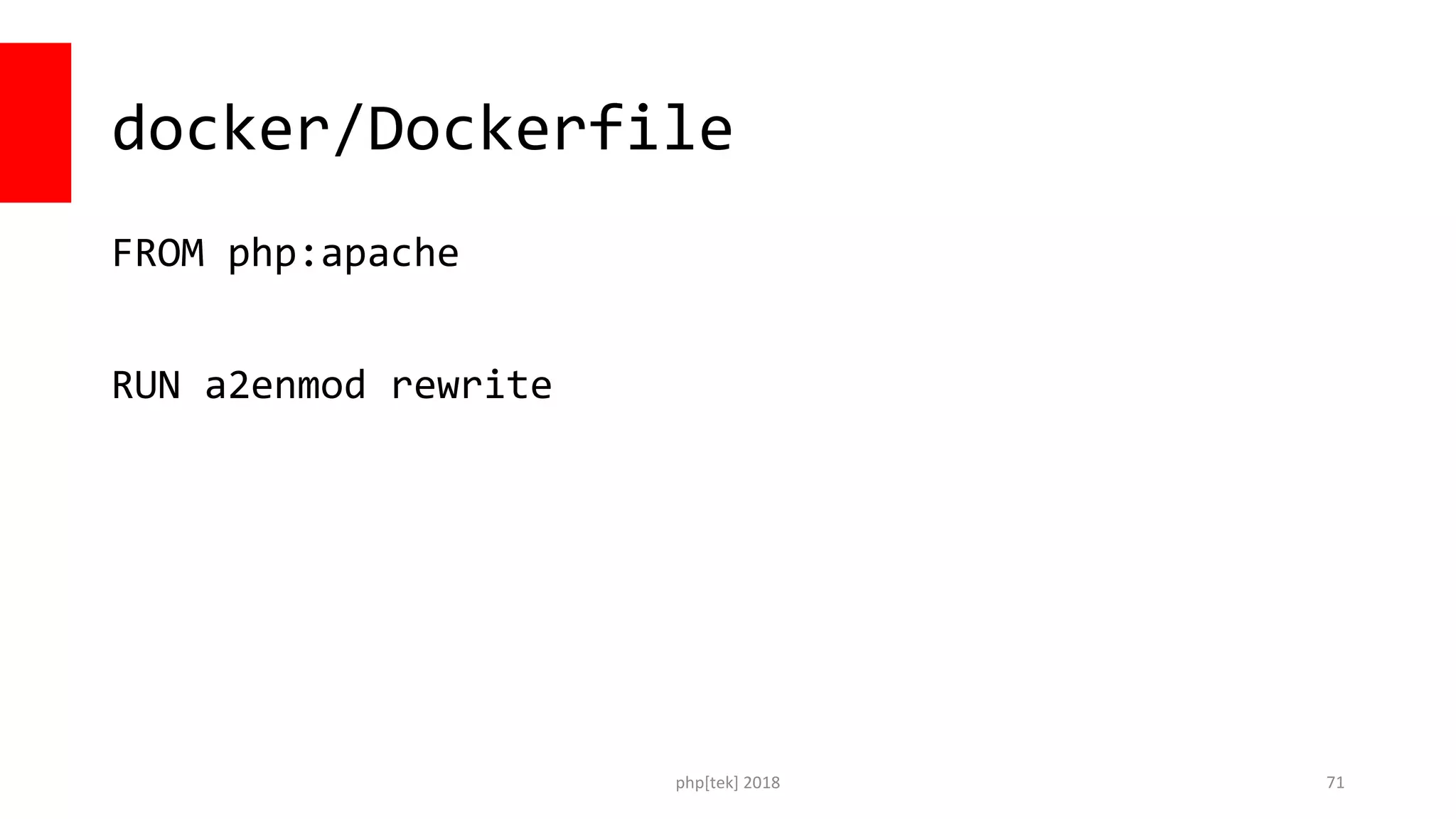

php[tek] 2018 docker/Dockerfile FROM php:apache RUN a2enmod rewrite 71

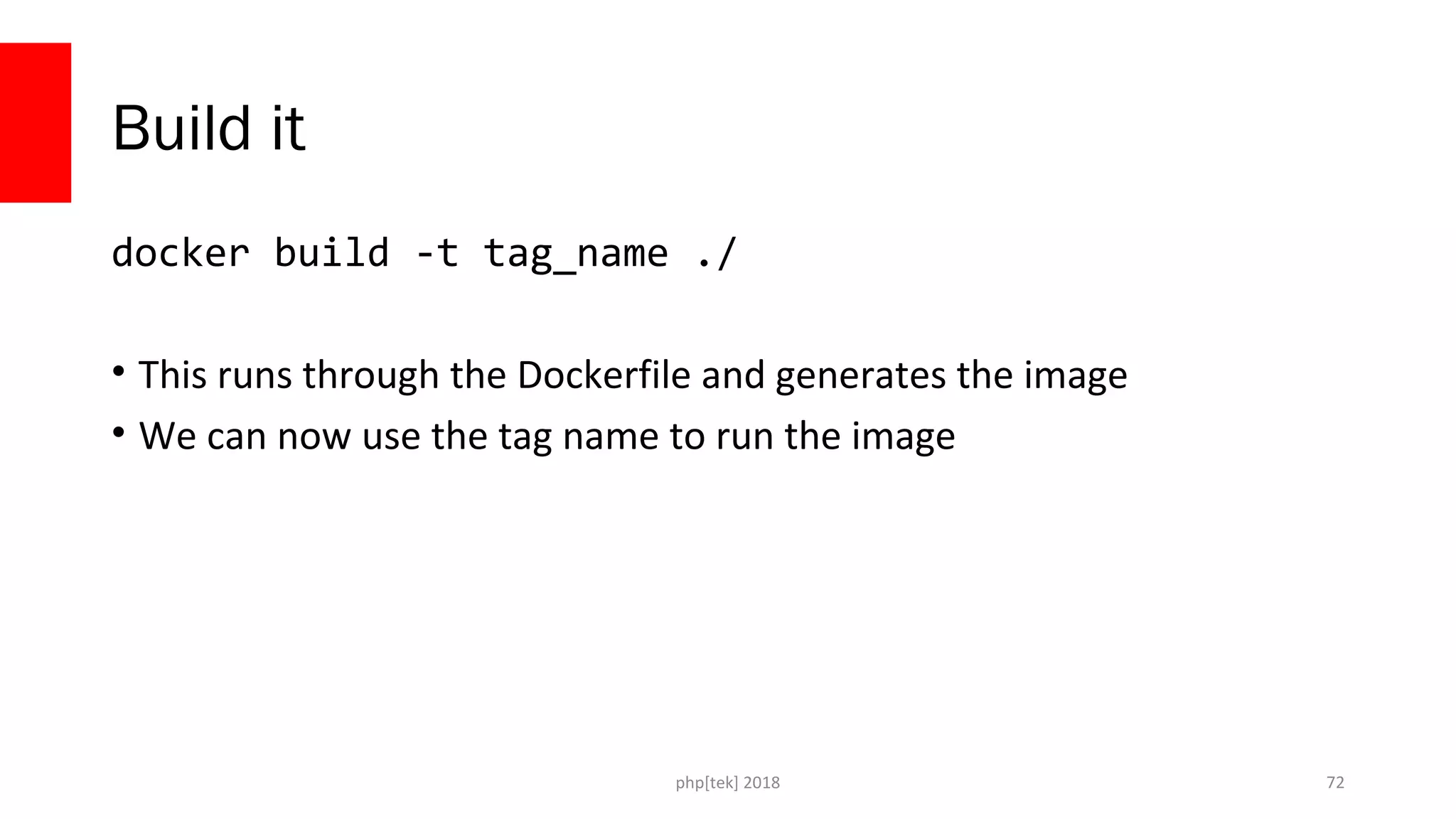

php[tek] 2018 Build it docker build -t tag_name ./ ‱ This runs through the Dockerfile and generates the image ‱ We can now use the tag name to run the image 72

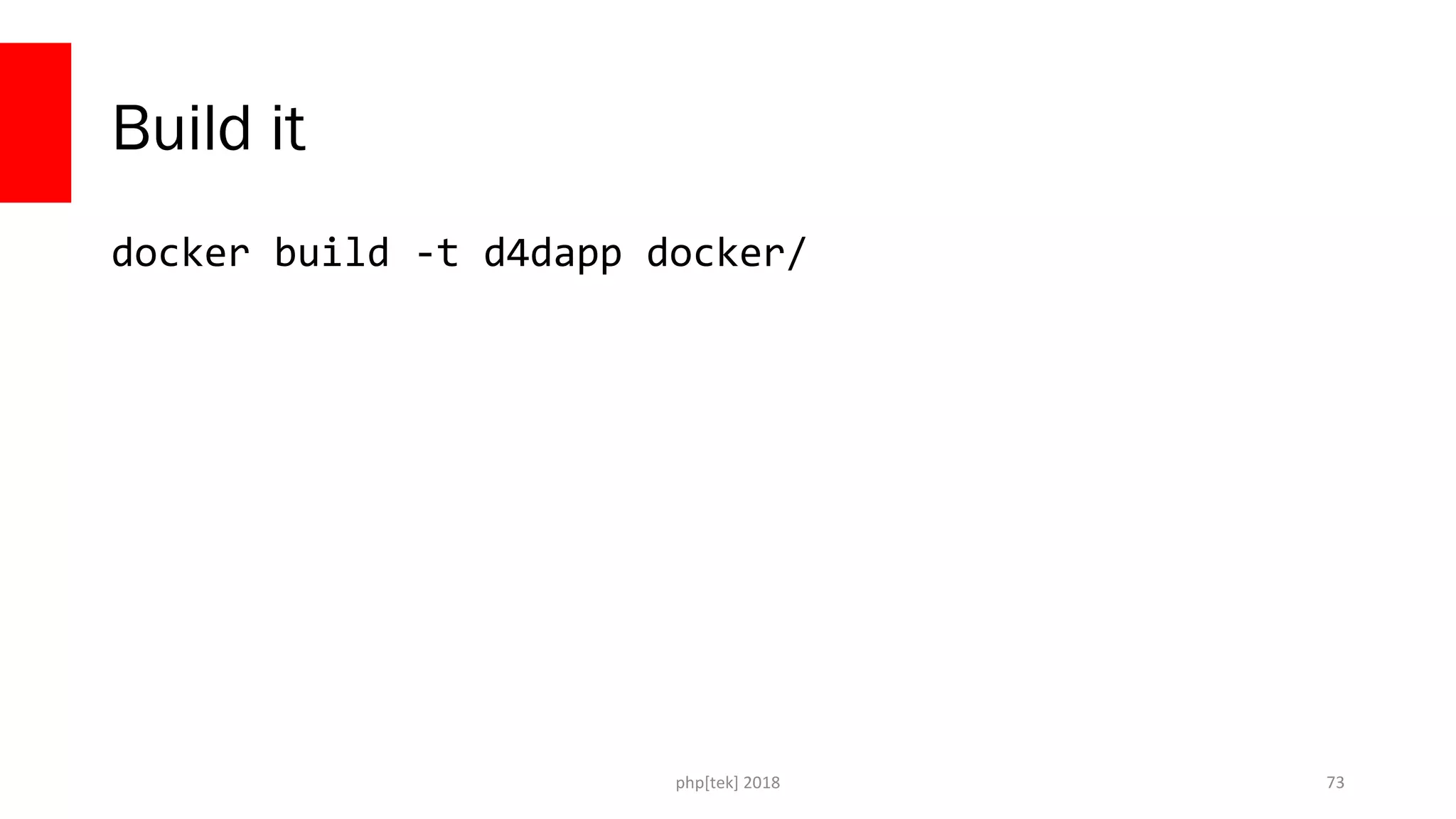

php[tek] 2018 Build it docker build -t d4dapp docker/ 73

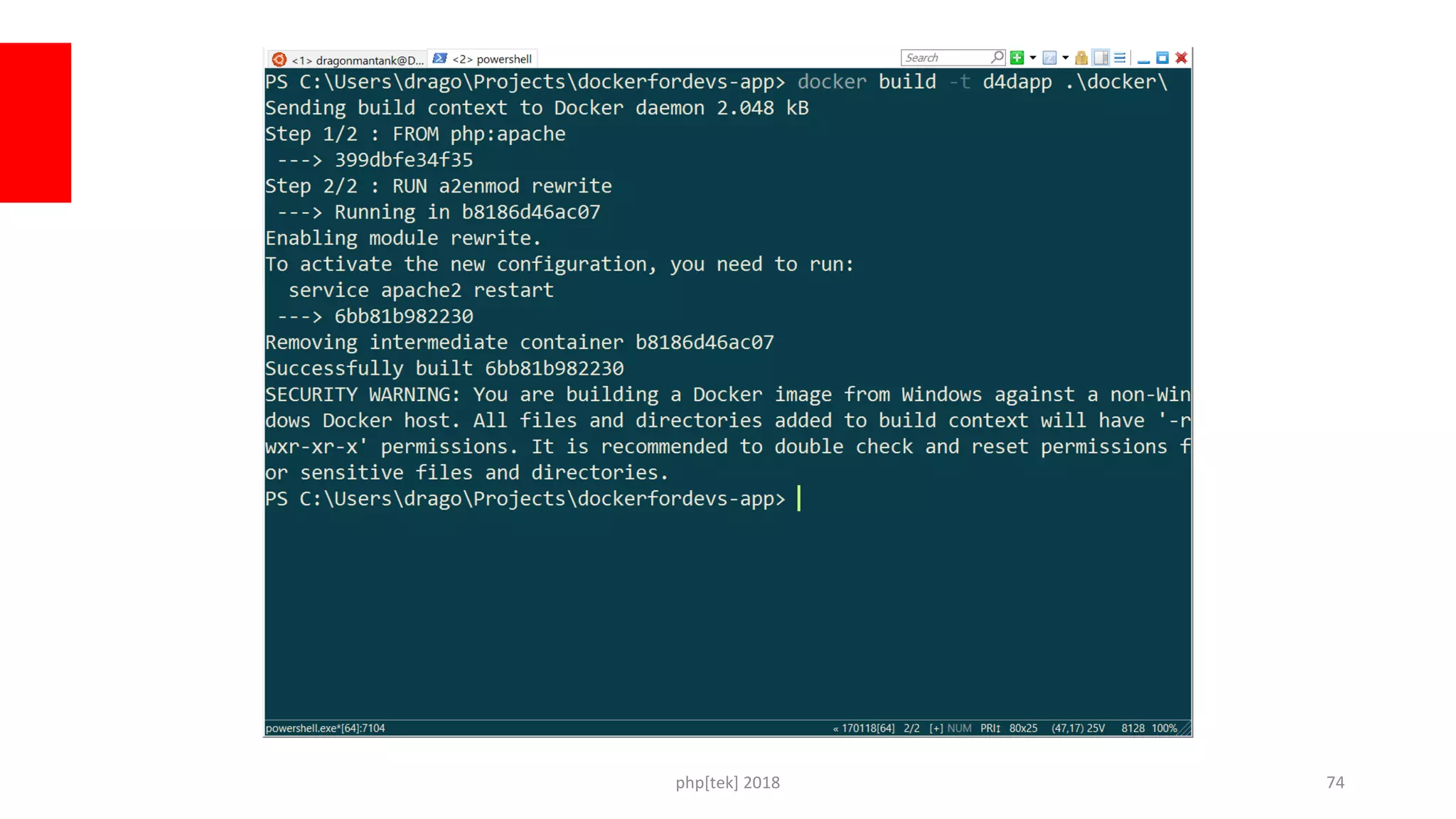

php[tek] 2018 74

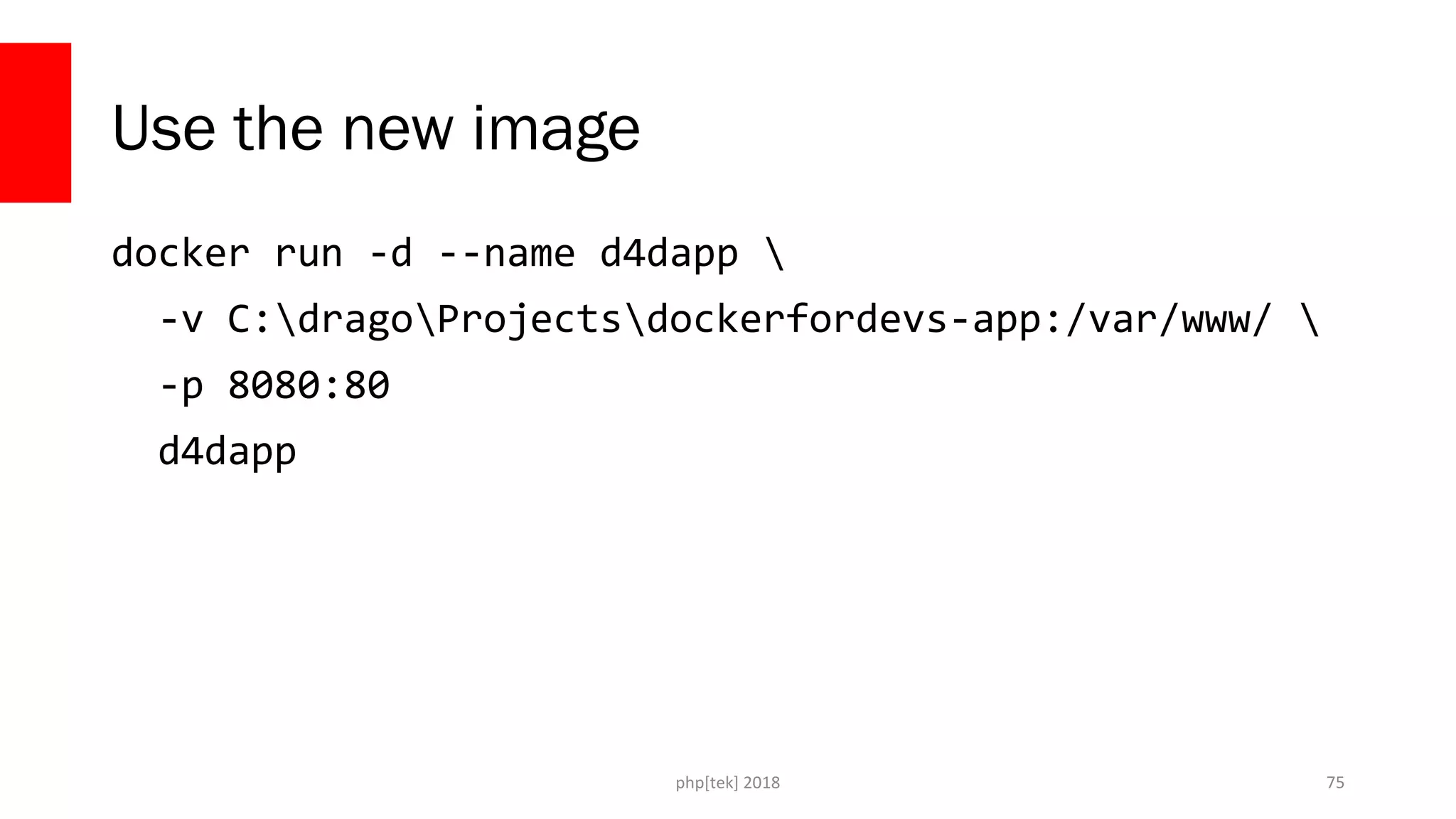

php[tek] 2018 Use the new image docker run -d --name d4dapp -v C:dragoProjectsdockerfordevs-app:/var/www/ -p 8080:80 d4dapp 75

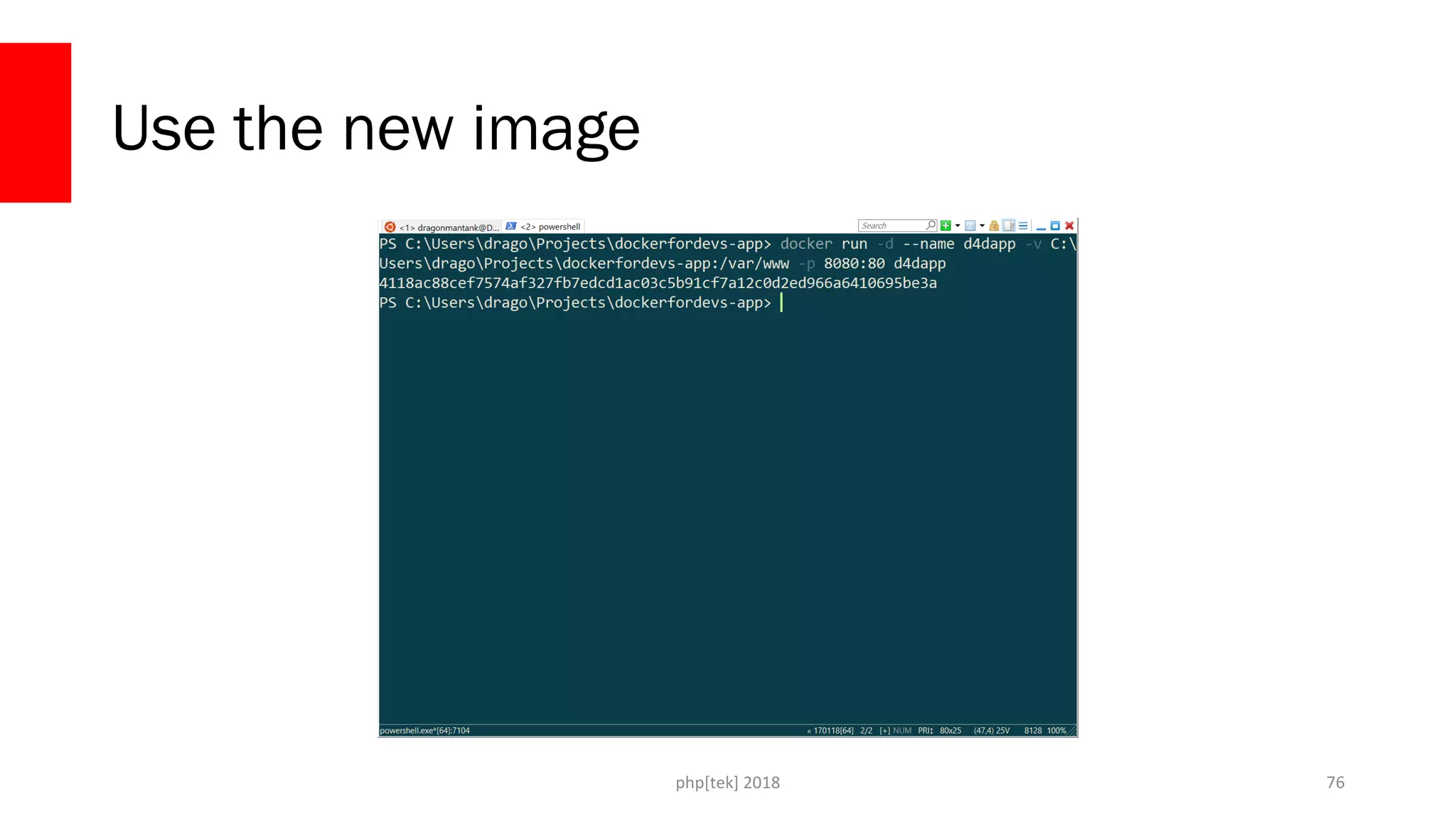

php[tek] 2018 Use the new image 76

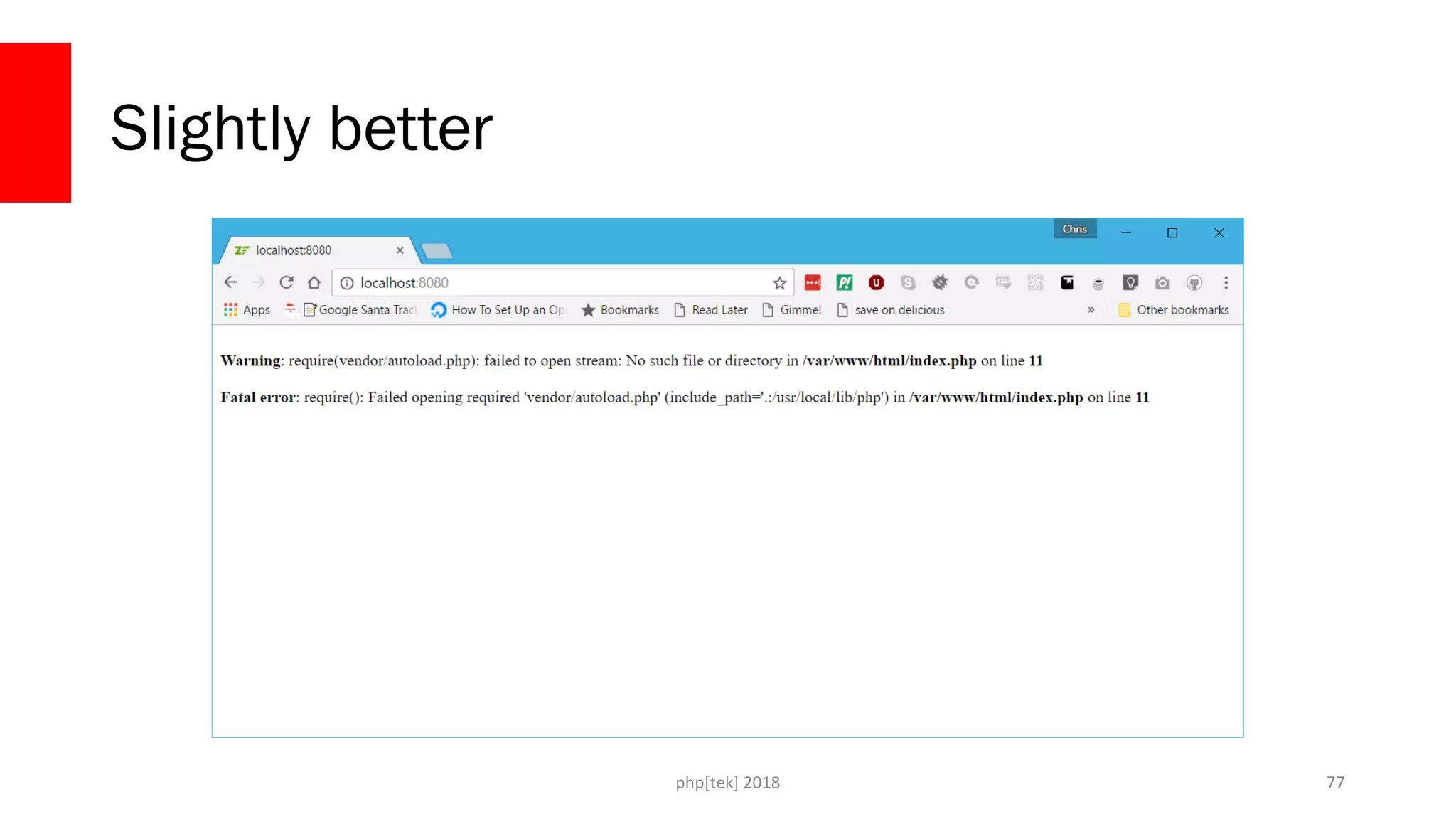

php[tek] 2018 Slightly better 77
php[tek] 2018 Install Dependencies 78

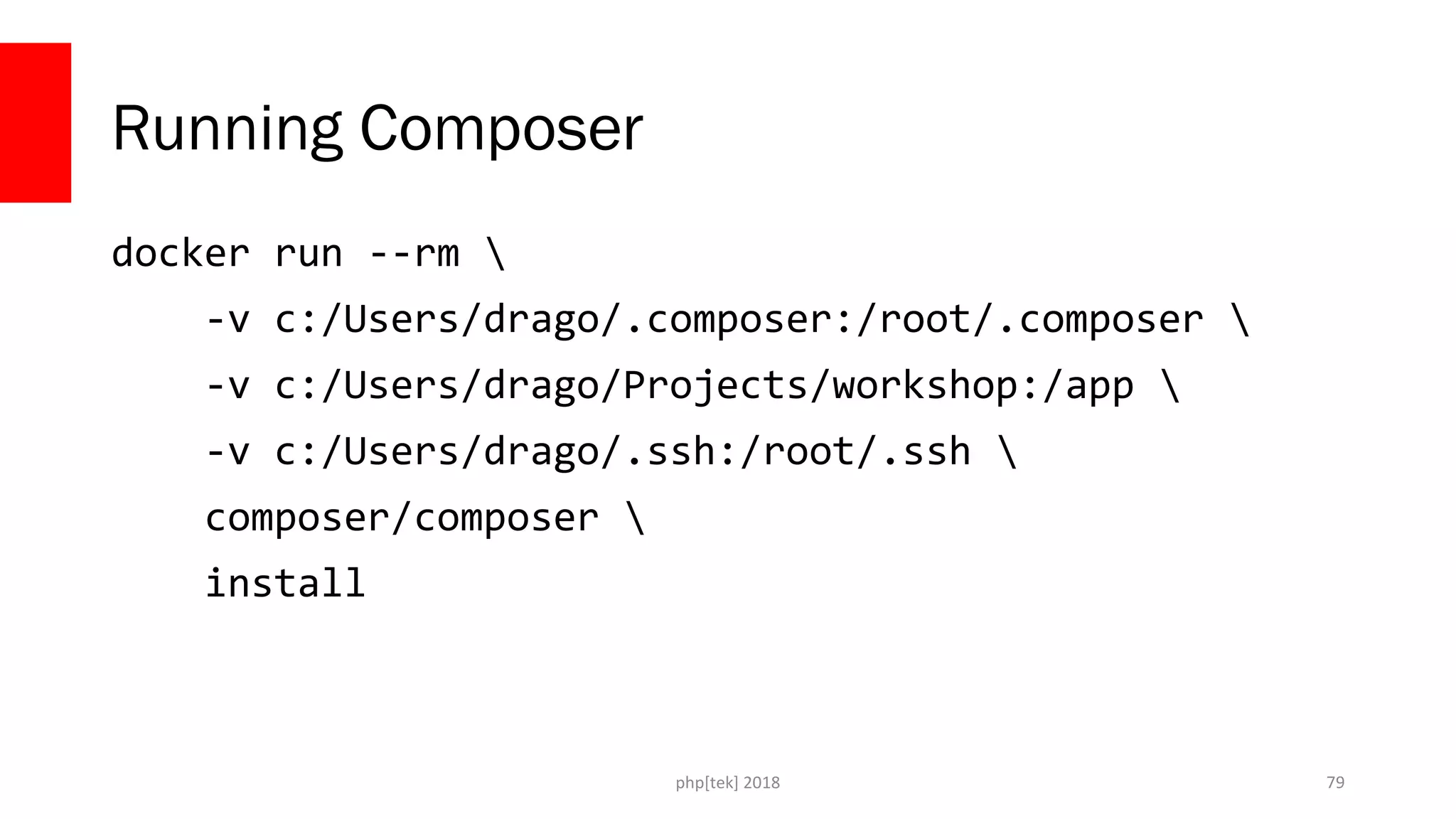

php[tek] 2018 Running Composer docker run --rm -v c:/Users/drago/.composer:/root/.composer -v c:/Users/drago/Projects/workshop:/app -v c:/Users/drago/.ssh:/root/.ssh composer/composer install 79
php[tek] 2018 Better! 80
php[tek] 2018 Look at queues! 81

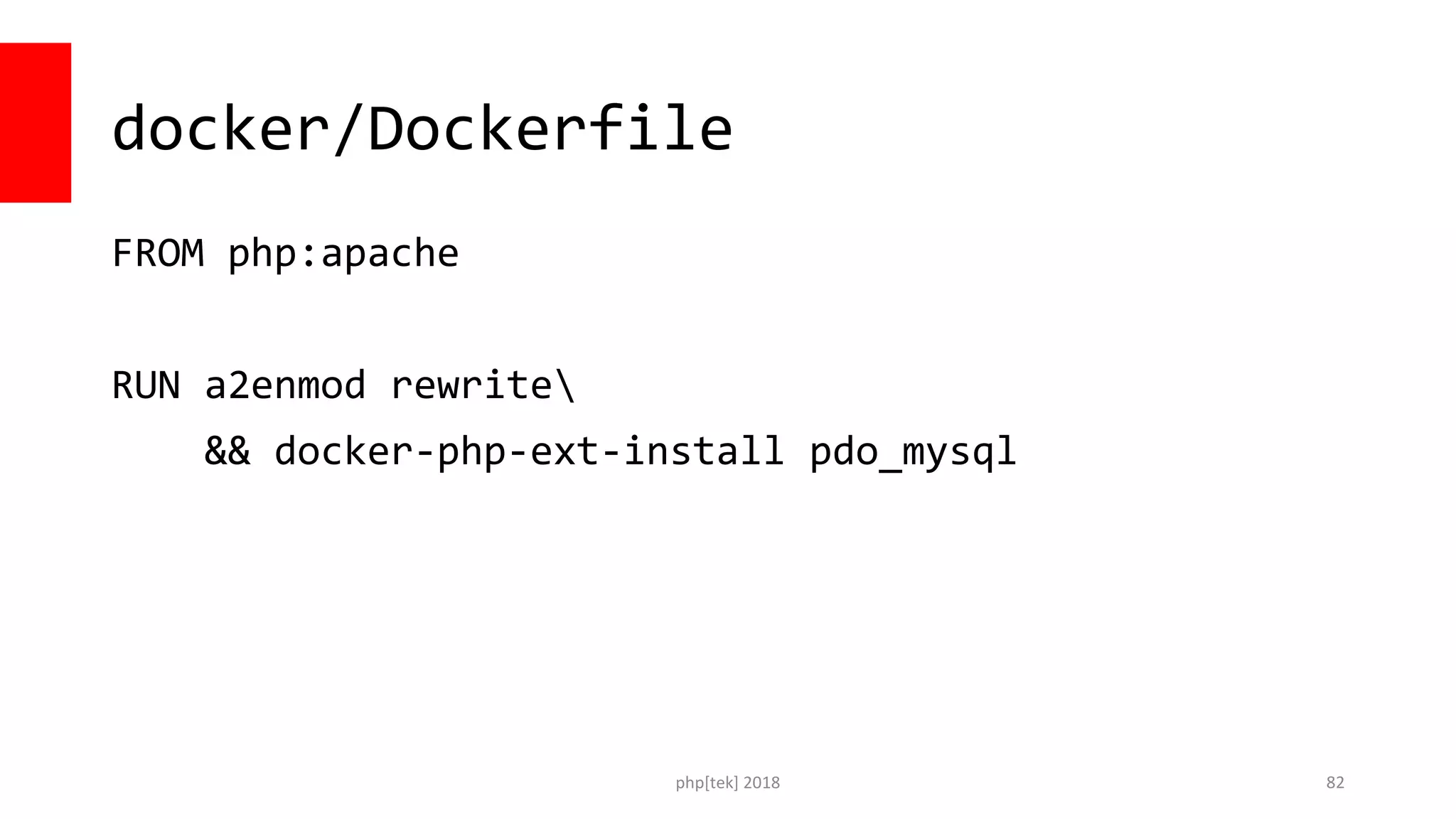

php[tek] 2018 docker/Dockerfile FROM php:apache RUN a2enmod rewrite && docker-php-ext-install pdo_mysql 82

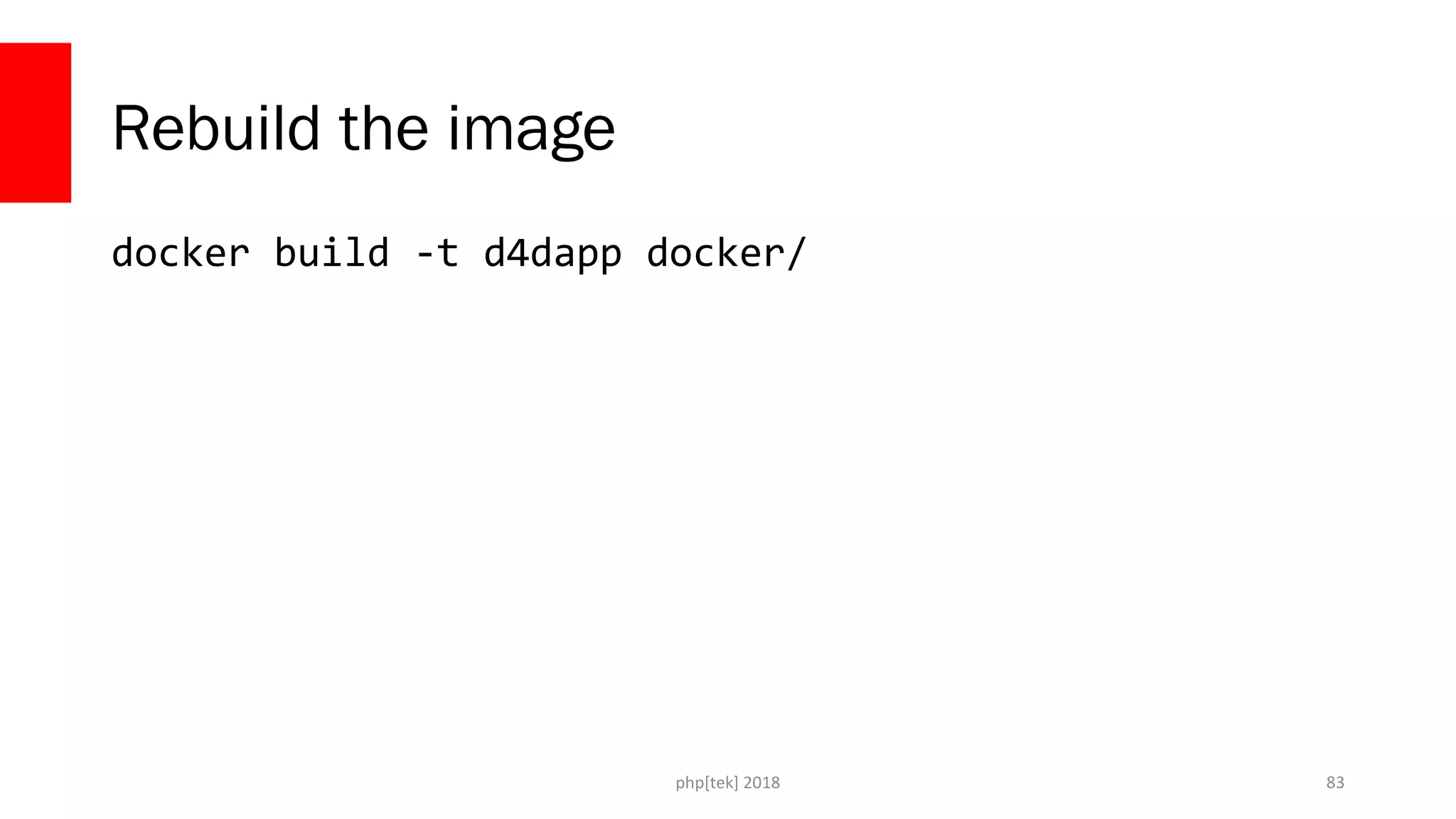

php[tek] 2018 Rebuild the image docker build -t d4dapp docker/ 83

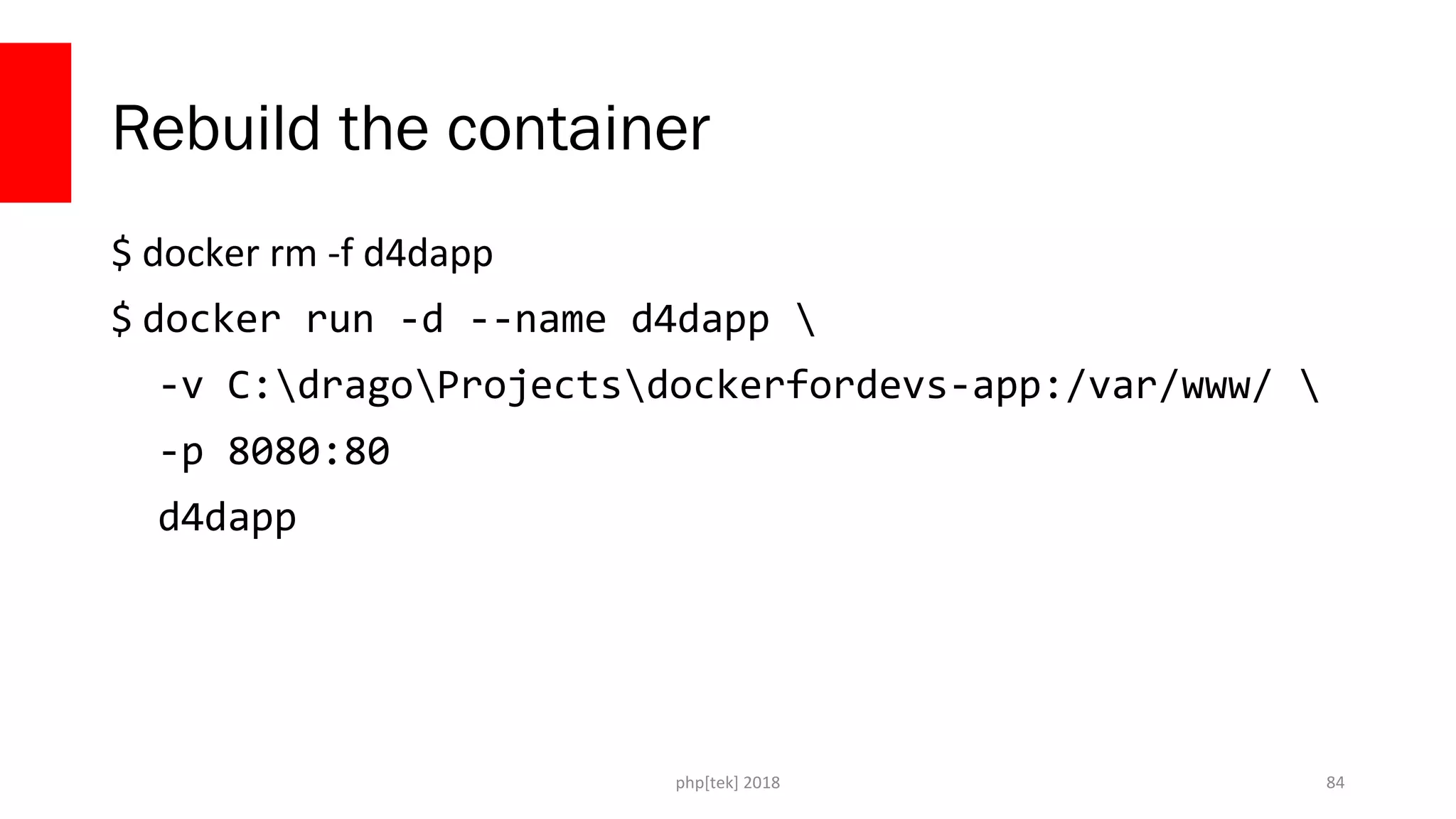

php[tek] 2018 Rebuild the container $ docker rm -f d4dapp $ docker run -d --name d4dapp -v C:dragoProjectsdockerfordevs-app:/var/www/ -p 8080:80 d4dapp 84

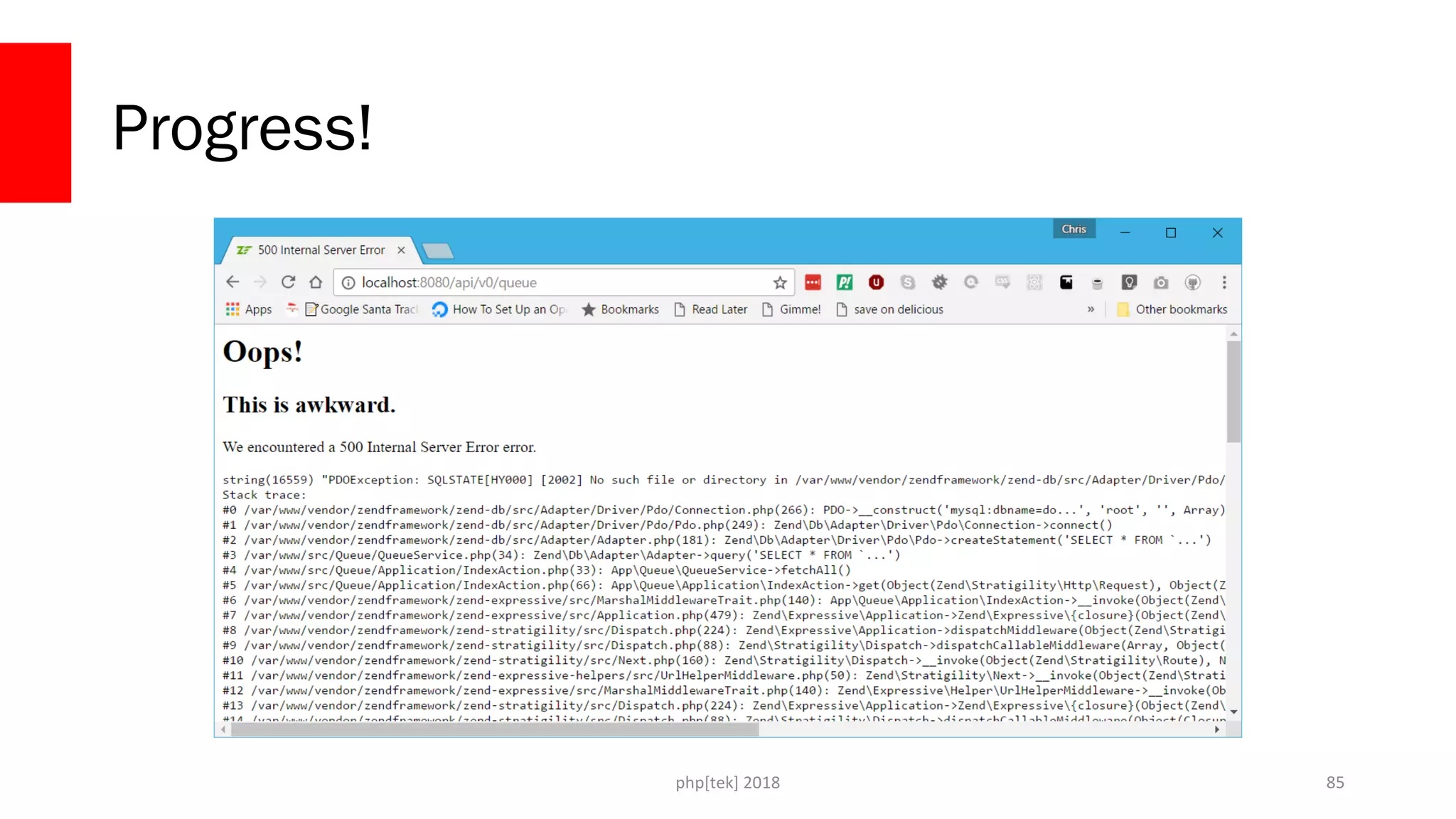

php[tek] 2018 Progress! 85
php[tek] 2018 Docker Compose 86

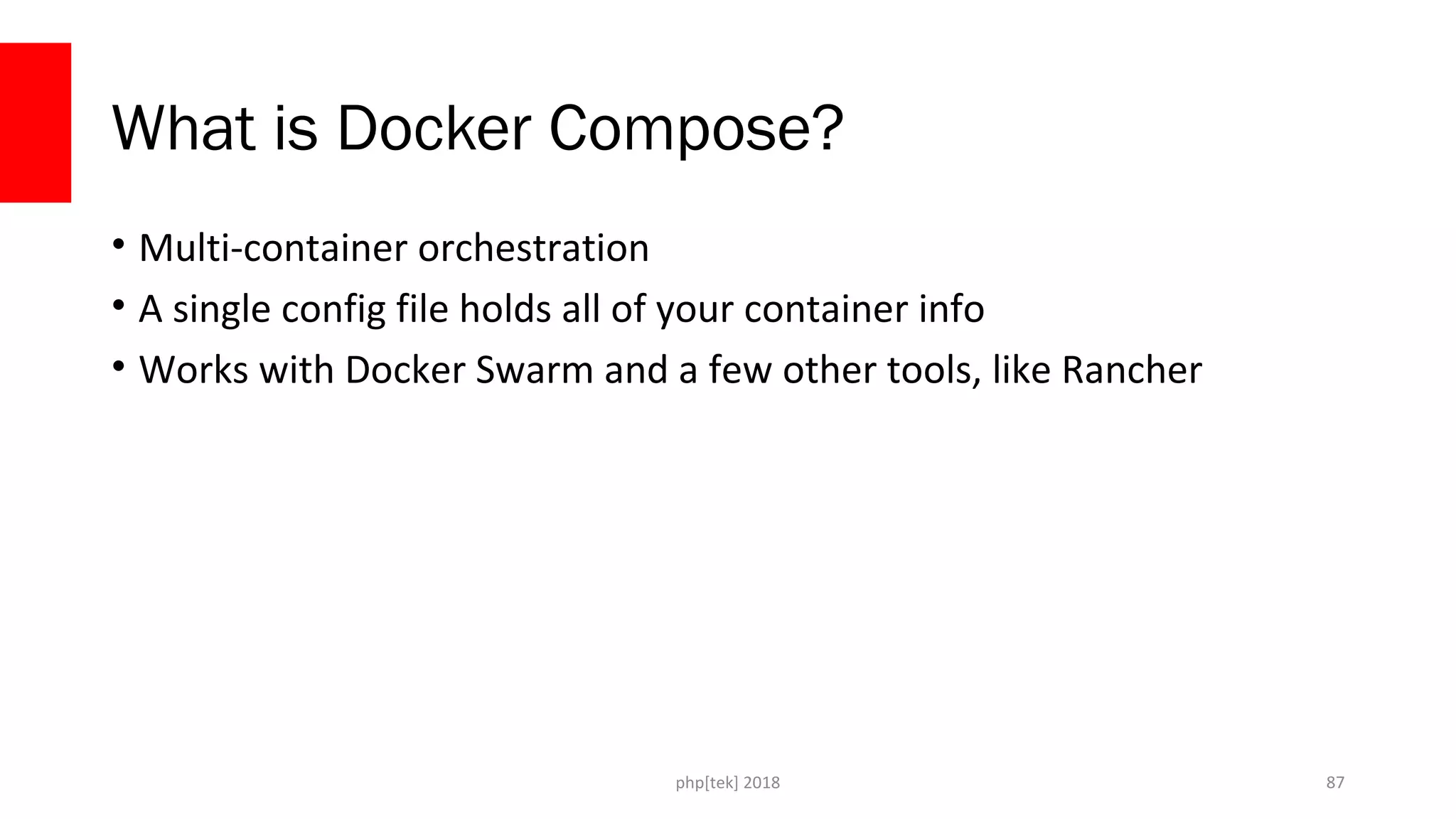

php[tek] 2018 What is Docker Compose? ‱ Multi-container orchestration ‱ A single config file holds all of your container info ‱ Works with Docker Swarm and a few other tools, like Rancher 87
php[tek] 2018 Sample docker-compose.yml version: '2' volumes: mysqldata: driver: local services: d4dapp: build: ./docker/ volumes: - ./:/var/www/ ports: - 8080:80 mysqlserver: image: mysql environment: MYSQL_DATABASE: dockerfordevs MYSQL_ROOT_PASSWORD: 's3curep@assword' volumes: - mysqldata:/var/lib/mysql 88

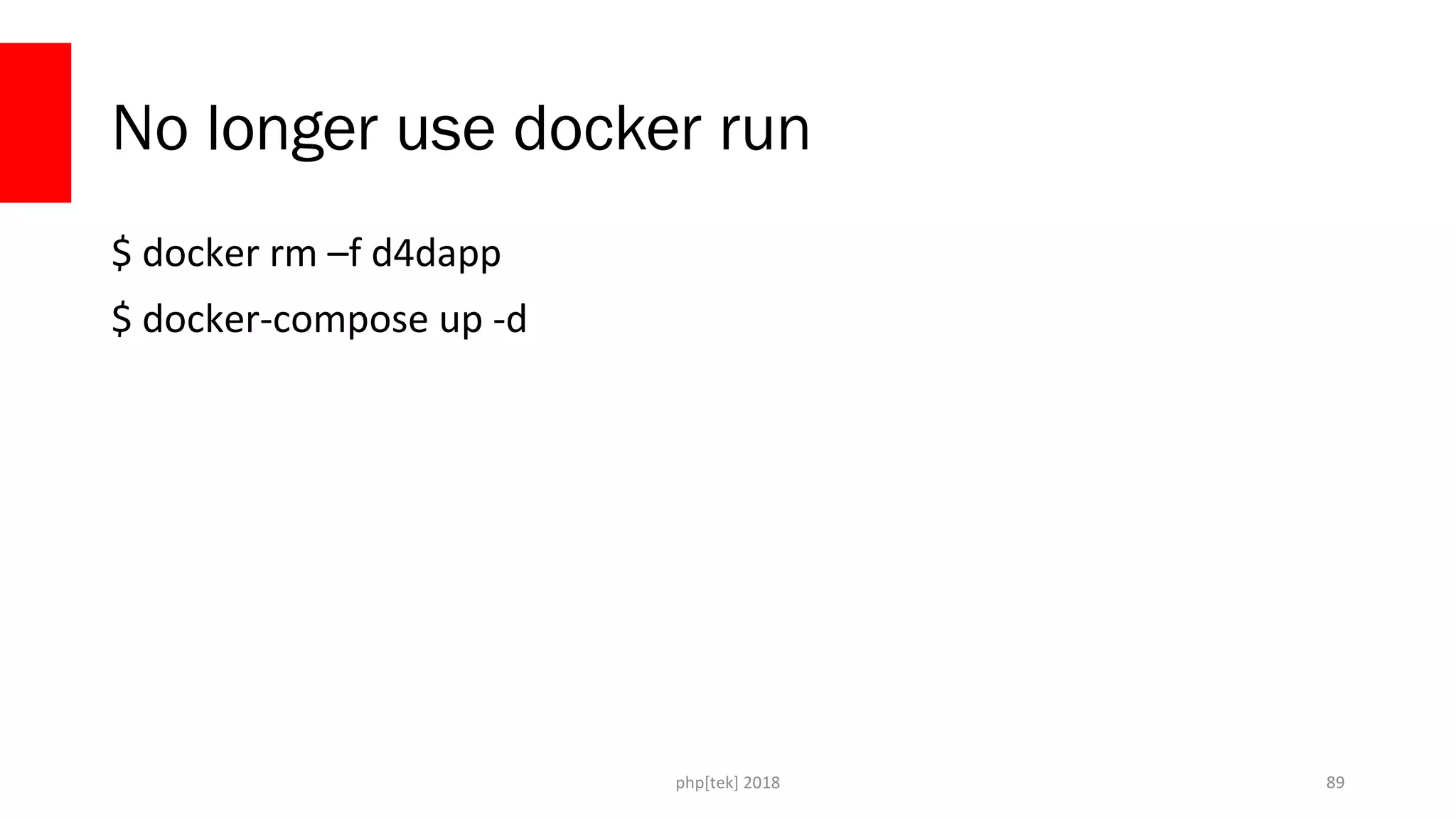

php[tek] 2018 No longer use docker run $ docker rm –f d4dapp $ docker-compose up -d 89

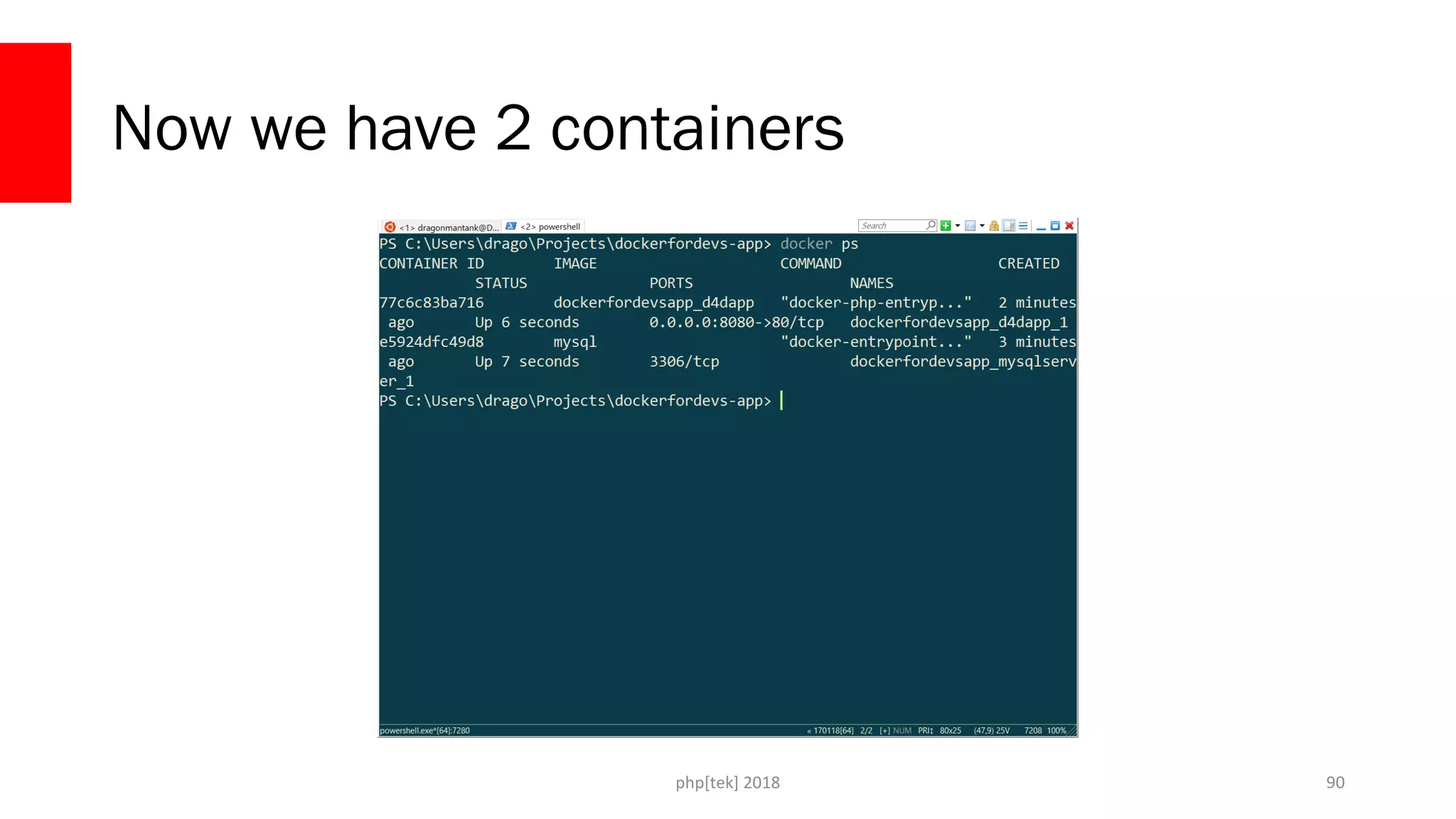

php[tek] 2018 Now we have 2 containers 90

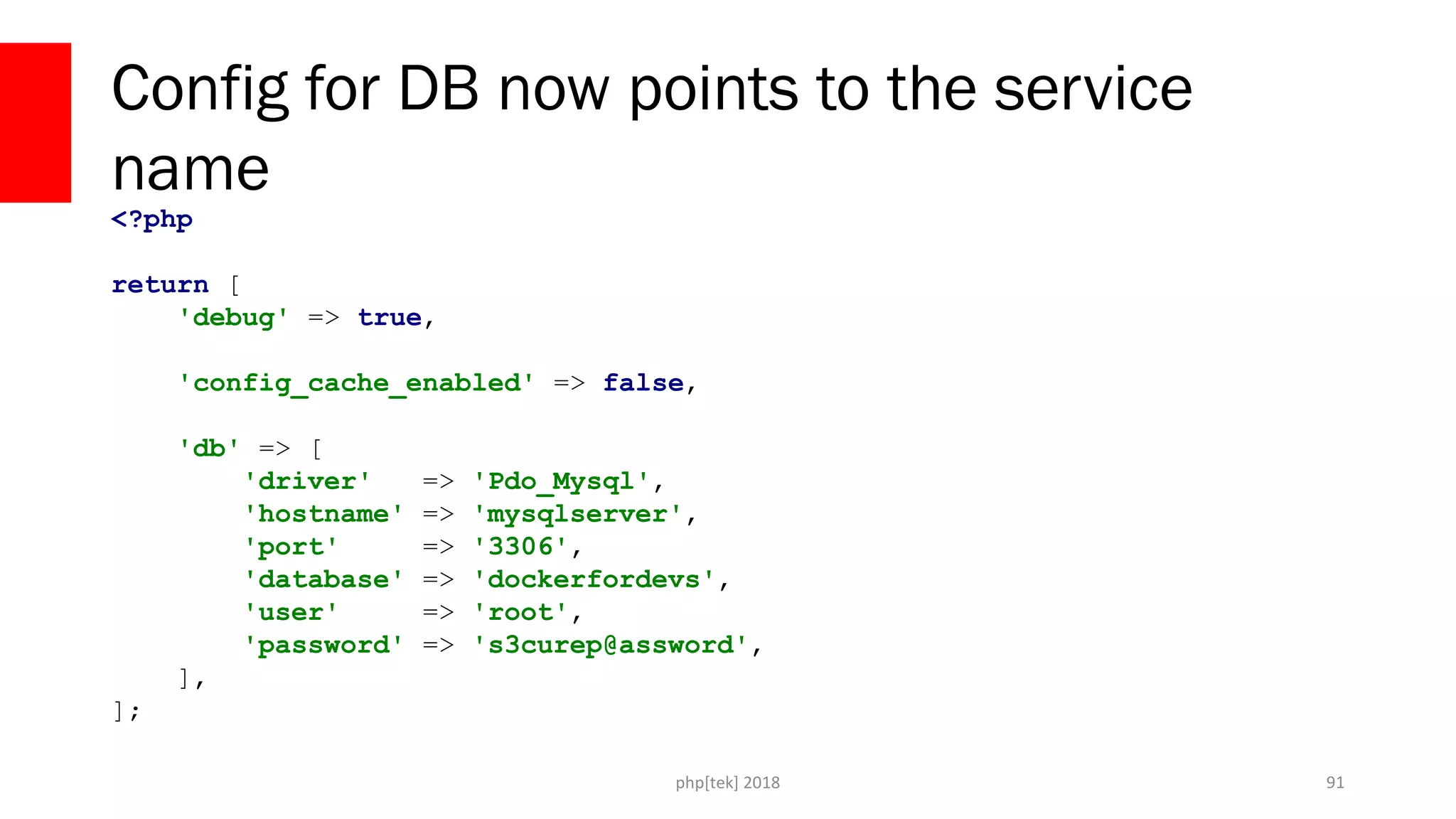

php[tek] 2018 Config for DB now points to the service name 91 <?php return [ 'debug' => true, 'config_cache_enabled' => false, 'db' => [ 'driver' => 'Pdo_Mysql', 'hostname' => 'mysqlserver', 'port' => '3306', 'database' => 'dockerfordevs', 'user' => 'root', 'password' => 's3curep@assword', ], ];

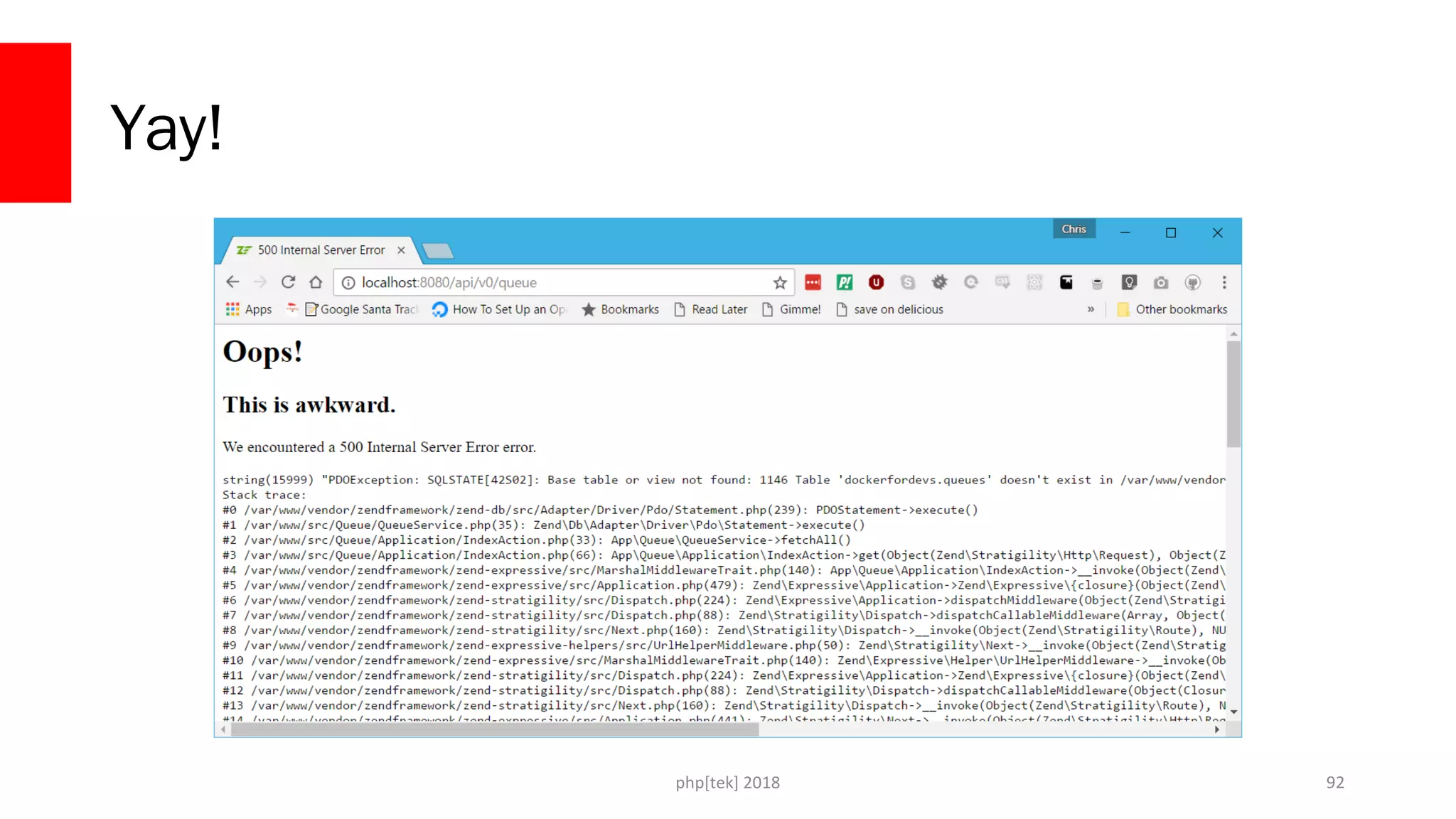

php[tek] 2018 Yay! 92

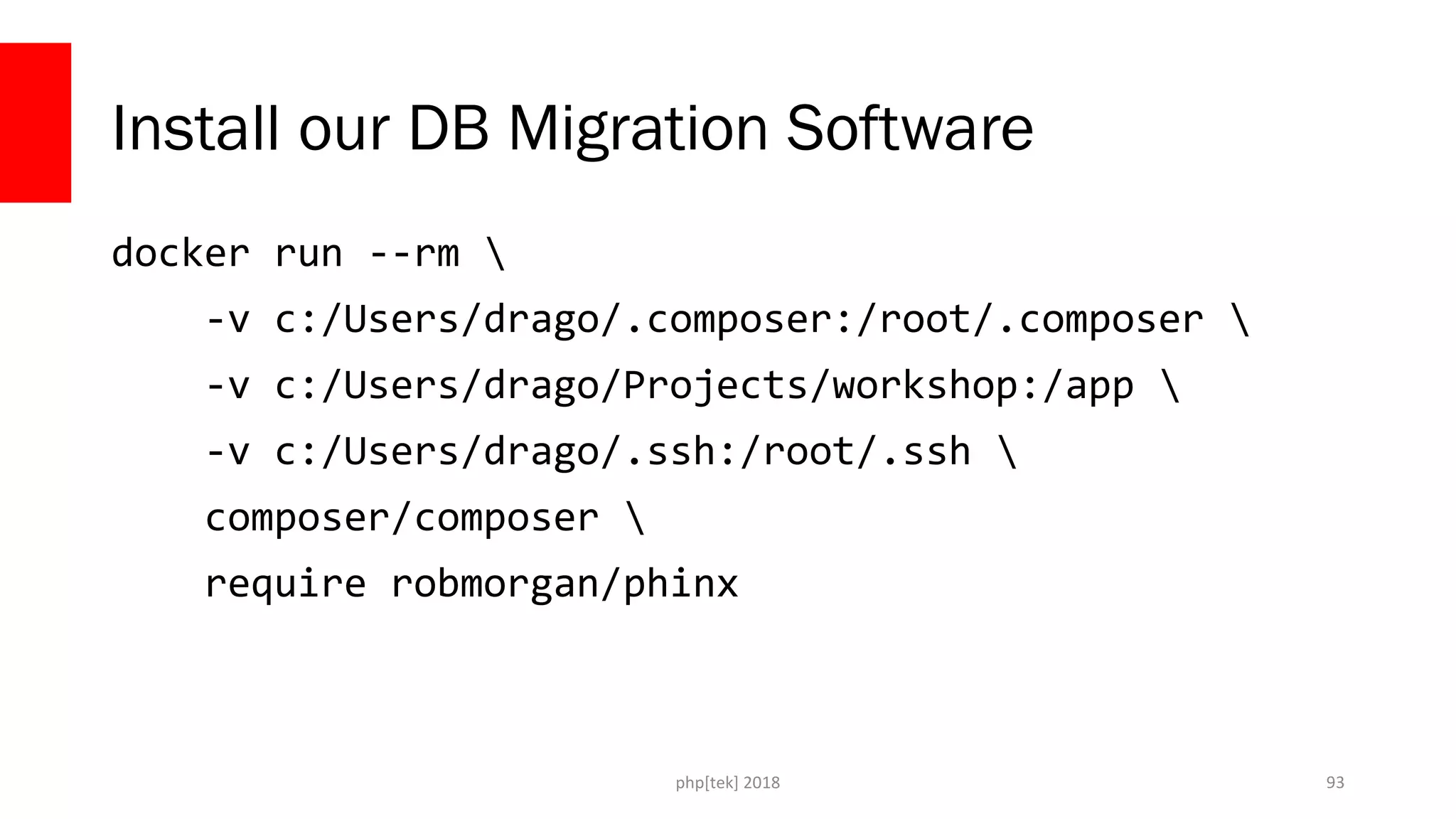

php[tek] 2018 Install our DB Migration Software docker run --rm -v c:/Users/drago/.composer:/root/.composer -v c:/Users/drago/Projects/workshop:/app -v c:/Users/drago/.ssh:/root/.ssh composer/composer require robmorgan/phinx 93
php[tek] 2018 Set up phinx docker run --rm -v C:UsersdragoProjectsdockerfordevs-app:/app -w /app php:cli php vendor/bin/phinx init 94

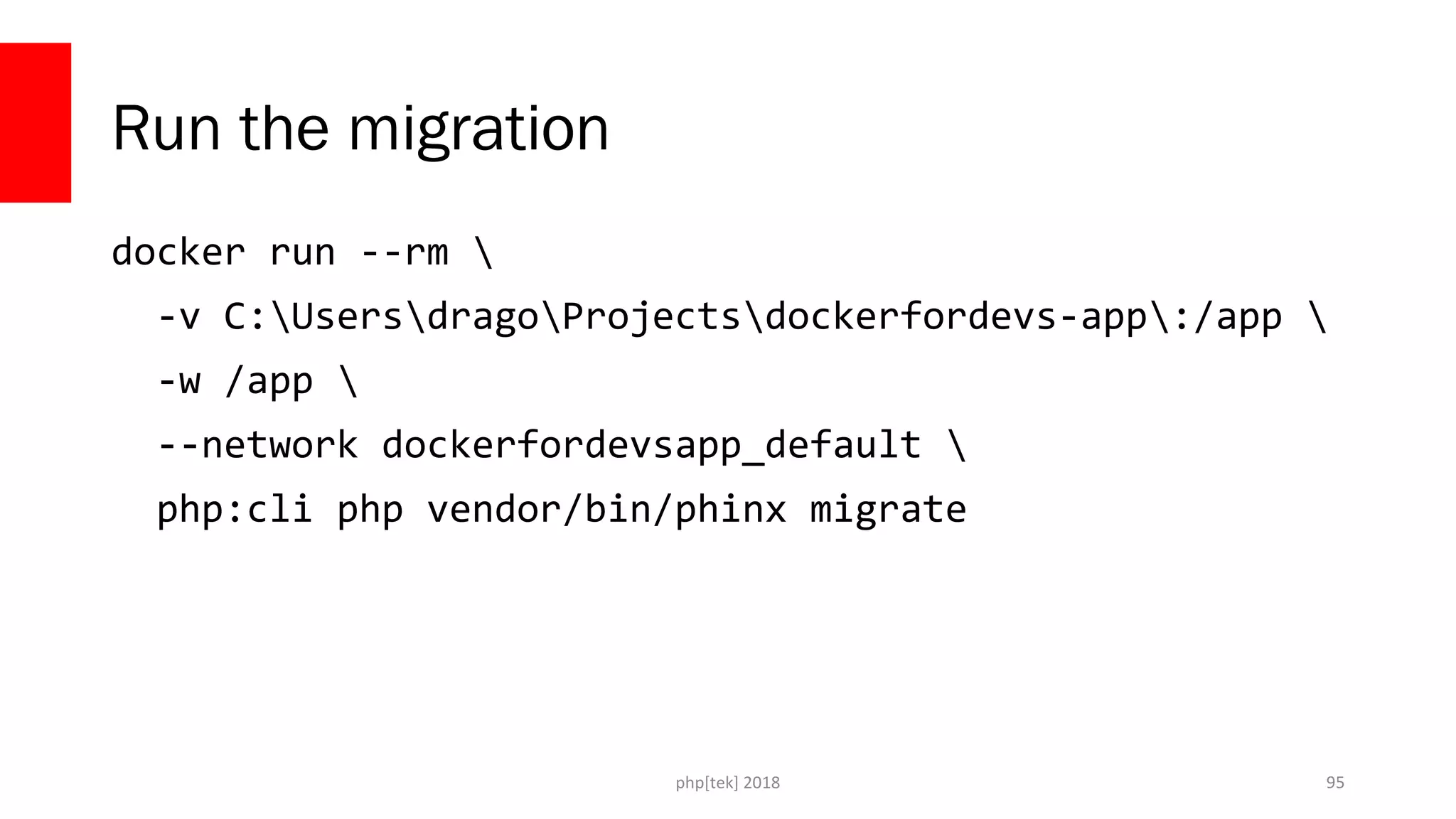

php[tek] 2018 Run the migration docker run --rm -v C:UsersdragoProjectsdockerfordevs-app:/app -w /app --network dockerfordevsapp_default php:cli php vendor/bin/phinx migrate 95
php[tek] 2018 Oops 96

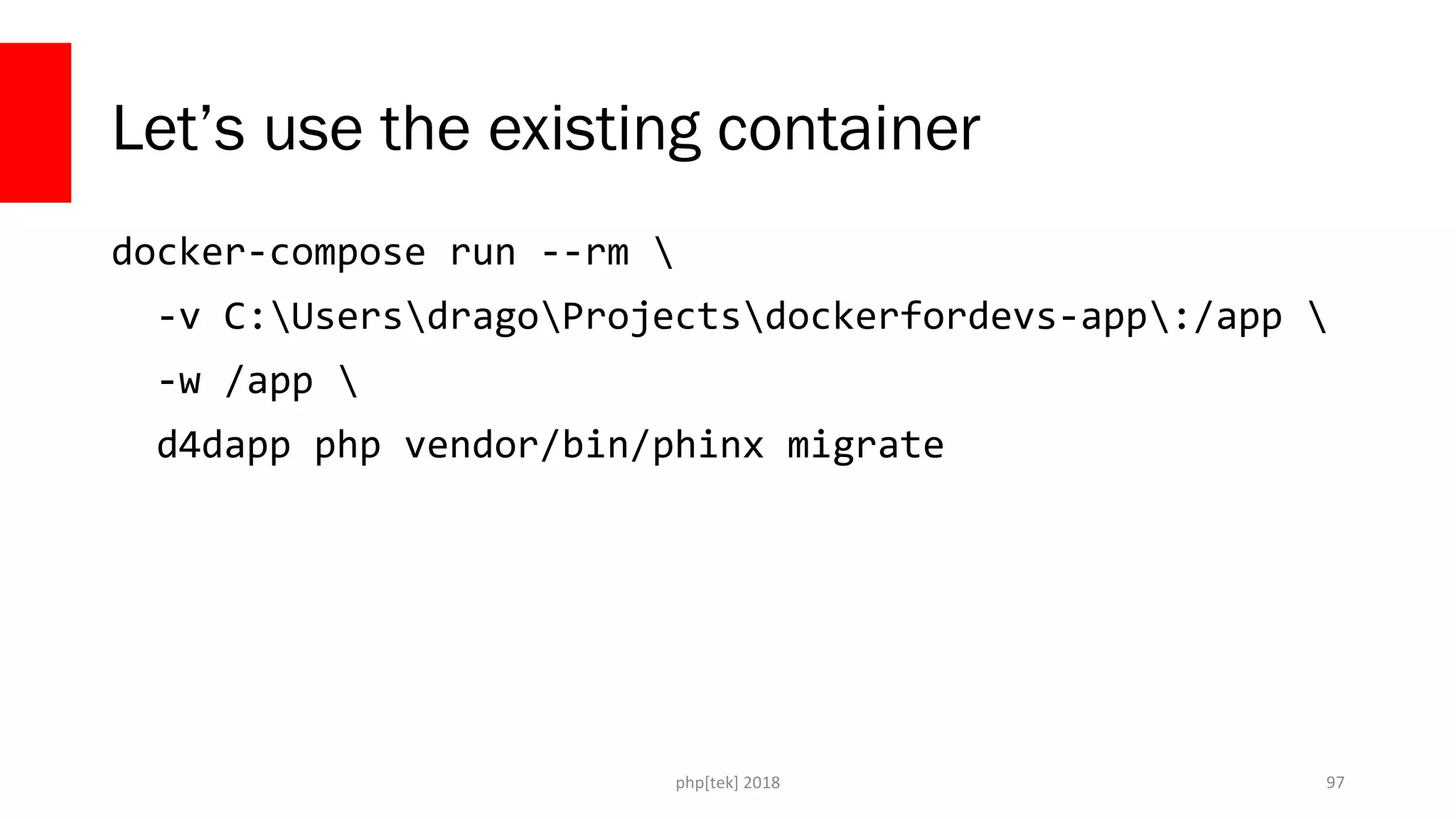

php[tek] 2018 Let’s use the existing container docker-compose run --rm -v C:UsersdragoProjectsdockerfordevs-app:/app -w /app d4dapp php vendor/bin/phinx migrate 97

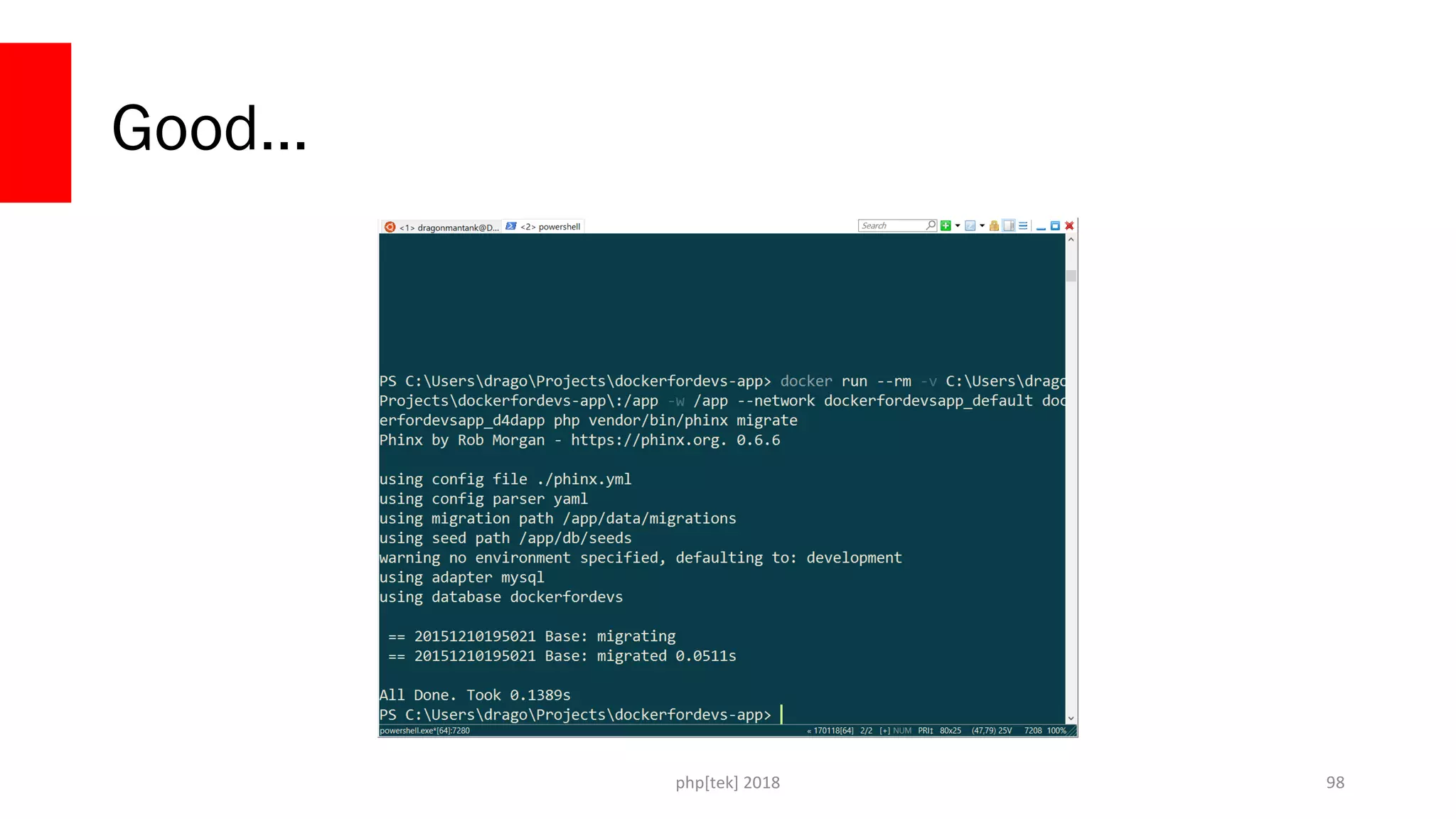

php[tek] 2018 Good
 98

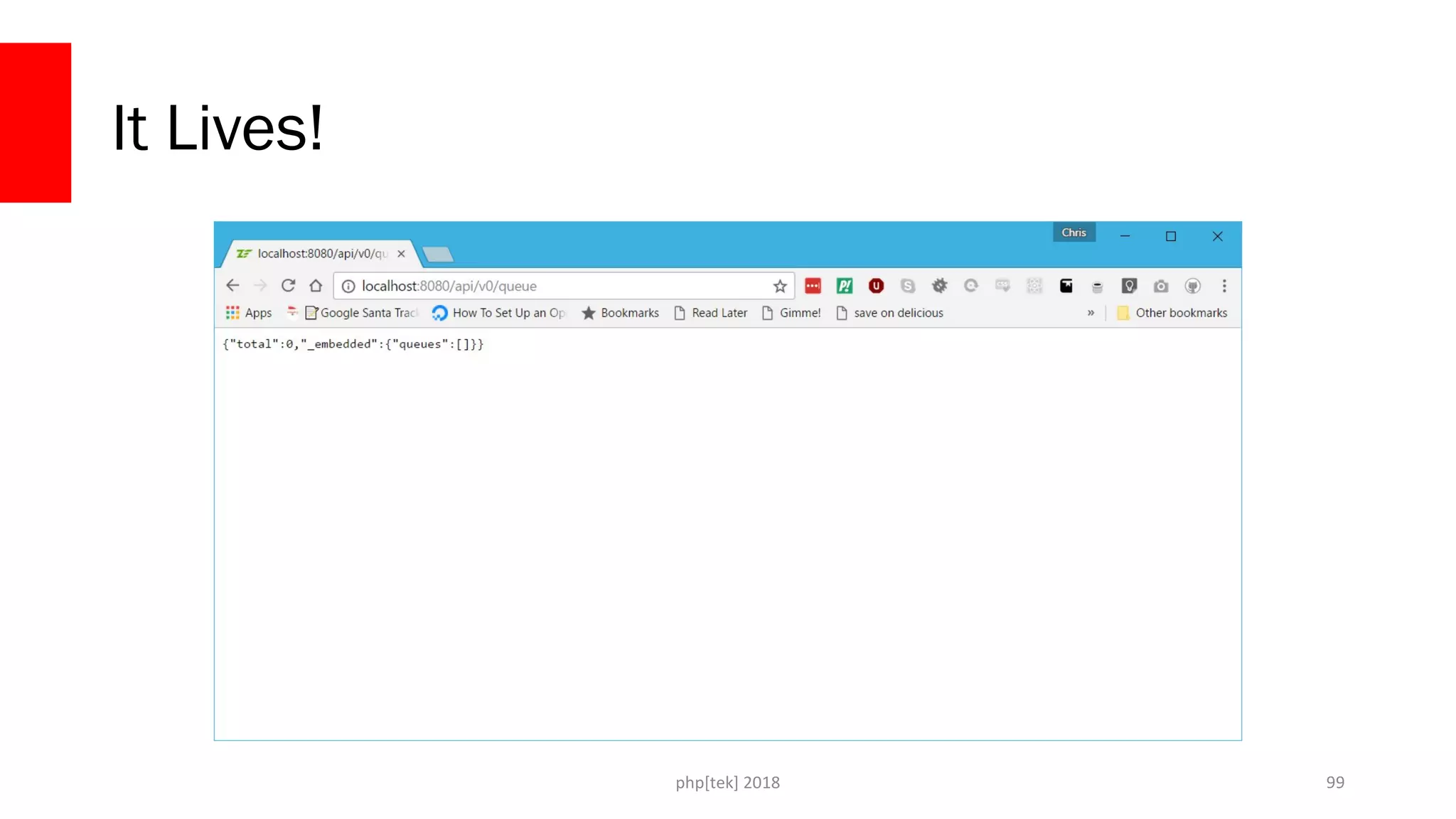

php[tek] 2018 It Lives! 99

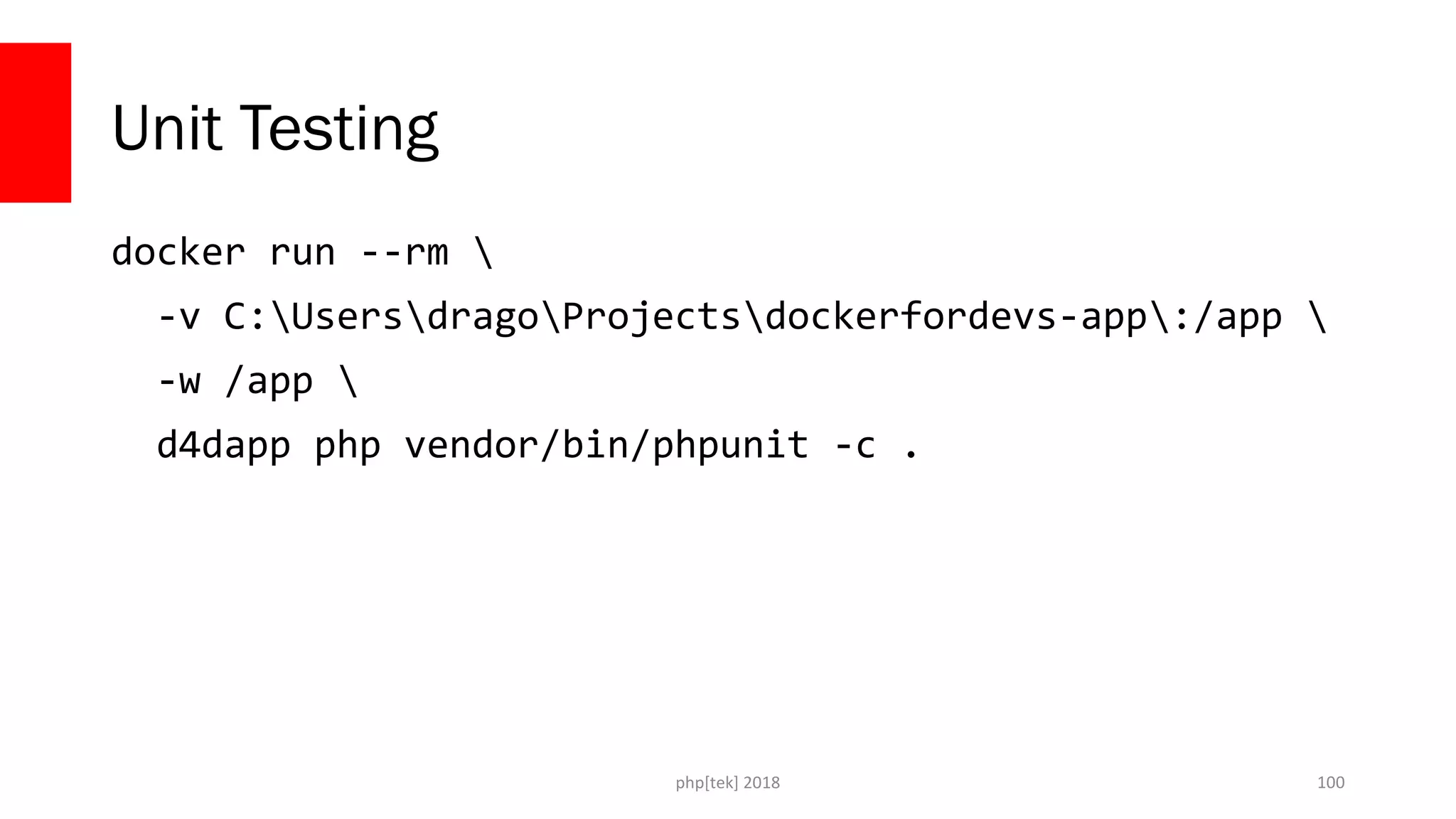

php[tek] 2018 Unit Testing docker run --rm -v C:UsersdragoProjectsdockerfordevs-app:/app -w /app d4dapp php vendor/bin/phpunit -c . 100
php[tek] 2018 Running the tests
php[tek] 2018 Build a service service: testrunner: build: ./docker/ volumes: - ./:/app working_dir: /app command: vendor/bin/phpunit -c . 102

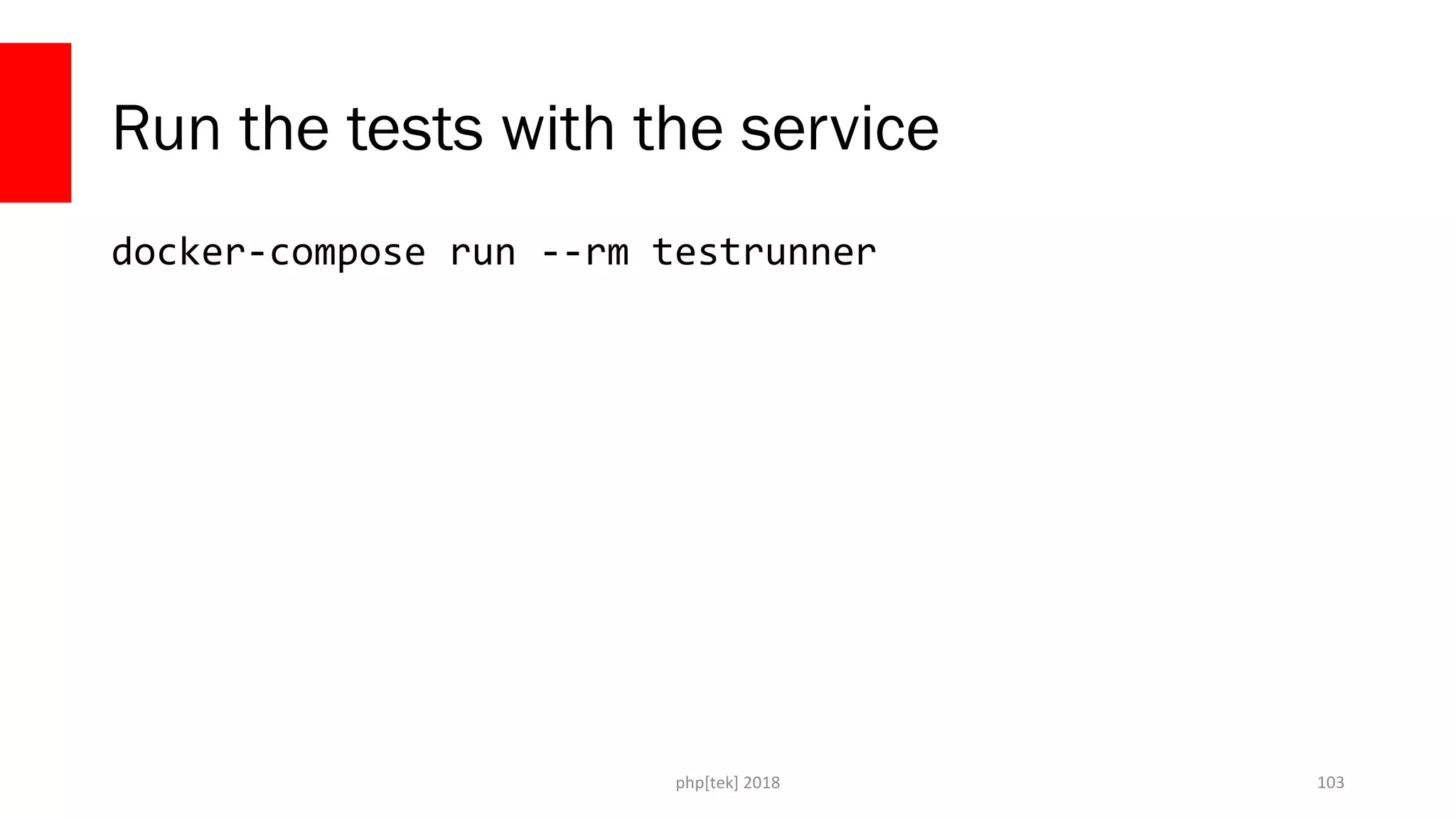

php[tek] 2018 Run the tests with the service docker-compose run --rm testrunner 103

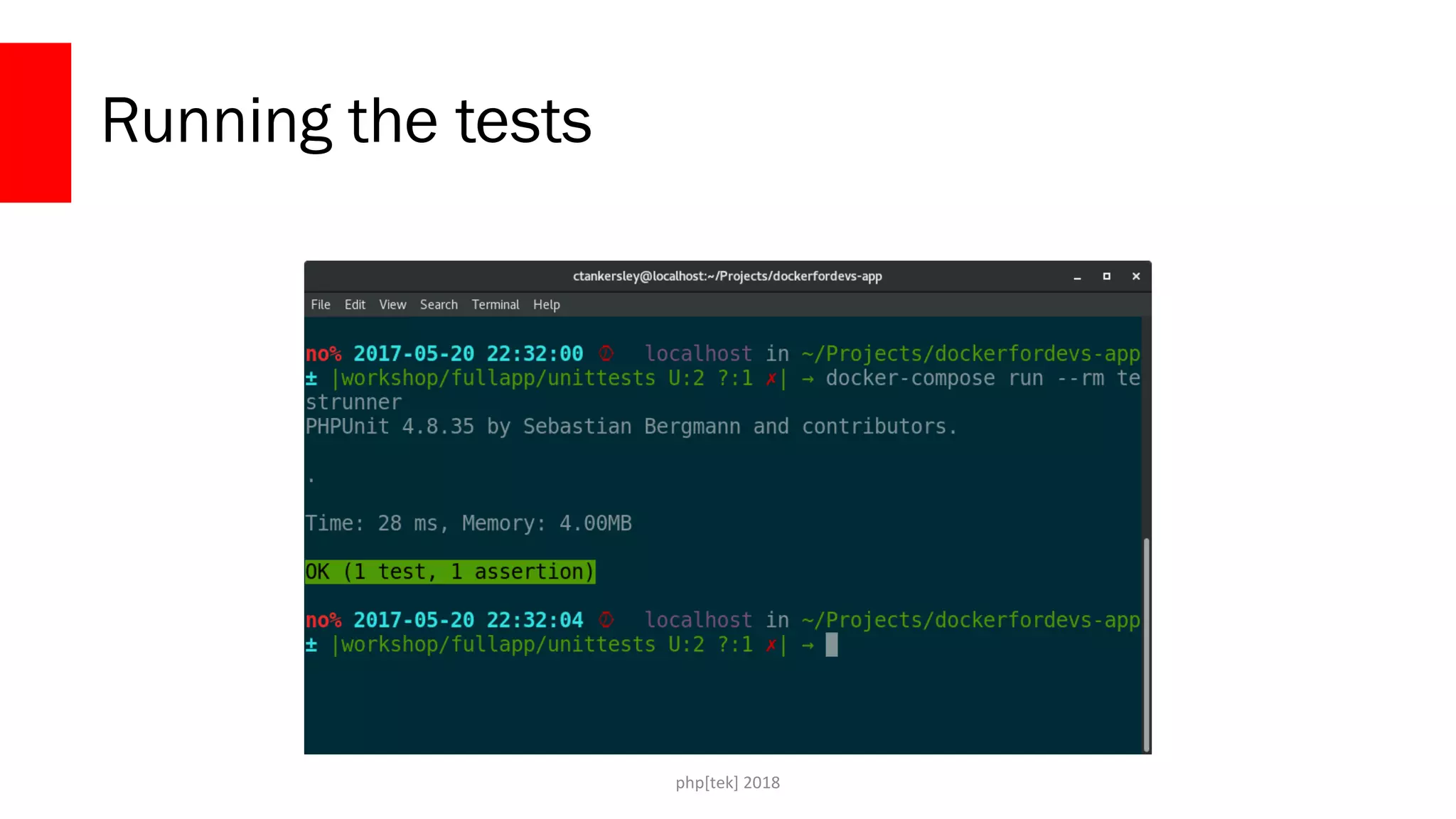

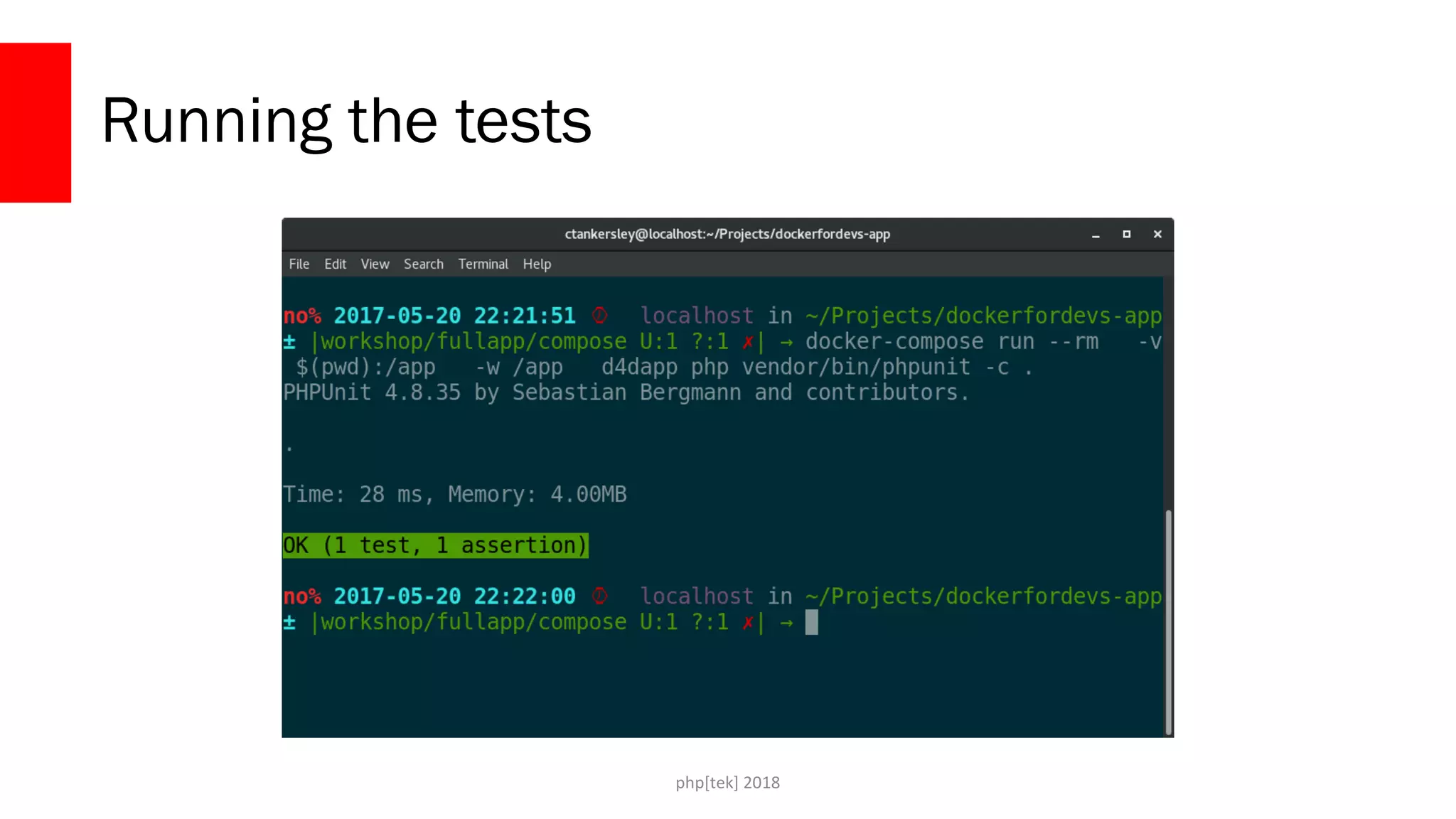

php[tek] 2018 Running the tests

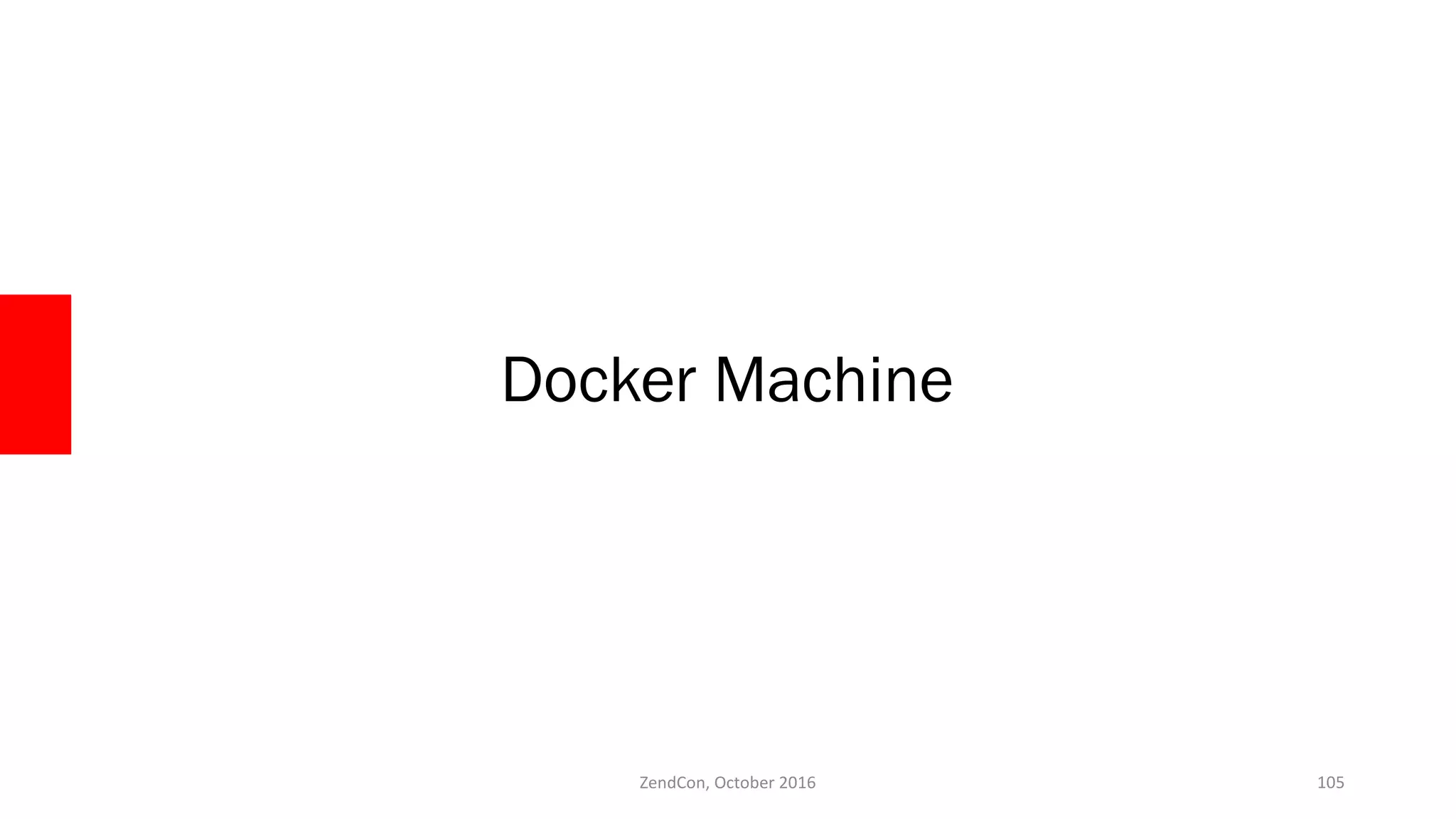

Docker Machine ZendCon, October 2016 105

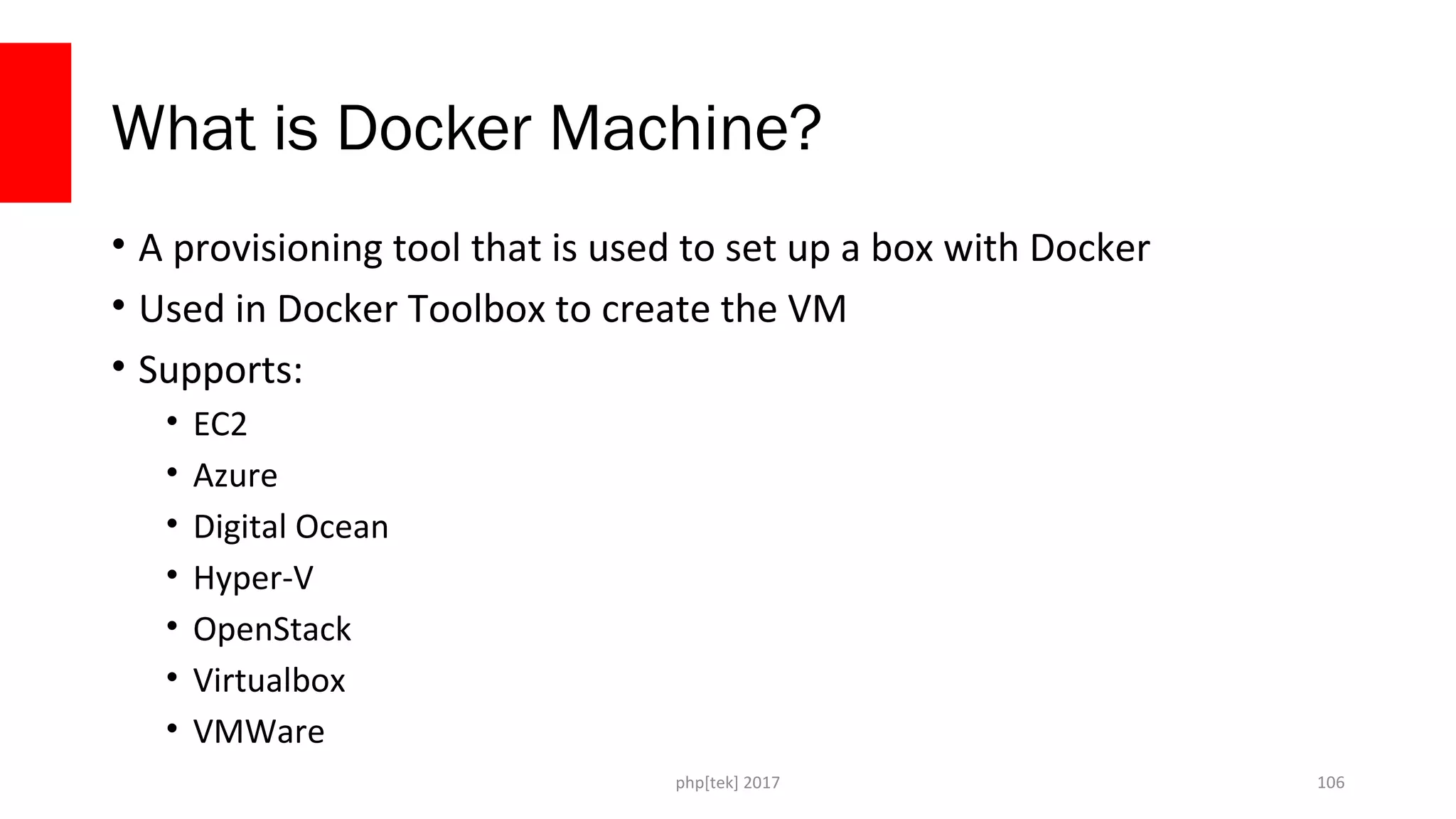

What is Docker Machine? ‱ A provisioning tool that is used to set up a box with Docker ‱ Used in Docker Toolbox to create the VM ‱ Supports: ‱ EC2 ‱ Azure ‱ Digital Ocean ‱ Hyper-V ‱ OpenStack ‱ Virtualbox ‱ VMWare php[tek] 2017 106

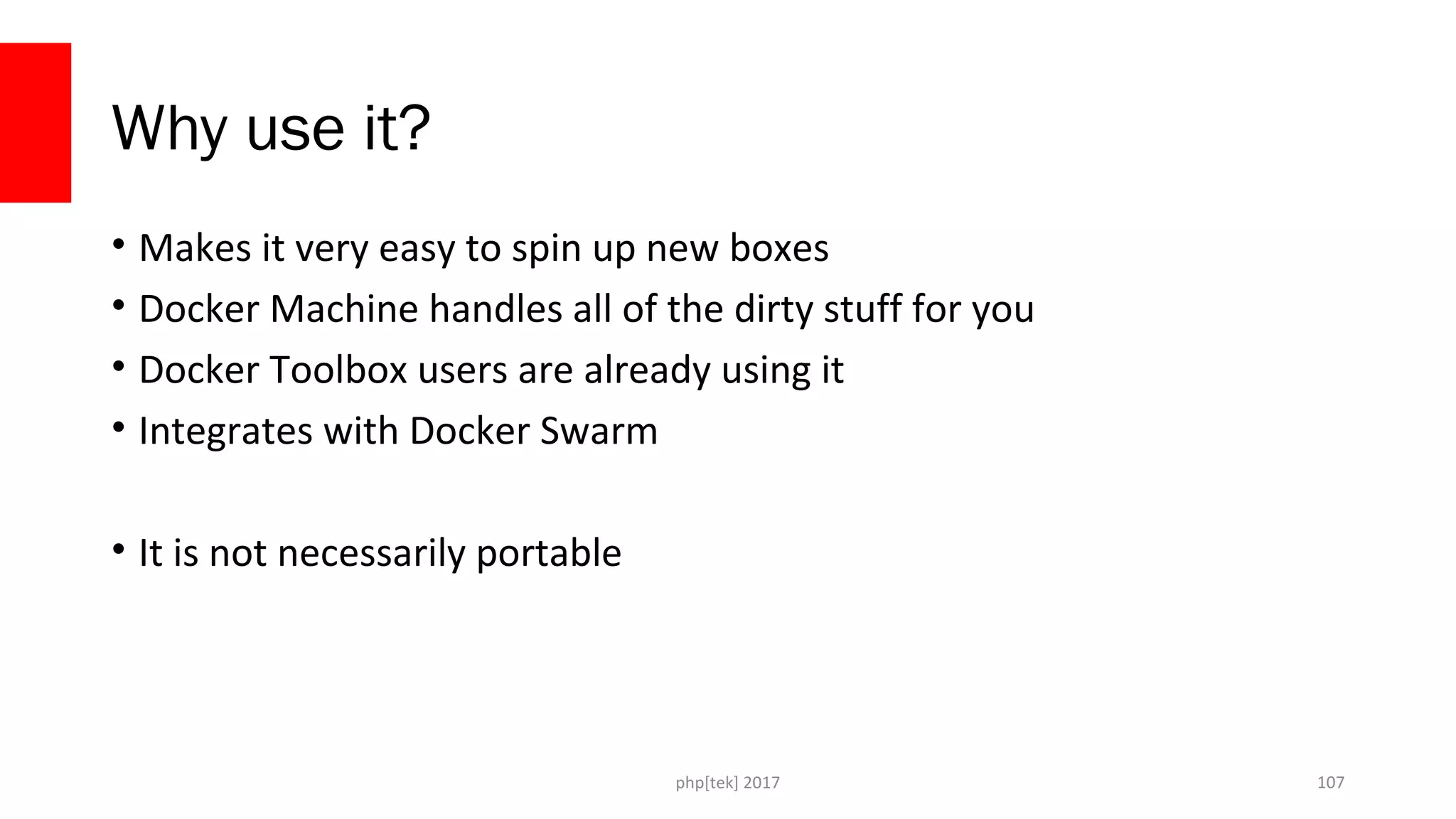

Why use it? ‱ Makes it very easy to spin up new boxes ‱ Docker Machine handles all of the dirty stuff for you ‱ Docker Toolbox users are already using it ‱ Integrates with Docker Swarm ‱ It is not necessarily portable php[tek] 2017 107
Let’s make a machine! php[tek] 2017 108
Let’s Connect! php[tek] 2017 109
php[tek] 2018 BREAK TIME AGAIN! WOO! 110
Production Considerations 111
12 Factor Applications php[tek] 2017 112
1. Codebase One codebase tracked in revision control, many deploys php[tek] 2017 113

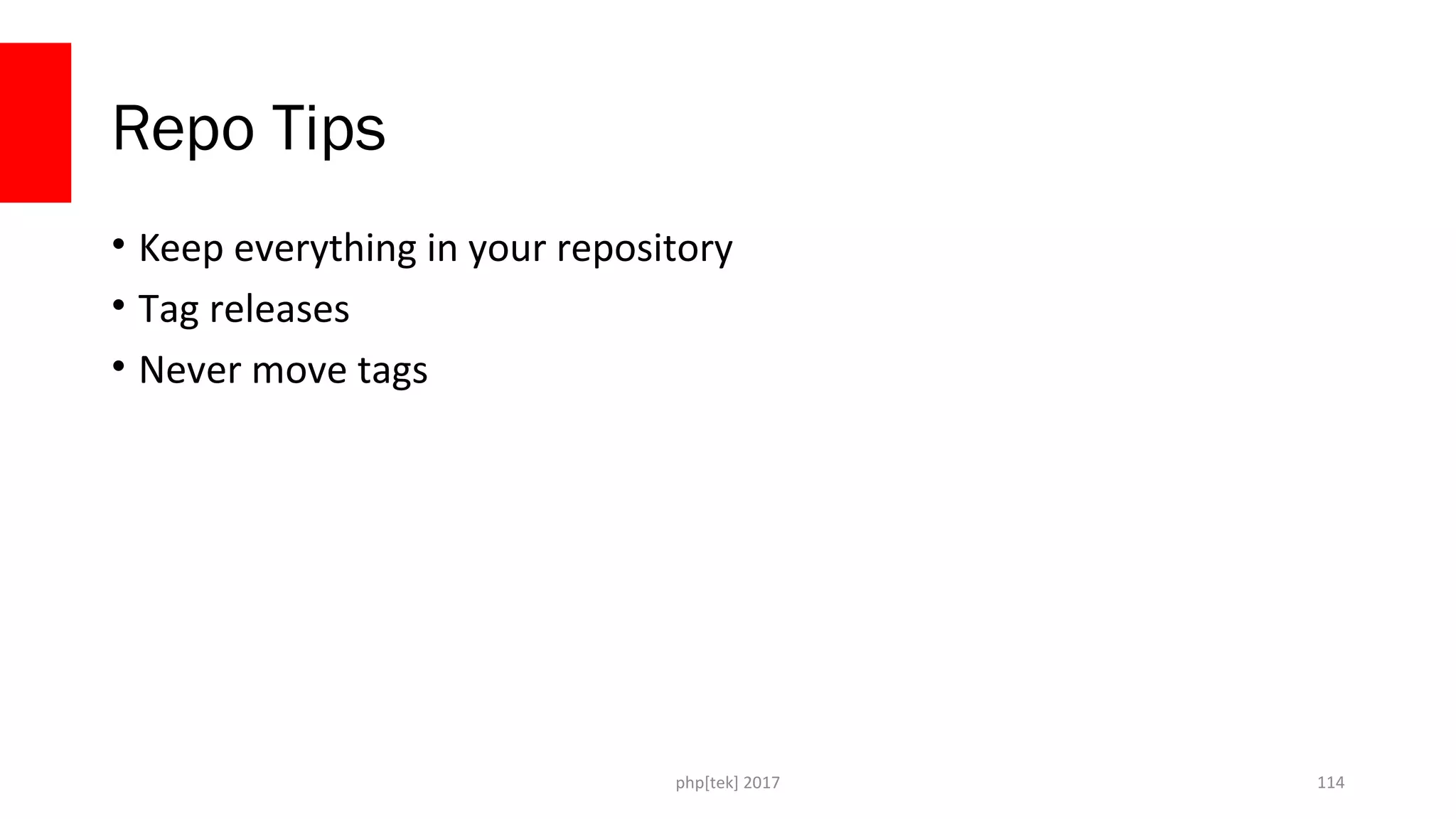

Repo Tips ‱ Keep everything in your repository ‱ Tag releases ‱ Never move tags php[tek] 2017 114
2. Dependencies Explicitly declare and isolate dependencies php[tek] 2017 115

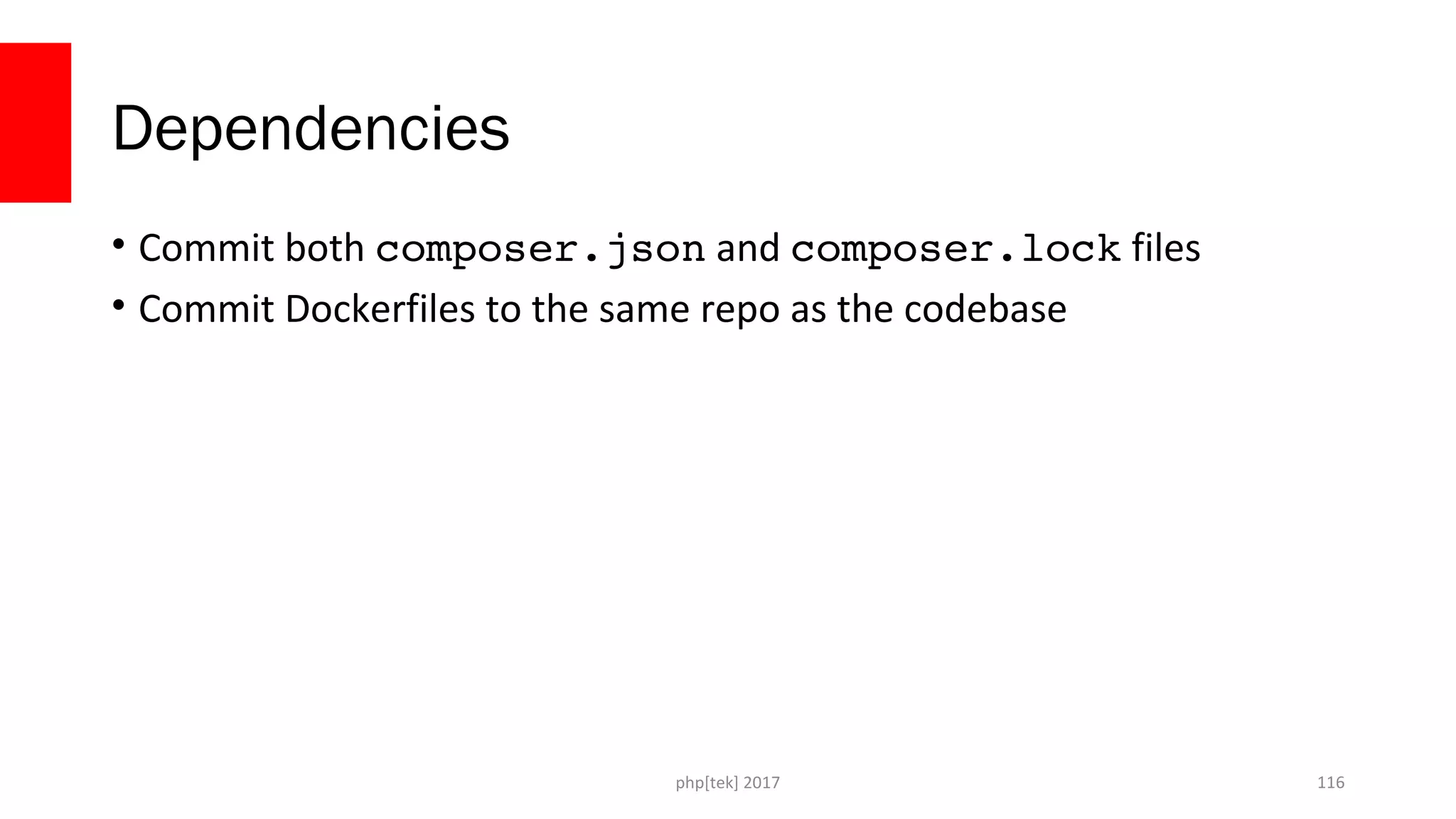

Dependencies ‱ Commit both composer.json and composer.lock files ‱ Commit Dockerfiles to the same repo as the codebase php[tek] 2017 116

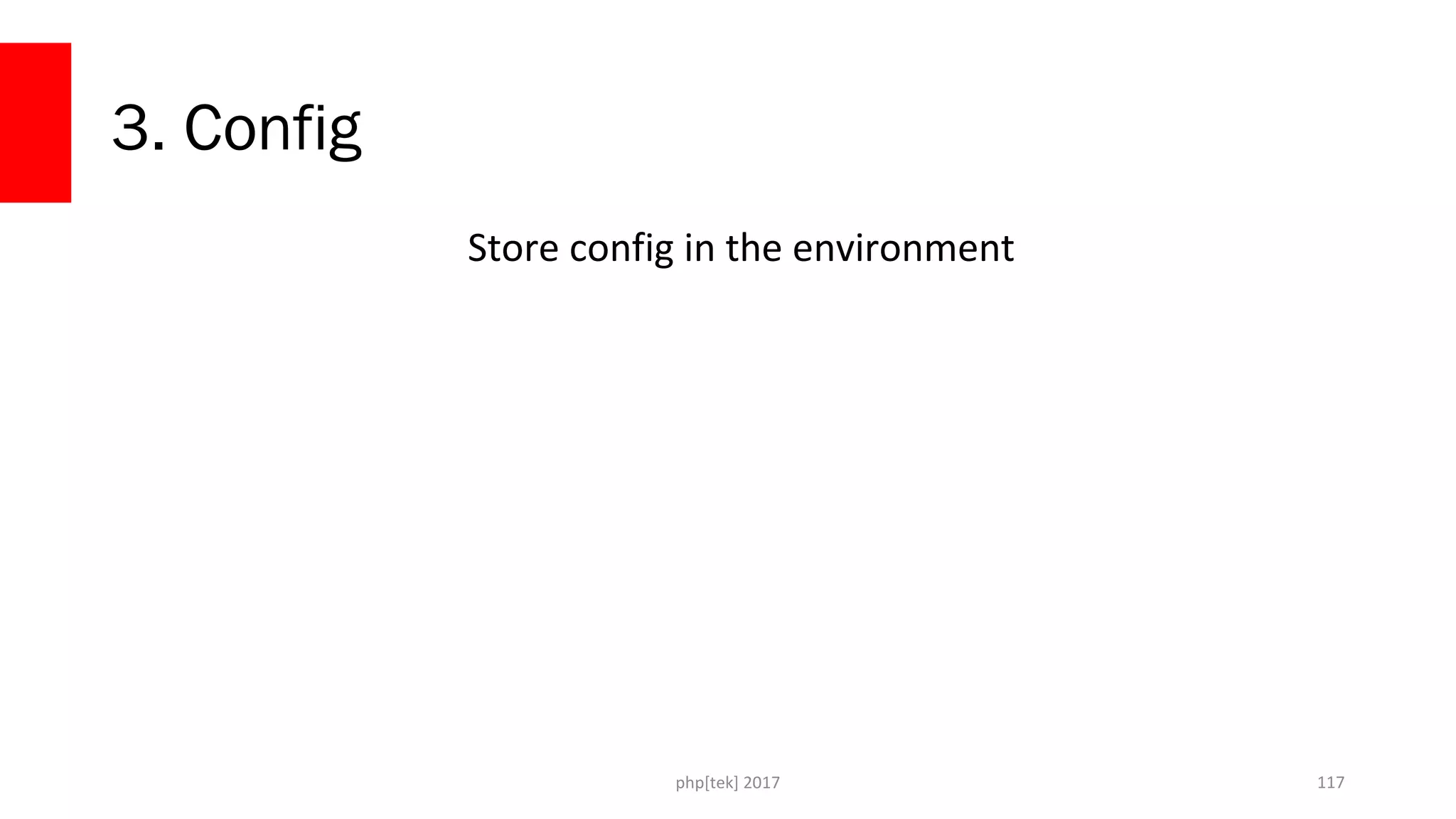

3. Config Store config in the environment php[tek] 2017 117

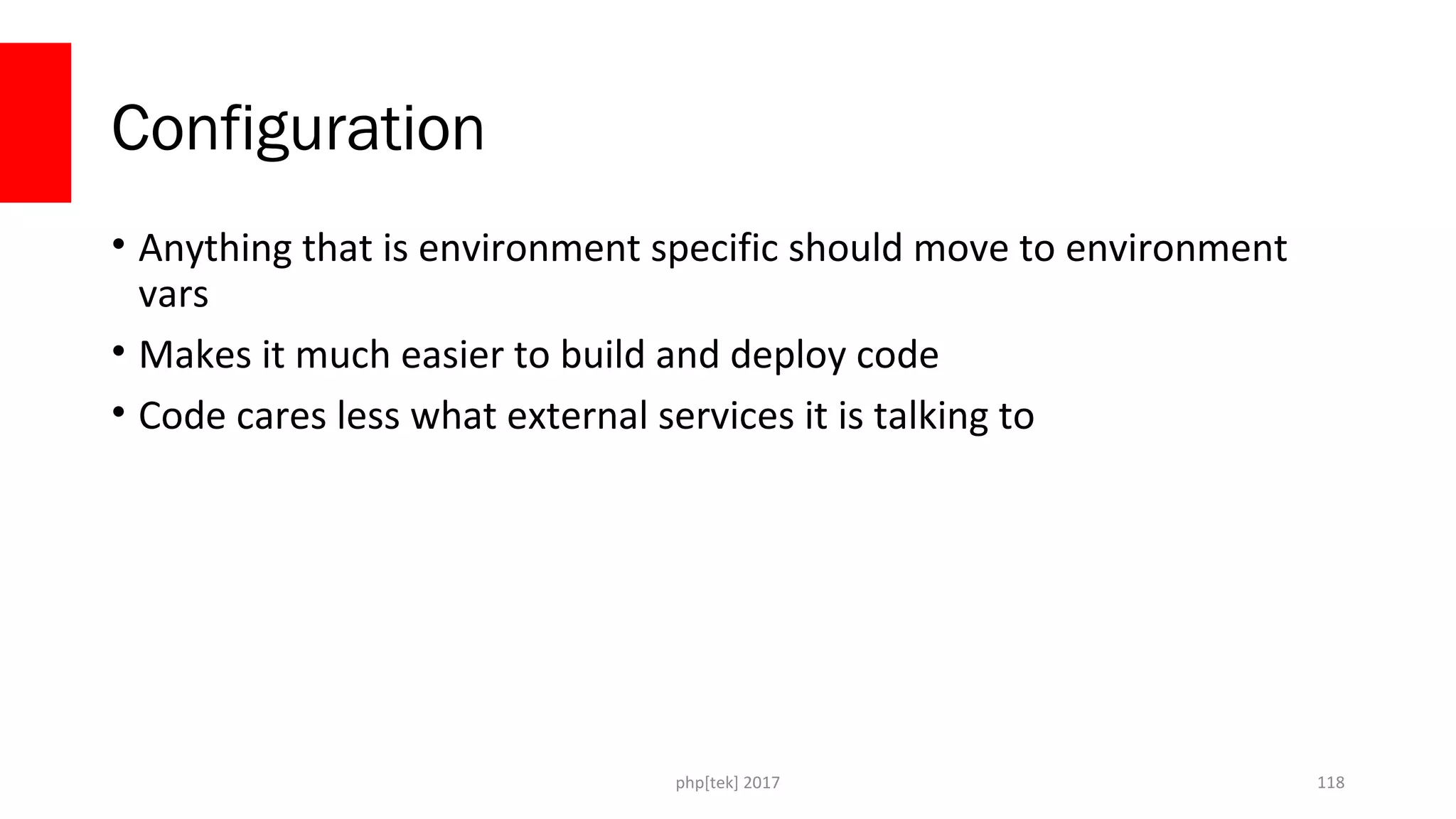

Configuration ‱ Anything that is environment specific should move to environment vars ‱ Makes it much easier to build and deploy code ‱ Code cares less what external services it is talking to php[tek] 2017 118

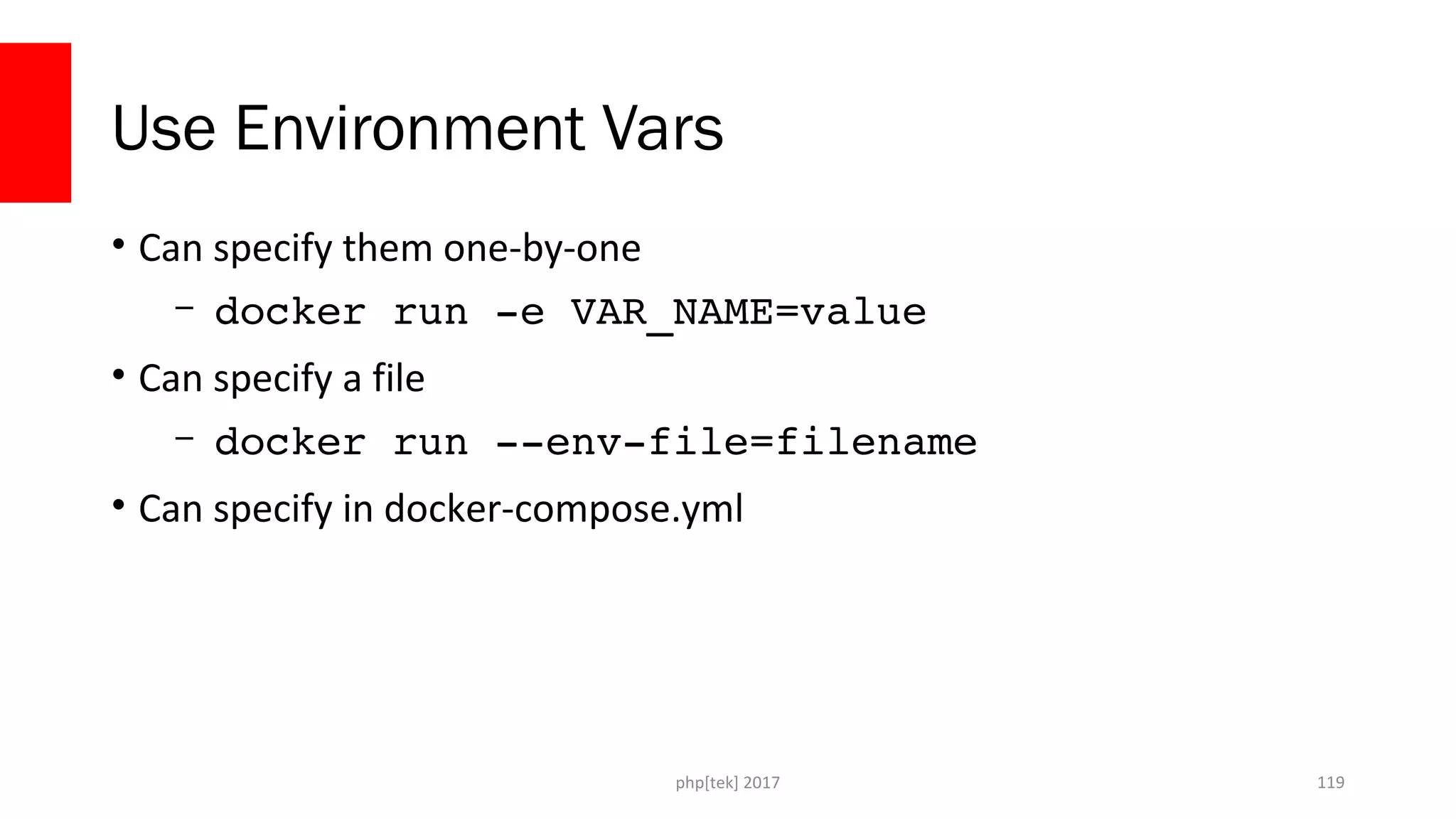

Use Environment Vars ‱ Can specify them one-by-one – docker run ­e VAR_NAME=value ‱ Can specify a file – docker run ­­env­file=filename ‱ Can specify in docker-compose.yml php[tek] 2017 119
4. Backing Services Treat backing services as attached resources php[tek] 2017 120
Everything is “external” ‱ Never talk to local sockets ‱ Don’t make a determination between “locally” hosted and third party ‱ Easier to switch environments ‱ Easier to scale up php[tek] 2017 121
5. Build, release, run Strictly separate build and run stages php[tek] 2017 122
The Workflow ‱ Build step installs dependencies, compiles files, and generates a Build Artifact that can be deployed – Does not contain any deployment configuration ‱ Release step pushes a Build Artifact into an environment – Runs DB migrations, anything needed to happen before running ‱ Run step runs the app fully in the environment php[tek] 2017 123

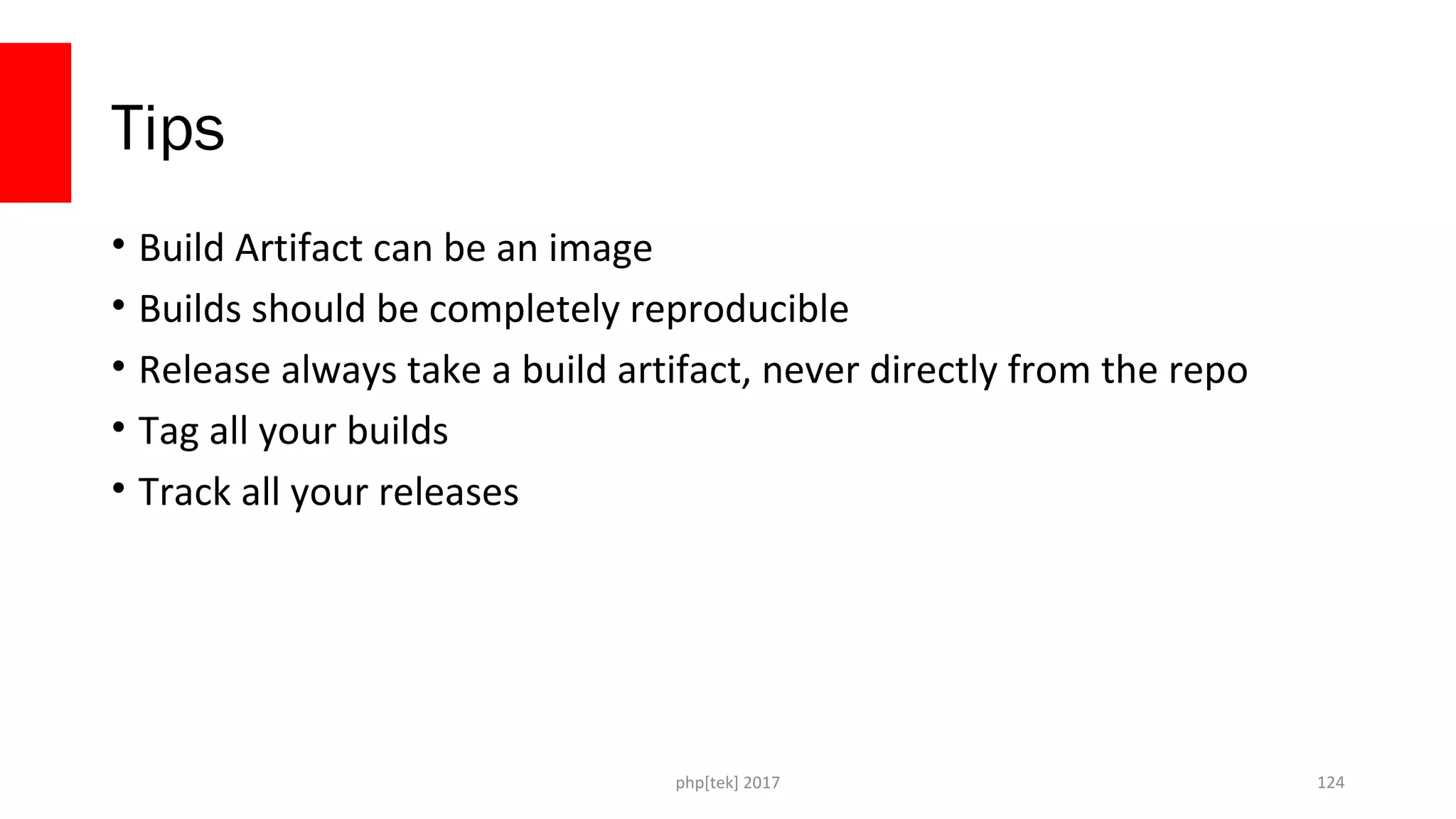

Tips ‱ Build Artifact can be an image ‱ Builds should be completely reproducible ‱ Release always take a build artifact, never directly from the repo ‱ Tag all your builds ‱ Track all your releases php[tek] 2017 124

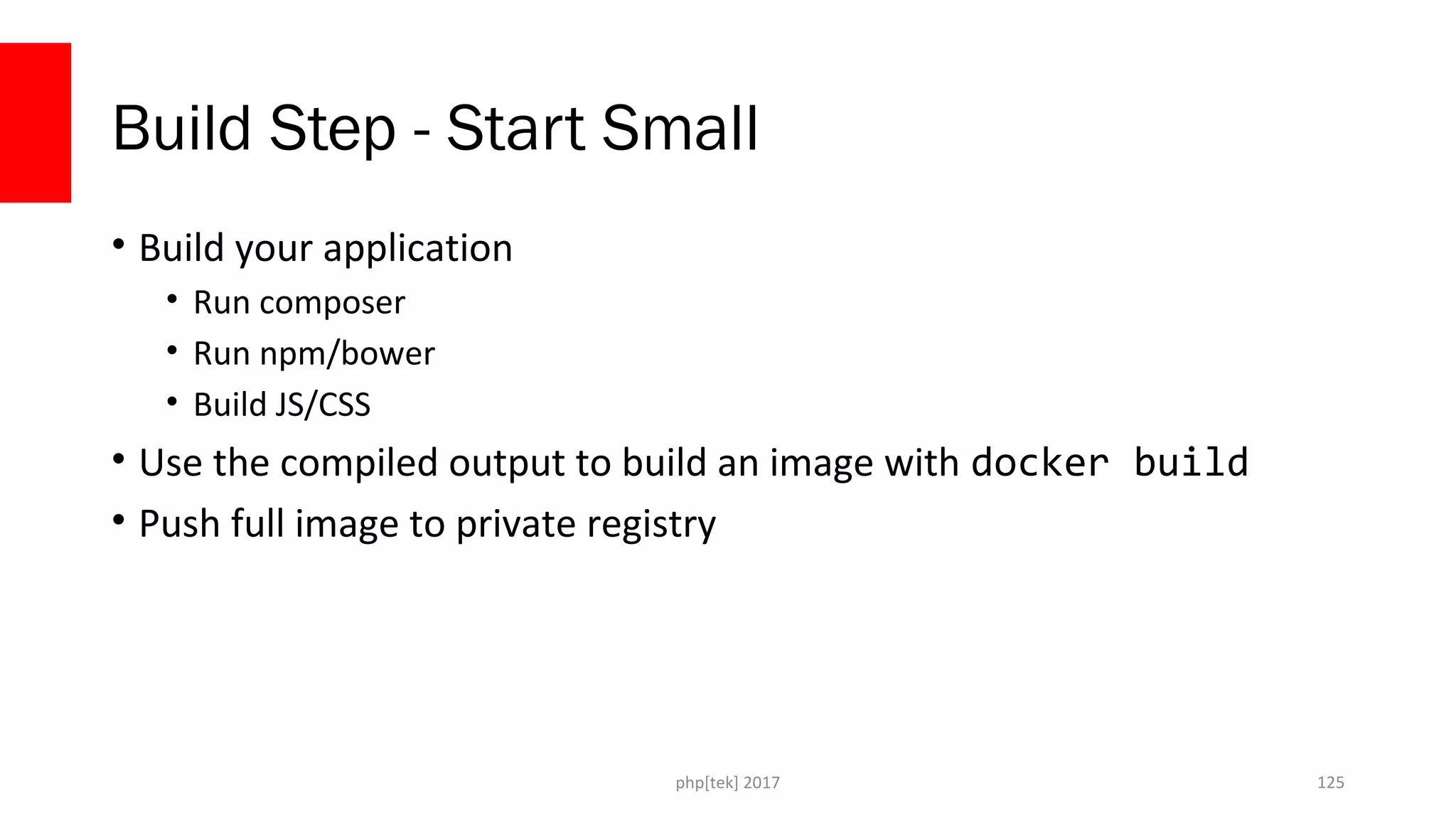

Build Step - Start Small ‱ Build your application ‱ Run composer ‱ Run npm/bower ‱ Build JS/CSS ‱ Use the compiled output to build an image with docker build ‱ Push full image to private registry php[tek] 2017 125

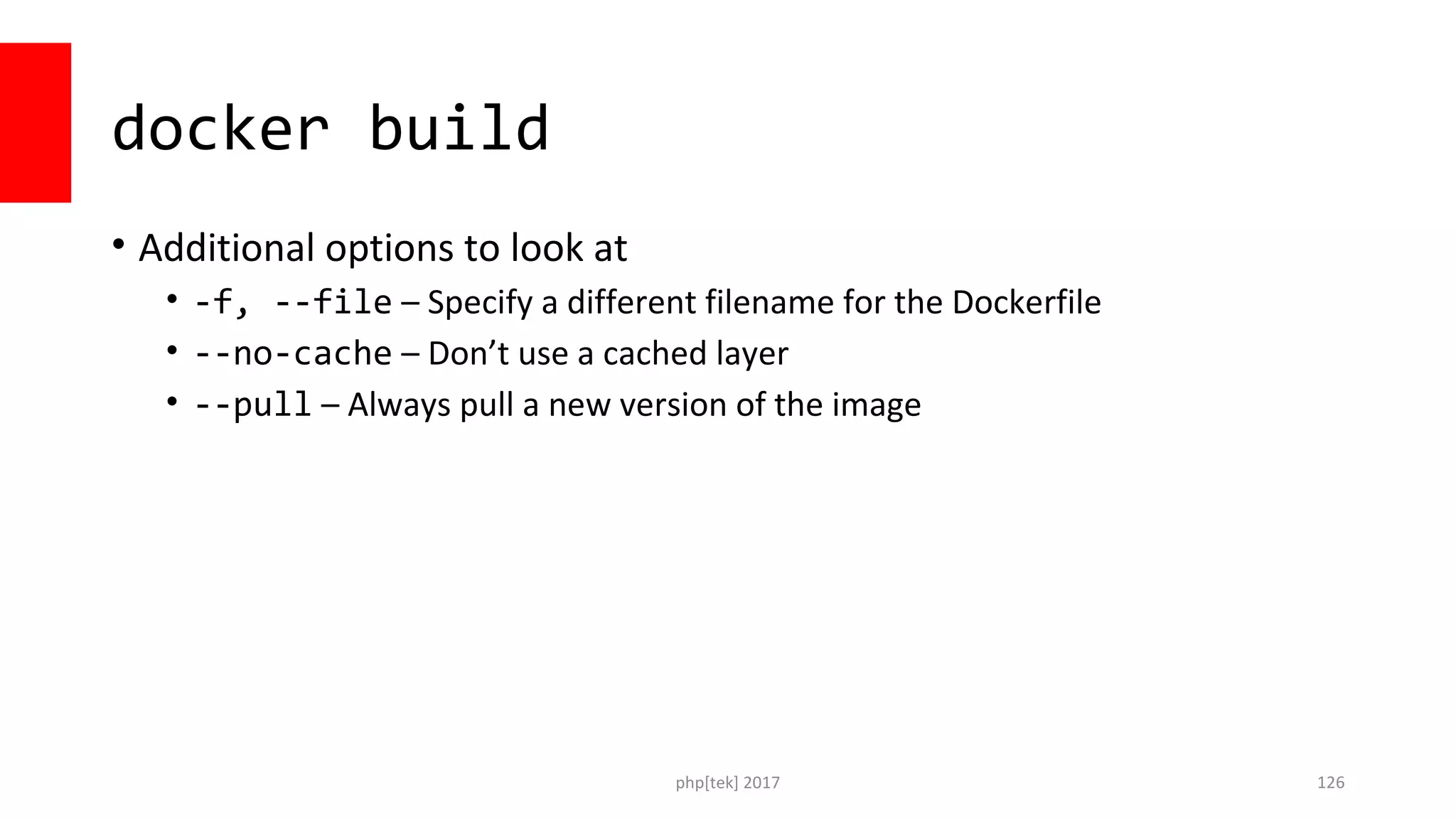

docker build ‱ Additional options to look at ‱ -f, --file – Specify a different filename for the Dockerfile ‱ --no-cache – Don’t use a cached layer ‱ --pull – Always pull a new version of the image php[tek] 2017 126

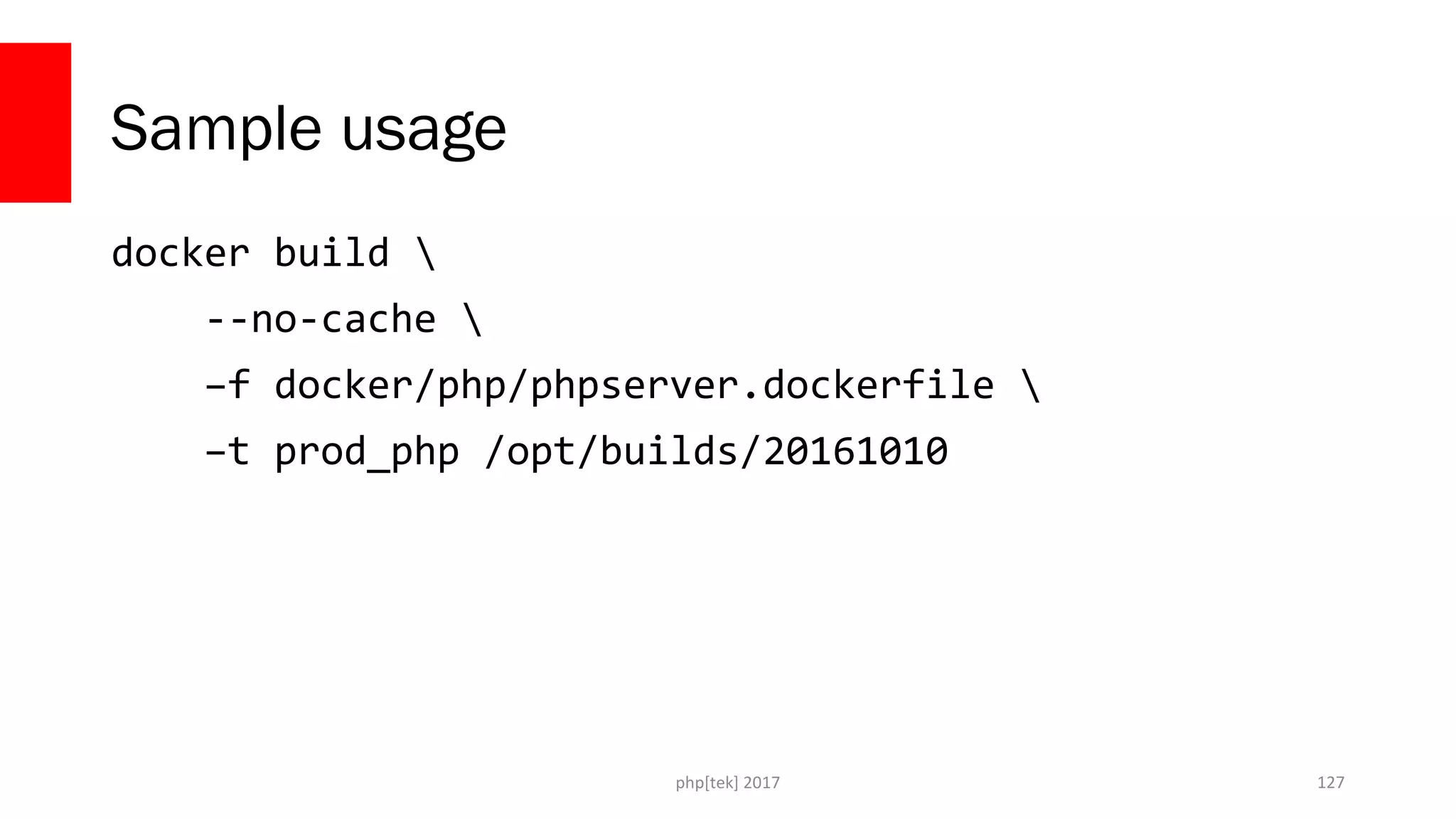

Sample usage docker build --no-cache –f docker/php/phpserver.dockerfile –t prod_php /opt/builds/20161010 php[tek] 2017 127

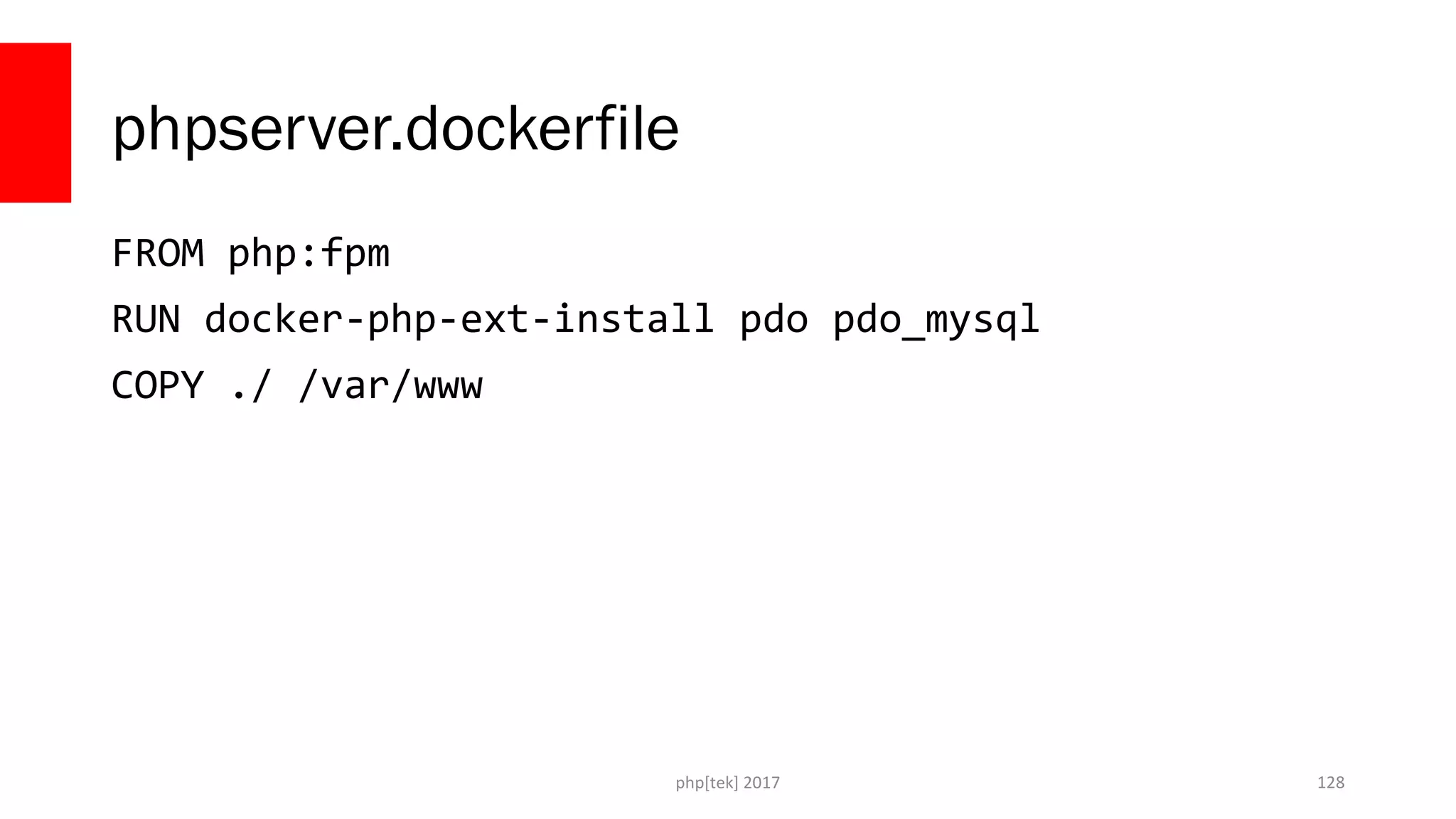

phpserver.dockerfile FROM php:fpm RUN docker-php-ext-install pdo pdo_mysql COPY ./ /var/www php[tek] 2017 128
6. Processes Execute the app as one or more stateless processes php[tek] 2017 129

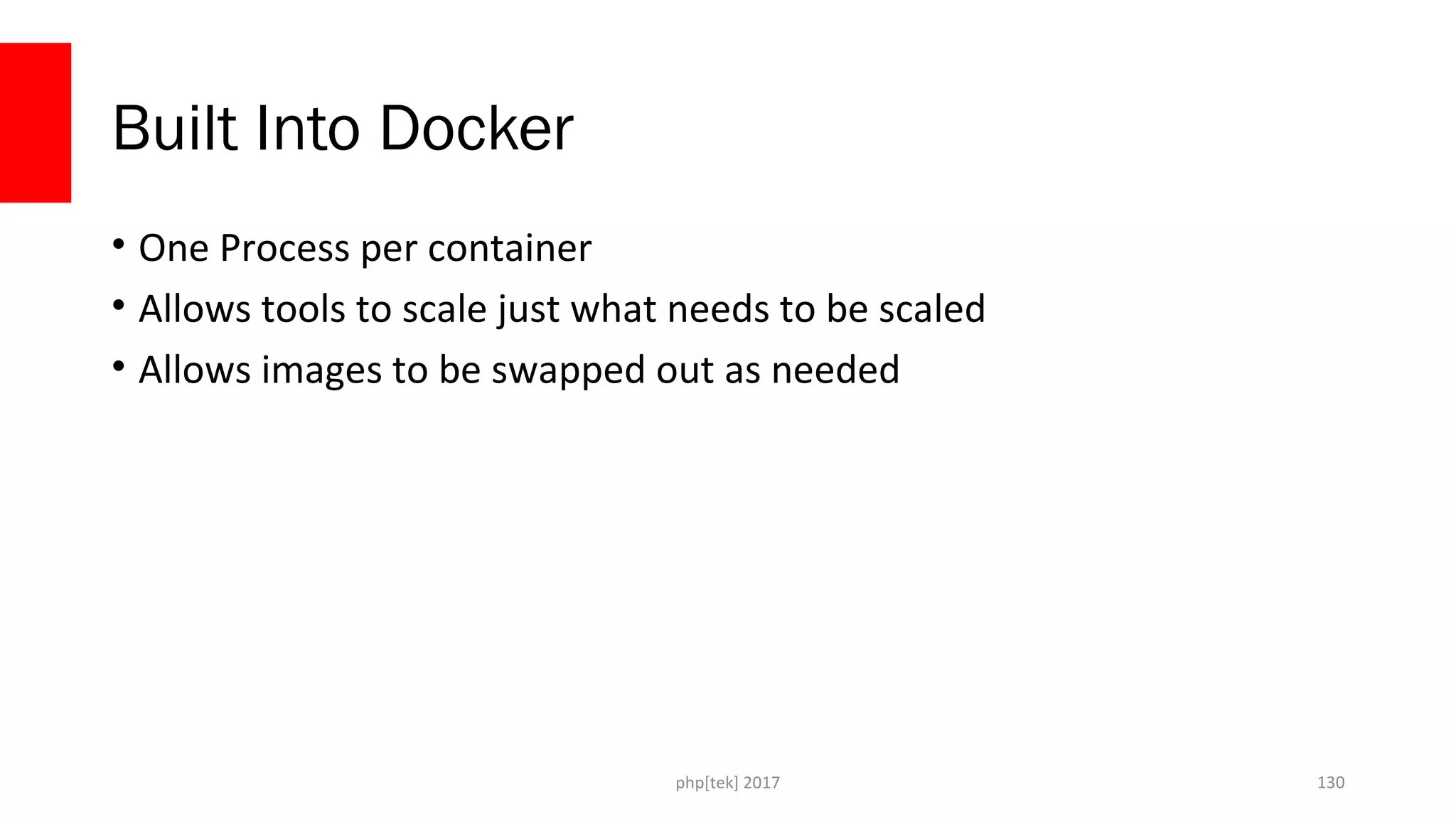

Built Into Docker ‱ One Process per container ‱ Allows tools to scale just what needs to be scaled ‱ Allows images to be swapped out as needed php[tek] 2017 130
7. Port Binding Export services via port binding php[tek] 2017 131

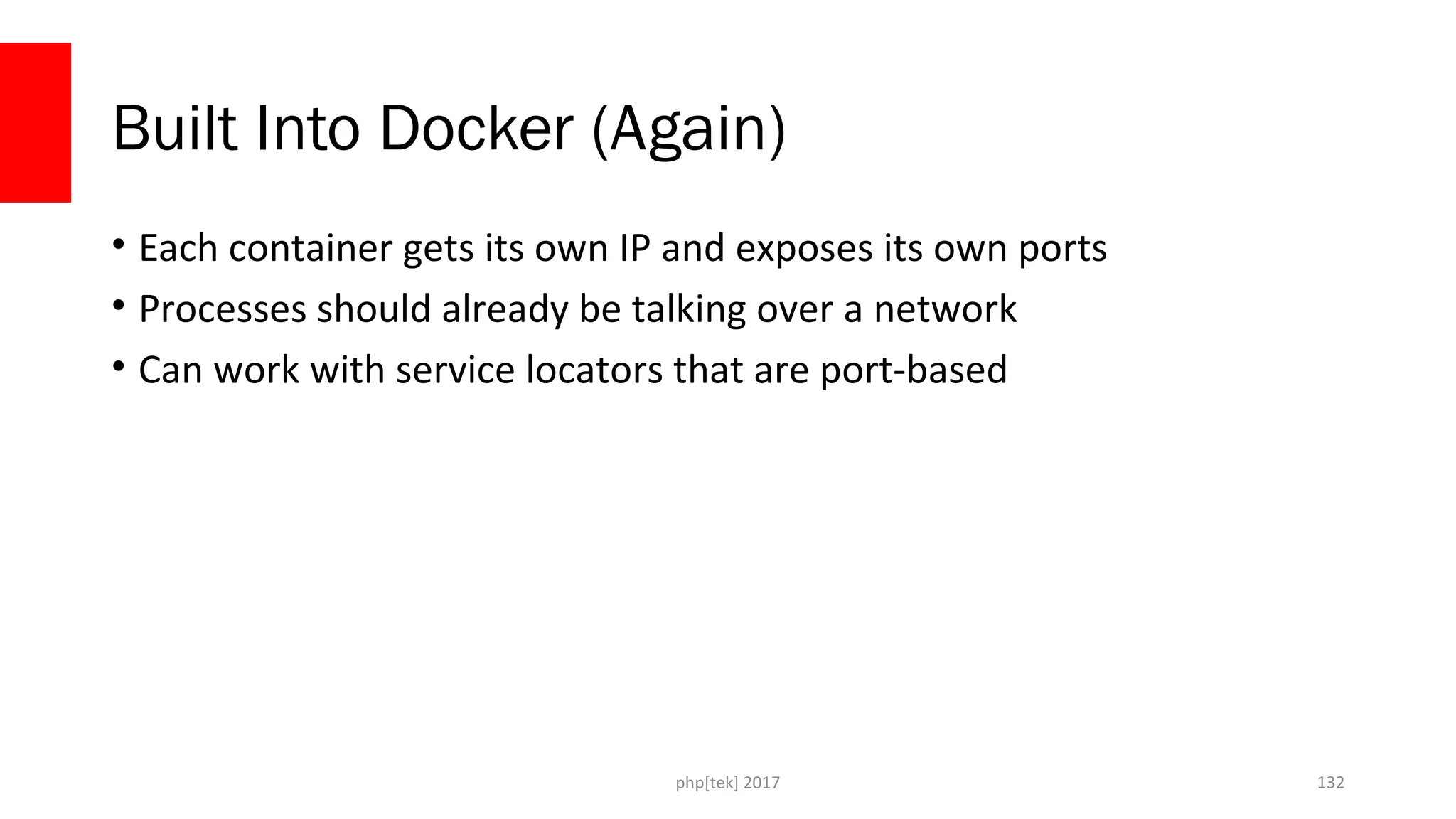

Built Into Docker (Again) ‱ Each container gets its own IP and exposes its own ports ‱ Processes should already be talking over a network ‱ Can work with service locators that are port-based php[tek] 2017 132

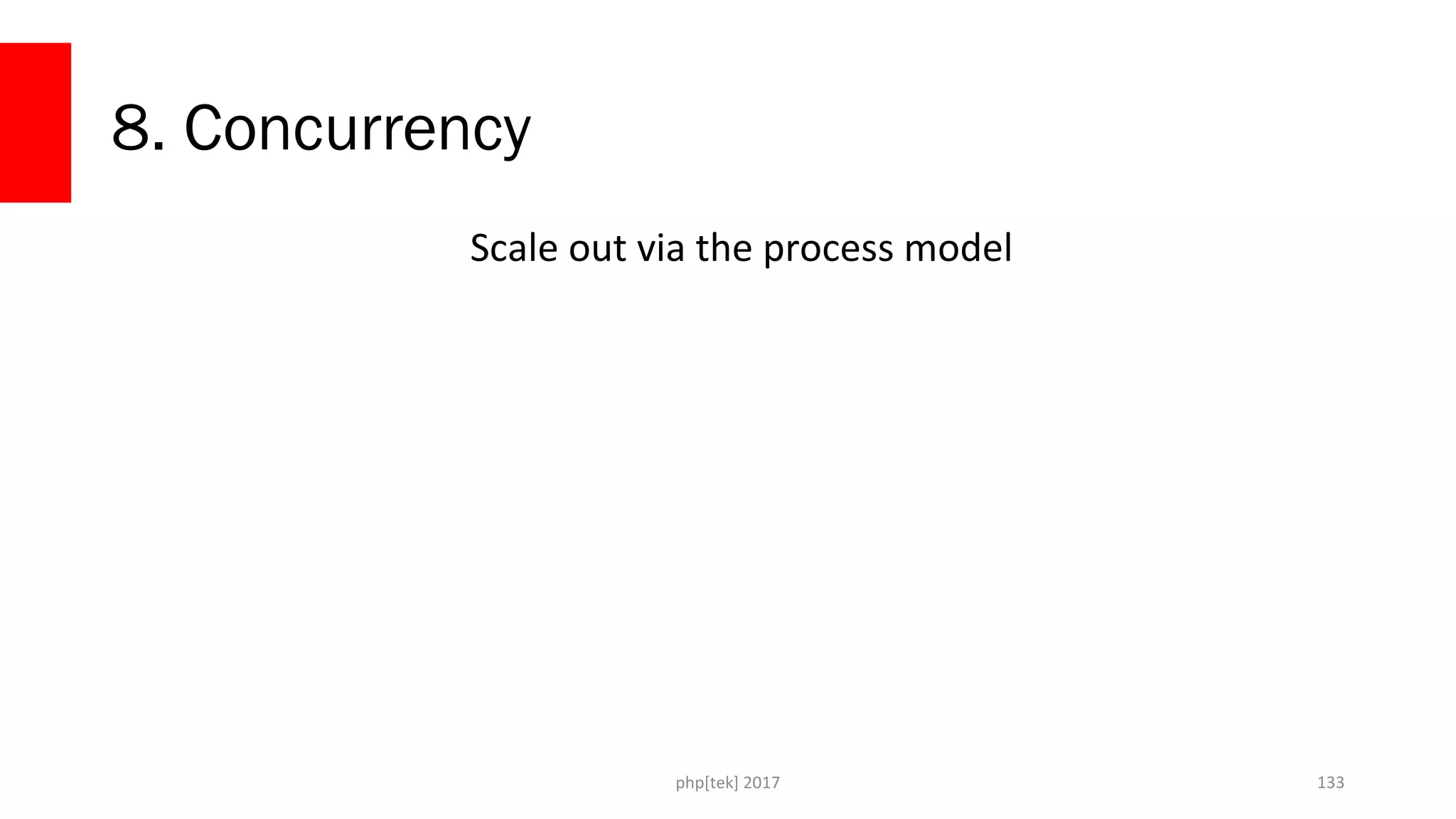

8. Concurrency Scale out via the process model php[tek] 2017 133
How well does your app handle scaling? php[tek] 2017 134

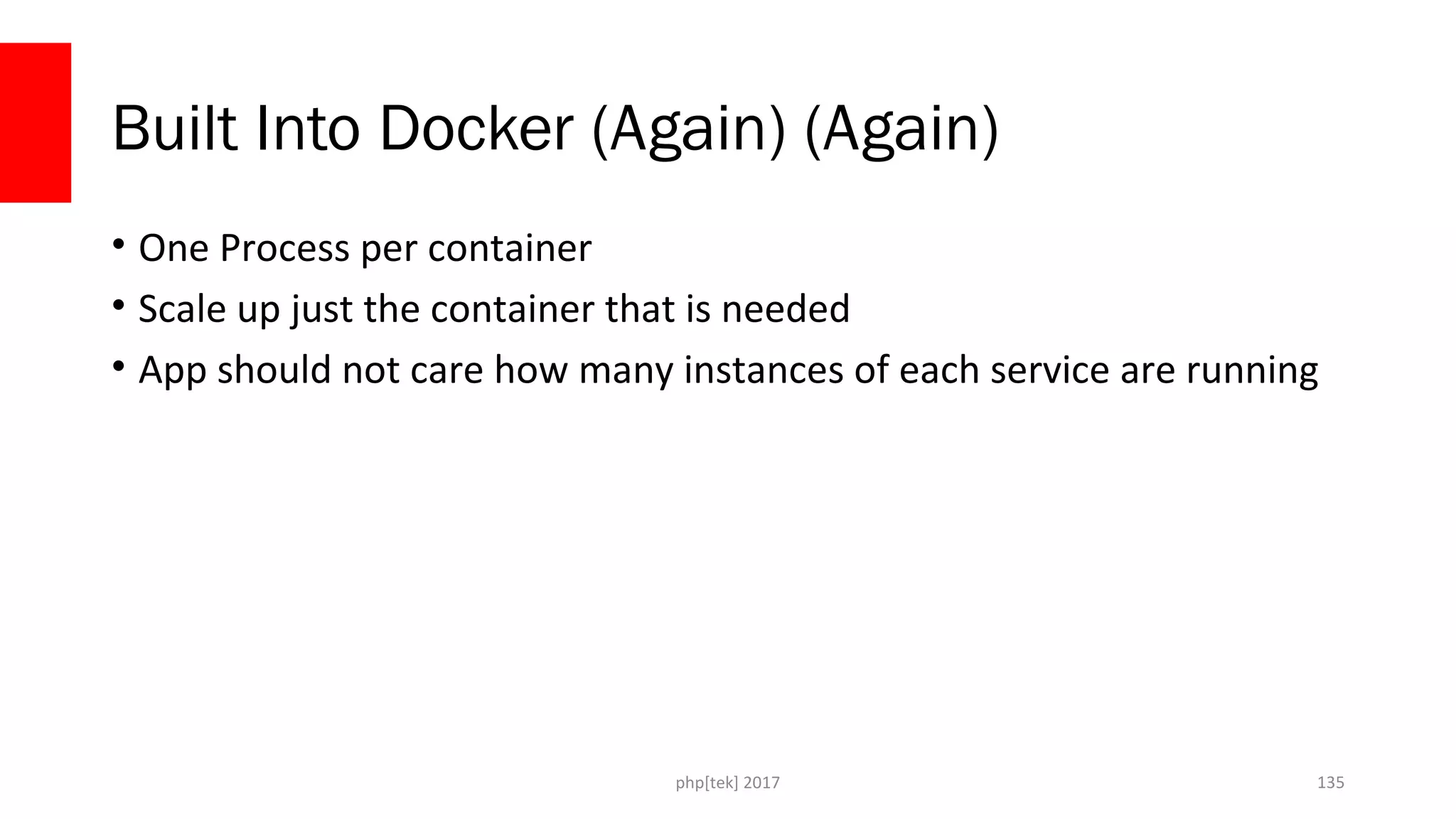

Built Into Docker (Again) (Again) ‱ One Process per container ‱ Scale up just the container that is needed ‱ App should not care how many instances of each service are running php[tek] 2017 135

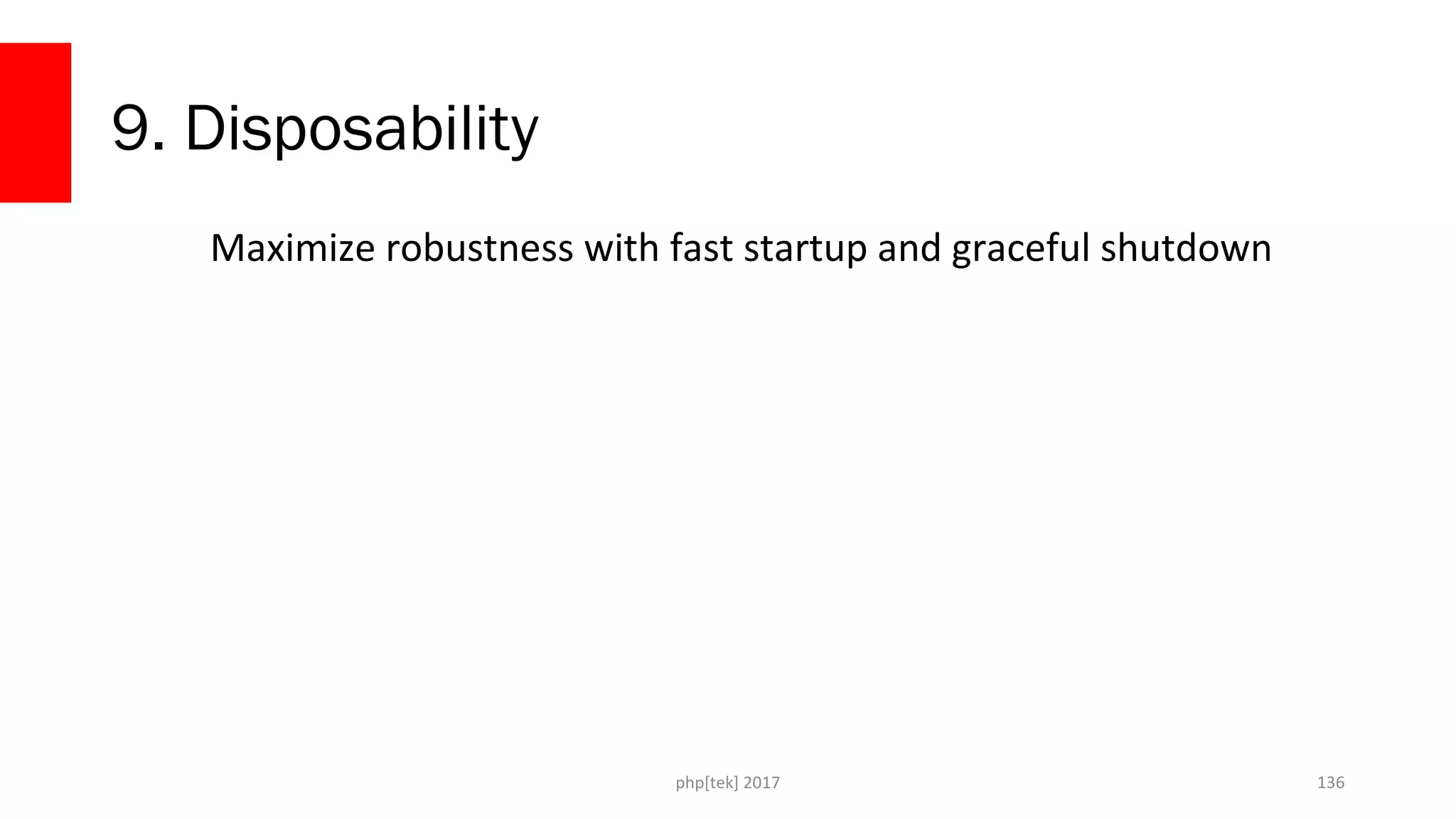

9. Disposability Maximize robustness with fast startup and graceful shutdown php[tek] 2017 136

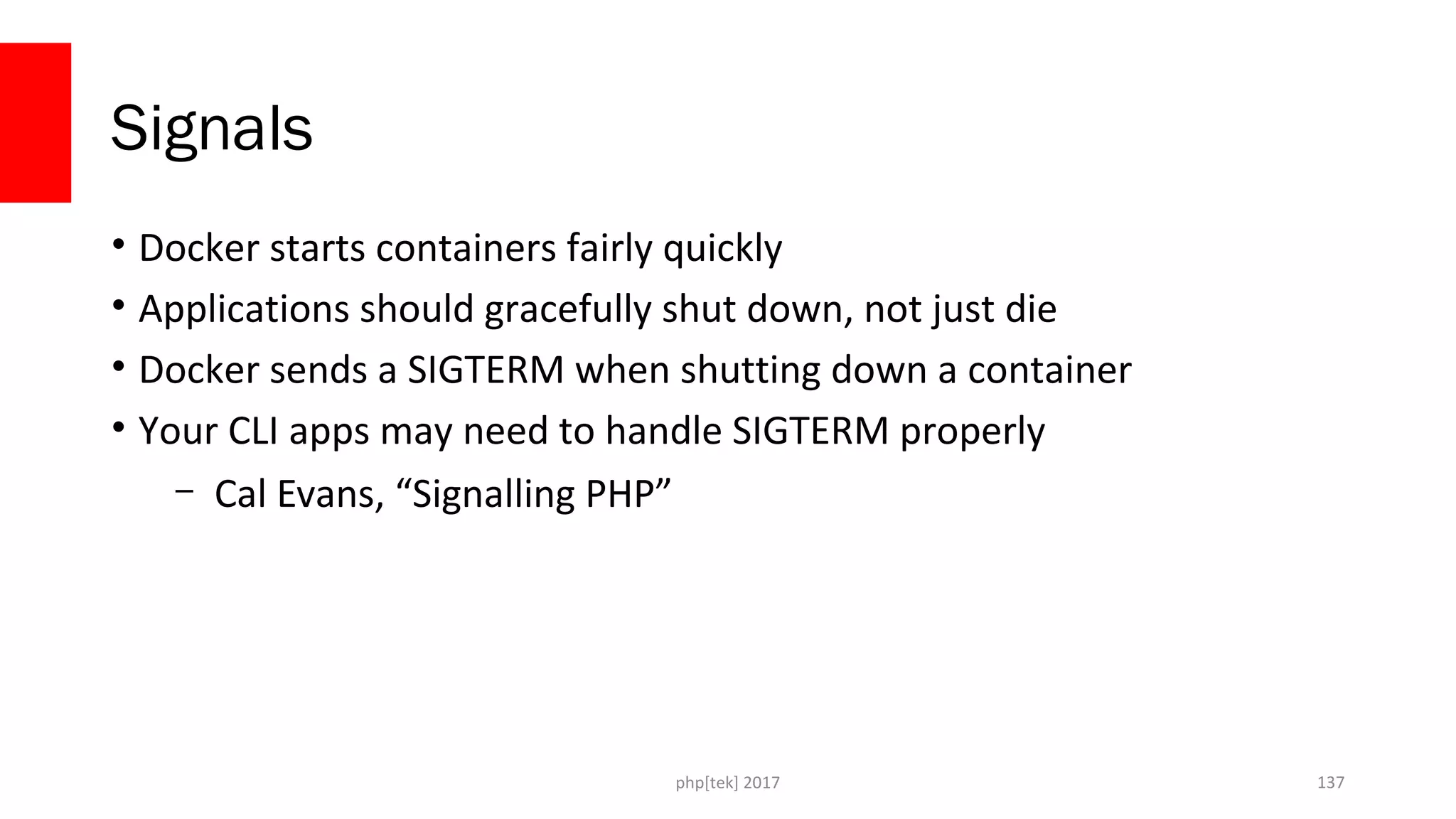

Signals ‱ Docker starts containers fairly quickly ‱ Applications should gracefully shut down, not just die ‱ Docker sends a SIGTERM when shutting down a container ‱ Your CLI apps may need to handle SIGTERM properly – Cal Evans, “Signalling PHP” php[tek] 2017 137
10. Dev/prod Parity Keep development, staging, and production as similar as possible php[tek] 2017 138
11. Logs Treat logs as event streams php[tek] 2017 139

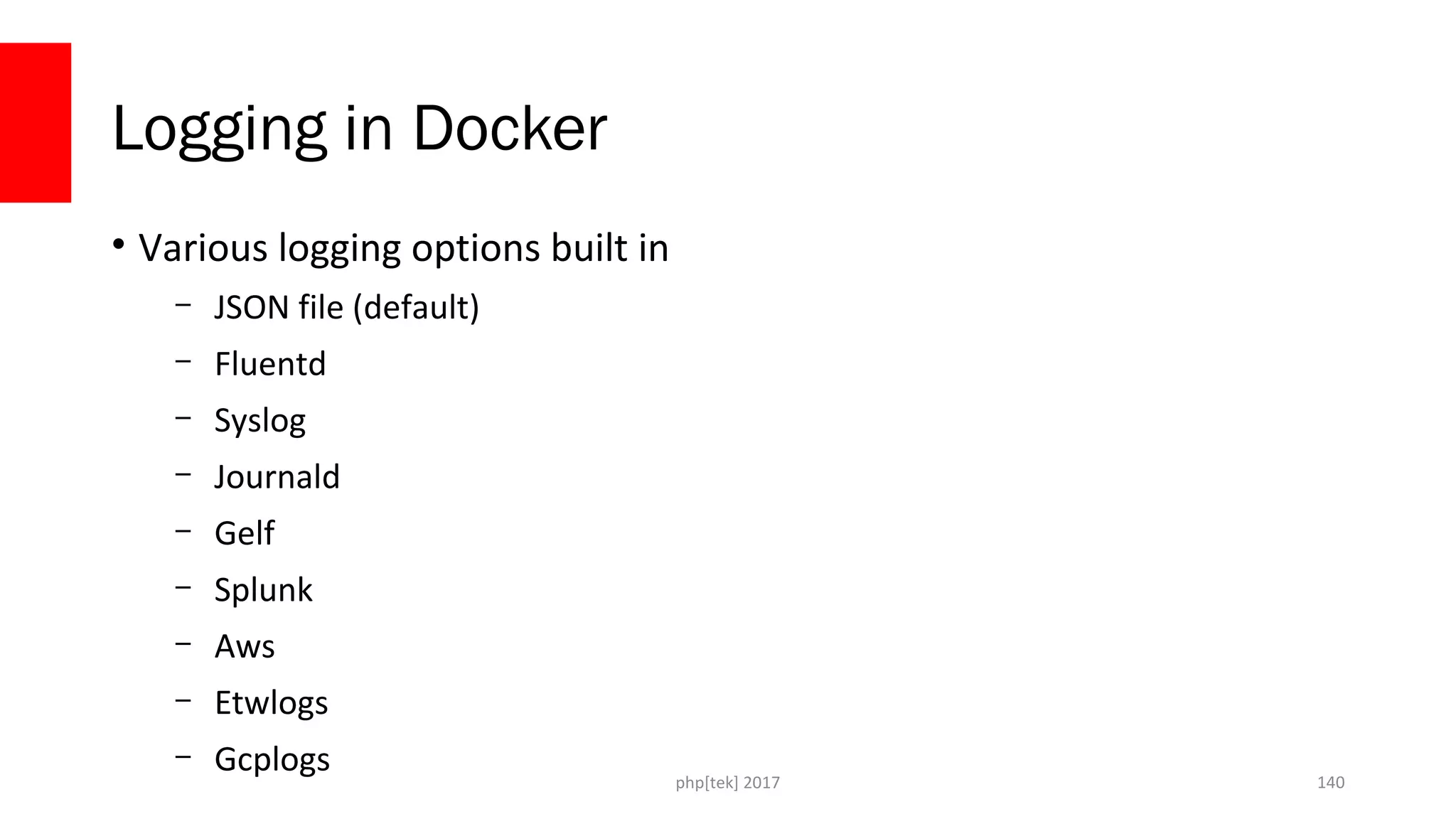

Logging in Docker ‱ Various logging options built in – JSON file (default) – Fluentd – Syslog – Journald – Gelf – Splunk – Aws – Etwlogs – Gcplogs php[tek] 2017 140
Push logs remotely ‱ When possible, push Docker logs to a remote service – Container logs only exist while the container exists ‱ Allows logs to be viewed in a single place ‱ No need to get into actual servers ‱ Can host yourself, or pay for a SaaS ‱ ELK stack is very popular – Docker uses fluentd instead php[tek] 2017 141

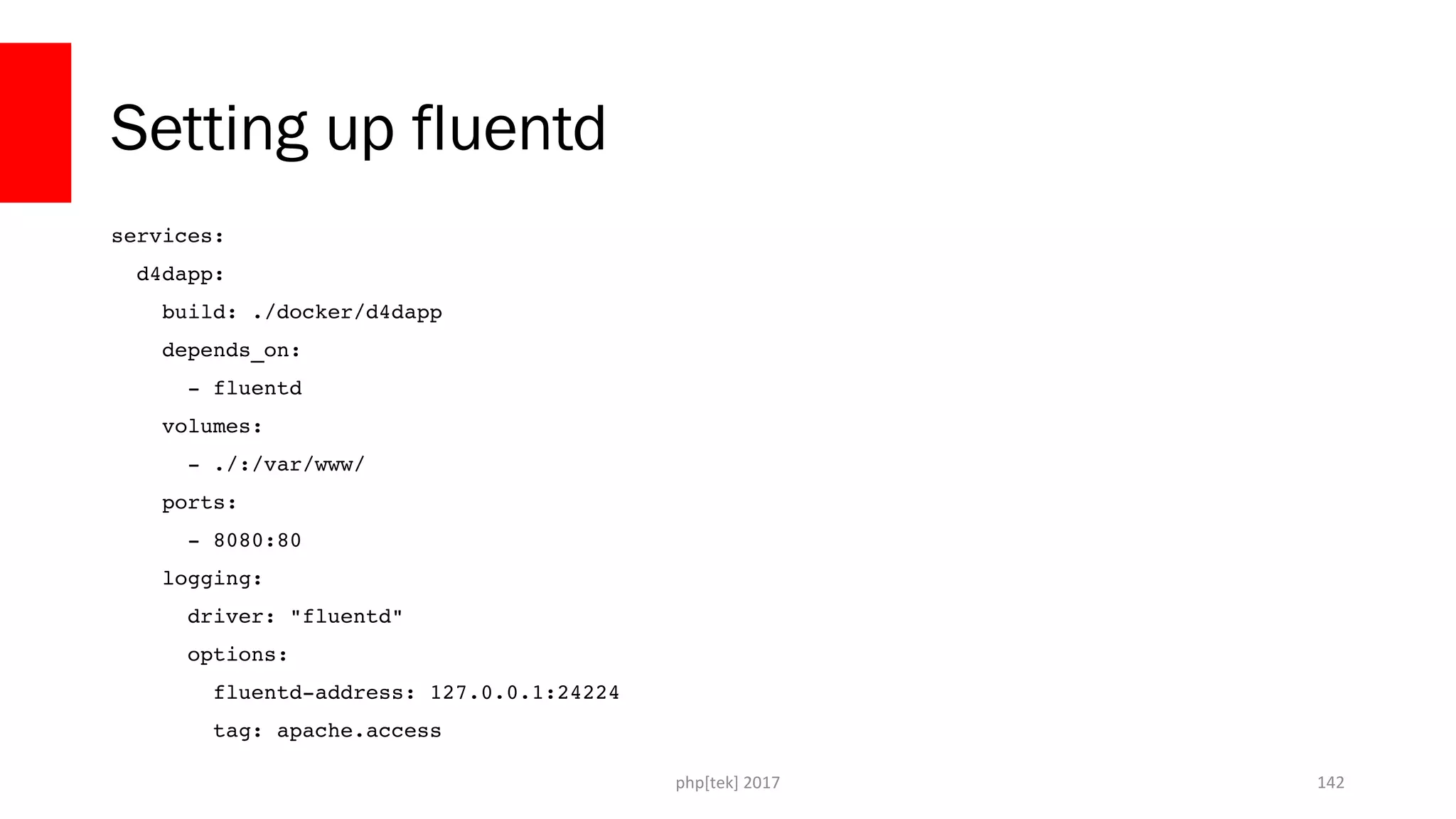

Setting up fluentd services:   d4dapp:     build: ./docker/d4dapp     depends_on:       ­ fluentd     volumes:       ­ ./:/var/www/     ports:       ­ 8080:80     logging:       driver: "fluentd"       options:         fluentd­address: 127.0.0.1:24224         tag: apache.access php[tek] 2017 142

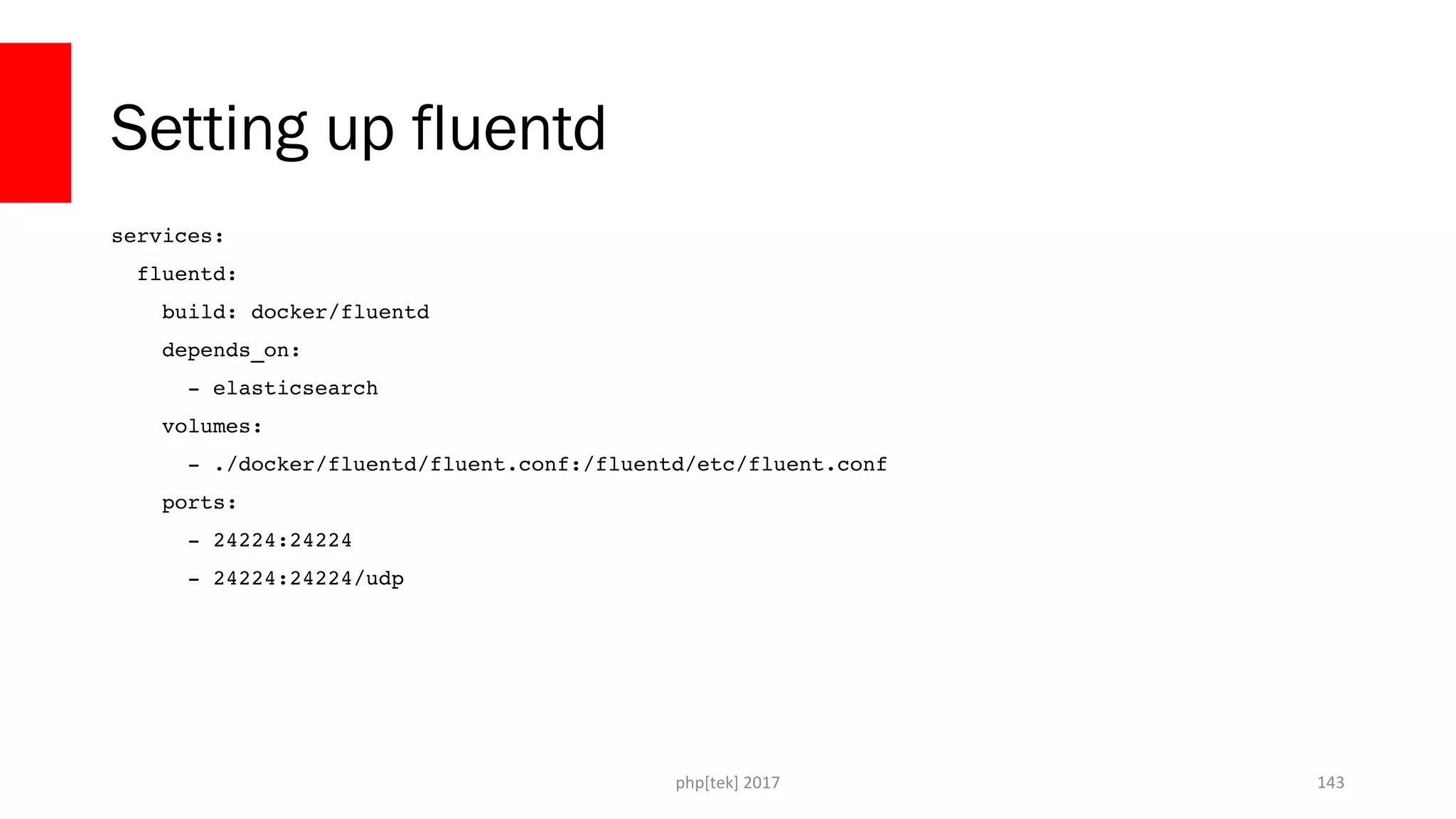

Setting up fluentd services:   fluentd:     build: docker/fluentd     depends_on:       ­ elasticsearch     volumes:       ­ ./docker/fluentd/fluent.conf:/fluentd/etc/fluent.conf     ports:       ­ 24224:24224       ­ 24224:24224/udp php[tek] 2017 143

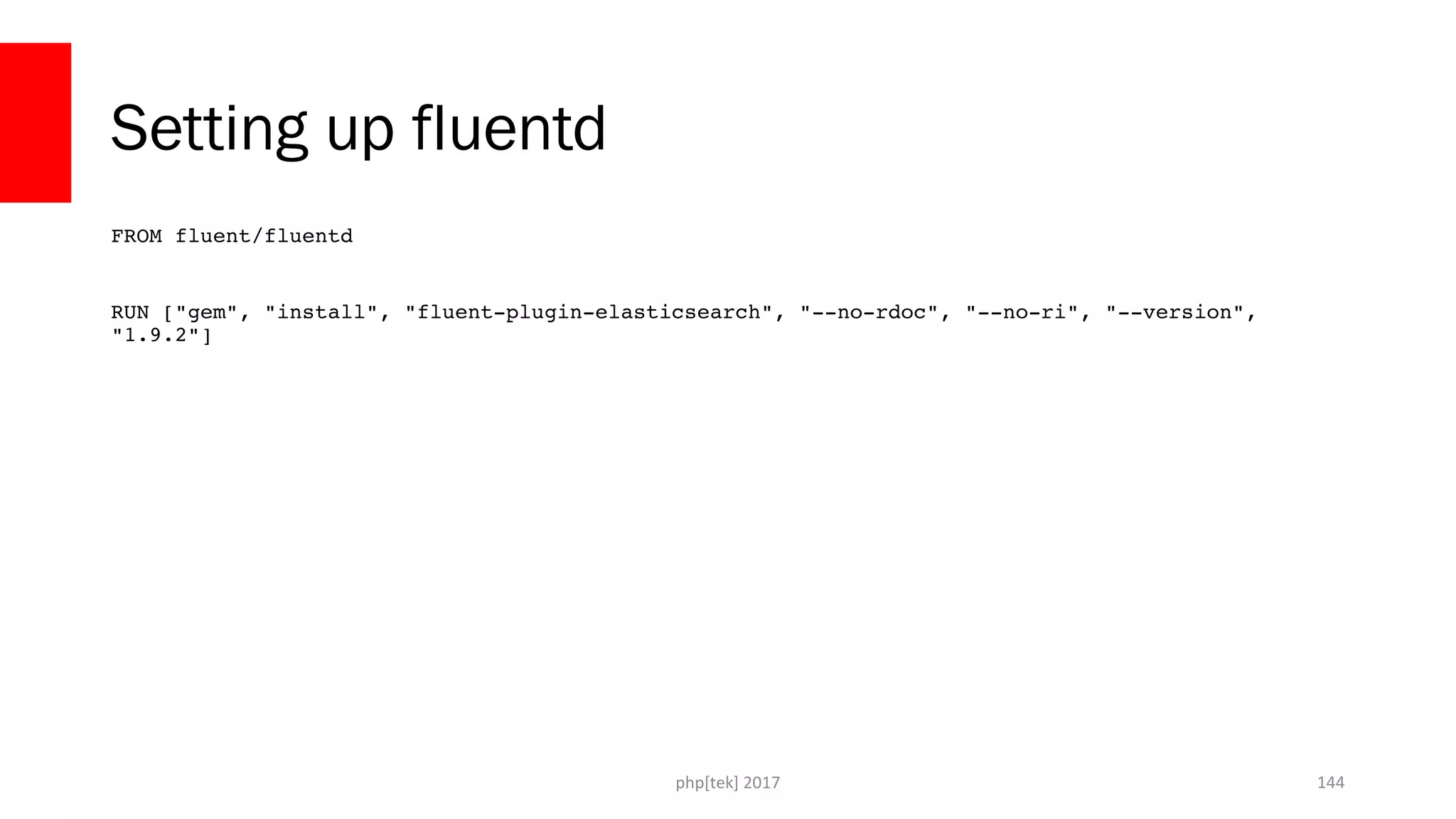

Setting up fluentd FROM fluent/fluentd RUN ["gem", "install", "fluent­plugin­elasticsearch", "­­no­rdoc", "­­no­ri", "­­version",  "1.9.2"] php[tek] 2017 144

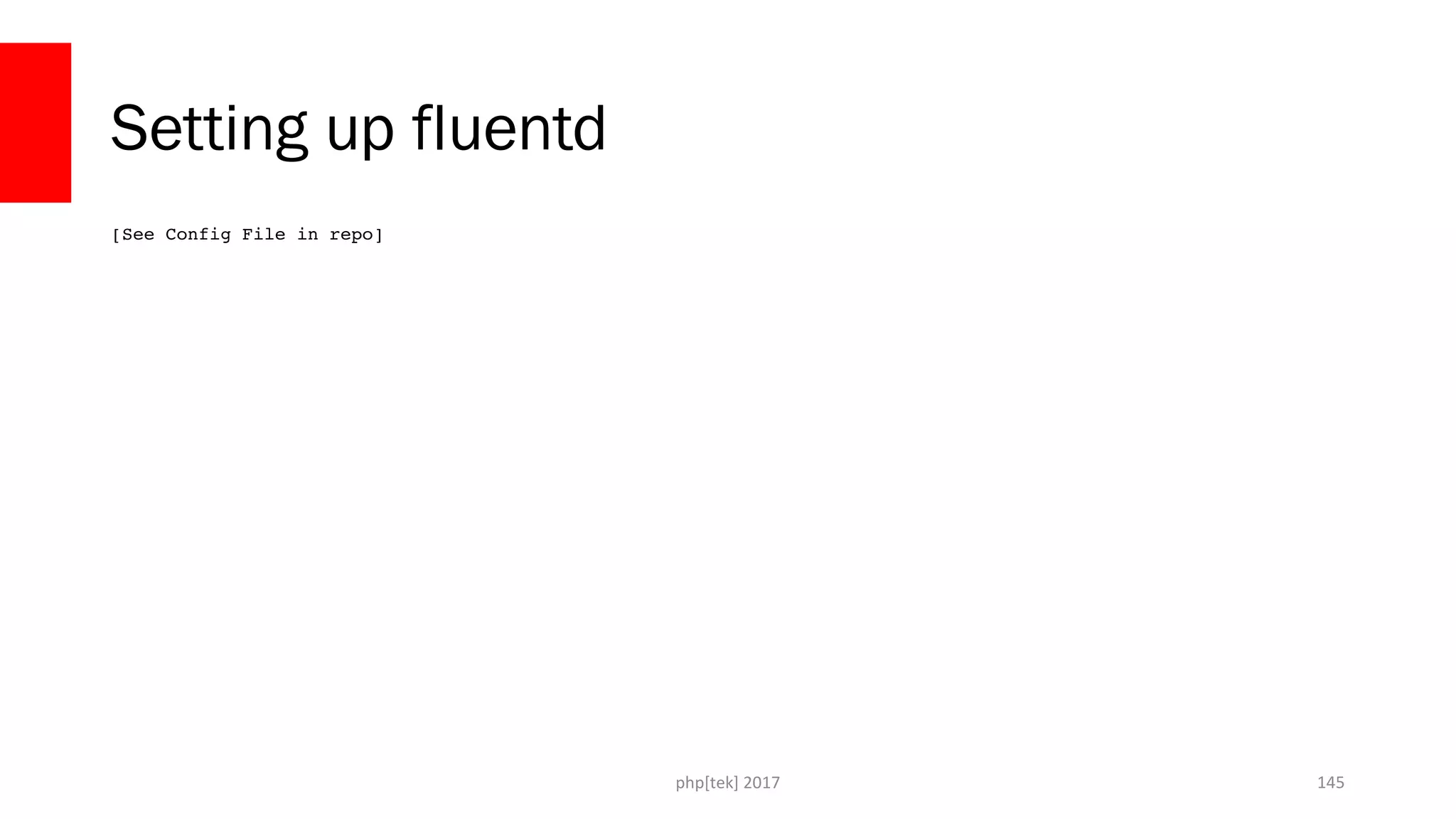

Setting up fluentd [See Config File in repo] php[tek] 2017 145
Setting up ElasticSearch and Kibana services:   elasticsearch:     image: elasticsearch     expose:       ­ 9200     ports:       ­ 9200:9200   kibana:     image: kibana     depends_on:       ­ elasticsearch     ports:       ­ 5601:5601 php[tek] 2017 146

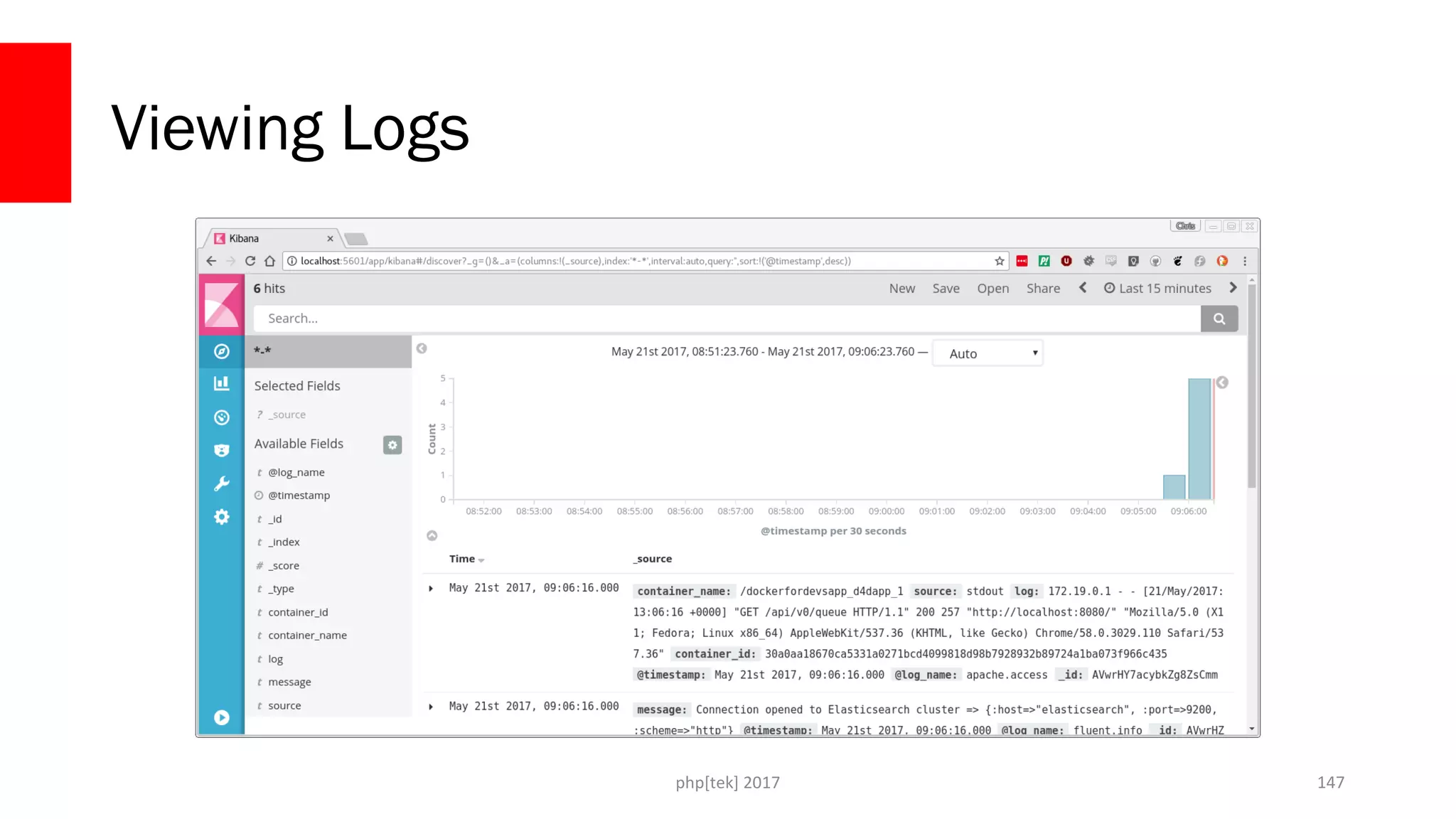

Viewing Logs php[tek] 2017 147

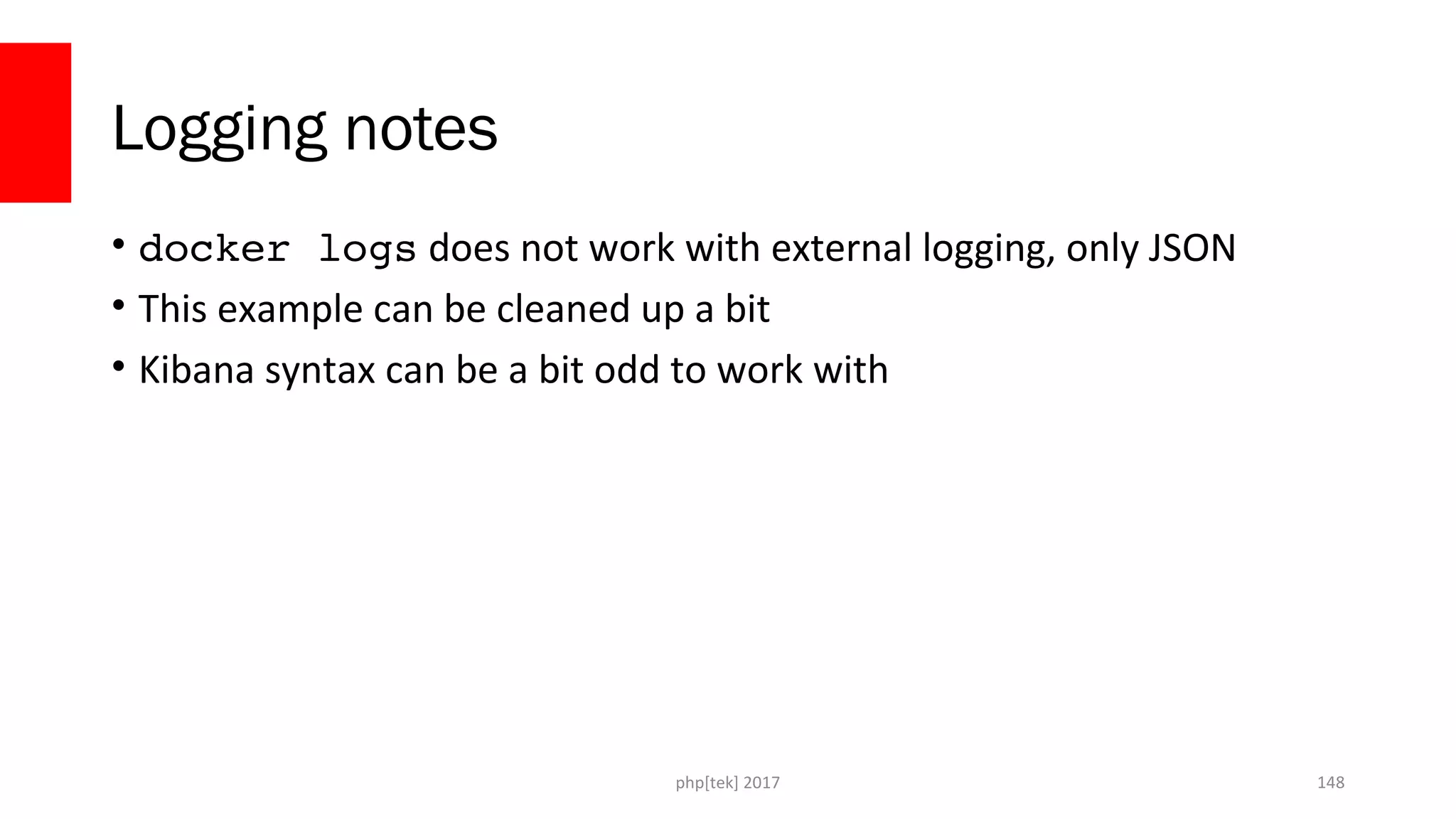

Logging notes ‱ docker logs does not work with external logging, only JSON ‱ This example can be cleaned up a bit ‱ Kibana syntax can be a bit odd to work with php[tek] 2017 148

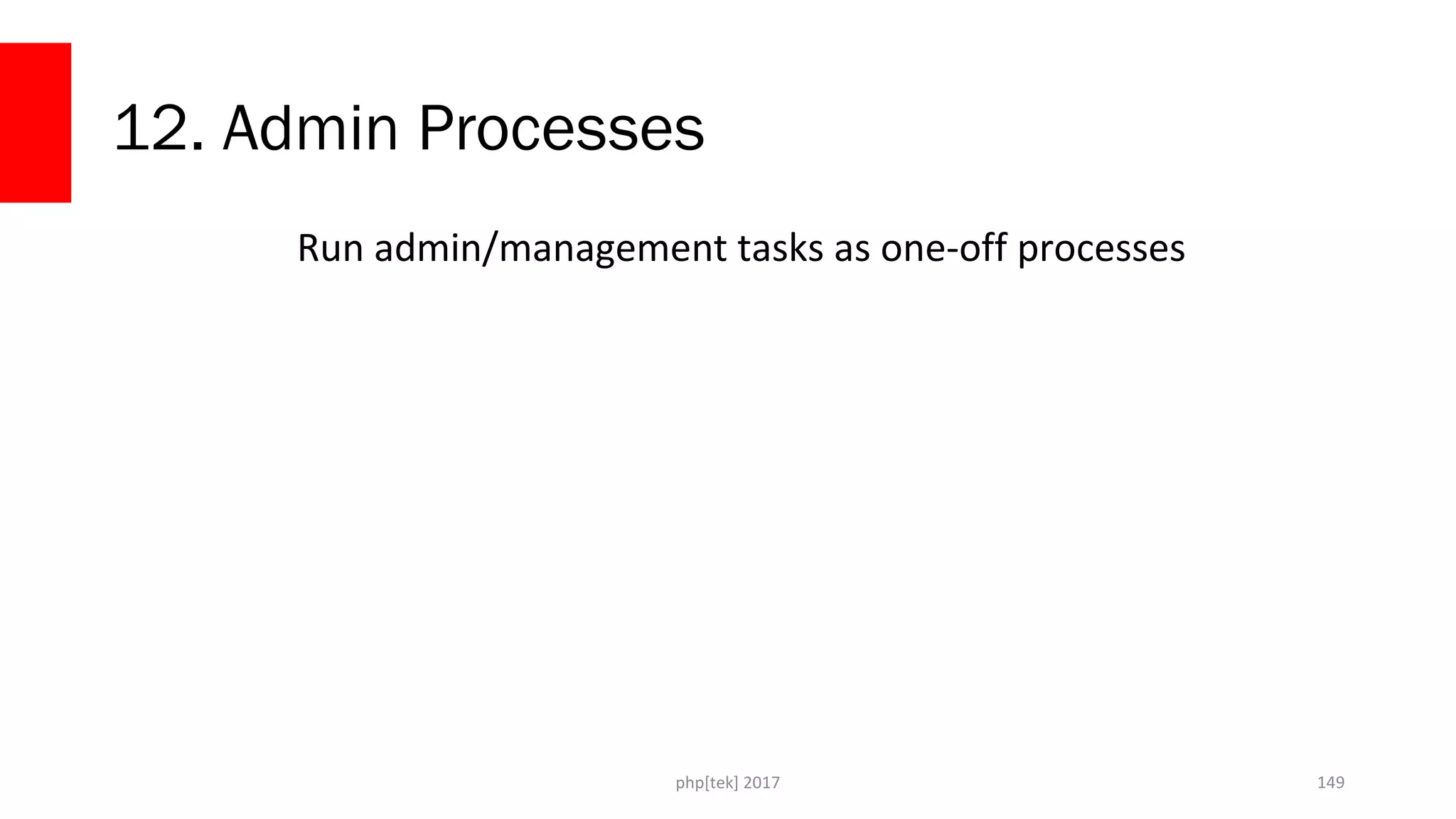

12. Admin Processes Run admin/management tasks as one-off processes php[tek] 2017 149
php[tek] 2018 BREAK TIME AGAIN! WOO! 150
Deployment using Docker Compose php[tek] 2017 151
Very Good for Small Deployments ‱ Can be used to augment your dev environment ‱ Works well with Docker Machine php[tek] 2017 152

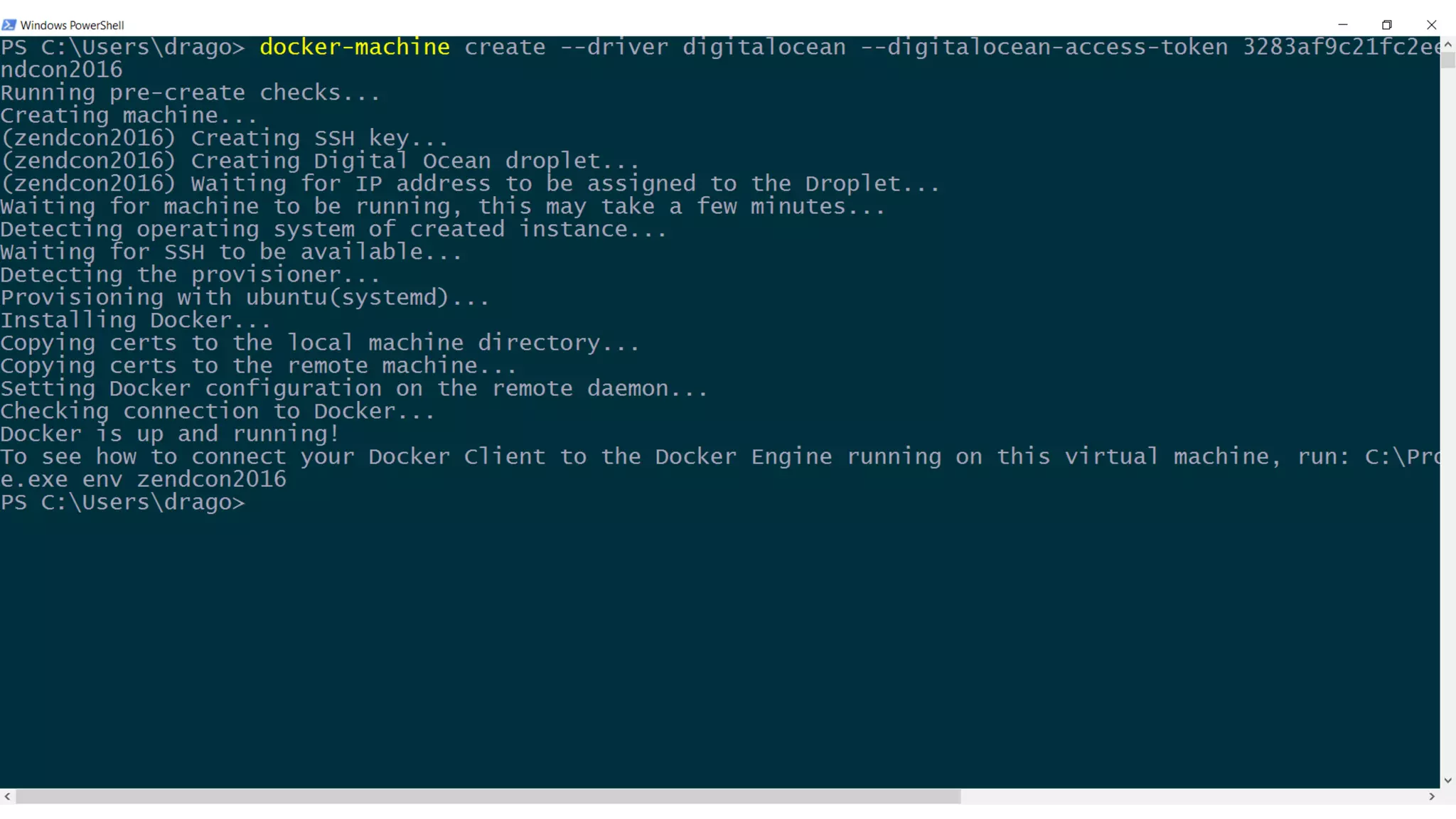

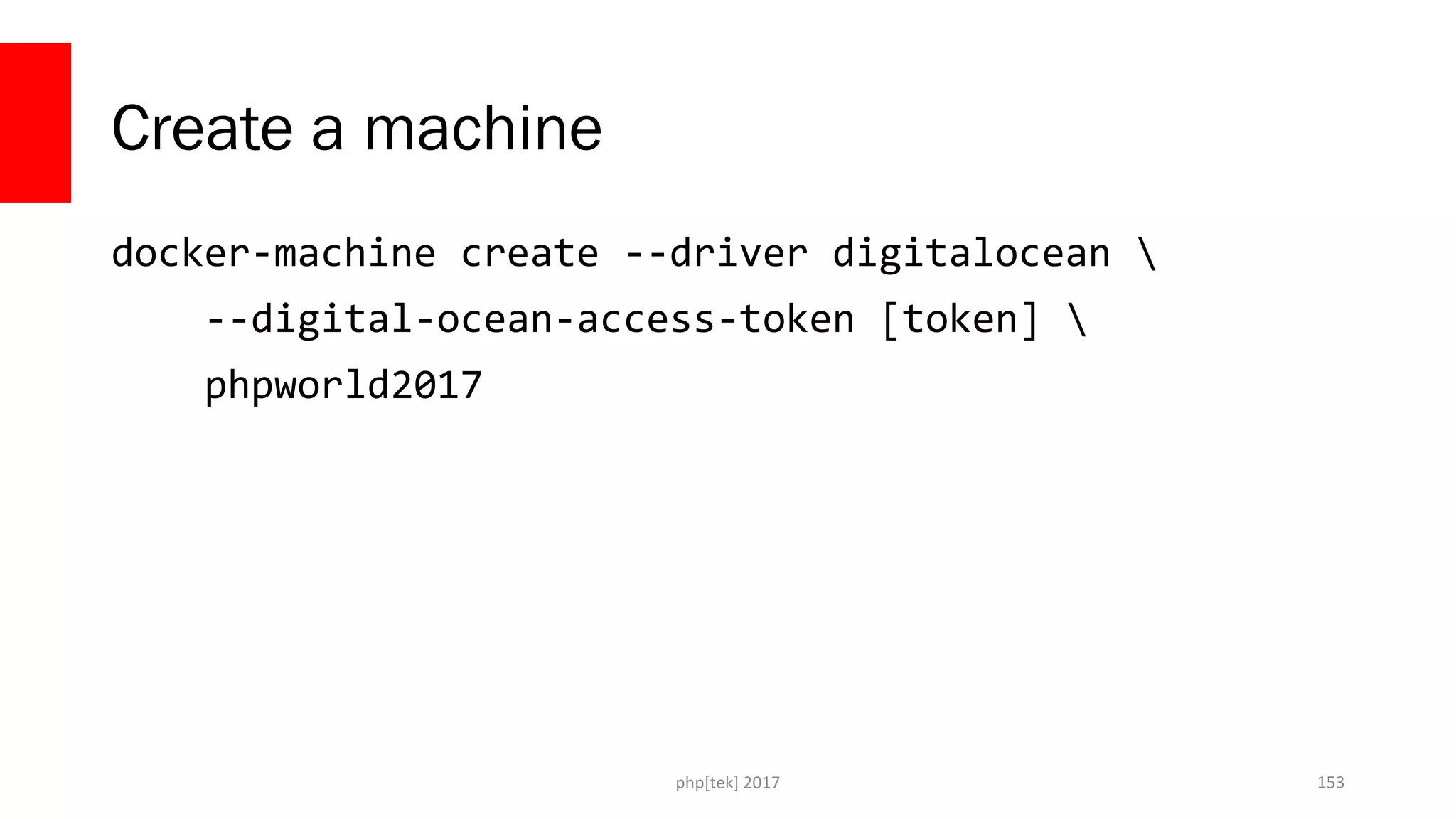

Create a machine docker-machine create --driver digitalocean --digital-ocean-access-token [token] phpworld2017 php[tek] 2017 153
SunshinePHP 2017 154

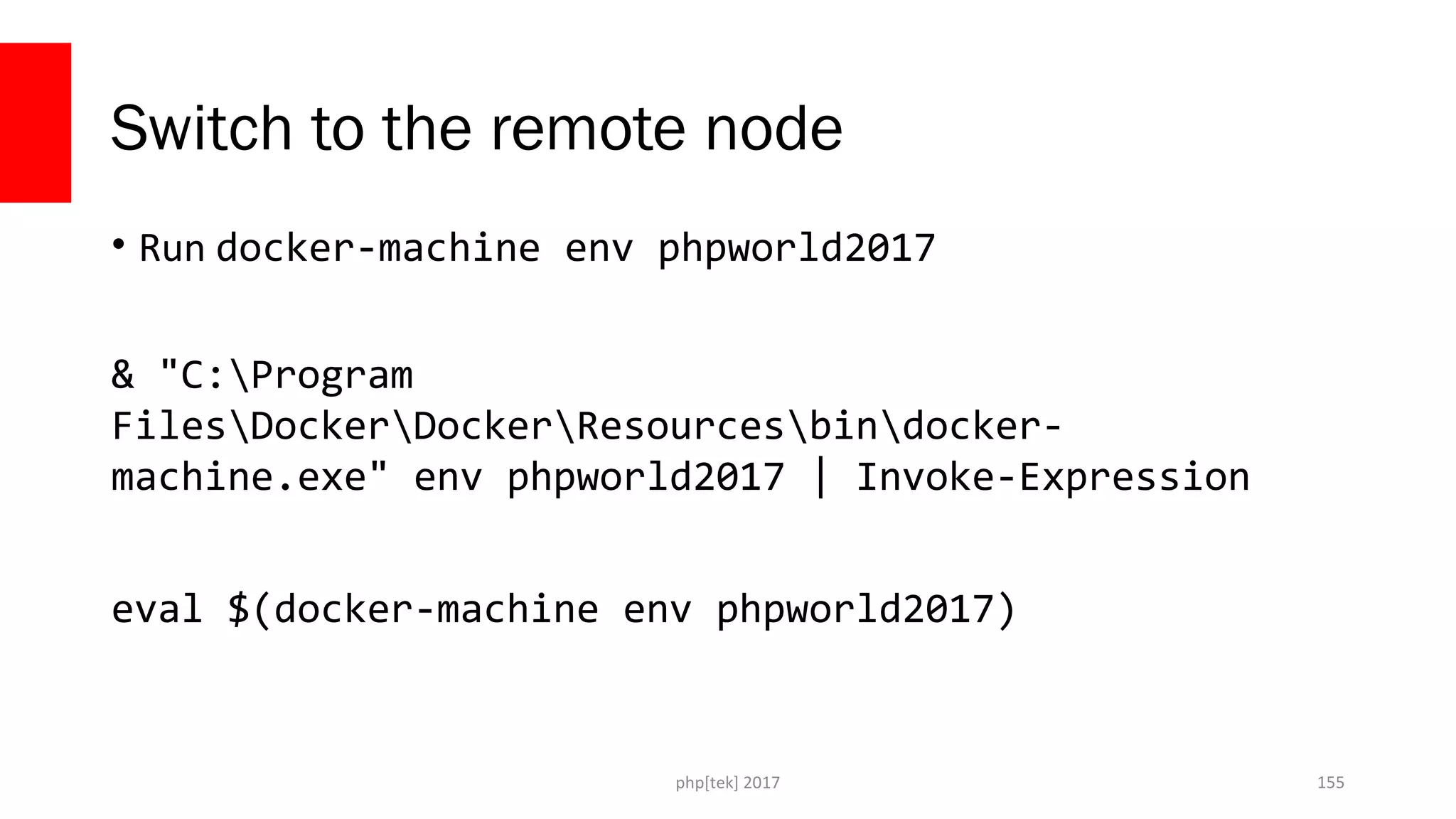

Switch to the remote node ‱ Run docker-machine env phpworld2017 & "C:Program FilesDockerDockerResourcesbindocker- machine.exe" env phpworld2017 | Invoke-Expression eval $(docker-machine env phpworld2017) php[tek] 2017 155

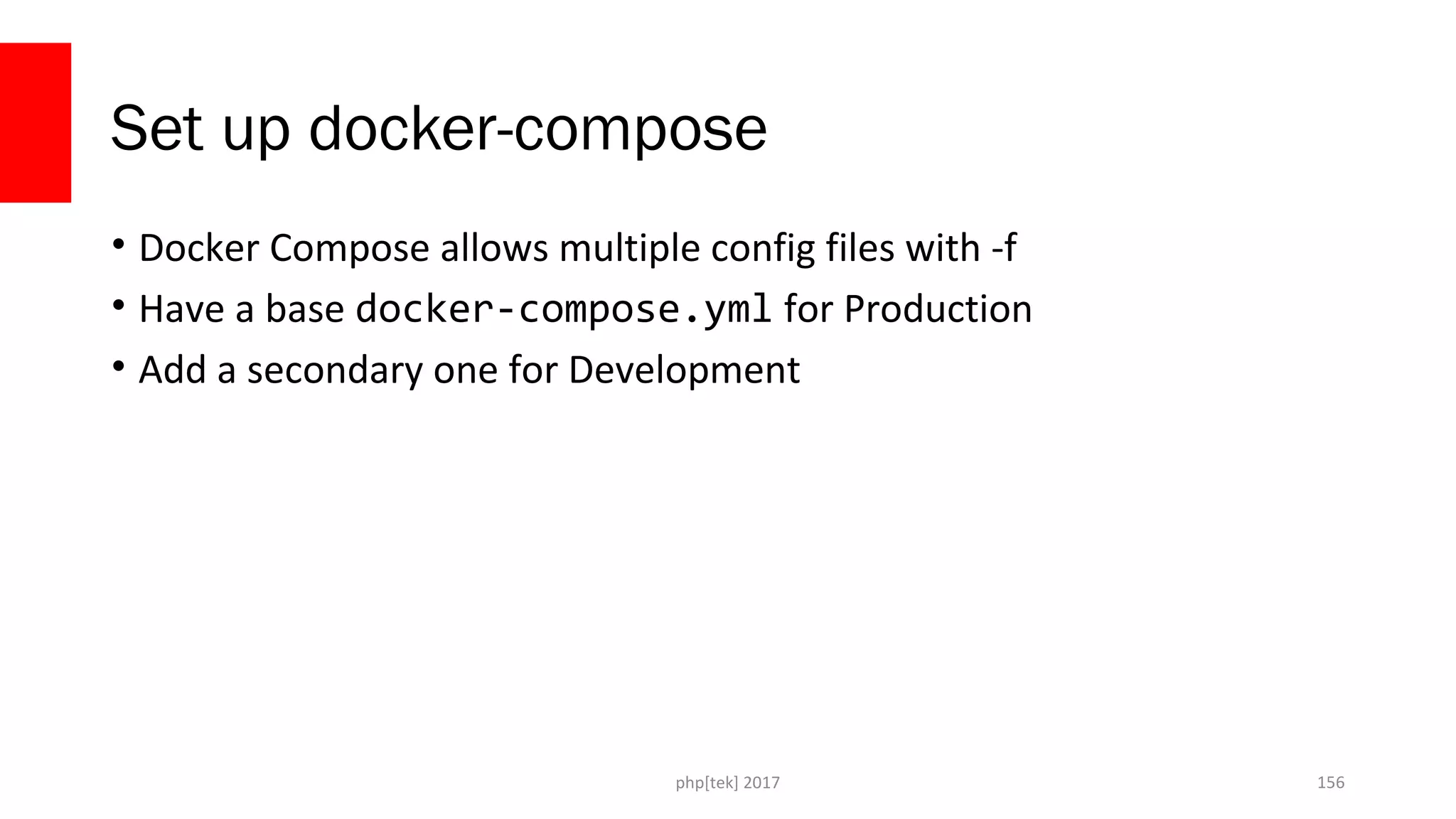

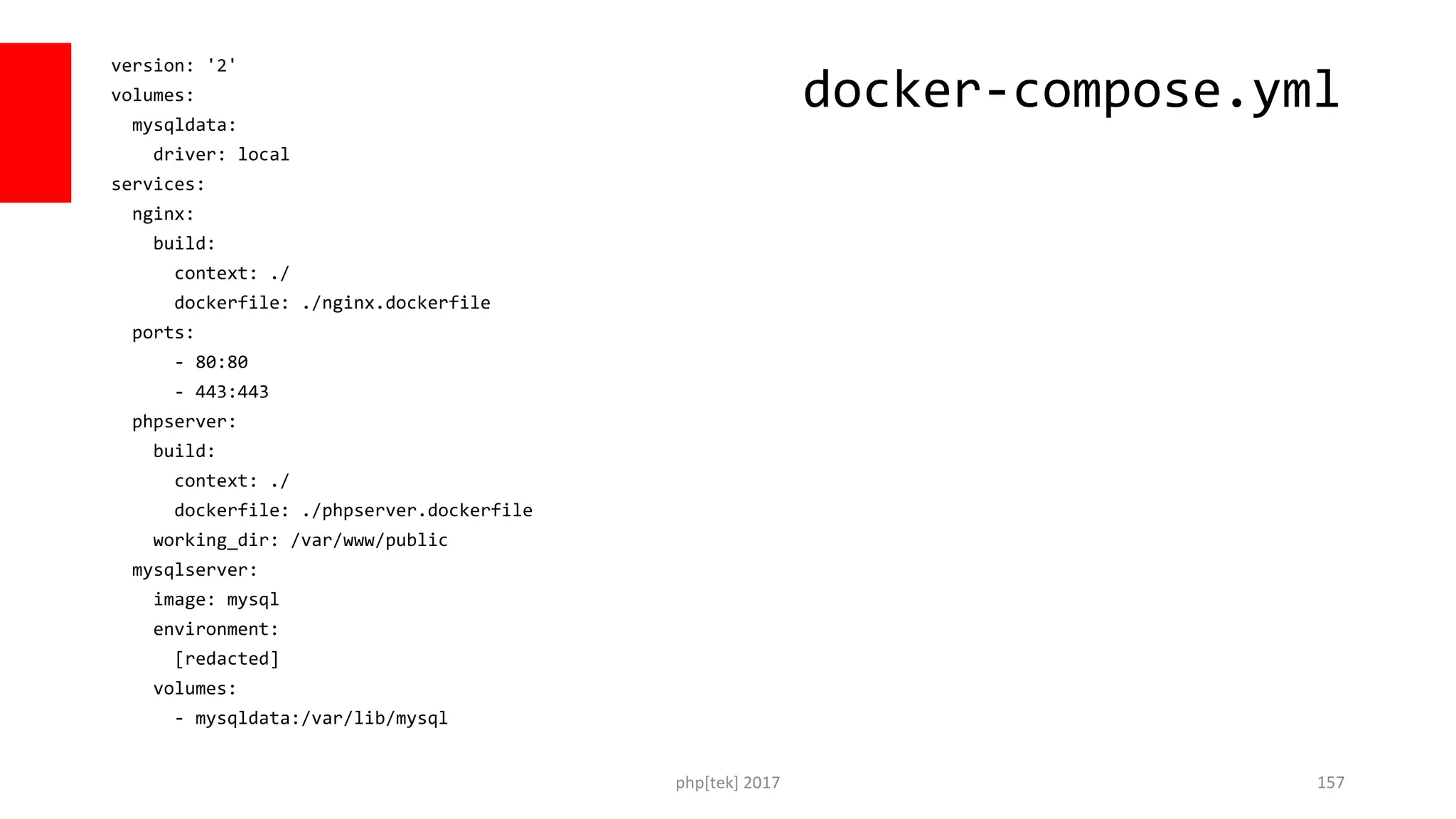

Set up docker-compose ‱ Docker Compose allows multiple config files with -f ‱ Have a base docker-compose.yml for Production ‱ Add a secondary one for Development php[tek] 2017 156
version: '2' volumes: mysqldata: driver: local services: nginx: build: context: ./ dockerfile: ./nginx.dockerfile ports: - 80:80 - 443:443 phpserver: build: context: ./ dockerfile: ./phpserver.dockerfile working_dir: /var/www/public mysqlserver: image: mysql environment: [redacted] volumes: - mysqldata:/var/lib/mysql php[tek] 2017 157 docker-compose.yml
version: '2' volumes: mysqldata: driver: local services: nginx: image: nginx volumes: - ./output_dev:/var/www/public:ro - ./app/nginx/default.conf:/etc/nginx/conf.d/default.conf - ./ssl:/etc/nginx/ssl/ phpserver: build: context: ./ dockerfile: ./phpserver.dockerfile working_dir: /var/www/public volumes: - ./app:/var/www/ - ./vendor:/var/www/vendor mysqlserver: image: mysql environment: [redacted] volumes: - mysqldata:/var/lib/mysql php[tek] 2017 158 docker-compose.dev.yml

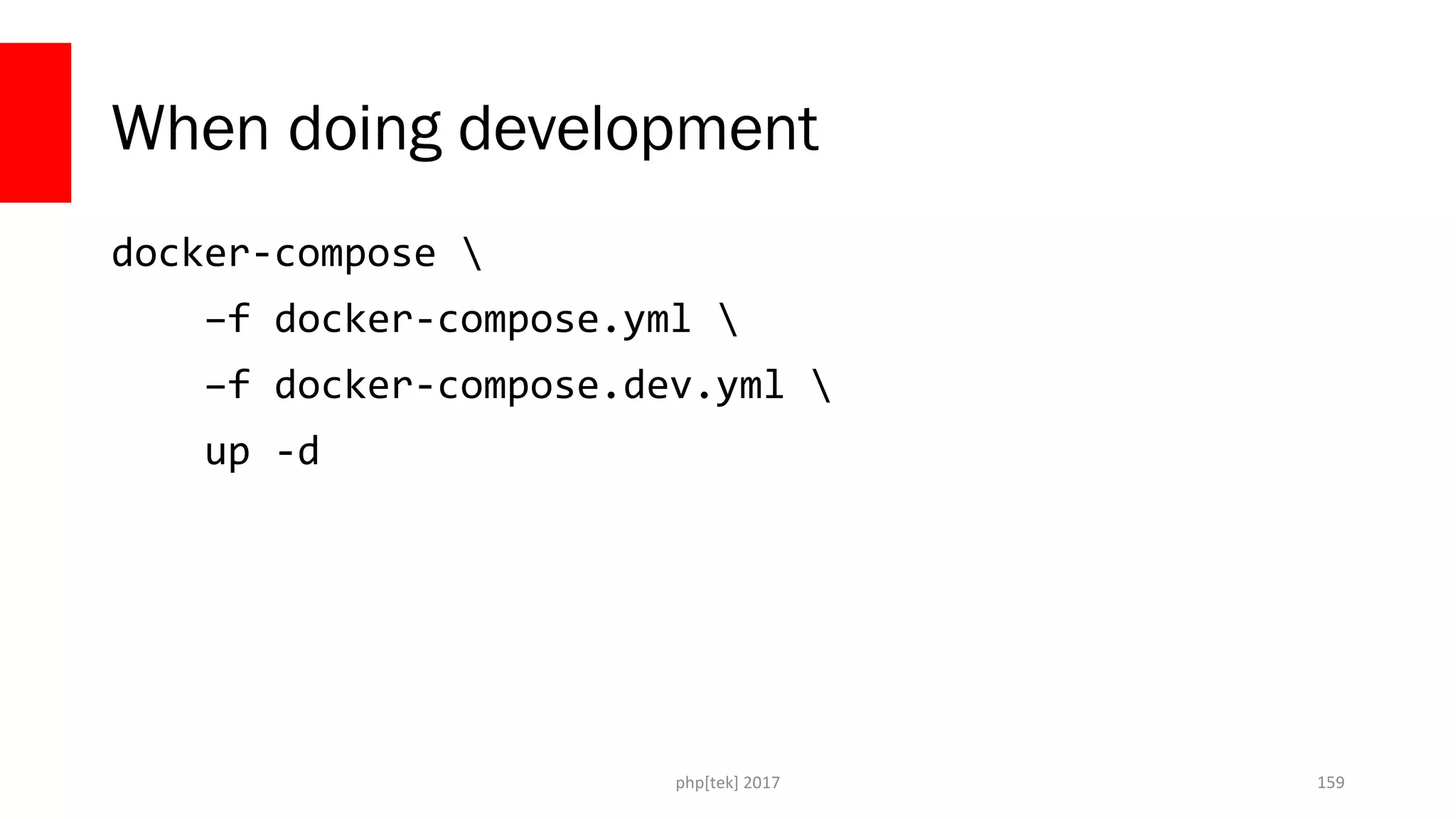

When doing development docker-compose –f docker-compose.yml –f docker-compose.dev.yml up -d php[tek] 2017 159

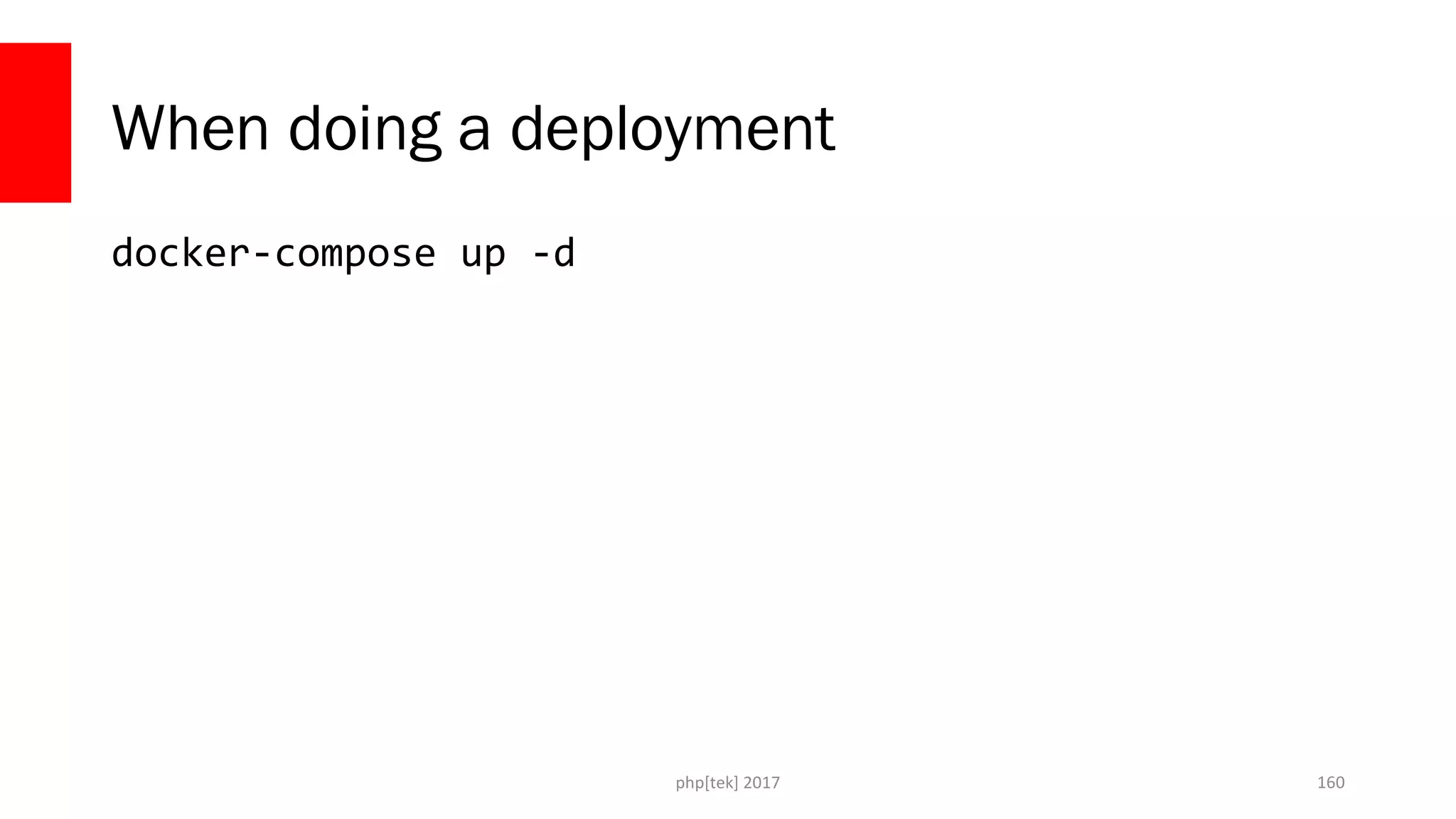

When doing a deployment docker-compose up -d php[tek] 2017 160
Other Alternative – Variable Substitution ‱ Docker Compose allows variable substitution inside the file ‱ Wrap variables in ${} ‱ image: ${DEPLOY_VERSION}_php php[tek] 2017 161
When doing a deployment DEPLOY_VERSION=20180525 docker-compose up -d php[tek] 2017 162
Docker Swarm php[tek] 2017 163

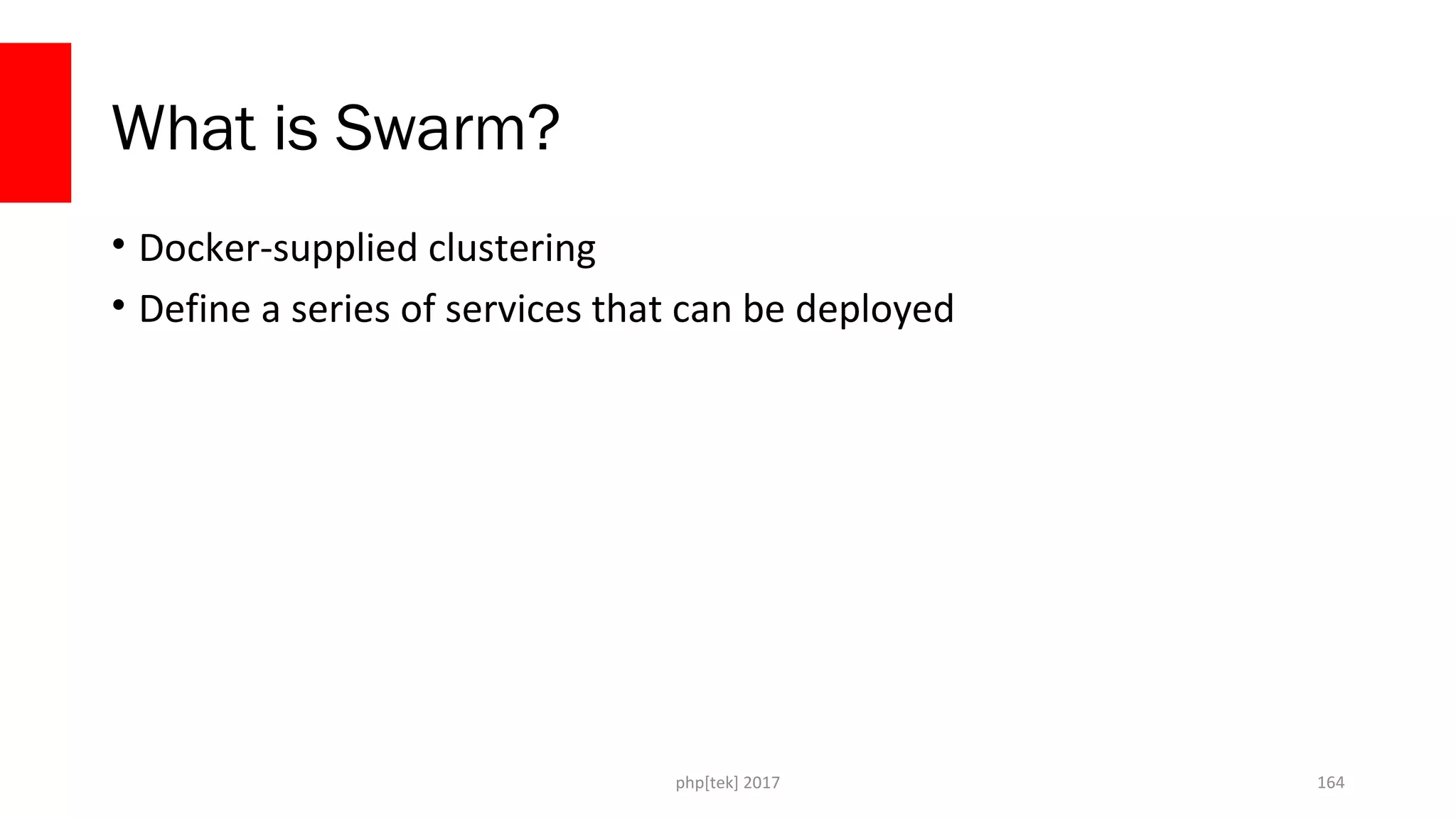

What is Swarm? ‱ Docker-supplied clustering ‱ Define a series of services that can be deployed php[tek] 2017 164
Setup php[tek] 2017 165 Manager Node 2Node 1

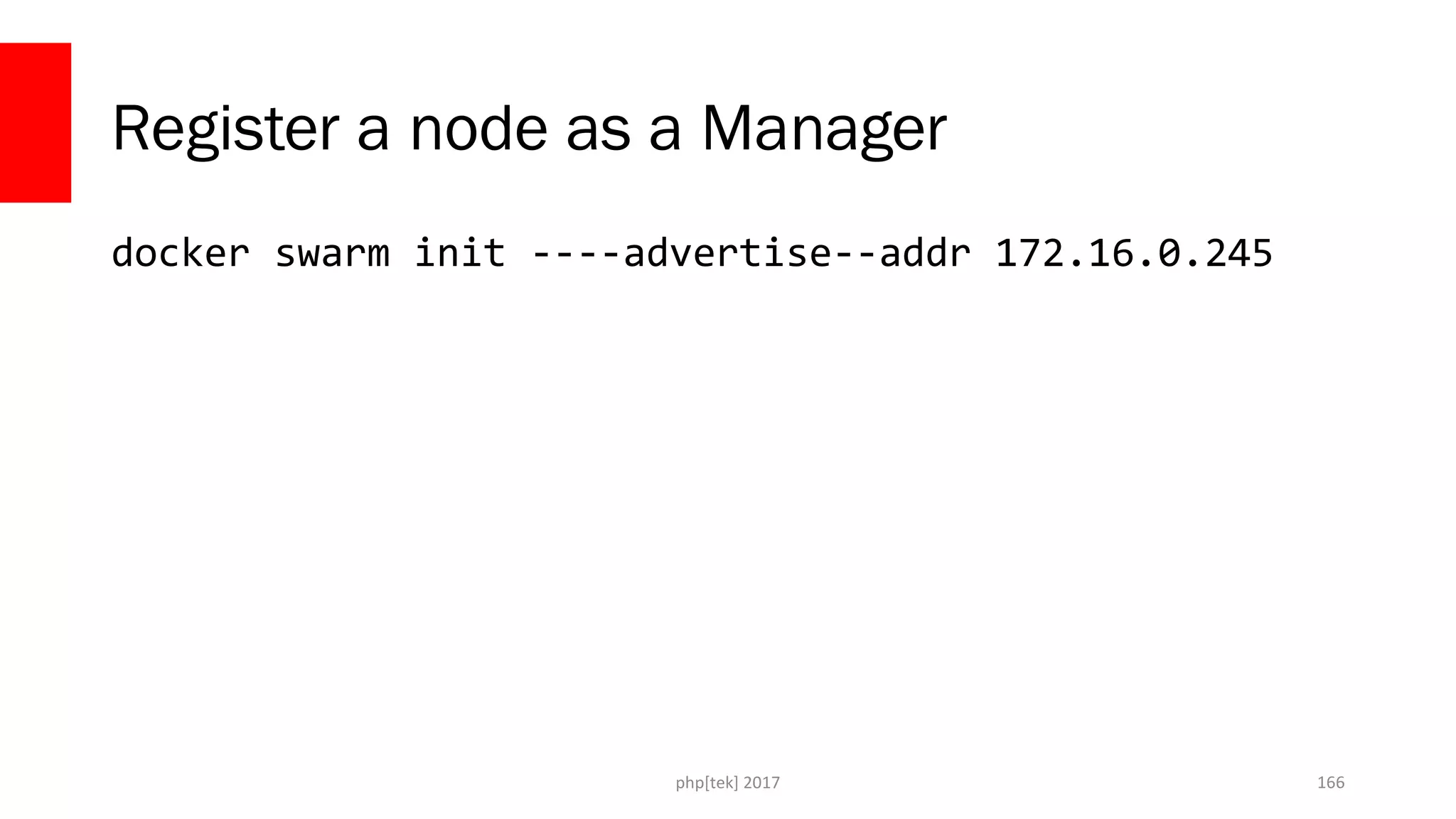

Register a node as a Manager docker swarm init ----advertise--addr 172.16.0.245 php[tek] 2017 166

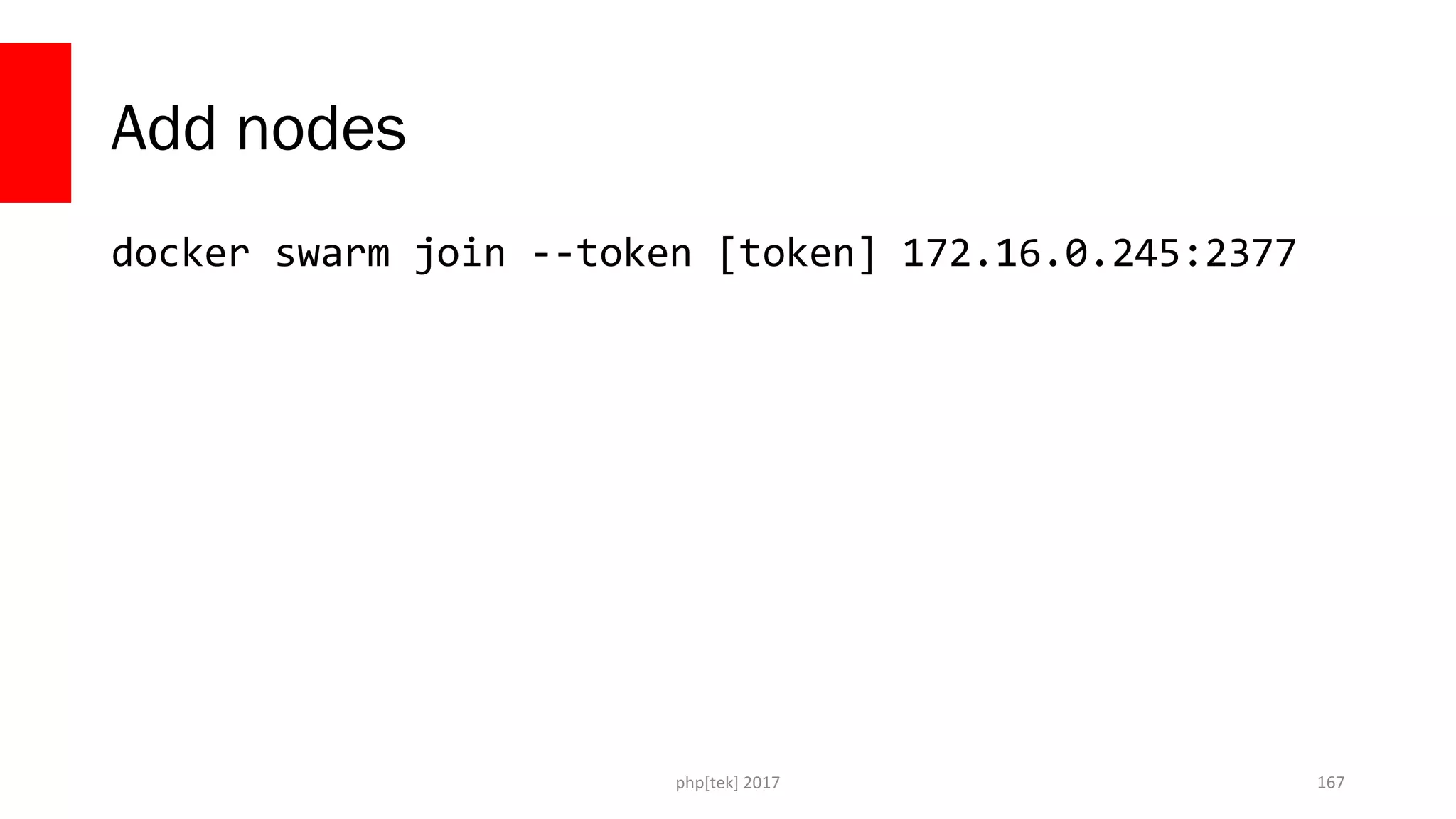

Add nodes docker swarm join --token [token] 172.16.0.245:2377 php[tek] 2017 167
docker-compose.yml version: '3' services: phpserver: image: php:apache ports: - 80:80 php[tek] 2017 168

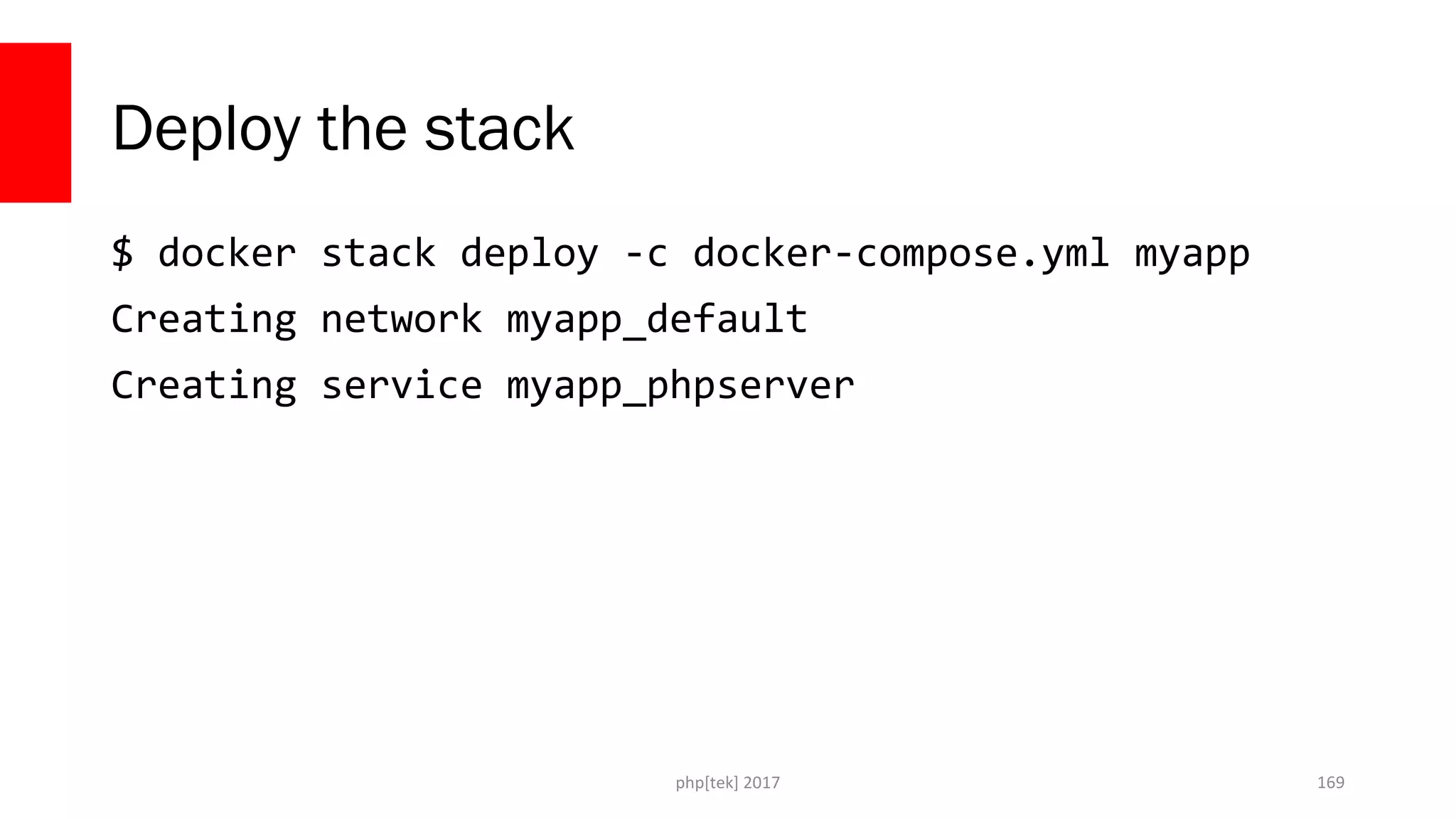

Deploy the stack $ docker stack deploy -c docker-compose.yml myapp Creating network myapp_default Creating service myapp_phpserver php[tek] 2017 169
docker-compose.yml version: '3' services: phpserver: image: php:apache ports: - 80:80 php[tek] 2017 170
Deploy the stack $ docker stack deploy -c docker-compose.yml myapp Creating network myapp_default Creating service myapp_phpserver php[tek] 2017 171

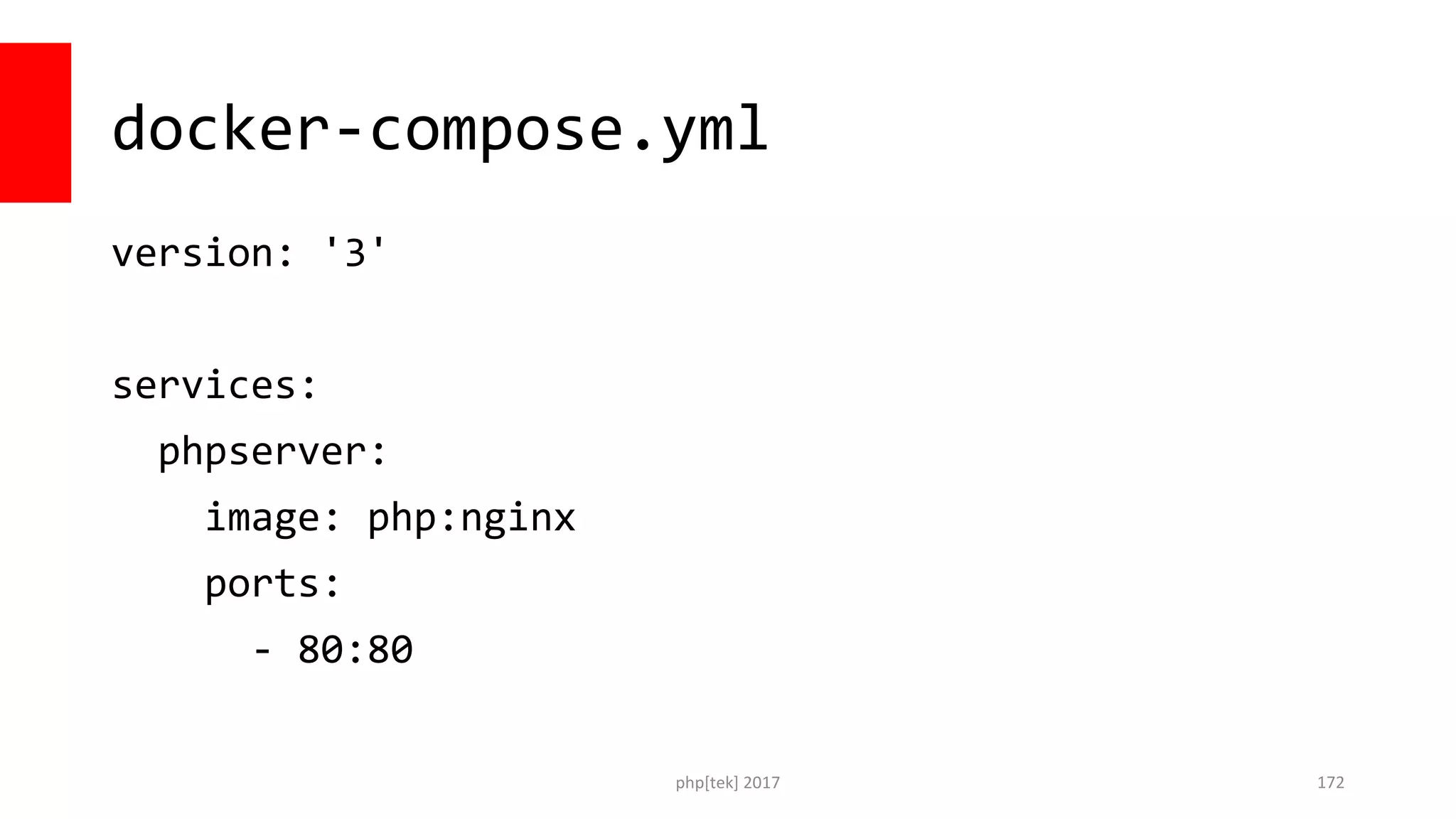

docker-compose.yml version: '3' services: phpserver: image: php:nginx ports: - 80:80 php[tek] 2017 172
docker-compose.yml version: '3' services: phpserver: image: php:apache ports: - 80:80 php[tek] 2017 173

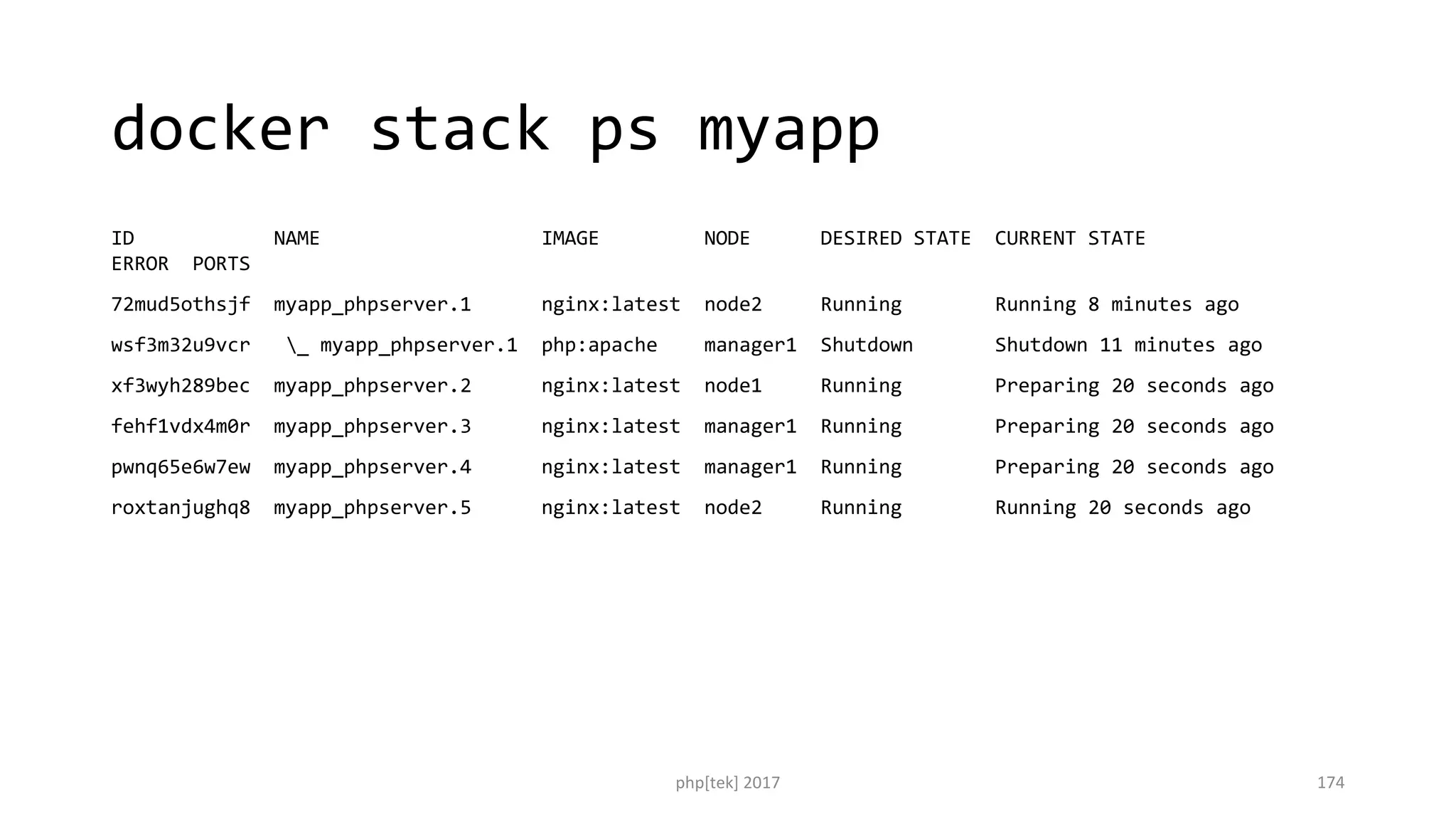

docker stack ps myapp ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS 72mud5othsjf myapp_phpserver.1 nginx:latest node2 Running Running 8 minutes ago wsf3m32u9vcr _ myapp_phpserver.1 php:apache manager1 Shutdown Shutdown 11 minutes ago xf3wyh289bec myapp_phpserver.2 nginx:latest node1 Running Preparing 20 seconds ago fehf1vdx4m0r myapp_phpserver.3 nginx:latest manager1 Running Preparing 20 seconds ago pwnq65e6w7ew myapp_phpserver.4 nginx:latest manager1 Running Preparing 20 seconds ago roxtanjughq8 myapp_phpserver.5 nginx:latest node2 Running Running 20 seconds ago php[tek] 2017 174
php[tek] 2018 Thank You! ‱ Software Engineer for InQuest ‱ Author of “Docker for Developers” ‱ https://leanpub.com/dockerfordevs ‱ Co-Host of “Jerks Talk Games” ‱ http://jerkstalkgames.com ‱ http://ctankersley.com ‱ chris@ctankersley.com ‱ @dragonmantank 175

More Related Content

ODP
Docker for PHP Developers - Madison PHP 2017
byChris Tankersley

ODP
Docker for Developers - php[tek] 2017
byChris Tankersley

ODP
Docker for PHP Developers - php[world] 2017
byChris Tankersley

PPTX
From Docker to Production - SunshinePHP 2017
byChris Tankersley

PPTX
Docker for Developers - Sunshine PHP
byChris Tankersley

PDF
Developing and Deploying PHP with Docker
byPatrick Mizer

PDF
Docker - From Walking To Running
byGiacomo Vacca

PPTX
Docker for PHP Developers - ZendCon 2016
byChris Tankersley

Docker for PHP Developers - Madison PHP 2017
byChris Tankersley

Docker for Developers - php[tek] 2017
byChris Tankersley

Docker for PHP Developers - php[world] 2017
byChris Tankersley

From Docker to Production - SunshinePHP 2017
byChris Tankersley

Docker for Developers - Sunshine PHP
byChris Tankersley

Developing and Deploying PHP with Docker
byPatrick Mizer

Docker - From Walking To Running
byGiacomo Vacca

Docker for PHP Developers - ZendCon 2016
byChris Tankersley


What's hot

ODP
Why Docker? Dayton PHP, April 2017
byChris Tankersley

PDF
Docker + Microservices in Production
byPatrick Mizer

PDF
Docker
byChen Chun

PDF
Docker From Scratch
byGiacomo Vacca

PPTX
PHP development with Docker
byYosh de Vos

PPTX
DockerCon Keynote Ben Golub
bydotCloud

PDF
A Hands-on Introduction to Docker
byCodeOps Technologies LLP

PDF
Let's go HTTPS-only! - More Than Buying a Certificate
bySteffen Gebert

PDF
Docker for PHP Developers (NomadPHP)
byChris Tankersley

PDF
[workshop] The Revolutionary WebRTC
byGiacomo Vacca

PPTX
Real World Experience of Running Docker in Development and Production
byBen Hall

PDF
Docker in production: reality, not hype (OSCON 2015)
bybridgetkromhout

PPTX
The How and Why of Windows containers
byBen Hall

PPTX
Docker
byCary Gordon

PDF
sed.pdf
byMaenAlWedyan

PDF
GDG-ANDROID-ATHENS Meetup: Build in Docker with Jenkins
byMando Stam

PPTX
Docker Networking - Common Issues and Troubleshooting Techniques
bySreenivas Makam

PPTX
Enable Fig to deploy to multiple Docker servers by Willy Kuo
byDocker, Inc.

PDF
All Things Containers - Docker, Kubernetes, Helm, Istio, GitOps and more
byAll Things Open

PPTX
ABCs of docker
bySabyrzhan Tynybayev

Why Docker? Dayton PHP, April 2017
byChris Tankersley

Docker + Microservices in Production
byPatrick Mizer

Docker
byChen Chun

Docker From Scratch
byGiacomo Vacca

PHP development with Docker
byYosh de Vos

DockerCon Keynote Ben Golub
bydotCloud

A Hands-on Introduction to Docker
byCodeOps Technologies LLP

Let's go HTTPS-only! - More Than Buying a Certificate
bySteffen Gebert

Docker for PHP Developers (NomadPHP)
byChris Tankersley

[workshop] The Revolutionary WebRTC
byGiacomo Vacca

Real World Experience of Running Docker in Development and Production
byBen Hall

Docker in production: reality, not hype (OSCON 2015)
bybridgetkromhout

The How and Why of Windows containers
byBen Hall

Docker
byCary Gordon

sed.pdf
byMaenAlWedyan

GDG-ANDROID-ATHENS Meetup: Build in Docker with Jenkins
byMando Stam

Docker Networking - Common Issues and Troubleshooting Techniques
bySreenivas Makam

Enable Fig to deploy to multiple Docker servers by Willy Kuo
byDocker, Inc.

All Things Containers - Docker, Kubernetes, Helm, Istio, GitOps and more
byAll Things Open

ABCs of docker
bySabyrzhan Tynybayev


Similar to Docker for Developers

ODP
Docker for Developers - PHP Detroit 2018
byChris Tankersley

PPTX
Docker for Developers - PNWPHP 2016 Workshop
byChris Tankersley

PDF
Dockerize your Symfony application - Symfony Live NYC 2014
byAndré RÞmcke

PPTX
Introduction to Docker
byAlan Forbes

PDF
Docker workshop 0507 Taichung
byPaul Chao

PDF
æ‰‹æŠŠæ‰‹ćž¶äœ ć­ž Docker 慄門篇
byPhilip Zheng

PDF
Killer Docker Workflows for Development
byChris Tankersley

PDF
Docker Essentials Workshop— Innovation Labs July 2020
byCloudHero

PPTX
Powercoders · Docker · Fall 2021.pptx
byIgnacioTamayo2

PPTX
Containers Intro - Copy.pptx
bykarthick656723

PDF
Introduction to Docker at SF Peninsula Software Development Meetup @Guidewire
bydotCloud

PDF
Introduction to Docker
byKuan Yen Heng

PDF
Introduction to Docker and Containers
byDocker, Inc.

PDF
Docker, but what it is?
byJulien Maitrehenry

PPTX
Docker advance1
byGourav Varma

PDF
Docker Containers - everything about docker Containers
byninita397

PDF
Learning Docker with Thomas
byThomas Tong, FRM, PMP

PDF
æ™‚ä»ŁćœšèźŠ Docker èŠæœƒïŒšć°ćŒ— Docker äž€æ—„ć…„é–€çŻ‡
byPhilip Zheng

PPTX
Introduction To Docker
byDr. Syed Hassan Amin

PPTX
Docker advance topic
byKalkey

Docker for Developers - PHP Detroit 2018
byChris Tankersley

Docker for Developers - PNWPHP 2016 Workshop
byChris Tankersley

Dockerize your Symfony application - Symfony Live NYC 2014
byAndré RÞmcke

Introduction to Docker
byAlan Forbes

Docker workshop 0507 Taichung
byPaul Chao

æ‰‹æŠŠæ‰‹ćž¶äœ ć­ž Docker 慄門篇
byPhilip Zheng

Killer Docker Workflows for Development
byChris Tankersley

Docker Essentials Workshop— Innovation Labs July 2020
byCloudHero

Powercoders · Docker · Fall 2021.pptx
byIgnacioTamayo2

Containers Intro - Copy.pptx
bykarthick656723

Introduction to Docker at SF Peninsula Software Development Meetup @Guidewire
bydotCloud

Introduction to Docker
byKuan Yen Heng

Introduction to Docker and Containers
byDocker, Inc.

Docker, but what it is?
byJulien Maitrehenry

Docker advance1
byGourav Varma

Docker Containers - everything about docker Containers
byninita397

Learning Docker with Thomas
byThomas Tong, FRM, PMP

æ™‚ä»ŁćœšèźŠ Docker èŠæœƒïŒšć°ćŒ— Docker äž€æ—„ć…„é–€çŻ‡
byPhilip Zheng

Introduction To Docker
byDr. Syed Hassan Amin

Docker advance topic
byKalkey


More from Chris Tankersley

PDF
8 Rules for Better Applications - PHP Tek 2025
byChris Tankersley

PDF
The Art of API Design - PHP Tek 2025, Chris Tankersley
byChris Tankersley

PDF
Docker is Dead: Long Live Containers
byChris Tankersley

PDF
Bend time to your will with git
byChris Tankersley

PDF
Using PHP Functions! (Not those functions, Google Cloud Functions)
byChris Tankersley

PDF
Dead Simple APIs with OpenAPI
byChris Tankersley

PDF
You Got Async in my PHP!
byChris Tankersley

ODP
They are Watching You
byChris Tankersley

ODP
BASHing at the CLI - Midwest PHP 2018
byChris Tankersley

PDF
You Were Lied To About Optimization
byChris Tankersley

PPTX
OOP Is More Then Cars and Dogs - Midwest PHP 2017
byChris Tankersley

PPTX
Coming to Terms with OOP In Drupal - php[world] 2016
byChris Tankersley

PPTX
How We Got Here: A Brief History of Open Source
byChris Tankersley

PPTX
From Docker to Production - ZendCon 2016
byChris Tankersley

PPTX
Oh Crap, My Code is Slow - Madison PHP 2016
byChris Tankersley

PDF
A Brief History of Open Source
byChris Tankersley

PPTX
Failing at Scale - PNWPHP 2016
byChris Tankersley

PDF
Deploying Containers with Rancher
byChris Tankersley

PDF
WTF Is Rancher?
byChris Tankersley

PPTX
Docker for PHP Developers - Jetbrains
byChris Tankersley

8 Rules for Better Applications - PHP Tek 2025
byChris Tankersley

The Art of API Design - PHP Tek 2025, Chris Tankersley
byChris Tankersley

Docker is Dead: Long Live Containers
byChris Tankersley

Bend time to your will with git
byChris Tankersley

Using PHP Functions! (Not those functions, Google Cloud Functions)
byChris Tankersley

Dead Simple APIs with OpenAPI
byChris Tankersley

You Got Async in my PHP!
byChris Tankersley

They are Watching You
byChris Tankersley

BASHing at the CLI - Midwest PHP 2018
byChris Tankersley

You Were Lied To About Optimization
byChris Tankersley

OOP Is More Then Cars and Dogs - Midwest PHP 2017
byChris Tankersley

Coming to Terms with OOP In Drupal - php[world] 2016
byChris Tankersley

How We Got Here: A Brief History of Open Source
byChris Tankersley

From Docker to Production - ZendCon 2016
byChris Tankersley

Oh Crap, My Code is Slow - Madison PHP 2016
byChris Tankersley

A Brief History of Open Source
byChris Tankersley

Failing at Scale - PNWPHP 2016
byChris Tankersley

Deploying Containers with Rancher
byChris Tankersley

WTF Is Rancher?
byChris Tankersley

Docker for PHP Developers - Jetbrains
byChris Tankersley


Recently uploaded

PDF
Agentic Intro and Hands-on: Build your first Coded Agent
byUiPathCommunity

PDF
Dev Dives: Build smarter agents with UiPath Agent Builder
byUiPathCommunity

PDF
[BDD 2025 - Full-Stack Development] Agentic AI Architecture: Redefining Syste...
byWintari Yasmin

PDF
"DISC as GPS for team leaders: how to lead a team from storming to performing...
byFwdays

PPTX
UFCD 0797 - SISTEMAS OPERATIVOS_Unidade Completa.pptx
byscribddobruno

PDF
[BDD 2025 - Artificial Intelligence] AI for the Underdogs: Innovation for Sma...
byWintari Yasmin

PDF
MuleSoft Meetup: Dreamforce'25 Tour- Vibing With AI & Agents.pdf
byTintu Jacob Shaji

PDF
[DevFest Strasbourg 2025] - NodeJs Can do that !!
bymoassiongbon

PDF
[BDD 2025 - Artificial Intelligence] Building AI Systems That Users (and Comp...
byWintari Yasmin

PDF
Transcript: The partnership effect: Libraries and publishers on collaborating...
byBookNet Canada

PDF
Accessibility & Inclusion: What Comes Next. Presentation of the Digital Acces...
byAssociazione Digital Days

PDF
The Evolving Role of the CEO in the Age of AI
byPipal Tree Services Executive Search Firm

PDF
[BDD 2025 - Mobile Development] Exploring Apple’s On-Device FoundationModels
byWintari Yasmin

PDF
Transforming Content Operations in the Age of AI
byEnterprise Knowledge

PPTX
"Feelings versus facts: why metrics are more important than intuition", Igor ...
byFwdays

PDF
The partnership effect: Libraries and publishers on collaborating and thrivin...
byBookNet Canada

PDF
DUBAI IT MODERNIZATION WITH AZURE MANAGED SERVICES.pdf
byLogicEra

PDF
So You Want to Work at Google | DevFest Seattle 2025
byMargaret Maynard-Reid

PPTX
Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]
byUiPathCommunity

PPTX
MuleSoft AI Series : Introduction to MCP
byMulesoftMunichMeetup

Agentic Intro and Hands-on: Build your first Coded Agent
byUiPathCommunity

Dev Dives: Build smarter agents with UiPath Agent Builder
byUiPathCommunity

[BDD 2025 - Full-Stack Development] Agentic AI Architecture: Redefining Syste...
byWintari Yasmin

"DISC as GPS for team leaders: how to lead a team from storming to performing...
byFwdays

UFCD 0797 - SISTEMAS OPERATIVOS_Unidade Completa.pptx
byscribddobruno

[BDD 2025 - Artificial Intelligence] AI for the Underdogs: Innovation for Sma...
byWintari Yasmin

MuleSoft Meetup: Dreamforce'25 Tour- Vibing With AI & Agents.pdf
byTintu Jacob Shaji

[DevFest Strasbourg 2025] - NodeJs Can do that !!
bymoassiongbon

[BDD 2025 - Artificial Intelligence] Building AI Systems That Users (and Comp...
byWintari Yasmin

Transcript: The partnership effect: Libraries and publishers on collaborating...
byBookNet Canada

Accessibility & Inclusion: What Comes Next. Presentation of the Digital Acces...
byAssociazione Digital Days

The Evolving Role of the CEO in the Age of AI
byPipal Tree Services Executive Search Firm

[BDD 2025 - Mobile Development] Exploring Apple’s On-Device FoundationModels
byWintari Yasmin

Transforming Content Operations in the Age of AI
byEnterprise Knowledge

"Feelings versus facts: why metrics are more important than intuition", Igor ...
byFwdays

The partnership effect: Libraries and publishers on collaborating and thrivin...
byBookNet Canada

DUBAI IT MODERNIZATION WITH AZURE MANAGED SERVICES.pdf
byLogicEra

So You Want to Work at Google | DevFest Seattle 2025
byMargaret Maynard-Reid

Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]
byUiPathCommunity

MuleSoft AI Series : Introduction to MCP
byMulesoftMunichMeetup


Docker for Developers

Editor's Notes
