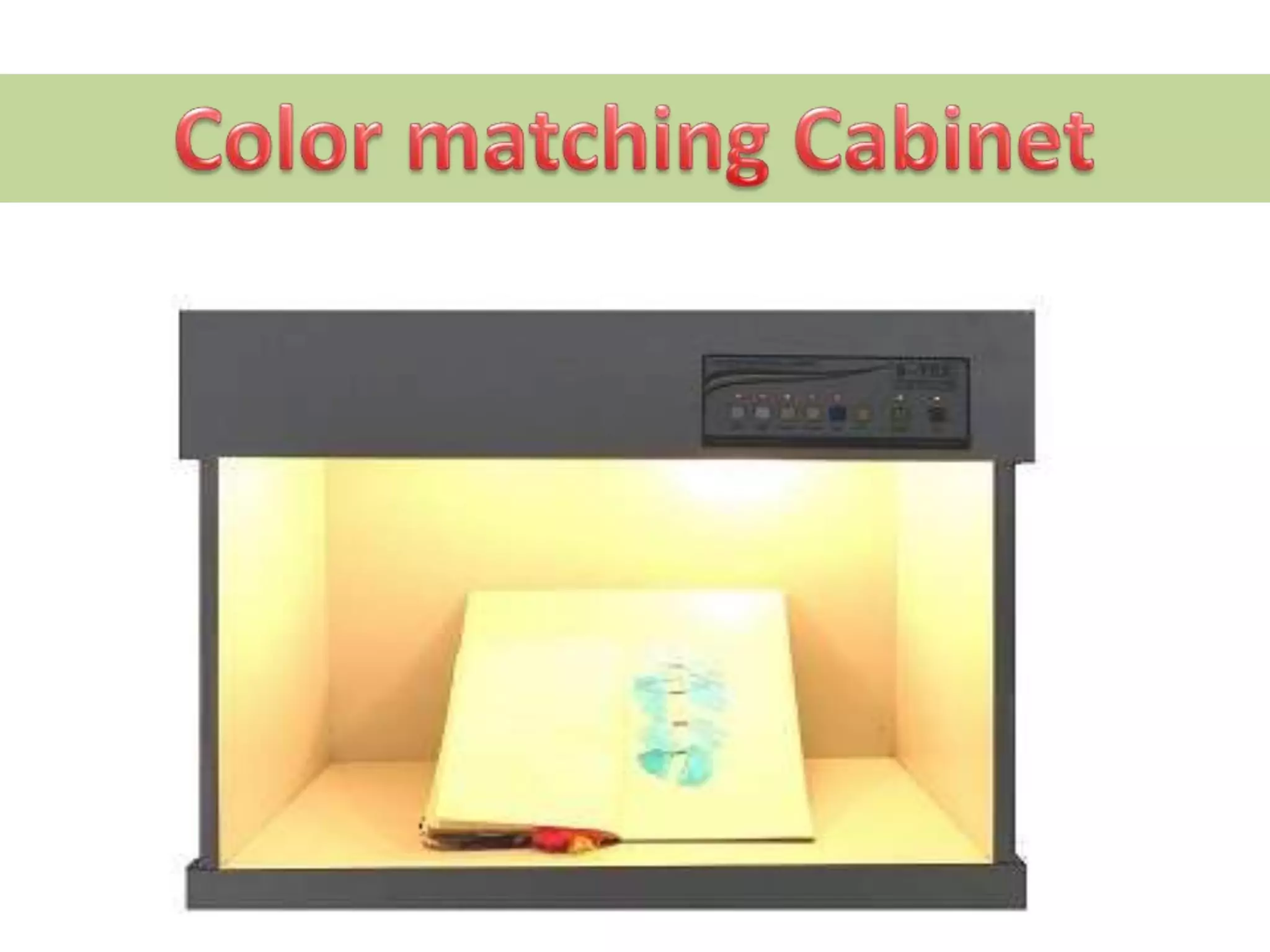

1. The document describes a color matching cabinet used to evaluate color under different light sources and ensure accurate color matching. 2. It contains 6 standard lights including daylight, tungsten, fluorescent, and ultraviolet lights. Samples are viewed under each light to detect any differences caused by the phenomenon of metamerism. 3. The cabinet adheres to international standards for color assessment and is suitable for industries involving fabric dyeing, garment manufacturing, and other color-critical applications.

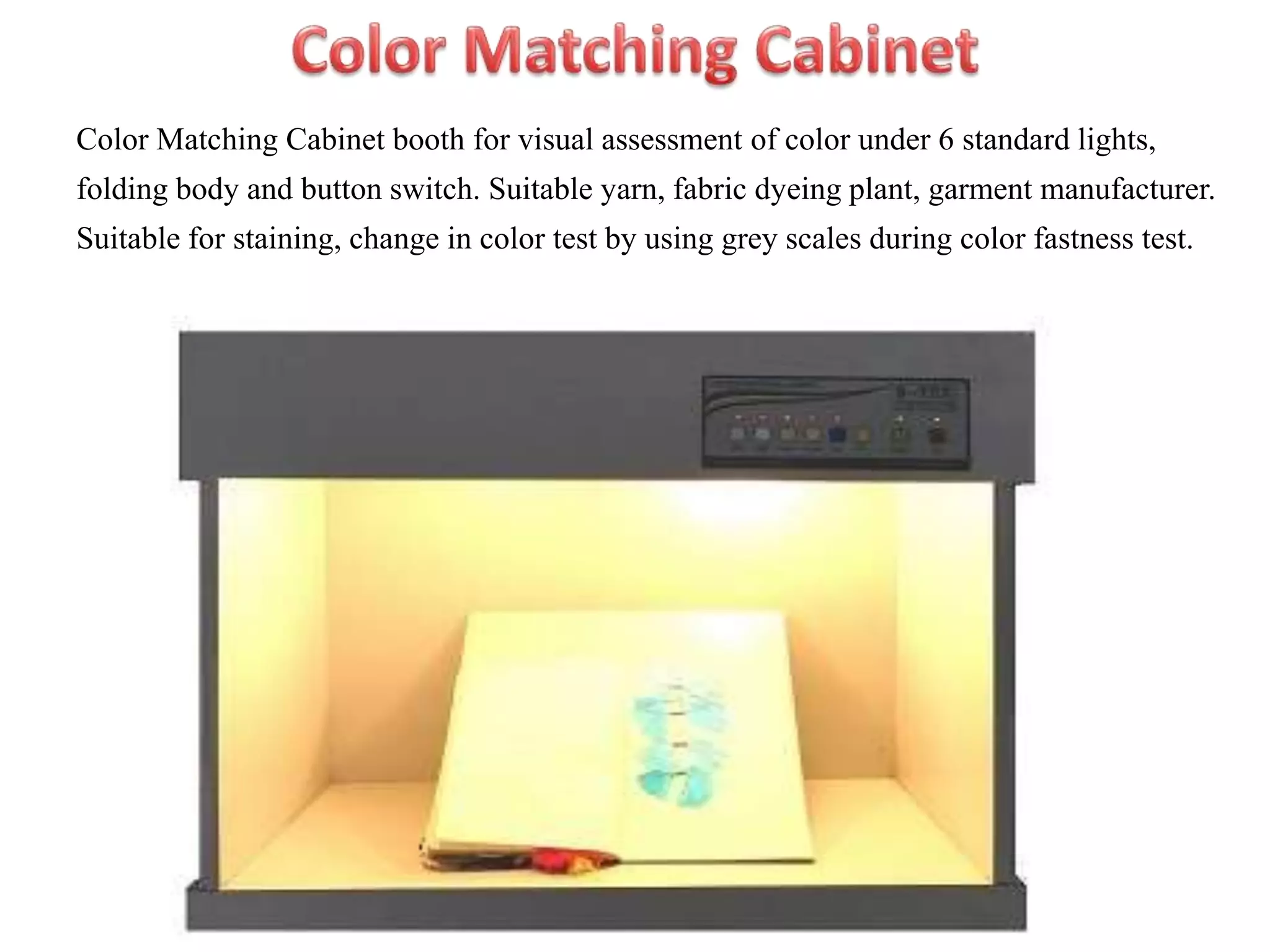

2. Color Matching Cabinet booth for visual assessment of color under 6 standard lights,
folding body and button switch. Suitable yarn, fabric dyeing plant, garment manufacturer.
Suitable for staining, change in color test by using grey scales during color fastness test.

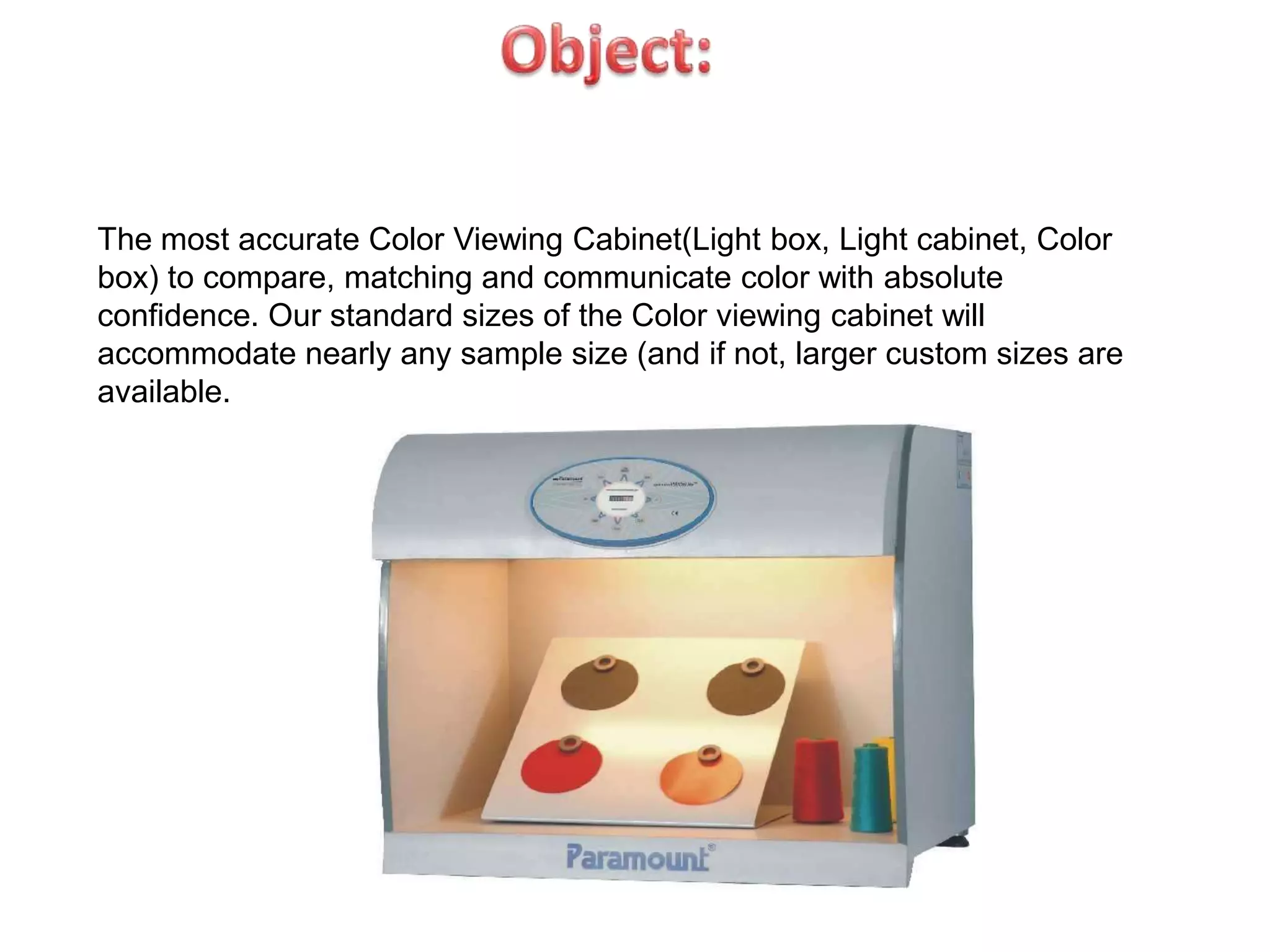

3. The most accurate Color Viewing Cabinet(Light box, Light cabinet, Color
box) to compare, matching and communicate color with absolute
confidence. Our standard sizes of the Color viewing cabinet will
accommodate nearly any sample size (and if not, larger custom sizes are
available.

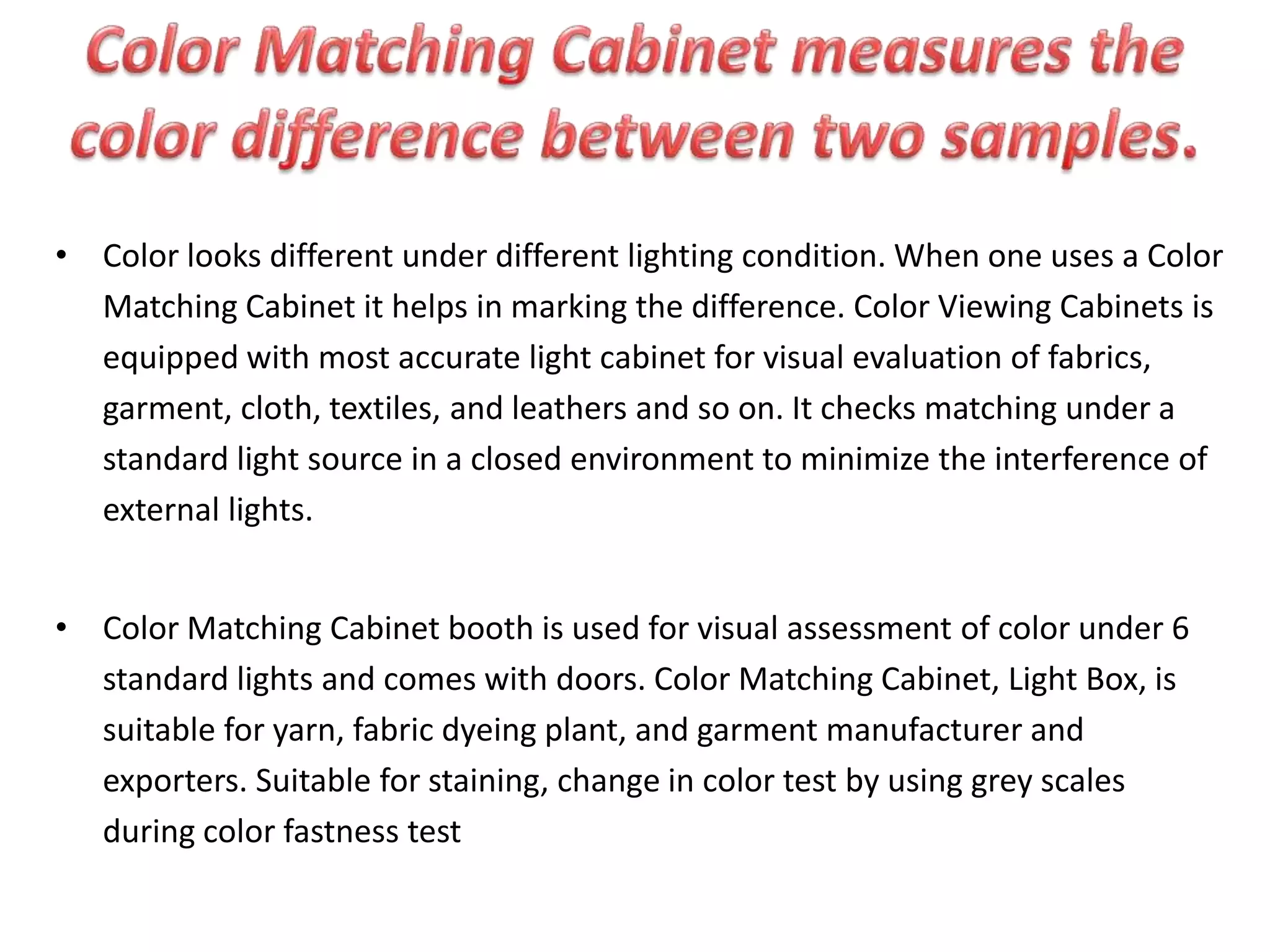

4. • Color looks different under different lighting condition. When one uses a Color
Matching Cabinet it helps in marking the difference. Color Viewing Cabinets is
equipped with most accurate light cabinet for visual evaluation of fabrics,
garment, cloth, textiles, and leathers and so on. It checks matching under a
standard light source in a closed environment to minimize the interference of
external lights.
• Color Matching Cabinet booth is used for visual assessment of color under 6
standard lights and comes with doors. Color Matching Cabinet, Light Box, is
suitable for yarn, fabric dyeing plant, and garment manufacturer and
exporters. Suitable for staining, change in color test by using grey scales
during color fastness test

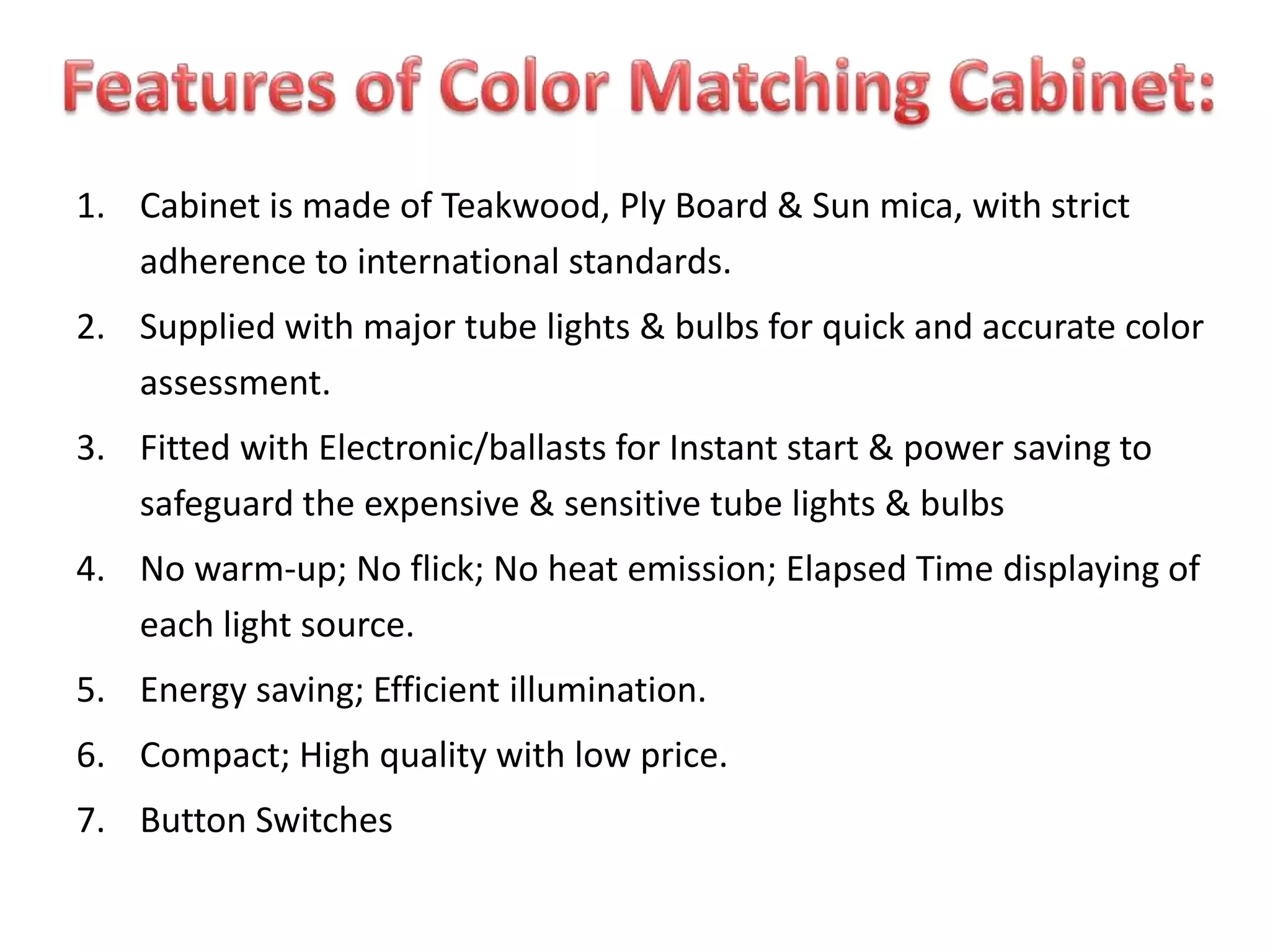

5. 1. Cabinet is made of Teakwood, Ply Board & Sun mica, with strict
adherence to international standards.
2. Supplied with major tube lights & bulbs for quick and accurate color
assessment.
3. Fitted with Electronic/ballasts for Instant start & power saving to
safeguard the expensive & sensitive tube lights & bulbs
4. No warm-up; No flick; No heat emission; Elapsed Time displaying of
each light source.
5. Energy saving; Efficient illumination.
6. Compact; High quality with low price.
7. Button Switches

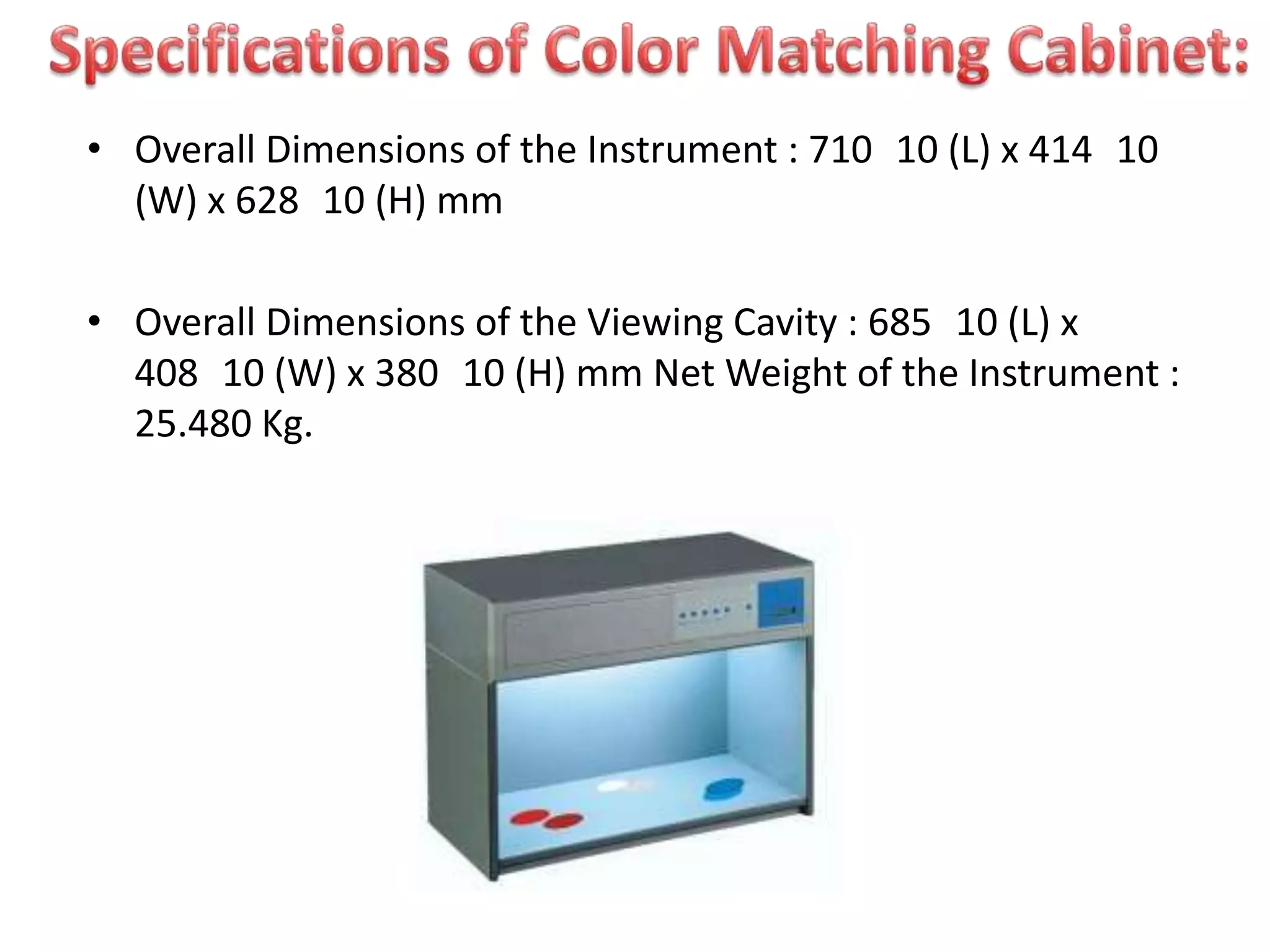

6. • Overall Dimensions of the Instrument : 710 10 (L) x 414 10
(W) x 628 10 (H) mm
• Overall Dimensions of the Viewing Cavity : 685 10 (L) x
408 10 (W) x 380 10 (H) mm Net Weight of the Instrument :
25.480 Kg.

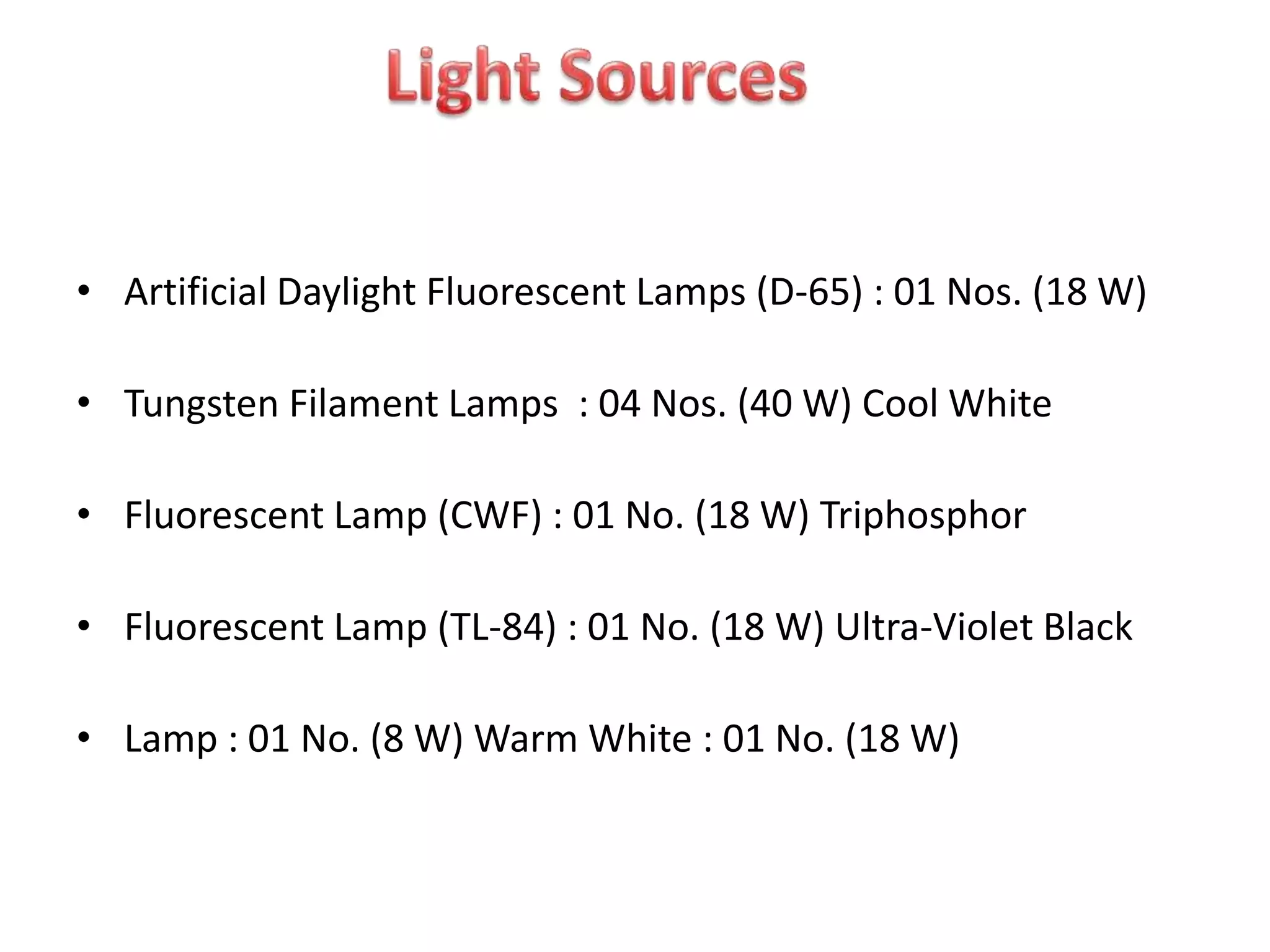

7. • Artificial Daylight Fluorescent Lamps (D-65) : 01 Nos. (18 W)
• Tungsten Filament Lamps : 04 Nos. (40 W) Cool White
• Fluorescent Lamp (CWF) : 01 No. (18 W) Triphosphor
• Fluorescent Lamp (TL-84) : 01 No. (18 W) Ultra-Violet Black
• Lamp : 01 No. (8 W) Warm White : 01 No. (18 W)

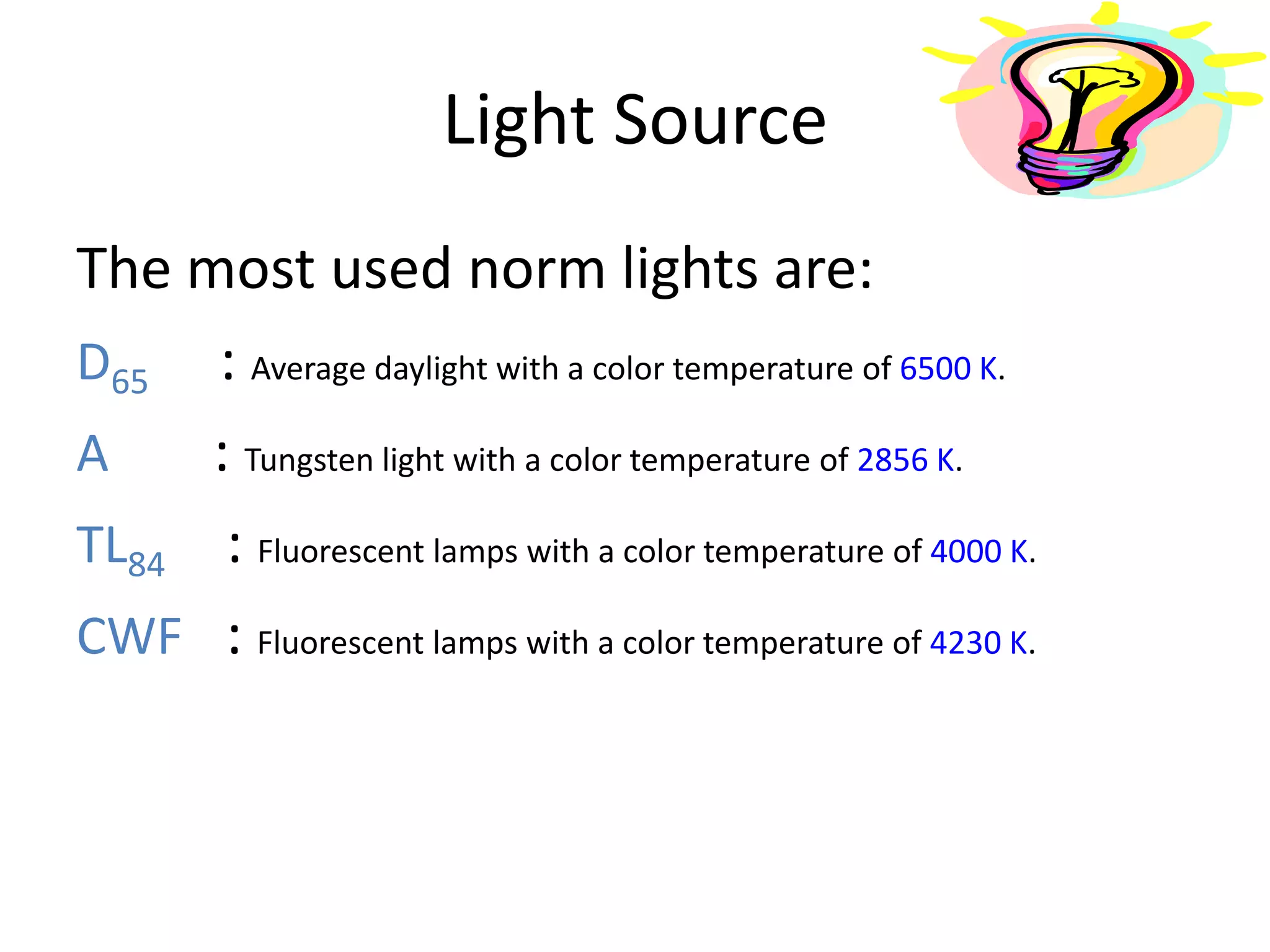

8. Light Source
The most used norm lights are:
D65 : Average daylight with a color temperature of 6500 K.
A : Tungsten light with a color temperature of 2856 K.
TL84 : Fluorescent lamps with a color temperature of 4000 K.
CWF : Fluorescent lamps with a color temperature of 4230 K.

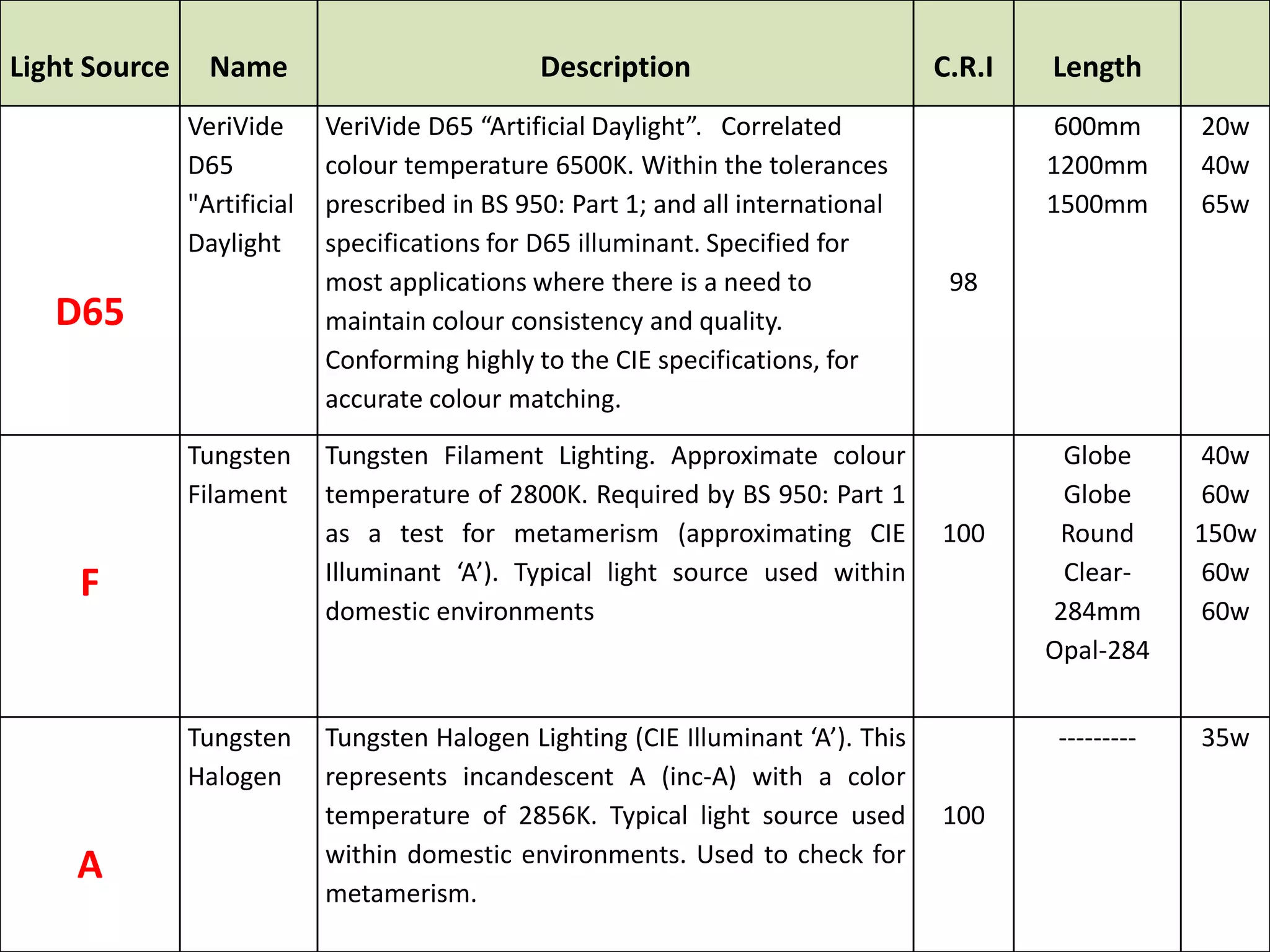

9. Light Source Name Description C.R.I Length
D65
VeriVide
D65
"Artificial
Daylight
VeriVide D65 “Artificial Daylight”. Correlated
colour temperature 6500K. Within the tolerances
prescribed in BS 950: Part 1; and all international
specifications for D65 illuminant. Specified for
most applications where there is a need to
maintain colour consistency and quality.
Conforming highly to the CIE specifications, for
accurate colour matching.
98
600mm
1200mm
1500mm
20w
40w
65w
F
Tungsten
Filament
Tungsten Filament Lighting. Approximate colour
temperature of 2800K. Required by BS 950: Part 1
as a test for metamerism (approximating CIE
Illuminant ‘A’). Typical light source used within
domestic environments
100
Globe
Globe
Round
Clear-
284mm
Opal-284
40w
60w
150w
60w
60w
A
Tungsten
Halogen
Tungsten Halogen Lighting (CIE Illuminant ‘A’). This
represents incandescent A (inc-A) with a color
temperature of 2856K. Typical light source used
within domestic environments. Used to check for
metamerism.
100
--------- 35w

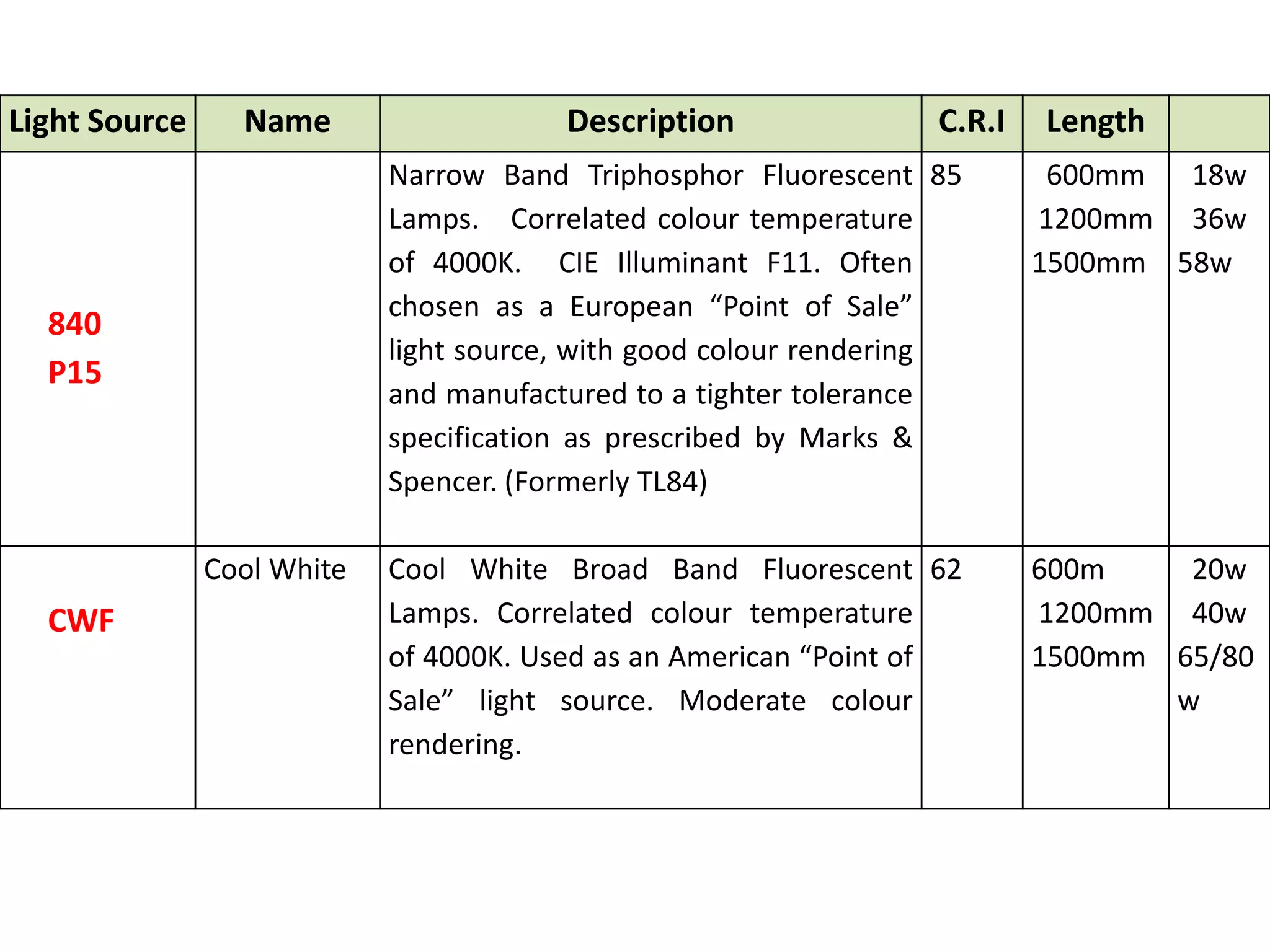

10. Light Source Name Description C.R.I Length
840
P15
Narrow Band Triphosphor Fluorescent
Lamps. Correlated colour temperature
of 4000K. CIE Illuminant F11. Often
chosen as a European “Point of Sale”
light source, with good colour rendering
and manufactured to a tighter tolerance
specification as prescribed by Marks &
Spencer. (Formerly TL84)
85 600mm
1200mm
1500mm
18w
36w
58w
CWF
Cool White Cool White Broad Band Fluorescent
Lamps. Correlated colour temperature
of 4000K. Used as an American “Point of
Sale” light source. Moderate colour
rendering.
62 600m
1200mm
1500mm
20w
40w
65/80
w

11. Light
Source

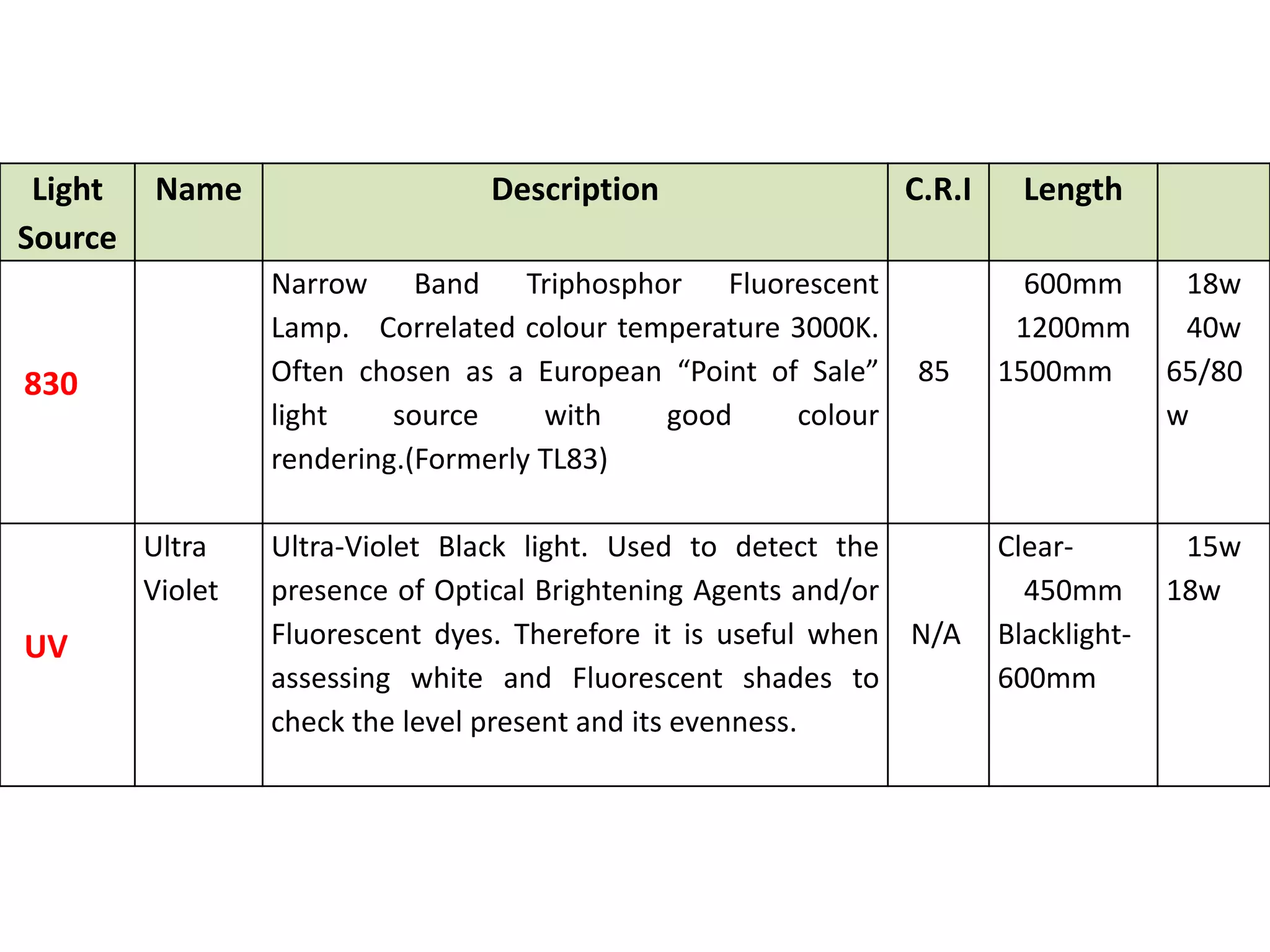

Name Description C.R.I Length
830
Narrow Band Triphosphor Fluorescent
Lamp. Correlated colour temperature 3000K.
Often chosen as a European “Point of Sale”
light source with good colour
rendering.(Formerly TL83)
85
600mm
1200mm
1500mm
18w
40w
65/80
w
UV
Ultra
Violet
Ultra-Violet Black light. Used to detect the
presence of Optical Brightening Agents and/or
Fluorescent dyes. Therefore it is useful when
assessing white and Fluorescent shades to
check the level present and its evenness.
N/A
Clear-
450mm
Blacklight-
600mm
15w
18w

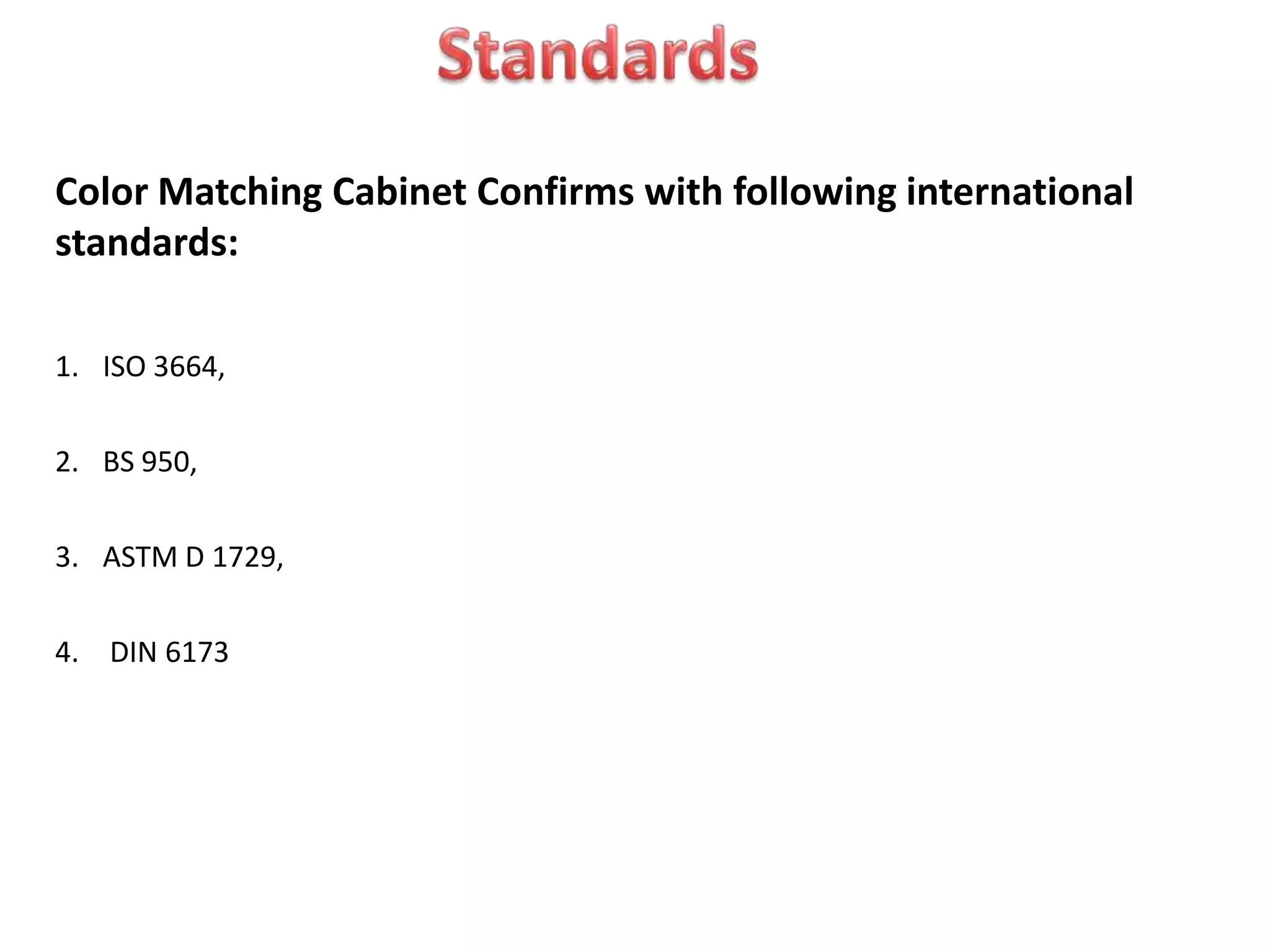

12. Color Matching Cabinet Confirms with following international
standards:
1. ISO 3664,
2. BS 950,
3. ASTM D 1729,
4. DIN 6173

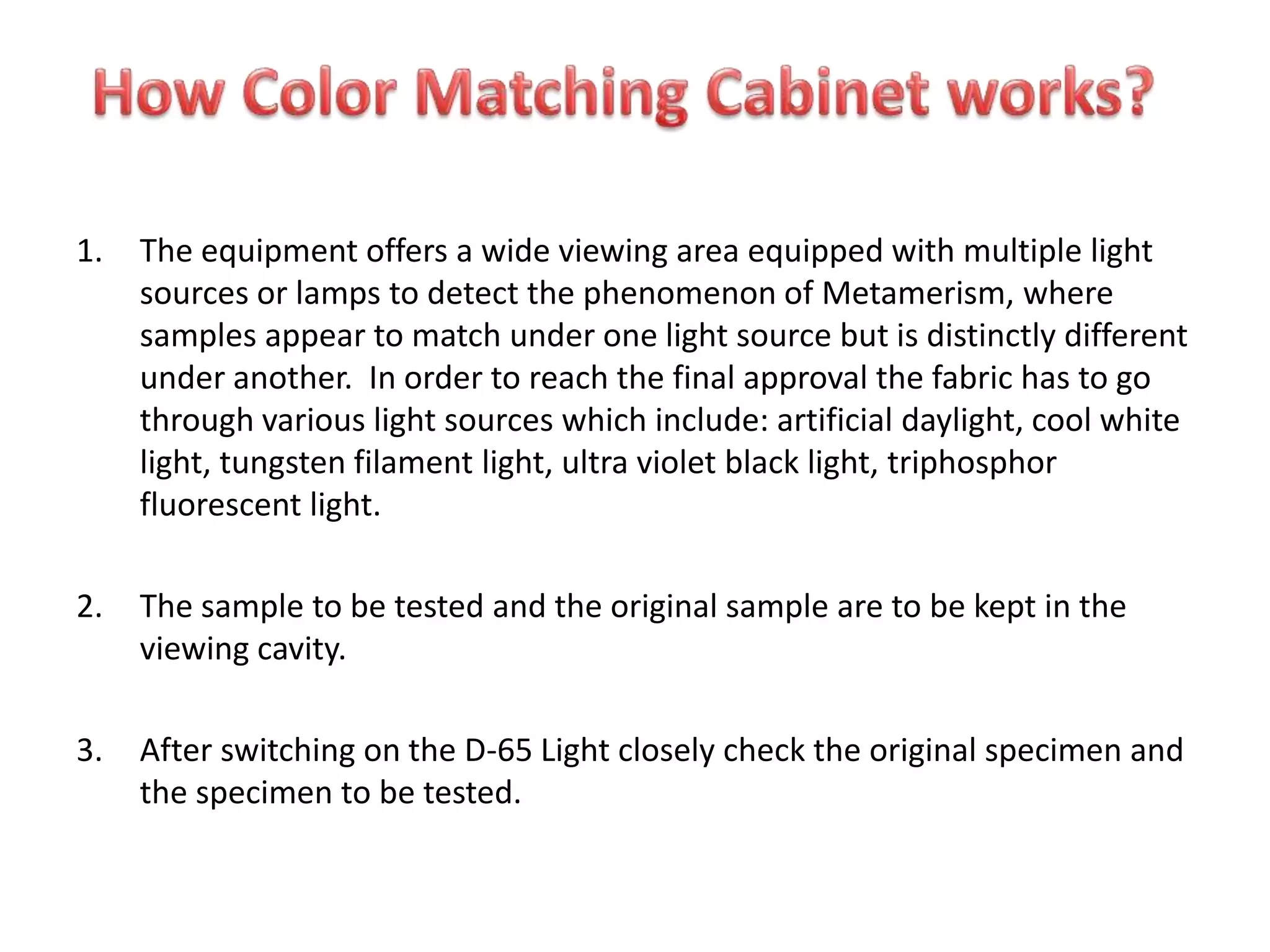

13. 1. The equipment offers a wide viewing area equipped with multiple light
sources or lamps to detect the phenomenon of Metamerism, where
samples appear to match under one light source but is distinctly different
under another. In order to reach the final approval the fabric has to go
through various light sources which include: artificial daylight, cool white
light, tungsten filament light, ultra violet black light, triphosphor
fluorescent light.
2. The sample to be tested and the original sample are to be kept in the
viewing cavity.
3. After switching on the D-65 Light closely check the original specimen and
the specimen to be tested.

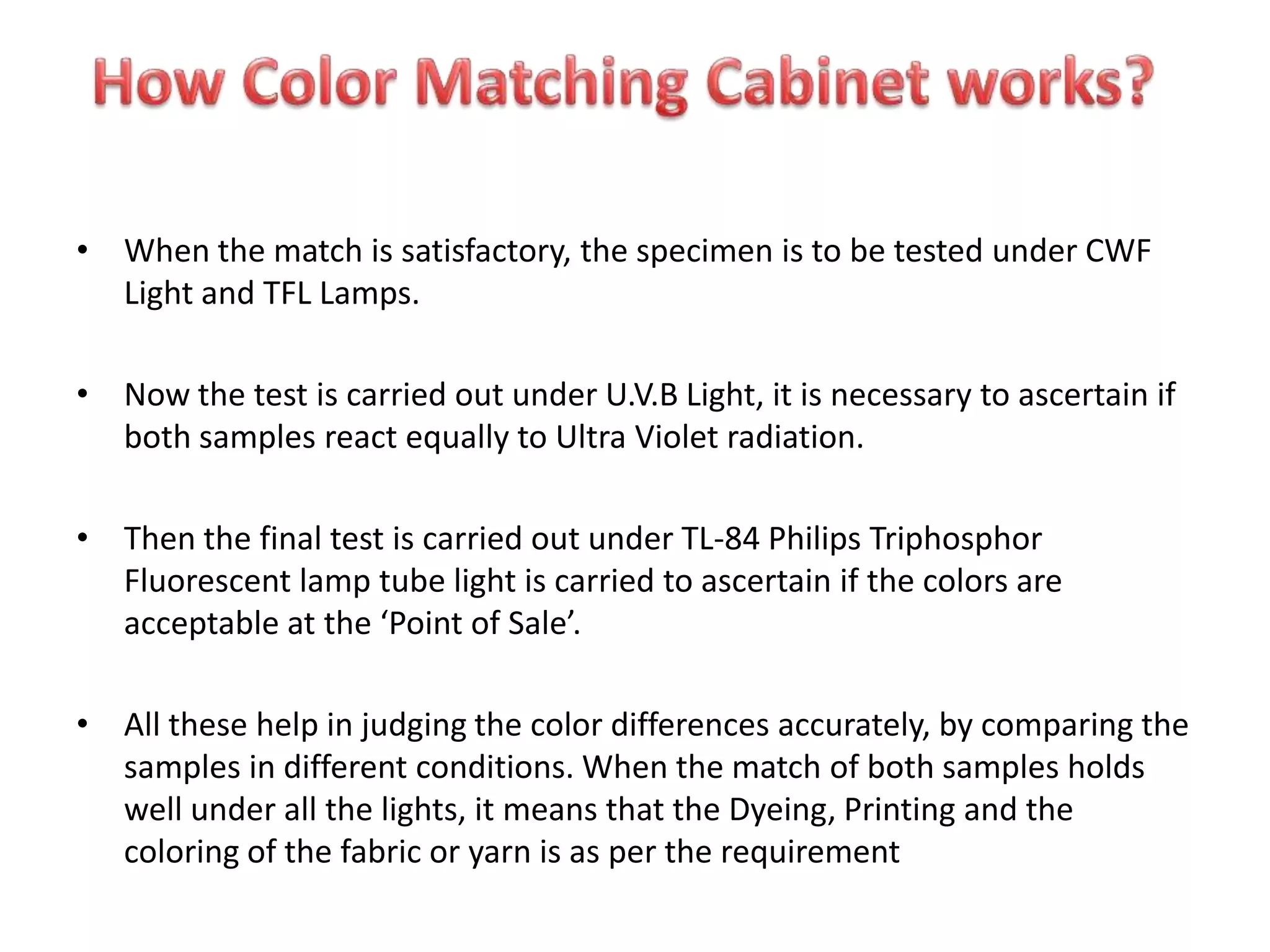

14. • When the match is satisfactory, the specimen is to be tested under CWF
Light and TFL Lamps.
• Now the test is carried out under U.V.B Light, it is necessary to ascertain if
both samples react equally to Ultra Violet radiation.
• Then the final test is carried out under TL-84 Philips Triphosphor
Fluorescent lamp tube light is carried to ascertain if the colors are
acceptable at the ‘Point of Sale’.
• All these help in judging the color differences accurately, by comparing the
samples in different conditions. When the match of both samples holds
well under all the lights, it means that the Dyeing, Printing and the
coloring of the fabric or yarn is as per the requirement

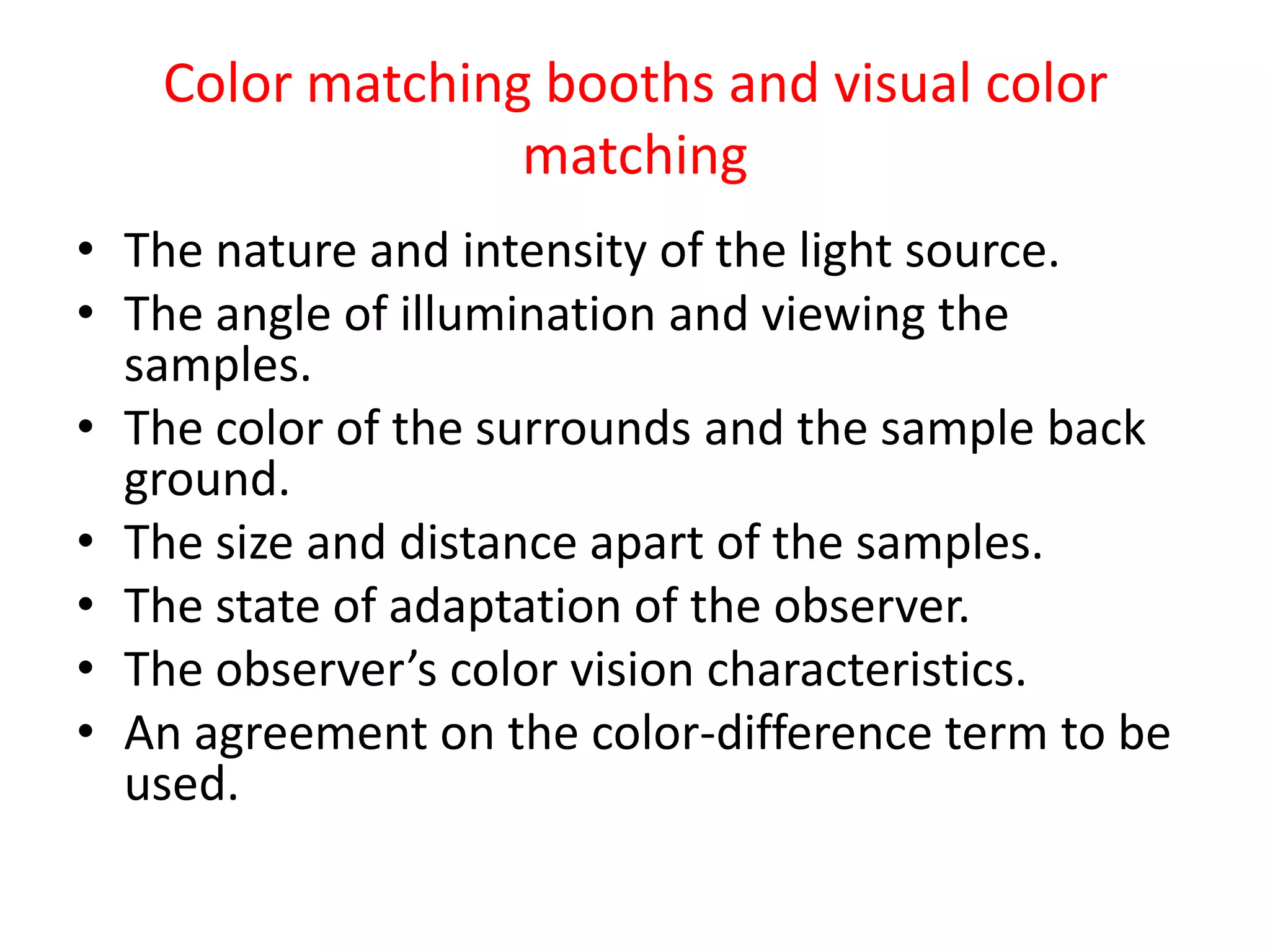

15. Color matching booths and visual color
matching
• The nature and intensity of the light source.
• The angle of illumination and viewing the
samples.
• The color of the surrounds and the sample back
ground.
• The size and distance apart of the samples.
• The state of adaptation of the observer.
• The observer’s color vision characteristics.
• An agreement on the color-difference term to be
used.

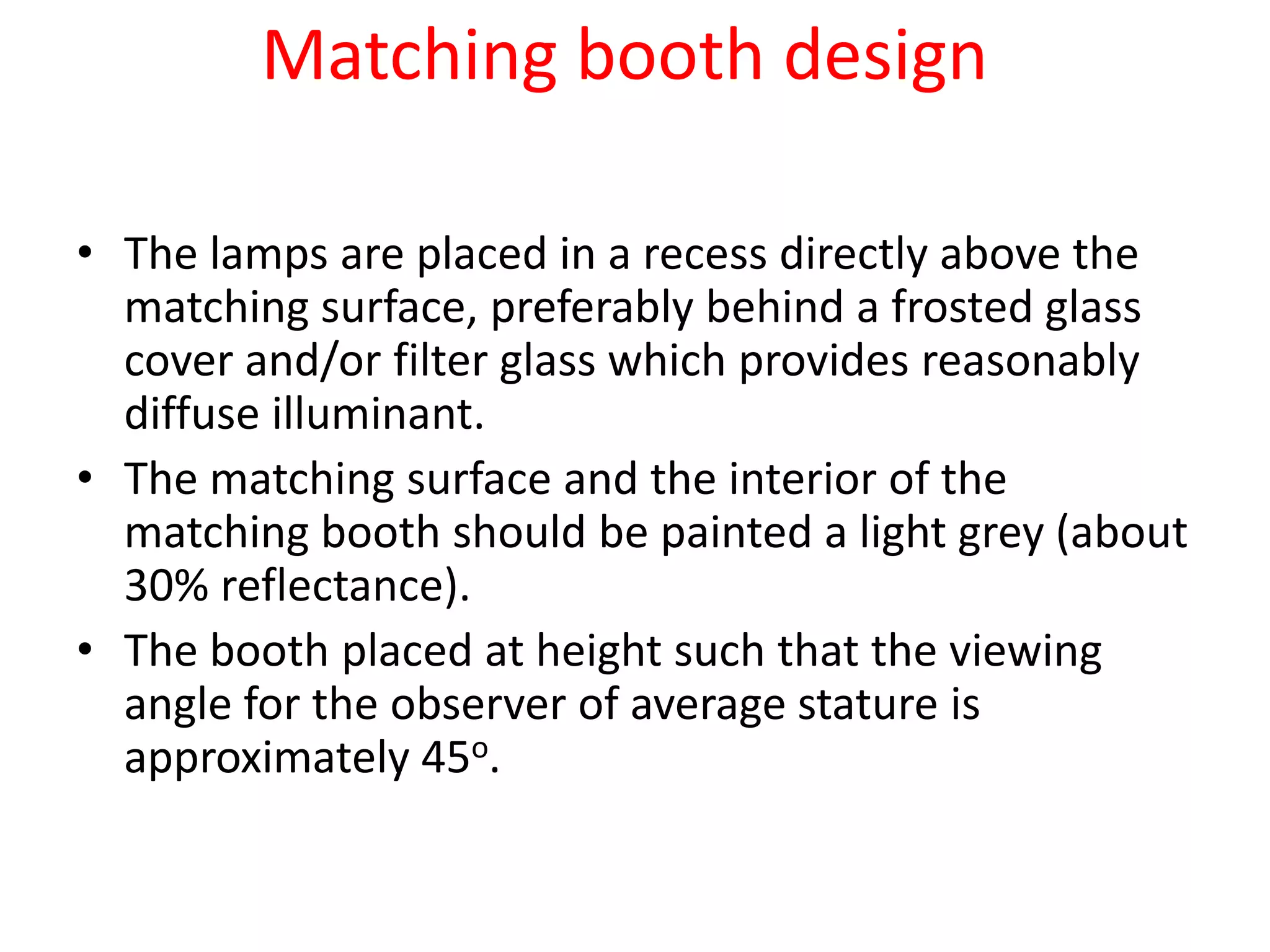

16. Matching booth design
• The lamps are placed in a recess directly above the
matching surface, preferably behind a frosted glass
cover and/or filter glass which provides reasonably
diffuse illuminant.
• The matching surface and the interior of the
matching booth should be painted a light grey (about
30% reflectance).
• The booth placed at height such that the viewing
angle for the observer of average stature is
approximately 45o.

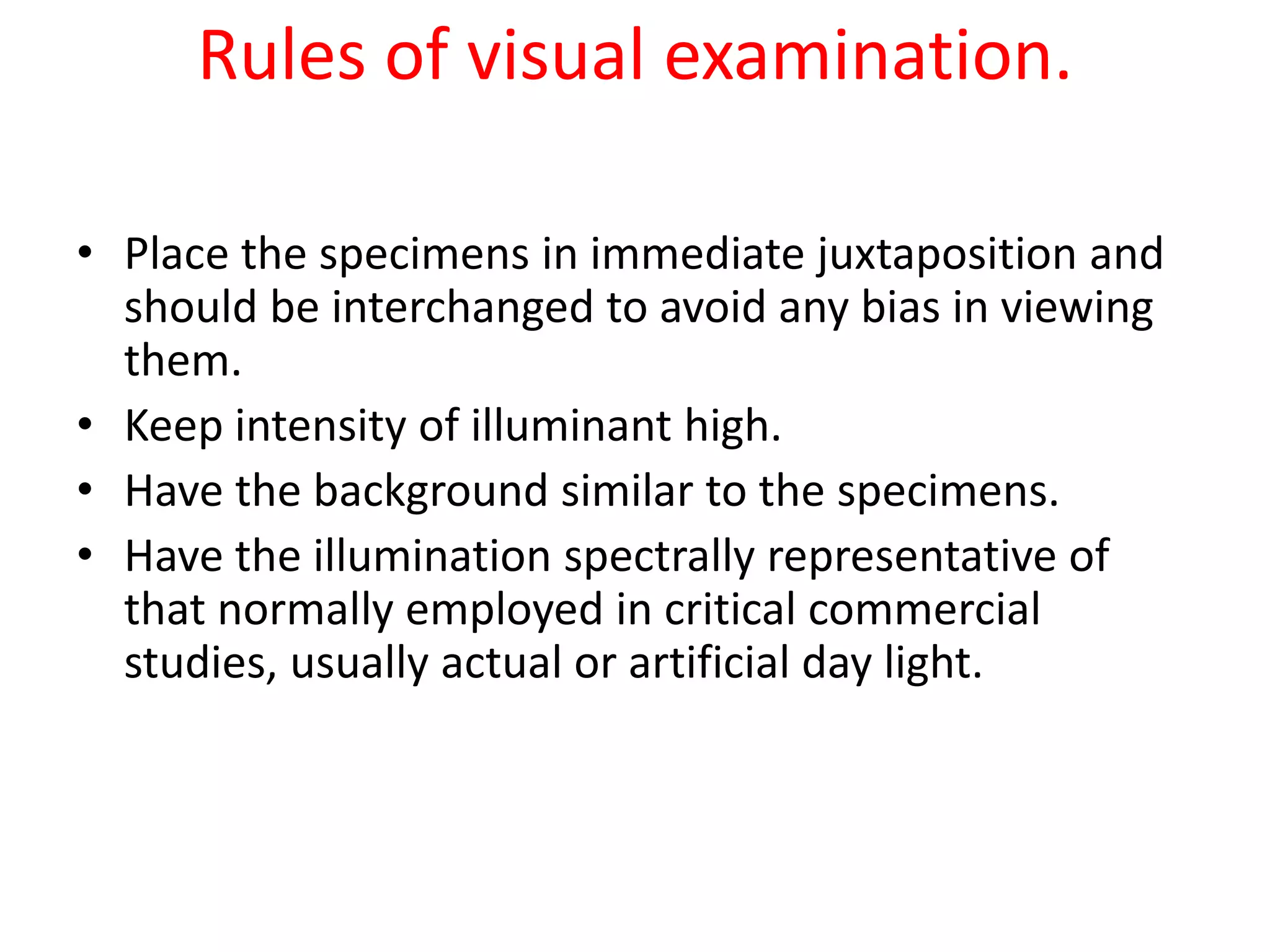

17. Rules of visual examination.
• Place the specimens in immediate juxtaposition and
should be interchanged to avoid any bias in viewing
them.
• Keep intensity of illuminant high.
• Have the background similar to the specimens.
• Have the illumination spectrally representative of
that normally employed in critical commercial
studies, usually actual or artificial day light.

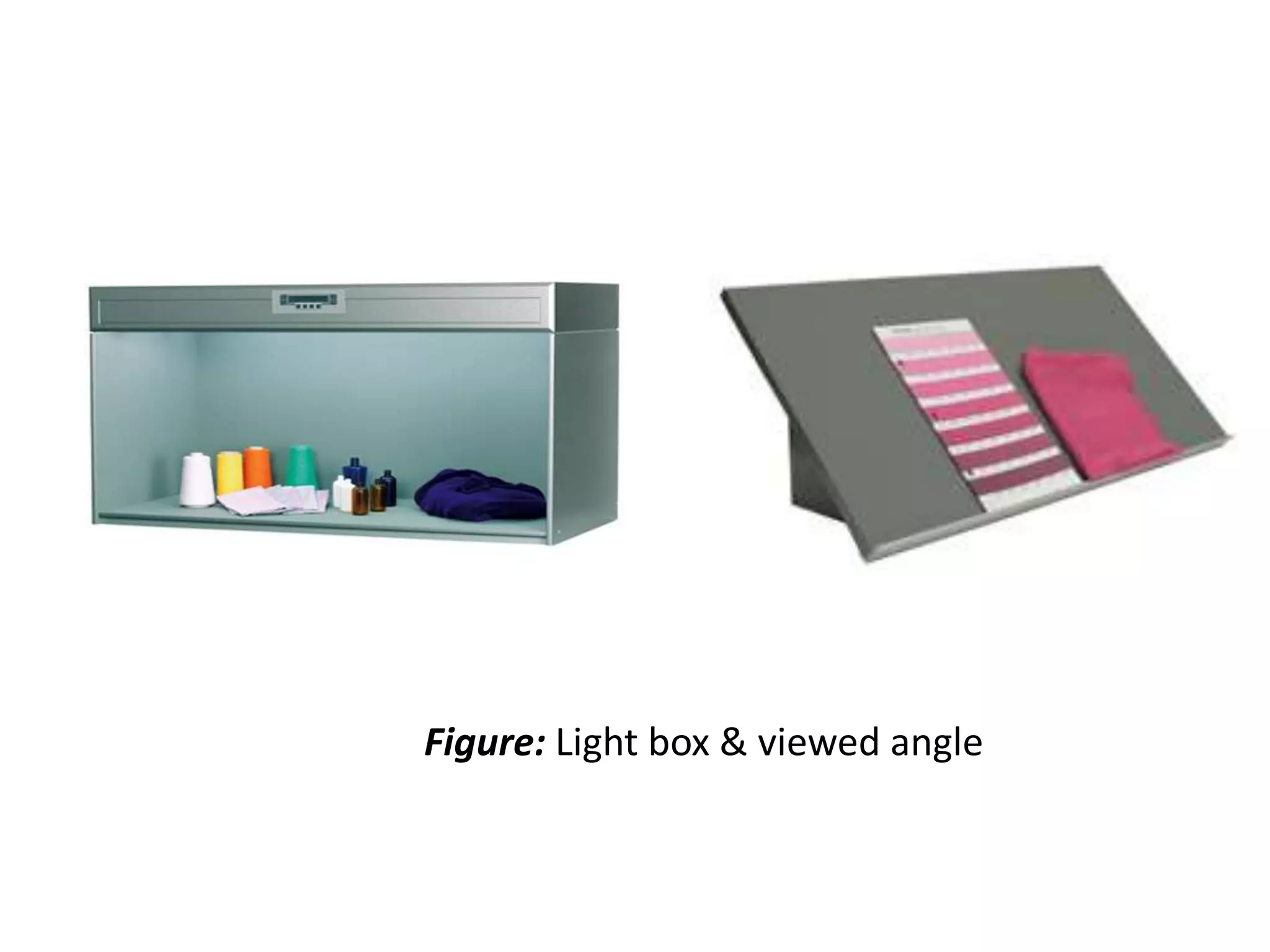

18. Figure: Light box & viewed angle

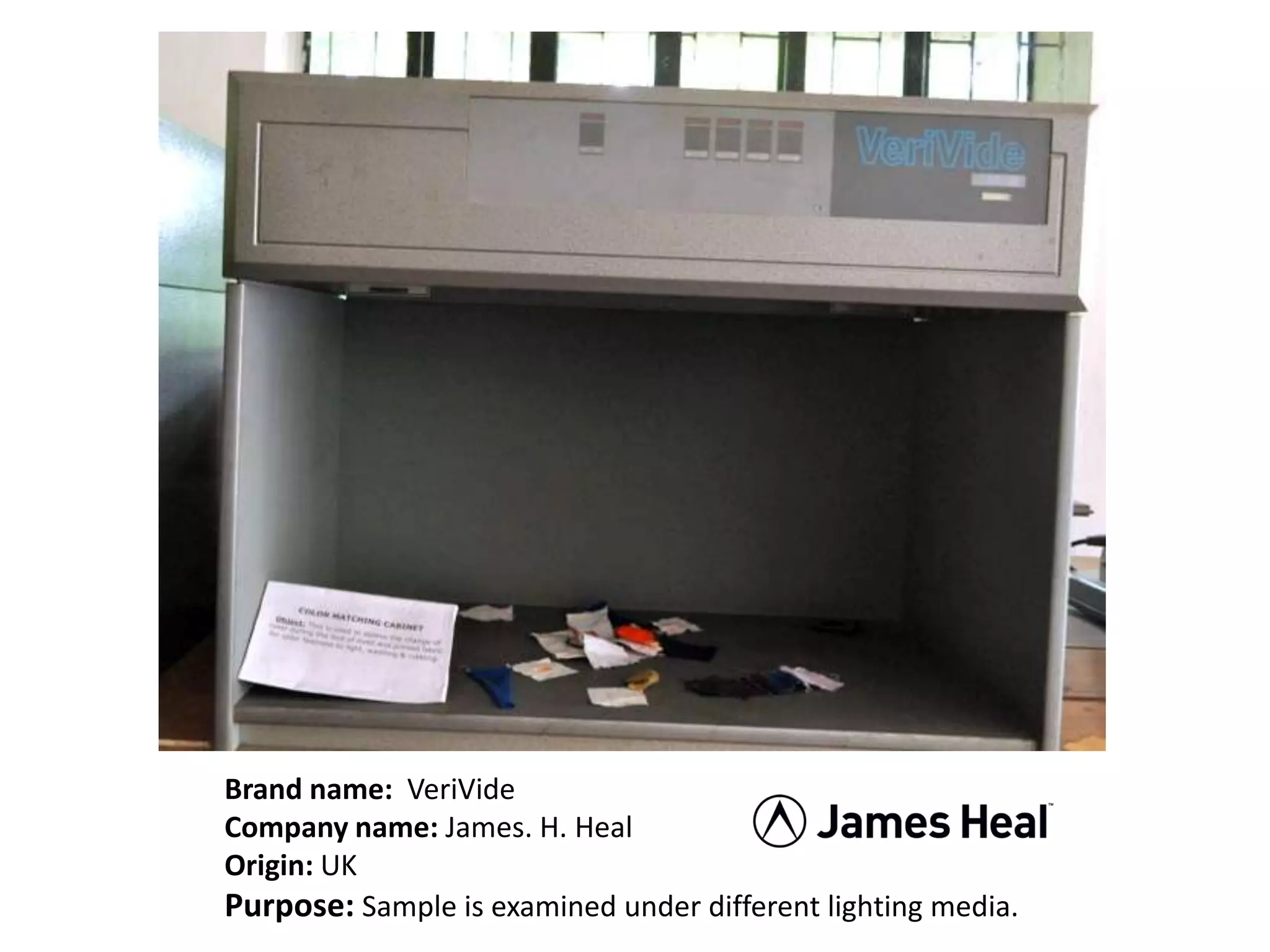

19. Brand name: VeriVide
Company name: James. H. Heal
Origin: UK
Purpose: Sample is examined under different lighting media.

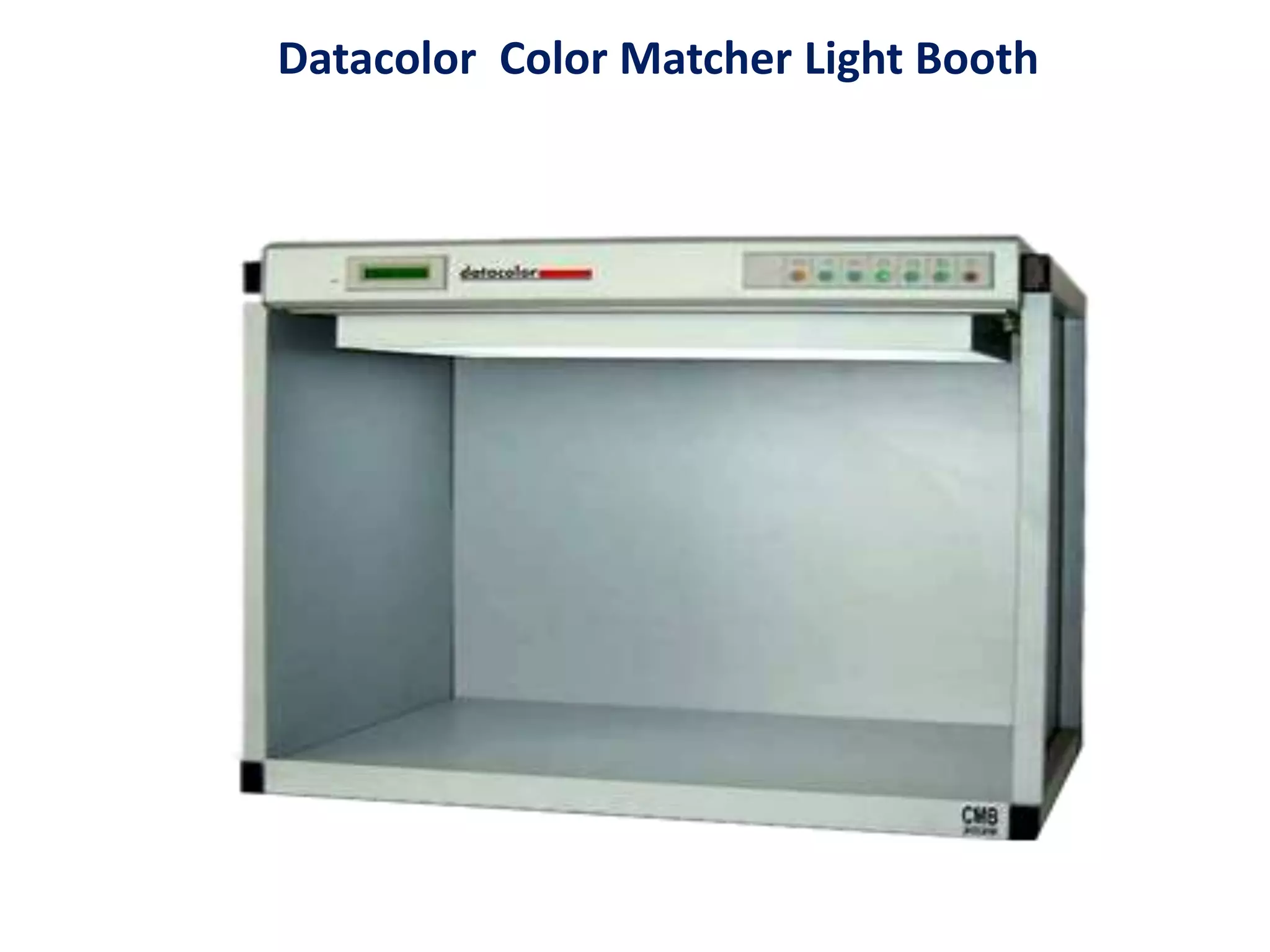

20. Datacolor Color Matcher Light Booth

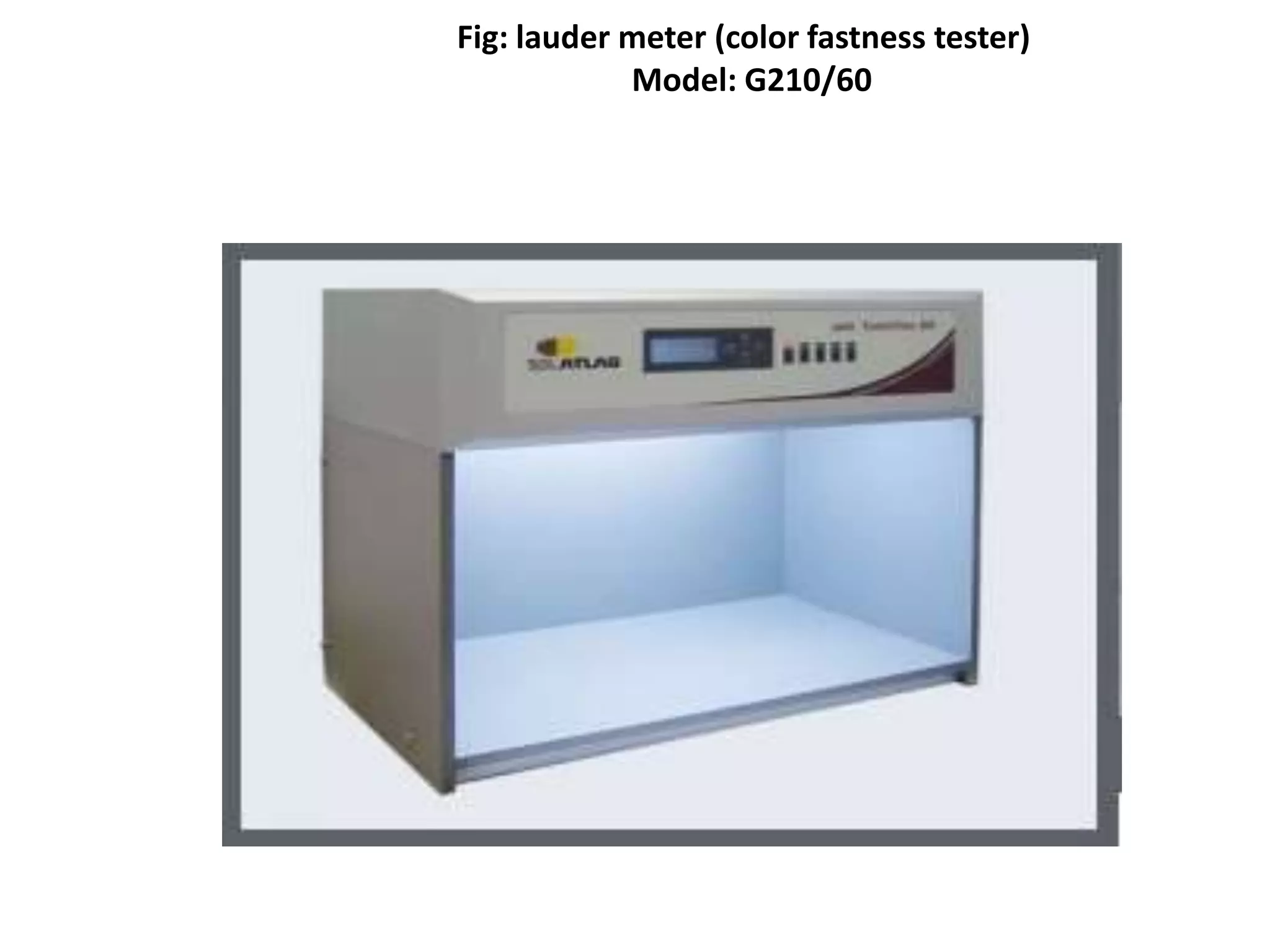

21. Fig: lauder meter (color fastness tester)
Model: G210/60

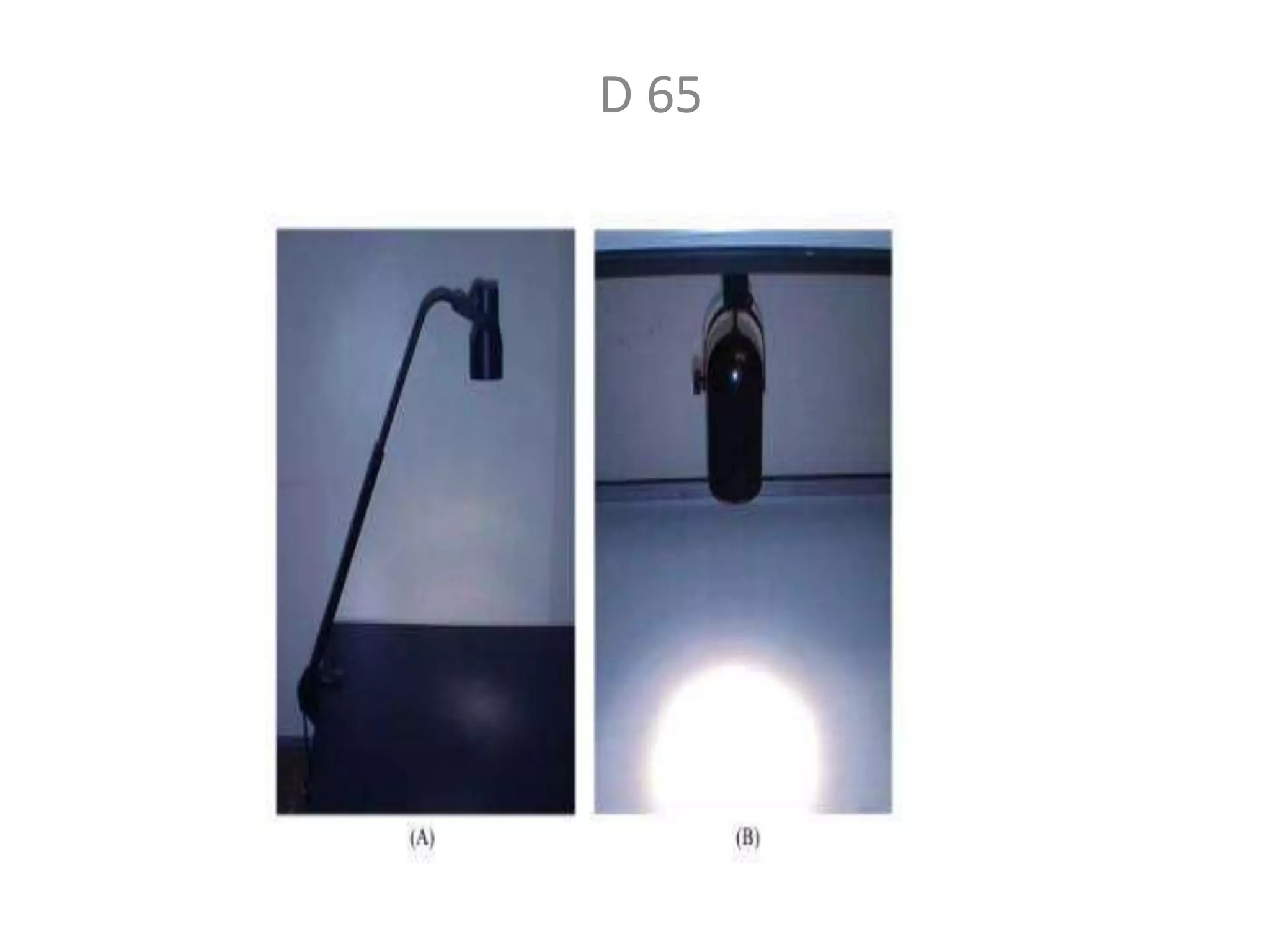

22. D 65

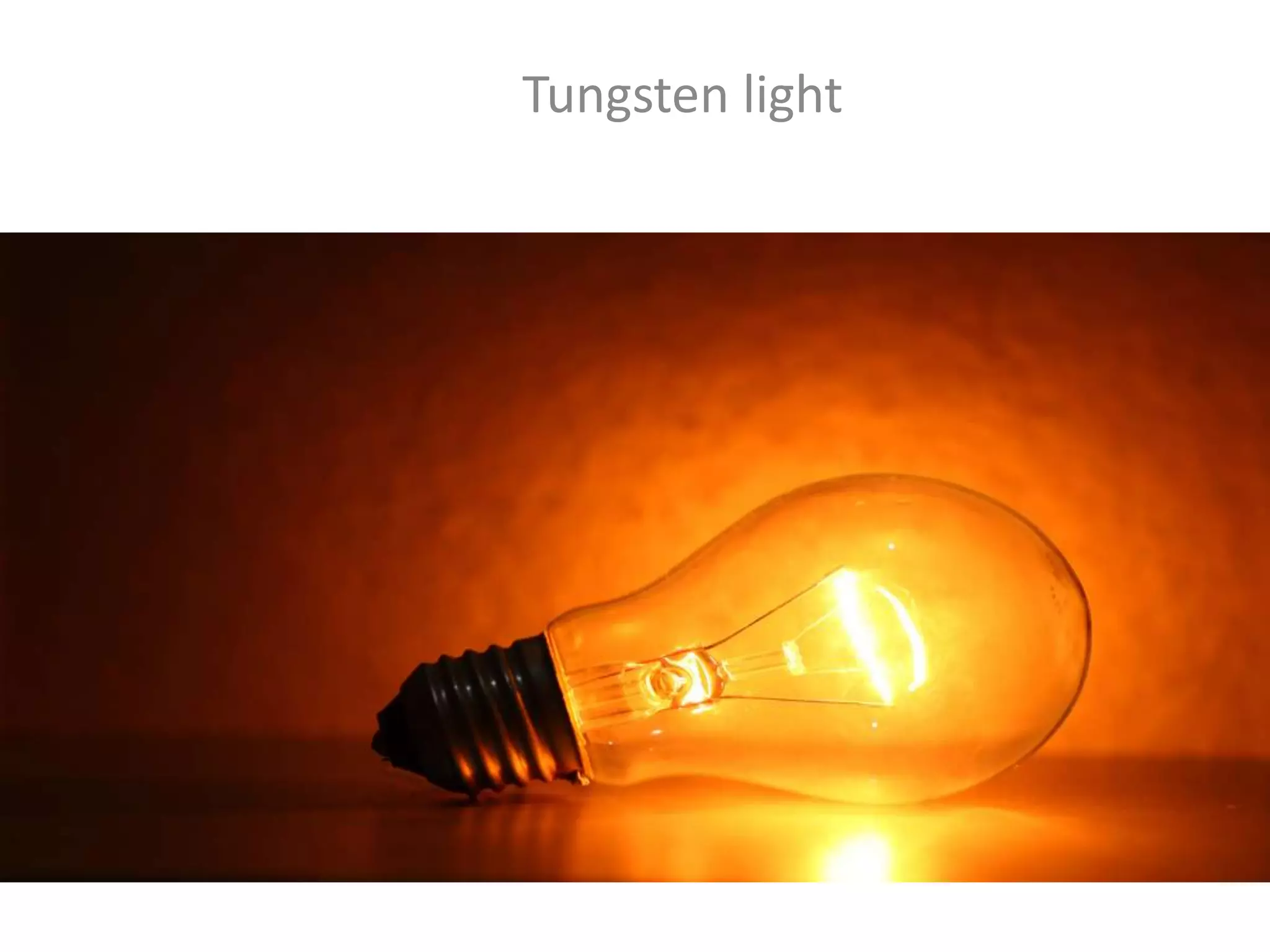

23. Tungsten light

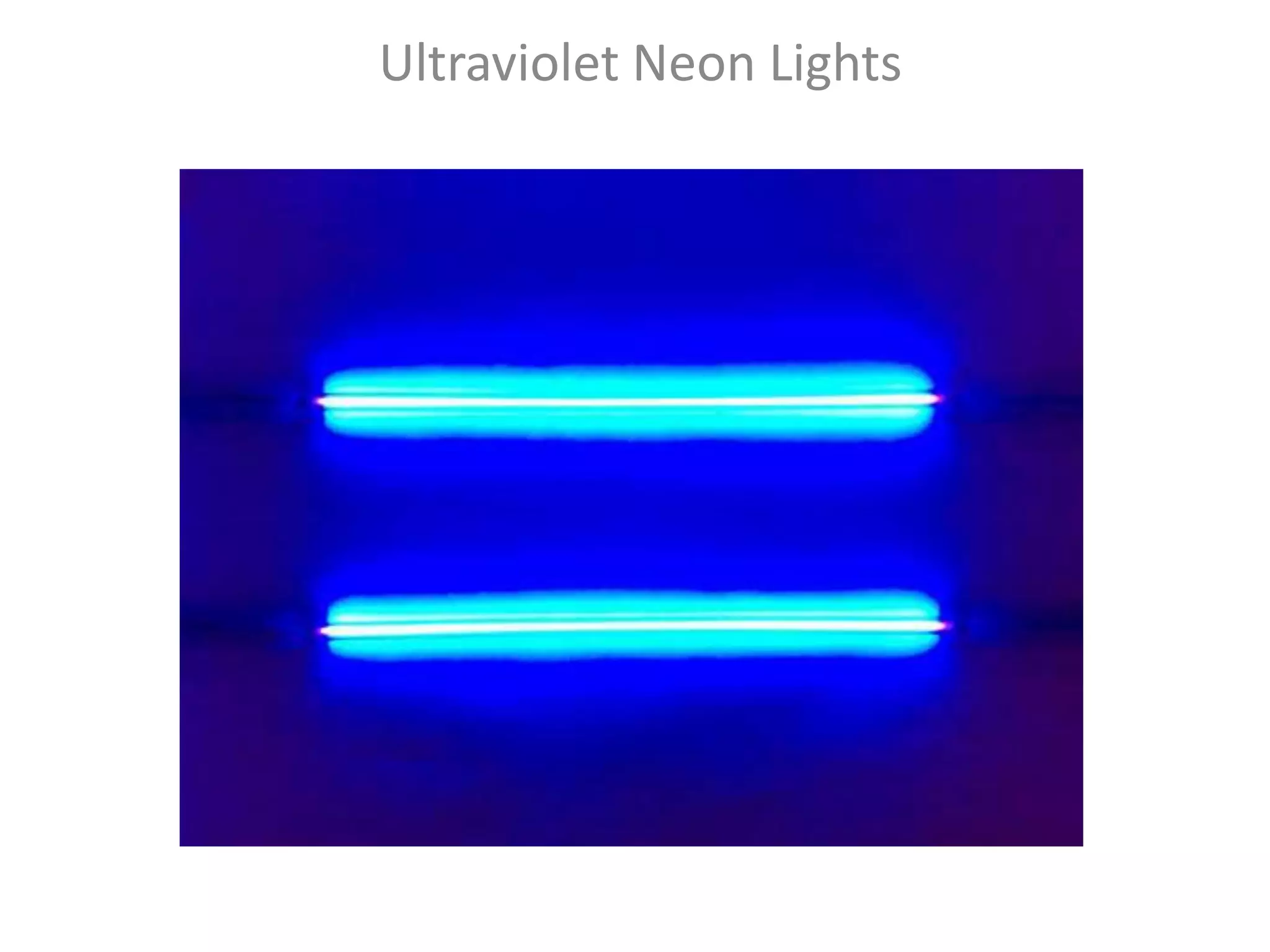

24. Ultraviolet Neon Lights

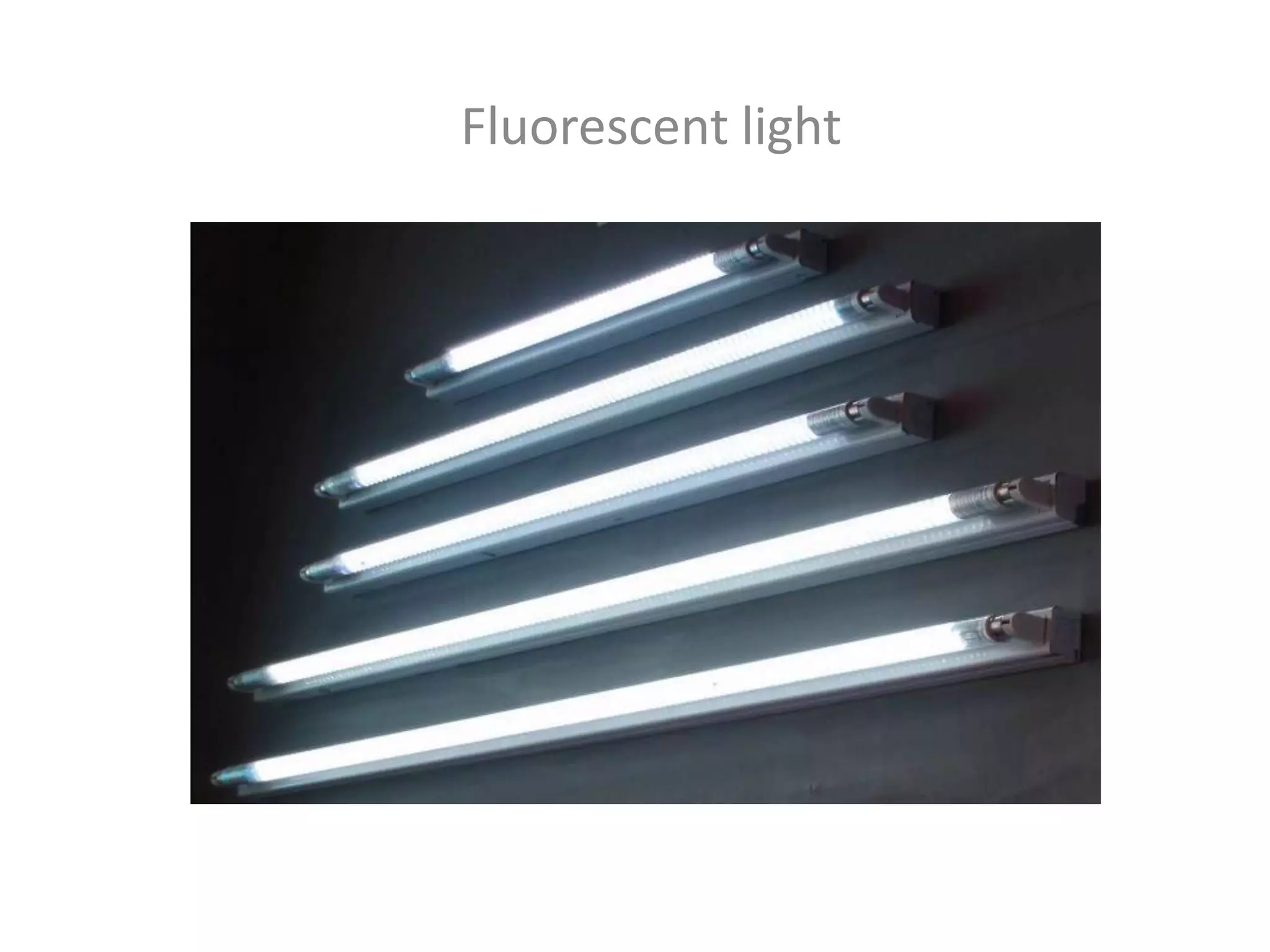

25. Fluorescent light

26. COOL White Fluorescent light
