This document discusses color detection using OpenCV in C++. It introduces color detection and OpenCV, with the objective of implementing object-oriented programming concepts to detect pixel colors in a 3-channel RGB image. The architecture involves OpenCV capturing images in BGR format. Implementation calculates spatial moments and central moments of a binary image to determine pixel colors. Future applications include computer vision, object segregation and tracking based on color.

1. COLOR DETECTION
Presented by
Anil Pokhrel
Bsccsit 3 semester
1

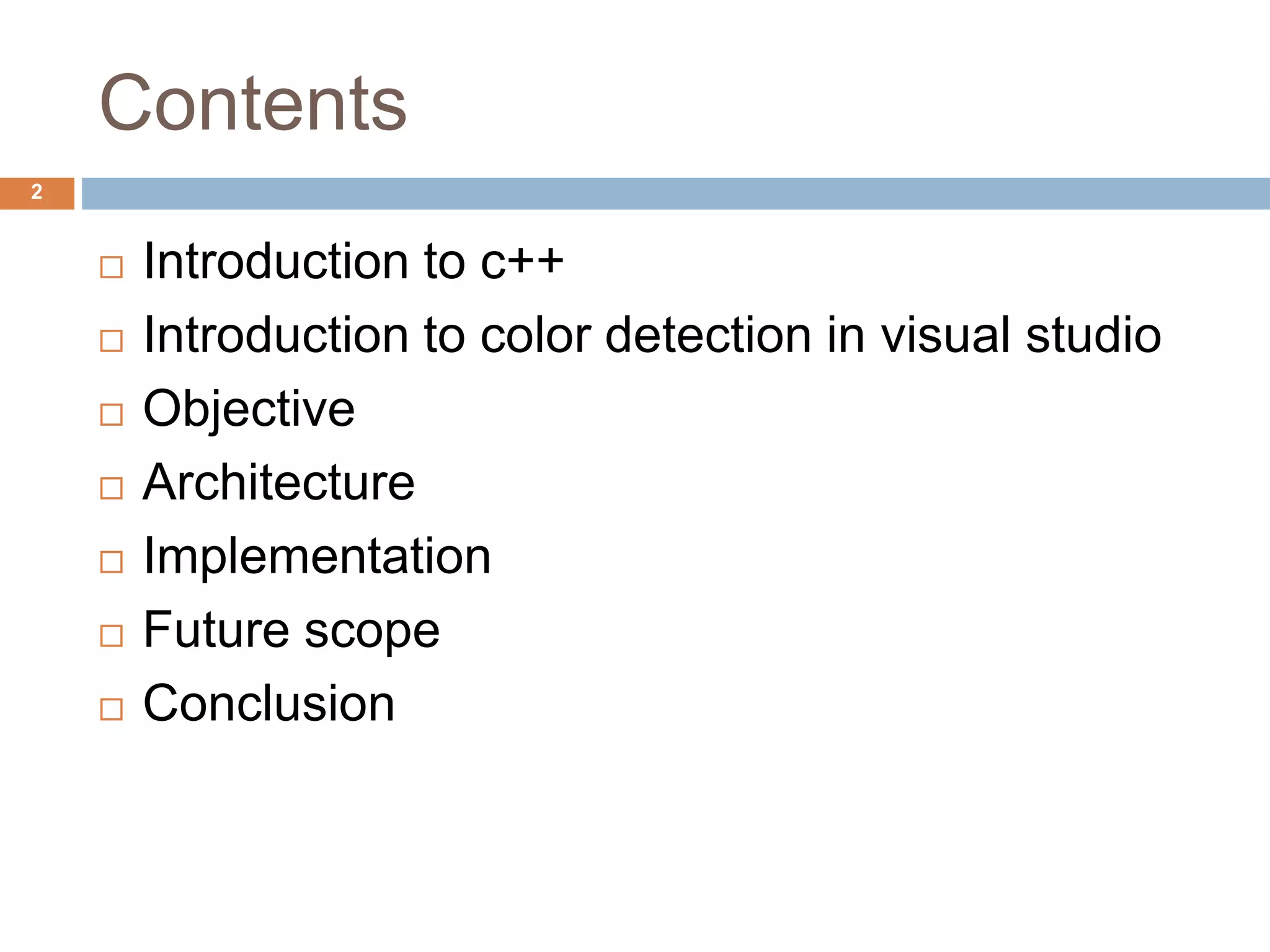

2. Contents
2
 Introduction to c++
 Introduction to color detection in visual studio
 Objective
 Architecture
 Implementation
 Future scope
 Conclusion

3. Introduction to c++
3
 The basic concepts underlying OOP are:
Class, Object, abstraction, encapsulation,
inheritance, and polymorphism
 Programs are divided into objects.
 Data structures are designed such that they
characterize the objects .
 Functions & data are tied together in the data
structures

4. Introduction to color detection
using Open CV4
 Open CV is a Computer Vision library developed
by Intel
 It is a collection of C++ classes that implement
popular Image Processing and Computer Vision
algorithms
 It includes filtering, edge detection, corner
detection, sampling and interpolation, color
conversion and color detection

5. Continue……
5
 Color detection is the most important and
challenging fundamental task of computer
vision
 The easiest way to detect and segment an
object from an image is the color based
methods
 Color is one of the most important
characteristics of an image, if color in a live
video or in a digital image can be detected,
then the results of this detection can be used

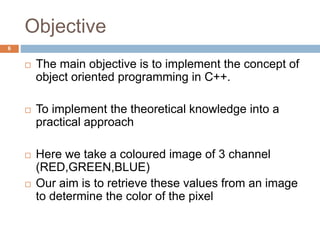

6. Objective
6
 The main objective is to implement the concept of
object oriented programming in C++.
 To implement the theoretical knowledge into a
practical approach
 Here we take a coloured image of 3 channel
(RED,GREEN,BLUE)
 Our aim is to retrieve these values from an image
to determine the color of the pixel

7. ARCHITECTURE
7
 It aims to provide information about system
architecture and it consists of color detecting
diagrams
 Open CV usually captures images and videos
in 8-bit, BGR format

8. 8

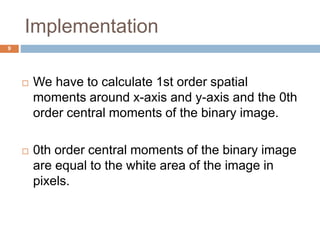

9. Implementation
9
 We have to calculate 1st order spatial
moments around x-axis and y-axis and the 0th
order central moments of the binary image.
 0th order central moments of the binary image
are equal to the white area of the image in
pixels.

10. Control of color detection
10

11. Future scopes and conclusion
11
 Computer vision- Color detection is the basic
and important step for proceeding in computer
vision.
 Object Segregation- An object can be
segregated (separated) on the basis of its
color.
 Object Tracking- A moving object can be
tracked on the basis of its color

12. References
12
 https://www.opencv-srf.com/2010/09/object-
detection-using-color-seperation.html
 https://www.codeproject.com/Articles/850023/
Color-Based-Object-Detection

13. 13
