CloudStack networking
- 1. The Why, Whenand wHow of CloudStack Networking Paul Angus VP Technology & Cloud Architect paul.angus@shapeblue.com Twitter: @CloudyAngus
- 2. @ShapeBlue Who am I VPTechnology & Cloud Architect with ShapeBlue Worked with CloudStack since 2.2.13 Specialising in deployment of CloudStack and surrounding infrastructure USP, Georgian Ministry of Justice, Orange, TomTom, PaddyPower, Ascenty, BSkyB About Me
- 3.
- 4. @ShapeBlue “ShapeBlue are expertbuilders of public & private clouds. They are the leading global independent CloudStack / CloudPlatform integrator & consultancy” About ShapeBlue

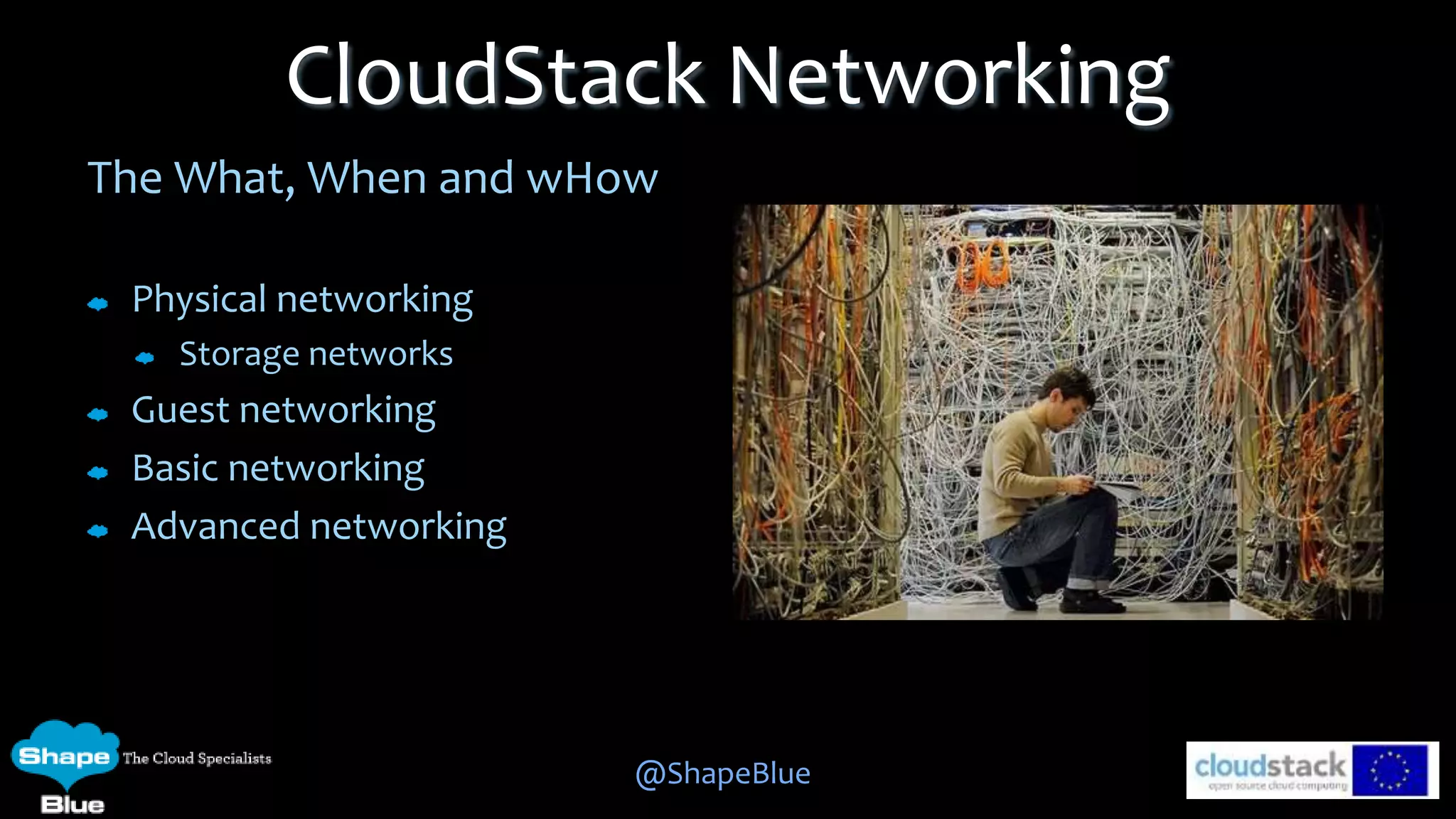

- 5. @ShapeBlue The What, Whenand wHow Physical networking Storage networks Guest networking Basic networking Advanced networking CloudStack Networking
- 6.

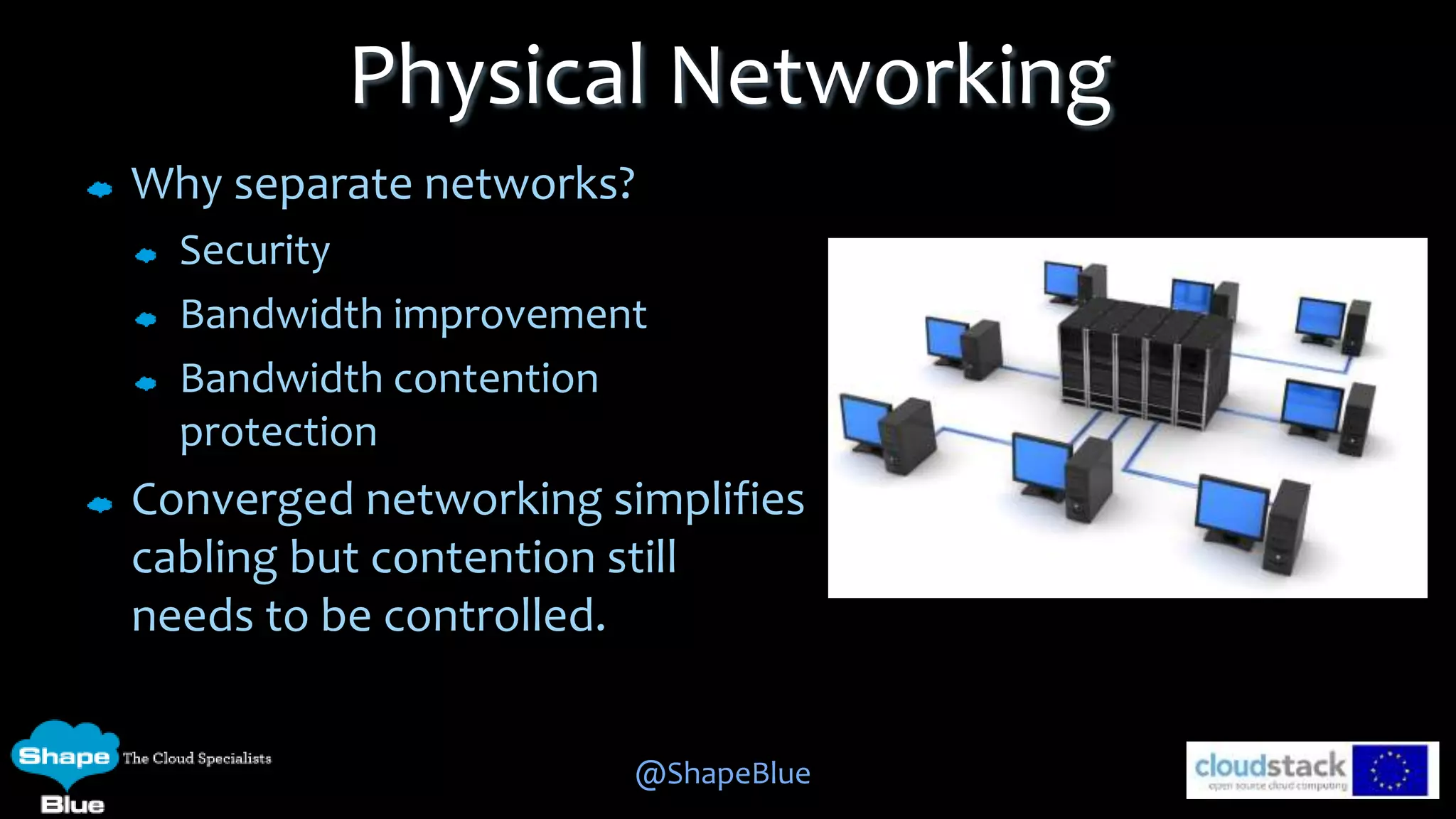

- 7. @ShapeBlue Why separate networks? Security Bandwidthimprovement Bandwidth contention protection Converged networking simplifies cabling but contention still needs to be controlled. Physical Networking

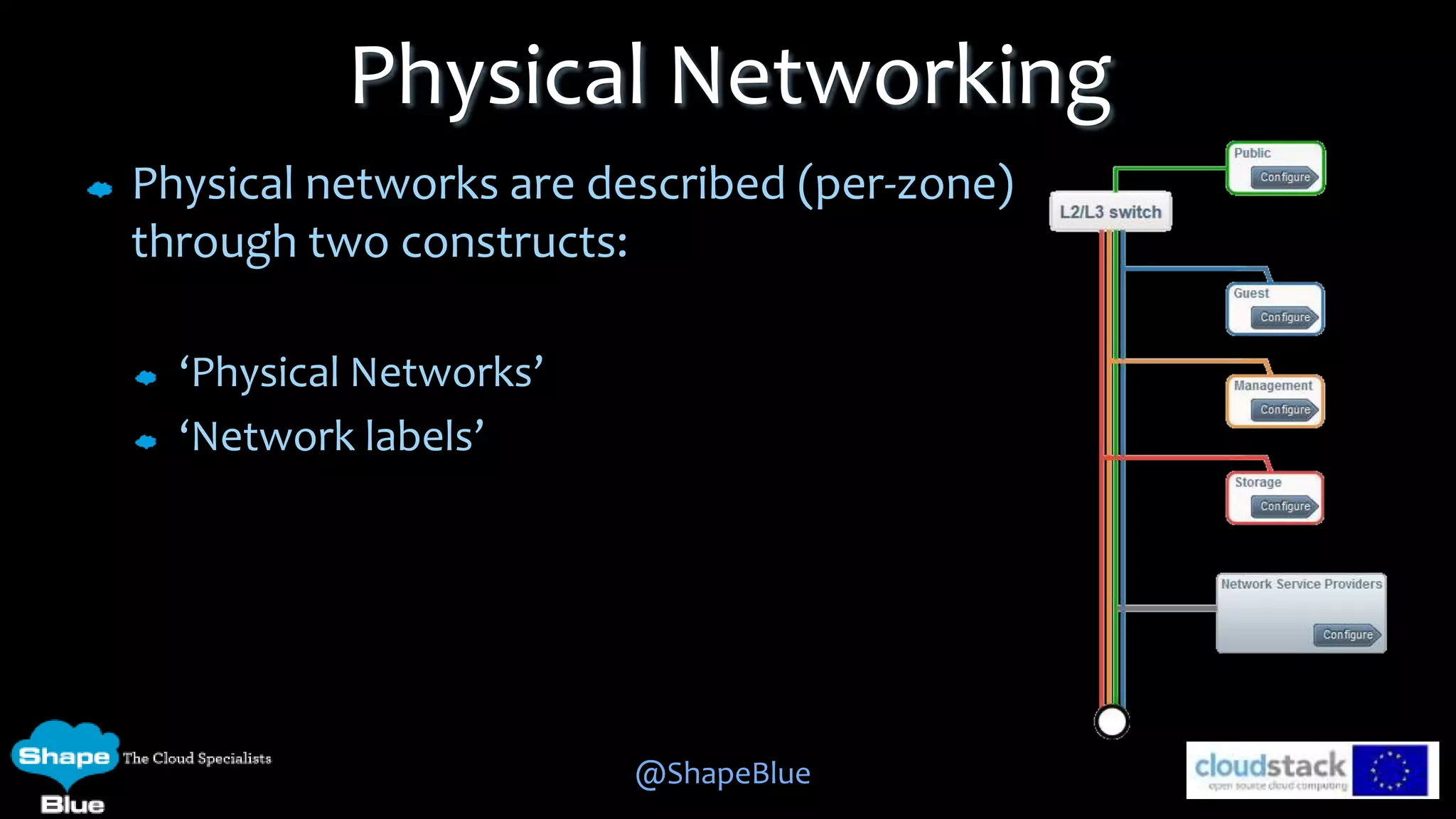

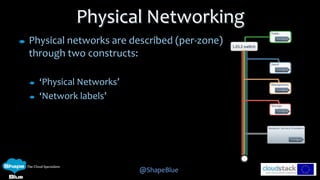

- 8. @ShapeBlue Physical networks aredescribed (per-zone) through two constructs: ‘Physical Networks’ ‘Network labels’ Physical Networking

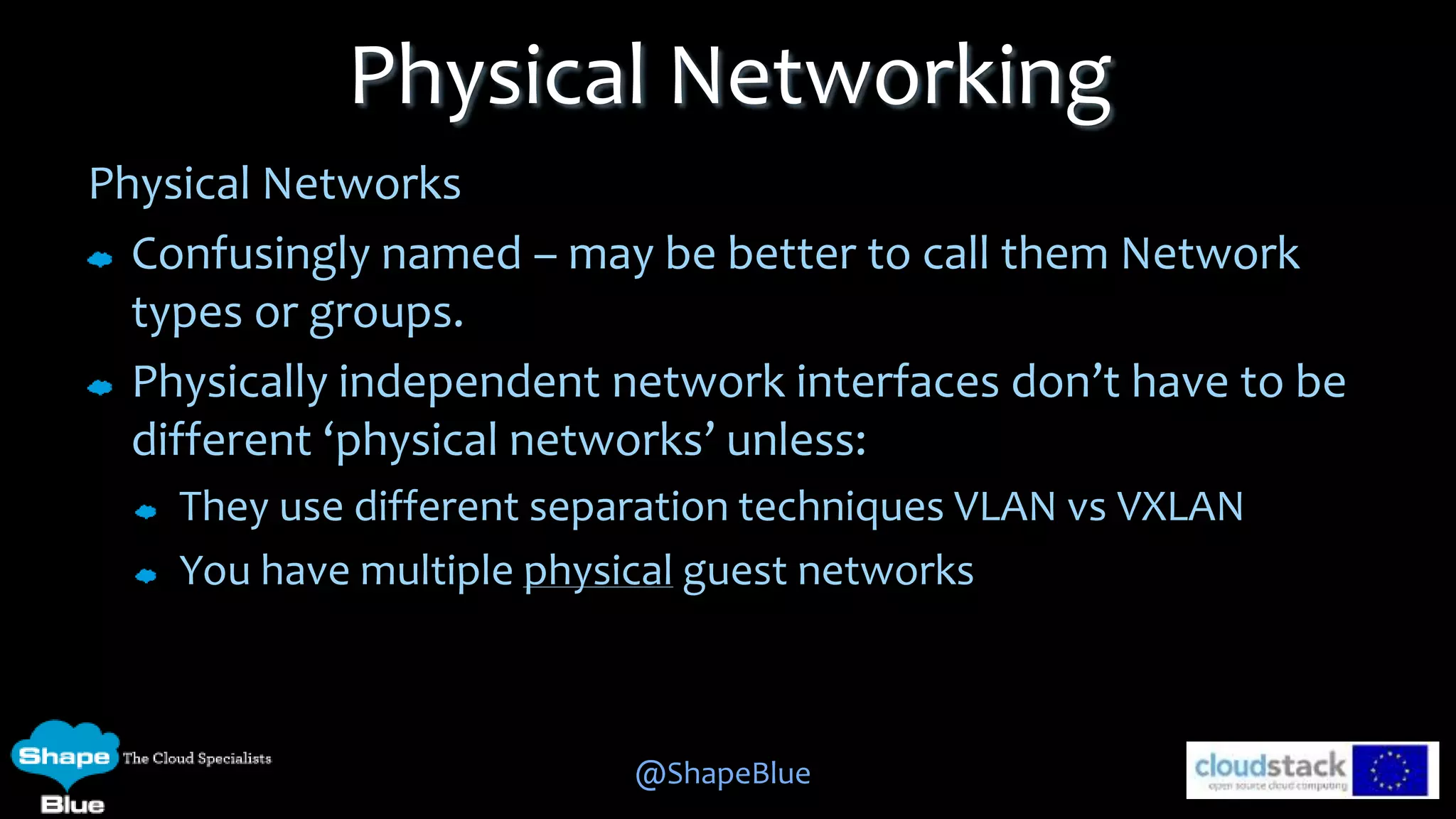

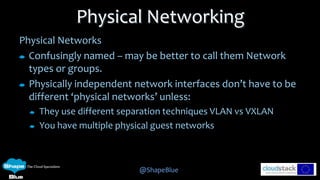

- 9. @ShapeBlue Physical Networks Confusingly named– may be better to call them Network types or groups. Physically independent network interfaces don’t have to be different ‘physical networks’ unless: They use different separation techniques VLAN vs VXLAN You have multiple physical guest networks Physical Networking

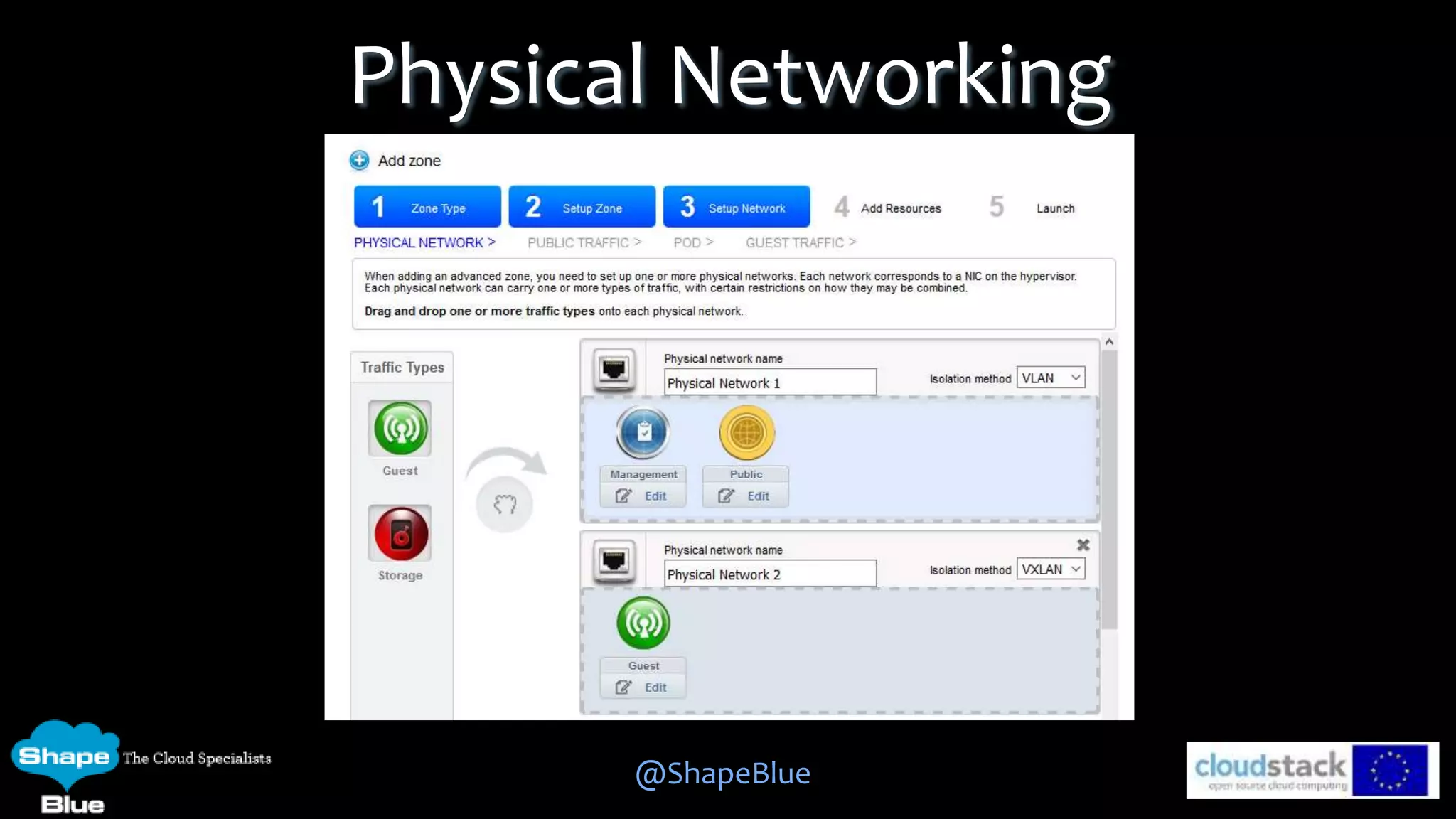

- 10.

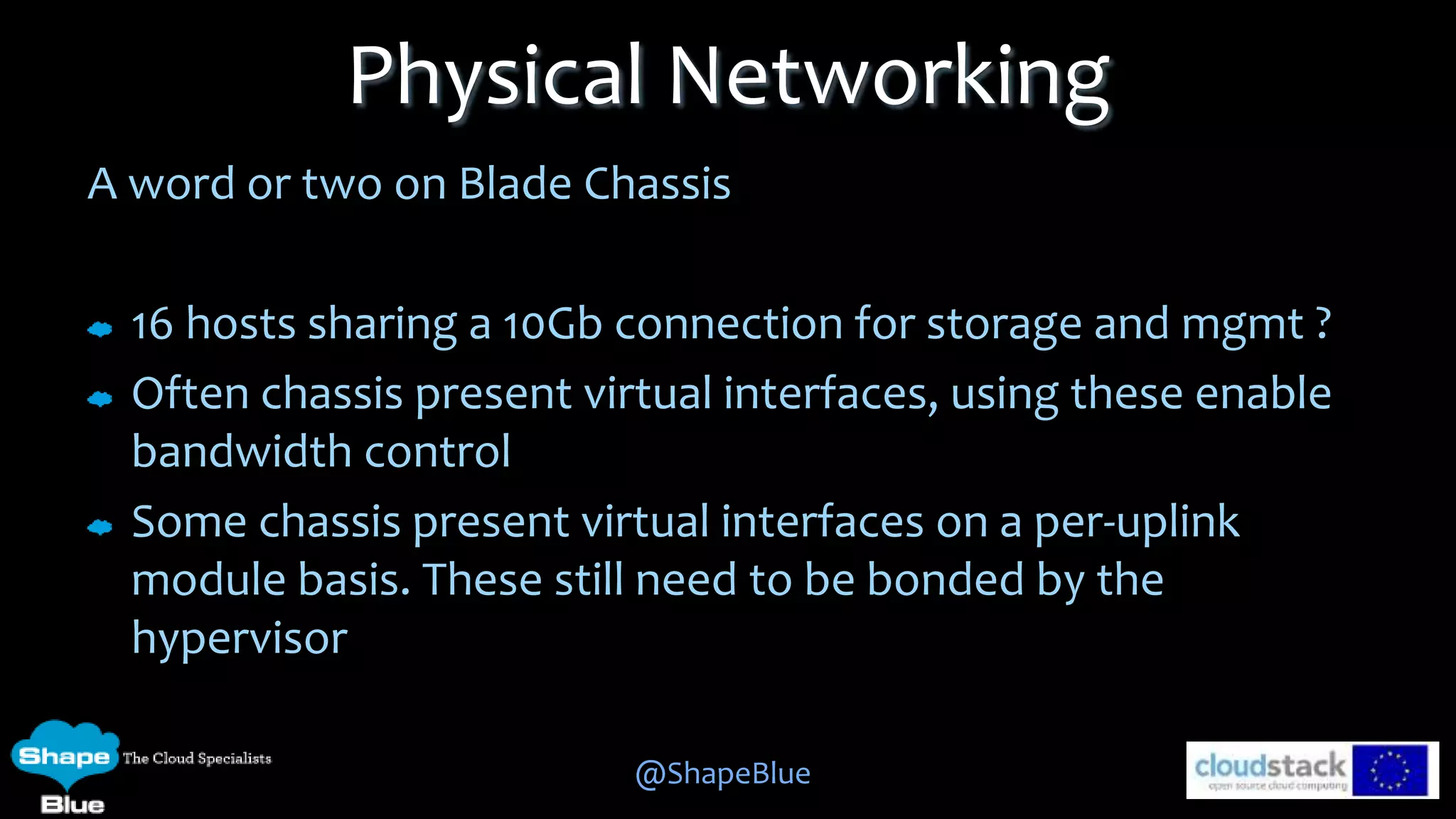

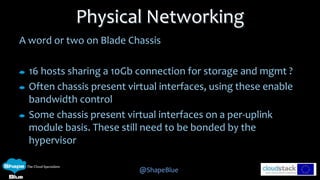

- 11. @ShapeBlue A word ortwo on Blade Chassis 16 hosts sharing a 10Gb connection for storage and mgmt ? Often chassis present virtual interfaces, using these enable bandwidth control Some chassis present virtual interfaces on a per-uplink module basis. These still need to be bonded by the hypervisor Physical Networking

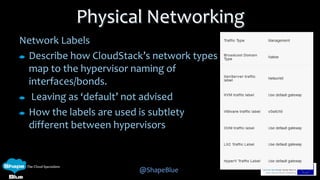

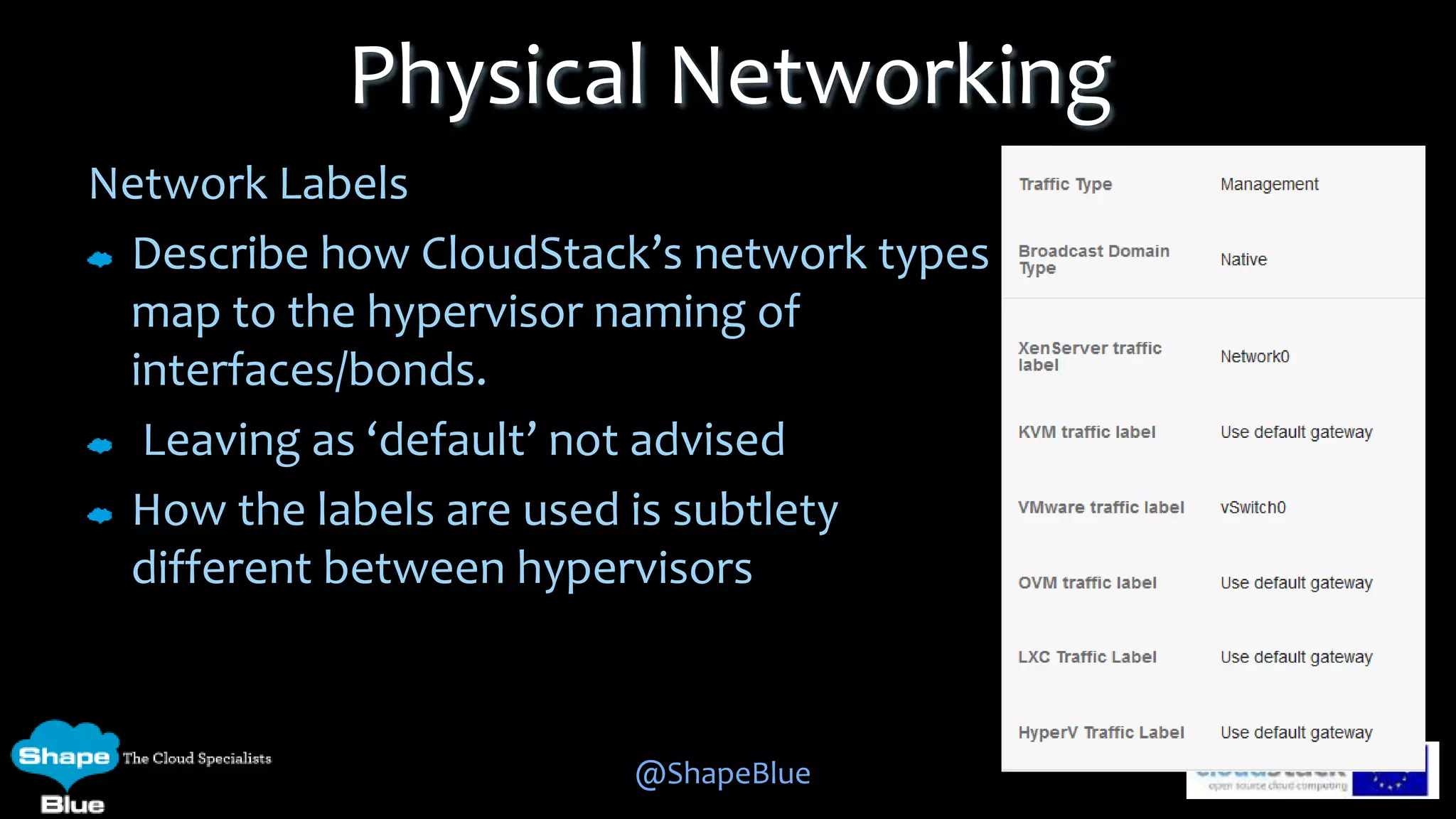

- 12. @ShapeBlue Network Labels Describe howCloudStack’s network types map to the hypervisor naming of interfaces/bonds. Leaving as ‘default’ not advised How the labels are used is subtlety different between hypervisors Physical Networking

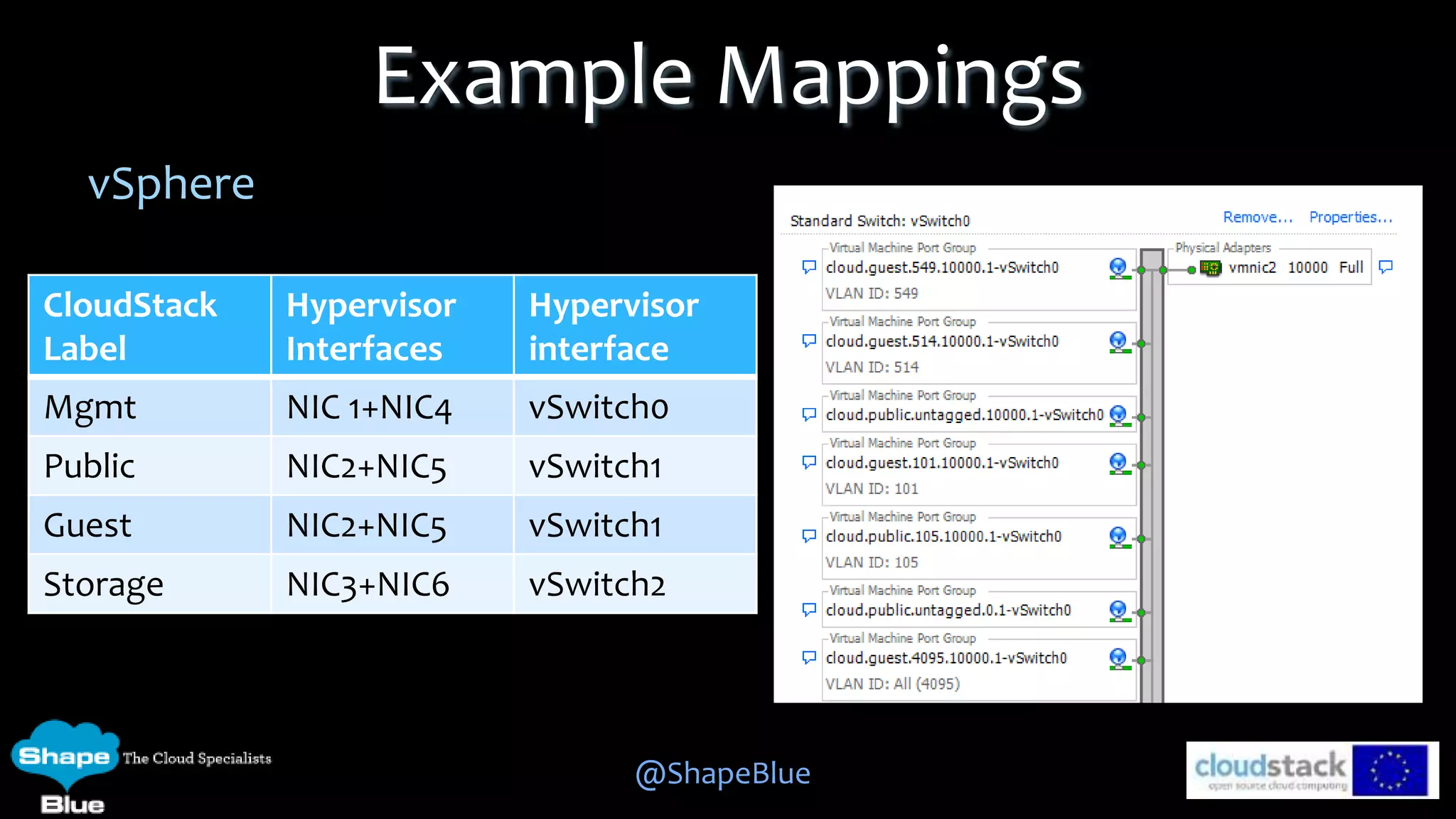

- 13. @ShapeBlue vSphere Example Mappings CloudStack Label Hypervisor Interfaces Hypervisor interface Mgmt NIC1+NIC4 vSwitch0 Public NIC2+NIC5 vSwitch1 Guest NIC2+NIC5 vSwitch1 Storage NIC3+NIC6 vSwitch2

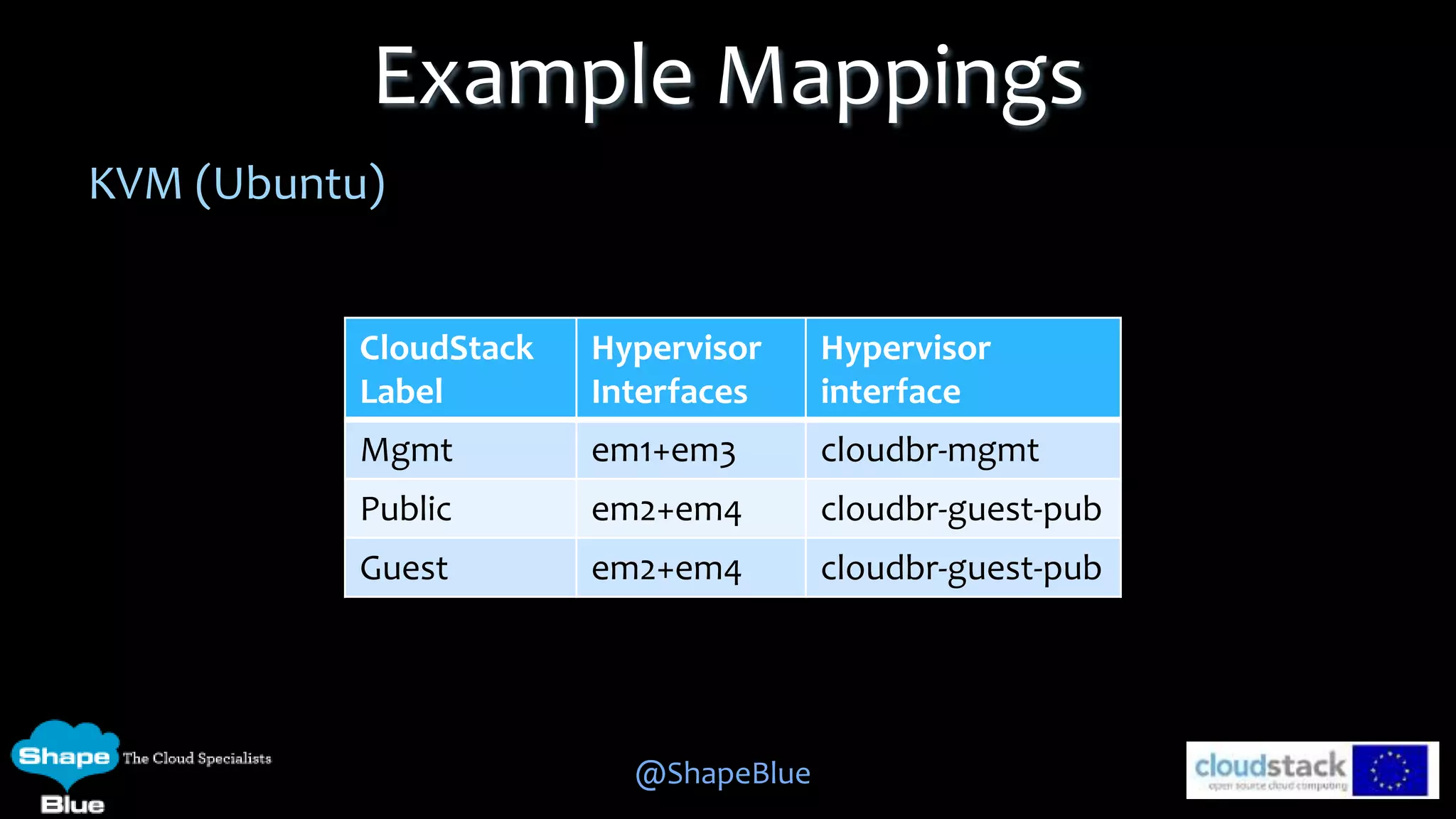

- 14. @ShapeBlue KVM (Ubuntu) Example Mappings CloudStack Label Hypervisor Interfaces Hypervisor interface Mgmtem1+em3 cloudbr-mgmt Public em2+em4 cloudbr-guest-pub Guest em2+em4 cloudbr-guest-pub

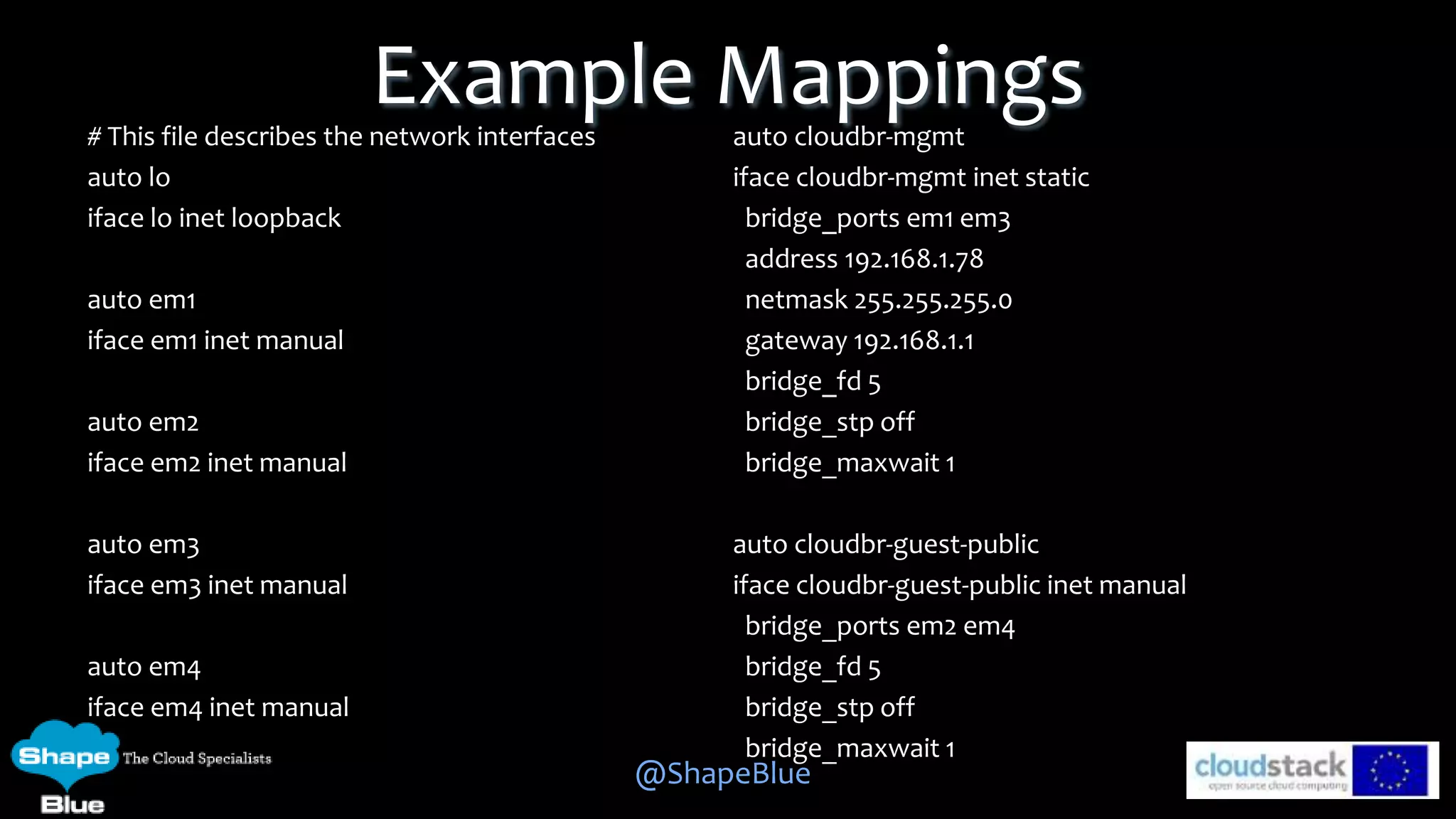

- 15. @ShapeBlue Example Mappings# Thisfile describes the network interfaces auto lo iface lo inet loopback auto em1 iface em1 inet manual auto em2 iface em2 inet manual auto em3 iface em3 inet manual auto em4 iface em4 inet manual auto cloudbr-mgmt iface cloudbr-mgmt inet static bridge_ports em1 em3 address 192.168.1.78 netmask 255.255.255.0 gateway 192.168.1.1 bridge_fd 5 bridge_stp off bridge_maxwait 1 auto cloudbr-guest-public iface cloudbr-guest-public inet manual bridge_ports em2 em4 bridge_fd 5 bridge_stp off bridge_maxwait 1

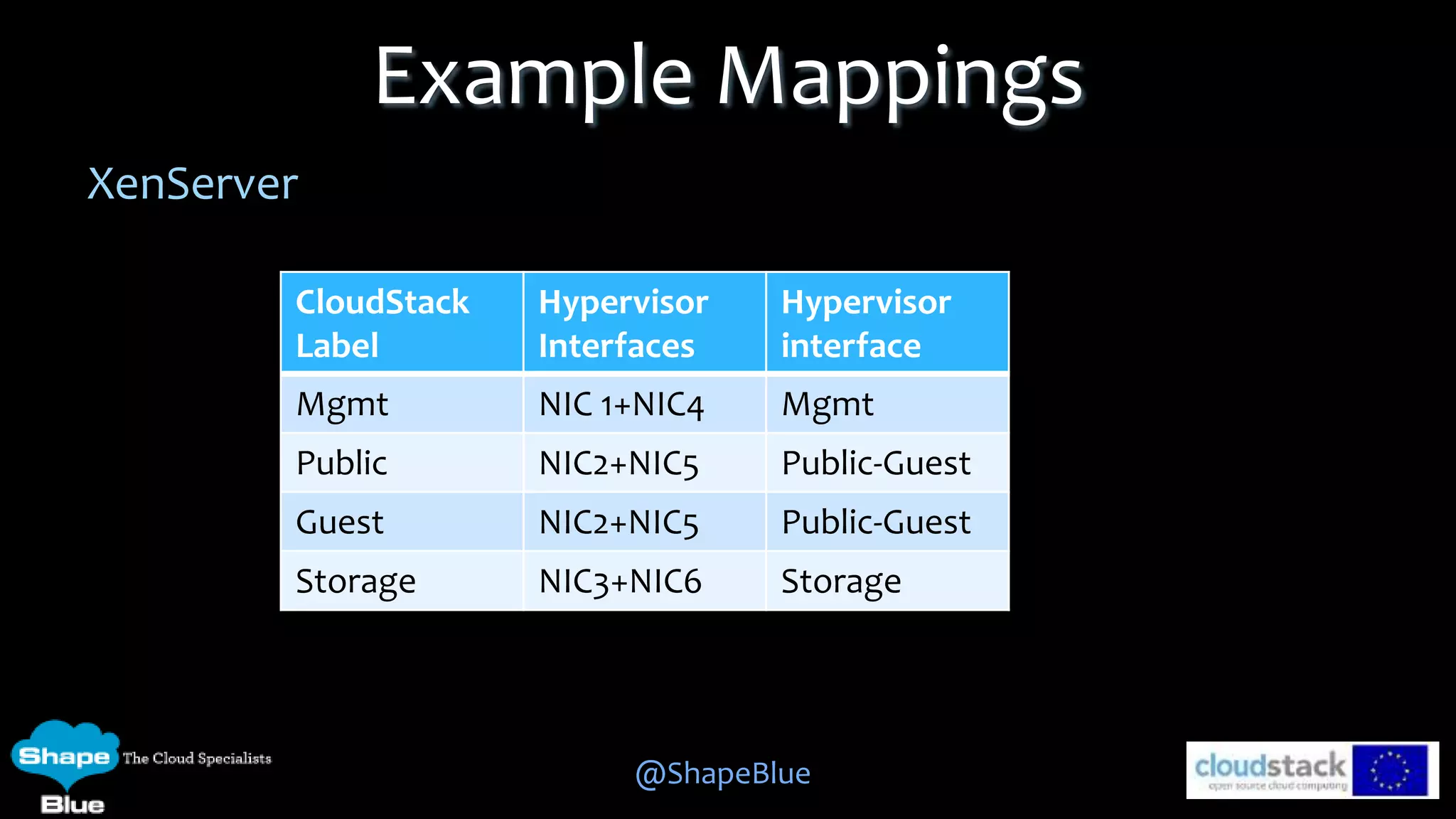

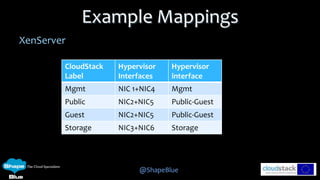

- 16. @ShapeBlue XenServer Example Mappings CloudStack Label Hypervisor Interfaces Hypervisor interface Mgmt NIC1+NIC4 Mgmt Public NIC2+NIC5 Public-Guest Guest NIC2+NIC5 Public-Guest Storage NIC3+NIC6 Storage

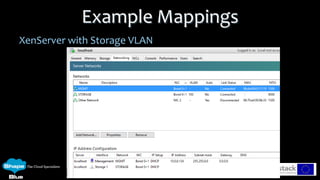

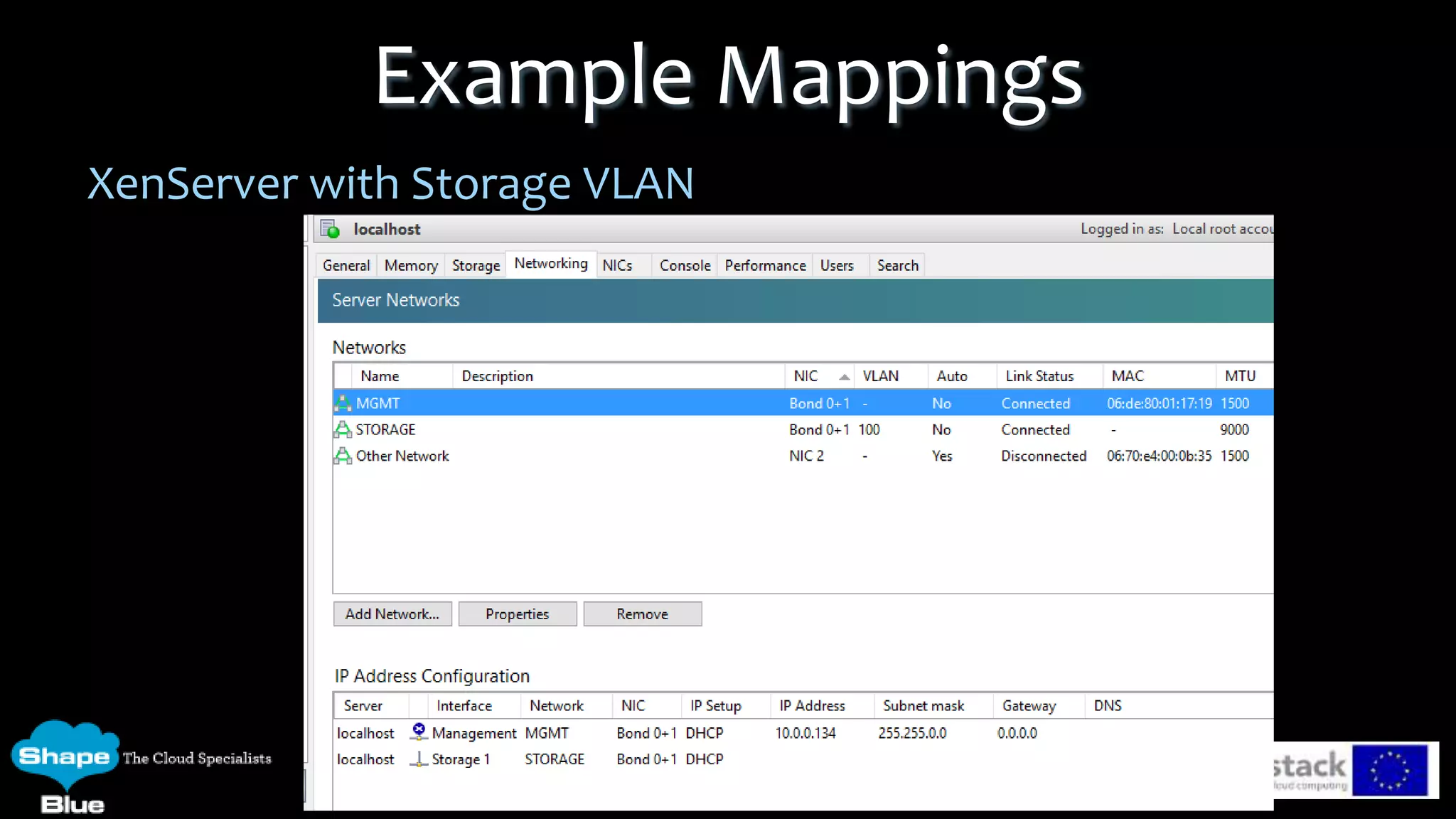

- 17. @ShapeBlue XenServer with StorageVLAN Example Mappings

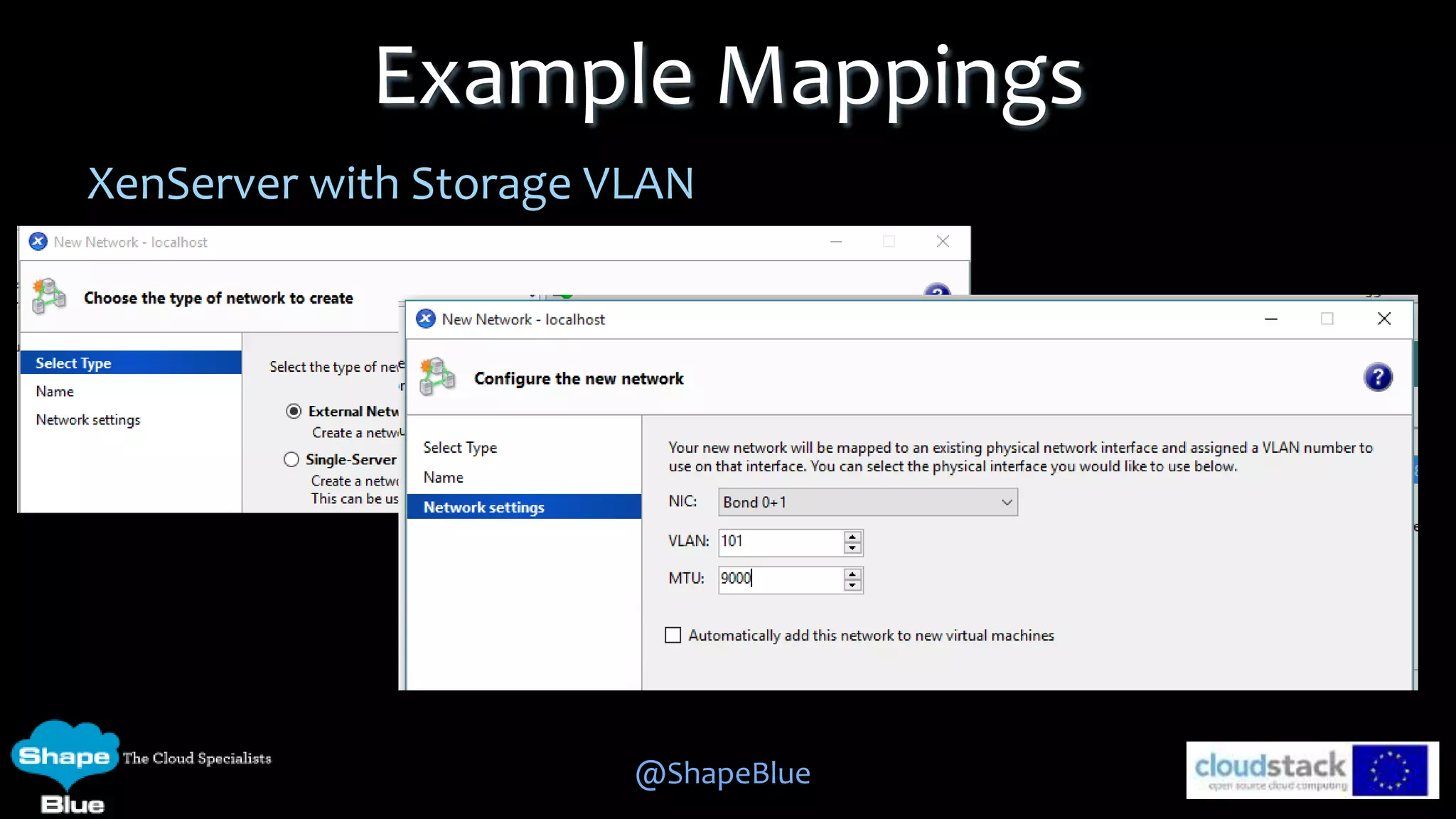

- 18. @ShapeBlue XenServer with StorageVLAN Example Mappings

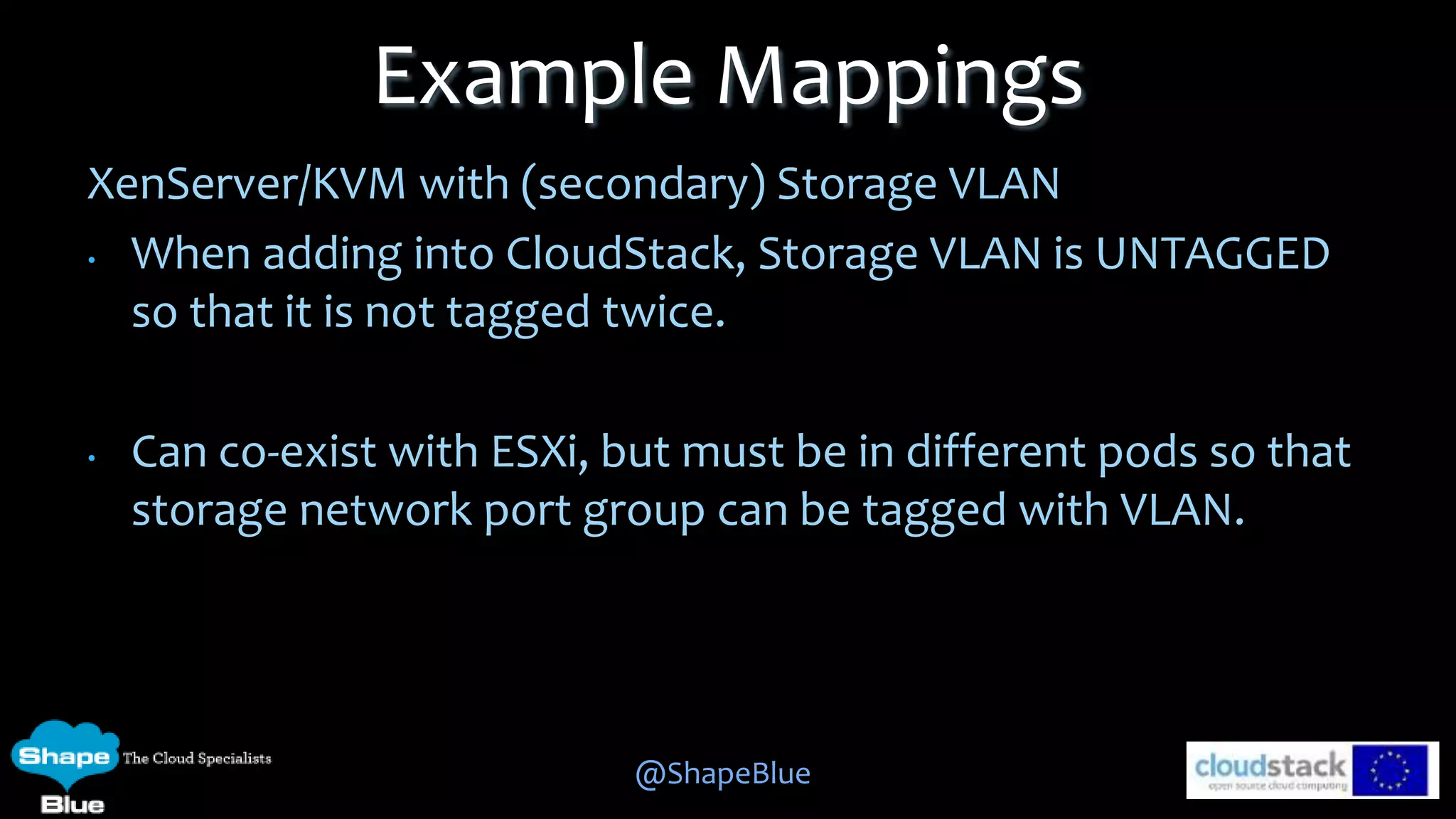

- 19. @ShapeBlue XenServer/KVM with (secondary)Storage VLAN • When adding into CloudStack, Storage VLAN is UNTAGGED so that it is not tagged twice. • Can co-exist with ESXi, but must be in different pods so that storage network port group can be tagged with VLAN. Example Mappings
- 20.

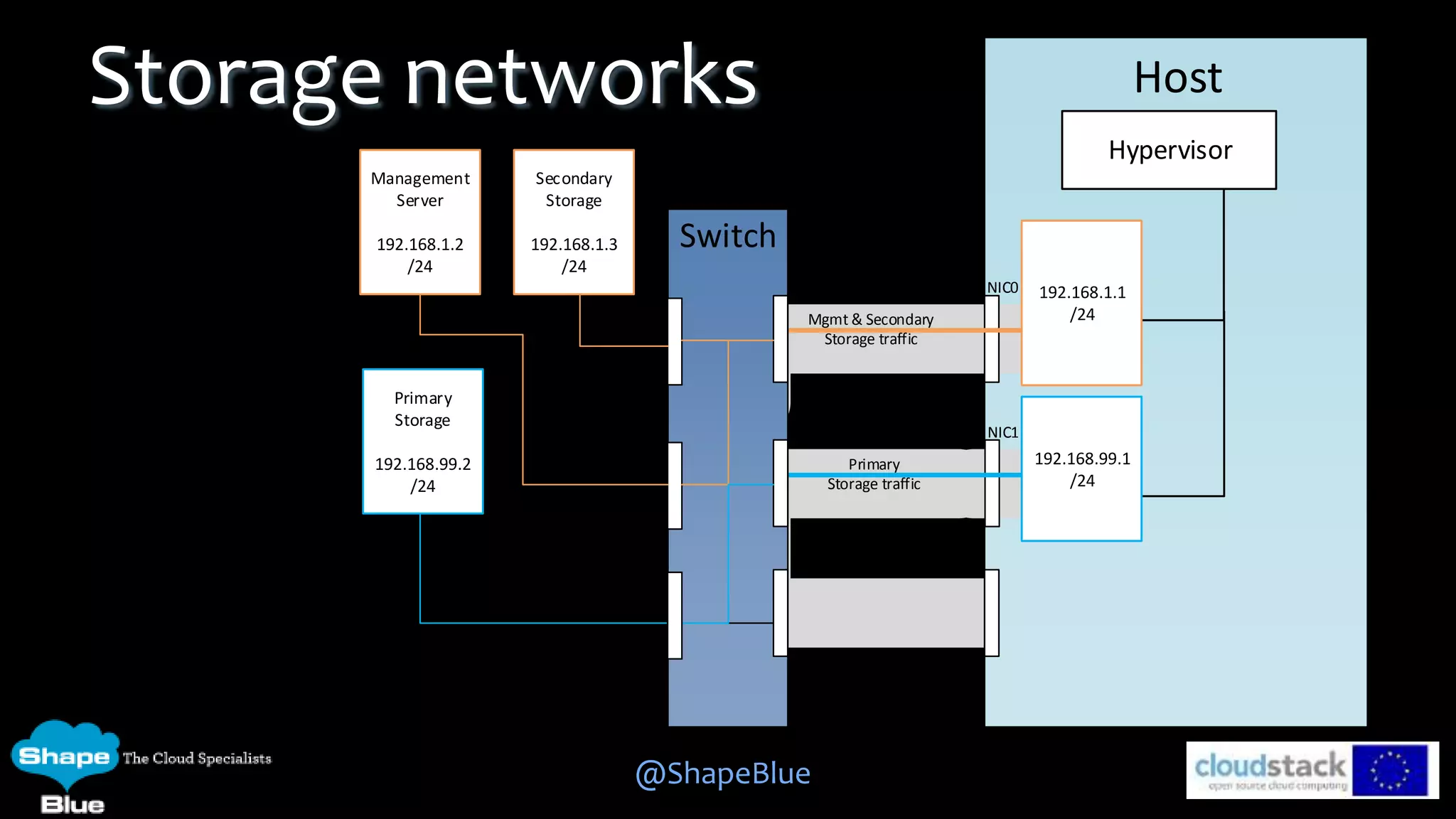

- 21. @ShapeBlue Storage networks Mgmt &Secondary Storage traffic NIC0 Host 192.168.1.1 /24 Hypervisor Primary Storage traffic Primary Storage 192.168.99.2 /24 Management Server 192.168.1.2 /24 Secondary Storage 192.168.1.3 /24 NIC1 192.168.99.0/24 192.168.1.0/24 192.168.1.0/24 192.168.99.1 /24 Switch

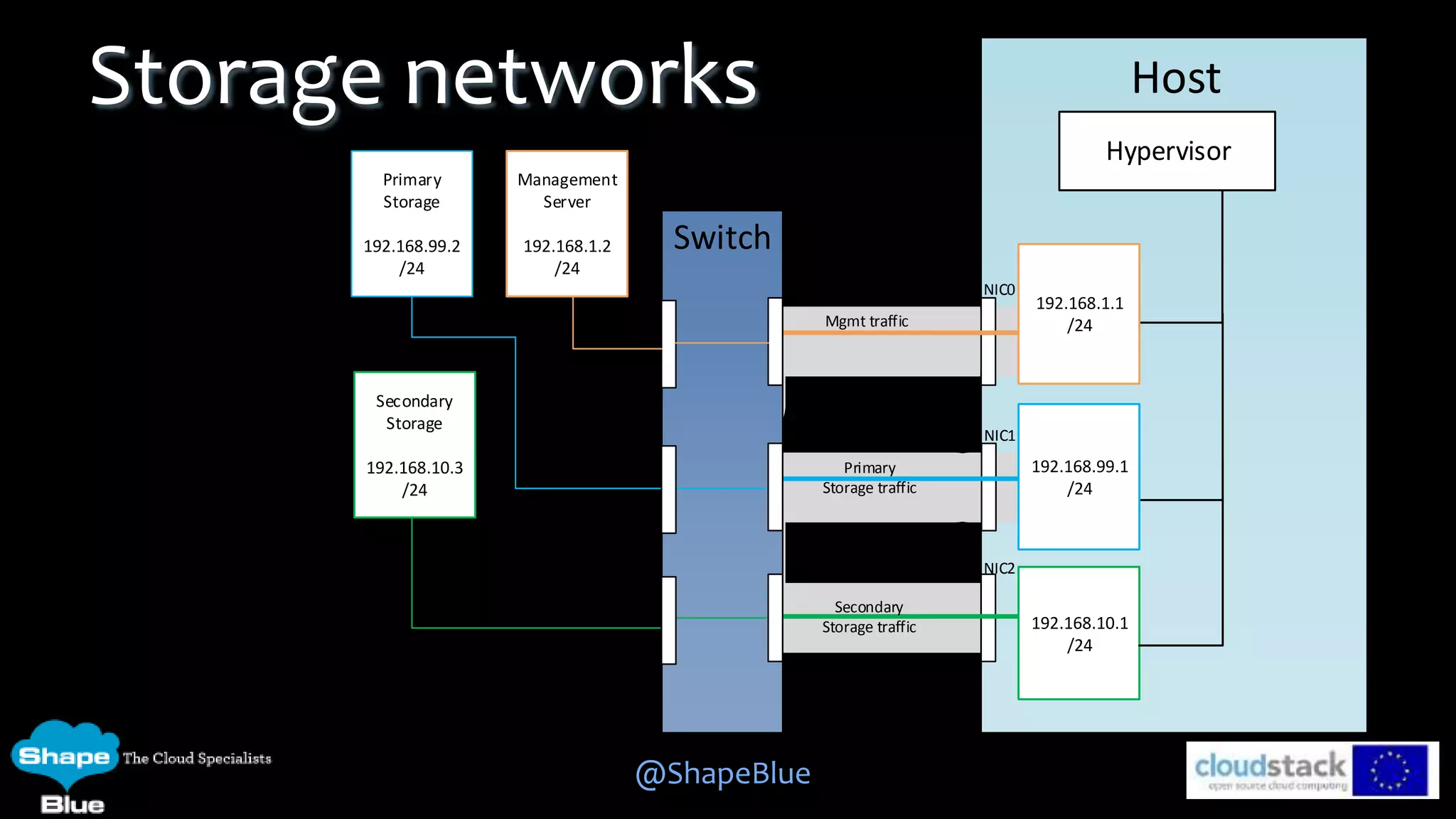

- 22. @ShapeBlue Storage networks Mgmt traffic NIC0 Host 192.168.1.1 /24 Hypervisor Primary Storagetraffic Secondary Storage 192.168.10.3 /24 Primary Storage 192.168.99.2 /24 Management Server 192.168.1.2 /24 NIC1 192.168.99.0/24 192.168.1.0/24 192.168.1.0/24 192.168.99.1 /24 Switch 192.168.10.1 /24 Secondary Storage traffic NIC2
- 23.

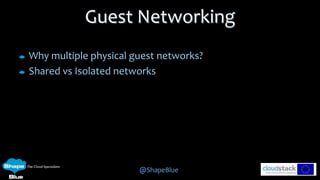

- 24. @ShapeBlue Why multiple physicalguest networks? Shared vs Isolated networks Guest Networking

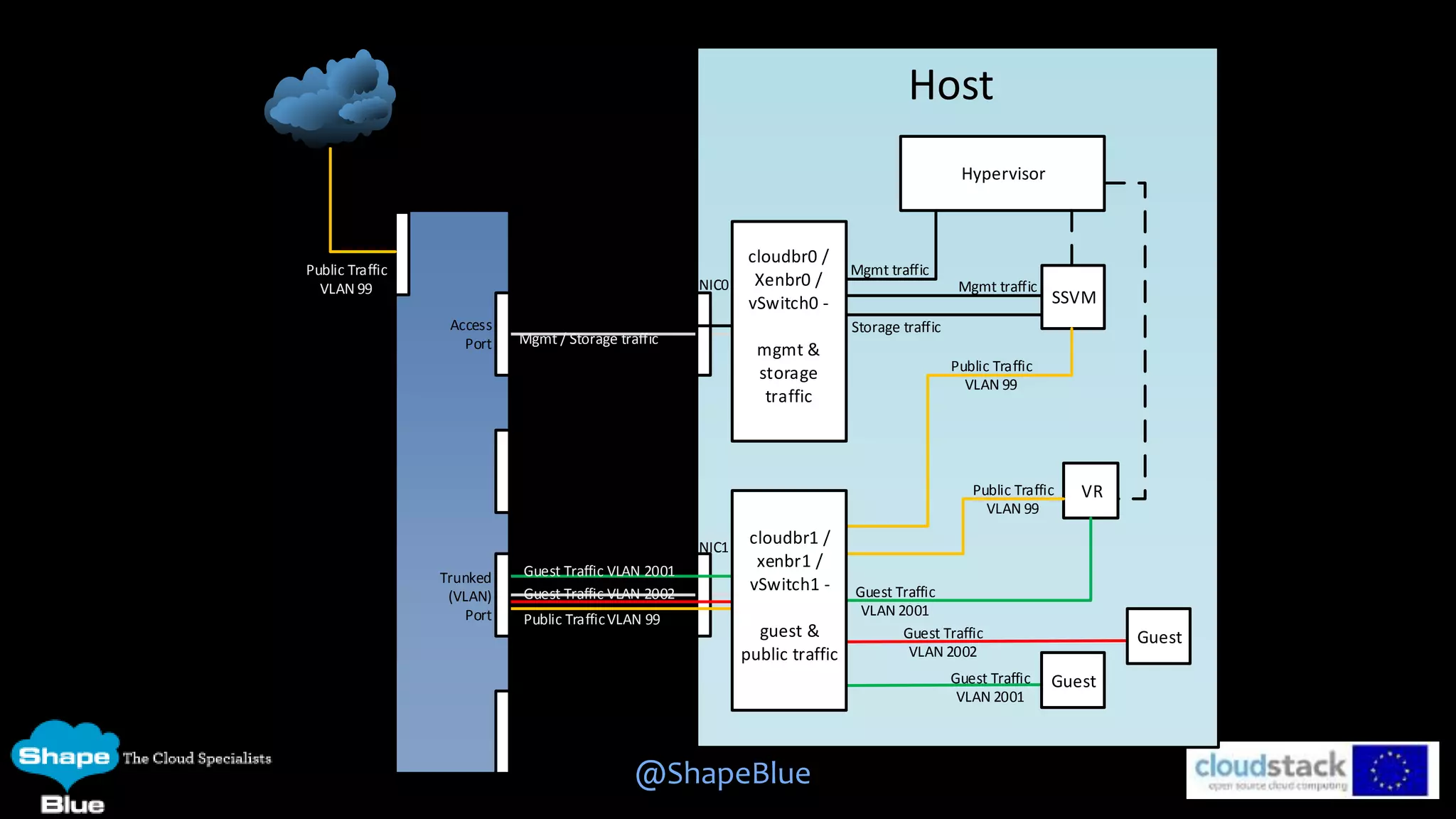

- 25. @ShapeBlue Hypervisor SSVM VR Public Traffic VLAN 99Mgmt traffic Storage traffic Mgmt traffic Mgmt / Storage traffic Public Traffic VLAN 99 NIC0 NIC1 Host Public Traffic VLAN 99 Public TrafficVLAN 99 Guest Traffic VLAN 2001 Guest Traffic VLAN 2001 Guest Traffic VLAN 2001 cloudbr0 / Xenbr0 / vSwitch0 - mgmt & storage traffic Guest Traffic VLAN 2002 Guest Traffic VLAN 2002 cloudbr1 / xenbr1 / vSwitch1 - guest & public traffic Guest Guest Switch Trunked (VLAN) Port Access Port

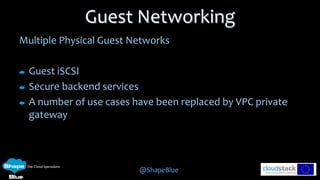

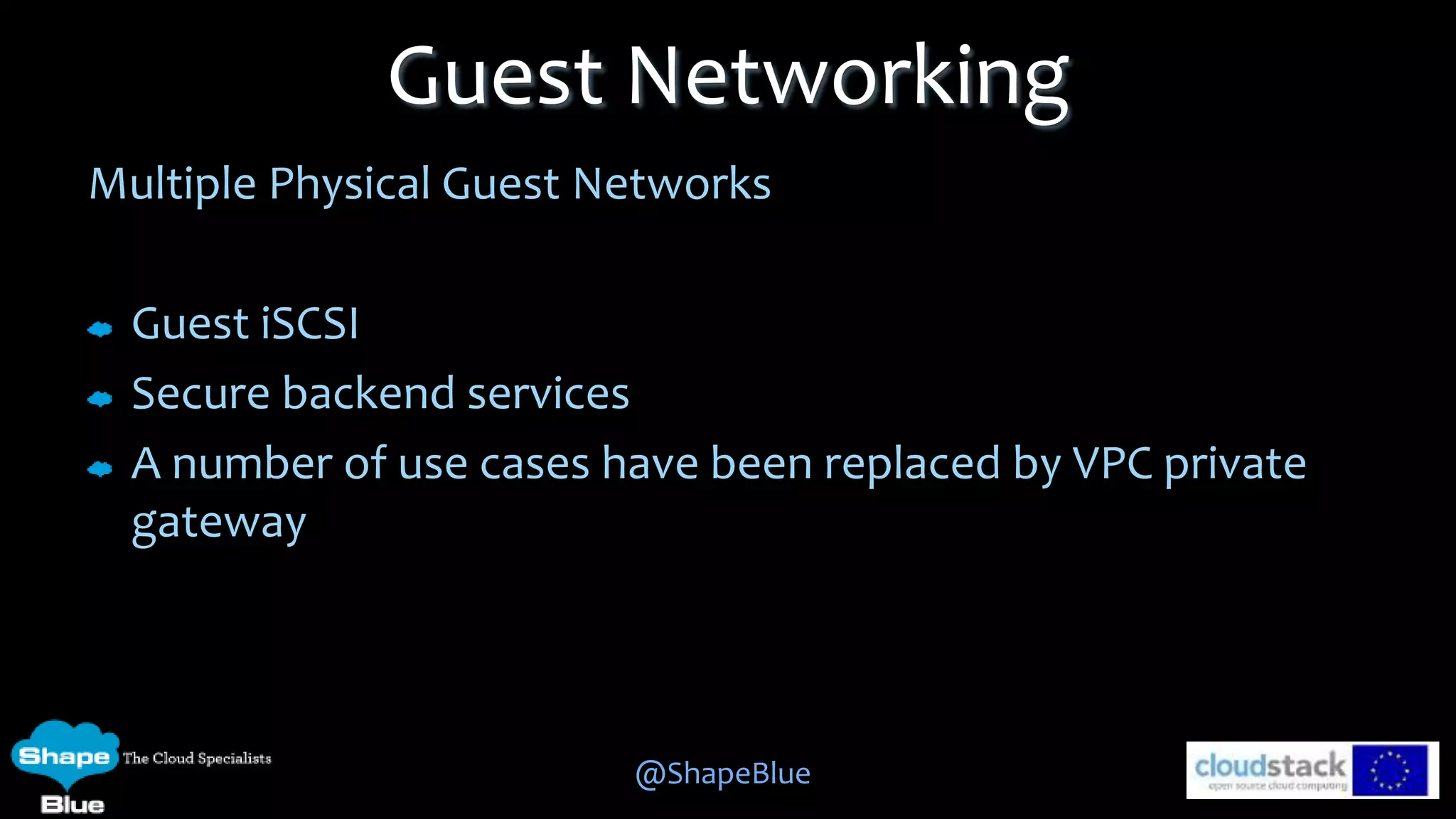

- 26. @ShapeBlue Multiple Physical GuestNetworks Guest iSCSI Secure backend services A number of use cases have been replaced by VPC private gateway Guest Networking

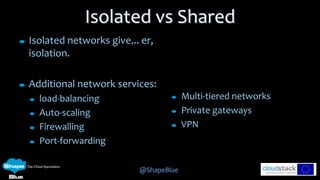

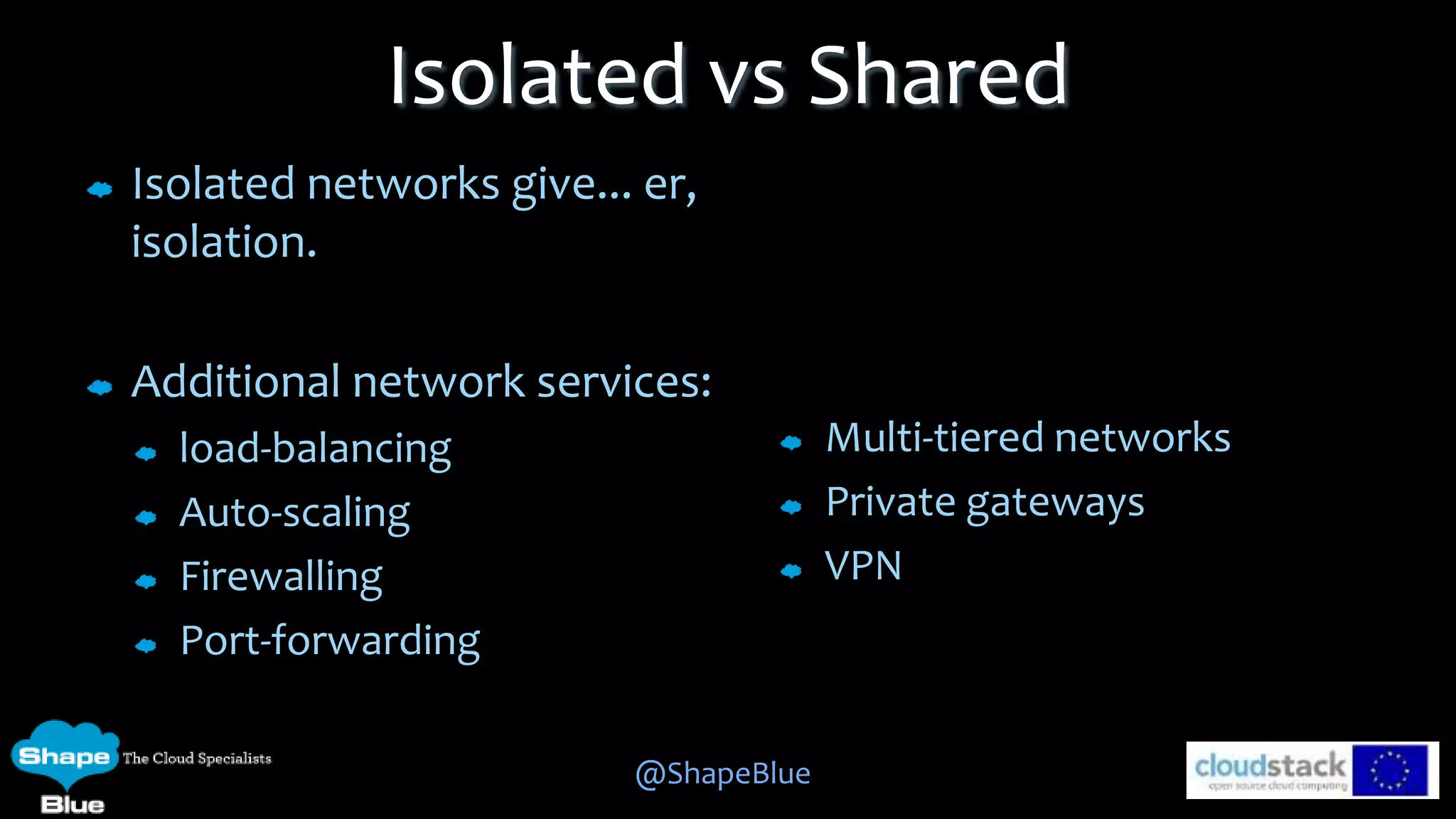

- 27. @ShapeBlue Isolated networks give...er, isolation. Additional network services: load-balancing Auto-scaling Firewalling Port-forwarding Multi-tiered networks Private gateways VPN Isolated vs Shared

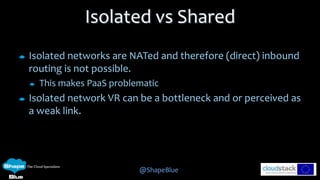

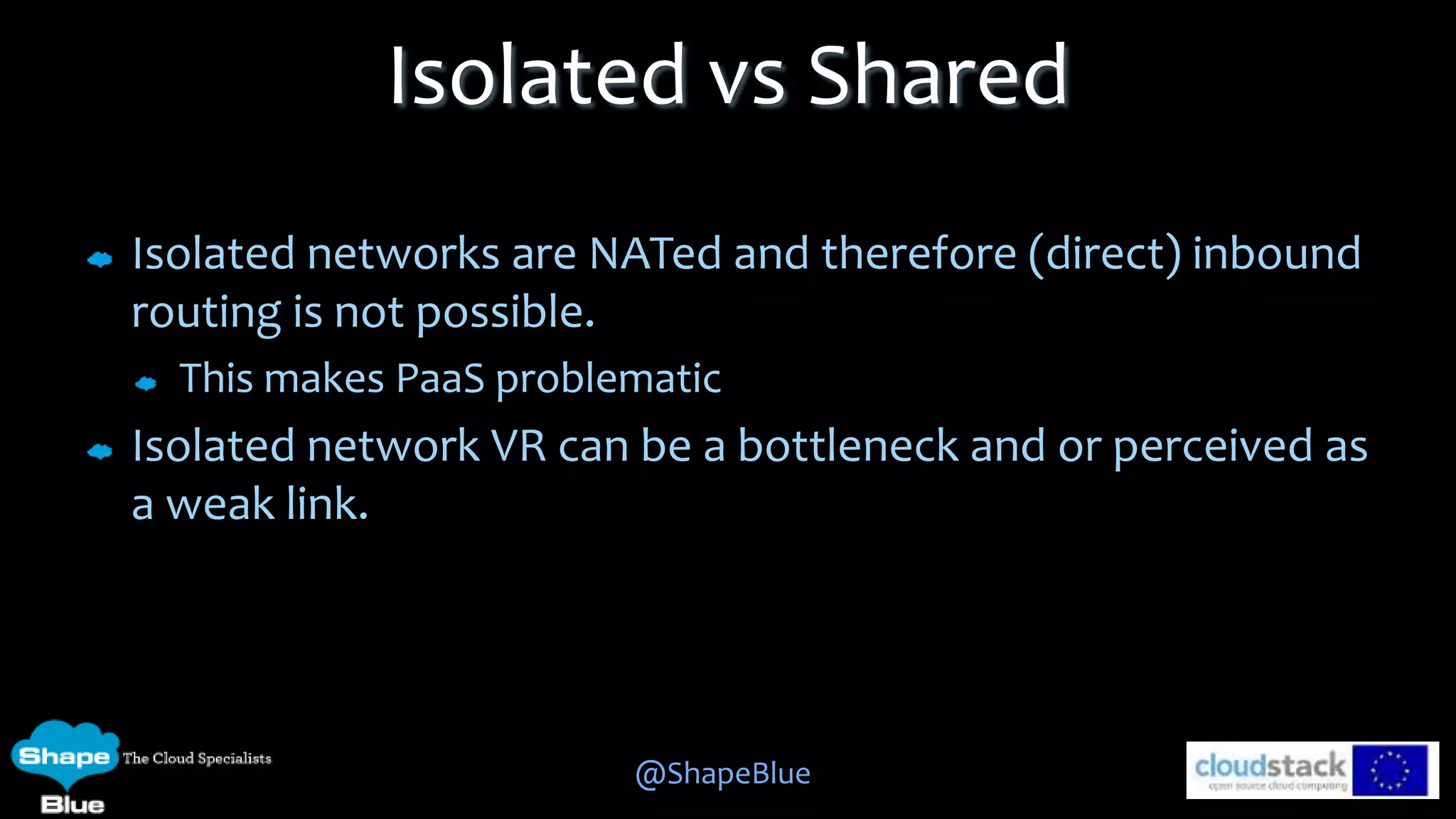

- 28. @ShapeBlue Isolated networks areNATed and therefore (direct) inbound routing is not possible. This makes PaaS problematic Isolated network VR can be a bottleneck and or perceived as a weak link. Isolated vs Shared

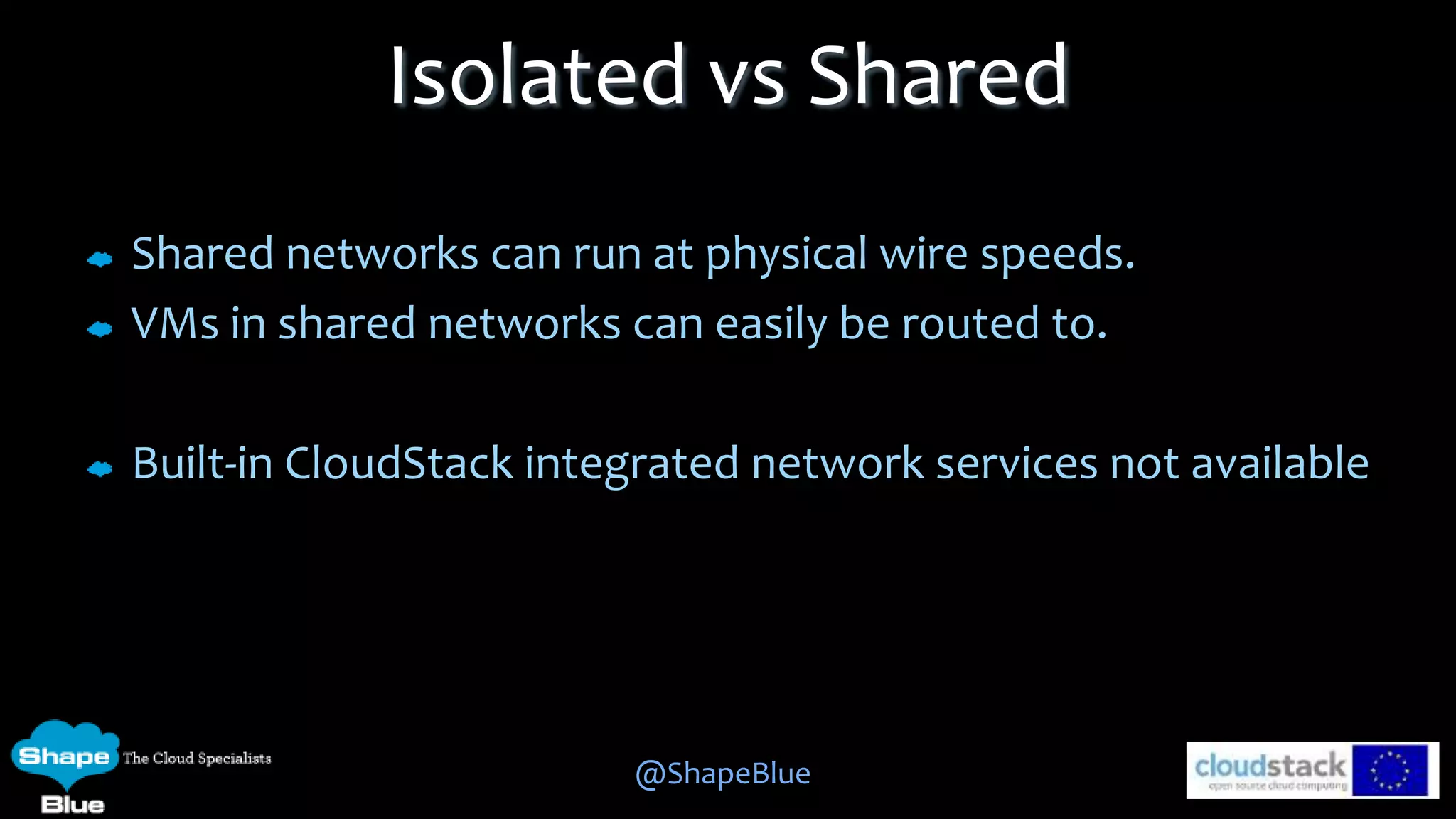

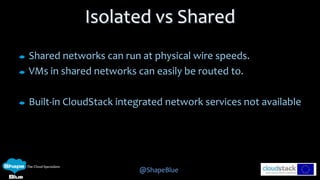

- 29. @ShapeBlue Shared networks canrun at physical wire speeds. VMs in shared networks can easily be routed to. Built-in CloudStack integrated network services not available Isolated vs Shared

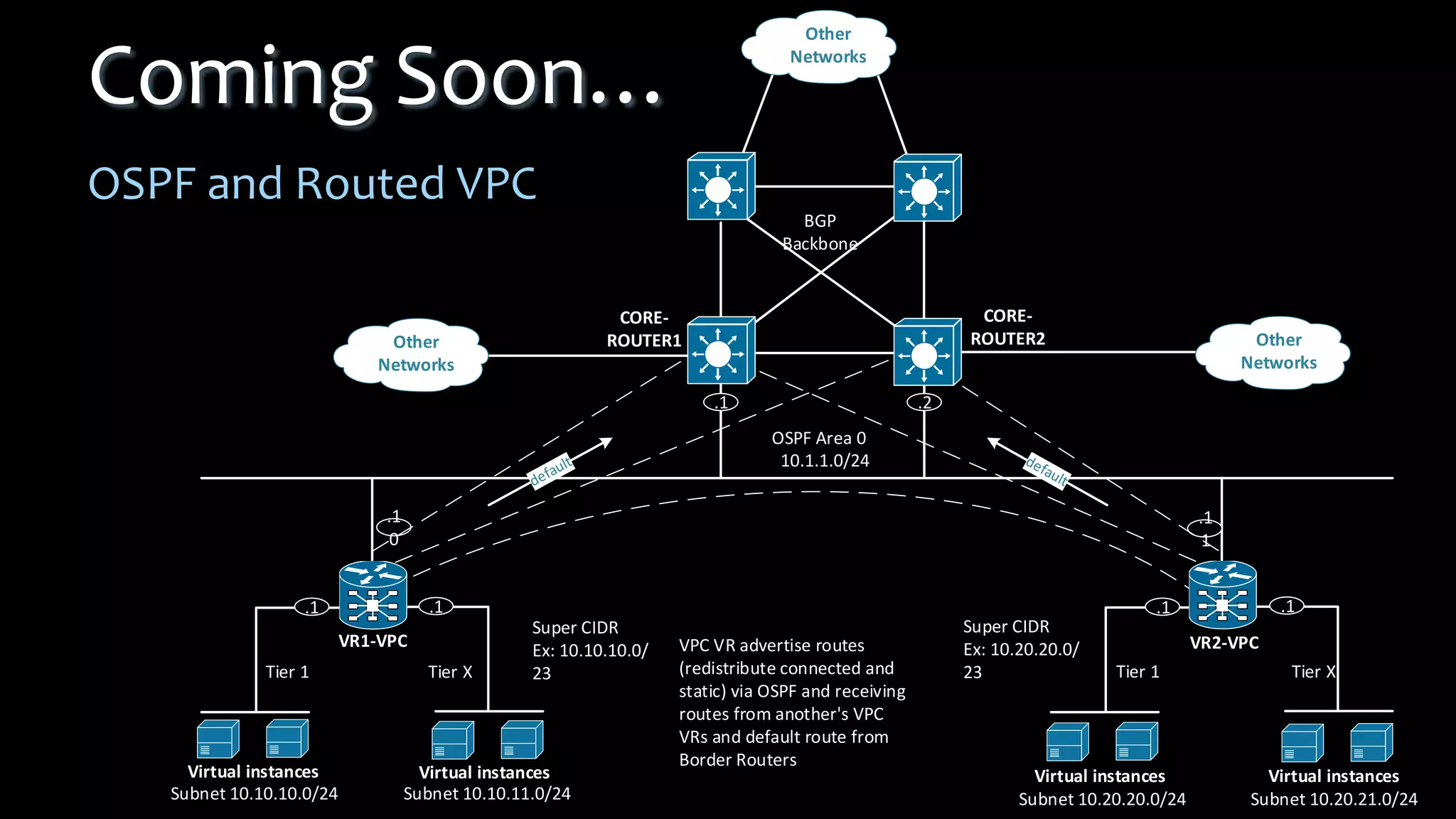

- 30. @ShapeBlue OSPF and RoutedVPC Coming Soon… 10.1.1.0/24 .1 Other Networks VR1-VPC Tier 1 Tier X Virtual instances Tier 1 Tier X .1 .1 .1 .1 BGP Backbone .2 OSPF Area 0 Other Networks Super CIDR Ex: 10.10.10.0/ 23 Subnet 10.10.10.0/24 Subnet 10.10.11.0/24 VPC VR advertise routes (redistribute connected and static) via OSPF and receiving routes from another's VPC VRs and default route from Border Routers Super CIDR Ex: 10.20.20.0/ 23 Subnet 10.20.20.0/24 Subnet 10.20.21.0/24 Virtual instances Virtual instances Virtual instances .1 0 .1 1 VR2-VPC CORE- ROUTER1 CORE- ROUTER2 Other Networks
- 31.

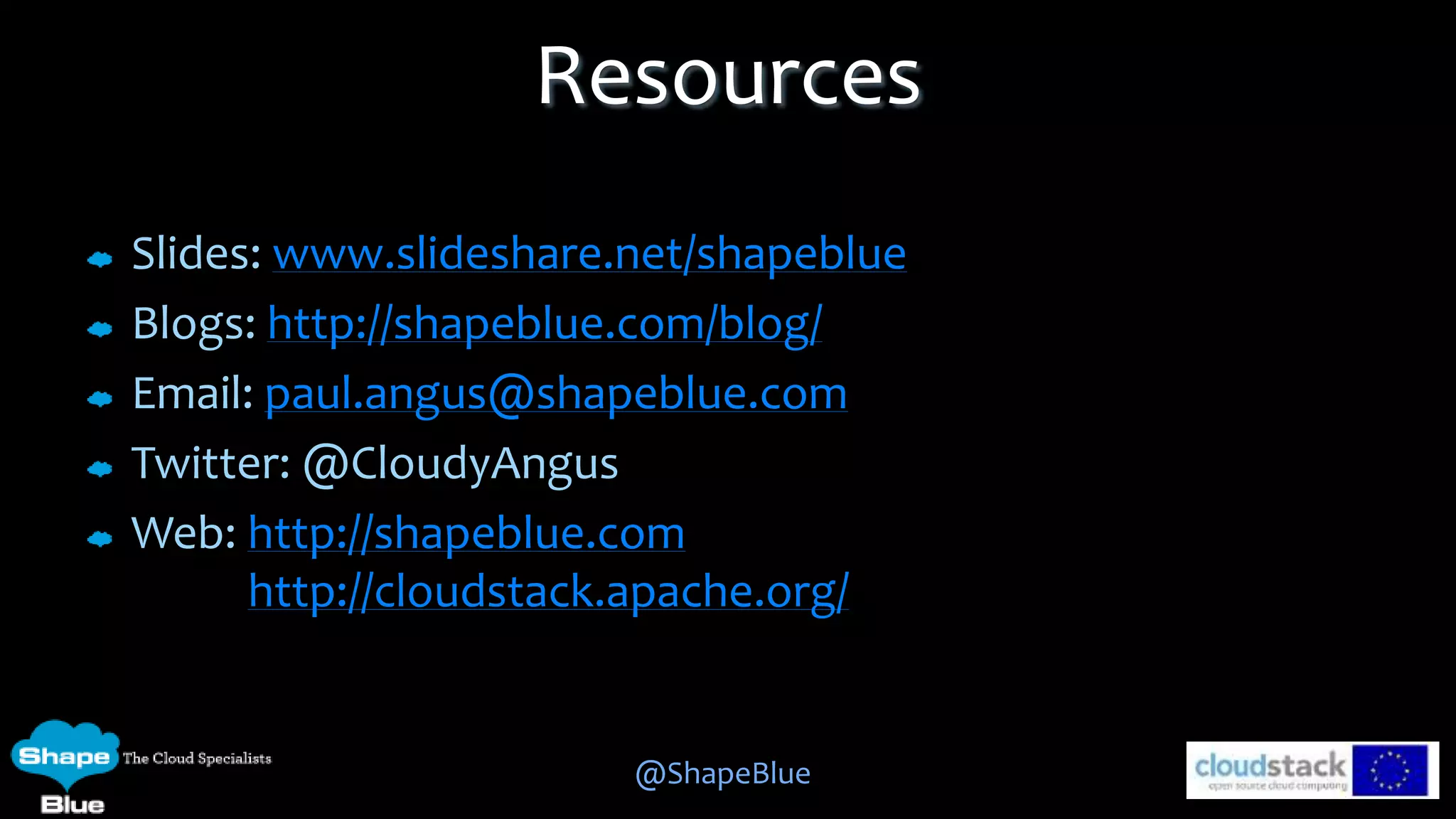

- 32. @ShapeBlue Slides: www.slideshare.net/shapeblue Blogs: http://shapeblue.com/blog/ Email:paul.angus@shapeblue.com Twitter: @CloudyAngus Web: http://shapeblue.com http://cloudstack.apache.org/ Resources
