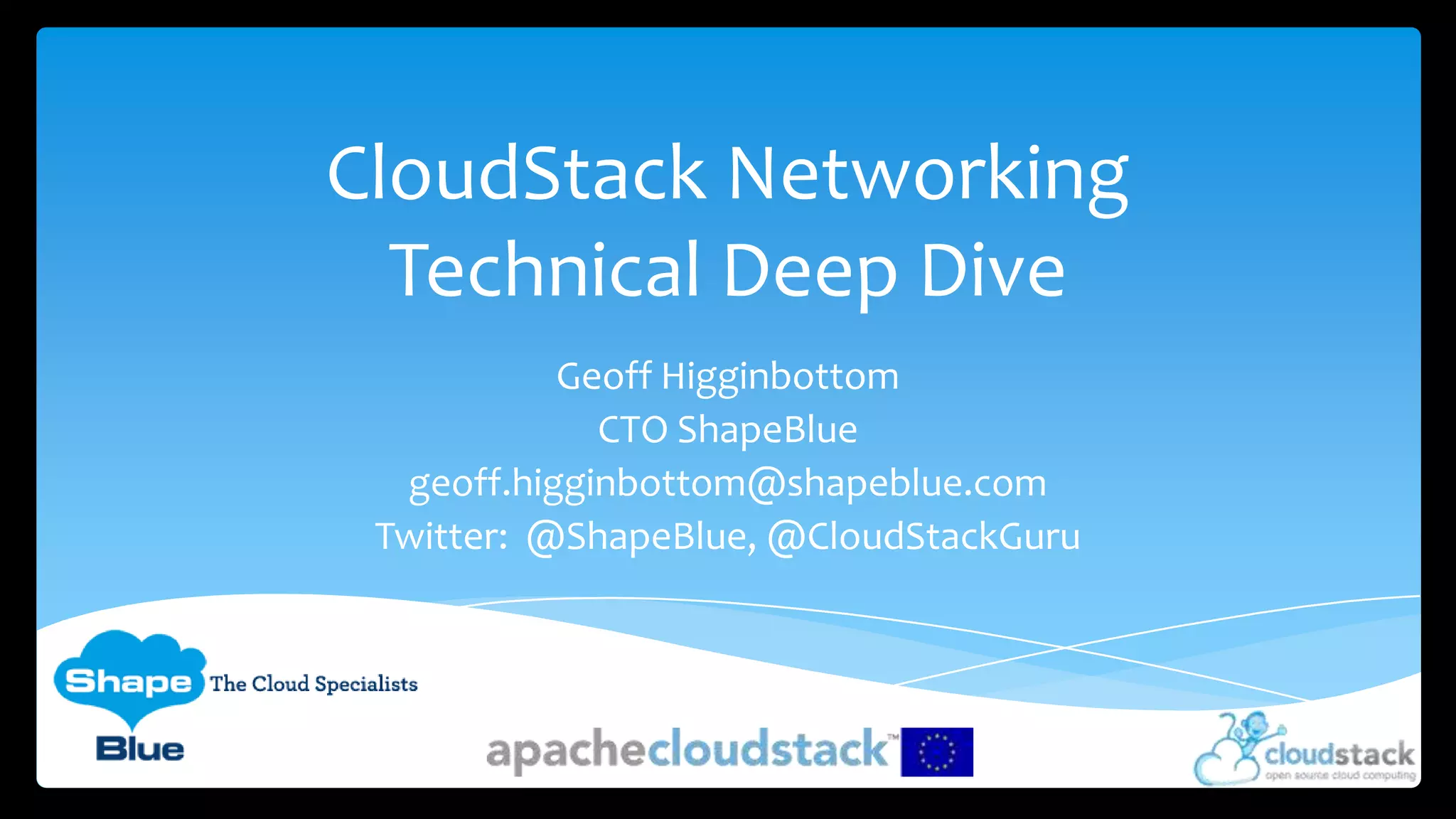

1. CloudStack Networking
Technical Deep Dive
Geoff Higginbottom
CTO ShapeBlue
geoff.higginbottom@shapeblue.com
Twitter: @ShapeBlue, @CloudStackGuru

2. www.shapeblue.com

3. www.shapeblue.com
Why NaaS – The Use Cases
VPS Cloud

4. www.shapeblue.com
Why NaaS – The Use Cases
CloudVPS

5. www.shapeblue.com
Physical Connectivity

6. www.shapeblue.com
 Management Network
 Traffic between CloudStack Management Servers and the various
cloud components (Hosts, System VMs, Storage*, vCenter etc)
CloudStack Physical Networks

7. www.shapeblue.com
 Public Network
 Only available in an Advanced Zone, or a Basic Zone when using NetScaler
Elastic IP (ELIP) / Elastic Load Balancer (ELLB)
 Connects VMs to the public Internet via a Virtual Router or NetScaler
 Enables services such as:
 Source NAT
 Static NAT
 Load Balancing
 Port Forwarding
 Firewall
 VPN
CloudStack Physical Networks

8. www.shapeblue.com
 Guest Network
 Basic Zone (with or without Security Groups)
 Traffic between VMs on the network
 Basic Zone with ELIP / ELLB
 Traffic between VMs and the Internal Interface of the NetScaler
 Advanced Zones
 Traffic between VMs within a Network, and their Virtual/Physical
Router, Physical Load Balancer or Physical Firewall
CloudStack Physical Networks

9. www.shapeblue.com
 Storage Network
 Handles traffic between the Secondary Storage VM, Hosts &
Management Server, to/from the Secondary Storage Servers
 Optional Network, traffic will use the Management Network if not
configured
 If configured, there must be a route between Management, Hosts
and Storage Networks
 It is not for Primary Storage Traffic
 Not used for Template Deployment from Sec to Pri Storage, Hosts
mount Sec Storage directly
CloudStack Physical Networks

10. www.shapeblue.com
 A Hardware or Virtual Appliance which provide Network Services
to CloudStack e.g.
 Virtual Router
 VPC Virtual Router
 Citrix NetScaler
 F5 Load Balancer
 Juniper SRX Firewall
 Nicira NVP
 Security Groups
Network Service Providers

11. www.shapeblue.com
 AWS Style L3 isolation – Massive Scale
 Simple Flat Network
 Each POD has a unique CIDR
 Optional Guest Isolation via Security Groups
 Optional NetScaler Integration - Elastic IPs and Elastic LB
 Optional Nicira NVP Integration
Basic Networking

12. www.shapeblue.com
 Isolate traffic between VMs
 Only supported in Basic Networking in CloudStack*
 Only supported on XenServer 6.x and KVM
 XenServer 6.0.x requires the Cloud Support Package
 XenServer must use Linux Bridge and not Open vSwitch
 xe-switch-network-backend bridge
 Must be implemented before adding to CloudStack
Security Groups

13. www.shapeblue.com
 Must be specified when the Zone is created
 Uses Ingress and Egress Rules to control traffic flow
 Default is all outbound traffic allowed, all inbound denied
 Rules can be mapped to CIDR or another Account/Security Group
Security Groups

14. www.shapeblue.com
 Citrix NetScaler can provide Elastic IP & Elastic LB
 Has Security Groups enabled
 A Public Network IP Range is assigned during Zone Setup
 The Public IP Range is assigned to the External Interface of the
NetScaler Appliance
 Provides a Static NAT (1:1) service to VMs
 When the VM is powered off the Elastic IP is released
Basic Zone with Elastic IP

15. www.shapeblue.com
Citrix NetScaler – Elastic IP/LB

16. www.shapeblue.com
Basic Zone – Example IP Schema

17. www.shapeblue.com
 Default ‘Add Zone Wizard’ skips the Traffic Label Settings
Using Multiple NICs

18. www.shapeblue.com
 Guest Networks isolated by VLANs
 Private and Shared Guest Networks
 Multiple Physical Networks
 Virtual Router for each Network providing:
 DNS & DHCP
 Firewall
 Client VPN
 Load Balancing
 Source / Static NAT
 Port Forwarding
Advanced Networking

19. www.shapeblue.com
Adv Zone – Example IP Schema

20. www.shapeblue.com
 New to 4.1
 Blocks all outbound traffic by default
Adv Zone - Egress Rules
Example of an ‘Allow All’ Egress Rule
Examples of other common Egress Rules

21. www.shapeblue.com
 Firewall
 Allow traffic into network
 Port Forwarding
 Pass traffic to a specified VM
Adv Zone - Firewall & Port Forwarding

22. www.shapeblue.com
 Load Balancing Algorithms
 Round Robin
 Least Connections
 Source
 Stickiness
 None
 Source Based
 AppCookie
 LBCookie
Adv Zone - Load Balancing

23. www.shapeblue.com
 User VPN
 IPSec VPN
 Win/MAC
 Connects to Guest
Network
Adv Zone - User VPN

24. www.shapeblue.com
 Enable Static NAT
Adv Zone - Static NAT

25. www.shapeblue.com
 Allocate VM
Adv Zone - Static NAT

26. www.shapeblue.com
 Only Firewall Rules exist due to
1-2-1 mapping
 Public IP is also used for
Outbound Traffic from this VM
Adv Zone - Static NAT

27. www.shapeblue.com
 Private multi-tiered Virtual Networks
 ACLs to control traffic isolation
 Inter VLAN Routing
 Site-2-Site VPN
 Private Gateway
Virtual Private Clouds (VPC)

28. www.shapeblue.com
 No Conserve Mode so unique Public IP Required for:
 Port Forwarding (1 IP per Tier)
 Load Balancing (only 1 Tier can be Load Balanced)
 Cannot operate in Redundant Mode (VRRP)
 Default Egress is Allow All
Virtual Private Clouds (VPC)

29. www.shapeblue.com
Private Gateway
Created by Root Admins
Configured by Users (Static Routes)
VPC Components
Virtual Router – Connects
all the VPC ComponentsNetwork Tiers – Isolated
Networks, each with unique VLAN and
CIDR
Public Gateway
Site-2-Site VPN
Linked to Public Gateway

30. www.shapeblue.com
Creating a VPC
Super CIDR Covers All Tiers

31. www.shapeblue.com
VPC - Add 1st Tier
Note how Network CIDR is a Subnet of the Super CIDR

32. www.shapeblue.com
VPC - Add 2nd Tier
Note how Network CIDR is a Different Subnet of the Super CIDR
There can be only 1 Load Balanced Tier

33. www.shapeblue.com
VPC - Add VMs

34. www.shapeblue.com
VPC - Add VMs - Network Selection

35. www.shapeblue.com
VPC - Configure ACLs

36. www.shapeblue.com
VPC - Configure ACLs

37. www.shapeblue.com
VPC - Acquire Public IPs

38. www.shapeblue.com
VPC - Acquire Public IPs

39. www.shapeblue.com
VPC - Acquire Public IPs

40. www.shapeblue.com
VPC - Add Port Forwarding
ACLs =
Firewall Rules

41. www.shapeblue.com
VPC - Add Port Forwarding

42. www.shapeblue.com
VPC - Load Balancing

43. www.shapeblue.com
VPC - Public IP Single Use
IP used for
Port
Forwarding
IP used for
Load
Balancing

44. www.shapeblue.com
VPC - Public IP Single Use

45. www.shapeblue.com
VPC - Add Private Gateway

46. www.shapeblue.com
VPC vs VR Networks

47. www.shapeblue.com
VPC - Adding Static Routes

48. www.shapeblue.com
VPC - Adding Static Routes

49. www.shapeblue.com
 VPN Gateway must be enabled first
 Once enabled the VPN Customer Gateway can be configured
VPC - Site-2-Site VPN

50. www.shapeblue.com
 A VPN Connection can then be mapped to the VPN Customer
Gateway
 As long as both ends of the VPN are configured correctly, the
VPN Connection should be established.
VPC - Site-2-Site VPN

51. www.shapeblue.com
 Following VPN End Points Officially Supported
 CISCO ISR with IOS 12.4 or later
 Juniper J-Series routers with JunOS 9.5 or later
 “its expected any device running supported operating systems
should work”
 Not Officially Supported
 VPC-VPC VPN not officially supported yet but does appear to work
 Tested between CS 4.1 – 4.1 and CS 4.1 - CP 3.0.6 Patch D
VPC - Site-2-Site VPN

52. www.shapeblue.com
 Option 1:
 Create VM using API and map to both Networks
 API Parameter ‘hypervisor’ must be specified
 Option 2:
 Create VM on VPC using GUI
 Use AddNicToVirtualMachine API Command to add 2nd NIC
Create VM on VPC & Standard Network

53. www.shapeblue.com
 New API Commands for 4.1
 addNicToVirtualMachine
 updateDefaultNicForVirtualMachine
 removeDefaultNicForVirtualMachine
 Effectively enables VMs to be ‘moved’ to different networks
Add - Update - Remove NICs

54. www.shapeblue.com
System VMs & Their Networks
Virtual Router

55. www.shapeblue.com
System VMs & Their Networks
Virtual Router

56. www.shapeblue.com
System VMs & Their Networks
Secondary Storage VM

57. www.shapeblue.com
System VMs & Their Networks
SSVM – VM Image / ISO Upload Workflow

58. www.shapeblue.com
System VMs & Their Networks
Console Proxy VM

59. www.shapeblue.com
System VMs & Their Networks
CPVM – Remote Connection

60. www.shapeblue.com
Communication Ports

61. www.shapeblue.com
 Management VLANs – Up to 7 Layers
 Strict control of traffic flow between Management Layers
 Bypassing Virtual Router
 Isolated Networks for Guest Management by Service Provider
 Shared Networks for Guest Backups
 Connecting VMs to Physical Servers via Assigned VLAN IDs
 VLAN Limitations
Real World Problems / Requirements

62. www.shapeblue.com
 Software Defined Networking
 Remove VLAN Limitations
 Bring full control of Network into CloudStack GUI
 Massive Scalability
 L2 Networks which Span DCs
 Examples of SDN Providers
 Nicira NVP – Supported since 4.0
 Midokura – Support coming in 4.2
The Future

63. www.shapeblue.com
Questions?
