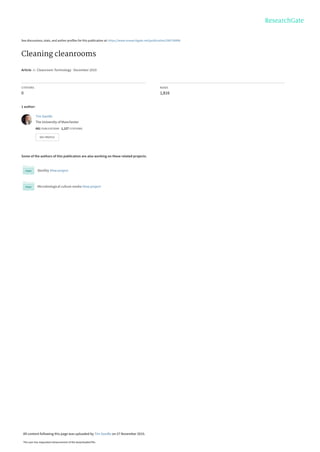

1. See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/284730898
Cleaning cleanrooms
Article in Cleanroom Technology · December 2010
CITATIONS
0
READS
1,816
1 author:
Some of the authors of this publication are also working on these related projects:
Sterility View project
Microbiological culture media View project
Tim Sandle
The University of Manchester
681 PUBLICATIONS 1,127 CITATIONS
SEE PROFILE
All content following this page was uploaded by Tim Sandle on 27 November 2015.
The user has requested enhancement of the downloaded file.

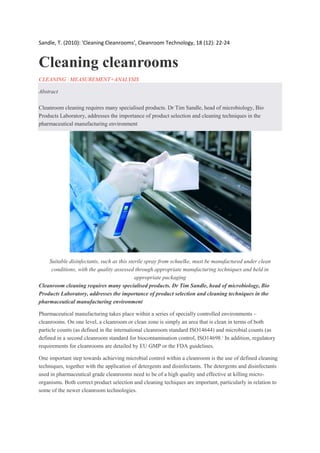

2. Sandle, T. (2010): 'Cleaning Cleanrooms', Cleanroom Technology, 18 (12): 22-24
Cleaning cleanrooms
CLEANING | MEASUREMENT+ANALYSIS
Abstract
Cleanroom cleaning requires many specialised products. Dr Tim Sandle, head of microbiology, Bio
Products Laboratory, addresses the importance of product selection and cleaning techniques in the
pharmaceutical manufacturing environment
Suitable disinfectants, such as this sterile spray from schuelke, must be manufactured under clean
conditions, with the quality assessed through appropriate manufacturing techniques and held in
appropriate packaging
Cleanroom cleaning requires many specialised products. Dr Tim Sandle, head of microbiology, Bio
Products Laboratory, addresses the importance of product selection and cleaning techniques in the
pharmaceutical manufacturing environment
Pharmaceutical manufacturing takes place within a series of specially controlled environments –
cleanrooms. On one level, a cleanroom or clean zone is simply an area that is clean in terms of both
particle counts (as defined in the international cleanroom standard ISO14644) and microbial counts (as
defined in a second cleanroom standard for biocontamination control, ISO14698.1
In addition, regulatory
requirements for cleanrooms are detailed by EU GMP or the FDA guidelines.
One important step towards achieving microbial control within a cleanroom is the use of defined cleaning
techniques, together with the application of detergents and disinfectants. The detergents and disinfectants
used in pharmaceutical grade cleanrooms need to be of a high quality and effective at killing micro-
organisms. Both correct product selection and cleaning techiques are important, particularly in relation to
some of the newer cleanroom technologies.

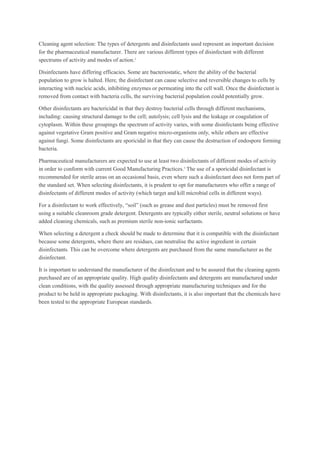

3. Cleaning agent selection: The types of detergents and disinfectants used represent an important decision
for the pharmaceutical manufacturer. There are various different types of disinfectant with different
spectrums of activity and modes of action.2
Disinfectants have differing efficacies. Some are bacteriostatic, where the ability of the bacterial
population to grow is halted. Here, the disinfectant can cause selective and reversible changes to cells by
interacting with nucleic acids, inhibiting enzymes or permeating into the cell wall. Once the disinfectant is
removed from contact with bacteria cells, the surviving bacterial population could potentially grow.
Other disinfectants are bactericidal in that they destroy bacterial cells through different mechanisms,
including: causing structural damage to the cell; autolysis; cell lysis and the leakage or coagulation of
cytoplasm. Within these groupings the spectrum of activity varies, with some disinfectants being effective
against vegetative Gram positive and Gram negative micro-organisms only, while others are effective
against fungi. Some disinfectants are sporicidal in that they can cause the destruction of endospore forming
bacteria.
Pharmaceutical manufacturers are expected to use at least two disinfectants of different modes of activity
in order to conform with current Good Manufacturing Practices.3
The use of a sporicidal disinfectant is
recommended for sterile areas on an occasional basis, even where such a disinfectant does not form part of
the standard set. When selecting disinfectants, it is prudent to opt for manufacturers who offer a range of
disinfectants of different modes of activity (which target and kill microbial cells in different ways).
For a disinfectant to work effectively, “soil” (such as grease and dust particles) must be removed first
using a suitable cleanroom grade detergent. Detergents are typically either sterile, neutral solutions or have
added cleaning chemicals, such as premium sterile non-ionic surfactants.
When selecting a detergent a check should be made to determine that it is compatible with the disinfectant
because some detergents, where there are residues, can neutralise the active ingredient in certain
disinfectants. This can be overcome where detergents are purchased from the same manufacturer as the
disinfectant.
It is important to understand the manufacturer of the disinfectant and to be assured that the cleaning agents
purchased are of an appropriate quality. High quality disinfectants and detergents are manufactured under
clean conditions, with the quality assessed through appropriate manufacturing techniques and for the
product to be held in appropriate packaging. With disinfectants, it is also important that the chemicals have
been tested to the appropriate European standards.

4. Disinfectant should ideally be sprayed onto the surface rather than the wipe and left for the required
contact time before wiping
Cleaning products presentation: As cleanroom technology has advanced, the types and ranges of
cleanrooms and clean devices have expanded. The pharmaceutical manufacturer, when selecting cleaning
agents, should aim for products that are supplied in different presentations. For smaller spillages and the
cleaning of process area surfaces and laboratory benches, sterile disinfectants in trigger sprays are the most
effective design.
With slightly larger areas, ready-to-use disinfectant solutions in bigger volumes are desirable. For cleaning
larger areas, such as process area floors, disinfectant concentrates (where the disinfectant is prepared by
cleanroom operators by dilution) are the most appropriate presentation. Several manufacturers offer ready-
to-use products in different volumes and concentrate solutions which are of great advantage for cleanroom
use.
Cleaning techniques for cleanrooms: The cleaning technique used for cleanrooms should be defined and
standardised. It does not matter how effective the cleaning agents selected are if the cleaning technique
practised by cleanroom operators is poor.
This relates partly to the techniques used and partly to the quality of the cleaning materials. With the
techniques for the cleaning and disinfection of cleanroom floors, either the “two-bucket” or the “three-
bucket” technique is recommended. Both of these techniques involve using a bucket of disinfectant and a
bucket of water.
In the “two-bucket” technique there is a “wringer” (for the mop) over the bucket of water. In the “three-
bucket” technique there is a third bucket, empty except for having a wringer mounted over it. To illustrate
this, the three-bucket technique involves:
1. Dipping the mop in disinfectant
2. Mopping the floor
3. Dipping the mop in the bucket of water
4. Rinsing the excess water off the mop head into the third (empty) bucket
5. Dipping the mop in disinfectant

5. 6. Repeating
What such techniques do not achieve is the removal of disinfectant residue from the floors. To overcome
this, the final stage in floor cleaning and disinfection is typically a rinse with sterile Water for Injection.
For Grade A and B areas careful consideration is required as any water used will need to be sterile.
Disinfectants can have different spectrums of activity and suitability: schuelke’s microbial filtered
concentrated liquid, for example, is suitable for cleanroom surface disinfection
Deeper clean
Sometimes a major decontamination exercise is required for a cleanroom (such as following a HEPA filter
failure or following maintenance work). There are different techniques used to decontaminate cleanrooms.
Traditionally this has involved either manual cleaning and disinfection by operators using mops and
buckets, or, in more recent years, decontamination with fumigation units and chemicals such as hydrogen
peroxide or peracetic acid (noting appropriate health and safety regulations). For this method, gas
generators can be placed in cleanrooms at known locations. This takes some time and effort in mapping the
cleanroom (which additionally requires some form of validation using chemical and biological indicators).
To aid such techniques commercial bucket and trolley systems are available. For aseptic filling areas it is
important that these are manufactured from a material that can be autoclaved, such as stainless steel. In
terms of the materials used for cleaning, appropriate mops and wipes should be used. Wipes should be
sterile and be low particle shedding. When using wipes for surfaces, the detergent or disinfectant should
ideally be sprayed onto the surface rather than the wipe and left for the required contact time before wiping
is undertaken.
With mops, the mop head should be cleanroom compatible (such as a microfibre-based yarn) and be single
use. For Grade A and B areas, the mop heads should be sterile. Also of importance to such areas are the
mops themselves, which should be autoclavable.
The design of the mop is a further consideration and must be easy for the cleanroom operator to use and
allow for a uniform application of the disinfectant solution. Some manufacturers of mops have consulted
with cleanroom operators in order to design the mops in the most efficient ergonomic way.
Use of cleaning products with new cleanroom technologies: In recent times there have been a number of
advances in cleanroom technologies that have helped to reduce the risk of contamination and to streamline

6. process operations.4
This includes the wider use of isolators and restricted access barrier systems (RABS),
orientated towards the manufacturing of sterile products, particularly aseptically filled products.5
These “clean air devices” are categorised as barrier technology and are situated inside
cleanrooms.6
Isolators, by their design, are less prone to contamination than conventional cleanrooms. This
protection is maintained by a barrier between the inside environment of the isolator (at Grade A) and the
outside environment.
Both isolators and RABS require sanitisation. In the past, this was undertaken by wiping (the colloquially
termed “spray and pray” approach). Today, the most common, and vastly superior, method is vapour
technology. This is an automated process and is present with all isolators manufactured within the past 10
years (whereas with RABS, many are sanitised using manual methods).
This is undertaken using a surface disinfectant, in liquid form, which is then heated in a specially designed
chamber. As the liquid forms a vapour, it is carried into the isolator chamber or RABS area for a validated
hold time. During this time the disinfectant vapour contacts the various surfaces within the clean air device
and destroys those micro-organisms present.
Vapour disinfection
The disinfectants used for vapour disinfection must be sporicidal (products such as hydrogen peroxide,
peracetic acid or similar products that utilise active oxygen). The use of such disinfectants requires
extensive validation using spore- forming micro-organisms such as Geobacillus stearothermophilus.
Isolators and RABS are said to “disinfect” or “sanitise” because absolute sterility cannot be demonstrated
(sanitisation, in this context, is the reduction of a number of micro-organisms within the clean
environment). In addition to sanitisation, spillages will occur inside clean air devices and occasionally
personnel interventions are required for manual cleaning for which suitable cleaning products are required.
Where such cleaning products are used it is of great importance that they are suitable for isolator use, in
that such products must be aseptically filled or gamma irradiated and provided in double wrapping to
minimise the introduction of contamination.
Cleaning products are also required in conjunction with disposable cleanroom technologies. Although
disposable and single-use sterile items do not require sterilisation or cleaning, contamination risks can arise
when such items are transferred into cleanrooms via transfer hatches. Thus such “in–out” devices require
cleaning and disinfection using traditional cleaning methods and cleaning agents of appropriate quality
should be used.
This article has examined some of the key criteria for the cleaning of cleanrooms and the appropriate use
of disinfectants, detergents and cleaning apparatus in the pharmaceutical industry. While selection of the
right type of cleaning agent and materials is of utmost importance, controlled and careful cleaning
techniques must be applied. This philosophy applies to both conventional cleanrooms and to the
application of the more recent advanced cleanroom technologies.
The ultimate assessment of cleaning products and cleaning techniques is revealed through environmental
monitoring programmes in terms of the numbers and types of micro-organisms recovered.7
Therefore, the
construction of a cleanroom cleaning regime needs to be carefully planned and fit into an organisation’s
quality systems. To aid such decisions, important technical advice is provided by many of the leading
manufacturers of cleaning products.

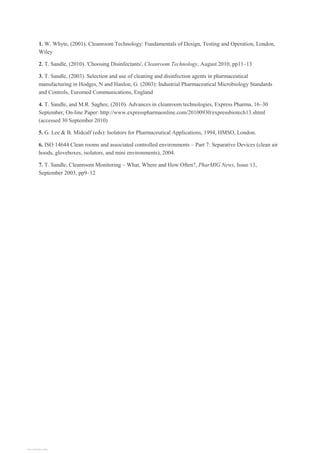

References

7. 1. W. Whyte, (2001). Cleanroom Technology: Fundamentals of Design, Testing and Operation, London,
Wiley
2. T. Sandle, (2010). 'Choosing Disinfectants', Cleanroom Technology, August 2010, pp11–13
3. T. Sandle, (2003). Selection and use of cleaning and disinfection agents in pharmaceutical
manufacturing in Hodges, N and Hanlon, G. (2003): Industrial Pharmaceutical Microbiology Standards
and Controls, Euromed Communications, England
4. T. Sandle, and M.R. Saghee, (2010). Advances in cleanroom technologies, Express Pharma, 16–30
September, On-line Paper: http://www.expresspharmaonline.com/20100930/expressbiotech13.shtml
(accessed 30 September 2010)
5. G. Lee & B. Midcalf (eds): Isolators for Pharmaceutical Applications, 1994, HMSO, London.
6. ISO 14644 Clean rooms and associated controlled environments – Part 7: Separative Devices (clean air
hoods, gloveboxes, isolators, and mini environments), 2004.
7. T. Sandle, Cleanroom Monitoring – What, Where and How Often?, PharMIG News, Issue 13,
September 2003, pp9–12
