Classic Formal Methods Model Checking

Classic Model Checking in Reactive
Software Systems

US Naval Postgraduate School

Donna A. Dulo
US Dept of Army
Fall 2007

SW 4920 Formal Verification & Validation of Reactive Software Systems

Model Checking is a cornerstone of
verification engineering.
- Amir Pneuli, 1996 Turing Award Recipient


Agenda

Introduction to Classic Model Checking
The Concept
The Issues
Classic Model Checkers
Future Trends
Conclusion


Introduction to Classic Model
Checking


Classic Model Checking

Classic Model Checking refers to the Set of Non-Execution
Based Algorithmic Approaches for Checking a Property
expressed as:

 A Linear Time Logic (LTL) Formula
 A Computational Tree Logic (CTL) Formula
 A CTL* Formula
 A Finite State Automaton

Against a model, which can be expressed as:
 A Finite State Machine
 A Kripke Structure



• Verification of finite state systems

• Verification is performed automatically

• Exhaustive search of the state space of the system to
determine if the specification is true or false

• Terminates with a Boolean: T/F (yes/no) that demonstrates a
behavior which falsifies a property

• Always provides a counterexample

• Fault Trace

• Clues for fixing the problem



• Implemented by Algorithms with reasonable efficiency

• Can be used with other methodologies such as abstraction

and induction to verify some systems that are not finite space

• Transform an academic discipline into a viable practical

technique for designers in the field

• Simulations can be run by non-mathematicians in industrial

settings


Why Formal Verification Through Model Checking?

• Advent of Complex, Safety Critical Systems

• Exponential growth in possible state space in
complex system of systems designs that need to be
evaluated

• What trajectories will have the fatal flaw in the
system?

• Formal verification conducts an exhaustive
exploration of all possible behaviors

• Goal is completeness in exploration

• Overarching goals are Safety, Predictability
and Reliability of system software


The Concept of Classical Model
Checking


The Goal of Classic Model Checking

Program
void addSpaceParameters(Object
1) {
buffer[wing1] = x; System OK
buffer [wing 2] = y;
resolution = x + y;
}
Object SW4920() {
… Model
}
Checker
ERROR
Trace
Requirements

Requirement 1 ….
Requirement 2 …
Requirement 3 …
….
Requirement n


The Implementation of Classic Model
Checking
Finite State Model

System OK

Model
Checker
ERROR
Trace

Temporal Logic Formula
Error 1…

Φ
( −> ◊ Ω) Error 2…
Error 3…
…
Error n

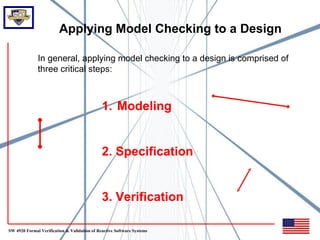

Applying Model Checking to a Design

In general, applying model checking to a design is comprised of
three critical steps:

1. Modeling

2. Specification

3. Verification

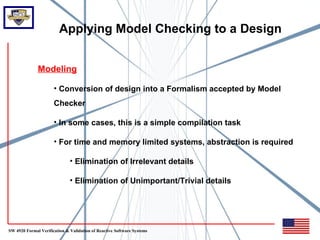

Modeling

• Conversion of design into a Formalism accepted by Model
Checker

• In some cases, this is a simple compilation task

• For time and memory limited systems, abstraction is required

• Elimination of Irrelevant details

• Elimination of Unimportant/Trivial details

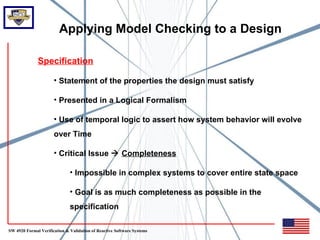

Specification

• Statement of the properties the design must satisfy

• Presented in a Logical Formalism

• Use of temporal logic to assert how system behavior will evolve
over Time

• Critical Issue  Completeness

• Impossible in complex systems to cover entire state space

• Goal is as much completeness as possible in the
specification

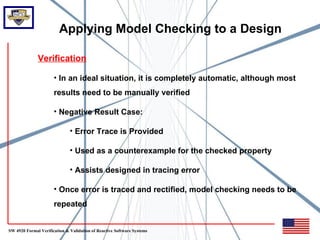

Verification

• In an ideal situation, it is completely automatic, although most
results need to be manually verified

• Negative Result Case:

• Error Trace is Provided

• Used as a counterexample for the checked property

• Assists designed in tracing error

• Once error is traced and rectified, model checking needs to be
repeated

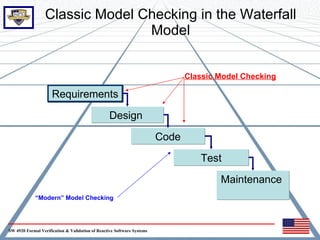

Classic Model Checking in the Waterfall
Model


Requirements

Design

Code
Test

Maintenance
“Modern” Model Checking


The Issues in Classical Model Checking

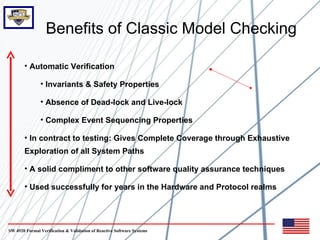

Benefits of Classic Model Checking

• Automatic Verification

• Invariants & Safety Properties

• Absence of Dead-lock and Live-lock

• Complex Event Sequencing Properties

• In contract to testing: Gives Complete Coverage through Exhaustive
Exploration of all System Paths

• A solid compliment to other software quality assurance techniques

• Used successfully for years in the Hardware and Protocol realms

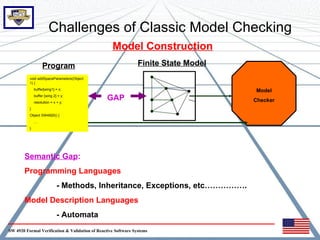

Challenges of Classic Model Checking

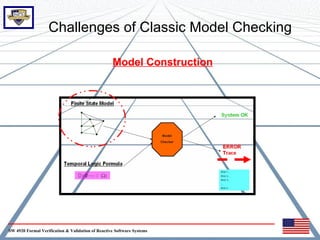

Model Construction


Model Construction
Program Finite State Model
void addSpaceParameters(Object
1) {
buffer[wing1] = x; Model
buffer [wing 2] = y;
resolution = x + y;
GAP Checker
}
Object SW4920() {
…
}

Semantic Gap:
Programming Languages
- Methods, Inheritance, Exceptions, etc…………….
Model Description Languages
- Automata

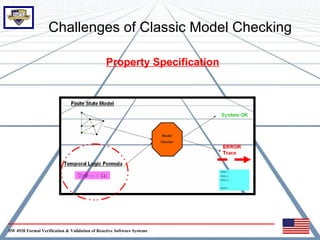

Property Specification

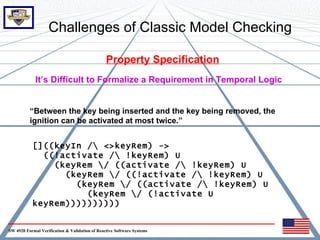

Property Specification
It’s Difficult to Formalize a Requirement in Temporal Logic

“Between the key being inserted and the key being removed, the
ignition can be activated at most twice.”

[]((keyIn / <>keyRem) ->
((!activate / !keyRem) U
(keyRem / ((activate / !keyRem) U
(keyRem / ((!activate / !keyRem) U
(keyRem / ((activate / !keyRem) U
(keyRem / (!activate U
keyRem))))))))))

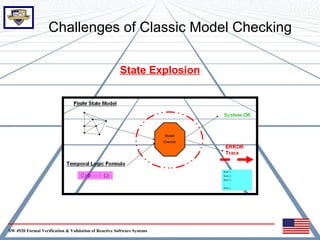

State Explosion

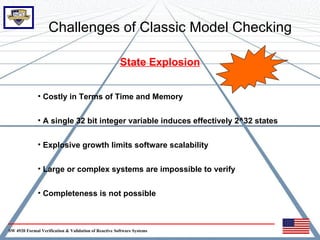

State Explosion

• Costly in Terms of Time and Memory

• A single 32 bit integer variable induces effectively 2^32 states

• Explosive growth limits software scalability

• Large or complex systems are impossible to verify

• Completeness is not possible

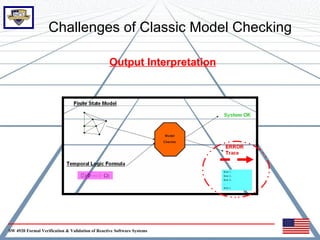

Output Interpretation

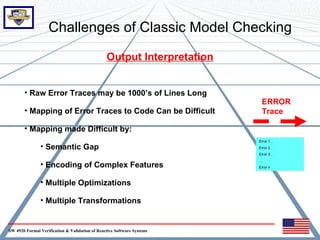

Output Interpretation

• Raw Error Traces may be 1000’s of Lines Long
ERROR
• Mapping of Error Traces to Code Can be Difficult Trace

• Mapping made Difficult by:
Error 1…
• Semantic Gap Error 2…
Error 3…
…
• Encoding of Complex Features Error n

• Multiple Optimizations

• Multiple Transformations


Classic Model Checking Programs

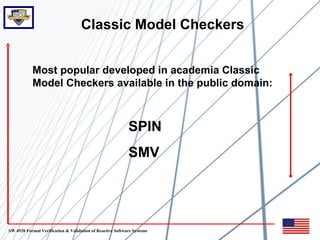

Classic Model Checkers

Most popular developed in academia Classic
Model Checkers available in the public domain:

SPIN
SMV

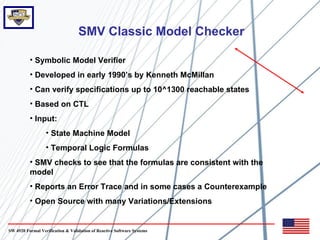

SMV Classic Model Checker

• Symbolic Model Verifier
• Developed in early 1990’s by Kenneth McMillan
• Can verify specifications up to 10^1300 reachable states
• Based on CTL
• Input:
• State Machine Model
• Temporal Logic Formulas
• SMV checks to see that the formulas are consistent with the
model
• Reports an Error Trace and in some cases a Counterexample
• Open Source with many Variations/Extensions

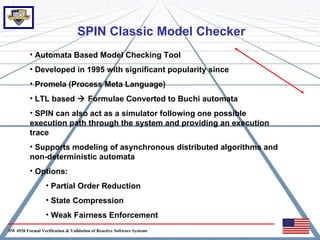

SPIN Classic Model Checker
• Automata Based Model Checking Tool
• Developed in 1995 with significant popularity since
• Promela (Process Meta Language)
• LTL based  Formulae Converted to Buchi automata
• SPIN can also act as a simulator following one possible
execution path through the system and providing an execution
trace
• Supports modeling of asynchronous distributed algorithms and
non-deterministic automata
• Options:
• Partial Order Reduction
• State Compression
• Weak Fairness Enforcement

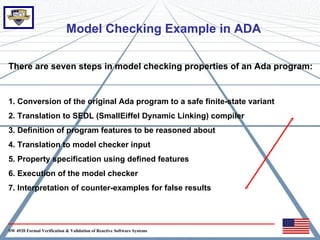

Model Checking Example in ADA

There are seven steps in model checking properties of an Ada program:

1. Conversion of the original Ada program to a safe finite-state variant
2. Translation to SEDL (SmallEiffel Dynamic Linking) compiler
3. Definition of program features to be reasoned about
4. Translation to model checker input
5. Property specification using defined features
6. Execution of the model checker
7. Interpretation of counter-examples for false results

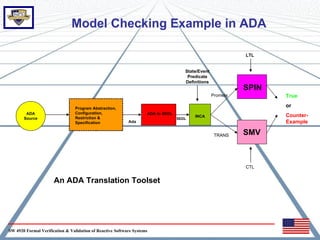

Model Checking Example in ADA

LTL

State/Event
Predicate
Definitions
SPIN
Promela True

Program Abstraction,
or
ADA Configuration, ADA to SEDL
Restriction & INCA Counter-
Source SEDL
Specification Ada Example

TRANS SMV

CTL

An ADA Translation Toolset

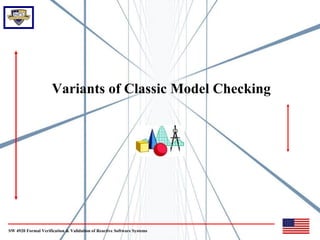

Variants of Classic Model Checking

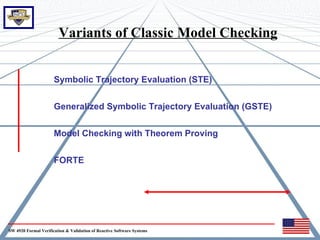

Variants of Classic Model Checking

Symbolic Trajectory Evaluation (STE)

Generalized Symbolic Trajectory Evaluation (GSTE)

Model Checking with Theorem Proving

FORTE

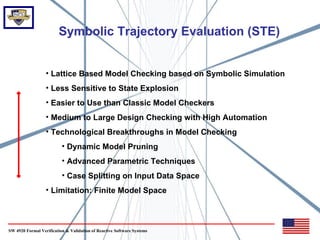

Symbolic Trajectory Evaluation (STE)

• Lattice Based Model Checking based on Symbolic Simulation
• Less Sensitive to State Explosion
• Easier to Use than Classic Model Checkers
• Medium to Large Design Checking with High Automation
• Technological Breakthroughs in Model Checking
• Dynamic Model Pruning
• Advanced Parametric Techniques
• Case Splitting on Input Data Space
• Limitation: Finite Model Space

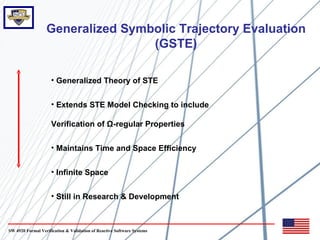

Generalized Symbolic Trajectory Evaluation
(GSTE)

• Generalized Theory of STE

• Extends STE Model Checking to include

Verification of Ω-regular Properties

• Maintains Time and Space Efficiency

• Infinite Space

• Still in Research & Development

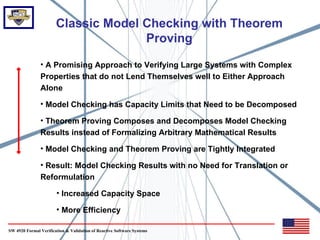

Classic Model Checking with Theorem
Proving
• A Promising Approach to Verifying Large Systems with Complex
Properties that do not Lend Themselves well to Either Approach
Alone

• Model Checking has Capacity Limits that Need to be Decomposed

• Theorem Proving Composes and Decomposes Model Checking
Results instead of Formalizing Arbitrary Mathematical Results

• Model Checking and Theorem Proving are Tightly Integrated

• Result: Model Checking Results with no Need for Translation or
Reformulation

• Increased Capacity Space

• More Efficiency

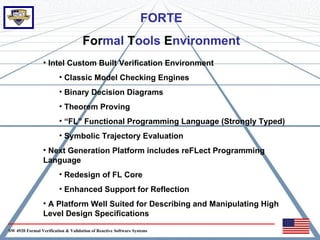

FORTE
Formal Tools Environment
• Intel Custom Built Verification Environment
• Classic Model Checking Engines
• Binary Decision Diagrams
• Theorem Proving
• “FL” Functional Programming Language (Strongly Typed)
• Symbolic Trajectory Evaluation
• Next Generation Platform includes reFLect Programming
Language
• Redesign of FL Core
• Enhanced Support for Reflection
• A Platform Well Suited for Describing and Manipulating High
Level Design Specifications


Conclusion on Classic Model Checking

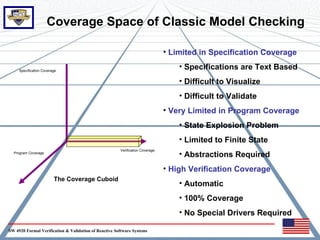

Coverage Space of Classic Model Checking

• Limited in Specification Coverage

Specification Coverage
• Specifications are Text Based
• Difficult to Visualize
• Difficult to Validate
• Very Limited in Program Coverage
• State Explosion Problem
• Limited to Finite State
Verification Coverage
Program Coverage
• Abstractions Required
• High Verification Coverage
The Coverage Cuboid
• Automatic
• 100% Coverage
• No Special Drivers Required

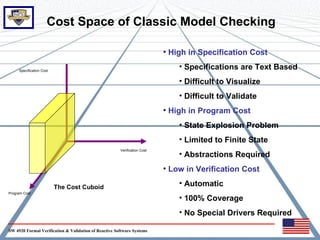

Cost Space of Classic Model Checking

• High in Specification Cost

Specification Cost
• Specifications are Text Based
• Difficult to Visualize
• Difficult to Validate
• High in Program Cost
• State Explosion Problem
• Limited to Finite State
Verification Cost
• Abstractions Required
• Low in Verification Cost

The Cost Cuboid
• Automatic
Program Cost
• 100% Coverage
• No Special Drivers Required


Questions?


References
Clark, E.M., Grumberg, O., & Peled, D.A. (1999). Model Checking. MIT Press: Cambridge.

Corbett, J.C. & Pasareneau, C. (2007). Translating Ada programs for Model Checking. University of Hawaii.

Drusinski, D., Michael, J.B., & Shing, M. (2007). “Three Dimensions of Formal Validation and Verification
of Reactive System Behaviors. US Naval Postgraduate School, NPS-CS-07-008.

Dwyer, M., Hatcliff, J. & Avrunin, G. (2004). Software Model Checking for Embedded Systems. Kansas State
University.

Intel Corporation. (2007). “Classic Model Checking Introduction”. www.intel.com.
