1. Introduction to Formal Methods
in Software Engineering
Inzemamul Haque
22 Nov 2016

2. Acknowledgement
• Dr. K.V. Raghavan and Dr. Deepak D’Souza for
the content from their course “Formal
Methods in Software Engineering”

3. Outline
• Motivation
• Definition
• Alloy
• Model-checking

4. Motivation
• Software projects fail [Barry Boehm, ICSE’06]
– 90% overrun on cost
– 121% overrun on schedule
– Delivers only 61%
• Finding and fixing bugs consume 50% of total
effort in software development

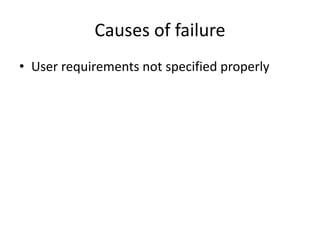

5. Causes of failure
• User requirements not specified properly

6. Causes of failure
• User requirements not specified properly
• Design does not meet user requirements

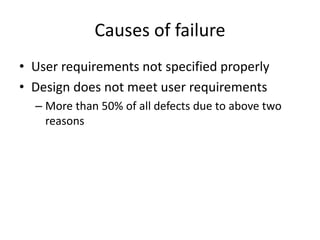

7. Causes of failure
• User requirements not specified properly
• Design does not meet user requirements
– More than 50% of all defects due to above two
reasons

8. Causes of failure
• User requirements not specified properly
• Design does not meet user requirements
– More than 50% of all defects due to above two
reasons
• Implementation errors
– Low-level errors such as null-pointer dereference ,
array index out of bounds

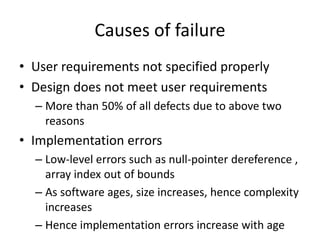

9. Causes of failure
• User requirements not specified properly
• Design does not meet user requirements
– More than 50% of all defects due to above two
reasons
• Implementation errors
– Low-level errors such as null-pointer dereference ,
array index out of bounds
– As software ages, size increases, hence complexity
increases
– Hence implementation errors increase with age

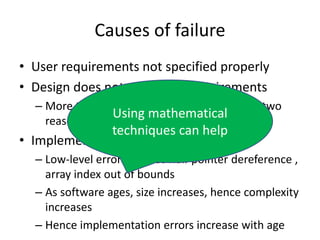

10. Causes of failure
• User requirements not specified properly
• Design does not meet user requirements
– More than 50% of all defects due to above two
reasons
• Implementation errors
– Low-level errors such as null-pointer dereference ,
array index out of bounds
– As software ages, size increases, hence complexity
increases
– Hence implementation errors increase with age
Using mathematical
techniques can help

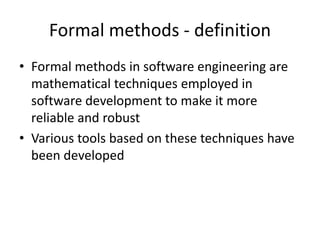

11. Formal methods - definition
• Formal methods in software engineering are
mathematical techniques employed in
software development to make it more
reliable and robust
• Various tools based on these techniques have
been developed

12. Alloy
• Formal modelling of entities and associations
using sets and relations
• Modelling of constraints on the entities
• Analyzing the consistency of the model and
identifying the errors

13. Example – family relationships
• Relationships between “Person” entity
• Constraints:
– Every person has two parents
– Parents of any child are married
– Cannot marry a sibling or a parent
– Every person is married to at most one person
– a married to b implies b is married to a
– A man can only marry a woman and vice-versa

14. How Alloy works
• An Alloy model M is interpreted as a conjunctive
logical formula, fM
• Constraints enforced by signatures as well as facts
automatically become part of fM
• An instance or solution to the model is
– A finite universe U of atoms
– An assignment of subsets of U to the different
signatures
– An assignment of relations to different relations
such that it satisfies fM

15. Modelling notation to logical formula
• For example
“no p: Person | some p.spouse & p.parents”
becomes

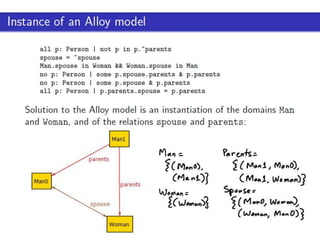

17. Model-checking
• Model-checking can be used to check if an
initial design satisfies certain properties
• Given an abstract model like a state machine,
and a specification of behaviour (typically in
temporal logic), model checker tries to check
whether model satisfies the property
• If not provides a counter-example

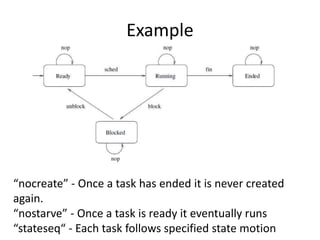

18. Example
“nocreate” - Once a task has ended it is never created
again.
“nostarve” - Once a task is ready it eventually runs
“stateseq“ - Each task follows specified state motion

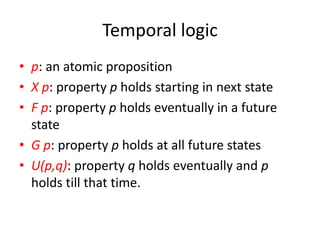

19. Temporal logic
• p: an atomic proposition
• X p: property p holds starting in next state
• F p: property p holds eventually in a future
state
• G p: property p holds at all future states
• U(p,q): property q holds eventually and p
holds till that time.

20. Model-checking
• Property P can be expressed as LTL formula, F
• Construct a “Buchi-automata”, A, for not F
• Take “product” of A with transition system of
the model, T
• Look for accepting path in this product
• If such a path exists, this is a counter-example
to the claim that T satisfies the property P
• If no such path exists, then T satisfies P

22. Buchi automata

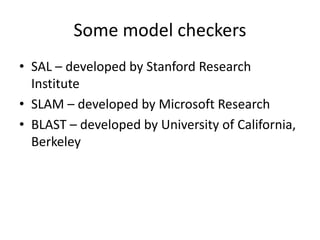

23. Some model checkers
• SAL – developed by Stanford Research
Institute
• SLAM – developed by Microsoft Research
• BLAST – developed by University of California,
Berkeley

24. VCC
• Works on Hoare Logic
