White box testing involves testing internal program structure and code. It includes static testing like code reviews and structural testing like unit testing. Static testing checks code against requirements without executing. Structural testing executes code to test paths and conditions. Code coverage metrics like statement coverage measure what code is executed by tests. Code complexity metrics like cyclomatic complexity quantify complexity to determine necessary test cases. White box testing finds defects from incorrect code but may miss realistic errors and developers can overlook own code issues.

1. WHITE BOX TESTING
Ms. Neethu Tressa
Assistant Professor

2. WHITE BOX TESTING
• Way of testing the external functionality of the code
• Also known as clear box, glass box or open box
• Consider program code, code structure, internal design flow
• Defects come about because of:
• Incorrect translation of requirements and design into program code
• Programming errors and programming language idiosyncrasies
• Classification:
1. Static Testing
2. Structural Testing

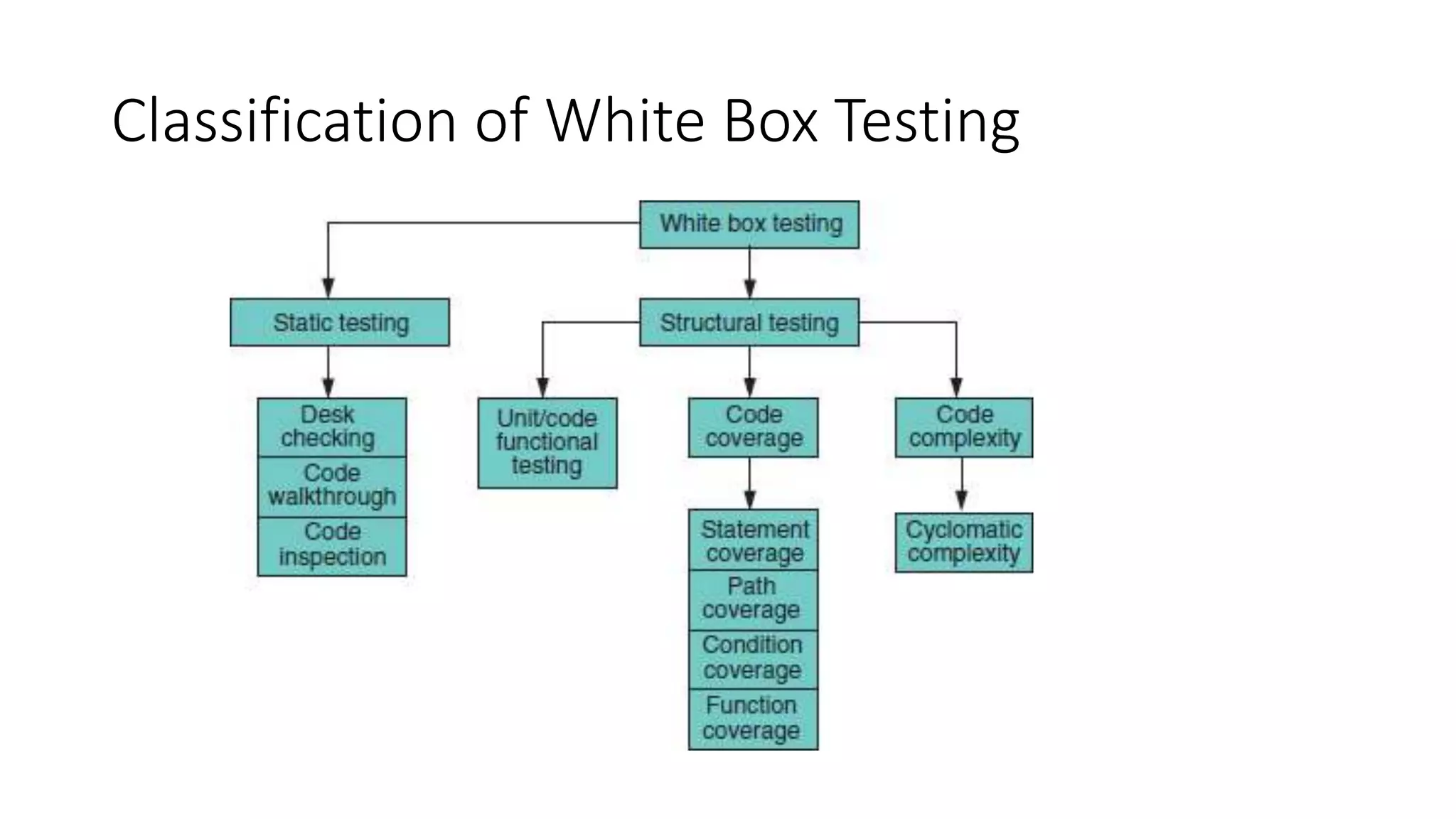

3. Classification of White Box Testing

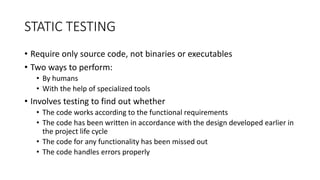

4. STATIC TESTING
• Require only source code, not binaries or executables
• Two ways to perform:
• By humans
• With the help of specialized tools
• Involves testing to find out whether
• The code works according to the functional requirements
• The code has been written in accordance with the design developed earlier in
the project life cycle
• The code for any functionality has been missed out
• The code handles errors properly

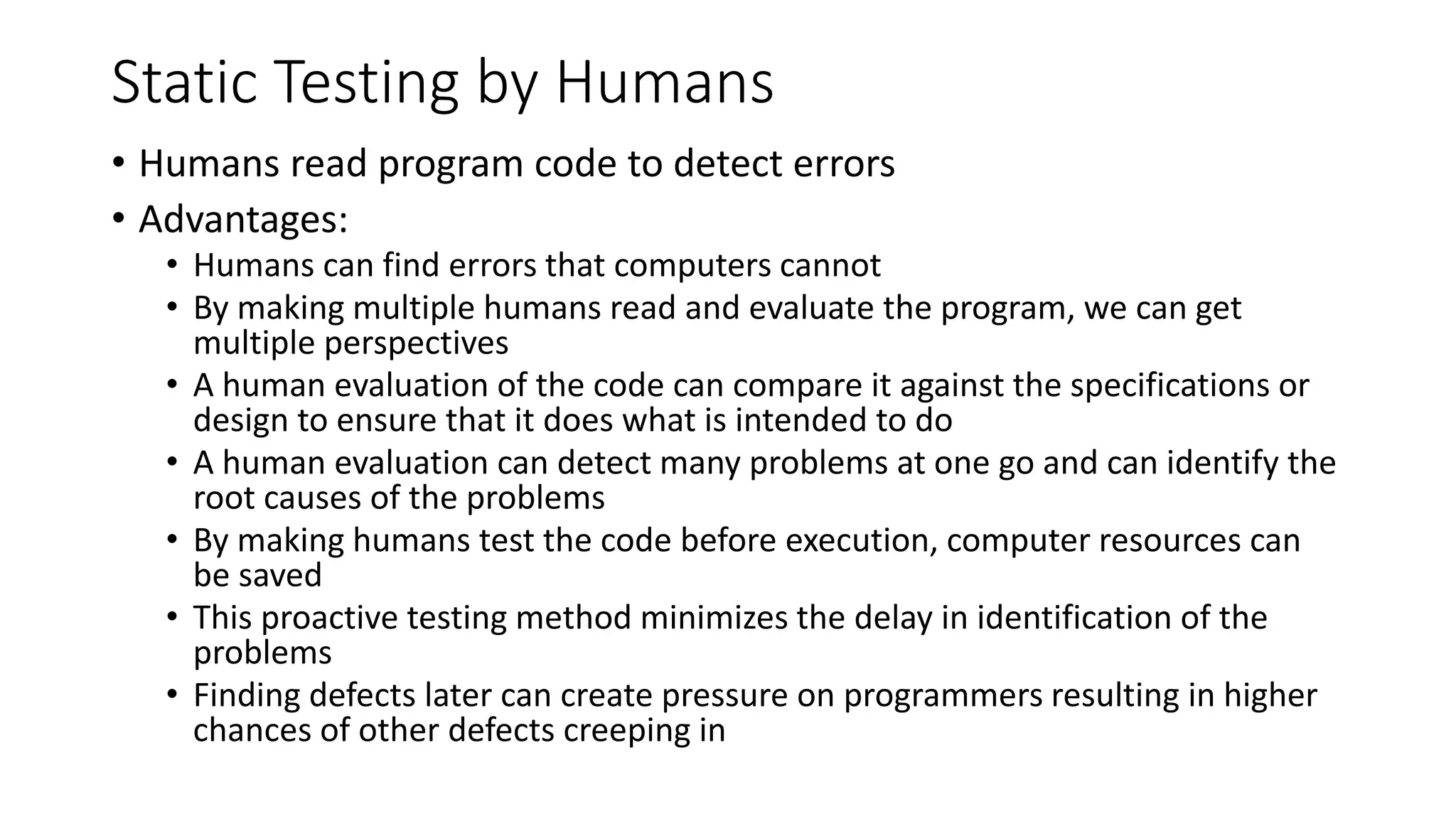

5. Static Testing by Humans
• Humans read program code to detect errors
• Advantages:
• Humans can find errors that computers cannot
• By making multiple humans read and evaluate the program, we can get
multiple perspectives
• A human evaluation of the code can compare it against the specifications or
design to ensure that it does what is intended to do
• A human evaluation can detect many problems at one go and can identify the
root causes of the problems
• By making humans test the code before execution, computer resources can
be saved
• This proactive testing method minimizes the delay in identification of the
problems
• Finding defects later can create pressure on programmers resulting in higher
chances of other defects creeping in

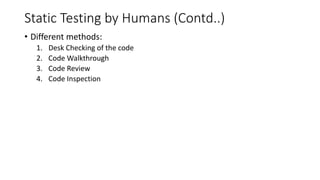

6. Static Testing by Humans (Contd..)
• Different methods:
1. Desk Checking of the code
2. Code Walkthrough
3. Code Review
4. Code Inspection

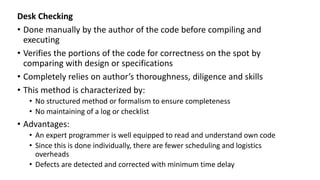

7. Desk Checking
• Done manually by the author of the code before compiling and
executing
• Verifies the portions of the code for correctness on the spot by
comparing with design or specifications
• Completely relies on author’s thoroughness, diligence and skills
• This method is characterized by:
• No structured method or formalism to ensure completeness
• No maintaining of a log or checklist
• Advantages:
• An expert programmer is well equipped to read and understand own code
• Since this is done individually, there are fewer scheduling and logistics
overheads
• Defects are detected and corrected with minimum time delay

8. Desk Checking (Contd…)

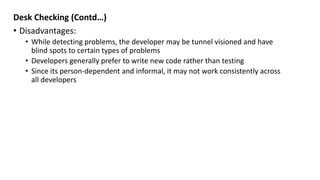

• Disadvantages:
• While detecting problems, the developer may be tunnel visioned and have
blind spots to certain types of problems
• Developers generally prefer to write new code rather than testing
• Since its person-dependent and informal, it may not work consistently across
all developers

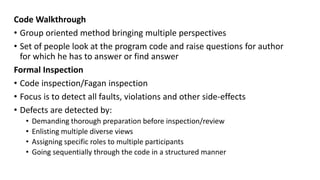

9. Code Walkthrough
• Group oriented method bringing multiple perspectives
• Set of people look at the program code and raise questions for author
for which he has to answer or find answer
Formal Inspection
• Code inspection/Fagan inspection
• Focus is to detect all faults, violations and other side-effects
• Defects are detected by:
• Demanding thorough preparation before inspection/review
• Enlisting multiple diverse views
• Assigning specific roles to multiple participants
• Going sequentially through the code in a structured manner

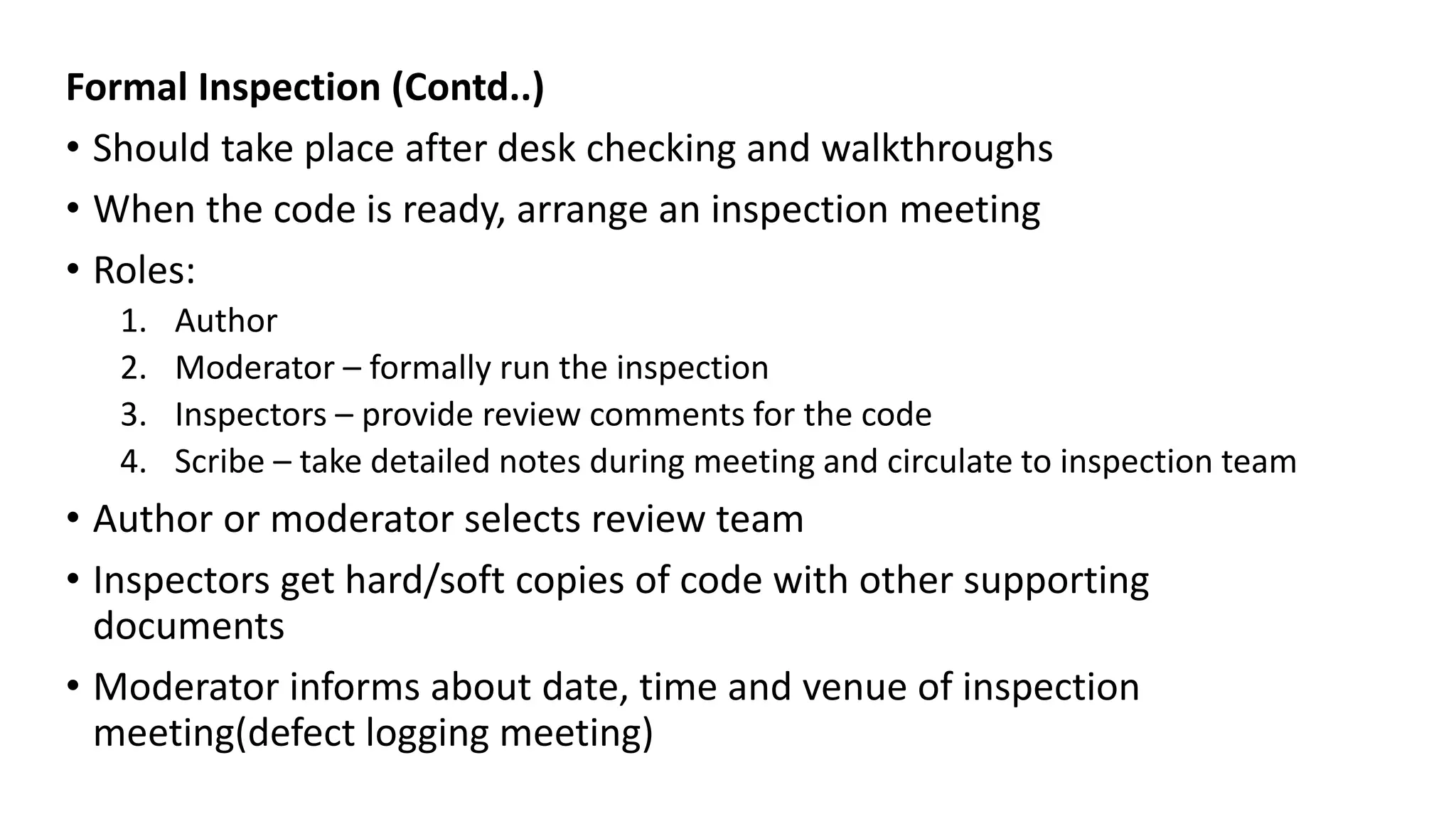

10. Formal Inspection (Contd..)
• Should take place after desk checking and walkthroughs
• When the code is ready, arrange an inspection meeting
• Roles:
1. Author
2. Moderator – formally run the inspection
3. Inspectors – provide review comments for the code
4. Scribe – take detailed notes during meeting and circulate to inspection team
• Author or moderator selects review team
• Inspectors get hard/soft copies of code with other supporting
documents
• Moderator informs about date, time and venue of inspection
meeting(defect logging meeting)

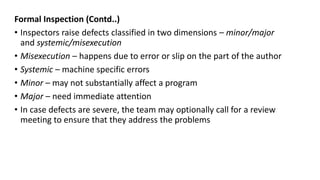

11. Formal Inspection (Contd..)
• Inspectors raise defects classified in two dimensions – minor/major
and systemic/misexecution
• Misexecution – happens due to error or slip on the part of the author
• Systemic – machine specific errors
• Minor – may not substantially affect a program
• Major – need immediate attention
• In case defects are severe, the team may optionally call for a review
meeting to ensure that they address the problems

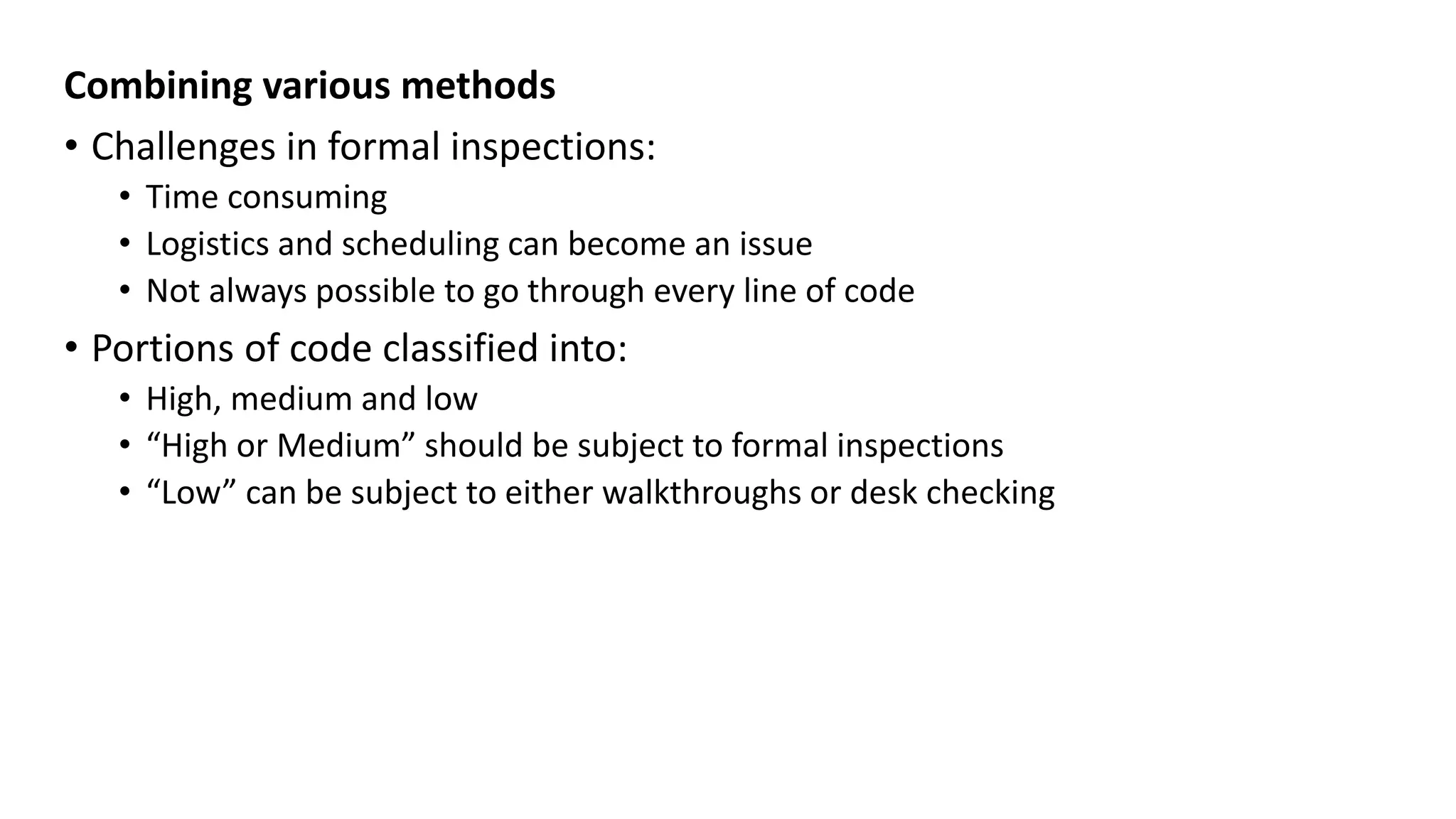

12. Combining various methods
• Challenges in formal inspections:
• Time consuming
• Logistics and scheduling can become an issue
• Not always possible to go through every line of code
• Portions of code classified into:
• High, medium and low
• “High or Medium” should be subject to formal inspections
• “Low” can be subject to either walkthroughs or desk checking

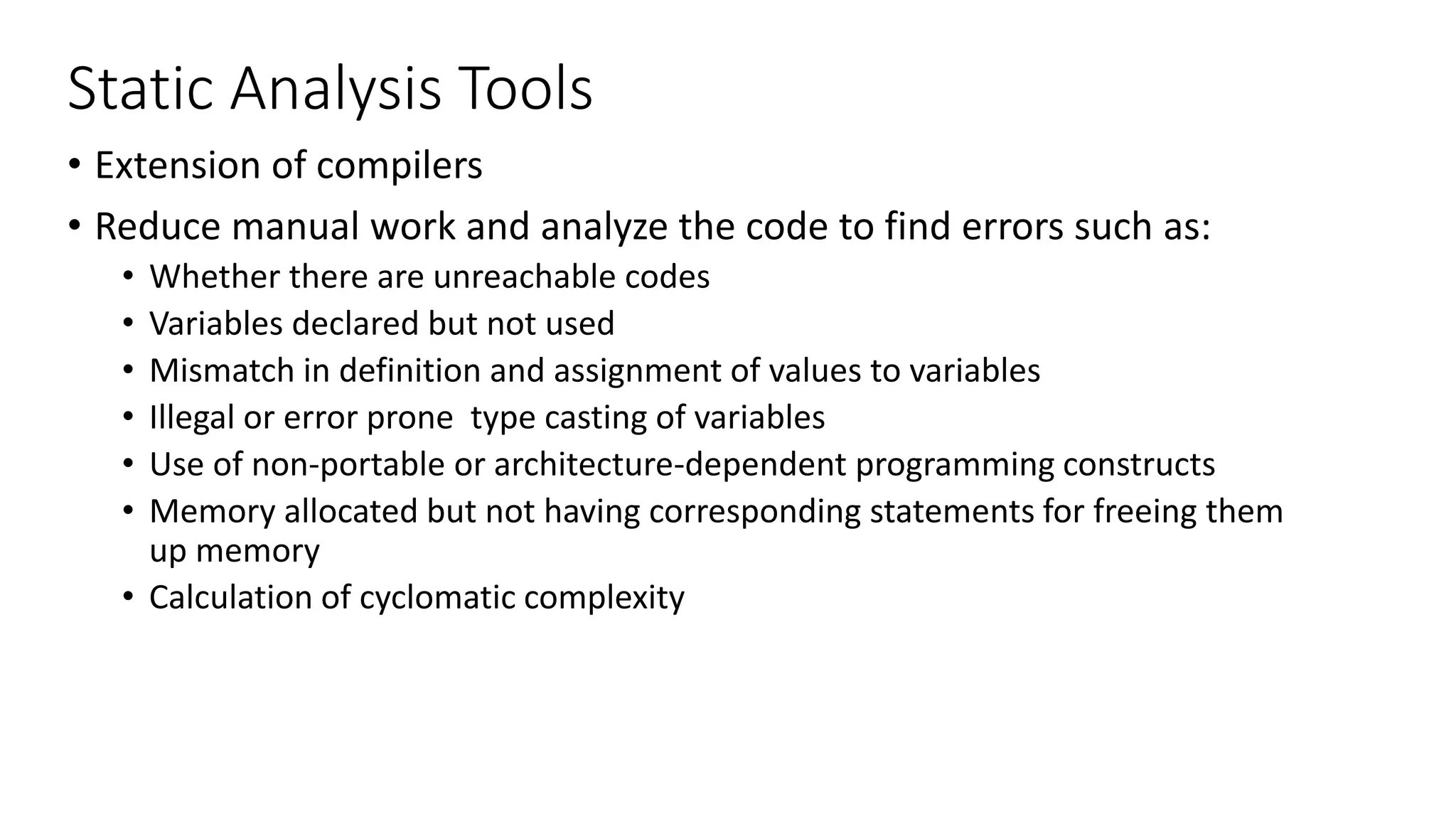

13. Static Analysis Tools
• Extension of compilers
• Reduce manual work and analyze the code to find errors such as:
• Whether there are unreachable codes
• Variables declared but not used
• Mismatch in definition and assignment of values to variables
• Illegal or error prone type casting of variables
• Use of non-portable or architecture-dependent programming constructs
• Memory allocated but not having corresponding statements for freeing them
up memory
• Calculation of cyclomatic complexity

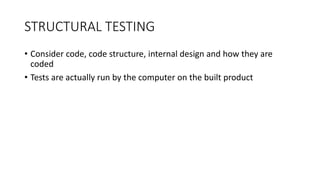

14. STRUCTURAL TESTING
• Consider code, code structure, internal design and how they are
coded
• Tests are actually run by the computer on the built product

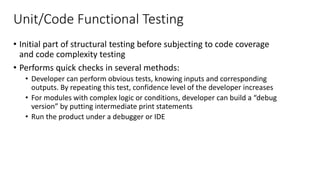

15. Unit/Code Functional Testing
• Initial part of structural testing before subjecting to code coverage
and code complexity testing
• Performs quick checks in several methods:
• Developer can perform obvious tests, knowing inputs and corresponding
outputs. By repeating this test, confidence level of the developer increases
• For modules with complex logic or conditions, developer can build a “debug
version” by putting intermediate print statements
• Run the product under a debugger or IDE

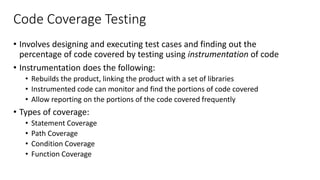

16. Code Coverage Testing
• Involves designing and executing test cases and finding out the
percentage of code covered by testing using instrumentation of code
• Instrumentation does the following:
• Rebuilds the product, linking the product with a set of libraries
• Instrumented code can monitor and find the portions of code covered
• Allow reporting on the portions of the code covered frequently
• Types of coverage:
• Statement Coverage
• Path Coverage
• Condition Coverage
• Function Coverage

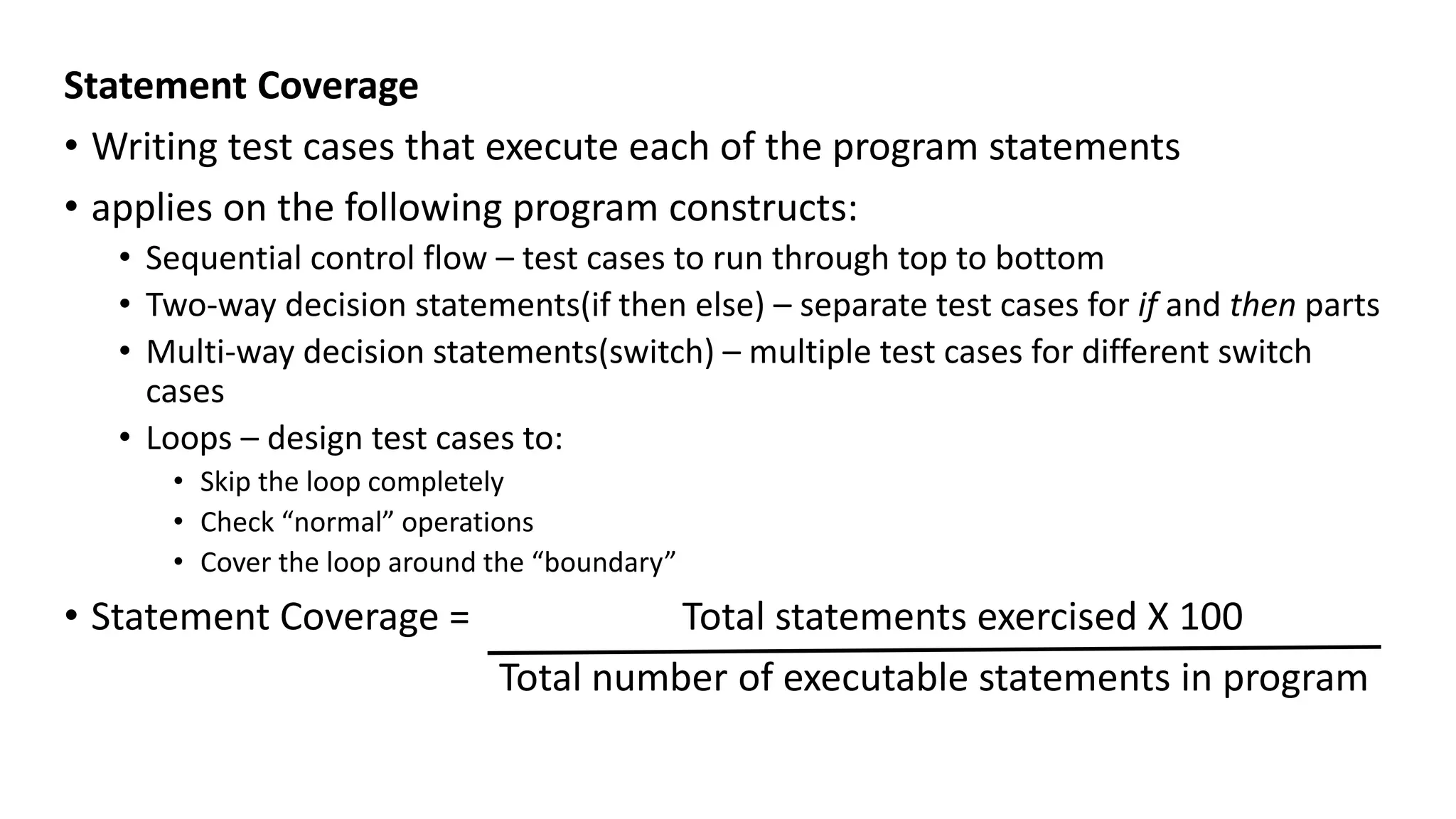

17. Statement Coverage
• Writing test cases that execute each of the program statements
• applies on the following program constructs:
• Sequential control flow – test cases to run through top to bottom
• Two-way decision statements(if then else) – separate test cases for if and then parts
• Multi-way decision statements(switch) – multiple test cases for different switch
cases
• Loops – design test cases to:
• Skip the loop completely
• Check “normal” operations
• Cover the loop around the “boundary”
• Statement Coverage = Total statements exercised X 100
Total number of executable statements in program

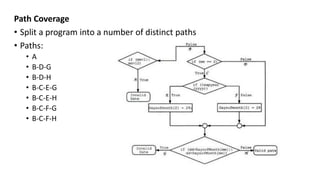

18. Path Coverage
• Split a program into a number of distinct paths
• Paths:
• A
• B-D-G
• B-D-H
• B-C-E-G
• B-C-E-H
• B-C-F-G
• B-C-F-H

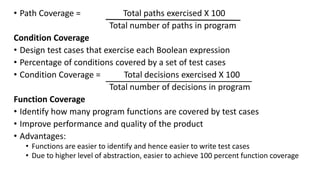

19. • Path Coverage = Total paths exercised X 100
Total number of paths in program
Condition Coverage
• Design test cases that exercise each Boolean expression
• Percentage of conditions covered by a set of test cases
• Condition Coverage = Total decisions exercised X 100
Total number of decisions in program
Function Coverage
• Identify how many program functions are covered by test cases
• Improve performance and quality of the product
• Advantages:
• Functions are easier to identify and hence easier to write test cases
• Due to higher level of abstraction, easier to achieve 100 percent function coverage

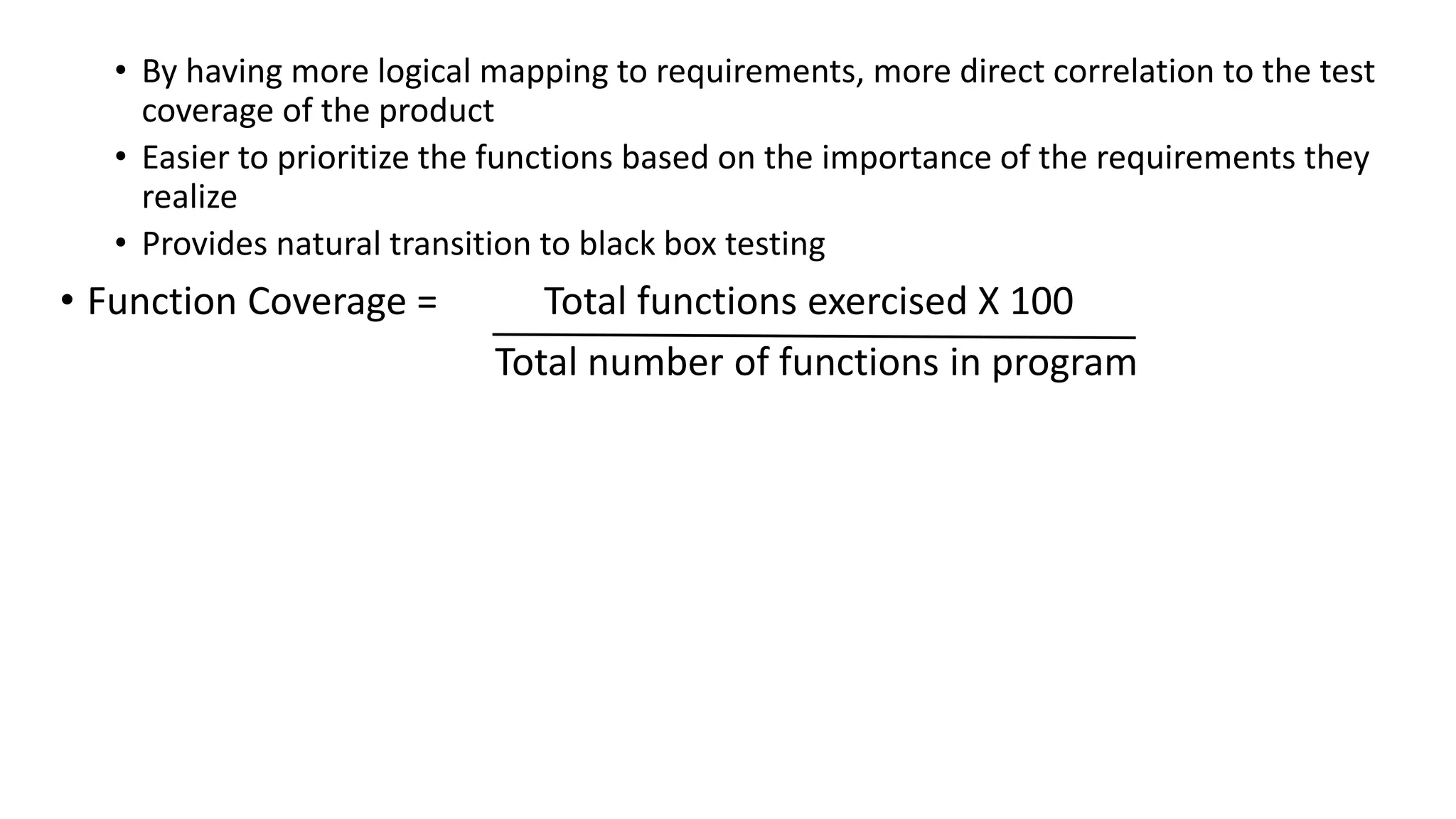

20. • By having more logical mapping to requirements, more direct correlation to the test
coverage of the product
• Easier to prioritize the functions based on the importance of the requirements they
realize
• Provides natural transition to black box testing
• Function Coverage = Total functions exercised X 100
Total number of functions in program

21. Code Complexity Testing
• Cyclomatic Complexity – metric that quantifies the complexity of a program
• Identify independent paths
• Find out the upper bound on number of tests that cover all the statements
• Represent a program as a flow graph consisting of nodes and edges as
follows:
• Identify the predicates or decision points
• Make the predicates simple

22. • Combine all sequential statements to single node
• When sequential statements are followed by a simple predicate, create a predicate
node by combining them
• Add a node to represent all sequential statements at the end of the program

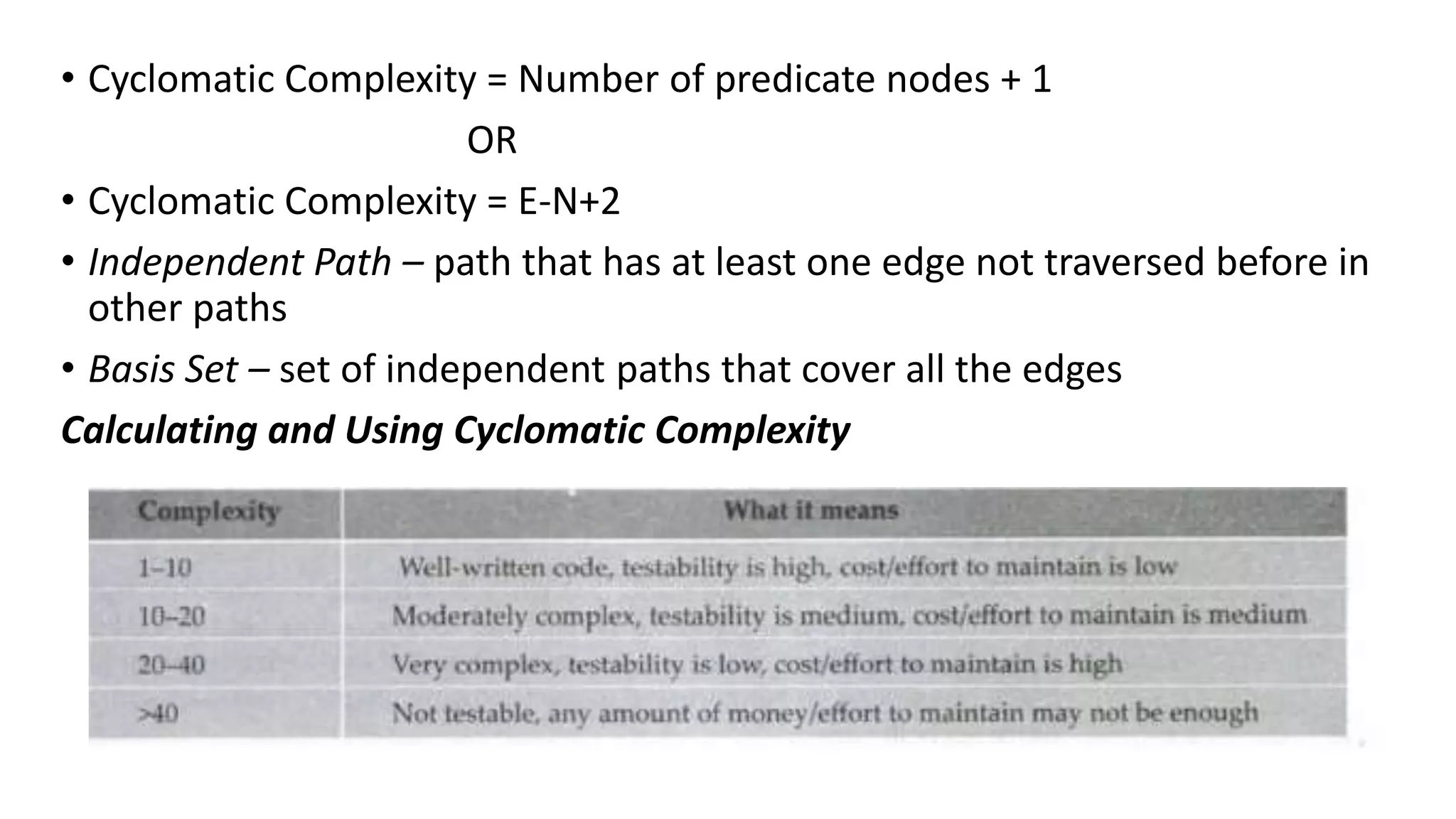

23. • Cyclomatic Complexity = Number of predicate nodes + 1
OR
• Cyclomatic Complexity = E-N+2
• Independent Path – path that has at least one edge not traversed before in
other paths
• Basis Set – set of independent paths that cover all the edges
Calculating and Using Cyclomatic Complexity

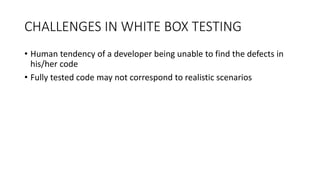

24. CHALLENGES IN WHITE BOX TESTING
• Human tendency of a developer being unable to find the defects in
his/her code
• Fully tested code may not correspond to realistic scenarios
