This document discusses the area of parallelograms. It defines key terms like base and height of a parallelogram. The height must be perpendicular to the base. It then shows that the area of a parallelogram can be calculated as the product of its base and height, using the formula A=bh. Some examples demonstrate finding the area, base, or height of parallelograms when given values of two of these three measures.

1. Area of Parallelograms

2. Goal
To show that the area of parallelograms is
the product of base and height

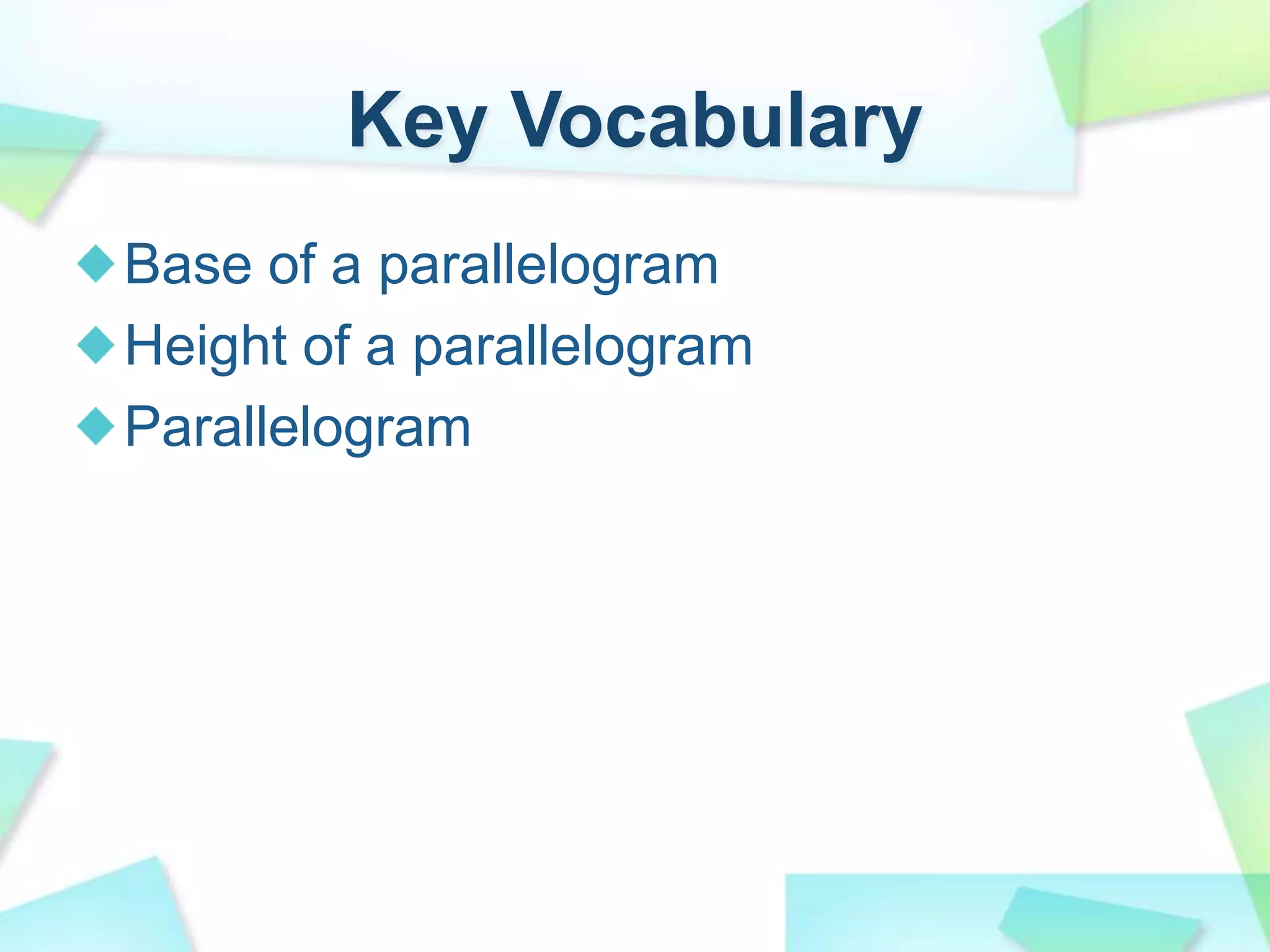

3. Key Vocabulary
Base of a parallelogram
Height of a parallelogram
Parallelogram

4. Parallelogram
A parallelogram is a quadrilateral where
the opposite sides are equal and
parallel.
A rectangle is a type of parallelogra.

5. The Base of a Parallelogram
Either pair of parallel sides of a parallelogram
are called the bases of the parallelogram.
base
base

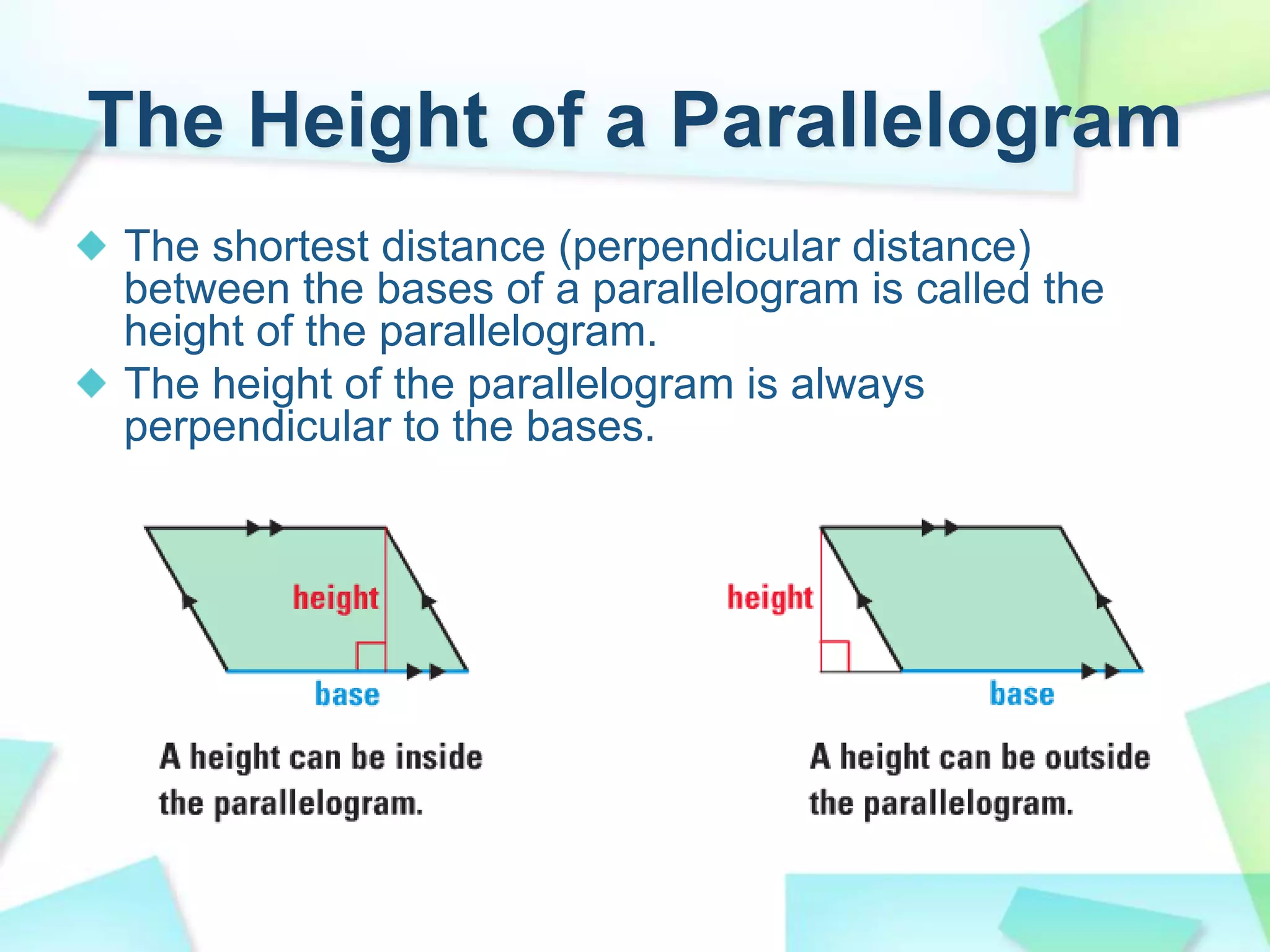

6. The Height of a Parallelogram
The shortest distance (perpendicular distance)
between the bases of a parallelogram is called the
height of the parallelogram.
The height of the parallelogram is always
perpendicular to the bases.

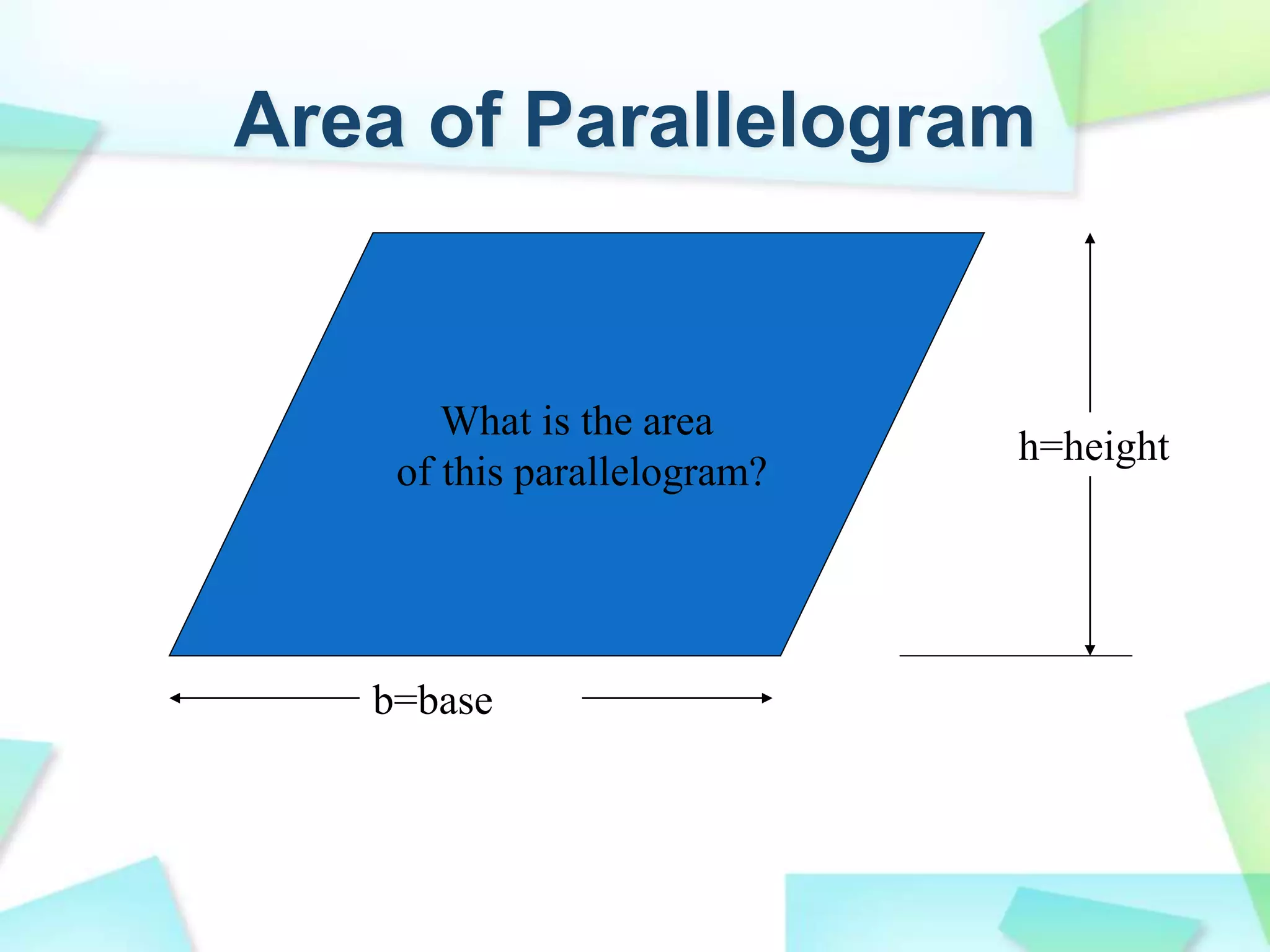

7. What is the area
of this parallelogram?
b=base
h=height
Area of Parallelogram

8. What is the area
of this parallelogram?
CUT HERE!
b=base
h=height
Area of Parallelogram

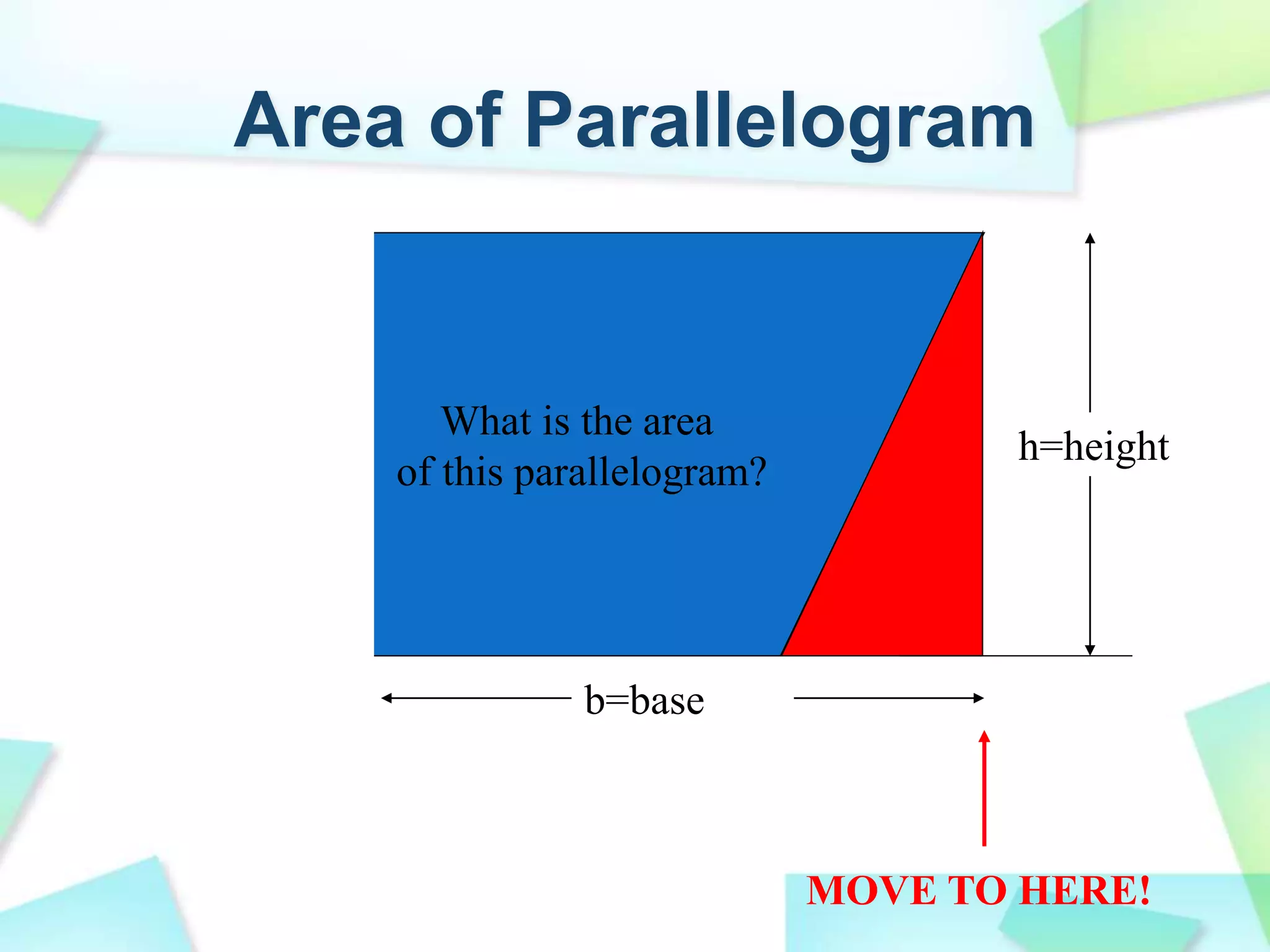

9. What is the area
of this parallelogram?
MOVE TO HERE!
b=base
h=height
Area of Parallelogram

10. It’s the same as
the area of this rectangle
h=height
b=base
Area of Parallelogram

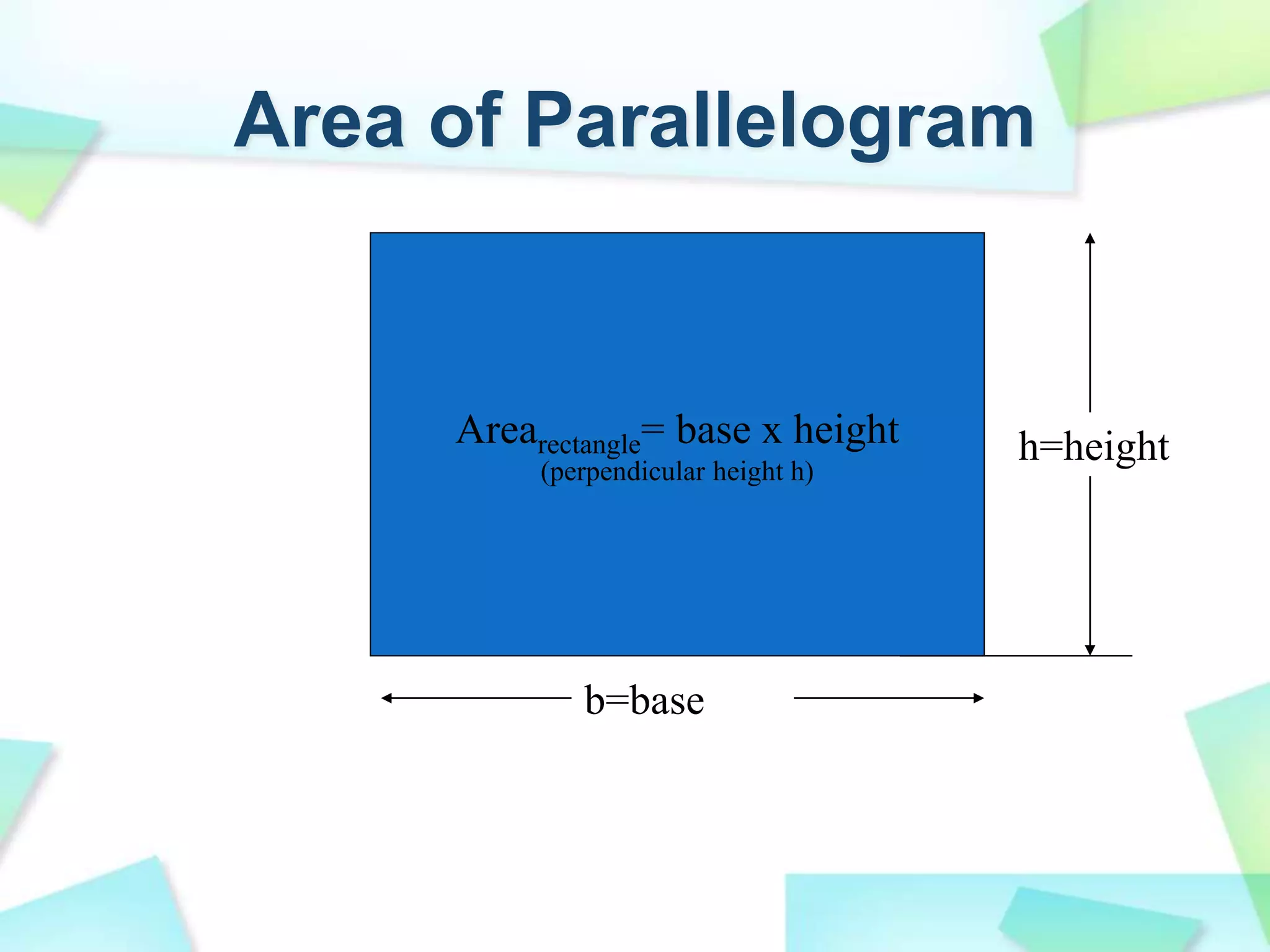

11. Arearectangle= base x height
(perpendicular height h)
h=height
b=base
Area of Parallelogram

12. Areaparallelogram = base x height
(perpendicular height h)
b=base
h=height
Area of Parallelogram

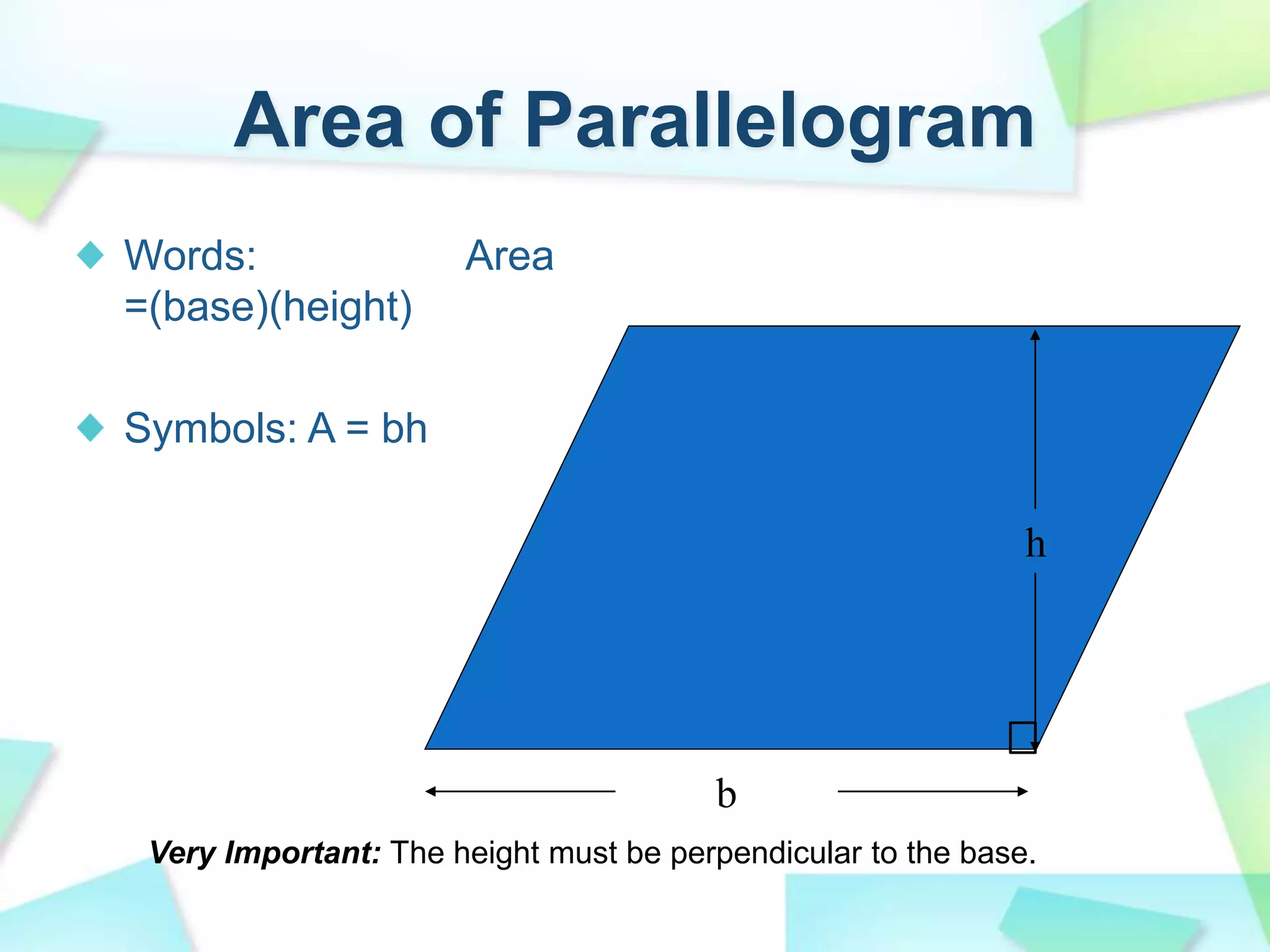

13. b
h
Area of Parallelogram
Words: Area
=(base)(height)
Symbols: A = bh
Very Important: The height must be perpendicular to the base.

14. Find the Area of a ParallelogramExample 1
Find the area of the parallelogram.
SOLUTION
Use the formula for the area of a parallelogram.
Substitute 9 for b and 6 for h.
A = bh Formula for the area of a parallelogram
= (9)(6) Substitute 9 for b and 6 for h.
= 54 Multiply.
The parallelogram has an area of 54
square meters.
ANSWER

15. Find the Height of a ParallelogramExample 2
Find the height of the parallelogram
given that its area is 78 square
meter.
SOLUTION
A = bh Formula for the area of a parallelogram
78 = 12h Substitute 78 for A and 12 for b.
6.5 = h Divide each side by 12.
The parallelogram has a height of 6.5 m.ANSWER

16. Find the area of the parallelogram.
1.
ANSWER 77 mm2
ANSWER 196 m2

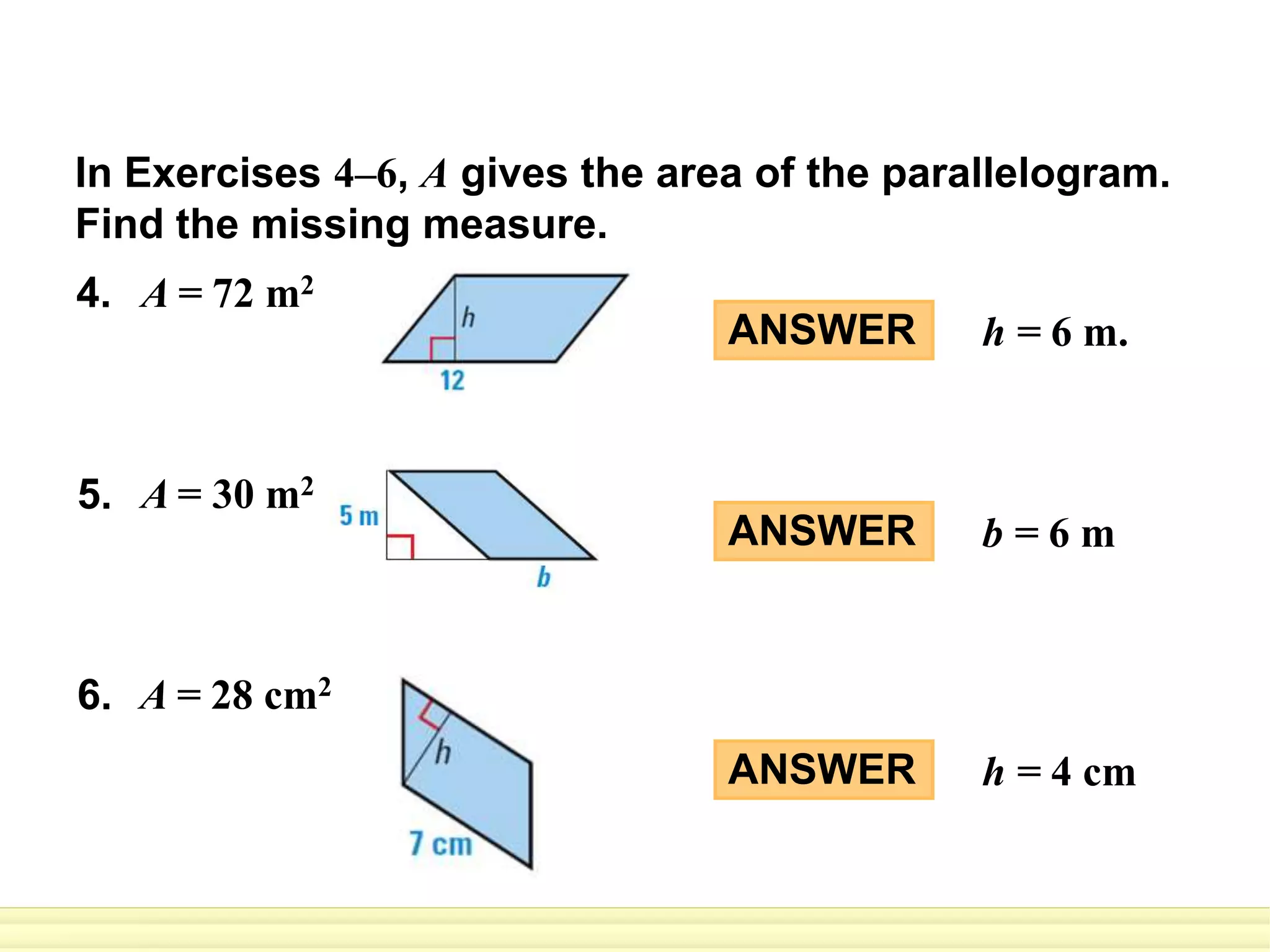

17. In Exercises 4–6, A gives the area of the parallelogram.
Find the missing measure.
ANSWER h = 6 m.
ANSWER b = 6 m
ANSWER h = 4 cm
4. A = 72 m2
5. A = 30 m2
6. A = 28 cm2

18. THANK YOU
