This document discusses how to calculate the area of a parallelogram. It defines key terms like base and height of a parallelogram. The height must be perpendicular to the base. It then demonstrates that the area of a parallelogram can be calculated using the formula A = bh, where A is the area, b is the base, and h is the height. A couple examples are shown of using the formula to find the area or height of parallelograms when given certain measurements.

1. Area of Parallelograms

2. Goal
Find the area of parallelograms.

3. Key Vocabulary
Base of a parallelogram
Height of a parallelogram
Parallelogram
Rhombus

4. Parallelogram
A parallelogram is a quadrilateral where
the opposite sides are congruent and
parallel.
A rectangle is a type of parallelogram, but
we often see parallelograms that are not
rectangles (parallelograms without right
angles).

5. The Base of a Parallelogram
Either pair of parallel sides of a parallelogram
are called the bases of the parallelogram.
base
base

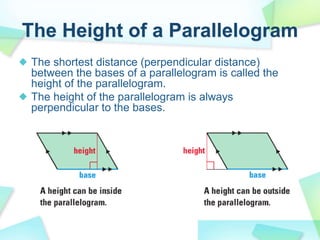

6. The Height of a Parallelogram
The shortest distance (perpendicular distance)
between the bases of a parallelogram is called the
height of the parallelogram.
The height of the parallelogram is always
perpendicular to the bases.

7. What is the area
of this parallelogram?
b=base
h=height
Area of Parallelogram

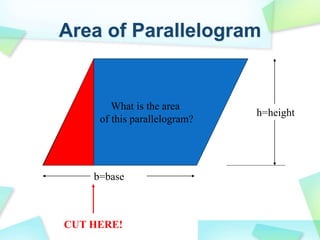

8. What is the area
of this parallelogram?
CUT HERE!
b=base
h=height
Area of Parallelogram

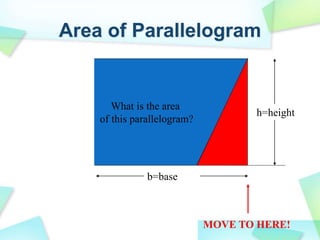

9. What is the area
of this parallelogram?
MOVE TO HERE!
b=base
h=height
Area of Parallelogram

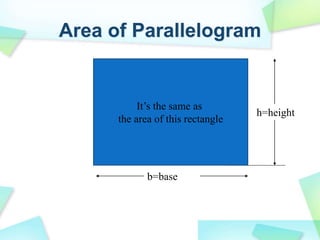

10. It’s the same as
the area of this rectangle
h=height
b=base
Area of Parallelogram

11. Arearectangle= base x height
(perpendicular height h)
h=height
b=base
Area of Parallelogram

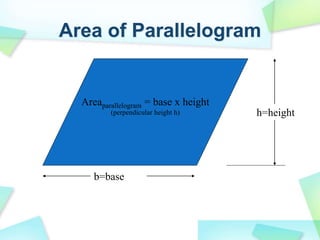

12. Areaparallelogram = base x height
(perpendicular height h)
b=base
h=height
Area of Parallelogram

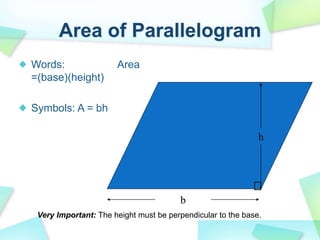

13. b
h
Area of Parallelogram
Words: Area
=(base)(height)
Symbols: A = bh
Very Important: The height must be perpendicular to the base.

14. Find the Area of a ParallelogramExample 1
Find the area of the parallelogram.
SOLUTION
Use the formula for the area of a parallelogram.
Substitute 9 for b and 6 for h.
A = bh Formula for the area of a parallelogram
= (9)(6) Substitute 9 for b and 6 for h.
= 54 Multiply.
The parallelogram has an area of 54
square meters.
ANSWER

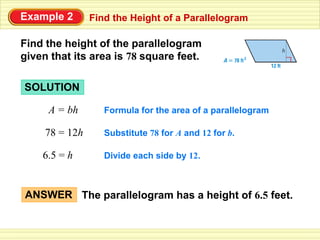

15. Find the Height of a ParallelogramExample 2
Find the height of the parallelogram
given that its area is 78 square feet.
SOLUTION
A = bh Formula for the area of a parallelogram
78 = 12h Substitute 78 for A and 12 for b.
6.5 = h Divide each side by 12.
The parallelogram has a height of 6.5 feet.ANSWER

16. Your Turn:
Find the area of the parallelogram.
3.
2.
1.
ANSWER 96 yd2
ANSWER 77 mm2
ANSWER 196 ft2
