Cisco Switching V1.1

Driving the Next Generation
Workspace
Stephen J Kirk


stekirk@cisco.com




© 2011 Cisco and/or its affiliates. All rights reserved.                                                         1
                                                           All specifications subject to change without notice
Cisco Confidential –Under NDA Only – DO NOT Distribute

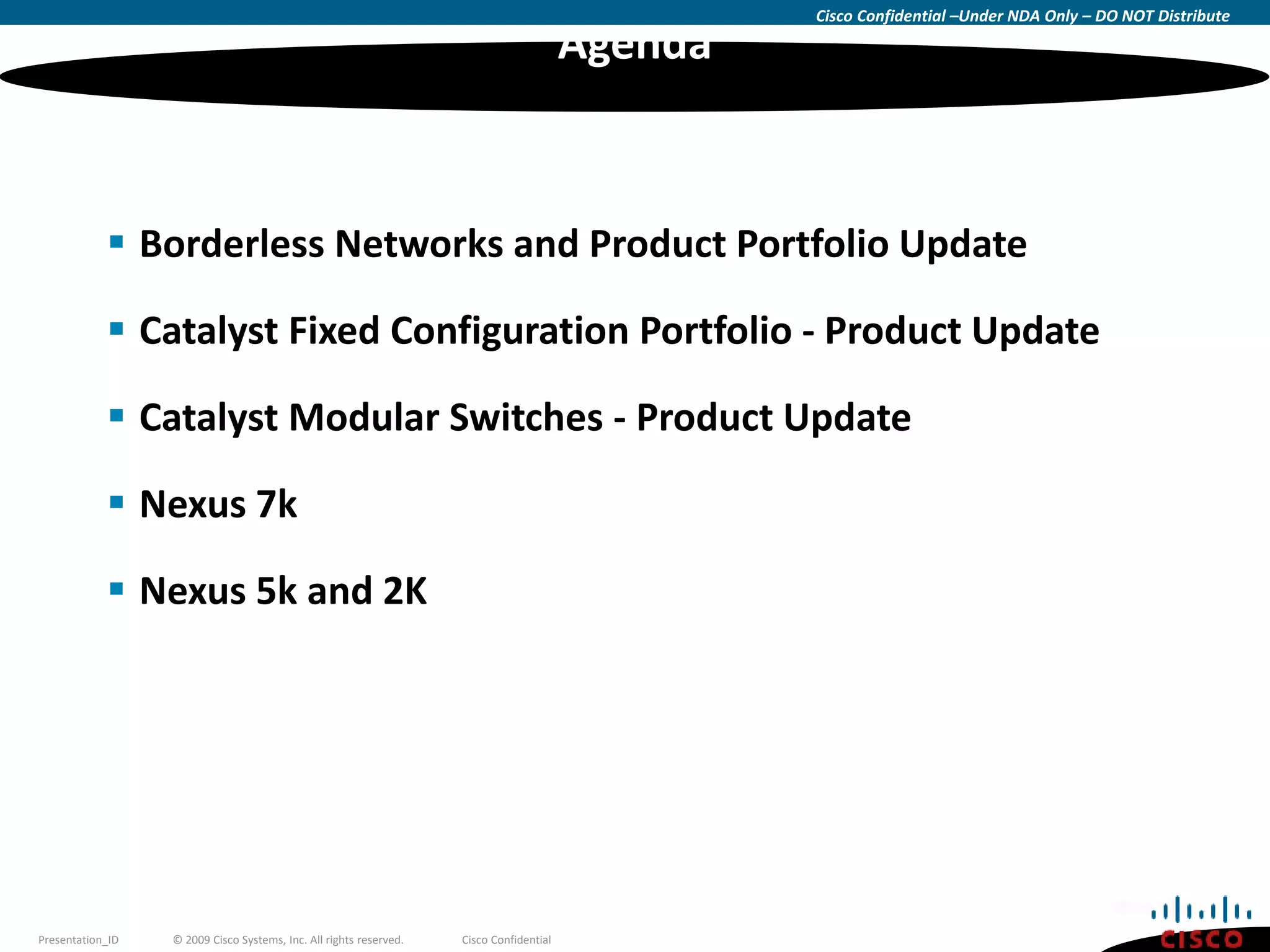

                                                                                         Agenda



             Borderless Networks and Product Portfolio Update

             Catalyst Fixed Configuration Portfolio - Product Update

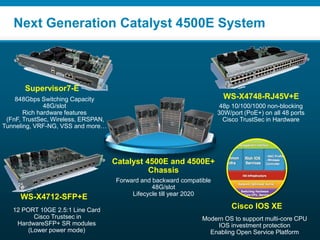

             Catalyst Modular Switches - Product Update

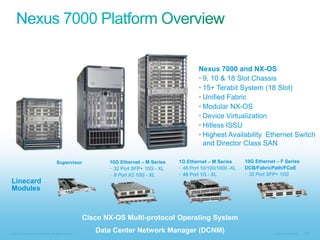

             Nexus 7k

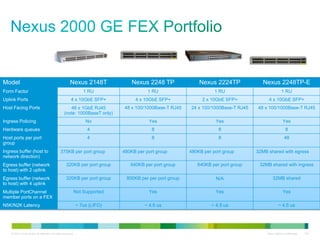

             Nexus 5k and 2K




Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                2

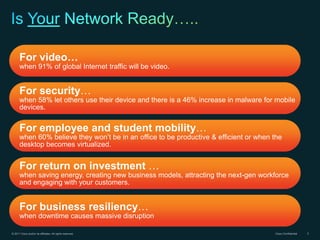

For video…
       when 91% of global Internet traffic will be video.


       For security…
       when 58% let others use their device and there is a 46% increase in malware for mobile
       devices.


       For employee and student mobility…
       when 60% believe they won’t be in an office to be productive & efficient or when the
       desktop becomes virtualized.


       For return on investment …
       when saving energy, creating new business models, attracting the next-gen workforce
       and engaging with your customers.


       For business resiliency…
       when downtime causes massive disruption

© 2011 Cisco and/or its affiliates. All rights reserved.                                Cisco Confidential   3

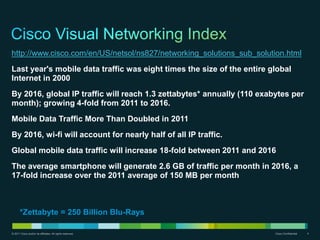

http://www.cisco.com/en/US/netsol/ns827/networking_solutions_sub_solution.html
Last year's mobile data traffic was eight times the size of the entire global
Internet in 2000
By 2016, global IP traffic will reach 1.3 zettabytes* annually (110 exabytes per
month); growing 4-fold from 2011 to 2016.
Mobile Data Traffic More Than Doubled in 2011
By 2016, wi-fi will account for nearly half of all IP traffic.
Global mobile data traffic will increase 18-fold between 2011 and 2016
The average smartphone will generate 2.6 GB of traffic per month in 2016, a
17-fold increase over the 2011 average of 150 MB per month



       *Zettabyte = 250 Billion Blu-Rays

© 2011 Cisco and/or its affiliates. All rights reserved.                Cisco Confidential   4

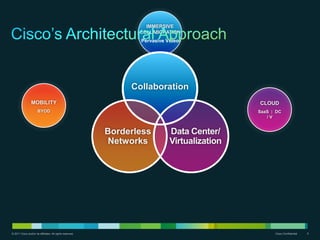

IMMERSIVE
                                                                  COLLABORATION
                                                                  Pervasive Video




                                                                Collaboration
                 MOBILITY                                                                     CLOUD
                       BYOD                                                                   SaaS | DC
                                                                                                 /V


                                                           Borderless        Data Center/
                                                           Networks          Virtualization




© 2011 Cisco and/or its affiliates. All rights reserved.                                            Cisco Confidential   5

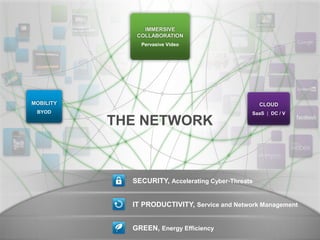

IMMERSIVE
                                                              COLLABORATION
                                                               Pervasive Video




                 MOBILITY                                                                           CLOUD
                      BYOD                                                                      SaaS | DC / V

                                                           THE NETWORK



                                                             SECURITY, Accelerating Cyber-Threats


                                                             IT PRODUCTIVITY, Service and Network Management


                                                             GREEN, Energy Efficiency
© 2010 Cisco and/or its affiliates. All rights reserved.                                                 Cisco Confidential   6

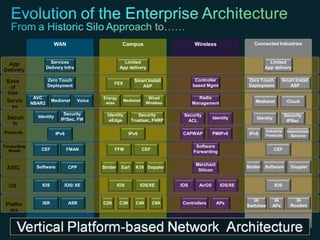

WAN                                      Campus                         Wireless                  Connected Industries


                                    Services                                       Limited                                                        Limited
                                  Delivery Infra                                 App delivery                                                   App delivery

                                   Zero Touch                                            Smart Install            Controller             Zero Touch         Smart Install
                                                                            FEX                                  based Mgmt
                                   Deployment                                               ASP                                          Deployment            ASP

                    AVC                                               Energy                     Wired             Radio
                                      Medianet                Voice               Medianet                                                 Medianet             Cloud
                   NBAR2                                               wise                     Wireless         Management

                                                Security                Identity           Security         Security                                          Security
                          Identity                                                                                         Identity         Identity
                                               IP/Sec, FW                eEdge          Trustsec, FHRP        ACL                                              IPSec

Protocols                                                                                                                                       Industrial      Deterministic
                                          IPv6                                         IPv6                 CAPWAP         PMIPv6        IPv6   Protocols         Behavior


Forwarding                                                                                                        Software
  Model                       CEF                   FMAN                    FFM               CEF                                                      CEF
                                                                                                                 Forwarding

                                                                                                                  Merchant
                         Software                    CPP              Strider    Earl     K10 Doppler                                   Strider Software           Doppler
                                                                                                                   Silicon


                              IOS                 IOS/ XE                       IOS           IOS/XE       IOS     AirOS       IOS/XE                  IOS


                                                                                                                                           IA       IA               IA
                              ISR                     ASR             C2K        C3K      C4K       C6K    Controllers       APs
                                                                                                                                        Switches   APs             Routers




   © 2011 Cisco and/or its affiliates. All rights reserved.                                                                                            Cisco Confidential    7
WAN                    Campus                    Wireless         Connected
                            Services, Cloud                   NGWC, Ease of              Mobility, BYOD,    Industries
                             Connectivity                        Use                       SP Wi-Fi         Transition to
                                                                                                             Ethernet/IP
                                                                                                             Everything
                                                             Common Management & Policy                      Connected
                                                                   Virtualized Services Delivery Infra
                                                                                  FEX
                                                                         Simplified Deployment
                                                                            API (OnePK)
                                                                 Software Defined Services
                                                                                  Mobility
                                                                   Application Visibility & Optimization
                                                                           Cloud Connectivity
                                                                                 Medianet
                                                                                Energywise
Protoc                                                                Identity, Trustsec, FW, FHRP
 ols
                                                             IPv6, PMIPv6, CAPWAP, Deterministic Behavior
                                                                                  API
Forwardi
   ng                                                                    Platform Level
 Model                                                                Common Forwarding Model
                                                                     Doppler, Multicore CPU (CPP)
                                                                            IOS and IOS/XE
  © 2011 Cisco and/or its affiliates. All rights reserved.                                                      Cisco Confidential   8

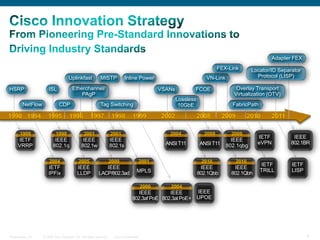

Adapter FEX
                                                                                                                              FEX-Link         Locator/ID Separator
                                    Uplinkfast             MISTP             Inline Power                               VN-Link                  Protocol (LISP)

HSRP                  ISL              Etherchannel/                                              VSANs          FCOE                 Overlay Transport
                                           PAgP                                                                                      Virtualization (OTV)
                                                                                                          Lossless
        NetFlow              CDP                           Tag Switching                                   10GbE                    FabricPath

1990 1994            1995           1996            1997             1998          1999           2002               2008       2009          2010      2011

      1999                 1999                2001                 2001                             2004              2009         2009
                                                                                                                                                 IETF           IEEE
     IETF                 IEEE                IEEE                  IEEE                                                            IEEE
                                                                                                    ANSI T11         ANSI T11                    eVPN          802.1BR
     VRRP                802.1q              802.1w                 802.1s                                                        802.1qbg

                      2004                 2005                     2000               2001                           2010             2010
                                                                                                                                                  IETF         IETF
                     IETF                 IEEE               IEEE                                                     IEEE          IEEE
                                                                                      MPLS                                                        TRILL        LISP
                     IPFix                LLDP            LACP/802.3ad                                               802.1Qbb      802.1Qbh

                                                                                           2000       2004
                                                                                      IEEE        IEEE               IEEE
                                                                                   802.3af PoE 802.3at PoE+          UPOE




Presentation_ID   © 2008 Cisco Systems, Inc. All rights reserved.     Cisco Confidential                                                                              9
Cisco Technology Puts You on the Fast Track to Business
Innovation


                                                                       • Technology Advantage
                                                                                         On average, Cisco silicon delivers advanced innovations into
                                                                                          customer networks 24-36 months before merchant silicon

                                                                                                 • Technology Benefits
                                                                                    Superior network security, application visibility, and performance
                                                                                                   Increased network and service reliability
                                                                                          Technology features today to support urgent IT initiatives
  MACsec – only vendor shipping first hop
  encryption
                                                                       • Business Advantage
  IPv6 – superior address matching
  capabilities for IPv6 security and control                                               Accelerate business transition to new business models
  requirements                                                                             (VDI/VXI, hybrid/cloud, borderless extended enterprise)
  Flexible Netflow (v9) - only vendor                                                           Maximize ROI within the technology lifecycle
  shipping in switching hardware - deep
  application visibility and logging

  PoE+, NG PoE+ - only vendor shipping
  high-power PoE – supporting next
  generation devices and business models



Presentation_ID   © 2008 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                 10
Enabled with ISE
                                                              ISE                                 Unified Policy


                                                                                             Define network policy as an
                                                                                             extension of business goals
                                                                     Product
                                                                    Bookings
                                     Corporate                                 Customer
                                   issued laptop                                 Data

                                                               X                              Policy extends to all access
          Finance
          Manager
                                                                    SalesForce               types (wired, wireless, VPN)
                                                                       .com


                                     Personal iPad
                                                                                             Lifecycle Services Integration –
                                                                                             guest, profiling, posture


                                                                                             Encryption-based Policies
                                                                                             for Security-conscious users

                                                           Policy-based Access Enables “Business Policy”
© 2010 Cisco and/or its affiliates. All rights reserved.                                                           Cisco Confidential   11

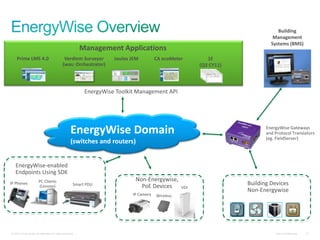

Building
                                                                                                                                Management
                                                                                                                               Systems (BMS)
                                                           Management Applications
    Prime LMS 4.0                              Verdiem Surveyor       Joulex JEM         CA ecoMeter         1E
                                              (was: Orchestrator)                                         (Q3 CY11)




                                                            EnergyWise Toolkit Management API




                                                     EnergyWise Domain                                                       EnergyWise Gateways
                                                                                                                             and Protocol Translators
                                                                                                                             (eg. FieldServer)
                                                     (switches and routers)


   EnergyWise-enabled
   Endpoints Using SDK
                        PC Clients                                            Non-Energywise,
IP Phones
                        (Lenovo)                       Smart PDU                PoE Devices                           Building Devices
                                                                                                    VDI
                                                                                                                      Non-Energywise
                                                                             IP Camera   Wireless




© 2010 Cisco and/or its affiliates. All rights reserved.                                                                         Cisco Confidential   12

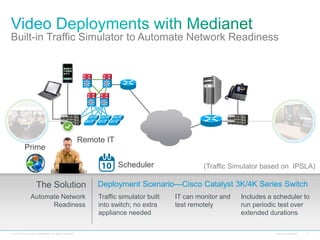

Built-in Traffic Simulator to Automate Network Readiness



                                                             Si              Si




                                                                  Si    Si




                                                           Remote IT
           Prime

                                                                                  Scheduler               (Traffic Simulator based on IPSLA)

                      The Solution                                     Deployment Scenario—Cisco Catalyst 3K/4K Series Switch
                 Automate Network                                      Traffic simulator built   IT can monitor and   Includes a scheduler to
                       Readiness                                       into switch; no extra     test remotely        run periodic test over
                                                                       appliance needed                               extended durations

© 2010 Cisco and/or its affiliates. All rights reserved.                                                                         Cisco Confidential   13

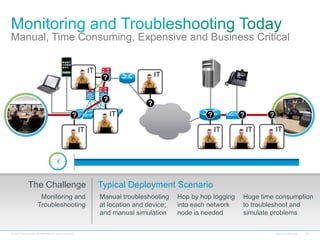

Manual, Time Consuming, Expensive and Business Critical


                                                                     IT
                                                                Si
                                                                            ?   Si            IT

                                                                     Si    Si

                                                                            ?
                                                                                          ?
                                                      ?                              IT                      ?           ?        ?

                                                           IT                                                    IT          IT       IT




              The Challenge                                               Typical Deployment Scenario
                        Monitoring and                                    Manual troubleshooting    Hop by hop logging   Huge time consumption
                       Troubleshooting                                    at location and device;   into each network    to troubleshoot and
                                                                          and manual simulation     node is needed       simulate problems

© 2010 Cisco and/or its affiliates. All rights reserved.                                                                              Cisco Confidential   14
IPv6 Deployment

          IPv4 Address Run-Out                                                                                  National IPv6 Strategies

                                                                                                                US DoD, China NGI, EU




                                                                                             IPv6
              IPv6 OS, Content &                                                                                Infrastructure Evolution
                 Applications
                                                                                                                 SmartGrid, SmartCities
                                                                                                                DOCSIS 3.0, 4G/LTE ,IPSO




                                              www.oecd.org: Measuring IPv6 adoption
Presentation_ID
      C3RS        © 2008 Cisco Systems, Inc. All rights reserved.     Cisco Confidential
                  © 2008 Cisco Systems, Inc. All rights reserved. Cisco Highly Confidential—Controlled Access                           15

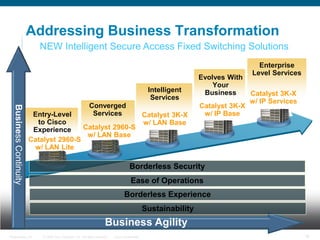

Addressing Business Transformation
                           NEW Intelligent Secure Access Fixed Switching Solutions
                                                                                                                                      Enterprise
                                                                                                                                    Level Services
                                                                                                                    Evolves With
                                                                                                                        Your
                                                                                                    Intelligent      Business       Catalyst 3K-X
                                                                                                     Services
                                                                                                                                    w/ IP Services
                                                             Converged                                              Catalyst 3K-X
  Business Continuity




                         Entry-Level                          Services
                                                        Catalyst 3K-X                                                w/ IP Base
                          to Cisco                      w/ LAN Base
                         Experience     Catalyst 2960-S
                                         w/ LAN Base
                        Catalyst 2960-S
                         w/ LAN Lite

                                                                                         Borderless Security
                                                                                          Ease of Operations
                                                                                     Borderless Experience
                                                                                                   Sustainability
                                                                        Business Agility
Presentation_ID             © 2008 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                     16
Cisco Confidential –Under NDA Only – DO NOT Distribute

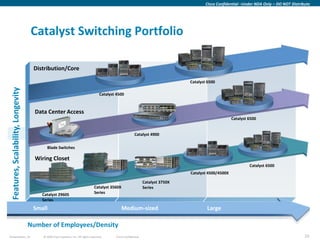

                                    Catalyst Switching Portfolio

                                     Distribution/Core

                                                                                                                                    Catalyst 6500
 Features, Scalability, Longevity




                                                                                     Catalyst 4500



                                      Data Center Access
                                                                                                                                                          Catalyst 6500


                                                                                                            Catalyst 4900

                                            Blade Switches

                                      Wiring Closet
                                                                                                                                                                   Catalyst 6500
                                                                                                                                    Catalyst 4500/4500X

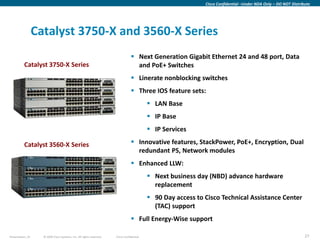

                                                                                                                   Catalyst 3750X
                                                                                 Catalyst 3560X                    Series
                                        Catalyst 2960S                           Series
                                        Series
                                     Small                                                        Medium-sized                              Large

                                    Number of Employees/Density
Presentation_ID                          © 2009 Cisco Systems, Inc. All rights reserved.      Cisco Confidential                                                                               23
Catalyst             Cisco           Industrial
                                                       Catalyst
Catalyst 4500E                                                             Catalyst 2960-S             Compact              Edge            Automati
                                                    3750-X 3560-X                                                           300*
                                                                                                       Switches                                on




                                                                                                   Great for secure, Open, Lower TCO, Purpose-Built for
    Industry-leading                                  Industry-leading   Competitive feature set     manageable         All-in-One Access for Industrial
    modular access                                     fixed switching    at compelling prices     ports ‘at the end of
                                                                                                                         Connected Rooms Applications
                                                                                                        the wire’



                                                                                                    Right Size       All-in-One         Ruggedized
               Innovative Services,                                      Solid Baseline              Without         Access For        for Industrial
                   Lower TCO                                               Switching               Compromise        Connected         Applications
                                                                                                                       Rooms



                                                                            Traditional
  Next-Generation Workspace                                                                                Outside the Wiring Closet
                                                                            Workspace


   Any Device                          HD Video                 VDI         Data       Voice          Oil and Gas      Retail       Manufacturing
© 2011 Cisco and/or its affiliates. All rights reserved.                                                                             Cisco Confidential   24
Cisco Confidential –Under NDA Only – DO NOT Distribute


                                  Catalyst Fixed Configuration Portfolio
                                              Product Update




Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      25
Stackable Switch Portfolio                                                        Stand-Alone Switch Portfolio




 Catalyst 3750 v2                                Catalyst 3750-X                     Catalyst 3560 v2   Catalyst 3560-X
 Data or PoE                                     Data / PoE(+)                       Data or PoE        Data / PoE(+)
 StackWise                                       StackWise Plus                      Fixed 1G Uplinks   Modular 1G/10G
 Fixed 1G Uplinks                                StackPower                          Single PS          Uplinks
 Single PS                                       Modular 1G/10G                      LLW                Dual PS
 LLW                                             Uplinks                                                E-LLW
                                                 Dual PS
                                                 E-LLW
          Fast Ethernet                           Gigabit Ethernet                     Fast Ethernet     Gigabit Ethernet


                 Network And Service Modules                                             Aggregation Switch
                                                                               NEW



                                                                                        WS-C3750X-12S-S WS-C3750X-24S-S
C3KS-NM-1G C3KS-NM-10G                                C3KS-NM-10GT   C3KS-SM-10G        WS-C3750X-12S-E WS-C3750X-24S-E

© 2011 Cisco and/or its affiliates. All rights reserved.                                                    Cisco Confidential   26
Cisco Confidential –Under NDA Only – DO NOT Distribute




                  Catalyst 3750-X and 3560-X Series
                                                                                  Next Generation Gigabit Ethernet 24 and 48 port, Data
          Catalyst 3750-X Series                                                   and PoE+ Switches
                                                                                  Linerate nonblocking switches
                                                                                  Three IOS feature sets:
                                                                                            LAN Base
                                                                                            IP Base
                                                                                            IP Services

          Catalyst 3560-X Series                                                  Innovative features, StackPower, PoE+, Encryption, Dual
                                                                                   redundant PS, Network modules
                                                                                  Enhanced LLW:
                                                                                            Next business day (NBD) advance hardware
                                                                                             replacement
                                                                                            90 Day access to Cisco Technical Assistance Center
                                                                                             (TAC) support
                                                                                  Full Energy-Wise support

Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                         27
Cisco Confidential –Under NDA Only – DO NOT Distribute

           Catalyst 3750-X & 3560-X
           Model comparison
                  IOS                  Model                     Stackable StackPower Full PoE PoE+              Description

                             WS-C3750X-24T-L    Yes                 -       -    24-port 10/100/1000, 350W AC, LAN Base
                                                       Available
                  LAN Base




                             WS-C3750X-48T-L    Yes                 -       -    48-port 10/100/1000, 350W AC, LAN Base
                                                         with
                             WS-C3750X-24P-L    Yes                Yes     Yes 24-port PoE+ 10/100/1000, 715W AC, LAN Base
                                                        upgrade
                             WS-C3750X-48P-L    Yes                 -      Yes 48-port PoE+ 10/100/1000, 715W AC, LAN Base
                                                       to IP Base
                             WS-C3750X-48PF-L   Yes                Yes     Yes 48-port PoE+ 10/100/1000, 1100W AC, LAN Base




                                                                                                                                                    Optional 10G / 1G Network Modules
                             WS-C3750X-24T-S    Yes        Yes      -       -    24-port 10/100/1000, 350W AC, IP Base
                             WS-C3750X-48T-S    Yes        Yes      -       -    48-port 10/100/1000, 350W AC, IP Base
                  IP Base




                             WS-C3750X-24P-S    Yes        Yes     Yes     Yes 24-port PoE+ 10/100/1000, 715W AC, IP Base
                             WS-C3750X-48P-S    Yes        Yes      -      Yes 48-port PoE+ 10/100/1000, 715W AC, IP Base
                             WS-C3750X-48PF-S   Yes        Yes     Yes     Yes 48-port PoE+ 10/100/1000, 1100W AC, IP Base
                             WS-C3560X-24T-L     -          -       -       -    24-port 10/100/1000, 350W AC, LAN Base
                  LAN Base




                             WS-C3560X-48T-L     -          -       -       -    48-port 10/100/1000, 350W AC, LAN Base
                             WS-C3560X-24P-L     -          -      Yes     Yes 24-port PoE+ 10/100/1000, 715W AC, LAN Base
                             WS-C3560X-48P-L     -          -       -      Yes 48-port PoE+ 10/100/1000, 715W AC, LAN Base
                             WS-C3560X-48PF-L    -          -      Yes     Yes 48-port PoE+ 10/100/1000, 1100W AC, LAN Base
                             WS-C3560X-24T-S     -          -       -       -    24-port 10/100/1000, 350W AC, IP Base
                             WS-C3560X-48T-S     -          -       -       -    48-port 10/100/1000, 350W AC, IP Base
                  IP Base




                             WS-C3560X-24P-S     -          -      Yes     Yes 24-port PoE+ 10/100/1000, 715W AC, IP Base
                             WS-C3560X-48P-S     -          -       -      Yes 48-port PoE+ 10/100/1000, 715W AC, IP Base
                             WS-C3560X-48PF-S    -          -      Yes     Yes 48-port PoE+ 10/100/1000, 1100W AC, IP Base
                                      IP Base Models can be upgraded to IP services feature set at the time of order
Presentation_ID              © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                                       29
• New Access/Distribution-Layer with 10G uplinks

• 3750-X and 3560-X with Network Modules
      3 out of 4 offering 10G
                                                           C3KX-NM-1G     Four GbE port network
                                                                          module
                                                           C3KX-NM-10G    Two 10GbE SFP+ ports
                                                                          network module with four
                                                                          physical ports with two
                                                                          SFP+ and two regular SFP
                                                                          ports

                                                           C3KX-NM-10GT   Two 10GB-T ports network
                                                                          module
                                                           C3KX-SM-10G    Service Module with
                                                                          two 10GbE SFP+ ports
                                                                          network module for Netflow
• Need-1: Cost efficient 10G Distribution/Core                            and MACsec encryption


• Need-2: Fiber and Copper 10G offering

© 2011 Cisco and/or its affiliates. All rights reserved.                                Cisco Confidential   31
Cisco Confidential –Under NDA Only – DO NOT Distribute


    Catalyst 3750-X and 3560-X Series
    Dual Redundant Power supplies & fans
   The switch ships with one power supply by
    default
   The second power supply can be purchased
    at the time of ordering or at a later time
   Dual, redundant, high efficiency PS
                                                                                                          Four PS options
   Redundant fan modules                                                                                         1100W AC
   DC Power Supply also delivers 175W of PoE                                                                     715W AC
   AC and DC Power Supplies can be mixed and                                                                     350W AC
    matched                                                                                                       440W DC



                       Models                                            Default Power Supply   Available PoE Power

                       24 Port Data Switch                               C3KX-PWR-350WAC        –
                       48 Port Data Switch
                       24 Port PoE Switch                                C3KX-PWR-715WAC        370W
                       48 Port PoE Switch
                       48 Port Full PoE Switch                           C3KX-PWR-1100WAC       740W
Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                 32
Cisco Confidential –Under NDA Only – DO NOT Distribute



      Catalyst 3750-X and 3560-X Series
      PoE+ Support

         Support for both 802.3af and the new standard 802.3at
                         30W per port VS. 15.4W per port
         Ability to provide 30W per port on all 48-ports simultaneously
                         Requirement for 30W in all ports simultaneously is 1440W for a 48-port switch and
                          720W for a 24-port switch
         PoE is also supported with the DC power supply (175W of PoE)
         Ability to assign priorities (high/low) to each port
                  Useful for intelligent power shedding!




Presentation_ID       © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      33
Cisco Confidential –Under NDA Only – DO NOT Distribute


                  Catalyst 3750-X and 3560-X Series                                                                 Industry
                  MACsec (Crypto)                                                                                  Leadership


                   MACsec provides MAC layer encryption over wired
                    networks
                   Standards based encryption (802.1AE) on all user ports
                   Line rate performance
                   Standards based key exchange protocol, MKA, included
                    in 802.1X-Rev
                   Tested with current Intel NIC cards
                   Some newer Intel’s LOM chip set supports MACsec




Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      34
Cisco Confidential –Under NDA Only – DO NOT Distribute



  Catalyst 3750-X
  Cisco StackPower Technology
     Innovative technology, aggregates and shares
      available input power capacity in a Stack
     Flexible arrangement of power supplies in a stack
                  Up to 8.8Kw power in a stack
     Supports a “zero-footprint” RPS deployment
     Intelligent power shedding
     Stackpower decouples a PS from its physical location
      in the stack!
     Up to 4 switches can be part of Stackpower
                  Independent from Stackwise (Stackwise Plus)
     No need for RPS though an XPS is available!
     StackPower is not supported in 3560-X switches

Presentation_ID      © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      35
Cisco Confidential –Under NDA Only – DO NOT Distribute


      Cisco StackPower Technology
      Close up
                                                        Console, 10/100 port, and USB type A




                                                                                                             Redundant, Dual PS, either
Stackwise Plus                               FRU Dual                                    StackPower          AC/AC, AC/DC, AC, or DC
                                             Redundant Fans                              Cables              combinations

Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                   36
Cisco Confidential –Under NDA Only – DO NOT Distribute



              Cisco StackPower Technology
              Intelligent Load shedding
         Mechanism to shed power when the system goes into
          negative power budget
                  Power failure or offlining a power supply in the stack

         The stack will shed power starting with the lowest-priority
          PDs in the entire system, then the high-priority PDs, then the
          low priority switches and finally the high-priority switches
                  The amount of load shedding depends on the amount of
                  oversubscribed power

         Built-in intelligence to detect important PD or switches in a
          stack
                  Stackpower has 27 priority levels
                  Default priority per port can be re-programmed
                  All ports are Low priority by default
Presentation_ID    © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      38
Cisco Confidential –Under NDA Only – DO NOT Distribute



            Cisco StackPower
            Benefits

            Better utilization of available power capacity and sharing
            Scalable infrastructure for PoE+
            Improved reliability and efficiency
            PS can be configured as redundant failovers
            Complements PoE+ on switches with smaller PS
            “zero footprint” RPS (Redundant mode)
                  Except in a fully loaded POE+ stack (Stackpower of 4 w/ all PoE+)

            Increased HA via a resilient Redundant power system
            Pay-as-you-grow architecture – similar to Stackwise

Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      40
Cisco Confidential –Under NDA Only – DO NOT Distribute


  Catalyst 3750-X
  StackWise and StackWise-Plus Technology
                                                                                                Unified stacking,
• 32 / 64Gbps stacking throughput
                                                                                             behaving as a single unit
• Local switching with StackWise Plus
• Intelligent traffic forwarding
• StackWise Plus is backward-
  compatible with StackWise
• Fault-tolerant bi-directional
  stack interconnection
• Automated Configuration
  eases deployment                                                                       1:N master redundancy

• Single network instance                                                                Auto-configuration and
  (IP, SNMP, CLI, STP, VLAN)                                                             Cisco IOS version check / update
• Master/secondary
  architecture with                                                                      Cross-stack EtherChannel and QoS
  master failover
                                                                                         Hot add / delete of switches in stack,
                                                                                         provisioning ahead of deployment

Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                           41
Cisco Confidential –Under NDA Only – DO NOT Distribute


   Catalyst 3750-X Feature Sets
   LAN Base vs. IP Base and IP Services Highlights
             New
Cisco® Catalyst® 3560-X                                                                       Cisco Catalyst 3560 and Catalyst
and Catalyst 3750-X                                                                           3750, Including E and X Series

  Functions                                          LAN Base                                           IP Base                                IP Services
                           • Enterprise access Layer 2                                      • Complete Access Layer 2
   Layer 2+                  Wide range of Layer 2 access features                          Supports all Cisco Catalyst 2000 and Catalyst 3000 Layer 2 features,
                            for enterprise deployments                                      including hot standby protocols; supports Cisco StackPower™
                                                                                            technology (Cisco Catalyst 3750-X)
                           • No routing support                                             • Enterprise access Layer 3             • Complete access Layer 3
    Layer 3                  Support for SVI with no IP routing                             RIP, static and stub PIM, and             OSPF, EIGRP, BGP, IS-IS
                            support                                                         EIGRP                                     VRF-lite, WCCP, and PBR
                           • Basic manageability                                            • Enterprise access Layer 3             • Complete access Layer 3
Manageability                Support for a wide range of MIBs,                                Gold-Lite and Smart Install             EEM and IPSLA Initiator
                            IPSLA Responder, and RSPAN                                        Director
                           • Enterprise access security                                     • Complete access security
   Security                  DHCP Snooping, IPSG, DAI, PACLs,                               Router and VLAN ACLs, private VLANs, complete identity and
                             Cisco Identity 4.0, NAC and 802.1x                             security, TrustSec SXP, and IEEE 802.1AE (Cisco Catalyst 3560-X
                             features                                                       and Catalyst 3750-X)
                           • Enterprise access QoS                                          • Complete access QoS
       QoS                   Ingress policing, Trust Boundary,                               Support for all Cisco Catalyst 2000 and Catalyst 3000 QoS features,
                             AutoQoS, and DSCP mapping                                      including per-VLAN policies

    Note: IP Services feature set includes all IP Base features. IP Base feature set includes all LAN Base features.
  Presentation_ID    © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                            43
(Pre-EC)


• New 24 and 48 port HW
• UPOE - 60W power per port on
  24 ports.
• EEE PHYs – Energy savings.




© 2011 Cisco and/or its affiliates. All rights reserved.              Cisco Confidential   44
Cat3K                Cat4K
                                                                                                                      15.0(1)SE1           Yap


                                                                                                        3 Establish device
MAC                           IP                            Device      Switch IP port   Link   VLAN
                                                            Type                                        profiling repository
00:1c:c4:03:b0:2d             10.100.10.122                 Printer     4506 Gi1/23      Up     1
                                                                                                        • Maintain up-to-date
(Hewlett Packard)                                                                                          device feed
00:18:f8:09:cf:d7             10.100.30.201                 AP          4506-2 Gi1/0/5   Up     30
(Cisco-Linksys)                                                                                         IOS-sensor assisted profiling
                      Automatic Endpoint discovery                                                       leverages access switch
                     Reduce identity deployment time
                    Real-time and historic visibility for all                                            intelligence
                                endpoints
                                                                                                            Discover and classify
                                                                      2. Classify endpoints                  endpoints
    ISE Profiler                                                      • IP phone ?
                                         ACS                          • Printer ?                       ISE Profiler collects device
                                                                      • etc                              intelligence from IOS
                                                                                                          DHCP, CDP/LLDP & MAC OUI
                                                                                                        Simplified deployment
                                                                          1. Collect endpoint             Improved efficiency (less polling
                                                                          context info:                    and traffic re-direction)
                                                                          • CDP
                                                                          • LLDP
                                                                          • DHCP attributes


 © 2011 Cisco and/or its affiliates. All rights reserved.                                                                          Cisco Confidential   45
Cisco Confidential –Under NDA Only – DO NOT Distribute



        Introducing Catalyst 2960-S


             Line rate 24/48 10/100/1000 ports with fixed uplinks
             Fixed Uplink Options: 4x1G or 2x10G SFP+
             FlexStack Technology
                      Brings stackable ease-of-use features to the 2960 family, features 20G stacking links
             Power over Ethernet
                      Full standards-based PoE on every port
                      PoE+ support for next-generation high-power devices
             Sustainability - GREEN
                      Very low power for Gigabit Ethernet Switch
                      New EnergyWise functionality to control PHY power
                      Half the power of Catalyst 2960G
             LAN Lite and LAN Base Software Options
                      LAN Lite option provides entry-level Gig-E platform
                      No upgrade path from LAN Lite to LAN Base
             E-LLW,Cisco Systems, Inc. All rights reserved. TAC support
Presentation_ID  © 2009
                        NBD and 90 day                           Cisco Confidential                                                      46
Cisco Confidential –Under NDA Only – DO NOT Distribute




                  Catalyst 2960-S Model comparison
                                                Cisco FlexStack 10G SFP+                   1G SFP   10/100/1000    Full PoE
                   Model                           Stacking       Ports                     Ports      Ports    (15.4W) ports              PoE Budget
  10G Uplink Ports
  WS-C2960S-48FPD-L                                           √                  2                      48                48             740W (PoE+)
  WS-C2960S-48LPD-L                                           √                  2                      48                24             370W (PoE+)
  WS-C2960S-48TD-L                                            √                  2                      48
  WS-C2960S-24PD-L                                            √                  2                      24                24             370W (PoE+)
  WS-C2960S-24TD-L                                            √                  2                      24
  1G Uplink Ports
  WS-C2960S-48FPS-L                                           √                              4          48                48             740W (PoE+)
  WS-C2960S-48LPS-L                                           √                              4          48                24             370W (PoE+)
  WS-C2960S-48TS-L                                            √                              4          48
  WS-C2960S-24PS-L                                            √                              4          24                24             370W (PoE+)
  WS-C2960S-24TS-L                                            √                              4          24
  LAN Lite 1G Uplink Ports
  WS-2960S-48TS-S                                                                            2          48
  WS-2960S-24TS-S                                                                            2          24

Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                        47
Cisco Confidential –Under NDA Only – DO NOT Distribute


        Catalyst 2960-S FlexStack
        Technology Overview




            FlexStack allows multiple physical switches to be managed as a single
             logical unit
            Increased network availability by using the redundancy built into
             FlexStack
            FlexStack available with optional Module
                  Hot Swappable with two wire-speed 10G ports
            Up to 4 switches in a stack
            Unified management, control, and synchronized data plane (similar look
             and feel as StackWise)
Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      48
Cisco Confidential –Under NDA Only – DO NOT Distribute


    Catalyst 2960-S FlexStack
    Module and Cables
                 FlexStack available with optional Module
                             Hot Swappable with two wire-speed 10G ports
                              (full-duplex, bidirectional)
                             When a switch joins an existing stack, new
                              members are always rebooted
                             Blank plate required when FlexStack Module not
                              inserted
                 3 FlexStack Cable lengths supported
                             0.5 meters, 1.0 meter, 3.0 meter
                             We ship a .5M cable with the stack module. Other
                              cables can be ordered for extra cost when placed
                              or later as a spare
                             Cisco Proprietary Cables
                             No SFP needed
                 FlexStack only available in LAN Base models
Presentation_ID      © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      49
Cisco Confidential –Under NDA Only – DO NOT Distribute


      Catalyst 2960-S FlexStack
      Stacking Features
 Cross-stack EtherChannel, SPAN, and
  FlexLink supported
            EtherChannel physical links across stack
            members
 Pre-Provisioning of stack members
  supported
 Easy member addition and replacement
 Configurable Stack Master
            Following same Master election rules as
            StackWise Plus
 Support same CISCO-STACKWISE-MIB
 Single Spanning tree node: No spanning-
  tree across stack


Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      50
Cisco Confidential –Under NDA Only – DO NOT Distribute


                                                                                                                3750-X StackWise Plus
                                                                              2960-S FlexStack
                                                                                                                   Ease of Use and
                                                                                Ease of Use
                                                                                                                   High Availability
                      Device Limit                                                              4 units                        9 units
                   Stack Bandwidth                                                        10G / 20G                          32G / 64G
                     Architecture                                                    HW Drop Table                Ring (Destination stripping)
                  Dynamic Ring Load
                                                                                                  No                              Yes
                      Balancing
                  Stack Convergence                                                     1-2 seconds                      Few milliseconds
                       Stack QoS                                                 Applied hop by hop                     Applied on ingress
                     Management                                         Single IP address, SNMP, SYSLOG        Single IP address, SNMP, SYSLOG
                                                                    Single config and CLI, auto image and   Single config and CLI, auto image and
                     Configuration
                                                                                config update                           config update
                 Show and Debug
                                                                                                Unified                        Unified
                    Commands
              Single Forwarding and                                 Synchronize ARP, MAC Address, IGMP,     Synchronize ARP, MAC Address, IGMP,
                  Control Plane                                                 VLAN tables                        VLAN, Routing tables
                  Cross-Stack Features                                                           Yes                              Yes
                    Single Bridge-ID                                                             Yes                              Yes
              Preprovison members                                                                Yes                              Yes
                     Redundancy                                          Stack master 1:N redundancy             Stack master 1:N redundancy
                     Easy member
                                                                                                 Yes                              Yes
                     replacement

Presentation_ID       © 2009 Cisco Systems, Inc. All rights reserved.      Cisco Confidential                                                                  51
Cisco Confidential –Under NDA Only – DO NOT Distribute




                  Catalyst 2960-S PoE+

            802.3at (30W) PoE+ Plus compliant
                   802.3af (15.4 W) compliant – maintain backward compatibility

            Full PoE Functionality
                   48 Ports of full 15.4W per switch
                   24 Port of 30W per switch
                   No External RPS needed

            2 PoE Power Models Available
                   740W PoE available power budget
                   370W PoE available power budget

            Capable of supporting 802.3at and 802.3af PDs
             simultaneously

Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      52
Cisco Confidential –Under NDA Only – DO NOT Distribute




                  Cisco Catalyst 2960-S QoS

                   Consistent with Catalyst 2960 behavior.
                   QOS configuration consistent with Catalyst 2960
                   Line rate Classification, Policing, Marking
                   Individual and Aggregate Policing is supported
                   Increase in available ACL resources
                       QOS and Security ACLs




Presentation_ID      © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      53
Cisco Confidential –Under NDA Only – DO NOT Distribute



          Catalyst 2960-S
          Sustainability Green Cisco Technology Innovation

            Lowest Power Consumption in Industry
                  Improving Gigabit Ethernet switching power efficiency
                  Cisco low power consumption ASICs
                  Uses 50% power of equivalent Ethernet switches in the market

            Additional Power savings
                  Interfaces power down when interface not in connected to reduce
                   power

            EnergyWise Capable




Presentation_ID    © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      54
Cisco Confidential –Under NDA Only – DO NOT Distribute




        Catalyst 2960-S SFP+ 10Gig
     SFP+ supported in 10Gig Models
                  SFP / SFP+ interchangeable
                  *100MB SFPs not supported in 10Gig
                   models
     Additional SFP+ models support as released.
                  See data sheet                                                                                     SFP+

   SFP+ Module                                         Description
   SFP-H10GB-CU1M=                                     Copper 10Gig SFP+ modules
   SFP-H10GB-CU3M=                                     1-m , 3-m, 5-m 10G SFP+ Twinax cable assembly
   SFP-H10GB-CU5M=
   SFP-10G-SR=                                         Optical 10Gig SFP+ modules
   SFP-10G-LR=                                         10GBASE-SR SFP+ transceiver module for MMF
   SFP-10G-LRM=                                        10GBASE-LR SFP+ transceiver module for
                                                       10GBASE-LRM SFP+ transceiver module for MMF




Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                             55
Cisco Confidential –Under NDA Only – DO NOT Distribute




        LAN Lite vs. LAN Base Highlights


Cisco® Catalyst® 2960 and
Catalyst 2960-S

   Functions                                                           LAN Lite                                         LAN Base
                           • Entry-level access Layer 2                                        • Enterprise Access Layer 2
                            Basic Layer 2 access features, including 802.1Q trunking,            Wide range of Layer 2 access features for enterprise
     Layer 2                (M)STP, STP extensions, Cisco Discovery Protocol, DTP, UDLD,         deployments, including FlexLinks, VTPv3, and LLDP
                            VTPv2, PAGP/LACP, LLDP, and storm control                            MED

                           • No routing support
     Layer 3                                                                                   • Static Routing Support
                            Support for Layer 3 management interface
                           • Entry-level manageability
                                                                                               • Basic manageability
                            Express setup, Cisco Device Manager, SNMPv3 (with
Manageability               cryptography), RMON, SPAN, TDR, Auto Smart Ports, and
                                                                                                 Support for a wider range of MIBs, IPSLA Responder,
                                                                                                 and RSPAN
                            Smart Install client
                           • Entry-level access security
                                                                                               • Enterprise access security
                             SSH v2 server, SSL, HTTPS, SCP, TACACS+, RADIUS, port
    Security                 security, 802.1x (with guest VLAN), MAB, private VLAN
                                                                                                 DHCP snooping, IPSG, DAI, PACLs, Cisco Identity 4.0,
                                                                                                 and 802.1x features
                             edge, and NAC
                           • Entry-level access QoS                                            • Enterprise access QoS
        QoS                  Ingress and egress queuing, scheduling, Priority Queuing,           Ingress policing, Trust Boundary, AutoQoS, and DSCP
                             and SRR                                                             mapping, service policy
    Note: LAN Base feature set includes all LAN Lite features.
  Presentation_ID    © 2009 Cisco Systems, Inc. All rights reserved.      Cisco Confidential                                                            56
Cisco Confidential –Under NDA Only – DO NOT Distribute


                  Cisco IOS Software Feature Set Capabilities
                  Catalyst 2960-S, Catalyst 3750-X and 3560-X

 Positioning Guidelines

                                    Layer 2                                                                           Layer 3




         LAN Lite                                                 LAN Base                         IP Base                              IP Services
       Entry Level                                      Enterprise Access                    Enterprise Access                  Enterprise Advanced
         Layer 2                                             Layer 2                              Layer 3                             Layer 3

 Cisco® Catalyst® 2960 and                         Cisco Catalyst 2960 and 2960-S,         Cisco Catalyst 3560-X & 3750-X      Cisco Catalyst 3560-X & 3750-X
          2960-S                                         3560-X and 3750-X




Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                      57
Cisco Confidential –Under NDA Only – DO NOT Distribute


           Borderless Access:
           Enhanced Limited Lifetime Warranty
           Catalyst 3750-X, 3560-X and 2960-S
                                                                                    Best in Class
                                                                                      Support
       Limited Lifetime Warranty
             5 years on Power Supplies and Fans
       Next Business Day Hardware Replacement
       90-Days TAC Support
       Unlimited maintenance updates for LAN
        Base and LAN Lite Images*




*Service ContractSystems, Inc. All rights reserved. IOS Premium Images
  Presentation_ID © 2009 Cisco required for            Cisco Confidential                                                      58
Cisco Confidential –Under NDA Only – DO NOT Distribute




                  Cisco Warranty and Service Options
                                                                                                    Cisco® Smart                  Cisco SMARTnet®
             Service Element                                           Warranty
                                                                                                     Foundation                        Service

                                                     As long as the original End
                                                     User continues to own or                                                  Renewable 1 year and
            Duration of                              use the Product, provided                 Renewable 1-, 3-, and 5-        multi-year contracts,
            Coverage                                 that: fan and power supply                year contracts                  depending on product
                                                     warranty is limited to five (5)                                           family
                                                     years.


            Cisco Technical                          LLW: Not included                         Business hours access to
            Assistance Center                        E-LLW: Business hours                     SMB TAC (access levels          24x7 coverage
            (TAC) Support                            access for 90-days                        vary by region)

            Online Support /                                                                   Available through Smart         Direct 24x7 registered
                                                     Unregistered access only
            Web Access                                                                         Foundation Portal               access

                                                     LLW: 10 business days*                    Next business day as            Next business day, 8x5x4,
            Advance Hardware
                                                                                               available, otherwise same       24x7x4, 24x7x2 delivery
            Replacement                              E-LLW: Next business day**                day ship                        options as available

                                                                                                                               SMARTnet Onsite service
            On-site Support                          No                                        No
                                                                                                                               options available


            •Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working after receipt of the
            RMA request. Actual delivery times may vary depending on Customer location.
            ** Where next business day delivery is available, Cisco will use commercially reasonable efforts to ship a replacement for next business day
            delivery provided Cisco’s determination of the hardware failure has been made before 3 p.m. depot time. If a request is made after 3 p.m.
            depot time, Cisco will ship the advance replacement on the next business day. Actual delivery times may vary depending on Customer
            location.
Presentation_ID      © 2009 Cisco Systems, Inc. All rights reserved.      Cisco Confidential                                                                         59
2960-C LAN BASE PORTFOLIO                                                                                       ADVANCED LAYER 2 (LAN Base) POR




                             3560-C Portfolio                                                                                      2960-C Portfolio

           IP Base                                       IP Base                                                         LAN Base            LAN Base
      8 and 12 port FE                                 8 port GE                                                      8 and 12 port FE       8 port GE
        Data or PoE+                                 Data or PoE+                                                       Data or PoE          Data Only
       2 x 1G Uplinks                                2 x 1G Uplinks                                                    2 x 1G Uplinks      2 x 1G Uplinks
           E- LLW                                        E- LLW                                                            E- LLW              E- LLW


              Fast Ethernet                            Gigabit Ethernet                                                   Fast Ethernet    Gigabit Ethernet

                                                                      PoE Pass Through Switch


                                                            WS-C3560CPD-8PT-S                                  WS-C2906CPD-8PT-L
© 2011 Cisco and/or its affiliates. All rights reserved.                                                                                                    60
                                                                      All specifications subject to change without notice
CISCO
                                                                                         Catalyst 4500E
                                                                                              INNOVATION and
                                                                                         OPERATION SIMPLICITY




Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                      61
Cisco Catalyst 4500E
              Simplified Deployment
              (Flex GE/10GE, One IOS image,
              Silent roll, ISSU)

              Single Platform for access
              and distribution                                                                            Leading Cisco Borderless
                                                                                                             Networks Services
            Plug & Play (PoEP, ASP)

                  Operation                                                                                     Innovation
                  Simplicity


 848 Gbps System
                                              Enterprise-Class                                                    Over 82M ports deployed
 384 PoEP ports, 200GE
  ports, or 100 10GE ports                    Campus Platform                                                     Over 650K Chassis


        Unprecedented Investment Protection – Backward and Forward Compatible
        Presentation_ID   © 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential                                  62
“Catalyst 4500” LifeCycle
        Unprecedented Switching Lifecycle
                                                                                                             Cisco Catalyst 4500 E-Series

                                                                                     14
                                                                                                          90% Transition to
                                                                                    years
                                                                                                             E-Series


                                                                                                                  EOS                EOL
                                                                                                                        Maintain
                                        Cisco Catalyst 4500 (non-E)
                                                                                                                        Support
                                          11
                                         years



                                         EOS                                                             EOL
       Cisco Catalyst 4000                                    Maintain Support




1999      …               2004         …                 2007                       …               2010            …         2015         …   2020


        Presentation_ID          © 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential                                  63
Next Generation Catalyst 4500E System



       Supervisor7-E
    848Gbps Switching Capacity                                                                                    WS-X4748-RJ45V+E
              48G/slot                                                                                           48p 10/100/1000 non-blocking
       Rich hardware features                                                                                   30W/port (PoE+) on all 48 ports
 (FnF, TrustSec, Wireless, ERSPAN,                                                                                Cisco TrustSec in Hardware
Tunneling, VRF-NG, VSS and more…




                                                   Catalyst 4500E and 4500E+
                                                             Chassis
                                                      Forward and backward compatible
                                                                  48G/slot
                                                           Lifecycle till year 2020
     WS-X4712-SFP+E
   12 PORT 10GE 2.5:1 Line Card
                                                                                                                     Cisco IOS XE
          Cisco Trustsec in                                                                                Modern OS to support multi-core CPU
    HardwareSFP+ SR modules                                                                                     IOS investment protection
        (Lower power mode)                                                                                   Enabling Open Service Platform
         Presentation_ID   © 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential                                      66
Catalyst 4500E Supervisor 7-E
Hardware Elements


  2G
 DRAM

Dual Core
CPU



USB ports*

SD Memory
Card




Console and Management                                 4 Uplinks
                                                       10GE with SFP+
            Port
                                                       1GE with SFP
                                                                                                       *USB Type A is supported
                                                                                                        USB Type B is not supported
     Presentation_ID   © 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential                                  67
Supervisor 7-E Performance & Scalability
System
Feature                       Supervisor 7-E                                        Supervisor 6-E            Supervisor 6L-E

Switching Capacity            848Gbps                                               320 Gbps                  280 Gbps

Throughput                    250 Mpps ( 125 Mpps for                               250 Mpps ( 125 Mpps for   225 Mpps ( 125 Mpps for
                              IPv6)                                                 IPv6)                     IPv6 )
Bandwidth / Slot              Upto 48G                                              Upto 24G                  Upto 24G

CPU                           Dual Core 1.5 GHz                                     Single Core 1.3 GHz       Single Core 1 GHz

SSO failover time             0-50 msec                                             0-50 msec                 0-50 msec

Number of Packet              128000                                                64000                     64000
buffers
DRAM                          2G ( Upgradable to 4G)                                512 MB ( Upgradable to    512 MB
                                                                                    1G )
Bootflash                     1G                                                    128 MB                    128 MB

Number of 10/100/1000         Upto 384 access                                       Upto 384 access           Upto 240 access
ports                         Upto 4 GE uplinks                                     Upto 4 GE uplinks         Upto 4 GE uplinks
Number of 10GE ports          Upto 96 on Line cards                                 Upto 30 on Line cards     Upto 30 on Line cards
                              Upto 4 on Supervisors                                 Upto 4 on Supervisors     Upto 2 on Supervisors

       Presentation_ID   © 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential                                68
Supervisor 7-E Performance & Scalability
(Cont’d )
Layer 2
Feature                         Supervisor 7-E                                        Supervisor 6-E     Supervisor 6L-E

Unicast MAC entries             55000                                                 55000              55000

Multicast MAC entries           32000                                                 32000              16000

Number of VLANs                 4094                                                  4094               4094

Virtual Port Instances          10000                                                 10000              10000

Number of                       64                                                    64                 64
Etherchannels
Mac Learning rate               20000 /second                                         13000/second       8000/second


Layer 3
Feature                         Supervisor 7-E                                        Supervisor 6-E     Supervisor 6L-E

Routing Entries                 256000                                                256000             57000

Number of VRFs                  64                                                    64                 64

Netflow Entries                 128000                                                0                  0


      Presentation_ID    © 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential                     69
Supervisor 7-E Performance &
  Scalability (Cont’d)
Qos and ACLS
Feature                         Supervisor 7-E                                        Supervisor 6-E      Supervisor 6L-E

ACLs                            64K / direction                                       64K / direction     32K / direction

Number of Policers              16K                                                   16K                 16K

QoS Classification              64K/ direction                                        64K/ direction      32K/ direction
Entries
Queues per port                 8 queues – 1p7q1t                                     8 queues – 1p7q1t   8 queues – 1p7q1t


Multicast and SPAN
Feature                         Supervisor 7-E                                        Supervisor 6-E      Supervisor 6L-E

Number of SPAN                  8 bidirectional                                       8 bidirectional     8 bidirectional
sessions
Number of L2 Multicast          32000                                                 32000               8000
Entries
Multicast Replication           250 Mpps                                              250 Mpps            225 Mpps
Performance

       Presentation_ID   © 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential                        70
Catalyst 4500E Supervisor 7-E
   Rich Hardware Services
                                     Next gen campus performance, future proof with
                                         PoE+, EEE, IPFIX etc
                                        Enables converged wired and wireless
                                        Next-gen collaboration with Medianet, Trustpoint
                                        HW enabled Cisco Trustsec security
                                        Next generation virtualization with VRF-NG, VSS
                                        Lower TCO

   Borderless Network Services and Open Application Platform with
                      Next-generation IOS XE

 Performance         Mobility       Collaboration             Security       Lower TCO
                                        video
                                        Flexible Netflow       MACSec           VSS
    848Gbps       Converged wired
    48G/slot        & Wireless              WRED            TrustSec SGT       VRF NG
 100 10GE ports                                                                ERSPAN
                   Unified Guest     Sampled Netflow
 384 10/100/100                                             Integrated NAC      EEE
                      Access                Medianet
 Dual Core CPU                                                  Profiler         NAT
PoEP on all ports                       Intelligent Media                       GRE
                                           TrustPoint
Supervisor Engine 7-E:                                    Supervisor Engine 7L-E:
                                            Optimized for Large                                      Optimized for Small and
                                                Campuses                                               Medium Campuses
Switch Fabric Capacity                                        848 Gbps                                           520 Gbps
Bandwidth Per Slot                                             48 Gbps                                           48 Gbps
Number of IPv4 Routes                                             256K                                             64K
10 Gb Fiber Port Density                                               100                                          62
1 Gb Copper Port Density                                               384                                          240
Chassis Support                                   3, 6, 7R, 10R chassis                                       3, 6, 7R chassis
                                                                                           Flexible NetFlow
                                                                               In Service Software Upgrade
Consistency of Services
                                                                              IOS XE Services (Wireshark)
                                         Investment Protection: Compatible with line cards shipped since 1999


     C97-571987-00   © 2009 Cisco Systems, Inc. All rights reserved.         Cisco Confidential                                  72
Catalyst 4500E IOS XE
Enabling Integrated Open Service Platform
 IOS XE                                                                                              Augmenting Existing Cisco IOS
                     Hosted Apps                                                                          Operational consistency–
                                                                                                         Same IOS look and feel !
   IOSd
                                                                                                          IOS feature componentization
                                     Network
 Features
                   Security
                    Apps
                                    Optimization                                                         for feature consistency and
Components                                                                                               improved quality
                                                                                                          Modern OS architecture
                   Mobility             Vertical
                                         Apps                                                            allows leveraging next-gen
                                                                                                         multi-core switch CPU
                                                                                                     Anchor for next-gen intelligent
                                                                                                     campus services:
                                                                                                          Quick adoption and
                                                                                                         integration of advanced
                                                                                                         technologies
                                                                                                          Leverage proven code
                                                                                                          Keep IOS simple and main
           Next-gen workspace                                                                            reliability
 Mobility, Video, Collaboration, Security
                                                                                                          Open service platform
 Presentation_ID     © 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential                                     73
IOS XE Application Hosting Example                                                                             2HCY11
      WireShark


                                                                               Hosted     Embedded WireShark
                                              IOSd                              Apps     application for real time traffic
                                                                                         capture and decoding with
                                                                                         customer-familiar user interface
                                          Features
                                          Components                                      Simplified monitoring and
                                                                            WireShark    troubleshooting
                                                   Common Infrastructure / HA             WireShark hosted as a 3rd party
                                                   Management Interface                  application
                                                   Module Drivers
                                                   Kernel                                 Leverages IOS capabilities for
                                                                                         selective packet capture




Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                        74
Cisco Confidential –Under NDA Only – DO NOT Distribute


                   Catalyst 4900 Data Center / LAN Distribution
                   Portfolio Summary
Data Center/ LAN Distribution


                                                                                                    Catalyst 4900M
                             Catalyst 4928-10GE



                                                                                                40 10/100/1000 RJ45
                     28 1GbE SFP downlinks                                                      16 ports of 10 GE X2
                     2 10 GE X2 uplinks                                                         8 10 GE X2 uplinks


Data Center Access

                                    Catalyst 4948                                                  Catalyst 4948-10GE




                   48 10/100/1000 RJ45 downlinks                                             48 10/100/1000 RJ45 downlinks
                   4 SFP uplinks                                                             2 10 GE X2 uplinks
 Presentation_ID      © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                            75
Cisco Confidential –Under NDA Only – DO NOT Distribute



  Catalyst 4500E Campus Access Portfolio
                                                                                        4510R+E
                                                                              4507R+E             4506-E
                                                              4503-E




48G                                                                                       48G
                                           WS-X45-SUP7-E                                                                             WS-X4748-RJ45V+E
                                         List $19,995                                                                                   List $8,995



24G                                                                                       24G
              WS-X45-SUP6L-E                       WS-X45-SUP6-E                                           WS-X4648-RJ45-E           WS-X4648-RJ45V+E
               List $11,995                           List $19,995                                          List $5,495                 List $7,495


                 240 ports                             384 ports                                      Data Only                     PoEP Ready
                     Supervisor Portfolio                                                            Access Line Card Portfolio
                                                                            PoE Power Supplies




        PWR-C45-1300ACV Systems, Inc. All rights reserved.
Presentation_ID   © 2009 Cisco                        PWR-C45-2800ACV
                                                               Cisco Confidential           PWR-C45-4200ACV                               PWR-C45-6000ACV      76
Cisco Confidential –Under NDA Only – DO NOT Distribute



                  PoEP Standard and Devices
                  New Standard—IEEE802.3at for 30W/Port
                                                                                                                          Industry
                                                                                                                            First




                           WS-4548-RJ45V+                                                         WS-X4648-RJ45V+E



                                                  Next Gen PoEP Devices Expected 2010 Onwards




Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      77
Cisco Confidential –Under NDA Only – DO NOT Distribute



 Virtual Switching System

                                                                                                Operational Simplicity
                                                                                               Single point of mgt, one L2/L3 node

                                 Campus                                                        Loop-free topology
                                                                                               Operational consistency with Cat6K VSS
                    Si                                              Si

                                                                                                Hardware Support
                                                                                               Requires Sup7-E/SUP7L-E/C4500X

                                       VSS                                                     Support E-series chassis (R and non-R)
                                                                                               Support all existing LCs (incl PoE) cards
                                                                                               VSL with 10G: 46xx and 47xx 10G linecards and
                                                                                              Supervisor uplinks


                                                                                              Software Support
                                                                                               Feature parity w/ standalone switch in IP Base and
                                                                                                above
                                                                                               Support L2 MEC and L3 MEC*
                                                                                               Inter-Chassis SSO/NSF and ISSU
                                                                                               Quad SUP support*


Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.        Cisco Confidential                                                               *post 78
                                                                                                                                                                 FCS
A Historical Perspective




     2000                               2003                 2007         2009                            2011

     7W                                 15W                   30W                                          60W
Inline Power                            (PoE)                (PoE+)                                      (UPOE)



                                   Industry                               Industry
                                   Standard                              Standard:
                                       :                                    IEEE
                                     IEEE                                 802.3at
                                    802.3af                                 (30W
                                     (15W                      Cisco       PoE+)
                                                                       Innovations   Drive Industry Standards
                                     PoE)
  © 2011 Cisco and/or its affiliates. All rights reserved.                                                        Cisco Confidential   79
Transforming Enterprise Networks


                                                                           UPOE



                       VIRTUAL                             TRADING     PERSONAL      BUILDING    HOSPITALITY/
                       DESKTOP                              FLOOR    TELEPRESENCE   MANAGEMENT     RETAIL




© 2011 Cisco and/or its affiliates. All rights reserved.                                               Cisco Confidential   80
Virtual Desktop

                                                                     “Cisco and Samsung are excited to
                                                                      introduce the industry’s first virtual
                                                                      desktop monitor powered by Cisco
                                                                      UPOE. Our joint solution delivers a
                                                                      green workspace, while reducing
                                                                      cost and complexity.”


                                                                     — Jeong Hwan Kim, Senior Vice President,
                                                                     Samsung Electronics

                                                                     — Christophe Metivier, Vice President & General
                                                                     Manager GSBU, Cisco



                                                           • Green workspace
   BENEFITS                                                • Simplified security and management
© 2011 Cisco and/or its affiliates. All rights reserved.                                                         Cisco Confidential   81
Next Generation Trading Floors

                                                                    “Cisco and British Telecom are
                                                                     partnering with our customers to
                                                                     deliver the next generation trading
                                                                     floor architecture with leading
                                                                     security, availability, and
                                                                     manageability. Cisco UPOE is
                                                                     foundational to this architecture to
                                                                     provide resiliency to the trader desk.”

                                                                     — Andy Nicholson, President, Global Banking & Financial
                                                                       Markets, BT,

                                                                     — Christophe Metivier, Vice President & General Manager,
                                                                       GSBU, Cisco



                                                           • Non stop business operations
   BENEFITS                                                • Simplified management
© 2011 Cisco and/or its affiliates. All rights reserved.                                                               Cisco Confidential   82
“Cisco Tandberg Personal TelePresence
                                                                      Systems have redefined office
                                                                      communication by offering high quality
                                                                      video experience, and superior
                                                                      interoperability with ecosystem partners.
                                                                      Integration of Cisco Tandberg Personal
                                                                      TelePresence Systems with Cisco UPOE
                                                                      makes business video as reliable as
                                                                      voice through network redundancy, while
                                           TelePresence EX60
                                                                      bringing the benefits of lower energy
                                                                      costs with Cisco EnergyWise.”

                                                                      —Name, Title, Cisco
                                                                      PR Approval In-Process



                                                           • Always-available video, similar to voice
   BENEFITS
                                                           • Automated provisioning and monitoring
© 2011 Cisco and/or its affiliates. All rights reserved.                                                Cisco Confidential   83
Retail
                                                                and Hospitality




                                                           Single network for multiple guest
                                                               room services with Cisco
                                                                   Compact switches




                                                           • Lower CapEx through cable consolidation
   BENEFITS
                                                           • Simplified management of extended range of
                                                             devices
© 2011 Cisco and/or its affiliates. All rights reserved.                                       Cisco Confidential   84
Target
                                                                                                               March 2012


   INNOVATION                                                                                 OPERATIONAL SIMPLICITY

   Virtual Switching System (VSS)*                                                                                       Automation
   Flexible NetFlow                                                                                            Investment protection
   Easy Virtual Network (EVN)                                                                             Modular 8-port 10GE uplink
   IOS XE Open Application                                                                             Hot-swappable dual redundant
   Platform (Wireshark)                                                                                        power supplies & five
   ISSU, NSF, SSO w/ VSS                                                                                              individual fans
                                                                                                            Limited Lifetime Warranty




800 Gbps System                                            Smallest Size – 1RU   Highest Scalability     Industry              Lower
 1.6Tbps w/ VSS                                                 21” Deep          Richest Services      Leadership              TCO
                                                                                                                                     * roadmap



        Revolutionizing Fixed 10GE Campus Aggregation Platform
© 2011 Cisco and/or its affiliates. All rights reserved.                                                                   Cisco Confidential   85
VSS                             VSS



  Etherchannel                                                                                    Etherchannel




                                                 Catalyst 4500-X Advantages:
                                                 1.6Tbps Switching Capacity with VSS
                                                 Small size – 1RU, 21” deep
                                                 Supports GE SFP and 10 GE SFP+ on any ports
                                                 Low power consumption ~ 330W
                                                 Flexibility for future growth to 40G

© 2011 Cisco and/or its affiliates. All rights reserved.                                         Cisco Confidential   86
Catalyst 4500-X PORTFOLIO
                                                                      Enterprise Services SKUs
                              IP Base SKUs                               w/ 8-port uplink                     IP Base SKUs
                          Front to Back Airflow                        Front to back Airflow              Back to Front Airflow
                             1x 750WAC P/S                                2x 750WAC P/S                     1x 750WAC P/S



                       WS-C4500X-32SFP+                                   WS-C4500X-40X-ES                WS-C4500X-F-32SFP+
                            $40,000                                           $60,000                          $40,000




                       WS-C4500X-16SFP+                                   WS-C4500X-24X-ES                WS-C4500X-F-16SFP+
                            $24,000                                           $44,000                          $24,000

                                                         Front to Back Airflow                              Back to Front Airflow
                                                   Burgandy color fan and P/S handle                    Blue color fan and P/S handle




                    8-port 10GE Modular Uplink Module                      Removable Fan Module, $250     750WAC Modular P/S, $2,000
                          C4KX-NM-8SFP+, $8,000
© 2011 Cisco and/or its affiliates. All rights reserved.                                                                     Cisco Confidential   87
Cisco Confidential –Under NDA Only – DO NOT Distribute




      Catalyst 6500 Backbone Portfolio Summary

                                                     6509-VE             6513
                                                                                               10G
                                   6509E
                  6506E                                                                                    WS-X6704-10GE        WS-X6708-10GE        WS-X6716-10GE

                                                                                                         Non-Blocking                       Oversubscribed
                                                                                                                 10G Line Card Portfolio

                                                                                                                       WS-X6748-SFP
                                                                                               1G
                                                                                                                                              WS-X6748-GE-TX
                                                                                                     WS-X6724-SFP
           10G uplink                                                 SUP 720-10G                                Fiber Card                  Copper Card
                                                                                                                    Line Card Portfolio
            1G uplink                                                 SUP720

                                 Supervisor Portfolio
                                                                                                          WiSM              NAM                FWSM
                                            Power Supply
                                  Industry Leading Power Efficiency
                                                                                                              Service Module Portfolio
                                       3000W AC, 4000W AC
                                       6000W AC, 8700W AC
                                       4000W DC, 6000W DC
                                                                                                SIP-200, SIP-400, SIP-600          VPN SPA & VSPA

                                                                                                       WAN Cards                        IPSec Card

Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.       Cisco Confidential
                                                                                                                  WAN Card Portfolio                                88
Cisco Confidential –Under NDA Only – DO NOT Distribute


    Catalyst 6500 Family
    Chassis Options
                                                                           6509-V-E


                                                       6509-E

                  6506-E




                                                                                                                                     6513-E



                           6503-E                                                                       6504-E


Chassis Options                                                                    Power Options               Bandwidth Options
3 slot: 6503-E 9 slot: 6509-E                                                     Up to 14,500W of              Up to 80G per slot
4 slot: 6504-E         6509-V-E                                                   power per chassis           capable (for E chassis)
6 slot: 6506-E 13 slot: 6513

Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                 89
Cisco Confidential –Under NDA Only – DO NOT Distribute


                  Catalyst 6500
                  Linecard Family
                             Classic Linecards
                   Examples include…
      WS-X6148-RJ45, WS-X6148-SFP, WS-X6148-GETX,
                    WS-X6148A-GETX


                   CEF256/dCEF256 Linecards
                     Examples include…
          WS-X6548-GETX, WS-X6516-GBIC, WS-X6516-
           GETX, WS-X6516A-GBIC, WS-X6816-GBIC


                           CEF720 Linecards
       WS-X6724-SFP, WS-X6748-SFP, WS-X6748-GETX,
           WS-X6704-10GE, WS-X6708-10GE-3C,
                  WS-X6708-10GE-3CXL


                               WAN Linecards
      Enhanced Flexwan (WS-X6582-PA), SIP-200 (7600-
       SIP-200), SIP-400 (7600-SIP-400), SIP-600 (7600-
                           SIP-600)

Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      90
Cisco Confidential –Under NDA Only – DO NOT Distribute


                  Current Network Challenges
                  Enterprise Campus
Traditional Enterprise Campus deployments have been designed in such a way that allows
for scalability, differentiated services and high availability. However they also face many
challenges, some of which are listed in the below diagram…


                                                                                                                     Extensive routing
                                                                                                                     topology, Routing
                                                                                              L3 Core                reconvergence



                                                                                                                     FHRP, STP,
                                                                                           L2/L3                     Asymmetric routing,
                                                                                           Distribution              Policy Management



                                                                                                                     Single active uplink
                                                                                                                     per VLAN (PVST),
                                                                                               Access                L2 reconvergence


Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                     91
Cisco Confidential –Under NDA Only – DO NOT Distribute


                   Virtual Switching System
                   Introduction
Virtual Switching System is a new technology break through for the Catalyst 6500 family…




 Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      92
Cisco Confidential –Under NDA Only – DO NOT NDA Use Only
                                                                                                                           Cisco Confidential – Distribute



       Virtual Switching System
       Main Benefits
   Port-channeling concept extending link
    aggregation to two separate physical
    switches

   Allows the creation of resilient
                                                                                            Physical Topology Logical Topology
    Layer 2 topologies based on
    Link Aggregation –
                                                                                                      Virtual Switching Systems
                  Eliminates the need for STP
                  in the access / distribution                                                         L2


   Provides increased bandwidth –
                                                                                            Si                  Si




              All links are actively forwarding

              Provides ease of management –
              Unified Control Plane
              Unified Configuration                                                                Non-VSS                           VSS
              No need for HSRP                                                                         Increased BW with
Presentation_ID      © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential              VSS                                         93
Cisco Confidential –Under NDA Only – DO NOT Distribute



      Virtual Switching System
      Enterprise Campus
A Virtual Switch-enabled Enterprise Campus network takes on multiple benefits including
simplified management & administration, facilitating greater high availability, while
maintaining a flexible and scalable architecture…


                                                                                                                   Reduced routing
                                                                                                                   neighbors, Minimal
                                                                                            L3 Core                L3 reconvergence



                                                                                                                   No FHRPs
                                                                                         L2/L3                     No Looped topology
                                                                                         Distribution              Policy Management



                                                                                                                   Multiple active
                                                                                                                   uplinks per VLAN,
                                                                                             Access                No STP convergence


Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                                     94
Cisco Confidential –Under NDA Only – DO NOT Distribute


                  Virtual Switching System
                  What is a VSS?




Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      95
Cisco Confidential –Under NDA Only – DO NOT Distribute


                   Virtual Switching System
                   Control Plane
While the Data Planes in both switches are active, only one switch has an active control plane
- hence there is only one management point from which to manage the Virtual Switching
System…




 Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      96
Cisco Confidential –Under NDA Only – DO NOT Distribute


                   Virtual Switching System
                   Data Plane
The Data Planes in both switches are active - hence each has a full copy of the forwarding
tables and Security/QOS policies in hardware such that each can make a fully informed local
forwarding decision…




 Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                      97
Cisco Confidential –Under NDA Only – DO NOT Distribute


        Hardware and Software Requirements
 • In order to enable the Virtual Switching System feature the Catalyst 6500
   Virtual Switching Supervisor 720 is required or Sup2T
 • It is the only Supervisor that will support VSS as it supports both the new
   PFC3C/XL forwarding engine…

                                    12.2(33)SXH1 or later




                  VS-S720-10G-3C/XL

Presentation_ID     © 2009 Cisco Systems, Inc. All rights reserved.   Cisco Confidential                                                     100
Cisco Confidential –Under NDA Only – DO NOT Distribute


           Hardware Requirements
           VSL-Capable Interfaces
The VSL is a special link that requires extra headers to be imposed onto the frame. These
require new port ASICs that exist only on the 10 GigabitEthernet interfaces on the
following modules…
                                                                                         Note that these interfaces may also be used
                          VS-S720-10G-3C/XL
                                                                                         as standard network interfaces

                                                                                                  WS-X6708-10G-3C/XL




                                                                                                                         WS-X6716-10G-3C/XL
                                                                                                                    Support for VSL is from 12.2(33)SXI* and in
      These interfaces are based off                                                                                “performance mode” only
      the new port ASIC, allowing for
      frames across the VSL to be
      encapsulated / de-encapsulated
      with the VSH…



    WS-X6716-10G-3C/XL module is supported starting from 12.2(33)SXH2* in non VSL config
Presentation_ID   © 2009 Cisco Systems, Inc. All rights reserved.                    101
                                                                    Cisco Confidential
Supervisor 2T - Update
Catalyst 6500 Supervisor Evolution
Unprecedented Switching Lifecycle
 EOS   End of Sale                                                           Sup 2T – Next Generation Supervisor
       End of Life
 EOL
       End of Support
                                                         Sup720-10G (VSS Enabled)

                                                              EOS                       EOL
                                                 Sup32-PISA         Maintain Support


                                       Sup32


                               Sup720-3B


                                             EOS                              EOL
                        Sup720-3A                        Maintain Support              12 years

                                           EOS                              EOL
                          Sup2                       Maintain Support               12 years

                           EOS                                EOL
            Sup 1A                   Maintain Support                   12 years


2000     ……..           2005       ……..           2010        ……..        2015         ……..       2020+    ……..
Catalyst 6500 Profile
                 680,000+ Systems Installed Base
       Systems/Customer                                            Revenue/PIN

                 29%                 > 1000
39%
                                     500-1000                      13%           Wiring Closet
                                                      36%
                       9%            300-500                               26%   Campus BB
      10%   5%
                 8%                  200-300                                     WAN
                                     100-200                17%
                                                                      8%         DC BB
                                     < 100                                       DC Access

                                    Revenue/Segment


                              23%      15%            Commercial
                                                      Enterprise
                            27%                 35%   Public Sector
                                                      Service Provider



                                  FY10 - $4.2 Billion
Catalyst 6500 Next Generation Platform



     2 Terabit              Next Gen
     Switching              Services




    10G &40G                 Features
    interfaces              Scalability
Next-Generation Sup2T At-a-Glance
Supervisor 2T base board overview
                       S720-3B/XL                    S720-10G-3C/XL      Sup2T Light/Heavy
 Front GE Ports               2                                 3           3 with CTS
 Front 10GE Ports             0                                 2           2 with CTS
 CMP                         No                                No               Yes
 Compact Flash Slot       Yes (2)                             Yes (1)         Yes (1)
 MSFC                     MSFC3                               MSFC3           MSFC5
 PFC                    PFC3B/XL                         PFC3C/XL         PFC4 Lite/Heavy
 Switch Fabric             720G                               720G            2080G


 Switch Fabric              20G                                20G             40G
 Bandwidth/Slot          40G/Slot                        40G/Slot            80G/Slot
 Chassis Supported    6500 and 6500E                 6500 and 6500E         6500E Only
                         (except 6503)                   (except 6503)




                                         Cisco Confidential
• Enhanced (“E”) chassis offer higher power capacity, better signal integrity,
       and higher bandwidth to support Supervisor 2T
            3, 4, 6, 9 and 13-slot versions

• Classic switching bus traces/connectors

• Crossbar fabric traces/connectors

• Redundant power supplies

• Fan tray for system cooling
            6509-V-E chassis offers
            redundant fan trays and air filtration

• Redundant voltage termination (VTT)/clock modules

• Redundant MAC address EEPROMs




© 2011 Cisco and/or its affiliates. All rights reserved.                Cisco Confidential   108
 Provides 80G/slot on all 13
                     Clock                             Clock               EEPROM
                                                                                      slots with Supervisor 2T.
                  SLOT 1                                   Dual Channels             The dual fabric channels in
                  SLOT 2                                   Dual Channels              slots 1-6 can only be used
                  SLOT 3                                   Dual Channels              with Supervisor 2T.
                  SLOT 4                                   Dual Channels
                                                                                     In a Supervisor 2T
                  SLOT 5                                   Dual Channels
                                                                                      configuration, Slots 7 and 8
                  SLOT 6                                   Dual Channels              only support the Supervisor
                  SLOT 7                                   Dual Channels              and non-Fabric Line-Cards.
                  SLOT 8                                   Dual Channels
                  SLOT 9                                   Dual Channels             The fan tray is removed
                SLOT 10                                    Dual Channels
                                                                                      from the back.
                SLOT 11                                    Dual Channels             When using a Supervisor
                SLOT 12                                    Dual Channels              720, the fabric channels are
                                                                                      distributed the same as in a
  Fan Tray




                SLOT 13                                    Dual Channels
                                                                                      6513 non-E chassis.
                                Switch Fabric  Shared Bus
                        Power Supply        Power Supply

© 2011 Cisco and/or its affiliates. All rights reserved.                                                Cisco Confidential   109
Cat 6513-E: foundation for 2T infrastructure
80G/slot on all 13 slots




528 x 1GbE 6748-GETX ports
176 x 10GbE FX/Copper ports


                       6513-E Now Shipping!
      dCEF2T Linecard                                     Up to 60Mpps local forwarding
       8 ports X2 10GE (SFP+ via OneX adapter)             Up to 256MB Buffering per port
       No Connection to the Shared Bus                         100 ms buffer for each direction
       2 x 40Gb Connections into the Switch Fabric         Egress Multicast Replication
       Supports integrated DFC4 / DFC4XL                   Supports Strict Priority queue on transmit
       Supports Cisco TrustSec on all ports                Supports 2 receive queues per port
       Supports VSL on all ports                           Supports 8 transmit queues per port
                                                            Supports Deficit Weighted Round Robin
                                                                and Shaped Round Robin




© 2011 Cisco and/or its affiliates. All rights reserved.                                      Cisco Confidential   111
    dCEF2T Linecard
    4 ports CFP 40GE or 16 ports SFP+ 10GE (with converter)
    No Connection to the Shared Bus
    2 x 40Gb Connections into the Switch Fabric
    Supports integrated DFC4 / DFC4XL
    Supports Cisco TrustSec on all ports
    Supports VSL on all ports




        Up to 60Mpps local forwarding
        1 ms ingress buffer (40 Mbits/40 GE port - 10 Mbits/10GE port)
        10 ms egress buffer (400 Mbits/40 GE port - 100 Mbits/10 GE port)
        Egress Multicast Replication
        Supports dual Strict Priority queue on transmit
        Supports 2 receive queues and 8 transmit queues per port
        Supports Deficit Weighted Round Robin and Shaped Round Robin
© 2011 Cisco and/or its affiliates. All rights reserved.                     Cisco Confidential   112
                                                           *Q1 2011
Port 1     Port 2
    Single Mode CFP




                                                                   Port 3      Port 4
 IEEE 802.3ba Compliant
 4 x 40G ports 2:1 oversubscribed

                                                  Port 13,14,,
         Port 5,6,
                                                    15,16
           7,8




                                                                             4 x SFP+ converter in each slot

     Port 9,10,                                  Port 17,18,                 Cisco TrustSec in hardware
       11,12                                       19,20                     VSL capable in 10G or 40 mode

© 2011 Cisco and/or its affiliates. All rights reserved.                                           Cisco Confidential   113
68xx Series Line Cards

               1 GbE Fiber                                              10/100/1000 and 10GBASE-T




 Distributed Forwarding Card w/ DFC4                       Distributed Forwarding Card w/ DFC4
 Two SKUs: regular and XL tables (DFC4)                    Two SKUs: regular and XL tables (DFC4)
 24 ports 1 GbE fiber                                      48 ports 10/100/1000
 48 ports 1 GbE fiber                                      16 ports 10GBASE-T and X2 Fibre*
                                                           *Not shown




                                       Cisco Highly Confidential               © 2010 Cisco Systems, Inc. All rights reserved.
Sup2T – High-Performance Line Cards
         Greenfield                                                             Upgrade
69xx Line Cards*       68xx Line Cards*                                67xx CFC                       67xx DFC
  80Gbps DFC4             40Gbps DFC4                                  Line Cards                     Line Cards

WS-X6904-40G-2T       WS-X6848-SFP-2T                            WS-X6748-SFP                       WS-X6748-SFP

WS-X6908-10G-2T       WS-X6824-SFP-2T                            WS-X6724-SFP                       WS-X6724-SFP

                    WS-X6848-GE-TX-2T                         WS-X6748-GE-TX                     WS-X6748-GE-TX

                      WS-X6816-10T-2T                          WS-X6704-10GE                      WS-X6704-10GE




                                                                                                    WS-X6716-10T
                * Separate SKU for w/ DFC4 XL
                                                                                                  WS-X6716-10G


                                    Aggressive Trade-in credits to
                                                                                                   WS-X6708-10G
                                    migrate to WS-X6908-10G-2T
                                           Cisco Highly Confidential                © 2010 Cisco Systems, Inc. All rights reserved.
Accelerate & Balance
         Integrate Wire/Wireless Management                                                Application Performance
NEW                                                                                                                                          NEW
                                                               Next Generation          Next Generation
                                                             WiSM Blade—WiSM-2   Load Balancer—ACE-30

                                              Performance 10 Gbps                   UP to 16 Gbps Performance
 $29,995                                    Access Points 500 - 1000                 Up to 6 Gbps Compression                    $39,995
                                                            Clients 10,000                30,000 Transactions per Second
           Concurrent AP Upgrade/Joins Up to 500                                             250 Virtual Context
                             Mobility, Domain Size Up to 18,000 APs                         4000 VLANs

                         Enhance Visibility,                                                    Deliver Robust,
                     Accelerate Troubleshooting                                        Integrated, Streamlined Security
NEW                                                                                                                                          NEW
                                                              Next Generation             Next Generation
                                                             NAM Blade—NAM-3     Firewall Blade—ASA-SM

                       Monitoring Performance Up to 15 Gbps                              64 Gbps    System Performance
                                                                                         16 Gbps    Performance / Service Mod.
         Capture to External Disk Up to 5 Gbps
                                                                                       10,000,000   Concurrent Sessions
                                  1588
          Performance Analytics Timestamps                                                300,000   Connections per Second
                      HW Filters/ Rapid                                                       250   Security Contexts
 $59,000                                                                                                                       $115,000
                Packet Captures Troubleshooting                                             1,000   VLANs

 © 2011 Cisco and/or its affiliates. All rights reserved.                                                               Cisco Confidential   116
• Unicast RPF:
            PFC4 support both Strict and Loose uRPF with up to 16 interfaces.

• RA Guard:
            Multiple mode RA Guard Support on Layer 2 ports.

• Traffic Filter:
            Uses ACL to block Neighbor Discovery (ND) packets on L2 switch ports.

• IPv6 Netflow:
            Supervisor2T maintains feature parity with IPv4 Netflow

• IPv6 over IPv4 Tunnel:
            Performance Improvement and increased Flexibility by using the HW FIB
            Supports for IPv6 VRF lite over IPv4 tunnel.

• 6PE and 6VPE:
              Performance improvement, without packet recirculation.

• IPv6 HA*:
            SSO/NSF support for intra and inter chassis redundancy.

• IPv6 Management:
            Separate IPv4/IPv6/MPLS Counters, IP-FORWARD and IP SNMP MIBs supports


© 2011 Cisco and/or its affiliates. All rights reserved.                             Cisco Confidential   117
MPLS
                                                                           CORE



                                                           N-PE1                                               U-PE2
                                                                                        N-PE2
                                U-PE1                                                           .1q              .1q
                                                                   N-PE3
   .1q                             .1q
                                                                                                      DC2
                                                                                                      CE
                  DC1                                                             DC3
                  CE                                                              CE


• Supervisor 2T is capable of supporting 16k VPLS instances on the PE
• Supervisor 2T is capable of supporting 1K VC label per VPLS instance
• Supervisor 2T can have multiple local l2 ports, and as many as 256 VCs in its
  flooding domain
• Integrated Routing and Bridging on the VPLS Vlan
© 2011 Cisco and/or its affiliates. All rights reserved.                                               Cisco Confidential   118
Cisco TrustSec                   EVC 2.0             Bi-dir Enhancements
                                               RBACL                      E-OAM 3.0               Stateful EoMPLS
                                      TrustSec Ingress/Egress      IPSLA support for EVC    Etherchannel Enhancements
                                              reflector              802.1ag CFM Draft 8             Native VPLS
                                     SGT Tagging and Filtering     Service Module Support    VRF aware SSH, FTP, NTP…
                                          Dry run for ACLs        On Board Failure Logging      DAI accelerated in HW
                                         Atomic ACL Update        Netconf, Http, Soal, TCL…      WCCP Closed group
                                           Flexible Netflow                over IPv6          MQC Queuing policy for
                                           Egress Netflow                 IPv6 uRPF                ingress/egress
                                      Sampling Netflow in HW        PACL support for IPv6        DSCP classification
                                           Hardware CoPP                     CMP              QoS ACL per policy class
                                     New level of IPv6 support   XML Programmatic interface     Per-protocol statistics
                                       Distributed Aggregate         PIM Registers in HW    Per VLAN broadcast statistics
                                               Policers          IP-Based IGMPv3 Snooping        ACL/QoS scalability
                                              EEM v3.0                      support                  uRPF + ACL




                                                  Cisco IOS Software 12.2(33)SXI3 features set




© 2011 Cisco and/or its affiliates. All rights reserved.                                                                Cisco Confidential   119
© 2011 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential   120
Catalyst 6500 The Network Virtualization Platform

  Customer Challenge                                                    Benefits of Sup2T

                                                                Group
        Compliance &                                        Segregation for
                                                                              Cost-effective way to group and
                                                                              manage users by traffic, service,
         Regulations                                          Regulation
                                                                                bandwidth and security
                                                             Compliance


                                                             Run Multiple     Network Virtualization solutions
            Mergers &                                      Virtual Networks    allow integration of disparate
                                                               Over One       networks while sharing common
           Acquisitions
                                                           Physical Network           resources

               Partner &                                   Quick and Secure      Virtualized Firewalls allow
                Supplier                                    Access to New      integrated policy enforcement
                                                               Business           over Wired and Wireless
              Integration
                                                               Partners
© 2011 Cisco and/or its affiliates. All rights reserved.                                             Cisco Confidential   121
Fits All the Needs for High-Flow Backbone Environments

                                                                                       Increased flexibility and
                                                                                       customization by selecting the
                   Optimal CPU                                                         fields to match and collect
                  utilization with                                    Flexible
               Yielding Netflow Data                                  Netflow
               Export, direct export
                        from                                                                               Bigger tables mean
                      linecard                                                                              more entries per
                                                                                        Up to 13M         DFC. Up to 13 million
                                                   CPU Friendly                          Flows/           entries with a 13 slot
                                                     Export           Sup2T              System           chassis. You can get
                                                                                                            better visibility in
                                                                      Netflow                                 your network


           Allow to use netflow
          after ingress lookup is
           done (ex: after DSCP                                                  Sampled            To optimize the Netflow
                                                            Egress                                   tables utilization and
            remarking is done)                                                   Netflow in
                                                            Netflow                                    minimize load on
                                                                                 Hardware
            Allow to account for                                                                           analyzers
            multicast traffic per
           destination instead of
                 per group
© 2011 Cisco and/or its affiliates. All rights reserved.                                                           Cisco Confidential   122
Sup2T the Backbone of NOC




                                                           DeepStable
                                                              Scalable
                                                               Monitoring
  Deployed on theof theRunning Cisco Live and able pre FCSclose to as well as scan on the rush hour
   Get a full view Cisconetwork utilization NOC on to detectrelease 4k flow per second at network
                         Live NOC equipment and exported DDoS on Sup2T

© 2011 Cisco and/or its affiliates. All rights reserved.                                Cisco Confidential   123
Supervisor

                                          NetFlow
                                          Export
                                                                     NetFlow
                                                                      Data


                            VS-SUP2T-10G & PFC4/XL                                              NetFlow Collector

                                                           NetFlow
                                                            Data


                         WS-X6848-GE-TX & DFC4/XL
                                                                                WS-X6816-10GX-4C/XL, WS-X6908-
                                                                                10GE-4C/XL and all future Modules
                                                             NetFlow
                                NetFlow
                                                             Export
                                                                               have the capability to perform direct
                                 Data                                            NF data export, from the module
                                                                                             itself...

                            WS-X6908-10G-4C/CXL
EOBC

© 2011 Cisco and/or its affiliates. All rights reserved.                                                    Cisco Confidential   124
• Dynamically identifies
      media streams
• Mediatrace topology
      views
• Gathers media
      stream interface
      metrics
           Jitter
           Frame Loss
           CPU utilization




© 2011 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential   125
Nexus 7000


© 2010 Cisco and/or its affiliates. All rights reserved.   Cisco Confidential   126
Next Generation Modular


                                                                                                    Nexus 7000 and NX-OS
                                                                                                    • 9, 10 & 18 Slot Chassis
                                                                                                    • 15+ Terabit System (18 Slot)
                                                                                                    • Unified Fabric
                                                                                                    • Modular NX-OS
                                                                                                    • Device Virtualization
                                                                                                    • Hitless ISSU
                                                                                                    • Highest Availability Ethernet Switch
                                                                                                      and Director Class SAN

                                        Supervisor                10G Ethernet – M Series   1G Ethernet – M Series      10G Ethernet – F Series
                                                                  • 32 Port SFP+ 10G - XL   • 48 Port 10/100/1000 -XL   DCB/FabricPath/FCoE
                                                                  • 8 Port X2 10G - XL      • 48 Port 1G - XL           • 32 Port SFP+ 10G
Linecard
Modules



                                                           Cisco NX-OS Multi-protocol Operating System

© 2010 Cisco and/or its affiliates. All rights reserved.
                                                              Data Center Network Manager (DCNM)                                    Cisco Confidential   127
Front                                 Rear
  Supervisor
                                                                   Summary
  slots (1-2)
                                                                    LEDs
Optional front                                                     Side-to-side
    doors                                                             airflow



                                                                   Crossbar
   Locking
                                                                    Fabric
ejector levers
                                                                   Modules



                                                                    I/O Slots
                                                                    (3-9)

  Integrated Cable
    Management     24.5”H x 17.3” W x 24”D (14RU)
                                                                                Power Supplies      Fan Tray


    © 2010 Cisco and/or its affiliates. All rights reserved.                                                   Cisco Confidential   130
15Tb+ System Performance
      Bandwidth Scales with Each Fabric Module



                                                                  Fabric
                                                                  Modules

                        10GbE Module
                                                           80G

                                                           230G             230Gbps
                                                                            184Gbps
                                                                            138Gbps
                                                                            92Gbps
                                                                            46Gbps
                                                           46G              Per Slot
                        GbE Module




                       Investment Protection and Unified Fabric
© 2010 Cisco and/or its affiliates. All rights reserved.                       Cisco Confidential   131
15Tb+ System Performance
      Bandwidth Scales with Each Fabric Module



                                                                  Fabric
                                                                  Modules (FAB 2)

                        10, 40, 100 GbE Module
                                                            80G
                                                           550G
                                                           230G                     110Gbps
                                                                                    220Gbps
                                                                                    550Gbps
                                                                                    330Gbps
                                                                                    440Gbps
                                                            46G                     Per Slot



                       Investment Protection and Unified Fabric
© 2010 Cisco and/or its affiliates. All rights reserved.                               Cisco Confidential   132
Layer 3 Protocols                 Layer 2 Protocols     Storage Protocols
                                                            OSPF          GLBP                VLAN        UDLD
                                              HA Manager
                                                                                                                    VSANs    Zoning
                                                             BGP          HSRP                PVLAN       CDP
                                                                                                                     FCIP    FSPF
                                                            EIGRP         IGMP                 STP        802.1X
                                                                                                                      IVR      …
                                                             PIM          SNMP                LACP         CTS
                                                                    …                                 …               Future

                                                                                      System Infrastructure

                                                                                    Kernel (Linux)


• Combination of SAN OS and IOS
• Every process runs in protected memory for fault containment
• Automatic stateful process restart
• Modular code only runs in DRAM when invoked
© 2010 Cisco and/or its affiliates. All rights reserved.                                                                               Cisco Confidential   133
                                                                        Cisco Confidential
Nexus 7000 Virtualization with
Virtual Device Contexts - VDCs
                                                                                                     VDC 2
VDC 1

                                                                                                       Layer 2 Protocols    Layer 3 Protocols
       Layer 2 Protocols                             Layer 3 Protocols
                                                                                                       VLAN        UDLD     OSPF          GLBP
         VLAN                 UDLD                     OSPF       GLBP            VDC 1                PVLAN       CDP       BGP          HSRP
       PVLAN                   CDP                      BGP       HSRP                                  STP        802.1X   EIGRP          IGMP
          STP                802.1X                   EIGRP       IGMP             VDC 2               LACP         CTS      VRF          SNMP
         LACP                  CTS                      VRF       SNMP                                         …                    …
                                                                                   VDC 3
                     …                                        …

                                                                                   VDC 4


                                                                             Infrastructure
                                                                                 Kernel
         Software Separation                                             Shared Resources              Hardware Separation
         › Software fault isolation domains                              › Software Infrastructure     › Individual Physical Ports
         › Addressing domains                                            › Kernel                          › Layer 2
         › Service differentiation domains                               › Power Supplies                  › Layer 3
         › Management domains                                            › Fans                        › Port Channels
         › Resource allocation                                           › Chassis                     › Entire Linecards
         › Security domains

 © 2010 Cisco and/or its affiliates. All rights reserved.                                                                           Cisco Confidential   134
VDC Design with Nexus 7000                                                Traditional Network Design

                              Switch 1                       Switch 2
                                                                         Distribution                               Switch 1/2
Dist.

Core                                                                      Core                                      Switch 3/4

Dist.


                                                                          Distribution                              Switch 5/6

Access


                                                                        Access
  © 2010 Cisco and/or its affiliates. All rights reserved.                                                      Cisco Confidential   135
IP localization:
                                                                                       LISP




                                                                  OTV



                                                            OTV




L2 Domain Elasticity:
vPC, L2MP/TRILL
OTV LAN extensions
                                                                                                    OTV         VN-link
                                                                                                              notifications

                                                                                              OTV



 Device Virtualization:
 VDCs,                                                      Storage Elasticity:
 VRF enhancements                                           FCIP, IO Acceleration
                                                            FCoE, Inter-VSAN routing                      VM-awareness:
                                                                                                          VN-link
                                                                                                          Port Profiles

  Compute resources are part of the cloud, location is transparent to the user
 © 2010 Cisco and/or its affiliates. All rights reserved.                                                           Cisco Confidential   136
OTV is used to interconnect the L2 domains of each DC

 • Simple to configure – In a 2 or 3 site                  • Currently* only supported on
   environment, a few lines of configuration                 Nexus product line – Currently*, OTV
   enables OTV (shown in upcoming slides)                    is only supported on the Nexus family of
                                                             switches. (Nexus 7xxx and Nexus 5xxx)
 • OTV has built-in loop prevention
   mechanism – This enables each site to
   run it’s own loop prevention mechanisms
   independently (spanning tree, VPC, etc.)

 • Dynamic learning of OTV
   Neighbors – This eliminates the need to
   configure and manage individual
   PseudoWires or Tunnels between Data
   Center switches. Encapsulation of traffic
   is dynamic and efficient.




© 2010 Cisco and/or its affiliates. All rights reserved.                                  Cisco Confidential   137
Intra-Site Packet Flow




                               MAC TABLE
                                                                                     Transport
                    VLAN                  MAC                  IF                  Infrastructure
    2                             OTV                                 OTV                                  OTV   OTV
                       100              MAC 1                 Eth 2
Layer 2
Lookup                 100              MAC 2                 Eth 1




                                 MAC 1  MAC 2
                      1
                                         MAC 1                   MAC 2      West                    East
                                                                            Site                    Site




   © 2010 Cisco and/or its affiliates. All rights reserved.                                                        Cisco Confidential   138
Inter-Site Packet Flow




                                                                                                        4
                                 MAC TABLE                                                     Transport                                         MAC TABLE
                                                                                             Infrastructure
                     VLAN                  MAC                 IF                                                                         VLAN       MAC          IF
                                                                                                                    Decap
                                                                            IP A
                         100             MAC 1                Eth 2                   3                               5 IP B               100       MAC 1     IP A
    2                    100 OTV MAC 2                        Eth 1   OTV
                                                                                     Encap                                        OTV
                                                                                                                                           100           OTV
                                                                                                                                                     MAC 2   IP A                 6
Layer 2                                                                                                     MAC 1  MAC 3   IP A  IP B                                           Layer 2
                         100             MAC 3                IP B     MAC 1  MAC 3      IP A  IP B                                      100       MAC 3     Eth 3
Lookup                                                                                                                                                                            Lookup
                         100             MAC 4                IP B                                                                         100       MAC 4     Eth 4




                                                                                                                                          MAC 1  MAC 3
                      MAC 1  MAC 3                           MAC 1                West                             East
                                                                                                                                                     MAC 3
                                                                                   Site                             Site
                                                      1                                                                                          7


   © 2010 Cisco and/or its affiliates. All rights reserved.                                                                                                  Cisco Confidential    139
OTV over a Multicast Transport
                  • Minimal configuration required to get OTV up and running




feature otv                                                   feature otv
otv site-vlan 99                                              otv site-vlan 99
interface Overlay1                                            interface Overlay1
  description WEST-DC                                           description EAST-DC
  otv join-interface e1/1                                       otv join-interface e1/1.10
  otv control-group 239.1.1.1                                   otv control-group 239.1.1.1
  otv data-group 232.192.1.0/24                                 otv data-group 232.192.1.0/24
  otv extend-vlan 100-150
                OTV                                             otv extend-vlan 100-150
                                                                          OTV
                              feature otv
                              otv site-vlan 99
                      IP A    interface Overlay1                     IP B
        West                    description SOUTH-DC                             East
                                otv join-interface Po16
                                otv control-group 239.1.1.1
                                otv data-group 232.192.1.0/24
                                        IP C
                                             OTV
                                otv extend-vlan 100-150


                                                            South


 © 2010 Cisco and/or its affiliates. All rights reserved.                          Cisco Confidential   140
Inter-POD Connectivity across L3
                                                 Shipping   OTV
                                                                            Failure Boundary Preservation
                                                                                                                             Failure
                                                                 IP Cloud
                                                                                                                             Boundary

                                                                                                                                            Core
L3

L3                                                                                                                          Aggregation
                                                                                                     …
L2                                                                vPC
                                                                                            … FabricPath
                                                                                                …      …    …
                                                                                                                                           Access
L2
                                                                                                                vPC

                                                                                                                                      Servers


                 STP+                                         vPC/VSS                          FabricPath
         STP                                                 NIC Teaming                       16x ECMP
     Enhancements                                           Simplified loop-              Low Latency / Lossless
        Bridge                                                 free trees                     MAC Scaling
       Assurance                                            2x Multi-pathing               Operational Flexibility

               Shipping
 © 2010 Cisco and/or its affiliates. All rights reserved.
                                                            Shipping                          Shipping                Cisco Confidential     141
Which platform is the right platform to create the new core

 • Campus Heritage – ex. AutoQoS,                          • Highest 10/40/100 Gig Density
        Common IOS
                                                           • Virtual Device Contexts
 • Virtual Switching System (VSS) –
        Single device to manage                            • In Service Software Upgrade
                                                             (ISSU)

 • Network Services – Ex. Firewall,                        • Virtual Port Channel – Separate
        ACE, WiSM, NAM, IDSM                                 Control Plane

 • MPLS and VPLS                                           • “Remote Module” design with
        **N7k MPLS Future                                    Nexus 2k


 • Future 8 Terabit capacity                               • FabricPath and OTV support –
                                                             **6k OTV Future


© 2010 Cisco and/or its affiliates. All rights reserved.                               Cisco Confidential   142
Thank you.
• Base 32 ports are Ethernet/FCoE Ports              • Base 32 ports are “Unified” Ports

         • 1 Expansion Slot                                   • 1 Expansion Slot

         • 2 750W PS, 2 Fans                                  • 2 750W PS, 2 Fans




                                                           • Base 48 ports are “Unified” Ports

                                                           • 3 Expansion Slots

                                                           • 2 1100W PS, 4 Fans




© 2010 Cisco and/or its affiliates. All rights reserved.                                         Cisco Confidential   144
Nexus 5596
                                                           48 Fixed Ports
                                                            3 Expansion
                                                              Modules




© 2011 Cisco and/or its affiliates. All rights reserved.           Cisco Confidential   145
Expansion Module                                    Expansion Module          Expansion Module




                                                           48x Fixed ports 1/10 GE or 1/2/4/8 FC

© 2011 Cisco and/or its affiliates. All rights reserved.                                               Cisco Confidential   146
Fabric Interconnect                                         Out of Band Mgmt
                                                                                     Console             USB Flash
                                                              10/100/1000




  Power         Power                                             Fan              Fan           Fan              Fan
  Entry          Entry                                           Module          Module         Module           Module
  N + N Power Supplies                                                         N + 1 Redundant FANs

 © 2011 Cisco and/or its affiliates. All rights reserved.                                                    Cisco Confidential   147
U



                                              All 48 ports are UNIFIED capable




                       32 x Fixed ports 1/10 GE or 1/2/4/8 FC            Expansion Module




© 2011 Cisco and/or its affiliates. All rights reserved.                             Cisco Confidential   148
Fabric                                                  Out of Band Mgmt
                                                                                      USB Flash
  Interconnect                                                 10/100/1000




              Console                                       Fan               Fan         Power           Power
                                                           Module            Module       Entry           Entry
                                                            N + N Redundant FANs           N + N Power Supplies


© 2011 Cisco and/or its affiliates. All rights reserved.                                               Cisco Confidential   149
* 1G Support NOW available with 5.0(3)N1(1)



           N55-M16P                                        N55-M8P8FP                              N55-M16UP
      • 16 Ethernet Ports                                  • 8 Ethernet Ports + 8 Fibre Channel    • 16 “Unified Ports”
      • Ports can be configured as either                    Ports                                 • Ports can be configured as either
        Ethernet or Fibre Channel over                     • Ethernet operation at 1/10 Gigabit      Ethernet or Native FC Ports
        Ethernet                                             Ethernet                              • Ethernet operation at 1/10 Gigabit
      • Ethernet operation at 1/10 Gigabit                 • Fibre Channel operation at 8/4/2/1G     Ethernet
        Ethernet                                           • Uses existing Ethernet SFP+ Cisco     • Fibre Channel operation at
      • Uses existing Ethernet SFP+                          8/4/2G and 4/2/1G FC Optics             8/4/2/1G
        Optics                                                                                     • Uses existing Ethernet SFP+ and
                                                                                                     Cisco 8/4/2G and 4/2/1G FC Optics




© 2010 Cisco and/or its affiliates. All rights reserved.                                                               Cisco Confidential   150
Fibre Channel                                                                                 Ethernet
          Full Support for
          1/2/4/8G Native                                                                              Full Support for
          Fibre Channel                                                                                   1G/10G and
                                                                                                     FCoE. Support for
                                                                                                      FEX connectivity




                                                                                                  Unified
                                                                                        Flexibly provision any
                                                                                       port to inherit Ethernet,
                                                                                   Expansion Fibre Channel or
                                                            Expansion Module
                                                                                              Module
                                                           8 Port FC 1/2/4/8 Gig        Ethernet Personalities
                                                                                    16 Ports 1/10 GE
                                                             + 8 Ports 1/10 GE




© 2010 Cisco and/or its affiliates. All rights reserved.                                                     Cisco Highly Confidential   151
List Price
                             $10,000                                      New!




           FEATURES                                         BENEFITS
       • High Density 48 x 100M/1GE +                      • Fabric extensibility with simplified
         4x10GE SFP+                                         management
       • 32MB buffer for bursty                            • Optimized for Specialized Data
         applications                                        Center workloads
                                                              BigData/Hadoop, Distributed Storage,
       • Designed for Top of Rack Access                      Distributed Computing, Video Editing
                                                           • VM-Aware networking

© 2010 Cisco and/or its affiliates. All rights reserved.                                   Cisco Highly Confidential   152
N2248TP/N2248TP-E
                       48 Port 100/1000M Host Interfaces
                                4 x 10G Uplinks                                                    N2232PP
                                                                                             32 Port 1/10G FCoE Host
                                                                                                     Interfaces
                                                                                                 8 x 10G Uplinks
                                                                   FET-10G
                                                           Cost Effective Fabric Extender
                                             N2224TP                 Transceiver
                     24 Port 100/1000M Host Interfaces
                              2 x 10G Uplinks



                                                                                                      N2232TM
                                             N2148T                                         32 Port 1/10GBASE-T Host Interfaces
                        48 Port 1000M Host Interfaces                                             8 x 10G Uplinks (Module)
                               4 x 10G Uplinks


© 2010 Cisco and/or its affiliates. All rights reserved.                                                          Cisco Highly Confidential   153
Model                                                   Nexus 2148T               Nexus 2248 TP               Nexus 2224TP             Nexus 2248TP-E
Form Factor                                                       1 RU                   1 RU                        1 RU                           1 RU
Uplink Ports                                             4 x 10GbE SFP+            4 x 10GbE SFP+              2 x 10GbE SFP+             4 x 10GbE SFP+
Host Facing Ports                                     48 x 1GbE RJ45          48 x 100/1000Base-T RJ45    24 x 100/1000Base-T RJ45   48 x 100/1000Base-T RJ45
                                                   (note: 1000BaseT only)
Ingress Policing                                                   No                    Yes                         Yes                             Yes
Hardware queues                                                     4                      8                           8                                8
Host ports per port                                                 4                      8                           8                               48
group
Ingress buffer (host to                         375KB per port group          480KB per port group        480KB per port group       32MB shared with egress
network direction)
Egress buffer (network                               320KB per port group        640KB per port group        640KB per port group     32MB shared with ingress
to host) with 2 uplink
Egress buffer (network                               320KB per port group      800KB per per port group              N/A                     32MB shared
to host) with 4 uplink
Multiple PortChannel                                       Not Supported                 Yes                         Yes                             Yes
member ports on a FEX
N5K/N2K Latency                                                ~ 7us (LIFO)            ~ 4.5 us                    ~ 4.5 us                       ~ 4.5 us




    © 2010 Cisco and/or its affiliates. All rights reserved.                                                                             Cisco Highly Confidential   154
Any server to any FEX – hybrid deployments

            Any Flavor of Nexus
                   5500
          5548P/5548UP/5596UP



                   Any Flavor of Nexus
                                                                                                 Dual-homed
                          2000
                                                                                               Fabric Extenders
                  2148T/2248TP/2224TP
                     2232PP/2232TM




                                                           Mix of Single NIC, Active/Standby
                                                           and Etherchanneled servers can
                                                                 connect to same FEX


© 2010 Cisco and/or its affiliates. All rights reserved.                                                     Cisco Highly Confidential   155
FabricPath




   • Externally, a Fabric looks like a single switch
   • Internally, a protocol adds Fabric-wide intelligence and ties the
          elements together.
          This protocol provides in a plug-and-play fashion:
                             Optimal, low latency connectivity any to any
                             High bandwidth, high resiliency
                             Open management and troubleshooting
   • Cisco FabricPath provides additional capabilities in term of scalability
          and L3 integration
© 2010 Cisco and/or its affiliates. All rights reserved.                                  Cisco Highly Confidential   156
MAC                 IF
                                             A              e1/1
                                            …                …
                                                                                FabricPath
                                             B             s8, e1/2
                                                                      e1/1 s3                s8 e1/2

                                                              A                                        B




• Single address lookup at the ingress edge identifies the exit port across
  the fabric
• Traffic is then switched using the shortest path available
• Reliable L2 connectivity any to any
  (as if it was the same switch, no STP inside)


© 2010 Cisco and/or its affiliates. All rights reserved.                                                   Cisco Highly Confidential   157

Cisco switching technical

  • 1.
    Cisco Switching V1.1 Drivingthe Next Generation Workspace Stephen J Kirk stekirk@cisco.com © 2011 Cisco and/or its affiliates. All rights reserved. 1 All specifications subject to change without notice
  • 2.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Agenda  Borderless Networks and Product Portfolio Update  Catalyst Fixed Configuration Portfolio - Product Update  Catalyst Modular Switches - Product Update  Nexus 7k  Nexus 5k and 2K Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 2
  • 3.
    For video… when 91% of global Internet traffic will be video. For security… when 58% let others use their device and there is a 46% increase in malware for mobile devices. For employee and student mobility… when 60% believe they won’t be in an office to be productive & efficient or when the desktop becomes virtualized. For return on investment … when saving energy, creating new business models, attracting the next-gen workforce and engaging with your customers. For business resiliency… when downtime causes massive disruption © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3
  • 4.
    http://www.cisco.com/en/US/netsol/ns827/networking_solutions_sub_solution.html Last year's mobiledata traffic was eight times the size of the entire global Internet in 2000 By 2016, global IP traffic will reach 1.3 zettabytes* annually (110 exabytes per month); growing 4-fold from 2011 to 2016. Mobile Data Traffic More Than Doubled in 2011 By 2016, wi-fi will account for nearly half of all IP traffic. Global mobile data traffic will increase 18-fold between 2011 and 2016 The average smartphone will generate 2.6 GB of traffic per month in 2016, a 17-fold increase over the 2011 average of 150 MB per month *Zettabyte = 250 Billion Blu-Rays © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4
  • 5.
    IMMERSIVE COLLABORATION Pervasive Video Collaboration MOBILITY CLOUD BYOD SaaS | DC /V Borderless Data Center/ Networks Virtualization © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5
  • 6.
    IMMERSIVE COLLABORATION Pervasive Video MOBILITY CLOUD BYOD SaaS | DC / V THE NETWORK SECURITY, Accelerating Cyber-Threats IT PRODUCTIVITY, Service and Network Management GREEN, Energy Efficiency © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6
  • 7.
    WAN Campus Wireless Connected Industries Services Limited Limited Delivery Infra App delivery App delivery Zero Touch Smart Install Controller Zero Touch Smart Install FEX based Mgmt Deployment ASP Deployment ASP AVC Energy Wired Radio Medianet Voice Medianet Medianet Cloud NBAR2 wise Wireless Management Security Identity Security Security Security Identity Identity Identity IP/Sec, FW eEdge Trustsec, FHRP ACL IPSec Protocols Industrial Deterministic IPv6 IPv6 CAPWAP PMIPv6 IPv6 Protocols Behavior Forwarding Software Model CEF FMAN FFM CEF CEF Forwarding Merchant Software CPP Strider Earl K10 Doppler Strider Software Doppler Silicon IOS IOS/ XE IOS IOS/XE IOS AirOS IOS/XE IOS IA IA IA ISR ASR C2K C3K C4K C6K Controllers APs Switches APs Routers © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7
  • 8.
    WAN Campus Wireless Connected Services, Cloud NGWC, Ease of Mobility, BYOD, Industries Connectivity Use SP Wi-Fi Transition to Ethernet/IP Everything Common Management & Policy Connected Virtualized Services Delivery Infra FEX Simplified Deployment API (OnePK) Software Defined Services Mobility Application Visibility & Optimization Cloud Connectivity Medianet Energywise Protoc Identity, Trustsec, FW, FHRP ols IPv6, PMIPv6, CAPWAP, Deterministic Behavior API Forwardi ng Platform Level Model Common Forwarding Model Doppler, Multicore CPU (CPP) IOS and IOS/XE © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8
  • 9.
    Adapter FEX FEX-Link Locator/ID Separator Uplinkfast MISTP Inline Power VN-Link Protocol (LISP) HSRP ISL Etherchannel/ VSANs FCOE Overlay Transport PAgP Virtualization (OTV) Lossless NetFlow CDP Tag Switching 10GbE FabricPath 1990 1994 1995 1996 1997 1998 1999 2002 2008 2009 2010 2011 1999 1999 2001 2001 2004 2009 2009 IETF IEEE IETF IEEE IEEE IEEE IEEE ANSI T11 ANSI T11 eVPN 802.1BR VRRP 802.1q 802.1w 802.1s 802.1qbg 2004 2005 2000 2001 2010 2010 IETF IETF IETF IEEE IEEE IEEE IEEE MPLS TRILL LISP IPFix LLDP LACP/802.3ad 802.1Qbb 802.1Qbh 2000 2004 IEEE IEEE IEEE 802.3af PoE 802.3at PoE+ UPOE Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 9
  • 10.
    Cisco Technology PutsYou on the Fast Track to Business Innovation • Technology Advantage On average, Cisco silicon delivers advanced innovations into customer networks 24-36 months before merchant silicon • Technology Benefits Superior network security, application visibility, and performance Increased network and service reliability Technology features today to support urgent IT initiatives MACsec – only vendor shipping first hop encryption • Business Advantage IPv6 – superior address matching capabilities for IPv6 security and control Accelerate business transition to new business models requirements (VDI/VXI, hybrid/cloud, borderless extended enterprise) Flexible Netflow (v9) - only vendor Maximize ROI within the technology lifecycle shipping in switching hardware - deep application visibility and logging PoE+, NG PoE+ - only vendor shipping high-power PoE – supporting next generation devices and business models Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 10
  • 11.
    Enabled with ISE ISE Unified Policy Define network policy as an extension of business goals Product Bookings Corporate Customer issued laptop Data X Policy extends to all access Finance Manager SalesForce types (wired, wireless, VPN) .com Personal iPad Lifecycle Services Integration – guest, profiling, posture Encryption-based Policies for Security-conscious users Policy-based Access Enables “Business Policy” © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11
  • 12.
    Building Management Systems (BMS) Management Applications Prime LMS 4.0 Verdiem Surveyor Joulex JEM CA ecoMeter 1E (was: Orchestrator) (Q3 CY11) EnergyWise Toolkit Management API EnergyWise Domain EnergyWise Gateways and Protocol Translators (eg. FieldServer) (switches and routers) EnergyWise-enabled Endpoints Using SDK PC Clients Non-Energywise, IP Phones (Lenovo) Smart PDU PoE Devices Building Devices VDI Non-Energywise IP Camera Wireless © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12
  • 13.
    Built-in Traffic Simulatorto Automate Network Readiness Si Si Si Si Remote IT Prime Scheduler (Traffic Simulator based on IPSLA) The Solution Deployment Scenario—Cisco Catalyst 3K/4K Series Switch Automate Network Traffic simulator built IT can monitor and Includes a scheduler to Readiness into switch; no extra test remotely run periodic test over appliance needed extended durations © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13
  • 14.
    Manual, Time Consuming,Expensive and Business Critical IT Si ? Si IT Si Si ? ? ? IT ? ? ? IT IT IT IT The Challenge Typical Deployment Scenario Monitoring and Manual troubleshooting Hop by hop logging Huge time consumption Troubleshooting at location and device; into each network to troubleshoot and and manual simulation node is needed simulate problems © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14
  • 15.
    IPv6 Deployment IPv4 Address Run-Out National IPv6 Strategies US DoD, China NGI, EU IPv6 IPv6 OS, Content & Infrastructure Evolution Applications SmartGrid, SmartCities DOCSIS 3.0, 4G/LTE ,IPSO www.oecd.org: Measuring IPv6 adoption Presentation_ID C3RS © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential © 2008 Cisco Systems, Inc. All rights reserved. Cisco Highly Confidential—Controlled Access 15
  • 16.
    Addressing Business Transformation NEW Intelligent Secure Access Fixed Switching Solutions Enterprise Level Services Evolves With Your Intelligent Business Catalyst 3K-X Services w/ IP Services Converged Catalyst 3K-X Business Continuity Entry-Level Services Catalyst 3K-X w/ IP Base to Cisco w/ LAN Base Experience Catalyst 2960-S w/ LAN Base Catalyst 2960-S w/ LAN Lite Borderless Security Ease of Operations Borderless Experience Sustainability Business Agility Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 16
  • 17.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst Switching Portfolio Distribution/Core Catalyst 6500 Features, Scalability, Longevity Catalyst 4500 Data Center Access Catalyst 6500 Catalyst 4900 Blade Switches Wiring Closet Catalyst 6500 Catalyst 4500/4500X Catalyst 3750X Catalyst 3560X Series Catalyst 2960S Series Series Small Medium-sized Large Number of Employees/Density Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 23
  • 18.
    Catalyst Cisco Industrial Catalyst Catalyst 4500E Catalyst 2960-S Compact Edge Automati 3750-X 3560-X 300* Switches on Great for secure, Open, Lower TCO, Purpose-Built for Industry-leading Industry-leading Competitive feature set manageable All-in-One Access for Industrial modular access fixed switching at compelling prices ports ‘at the end of Connected Rooms Applications the wire’ Right Size All-in-One Ruggedized Innovative Services, Solid Baseline Without Access For for Industrial Lower TCO Switching Compromise Connected Applications Rooms Traditional Next-Generation Workspace Outside the Wiring Closet Workspace Any Device HD Video VDI Data Voice Oil and Gas Retail Manufacturing © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24
  • 19.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst Fixed Configuration Portfolio Product Update Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 25
  • 20.
    Stackable Switch Portfolio Stand-Alone Switch Portfolio Catalyst 3750 v2 Catalyst 3750-X Catalyst 3560 v2 Catalyst 3560-X Data or PoE Data / PoE(+) Data or PoE Data / PoE(+) StackWise StackWise Plus Fixed 1G Uplinks Modular 1G/10G Fixed 1G Uplinks StackPower Single PS Uplinks Single PS Modular 1G/10G LLW Dual PS LLW Uplinks E-LLW Dual PS E-LLW Fast Ethernet Gigabit Ethernet Fast Ethernet Gigabit Ethernet Network And Service Modules Aggregation Switch NEW WS-C3750X-12S-S WS-C3750X-24S-S C3KS-NM-1G C3KS-NM-10G C3KS-NM-10GT C3KS-SM-10G WS-C3750X-12S-E WS-C3750X-24S-E © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 26
  • 21.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 3750-X and 3560-X Series  Next Generation Gigabit Ethernet 24 and 48 port, Data Catalyst 3750-X Series and PoE+ Switches  Linerate nonblocking switches  Three IOS feature sets:  LAN Base  IP Base  IP Services Catalyst 3560-X Series  Innovative features, StackPower, PoE+, Encryption, Dual redundant PS, Network modules  Enhanced LLW:  Next business day (NBD) advance hardware replacement  90 Day access to Cisco Technical Assistance Center (TAC) support  Full Energy-Wise support Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 27
  • 22.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 3750-X & 3560-X Model comparison IOS Model Stackable StackPower Full PoE PoE+ Description WS-C3750X-24T-L Yes - - 24-port 10/100/1000, 350W AC, LAN Base Available LAN Base WS-C3750X-48T-L Yes - - 48-port 10/100/1000, 350W AC, LAN Base with WS-C3750X-24P-L Yes Yes Yes 24-port PoE+ 10/100/1000, 715W AC, LAN Base upgrade WS-C3750X-48P-L Yes - Yes 48-port PoE+ 10/100/1000, 715W AC, LAN Base to IP Base WS-C3750X-48PF-L Yes Yes Yes 48-port PoE+ 10/100/1000, 1100W AC, LAN Base Optional 10G / 1G Network Modules WS-C3750X-24T-S Yes Yes - - 24-port 10/100/1000, 350W AC, IP Base WS-C3750X-48T-S Yes Yes - - 48-port 10/100/1000, 350W AC, IP Base IP Base WS-C3750X-24P-S Yes Yes Yes Yes 24-port PoE+ 10/100/1000, 715W AC, IP Base WS-C3750X-48P-S Yes Yes - Yes 48-port PoE+ 10/100/1000, 715W AC, IP Base WS-C3750X-48PF-S Yes Yes Yes Yes 48-port PoE+ 10/100/1000, 1100W AC, IP Base WS-C3560X-24T-L - - - - 24-port 10/100/1000, 350W AC, LAN Base LAN Base WS-C3560X-48T-L - - - - 48-port 10/100/1000, 350W AC, LAN Base WS-C3560X-24P-L - - Yes Yes 24-port PoE+ 10/100/1000, 715W AC, LAN Base WS-C3560X-48P-L - - - Yes 48-port PoE+ 10/100/1000, 715W AC, LAN Base WS-C3560X-48PF-L - - Yes Yes 48-port PoE+ 10/100/1000, 1100W AC, LAN Base WS-C3560X-24T-S - - - - 24-port 10/100/1000, 350W AC, IP Base WS-C3560X-48T-S - - - - 48-port 10/100/1000, 350W AC, IP Base IP Base WS-C3560X-24P-S - - Yes Yes 24-port PoE+ 10/100/1000, 715W AC, IP Base WS-C3560X-48P-S - - - Yes 48-port PoE+ 10/100/1000, 715W AC, IP Base WS-C3560X-48PF-S - - Yes Yes 48-port PoE+ 10/100/1000, 1100W AC, IP Base IP Base Models can be upgraded to IP services feature set at the time of order Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 29
  • 23.
    • New Access/Distribution-Layerwith 10G uplinks • 3750-X and 3560-X with Network Modules 3 out of 4 offering 10G C3KX-NM-1G Four GbE port network module C3KX-NM-10G Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports C3KX-NM-10GT Two 10GB-T ports network module C3KX-SM-10G Service Module with two 10GbE SFP+ ports network module for Netflow • Need-1: Cost efficient 10G Distribution/Core and MACsec encryption • Need-2: Fiber and Copper 10G offering © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 31
  • 24.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 3750-X and 3560-X Series Dual Redundant Power supplies & fans  The switch ships with one power supply by default  The second power supply can be purchased at the time of ordering or at a later time  Dual, redundant, high efficiency PS  Four PS options  Redundant fan modules 1100W AC  DC Power Supply also delivers 175W of PoE 715W AC  AC and DC Power Supplies can be mixed and 350W AC matched 440W DC Models Default Power Supply Available PoE Power 24 Port Data Switch C3KX-PWR-350WAC – 48 Port Data Switch 24 Port PoE Switch C3KX-PWR-715WAC 370W 48 Port PoE Switch 48 Port Full PoE Switch C3KX-PWR-1100WAC 740W Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 32
  • 25.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 3750-X and 3560-X Series PoE+ Support  Support for both 802.3af and the new standard 802.3at  30W per port VS. 15.4W per port  Ability to provide 30W per port on all 48-ports simultaneously  Requirement for 30W in all ports simultaneously is 1440W for a 48-port switch and 720W for a 24-port switch  PoE is also supported with the DC power supply (175W of PoE)  Ability to assign priorities (high/low) to each port Useful for intelligent power shedding! Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 33
  • 26.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 3750-X and 3560-X Series Industry MACsec (Crypto) Leadership  MACsec provides MAC layer encryption over wired networks  Standards based encryption (802.1AE) on all user ports  Line rate performance  Standards based key exchange protocol, MKA, included in 802.1X-Rev  Tested with current Intel NIC cards  Some newer Intel’s LOM chip set supports MACsec Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 34
  • 27.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 3750-X Cisco StackPower Technology  Innovative technology, aggregates and shares available input power capacity in a Stack  Flexible arrangement of power supplies in a stack Up to 8.8Kw power in a stack  Supports a “zero-footprint” RPS deployment  Intelligent power shedding  Stackpower decouples a PS from its physical location in the stack!  Up to 4 switches can be part of Stackpower Independent from Stackwise (Stackwise Plus)  No need for RPS though an XPS is available!  StackPower is not supported in 3560-X switches Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 35
  • 28.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Cisco StackPower Technology Close up Console, 10/100 port, and USB type A Redundant, Dual PS, either Stackwise Plus FRU Dual StackPower AC/AC, AC/DC, AC, or DC Redundant Fans Cables combinations Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 36
  • 29.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Cisco StackPower Technology Intelligent Load shedding  Mechanism to shed power when the system goes into negative power budget Power failure or offlining a power supply in the stack  The stack will shed power starting with the lowest-priority PDs in the entire system, then the high-priority PDs, then the low priority switches and finally the high-priority switches The amount of load shedding depends on the amount of oversubscribed power  Built-in intelligence to detect important PD or switches in a stack Stackpower has 27 priority levels Default priority per port can be re-programmed All ports are Low priority by default Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 38
  • 30.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Cisco StackPower Benefits  Better utilization of available power capacity and sharing  Scalable infrastructure for PoE+  Improved reliability and efficiency  PS can be configured as redundant failovers  Complements PoE+ on switches with smaller PS  “zero footprint” RPS (Redundant mode) Except in a fully loaded POE+ stack (Stackpower of 4 w/ all PoE+)  Increased HA via a resilient Redundant power system  Pay-as-you-grow architecture – similar to Stackwise Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 40
  • 31.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 3750-X StackWise and StackWise-Plus Technology Unified stacking, • 32 / 64Gbps stacking throughput behaving as a single unit • Local switching with StackWise Plus • Intelligent traffic forwarding • StackWise Plus is backward- compatible with StackWise • Fault-tolerant bi-directional stack interconnection • Automated Configuration eases deployment 1:N master redundancy • Single network instance Auto-configuration and (IP, SNMP, CLI, STP, VLAN) Cisco IOS version check / update • Master/secondary architecture with Cross-stack EtherChannel and QoS master failover Hot add / delete of switches in stack, provisioning ahead of deployment Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 41
  • 32.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 3750-X Feature Sets LAN Base vs. IP Base and IP Services Highlights New Cisco® Catalyst® 3560-X Cisco Catalyst 3560 and Catalyst and Catalyst 3750-X 3750, Including E and X Series Functions LAN Base IP Base IP Services • Enterprise access Layer 2 • Complete Access Layer 2 Layer 2+ Wide range of Layer 2 access features Supports all Cisco Catalyst 2000 and Catalyst 3000 Layer 2 features, for enterprise deployments including hot standby protocols; supports Cisco StackPower™ technology (Cisco Catalyst 3750-X) • No routing support • Enterprise access Layer 3 • Complete access Layer 3 Layer 3 Support for SVI with no IP routing RIP, static and stub PIM, and OSPF, EIGRP, BGP, IS-IS support EIGRP VRF-lite, WCCP, and PBR • Basic manageability • Enterprise access Layer 3 • Complete access Layer 3 Manageability Support for a wide range of MIBs, Gold-Lite and Smart Install EEM and IPSLA Initiator IPSLA Responder, and RSPAN Director • Enterprise access security • Complete access security Security DHCP Snooping, IPSG, DAI, PACLs, Router and VLAN ACLs, private VLANs, complete identity and Cisco Identity 4.0, NAC and 802.1x security, TrustSec SXP, and IEEE 802.1AE (Cisco Catalyst 3560-X features and Catalyst 3750-X) • Enterprise access QoS • Complete access QoS QoS Ingress policing, Trust Boundary, Support for all Cisco Catalyst 2000 and Catalyst 3000 QoS features, AutoQoS, and DSCP mapping including per-VLAN policies Note: IP Services feature set includes all IP Base features. IP Base feature set includes all LAN Base features. Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 43
  • 33.
    (Pre-EC) • New 24and 48 port HW • UPOE - 60W power per port on 24 ports. • EEE PHYs – Energy savings. © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 44
  • 34.
    Cat3K Cat4K 15.0(1)SE1 Yap 3 Establish device MAC IP Device Switch IP port Link VLAN Type profiling repository 00:1c:c4:03:b0:2d 10.100.10.122 Printer 4506 Gi1/23 Up 1 • Maintain up-to-date (Hewlett Packard) device feed 00:18:f8:09:cf:d7 10.100.30.201 AP 4506-2 Gi1/0/5 Up 30 (Cisco-Linksys)  IOS-sensor assisted profiling Automatic Endpoint discovery leverages access switch Reduce identity deployment time Real-time and historic visibility for all intelligence endpoints  Discover and classify 2. Classify endpoints endpoints ISE Profiler • IP phone ? ACS • Printer ?  ISE Profiler collects device • etc intelligence from IOS  DHCP, CDP/LLDP & MAC OUI  Simplified deployment 1. Collect endpoint  Improved efficiency (less polling context info: and traffic re-direction) • CDP • LLDP • DHCP attributes © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 45
  • 35.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Introducing Catalyst 2960-S  Line rate 24/48 10/100/1000 ports with fixed uplinks  Fixed Uplink Options: 4x1G or 2x10G SFP+  FlexStack Technology Brings stackable ease-of-use features to the 2960 family, features 20G stacking links  Power over Ethernet Full standards-based PoE on every port PoE+ support for next-generation high-power devices  Sustainability - GREEN Very low power for Gigabit Ethernet Switch New EnergyWise functionality to control PHY power Half the power of Catalyst 2960G  LAN Lite and LAN Base Software Options LAN Lite option provides entry-level Gig-E platform No upgrade path from LAN Lite to LAN Base  E-LLW,Cisco Systems, Inc. All rights reserved. TAC support Presentation_ID © 2009 NBD and 90 day Cisco Confidential 46
  • 36.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 2960-S Model comparison Cisco FlexStack 10G SFP+ 1G SFP 10/100/1000 Full PoE Model Stacking Ports Ports Ports (15.4W) ports PoE Budget 10G Uplink Ports WS-C2960S-48FPD-L √ 2 48 48 740W (PoE+) WS-C2960S-48LPD-L √ 2 48 24 370W (PoE+) WS-C2960S-48TD-L √ 2 48 WS-C2960S-24PD-L √ 2 24 24 370W (PoE+) WS-C2960S-24TD-L √ 2 24 1G Uplink Ports WS-C2960S-48FPS-L √ 4 48 48 740W (PoE+) WS-C2960S-48LPS-L √ 4 48 24 370W (PoE+) WS-C2960S-48TS-L √ 4 48 WS-C2960S-24PS-L √ 4 24 24 370W (PoE+) WS-C2960S-24TS-L √ 4 24 LAN Lite 1G Uplink Ports WS-2960S-48TS-S 2 48 WS-2960S-24TS-S 2 24 Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 47
  • 37.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 2960-S FlexStack Technology Overview  FlexStack allows multiple physical switches to be managed as a single logical unit  Increased network availability by using the redundancy built into FlexStack  FlexStack available with optional Module Hot Swappable with two wire-speed 10G ports  Up to 4 switches in a stack  Unified management, control, and synchronized data plane (similar look and feel as StackWise) Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 48
  • 38.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 2960-S FlexStack Module and Cables  FlexStack available with optional Module  Hot Swappable with two wire-speed 10G ports (full-duplex, bidirectional)  When a switch joins an existing stack, new members are always rebooted  Blank plate required when FlexStack Module not inserted  3 FlexStack Cable lengths supported  0.5 meters, 1.0 meter, 3.0 meter  We ship a .5M cable with the stack module. Other cables can be ordered for extra cost when placed or later as a spare  Cisco Proprietary Cables  No SFP needed  FlexStack only available in LAN Base models Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 49
  • 39.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 2960-S FlexStack Stacking Features  Cross-stack EtherChannel, SPAN, and FlexLink supported EtherChannel physical links across stack members  Pre-Provisioning of stack members supported  Easy member addition and replacement  Configurable Stack Master Following same Master election rules as StackWise Plus  Support same CISCO-STACKWISE-MIB  Single Spanning tree node: No spanning- tree across stack Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 50
  • 40.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute 3750-X StackWise Plus 2960-S FlexStack Ease of Use and Ease of Use High Availability Device Limit 4 units 9 units Stack Bandwidth 10G / 20G 32G / 64G Architecture HW Drop Table Ring (Destination stripping) Dynamic Ring Load No Yes Balancing Stack Convergence 1-2 seconds Few milliseconds Stack QoS Applied hop by hop Applied on ingress Management Single IP address, SNMP, SYSLOG Single IP address, SNMP, SYSLOG Single config and CLI, auto image and Single config and CLI, auto image and Configuration config update config update Show and Debug Unified Unified Commands Single Forwarding and Synchronize ARP, MAC Address, IGMP, Synchronize ARP, MAC Address, IGMP, Control Plane VLAN tables VLAN, Routing tables Cross-Stack Features Yes Yes Single Bridge-ID Yes Yes Preprovison members Yes Yes Redundancy Stack master 1:N redundancy Stack master 1:N redundancy Easy member Yes Yes replacement Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 51
  • 41.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 2960-S PoE+  802.3at (30W) PoE+ Plus compliant 802.3af (15.4 W) compliant – maintain backward compatibility  Full PoE Functionality 48 Ports of full 15.4W per switch 24 Port of 30W per switch No External RPS needed  2 PoE Power Models Available 740W PoE available power budget 370W PoE available power budget  Capable of supporting 802.3at and 802.3af PDs simultaneously Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 52
  • 42.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Cisco Catalyst 2960-S QoS  Consistent with Catalyst 2960 behavior.  QOS configuration consistent with Catalyst 2960  Line rate Classification, Policing, Marking  Individual and Aggregate Policing is supported  Increase in available ACL resources QOS and Security ACLs Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 53
  • 43.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 2960-S Sustainability Green Cisco Technology Innovation  Lowest Power Consumption in Industry Improving Gigabit Ethernet switching power efficiency Cisco low power consumption ASICs Uses 50% power of equivalent Ethernet switches in the market  Additional Power savings Interfaces power down when interface not in connected to reduce power  EnergyWise Capable Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 54
  • 44.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 2960-S SFP+ 10Gig  SFP+ supported in 10Gig Models SFP / SFP+ interchangeable *100MB SFPs not supported in 10Gig models  Additional SFP+ models support as released. See data sheet SFP+ SFP+ Module Description SFP-H10GB-CU1M= Copper 10Gig SFP+ modules SFP-H10GB-CU3M= 1-m , 3-m, 5-m 10G SFP+ Twinax cable assembly SFP-H10GB-CU5M= SFP-10G-SR= Optical 10Gig SFP+ modules SFP-10G-LR= 10GBASE-SR SFP+ transceiver module for MMF SFP-10G-LRM= 10GBASE-LR SFP+ transceiver module for 10GBASE-LRM SFP+ transceiver module for MMF Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 55
  • 45.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute LAN Lite vs. LAN Base Highlights Cisco® Catalyst® 2960 and Catalyst 2960-S Functions LAN Lite LAN Base • Entry-level access Layer 2 • Enterprise Access Layer 2 Basic Layer 2 access features, including 802.1Q trunking, Wide range of Layer 2 access features for enterprise Layer 2 (M)STP, STP extensions, Cisco Discovery Protocol, DTP, UDLD, deployments, including FlexLinks, VTPv3, and LLDP VTPv2, PAGP/LACP, LLDP, and storm control MED • No routing support Layer 3 • Static Routing Support Support for Layer 3 management interface • Entry-level manageability • Basic manageability Express setup, Cisco Device Manager, SNMPv3 (with Manageability cryptography), RMON, SPAN, TDR, Auto Smart Ports, and Support for a wider range of MIBs, IPSLA Responder, and RSPAN Smart Install client • Entry-level access security • Enterprise access security SSH v2 server, SSL, HTTPS, SCP, TACACS+, RADIUS, port Security security, 802.1x (with guest VLAN), MAB, private VLAN DHCP snooping, IPSG, DAI, PACLs, Cisco Identity 4.0, and 802.1x features edge, and NAC • Entry-level access QoS • Enterprise access QoS QoS Ingress and egress queuing, scheduling, Priority Queuing, Ingress policing, Trust Boundary, AutoQoS, and DSCP and SRR mapping, service policy Note: LAN Base feature set includes all LAN Lite features. Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 56
  • 46.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Cisco IOS Software Feature Set Capabilities Catalyst 2960-S, Catalyst 3750-X and 3560-X Positioning Guidelines Layer 2 Layer 3 LAN Lite LAN Base IP Base IP Services Entry Level Enterprise Access Enterprise Access Enterprise Advanced Layer 2 Layer 2 Layer 3 Layer 3 Cisco® Catalyst® 2960 and Cisco Catalyst 2960 and 2960-S, Cisco Catalyst 3560-X & 3750-X Cisco Catalyst 3560-X & 3750-X 2960-S 3560-X and 3750-X Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 57
  • 47.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Borderless Access: Enhanced Limited Lifetime Warranty Catalyst 3750-X, 3560-X and 2960-S Best in Class Support  Limited Lifetime Warranty 5 years on Power Supplies and Fans  Next Business Day Hardware Replacement  90-Days TAC Support  Unlimited maintenance updates for LAN Base and LAN Lite Images* *Service ContractSystems, Inc. All rights reserved. IOS Premium Images Presentation_ID © 2009 Cisco required for Cisco Confidential 58
  • 48.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Cisco Warranty and Service Options Cisco® Smart Cisco SMARTnet® Service Element Warranty Foundation Service As long as the original End User continues to own or Renewable 1 year and Duration of use the Product, provided Renewable 1-, 3-, and 5- multi-year contracts, Coverage that: fan and power supply year contracts depending on product warranty is limited to five (5) family years. Cisco Technical LLW: Not included Business hours access to Assistance Center E-LLW: Business hours SMB TAC (access levels 24x7 coverage (TAC) Support access for 90-days vary by region) Online Support / Available through Smart Direct 24x7 registered Unregistered access only Web Access Foundation Portal access LLW: 10 business days* Next business day as Next business day, 8x5x4, Advance Hardware available, otherwise same 24x7x4, 24x7x2 delivery Replacement E-LLW: Next business day** day ship options as available SMARTnet Onsite service On-site Support No No options available •Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working after receipt of the RMA request. Actual delivery times may vary depending on Customer location. ** Where next business day delivery is available, Cisco will use commercially reasonable efforts to ship a replacement for next business day delivery provided Cisco’s determination of the hardware failure has been made before 3 p.m. depot time. If a request is made after 3 p.m. depot time, Cisco will ship the advance replacement on the next business day. Actual delivery times may vary depending on Customer location. Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 59
  • 49.
    2960-C LAN BASEPORTFOLIO ADVANCED LAYER 2 (LAN Base) POR 3560-C Portfolio 2960-C Portfolio IP Base IP Base LAN Base LAN Base 8 and 12 port FE 8 port GE 8 and 12 port FE 8 port GE Data or PoE+ Data or PoE+ Data or PoE Data Only 2 x 1G Uplinks 2 x 1G Uplinks 2 x 1G Uplinks 2 x 1G Uplinks E- LLW E- LLW E- LLW E- LLW Fast Ethernet Gigabit Ethernet Fast Ethernet Gigabit Ethernet PoE Pass Through Switch WS-C3560CPD-8PT-S WS-C2906CPD-8PT-L © 2011 Cisco and/or its affiliates. All rights reserved. 60 All specifications subject to change without notice
  • 50.
    CISCO Catalyst 4500E INNOVATION and OPERATION SIMPLICITY Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 61
  • 51.
    Cisco Catalyst 4500E Simplified Deployment (Flex GE/10GE, One IOS image, Silent roll, ISSU) Single Platform for access and distribution Leading Cisco Borderless Networks Services Plug & Play (PoEP, ASP) Operation Innovation Simplicity  848 Gbps System Enterprise-Class  Over 82M ports deployed  384 PoEP ports, 200GE ports, or 100 10GE ports Campus Platform  Over 650K Chassis Unprecedented Investment Protection – Backward and Forward Compatible Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 62
  • 52.
    “Catalyst 4500” LifeCycle Unprecedented Switching Lifecycle Cisco Catalyst 4500 E-Series 14 90% Transition to years E-Series EOS EOL Maintain Cisco Catalyst 4500 (non-E) Support 11 years EOS EOL Cisco Catalyst 4000 Maintain Support 1999 … 2004 … 2007 … 2010 … 2015 … 2020 Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 63
  • 53.
    Next Generation Catalyst4500E System Supervisor7-E 848Gbps Switching Capacity WS-X4748-RJ45V+E 48G/slot 48p 10/100/1000 non-blocking Rich hardware features 30W/port (PoE+) on all 48 ports (FnF, TrustSec, Wireless, ERSPAN, Cisco TrustSec in Hardware Tunneling, VRF-NG, VSS and more… Catalyst 4500E and 4500E+ Chassis Forward and backward compatible 48G/slot Lifecycle till year 2020 WS-X4712-SFP+E 12 PORT 10GE 2.5:1 Line Card Cisco IOS XE Cisco Trustsec in Modern OS to support multi-core CPU HardwareSFP+ SR modules IOS investment protection (Lower power mode) Enabling Open Service Platform Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 66
  • 54.
    Catalyst 4500E Supervisor7-E Hardware Elements 2G DRAM Dual Core CPU USB ports* SD Memory Card Console and Management 4 Uplinks 10GE with SFP+ Port 1GE with SFP *USB Type A is supported USB Type B is not supported Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 67
  • 55.
    Supervisor 7-E Performance& Scalability System Feature Supervisor 7-E Supervisor 6-E Supervisor 6L-E Switching Capacity 848Gbps 320 Gbps 280 Gbps Throughput 250 Mpps ( 125 Mpps for 250 Mpps ( 125 Mpps for 225 Mpps ( 125 Mpps for IPv6) IPv6) IPv6 ) Bandwidth / Slot Upto 48G Upto 24G Upto 24G CPU Dual Core 1.5 GHz Single Core 1.3 GHz Single Core 1 GHz SSO failover time 0-50 msec 0-50 msec 0-50 msec Number of Packet 128000 64000 64000 buffers DRAM 2G ( Upgradable to 4G) 512 MB ( Upgradable to 512 MB 1G ) Bootflash 1G 128 MB 128 MB Number of 10/100/1000 Upto 384 access Upto 384 access Upto 240 access ports Upto 4 GE uplinks Upto 4 GE uplinks Upto 4 GE uplinks Number of 10GE ports Upto 96 on Line cards Upto 30 on Line cards Upto 30 on Line cards Upto 4 on Supervisors Upto 4 on Supervisors Upto 2 on Supervisors Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 68
  • 56.
    Supervisor 7-E Performance& Scalability (Cont’d ) Layer 2 Feature Supervisor 7-E Supervisor 6-E Supervisor 6L-E Unicast MAC entries 55000 55000 55000 Multicast MAC entries 32000 32000 16000 Number of VLANs 4094 4094 4094 Virtual Port Instances 10000 10000 10000 Number of 64 64 64 Etherchannels Mac Learning rate 20000 /second 13000/second 8000/second Layer 3 Feature Supervisor 7-E Supervisor 6-E Supervisor 6L-E Routing Entries 256000 256000 57000 Number of VRFs 64 64 64 Netflow Entries 128000 0 0 Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 69
  • 57.
    Supervisor 7-E Performance& Scalability (Cont’d) Qos and ACLS Feature Supervisor 7-E Supervisor 6-E Supervisor 6L-E ACLs 64K / direction 64K / direction 32K / direction Number of Policers 16K 16K 16K QoS Classification 64K/ direction 64K/ direction 32K/ direction Entries Queues per port 8 queues – 1p7q1t 8 queues – 1p7q1t 8 queues – 1p7q1t Multicast and SPAN Feature Supervisor 7-E Supervisor 6-E Supervisor 6L-E Number of SPAN 8 bidirectional 8 bidirectional 8 bidirectional sessions Number of L2 Multicast 32000 32000 8000 Entries Multicast Replication 250 Mpps 250 Mpps 225 Mpps Performance Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 70
  • 58.
    Catalyst 4500E Supervisor7-E Rich Hardware Services  Next gen campus performance, future proof with PoE+, EEE, IPFIX etc  Enables converged wired and wireless  Next-gen collaboration with Medianet, Trustpoint  HW enabled Cisco Trustsec security  Next generation virtualization with VRF-NG, VSS  Lower TCO Borderless Network Services and Open Application Platform with Next-generation IOS XE Performance Mobility Collaboration Security Lower TCO video Flexible Netflow MACSec VSS 848Gbps Converged wired 48G/slot & Wireless WRED TrustSec SGT VRF NG 100 10GE ports ERSPAN Unified Guest Sampled Netflow 384 10/100/100 Integrated NAC EEE Access Medianet Dual Core CPU Profiler NAT PoEP on all ports Intelligent Media GRE TrustPoint
  • 59.
    Supervisor Engine 7-E: Supervisor Engine 7L-E: Optimized for Large Optimized for Small and Campuses Medium Campuses Switch Fabric Capacity 848 Gbps 520 Gbps Bandwidth Per Slot 48 Gbps 48 Gbps Number of IPv4 Routes 256K 64K 10 Gb Fiber Port Density 100 62 1 Gb Copper Port Density 384 240 Chassis Support 3, 6, 7R, 10R chassis 3, 6, 7R chassis Flexible NetFlow In Service Software Upgrade Consistency of Services IOS XE Services (Wireshark) Investment Protection: Compatible with line cards shipped since 1999 C97-571987-00 © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 72
  • 60.
    Catalyst 4500E IOSXE Enabling Integrated Open Service Platform IOS XE Augmenting Existing Cisco IOS Hosted Apps  Operational consistency– Same IOS look and feel ! IOSd  IOS feature componentization Network Features Security Apps Optimization for feature consistency and Components improved quality  Modern OS architecture Mobility Vertical Apps allows leveraging next-gen multi-core switch CPU Anchor for next-gen intelligent campus services:  Quick adoption and integration of advanced technologies  Leverage proven code  Keep IOS simple and main Next-gen workspace reliability Mobility, Video, Collaboration, Security  Open service platform Presentation_ID © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 73
  • 61.
    IOS XE ApplicationHosting Example 2HCY11 WireShark Hosted  Embedded WireShark IOSd Apps application for real time traffic capture and decoding with customer-familiar user interface Features Components  Simplified monitoring and WireShark troubleshooting Common Infrastructure / HA  WireShark hosted as a 3rd party Management Interface application Module Drivers Kernel  Leverages IOS capabilities for selective packet capture Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 74
  • 62.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 4900 Data Center / LAN Distribution Portfolio Summary Data Center/ LAN Distribution Catalyst 4900M Catalyst 4928-10GE 40 10/100/1000 RJ45 28 1GbE SFP downlinks 16 ports of 10 GE X2 2 10 GE X2 uplinks 8 10 GE X2 uplinks Data Center Access Catalyst 4948 Catalyst 4948-10GE 48 10/100/1000 RJ45 downlinks 48 10/100/1000 RJ45 downlinks 4 SFP uplinks 2 10 GE X2 uplinks Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 75
  • 63.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 4500E Campus Access Portfolio 4510R+E 4507R+E 4506-E 4503-E 48G 48G WS-X45-SUP7-E WS-X4748-RJ45V+E List $19,995 List $8,995 24G 24G WS-X45-SUP6L-E WS-X45-SUP6-E WS-X4648-RJ45-E WS-X4648-RJ45V+E List $11,995 List $19,995 List $5,495 List $7,495 240 ports 384 ports Data Only PoEP Ready Supervisor Portfolio Access Line Card Portfolio PoE Power Supplies PWR-C45-1300ACV Systems, Inc. All rights reserved. Presentation_ID © 2009 Cisco PWR-C45-2800ACV Cisco Confidential PWR-C45-4200ACV PWR-C45-6000ACV 76
  • 64.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute PoEP Standard and Devices New Standard—IEEE802.3at for 30W/Port Industry First WS-4548-RJ45V+ WS-X4648-RJ45V+E Next Gen PoEP Devices Expected 2010 Onwards Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 77
  • 65.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Virtual Switching System Operational Simplicity  Single point of mgt, one L2/L3 node Campus  Loop-free topology  Operational consistency with Cat6K VSS Si Si Hardware Support  Requires Sup7-E/SUP7L-E/C4500X VSS  Support E-series chassis (R and non-R)  Support all existing LCs (incl PoE) cards  VSL with 10G: 46xx and 47xx 10G linecards and Supervisor uplinks Software Support  Feature parity w/ standalone switch in IP Base and above  Support L2 MEC and L3 MEC*  Inter-Chassis SSO/NSF and ISSU  Quad SUP support* Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential *post 78 FCS
  • 66.
    A Historical Perspective 2000 2003 2007 2009 2011 7W 15W 30W 60W Inline Power (PoE) (PoE+) (UPOE) Industry Industry Standard Standard: : IEEE IEEE 802.3at 802.3af (30W (15W Cisco PoE+) Innovations Drive Industry Standards PoE) © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 79
  • 67.
    Transforming Enterprise Networks UPOE VIRTUAL TRADING PERSONAL BUILDING HOSPITALITY/ DESKTOP FLOOR TELEPRESENCE MANAGEMENT RETAIL © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 80
  • 68.
    Virtual Desktop “Cisco and Samsung are excited to introduce the industry’s first virtual desktop monitor powered by Cisco UPOE. Our joint solution delivers a green workspace, while reducing cost and complexity.” — Jeong Hwan Kim, Senior Vice President, Samsung Electronics — Christophe Metivier, Vice President & General Manager GSBU, Cisco • Green workspace BENEFITS • Simplified security and management © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 81
  • 69.
    Next Generation TradingFloors “Cisco and British Telecom are partnering with our customers to deliver the next generation trading floor architecture with leading security, availability, and manageability. Cisco UPOE is foundational to this architecture to provide resiliency to the trader desk.” — Andy Nicholson, President, Global Banking & Financial Markets, BT, — Christophe Metivier, Vice President & General Manager, GSBU, Cisco • Non stop business operations BENEFITS • Simplified management © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 82
  • 70.
    “Cisco Tandberg PersonalTelePresence Systems have redefined office communication by offering high quality video experience, and superior interoperability with ecosystem partners. Integration of Cisco Tandberg Personal TelePresence Systems with Cisco UPOE makes business video as reliable as voice through network redundancy, while TelePresence EX60 bringing the benefits of lower energy costs with Cisco EnergyWise.” —Name, Title, Cisco PR Approval In-Process • Always-available video, similar to voice BENEFITS • Automated provisioning and monitoring © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 83
  • 71.
    Retail and Hospitality Single network for multiple guest room services with Cisco Compact switches • Lower CapEx through cable consolidation BENEFITS • Simplified management of extended range of devices © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 84
  • 72.
    Target March 2012 INNOVATION OPERATIONAL SIMPLICITY Virtual Switching System (VSS)* Automation Flexible NetFlow Investment protection Easy Virtual Network (EVN) Modular 8-port 10GE uplink IOS XE Open Application Hot-swappable dual redundant Platform (Wireshark) power supplies & five ISSU, NSF, SSO w/ VSS individual fans Limited Lifetime Warranty 800 Gbps System Smallest Size – 1RU Highest Scalability Industry Lower 1.6Tbps w/ VSS 21” Deep Richest Services Leadership TCO * roadmap Revolutionizing Fixed 10GE Campus Aggregation Platform © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 85
  • 73.
    VSS VSS Etherchannel Etherchannel Catalyst 4500-X Advantages: 1.6Tbps Switching Capacity with VSS Small size – 1RU, 21” deep Supports GE SFP and 10 GE SFP+ on any ports Low power consumption ~ 330W Flexibility for future growth to 40G © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 86
  • 74.
    Catalyst 4500-X PORTFOLIO Enterprise Services SKUs IP Base SKUs w/ 8-port uplink IP Base SKUs Front to Back Airflow Front to back Airflow Back to Front Airflow 1x 750WAC P/S 2x 750WAC P/S 1x 750WAC P/S WS-C4500X-32SFP+ WS-C4500X-40X-ES WS-C4500X-F-32SFP+ $40,000 $60,000 $40,000 WS-C4500X-16SFP+ WS-C4500X-24X-ES WS-C4500X-F-16SFP+ $24,000 $44,000 $24,000 Front to Back Airflow Back to Front Airflow Burgandy color fan and P/S handle Blue color fan and P/S handle 8-port 10GE Modular Uplink Module Removable Fan Module, $250 750WAC Modular P/S, $2,000 C4KX-NM-8SFP+, $8,000 © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 87
  • 75.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 6500 Backbone Portfolio Summary 6509-VE 6513 10G 6509E 6506E WS-X6704-10GE WS-X6708-10GE WS-X6716-10GE Non-Blocking Oversubscribed 10G Line Card Portfolio WS-X6748-SFP 1G WS-X6748-GE-TX WS-X6724-SFP 10G uplink SUP 720-10G Fiber Card Copper Card Line Card Portfolio 1G uplink SUP720 Supervisor Portfolio WiSM NAM FWSM Power Supply Industry Leading Power Efficiency Service Module Portfolio 3000W AC, 4000W AC 6000W AC, 8700W AC 4000W DC, 6000W DC SIP-200, SIP-400, SIP-600 VPN SPA & VSPA WAN Cards IPSec Card Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential WAN Card Portfolio 88
  • 76.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 6500 Family Chassis Options 6509-V-E 6509-E 6506-E 6513-E 6503-E 6504-E Chassis Options Power Options Bandwidth Options 3 slot: 6503-E 9 slot: 6509-E Up to 14,500W of Up to 80G per slot 4 slot: 6504-E 6509-V-E power per chassis capable (for E chassis) 6 slot: 6506-E 13 slot: 6513 Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 89
  • 77.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Catalyst 6500 Linecard Family Classic Linecards Examples include… WS-X6148-RJ45, WS-X6148-SFP, WS-X6148-GETX, WS-X6148A-GETX CEF256/dCEF256 Linecards Examples include… WS-X6548-GETX, WS-X6516-GBIC, WS-X6516- GETX, WS-X6516A-GBIC, WS-X6816-GBIC CEF720 Linecards WS-X6724-SFP, WS-X6748-SFP, WS-X6748-GETX, WS-X6704-10GE, WS-X6708-10GE-3C, WS-X6708-10GE-3CXL WAN Linecards Enhanced Flexwan (WS-X6582-PA), SIP-200 (7600- SIP-200), SIP-400 (7600-SIP-400), SIP-600 (7600- SIP-600) Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 90
  • 78.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Current Network Challenges Enterprise Campus Traditional Enterprise Campus deployments have been designed in such a way that allows for scalability, differentiated services and high availability. However they also face many challenges, some of which are listed in the below diagram… Extensive routing topology, Routing L3 Core reconvergence FHRP, STP, L2/L3 Asymmetric routing, Distribution Policy Management Single active uplink per VLAN (PVST), Access L2 reconvergence Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 91
  • 79.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Virtual Switching System Introduction Virtual Switching System is a new technology break through for the Catalyst 6500 family… Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 92
  • 80.
    Cisco Confidential –UnderNDA Only – DO NOT NDA Use Only Cisco Confidential – Distribute Virtual Switching System Main Benefits  Port-channeling concept extending link aggregation to two separate physical switches  Allows the creation of resilient Physical Topology Logical Topology Layer 2 topologies based on Link Aggregation – Virtual Switching Systems Eliminates the need for STP in the access / distribution L2  Provides increased bandwidth – Si Si All links are actively forwarding Provides ease of management – Unified Control Plane Unified Configuration Non-VSS VSS No need for HSRP Increased BW with Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential VSS 93
  • 81.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Virtual Switching System Enterprise Campus A Virtual Switch-enabled Enterprise Campus network takes on multiple benefits including simplified management & administration, facilitating greater high availability, while maintaining a flexible and scalable architecture… Reduced routing neighbors, Minimal L3 Core L3 reconvergence No FHRPs L2/L3 No Looped topology Distribution Policy Management Multiple active uplinks per VLAN, Access No STP convergence Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 94
  • 82.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Virtual Switching System What is a VSS? Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 95
  • 83.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Virtual Switching System Control Plane While the Data Planes in both switches are active, only one switch has an active control plane - hence there is only one management point from which to manage the Virtual Switching System… Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 96
  • 84.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Virtual Switching System Data Plane The Data Planes in both switches are active - hence each has a full copy of the forwarding tables and Security/QOS policies in hardware such that each can make a fully informed local forwarding decision… Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 97
  • 85.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Hardware and Software Requirements • In order to enable the Virtual Switching System feature the Catalyst 6500 Virtual Switching Supervisor 720 is required or Sup2T • It is the only Supervisor that will support VSS as it supports both the new PFC3C/XL forwarding engine… 12.2(33)SXH1 or later VS-S720-10G-3C/XL Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. Cisco Confidential 100
  • 86.
    Cisco Confidential –UnderNDA Only – DO NOT Distribute Hardware Requirements VSL-Capable Interfaces The VSL is a special link that requires extra headers to be imposed onto the frame. These require new port ASICs that exist only on the 10 GigabitEthernet interfaces on the following modules… Note that these interfaces may also be used VS-S720-10G-3C/XL as standard network interfaces WS-X6708-10G-3C/XL WS-X6716-10G-3C/XL Support for VSL is from 12.2(33)SXI* and in These interfaces are based off “performance mode” only the new port ASIC, allowing for frames across the VSL to be encapsulated / de-encapsulated with the VSH… WS-X6716-10G-3C/XL module is supported starting from 12.2(33)SXH2* in non VSL config Presentation_ID © 2009 Cisco Systems, Inc. All rights reserved. 101 Cisco Confidential
  • 87.
  • 88.
    Catalyst 6500 SupervisorEvolution Unprecedented Switching Lifecycle EOS End of Sale Sup 2T – Next Generation Supervisor End of Life EOL End of Support Sup720-10G (VSS Enabled) EOS EOL Sup32-PISA Maintain Support Sup32 Sup720-3B EOS EOL Sup720-3A Maintain Support 12 years EOS EOL Sup2 Maintain Support 12 years EOS EOL Sup 1A Maintain Support 12 years 2000 …….. 2005 …….. 2010 …….. 2015 …….. 2020+ ……..
  • 89.
    Catalyst 6500 Profile 680,000+ Systems Installed Base Systems/Customer Revenue/PIN 29% > 1000 39% 500-1000 13% Wiring Closet 36% 9% 300-500 26% Campus BB 10% 5% 8% 200-300 WAN 100-200 17% 8% DC BB < 100 DC Access Revenue/Segment 23% 15% Commercial Enterprise 27% 35% Public Sector Service Provider FY10 - $4.2 Billion
  • 90.
    Catalyst 6500 NextGeneration Platform 2 Terabit Next Gen Switching Services 10G &40G Features interfaces Scalability
  • 91.
  • 92.
    Supervisor 2T baseboard overview S720-3B/XL S720-10G-3C/XL Sup2T Light/Heavy Front GE Ports 2 3 3 with CTS Front 10GE Ports 0 2 2 with CTS CMP No No Yes Compact Flash Slot Yes (2) Yes (1) Yes (1) MSFC MSFC3 MSFC3 MSFC5 PFC PFC3B/XL PFC3C/XL PFC4 Lite/Heavy Switch Fabric 720G 720G 2080G Switch Fabric 20G 20G 40G Bandwidth/Slot 40G/Slot 40G/Slot 80G/Slot Chassis Supported 6500 and 6500E 6500 and 6500E 6500E Only (except 6503) (except 6503) Cisco Confidential
  • 93.
    • Enhanced (“E”)chassis offer higher power capacity, better signal integrity, and higher bandwidth to support Supervisor 2T 3, 4, 6, 9 and 13-slot versions • Classic switching bus traces/connectors • Crossbar fabric traces/connectors • Redundant power supplies • Fan tray for system cooling 6509-V-E chassis offers redundant fan trays and air filtration • Redundant voltage termination (VTT)/clock modules • Redundant MAC address EEPROMs © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 108
  • 94.
     Provides 80G/sloton all 13 Clock Clock EEPROM slots with Supervisor 2T. SLOT 1 Dual Channels  The dual fabric channels in SLOT 2 Dual Channels slots 1-6 can only be used SLOT 3 Dual Channels with Supervisor 2T. SLOT 4 Dual Channels  In a Supervisor 2T SLOT 5 Dual Channels configuration, Slots 7 and 8 SLOT 6 Dual Channels only support the Supervisor SLOT 7 Dual Channels and non-Fabric Line-Cards. SLOT 8 Dual Channels SLOT 9 Dual Channels  The fan tray is removed SLOT 10 Dual Channels from the back. SLOT 11 Dual Channels  When using a Supervisor SLOT 12 Dual Channels 720, the fabric channels are distributed the same as in a Fan Tray SLOT 13 Dual Channels 6513 non-E chassis. Switch Fabric Shared Bus Power Supply Power Supply © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 109
  • 95.
    Cat 6513-E: foundationfor 2T infrastructure 80G/slot on all 13 slots 528 x 1GbE 6748-GETX ports 176 x 10GbE FX/Copper ports 6513-E Now Shipping!
  • 96.
    dCEF2T Linecard  Up to 60Mpps local forwarding  8 ports X2 10GE (SFP+ via OneX adapter)  Up to 256MB Buffering per port  No Connection to the Shared Bus  100 ms buffer for each direction  2 x 40Gb Connections into the Switch Fabric  Egress Multicast Replication  Supports integrated DFC4 / DFC4XL  Supports Strict Priority queue on transmit  Supports Cisco TrustSec on all ports  Supports 2 receive queues per port  Supports VSL on all ports  Supports 8 transmit queues per port  Supports Deficit Weighted Round Robin and Shaped Round Robin © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 111
  • 97.
    dCEF2T Linecard  4 ports CFP 40GE or 16 ports SFP+ 10GE (with converter)  No Connection to the Shared Bus  2 x 40Gb Connections into the Switch Fabric  Supports integrated DFC4 / DFC4XL  Supports Cisco TrustSec on all ports  Supports VSL on all ports  Up to 60Mpps local forwarding  1 ms ingress buffer (40 Mbits/40 GE port - 10 Mbits/10GE port)  10 ms egress buffer (400 Mbits/40 GE port - 100 Mbits/10 GE port)  Egress Multicast Replication  Supports dual Strict Priority queue on transmit  Supports 2 receive queues and 8 transmit queues per port  Supports Deficit Weighted Round Robin and Shaped Round Robin © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 112 *Q1 2011
  • 98.
    Port 1 Port 2 Single Mode CFP Port 3 Port 4  IEEE 802.3ba Compliant  4 x 40G ports 2:1 oversubscribed Port 13,14,, Port 5,6, 15,16 7,8  4 x SFP+ converter in each slot Port 9,10, Port 17,18,  Cisco TrustSec in hardware 11,12 19,20  VSL capable in 10G or 40 mode © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 113
  • 99.
    68xx Series LineCards 1 GbE Fiber 10/100/1000 and 10GBASE-T  Distributed Forwarding Card w/ DFC4  Distributed Forwarding Card w/ DFC4  Two SKUs: regular and XL tables (DFC4)  Two SKUs: regular and XL tables (DFC4)  24 ports 1 GbE fiber  48 ports 10/100/1000  48 ports 1 GbE fiber  16 ports 10GBASE-T and X2 Fibre* *Not shown Cisco Highly Confidential © 2010 Cisco Systems, Inc. All rights reserved.
  • 100.
    Sup2T – High-PerformanceLine Cards Greenfield Upgrade 69xx Line Cards* 68xx Line Cards* 67xx CFC 67xx DFC 80Gbps DFC4 40Gbps DFC4 Line Cards Line Cards WS-X6904-40G-2T WS-X6848-SFP-2T WS-X6748-SFP WS-X6748-SFP WS-X6908-10G-2T WS-X6824-SFP-2T WS-X6724-SFP WS-X6724-SFP WS-X6848-GE-TX-2T WS-X6748-GE-TX WS-X6748-GE-TX WS-X6816-10T-2T WS-X6704-10GE WS-X6704-10GE WS-X6716-10T * Separate SKU for w/ DFC4 XL WS-X6716-10G Aggressive Trade-in credits to WS-X6708-10G migrate to WS-X6908-10G-2T Cisco Highly Confidential © 2010 Cisco Systems, Inc. All rights reserved.
  • 101.
    Accelerate & Balance Integrate Wire/Wireless Management Application Performance NEW NEW Next Generation Next Generation WiSM Blade—WiSM-2 Load Balancer—ACE-30 Performance 10 Gbps UP to 16 Gbps Performance $29,995 Access Points 500 - 1000 Up to 6 Gbps Compression $39,995 Clients 10,000 30,000 Transactions per Second Concurrent AP Upgrade/Joins Up to 500 250 Virtual Context Mobility, Domain Size Up to 18,000 APs 4000 VLANs Enhance Visibility, Deliver Robust, Accelerate Troubleshooting Integrated, Streamlined Security NEW NEW Next Generation Next Generation NAM Blade—NAM-3 Firewall Blade—ASA-SM Monitoring Performance Up to 15 Gbps 64 Gbps System Performance 16 Gbps Performance / Service Mod. Capture to External Disk Up to 5 Gbps 10,000,000 Concurrent Sessions 1588 Performance Analytics Timestamps 300,000 Connections per Second HW Filters/ Rapid 250 Security Contexts $59,000 $115,000 Packet Captures Troubleshooting 1,000 VLANs © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 116
  • 102.
    • Unicast RPF: PFC4 support both Strict and Loose uRPF with up to 16 interfaces. • RA Guard: Multiple mode RA Guard Support on Layer 2 ports. • Traffic Filter: Uses ACL to block Neighbor Discovery (ND) packets on L2 switch ports. • IPv6 Netflow: Supervisor2T maintains feature parity with IPv4 Netflow • IPv6 over IPv4 Tunnel: Performance Improvement and increased Flexibility by using the HW FIB Supports for IPv6 VRF lite over IPv4 tunnel. • 6PE and 6VPE: Performance improvement, without packet recirculation. • IPv6 HA*: SSO/NSF support for intra and inter chassis redundancy. • IPv6 Management: Separate IPv4/IPv6/MPLS Counters, IP-FORWARD and IP SNMP MIBs supports © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 117
  • 103.
    MPLS CORE N-PE1 U-PE2 N-PE2 U-PE1 .1q .1q N-PE3 .1q .1q DC2 CE DC1 DC3 CE CE • Supervisor 2T is capable of supporting 16k VPLS instances on the PE • Supervisor 2T is capable of supporting 1K VC label per VPLS instance • Supervisor 2T can have multiple local l2 ports, and as many as 256 VCs in its flooding domain • Integrated Routing and Bridging on the VPLS Vlan © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 118
  • 104.
    Cisco TrustSec EVC 2.0 Bi-dir Enhancements RBACL E-OAM 3.0 Stateful EoMPLS TrustSec Ingress/Egress IPSLA support for EVC Etherchannel Enhancements reflector 802.1ag CFM Draft 8 Native VPLS SGT Tagging and Filtering Service Module Support VRF aware SSH, FTP, NTP… Dry run for ACLs On Board Failure Logging DAI accelerated in HW Atomic ACL Update Netconf, Http, Soal, TCL… WCCP Closed group Flexible Netflow over IPv6 MQC Queuing policy for Egress Netflow IPv6 uRPF ingress/egress Sampling Netflow in HW PACL support for IPv6 DSCP classification Hardware CoPP CMP QoS ACL per policy class New level of IPv6 support XML Programmatic interface Per-protocol statistics Distributed Aggregate PIM Registers in HW Per VLAN broadcast statistics Policers IP-Based IGMPv3 Snooping ACL/QoS scalability EEM v3.0 support uRPF + ACL Cisco IOS Software 12.2(33)SXI3 features set © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 119
  • 105.
    © 2011 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 120
  • 106.
    Catalyst 6500 TheNetwork Virtualization Platform Customer Challenge Benefits of Sup2T Group Compliance & Segregation for Cost-effective way to group and manage users by traffic, service, Regulations Regulation bandwidth and security Compliance Run Multiple Network Virtualization solutions Mergers & Virtual Networks allow integration of disparate Over One networks while sharing common Acquisitions Physical Network resources Partner & Quick and Secure Virtualized Firewalls allow Supplier Access to New integrated policy enforcement Business over Wired and Wireless Integration Partners © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 121
  • 107.
    Fits All theNeeds for High-Flow Backbone Environments Increased flexibility and customization by selecting the Optimal CPU fields to match and collect utilization with Flexible Yielding Netflow Data Netflow Export, direct export from Bigger tables mean linecard more entries per Up to 13M DFC. Up to 13 million CPU Friendly Flows/ entries with a 13 slot Export Sup2T System chassis. You can get better visibility in Netflow your network Allow to use netflow after ingress lookup is done (ex: after DSCP Sampled To optimize the Netflow Egress tables utilization and remarking is done) Netflow in Netflow minimize load on Hardware Allow to account for analyzers multicast traffic per destination instead of per group © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 122
  • 108.
    Sup2T the Backboneof NOC DeepStable Scalable Monitoring Deployed on theof theRunning Cisco Live and able pre FCSclose to as well as scan on the rush hour Get a full view Cisconetwork utilization NOC on to detectrelease 4k flow per second at network Live NOC equipment and exported DDoS on Sup2T © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 123
  • 109.
    Supervisor NetFlow Export NetFlow Data VS-SUP2T-10G & PFC4/XL NetFlow Collector NetFlow Data WS-X6848-GE-TX & DFC4/XL WS-X6816-10GX-4C/XL, WS-X6908- 10GE-4C/XL and all future Modules NetFlow NetFlow Export have the capability to perform direct Data NF data export, from the module itself... WS-X6908-10G-4C/CXL EOBC © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 124
  • 110.
    • Dynamically identifies media streams • Mediatrace topology views • Gathers media stream interface metrics Jitter Frame Loss CPU utilization © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 125
  • 111.
    Nexus 7000 © 2010Cisco and/or its affiliates. All rights reserved. Cisco Confidential 126
  • 112.
    Next Generation Modular Nexus 7000 and NX-OS • 9, 10 & 18 Slot Chassis • 15+ Terabit System (18 Slot) • Unified Fabric • Modular NX-OS • Device Virtualization • Hitless ISSU • Highest Availability Ethernet Switch and Director Class SAN Supervisor 10G Ethernet – M Series 1G Ethernet – M Series 10G Ethernet – F Series • 32 Port SFP+ 10G - XL • 48 Port 10/100/1000 -XL DCB/FabricPath/FCoE • 8 Port X2 10G - XL • 48 Port 1G - XL • 32 Port SFP+ 10G Linecard Modules Cisco NX-OS Multi-protocol Operating System © 2010 Cisco and/or its affiliates. All rights reserved. Data Center Network Manager (DCNM) Cisco Confidential 127
  • 113.
    Front Rear Supervisor Summary slots (1-2) LEDs Optional front Side-to-side doors airflow Crossbar Locking Fabric ejector levers Modules I/O Slots (3-9) Integrated Cable Management 24.5”H x 17.3” W x 24”D (14RU) Power Supplies Fan Tray © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 130
  • 114.
    15Tb+ System Performance Bandwidth Scales with Each Fabric Module Fabric Modules 10GbE Module 80G 230G 230Gbps 184Gbps 138Gbps 92Gbps 46Gbps 46G Per Slot GbE Module Investment Protection and Unified Fabric © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 131
  • 115.
    15Tb+ System Performance Bandwidth Scales with Each Fabric Module Fabric Modules (FAB 2) 10, 40, 100 GbE Module 80G 550G 230G 110Gbps 220Gbps 550Gbps 330Gbps 440Gbps 46G Per Slot Investment Protection and Unified Fabric © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 132
  • 116.
    Layer 3 Protocols Layer 2 Protocols Storage Protocols OSPF GLBP VLAN UDLD HA Manager VSANs Zoning BGP HSRP PVLAN CDP FCIP FSPF EIGRP IGMP STP 802.1X IVR … PIM SNMP LACP CTS … … Future System Infrastructure Kernel (Linux) • Combination of SAN OS and IOS • Every process runs in protected memory for fault containment • Automatic stateful process restart • Modular code only runs in DRAM when invoked © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 133 Cisco Confidential
  • 117.
    Nexus 7000 Virtualizationwith Virtual Device Contexts - VDCs VDC 2 VDC 1 Layer 2 Protocols Layer 3 Protocols Layer 2 Protocols Layer 3 Protocols VLAN UDLD OSPF GLBP VLAN UDLD OSPF GLBP VDC 1 PVLAN CDP BGP HSRP PVLAN CDP BGP HSRP STP 802.1X EIGRP IGMP STP 802.1X EIGRP IGMP VDC 2 LACP CTS VRF SNMP LACP CTS VRF SNMP … … VDC 3 … … VDC 4 Infrastructure Kernel Software Separation Shared Resources Hardware Separation › Software fault isolation domains › Software Infrastructure › Individual Physical Ports › Addressing domains › Kernel › Layer 2 › Service differentiation domains › Power Supplies › Layer 3 › Management domains › Fans › Port Channels › Resource allocation › Chassis › Entire Linecards › Security domains © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 134
  • 118.
    VDC Design withNexus 7000 Traditional Network Design Switch 1 Switch 2 Distribution Switch 1/2 Dist. Core Core Switch 3/4 Dist. Distribution Switch 5/6 Access Access © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 135
  • 119.
    IP localization: LISP OTV OTV L2 Domain Elasticity: vPC, L2MP/TRILL OTV LAN extensions OTV VN-link notifications OTV Device Virtualization: VDCs, Storage Elasticity: VRF enhancements FCIP, IO Acceleration FCoE, Inter-VSAN routing VM-awareness: VN-link Port Profiles Compute resources are part of the cloud, location is transparent to the user © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 136
  • 120.
    OTV is usedto interconnect the L2 domains of each DC • Simple to configure – In a 2 or 3 site • Currently* only supported on environment, a few lines of configuration Nexus product line – Currently*, OTV enables OTV (shown in upcoming slides) is only supported on the Nexus family of switches. (Nexus 7xxx and Nexus 5xxx) • OTV has built-in loop prevention mechanism – This enables each site to run it’s own loop prevention mechanisms independently (spanning tree, VPC, etc.) • Dynamic learning of OTV Neighbors – This eliminates the need to configure and manage individual PseudoWires or Tunnels between Data Center switches. Encapsulation of traffic is dynamic and efficient. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 137
  • 121.
    Intra-Site Packet Flow MAC TABLE Transport VLAN MAC IF Infrastructure 2 OTV OTV OTV OTV 100 MAC 1 Eth 2 Layer 2 Lookup 100 MAC 2 Eth 1 MAC 1  MAC 2 1 MAC 1 MAC 2 West East Site Site © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 138
  • 122.
    Inter-Site Packet Flow 4 MAC TABLE Transport MAC TABLE Infrastructure VLAN MAC IF VLAN MAC IF Decap IP A 100 MAC 1 Eth 2 3 5 IP B 100 MAC 1 IP A 2 100 OTV MAC 2 Eth 1 OTV Encap OTV 100 OTV MAC 2 IP A 6 Layer 2 MAC 1  MAC 3 IP A  IP B Layer 2 100 MAC 3 IP B MAC 1  MAC 3 IP A  IP B 100 MAC 3 Eth 3 Lookup Lookup 100 MAC 4 IP B 100 MAC 4 Eth 4 MAC 1  MAC 3 MAC 1  MAC 3 MAC 1 West East MAC 3 Site Site 1 7 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 139
  • 123.
    OTV over aMulticast Transport • Minimal configuration required to get OTV up and running feature otv feature otv otv site-vlan 99 otv site-vlan 99 interface Overlay1 interface Overlay1 description WEST-DC description EAST-DC otv join-interface e1/1 otv join-interface e1/1.10 otv control-group 239.1.1.1 otv control-group 239.1.1.1 otv data-group 232.192.1.0/24 otv data-group 232.192.1.0/24 otv extend-vlan 100-150 OTV otv extend-vlan 100-150 OTV feature otv otv site-vlan 99 IP A interface Overlay1 IP B West description SOUTH-DC East otv join-interface Po16 otv control-group 239.1.1.1 otv data-group 232.192.1.0/24 IP C OTV otv extend-vlan 100-150 South © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 140
  • 124.
    Inter-POD Connectivity acrossL3 Shipping OTV Failure Boundary Preservation Failure IP Cloud Boundary Core L3 L3 Aggregation … L2 vPC … FabricPath … … … Access L2 vPC Servers STP+ vPC/VSS FabricPath STP NIC Teaming 16x ECMP Enhancements Simplified loop- Low Latency / Lossless Bridge free trees MAC Scaling Assurance 2x Multi-pathing Operational Flexibility Shipping © 2010 Cisco and/or its affiliates. All rights reserved. Shipping Shipping Cisco Confidential 141
  • 125.
    Which platform isthe right platform to create the new core • Campus Heritage – ex. AutoQoS, • Highest 10/40/100 Gig Density Common IOS • Virtual Device Contexts • Virtual Switching System (VSS) – Single device to manage • In Service Software Upgrade (ISSU) • Network Services – Ex. Firewall, • Virtual Port Channel – Separate ACE, WiSM, NAM, IDSM Control Plane • MPLS and VPLS • “Remote Module” design with **N7k MPLS Future Nexus 2k • Future 8 Terabit capacity • FabricPath and OTV support – **6k OTV Future © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 142
  • 126.
  • 127.
    • Base 32ports are Ethernet/FCoE Ports • Base 32 ports are “Unified” Ports • 1 Expansion Slot • 1 Expansion Slot • 2 750W PS, 2 Fans • 2 750W PS, 2 Fans • Base 48 ports are “Unified” Ports • 3 Expansion Slots • 2 1100W PS, 4 Fans © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 144
  • 128.
    Nexus 5596 48 Fixed Ports 3 Expansion Modules © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 145
  • 129.
    Expansion Module Expansion Module Expansion Module 48x Fixed ports 1/10 GE or 1/2/4/8 FC © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 146
  • 130.
    Fabric Interconnect Out of Band Mgmt Console USB Flash 10/100/1000 Power Power Fan Fan Fan Fan Entry Entry Module Module Module Module N + N Power Supplies N + 1 Redundant FANs © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 147
  • 131.
    U All 48 ports are UNIFIED capable 32 x Fixed ports 1/10 GE or 1/2/4/8 FC Expansion Module © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 148
  • 132.
    Fabric Out of Band Mgmt USB Flash Interconnect 10/100/1000 Console Fan Fan Power Power Module Module Entry Entry N + N Redundant FANs N + N Power Supplies © 2011 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 149
  • 133.
    * 1G SupportNOW available with 5.0(3)N1(1) N55-M16P N55-M8P8FP N55-M16UP • 16 Ethernet Ports • 8 Ethernet Ports + 8 Fibre Channel • 16 “Unified Ports” • Ports can be configured as either Ports • Ports can be configured as either Ethernet or Fibre Channel over • Ethernet operation at 1/10 Gigabit Ethernet or Native FC Ports Ethernet Ethernet • Ethernet operation at 1/10 Gigabit • Ethernet operation at 1/10 Gigabit • Fibre Channel operation at 8/4/2/1G Ethernet Ethernet • Uses existing Ethernet SFP+ Cisco • Fibre Channel operation at • Uses existing Ethernet SFP+ 8/4/2G and 4/2/1G FC Optics 8/4/2/1G Optics • Uses existing Ethernet SFP+ and Cisco 8/4/2G and 4/2/1G FC Optics © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 150
  • 134.
    Fibre Channel Ethernet Full Support for 1/2/4/8G Native Full Support for Fibre Channel 1G/10G and FCoE. Support for FEX connectivity Unified Flexibly provision any port to inherit Ethernet, Expansion Fibre Channel or Expansion Module Module 8 Port FC 1/2/4/8 Gig Ethernet Personalities 16 Ports 1/10 GE + 8 Ports 1/10 GE © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Highly Confidential 151
  • 135.
    List Price $10,000 New! FEATURES BENEFITS • High Density 48 x 100M/1GE + • Fabric extensibility with simplified 4x10GE SFP+ management • 32MB buffer for bursty • Optimized for Specialized Data applications Center workloads BigData/Hadoop, Distributed Storage, • Designed for Top of Rack Access Distributed Computing, Video Editing • VM-Aware networking © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Highly Confidential 152
  • 136.
    N2248TP/N2248TP-E 48 Port 100/1000M Host Interfaces 4 x 10G Uplinks N2232PP 32 Port 1/10G FCoE Host Interfaces 8 x 10G Uplinks FET-10G Cost Effective Fabric Extender N2224TP Transceiver 24 Port 100/1000M Host Interfaces 2 x 10G Uplinks N2232TM N2148T 32 Port 1/10GBASE-T Host Interfaces 48 Port 1000M Host Interfaces 8 x 10G Uplinks (Module) 4 x 10G Uplinks © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Highly Confidential 153
  • 137.
    Model Nexus 2148T Nexus 2248 TP Nexus 2224TP Nexus 2248TP-E Form Factor 1 RU 1 RU 1 RU 1 RU Uplink Ports 4 x 10GbE SFP+ 4 x 10GbE SFP+ 2 x 10GbE SFP+ 4 x 10GbE SFP+ Host Facing Ports 48 x 1GbE RJ45 48 x 100/1000Base-T RJ45 24 x 100/1000Base-T RJ45 48 x 100/1000Base-T RJ45 (note: 1000BaseT only) Ingress Policing No Yes Yes Yes Hardware queues 4 8 8 8 Host ports per port 4 8 8 48 group Ingress buffer (host to 375KB per port group 480KB per port group 480KB per port group 32MB shared with egress network direction) Egress buffer (network 320KB per port group 640KB per port group 640KB per port group 32MB shared with ingress to host) with 2 uplink Egress buffer (network 320KB per port group 800KB per per port group N/A 32MB shared to host) with 4 uplink Multiple PortChannel Not Supported Yes Yes Yes member ports on a FEX N5K/N2K Latency ~ 7us (LIFO) ~ 4.5 us ~ 4.5 us ~ 4.5 us © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Highly Confidential 154
  • 138.
    Any server toany FEX – hybrid deployments Any Flavor of Nexus 5500 5548P/5548UP/5596UP Any Flavor of Nexus Dual-homed 2000 Fabric Extenders 2148T/2248TP/2224TP 2232PP/2232TM Mix of Single NIC, Active/Standby and Etherchanneled servers can connect to same FEX © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Highly Confidential 155
  • 139.
    FabricPath • Externally, a Fabric looks like a single switch • Internally, a protocol adds Fabric-wide intelligence and ties the elements together. This protocol provides in a plug-and-play fashion:  Optimal, low latency connectivity any to any  High bandwidth, high resiliency  Open management and troubleshooting • Cisco FabricPath provides additional capabilities in term of scalability and L3 integration © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Highly Confidential 156
  • 140.
    MAC IF A e1/1 … … FabricPath B s8, e1/2 e1/1 s3 s8 e1/2 A B • Single address lookup at the ingress edge identifies the exit port across the fabric • Traffic is then switched using the shortest path available • Reliable L2 connectivity any to any (as if it was the same switch, no STP inside) © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Highly Confidential 157
