2. 2

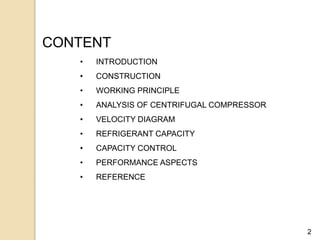

CONTENT
• INTRODUCTION
• CONSTRUCTION
• WORKING PRINCIPLE
• ANALYSIS OF CENTRIFUGAL COMPRESSOR
• VELOCITY DIAGRAM
• REFRIGERANT CAPACITY
• CAPACITY CONTROL

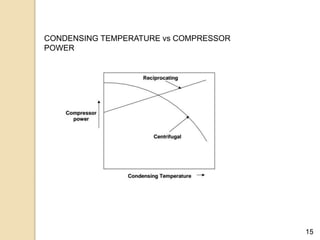

• PERFORMANCE ASPECTS
• REFERENCE
3. 3

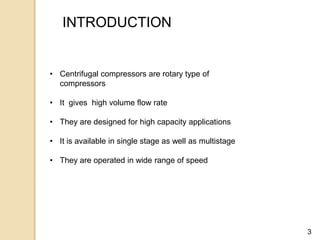

INTRODUCTION
• Centrifugal compressors are rotary type of
compressors
• It gives high volume flow rate
• They are designed for high capacity applications
• It is available in single stage as well as multistage
• They are operated in wide range of speed
4. 4
Evaporator temperatures : -100◦C to +10◦C
Evaporator pressures : 14 kPa to 700 kPa
Discharge pressure : upto 2000 kPa
Rotational speeds : 1800 to 90,000 RPM
Refrigeration capacity : 300 kW to 30000 kW
OPERATING RANGE

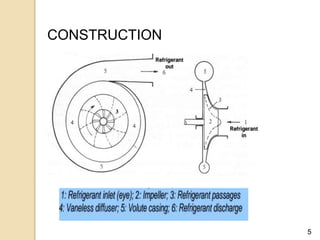

6. 6

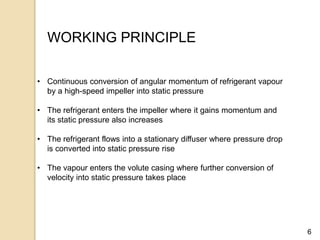

WORKING PRINCIPLE
• Continuous conversion of angular momentum of refrigerant vapour
by a high-speed impeller into static pressure
• The refrigerant enters the impeller where it gains momentum and
its static pressure also increases
• The refrigerant flows into a stationary diffuser where pressure drop
is converted into static pressure rise
• The vapour enters the volute casing where further conversion of
velocity into static pressure takes place
7. 7

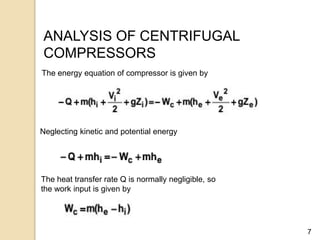

ANALYSIS OF CENTRIFUGAL
COMPRESSORS
The energy equation of compressor is given by
Neglecting kinetic and potential energy
The heat transfer rate Q is normally negligible, so
the work input is given by
9. 9

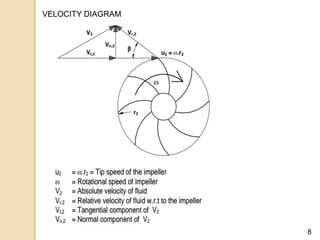

The work input to the impeller is given by
The power input to the compressor depends on the blade angle β
• The blade angle will be less than 90◦ for backward curved blade
• The blade angle is equal to 90◦ for radial blades
• The blade angle will be greater than 90◦ for forward curved
blade.
The tangential velocity is given by

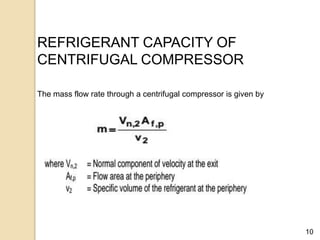

11. 11
CAPACITY CONTROL
The capacity of a centrifugal compressor is normally controlled
by
• Adjusting the inlet guide
vanes
• Adjusting the guide vanes of vaned diffusers.
• Varying the compressor speed using
VFD
