Compressors complete description and a well arranged slides for the topic. That's too the point and relevant slide share you are looking for! Hope you will find it easy to understand
Thank you!
Air compressors:- One of the important device used to compress air at high pressure.
The presentation contains a detailed information about air compressors, classification of air compressors, reciprocating air compressors, rotary type, multistage/ single stage compressors. advantages and lastly application/ uses of air compressors.
Hope You like the presentation.
Air compressors:- One of the important device used to compress air at high pressure.
The presentation contains a detailed information about air compressors, classification of air compressors, reciprocating air compressors, rotary type, multistage/ single stage compressors. advantages and lastly application/ uses of air compressors.
Hope You like the presentation.
This PowerPoint shows an introduction to positive displacement compressors. You will have a brief introduction about the operating principles of reciprocating compressors, the different types of rotary compressors, and techniques for controlling compressor output most important variables.You will learn as well the construction, principal parts, and operation of reciprocating compressors
In the hydrocarbon processing and production industry, gas is compressed for transportation to consuming markets and for use in processing operations. This presentation is about the construction and operation of compressors.
In this presentation you will learn about the construction and operation of centrifugal compressors.
This powerpint presentation includes all the detail of various types of AIR COPMPRESSSORS,with its real and schematic diagram
- Parth Patel
1st Year Electrical
This PowerPoint shows an introduction to positive displacement compressors. You will have a brief introduction about the operating principles of reciprocating compressors, the different types of rotary compressors, and techniques for controlling compressor output most important variables.You will learn as well the construction, principal parts, and operation of reciprocating compressors
In the hydrocarbon processing and production industry, gas is compressed for transportation to consuming markets and for use in processing operations. This presentation is about the construction and operation of compressors.
In this presentation you will learn about the construction and operation of centrifugal compressors.
This powerpint presentation includes all the detail of various types of AIR COPMPRESSSORS,with its real and schematic diagram
- Parth Patel
1st Year Electrical
A compressor is a type of machine that increases the pressure of a gas by reducing its volume. An air compressor is a specific type of gas compressor. Compressors helps to transport the fluid through a pipe maintaining the high pressure conditions. It is convers power (using and electrical motor, diesel or gasoline engine, etc.) into potential energy stored in pressurized air. The main and important types of gas compressors are illustrated and discussed below.
Delivery volume is the quantity of air that a compressor delivers to a system.
It is specified in terms of air at normal atmospheric conditions.
There are two types of delivery volumes
Ex:
For a reciprocating compressor, the theoretical delivery volume is the product of volume of air swept in one revolution of its rotating element and the number of revolutions per unit time.
Effective delivery volume
Depends on the type of compressor.
To pneumatic personnel, only the effective delivery volume is of interest as this air volume is available for driving and controlling pneumatic equipment.
When air is compressed, work is done, and a part of this work
appears as heat in the compressed air.
The heat produced must be removed by cooling the air. Good cooling extends the life of the compressor.
Cooling methods
Selection of a suitable cooling system depends on the amount of heat produced.
Cooling fins on smaller air-cooled compressors permit the heat to be
removed by radiation.
A large compressor is usually equipped with an additional fan to take away the heat. In the case of a compressors with a drive power in excess of 30 kw are equipped with a water circulation cooling system.
To match the delivery volume of the compressor with the fluctuating air consumption and as a safety measure, it is necessary to regulate the pressure developed by the compressor.
Various methods of regulation are employed for this purpose.
Start/Stop (On-off Regulation)
Pressure (switching) limits Pmax and Pmin that can be set on a regulator. The drive motor is switched off on reaching a preset maximum pressure, Pmax The motor is switched on again when the pressure has dropped to a preset minimum pressure, Pmin.
Start/Stop (On-off Regulation)
It keeps the motor running continuously, but unloads compressor when the discharge pressure is adequate.
Unloaded rotary screw compressors typically consume 15-35% of their full load power demand, while producing no useful compressed air output.
Optional unload timers are available that will save energy by automatically turning off the compressor and placing it in standby if the unit runs unloaded for a period of time (usually 15 minutes).
Regulation methods
Modulating Control
This mode of control varies the compressor output to meet flow requirements by adjusting the inlet valve, resulting in air restrictions to the compressor.
Variable Displacement
Some lubricated rotary screw compressors vary their output capacity using special capacity control valves, also called spiral, turn or poppet valves.
With a variable displacement control scheme, the output pressure and compressor power consumption can be closely controlled without having to start/stop or load/unload the compressor.
Regulation methods
Variable Speed Drive (VSD)
This control method varies the speed of the compressor to respond to changes in air demand.
Both lubricated and oil free screw compressors can be purchased equipped with variable speed drive controls that c
DETAIL STUDY ON TYPES OF AIR COMPRESSOR (POSITIVE & DYNAMIC ) WITH ITS WORKING PRINCIPLE AND MAINTENANCE PROCEDURE. ADVANTAGE OF DYNAMIC COMPRESSURE, ADVANTAGE OF POSITIVE DISPLACEMENT COMPRESSOR,DRAWBACK OF SINGLE STAGE AIR COMPRESSOR OVER MULTISTAGE COMPRESSOR
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfKamal Acharya
The College Bus Management system is completely developed by Visual Basic .NET Version. The application is connect with most secured database language MS SQL Server. The application is develop by using best combination of front-end and back-end languages. The application is totally design like flat user interface. This flat user interface is more attractive user interface in 2017. The application is gives more important to the system functionality. The application is to manage the student’s details, driver’s details, bus details, bus route details, bus fees details and more. The application has only one unit for admin. The admin can manage the entire application. The admin can login into the application by using username and password of the admin. The application is develop for big and small colleges. It is more user friendly for non-computer person. Even they can easily learn how to manage the application within hours. The application is more secure by the admin. The system will give an effective output for the VB.Net and SQL Server given as input to the system. The compiled java program given as input to the system, after scanning the program will generate different reports. The application generates the report for users. The admin can view and download the report of the data. The application deliver the excel format reports. Because, excel formatted reports is very easy to understand the income and expense of the college bus. This application is mainly develop for windows operating system users. In 2017, 73% of people enterprises are using windows operating system. So the application will easily install for all the windows operating system users. The application-developed size is very low. The application consumes very low space in disk. Therefore, the user can allocate very minimum local disk space for this application.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
Quality defects in TMT Bars, Possible causes and Potential Solutions.PrashantGoswami42
Maintaining high-quality standards in the production of TMT bars is crucial for ensuring structural integrity in construction. Addressing common defects through careful monitoring, standardized processes, and advanced technology can significantly improve the quality of TMT bars. Continuous training and adherence to quality control measures will also play a pivotal role in minimizing these defects.
Democratizing Fuzzing at Scale by Abhishek Aryaabh.arya
Presented at NUS: Fuzzing and Software Security Summer School 2024
This keynote talks about the democratization of fuzzing at scale, highlighting the collaboration between open source communities, academia, and industry to advance the field of fuzzing. It delves into the history of fuzzing, the development of scalable fuzzing platforms, and the empowerment of community-driven research. The talk will further discuss recent advancements leveraging AI/ML and offer insights into the future evolution of the fuzzing landscape.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers

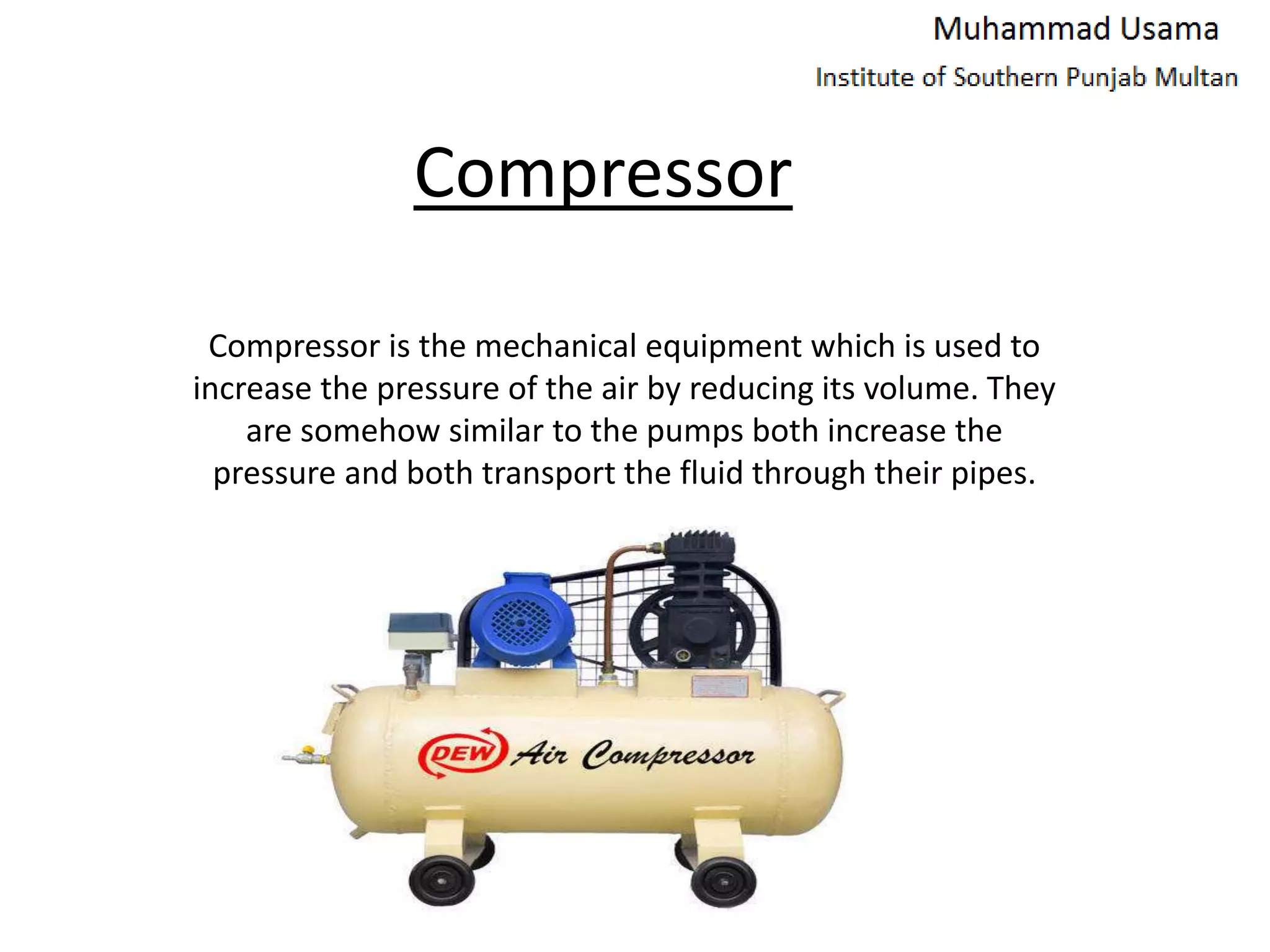

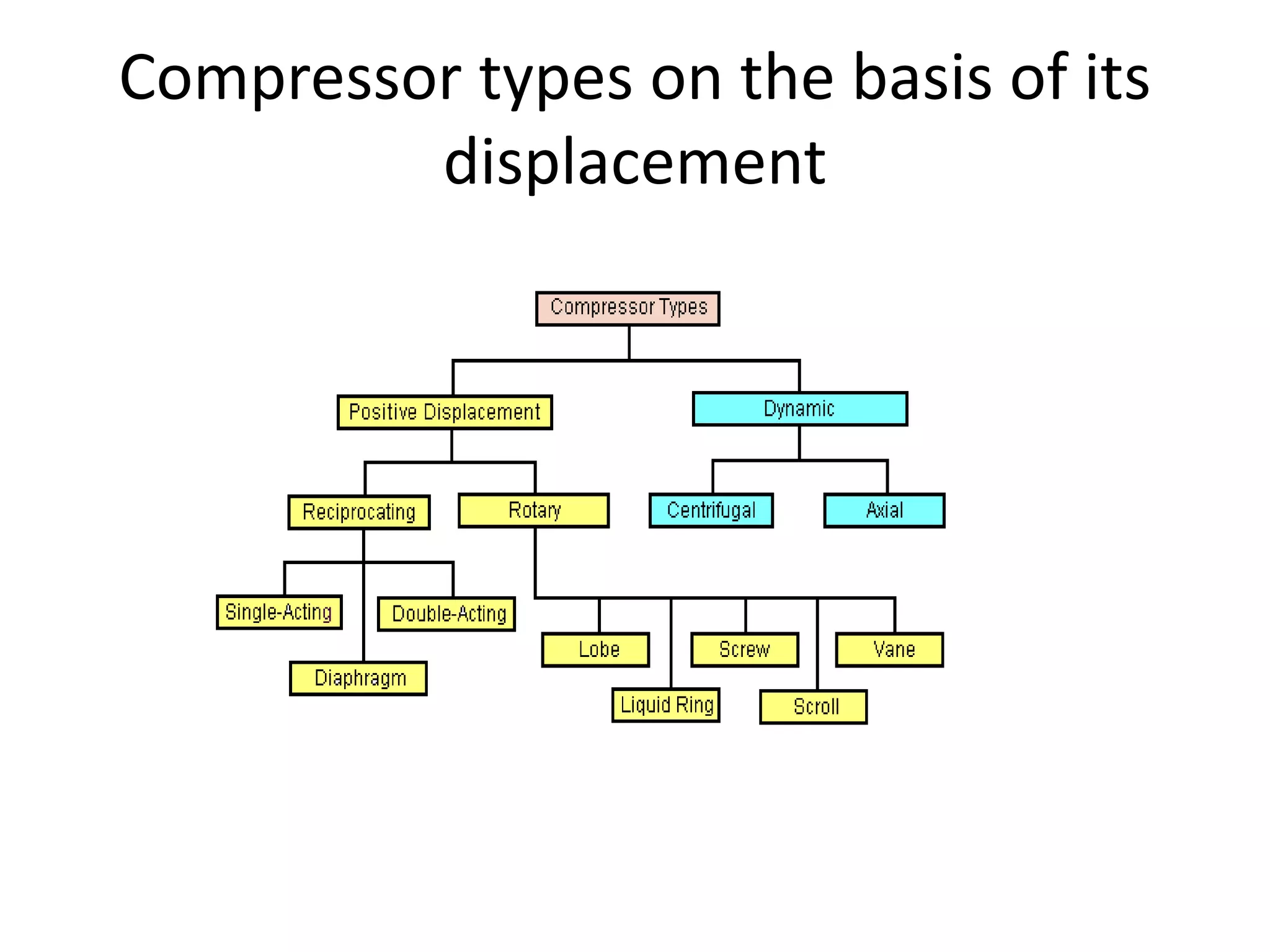

1. Compressor
Compressor is the mechanical equipment which is used to
increase the pressure of the air by reducing its volume. They
are somehow similar to the pumps both increase the
pressure and both transport the fluid through their pipes.
4. Reciprocating Compressor
These compressors use the piston driven by the crankshaft. They can be
either stationary or portable. It can be single staged or multistage and can
be driven by the electric motors or internal combustion engines as well.
They are made for intermittent duty.
6. Double Acting Compressor:
It also has just one cylinder but is pipe up such way that its capable of taking
in discharging fluids from both ends and hence increases the efficiency
9. Pressure as per Stages of Compressor
Single Stage Compressor : Low delivery pressure(< or = 10 bar)
Multistage Compressor : Low delivery pressure(> or = 10 bar)
Pressure as per final delivery of gas
Low pressure compressors(final pressure <10 bar)
Medium pressure compressors(final pressure b/w 10 bar to 80 bar)
High pressure compressors(final pressure b/w 80 bar to 1000 bar)
10. Advantages and Disadvantages of Reciprocating
Compressors
Advantage:
• Suitable for high pressure ratios
• Easy maintenance
• Easy to operate
• Relatively cheap
Disadvantage:
• Multiple Machines are required
• Maintenance prone
• Sounds too much
• High outlet temperature of compressed air

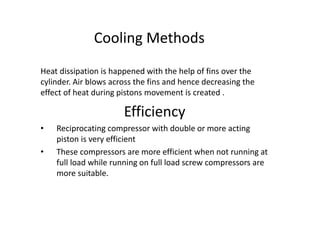

11. Cooling Methods
Heat dissipation is happened with the help of fins over the
cylinder. Air blows across the fins and hence decreasing the
effect of heat during pistons movement is created .
Efficiency
• Reciprocating compressor with double or more acting
piston is very efficient
• These compressors are more efficient when not running at
full load while running on full load screw compressors are
more suitable.
12. Rotary Compressors
These compressors does not have any reciprocating motion in fact it has
rotating motion with screws, scrolls, and vanes rotating along side a shaft

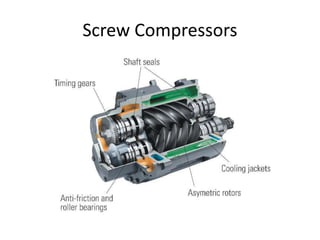

(1):Screw compressors
A type of gas compressor that uses a rotary type positive displacement.
They are used in place of piston comp where large volume of air
compression is needed and without intermittence. It has a pair of helical
rotors where it traps air, as the rotor rotates in the cylinder. The male
rotor and female rotor are being built inside the cylinder for compression.
They are generally used in large industrial areas.
Applications
• They are used for larger industrial units
• Where continuous supply is required
• They are commonly seen at construction sites and with road repair crew
throughout the world

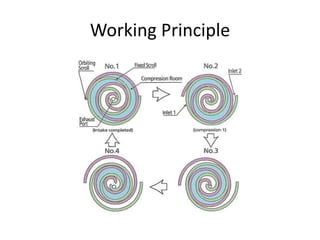

14. (2):Scroll/Spiral Compressors
A scroll compressor has one fixed scroll which remains stationary all the
time with another orbiting scroll which rotates through the use of swing
link. When this happens, the pockets of the air are pushed slowly to the
center of scrolls due to the movement of the rotating scroll causing the
reduction of the volume and hence increase in the pressure.
16. Vane Compressor
Rotary vane compressor consists of a rotor with a number of blades inserted in
radial slots in the rotor. As the rotor turns, blades slide in and out of the slots
keeping contact with the outer wall of the housing. Thus, a series of increasing and
decreasing volumes is created by the rotating blades. They can be either stationary
or portable , can be single staged or multistage driven by electric motors or I.C
engines.
Pressure
Dry vane machines are used at relatively low pressures(e.g., 2bar or 29 psi) for
bulk material movement while oil injected machines have the necessary
volumetric efficiency to achieve pressures up to about 13 bar or 190 psi in a single
stage. A vane compressor is comparatively quieter in operation than piston
compressor.
They can have mechanical efficiency of about 90%
18. Roto Dynamic Compressors
Compression is carried out by a rotating element which is imparting
velocity to the flowing air or gas and hence developed desired
pressure, and compression is achieved by the dynamic action of rotor.
Two major types of dynamic compressors
– Centrifugal Compressors
– Axial compressors
19. Centrifugal Compressors
They use a rotating disk or impeller in a shaped housing to force the gas
to the rim of the impeller, increasing the velocity. A diffuser or divergent
duct converts the velocity energy to pressure energy.
Application:
Used in stationary service in industries such as oil refineries, chemical and
natural gas processing plants, small gas turbine engines also can be used
in I.C engines as supercharger and turbocharger
Pressure:
Their application can be from 100 horsepower(75 kw) to thousands of
horsepower with multiple staging, they can achieve high output pressures
greater than 10,000 psi
20.

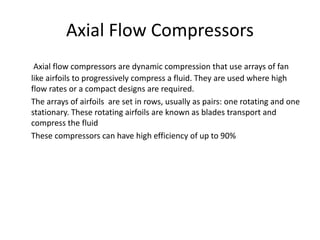

21. Axial Flow Compressors
Axial flow compressors are dynamic compression that use arrays of fan
like airfoils to progressively compress a fluid. They are used where high
flow rates or a compact designs are required.
The arrays of airfoils are set in rows, usually as pairs: one rotating and one
stationary. These rotating airfoils are known as blades transport and
compress the fluid
These compressors can have high efficiency of up to 90%
