3. 333
Overview
• IOS feature that turns Cisco Router a IP Based PBX
• Call processing and device control
• Command-line or GUI-based configuration
• Local directory service
• Computer Telephony Integration (CTI) support
• Trunking to other VoIP systems
• Direct integration with Cisco Unity Express (CUE)
PSTN
IP WAN
4. 444
Setting up CME for SCCP & SIP
Based on SCCP
telephony-service
max-ephones 15
max-dn 15
ip source-address 142.102.65.254 port 2000
max-conferences 4
dn-webedit
time-webedit
transfer-system full-consult
voice service voip
allow-connection sip to sip
sip
bind control source-interface GigabitEthernet0/0.102
bind media source-interface GigabitEthernet0/0.102
registrar server expires max 1200 min 300
voice register global
mode cme
source-address 142.102.66.254 port 5060
max-dn 10
max-pool 10
authenticate register
authenticate realm voicebootcamp.com
create profile sync 0041377162820495
ntp-server 135.11.11.11 mode unicast
Based on SIP Protocol
Based on SCCP
5. 555
Phones in Cisco Unified CME
Directory Number – EPHONE-DN
• A directory number, also known as an
ephone-dn for SCCP that represents the line
connecting a voice channel to a phone
• Each directory number has a unique dn-tag
• Directory numbers are assigned to line
buttons on phones during configuration
• One virtual voice port and one or more dial
peers are automatically created for each
directory number
• Number of simultaneous calls that you can
have
• Not all types of directory numbers can be
configured for all phones or for all
protocols
ephone-dn 2
number 6001
ephone 1
Mac-
button 1:2
ephone-dn 3 dual-line
number 6002
ephone-dn 4 octo-line
number 6003
ephone 2
Mac-address Y.Y.Y.y
button 1:3 2:4
Single Line
6. 666

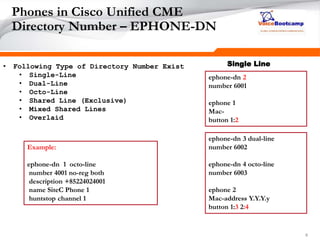

Phones in Cisco Unified CME
Directory Number – EPHONE-DN
• Following Type of Directory Number Exist
• Single-Line
• Dual-Line
• Octo-Line
• Shared Line (Exclusive)
• Mixed Shared Lines
• Overlaid
ephone-dn 2
number 6001
ephone 1
Mac-
button 1:2
ephone-dn 3 dual-line
number 6002
ephone-dn 4 octo-line
number 6003
ephone 2
Mac-address Y.Y.Y.y
button 1:3 2:4
Single Line
Example:
ephone-dn 1 octo-line
number 4001 no-reg both
description +85224024001
name SiteC Phone 1
huntstop channel 1
7. 777

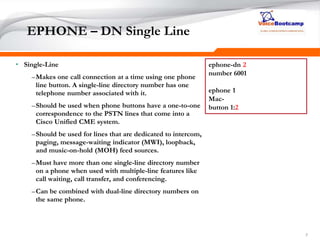

EPHONE – DN Single Line
• Single-Line
–Makes one call connection at a time using one phone
line button. A single-line directory number has one
telephone number associated with it.
–Should be used when phone buttons have a one-to-one
correspondence to the PSTN lines that come into a
Cisco Unified CME system.
–Should be used for lines that are dedicated to intercom,
paging, message-waiting indicator (MWI), loopback,
and music-on-hold (MOH) feed sources.
–Must have more than one single-line directory number
on a phone when used with multiple-line features like
call waiting, call transfer, and conferencing.
–Can be combined with dual-line directory numbers on
the same phone.
ephone-dn 2
number 6001
ephone 1
Mac-
button 1:2
8. 888

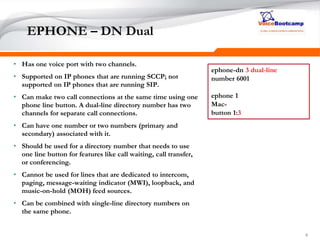

EPHONE – DN Dual
• Has one voice port with two channels.
• Supported on IP phones that are running SCCP; not
supported on IP phones that are running SIP.
• Can make two call connections at the same time using one
phone line button. A dual-line directory number has two
channels for separate call connections.
• Can have one number or two numbers (primary and
secondary) associated with it.
• Should be used for a directory number that needs to use
one line button for features like call waiting, call transfer,
or conferencing.
• Cannot be used for lines that are dedicated to intercom,
paging, message-waiting indicator (MWI), loopback, and
music-on-hold (MOH) feed sources.
• Can be combined with single-line directory numbers on
the same phone.
ephone-dn 3 dual-line
number 6001
ephone 1
Mac-
button 1:3
9. 999

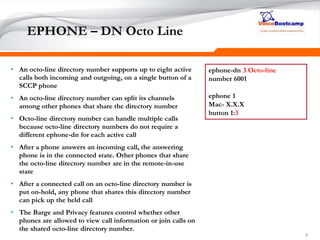

EPHONE – DN Octo Line
• An octo-line directory number supports up to eight active
calls both incoming and outgoing, on a single button of a
SCCP phone
• An octo-line directory number can split its channels
among other phones that share the directory number
• Octo-line directory number can handle multiple calls
because octo-line directory numbers do not require a
different ephone-dn for each active call
• After a phone answers an incoming call, the answering
phone is in the connected state. Other phones that share
the octo-line directory number are in the remote-in-use
state
• After a connected call on an octo-line directory number is
put on-hold, any phone that shares this directory number
can pick up the held call
• The Barge and Privacy features control whether other
phones are allowed to view call information or join calls on
the shared octo-line directory number.
ephone-dn 3 Octo-line
number 6001
ephone 1
Mac- X.X.X
button 1:3
10. 101010

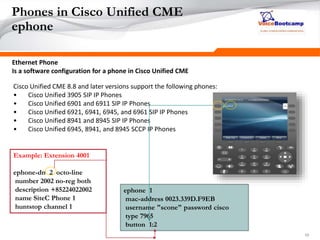

Phones in Cisco Unified CME
ephone
Ethernet Phone
Is a software configuration for a phone in Cisco Unified CME
Cisco Unified CME 8.8 and later versions support the following phones:
• Cisco Unified 3905 SIP IP Phones
• Cisco Unified 6901 and 6911 SIP IP Phones
• Cisco Unified 6921, 6941, 6945, and 6961 SIP IP Phones
• Cisco Unified 8941 and 8945 SIP IP Phones
• Cisco Unified 6945, 8941, and 8945 SCCP IP Phones
ephone 1
mac-address 0023.339D.F9EB
username "scone" password cisco
type 7965
button 1:2
Example: Extension 4001
ephone-dn 2 octo-line
number 2002 no-reg both
description +85224022002
name SiteC Phone 1
huntstop channel 1

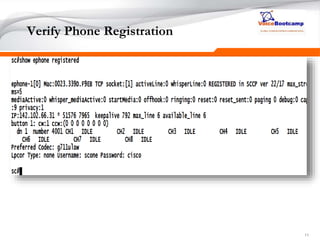

12. 121212
CUCEM – SIP Based
• Enable SIP Service
voice service voip
ip address trusted list
ipv4 0.0.0.0 0.0.0.0
allow-connections sip to sip
sip
bind control source-interface GigabitEthernet0/0.102
bind media source-interface GigabitEthernet0/0.102
registrar server expires max 1200 min 300
voice register global
mode cme
source-address 142.102.66.254 port 5060
max-dn 5
max-pool 5
authenticate register
authenticate realm all
timezone 42
date-format D/M/Y
voicemail 4220
ntp-server 157.26.1.250 mode unicast
conference hardware
camera
video
voice register dn 1
number 4002
name SC Phone 2
label +85224024002
mwi
voice register pool 1
id mac B414.89A2.F83A
type 9951
number 1 dn 1
description SC Phone 2
no vad
camera
video

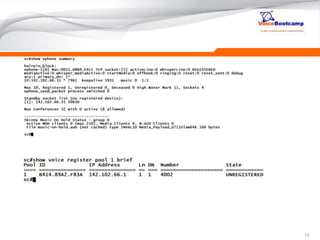

15. 151515

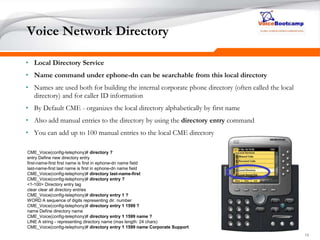

Voice Network Directory
• Local Directory Service
• Name command under ephone-dn can be searchable from this local directory
• Names are used both for building the internal corporate phone directory (often called the local
directory) and for caller ID information
• By Default CME - organizes the local directory alphabetically by first name
• Also add manual entries to the directory by using the directory entry command
• You can add up to 100 manual entries to the local CME directory
CME_Voice(config-telephony)# directory ?
entry Define new directory entry
first-name-first first name is first in ephone-dn name field
last-name-first last name is first in ephone-dn name field
CME_Voice(config-telephony)# directory last-name-first
CME_Voice(config-telephony)# directory entry ?
<1-100> Directory entry tag
clear clear all directory entries
CME_Voice(config-telephony)# directory entry 1 ?
WORD A sequence of digits representing dir. number
CME_Voice(config-telephony)# directory entry 1 1599 ?
name Define directory name
CME_Voice(config-telephony)# directory entry 1 1599 name ?
LINE A string - representing directory name (max length: 24 chars)
CME_Voice(config-telephony)# directory entry 1 1599 name Corporate Support
16. 161616

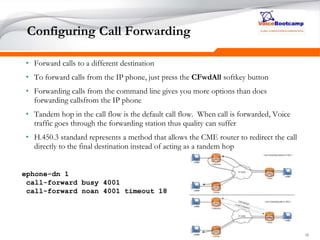

Configuring Call Forwarding
• Forward calls to a different destination
• To forward calls from the IP phone, just press the CFwdAll softkey button
• Forwarding calls from the command line gives you more options than does
forwarding callsfrom the IP phone
• Tandem hop in the call flow is the default call flow. When call is forwarded, Voice
traffic goes through the forwarding station thus quality can suffer
• H.450.3 standard represents a method that allows the CME router to redirect the call
directly to the final destination instead of acting as a tandem hop
ephone-dn 1
call-forward busy 4001
call-forward noan 4001 timeout 18
17. 171717
Configuring Call Transfer
• Transferring calls is another basic requirement of a business
phone system
• To transfer a call, press the Trnsfer softkey while on an active
call
• Two Type of Transfer
–Consult: Consult transfer allows you to speak with the other party
before transferring the call
–Blind:Blind transfer immediately transfers the call after you dial the
number
telephony-service
transfer-system full-consult
transfer-pattern 5...
transfer-pattern 4...
18. 181818
Configuring Call Park
• Allowing you to retrieve the call from any phone in the organization once it is parked
by pressing parks softkey
• Any IP phone that can dial the park extension number can retrieve the call
• Call park system works by finding free ephone-dns where call will be held
temporarily. From the retrievable phone, just dial th ephone-dn number
• Calls being parked at random extensions might work well for a warehouse
environment with a voice-paging system
ephone-dn 15
number 7001
park-slot timeout 30 limit 10
ephone 5
button 1:11 2:12 3:13
transfer-park blocked
19. 191919

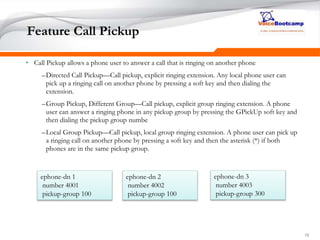

Feature Call Pickup
• Call Pickup allows a phone user to answer a call that is ringing on another phone
–Directed Call Pickup—Call pickup, explicit ringing extension. Any local phone user can
pick up a ringing call on another phone by pressing a soft key and then dialing the
extension.
–Group Pickup, Different Group—Call pickup, explicit group ringing extension. A phone
user can answer a ringing phone in any pickup group by pressing the GPickUp soft key and
then dialing the pickup group numbe
–Local Group Pickup—Call pickup, local group ringing extension. A phone user can pick up
a ringing call on another phone by pressing a soft key and then the asterisk (*) if both
phones are in the same pickup group.
ephone-dn 1
number 4001
pickup-group 100
ephone-dn 2
number 4002
pickup-group 100
ephone-dn 3
number 4003
pickup-group 300
20. 202020

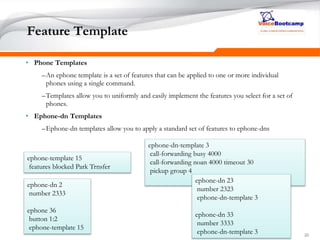

Feature Template
• Phone Templates
–An ephone template is a set of features that can be applied to one or more individual
phones using a single command.
–Templates allow you to uniformly and easily implement the features you select for a set of
phones.
• Ephone-dn Templates
–Ephone-dn templates allow you to apply a standard set of features to ephone-dns
ephone-template 15
features blocked Park Trnsfer
ephone-dn 2
number 2333
ephone 36
button 1:2
ephone-template 15
ephone-dn-template 3
call-forwarding busy 4000
call-forwarding noan 4000 timeout 30
pickup group 4
ephone-dn 23
number 2323
ephone-dn-template 3
ephone-dn 33
number 3333
ephone-dn-template 3
21. 212121

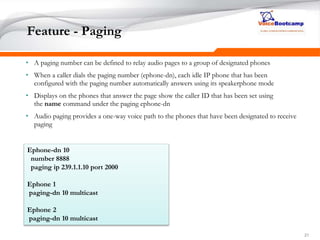

Feature - Paging
• A paging number can be defined to relay audio pages to a group of designated phones
• When a caller dials the paging number (ephone-dn), each idle IP phone that has been
configured with the paging number automatically answers using its speakerphone mode
• Displays on the phones that answer the page show the caller ID that has been set using
the name command under the paging ephone-dn
• Audio paging provides a one-way voice path to the phones that have been designated to receive
paging
Ephone-dn 10
number 8888
paging ip 239.1.1.10 port 2000
Ephone 1
paging-dn 10 multicast
Ephone 2
paging-dn 10 multicast
22. 222222

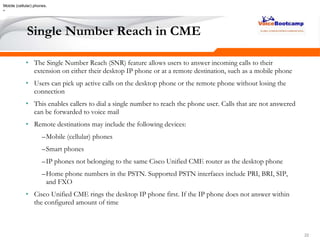

Single Number Reach in CME
• The Single Number Reach (SNR) feature allows users to answer incoming calls to their
extension on either their desktop IP phone or at a remote destination, such as a mobile phone
• Users can pick up active calls on the desktop phone or the remote phone without losing the
connection
• This enables callers to dial a single number to reach the phone user. Calls that are not answered
can be forwarded to voice mail
• Remote destinations may include the following devices:
–Mobile (cellular) phones
–Smart phones
–IP phones not belonging to the same Cisco Unified CME router as the desktop phone
–Home phone numbers in the PSTN. Supported PSTN interfaces include PRI, BRI, SIP,
and FXO
• Cisco Unified CME rings the desktop IP phone first. If the IP phone does not answer within
the configured amount of time
Mobile (cellular) phones.
•
23. 232323

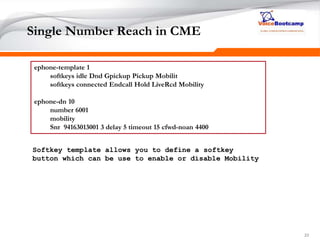

Single Number Reach in CME
ephone-template 1
softkeys idle Dnd Gpickup Pickup Mobilit
softkeys connected Endcall Hold LiveRcd Mobility
ephone-dn 10
number 6001
mobility
Snr 94163013001 3 delay 5 timeout 15 cfwd-noan 4400
Softkey template allows you to define a softkey
button which can be use to enable or disable Mobility
24. 242424

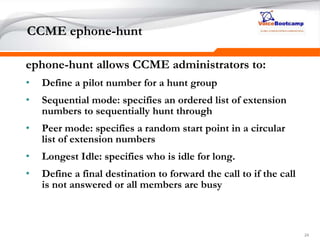

CCME ephone-hunt
ephone-hunt allows CCME administrators to:
• Define a pilot number for a hunt group
• Sequential mode: specifies an ordered list of extension
numbers to sequentially hunt through
• Peer mode: specifies a random start point in a circular
list of extension numbers
• Longest Idle: specifies who is idle for long.
• Define a final destination to forward the call to if the call
is not answered or all members are busy
25. 252525

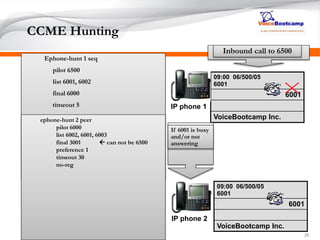

CCME Hunting
Ephone-hunt 1 seq
pilot 6500
list 6001, 6002
final 6000
timeout 5
ephone-hunt 2 peer
pilot 6000
list 6002, 6001, 6003
final 3001 can not be 6500
preference 1
timeout 30
no-reg
09:00 06/500/05
6001
6001
VoiceBootcamp Inc.
09:00 06/500/05
6001
6001
VoiceBootcamp Inc.
IP phone 1
IP phone 2
Inbound call to 6500
If 6001 is busy
and/or not
answering
26. 262626

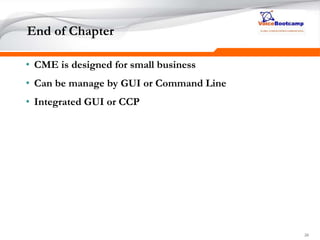

End of Chapter
• CME is designed for small business
• Can be manage by GUI or Command Line
• Integrated GUI or CCP
