Warm Welcome
ETERNITY MEX
The Military Exchange
    (ULSB MK III)

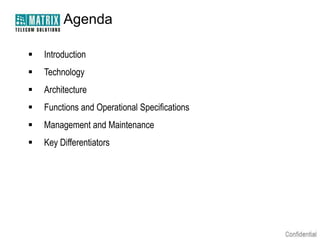

Agenda

   Introduction
   Technology
   Architecture
   Functions and Operational Specifications
   Management and Maintenance
   Key Differentiators

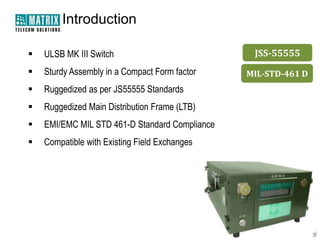

Introduction

   ULSB MK III Switch                           JSS-55555
   Sturdy Assembly in a Compact Form factor    MIL-STD-461 D
   Ruggedized as per JS55555 Standards
   Ruggedized Main Distribution Frame (LTB)
   EMI/EMC MIL STD 461-D Standard Compliance
   Compatible with Existing Field Exchanges

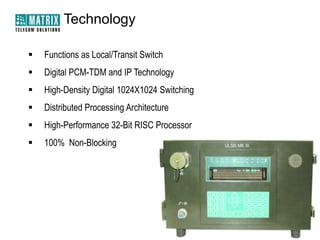

Technology

   Functions as Local/Transit Switch
   Digital PCM-TDM and IP Technology
   High-Density Digital 1024X1024 Switching
   Distributed Processing Architecture
   High-Performance 32-Bit RISC Processor
   100% Non-Blocking
Architecture

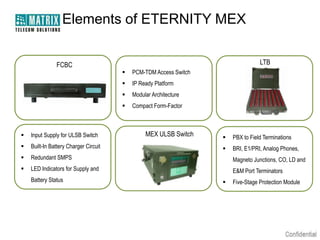

Elements of ETERNITY MEX


               FCBC                                                               LTB
                                          PCM-TDM Access Switch
                                          IP Ready Platform
                                          Modular Architecture
                                          Compact Form-Factor



   Input Supply for ULSB Switch                MEX ULSB Switch       PBX to Field Terminations
   Built-In Battery Charger Circuit                                  BRI, E1/PRI, Analog Phones,
   Redundant SMPS                                                     Magneto Junctions, CO, LD and
   LED Indicators for Supply and                                      E&M Port Terminators
    Battery Status                                                    Five-Stage Protection Module

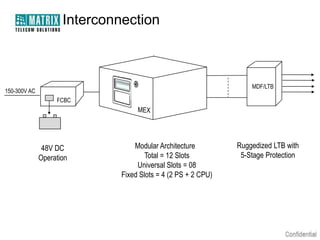

Interconnection



                                                                   MDF/LTB
150-300V AC
                   FCBC




               48V DC             Modular Architecture         Ruggedized LTB with
              Operation               Total = 12 Slots          5-Stage Protection
                                   Universal Slots = 08
                              Fixed Slots = 4 (2 PS + 2 CPU)

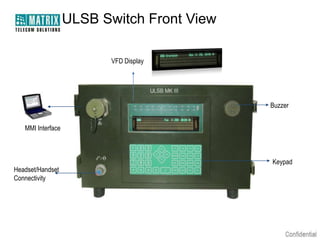

ULSB Switch Front View

                          VFD Display




                                            Buzzer


   MMI Interface



                                            Keypad
Headset/Handset
Connectivity

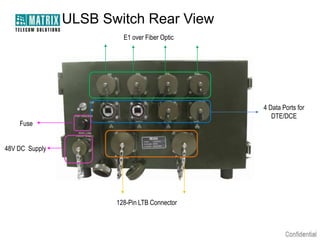

ULSB Switch Rear View
                         E1 over Fiber Optic




                                               4 Data Ports for
                                                  DTE/DCE
    Fuse


48V DC Supply




                       128-Pin LTB Connector

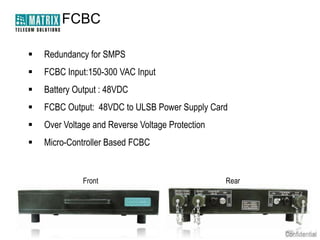

FCBC

   Redundancy for SMPS
   FCBC Input:150-300 VAC Input
   Battery Output : 48VDC
   FCBC Output: 48VDC to ULSB Power Supply Card
   Over Voltage and Reverse Voltage Protection
   Micro-Controller Based FCBC


              Front                               Rear

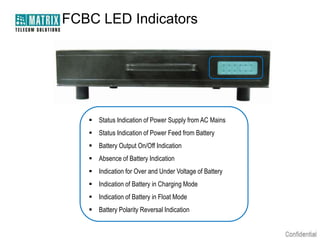

FCBC LED Indicators




    Status Indication of Power Supply from AC Mains
    Status Indication of Power Feed from Battery
    Battery Output On/Off Indication
    Absence of Battery Indication
    Indication for Over and Under Voltage of Battery
    Indication of Battery in Charging Mode
    Indication of Battery in Float Mode
    Battery Polarity Reversal Indication

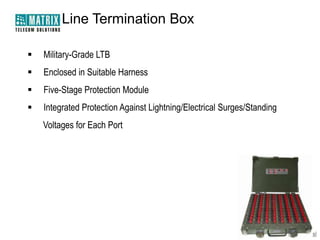

Line Termination Box

   Military-Grade LTB
   Enclosed in Suitable Harness
   Five-Stage Protection Module
   Integrated Protection Against Lightning/Electrical Surges/Standing
    Voltages for Each Port

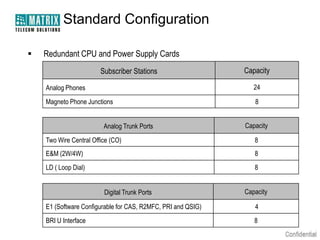

Standard Configuration

   Redundant CPU and Power Supply Cards
                        Subscriber Stations                   Capacity

    Analog Phones                                                24

    Magneto Phone Junctions                                      8


                         Analog Trunk Ports                   Capacity

    Two Wire Central Office (CO)                                 8
    E&M (2W/4W)                                                  8
    LD ( Loop Dial)                                              8


                         Digital Trunk Ports                  Capacity

    E1 (Software Configurable for CAS, R2MFC, PRI and QSIG)      4
    BRI U Interface                                              8
Interfaces

   E&M Interface
    LD Interface



  CO

                                Magneto Phones
E1 over
Fiber
                                Analog Phones

E1 over
Copper                          4-Port Ethernet

                                                  DTE

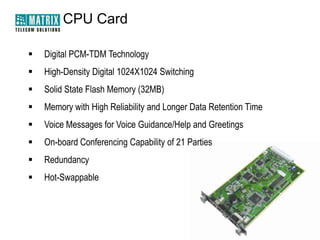

CPU Card

   Digital PCM-TDM Technology
   High-Density Digital 1024X1024 Switching
   Solid State Flash Memory (32MB)
   Memory with High Reliability and Longer Data Retention Time
   Voice Messages for Voice Guidance/Help and Greetings
   On-board Conferencing Capability of 21 Parties
   Redundancy
   Hot-Swappable

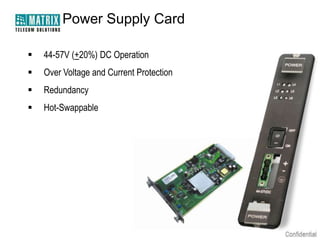

Power Supply Card

   44-57V (+20%) DC Operation
   Over Voltage and Current Protection
   Redundancy
   Hot-Swappable

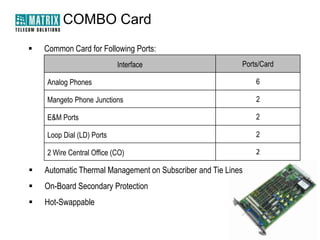

COMBO Card
   Common Card for Following Ports:
                           Interface                       Ports/Card

    Analog Phones                                              6

    Mangeto Phone Junctions                                    2

    E&M Ports                                                  2

    Loop Dial (LD) Ports                                       2

    2 Wire Central Office (CO)                                 2

   Automatic Thermal Management on Subscriber and Tie Lines
   On-Board Secondary Protection
   Hot-Swappable

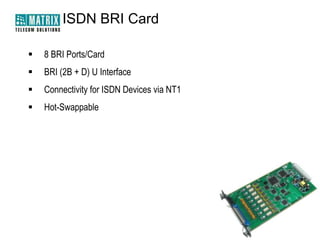

ISDN BRI Card

   8 BRI Ports/Card
   BRI (2B + D) U Interface
   Connectivity for ISDN Devices via NT1
   Hot-Swappable

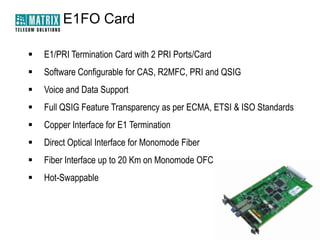

E1FO Card

   E1/PRI Termination Card with 2 PRI Ports/Card
   Software Configurable for CAS, R2MFC, PRI and QSIG
   Voice and Data Support
   Full QSIG Feature Transparency as per ECMA, ETSI & ISO Standards
   Copper Interface for E1 Termination
   Direct Optical Interface for Monomode Fiber
   Fiber Interface up to 20 Km on Monomode OFC
   Hot-Swappable

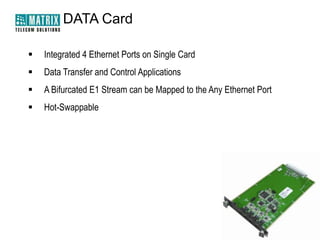

DATA Card

   Integrated 4 Ethernet Ports on Single Card
   Data Transfer and Control Applications
   A Bifurcated E1 Stream can be Mapped to the Any Ethernet Port
   Hot-Swappable

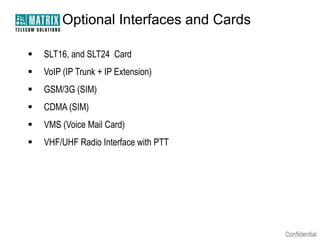

Optional Interfaces and Cards

   SLT16, and SLT24 Card
   VoIP (IP Trunk + IP Extension)
   GSM/3G (SIM)
   CDMA (SIM)
   VMS (Voice Mail Card)
   VHF/UHF Radio Interface with PTT

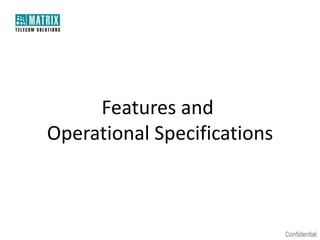

Features and
Operational Specifications

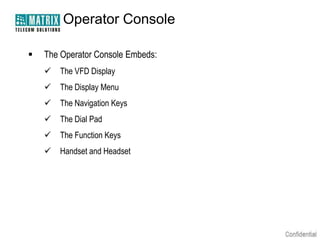

Operator Console

   The Operator Console Embeds:
       The VFD Display
       The Display Menu
       The Navigation Keys
       The Dial Pad
       The Function Keys
       Handset and Headset

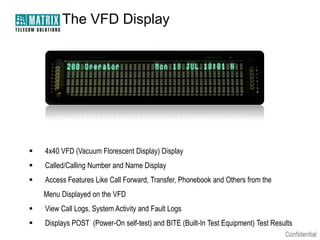

The VFD Display




   4x40 VFD (Vacuum Florescent Display) Display
   Called/Calling Number and Name Display
   Access Features Like Call Forward, Transfer, Phonebook and Others from the
    Menu Displayed on the VFD
   View Call Logs, System Activity and Fault Logs
   Displays POST (Power-On self-test) and BITE (Built-In Test Equipment) Test Results
The Dial Pad

 The Dial Pad is used for Dialing Internal/External Numbers, Dial Access
  Codes and Name Characters Or While Programming the System
 Consists of 12 Standard Dialing Keys
     Numbers from 0-9
     Characters “” and “#” and “A to Z”

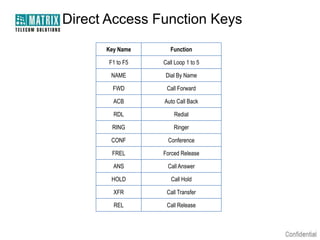

Direct Access Function Keys
      Key Name       Function

       F1 to F5   Call Loop 1 to 5

       NAME        Dial By Name

        FWD        Call Forward

        ACB       Auto Call Back

        RDL           Redial

        RING          Ringer

       CONF         Conference

        FREL      Forced Release

        ANS         Call Answer

        HOLD         Call Hold

        XFR        Call Transfer

        REL        Call Release
The Handset and Headset

 Ruggedized Handset with MIL Standard Connector
 Headset Connectivity for Hands-Free Operation
 Common Interface is Provided for Headset and Headset, Either of One
   Can be Connected at an Instant

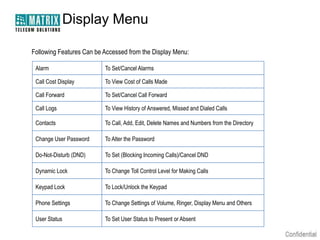

Display Menu

Following Features Can be Accessed from the Display Menu:

 Alarm                    To Set/Cancel Alarms

 Call Cost Display        To View Cost of Calls Made

 Call Forward             To Set/Cancel Call Forward

 Call Logs                To View History of Answered, Missed and Dialed Calls

 Contacts                 To Call, Add, Edit, Delete Names and Numbers from the Directory

 Change User Password     To Alter the Password

 Do-Not-Disturb (DND)     To Set (Blocking Incoming Calls)/Cancel DND

 Dynamic Lock             To Change Toll Control Level for Making Calls

 Keypad Lock              To Lock/Unlock the Keypad

 Phone Settings           To Change Settings of Volume, Ringer, Display Menu and Others

 User Status              To Set User Status to Present or Absent

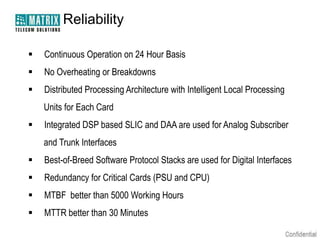

Reliability

   Continuous Operation on 24 Hour Basis
   No Overheating or Breakdowns
   Distributed Processing Architecture with Intelligent Local Processing
    Units for Each Card
   Integrated DSP based SLIC and DAA are used for Analog Subscriber
    and Trunk Interfaces
   Best-of-Breed Software Protocol Stacks are used for Digital Interfaces
   Redundancy for Critical Cards (PSU and CPU)
   MTBF better than 5000 Working Hours
   MTTR better than 30 Minutes

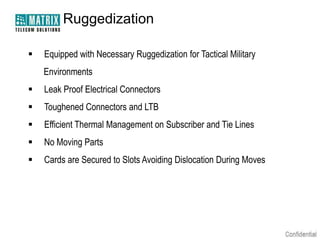

Ruggedization

   Equipped with Necessary Ruggedization for Tactical Military
    Environments
   Leak Proof Electrical Connectors
   Toughened Connectors and LTB
   Efficient Thermal Management on Subscriber and Tie Lines
   No Moving Parts
   Cards are Secured to Slots Avoiding Dislocation During Moves

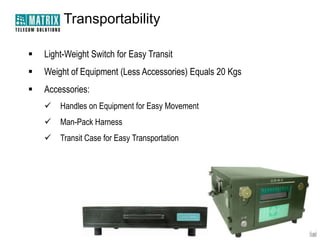

Transportability

   Light-Weight Switch for Easy Transit
   Weight of Equipment (Less Accessories) Equals 20 Kgs
   Accessories:
       Handles on Equipment for Easy Movement
       Man-Pack Harness
       Transit Case for Easy Transportation

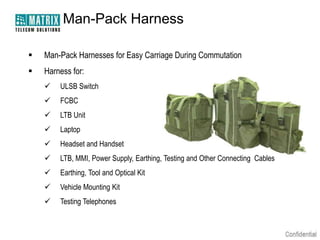

Man-Pack Harness

   Man-Pack Harnesses for Easy Carriage During Commutation
   Harness for:
       ULSB Switch
       FCBC
       LTB Unit
       Laptop
       Headset and Handset
       LTB, MMI, Power Supply, Earthing, Testing and Other Connecting Cables
       Earthing, Tool and Optical Kit
       Vehicle Mounting Kit
       Testing Telephones

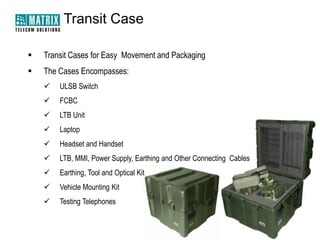

Transit Case

   Transit Cases for Easy Movement and Packaging
   The Cases Encompasses:
       ULSB Switch
       FCBC
       LTB Unit
       Laptop
       Headset and Handset
       LTB, MMI, Power Supply, Earthing and Other Connecting Cables
       Earthing, Tool and Optical Kit
       Vehicle Mounting Kit
       Testing Telephones

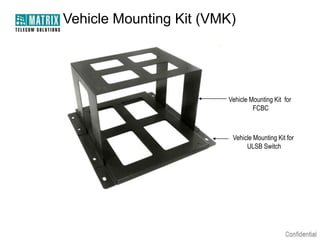

Vehicle Mounting Kit (VMK)




                        Vehicle Mounting Kit for
                                 FCBC



                         Vehicle Mounting Kit for
                              ULSB Switch

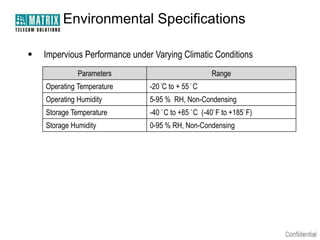

Environmental Specifications

   Impervious Performance under Varying Climatic Conditions
              Parameters                           Range
                                   .        .
    Operating Temperature       -20 C to + 55 C
    Operating Humidity          5-95 % RH, Non-Condensing
                                   .        .      .         .
    Storage Temperature         -40 C to +85 C (-40 F to +185 F)
    Storage Humidity            0-95 % RH, Non-Condensing

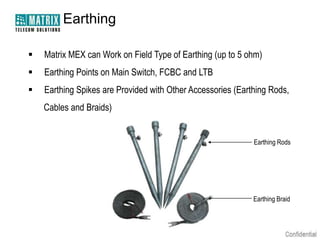

Earthing

   Matrix MEX can Work on Field Type of Earthing (up to 5 ohm)
   Earthing Points on Main Switch, FCBC and LTB
   Earthing Spikes are Provided with Other Accessories (Earthing Rods,
    Cables and Braids)


                                                             Earthing Rods




                                                             Earthing Braid

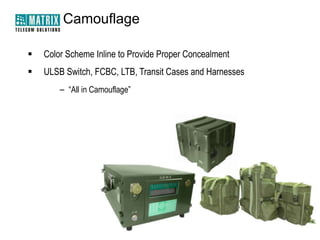

Camouflage

   Color Scheme Inline to Provide Proper Concealment
   ULSB Switch, FCBC, LTB, Transit Cases and Harnesses
        – “All in Camouflage”

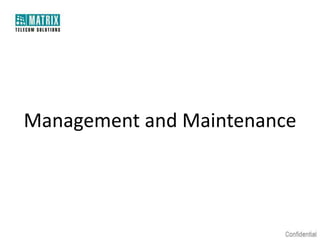

Management and Maintenance

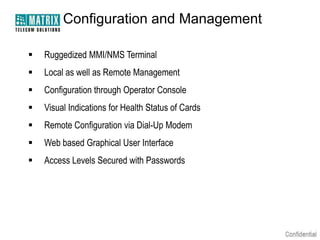

Configuration and Management

   Ruggedized MMI/NMS Terminal
   Local as well as Remote Management
   Configuration through Operator Console
   Visual Indications for Health Status of Cards
   Remote Configuration via Dial-Up Modem
   Web based Graphical User Interface
   Access Levels Secured with Passwords

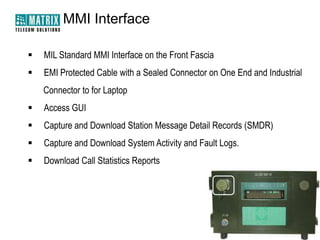

MMI Interface

   MIL Standard MMI Interface on the Front Fascia
   EMI Protected Cable with a Sealed Connector on One End and Industrial
    Connector to for Laptop
   Access GUI
   Capture and Download Station Message Detail Records (SMDR)
   Capture and Download System Activity and Fault Logs.
   Download Call Statistics Reports

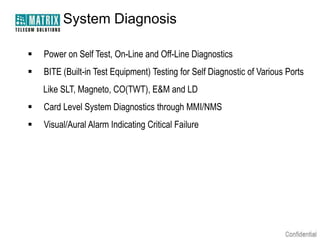

System Diagnosis

   Power on Self Test, On-Line and Off-Line Diagnostics
   BITE (Built-in Test Equipment) Testing for Self Diagnostic of Various Ports
    Like SLT, Magneto, CO(TWT), E&M and LD
   Card Level System Diagnostics through MMI/NMS
   Visual/Aural Alarm Indicating Critical Failure

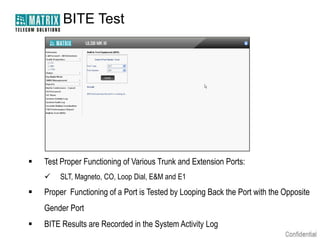

BITE Test




   Test Proper Functioning of Various Trunk and Extension Ports:
       SLT, Magneto, CO, Loop Dial, E&M and E1
   Proper Functioning of a Port is Tested by Looping Back the Port with the Opposite
    Gender Port
   BITE Results are Recorded in the System Activity Log

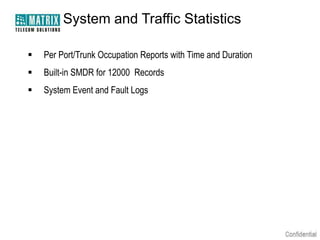

System and Traffic Statistics

   Per Port/Trunk Occupation Reports with Time and Duration
   Built-in SMDR for 12000 Records
   System Event and Fault Logs

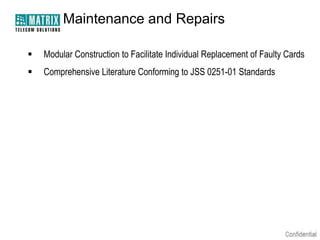

Maintenance and Repairs

   Modular Construction to Facilitate Individual Replacement of Faulty Cards
   Comprehensive Literature Conforming to JSS 0251-01 Standards

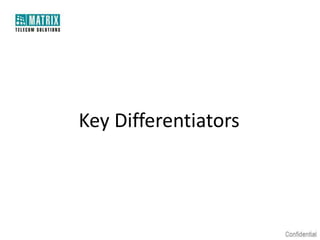

Key Differentiators
Key Differentiators

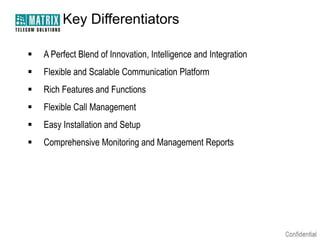

   A Perfect Blend of Innovation, Intelligence and Integration
   Flexible and Scalable Communication Platform
   Rich Features and Functions
   Flexible Call Management
   Easy Installation and Setup
   Comprehensive Monitoring and Management Reports
Key Differentiators

   Redundancy for Critical Cards
   Hot-Swappable Cards
   CNR Functionality through E&M ports
   Built-in SMDR/CDR of 12,000 Call Records
   On-board Conferencing Capability of 21 Parties
   On-board Secondary Protection
Key Differentiators

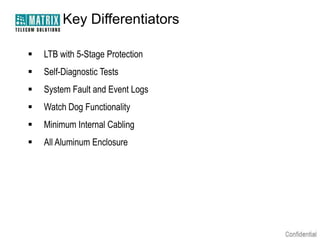

   LTB with 5-Stage Protection
   Self-Diagnostic Tests
   System Fault and Event Logs
   Watch Dog Functionality
   Minimum Internal Cabling
   All Aluminum Enclosure
 Type of Presentation: Product Introduction and Features
 Number of Slides: 51
 Revised On: 29th September, 2011
 Version-Release Number: V1R1




For Further Information Please Contact:
Email ID: pmt@matrixcomsec.com
Mobile: +91 9662544401
Visit us at www.matrixcomsec.com
Thank You
www.MatrixComSec.com

Matrix eternity mex presentation

  • 1.
  • 2.
    ETERNITY MEX The MilitaryExchange (ULSB MK III)
  • 3.
    Agenda  Introduction  Technology  Architecture  Functions and Operational Specifications  Management and Maintenance  Key Differentiators
  • 4.
    Introduction  ULSB MK III Switch JSS-55555  Sturdy Assembly in a Compact Form factor MIL-STD-461 D  Ruggedized as per JS55555 Standards  Ruggedized Main Distribution Frame (LTB)  EMI/EMC MIL STD 461-D Standard Compliance  Compatible with Existing Field Exchanges
  • 5.
    Technology  Functions as Local/Transit Switch  Digital PCM-TDM and IP Technology  High-Density Digital 1024X1024 Switching  Distributed Processing Architecture  High-Performance 32-Bit RISC Processor  100% Non-Blocking
  • 6.
  • 7.
    Elements of ETERNITYMEX FCBC LTB  PCM-TDM Access Switch  IP Ready Platform  Modular Architecture  Compact Form-Factor  Input Supply for ULSB Switch MEX ULSB Switch  PBX to Field Terminations  Built-In Battery Charger Circuit  BRI, E1/PRI, Analog Phones,  Redundant SMPS Magneto Junctions, CO, LD and  LED Indicators for Supply and E&M Port Terminators Battery Status  Five-Stage Protection Module
  • 8.
    Interconnection MDF/LTB 150-300V AC FCBC 48V DC Modular Architecture Ruggedized LTB with Operation Total = 12 Slots 5-Stage Protection Universal Slots = 08 Fixed Slots = 4 (2 PS + 2 CPU)
  • 9.
    ULSB Switch FrontView VFD Display Buzzer MMI Interface Keypad Headset/Handset Connectivity
  • 10.
    ULSB Switch RearView E1 over Fiber Optic 4 Data Ports for DTE/DCE Fuse 48V DC Supply 128-Pin LTB Connector
  • 11.
    FCBC  Redundancy for SMPS  FCBC Input:150-300 VAC Input  Battery Output : 48VDC  FCBC Output: 48VDC to ULSB Power Supply Card  Over Voltage and Reverse Voltage Protection  Micro-Controller Based FCBC Front Rear
  • 12.
    FCBC LED Indicators  Status Indication of Power Supply from AC Mains  Status Indication of Power Feed from Battery  Battery Output On/Off Indication  Absence of Battery Indication  Indication for Over and Under Voltage of Battery  Indication of Battery in Charging Mode  Indication of Battery in Float Mode  Battery Polarity Reversal Indication
  • 13.
    Line Termination Box  Military-Grade LTB  Enclosed in Suitable Harness  Five-Stage Protection Module  Integrated Protection Against Lightning/Electrical Surges/Standing Voltages for Each Port
  • 14.
    Standard Configuration  Redundant CPU and Power Supply Cards Subscriber Stations Capacity Analog Phones 24 Magneto Phone Junctions 8 Analog Trunk Ports Capacity Two Wire Central Office (CO) 8 E&M (2W/4W) 8 LD ( Loop Dial) 8 Digital Trunk Ports Capacity E1 (Software Configurable for CAS, R2MFC, PRI and QSIG) 4 BRI U Interface 8
  • 15.
    Interfaces E&M Interface LD Interface CO Magneto Phones E1 over Fiber Analog Phones E1 over Copper 4-Port Ethernet DTE
  • 16.
    CPU Card  Digital PCM-TDM Technology  High-Density Digital 1024X1024 Switching  Solid State Flash Memory (32MB)  Memory with High Reliability and Longer Data Retention Time  Voice Messages for Voice Guidance/Help and Greetings  On-board Conferencing Capability of 21 Parties  Redundancy  Hot-Swappable
  • 17.
    Power Supply Card  44-57V (+20%) DC Operation  Over Voltage and Current Protection  Redundancy  Hot-Swappable
  • 18.
    COMBO Card  Common Card for Following Ports: Interface Ports/Card Analog Phones 6 Mangeto Phone Junctions 2 E&M Ports 2 Loop Dial (LD) Ports 2 2 Wire Central Office (CO) 2  Automatic Thermal Management on Subscriber and Tie Lines  On-Board Secondary Protection  Hot-Swappable
  • 19.
    ISDN BRI Card  8 BRI Ports/Card  BRI (2B + D) U Interface  Connectivity for ISDN Devices via NT1  Hot-Swappable
  • 20.
    E1FO Card  E1/PRI Termination Card with 2 PRI Ports/Card  Software Configurable for CAS, R2MFC, PRI and QSIG  Voice and Data Support  Full QSIG Feature Transparency as per ECMA, ETSI & ISO Standards  Copper Interface for E1 Termination  Direct Optical Interface for Monomode Fiber  Fiber Interface up to 20 Km on Monomode OFC  Hot-Swappable
  • 21.
    DATA Card  Integrated 4 Ethernet Ports on Single Card  Data Transfer and Control Applications  A Bifurcated E1 Stream can be Mapped to the Any Ethernet Port  Hot-Swappable
  • 22.
    Optional Interfaces andCards  SLT16, and SLT24 Card  VoIP (IP Trunk + IP Extension)  GSM/3G (SIM)  CDMA (SIM)  VMS (Voice Mail Card)  VHF/UHF Radio Interface with PTT
  • 23.
  • 24.
    Operator Console  The Operator Console Embeds:  The VFD Display  The Display Menu  The Navigation Keys  The Dial Pad  The Function Keys  Handset and Headset
  • 25.
    The VFD Display  4x40 VFD (Vacuum Florescent Display) Display  Called/Calling Number and Name Display  Access Features Like Call Forward, Transfer, Phonebook and Others from the Menu Displayed on the VFD  View Call Logs, System Activity and Fault Logs  Displays POST (Power-On self-test) and BITE (Built-In Test Equipment) Test Results
  • 26.
    The Dial Pad The Dial Pad is used for Dialing Internal/External Numbers, Dial Access Codes and Name Characters Or While Programming the System  Consists of 12 Standard Dialing Keys  Numbers from 0-9  Characters “” and “#” and “A to Z”
  • 27.
    Direct Access FunctionKeys Key Name Function F1 to F5 Call Loop 1 to 5 NAME Dial By Name FWD Call Forward ACB Auto Call Back RDL Redial RING Ringer CONF Conference FREL Forced Release ANS Call Answer HOLD Call Hold XFR Call Transfer REL Call Release
  • 28.
    The Handset andHeadset  Ruggedized Handset with MIL Standard Connector  Headset Connectivity for Hands-Free Operation  Common Interface is Provided for Headset and Headset, Either of One Can be Connected at an Instant
  • 29.
    Display Menu Following FeaturesCan be Accessed from the Display Menu: Alarm To Set/Cancel Alarms Call Cost Display To View Cost of Calls Made Call Forward To Set/Cancel Call Forward Call Logs To View History of Answered, Missed and Dialed Calls Contacts To Call, Add, Edit, Delete Names and Numbers from the Directory Change User Password To Alter the Password Do-Not-Disturb (DND) To Set (Blocking Incoming Calls)/Cancel DND Dynamic Lock To Change Toll Control Level for Making Calls Keypad Lock To Lock/Unlock the Keypad Phone Settings To Change Settings of Volume, Ringer, Display Menu and Others User Status To Set User Status to Present or Absent
  • 30.
    Reliability  Continuous Operation on 24 Hour Basis  No Overheating or Breakdowns  Distributed Processing Architecture with Intelligent Local Processing Units for Each Card  Integrated DSP based SLIC and DAA are used for Analog Subscriber and Trunk Interfaces  Best-of-Breed Software Protocol Stacks are used for Digital Interfaces  Redundancy for Critical Cards (PSU and CPU)  MTBF better than 5000 Working Hours  MTTR better than 30 Minutes
  • 31.
    Ruggedization  Equipped with Necessary Ruggedization for Tactical Military Environments  Leak Proof Electrical Connectors  Toughened Connectors and LTB  Efficient Thermal Management on Subscriber and Tie Lines  No Moving Parts  Cards are Secured to Slots Avoiding Dislocation During Moves
  • 32.
    Transportability  Light-Weight Switch for Easy Transit  Weight of Equipment (Less Accessories) Equals 20 Kgs  Accessories:  Handles on Equipment for Easy Movement  Man-Pack Harness  Transit Case for Easy Transportation
  • 33.
    Man-Pack Harness  Man-Pack Harnesses for Easy Carriage During Commutation  Harness for:  ULSB Switch  FCBC  LTB Unit  Laptop  Headset and Handset  LTB, MMI, Power Supply, Earthing, Testing and Other Connecting Cables  Earthing, Tool and Optical Kit  Vehicle Mounting Kit  Testing Telephones
  • 34.
    Transit Case  Transit Cases for Easy Movement and Packaging  The Cases Encompasses:  ULSB Switch  FCBC  LTB Unit  Laptop  Headset and Handset  LTB, MMI, Power Supply, Earthing and Other Connecting Cables  Earthing, Tool and Optical Kit  Vehicle Mounting Kit  Testing Telephones
  • 35.
    Vehicle Mounting Kit(VMK) Vehicle Mounting Kit for FCBC Vehicle Mounting Kit for ULSB Switch
  • 36.
    Environmental Specifications  Impervious Performance under Varying Climatic Conditions Parameters Range . . Operating Temperature -20 C to + 55 C Operating Humidity 5-95 % RH, Non-Condensing . . . . Storage Temperature -40 C to +85 C (-40 F to +185 F) Storage Humidity 0-95 % RH, Non-Condensing
  • 37.
    Earthing  Matrix MEX can Work on Field Type of Earthing (up to 5 ohm)  Earthing Points on Main Switch, FCBC and LTB  Earthing Spikes are Provided with Other Accessories (Earthing Rods, Cables and Braids) Earthing Rods Earthing Braid
  • 38.
    Camouflage  Color Scheme Inline to Provide Proper Concealment  ULSB Switch, FCBC, LTB, Transit Cases and Harnesses – “All in Camouflage”
  • 39.
  • 40.
    Configuration and Management  Ruggedized MMI/NMS Terminal  Local as well as Remote Management  Configuration through Operator Console  Visual Indications for Health Status of Cards  Remote Configuration via Dial-Up Modem  Web based Graphical User Interface  Access Levels Secured with Passwords
  • 41.
    MMI Interface  MIL Standard MMI Interface on the Front Fascia  EMI Protected Cable with a Sealed Connector on One End and Industrial Connector to for Laptop  Access GUI  Capture and Download Station Message Detail Records (SMDR)  Capture and Download System Activity and Fault Logs.  Download Call Statistics Reports
  • 42.
    System Diagnosis  Power on Self Test, On-Line and Off-Line Diagnostics  BITE (Built-in Test Equipment) Testing for Self Diagnostic of Various Ports Like SLT, Magneto, CO(TWT), E&M and LD  Card Level System Diagnostics through MMI/NMS  Visual/Aural Alarm Indicating Critical Failure
  • 43.
    BITE Test  Test Proper Functioning of Various Trunk and Extension Ports:  SLT, Magneto, CO, Loop Dial, E&M and E1  Proper Functioning of a Port is Tested by Looping Back the Port with the Opposite Gender Port  BITE Results are Recorded in the System Activity Log
  • 44.
    System and TrafficStatistics  Per Port/Trunk Occupation Reports with Time and Duration  Built-in SMDR for 12000 Records  System Event and Fault Logs
  • 45.
    Maintenance and Repairs  Modular Construction to Facilitate Individual Replacement of Faulty Cards  Comprehensive Literature Conforming to JSS 0251-01 Standards
  • 46.
  • 47.
    Key Differentiators  A Perfect Blend of Innovation, Intelligence and Integration  Flexible and Scalable Communication Platform  Rich Features and Functions  Flexible Call Management  Easy Installation and Setup  Comprehensive Monitoring and Management Reports
  • 48.
    Key Differentiators  Redundancy for Critical Cards  Hot-Swappable Cards  CNR Functionality through E&M ports  Built-in SMDR/CDR of 12,000 Call Records  On-board Conferencing Capability of 21 Parties  On-board Secondary Protection
  • 49.
    Key Differentiators  LTB with 5-Stage Protection  Self-Diagnostic Tests  System Fault and Event Logs  Watch Dog Functionality  Minimum Internal Cabling  All Aluminum Enclosure
  • 50.
     Type ofPresentation: Product Introduction and Features  Number of Slides: 51  Revised On: 29th September, 2011  Version-Release Number: V1R1 For Further Information Please Contact: Email ID: pmt@matrixcomsec.com Mobile: +91 9662544401 Visit us at www.matrixcomsec.com
  • 51.
