![The race is on
Process 1
Process 2
SELECT firstName, lastName!
FROM users!
WHERE username = 'pmcfadin';
T0
T1
(0 rows)
SELECT firstName, lastName!
FROM users!
WHERE username = 'pmcfadin';
(0 rows)
INSERT INTO users (username, firstname, !
lastname, email, password, created_date)!
VALUES ('pmcfadin','Patrick','McFadin',!
['patrick@datastax.com'],!
'ba27e03fd95e507daf2937c937d499ab',!
'2011-06-20 13:50:00');
Got nothing! Good to go!
T2
T3
This one wins
INSERT INTO users (username, firstname, !
lastname, email, password, created_date)!
VALUES ('pmcfadin','Paul','McFadin',!
['paul@oracle.com'],!
'ea24e13ad95a209ded8912e937d499de',!
'2011-06-20 13:51:00');](https://image.slidesharecdn.com/cassandracommunitywebinar-datamodelonfire-131217195038-phpapp01/85/Cassandra-Community-Webinar-Data-Model-on-Fire-4-320.jpg)
![Solution LWT
Process 1
INSERT INTO users (username, firstname, !
lastname, email, password, created_date)!
VALUES ('pmcfadin','Patrick','McFadin',!
['patrick@datastax.com'],!
'ba27e03fd95e507daf2937c937d499ab',!
'2011-06-20 13:50:00')!
IF NOT EXISTS;
[applied]!
-----------!
True
T0
T1
•Check performed for record
•Paxos ensures exclusive access
•applied = true: Success](https://image.slidesharecdn.com/cassandracommunitywebinar-datamodelonfire-131217195038-phpapp01/85/Cassandra-Community-Webinar-Data-Model-on-Fire-5-320.jpg)
![Solution LWT
Process 2
T2
T3
INSERT INTO users (username, firstname, !
lastname, email, password, created_date)!
VALUES ('pmcfadin','Paul','McFadin',!
['paul@oracle.com'],!
'ea24e13ad95a209ded8912e937d499de',!
'2011-06-20 13:51:00')!
IF NOT EXISTS;
[applied] | username | created_date
| firstname | lastname !
-----------+----------+--------------------------+-----------+----------!
False | pmcfadin | 2011-06-20 13:50:00-0700 |
Patrick | McFadin
•applied = false: Rejected
•No record stomping!](https://image.slidesharecdn.com/cassandracommunitywebinar-datamodelonfire-131217195038-phpapp01/85/Cassandra-Community-Webinar-Data-Model-on-Fire-6-320.jpg)
![Form Versioning Pt 2
1. Insert first version
INSERT INTO working_version !
(username, form_id, version_number, locked_by, form_attributes)!
VALUES ('pmcfadin',1138,1,'pmcfadin',!
{'FirstName<text>':'First Name: ',!
'LastName<text>':'Last Name: ',!
'EmailAddress<text>':'Email Address: ',!
'Newsletter<radio>':'Y,N'})!
IF NOT EXISTS;
Exclusive lock
UPDATE working_version !
SET form_attributes['EmailAddress<text>'] = 'Primary Email Address: '!
WHERE username = 'pmcfadin'!
AND form_id = 1138!
AND version_number = 1!
IF locked_by = 'pmcfadin';
Accepted
UPDATE working_version !
SET form_attributes['EmailAddress<text>'] = 'Email Adx: '!
WHERE username = 'pmcfadin'!
AND form_id = 1138!
AND version_number = 1!
IF locked_by = 'dude';
Rejected
(sorry dude)](https://image.slidesharecdn.com/cassandracommunitywebinar-datamodelonfire-131217195038-phpapp01/85/Cassandra-Community-Webinar-Data-Model-on-Fire-11-320.jpg)
Uploaded byDataStax
Cassandra Community Webinar | Data Model on Fire
The document discusses the enhancements in data modeling and performance optimization in Cassandra 2.0, emphasizing the importance of a well-structured data model for achieving better read latencies. It details the use of light-weight transactions (LWT) to handle edge cases during write operations and presents examples of form versioning strategies. The document also highlights the significance of measuring and testing data models under real-world conditions for improved performance outcomes.
More Related Content
Similar to Cassandra Community Webinar | Data Model on Fire
Cassandra Community Webinar | Data Model on Fire
- 1. Data Model onFire Data Model On Fire Patrick McFadin Chief Evangelist/Solution Architect - DataStax @PatrickMcFadin | Chief Evangelist DataStax Patrick McFadin @PatrickMcFadin ©2013 DataStax Confidential. Do not distribute without consent.

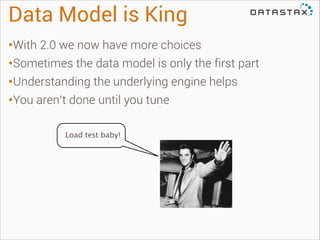

- 2. Data Model isKing •With 2.0 we now have more choices •Sometimes the data model is only the first part •Understanding the underlying engine helps •You aren’t done until you tune Load test baby!
- 3.

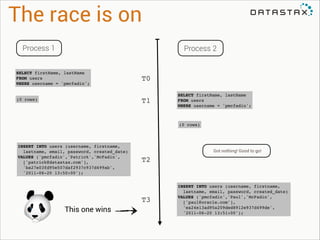

- 4. The race ison Process 1 Process 2 SELECT firstName, lastName! FROM users! WHERE username = 'pmcfadin'; T0 T1 (0 rows) SELECT firstName, lastName! FROM users! WHERE username = 'pmcfadin'; (0 rows) INSERT INTO users (username, firstname, ! lastname, email, password, created_date)! VALUES ('pmcfadin','Patrick','McFadin',! ['patrick@datastax.com'],! 'ba27e03fd95e507daf2937c937d499ab',! '2011-06-20 13:50:00'); Got nothing! Good to go! T2 T3 This one wins INSERT INTO users (username, firstname, ! lastname, email, password, created_date)! VALUES ('pmcfadin','Paul','McFadin',! ['paul@oracle.com'],! 'ea24e13ad95a209ded8912e937d499de',! '2011-06-20 13:51:00');
- 5. Solution LWT Process 1 INSERTINTO users (username, firstname, ! lastname, email, password, created_date)! VALUES ('pmcfadin','Patrick','McFadin',! ['patrick@datastax.com'],! 'ba27e03fd95e507daf2937c937d499ab',! '2011-06-20 13:50:00')! IF NOT EXISTS; [applied]! -----------! True T0 T1 •Check performed for record •Paxos ensures exclusive access •applied = true: Success
- 6. Solution LWT Process 2 T2 T3 INSERTINTO users (username, firstname, ! lastname, email, password, created_date)! VALUES ('pmcfadin','Paul','McFadin',! ['paul@oracle.com'],! 'ea24e13ad95a209ded8912e937d499de',! '2011-06-20 13:51:00')! IF NOT EXISTS; [applied] | username | created_date | firstname | lastname ! -----------+----------+--------------------------+-----------+----------! False | pmcfadin | 2011-06-20 13:50:00-0700 | Patrick | McFadin •applied = false: Rejected •No record stomping!

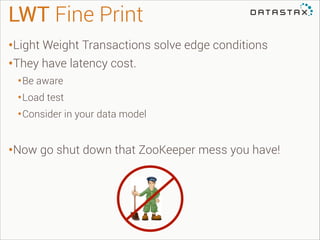

- 7. LWT Fine Print •LightWeight Transactions solve edge conditions •They have latency cost. • Be aware • Load test • Consider in your data model ! •Now go shut down that ZooKeeper mess you have!
- 8.

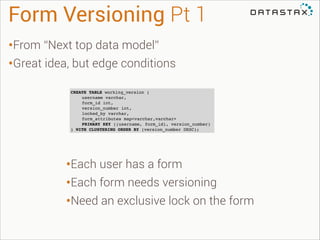

- 9. Form Versioning Pt1 •From “Next top data model” •Great idea, but edge conditions CREATE TABLE working_version (! ! username varchar,! ! form_id int,! ! version_number int,! ! locked_by varchar,! ! form_attributes map<varchar,varchar> ! ! PRIMARY KEY ((username, form_id), version_number)! ) WITH CLUSTERING ORDER BY (version_number DESC); •Each user has a form •Each form needs versioning •Need an exclusive lock on the form
- 10. Form Versioning Pt1 1. Insert first version INSERT INTO working_version ! (username, form_id, version_number, locked_by, form_attributes)! VALUES ('pmcfadin',1138,1,'',! {'FirstName<text>':'First Name: ',! 'LastName<text>':'Last Name: ',! 'EmailAddress<text>':'Email Address: ',! 'Newsletter<radio>':'Y,N'}); 2. Lock for one user Danger Zone UPDATE working_version ! SET locked_by = 'pmcfadin'! WHERE username = 'pmcfadin'! AND form_id = 1138! AND version_number = 1; 3. Insert new version. Release lock INSERT INTO working_version ! (username, form_id, version_number, locked_by, form_attributes)! VALUES ('pmcfadin',1138,2,null,! {'FirstName<text>':'First Name: ',! 'LastName<text>':'Last Name: ',! 'EmailAddress<text>':'Email Address: ',! 'Newsletter<checkbox>':'Y'});

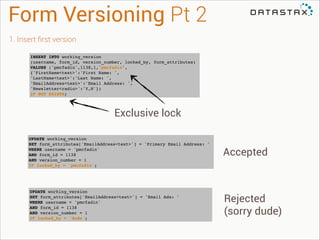

- 11. Form Versioning Pt2 1. Insert first version INSERT INTO working_version ! (username, form_id, version_number, locked_by, form_attributes)! VALUES ('pmcfadin',1138,1,'pmcfadin',! {'FirstName<text>':'First Name: ',! 'LastName<text>':'Last Name: ',! 'EmailAddress<text>':'Email Address: ',! 'Newsletter<radio>':'Y,N'})! IF NOT EXISTS; Exclusive lock UPDATE working_version ! SET form_attributes['EmailAddress<text>'] = 'Primary Email Address: '! WHERE username = 'pmcfadin'! AND form_id = 1138! AND version_number = 1! IF locked_by = 'pmcfadin'; Accepted UPDATE working_version ! SET form_attributes['EmailAddress<text>'] = 'Email Adx: '! WHERE username = 'pmcfadin'! AND form_id = 1138! AND version_number = 1! IF locked_by = 'dude'; Rejected (sorry dude)

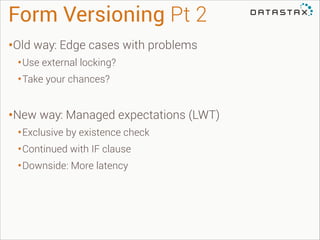

- 12. Form Versioning Pt2 •Old way: Edge cases with problems • Use external locking? • Take your chances? ! •New way: Managed expectations (LWT) • Exclusive by existence check • Continued with IF clause • Downside: More latency
- 13.

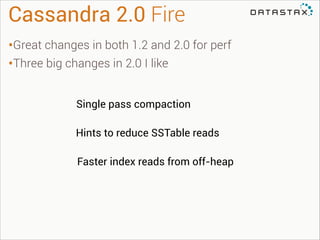

- 14. Cassandra 2.0 Fire •Greatchanges in both 1.2 and 2.0 for perf •Three big changes in 2.0 I like Single pass compaction Hints to reduce SSTable reads Faster index reads from off-heap
- 15. Why is thisimportant? •Reducing SStable reads mean less seeks •Disk seeks can add up fast •5 seeks on SATA = 60ms of just disk! Avg Access Time* Rotation Speed 12ms 7200 RPM 7ms 10k RPM 5ms 15k RPM .04ms SSD Shared storage == Great sadness * Source: www.tomshardware.com
- 16. Quick Diversion •cfhistograms isyour friend •Histograms of statistics per table •Collected... • per read • per write • SSTable flush • Compaction nodetool cfhistograms <keyspace> <table>
- 17. How do Ieven read this thing!
- 18. Histograms How to nodetoolcfhistograms videodb users! ! videodb/users histograms! Offset SSTables Write Latency (micros) 1 107 0 2 0 0 10 0 0 250 0 5 800 0 10 1250 0 0 Read Latency (micros) 0 0 0 0 50 300 Partition Size (bytes)! 0 0 0 0 0 5 Cell Count! •Unit-less column •Units are assigned by each column •Numerical buckets 0! 0! 5! 0! 0! 0

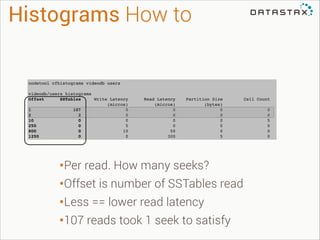

- 19. Histograms How to nodetoolcfhistograms videodb users! ! videodb/users histograms! Offset SSTables Write Latency (micros) 1 107 0 2 2 0 10 0 0 250 0 5 800 0 10 1250 0 0 Read Latency (micros) 0 0 0 0 50 300 Partition Size (bytes)! 0 0 0 0 0 5 •Per read. How many seeks? •Offset is number of SSTables read •Less == lower read latency •107 reads took 1 seek to satisfy Cell Count! 0! 0! 5! 0! 0! 0
- 20. Histograms How to nodetoolcfhistograms videodb users! ! videodb/users histograms! Offset SSTables Write Latency (micros) 1 107 0 2 2 0 10 0 0 250 0 5 800 0 10 1250 0 0 Read Latency (micros) 0 0 0 0 50 300 •Per write. How fast? •Offset is microseconds Partition Size (bytes)! 0 0 0 0 0 5 Cell Count! 0! 0! 5! 0! 0! 0

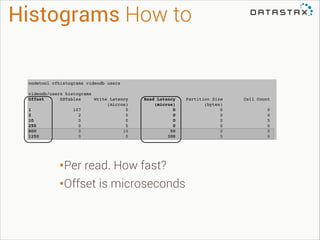

- 21. Histograms How to nodetoolcfhistograms videodb users! ! videodb/users histograms! Offset SSTables Write Latency (micros) 1 107 0 2 2 0 10 0 0 250 0 5 800 0 10 1250 0 0 Read Latency (micros) 0 0 0 0 50 300 •Per read. How fast? •Offset is microseconds Partition Size (bytes)! 0 0 0 0 0 5 Cell Count! 0! 0! 5! 0! 0! 0
- 22. Histograms How to nodetoolcfhistograms videodb users! ! videodb/users histograms! Offset SSTables Write Latency (micros) 1 107 0 2 2 0 10 0 0 250 0 5 800 0 10 1250 0 0 Read Latency (micros) 0 0 0 0 50 300 Partition Size (bytes)! 0 0 0 0 0 5 •Per partition (storage row) •Offset is size in bytes •5 partitions are 1250 bytes Cell Count! 0! 0! 5! 0! 0! 0
- 23. Histograms How to nodetoolcfhistograms videodb users! ! videodb/users histograms! Offset SSTables Write Latency (micros) 1 107 0 2 2 0 10 0 0 250 0 5 800 0 10 1250 0 0 Read Latency (micros) 0 0 0 0 50 300 Partition Size (bytes)! 0 0 0 0 0 5 •Per partition (storage row) •Offset is count of cells in partition •5 partitions have 10 cells Cell Count! 0! 0! 5! 0! 0! 0

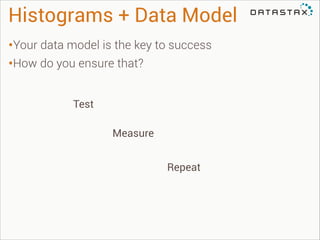

- 24. Histograms + DataModel •Your data model is the key to success •How do you ensure that? Test Measure Repeat
- 25. Real World Example •RealCustomer •Needed very tight SLA on reads Problem •Read response highly variable •Loading data increases latency

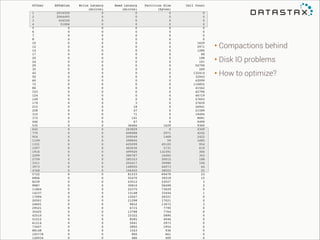

- 26. Offset SSTables 1 2 3 4 5 6 7 8 10 12 14 17 20 24 29 35 42 50 60 72 86 103 124 149 179 215 258 310 372 446 535 642 770 924 1109 1331 1597 1916 2299 2759 3311 3973 4768 5722 6866 8239 9887 11864 14237 17084 20501 24601 29521 35425 42510 51012 61214 73457 88148 105778 126934 2016550 2064495 434526 51084 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Write Latency (micros) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Read Latency (micros) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 18 47 71 141 67 36466 263829 608488 209549 398845 625099 462636 499920 380787 285323 202417 148920 106452 81533 55470 43512 30810 22375 15148 12047 11298 9652 6715 13788 15322 8585 5041 2892 1543 900 486 PartitionSize (bytes)! 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1629 0 2971 1468 59 45105 5731 132391 16265 20015 30980 44973 38502 69479 39218 23027 58498 73629 33444 28321 17021 13072 7790 7764 5890 4046 2973 1954 936 661 409 Cell Count! 0! 0! 0! 0! 0! 0! 0! 0! 1629! 2971! 1286! 68! 188! 101! 50799! 269! 132414! 32943! 62099! 116855! 41562! 42796! 46719! 57693! 27659! 26941! 21589! 19494! 8681! 9499! 9360! 4349! 4242! 2422! 1685! 954! 610! 366! 303! 188! 106! 64! 55! 23! 15! 3! 2! 0! 1! 0! 0! 3! 0! 0! 0! 0! 0! 0! 0! 0! 0! • Compactions behind • Disk IO problems • How to optimize?

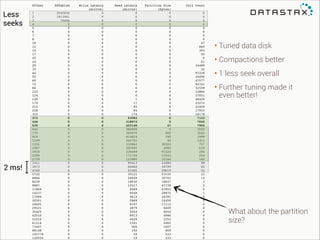

- 27. Offset Less seeks 2 ms! SSTables 1 2 3 4 5 6 7 8 10 12 14 17 20 24 29 35 42 50 60 72 86 103 124 149 179 215 258 310 372 446 535 642 770 924 1109 1331 1597 1916 2299 2759 3311 3973 4768 5722 6866 8239 9887 11864 14237 17084 20501 24601 29521 35425 42510 51012 61214 73457 88148 105778 126934 2045656 1813961 70496 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Write Latency (micros) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ReadLatency (micros) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 17 95 84 174 53082 318074 423140 382926 365670 414824 442701 335862 302920 236448 171726 122880 90413 66682 53385 39121 26828 18930 12517 8269 6049 4614 5868 6167 2879 2054 8913 4429 1541 560 192 59 19 Partition Size (bytes)! 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 47 0 860 392 46 30325 4082 97224 11843 15160 23484 34799 29619 53155 30702 18627 47739 61853 28875 24391 14450 11112 6609 6654 4986 3352 2465 1607 809 523 333 Cell Count! 0! 0! 0! 0! 0! 0! 0! 0! 47! 860! 393! 50! 0! 21! 34489! 32! 97226! 24490! 47077! 94761! 32559! 33885! 37051! 48429! 23272! 22459! 17953! 16178! 7123! 7836! 7904! 3552! 3525! 1998! 1411! 757! 518! 294! 254! 162! 89! 62! 54! 23! 12! 3! 2! 0! 1! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! • Tuned data disk • Compactions better • 1 less seek overall • Further tuning made it even better! What about the partition size?

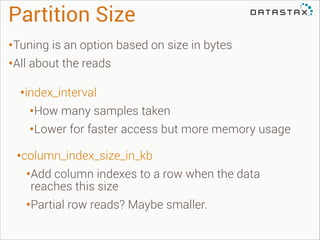

- 28. Partition Size •Tuning isan option based on size in bytes •All about the reads •index_interval •How many samples taken •Lower for faster access but more memory usage •column_index_size_in_kb •Add column indexes to a row when the data reaches this size •Partial row reads? Maybe smaller.

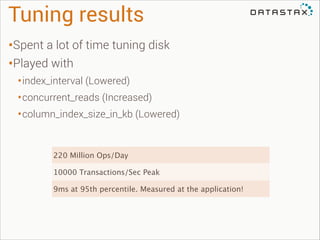

- 29. Tuning results •Spent alot of time tuning disk •Played with • index_interval (Lowered) • concurrent_reads (Increased) • column_index_size_in_kb (Lowered) 220 Million Ops/Day 10000 Transactions/Sec Peak 9ms at 95th percentile. Measured at the application!
- 30. Offset 1 2 3 4 5 6 7 8 10 12 14 17 20 24 29 35 42 50 60 72 86 103 124 149 179 215 258 310 372 446 535 642 770 924 1109 1331 1597 1916 2299 2759 3311 3973 4768 5722 6866 8239 9887 11864 14237 17084 20501 24601 29521 35425 42510 51012 SSTables 27425403 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Write Latency 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Read Latency 0 0 0 1 24 56 92 283 2834 11954 32621 135311 314195 610665 536736 162541 25277 7847 5864 9580 5517 3822 1850 394 253 305 4657297 12748409 7475534 263549 217171 41908 24876 13566 10875 9379 7111 5333 5072 3987 5290 5169 2867 2093 3177 2161 1552 1200 834 1380 6219 4977 2114 6479 18417 5532 RowSize 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1218345 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Column Count! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 1218345! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0! 0 • The two hump problem • Reads awesome until… • Reading from disk ! ! • Solution: • Throttle down compaction • Tune disk • Ignore it

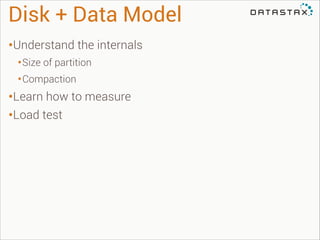

- 31. Disk + DataModel •Understand the internals • Size of partition • Compaction •Learn how to measure •Load test
- 32. Thank you! Timefor questions... *More? My data modeling talks: The Data Model is Dead, Long Live the Data Model Become a Super Modeler The World's Next Top Data Model !
