- The document discusses enhancements and new features in Cassandra 2.1 including user defined types, collection indexing, improved counters, data directory changes, bloom filter improvements, and more efficient repair. It also outlines the new query cache and row cache features in Cassandra.

1. ©2013 DataStax Confidential. Do not distribute without consent.
CTO, DataStax
Jonathan Ellis
Project Chair, Apache Cassandra
Cassandra 2.1 (mostly)
1

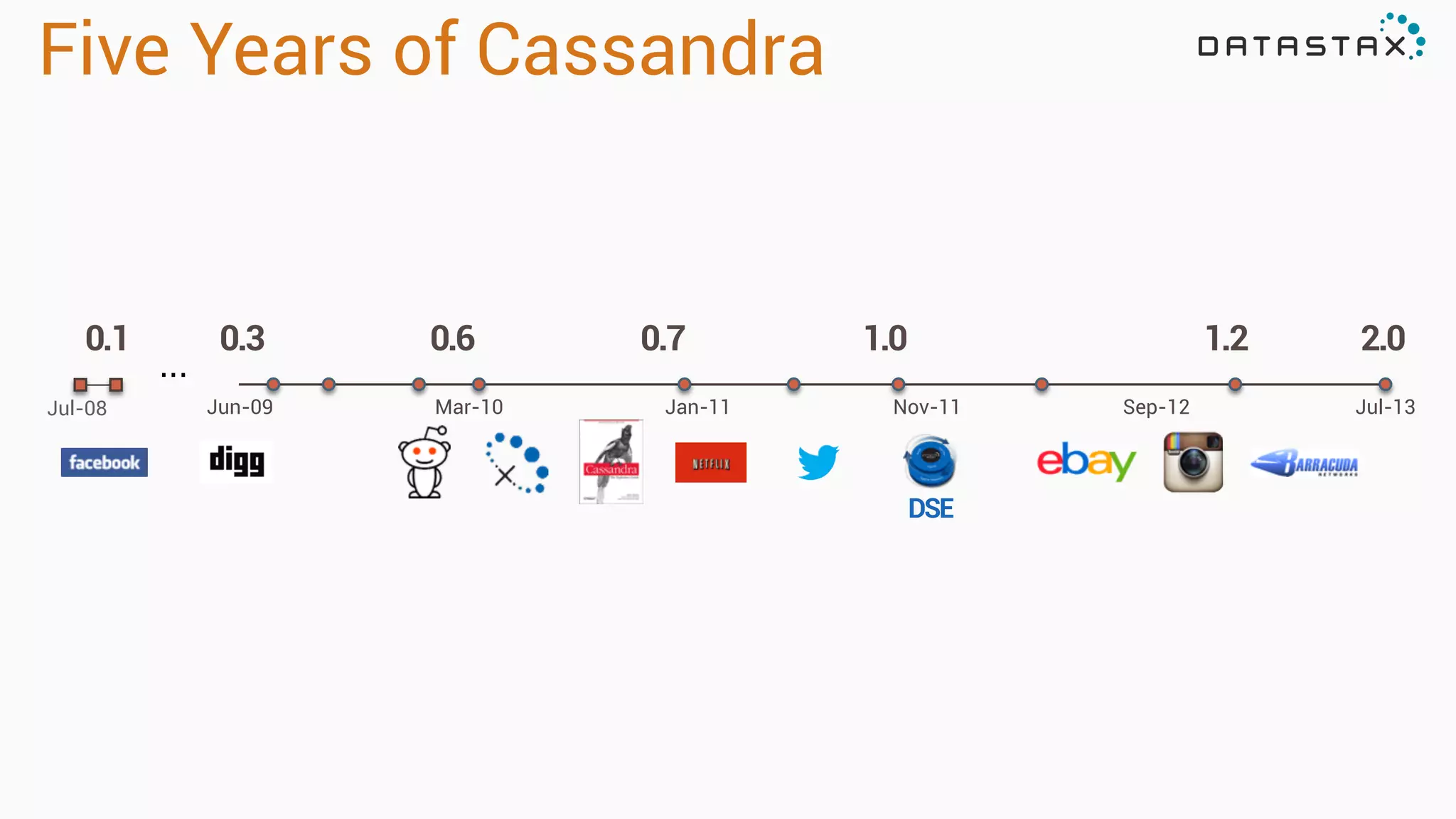

2. Five Years of Cassandra
Jun-09 Mar-10 Jan-11 Nov-11 Sep-12 Jul-13
0.1 0.3 0.6 0.7 1.0 1.2
...
2.0
DSE
Jul-08

3. •Massively scalable
•High performance
•Reliable/Available
Core values Cassandra HBase Redis MySQL

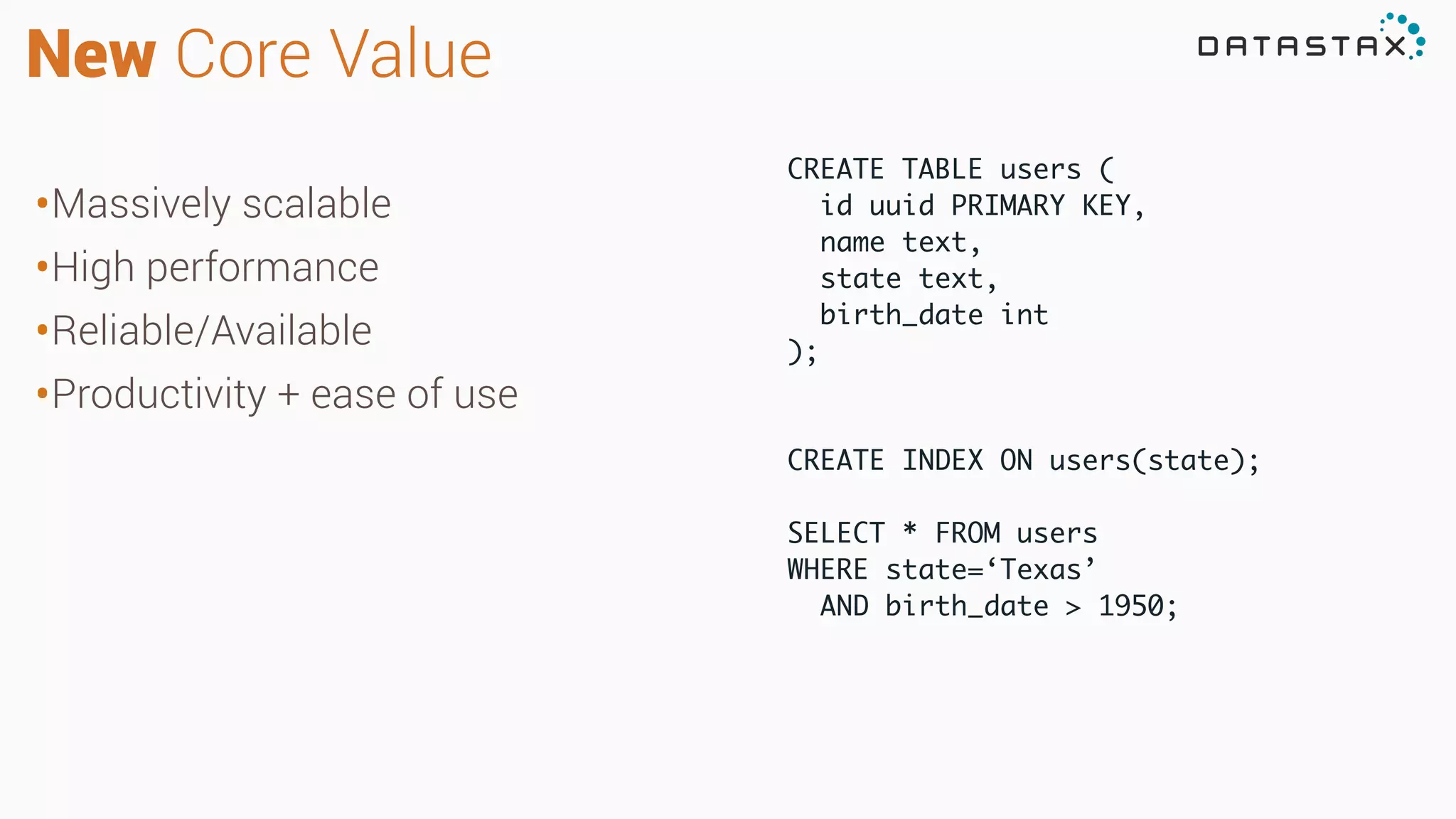

4. CREATE TABLE users (
id uuid PRIMARY KEY,
name text,
state text,
birth_date int
);
!
!
CREATE INDEX ON users(state);
!
SELECT * FROM users
WHERE state=‘Texas’
AND birth_date > 1950;
New Core Value
•Massively scalable
•High performance
•Reliable/Available
•Productivity + ease of use

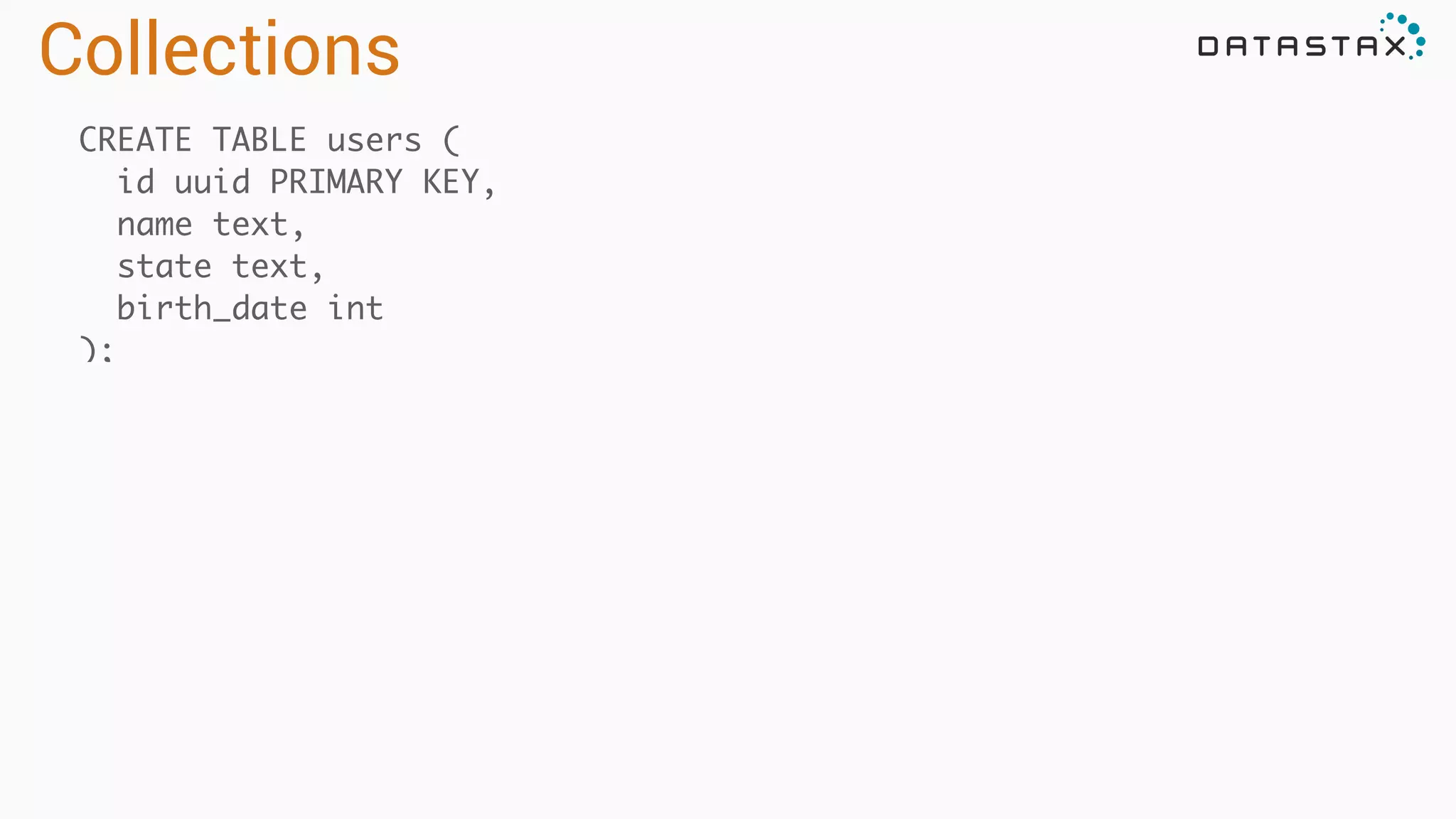

5. CREATE TABLE users (
id uuid PRIMARY KEY,
name text,
state text,
birth_date int
);
Collections

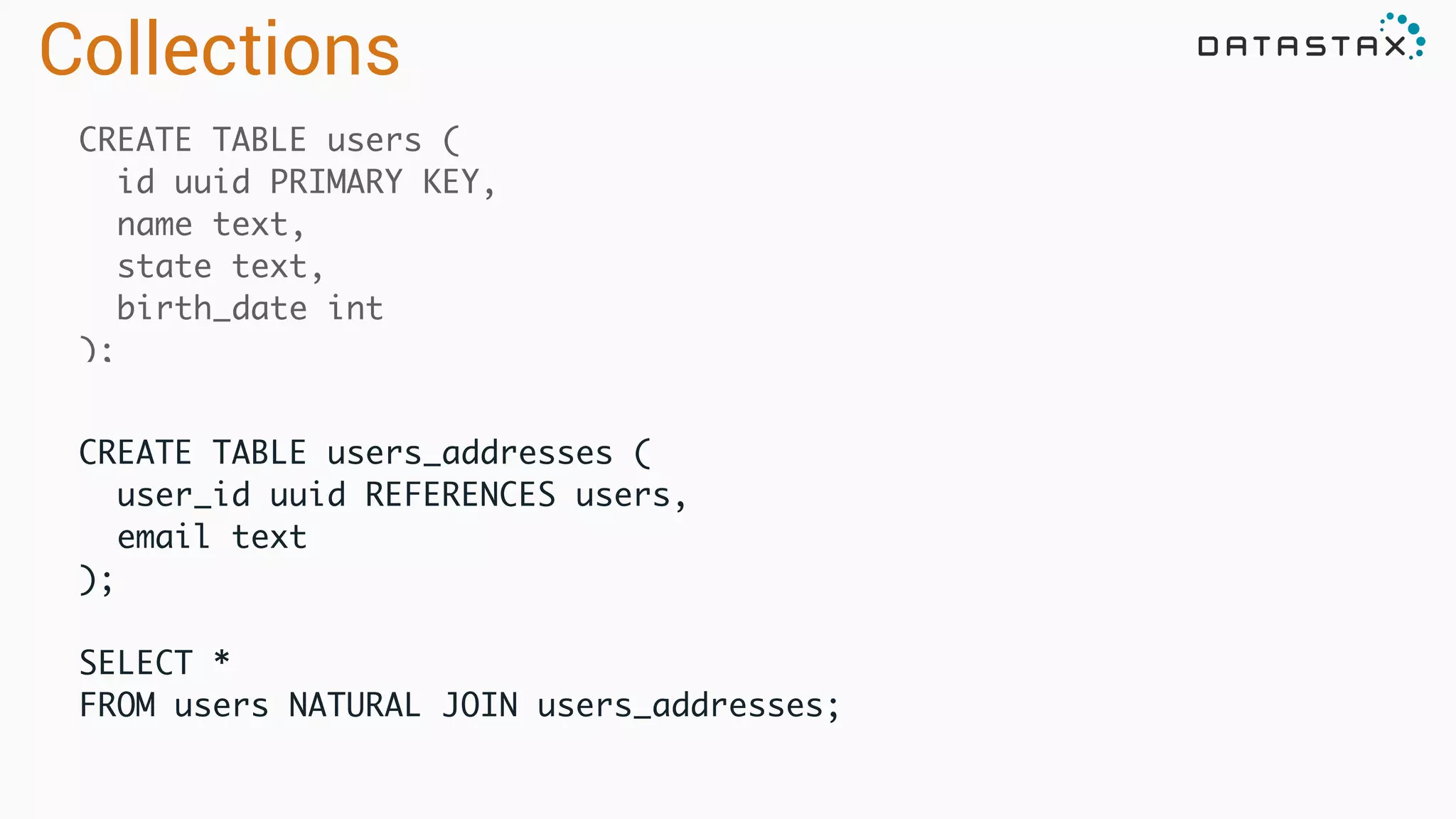

6. CREATE TABLE users (
id uuid PRIMARY KEY,
name text,
state text,
birth_date int
);
CREATE TABLE users_addresses (
user_id uuid REFERENCES users,
email text
);
!
SELECT *
FROM users NATURAL JOIN users_addresses;
Collections

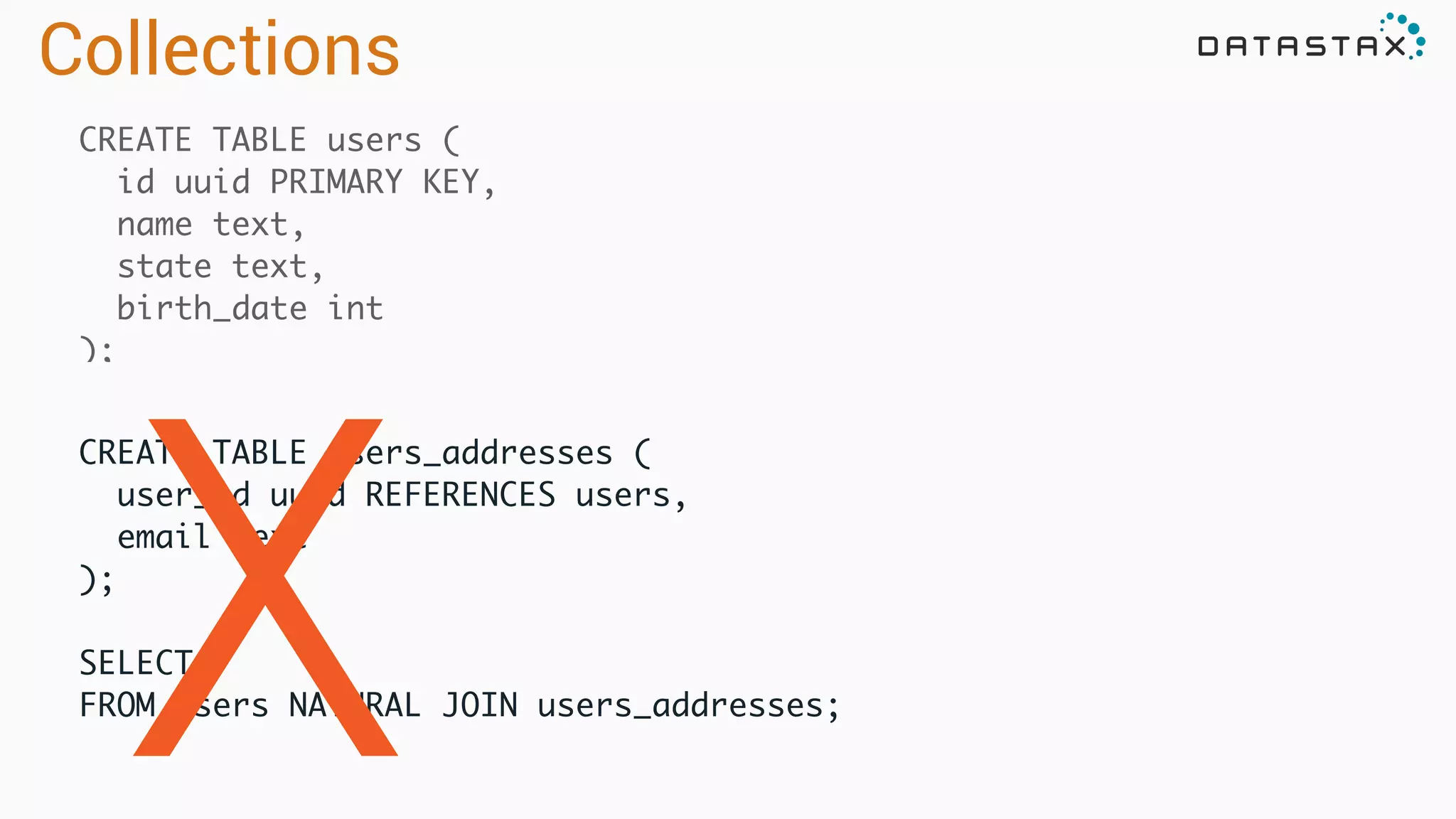

7. CREATE TABLE users (
id uuid PRIMARY KEY,
name text,
state text,
birth_date int
);
CREATE TABLE users_addresses (
user_id uuid REFERENCES users,
email text
);
!
SELECT *
FROM users NATURAL JOIN users_addresses;
X
Collections

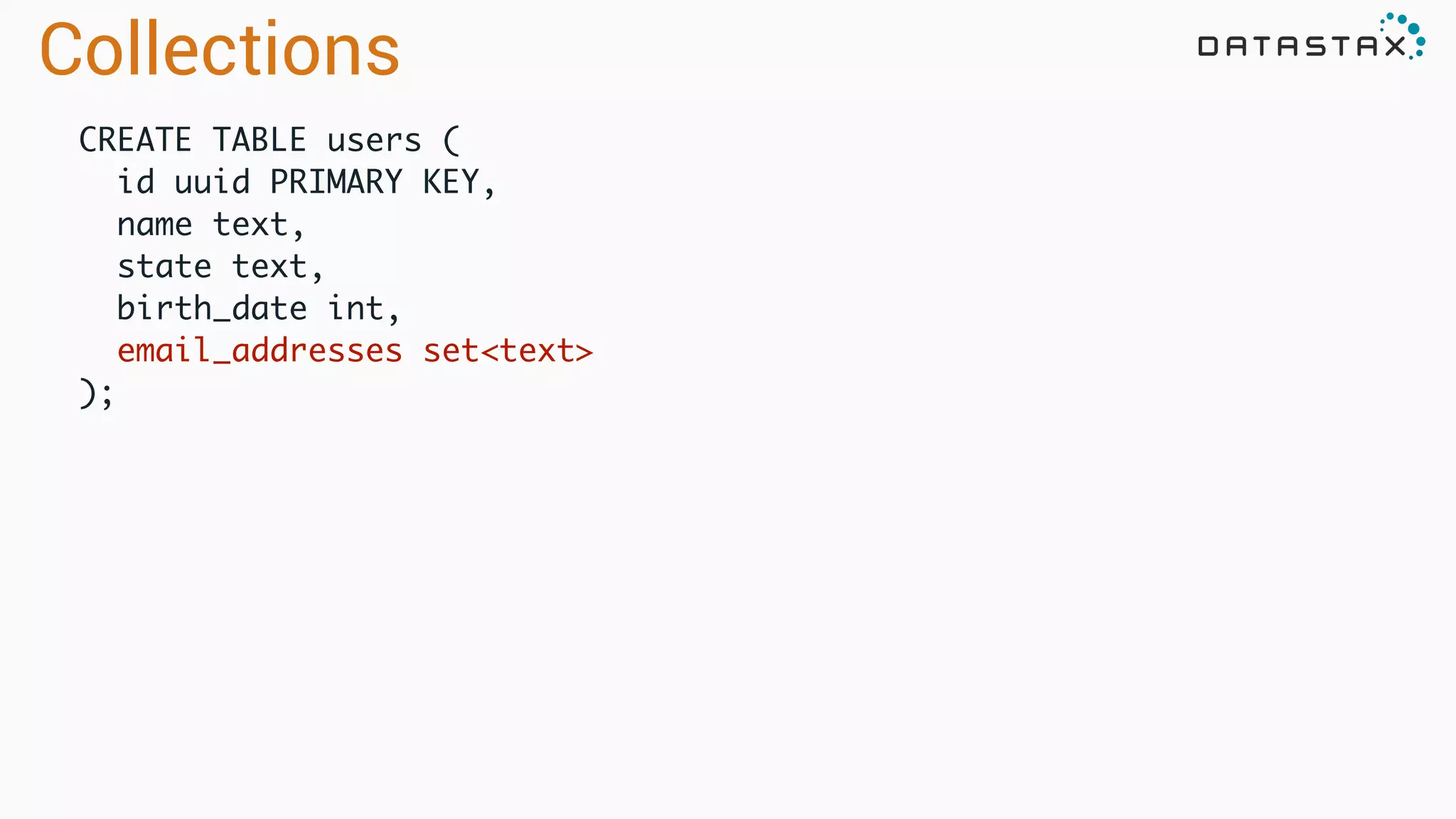

8. CREATE TABLE users (
id uuid PRIMARY KEY,
name text,
state text,
birth_date int,
email_addresses set<text>
);
Collections

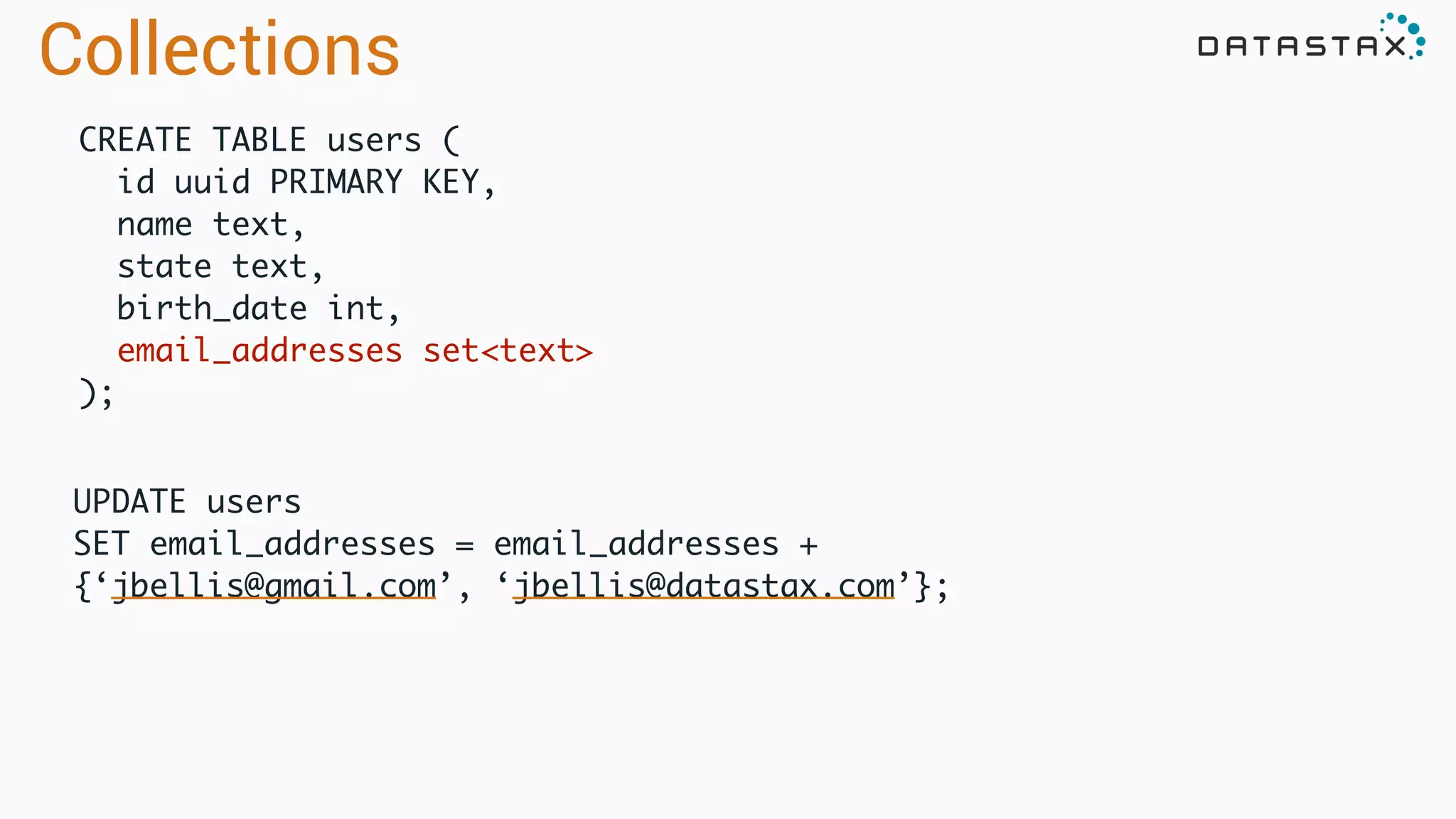

9. UPDATE users
SET email_addresses = email_addresses +
{‘jbellis@gmail.com’, ‘jbellis@datastax.com’};
CREATE TABLE users (
id uuid PRIMARY KEY,
name text,
state text,
birth_date int,
email_addresses set<text>
);
Collections

10. Cassandra 2.0

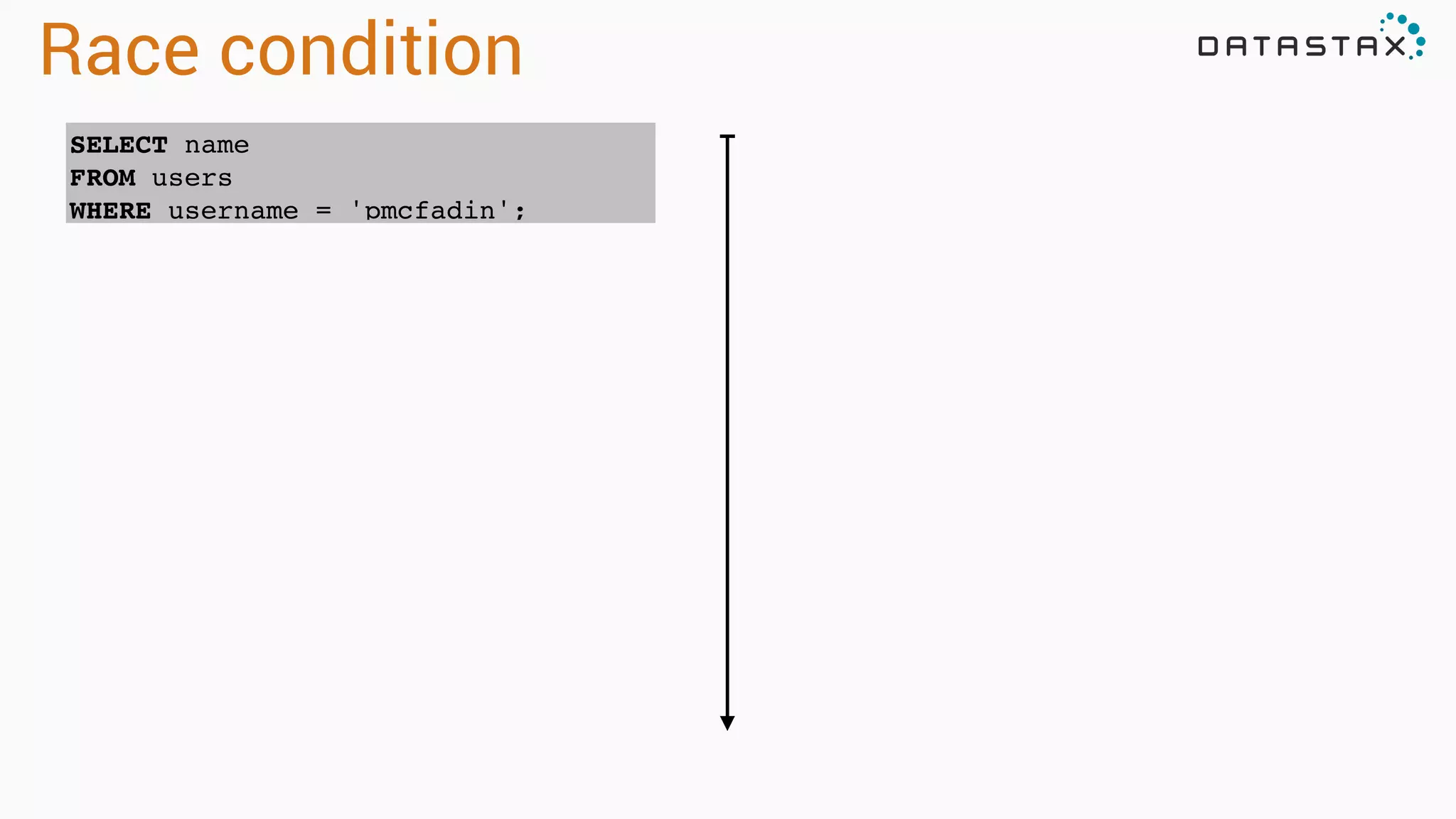

11. Race condition
SELECT name!
FROM users!
WHERE username = 'pmcfadin';

12. Race condition
SELECT name!
FROM users!
WHERE username = 'pmcfadin';
(0 rows) SELECT name!
FROM users!
WHERE username = 'pmcfadin';

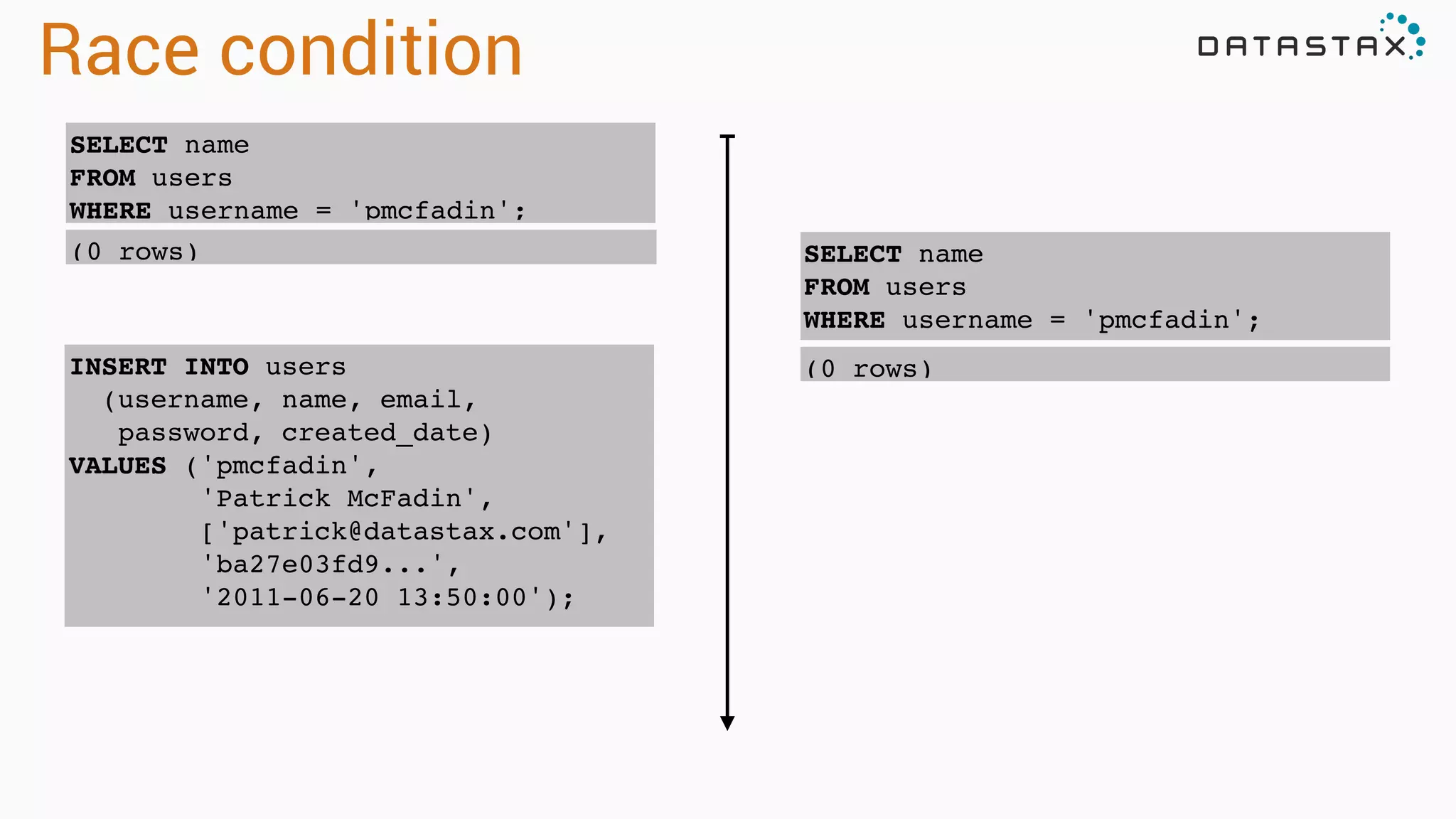

13. Race condition
SELECT name!
FROM users!
WHERE username = 'pmcfadin';
(0 rows) SELECT name!
FROM users!
WHERE username = 'pmcfadin';
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ba27e03fd9...',!
'2011-06-20 13:50:00');
(0 rows)

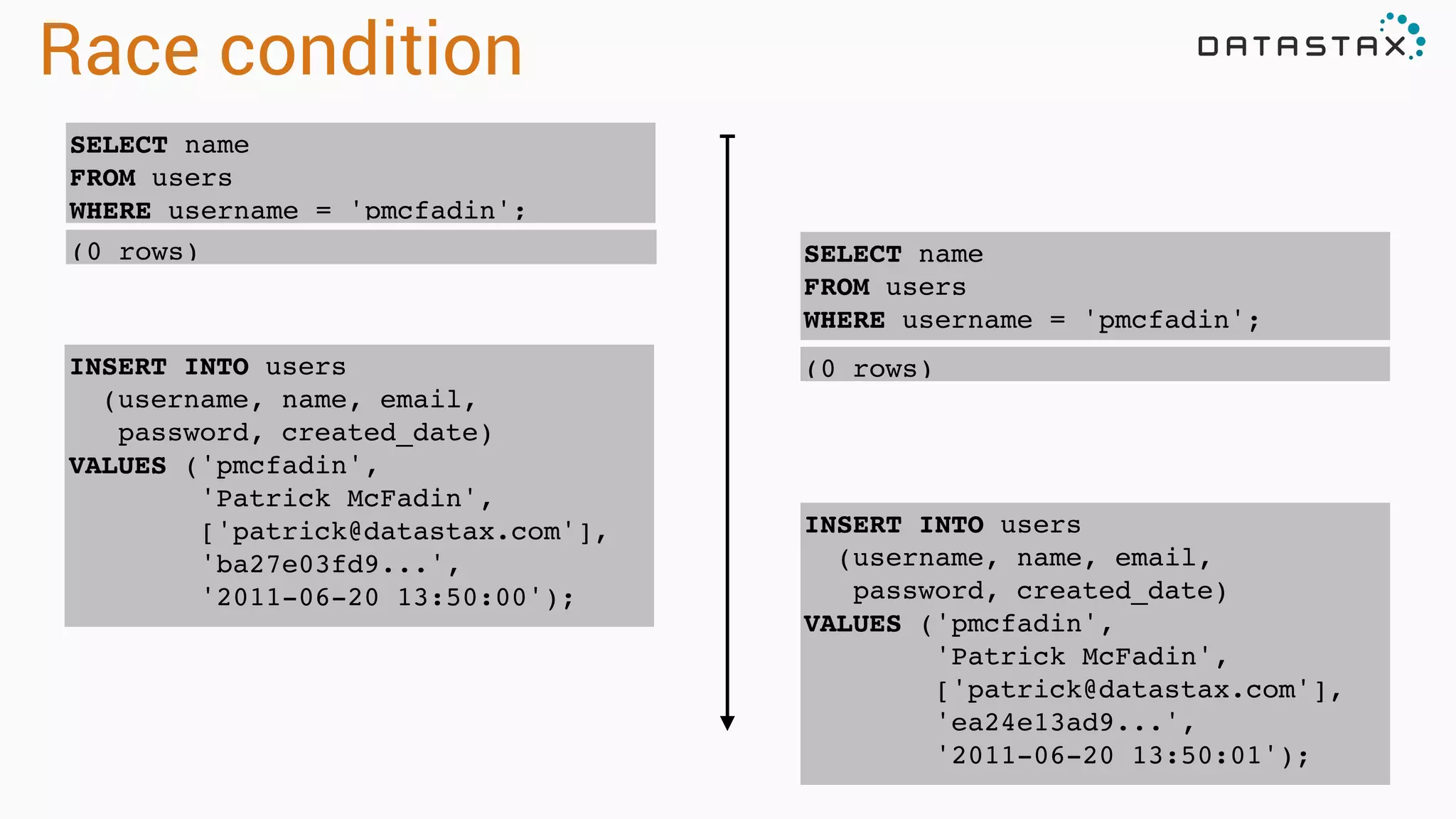

14. Race condition
SELECT name!
FROM users!
WHERE username = 'pmcfadin';
(0 rows) SELECT name!
FROM users!
WHERE username = 'pmcfadin';
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ba27e03fd9...',!
'2011-06-20 13:50:00');
(0 rows)
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ea24e13ad9...',!
'2011-06-20 13:50:01');

15. Race condition
This one wins
SELECT name!
FROM users!
WHERE username = 'pmcfadin';
(0 rows) SELECT name!
FROM users!
WHERE username = 'pmcfadin';
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ba27e03fd9...',!
'2011-06-20 13:50:00');
(0 rows)
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ea24e13ad9...',!
'2011-06-20 13:50:01');

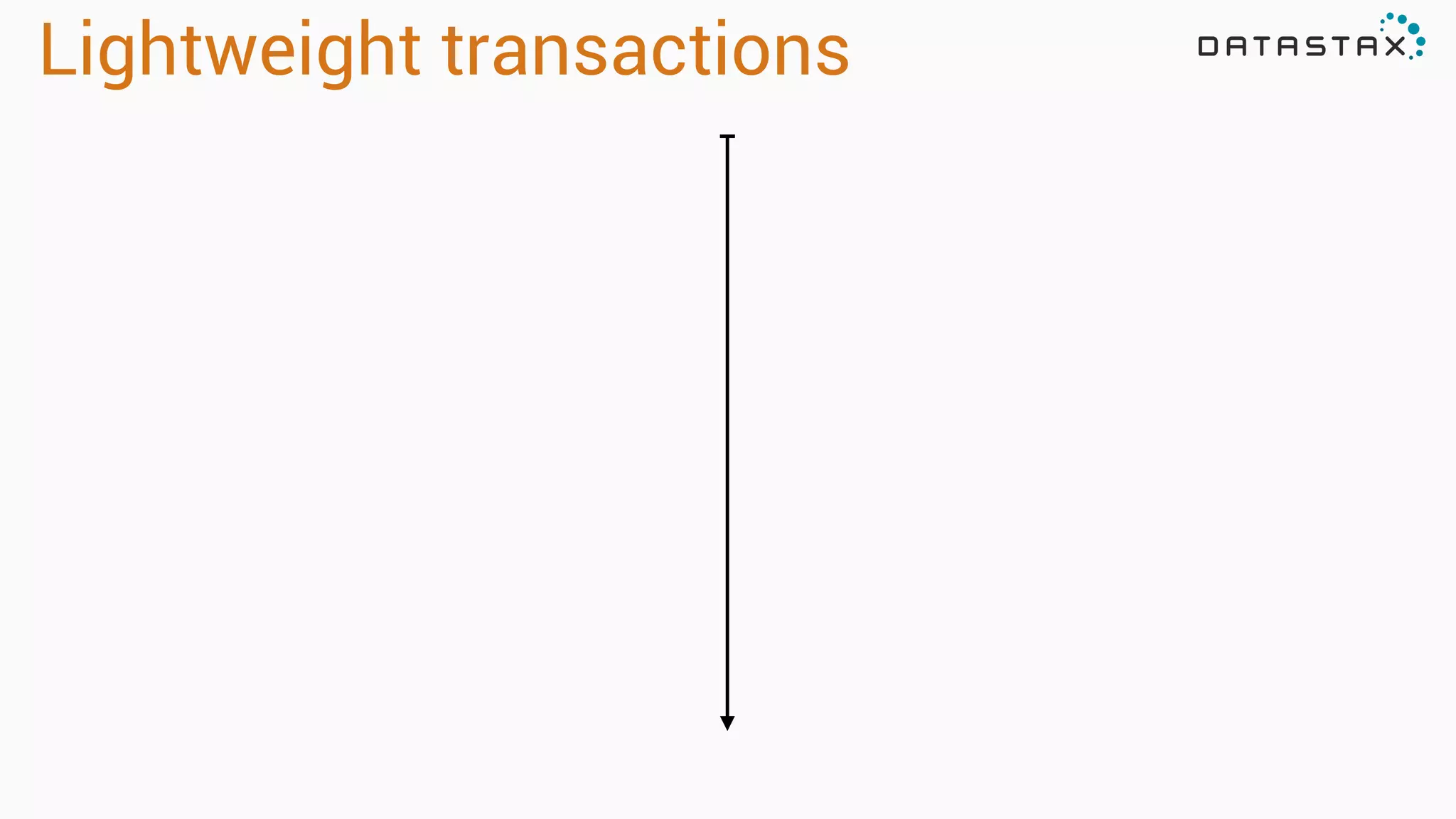

16. Lightweight transactions

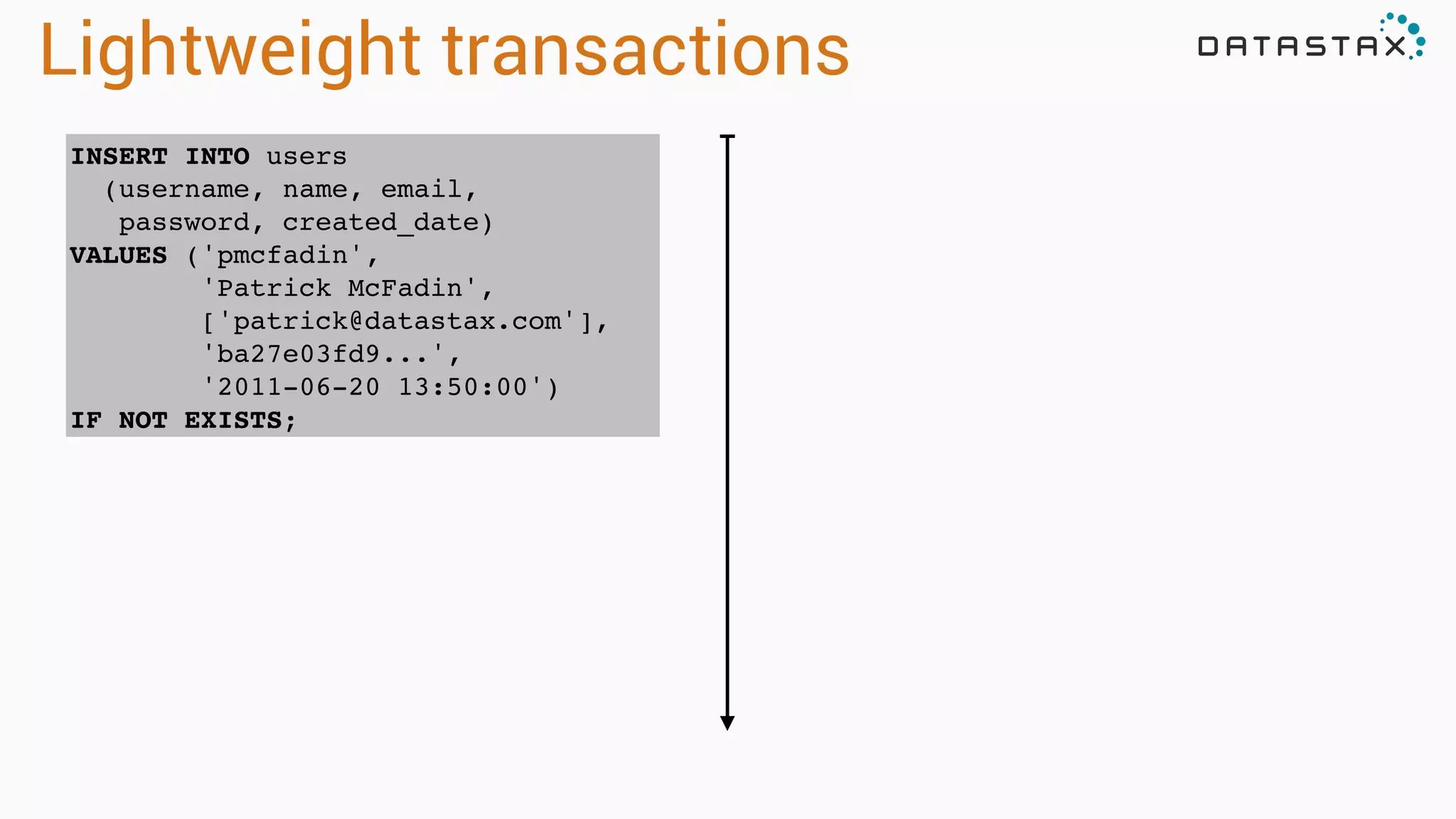

17. Lightweight transactions
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ba27e03fd9...',!
'2011-06-20 13:50:00')!
IF NOT EXISTS;

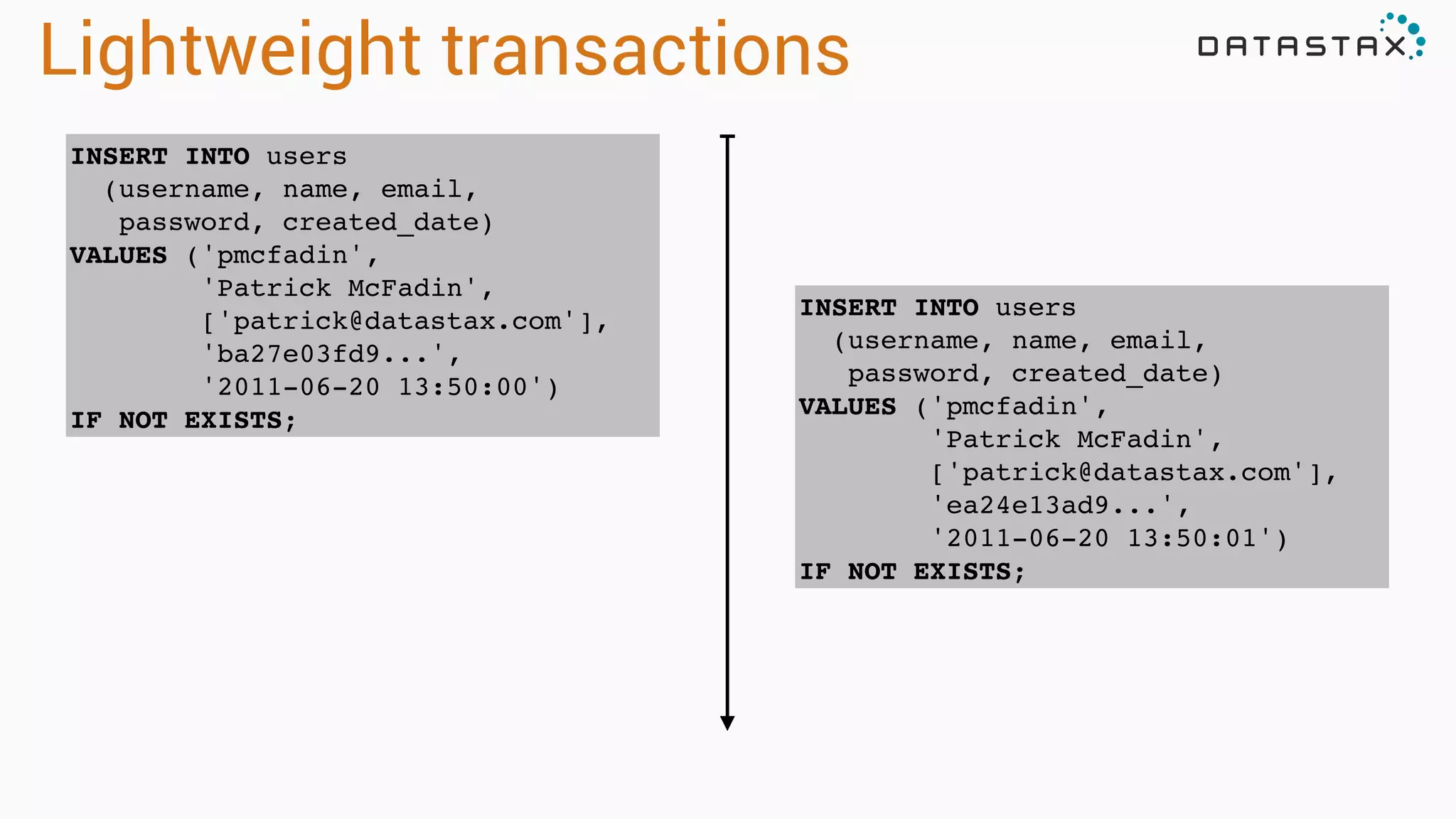

18. Lightweight transactions
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ba27e03fd9...',!
'2011-06-20 13:50:00')!
IF NOT EXISTS;
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ea24e13ad9...',!
'2011-06-20 13:50:01')!
IF NOT EXISTS;

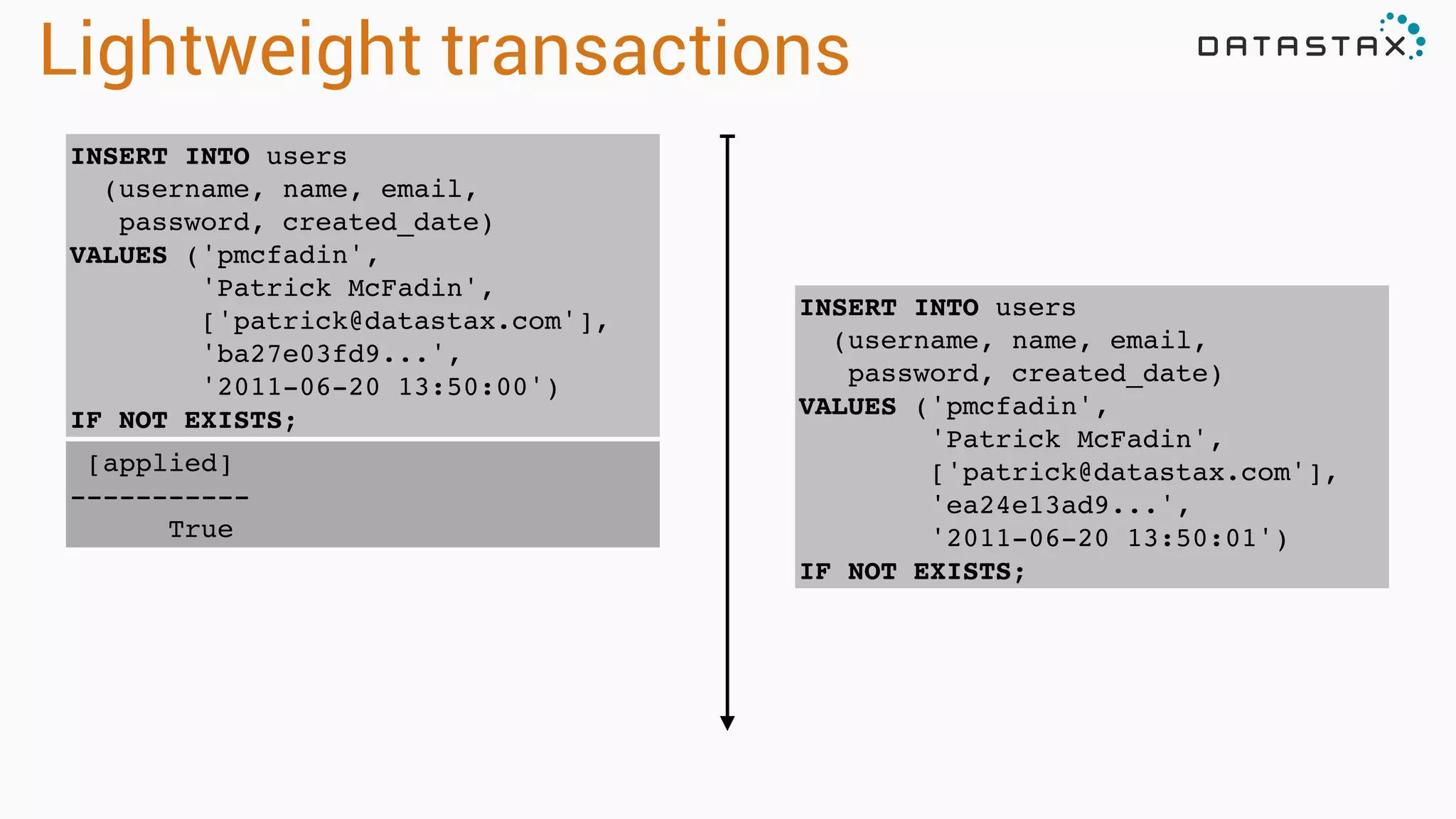

19. Lightweight transactions
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ba27e03fd9...',!
'2011-06-20 13:50:00')!
IF NOT EXISTS;
[applied]!
-----------!
True
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ea24e13ad9...',!
'2011-06-20 13:50:01')!
IF NOT EXISTS;

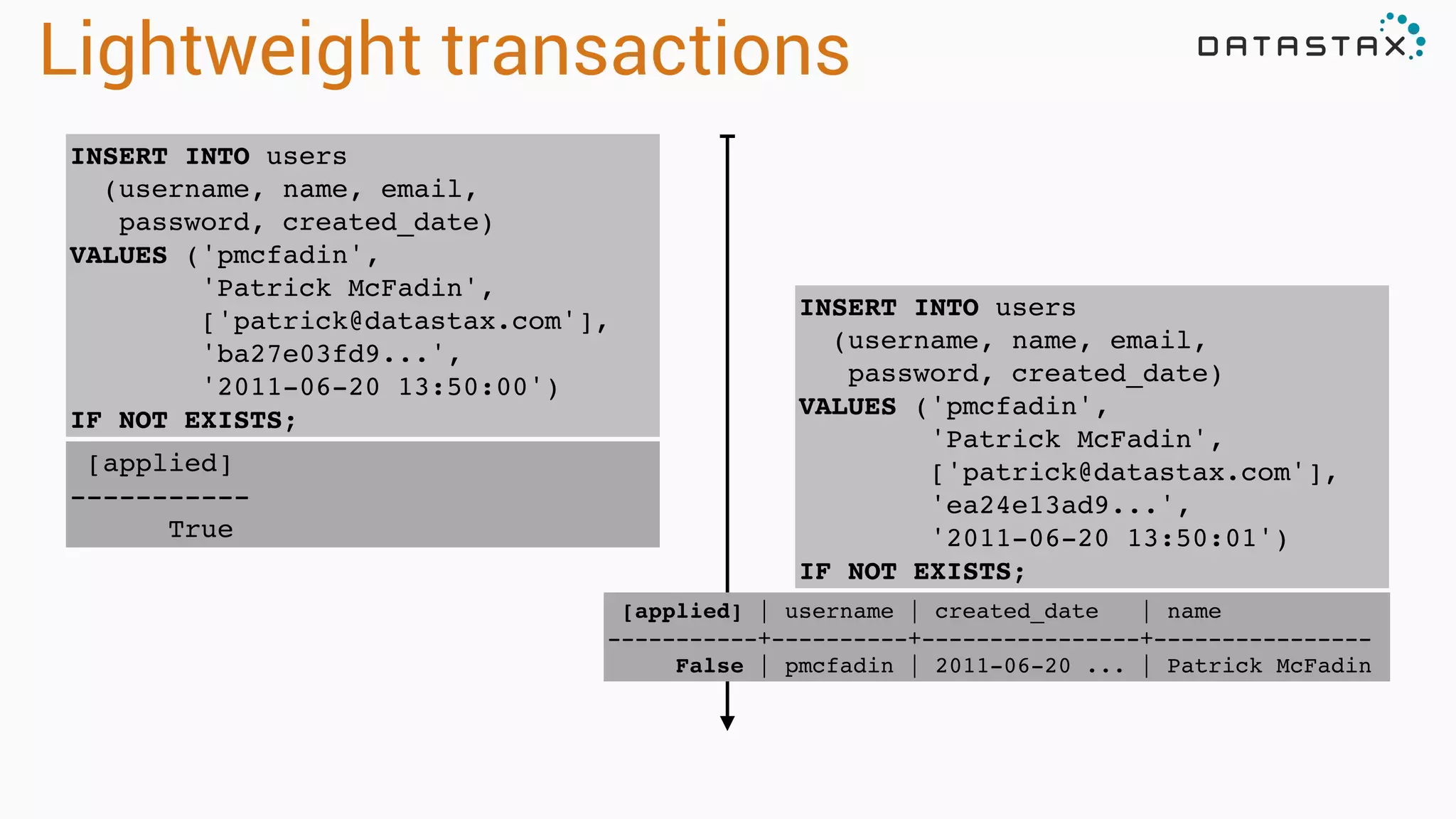

20. Lightweight transactions
[applied] | username | created_date | name !
-----------+----------+----------------+----------------!
False | pmcfadin | 2011-06-20 ... | Patrick McFadin
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ba27e03fd9...',!
'2011-06-20 13:50:00')!
IF NOT EXISTS;
[applied]!
-----------!
True
INSERT INTO users !
(username, name, email,!
password, created_date)!
VALUES ('pmcfadin',!
'Patrick McFadin',!
['patrick@datastax.com'],!
'ea24e13ad9...',!
'2011-06-20 13:50:01')!
IF NOT EXISTS;

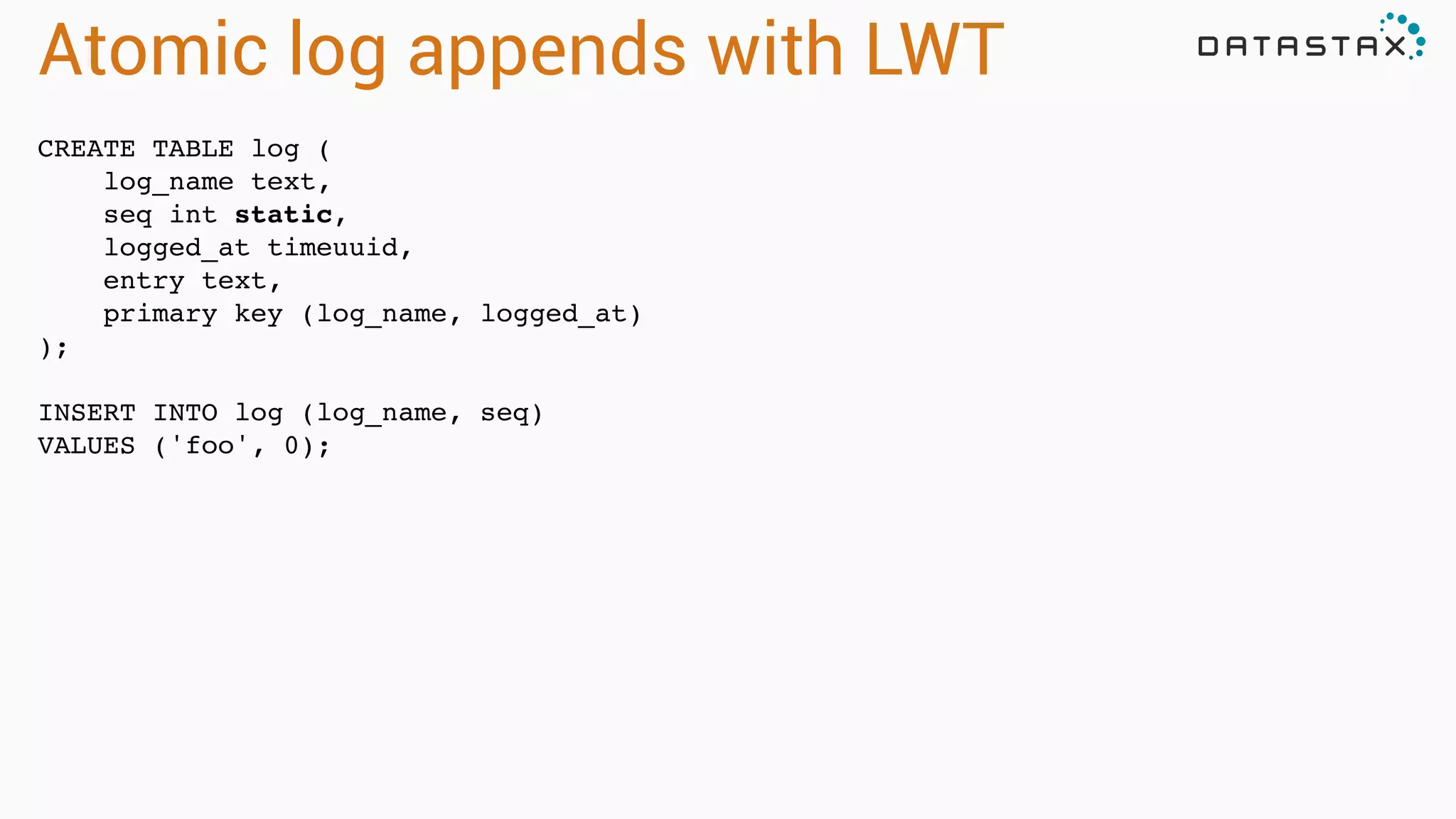

21. Atomic log appends with LWT
CREATE TABLE log (!
log_name text,!
seq int static,!
logged_at timeuuid,!
entry text,!
primary key (log_name, logged_at)!
);!
!
INSERT INTO log (log_name, seq) !
VALUES ('foo', 0);

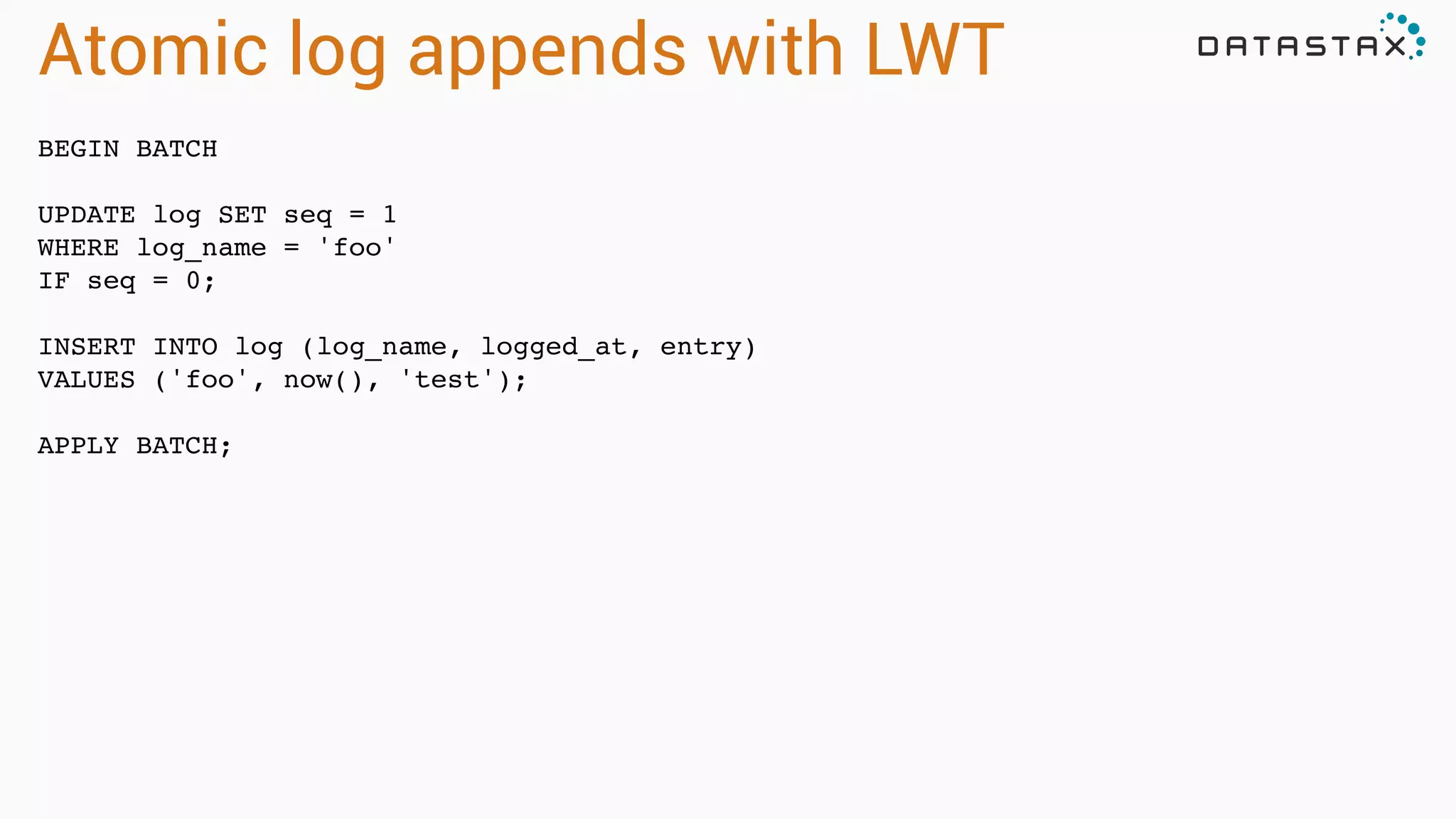

22. Atomic log appends with LWT
BEGIN BATCH!
!
UPDATE log SET seq = 1!
WHERE log_name = 'foo'!
IF seq = 0;!
!
INSERT INTO log (log_name, logged_at, entry)!
VALUES ('foo', now(), 'test');!
!
APPLY BATCH;!

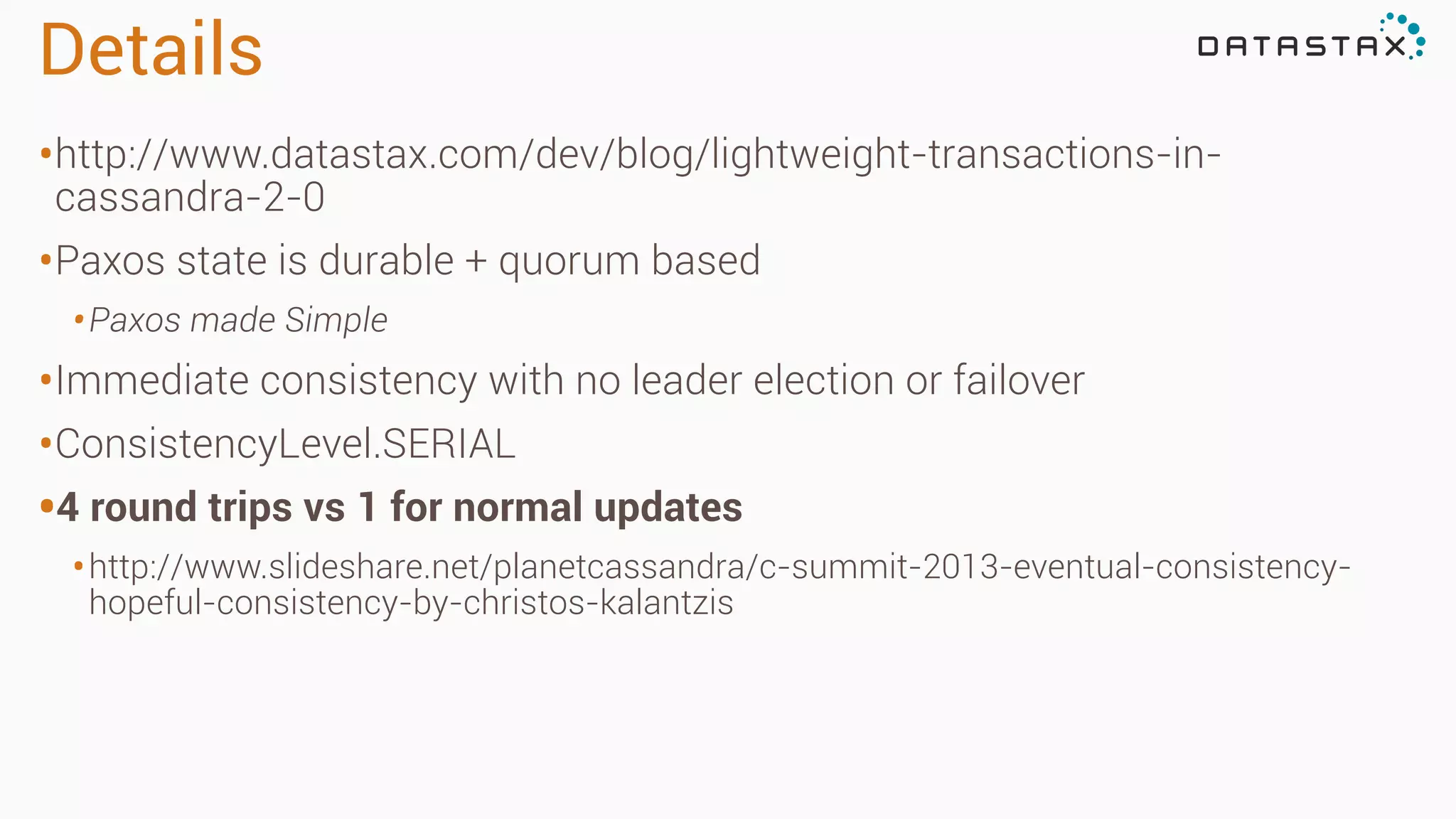

23. Details
•http://www.datastax.com/dev/blog/lightweight-transactions-in-
cassandra-2-0
•Paxos state is durable + quorum based
•Paxos made Simple
•Immediate consistency with no leader election or failover
•ConsistencyLevel.SERIAL
•4 round trips vs 1 for normal updates
•http://www.slideshare.net/planetcassandra/c-summit-2013-eventual-consistency-
hopeful-consistency-by-christos-kalantzis

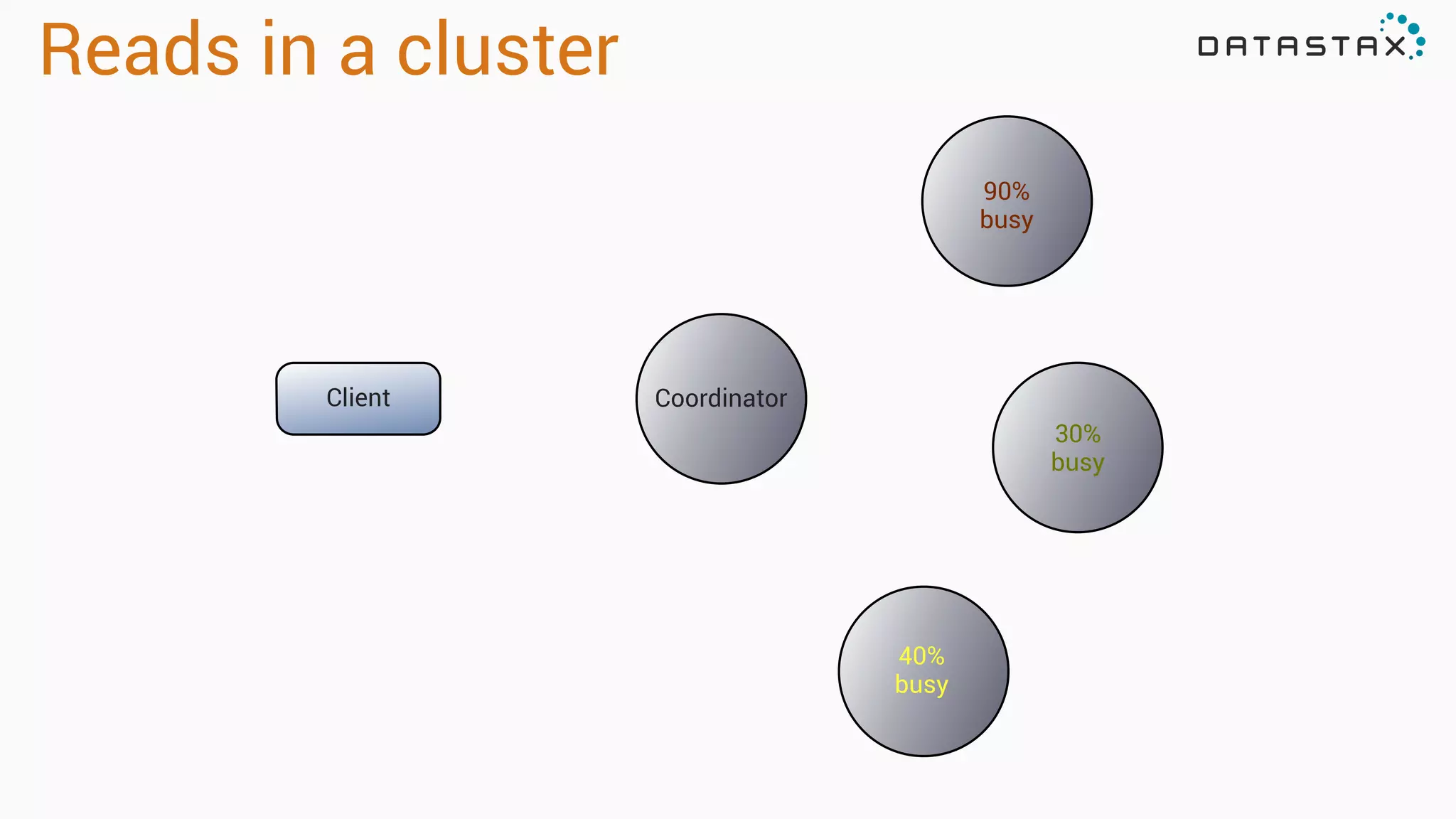

24. Reads in a cluster
Client Coordinator
40%
busy
90%
busy
30%
busy

25. Reads in a cluster
Client Coordinator
40%
busy
90%
busy
30%
busy

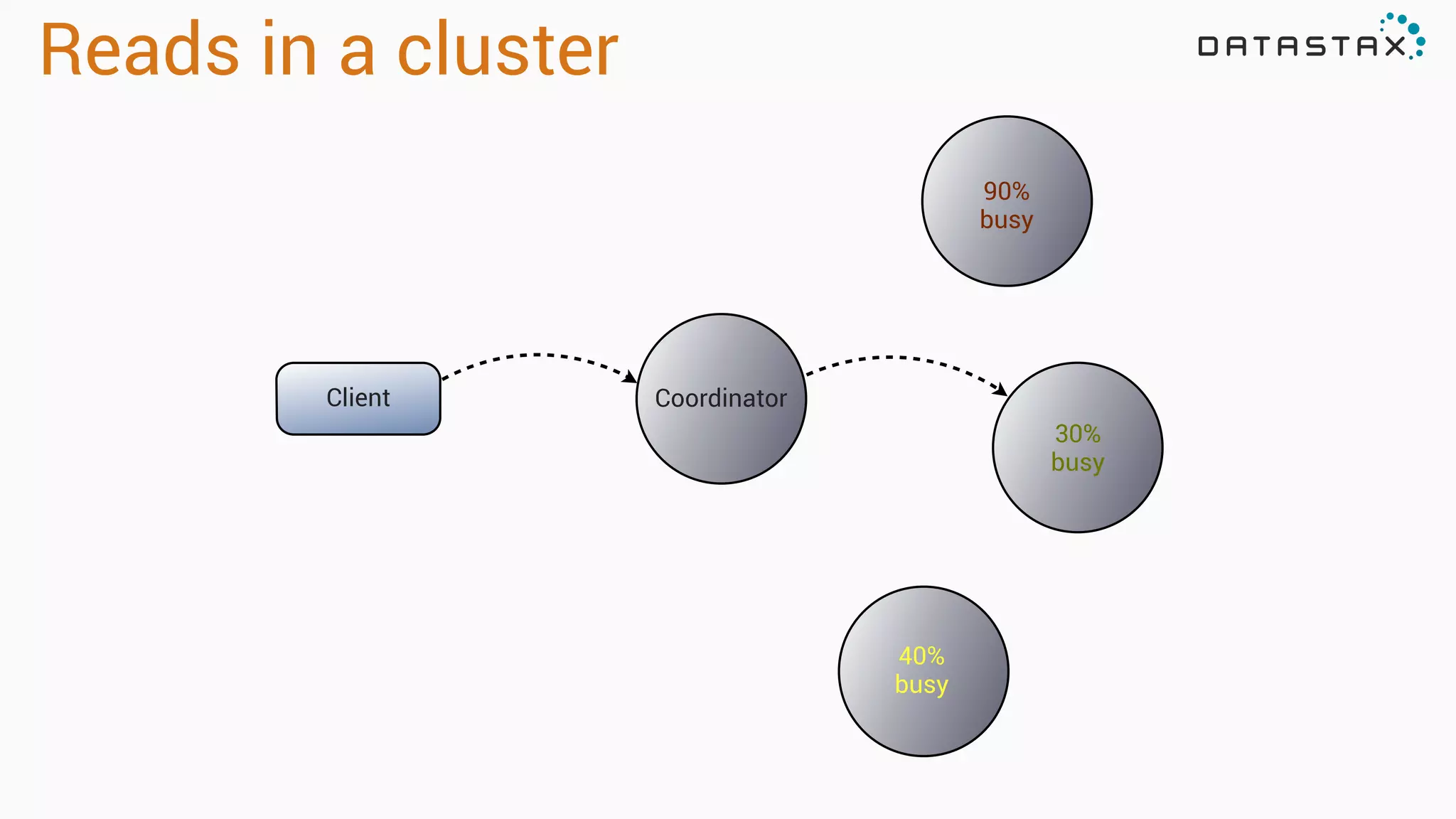

26. Reads in a cluster
Client Coordinator
40%
busy
90%
busy
30%
busy

27. Reads in a cluster
Client Coordinator
40%
busy
90%
busy
30%
busy

28. Reads in a cluster
Client Coordinator
40%
busy
90%
busy
30%
busy

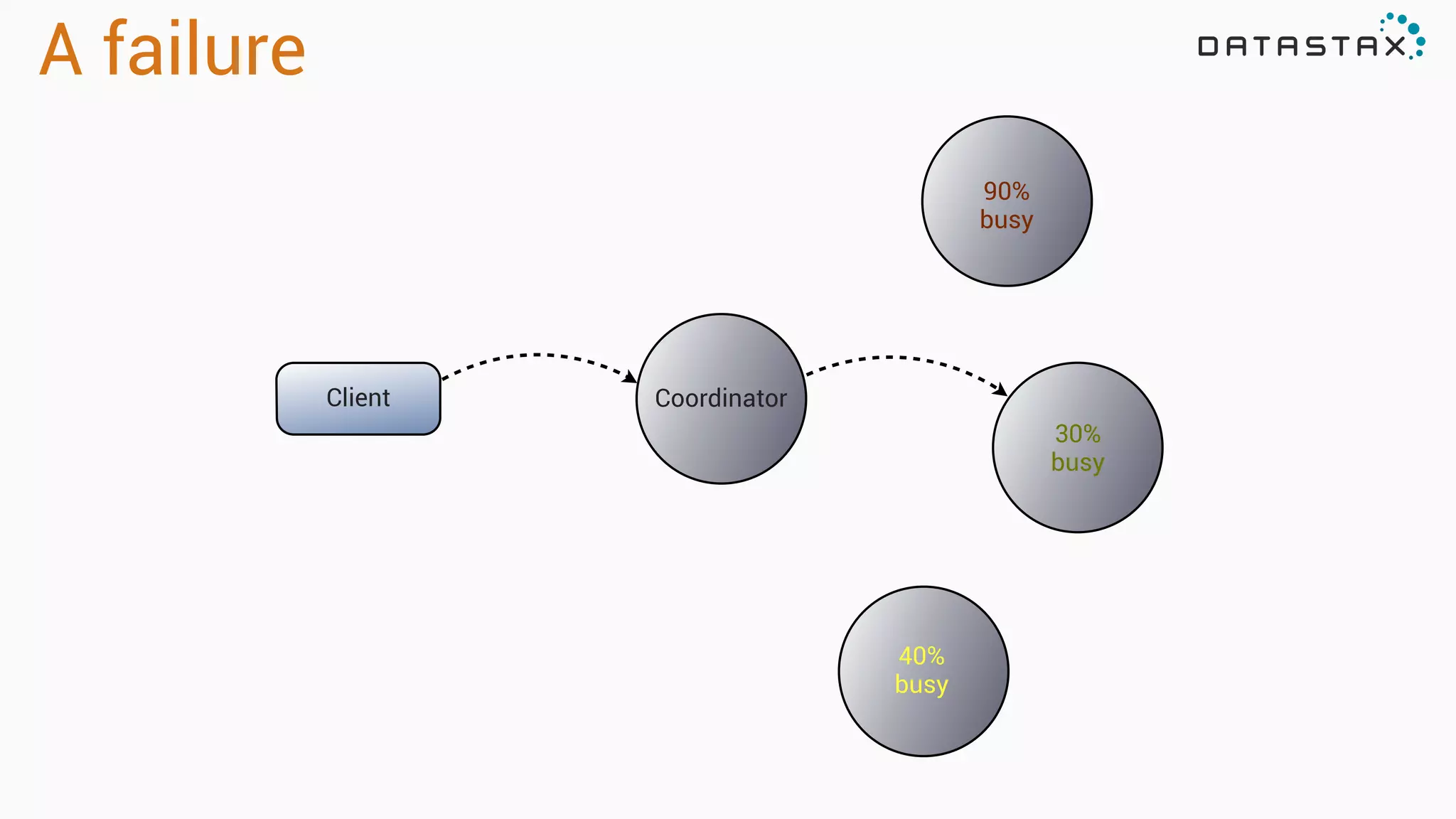

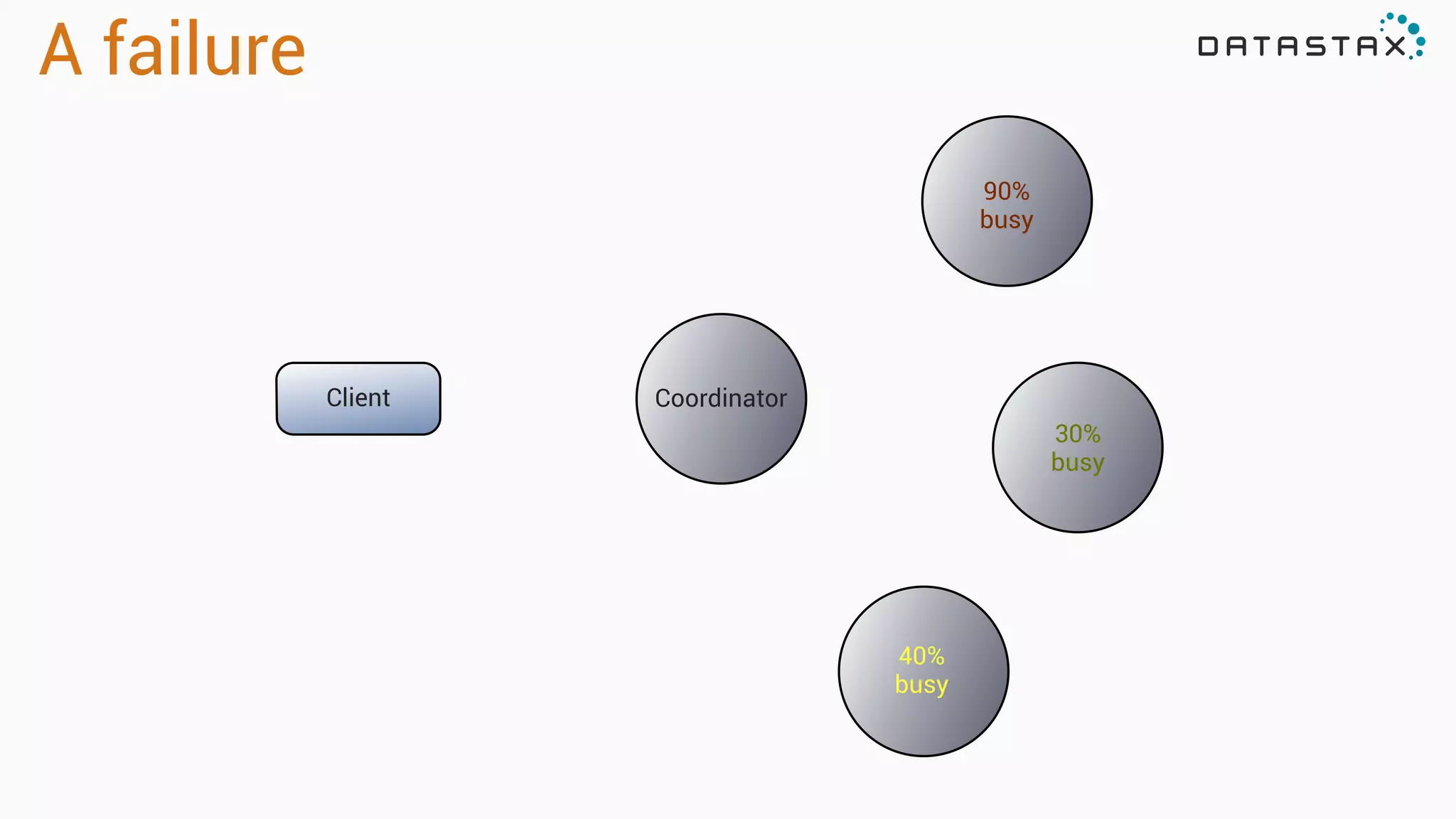

29. A failure
Client Coordinator
40%
busy
90%
busy
30%
busy

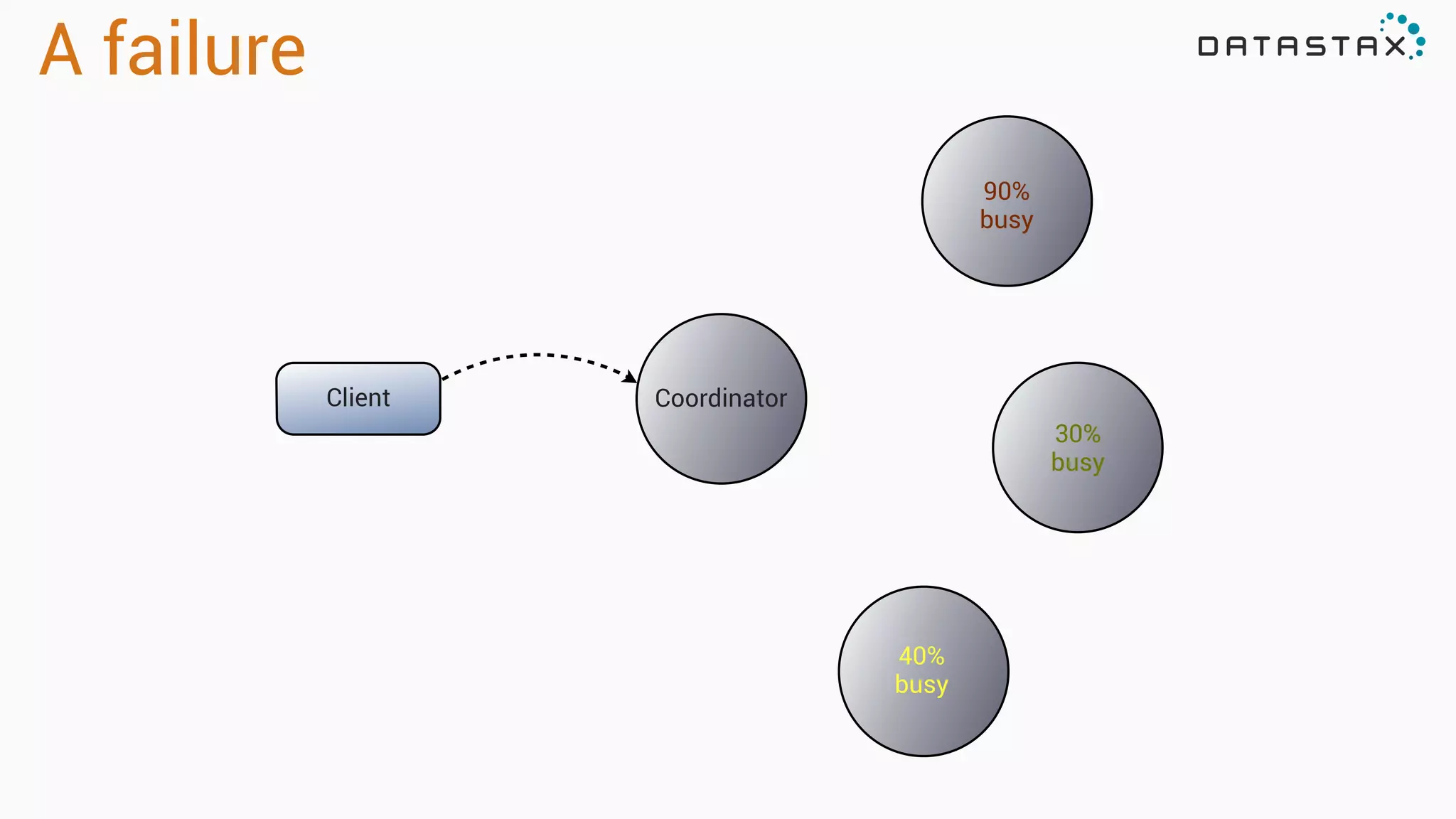

30. A failure
Client Coordinator
40%
busy
90%
busy
30%
busy

31. A failure
Client Coordinator
40%
busy
90%
busy
30%
busy

32. A failure
Client Coordinator
40%
busy
90%
busy
30%
busy
X

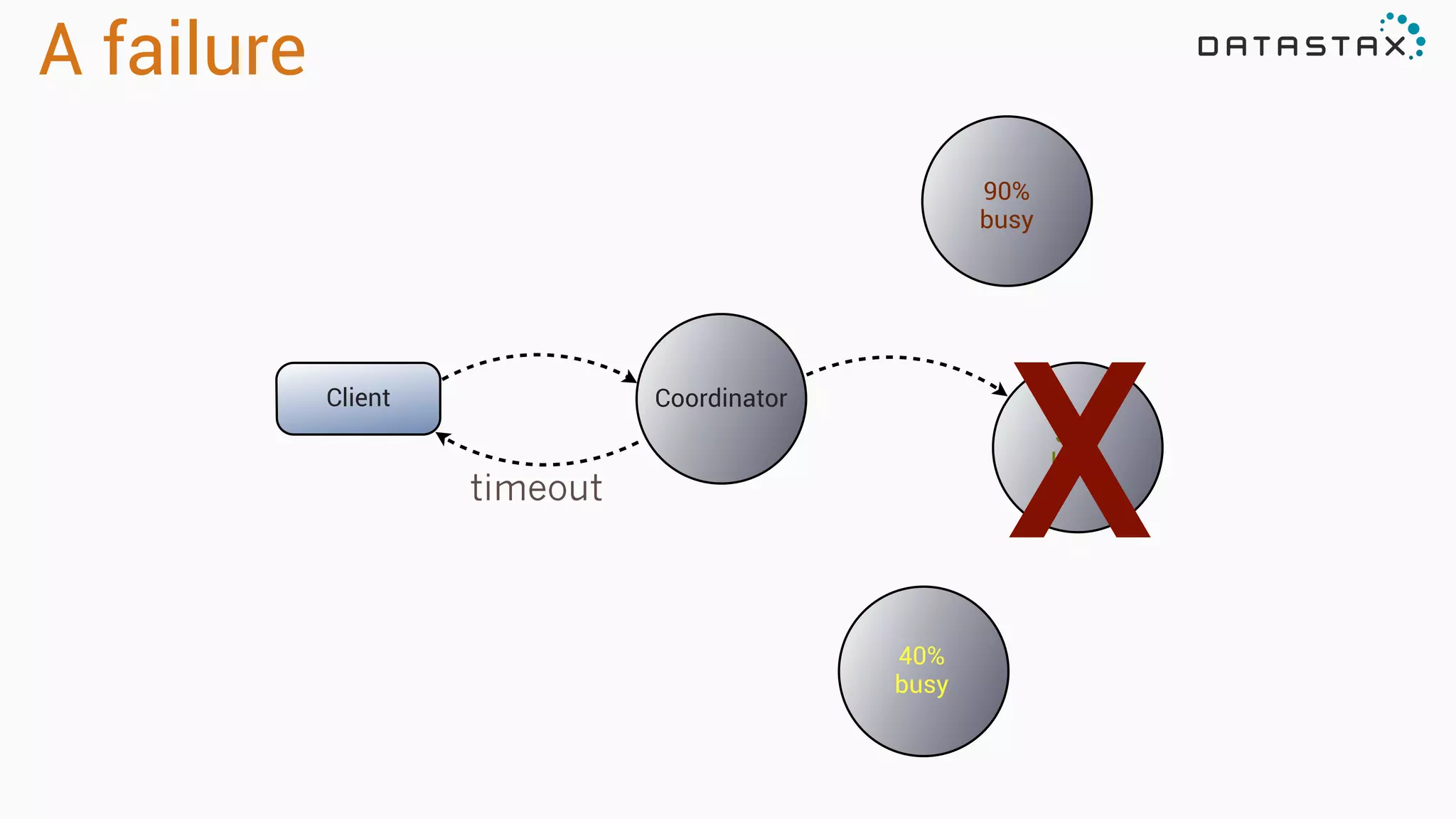

33. A failure
Client Coordinator
40%
busy
90%
busy
30%
busy
Xtimeout

34. Rapid read protection
Client Coordinator
40%
busy
90%
busy
30%
busy

35. Rapid read protection
Client Coordinator
40%
busy
90%
busy
30%
busy

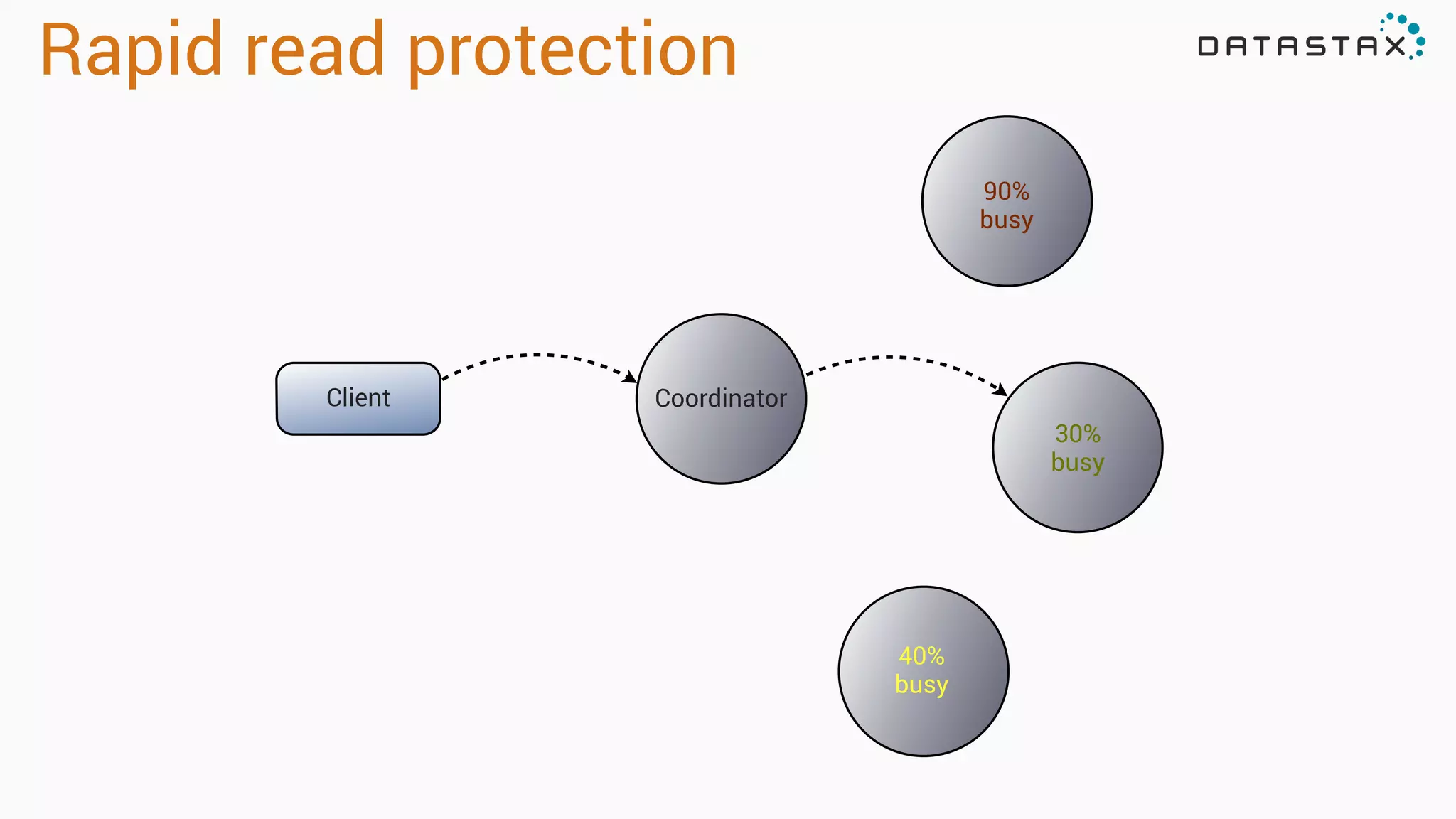

36. Rapid read protection
Client Coordinator
40%
busy
90%
busy
30%
busy

37. Rapid read protection
Client Coordinator
40%
busy
90%
busy
30%
busy
X

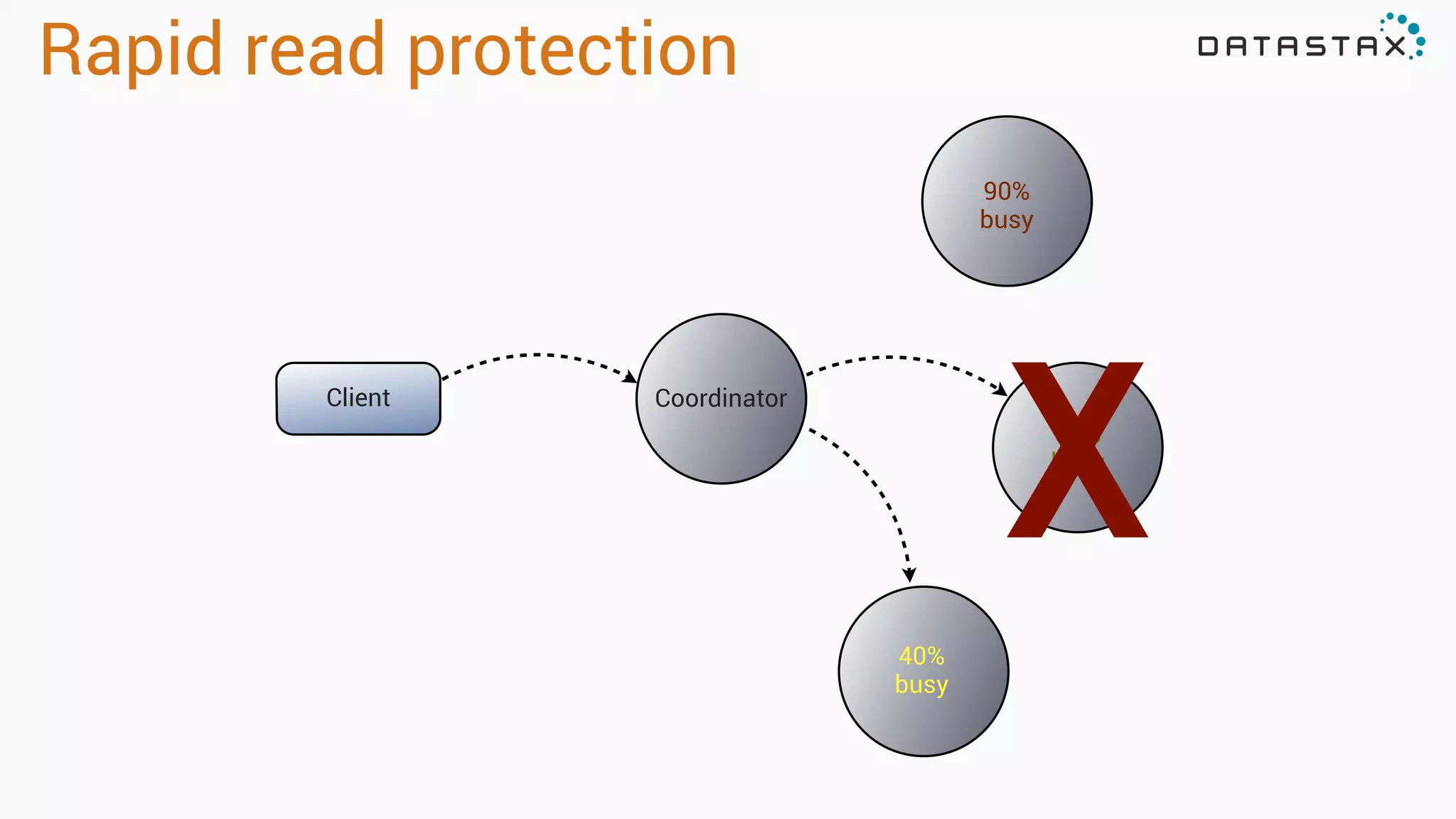

38. Rapid read protection
Client Coordinator
40%
busy
90%
busy
30%
busy
X

39. Rapid read protection
Client Coordinator
40%
busy
90%
busy
30%
busy
X

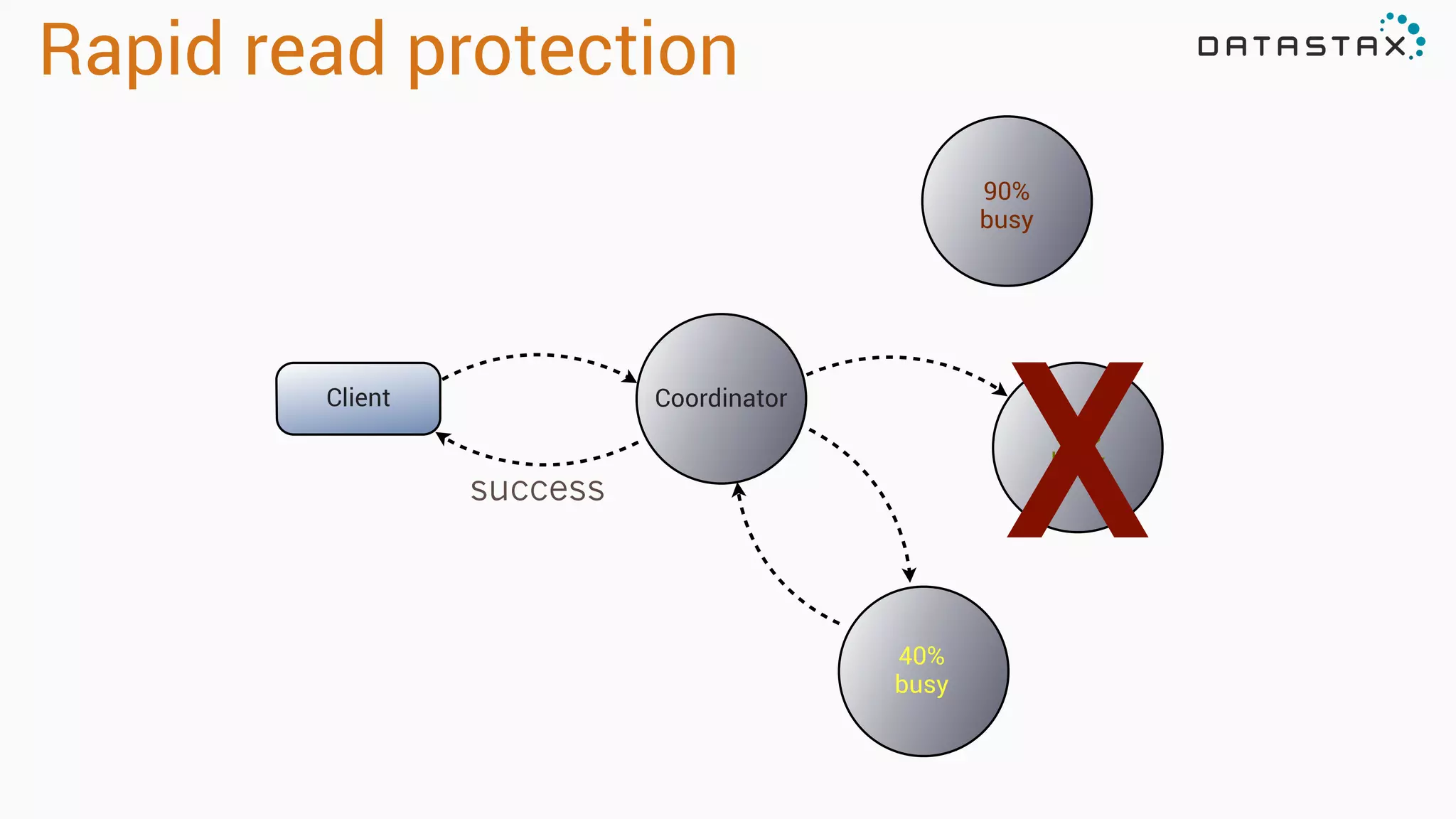

40. Rapid read protection
Client Coordinator
40%
busy
90%
busy
30%
busy
Xsuccess

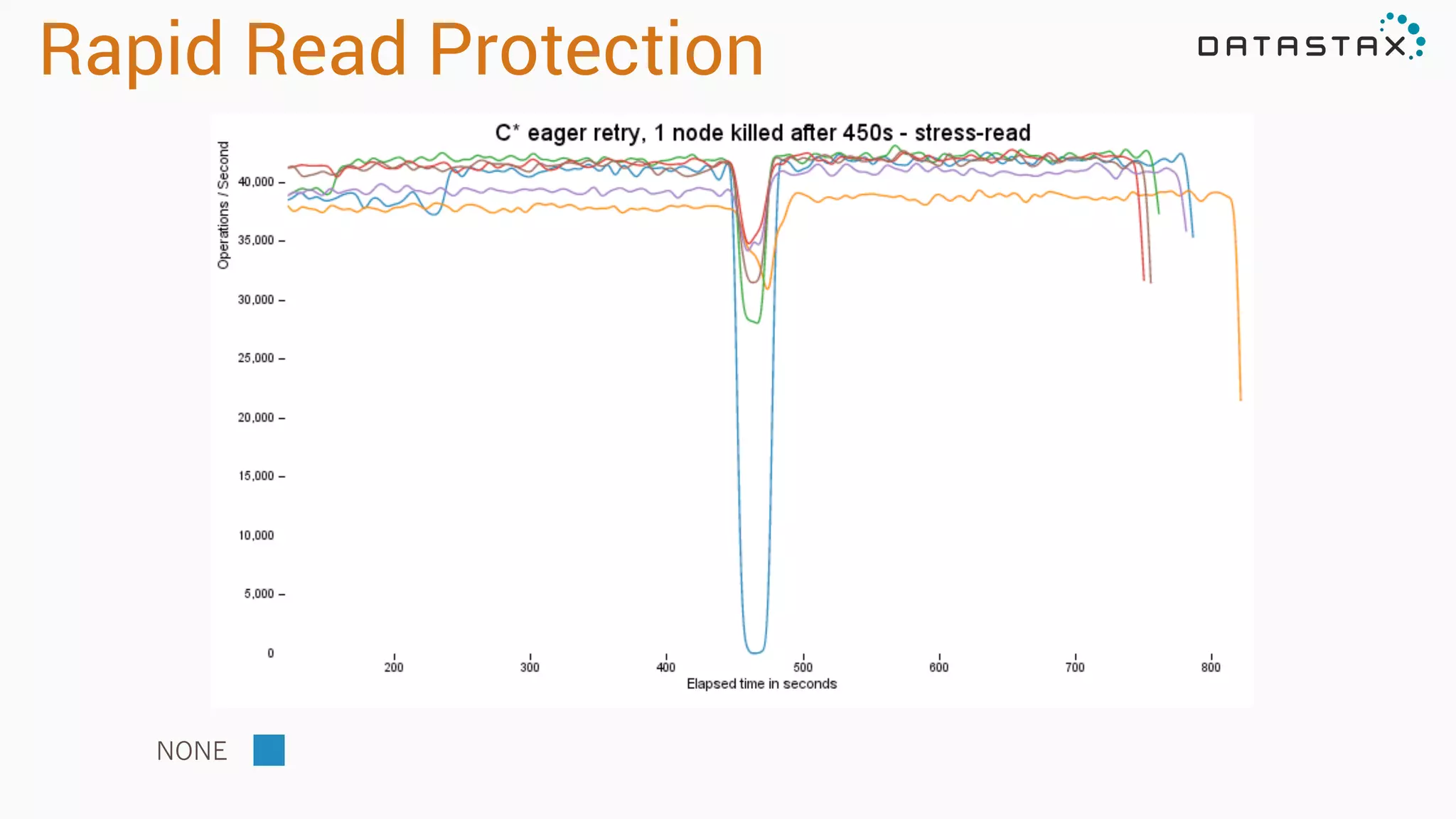

41. Rapid Read Protection
NONE

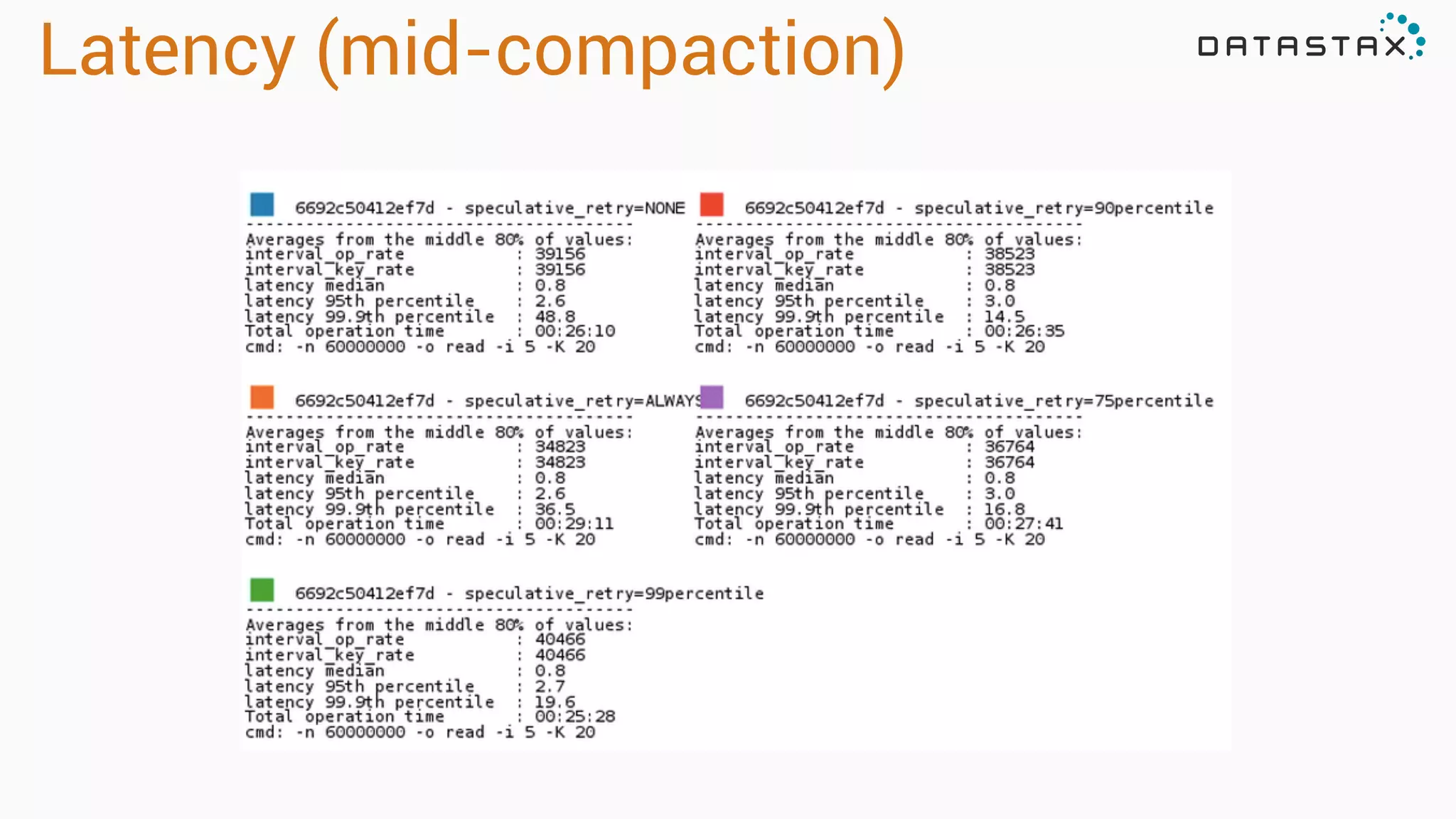

42. Latency (mid-compaction)

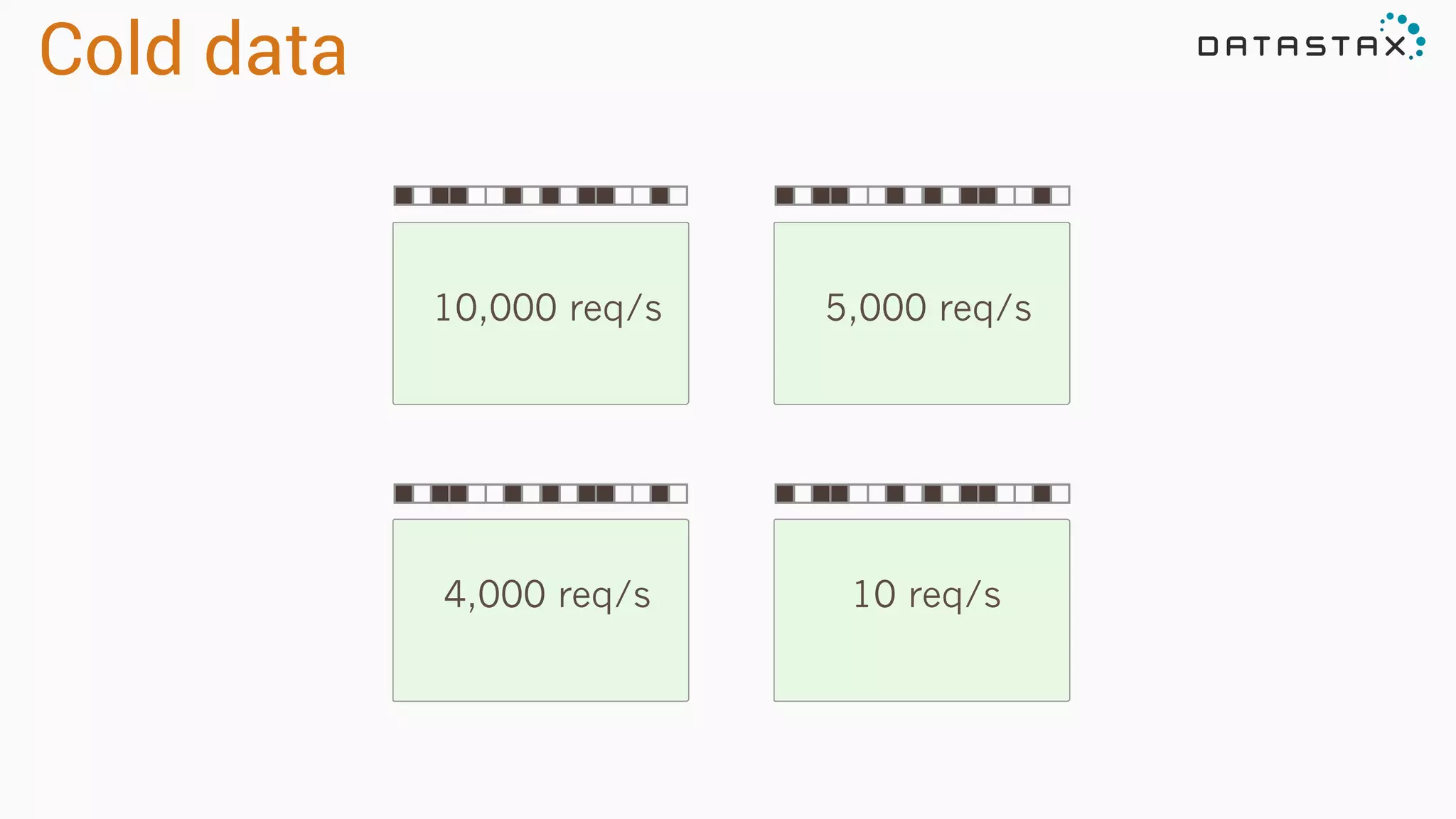

43. Cold data
10,000 req/s 5,000 req/s
4,000 req/s 10 req/s

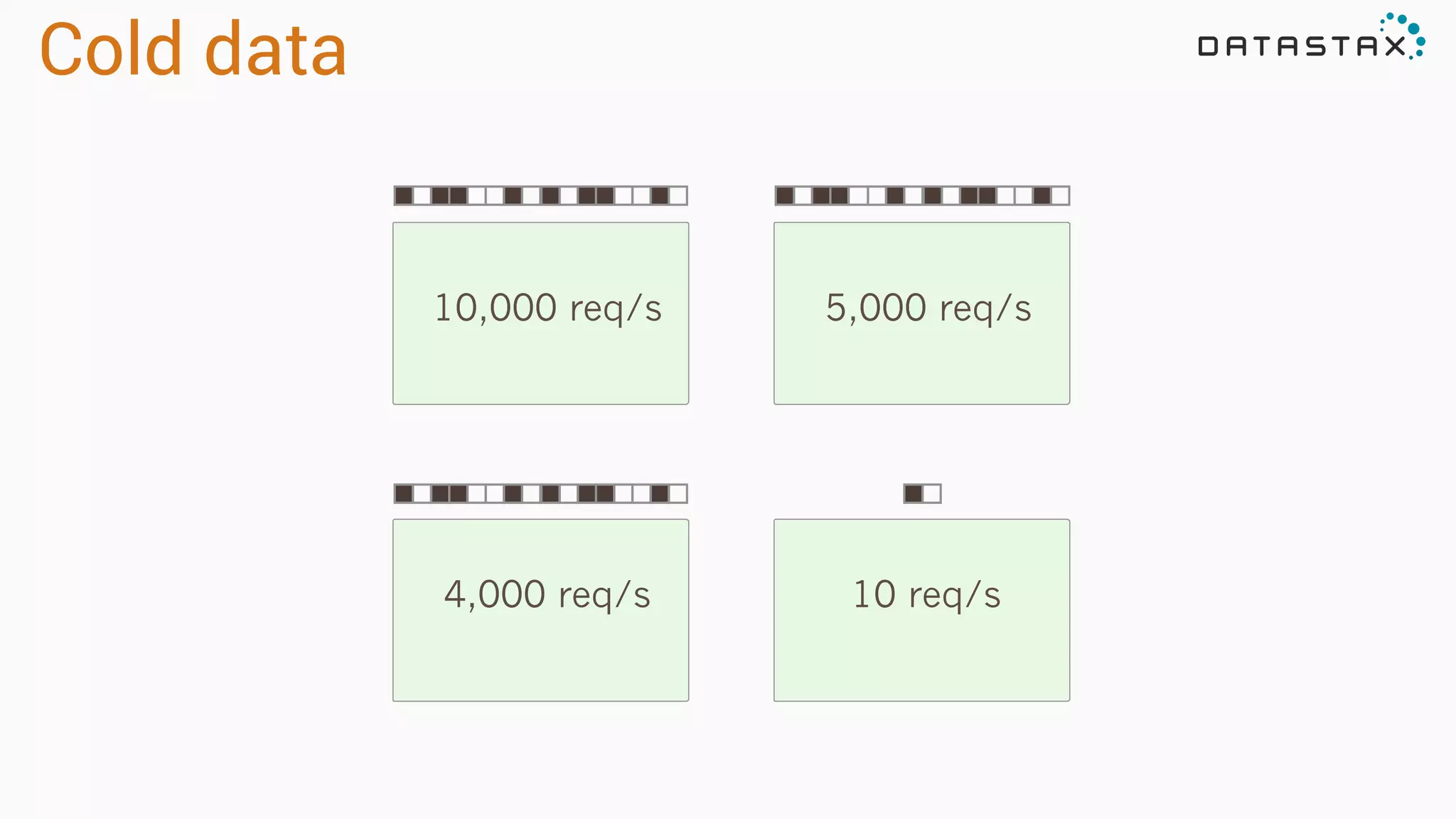

44. Cold data
10,000 req/s 5,000 req/s
4,000 req/s 10 req/s

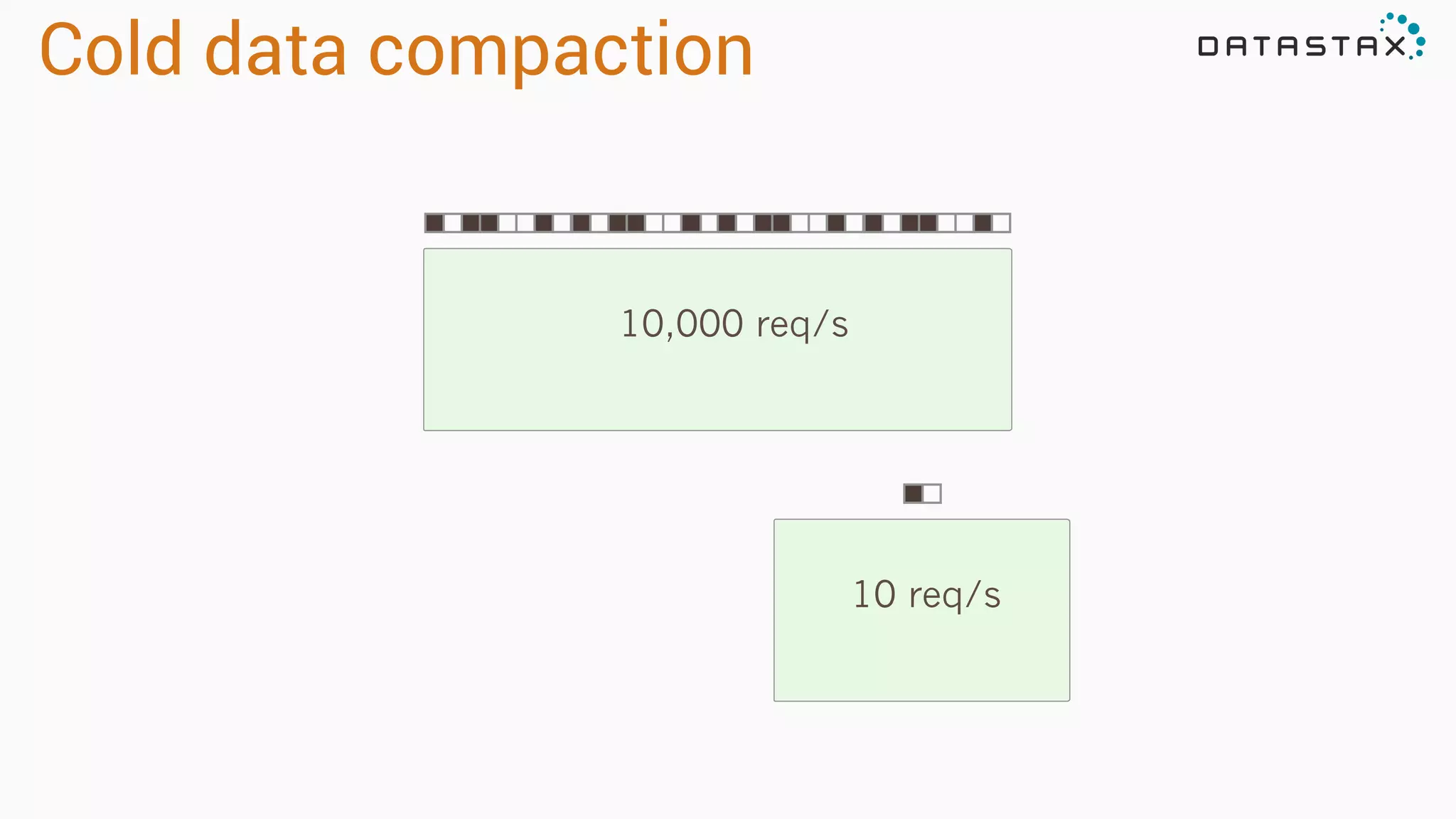

45. Cold data compaction
10 req/s
10,000 req/s

46. Cassandra 2.1

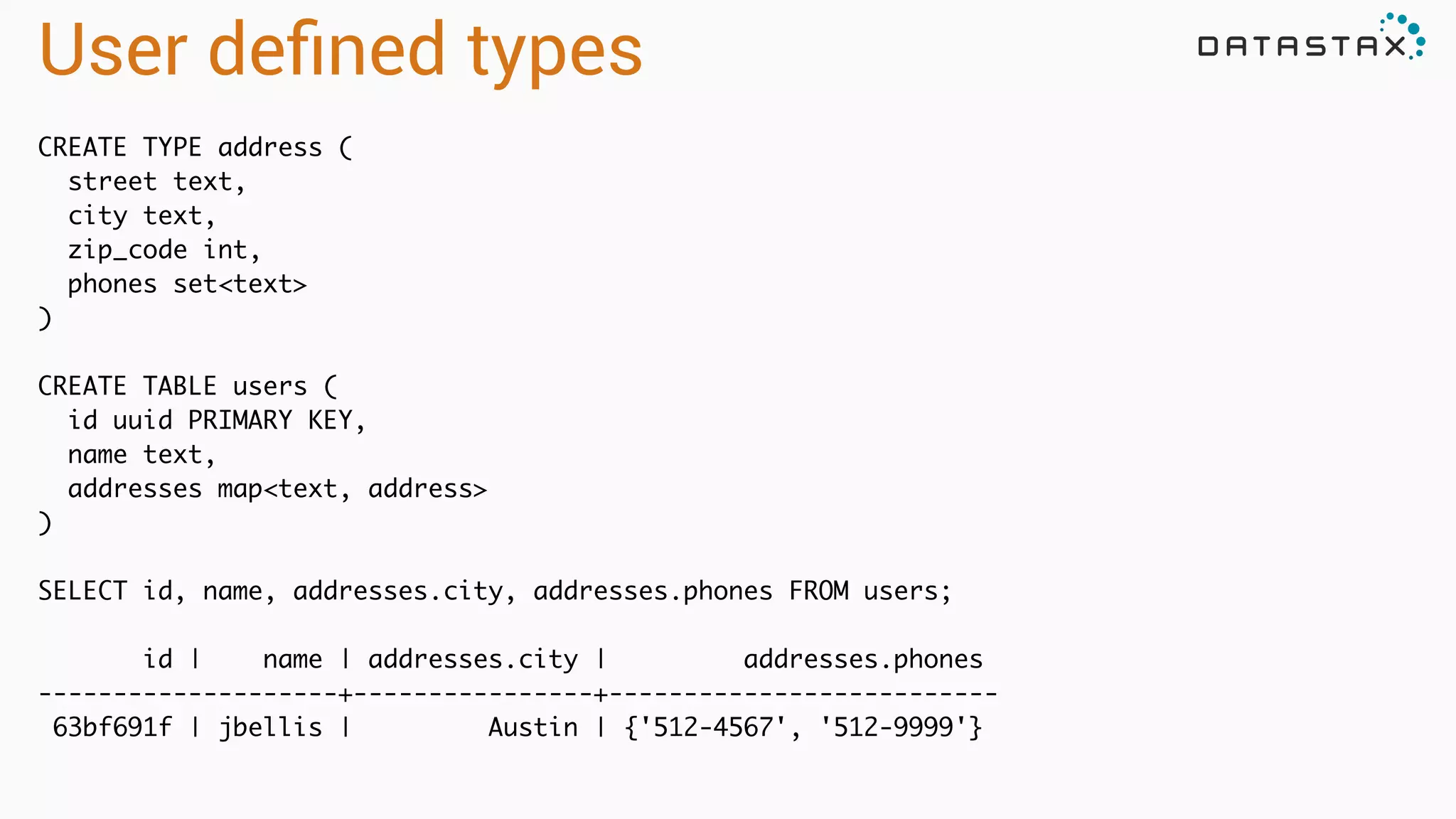

47. User defined types
CREATE TYPE address (
street text,
city text,
zip_code int,
phones set<text>
)
!
CREATE TABLE users (
id uuid PRIMARY KEY,
name text,
addresses map<text, address>
)
!
SELECT id, name, addresses.city, addresses.phones FROM users;
!
id | name | addresses.city | addresses.phones
--------------------+----------------+--------------------------
63bf691f | jbellis | Austin | {'512-4567', '512-9999'}

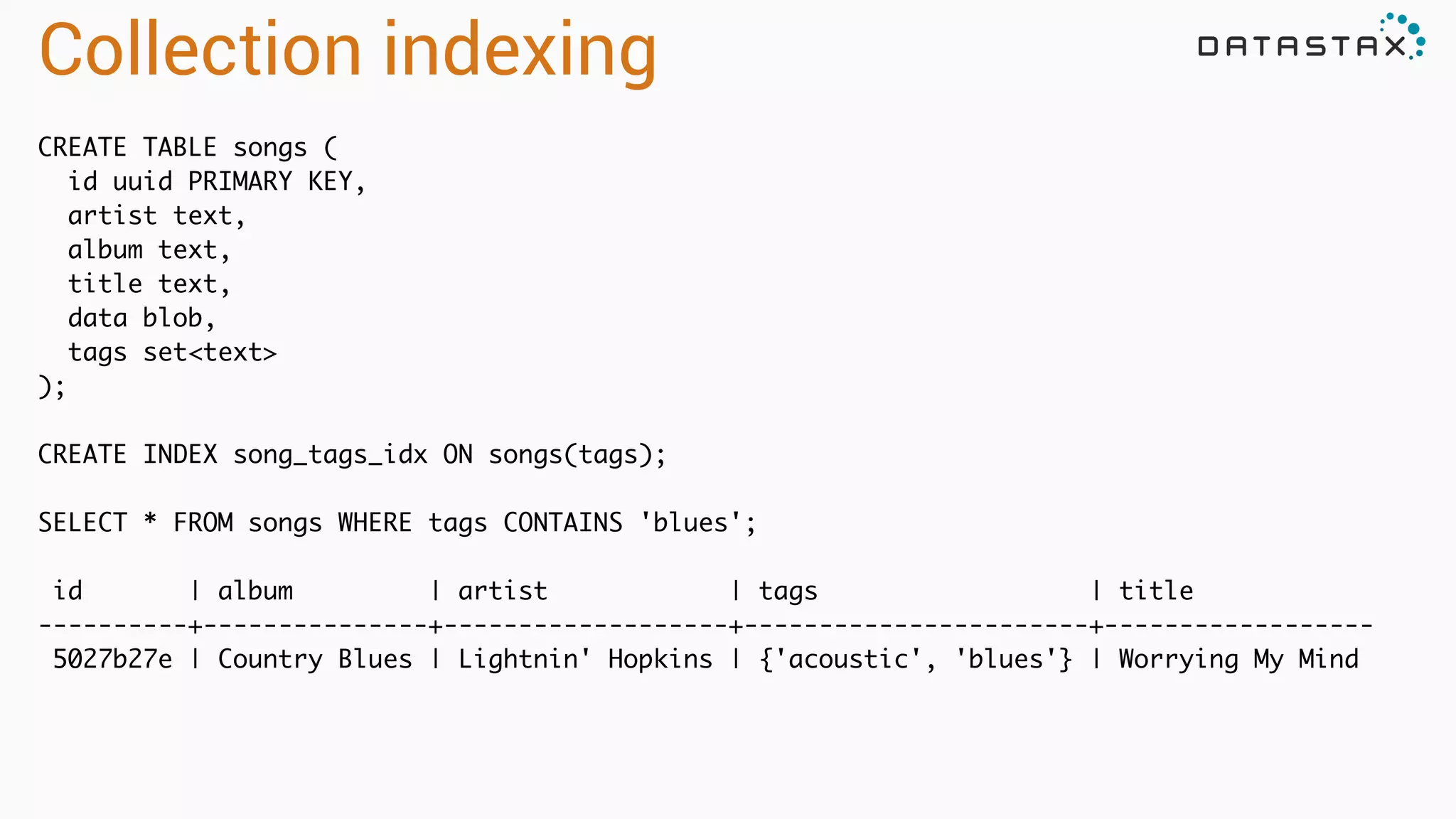

48. Collection indexing
CREATE TABLE songs (
id uuid PRIMARY KEY,
artist text,
album text,
title text,
data blob,
tags set<text>
);
!
CREATE INDEX song_tags_idx ON songs(tags);
!
SELECT * FROM songs WHERE tags CONTAINS 'blues';
!
id | album | artist | tags | title
----------+---------------+-------------------+-----------------------+------------------
5027b27e | Country Blues | Lightnin' Hopkins | {'acoustic', 'blues'} | Worrying My Mind
!
!

49. (UDT indexing?)

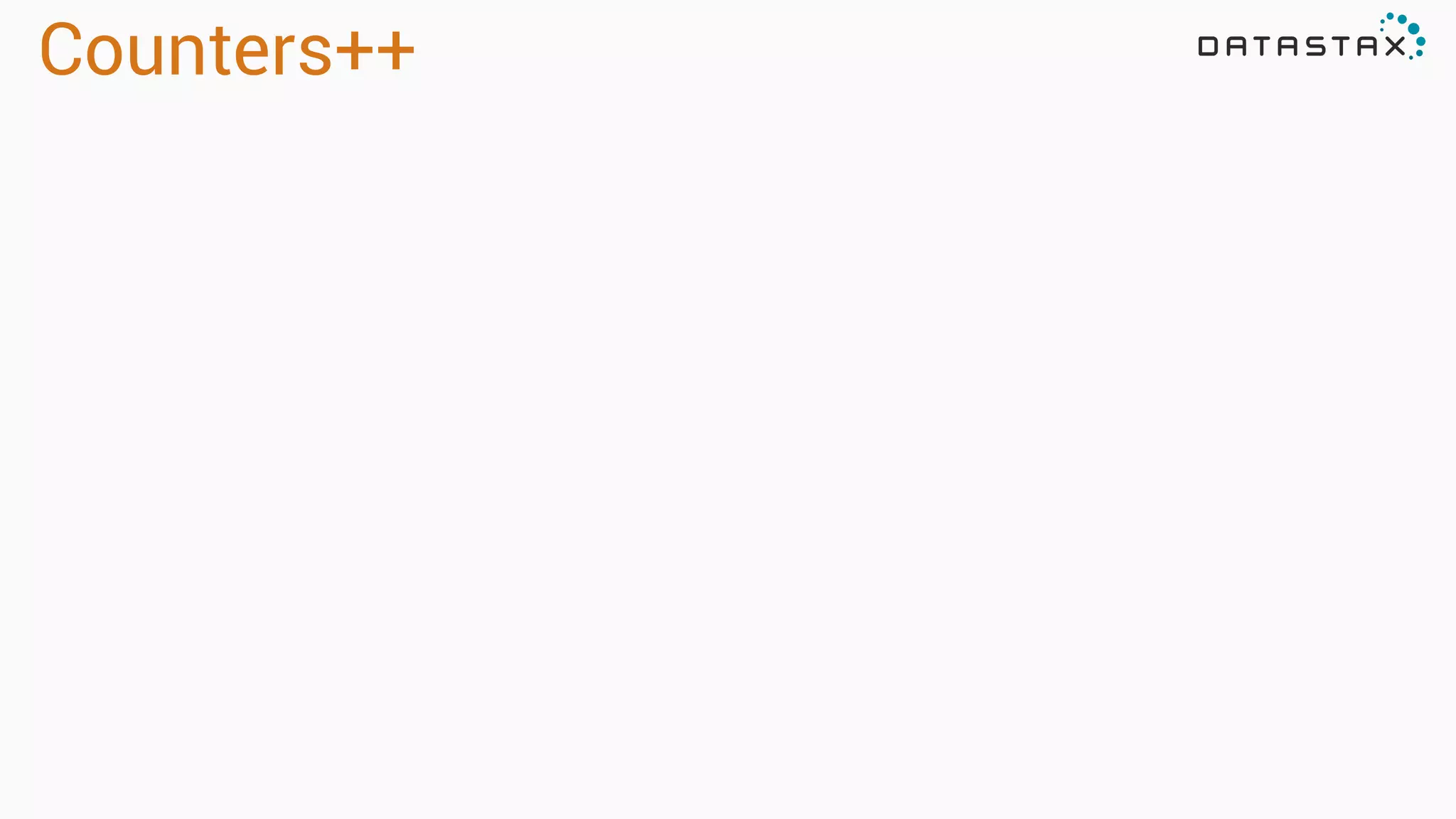

50. Counters++

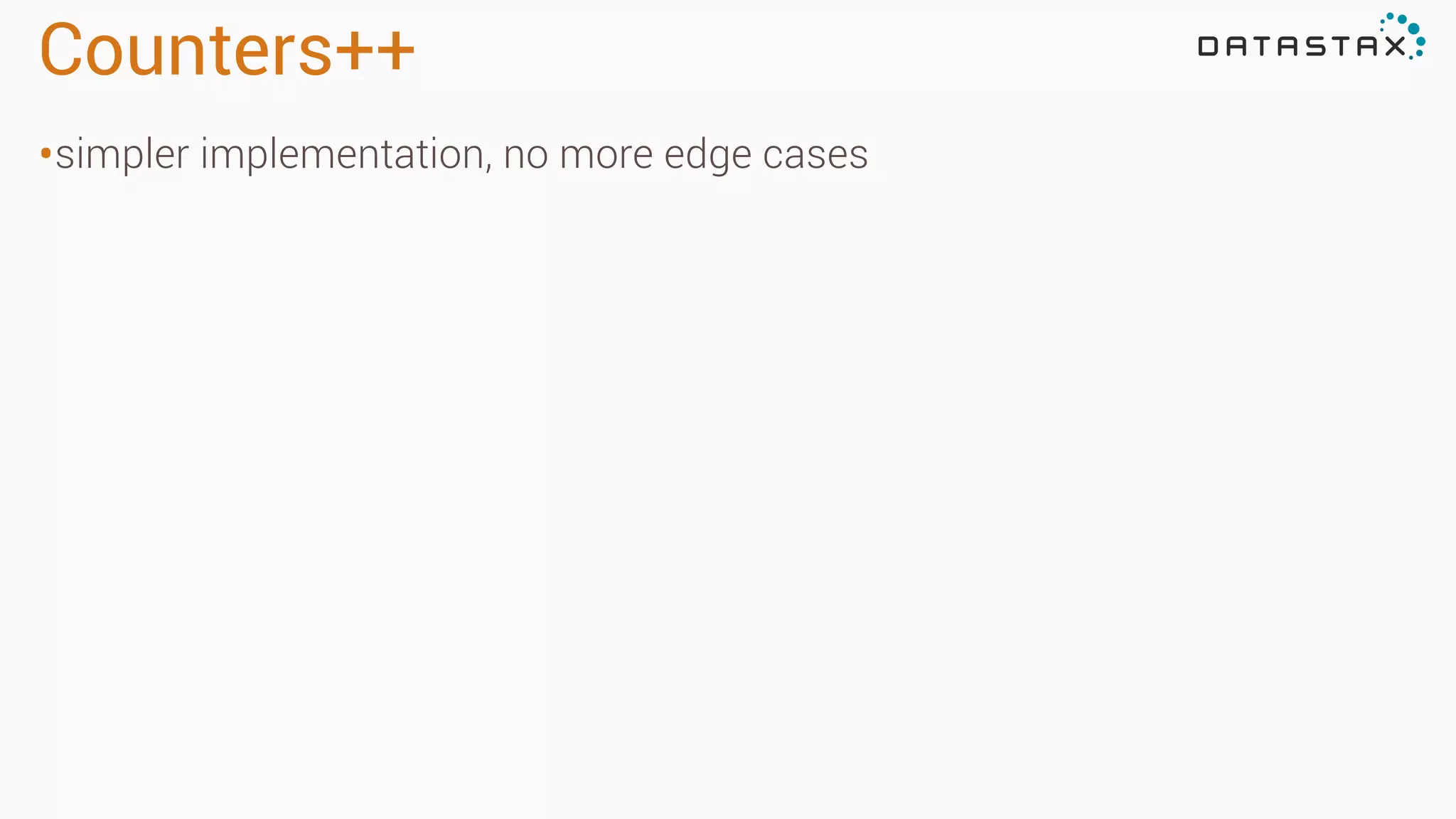

51. Counters++
•simpler implementation, no more edge cases

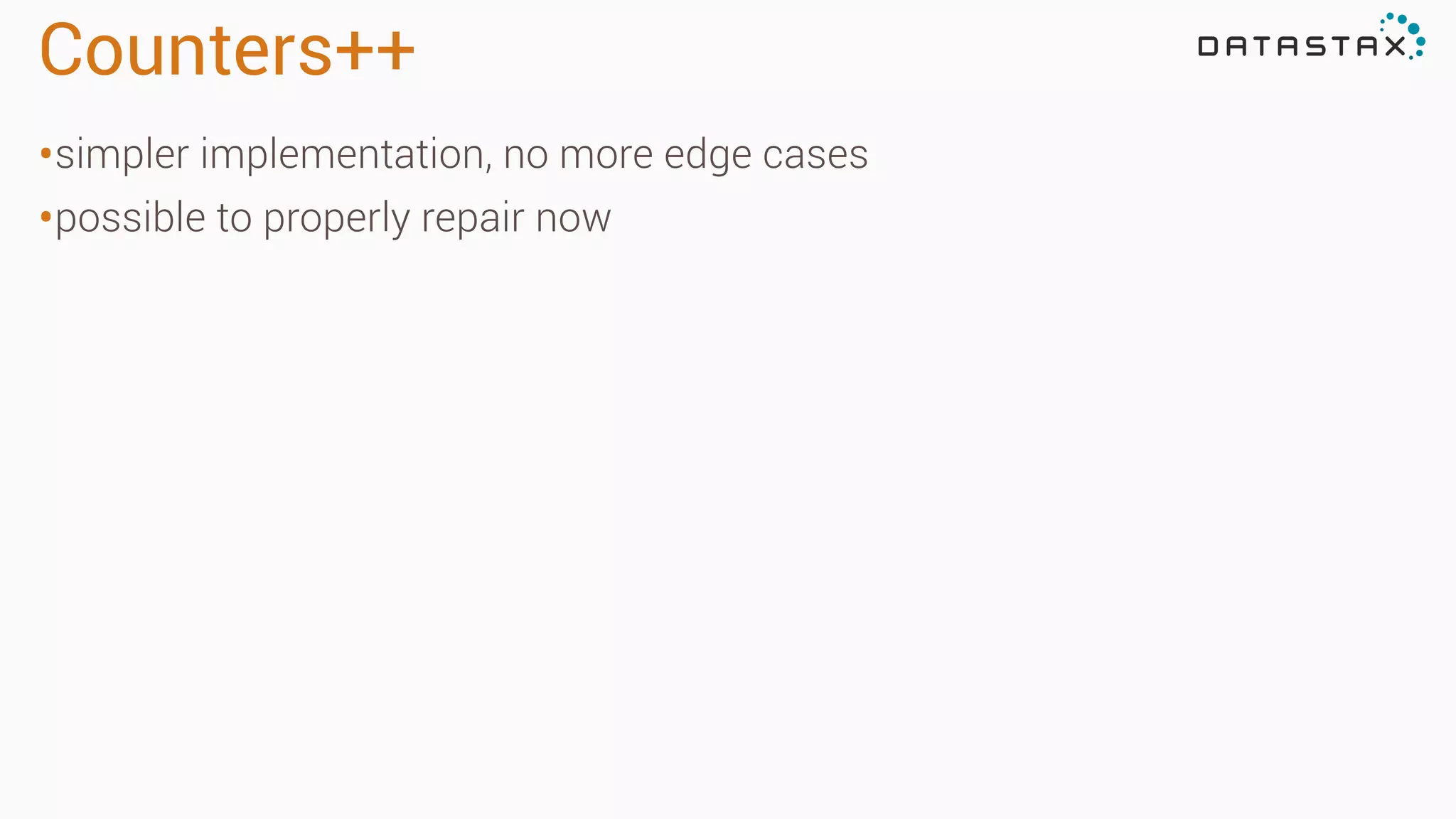

52. Counters++
•simpler implementation, no more edge cases
•possible to properly repair now

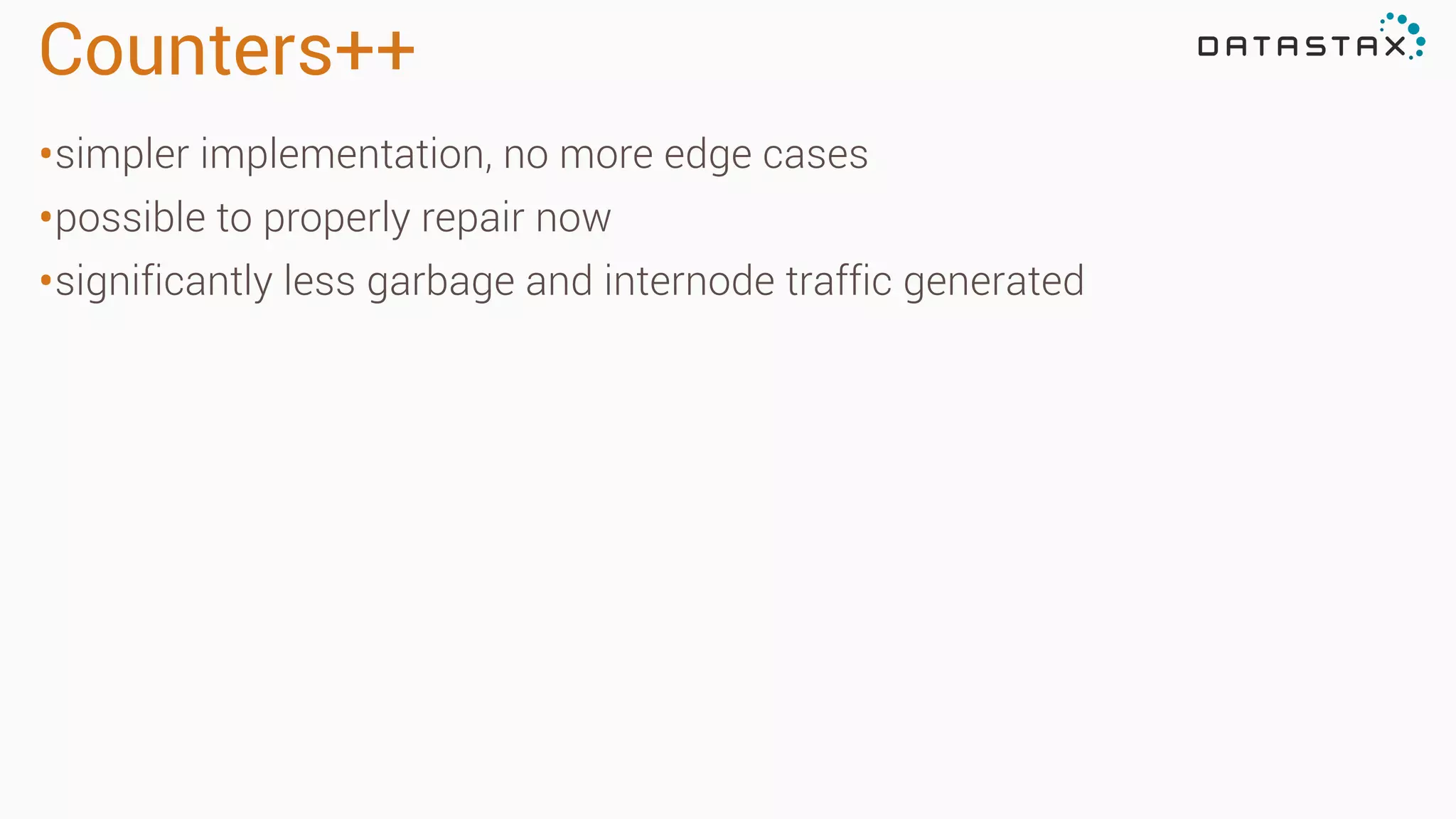

53. Counters++
•simpler implementation, no more edge cases
•possible to properly repair now
•significantly less garbage and internode traffic generated

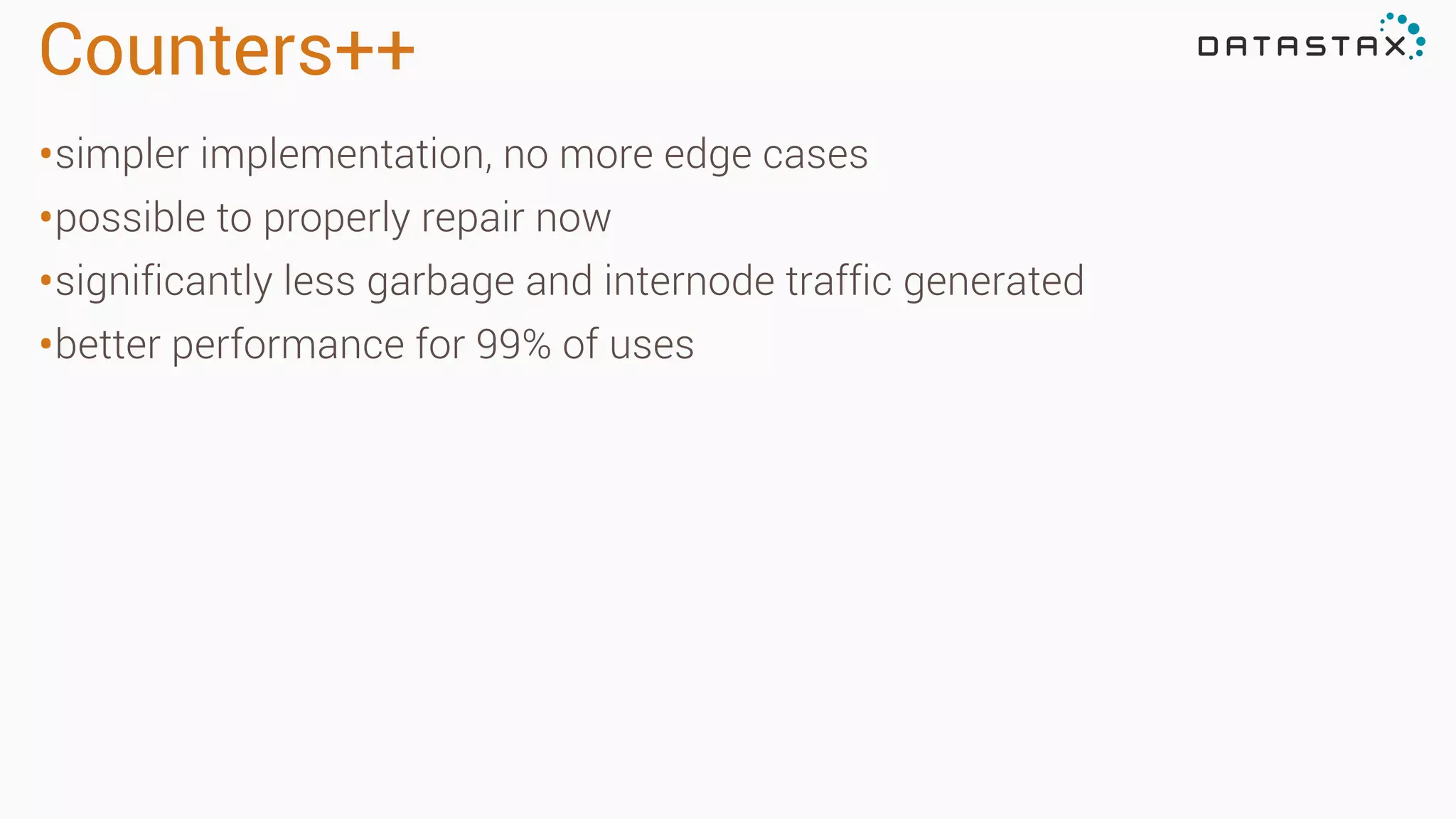

54. Counters++
•simpler implementation, no more edge cases
•possible to properly repair now
•significantly less garbage and internode traffic generated
•better performance for 99% of uses

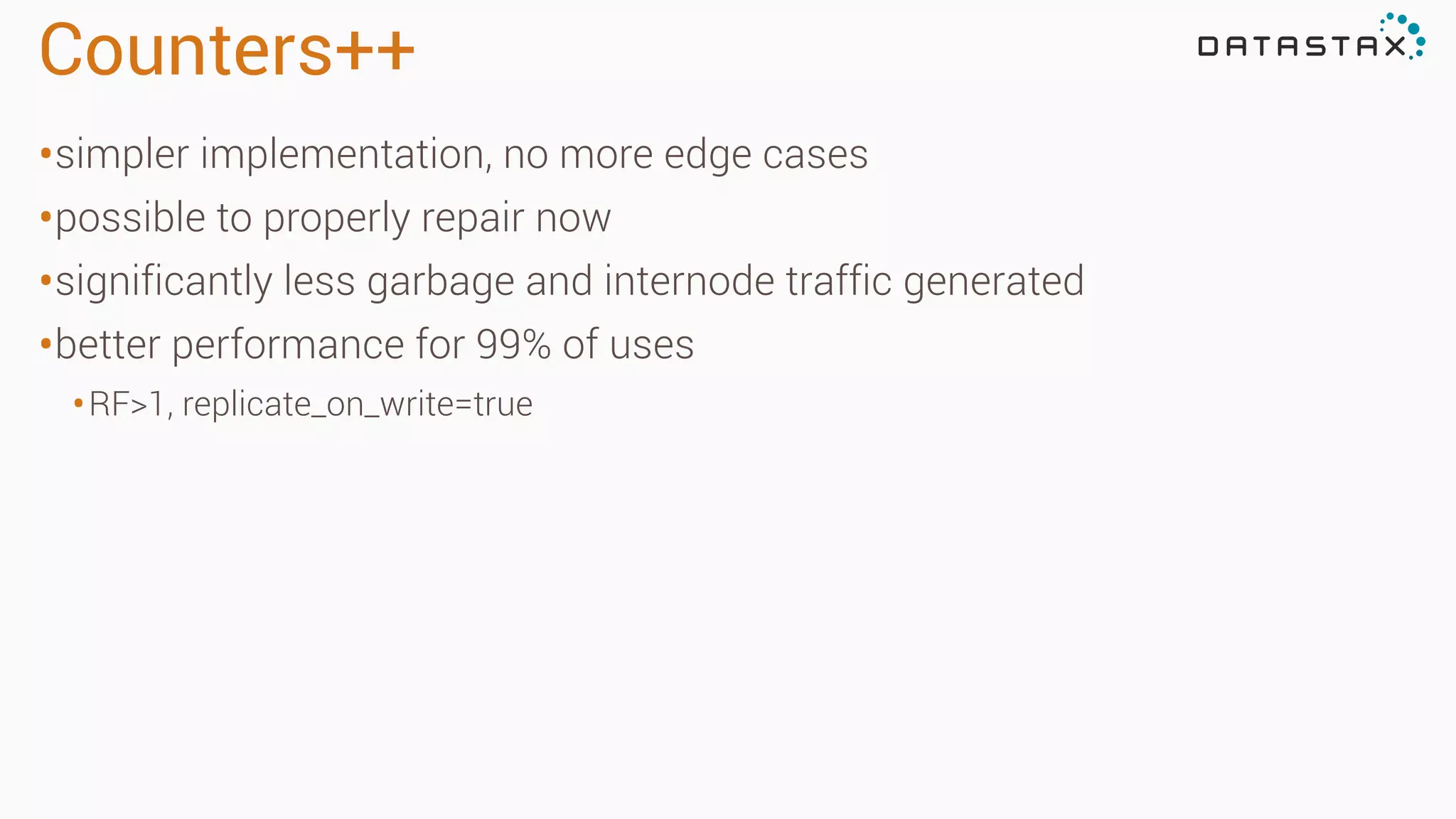

55. Counters++
•simpler implementation, no more edge cases
•possible to properly repair now
•significantly less garbage and internode traffic generated
•better performance for 99% of uses
•RF>1, replicate_on_write=true

56. Counters++
•simpler implementation, no more edge cases
•possible to properly repair now
•significantly less garbage and internode traffic generated
•better performance for 99% of uses
•RF>1, replicate_on_write=true
•topology changes not leading to data loss (#4071)

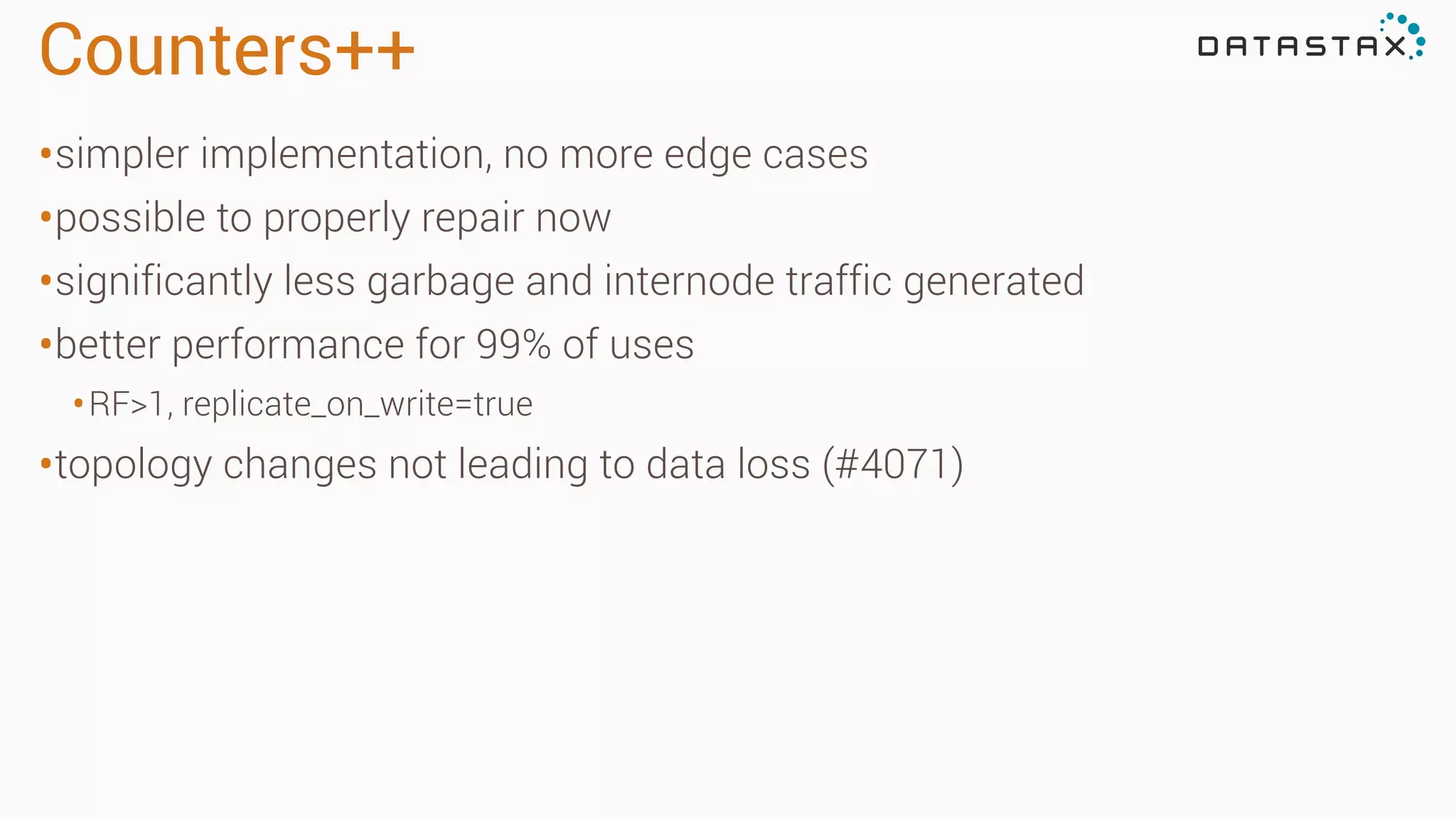

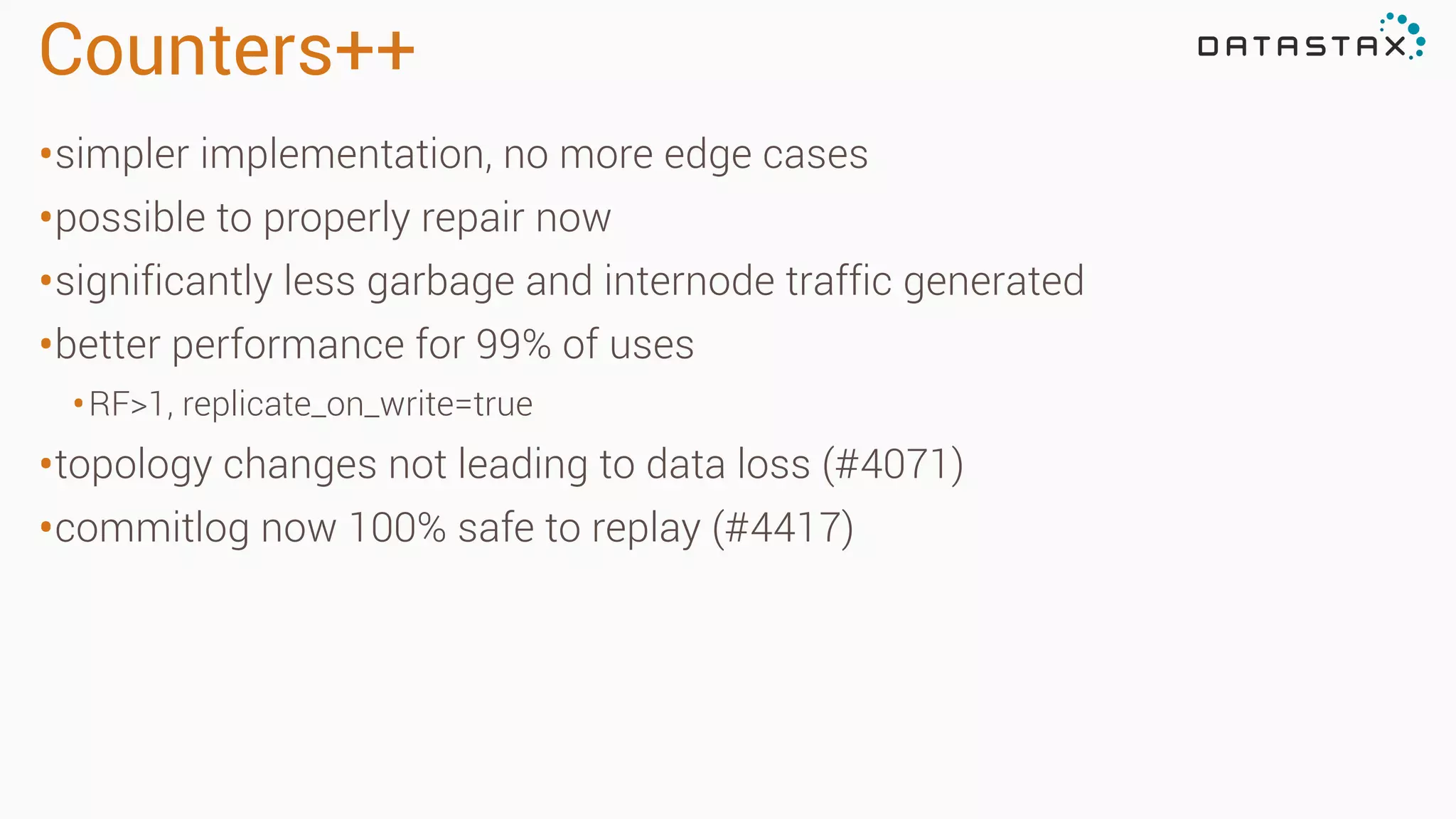

57. Counters++
•simpler implementation, no more edge cases
•possible to properly repair now
•significantly less garbage and internode traffic generated
•better performance for 99% of uses
•RF>1, replicate_on_write=true
•topology changes not leading to data loss (#4071)
•commitlog now 100% safe to replay (#4417)

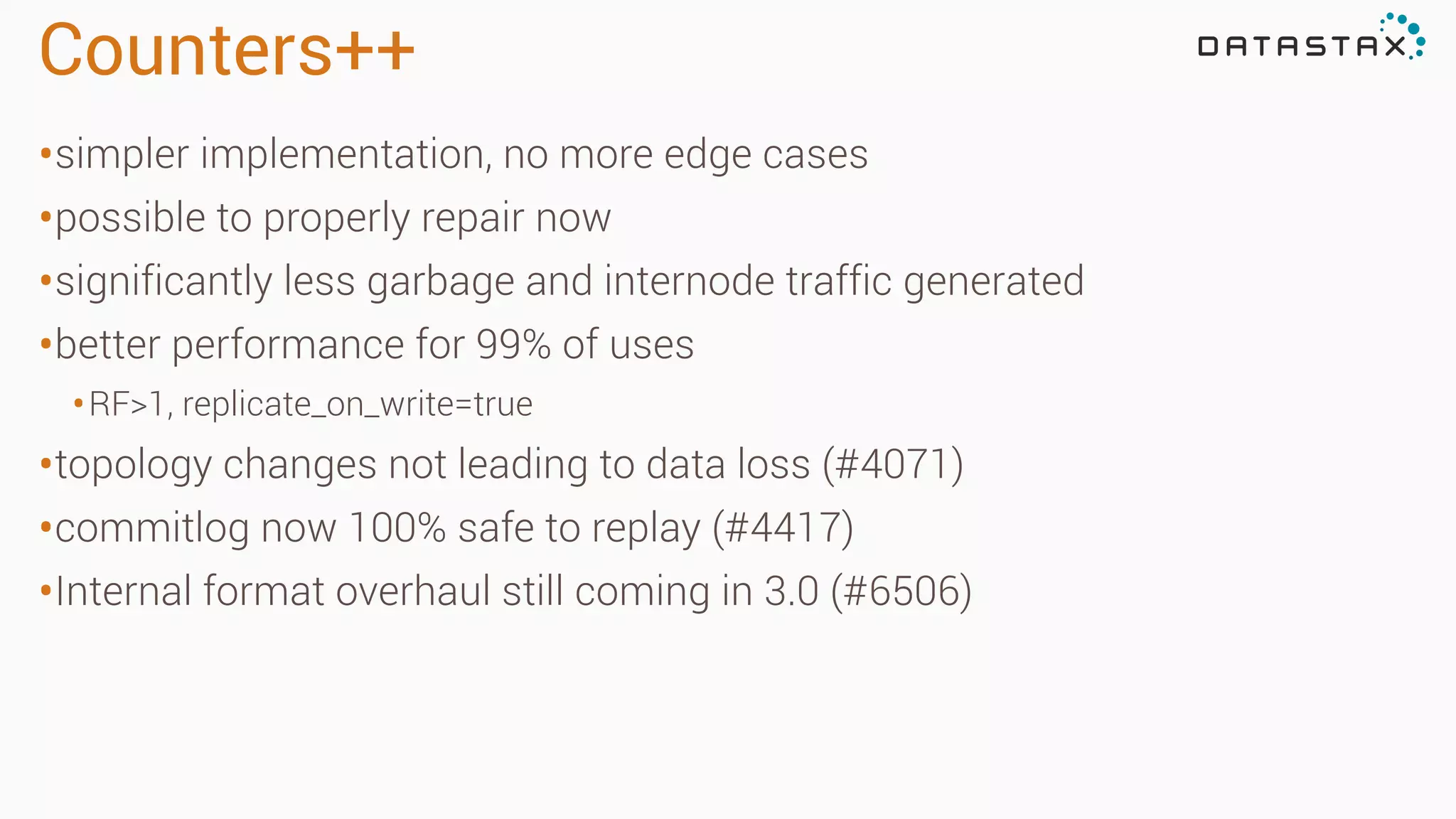

58. Counters++
•simpler implementation, no more edge cases
•possible to properly repair now
•significantly less garbage and internode traffic generated
•better performance for 99% of uses
•RF>1, replicate_on_write=true
•topology changes not leading to data loss (#4071)
•commitlog now 100% safe to replay (#4417)
•Internal format overhaul still coming in 3.0 (#6506)

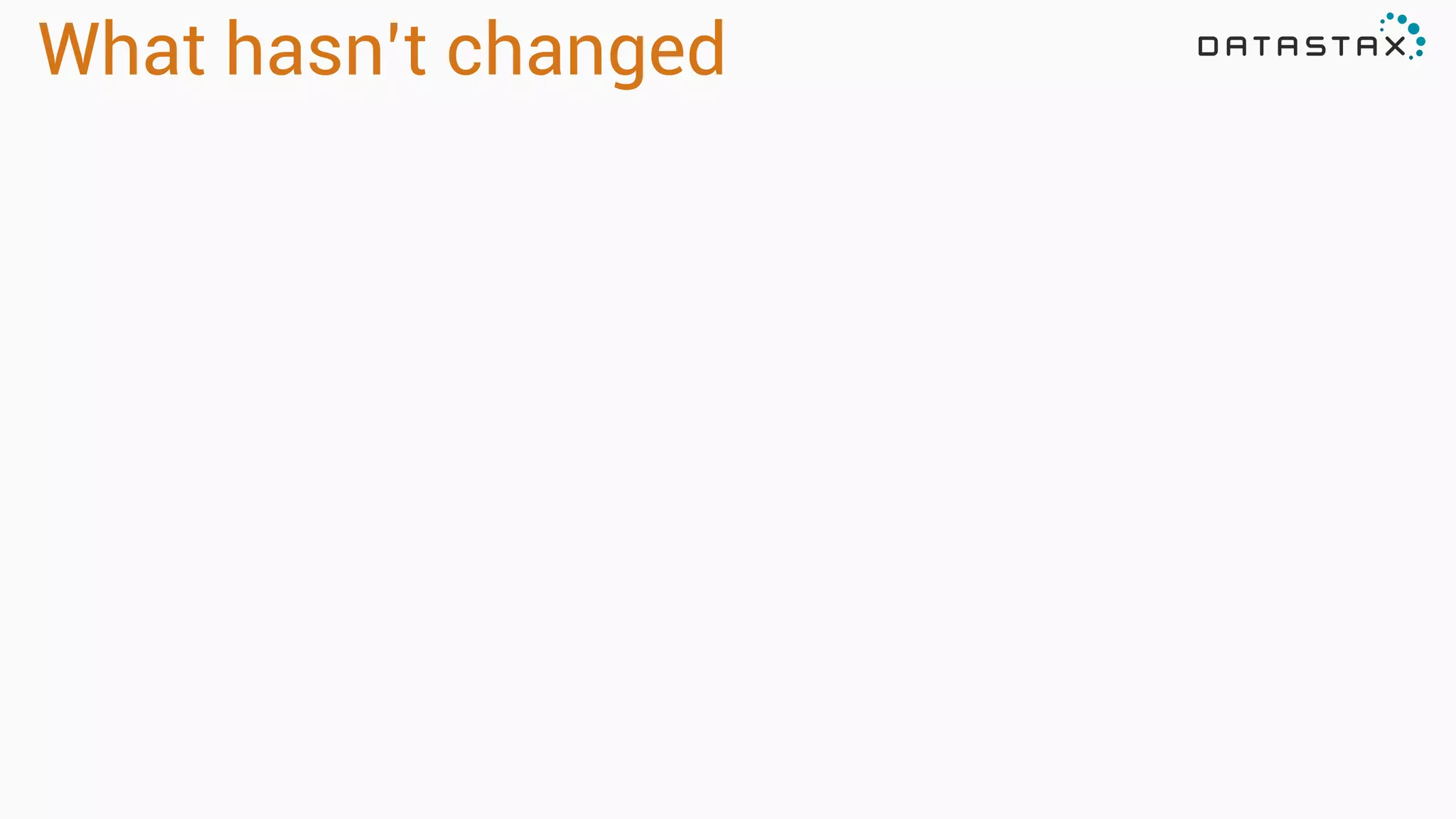

59. What hasn’t changed

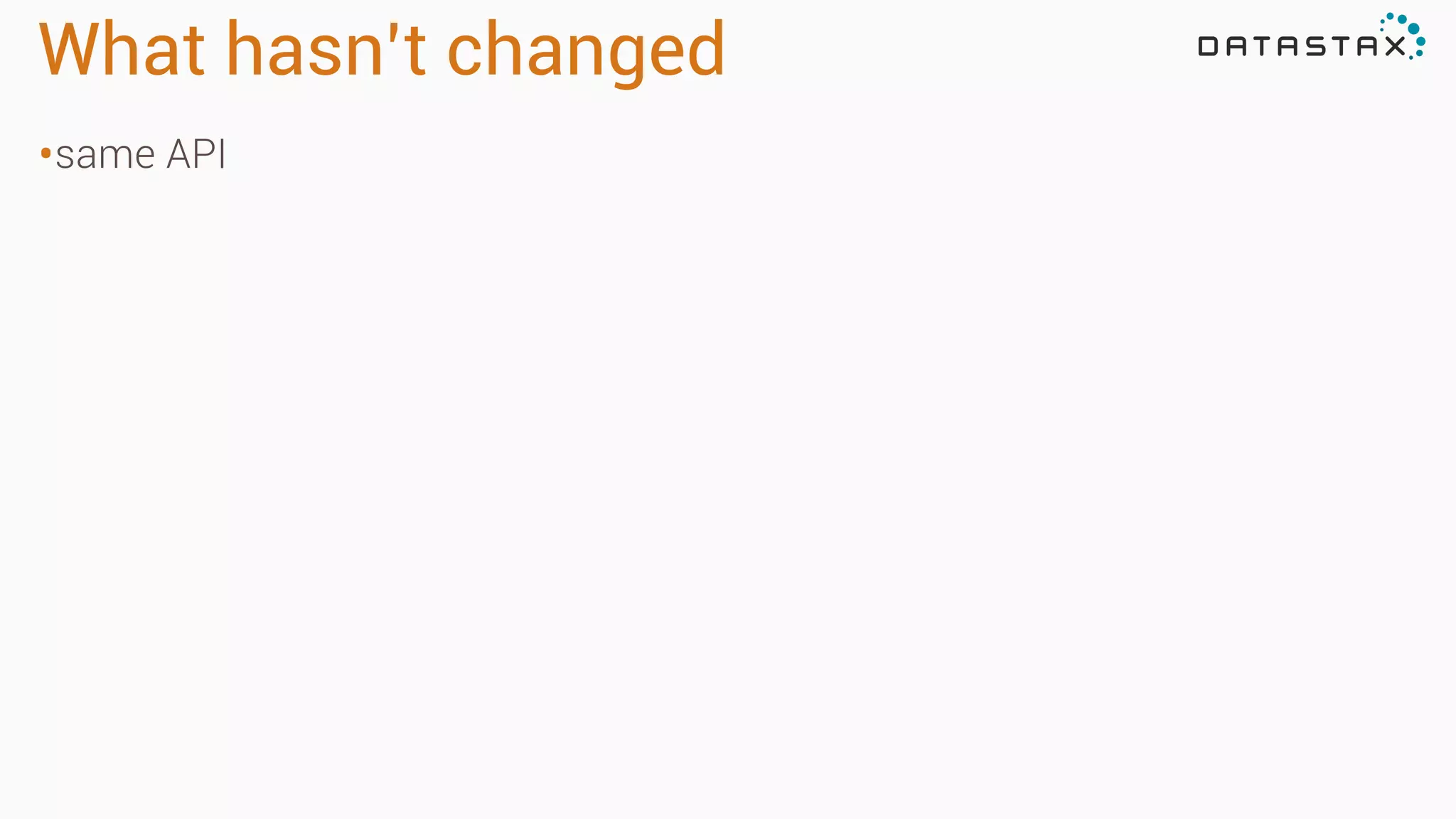

60. What hasn’t changed
•same API

61. What hasn’t changed
•same API
•same average throughput

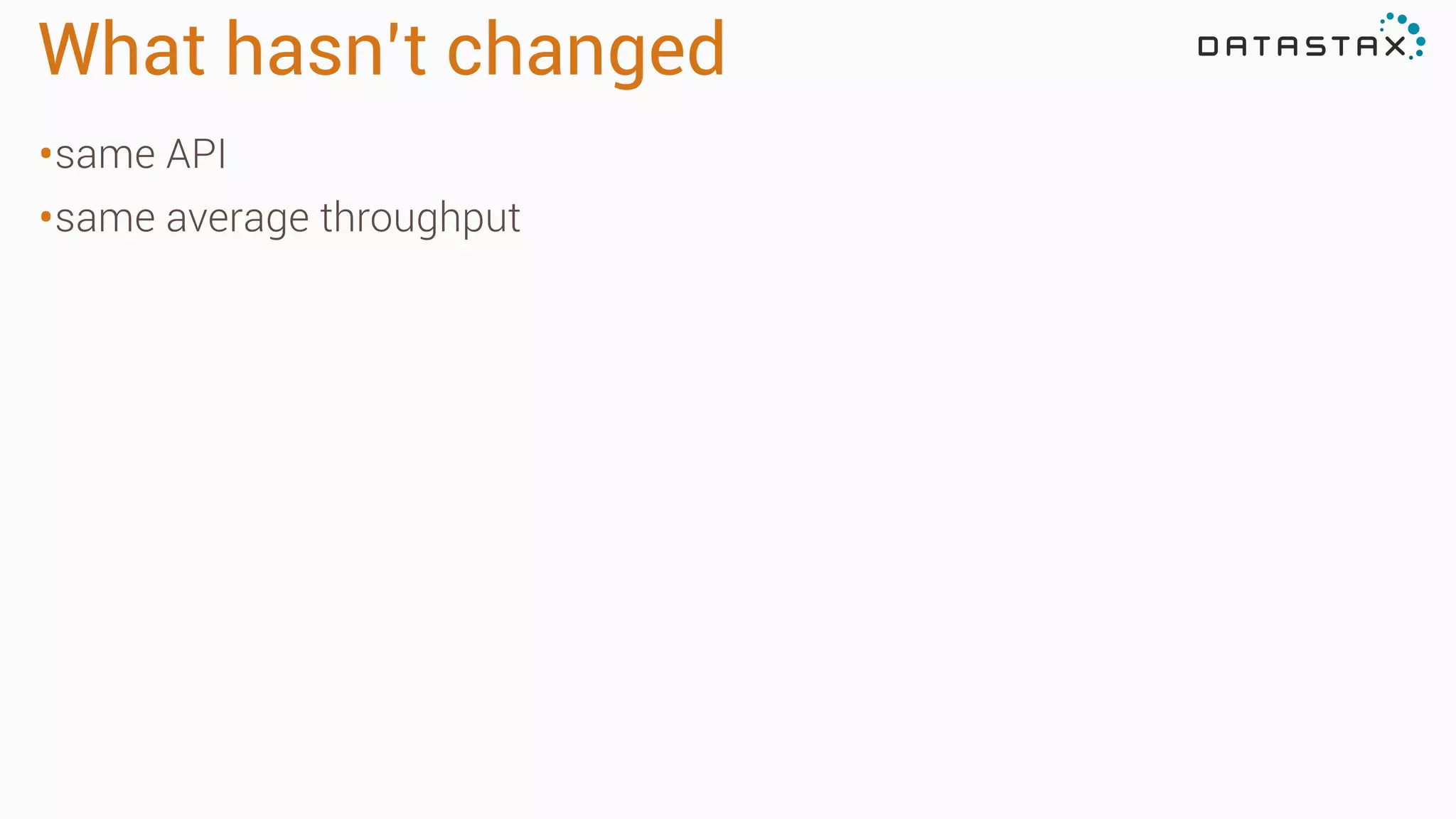

62. What hasn’t changed
•same API
•same average throughput
•same restrictions on mixing counter and non-counter columns

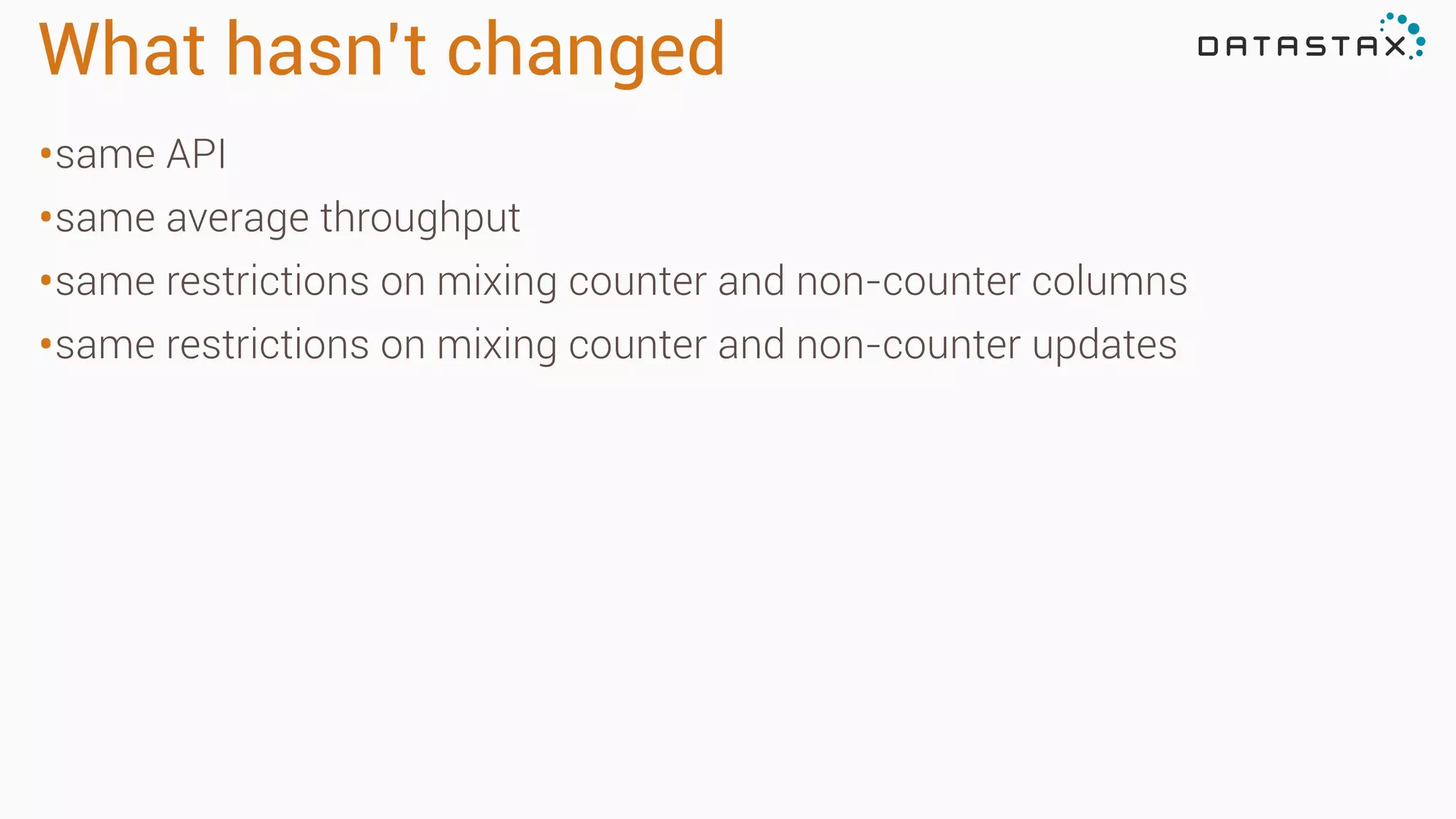

63. What hasn’t changed
•same API
•same average throughput
•same restrictions on mixing counter and non-counter columns
•same restrictions on mixing counter and non-counter updates

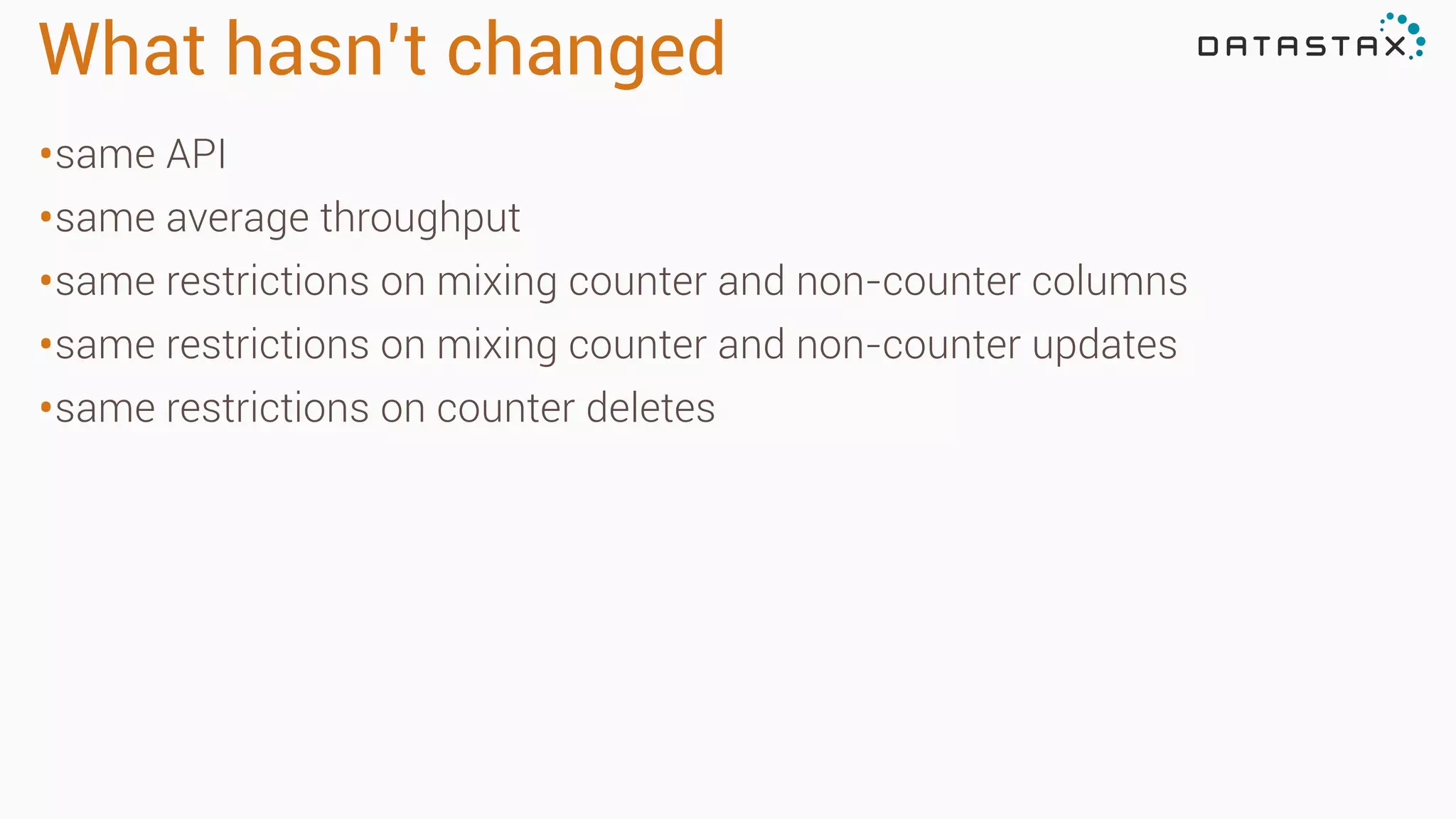

64. What hasn’t changed
•same API
•same average throughput
•same restrictions on mixing counter and non-counter columns
•same restrictions on mixing counter and non-counter updates
•same restrictions on counter deletes

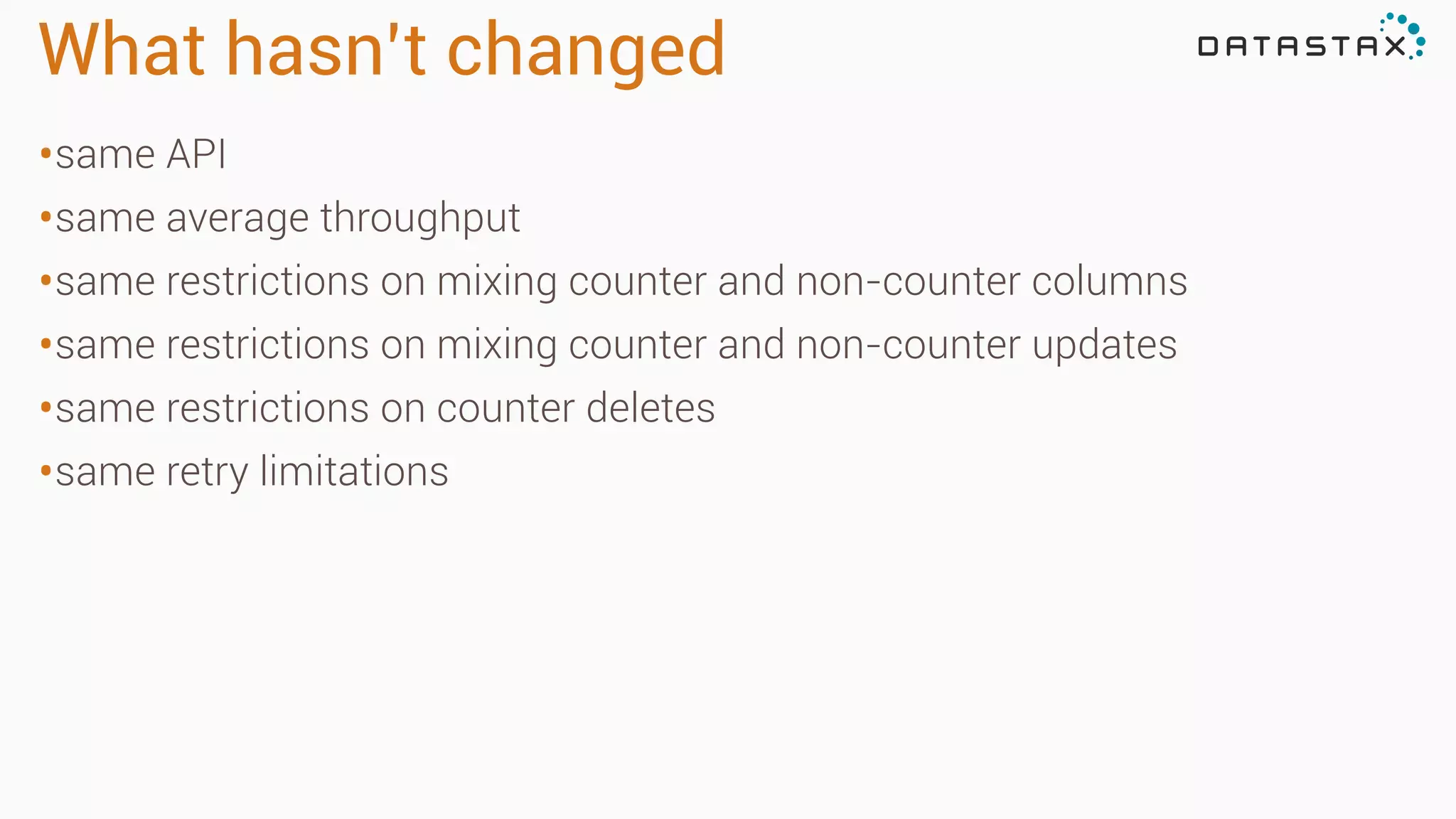

65. What hasn’t changed
•same API
•same average throughput
•same restrictions on mixing counter and non-counter columns
•same restrictions on mixing counter and non-counter updates
•same restrictions on counter deletes
•same retry limitations

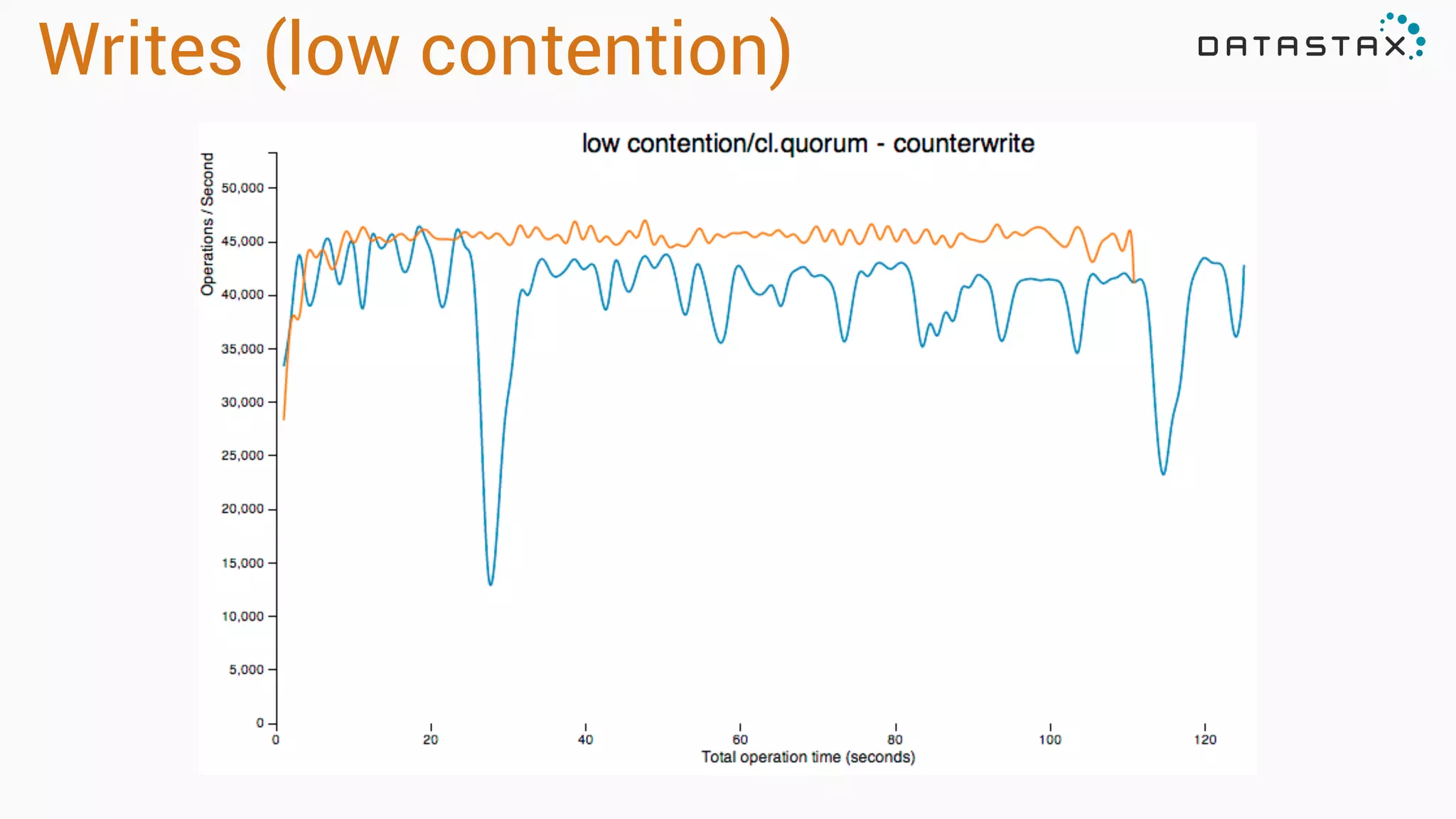

66. Writes (low contention)

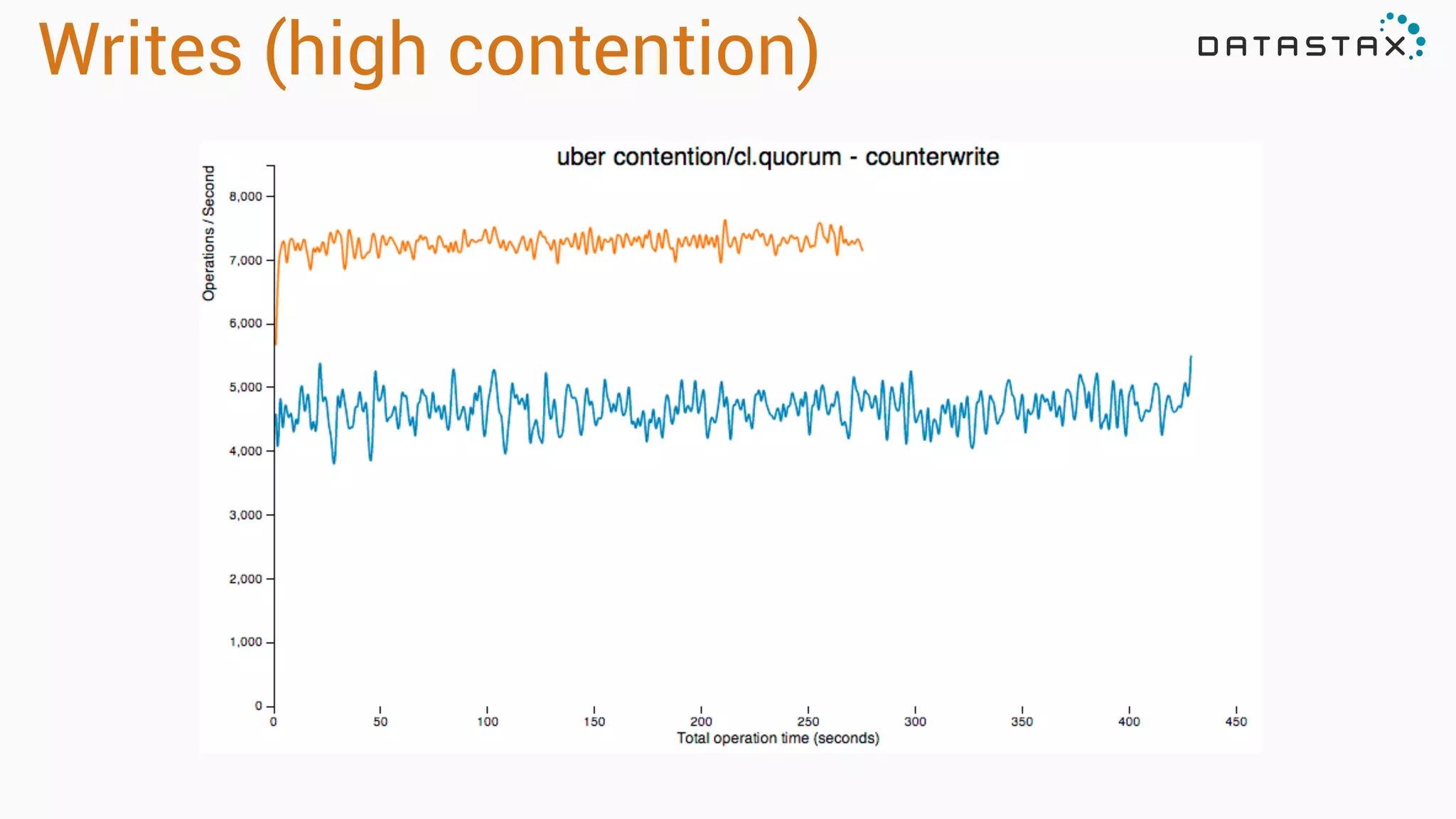

67. Writes (high contention)

68. Data directories (2.0)
/var/lib/cassandra/data/foo/bar/foo-bar-jb-1-CompressionInfo.db
/var/lib/cassandra/data/foo/bar/foo-bar-jb-1-Data.db
/var/lib/cassandra/data/foo/bar/foo-bar-jb-1-Filter.db
/var/lib/cassandra/data/foo/bar/foo-bar-jb-1-Index.db
/var/lib/cassandra/data/foo/bar/foo-bar-jb-1-Statistics.db
/var/lib/cassandra/data/foo/bar/foo-bar-jb-1-Summary.db
/var/lib/cassandra/data/foo/bar/foo-bar-jb-1-TOC.txt

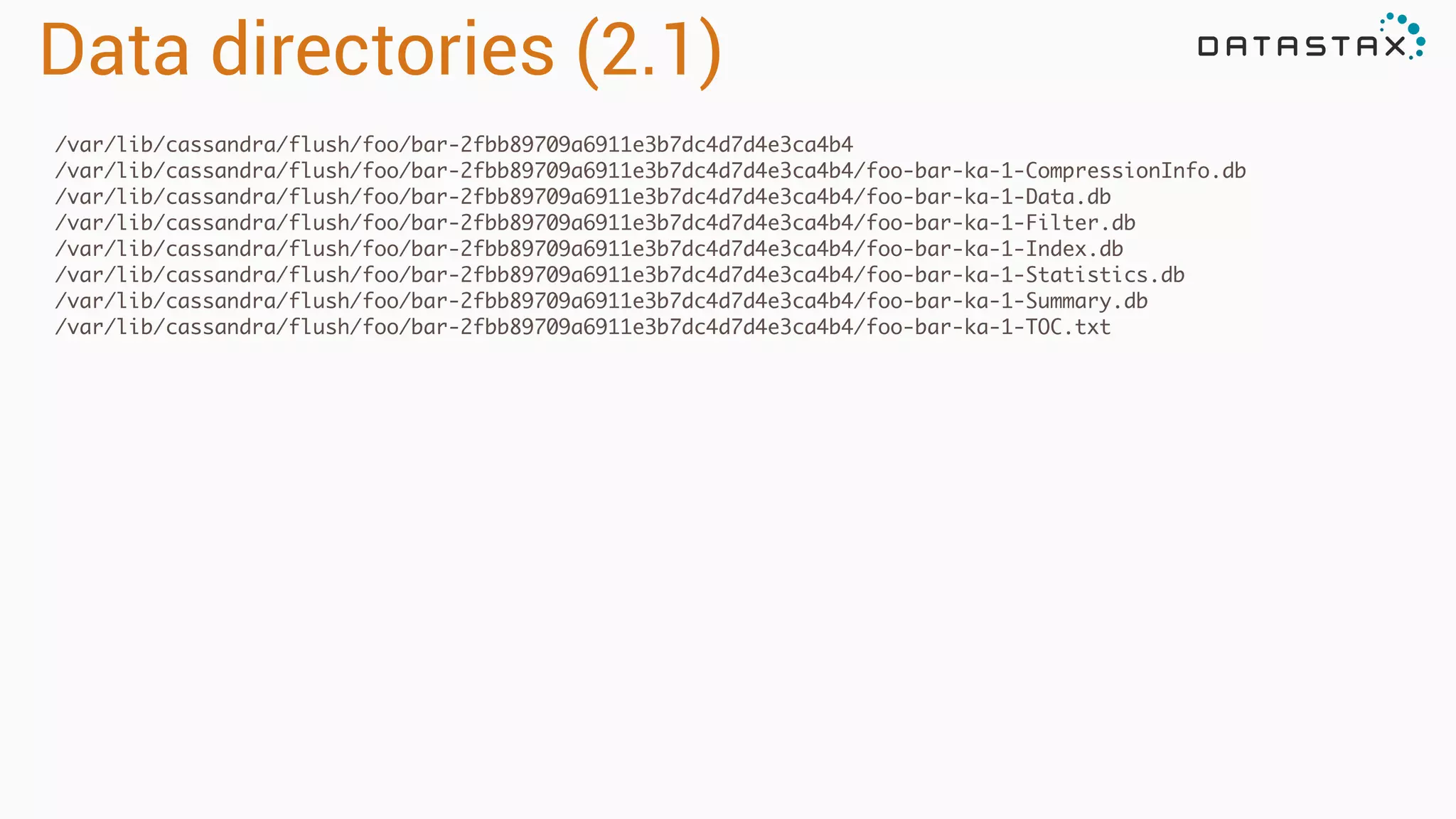

69. Data directories (2.1)
/var/lib/cassandra/flush/foo/bar-2fbb89709a6911e3b7dc4d7d4e3ca4b4
/var/lib/cassandra/flush/foo/bar-2fbb89709a6911e3b7dc4d7d4e3ca4b4/foo-bar-ka-1-CompressionInfo.db
/var/lib/cassandra/flush/foo/bar-2fbb89709a6911e3b7dc4d7d4e3ca4b4/foo-bar-ka-1-Data.db
/var/lib/cassandra/flush/foo/bar-2fbb89709a6911e3b7dc4d7d4e3ca4b4/foo-bar-ka-1-Filter.db
/var/lib/cassandra/flush/foo/bar-2fbb89709a6911e3b7dc4d7d4e3ca4b4/foo-bar-ka-1-Index.db
/var/lib/cassandra/flush/foo/bar-2fbb89709a6911e3b7dc4d7d4e3ca4b4/foo-bar-ka-1-Statistics.db
/var/lib/cassandra/flush/foo/bar-2fbb89709a6911e3b7dc4d7d4e3ca4b4/foo-bar-ka-1-Summary.db
/var/lib/cassandra/flush/foo/bar-2fbb89709a6911e3b7dc4d7d4e3ca4b4/foo-bar-ka-1-TOC.txt

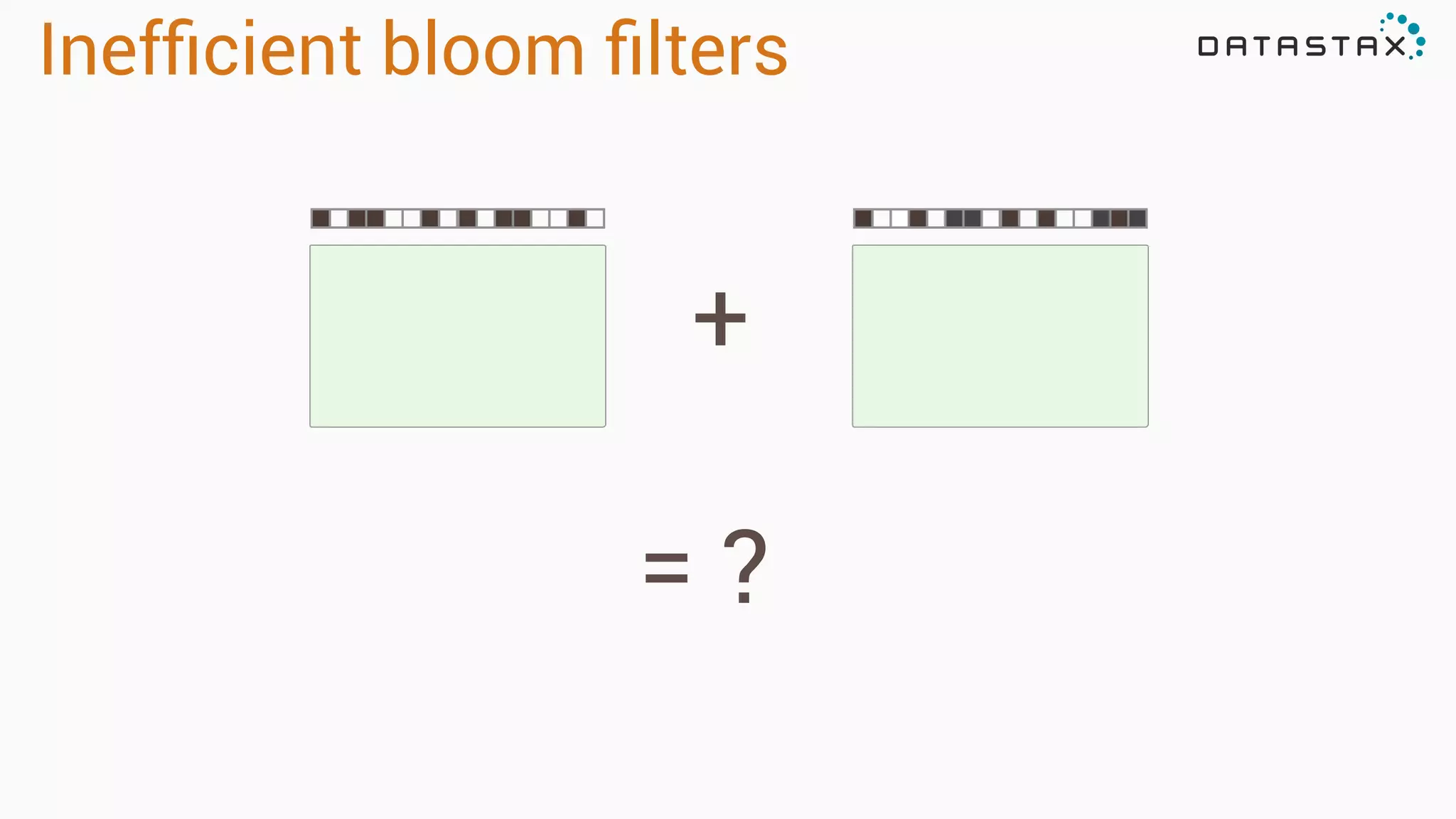

70. Inefficient bloom filters
+
= ?

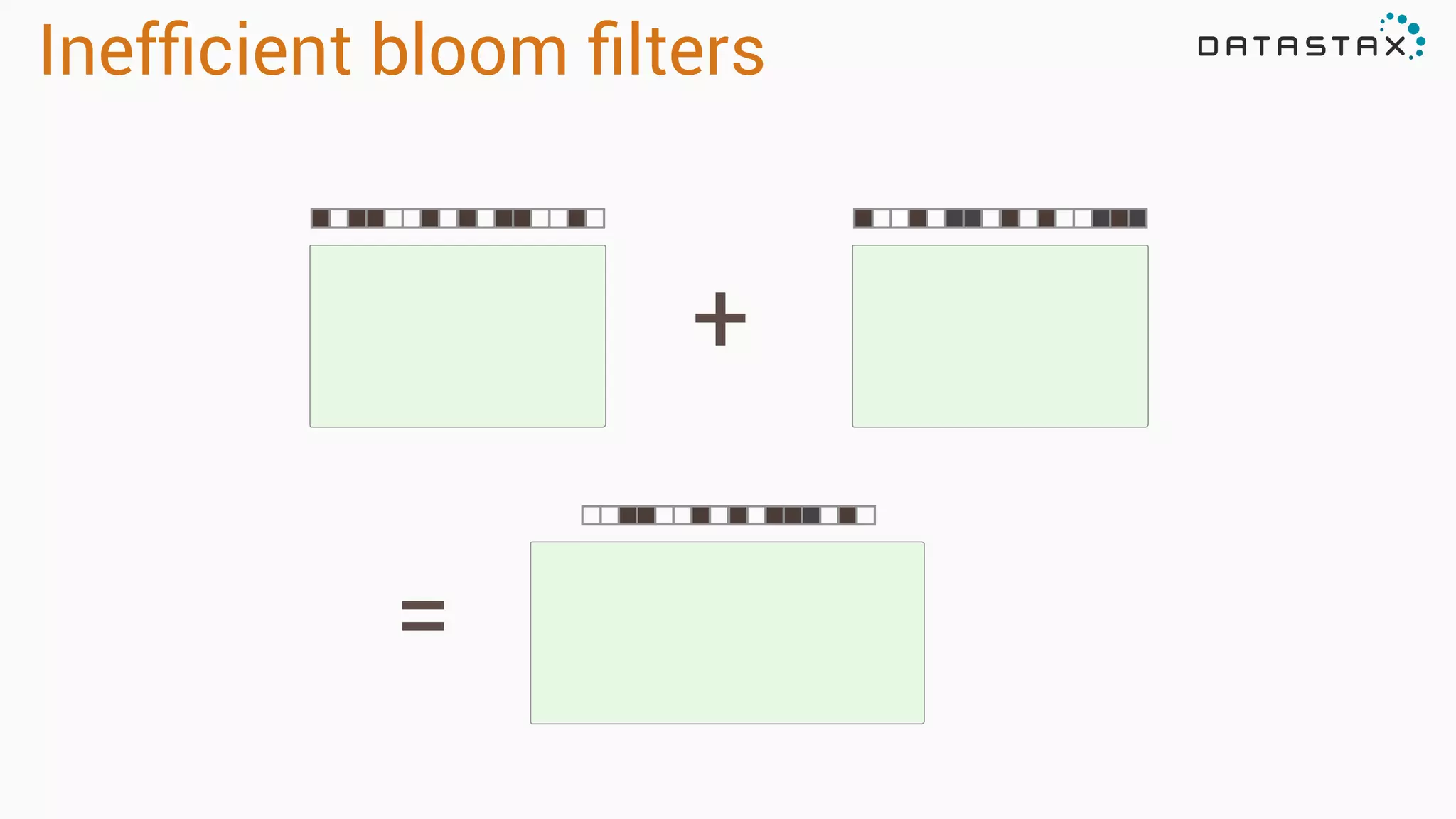

71. +
=
Inefficient bloom filters

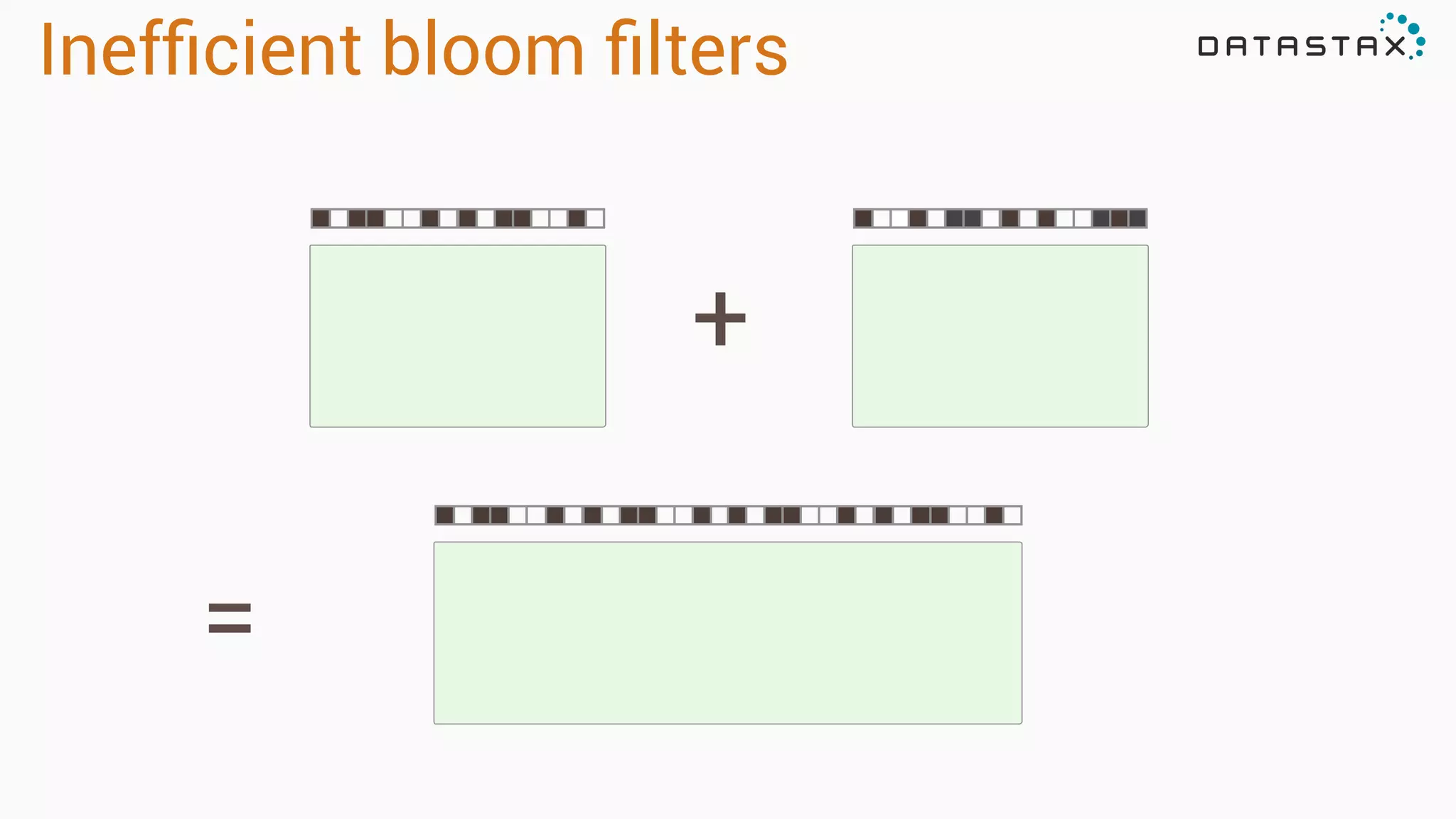

72. +
=
Inefficient bloom filters

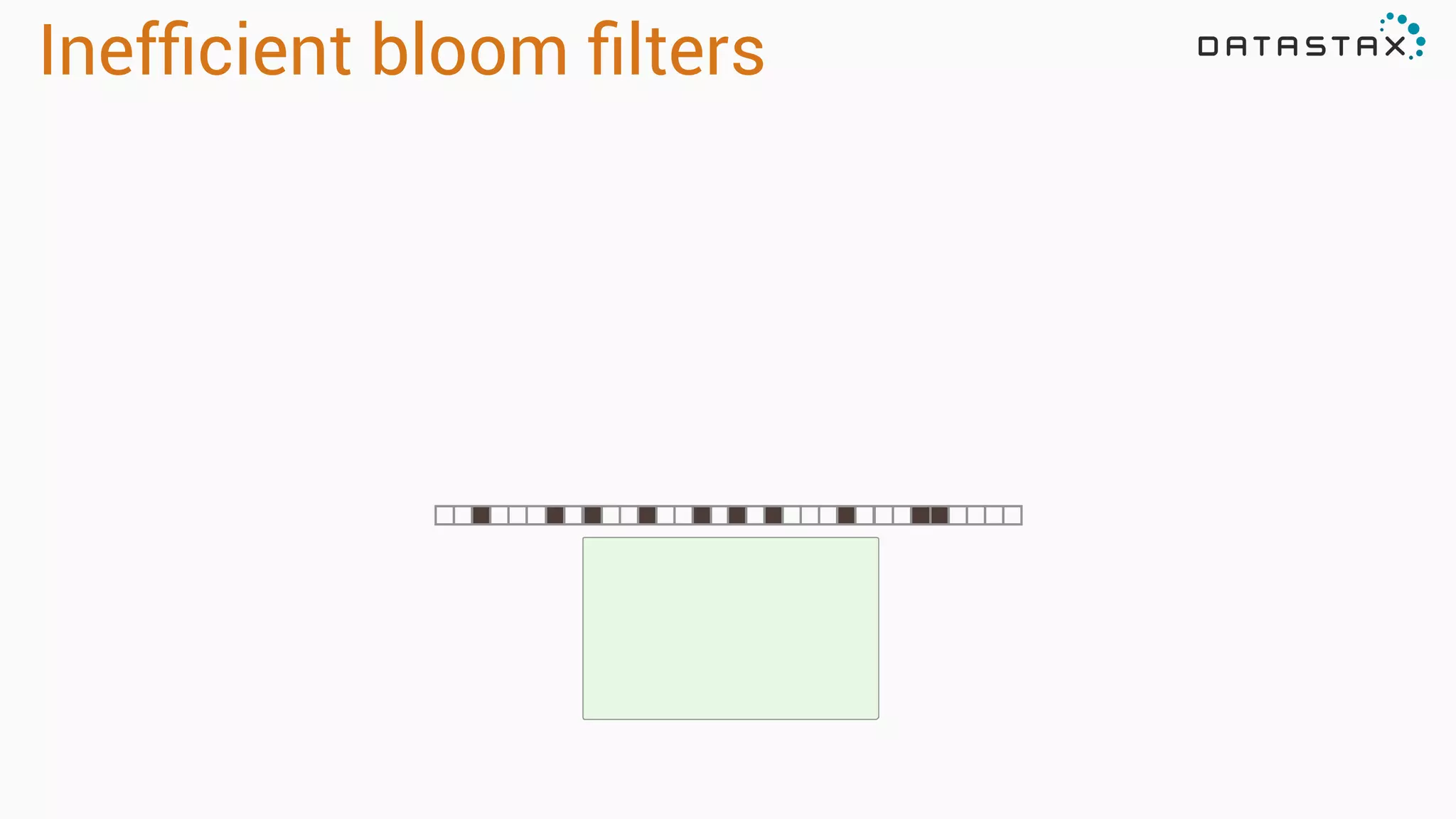

73. Inefficient bloom filters

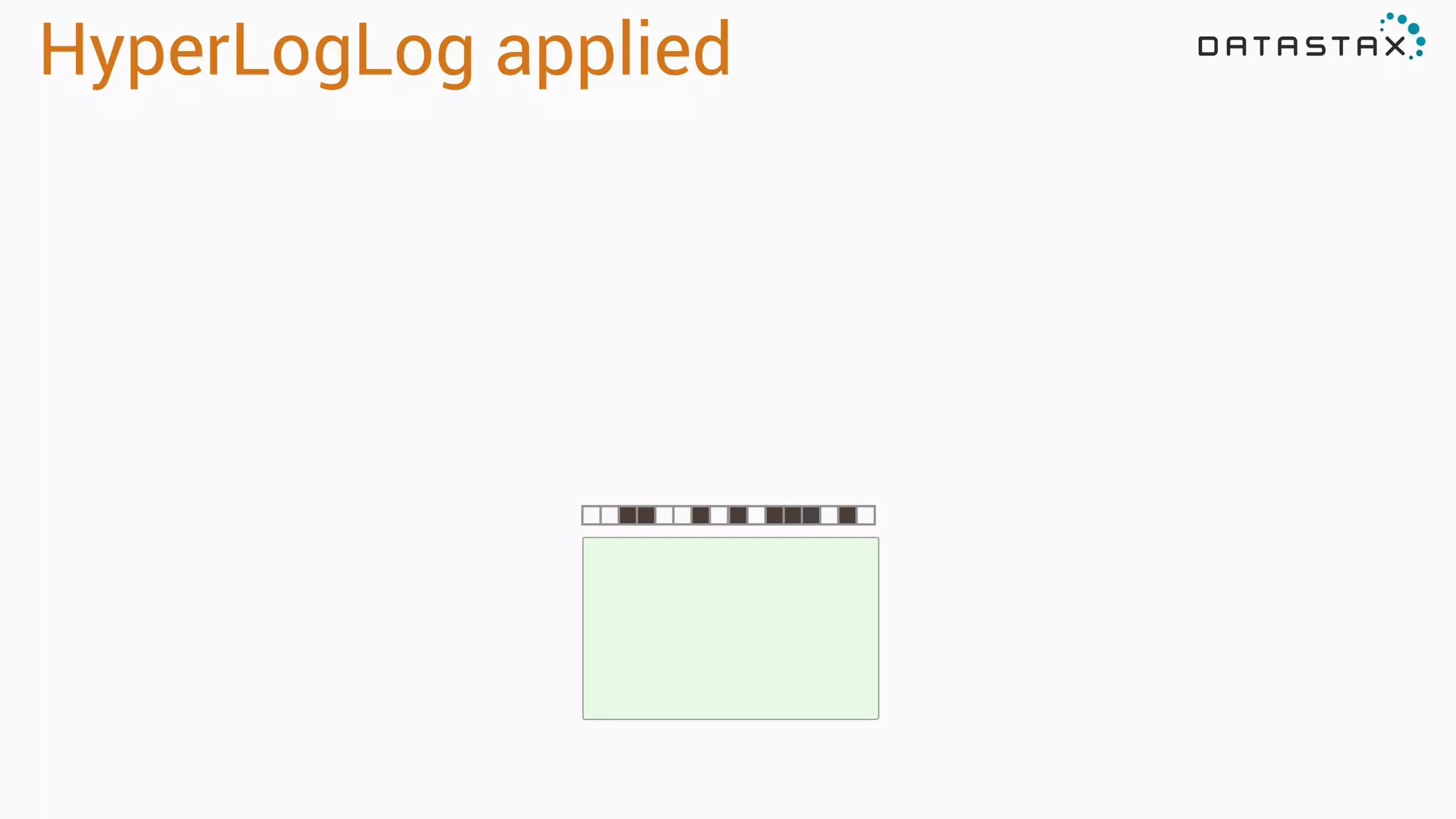

74. HyperLogLog applied

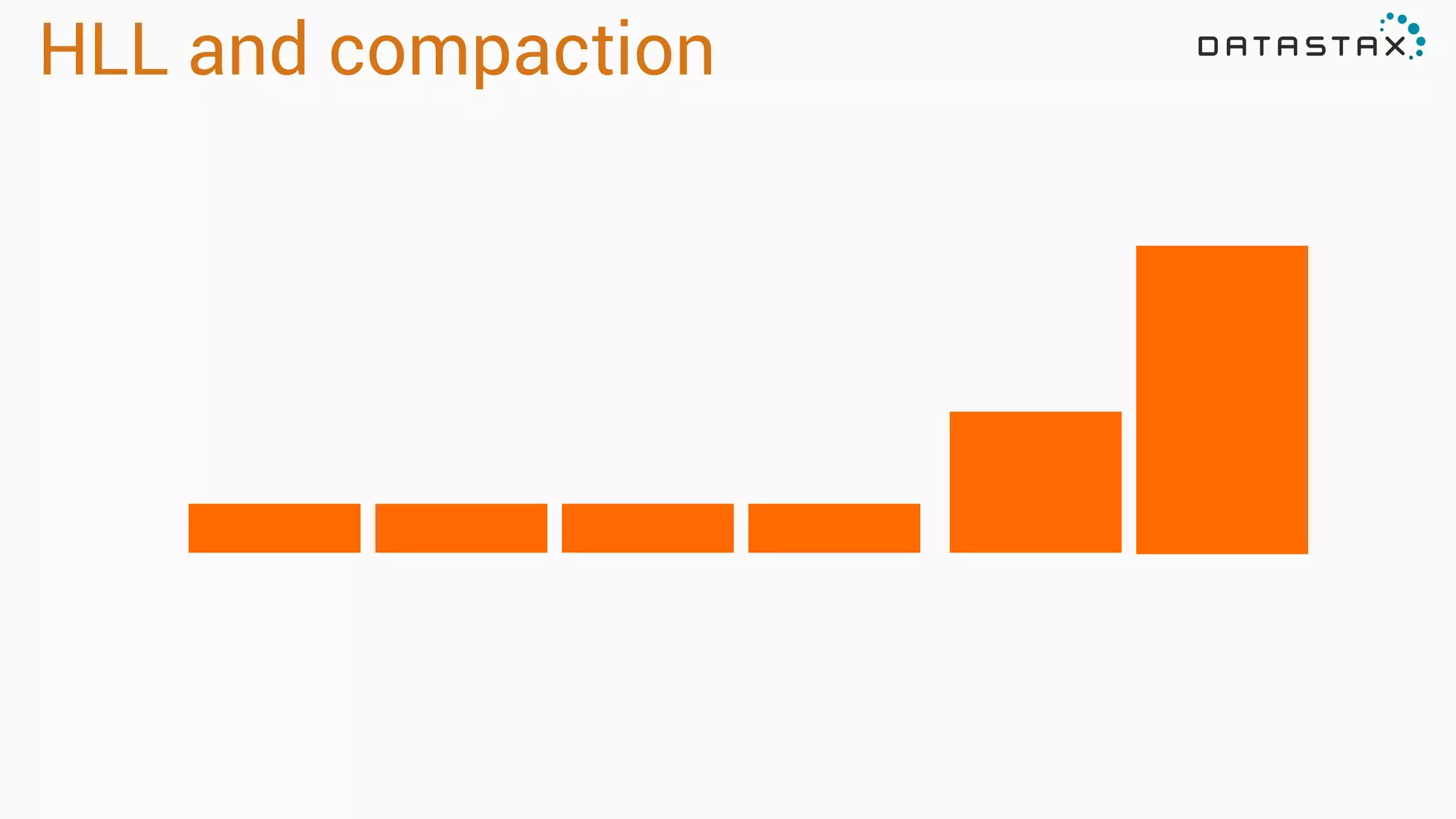

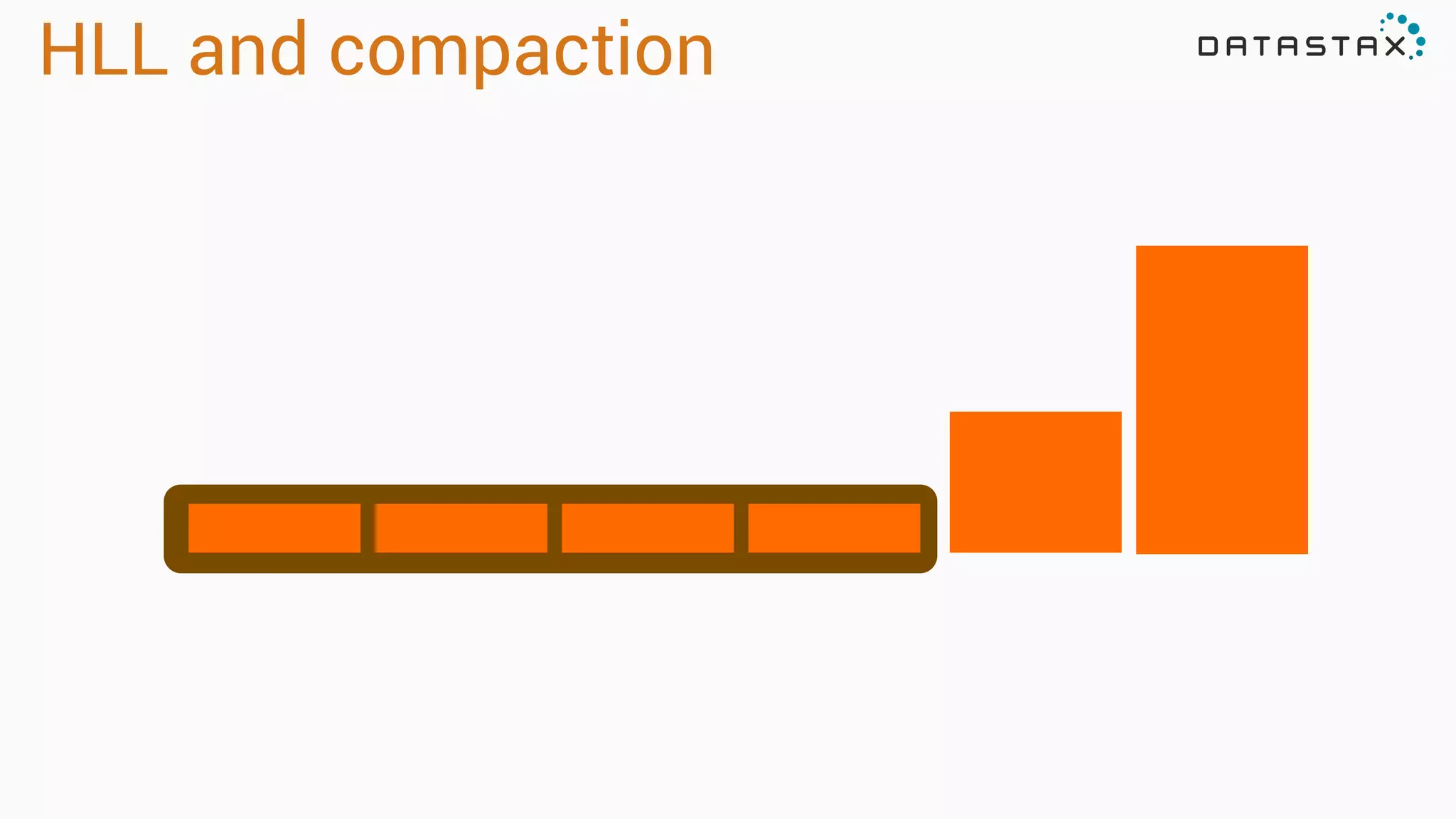

75. HLL and compaction

76. HLL and compaction

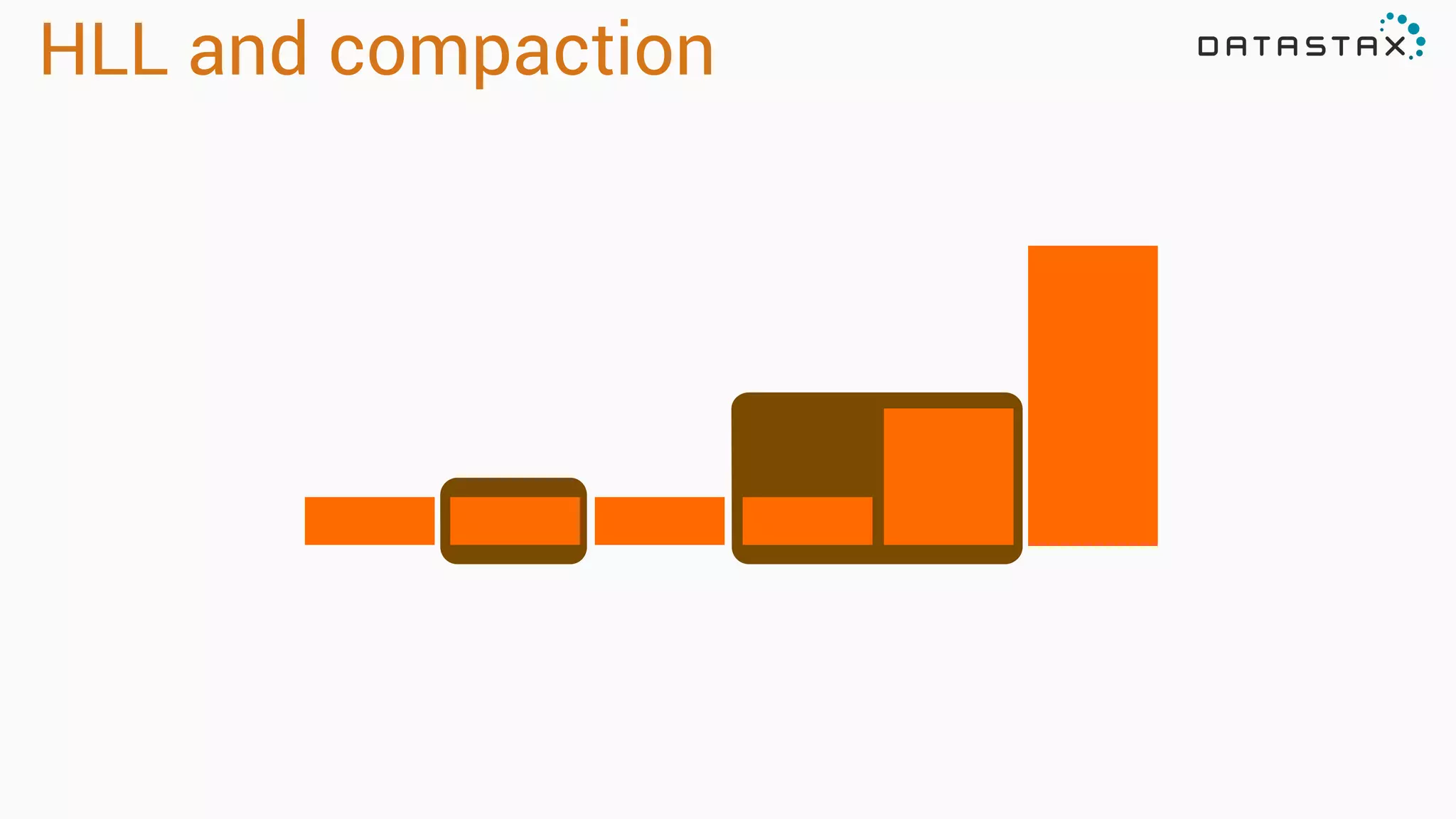

77. HLL and compaction

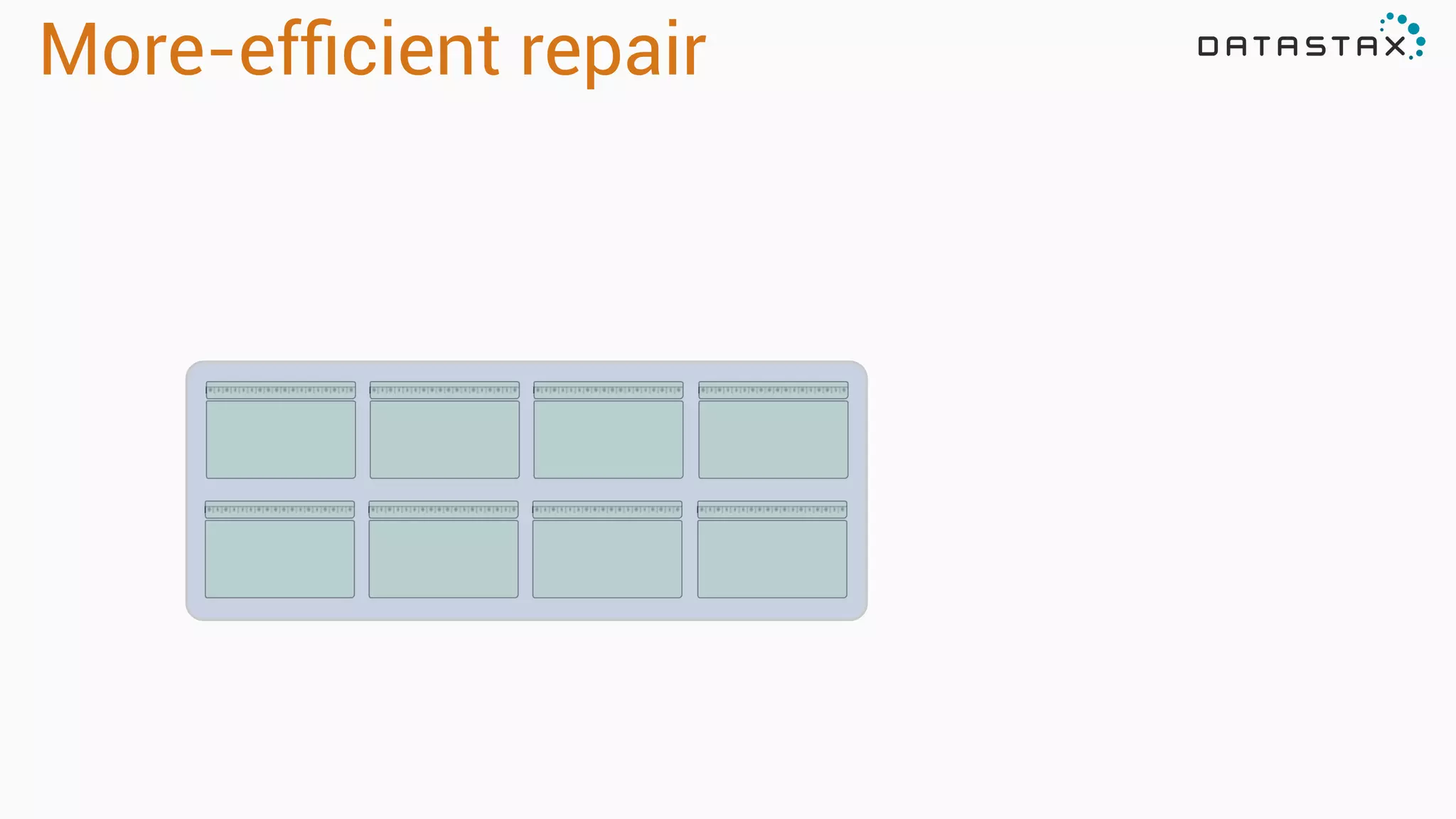

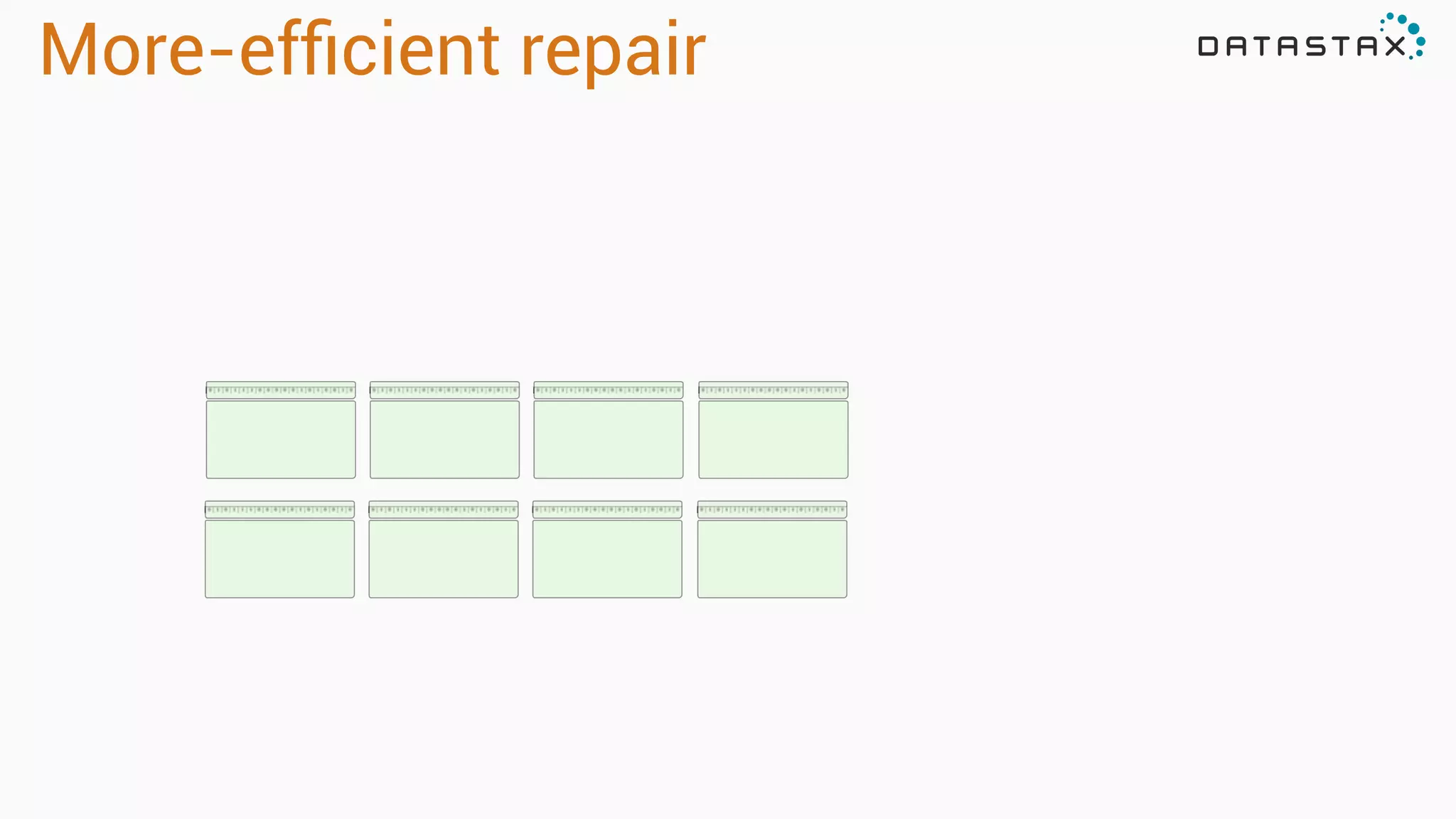

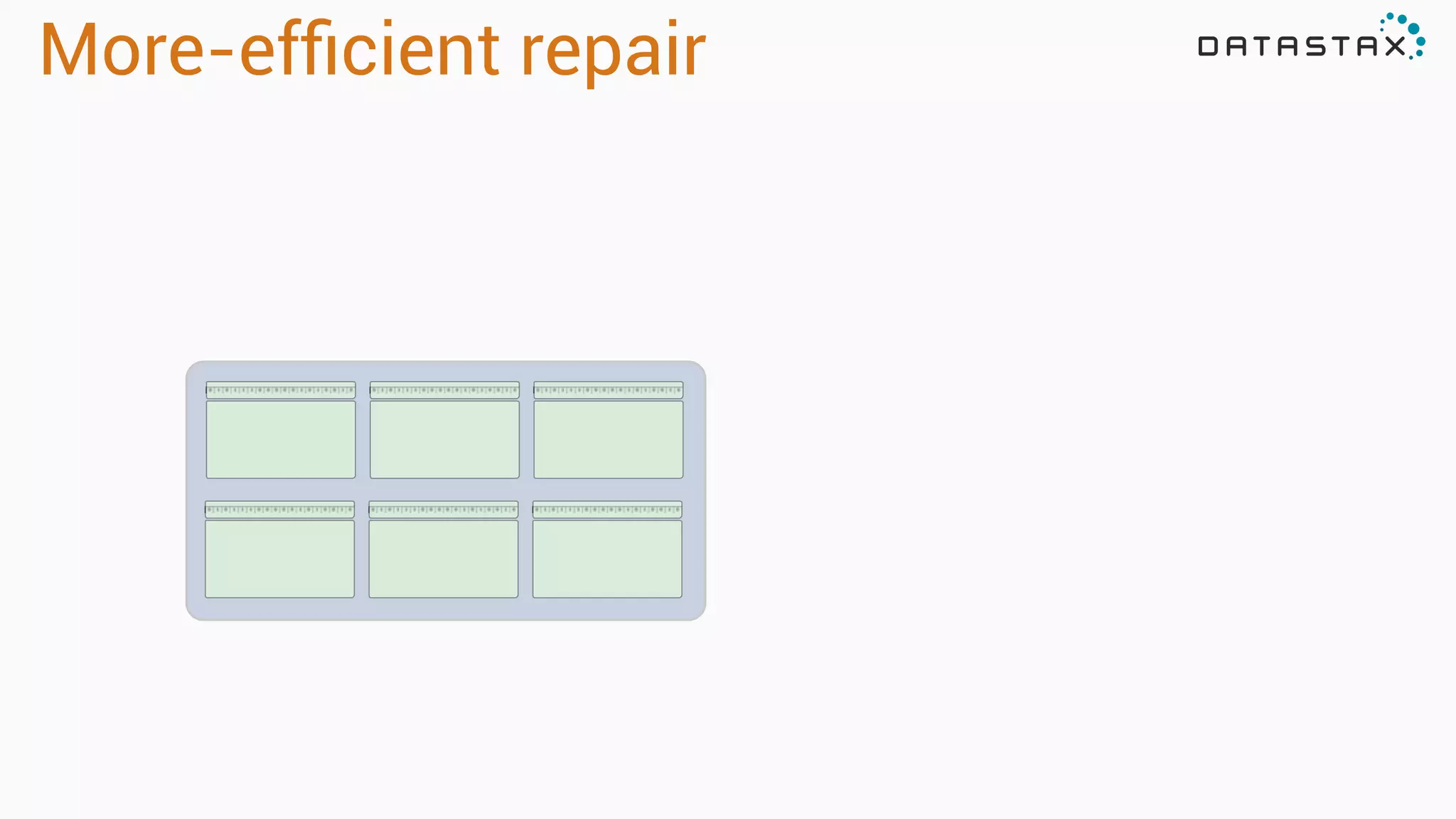

78. More-efficient repair

79. More-efficient repair

80. More-efficient repair

81. More-efficient repair

82. More-efficient repair

83. More-efficient repair

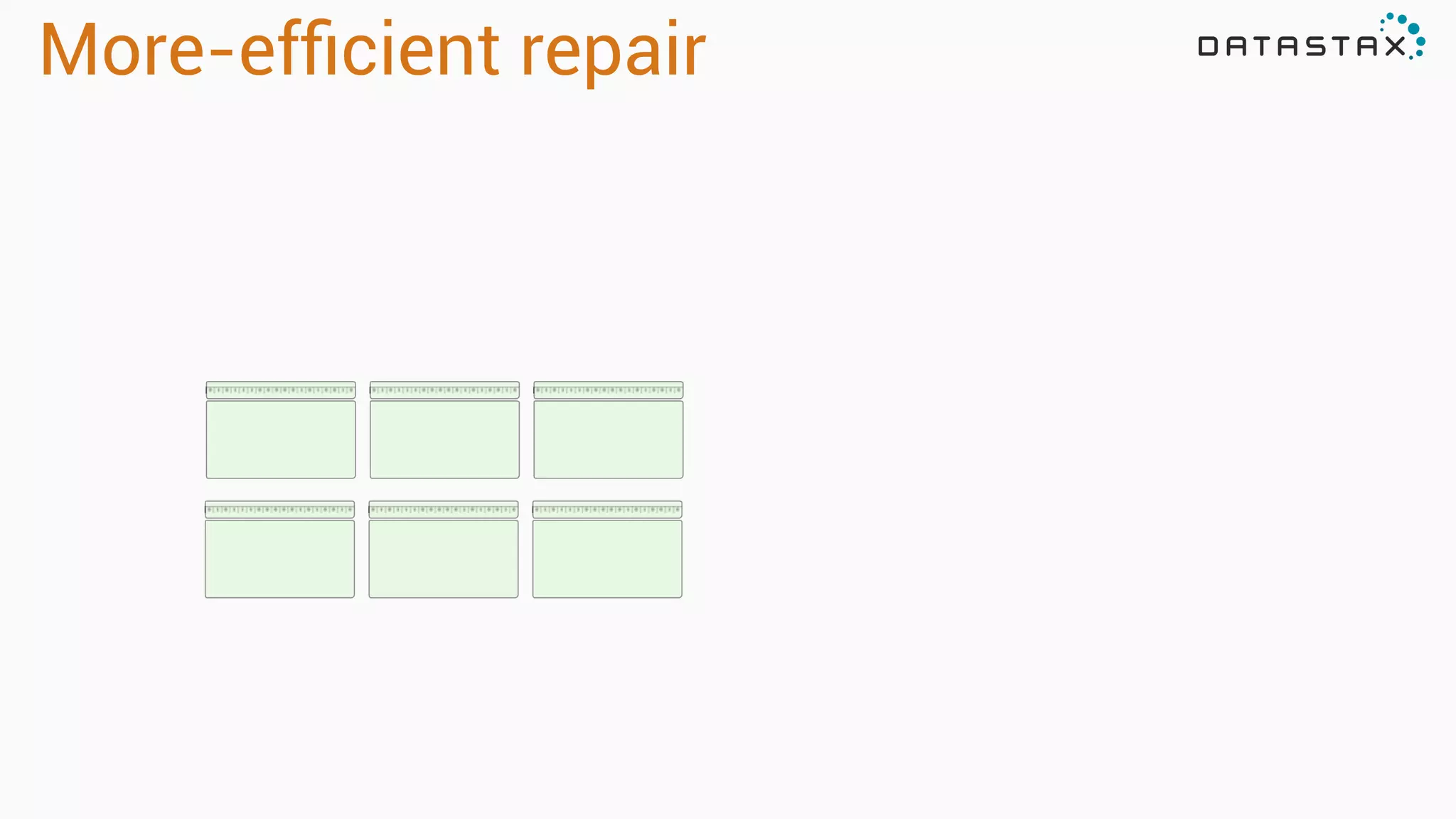

84. More-efficient repair

85. More-efficient repair

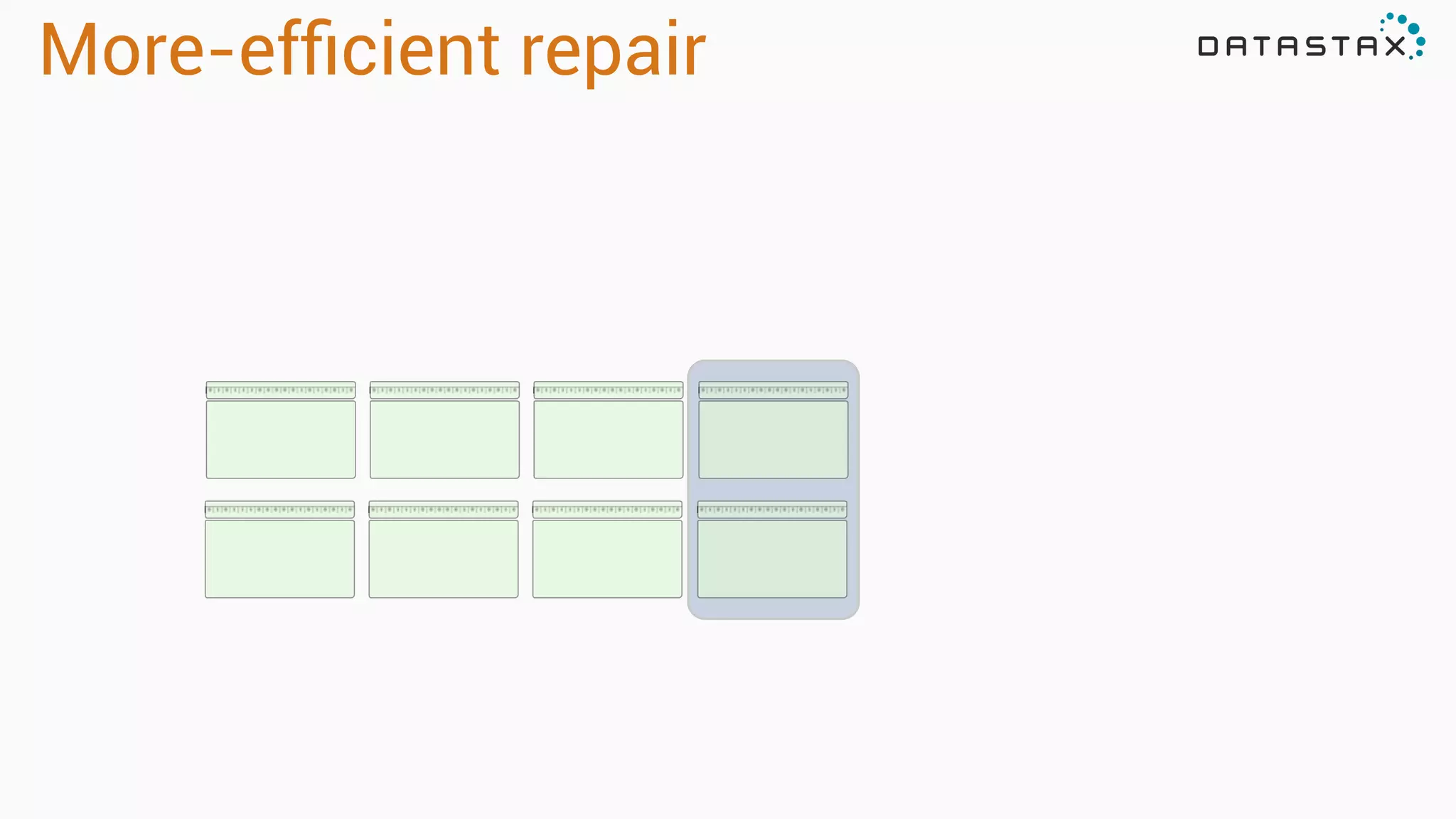

86. More-efficient repair

87. Implications for LCS (and STCS)

88. The new query cache

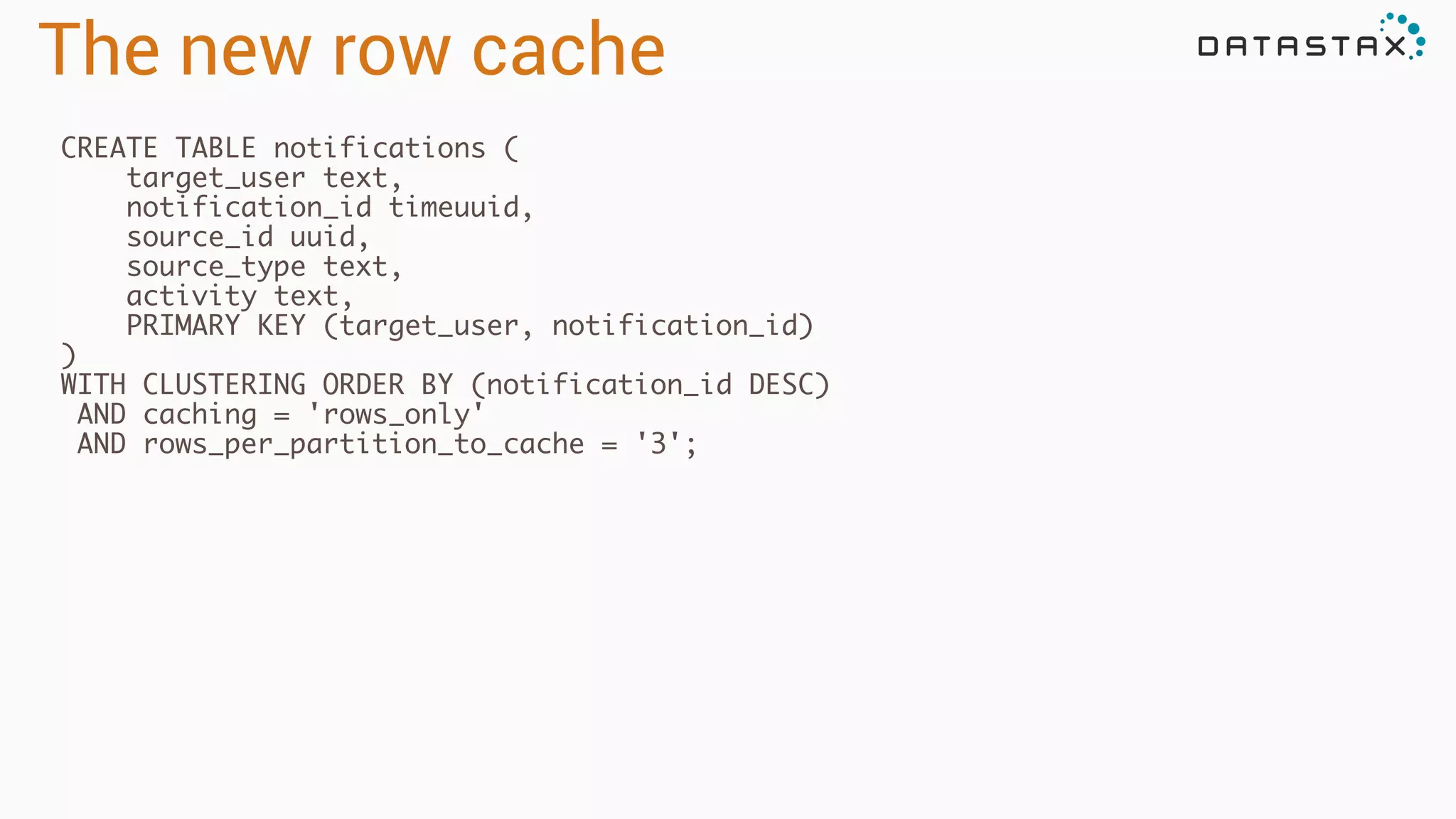

89. The new row cache
CREATE TABLE notifications (
target_user text,
notification_id timeuuid,
source_id uuid,
source_type text,
activity text,
PRIMARY KEY (target_user, notification_id)
)
WITH CLUSTERING ORDER BY (notification_id DESC)
AND caching = 'rows_only'
AND rows_per_partition_to_cache = '3';
!

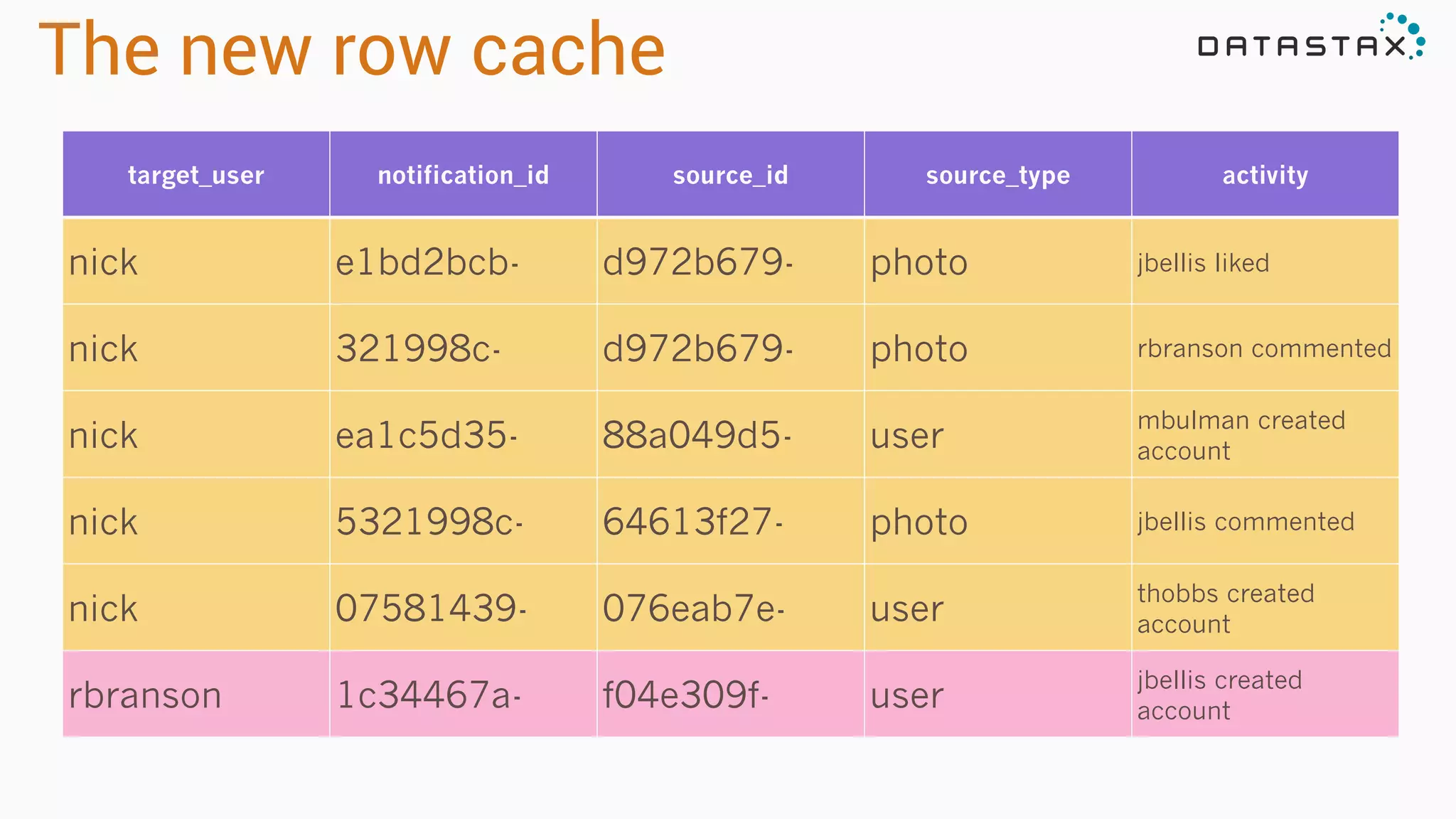

90. The new row cache
target_user notification_id source_id source_type activity
nick e1bd2bcb- d972b679- photo jbellis liked
nick 321998c- d972b679- photo rbranson commented
nick ea1c5d35- 88a049d5- user
mbulman created
account
nick 5321998c- 64613f27- photo jbellis commented
nick 07581439- 076eab7e- user
thobbs created
account
rbranson 1c34467a- f04e309f- user
jbellis created
account

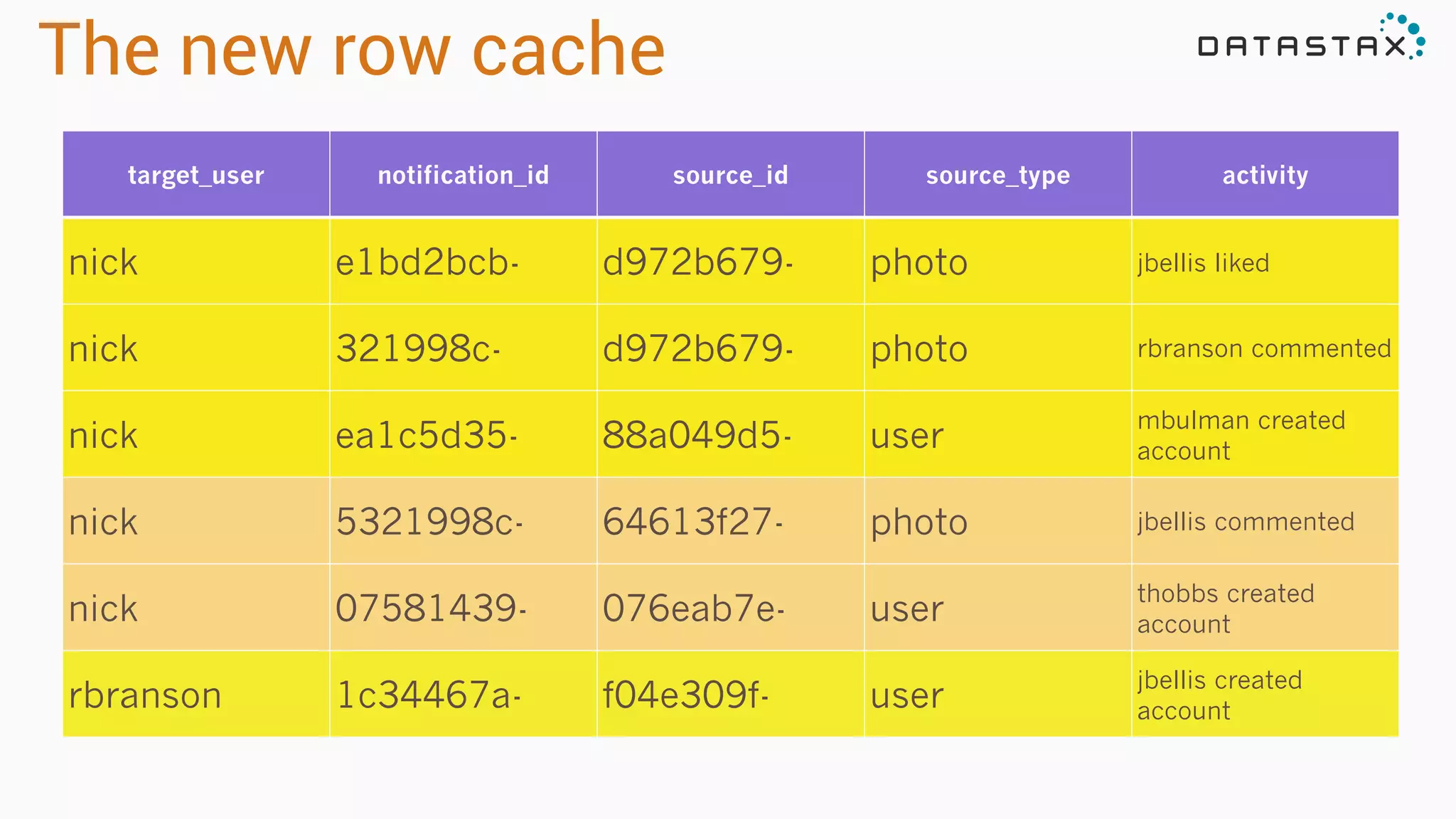

91. The new row cache
target_user notification_id source_id source_type activity
nick e1bd2bcb- d972b679- photo jbellis liked
nick 321998c- d972b679- photo rbranson commented
nick ea1c5d35- 88a049d5- user
mbulman created
account
nick 5321998c- 64613f27- photo jbellis commented
nick 07581439- 076eab7e- user
thobbs created
account
rbranson 1c34467a- f04e309f- user
jbellis created
account

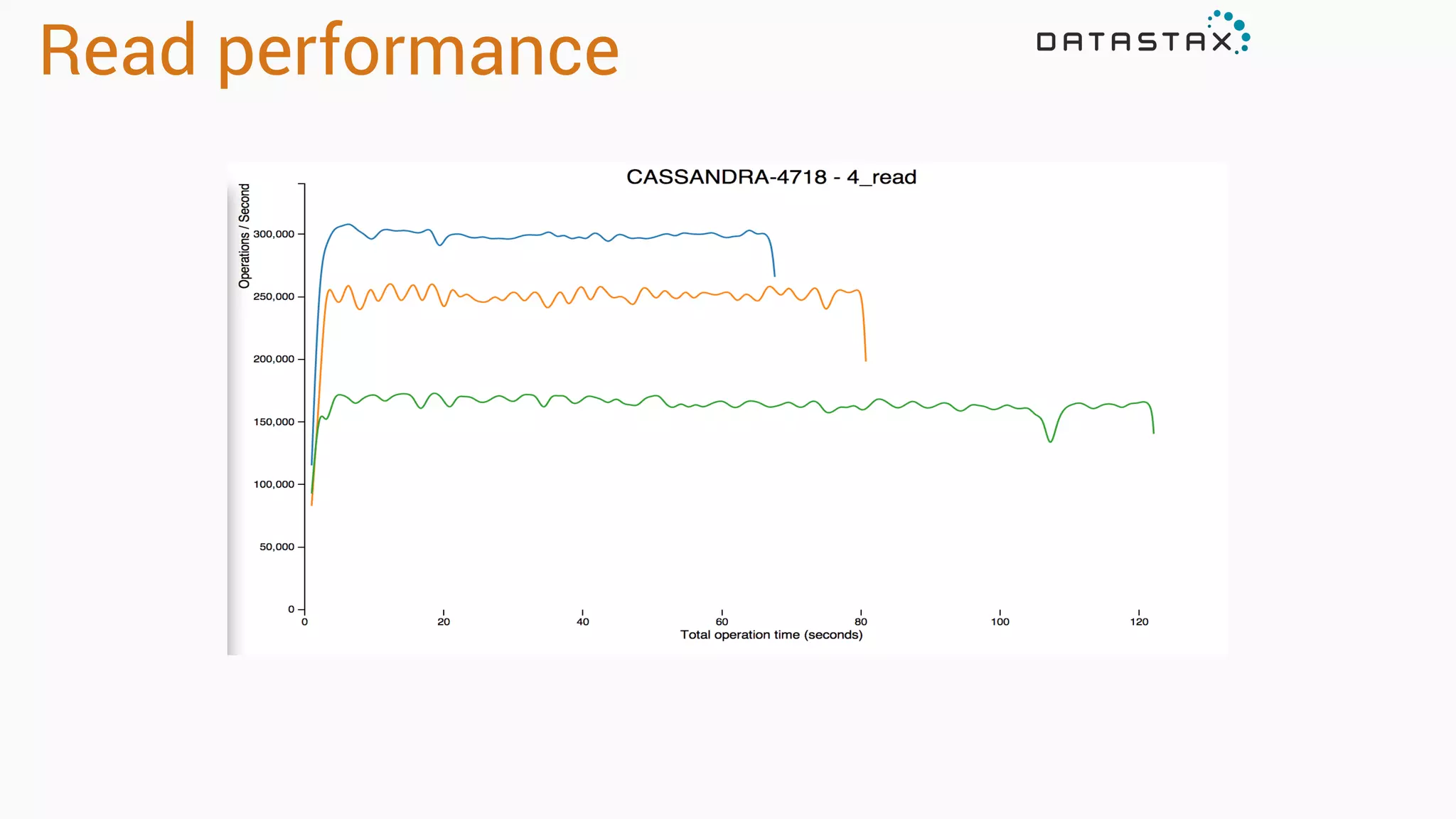

92. Read performance

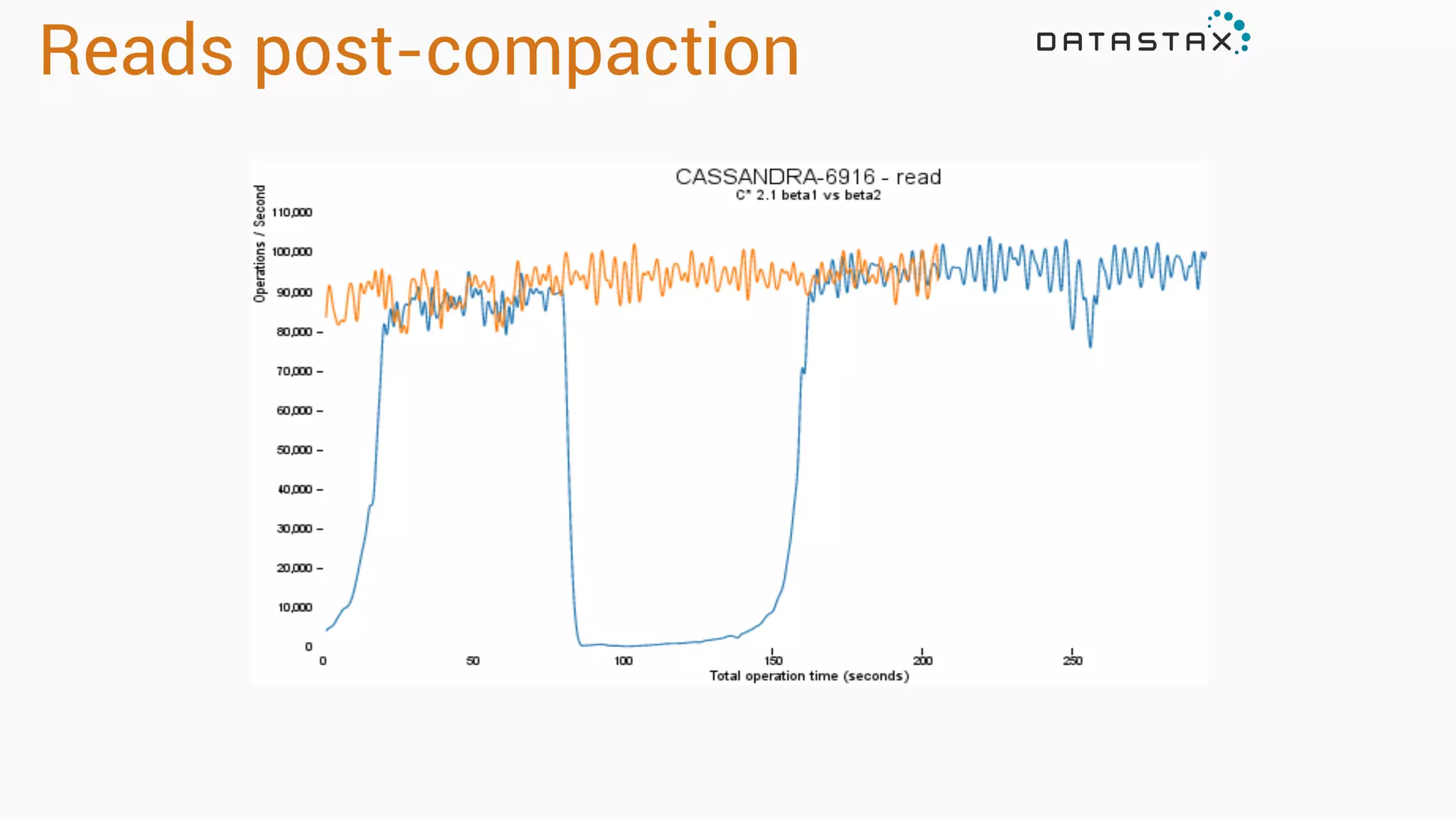

93. Reads post-compaction

94. Questions?
