The document discusses 3 urban project case studies: The Grove at Grand Bay residential towers in Miami designed by BIG to incorporate landscaping and unique views; the 8 House development in Copenhagen comprising 476 residences designed by BIG; and the Jewish Museum in Berlin and Felix Nussbaum Museum in Germany both designed by Daniel Libeskind to represent Jewish culture through their architectural forms and use of void spaces.

1. INSTITTUE OF ARCHITECTURE
H.N.G.U – PATAN
URBAN SEMINAR
Urban project case studies:- The Grove at Grand Bay, 8 house,
Jewish museum and Felix Nussbaum
Museum
SUBMITTED BY:-
ISHAN JAIN, PARV DHONDE,
SHREYA RASTOGI, DEESHA KHAMAR,
HITAISHEE
B.ARCH SEM-IX
SUBMITTING TO:-
AR. MAYANK PATEL
FACULTY:- B.ARCH SEM-IX

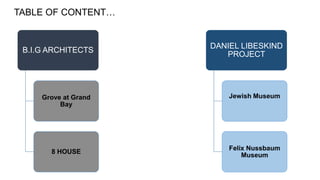

2. TABLE OF CONTENT…
B.I.G ARCHITECTS
Grove at Grand
Bay
8 HOUSE
DANIEL LIBESKIND
PROJECT
Jewish Museum
Felix Nussbaum
Museum

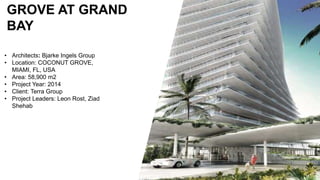

3. GROVE AT GRAND
BAY
• Architects: Bjarke Ingels Group
• Location: COCONUT GROVE,
MIAMI, FL, USA
• Area: 58,900 m2
• Project Year: 2014
• Client: Terra Group
• Project Leaders: Leon Rost, Ziad
Shehab

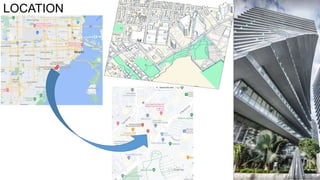

4. LOCATION

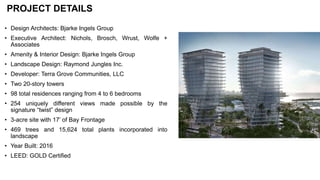

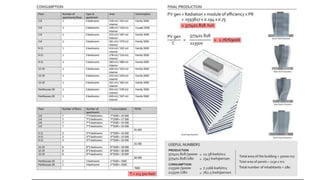

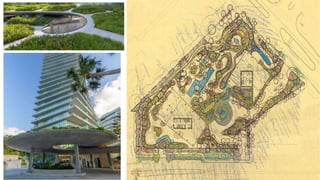

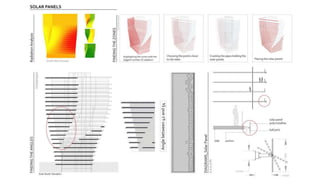

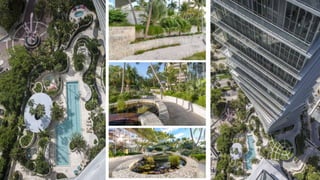

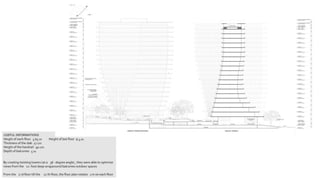

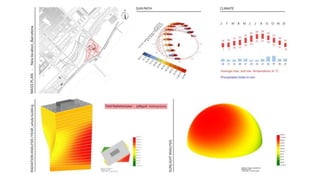

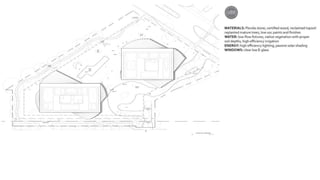

5. PROJECT DETAILS
• Design Architects: Bjarke Ingels Group
• Executive Architect: Nichols, Brosch, Wrust, Wolfe +
Associates
• Amenity & Interior Design: Bjarke Ingels Group
• Landscape Design: Raymond Jungles Inc.
• Developer: Terra Grove Communities, LLC
• Two 20-story towers
• 98 total residences ranging from 4 to 6 bedrooms
• 254 uniquely different views made possible by the
signature “twist” design
• 3-acre site with 17’ of Bay Frontage
• 469 trees and 15,624 total plants incorporated into
landscape
• Year Built: 2016
• LEED: GOLD Certified

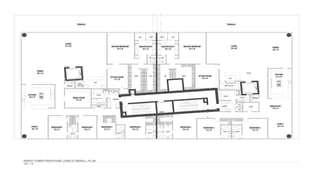

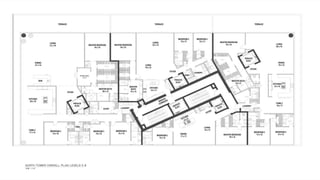

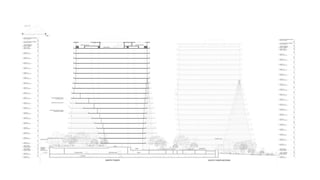

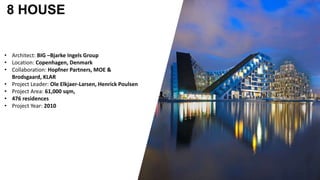

18. 8 HOUSE
• Architect: BIG –Bjarke Ingels Group
• Location: Copenhagen, Denmark
• Collaboration: Hopfner Partners, MOE &
Brodsgaard, KLAR
• Project Leader: Ole Elkjaer-Larsen, Henrick Poulsen
• Project Area: 61,000 sqm,
• 476 residences
• Project Year: 2010

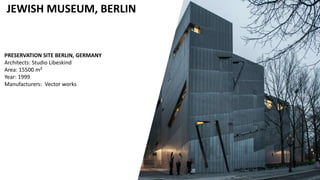

20. JEWISH MUSEUM, BERLIN
PRESERVATION SITE BERLIN, GERMANY
Architects: Studio Libeskind
Area: 15500 m²
Year: 1999
Manufacturers: Vector works

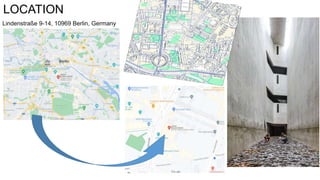

21. LOCATION
Lindenstraße 9-14, 10969 Berlin, Germany

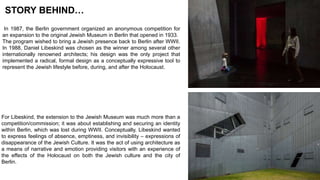

22. In 1987, the Berlin government organized an anonymous competition for
an expansion to the original Jewish Museum in Berlin that opened in 1933.
The program wished to bring a Jewish presence back to Berlin after WWII.
In 1988, Daniel Libeskind was chosen as the winner among several other
internationally renowned architects; his design was the only project that
implemented a radical, formal design as a conceptually expressive tool to
represent the Jewish lifestyle before, during, and after the Holocaust.
For Libeskind, the extension to the Jewish Museum was much more than a
competition/commission; it was about establishing and securing an identity
within Berlin, which was lost during WWII. Conceptually, Libeskind wanted
to express feelings of absence, emptiness, and invisibility – expressions of
disappearance of the Jewish Culture. It was the act of using architecture as
a means of narrative and emotion providing visitors with an experience of
the effects of the Holocaust on both the Jewish culture and the city of
Berlin.
STORY BEHIND…

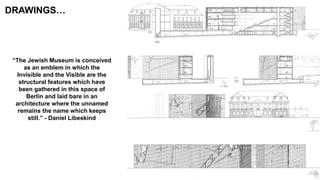

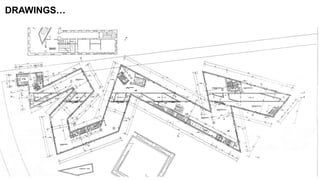

23. DRAWINGS…

24. DRAWINGS…
“The Jewish Museum is conceived
as an emblem in which the
Invisible and the Visible are the
structural features which have
been gathered in this space of
Berlin and laid bare in an
architecture where the unnamed
remains the name which keeps
still.” - Daniel Libeskind

25. Libeskind wanted to express feelings of absence,
emptiness, and invisibility – expressions of disappearance
of the Jewish Culture.
The form is established through a process of connecting
lines between locations of historical events that provide
structure for the building resulting in a literal extrusion of
those lines into a “zig-zag” building form
In order to enter the new museum extension one must enter from
the original Baroque museum in an underground corridor. A visitor
must endure the anxiety of hiding and losing the sense of direction
before coming to a cross roads of three routes.
From the exterior, the interior looks as if it will be similar to
the exterior perimeter; however, the interior spaces are
extremely complex. A significant portion o f the extension is
void of windows and difference in materiality.
The interior is composed of reinforced concrete which reinforces
the moments of the empty spaces and dead ends where only a
sliver of light is entering the space.
One of the most emotional and powerful spaces in the building is
a 66’ tall void that runs through the entire building. The concrete
walls add a cold, overwhelming atmosphere to the space where
the only light emanates from a small slit at the top of the space.

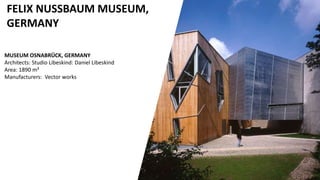

26. FELIX NUSSBAUM MUSEUM,
GERMANY
MUSEUM OSNABRÜCK, GERMANY
Architects: Studio Libeskind: Daniel Libeskind
Area: 1890 m²
Manufacturers: Vector works
