Report On Art & Craft Exhibition Complex
Toyo Eto Ieoh ming pei
200733509
Contents
location
Project outline
project analysis
1. Plan
2. Elevation
3. Section
4. Program
Findings
1. Circulation pattern
2. Scale & proportion
3. Space to human
mass relation
4. Spatial quality
5. Form vocabulary
Matsumoto Performing Arts Centre
200733509
Location
• The biggest challenge was
in finding a way to fit the
entire program into an
unusually shaped site that
stretches from north to
south like a wine bottle.
• Although intuitively this
would have placed the
stage at the back edge of
the site, such a
configuration would turn
the back of the building
toward the residential area
to the south.
• comprised of one small and
one large performance hall
Project outline

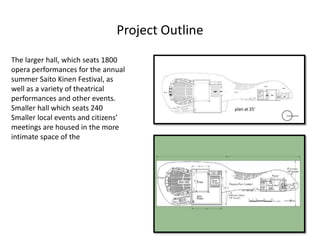

Project Outline
The larger hall, which seats 1800
opera performances for the annual
summer Saito Kinen Festival, as
well as a variety of theatrical
performances and other events.
Smaller hall which seats 240
Smaller local events and citizens’
meetings are housed in the more
intimate space of the

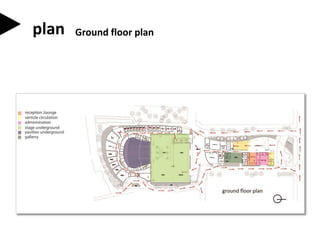

plan Ground floor plan

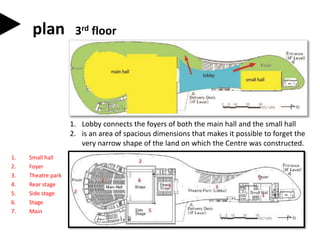

1. Lobby connects the foyers of both the main hall and the small hall
2. is an area of spacious dimensions that makes it possible to forget the
very narrow shape of the land on which the Centre was constructed.
plan
1. Small hall
2. Foyer
3. Theatre park
4. Rear stage
5. Side stage
6. Stage
7. Main
3rd floor

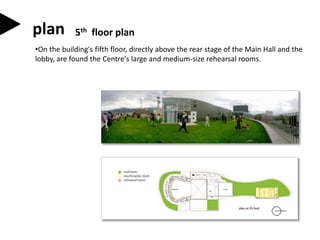

•On the building's fifth floor, directly above the rear stage of the Main Hall and the
lobby, are found the Centre's large and medium-size rehearsal rooms.
plan 5th floor plan
200733509
elevation

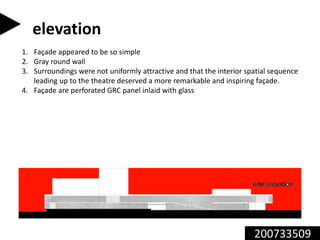

1. Façade appeared to be so simple
2. Gray round wall
3. Surroundings were not uniformly attractive and that the interior spatial sequence
leading up to the theatre deserved a more remarkable and inspiring façade.
4. Façade are perforated GRC panel inlaid with glass
200733509

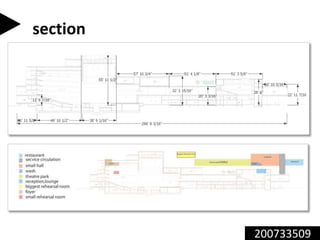

section
perspective

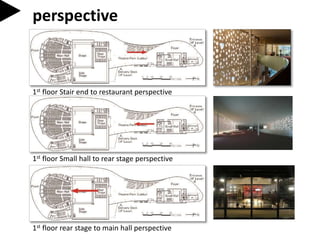

1st floor Stair end to restaurant perspective
1st floor Small hall to rear stage perspective
1st floor rear stage to main hall perspective

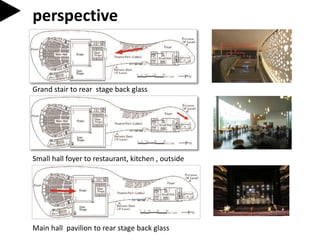

perspective
Grand stair to rear stage back glass
Small hall foyer to restaurant, kitchen , outside
Main hall pavilion to rear stage back glass

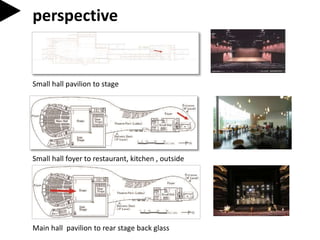

perspective
Small hall pavilion to stage
Small hall foyer to restaurant, kitchen , outside
Main hall pavilion to rear stage back glass
200733509

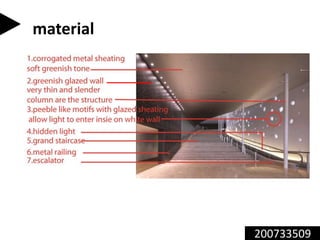

material
200733509

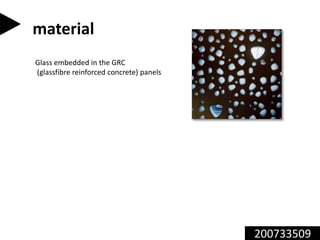

material
Glass embedded in the GRC
(glassfibre reinforced concrete) panels
200733509

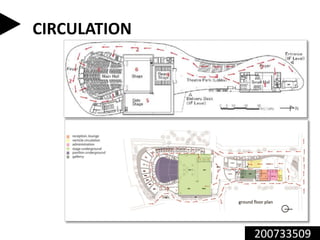

CIRCULATION
200733509
CIRCULATION

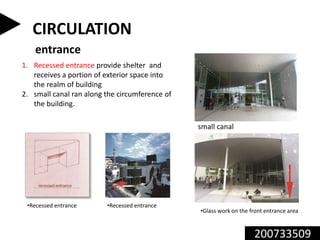

entrance
1. Recessed entrance provide shelter and
receives a portion of exterior space into
the realm of building
2. small canal ran along the circumference of
the building.
•Glass work on the front entrance area
•Recessed entrance•Recessed entrance
small canal

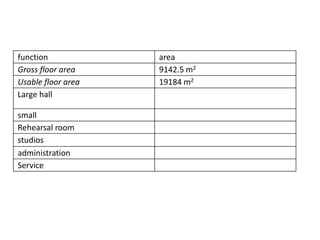

function area
Gross floor area 9142.5 m2
Usable floor area 19184 m2
Large hall
small
Rehearsal room
studios
administration
Service

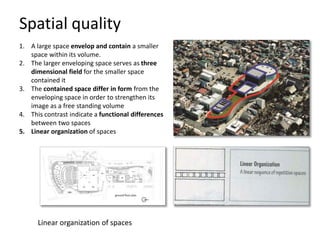

1. A large space envelop and contain a smaller
space within its volume.
2. The larger enveloping space serves as three
dimensional field for the smaller space
contained it
3. The contained space differ in form from the
enveloping space in order to strengthen its
image as a free standing volume
4. This contrast indicate a functional differences
between two spaces
5. Linear organization of spaces
Spatial quality
Linear organization of spaces
FINDINGS

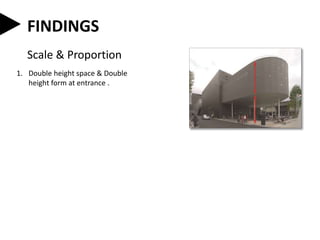

Scale & Proportion
1. Double height space & Double
height form at entrance .
FINDINGS
Space to human mass relationship
1. Lack of big opening give the mass a solid look.
2. Solidness is reduced by the greater curvature
3. impressive thinness of columns give highly floating look to
the projected mass
thinness of columnsgreater curvature

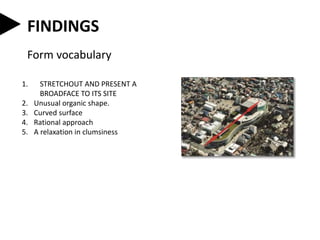

1. STRETCHOUT AND PRESENT A
BROADFACE TO ITS SITE
2. Unusual organic shape.
3. Curved surface
4. Rational approach
5. A relaxation in clumsiness
FINDINGS
Form vocabulary
200733509
A WORK OF ART FOR
WORKS OF ART
EVERSON
MUSEUM OF ART
IEOH
MING PEI
200733509

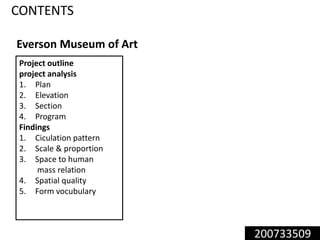

Project outline
project analysis
1. Plan
2. Elevation
3. Section
4. Program
Findings
1. Ciculation pattern
2. Scale & proportion
3. Space to human
mass relation
4. Spatial quality
5. Form vocubulary
CONTENTS
Everson Museum of Art
200733509

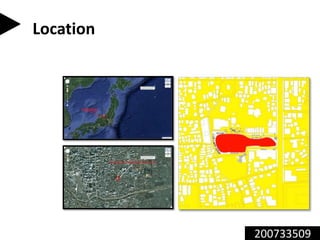

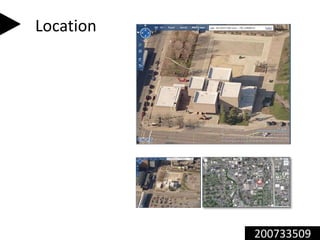

Location
1
200733509

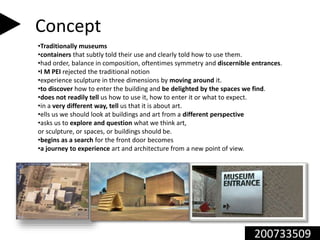

Concept
•Traditionally museums
•containers that subtly told their use and clearly told how to use them.
•had order, balance in composition, oftentimes symmetry and discernible entrances.
•I M PEI rejected the traditional notion
•experience sculpture in three dimensions by moving around it.
•to discover how to enter the building and be delighted by the spaces we find.
•does not readily tell us how to use it, how to enter it or what to expect.
•in a very different way, tell us that it is about art.
•ells us we should look at buildings and art from a different perspective
•asks us to explore and question what we think art,
or sculpture, or spaces, or buildings should be.
•begins as a search for the front door becomes
•a journey to experience art and architecture from a new point of view.

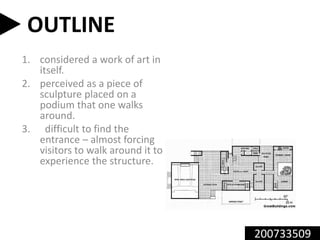

1. considered a work of art in
itself.
2. perceived as a piece of
sculpture placed on a
podium that one walks
around.
3. difficult to find the
entrance – almost forcing
visitors to walk around it to
experience the structure.
200733509
OUTLINE
200733509
Plan
200733509

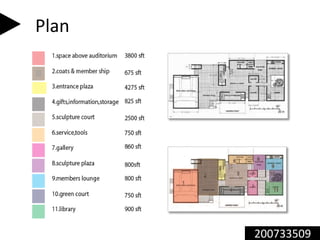

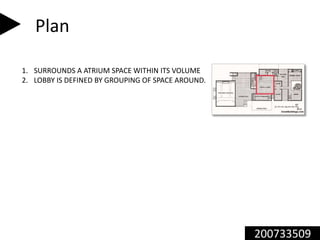

Plan
1. SURROUNDS A ATRIUM SPACE WITHIN ITS VOLUME
2. LOBBY IS DEFINED BY GROUPING OF SPACE AROUND.

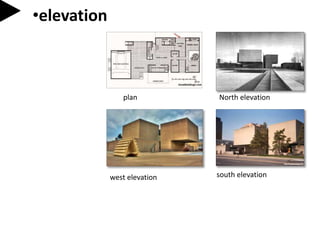

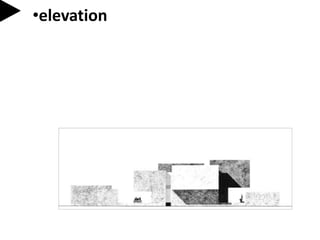

•elevation
North elevationplan
south elevationwest elevation
•elevation
200733509

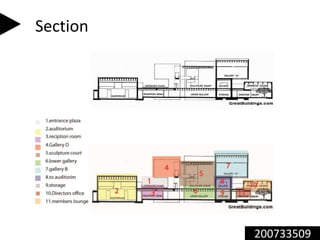

Section

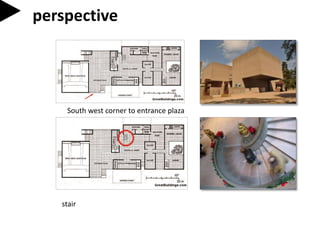

perspective

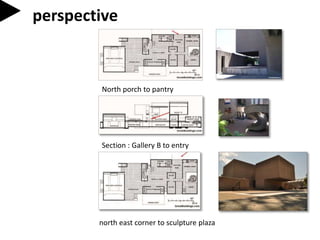

North porch to pantry
north east corner to sculpture plaza
Section : Gallery B to entry

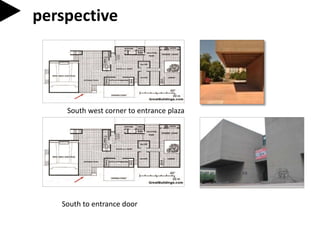

perspective
South west corner to entrance plaza
stair
perspective
South west corner to entrance plaza
South to entrance door
200733509

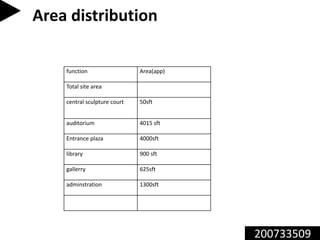

function Area(app)
Total site area
central sculpture court 50sft
auditorium 4015 sft
Entrance plaza 4000sft
library 900 sft
gallerry 625sft
adminstration 1300sft
Area distribution
200733509

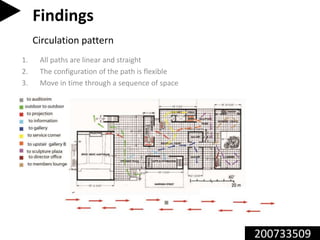

1. All paths are linear and straight
2. The configuration of the path is flexible
3. Move in time through a sequence of space
Findings
Circulation pattern
200733509
Findings
Scale& proportion
Consist of spaces with fixed shapes and
harmonic interrelationships
Space to human or mass relation
Comfortable enclosing scale
200733509

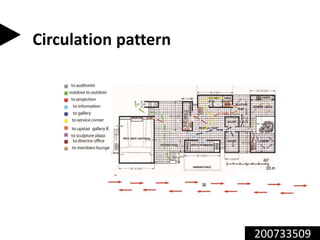

Circulation pattern
200733509
FINDINGS
Spatial quality

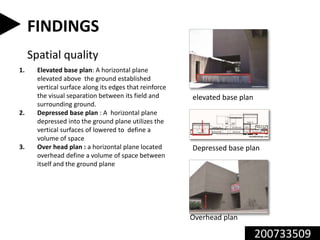

1. Elevated base plan: A horizontal plane
elevated above the ground established
vertical surface along its edges that reinforce
the visual separation between its field and
surrounding ground.
2. Depressed base plan : A horizontal plane
depressed into the ground plane utilizes the
vertical surfaces of lowered to define a
volume of space
3. Over head plan : a horizontal plane located
overhead define a volume of space between
itself and the ground plane
Overhead plan
Depressed base plan
elevated base plan
200733509
FINDINGS
Spatial quality

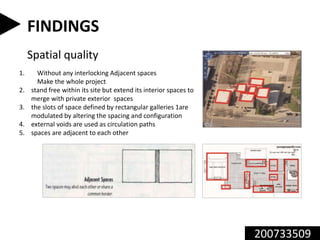

1. Without any interlocking Adjacent spaces
Make the whole project
2. stand free within its site but extend its interior spaces to
merge with private exterior spaces
3. the slots of space defined by rectangular galleries 1are
modulated by altering the spacing and configuration
4. external voids are used as circulation paths
5. spaces are adjacent to each other
200733509

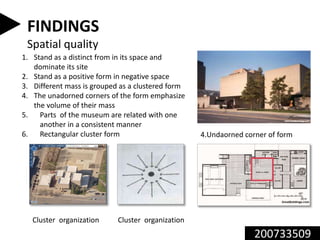

1. Stand as a distinct from in its space and
dominate its site
2. Stand as a positive form in negative space
3. Different mass is grouped as a clustered form
4. The unadorned corners of the form emphasize
the volume of their mass
5. Parts of the museum are related with one
another in a consistent manner
6. Rectangular cluster form 4.Undaorned corner of form
Cluster organizationCluster organization
FINDINGS
Spatial quality
200733509
FINDINGS
Spatial quality

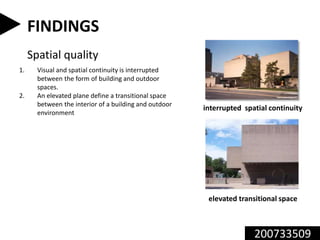

1. Visual and spatial continuity is interrupted
between the form of building and outdoor
spaces.
2. An elevated plane define a transitional space
between the interior of a building and outdoor
environment
interrupted spatial continuity
elevated transitional space

More Related Content

What's hot

Presentation case study convention center
Presentation case study convention centerPresentation case study convention center
Presentation case study convention center
Kiruthika Selvi K J

Office case study
Office case studyOffice case study
Office case study
Shourya Puri

Art Gallery case study.pdf
Art Gallery case study.pdfArt Gallery case study.pdf
Art Gallery case study.pdf
SayedaAmrin

CIDCO CONVENTION CENTRE ,VASHI,NAVI MUMBAI AS LIVE CASE STUDY AND INDIAN HAB...
CIDCO CONVENTION CENTRE ,VASHI,NAVI MUMBAI  AS LIVE CASE STUDY AND INDIAN HAB...CIDCO CONVENTION CENTRE ,VASHI,NAVI MUMBAI  AS LIVE CASE STUDY AND INDIAN HAB...
CIDCO CONVENTION CENTRE ,VASHI,NAVI MUMBAI AS LIVE CASE STUDY AND INDIAN HAB...
prateek Dulani

School of Planning & Architecture Vijayawada (SPA Vijayawada) and School of P...
School of Planning & Architecture Vijayawada (SPA Vijayawada) and School of P...School of Planning & Architecture Vijayawada (SPA Vijayawada) and School of P...
School of Planning & Architecture Vijayawada (SPA Vijayawada) and School of P...
NafeeZullah

Jawahar kala kendra Case study
Jawahar kala kendra Case studyJawahar kala kendra Case study
Jawahar kala kendra Case study
michellesahay

Pearl academy of fashion
Pearl academy of fashionPearl academy of fashion
Pearl academy of fashion
Sagar Panchal

Nid & CEPT ahmedabad primary case study
Nid & CEPT ahmedabad primary case studyNid & CEPT ahmedabad primary case study
Nid & CEPT ahmedabad primary case study
Yash Kotgirwar

Amanora Future Towers, Hadapsar, Pune - Case Study
Amanora Future Towers, Hadapsar, Pune - Case StudyAmanora Future Towers, Hadapsar, Pune - Case Study
Amanora Future Towers, Hadapsar, Pune - Case Study
Ajinkya Randive

GATED COMMUNITY ARCHITECTURE THESIS CASE STUDY
GATED COMMUNITY ARCHITECTURE THESIS CASE STUDYGATED COMMUNITY ARCHITECTURE THESIS CASE STUDY
GATED COMMUNITY ARCHITECTURE THESIS CASE STUDY
Geeva Chandana

tara group housing
tara group housingtara group housing
tara group housing
NIKITA SHARMA

SPA VIJAYAWADA -case study
SPA VIJAYAWADA -case studySPA VIJAYAWADA -case study
SPA VIJAYAWADA -case study
AR.PRASHANTHINI M

Cept Case study
Cept Case studyCept Case study
Cept Case study
AparnaGupta92

Art and Craft Center Design
 Art and Craft Center Design Art and Craft Center Design
Art and Craft Center Design
armyk

Group housing case study
Group housing case studyGroup housing case study
Group housing case study
ARYAN GUPTA

Hotel Design - Midpoint Thesis Book
Hotel Design - Midpoint Thesis BookHotel Design - Midpoint Thesis Book
Hotel Design - Midpoint Thesis Bookrajensen00

Museum case study by Sarthak
Museum case study by SarthakMuseum case study by Sarthak
Museum case study by Sarthak
Sarthak Kaura

HOUSING CASE STUDY
HOUSING CASE STUDYHOUSING CASE STUDY
HOUSING CASE STUDY
Integral University

university campus design
university campus design university campus design
university campus design
iqraabishah


What's hot (20)

Presentation case study convention center
Presentation case study convention centerPresentation case study convention center
Presentation case study convention center

Office case study
Office case studyOffice case study
Office case study

Art Gallery case study.pdf
Art Gallery case study.pdfArt Gallery case study.pdf
Art Gallery case study.pdf

CIDCO CONVENTION CENTRE ,VASHI,NAVI MUMBAI AS LIVE CASE STUDY AND INDIAN HAB...
CIDCO CONVENTION CENTRE ,VASHI,NAVI MUMBAI  AS LIVE CASE STUDY AND INDIAN HAB...CIDCO CONVENTION CENTRE ,VASHI,NAVI MUMBAI  AS LIVE CASE STUDY AND INDIAN HAB...
CIDCO CONVENTION CENTRE ,VASHI,NAVI MUMBAI AS LIVE CASE STUDY AND INDIAN HAB...

Indian Habitat Centre
Indian Habitat CentreIndian Habitat Centre
Indian Habitat Centre

School of Planning & Architecture Vijayawada (SPA Vijayawada) and School of P...
School of Planning & Architecture Vijayawada (SPA Vijayawada) and School of P...School of Planning & Architecture Vijayawada (SPA Vijayawada) and School of P...
School of Planning & Architecture Vijayawada (SPA Vijayawada) and School of P...

Jawahar kala kendra Case study
Jawahar kala kendra Case studyJawahar kala kendra Case study
Jawahar kala kendra Case study

Pearl academy of fashion
Pearl academy of fashionPearl academy of fashion
Pearl academy of fashion

Nid & CEPT ahmedabad primary case study
Nid & CEPT ahmedabad primary case studyNid & CEPT ahmedabad primary case study
Nid & CEPT ahmedabad primary case study

Amanora Future Towers, Hadapsar, Pune - Case Study
Amanora Future Towers, Hadapsar, Pune - Case StudyAmanora Future Towers, Hadapsar, Pune - Case Study
Amanora Future Towers, Hadapsar, Pune - Case Study

GATED COMMUNITY ARCHITECTURE THESIS CASE STUDY
GATED COMMUNITY ARCHITECTURE THESIS CASE STUDYGATED COMMUNITY ARCHITECTURE THESIS CASE STUDY
GATED COMMUNITY ARCHITECTURE THESIS CASE STUDY

tara group housing
tara group housingtara group housing
tara group housing

SPA VIJAYAWADA -case study
SPA VIJAYAWADA -case studySPA VIJAYAWADA -case study
SPA VIJAYAWADA -case study

Cept Case study
Cept Case studyCept Case study
Cept Case study

Art and Craft Center Design
 Art and Craft Center Design Art and Craft Center Design
Art and Craft Center Design

Group housing case study
Group housing case studyGroup housing case study
Group housing case study

Hotel Design - Midpoint Thesis Book
Hotel Design - Midpoint Thesis BookHotel Design - Midpoint Thesis Book
Hotel Design - Midpoint Thesis Book

Museum case study by Sarthak
Museum case study by SarthakMuseum case study by Sarthak
Museum case study by Sarthak

HOUSING CASE STUDY
HOUSING CASE STUDYHOUSING CASE STUDY
HOUSING CASE STUDY

university campus design
university campus design university campus design
university campus design


Similar to Case Study : Art and craft exhibition complex omplex

BUILDING REPORT- Nalagarh Salon(Shreya Arora).pdf
BUILDING REPORT- Nalagarh Salon(Shreya Arora).pdfBUILDING REPORT- Nalagarh Salon(Shreya Arora).pdf
BUILDING REPORT- Nalagarh Salon(Shreya Arora).pdf
HazelA4

Parekh house by nilkanth chaya
Parekh house by nilkanth chayaParekh house by nilkanth chaya
Parekh house by nilkanth chaya
Yatharth Thakkar

Glass pavilion at the toledo museum of art
Glass pavilion at the toledo museum of artGlass pavilion at the toledo museum of art
Glass pavilion at the toledo museum of art
Service_supportAssignment

James Primmer Further Portfolio
James Primmer Further PortfolioJames Primmer Further Portfolio
James Primmer Further PortfolioJames Primmer

Nehru science centre , mumbai
Nehru science centre , mumbaiNehru science centre , mumbai
Nehru science centre , mumbai
Sandhya Singh

Kevin's Portfolio.compressed
Kevin's Portfolio.compressedKevin's Portfolio.compressed
Kevin's Portfolio.compressedKevin Kelly

Principal of building planning
Principal of building planningPrincipal of building planning
Principal of building planning
Sameer Thaiyam

Architectural conservation arc3413 king street penang
Architectural conservation arc3413 king street penangArchitectural conservation arc3413 king street penang
Architectural conservation arc3413 king street penang
Gary Yeow

Lecture5 principles of planning
Lecture5 principles of planningLecture5 principles of planning
Lecture5 principles of planning
Afroz Khan

CL - Project 3 ( Final Project ) ~ The Landscape Project
CL - Project 3 ( Final Project ) ~ The Landscape Project CL - Project 3 ( Final Project ) ~ The Landscape Project
CL - Project 3 ( Final Project ) ~ The Landscape Project
Ryan Kerry Jy

sydney Opera house design principles - utzon Architect
sydney Opera house design principles - utzon Architectsydney Opera house design principles - utzon Architect
sydney Opera house design principles - utzon Architect
reemelgebaly2022

FNBE 0414 ICI Project 3 Proposal Report
FNBE 0414 ICI Project 3 Proposal ReportFNBE 0414 ICI Project 3 Proposal Report
FNBE 0414 ICI Project 3 Proposal Report
Tan Jaden

Ici project 3 - the project brief
Ici project 3 - the project briefIci project 3 - the project brief
Ici project 3 - the project brief
irynnakwon

Niharika Jain,Residential Designer
Niharika Jain,Residential DesignerNiharika Jain,Residential Designer
Niharika Jain,Residential Designer
dezyneecole

BUILDING CONSTRUCTION.pptx
BUILDING CONSTRUCTION.pptxBUILDING CONSTRUCTION.pptx
BUILDING CONSTRUCTION.pptx
MadhavSharma173366

Case study on canteen design
Case study on canteen designCase study on canteen design
Case study on canteen design
AnandKasaudhan

opera house mg road, b'lr
opera house mg road, b'lropera house mg road, b'lr
opera house mg road, b'lr
MEGHANA S


Similar to Case Study : Art and craft exhibition complex omplex (20)

Process Book 121715
Process Book 121715Process Book 121715
Process Book 121715

BUILDING REPORT- Nalagarh Salon(Shreya Arora).pdf
BUILDING REPORT- Nalagarh Salon(Shreya Arora).pdfBUILDING REPORT- Nalagarh Salon(Shreya Arora).pdf
BUILDING REPORT- Nalagarh Salon(Shreya Arora).pdf

Parekh house by nilkanth chaya
Parekh house by nilkanth chayaParekh house by nilkanth chaya
Parekh house by nilkanth chaya

Glass pavilion at the toledo museum of art
Glass pavilion at the toledo museum of artGlass pavilion at the toledo museum of art
Glass pavilion at the toledo museum of art

James Primmer Further Portfolio
James Primmer Further PortfolioJames Primmer Further Portfolio
James Primmer Further Portfolio

Nehru science centre , mumbai
Nehru science centre , mumbaiNehru science centre , mumbai
Nehru science centre , mumbai

Kevin's Portfolio.compressed
Kevin's Portfolio.compressedKevin's Portfolio.compressed
Kevin's Portfolio.compressed

Principal of building planning
Principal of building planningPrincipal of building planning
Principal of building planning

Architectural conservation arc3413 king street penang
Architectural conservation arc3413 king street penangArchitectural conservation arc3413 king street penang
Architectural conservation arc3413 king street penang

Lecture5 principles of planning
Lecture5 principles of planningLecture5 principles of planning
Lecture5 principles of planning

PORT_ROS
PORT_ROSPORT_ROS
PORT_ROS

CL - Project 3 ( Final Project ) ~ The Landscape Project
CL - Project 3 ( Final Project ) ~ The Landscape Project CL - Project 3 ( Final Project ) ~ The Landscape Project
CL - Project 3 ( Final Project ) ~ The Landscape Project

sydney Opera house design principles - utzon Architect
sydney Opera house design principles - utzon Architectsydney Opera house design principles - utzon Architect
sydney Opera house design principles - utzon Architect

FNBE 0414 ICI Project 3 Proposal Report
FNBE 0414 ICI Project 3 Proposal ReportFNBE 0414 ICI Project 3 Proposal Report
FNBE 0414 ICI Project 3 Proposal Report

Ici project 3 - the project brief
Ici project 3 - the project briefIci project 3 - the project brief
Ici project 3 - the project brief

Niharika Jain,Residential Designer
Niharika Jain,Residential DesignerNiharika Jain,Residential Designer
Niharika Jain,Residential Designer

BUILDING CONSTRUCTION.pptx
BUILDING CONSTRUCTION.pptxBUILDING CONSTRUCTION.pptx
BUILDING CONSTRUCTION.pptx

Case study nift final
Case study nift finalCase study nift final
Case study nift final

Case study on canteen design
Case study on canteen designCase study on canteen design
Case study on canteen design

opera house mg road, b'lr
opera house mg road, b'lropera house mg road, b'lr
opera house mg road, b'lr


Recently uploaded

Borys Sutkowski portfolio interior design
Borys Sutkowski portfolio interior designBorys Sutkowski portfolio interior design
Borys Sutkowski portfolio interior design
boryssutkowski

Top Israeli Products and Brands - Plan it israel.pdf
Top Israeli Products and Brands - Plan it israel.pdfTop Israeli Products and Brands - Plan it israel.pdf
Top Israeli Products and Brands - Plan it israel.pdf
PlanitIsrael

Between Filth and Fortune- Urban Cattle Foraging Realities by Devi S Nair, An...
Between Filth and Fortune- Urban Cattle Foraging Realities by Devi S Nair, An...Between Filth and Fortune- Urban Cattle Foraging Realities by Devi S Nair, An...
Between Filth and Fortune- Urban Cattle Foraging Realities by Devi S Nair, An...
Mansi Shah

Can AI do good? at 'offtheCanvas' India HCI prelude
Can AI do good? at 'offtheCanvas' India HCI preludeCan AI do good? at 'offtheCanvas' India HCI prelude
Can AI do good? at 'offtheCanvas' India HCI prelude
Alan Dix

Research 20 slides Amelia gavryliuks.pdf
Research 20 slides Amelia gavryliuks.pdfResearch 20 slides Amelia gavryliuks.pdf
Research 20 slides Amelia gavryliuks.pdf
ameli25062005

一比一原版(Columbia毕业证)哥伦比亚大学毕业证如何办理
一比一原版(Columbia毕业证)哥伦比亚大学毕业证如何办理一比一原版(Columbia毕业证)哥伦比亚大学毕业证如何办理
一比一原版(Columbia毕业证)哥伦比亚大学毕业证如何办理
asuzyq

一比一原版(毕业证)长崎大学毕业证成绩单如何办理
一比一原版(毕业证)长崎大学毕业证成绩单如何办理一比一原版(毕业证)长崎大学毕业证成绩单如何办理
一比一原版(毕业证)长崎大学毕业证成绩单如何办理
taqyed

一比一原版(CITY毕业证书)谢菲尔德哈勒姆大学毕业证如何办理
一比一原版(CITY毕业证书)谢菲尔德哈勒姆大学毕业证如何办理一比一原版(CITY毕业证书)谢菲尔德哈勒姆大学毕业证如何办理
一比一原版(CITY毕业证书)谢菲尔德哈勒姆大学毕业证如何办理
9a93xvy

Design Thinking Design thinking Design thinking
Design Thinking Design thinking Design thinkingDesign Thinking Design thinking Design thinking
Design Thinking Design thinking Design thinking
cy0krjxt

vernacular architecture in response to climate.pdf
vernacular architecture in response to climate.pdfvernacular architecture in response to climate.pdf
vernacular architecture in response to climate.pdf
PrabhjeetSingh219035

一比一原版(LSE毕业证书)伦敦政治经济学院毕业证成绩单如何办理
一比一原版(LSE毕业证书)伦敦政治经济学院毕业证成绩单如何办理一比一原版(LSE毕业证书)伦敦政治经济学院毕业证成绩单如何办理
一比一原版(LSE毕业证书)伦敦政治经济学院毕业证成绩单如何办理
jyz59f4j

一比一原版(RHUL毕业证书)伦敦大学皇家霍洛威学院毕业证如何办理
一比一原版(RHUL毕业证书)伦敦大学皇家霍洛威学院毕业证如何办理一比一原版(RHUL毕业证书)伦敦大学皇家霍洛威学院毕业证如何办理
一比一原版(RHUL毕业证书)伦敦大学皇家霍洛威学院毕业证如何办理
9a93xvy

一比一原版(Bristol毕业证书)布里斯托大学毕业证成绩单如何办理
一比一原版(Bristol毕业证书)布里斯托大学毕业证成绩单如何办理一比一原版(Bristol毕业证书)布里斯托大学毕业证成绩单如何办理
一比一原版(Bristol毕业证书)布里斯托大学毕业证成绩单如何办理
smpc3nvg

一比一原版(UNUK毕业证书)诺丁汉大学毕业证如何办理
一比一原版(UNUK毕业证书)诺丁汉大学毕业证如何办理一比一原版(UNUK毕业证书)诺丁汉大学毕业证如何办理
一比一原版(UNUK毕业证书)诺丁汉大学毕业证如何办理
7sd8fier

Mohannad Abdullah portfolio _ V2 _22-24
Mohannad Abdullah  portfolio _ V2 _22-24Mohannad Abdullah  portfolio _ V2 _22-24
Mohannad Abdullah portfolio _ V2 _22-24
M. A. Architect

一比一原版(BU毕业证书)伯恩茅斯大学毕业证成绩单如何办理
一比一原版(BU毕业证书)伯恩茅斯大学毕业证成绩单如何办理一比一原版(BU毕业证书)伯恩茅斯大学毕业证成绩单如何办理
一比一原版(BU毕业证书)伯恩茅斯大学毕业证成绩单如何办理
h7j5io0

一比一原版(NCL毕业证书)纽卡斯尔大学毕业证成绩单如何办理
一比一原版(NCL毕业证书)纽卡斯尔大学毕业证成绩单如何办理一比一原版(NCL毕业证书)纽卡斯尔大学毕业证成绩单如何办理
一比一原版(NCL毕业证书)纽卡斯尔大学毕业证成绩单如何办理
7sd8fier

Let's Summon Demons Shirt Let's Summon Demons Shirt
Let's Summon Demons Shirt Let's Summon Demons ShirtLet's Summon Demons Shirt Let's Summon Demons Shirt
Let's Summon Demons Shirt Let's Summon Demons Shirt
TeeFusion

原版定做(penn毕业证书)美国宾夕法尼亚大学毕业证文凭学历证书原版一模一样
原版定做(penn毕业证书)美国宾夕法尼亚大学毕业证文凭学历证书原版一模一样原版定做(penn毕业证书)美国宾夕法尼亚大学毕业证文凭学历证书原版一模一样
原版定做(penn毕业证书)美国宾夕法尼亚大学毕业证文凭学历证书原版一模一样
gpffo76j

Коричневый и Кремовый Деликатный Органический Копирайтер Фрилансер Марке...
Коричневый и Кремовый Деликатный Органический Копирайтер Фрилансер Марке...Коричневый и Кремовый Деликатный Органический Копирайтер Фрилансер Марке...
Коричневый и Кремовый Деликатный Органический Копирайтер Фрилансер Марке...
ameli25062005


Recently uploaded (20)

Borys Sutkowski portfolio interior design
Borys Sutkowski portfolio interior designBorys Sutkowski portfolio interior design
Borys Sutkowski portfolio interior design

Top Israeli Products and Brands - Plan it israel.pdf
Top Israeli Products and Brands - Plan it israel.pdfTop Israeli Products and Brands - Plan it israel.pdf
Top Israeli Products and Brands - Plan it israel.pdf

Between Filth and Fortune- Urban Cattle Foraging Realities by Devi S Nair, An...
Between Filth and Fortune- Urban Cattle Foraging Realities by Devi S Nair, An...Between Filth and Fortune- Urban Cattle Foraging Realities by Devi S Nair, An...
Between Filth and Fortune- Urban Cattle Foraging Realities by Devi S Nair, An...

Can AI do good? at 'offtheCanvas' India HCI prelude
Can AI do good? at 'offtheCanvas' India HCI preludeCan AI do good? at 'offtheCanvas' India HCI prelude
Can AI do good? at 'offtheCanvas' India HCI prelude

Research 20 slides Amelia gavryliuks.pdf
Research 20 slides Amelia gavryliuks.pdfResearch 20 slides Amelia gavryliuks.pdf
Research 20 slides Amelia gavryliuks.pdf

一比一原版(Columbia毕业证)哥伦比亚大学毕业证如何办理
一比一原版(Columbia毕业证)哥伦比亚大学毕业证如何办理一比一原版(Columbia毕业证)哥伦比亚大学毕业证如何办理
一比一原版(Columbia毕业证)哥伦比亚大学毕业证如何办理

一比一原版(毕业证)长崎大学毕业证成绩单如何办理
一比一原版(毕业证)长崎大学毕业证成绩单如何办理一比一原版(毕业证)长崎大学毕业证成绩单如何办理
一比一原版(毕业证)长崎大学毕业证成绩单如何办理

一比一原版(CITY毕业证书)谢菲尔德哈勒姆大学毕业证如何办理
一比一原版(CITY毕业证书)谢菲尔德哈勒姆大学毕业证如何办理一比一原版(CITY毕业证书)谢菲尔德哈勒姆大学毕业证如何办理
一比一原版(CITY毕业证书)谢菲尔德哈勒姆大学毕业证如何办理

Design Thinking Design thinking Design thinking
Design Thinking Design thinking Design thinkingDesign Thinking Design thinking Design thinking
Design Thinking Design thinking Design thinking

vernacular architecture in response to climate.pdf
vernacular architecture in response to climate.pdfvernacular architecture in response to climate.pdf
vernacular architecture in response to climate.pdf

一比一原版(LSE毕业证书)伦敦政治经济学院毕业证成绩单如何办理
一比一原版(LSE毕业证书)伦敦政治经济学院毕业证成绩单如何办理一比一原版(LSE毕业证书)伦敦政治经济学院毕业证成绩单如何办理
一比一原版(LSE毕业证书)伦敦政治经济学院毕业证成绩单如何办理

一比一原版(RHUL毕业证书)伦敦大学皇家霍洛威学院毕业证如何办理
一比一原版(RHUL毕业证书)伦敦大学皇家霍洛威学院毕业证如何办理一比一原版(RHUL毕业证书)伦敦大学皇家霍洛威学院毕业证如何办理
一比一原版(RHUL毕业证书)伦敦大学皇家霍洛威学院毕业证如何办理

一比一原版(Bristol毕业证书)布里斯托大学毕业证成绩单如何办理
一比一原版(Bristol毕业证书)布里斯托大学毕业证成绩单如何办理一比一原版(Bristol毕业证书)布里斯托大学毕业证成绩单如何办理
一比一原版(Bristol毕业证书)布里斯托大学毕业证成绩单如何办理

一比一原版(UNUK毕业证书)诺丁汉大学毕业证如何办理
一比一原版(UNUK毕业证书)诺丁汉大学毕业证如何办理一比一原版(UNUK毕业证书)诺丁汉大学毕业证如何办理
一比一原版(UNUK毕业证书)诺丁汉大学毕业证如何办理

Mohannad Abdullah portfolio _ V2 _22-24
Mohannad Abdullah  portfolio _ V2 _22-24Mohannad Abdullah  portfolio _ V2 _22-24
Mohannad Abdullah portfolio _ V2 _22-24

一比一原版(BU毕业证书)伯恩茅斯大学毕业证成绩单如何办理
一比一原版(BU毕业证书)伯恩茅斯大学毕业证成绩单如何办理一比一原版(BU毕业证书)伯恩茅斯大学毕业证成绩单如何办理
一比一原版(BU毕业证书)伯恩茅斯大学毕业证成绩单如何办理

一比一原版(NCL毕业证书)纽卡斯尔大学毕业证成绩单如何办理
一比一原版(NCL毕业证书)纽卡斯尔大学毕业证成绩单如何办理一比一原版(NCL毕业证书)纽卡斯尔大学毕业证成绩单如何办理
一比一原版(NCL毕业证书)纽卡斯尔大学毕业证成绩单如何办理

Let's Summon Demons Shirt Let's Summon Demons Shirt
Let's Summon Demons Shirt Let's Summon Demons ShirtLet's Summon Demons Shirt Let's Summon Demons Shirt
Let's Summon Demons Shirt Let's Summon Demons Shirt

原版定做(penn毕业证书)美国宾夕法尼亚大学毕业证文凭学历证书原版一模一样
原版定做(penn毕业证书)美国宾夕法尼亚大学毕业证文凭学历证书原版一模一样原版定做(penn毕业证书)美国宾夕法尼亚大学毕业证文凭学历证书原版一模一样
原版定做(penn毕业证书)美国宾夕法尼亚大学毕业证文凭学历证书原版一模一样

Коричневый и Кремовый Деликатный Органический Копирайтер Фрилансер Марке...
Коричневый и Кремовый Деликатный Органический Копирайтер Фрилансер Марке...Коричневый и Кремовый Деликатный Органический Копирайтер Фрилансер Марке...
Коричневый и Кремовый Деликатный Органический Копирайтер Фрилансер Марке...


Case Study : Art and craft exhibition complex omplex

  • 1. 200733509 Report On Art & Craft Exhibition Complex Toyo Eto Ieoh ming pei

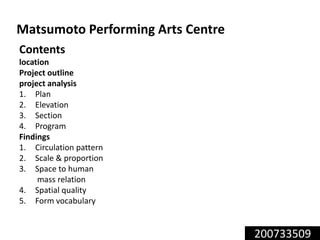

  • 2. 200733509 Contents location Project outline project analysis 1. Plan 2. Elevation 3. Section 4. Program Findings 1. Circulation pattern 2. Scale & proportion 3. Space to human mass relation 4. Spatial quality 5. Form vocabulary Matsumoto Performing Arts Centre
  • 4. • The biggest challenge was in finding a way to fit the entire program into an unusually shaped site that stretches from north to south like a wine bottle. • Although intuitively this would have placed the stage at the back edge of the site, such a configuration would turn the back of the building toward the residential area to the south. • comprised of one small and one large performance hall Project outline
  • 5. Project Outline The larger hall, which seats 1800 opera performances for the annual summer Saito Kinen Festival, as well as a variety of theatrical performances and other events. Smaller hall which seats 240 Smaller local events and citizens’ meetings are housed in the more intimate space of the
  • 7. 1. Lobby connects the foyers of both the main hall and the small hall 2. is an area of spacious dimensions that makes it possible to forget the very narrow shape of the land on which the Centre was constructed. plan 1. Small hall 2. Foyer 3. Theatre park 4. Rear stage 5. Side stage 6. Stage 7. Main 3rd floor
  • 8. •On the building's fifth floor, directly above the rear stage of the Main Hall and the lobby, are found the Centre's large and medium-size rehearsal rooms. plan 5th floor plan
  • 9. 200733509 elevation 1. Façade appeared to be so simple 2. Gray round wall 3. Surroundings were not uniformly attractive and that the interior spatial sequence leading up to the theatre deserved a more remarkable and inspiring façade. 4. Façade are perforated GRC panel inlaid with glass
  • 11. perspective 1st floor Stair end to restaurant perspective 1st floor Small hall to rear stage perspective 1st floor rear stage to main hall perspective
  • 12. perspective Grand stair to rear stage back glass Small hall foyer to restaurant, kitchen , outside Main hall pavilion to rear stage back glass
  • 13. perspective Small hall pavilion to stage Small hall foyer to restaurant, kitchen , outside Main hall pavilion to rear stage back glass
  • 15. 200733509 material Glass embedded in the GRC (glassfibre reinforced concrete) panels
  • 17. 200733509 CIRCULATION entrance 1. Recessed entrance provide shelter and receives a portion of exterior space into the realm of building 2. small canal ran along the circumference of the building. •Glass work on the front entrance area •Recessed entrance•Recessed entrance small canal
  • 18. function area Gross floor area 9142.5 m2 Usable floor area 19184 m2 Large hall small Rehearsal room studios administration Service
  • 19. 1. A large space envelop and contain a smaller space within its volume. 2. The larger enveloping space serves as three dimensional field for the smaller space contained it 3. The contained space differ in form from the enveloping space in order to strengthen its image as a free standing volume 4. This contrast indicate a functional differences between two spaces 5. Linear organization of spaces Spatial quality Linear organization of spaces
  • 20. FINDINGS Scale & Proportion 1. Double height space & Double height form at entrance .
  • 21. FINDINGS Space to human mass relationship 1. Lack of big opening give the mass a solid look. 2. Solidness is reduced by the greater curvature 3. impressive thinness of columns give highly floating look to the projected mass thinness of columnsgreater curvature
  • 22. 1. STRETCHOUT AND PRESENT A BROADFACE TO ITS SITE 2. Unusual organic shape. 3. Curved surface 4. Rational approach 5. A relaxation in clumsiness FINDINGS Form vocabulary
  • 23. 200733509 A WORK OF ART FOR WORKS OF ART EVERSON MUSEUM OF ART IEOH MING PEI
  • 24. 200733509 Project outline project analysis 1. Plan 2. Elevation 3. Section 4. Program Findings 1. Ciculation pattern 2. Scale & proportion 3. Space to human mass relation 4. Spatial quality 5. Form vocubulary CONTENTS Everson Museum of Art
  • 26. 200733509 Concept •Traditionally museums •containers that subtly told their use and clearly told how to use them. •had order, balance in composition, oftentimes symmetry and discernible entrances. •I M PEI rejected the traditional notion •experience sculpture in three dimensions by moving around it. •to discover how to enter the building and be delighted by the spaces we find. •does not readily tell us how to use it, how to enter it or what to expect. •in a very different way, tell us that it is about art. •ells us we should look at buildings and art from a different perspective •asks us to explore and question what we think art, or sculpture, or spaces, or buildings should be. •begins as a search for the front door becomes •a journey to experience art and architecture from a new point of view.
  • 27. 1. considered a work of art in itself. 2. perceived as a piece of sculpture placed on a podium that one walks around. 3. difficult to find the entrance – almost forcing visitors to walk around it to experience the structure. 200733509 OUTLINE
  • 29. 200733509 Plan 1. SURROUNDS A ATRIUM SPACE WITHIN ITS VOLUME 2. LOBBY IS DEFINED BY GROUPING OF SPACE AROUND.
  • 33. perspective North porch to pantry north east corner to sculpture plaza Section : Gallery B to entry
  • 34. perspective South west corner to entrance plaza stair
  • 35. perspective South west corner to entrance plaza South to entrance door
  • 36. 200733509 function Area(app) Total site area central sculpture court 50sft auditorium 4015 sft Entrance plaza 4000sft library 900 sft gallerry 625sft adminstration 1300sft Area distribution
  • 37. 200733509 1. All paths are linear and straight 2. The configuration of the path is flexible 3. Move in time through a sequence of space Findings Circulation pattern
  • 38. 200733509 Findings Scale& proportion Consist of spaces with fixed shapes and harmonic interrelationships Space to human or mass relation Comfortable enclosing scale
  • 40. 200733509 FINDINGS Spatial quality 1. Elevated base plan: A horizontal plane elevated above the ground established vertical surface along its edges that reinforce the visual separation between its field and surrounding ground. 2. Depressed base plan : A horizontal plane depressed into the ground plane utilizes the vertical surfaces of lowered to define a volume of space 3. Over head plan : a horizontal plane located overhead define a volume of space between itself and the ground plane Overhead plan Depressed base plan elevated base plan
  • 41. 200733509 FINDINGS Spatial quality 1. Without any interlocking Adjacent spaces Make the whole project 2. stand free within its site but extend its interior spaces to merge with private exterior spaces 3. the slots of space defined by rectangular galleries 1are modulated by altering the spacing and configuration 4. external voids are used as circulation paths 5. spaces are adjacent to each other
  • 42. 200733509 1. Stand as a distinct from in its space and dominate its site 2. Stand as a positive form in negative space 3. Different mass is grouped as a clustered form 4. The unadorned corners of the form emphasize the volume of their mass 5. Parts of the museum are related with one another in a consistent manner 6. Rectangular cluster form 4.Undaorned corner of form Cluster organizationCluster organization FINDINGS Spatial quality
  • 43. 200733509 FINDINGS Spatial quality 1. Visual and spatial continuity is interrupted between the form of building and outdoor spaces. 2. An elevated plane define a transitional space between the interior of a building and outdoor environment interrupted spatial continuity elevated transitional space
