1. Ethernet Cable Crimping
Created By: Vyas Pratik

2. What is Ethernet Cable Crimping??
The name Ethernet Cable Crimping present itself.
It means “Creating” an Cable which use to
communication purpose.

3. Types of Ethernet Cable
•Cat 3
•Cat 5
•Cat 5E
•Cat 6
•Cat 7

4. NOTE:- MOST COMPANIES TODAY ARE STILL USING AND EVEN
INSTALLING CATEGORY 5E AS IT WORKS FOR THE 100MB FAST-
ETHERNET IN USE ON ALMOST EVERY DESKTOP PC.
Cat 3 :- Used for voice cabling and 10 Mb Ethernet
Cat 5 :- Used for 10/100Mb Ethernet and works for voice
Cat 5E :- Used for 100/1000Mb(1 GB) Ethernet for cross-talk
event
Cat 6 :-Better than Cat 5E for 1GB Ethernet
Cat 7 :- Also called Class F, this is fully-shielded cabling and
supports up to 600Mhz. This is a relatively new type of
cabling and isn’t used much.

5. Category Data-Rate Signal Frequency
Cat 5 100 Mbps 100MHz
Cat 5E 100 Mbps – 1 Gbps 100MHz
Cat 6 1 Gbps – 10 Gbps 250MHz
Cat 7 1 Gbps – 10 Gbps 500MHz
Note:- It Change By manufacture Companies.

6. Ethernet Cable
It is composed of 4-pair twist wirings.
Orange
Green
Blue
Brown

7. Color Pin (T568B)
White/Orange 1
Orange 2
White/Green 3
Blue 4
White/Blue 5
Green 6
White/Brown 7
Brown 8
Ethernet Cable

8. Pin Usage
1 Transmission (Tx+)
2 Transmission (Tx-)
3 Receive (Rx+)
4 --
5 --
6 Receive (Rx-)
7 --
8 --
Note:- Here Cable color doesn’t important for desktop use.
Ethernet Cable

9. How to wire…..
Step 1: Strip back the outer sleeve.

10. How to wire…..
Step 2: Arrange in particular Design..

11. How to wire…..
Step 2: Cont….
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

12. How to wire…..
Step 3: Cut every wire in straight line…..

13. How to wire…..
Step 3: Cont….

14. How to wire…..
• Step 4: Now Insert Wires into RJ45

15. How to wire…..

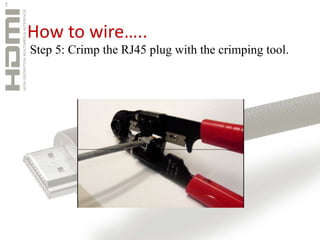

Step 5: Crimp the RJ45 plug with the crimping tool.

16. How to wire…..
Step 6: Verify the order of the wires is correct and all
the wires are correctly making good contact with the
metal contacts in the RJ45 plug.

17. How to wire…..
Step 7: Cut the cable into suitable length and repeat all
the steps for the other side.
And test it…….
