![openscad
module key(x,y,rotation) {
translate([(x*key_spacing),(y*key_spacing),-0.01]) {
rotate(rotation) key_inner();
}
}
module key_inner() {
union() {
translate([0,0,-3.5]) key_support();
cube(size=[keyswitch_x,keyswitch_y,keyswitch_plate_thickness], center=true);
}
}
module key_support() {
difference() {
cube(size=[key_spacing-2,key_spacing-2,6], center=true);
interior_bevels();
}
}
Wednesday, July 24, 13](https://image.slidesharecdn.com/2013-oscon-keyboards-130724182325-phpapp01/85/Building-a-keyboard-from-scratch-45-320.jpg)
![openscadmodule keyColumn(x,y) {
translate([(x*key_spacing),(y*key_spacing),0]) {
key(0,0);
key(1,0);
key(2,0);
key(3,0);
}
}
module hand() {
rotate([0,0,-9]) keyColumn(0.5,-0.05);
rotate([0,0,-13]) keyColumn(0.1,1.4);
rotate([0,0,-15]) keyColumn(-0.2,2.7);
rotate([0,0,-20]) {
keyColumn(-0.2,4);
keyColumn(0,5);
key(2.2,6);
key(3.2,6);
}
translate([165,24,0]) thumbKeys();
}
Wednesday, July 24, 13](https://image.slidesharecdn.com/2013-oscon-keyboards-130724182325-phpapp01/85/Building-a-keyboard-from-scratch-46-320.jpg)
Uploaded byJesse Vincent
Building a keyboard from scratch
The document outlines the process for building a keyboard from scratch. It discusses selecting and obtaining the necessary tools and parts, including a microcontroller, switches, wires, and case materials. The document guides the reader through designing the keyboard layout, circuitry, and firmware. It also shares the speaker's experience building multiple prototype keyboards through an iterative design process. The goal is to demonstrate that building a custom keyboard is an achievable project that allows for creative hardware design and customization.
More Related Content
Similar to Building a keyboard from scratch
Building a keyboard from scratch
- 1. Building a keyboard from scratch JesseVincent jesse@fsck.com http://keyboard.io @obra / @keyboardio Wednesday, July 24, 13
- 2.
- 3. My boss stole my keyboard Wednesday,July 24, 13
- 4. WARNING WARNING There are nomore cat pictures in this talk Wednesday, July 24, 13
- 5. I couldn’t finda keyboard I wanted Wednesday, July 24, 13
- 6. I tried Wednesday, July24, 13
- 7. So, you wantto make a keyboard? Wednesday, July 24, 13
- 8. Tools you’ll need Wednesday,July 24, 13
- 9.
- 10.

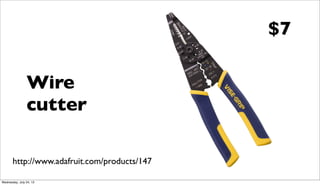

- 11. Tools you’ll want Wednesday,July 24, 13
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18. Parts you’ll need Wednesday,July 24, 13
- 19.
- 20.
- 21.
- 22. Don’t make your own Wednesday,July 24, 13
- 23.
- 24.
- 25.
- 26.
- 27. Arduino Pro Micro is alsook https://www.sparkfun.com/products/11098 $20 Wednesday, July 24, 13
- 28. WARNING WARNING There is nomore Arduino in this talk Wednesday, July 24, 13
- 29.
- 30. Parts you’ll want Wednesday,July 24, 13
- 31.
- 32.
- 33.
- 34. Parts you’ll make Wednesday,July 24, 13
- 35. The case Wednesday, July24, 13
- 36. Design your own! Wednesday,July 24, 13
- 37. 14mm square holes Wednesday,July 24, 13
- 38. 3+ mm apart Wednesday,July 24, 13
- 39. Top plate: 1.5 mmthick Wednesday, July 24, 13
- 40. I designed my first keyboardsin OmniGraffle Wednesday, July 24, 13
- 41.
- 42.
- 43. Use lasers to cutout the pieces Wednesday, July 24, 13
- 44. Use CAD to modelthe weirder stuff Wednesday, July 24, 13
- 45. openscad module key(x,y,rotation) { translate([(x*key_spacing),(y*key_spacing),-0.01]){ rotate(rotation) key_inner(); } } module key_inner() { union() { translate([0,0,-3.5]) key_support(); cube(size=[keyswitch_x,keyswitch_y,keyswitch_plate_thickness], center=true); } } module key_support() { difference() { cube(size=[key_spacing-2,key_spacing-2,6], center=true); interior_bevels(); } } Wednesday, July 24, 13
- 46. openscadmodule keyColumn(x,y) { translate([(x*key_spacing),(y*key_spacing),0]){ key(0,0); key(1,0); key(2,0); key(3,0); } } module hand() { rotate([0,0,-9]) keyColumn(0.5,-0.05); rotate([0,0,-13]) keyColumn(0.1,1.4); rotate([0,0,-15]) keyColumn(-0.2,2.7); rotate([0,0,-20]) { keyColumn(-0.2,4); keyColumn(0,5); key(2.2,6); key(3.2,6); } translate([165,24,0]) thumbKeys(); } Wednesday, July 24, 13
- 47.
- 48. What didn’t Imention? Wednesday, July 24, 13
- 49.
- 50. You do know howto design and etch PCBs right? Wednesday, July 24, 13
- 51. Can you teachme? Wednesday, July 24, 13
- 52. Putting it together Wednesday,July 24, 13
- 53. Try the keys& keycaps Wednesday, July 24, 13
- 54.
- 55. Flat pin: Connect Diode Squarepin: Connect wire Wednesday, July 24, 13
- 56. Wire-wrap the keysin each row Wednesday, July 24, 13
- 57.
- 58. Solder the diodes in columns Wednesday,July 24, 13
- 59.
- 60.
- 61.
- 62.
- 63.
- 64.
- 65. then trim the terminal wires Wednesday,July 24, 13
- 66.
- 67. Connect the black ends to thekeys Wednesday, July 24, 13
- 68. Don’t solder the diodes to eachother Wednesday, July 24, 13
- 69. You want the wire-wrapping wire Wednesday,July 24, 13
- 70. Solder a wireto each column Wednesday, July 24, 13
- 71. Solder a wireto each row Wednesday, July 24, 13
- 72. Connect those wiresto the microcontroller Wednesday, July 24, 13
- 73.
- 74.
- 75.
- 76. Configure some keyboard firmware Wednesday,July 24, 13
- 77.
- 78. % vi config.kspec Wednesday,July 24, 13
- 79.
- 80. % make Wednesday, July24, 13
- 81.
- 82. Install your firmware Wednesday,July 24, 13
- 83. Test your keyboard Wednesday,July 24, 13
- 84. (This is why youwant a multimeter) Wednesday, July 24, 13
- 85.
- 86. Mark 1 Keyboard Wednesday,July 24, 13
- 87.
- 88.
- 89.
- 90.
- 91.
- 92.
- 93.
- 94. Mark 2 Keyboard Wednesday,July 24, 13
- 95.
- 96.
- 97.
- 98.
- 99.
- 100.
- 101.

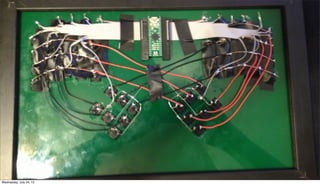

- 102. Mark 3 Keyboard Wednesday,July 24, 13
- 103.
- 104.
- 105.
- 106.
- 107.
- 108.
- 109.
- 110.
- 111.
- 112.
- 113.
- 114.
- 115.
- 116.
- 117.
- 118.
- 119.
- 120.
- 121.
- 122.
- 123.
- 124.
- 125.
- 126.
- 127.
- 128.
- 129.
- 130.
- 131.
- 132.
- 133.
- 134. Mark 7 Keyboard Wednesday,July 24, 13
- 135.
- 136.
- 137.
- 138. Mark 9 Keyboard Wednesday,July 24, 13
- 139.
- 140.
- 141.
- 142.
- 143. What have Ilearned? Wednesday, July 24, 13
- 144. Hardware is notscary Wednesday, July 24, 13
- 145. 3D printers arealmost there Wednesday, July 24, 13
- 146. Iterating on hardware isn’tmuch harder than iterating on software Wednesday, July 24, 13
- 147. Patching hardware is alot harder Wednesday, July 24, 13
- 148. Patching hardware is alot more satisfying Wednesday, July 24, 13
- 149. Keyboards don’t have tosuck Wednesday, July 24, 13
- 150. Make one Wednesday, July24, 13
- 151.
- 152.
- 153. Figuring out a mousingsolution Wednesday, July 24, 13
- 154. Learning about PCB design Wednesday,July 24, 13
- 155.
- 156. Learning how tomake a Kickstarter video Wednesday, July 24, 13
- 157.
