- 1. Raspberry Pi Interface Boards Simon Monk Monday, 3 September 2012
- 2. GPIO Connector Monday, 3September 2012
- 3. Prototyping • DIY Electronics • Pi Cobbler • Pi Plate • Humble Pi Monday, 3 September 2012
- 4. Pi Cobbler • £ 8 (kit) • Available Now • Link to Breadboard • Adafruit Monday, 3 September 2012
- 5. Pi Cobbler Example Monday,3 September 2012

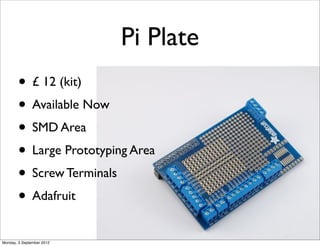

- 6. Pi Plate • £ 12 (kit) • Available Now • SMD Area • Large Prototyping Area • Screw Terminals • Adafruit Monday, 3 September 2012
- 7. Humble Pi • £ 4 (kit) • Available Now • V-Reg Area • Large Prototyping Area • Ciseco Monday, 3 September 2012
- 8. Expansion Boards • Pi Face • Slice of PI/O • Gertboard • RaspiRobotBoard Monday, 3 September 2012
- 9. Pi Face • £ TBA • Available TBA • MCP23S17 (16 x IO) I2C Expander Chip • 8 x Hight Power Outputs (500 mA) • No Analog • 2 x Relays • 4 x LEDs • 4 x Switches • Education • Man Uni - Andrew Robinson Monday, 3 September 2012
- 10. Slice of PI/O • £ 6 (kit) • Available Now • MCP23S17 (16 x IO) • I2C Expander Chip • No Analog • Hobby • Ciseco Monday, 3 September 2012
- 11. Gertboard • £ 30 • Available TBA • ATmega (like Arduino) • ADC and DAC via I2C • Motor Output • 12 x LEDs • 3 x Switches • Education • Gert Van Loo - Broadcom Monday, 3 September 2012
- 12. RaspiRobotBoard • £ 15 ish • Available Nov 2012 • Motor Control • 2 x LEDs • 2 x Switch Inputs • 2 x Open Collector Outputs • 3.3V I2C Header • 5V Serial Header • Robots • Simon Monk / SparkFun Monday, 3 September 2012

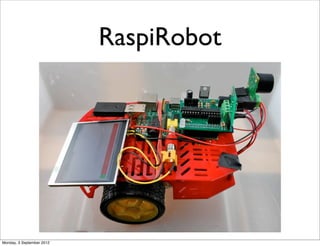

- 13.
- 14.
- 15. Plug • Raspberry Pi Book • Out late Nov / Early Dec 2012 Monday, 3 September 2012
