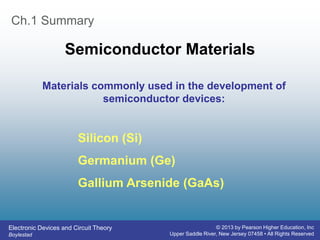

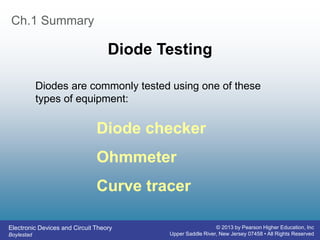

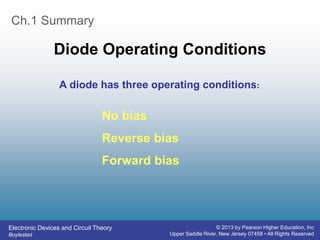

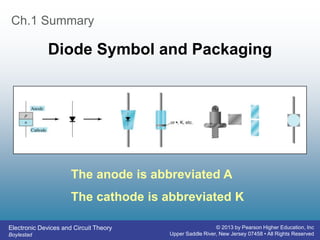

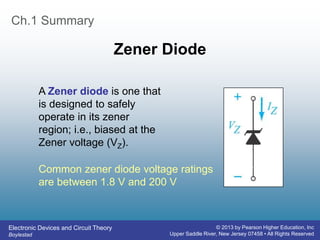

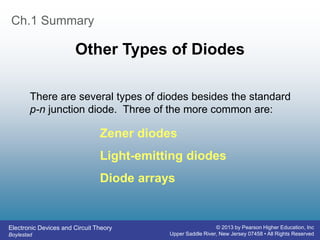

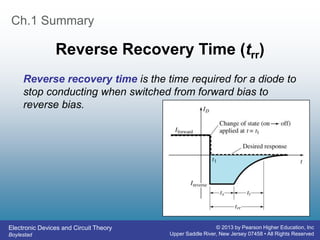

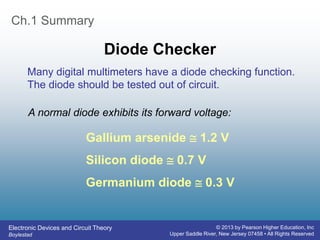

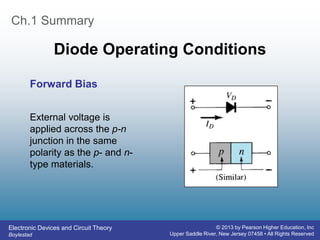

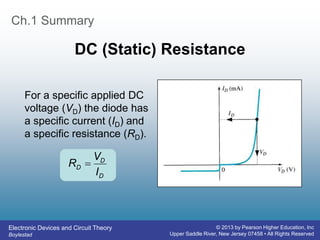

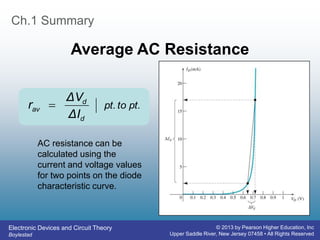

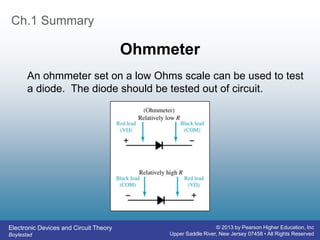

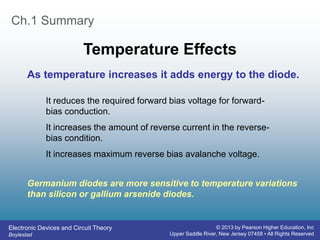

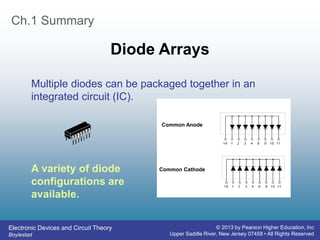

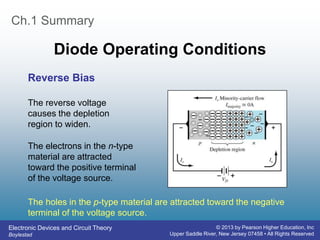

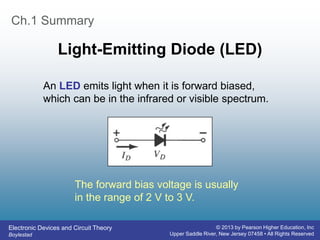

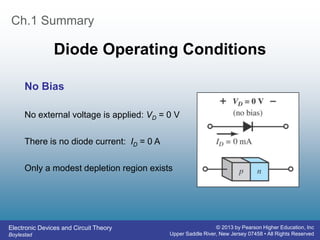

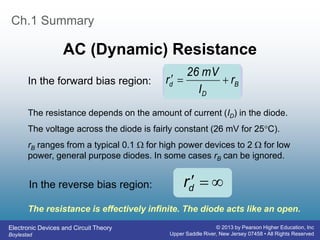

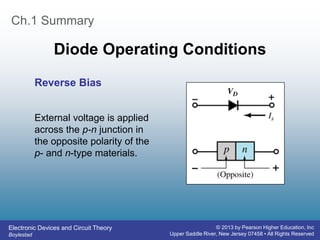

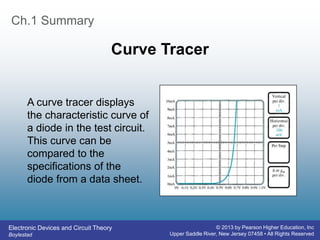

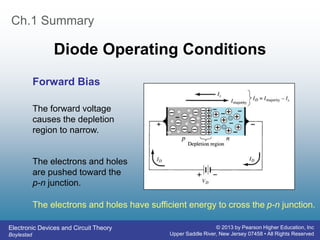

The document summarizes key aspects of semiconductor diodes as presented in Chapter 1 of Boylestad's Electronic Devices and Circuit Theory textbook. It describes the basic operation and characteristics of diodes, including their one-way conduction, operating regions of no bias, reverse bias and forward bias, and equivalent circuit models. Additionally, it covers diode materials, doping, p-n junctions, factors that influence performance like temperature, and common testing procedures. Different diode types like Zener diodes and LEDs are also discussed.
Electrical current, voltage, resistance, capacitance, and inductance are a few of the basic elements of electronics and radio. Apart from current, voltage, resistance, capacitance, and inductance, there are many other interesting elements to electronic technology. ... Use Electronics Notes to learn electronics online.
Semiconductors: Crystalline material: Mechanical properties, Energy band theory, Fermi levels; Conductors, Semiconductors & Insulators: electrical properties, band diagrams. Semiconductors: intrinsic & extrinsic, energy band diagram, P&N-type semiconductors, drift & diffusion carriers.

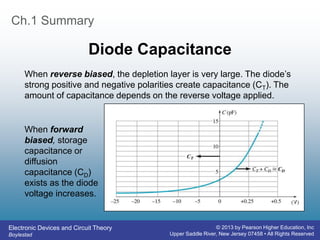

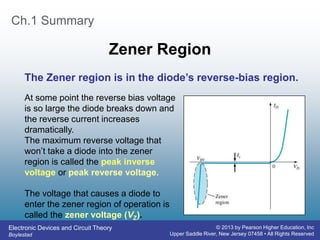

Diodes and Diode Circuits: Formation of P-N junction, energy band diagram, built-in-potential, forward and reverse biased P-N junction, formation of depletion zone, V-I characteristics, Zener breakdown, Avalanche breakdown and its reverse characteristics; Junction capacitance and Varactor diode. Simple diode circuits, load line, linear piecewise model; Rectifier circuits: half wave, full wave, PIV, DC voltage and current, ripple factor, efficiency, idea of regulation.
Introduction
Semiconductor is a solid substance that has conductivity between that of an insulator and that of most metals, either due to the addition of an impurity or because of temperature effects. Devices made of semiconductors, notably silicon, are essential components of most electronic circuits.
Examples: Silicon, Germanium, Carbon
Intrinsic & Extrinsic Semiconductor

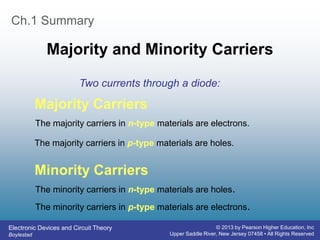

Semiconductors are mainly classified into two categories: Intrinsic and Extrinsic. An intrinsic semiconductor material is chemically very pure and possesses poor conductivity. It has equal numbers of negative carriers (electrons) and positive carriers (holes). Where as an extrinsic semiconductor is an improved intrinsic semiconductor with a small amount of impurities added.
The Doping of Semiconductors
The addition of a small percentage of foreign atoms in the regular crystal lattice of silicon or germanium produces dramatic changes in their electrical properties, producing n-type and p-type semiconductors.
Pentavalent impurities
Impurity atoms with 5 valence electrons produce n-type semiconductors by contributing extra electrons.
Trivalent impurities
Impurity atoms with 3 valence electrons produce p-type semiconductors by producing a "hole" or electron deficiency.
N-Type Semiconductor
The addition of pentavalent impurities such as antimony, arsenic or phosphorous contributes free electrons, greatly increasing the conductivity of the intrinsic semiconductor. Phosphorous may be added by diffusion of phosphine gas (PH3).
P-Type Semiconductor
The addition of trivalent impurities such as boron, aluminum or gallium to an intrinsic semiconductor creates deficiencies of valence electrons,called "holes". It is typical to use B2H6 diborane gas to diffuse boron into the silicon material.

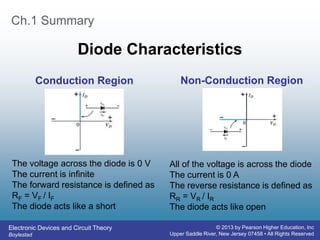

Diodes
A device that blocks current in one direction while letting current flow in another direction is called a diode. Diodes can be used in a number of ways. For example, a device that uses batteries often contains a diode that protects the device if you insert the batteries backward. The diode simply blocks any current from leaving the battery if it is reversed -- this protects the sensitive electronics in the device.

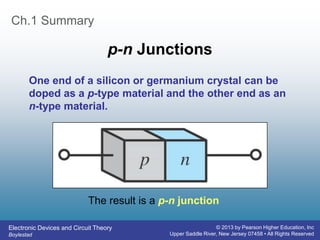

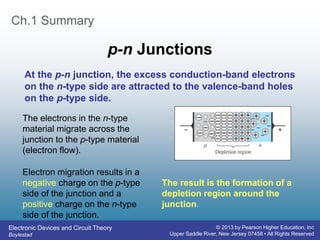

A p–n junction is a boundary or interface between two types of semiconductor materials, p-type ... For example, a common type of transistor, the bipolar junction transistor, consists ..... Two years later (1941), Vadim Lashkaryov reported discovery of p–n junctions in Cu2O and silver sulphide photocells and selenium rectifiers.
