1. BUILDING SERVICES TWO (BLD60503)
ELECTRICAL
INSTALLATION
Prepared by Tan Hee Chai

2. BUILDING | SERVICES | TWO
(BLD60503)
Sources of Electricity

3. BUILDING | SERVICES | TWO
(BLD60503)

4. BUILDING | SERVICES | TWO
(BLD60503)

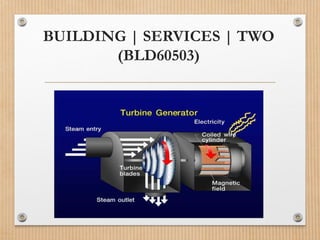

5. BUILDING | SERVICES | TWO
(BLD60503)

6. BUILDING | SERVICES | TWO
(BLD60503)

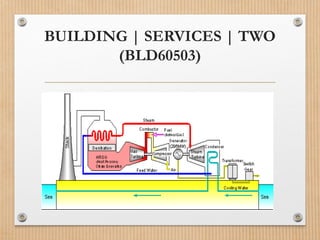

7. BUILDING | SERVICES | TWO
(BLD60503)

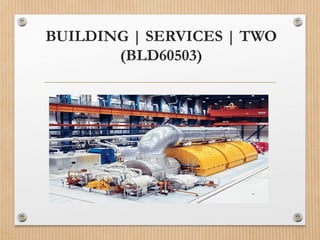

8. BUILDING | SERVICES | TWO
(BLD60503)

9. BUILDING | SERVICES | TWO
(BLD60503)

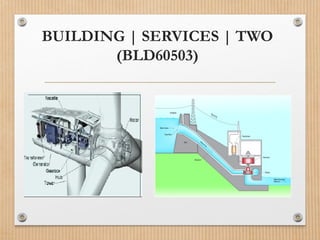

3 major classifications for power production in
reasonably large scale are :-
1) Thermal power generation
2) Nuclear power generation.
3) Hydro-electric power generation.

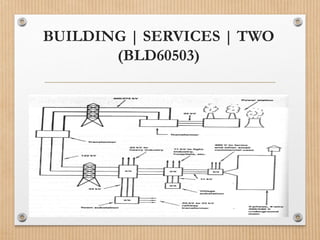

10. BUILDING | SERVICES | TWO
(BLD60503)

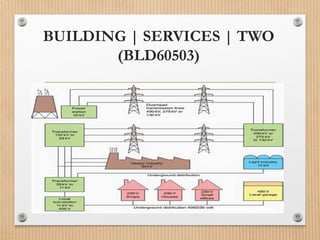

11. BUILDING | SERVICES | TWO
(BLD60503)

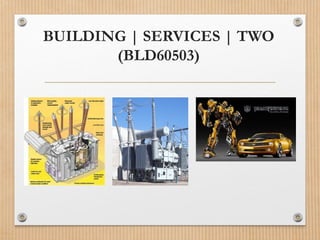

12. BUILDING | SERVICES | TWO
(BLD60503)

13. BUILDING | SERVICES | TWO
(BLD60503)

14. BUILDING | SERVICES | TWO
(BLD60503)
Electrical supply and distribution

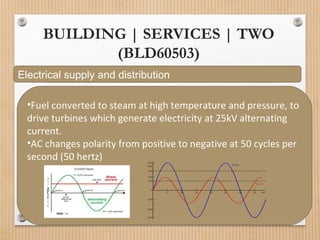

•Fuel converted to steam at high temperature and pressure, to
drive turbines which generate electricity at 25kV alternating
current.
•AC changes polarity from positive to negative at 50 cycles per
second (50 hertz)

15. BUILDING | SERVICES | TWO
(BLD60503)

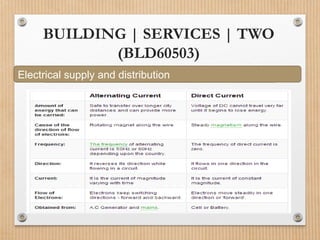

Electrical supply and distribution

16. BUILDING | SERVICES | TWO
(BLD60503)
Electrical supply and distribution
Reasons power is supplied in Alternating Current (AC) at 50
Hertz:
•Facility of generating machines
•Ease of transformation
•Use of electricity powered AC motors

17. BUILDING | SERVICES | TWO
(BLD60503)
Electrical supply and distribution

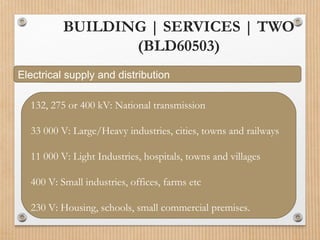

132, 275 or 400 kV: National transmission
33 000 V: Large/Heavy industries, cities, towns and railways
11 000 V: Light Industries, hospitals, towns and villages
400 V: Small industries, offices, farms etc
230 V: Housing, schools, small commercial premises.

18. BUILDING | SERVICES | TWO
(BLD60503)

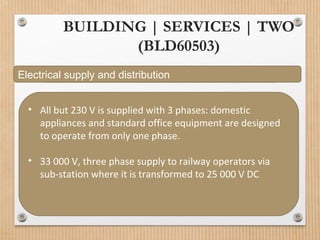

Electrical supply and distribution
• All but 230 V is supplied with 3 phases: domestic
appliances and standard office equipment are designed
to operate from only one phase.
• 33 000 V, three phase supply to railway operators via
sub-station where it is transformed to 25 000 V DC

19. BUILDING | SERVICES |
TWO (BLD60503)

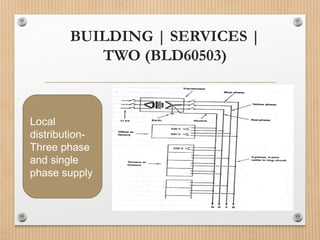

Local
distribution-
Three phase
and single
phase supply

20. BUILDING | SERVICES | TWO
(BLD60503)
Local
distribution-
Three phase
& single
phase

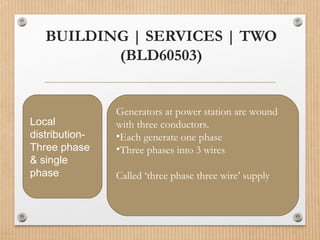

Generators at power station are wound
with three conductors.
•Each generate one phase
•Three phases into 3 wires
Called ‘three phase three wire’ supply

21. BUILDING | SERVICES | TWO
(BLD60503)

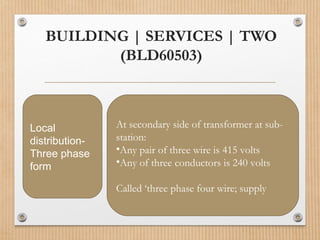

Local
distribution-
Three phase
form
At secondary side of transformer at sub-
station:
•Any pair of three wire is 415 volts
•Any of three conductors is 240 volts
Called ‘three phase four wire; supply

22. BUILDING | SERVICES | TWO
(BLD60503)

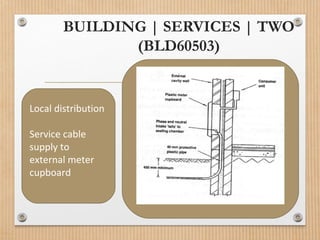

Local distribution
Service cable
supply to
external meter
cupboard

23. BUILDING | SERVICES | TWO
(BLD60503)
Local
distribution

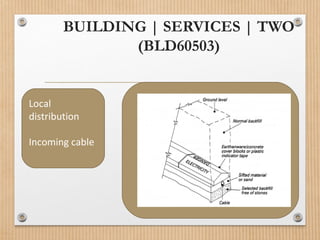

Incoming cable

24. BUILDING | SERVICES | TWO
(BLD60503)

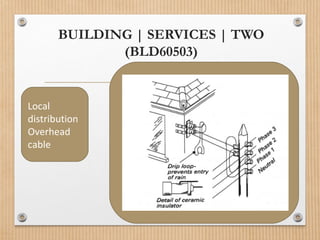

Local
distribution
Overhead
cable

25. BUILDING | SERVICES | TWO
(BLD60503)

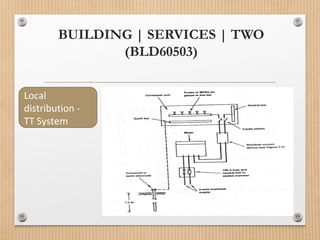

Local
distribution -
TT System

26. BUILDING | SERVICES | TWO
(BLD60503)

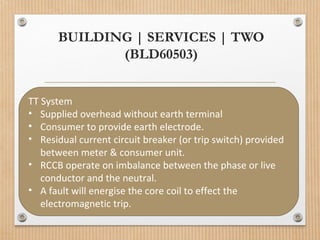

TT System
• Supplied overhead without earth terminal
• Consumer to provide earth electrode.
• Residual current circuit breaker (or trip switch) provided
between meter & consumer unit.
• RCCB operate on imbalance between the phase or live
conductor and the neutral.
• A fault will energise the core coil to effect the
electromagnetic trip.

27. BUILDING | SERVICES | TWO
(BLD60503)

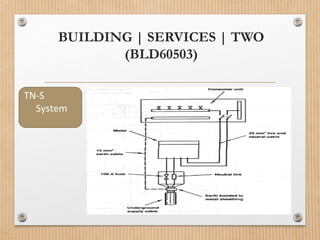

TN-S
System

28. BUILDING | SERVICES | TWO

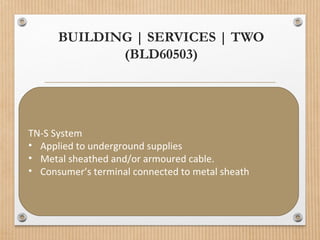

(BLD60503)
TN-S System
• Applied to underground supplies
• Metal sheathed and/or armoured cable.
• Consumer’s terminal connected to metal sheath

29. BUILDING | SERVICES | TWO
(BLD60503)

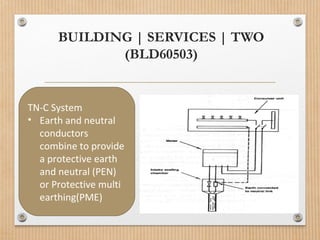

TN-C System
• Earth and neutral
conductors
combine to provide
a protective earth
and neutral (PEN)
or Protective multi
earthing(PME)

30. BUILDING | SERVICES | TWO
(BLD60503)

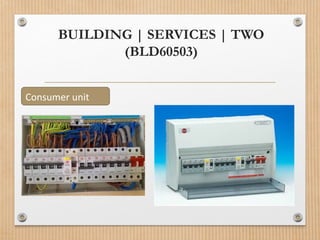

Consumer unit

31. BUILDING | SERVICES | TWO
(BLD60503)

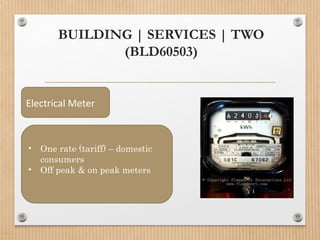

Electrical Meter
• One rate (tariff) – domestic
consumers
• Off peak & on peak meters

32. BUILDING | SERVICES | TWO
(BLD60503)

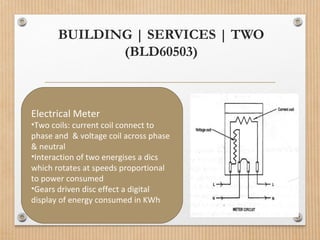

Electrical Meter
•Two coils: current coil connect to
phase and & voltage coil across phase
& neutral
•Interaction of two energises a dics
which rotates at speeds proportional
to power consumed
•Gears driven disc effect a digital
display of energy consumed in KWh

33. BUILDING | SERVICES | TWO
(BLD60503)

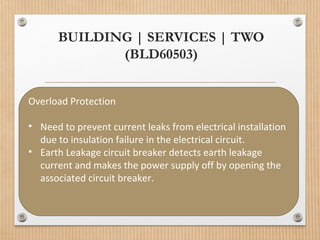

Overload Protection
• Need to prevent current leaks from electrical installation
due to insulation failure in the electrical circuit.

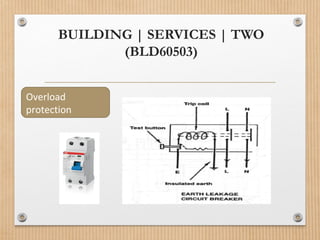

• Earth Leakage circuit breaker detects earth leakage
current and makes the power supply off by opening the
associated circuit breaker.

34. BUILDING | SERVICES | TWO
(BLD60503)

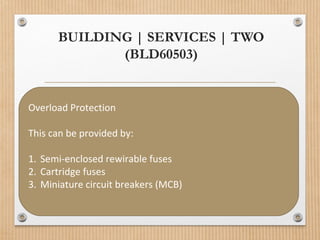

Overload Protection
This can be provided by:
1. Semi-enclosed rewirable fuses
2. Cartridge fuses
3. Miniature circuit breakers (MCB)

35. BUILDING | SERVICES | TWO
(BLD60503)
Overload
protection

36. BUILDING | SERVICES | TWO
(BLD60503)

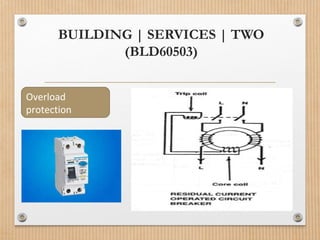

Overload
protection

37. BUILDING | SERVICES | TWO
(BLD60503)

38. BUILDING | SERVICES | TWO
(BLD60503)

39. BUILDING | SERVICES | TWO
(BLD60503)

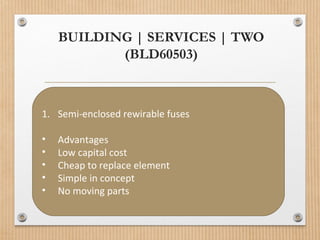

1. Semi-enclosed rewirable fuses
• Advantages
• Low capital cost
• Cheap to replace element
• Simple in concept
• No moving parts

40. BUILDING | SERVICES | TWO
(BLD60503)

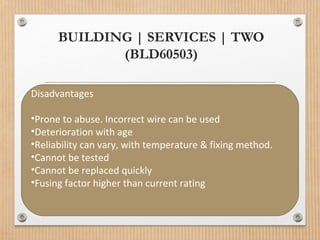

Disadvantages
•Prone to abuse. Incorrect wire can be used
•Deterioration with age
•Reliability can vary, with temperature & fixing method.
•Cannot be tested
•Cannot be replaced quickly
•Fusing factor higher than current rating

41. BUILDING | SERVICES | TWO
(BLD60503)
2. Cartridge fuses
Advantages
•Small and compact
•No moving parts
•Accurate and consistent to declared rating
•Will not deteriorate in protective tube

42. BUILDING | SERVICES | TWO
(BLD60503)
2. Cartridge fuses
Disadvantages
•Cannot be repaired or reset, must be replaced
•Prone to abuse (with metal foil)
•Much more expensive than fuse wire

43. BUILDING | SERVICES | TWO
(BLD60503)

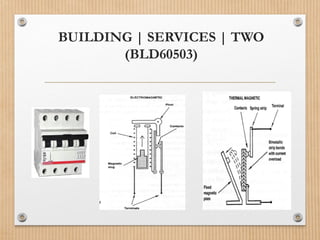

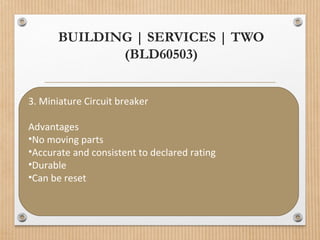

3. Miniature Circuit breaker
Advantages
•No moving parts
•Accurate and consistent to declared rating
•Durable
•Can be reset

44. BUILDING | SERVICES | TWO
(BLD60503)

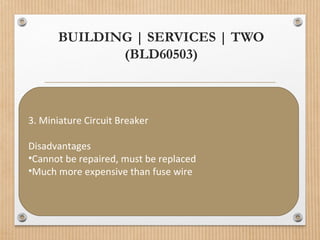

3. Miniature Circuit Breaker
Disadvantages
•Cannot be repaired, must be replaced
•Much more expensive than fuse wire

45. BUILDING | SERVICES | TWO
(BLD60503)
The End
