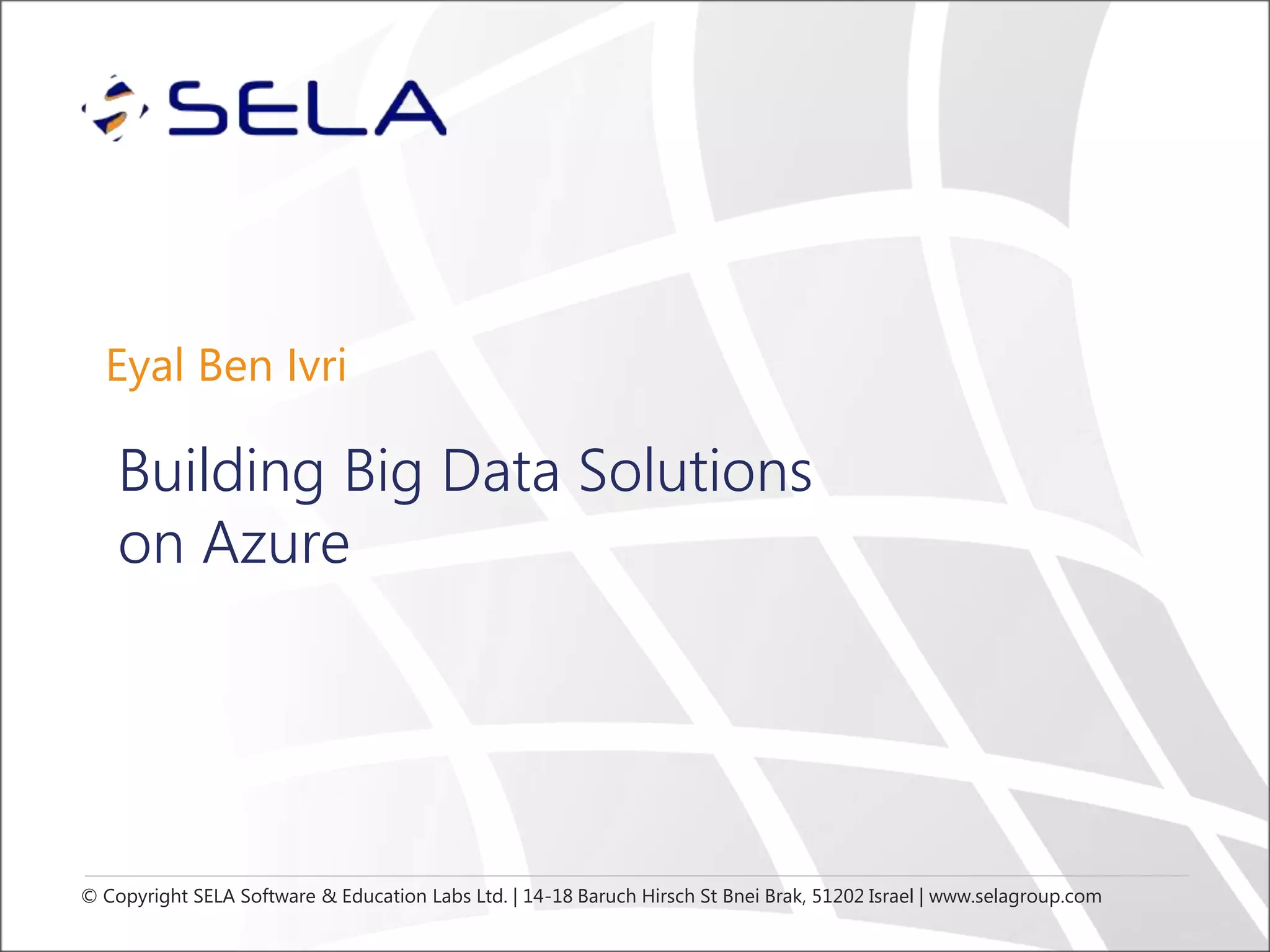

- 1. © Copyright SELASoftware & Education Labs Ltd. | 14-18 Baruch Hirsch St Bnei Brak, 51202 Israel | www.selagroup.com Eyal Ben Ivri Building Big Data Solutions on Azure

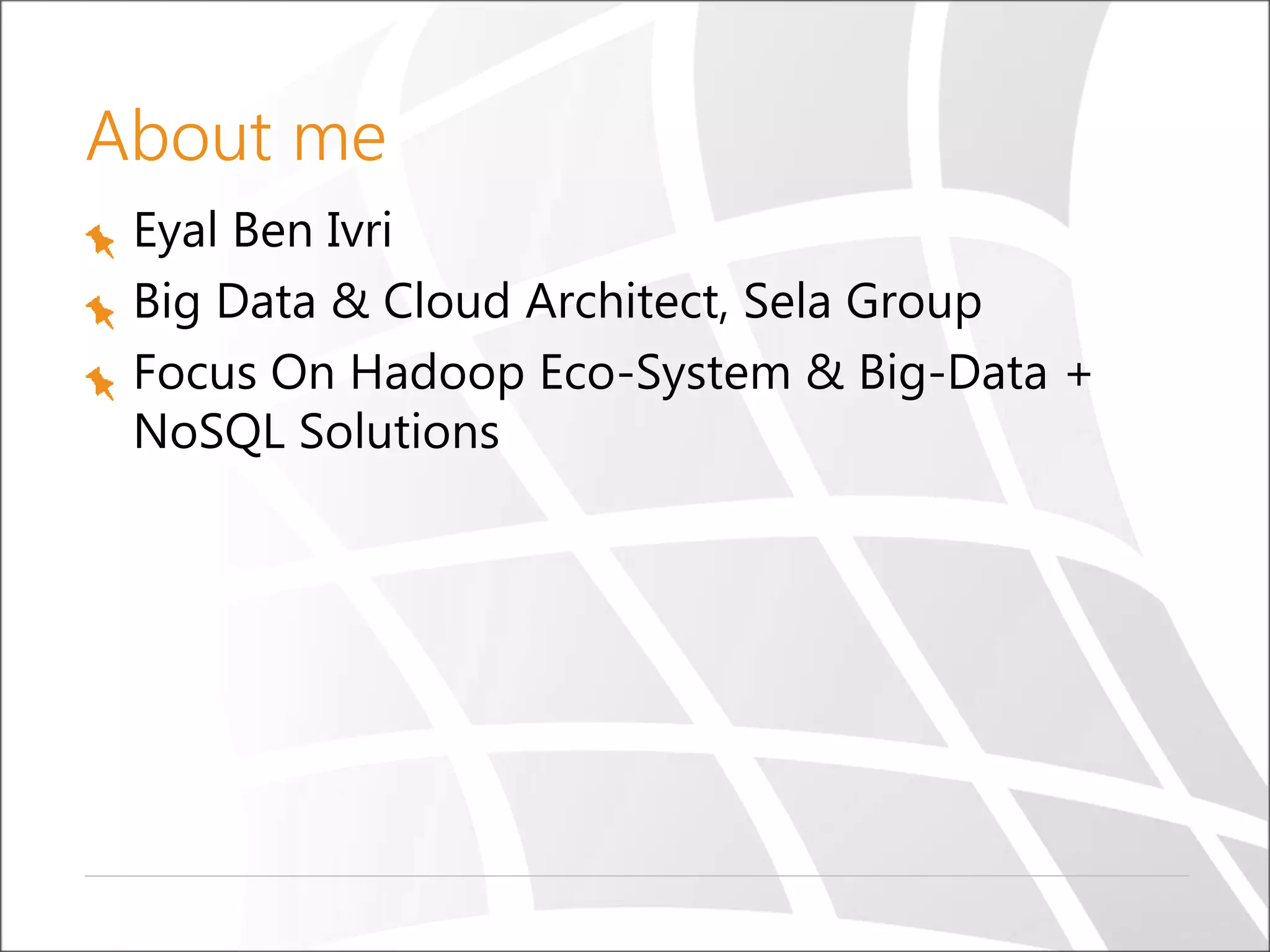

- 2. About me Eyal BenIvri Big Data & Cloud Architect, Sela Group Focus On Hadoop Eco-System & Big-Data + NoSQL Solutions

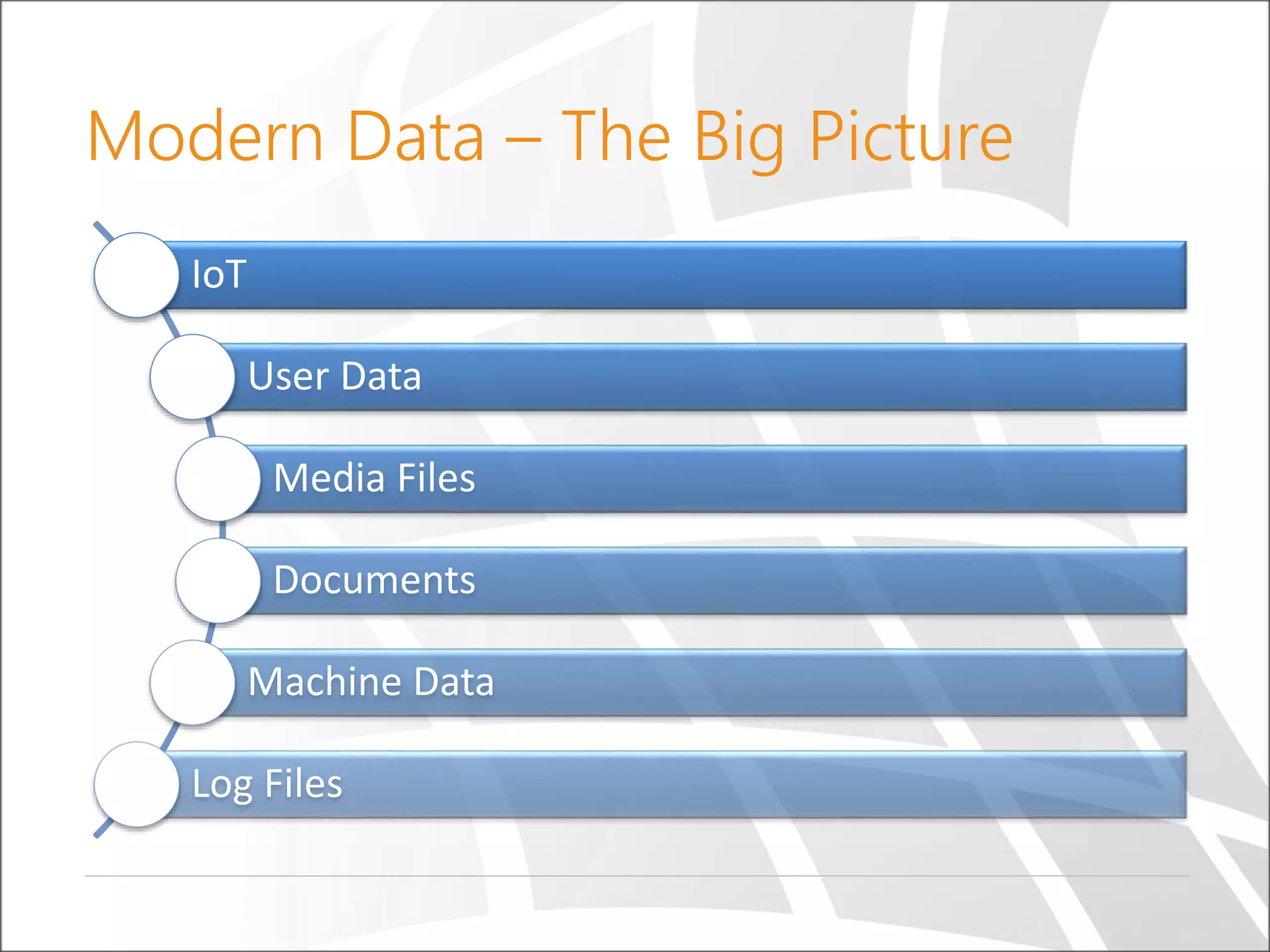

- 3. Modern Data –The Big Picture IoT User Data Media Files Documents Machine Data Log Files

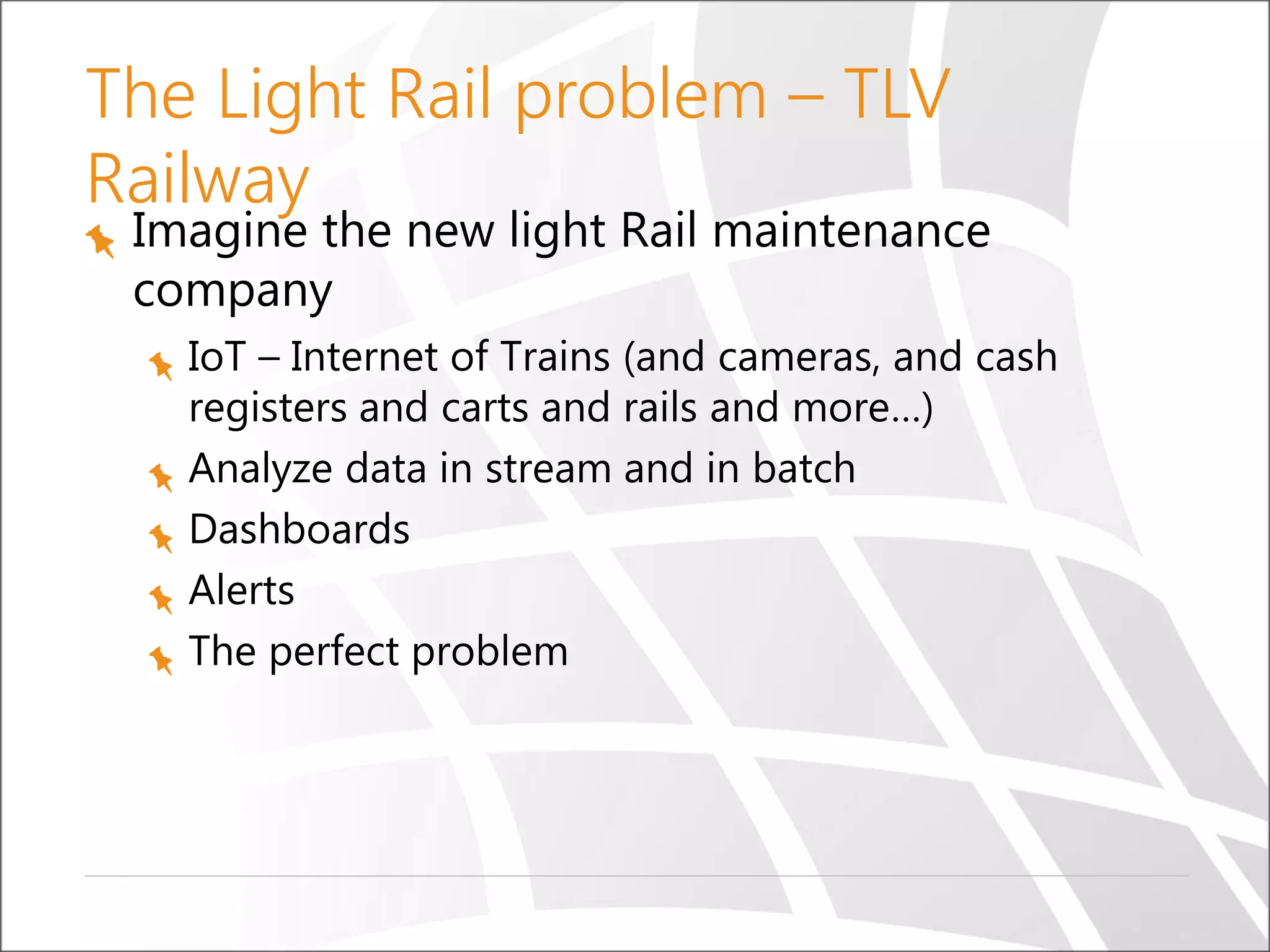

- 5. The Light Railproblem – TLV Railway Imagine the new light Rail maintenance company IoT – Internet of Trains (and cameras, and cash registers and carts and rails and more…) Analyze data in stream and in batch Dashboards Alerts The perfect problem

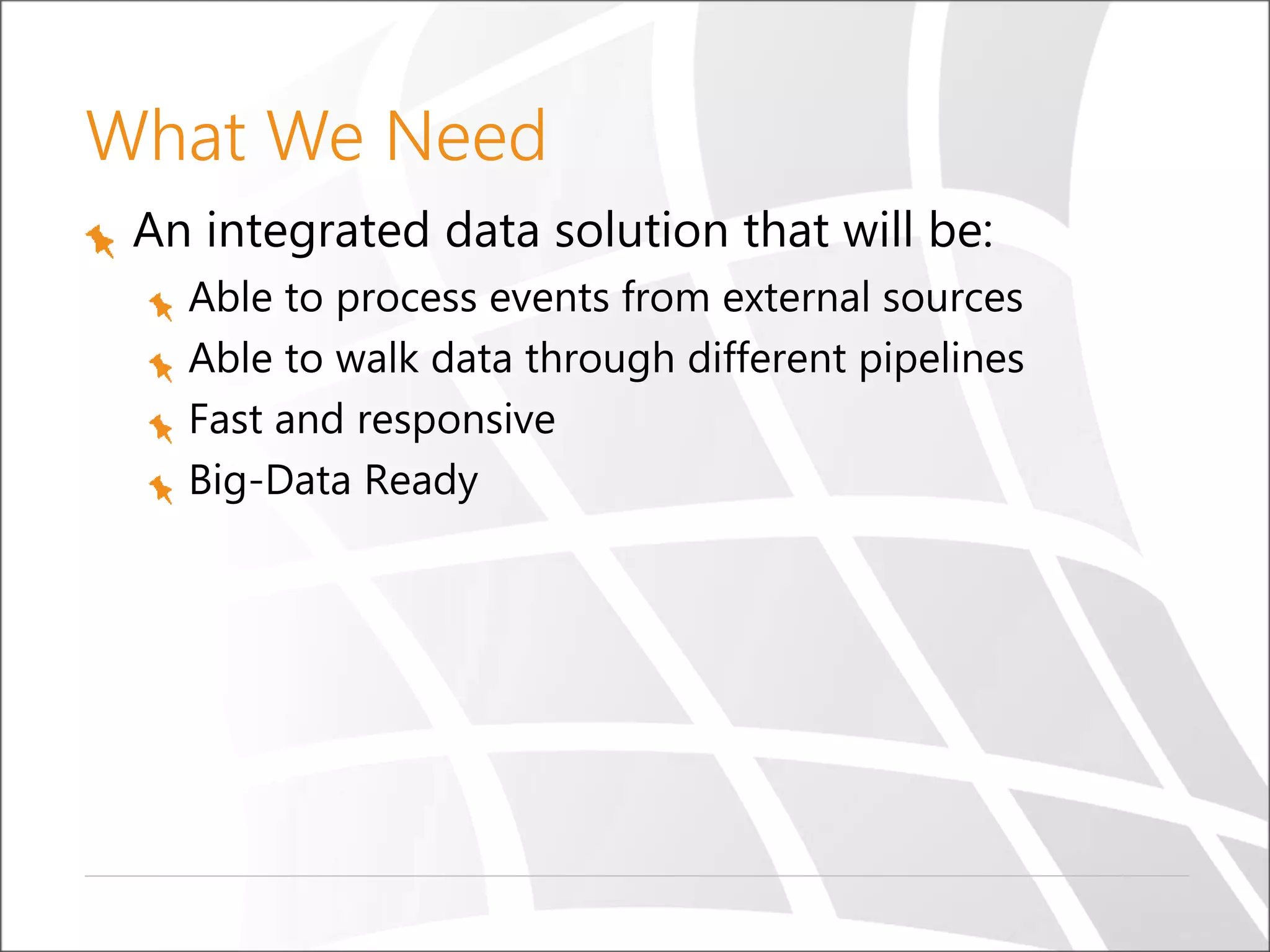

- 6. What We Need Anintegrated data solution that will be: Able to process events from external sources Able to walk data through different pipelines Fast and responsive Big-Data Ready

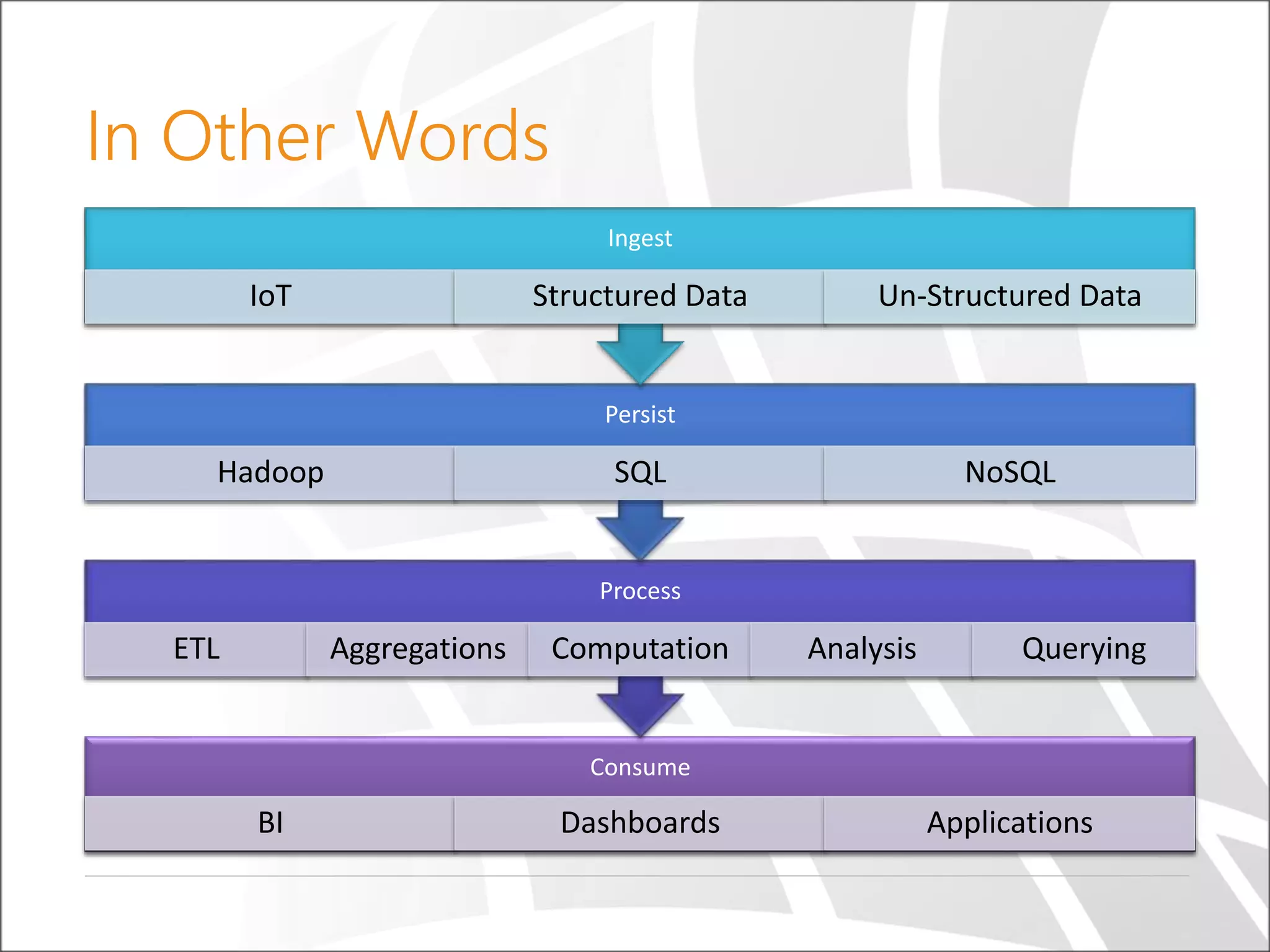

- 7. In Other Words Consume BIDashboards Applications Process ETL Aggregations Computation Analysis Querying Persist Hadoop SQL NoSQL Ingest IoT Structured Data Un-Structured Data

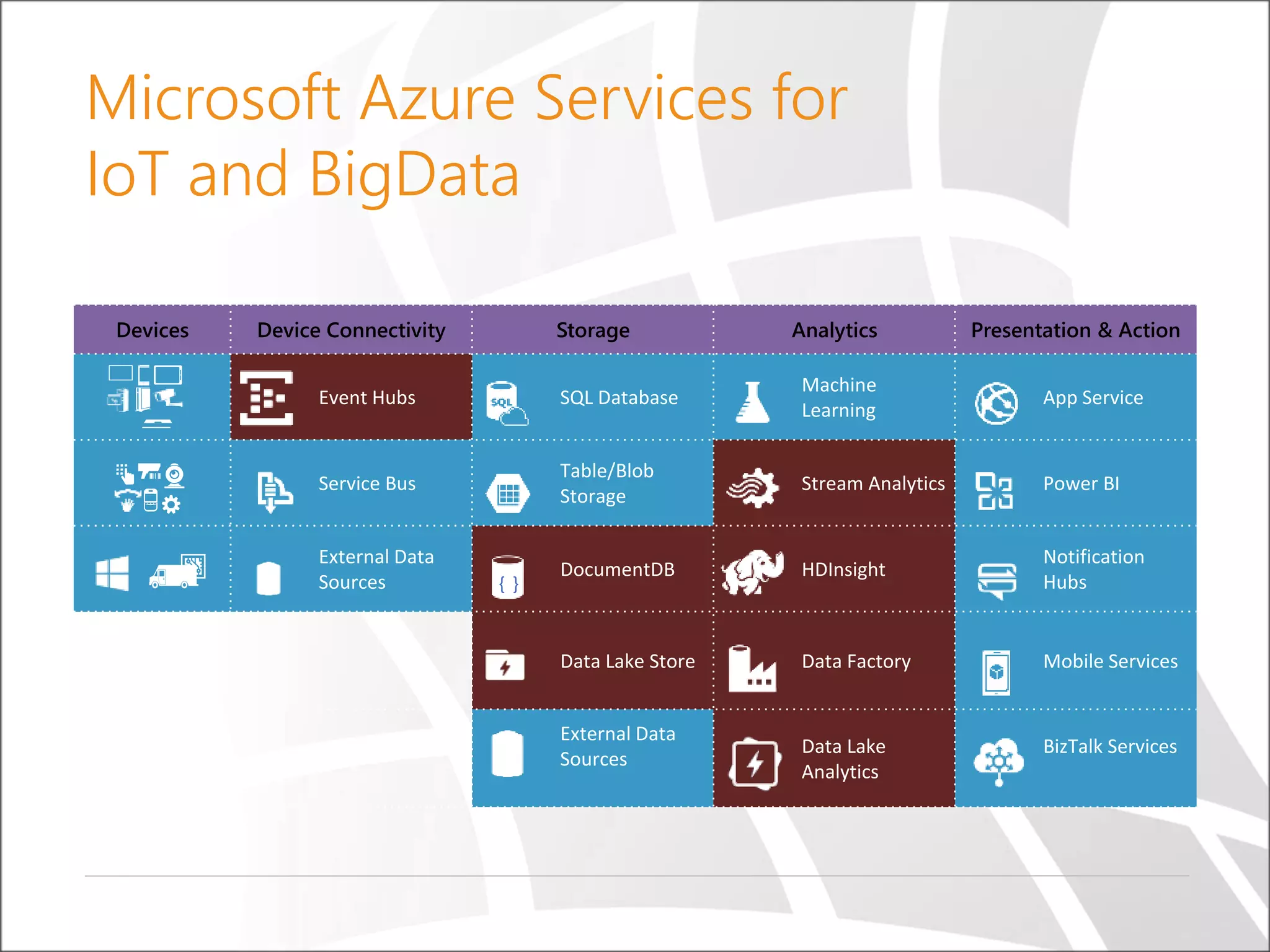

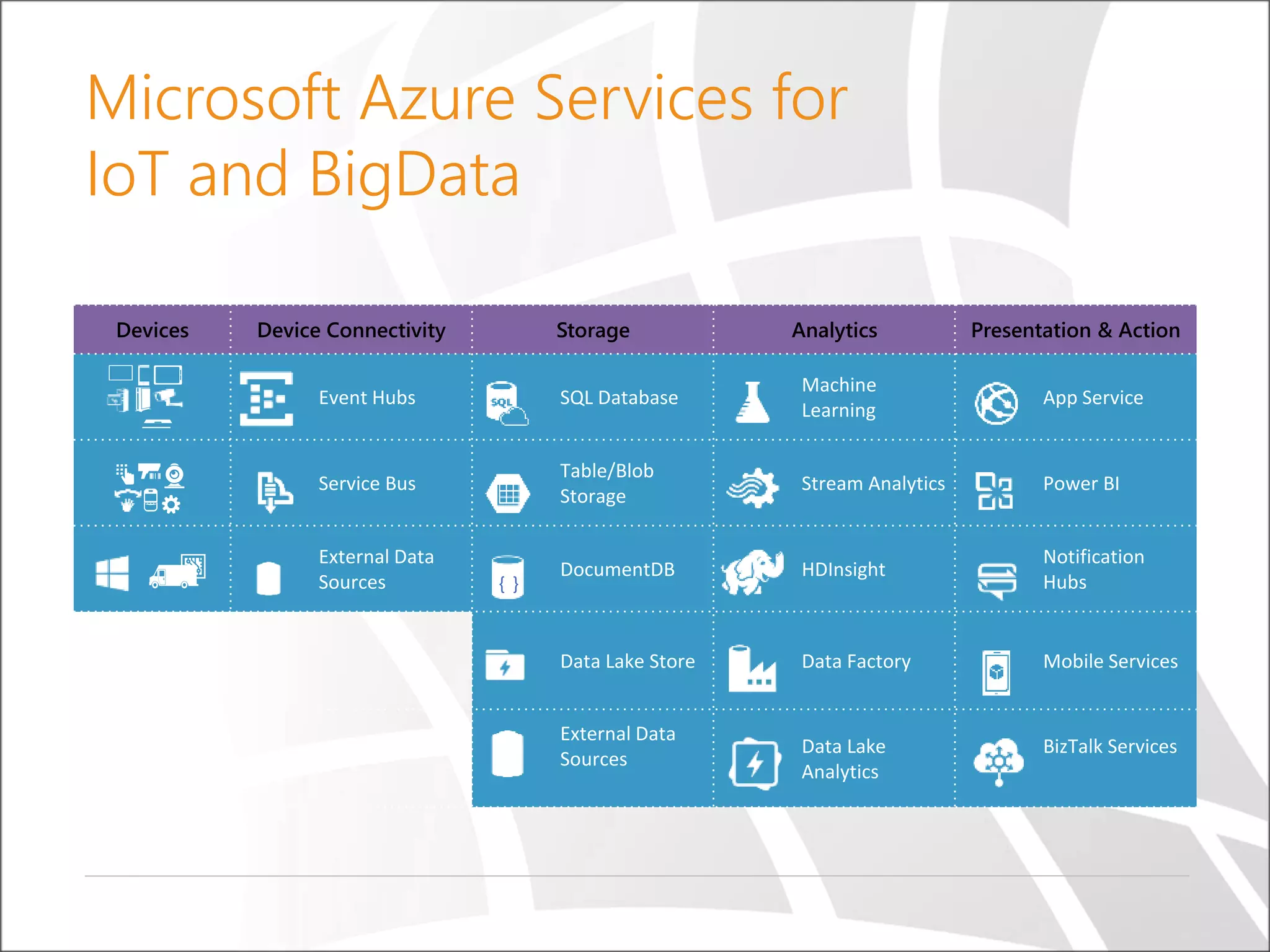

- 8. Microsoft Azure Servicesfor IoT and BigData Devices Device Connectivity Storage Analytics Presentation & Action Event Hubs SQL Database Machine Learning App Service Service Bus Table/Blob Storage Stream Analytics Power BI External Data Sources DocumentDB HDInsight Notification Hubs Data Lake Store Data Factory Mobile Services External Data Sources Data Lake Analytics BizTalk Services { }
- 9. Microsoft Azure Servicesfor IoT and BigData Devices Device Connectivity Storage Analytics Presentation & Action Event Hubs SQL Database Machine Learning App Service Service Bus Table/Blob Storage Stream Analytics Power BI External Data Sources DocumentDB HDInsight Notification Hubs Data Lake Store Data Factory Mobile Services External Data Sources Data Lake Analytics BizTalk Services { }

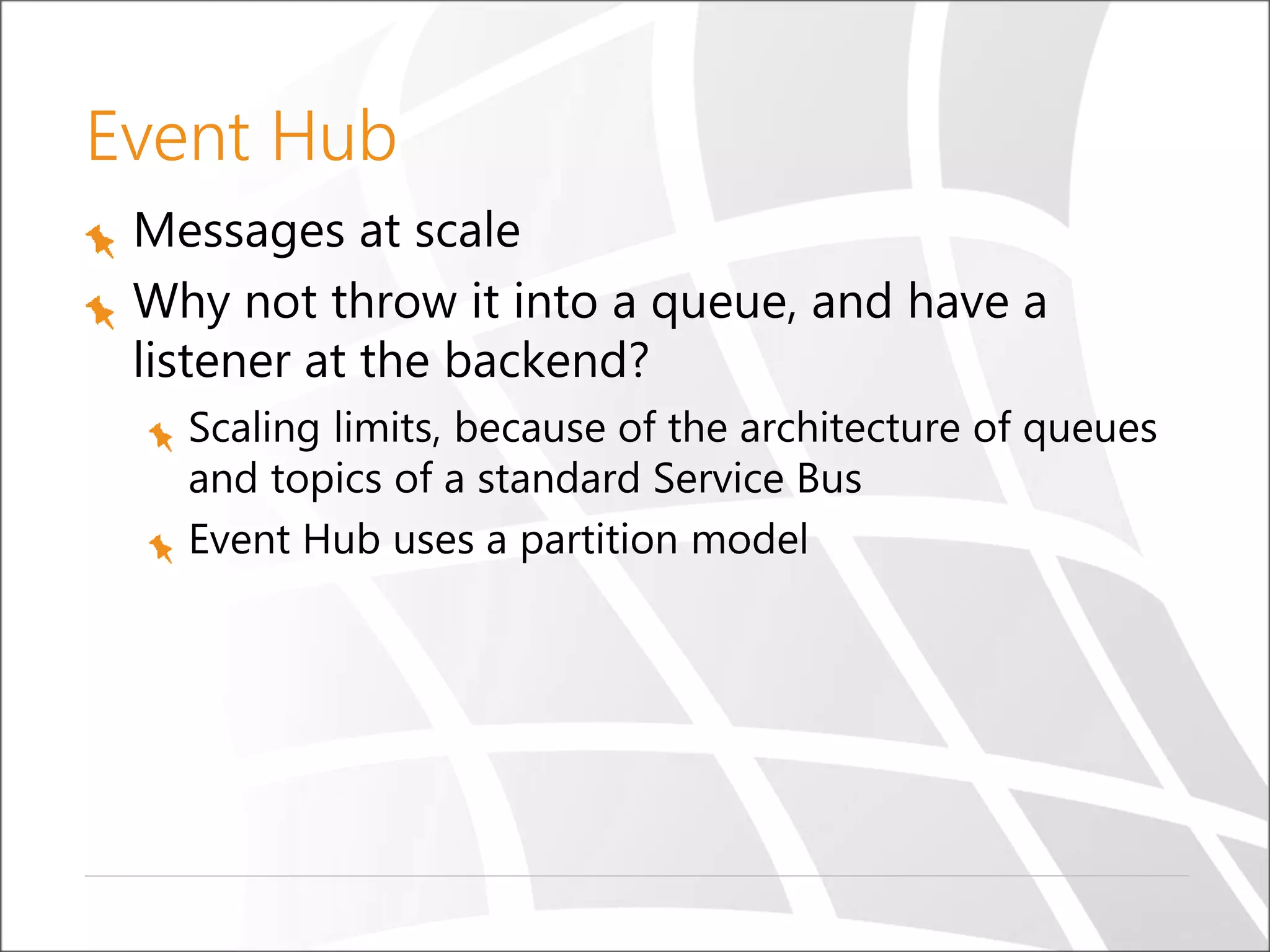

- 10. Event Hub Messages atscale Why not throw it into a queue, and have a listener at the backend? Scaling limits, because of the architecture of queues and topics of a standard Service Bus Event Hub uses a partition model

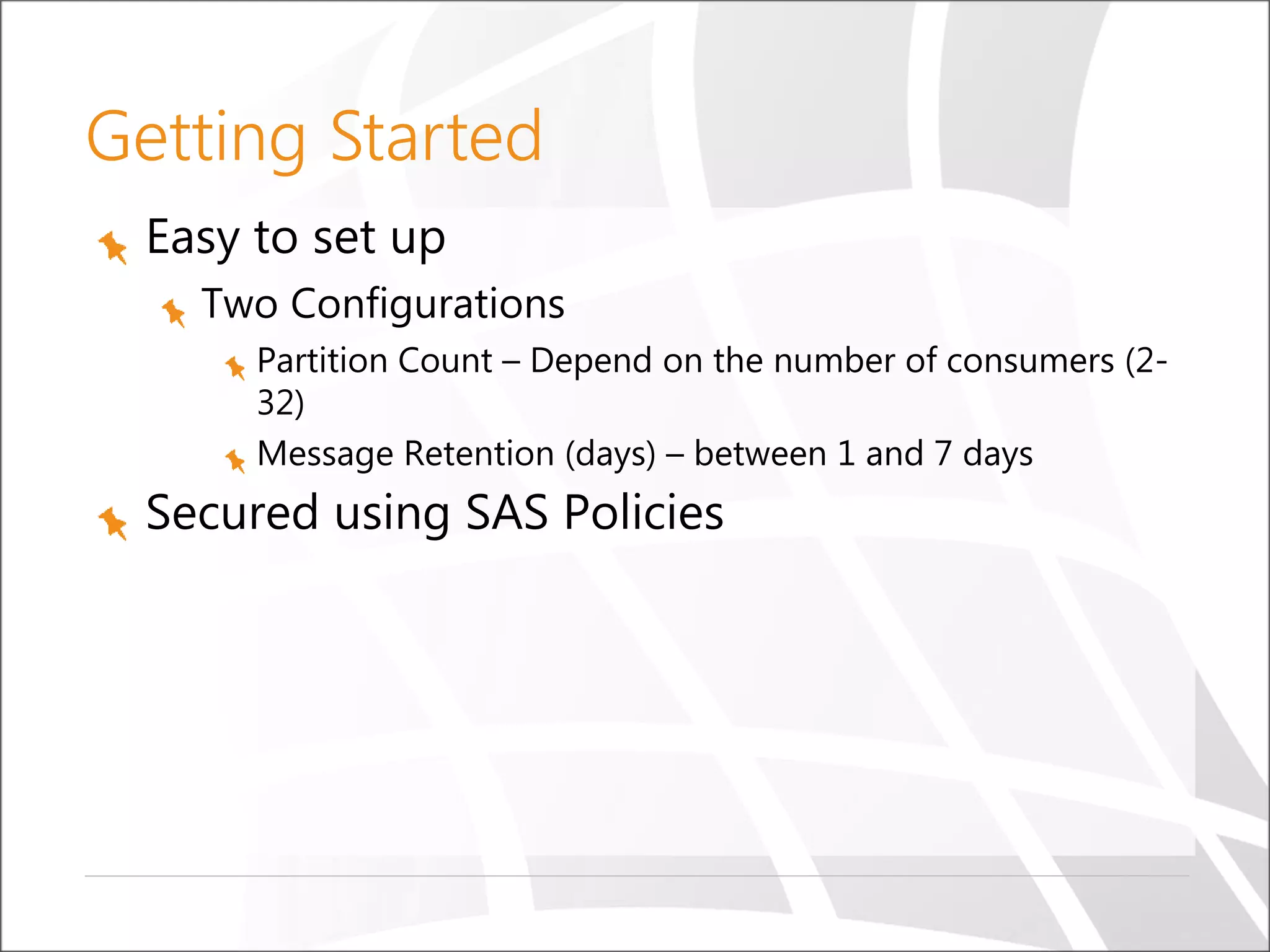

- 11. Getting Started Easy toset up Two Configurations Partition Count – Depend on the number of consumers (2- 32) Message Retention (days) – between 1 and 7 days Secured using SAS Policies

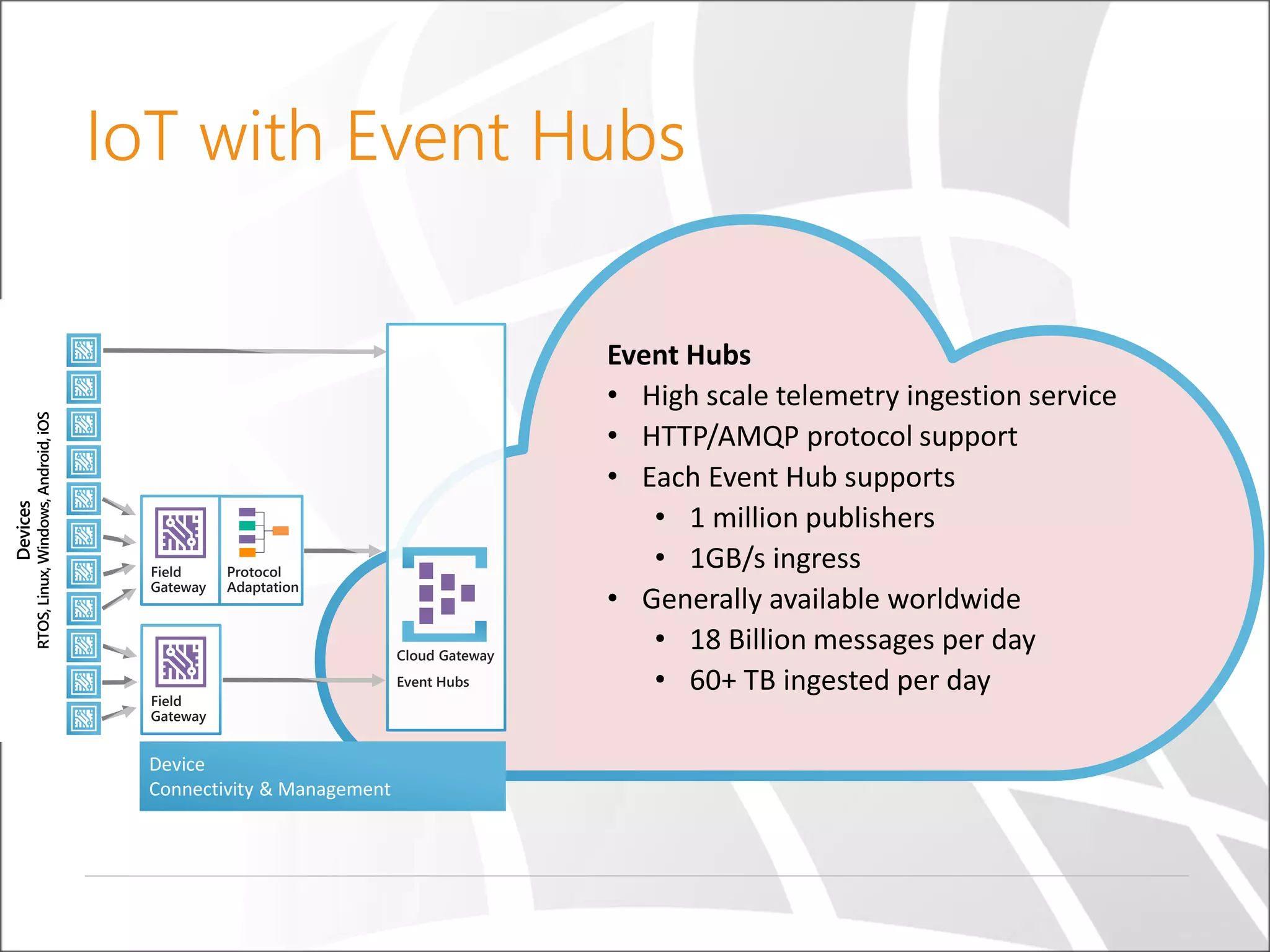

- 12. Field Gateway Device Connectivity & Management IoTwith Event Hubs Devices RTOS,Linux,Windows,Android,iOS Cloud Gateway Event Hubs Field Gateway Protocol Adaptation

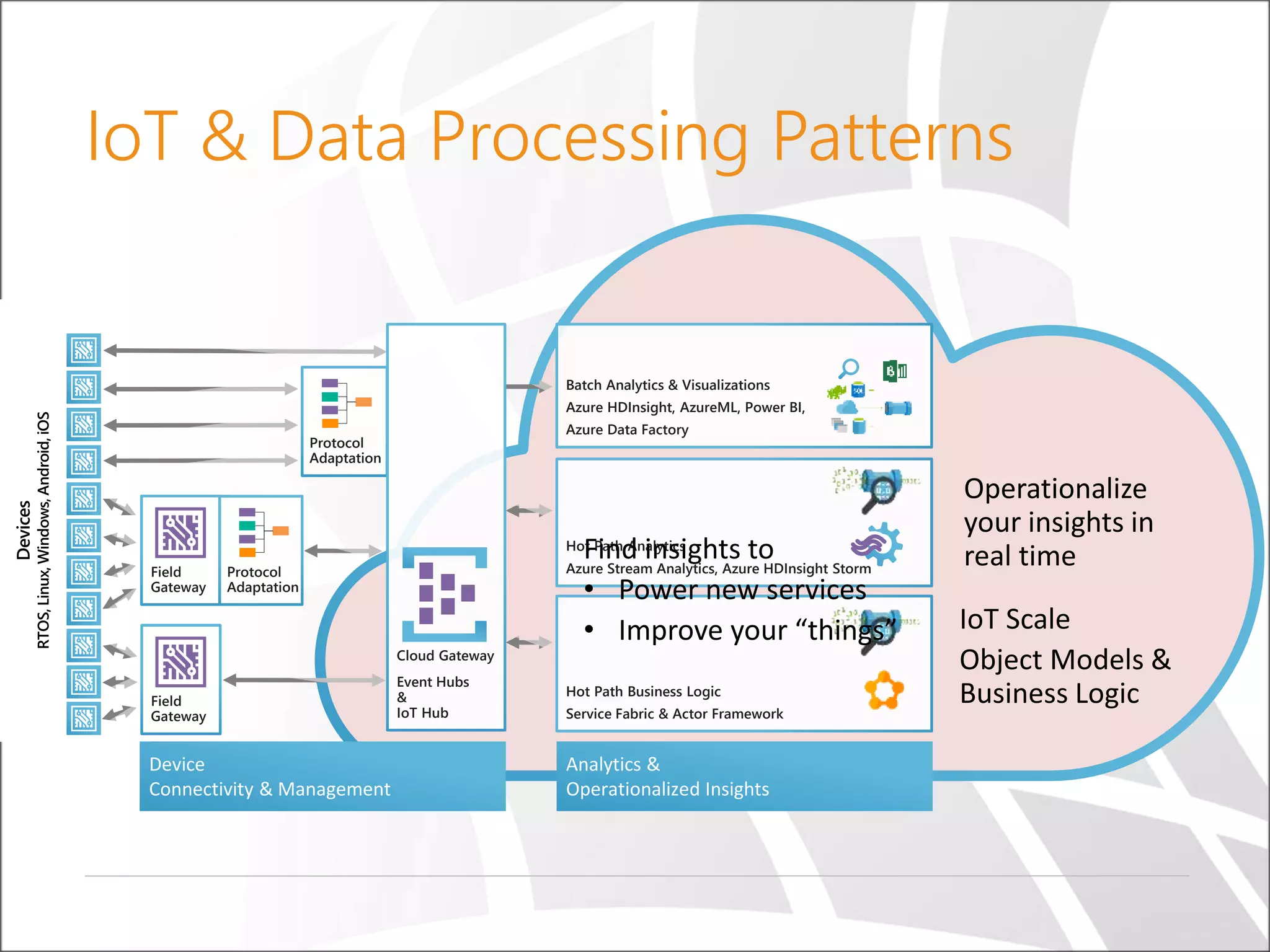

- 13. Field Gateway Device Connectivity & Management Analytics& Operationalized Insights IoT & Data Processing Patterns Devices RTOS,Linux,Windows,Android,iOS Protocol Adaptation Batch Analytics & Visualizations Azure HDInsight, AzureML, Power BI, Azure Data Factory Hot Path Analytics Azure Stream Analytics, Azure HDInsight Storm Hot Path Business Logic Service Fabric & Actor Framework Cloud Gateway Event Hubs & IoT Hub Field Gateway Protocol Adaptation

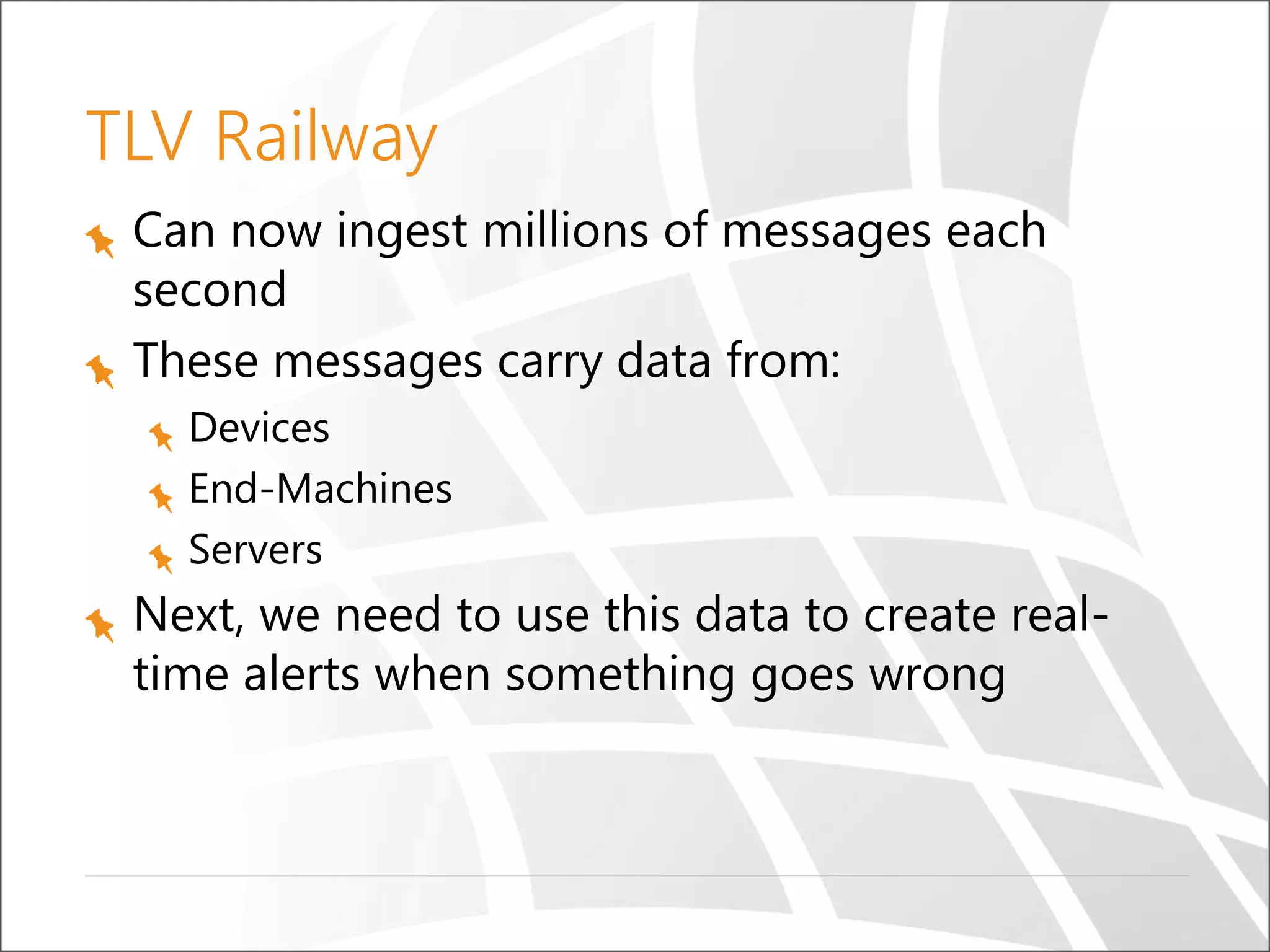

- 14. TLV Railway Can nowingest millions of messages each second These messages carry data from: Devices End-Machines Servers Next, we need to use this data to create real- time alerts when something goes wrong

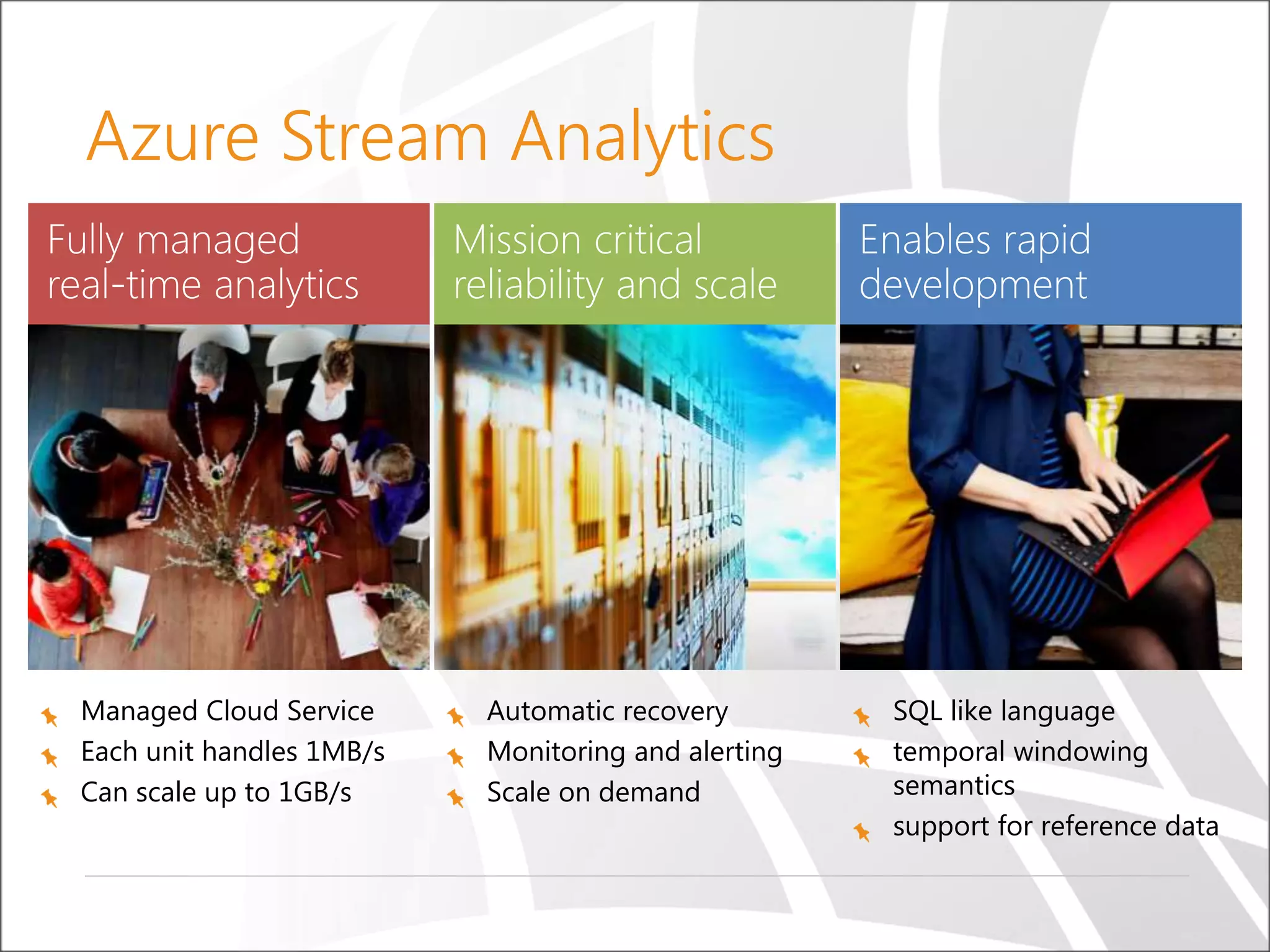

- 15. Azure Stream Analytics Automaticrecovery Monitoring and alerting Scale on demand Managed Cloud Service Each unit handles 1MB/s Can scale up to 1GB/s SQL like language temporal windowing semantics support for reference data

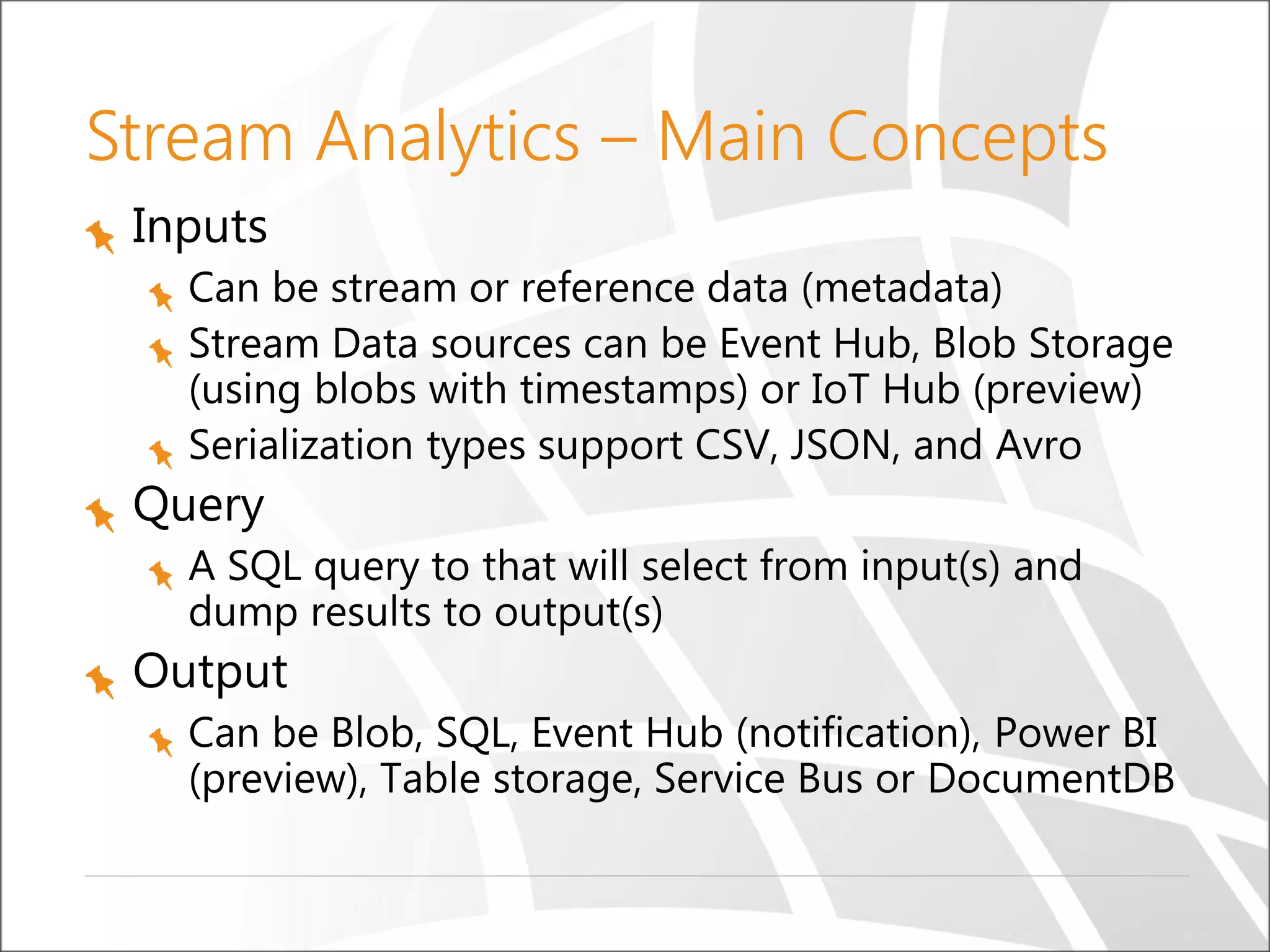

- 16. Stream Analytics –Main Concepts Inputs Can be stream or reference data (metadata) Stream Data sources can be Event Hub, Blob Storage (using blobs with timestamps) or IoT Hub (preview) Serialization types support CSV, JSON, and Avro Query A SQL query to that will select from input(s) and dump results to output(s) Output Can be Blob, SQL, Event Hub (notification), Power BI (preview), Table storage, Service Bus or DocumentDB

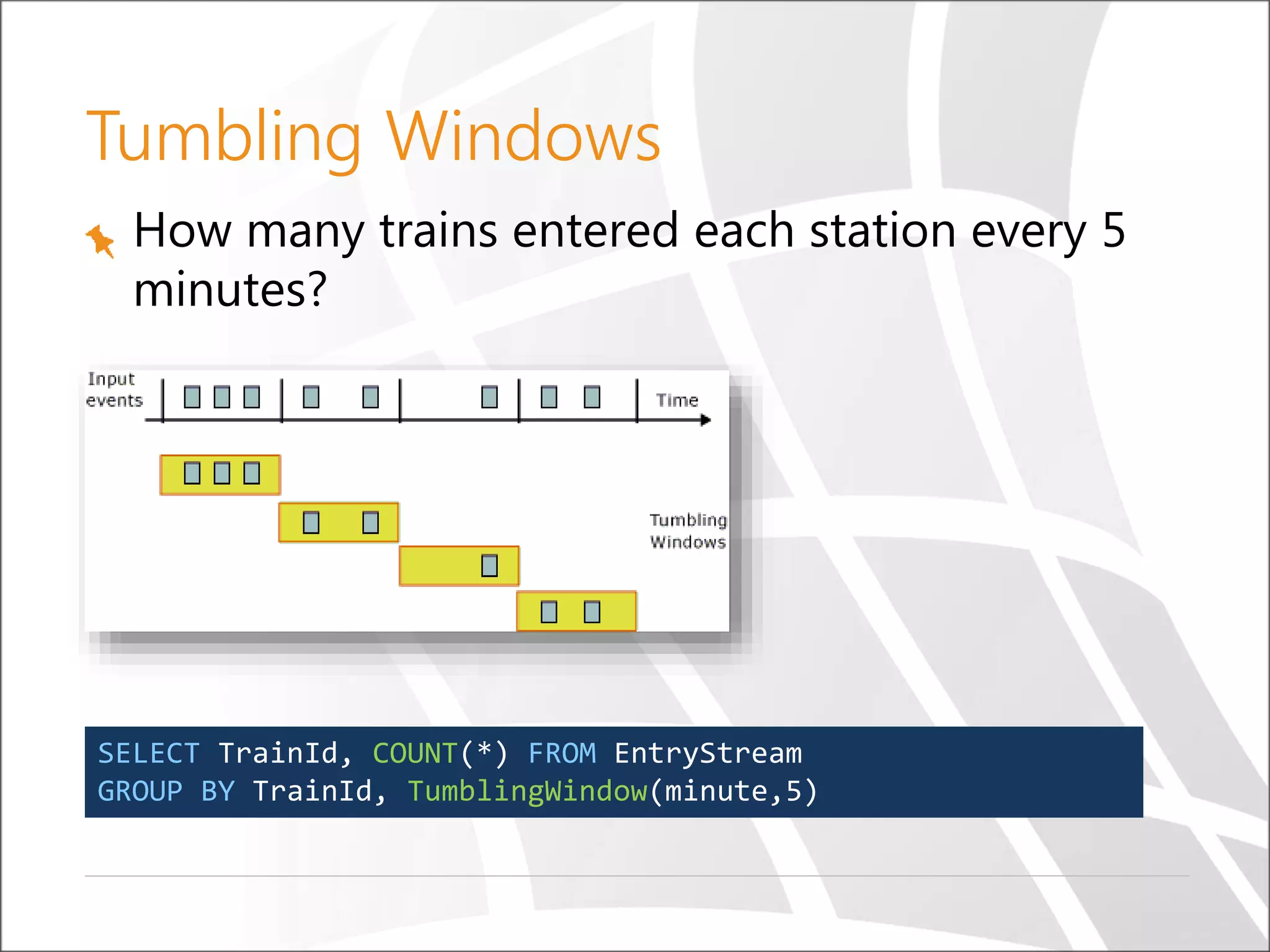

- 17. Tumbling Windows How manytrains entered each station every 5 minutes? SELECT TrainId, COUNT(*) FROM EntryStream GROUP BY TrainId, TumblingWindow(minute,5)

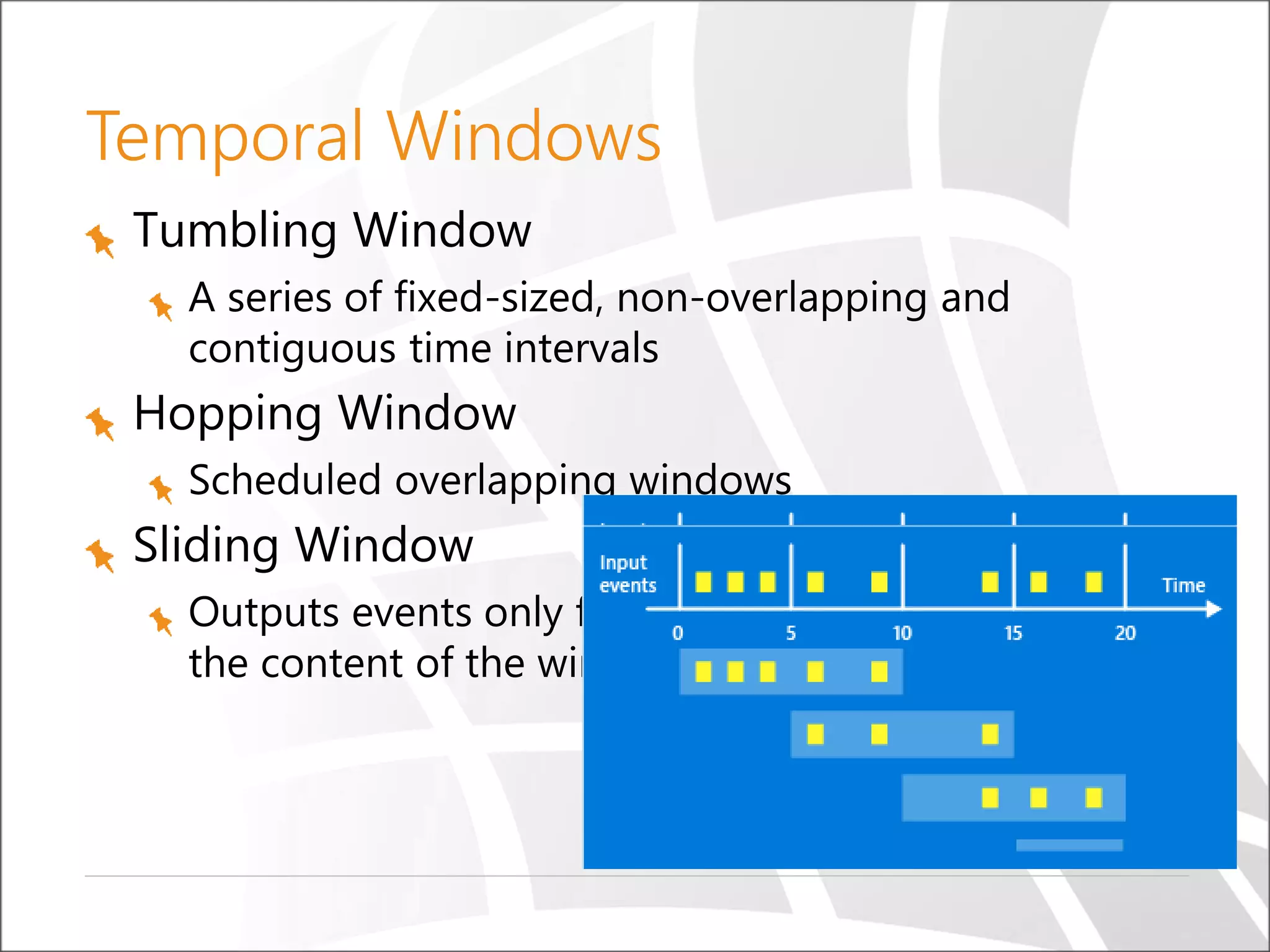

- 18. Temporal Windows Tumbling Window Aseries of fixed-sized, non-overlapping and contiguous time intervals Hopping Window Scheduled overlapping windows Sliding Window Outputs events only for those points in time when the content of the window actually changes

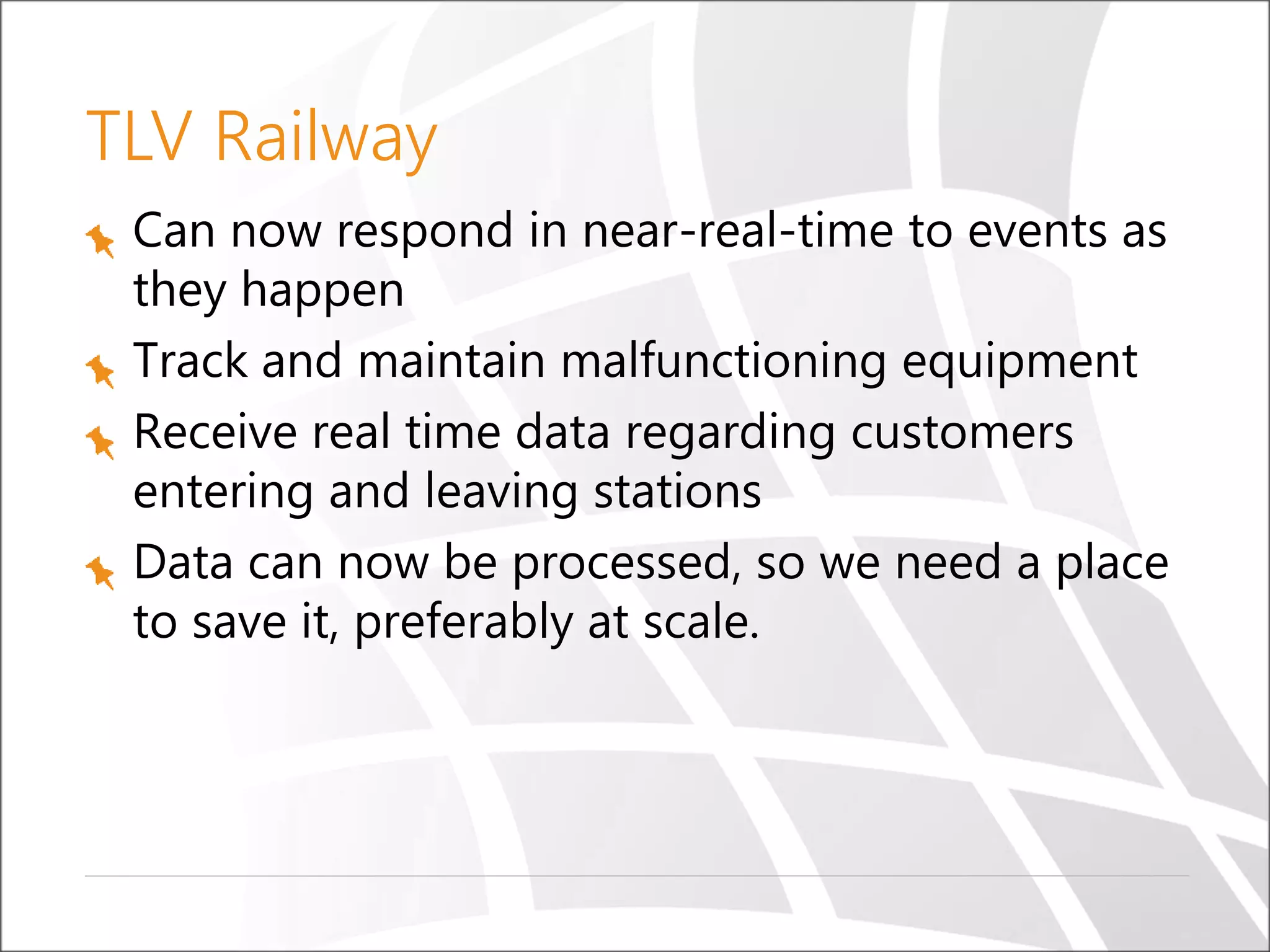

- 19. TLV Railway Can nowrespond in near-real-time to events as they happen Track and maintain malfunctioning equipment Receive real time data regarding customers entering and leaving stations Data can now be processed, so we need a place to save it, preferably at scale.

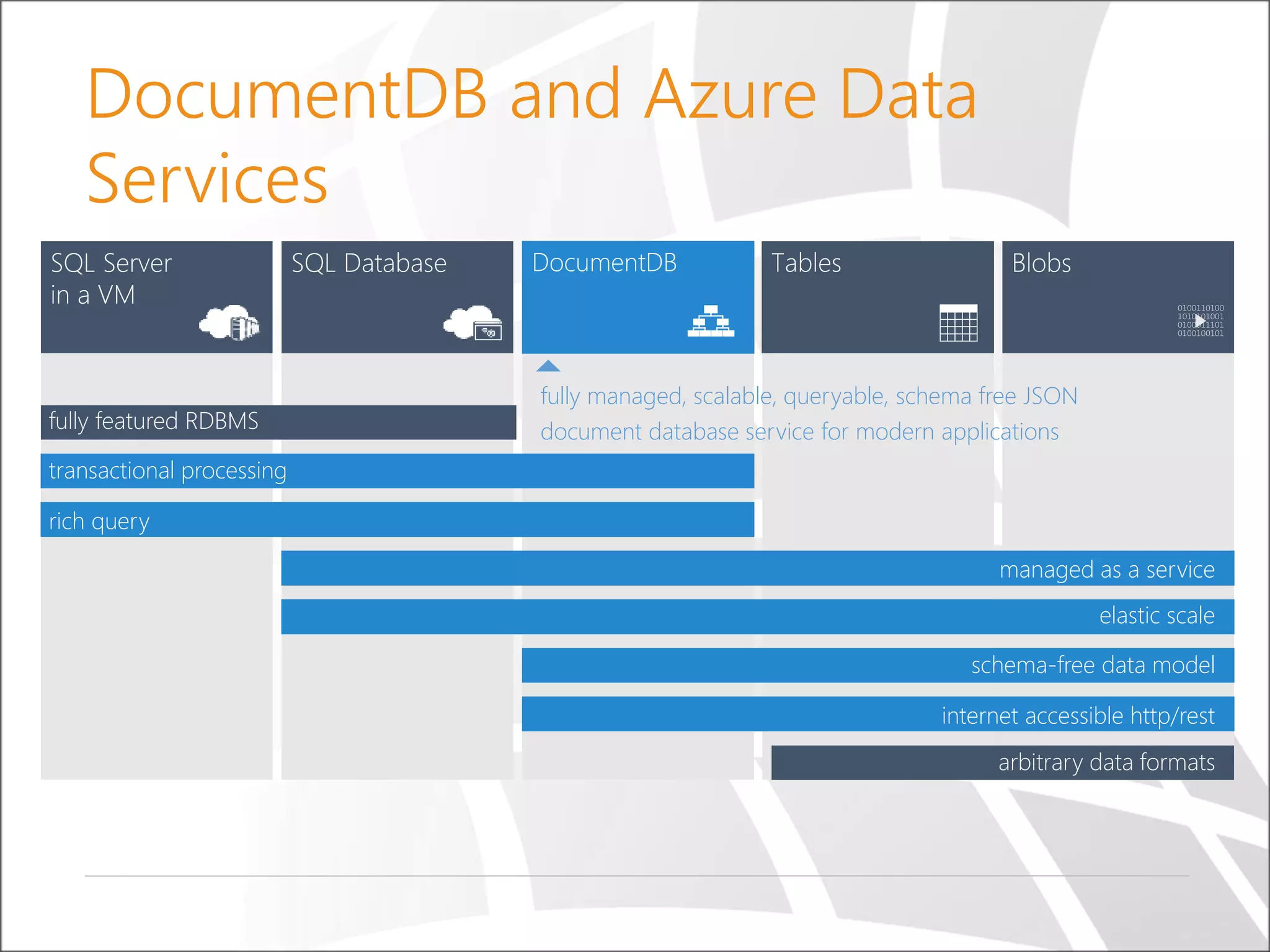

- 20. DocumentDB and AzureData Services fully managed, scalable, queryable, schema free JSON document database service for modern applications transactional processing rich query managed as a service elastic scale internet accessible http/rest schema-free data model arbitrary data formats

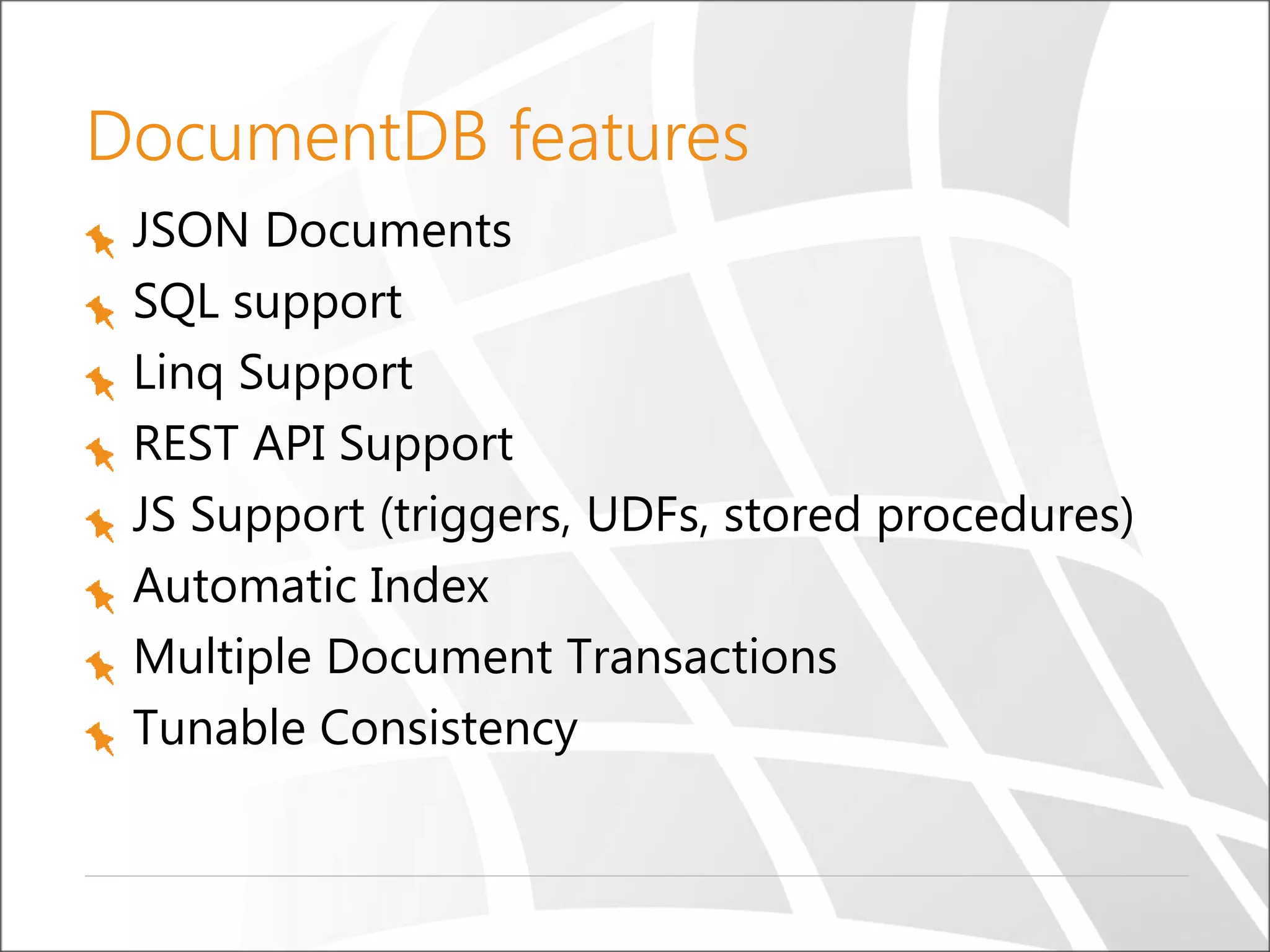

- 21. DocumentDB features JSON Documents SQLsupport Linq Support REST API Support JS Support (triggers, UDFs, stored procedures) Automatic Index Multiple Document Transactions Tunable Consistency

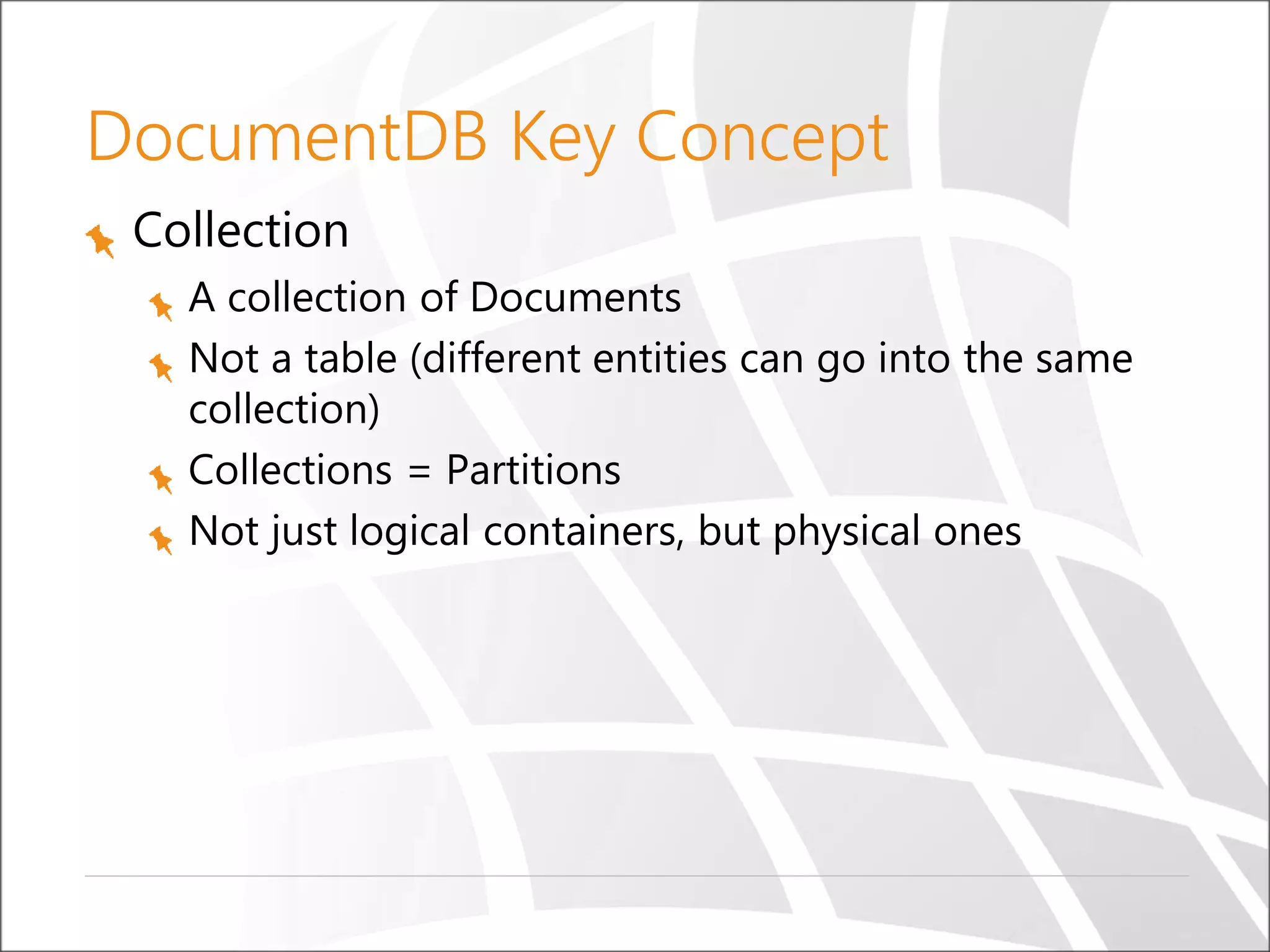

- 22. DocumentDB Key Concept Collection Acollection of Documents Not a table (different entities can go into the same collection) Collections = Partitions Not just logical containers, but physical ones
- 23. Demo TLV Railway –Part 1

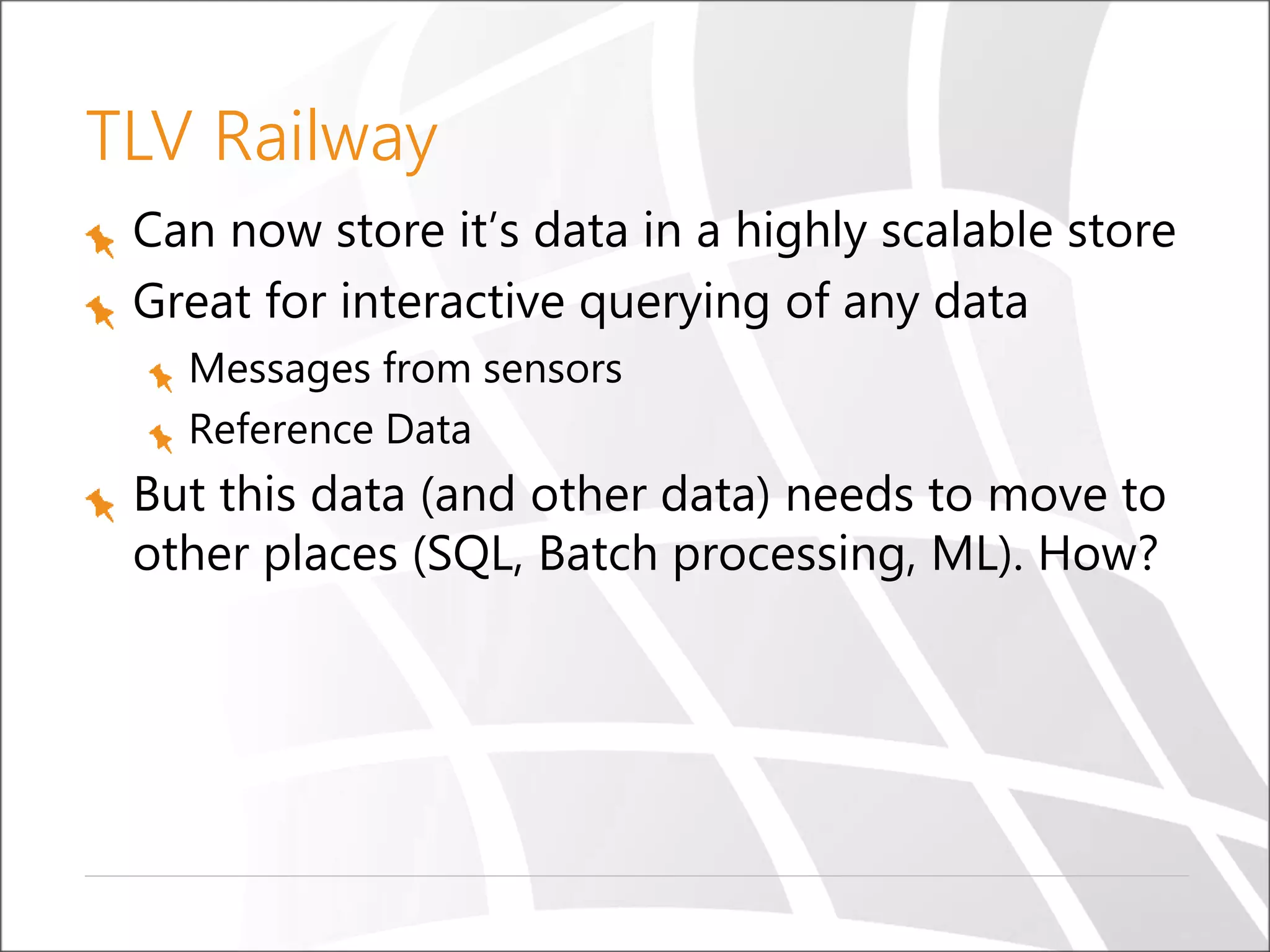

- 24. TLV Railway Can nowstore it’s data in a highly scalable store Great for interactive querying of any data Messages from sensors Reference Data But this data (and other data) needs to move to other places (SQL, Batch processing, ML). How?

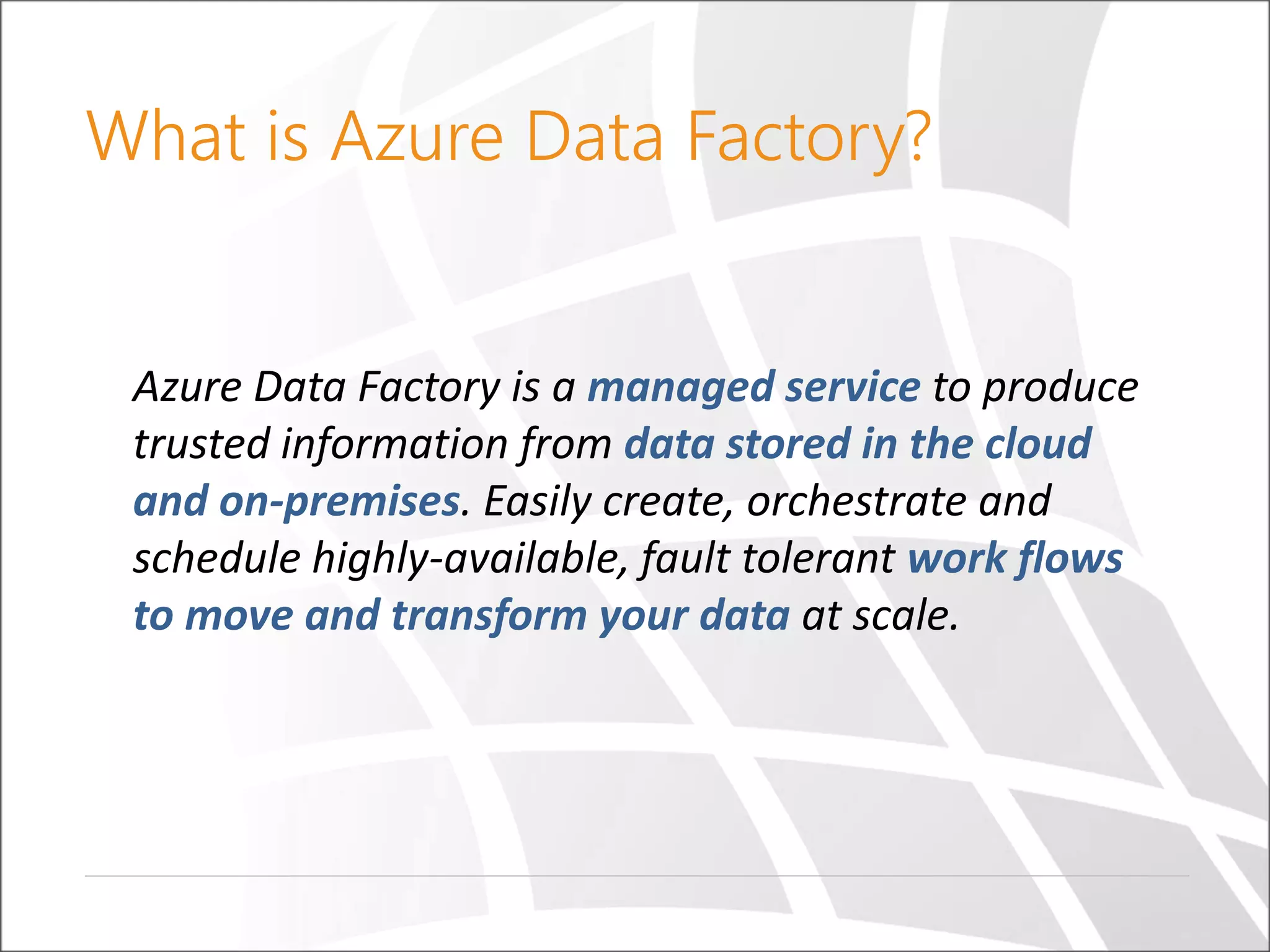

- 25. What is AzureData Factory? Azure Data Factory is a managed service to produce trusted information from data stored in the cloud and on-premises. Easily create, orchestrate and schedule highly-available, fault tolerant work flows to move and transform your data at scale.

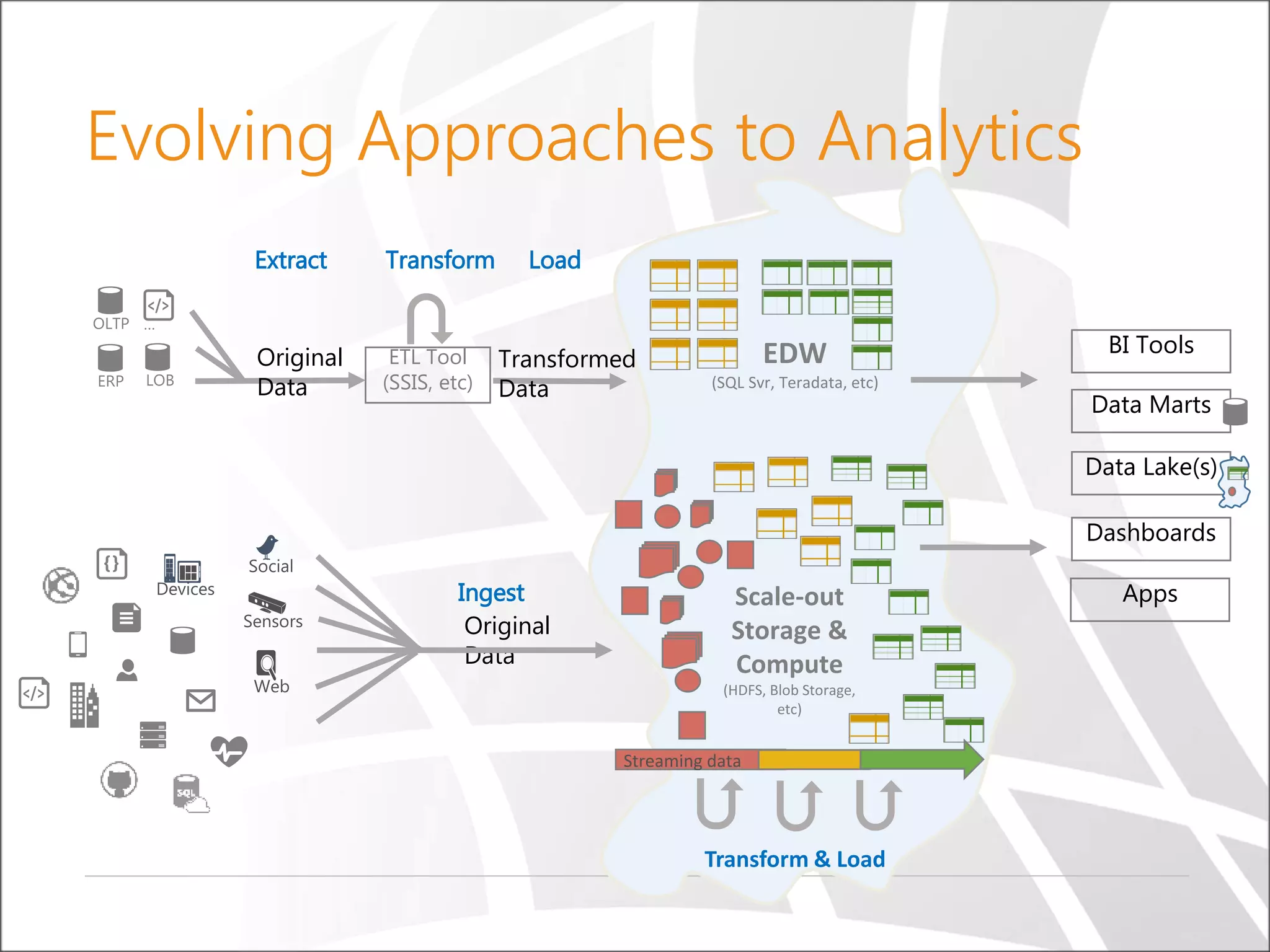

- 26. Evolving Approaches toAnalytics ETL Tool (SSIS, etc) EDW (SQL Svr, Teradata, etc) Extract Original Data Load Transformed Data Transform BI Tools Ingest Original Data Scale-out Storage & Compute (HDFS, Blob Storage, etc) Transform & Load Data Marts Data Lake(s) Dashboards Apps Streaming data

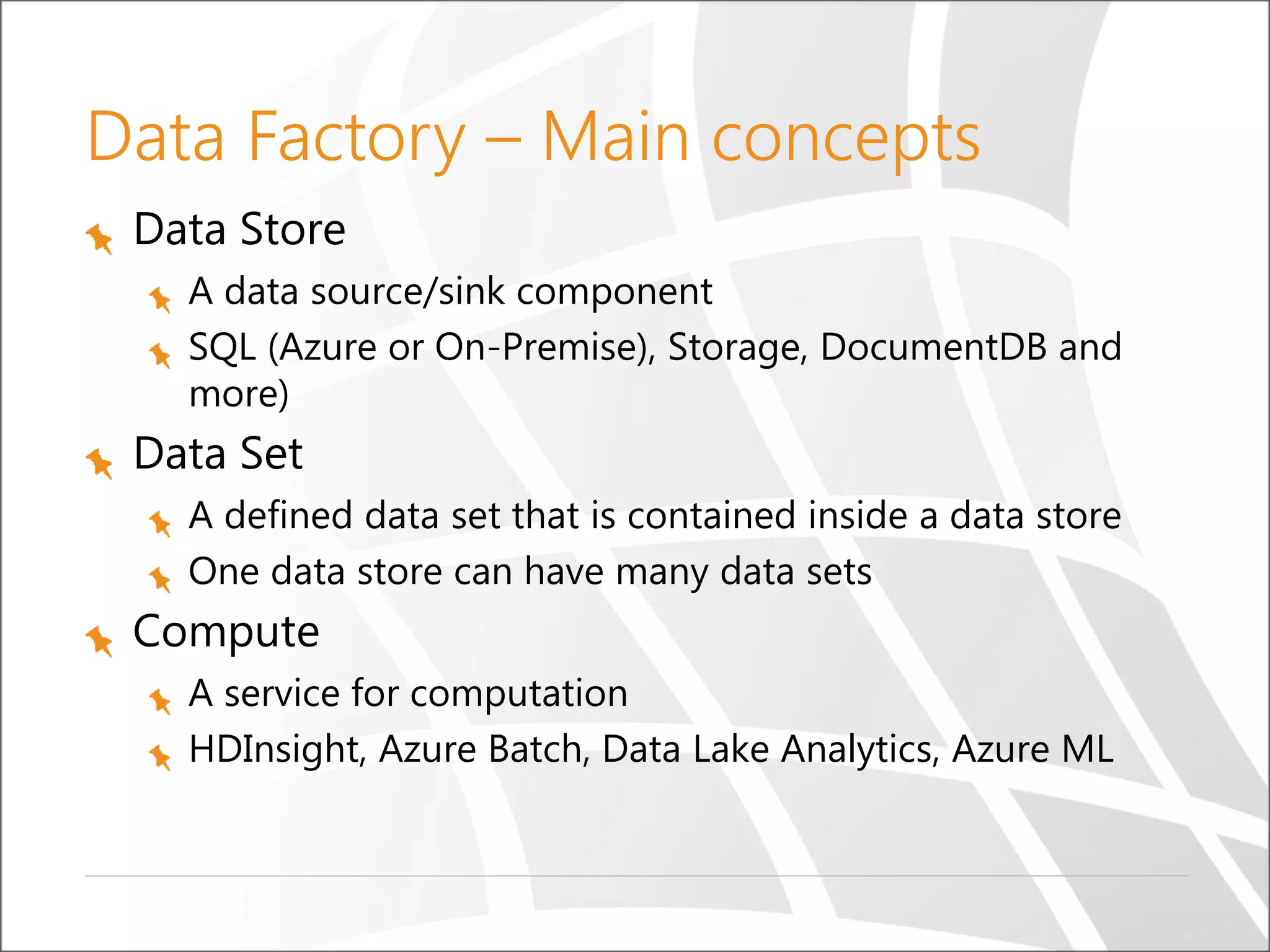

- 27. Data Factory –Main concepts Data Store A data source/sink component SQL (Azure or On-Premise), Storage, DocumentDB and more) Data Set A defined data set that is contained inside a data store One data store can have many data sets Compute A service for computation HDInsight, Azure Batch, Data Lake Analytics, Azure ML

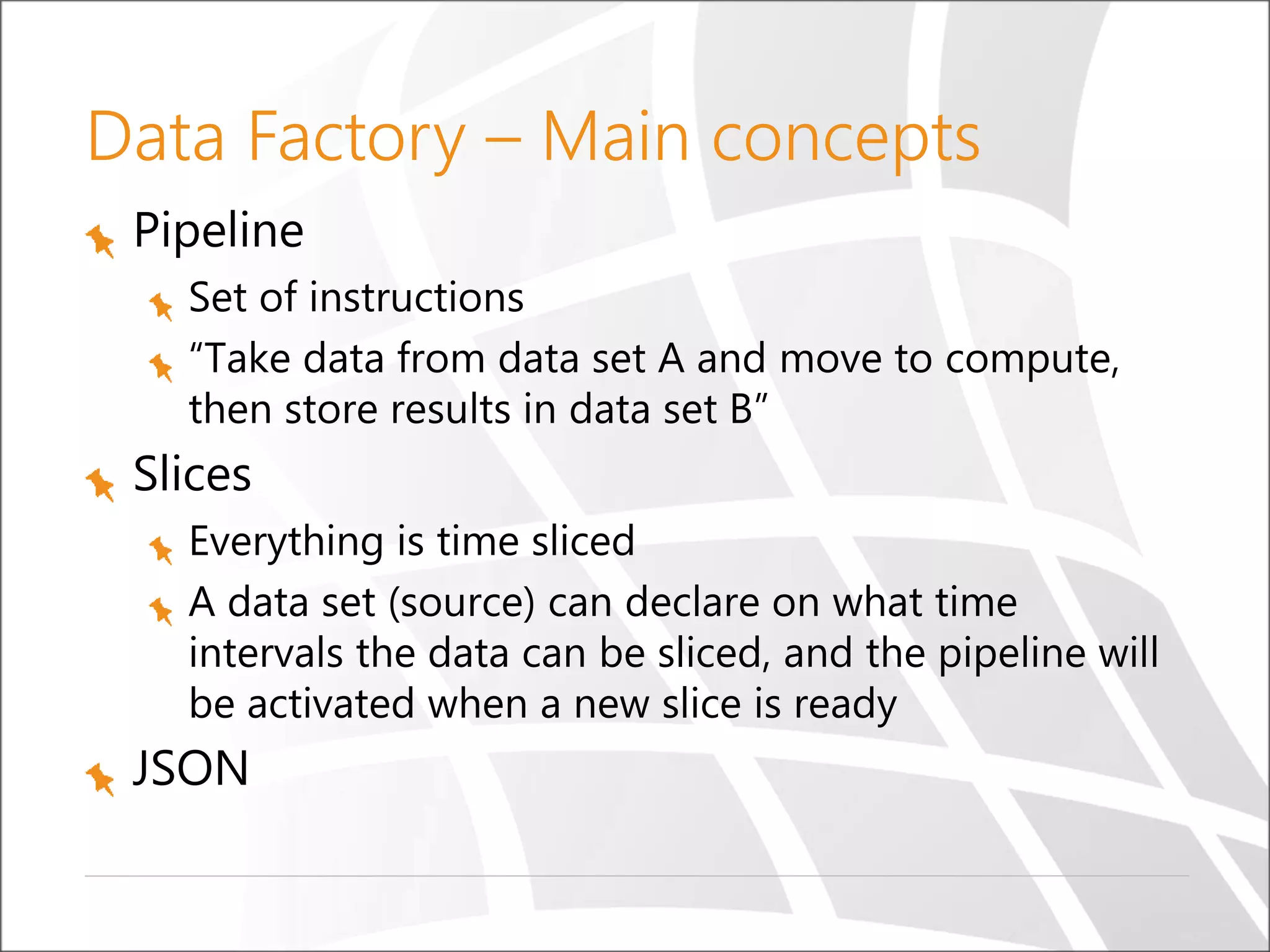

- 28. Data Factory –Main concepts Pipeline Set of instructions “Take data from data set A and move to compute, then store results in data set B” Slices Everything is time sliced A data set (source) can declare on what time intervals the data can be sliced, and the pipeline will be activated when a new slice is ready JSON

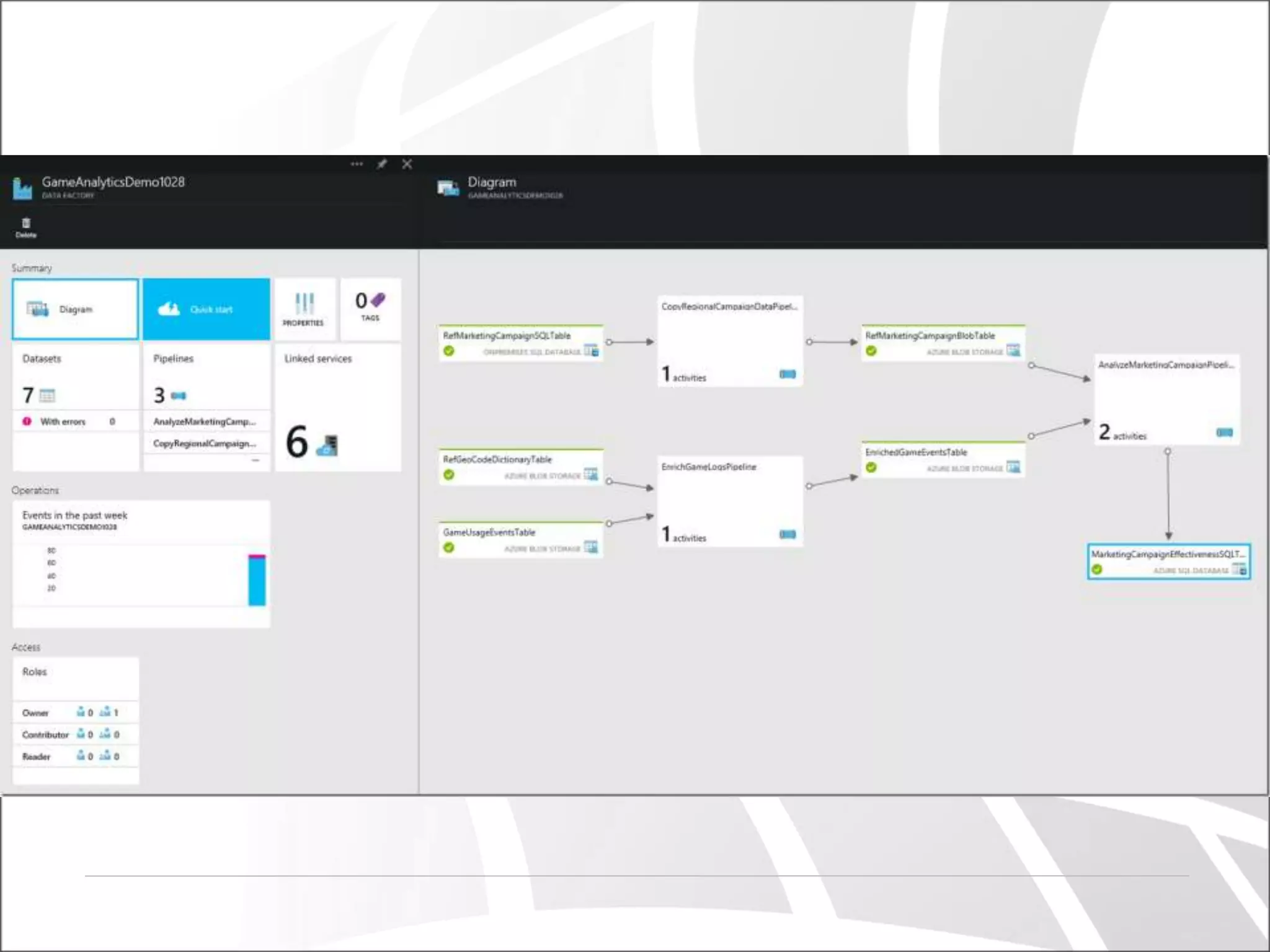

- 30. Microsoft Azure Servicesfor IoT and BigData Devices Device Connectivity Storage Analytics Presentation & Action Event Hubs SQL Database Machine Learning App Service Service Bus Table/Blob Storage Stream Analytics Power BI External Data Sources DocumentDB HDInsight Notification Hubs Data Lake Store Data Factory Mobile Services External Data Sources Data Lake Analytics BizTalk Services { }
- 31. Microsoft Azure Servicesfor IoT and BigData Devices Device Connectivity Storage Analytics Presentation & Action Event Hubs SQL Database Machine Learning App Service Service Bus Table/Blob Storage Stream Analytics Power BI External Data Sources DocumentDB HDInsight Notification Hubs Data Lake Store Data Factory Mobile Services External Data Sources Data Lake Analytics BizTalk Services { }

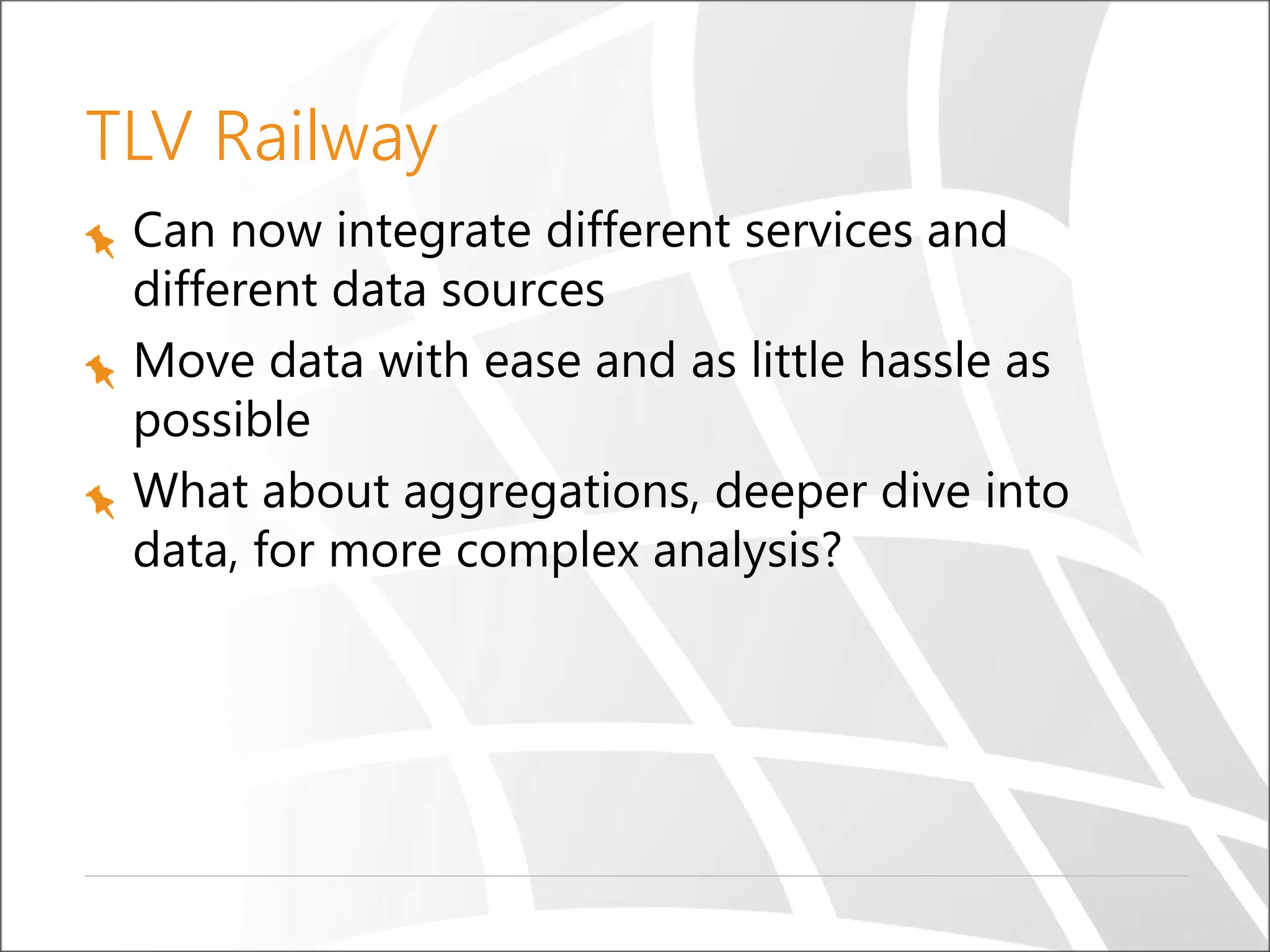

- 32. TLV Railway Can nowintegrate different services and different data sources Move data with ease and as little hassle as possible What about aggregations, deeper dive into data, for more complex analysis?

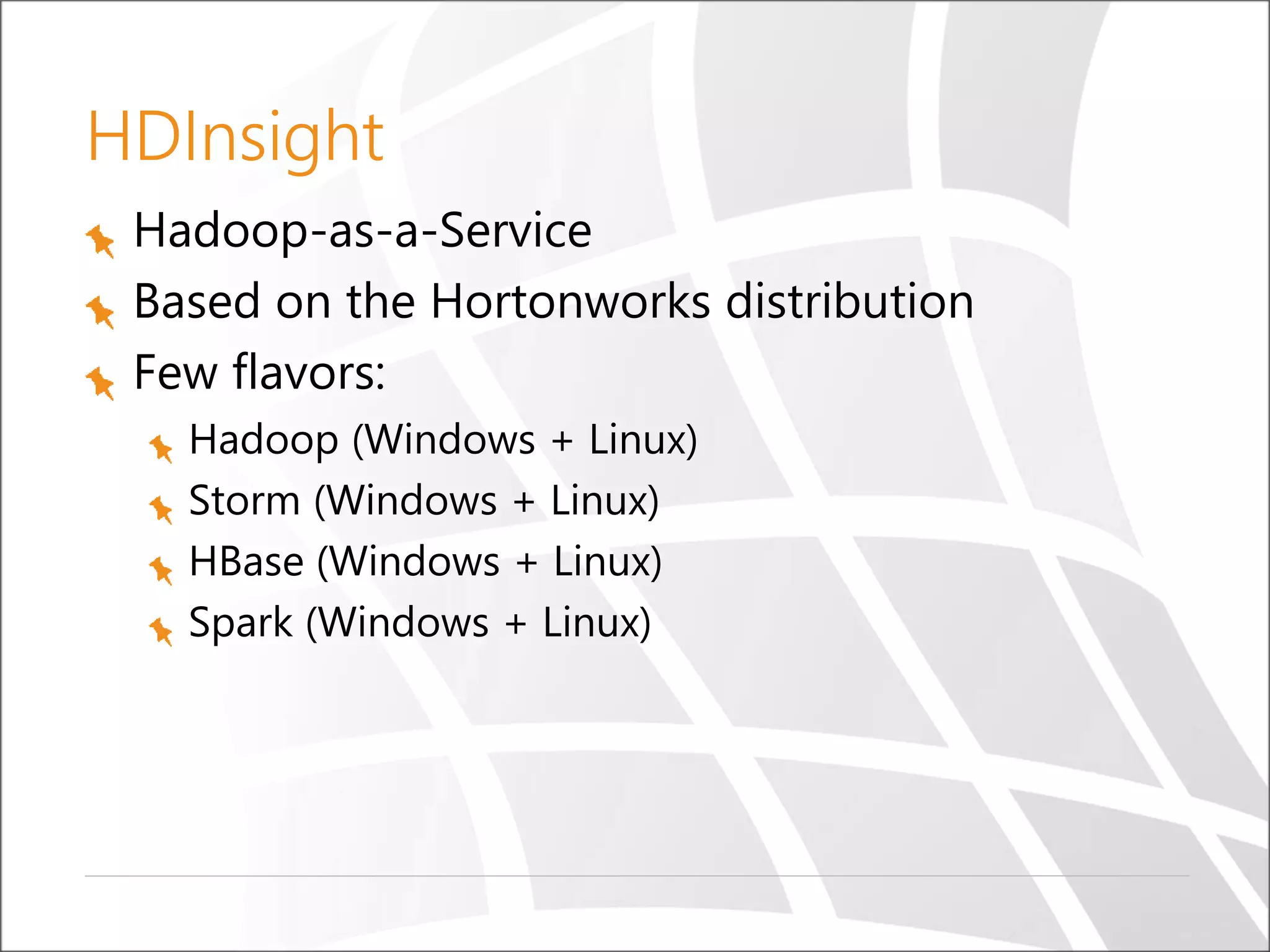

- 34. HDInsight Hadoop-as-a-Service Based on theHortonworks distribution Few flavors: Hadoop (Windows + Linux) Storm (Windows + Linux) HBase (Windows + Linux) Spark (Windows + Linux)

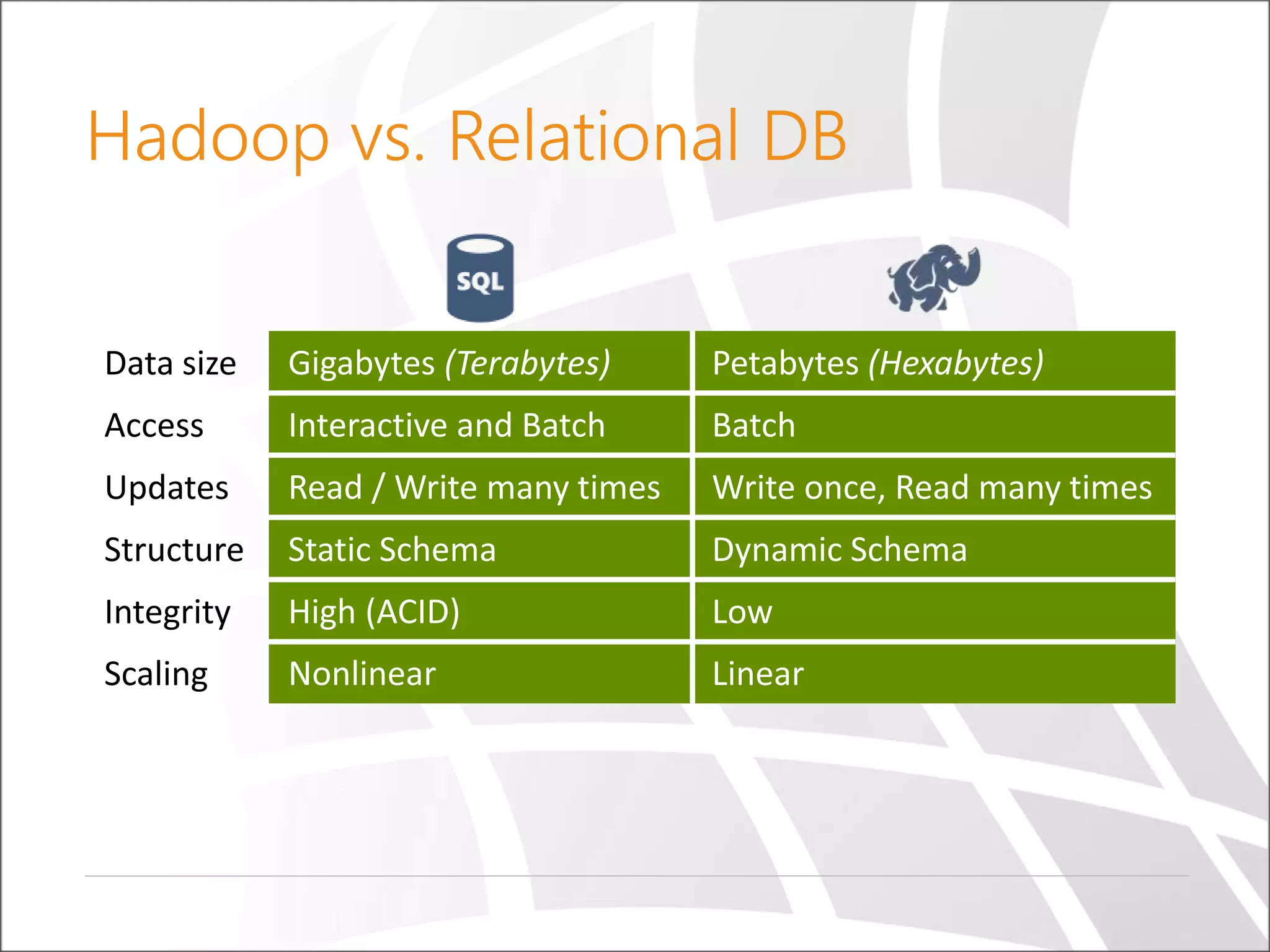

- 35.

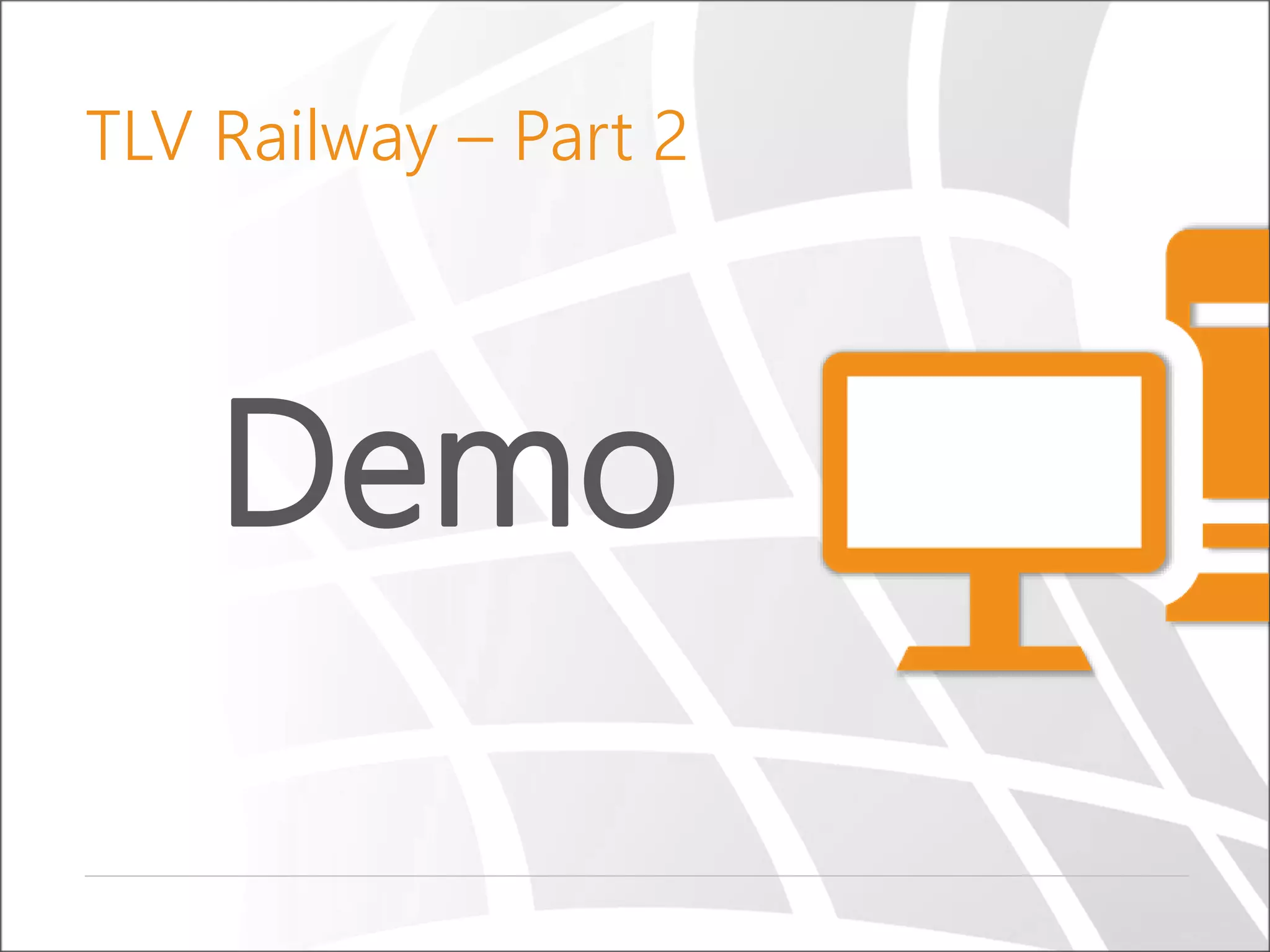

- 36. Demo TLV Railway –Part 2

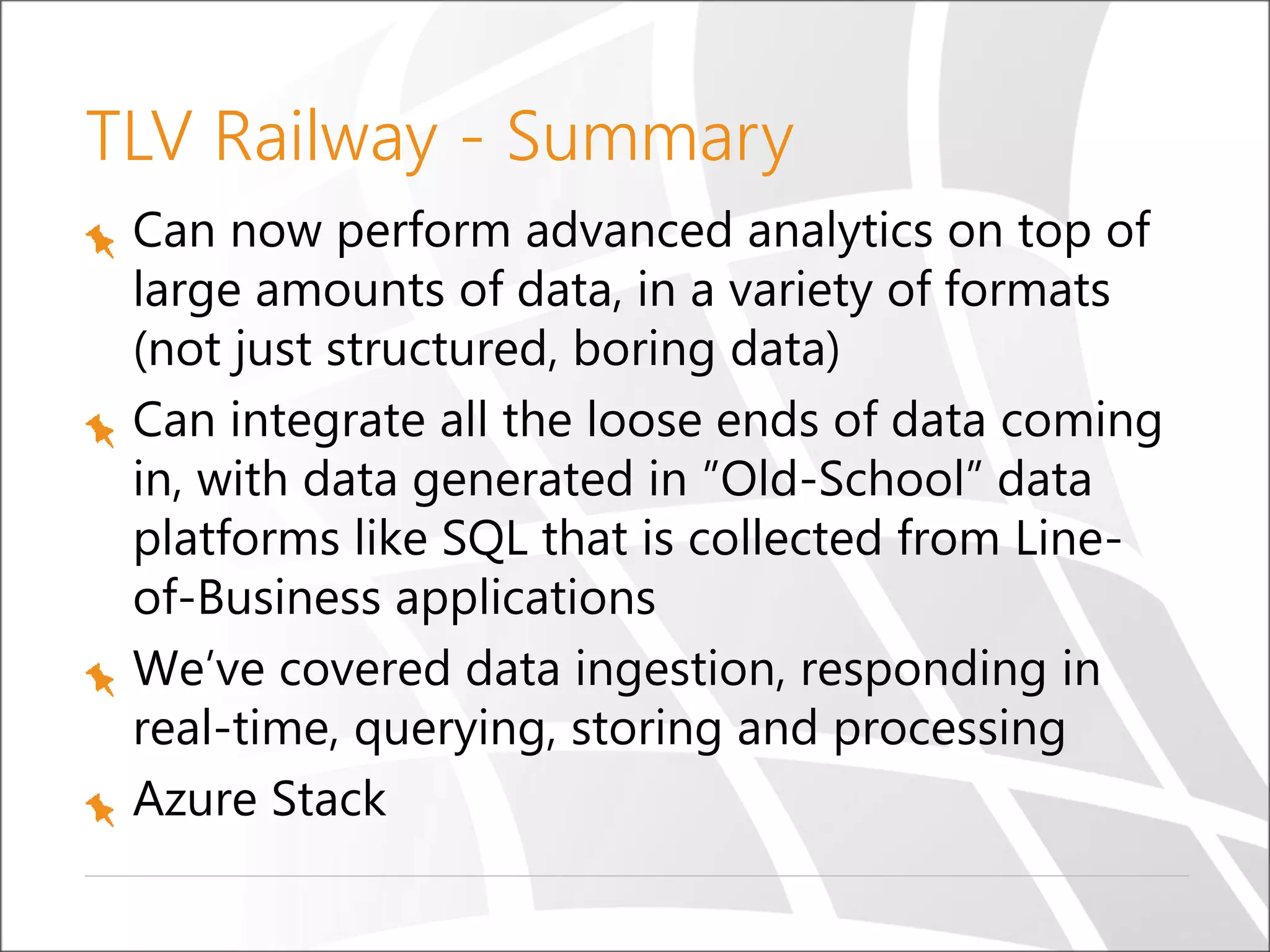

- 37. TLV Railway -Summary Can now perform advanced analytics on top of large amounts of data, in a variety of formats (not just structured, boring data) Can integrate all the loose ends of data coming in, with data generated in ”Old-School” data platforms like SQL that is collected from Line- of-Business applications We’ve covered data ingestion, responding in real-time, querying, storing and processing Azure Stack

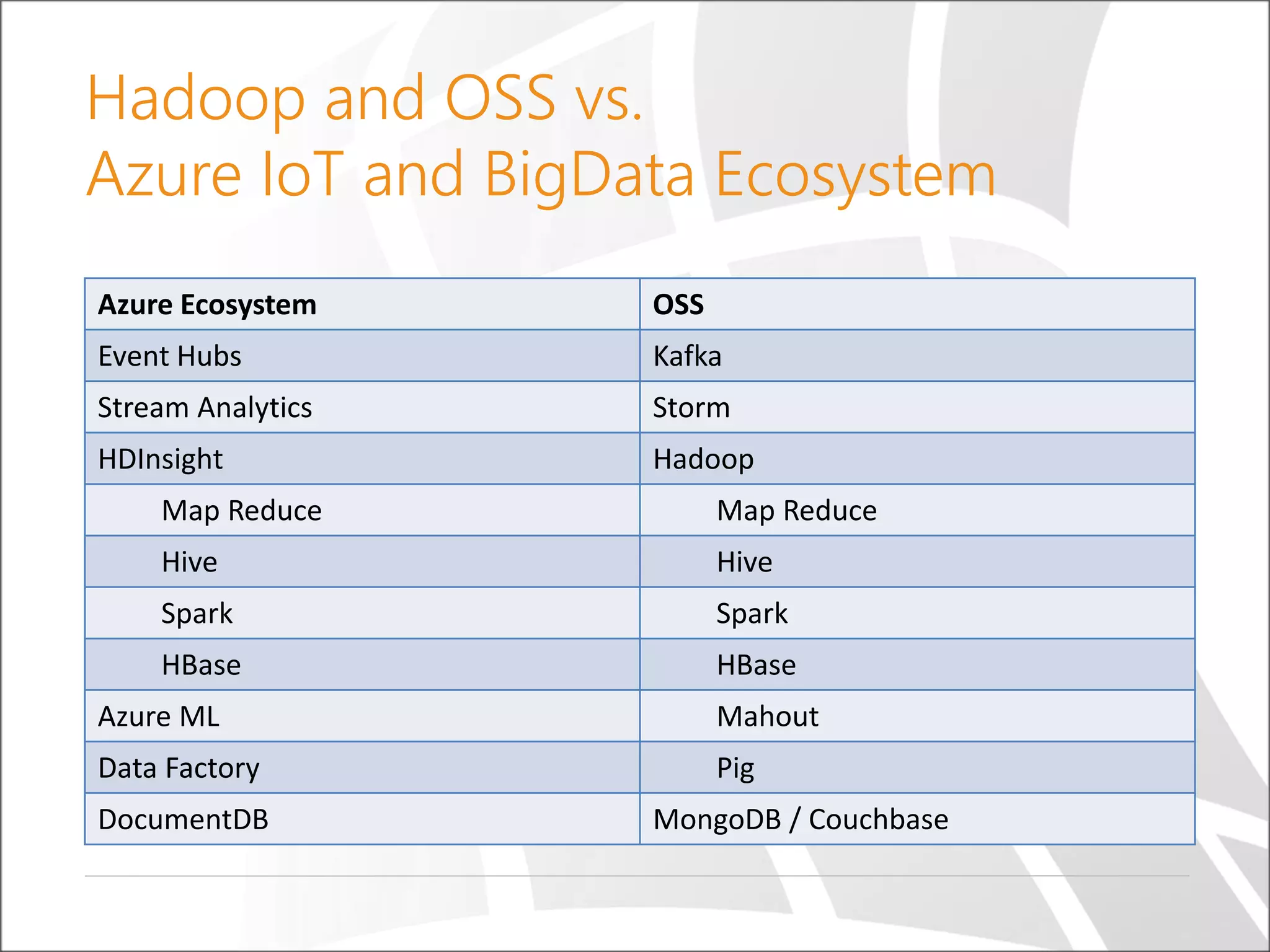

- 38. Hadoop and OSSvs. Azure IoT and BigData Ecosystem Azure Ecosystem OSS Event Hubs Kafka Stream Analytics Storm HDInsight Hadoop Map Reduce Map Reduce Hive Hive Spark Spark HBase HBase Azure ML Mahout Data Factory Pig DocumentDB MongoDB / Couchbase

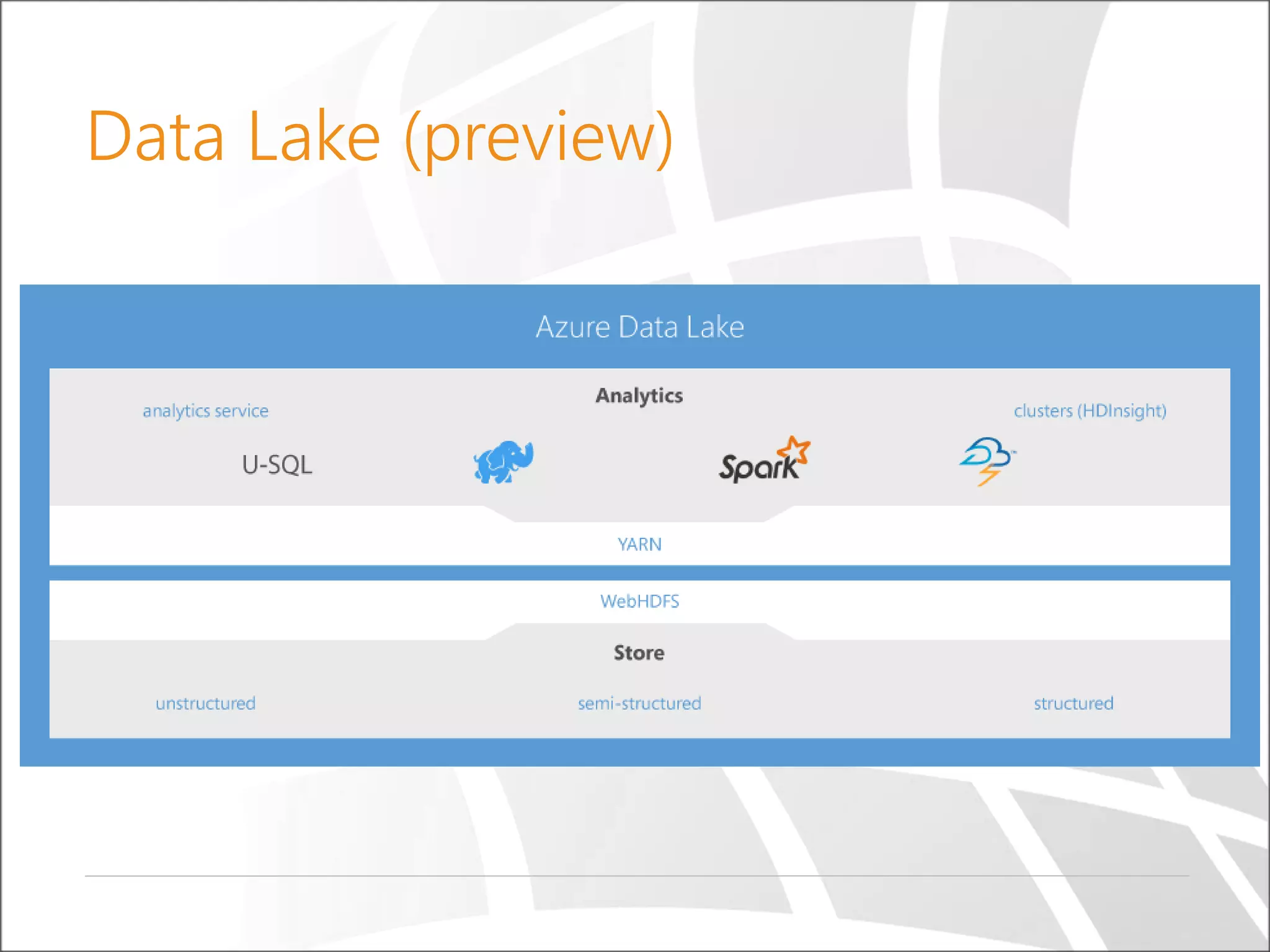

- 39.
- 40. Is “TLV Railway”fake?

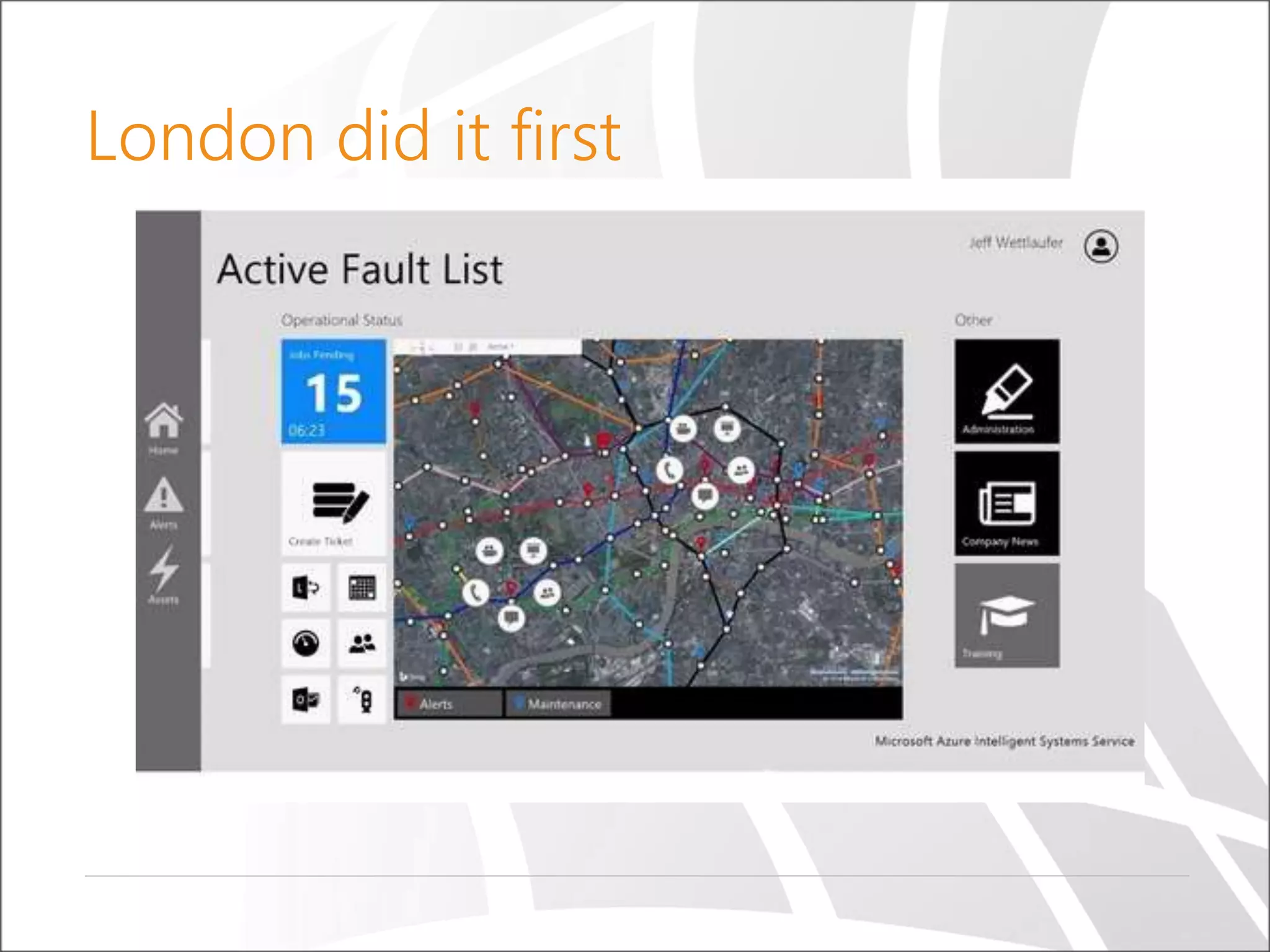

- 41. London did itfirst

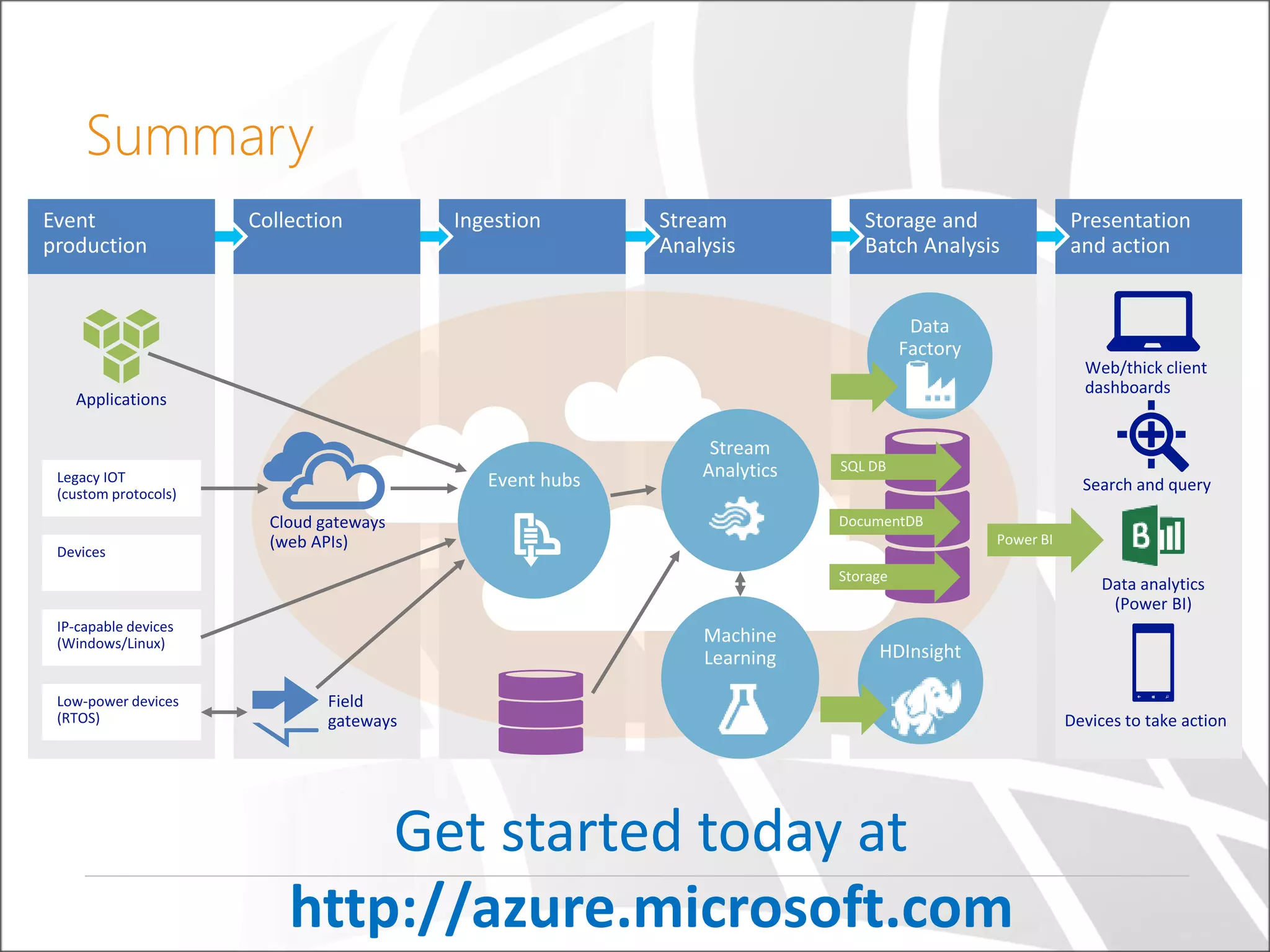

- 42. Summary Get started todayat http://azure.microsoft.com
- 43.
Editor's Notes
