This document discusses using Mahout for machine learning tasks like clustering, classification and recommendation. It provides an overview of Mahout, describes its key algorithms and architecture. It also demonstrates how to install Mahout and run sample recommendation and clustering algorithms using MovieLens and Reuters datasets. Steps shown include preparing the data, generating vectors, running the algorithms and analyzing the results.

1. Big Data Analytics
Using Mahout
Assoc. Prof. Dr. Thanachart Numnonda
Executive Director
IMC Institute
April 2015

2. 2
Mahout

3. 3
Mahout is a Java library which Implementing
Machine Learning techniques for
clustering, classification and recommendation
What is Mahout?

4. 4

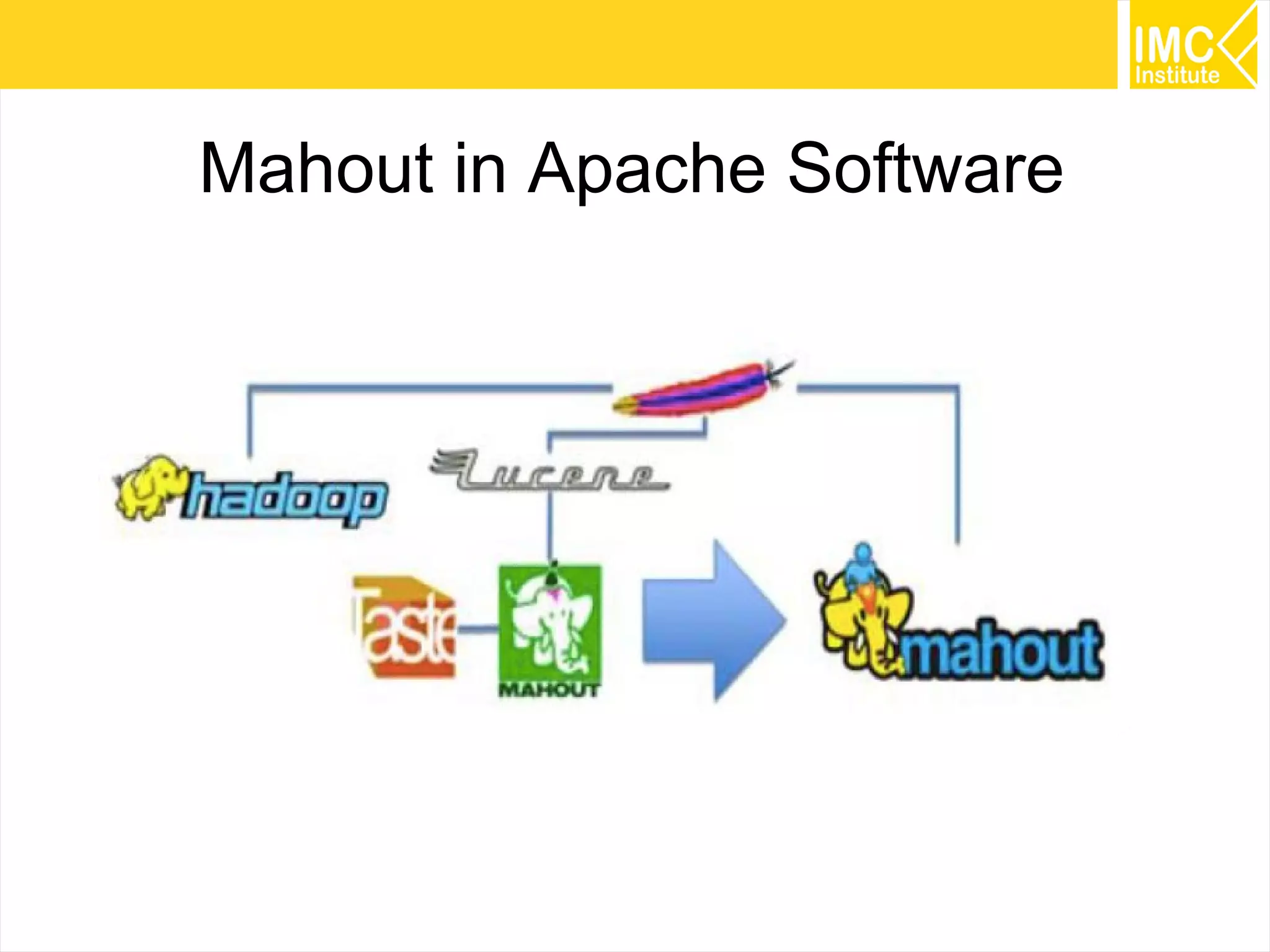

Mahout in Apache Software

5. 5

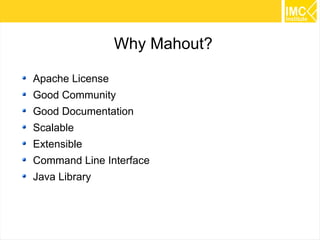

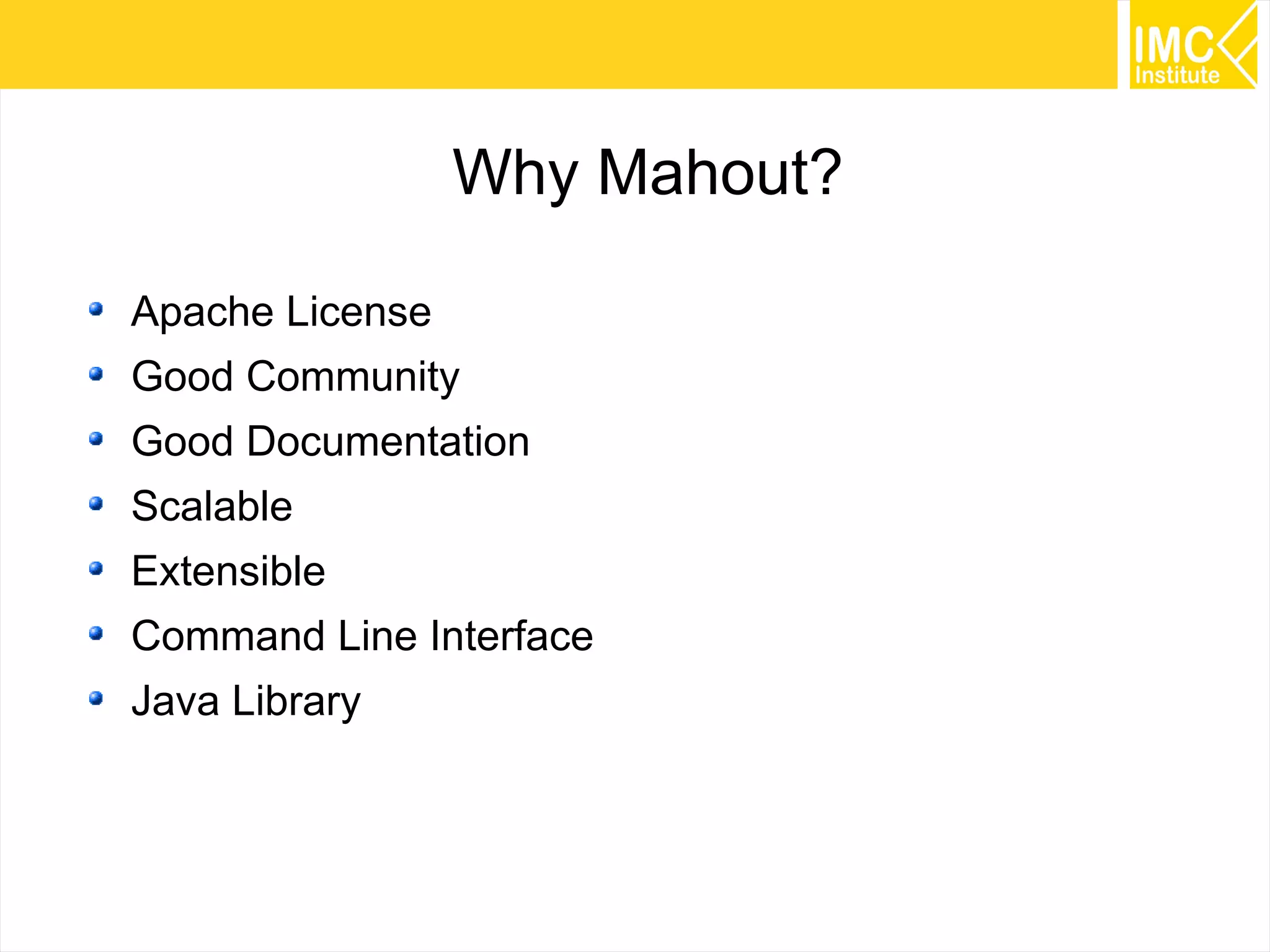

Why Mahout?
Apache License
Good Community
Good Documentation
Scalable
Extensible
Command Line Interface
Java Library

6. 6

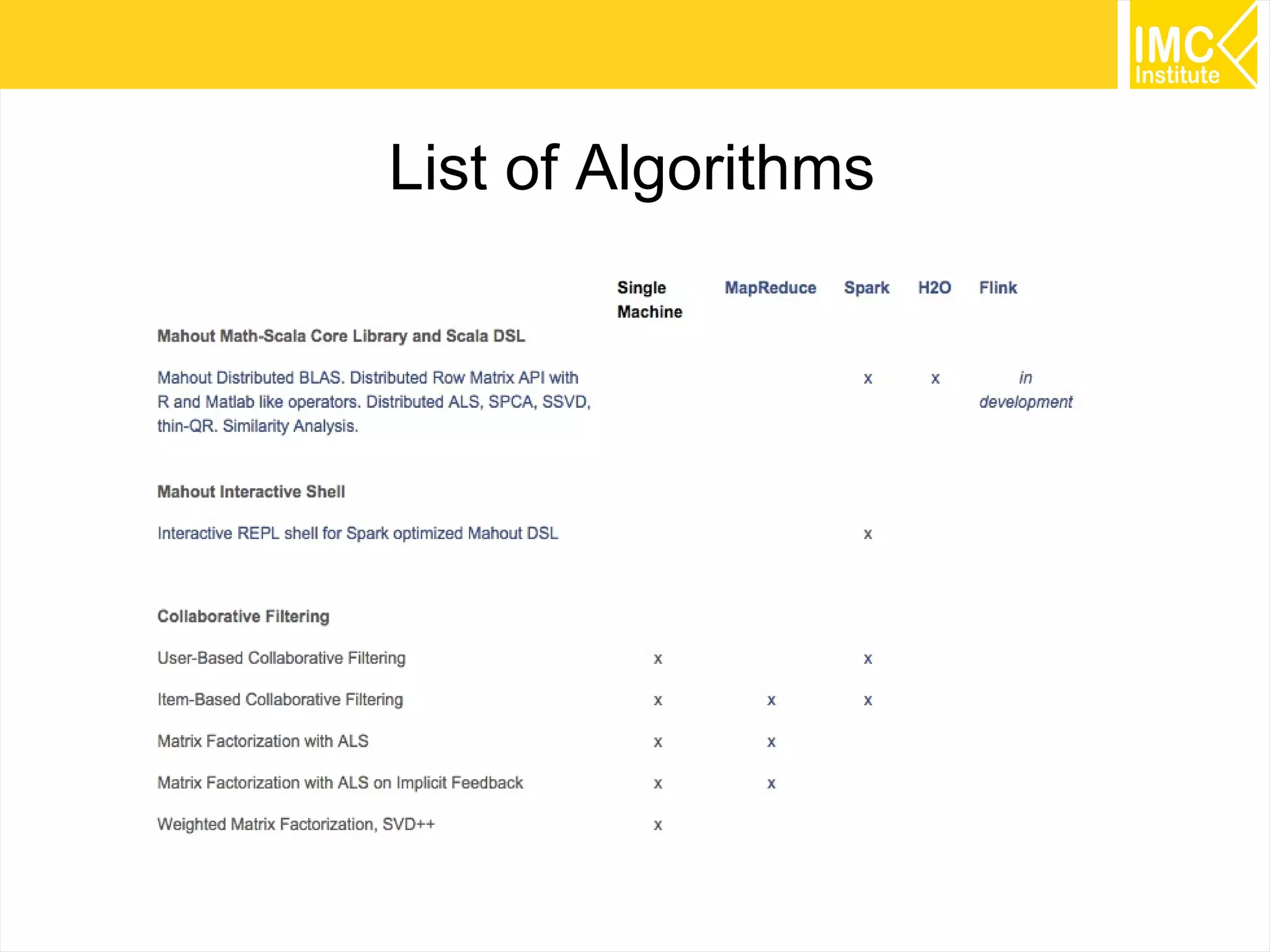

List of Algorithms

7. 7

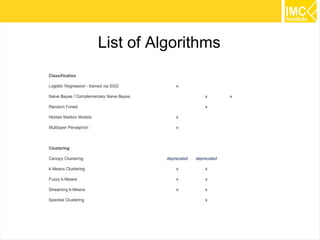

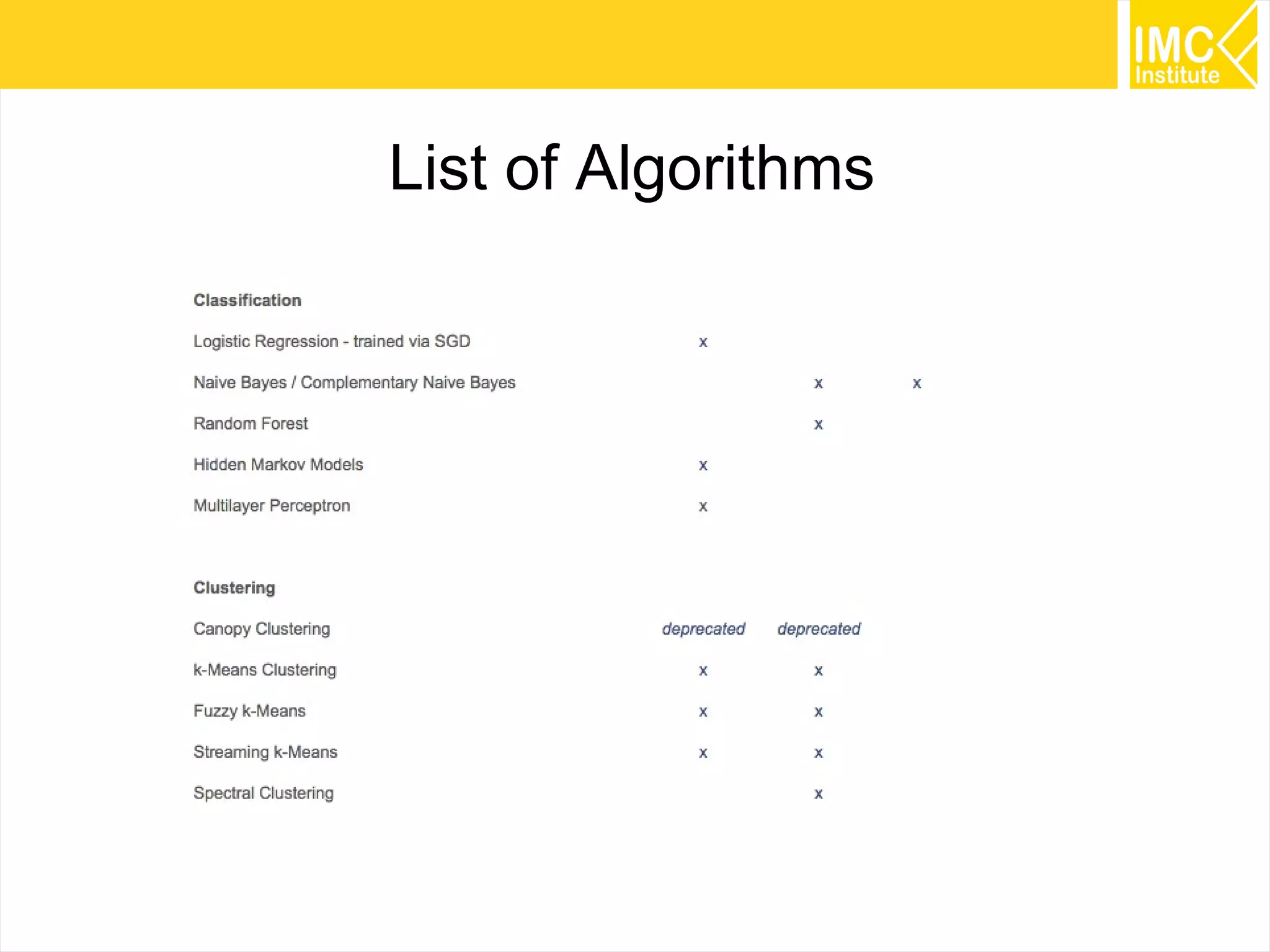

List of Algorithms

8. 8

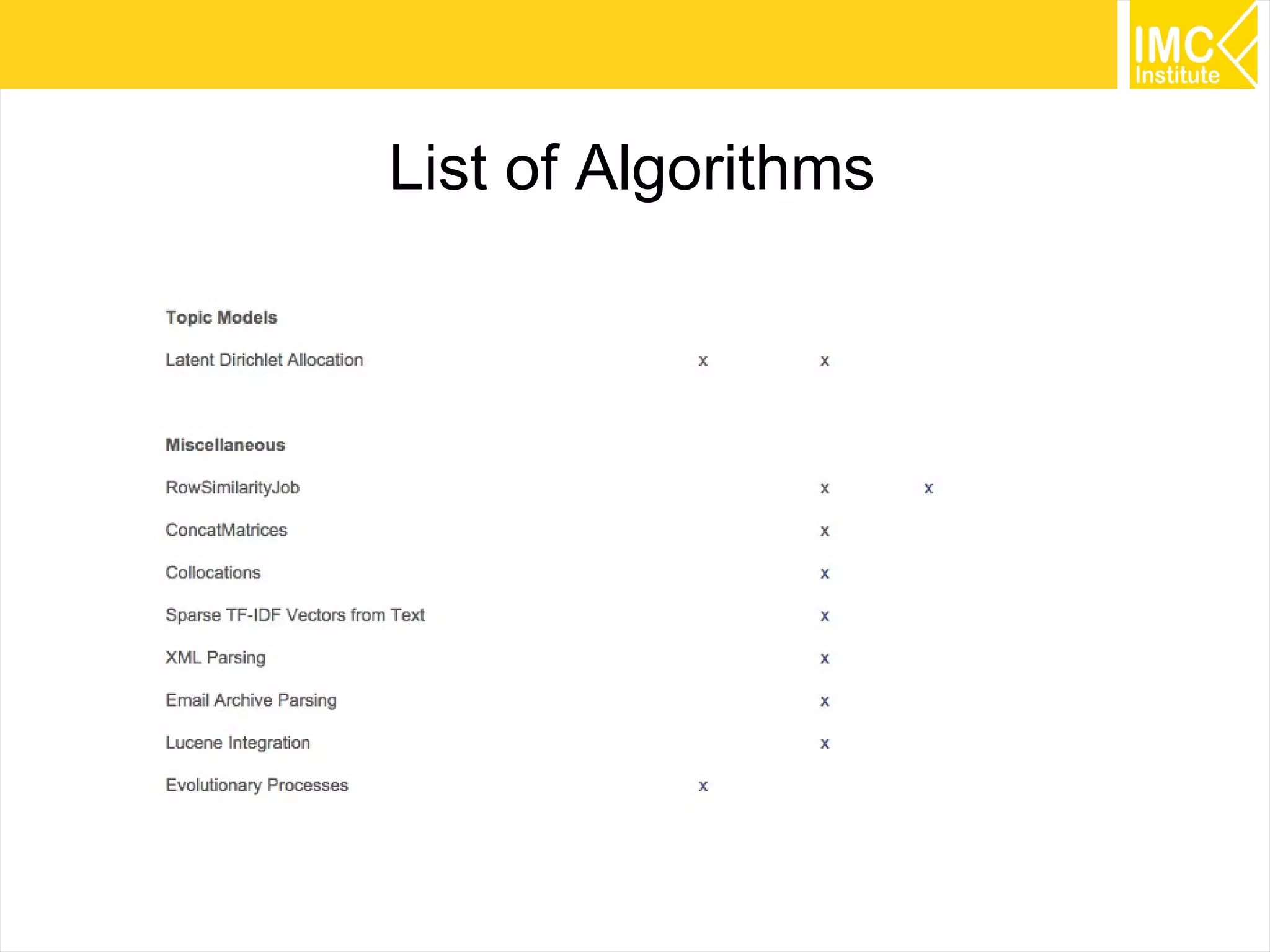

List of Algorithms

9. 9

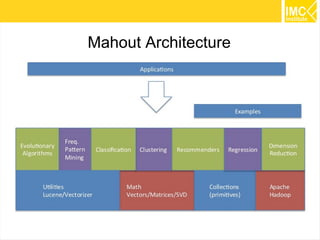

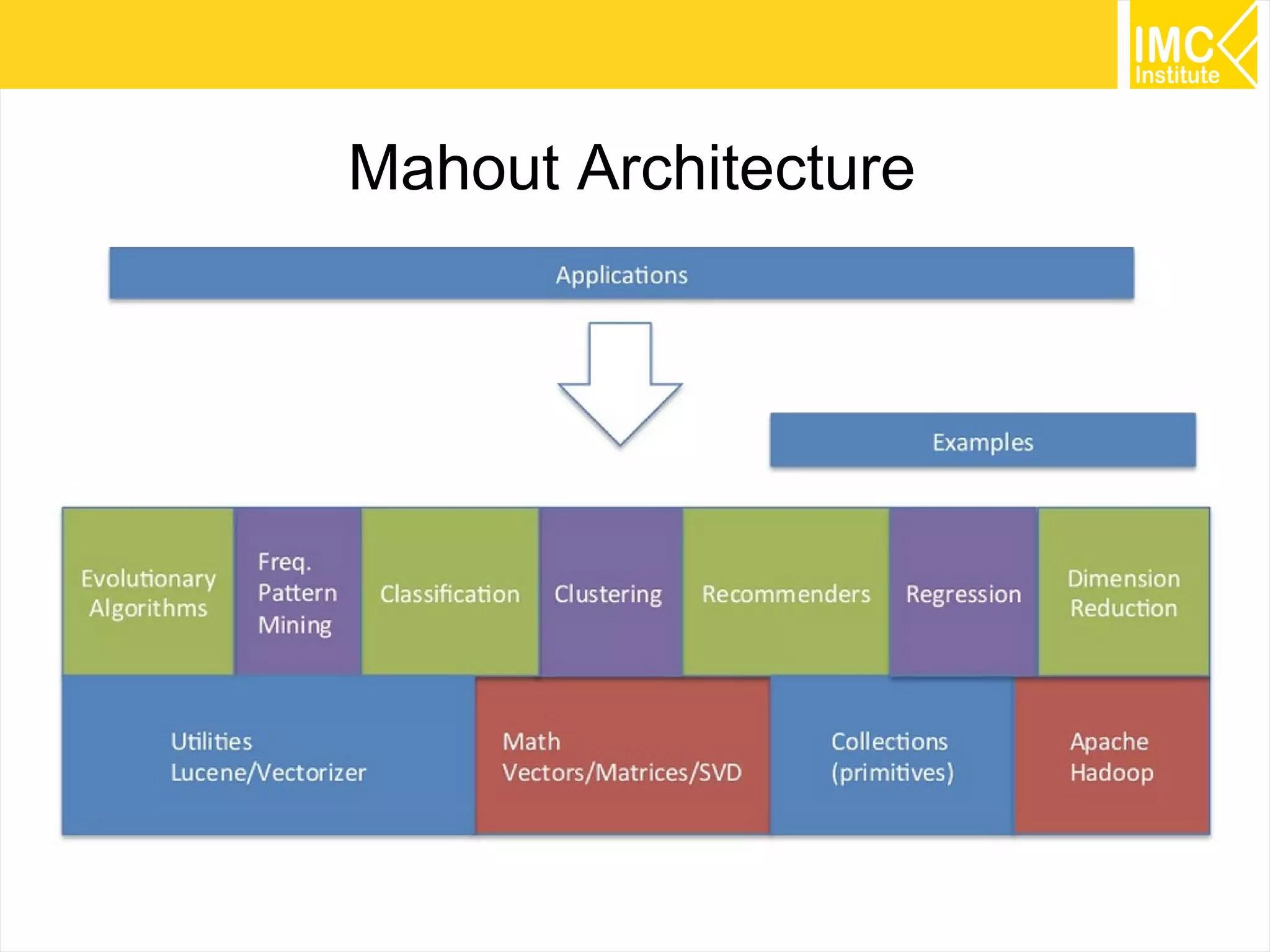

Mahout Architecture

10. 10
Use Cases

11. 11
Installing Mahout

12. 12

13. 13

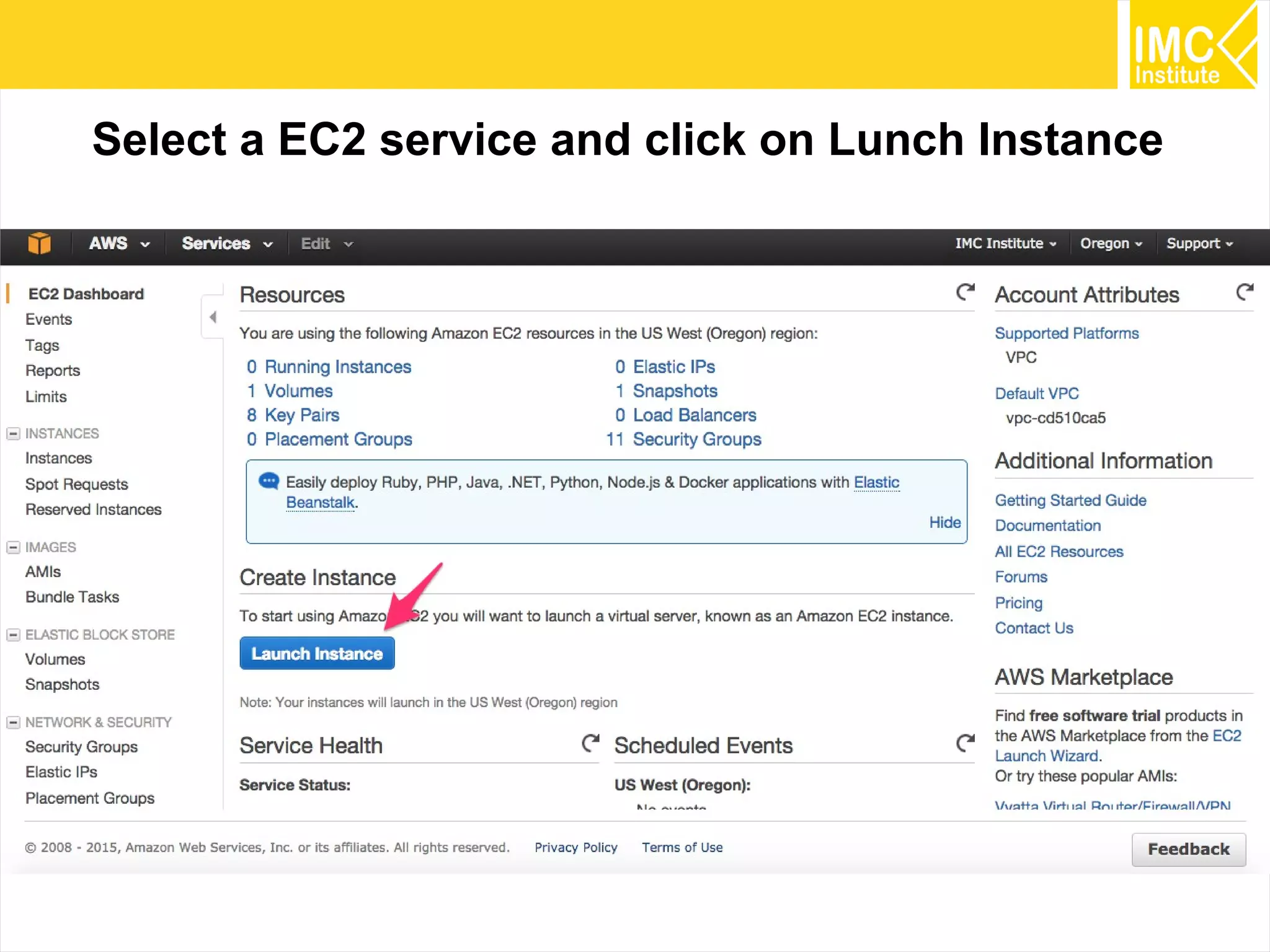

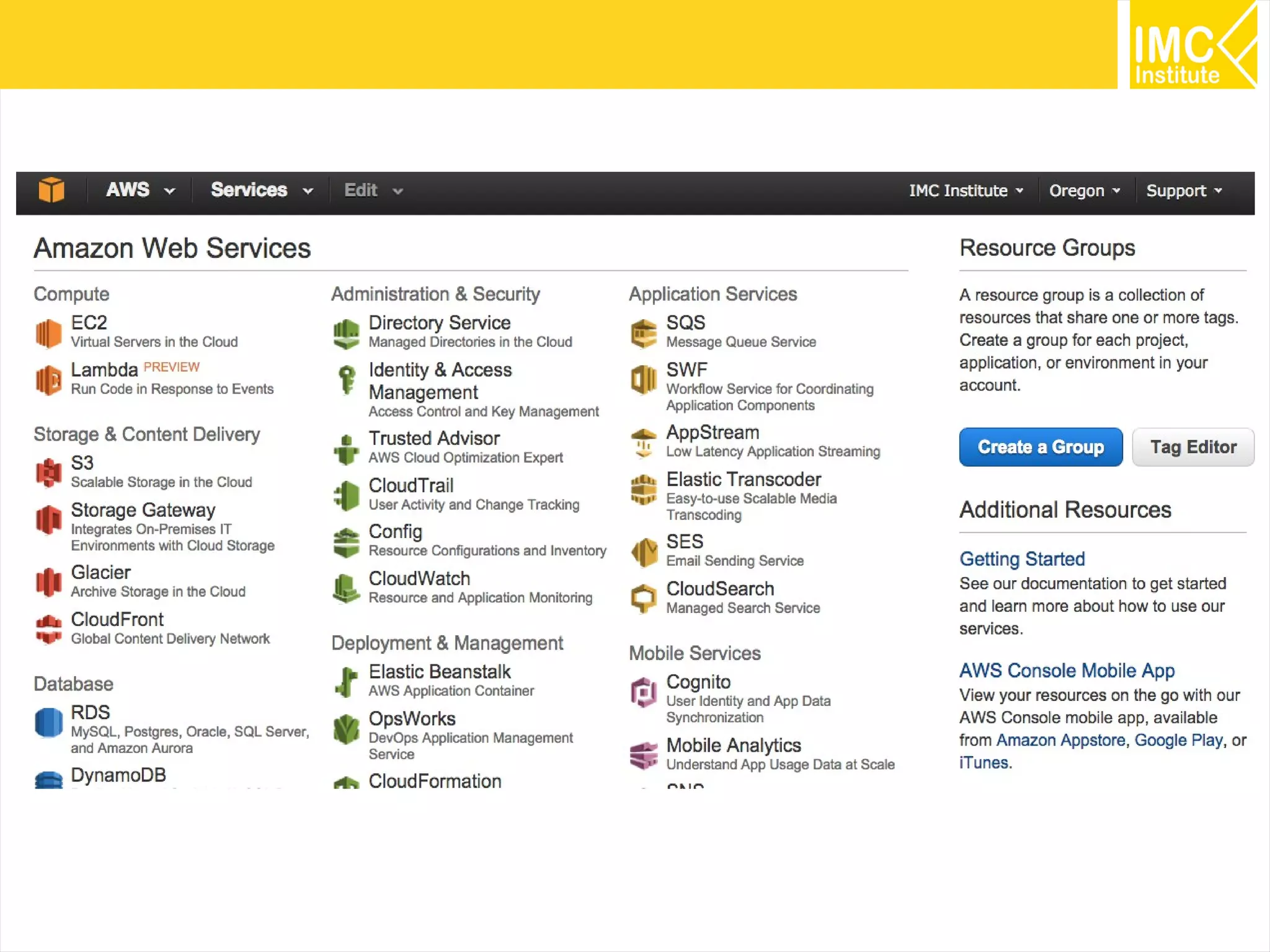

Select a EC2 service and click on Lunch Instance

14. 14

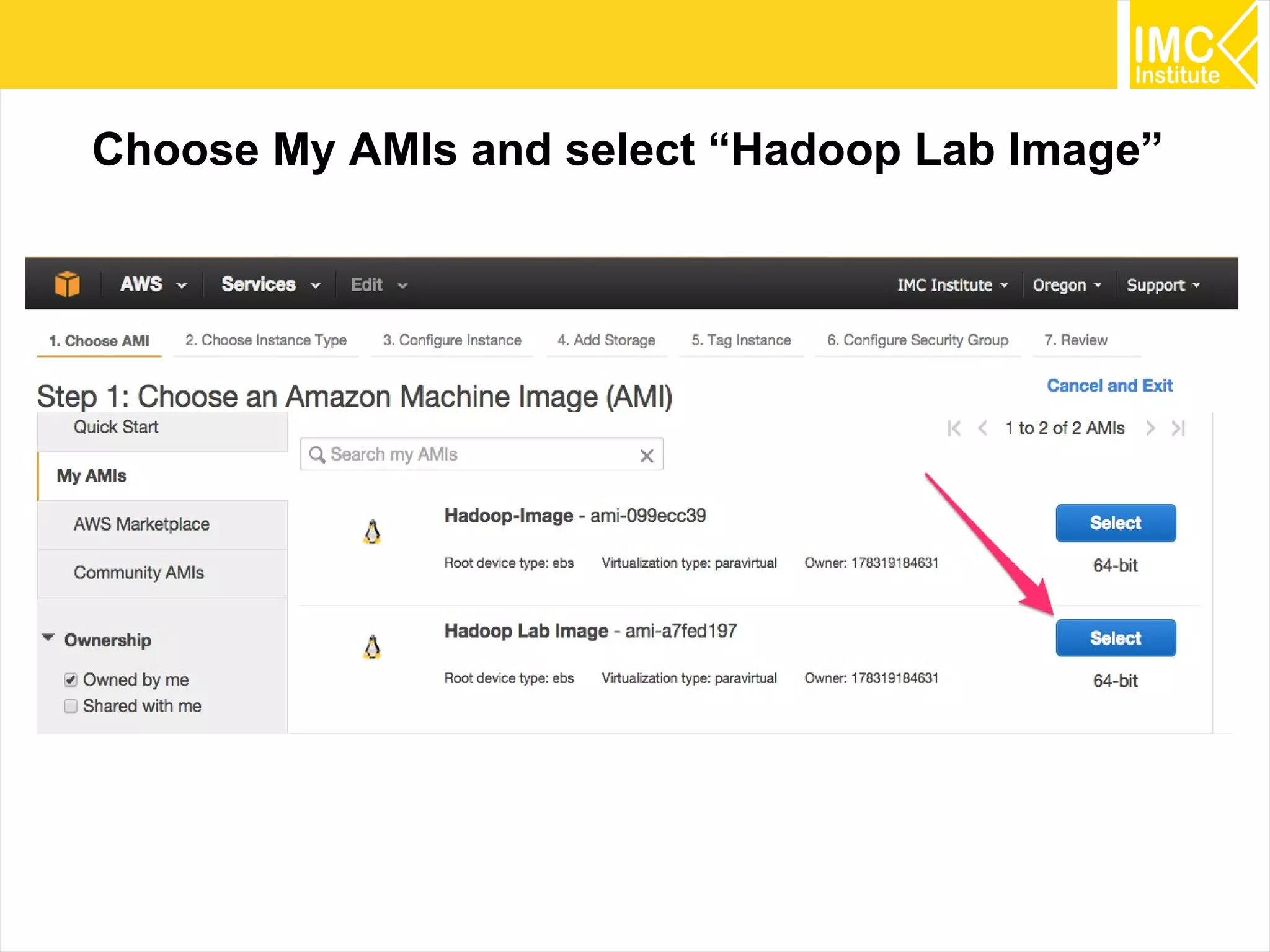

Choose My AMIs and select “Hadoop Lab Image”

15. 15

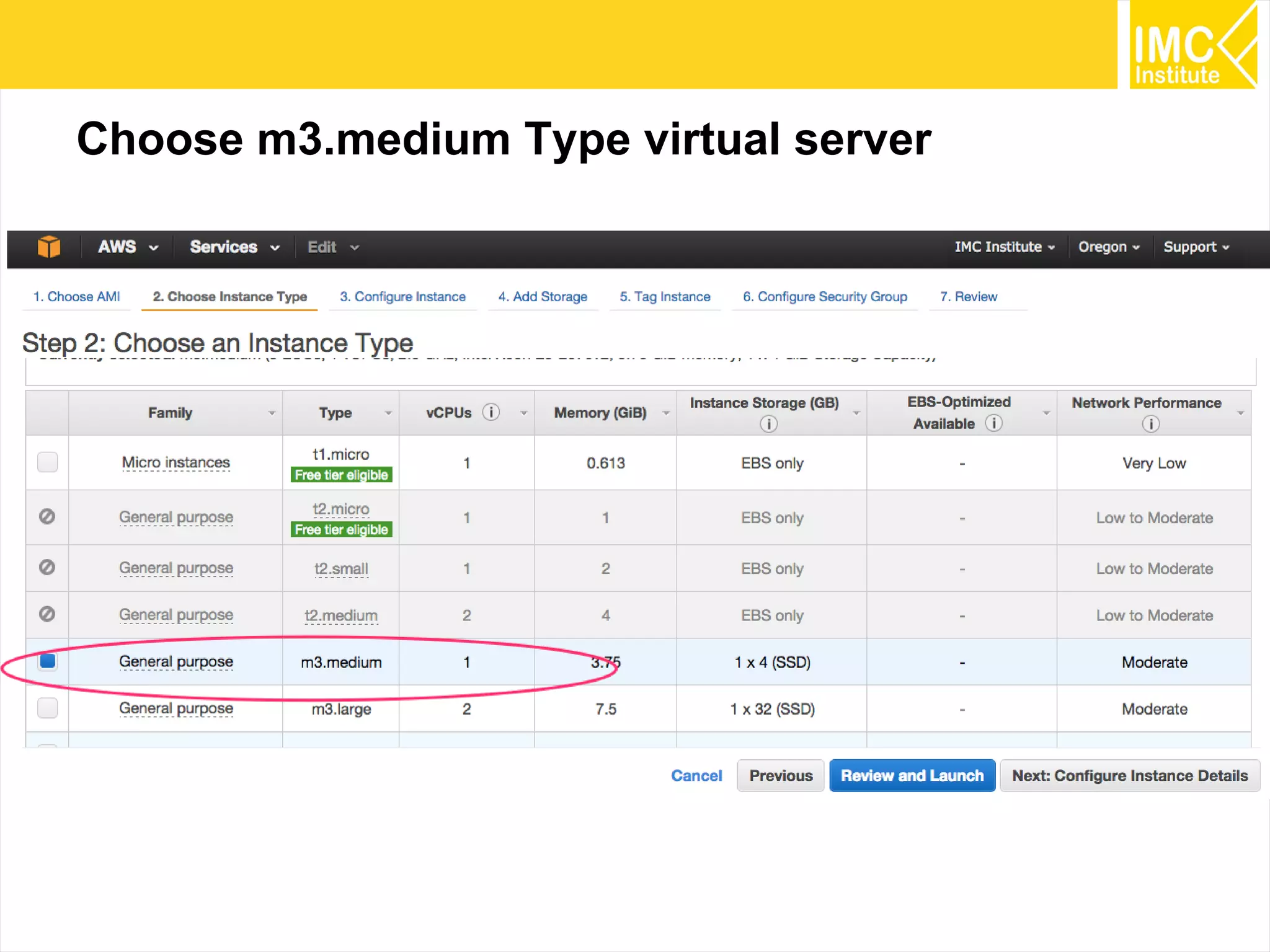

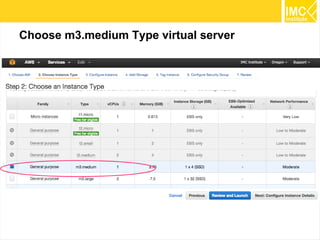

Choose m3.medium Type virtual server

16. 16

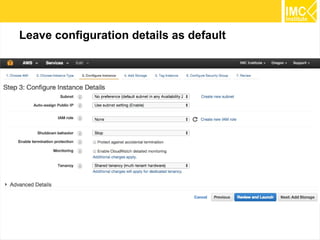

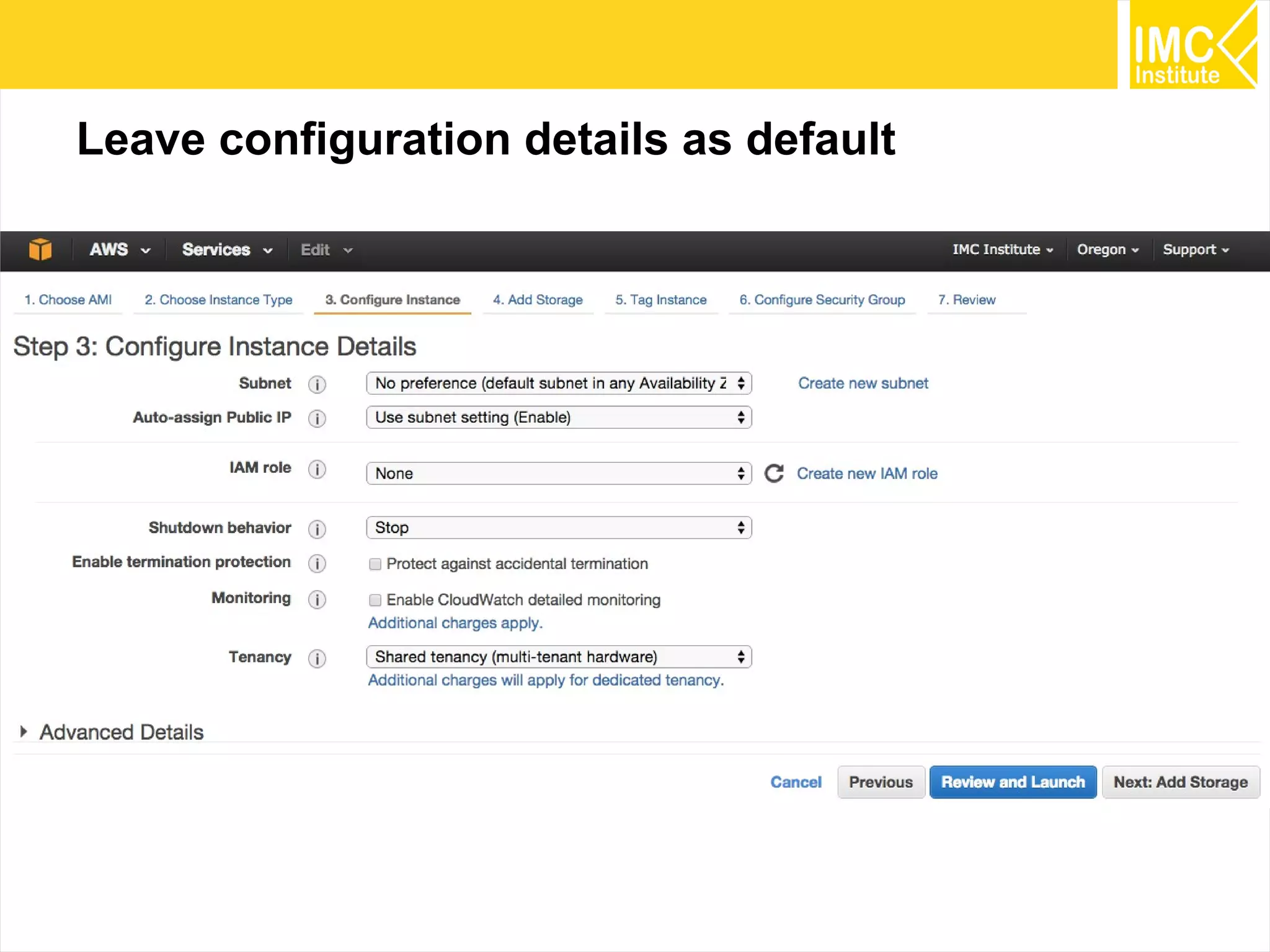

Leave configuration details as default

17. 17

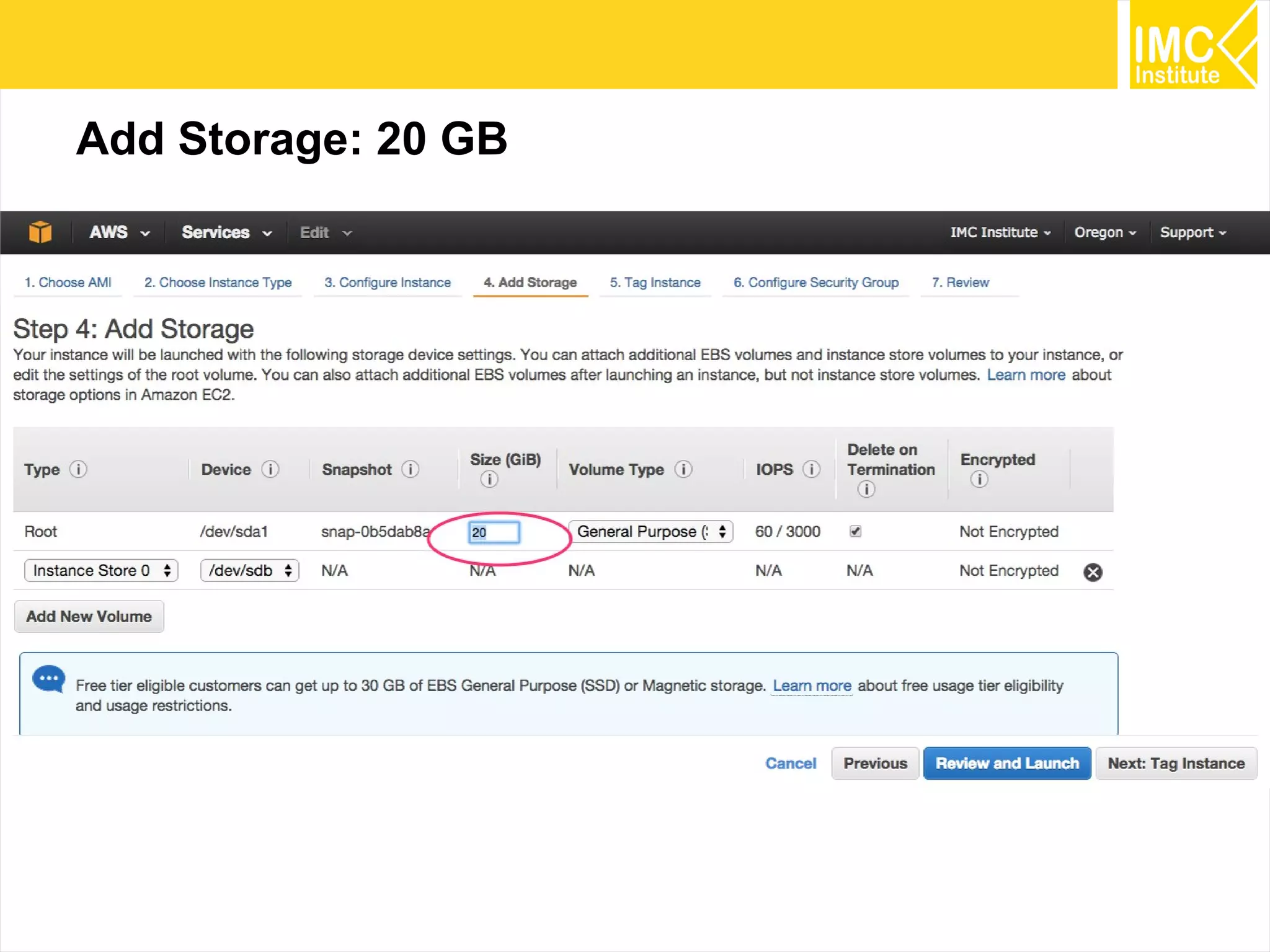

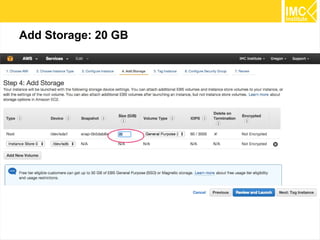

Add Storage: 20 GB

18. 18

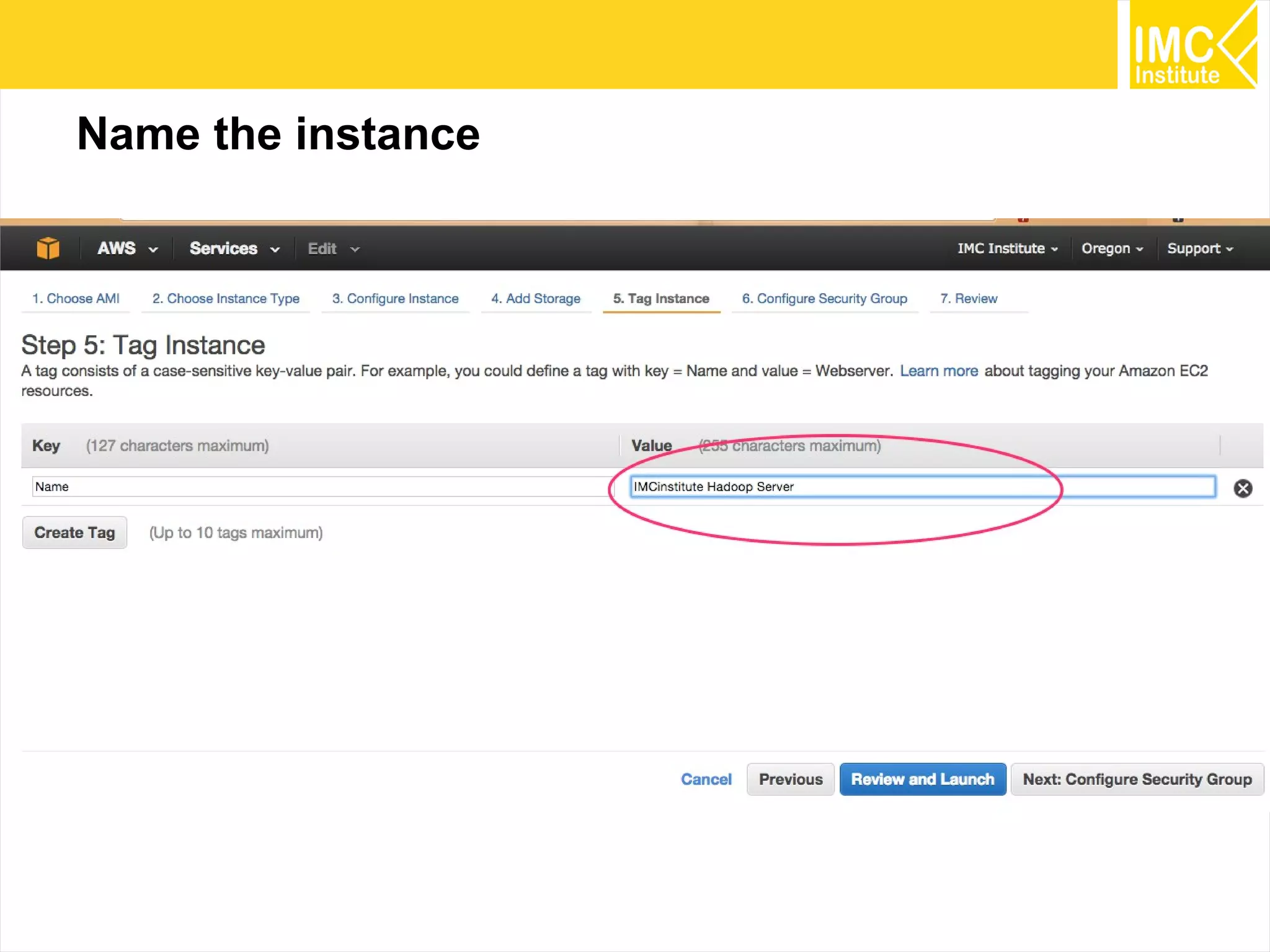

Name the instance

19. 19

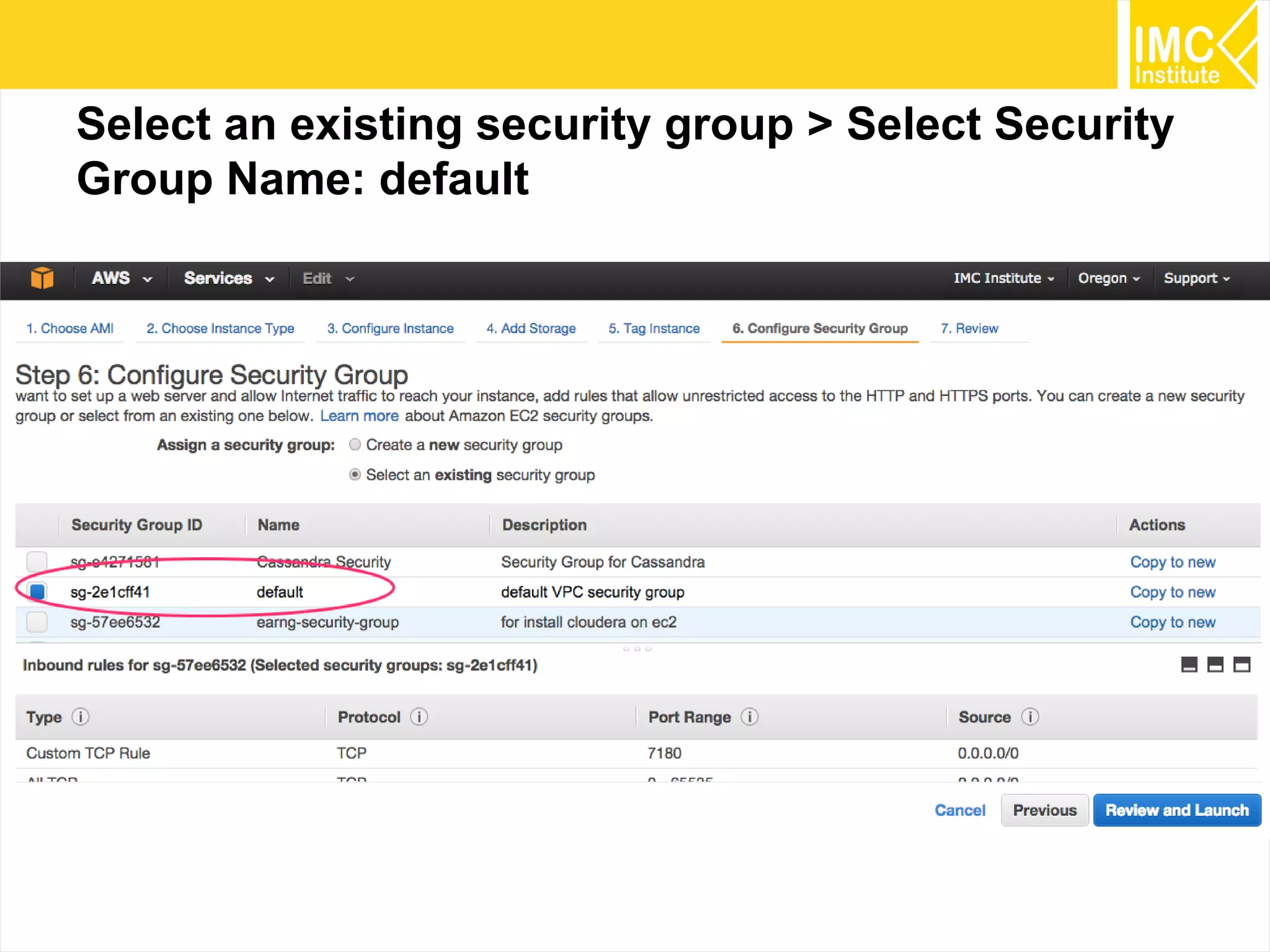

Select an existing security group > Select Security
Group Name: default

20. 20

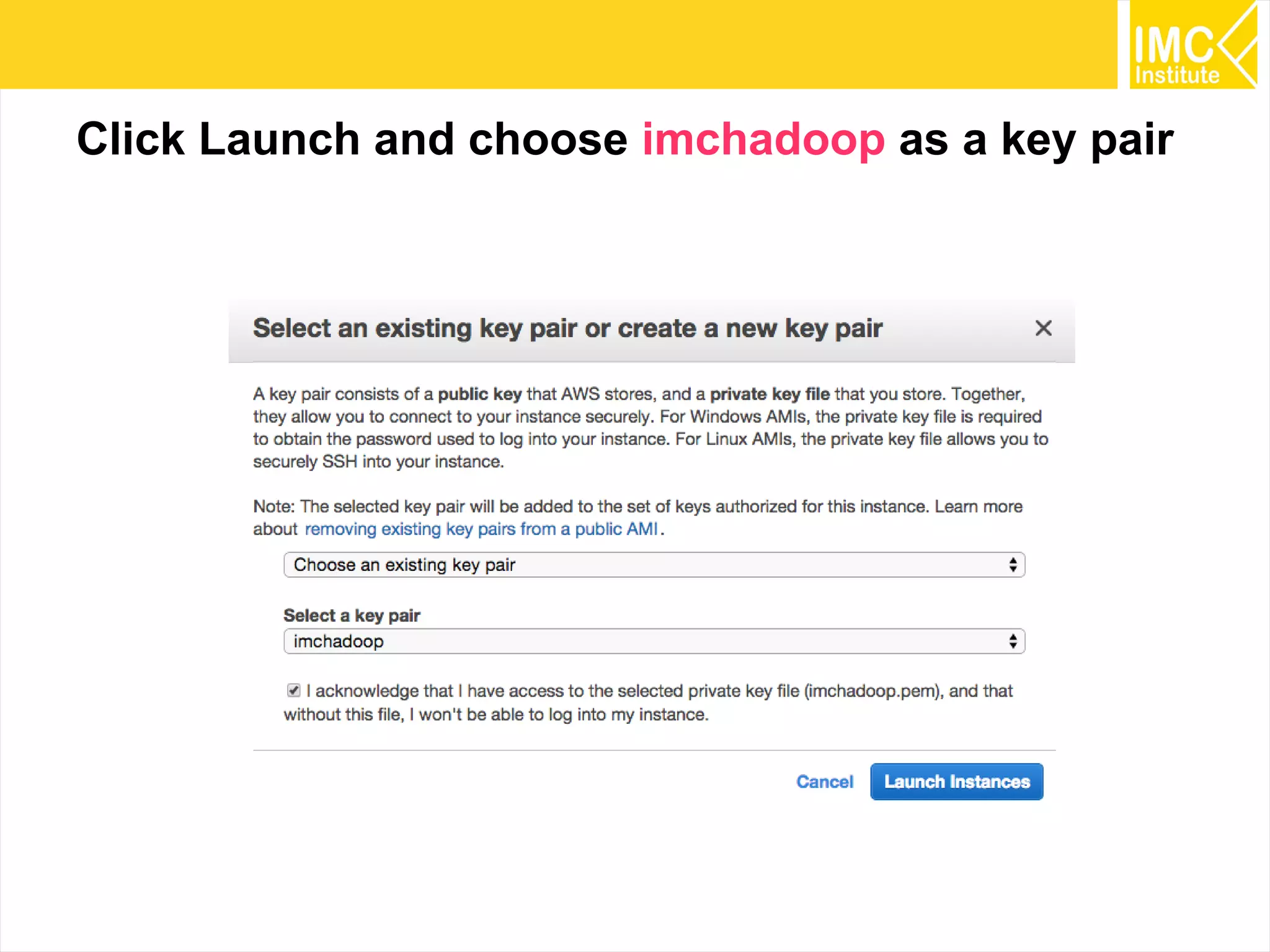

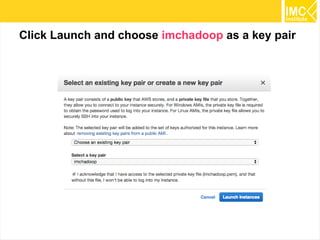

Click Launch and choose imchadoop as a key pair

21. 21

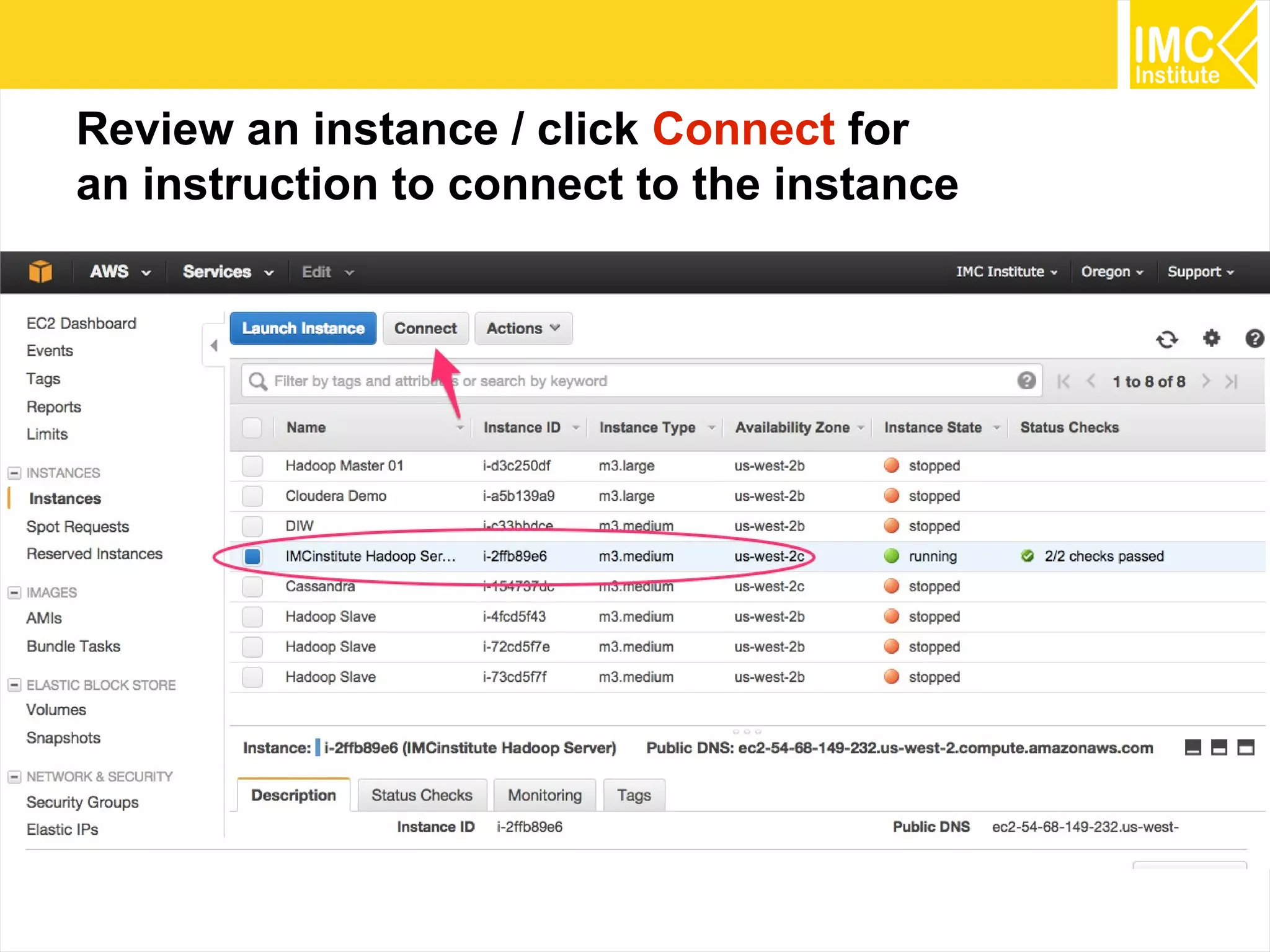

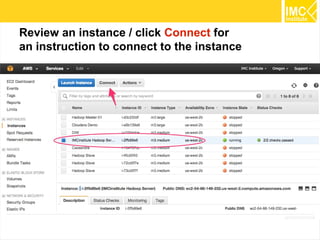

Review an instance / click Connect for
an instruction to connect to the instance

22. 22

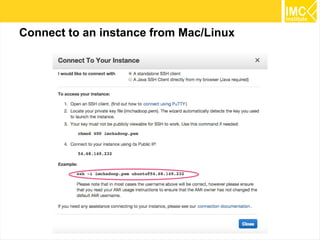

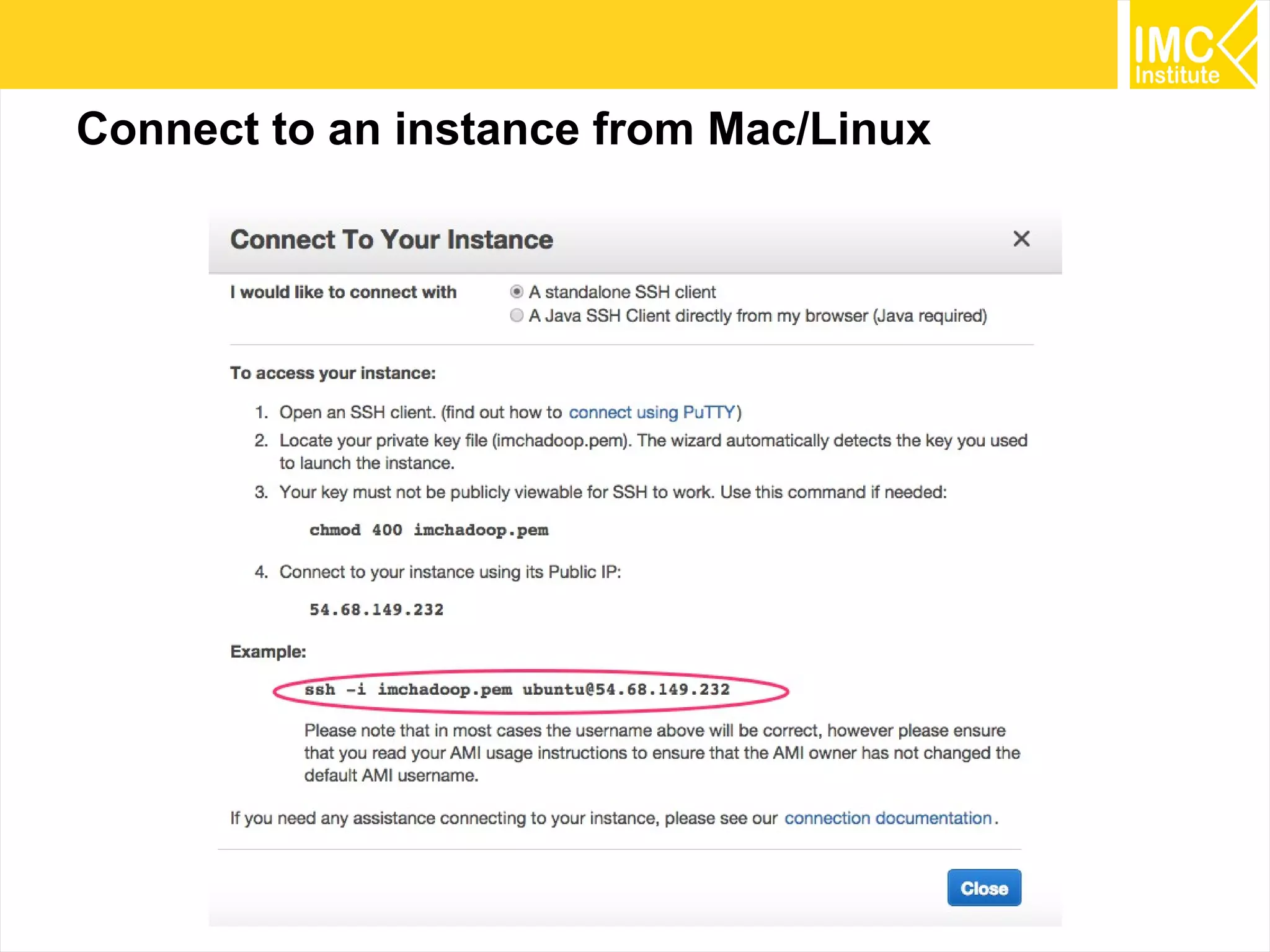

Connect to an instance from Mac/Linux

23. 23

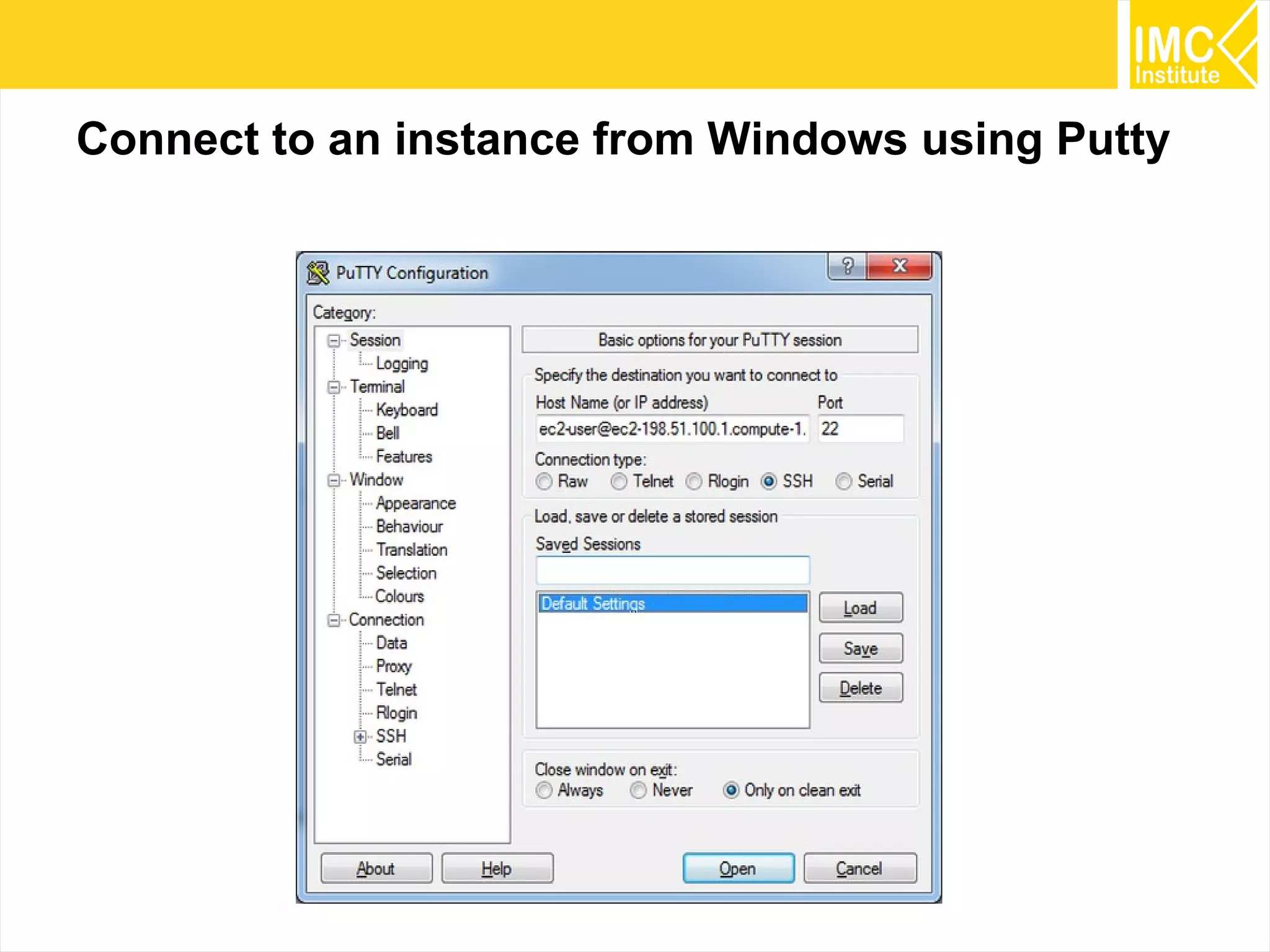

Connect to an instance from Windows using Putty

24. 24

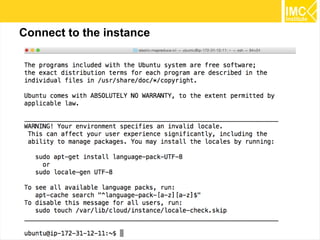

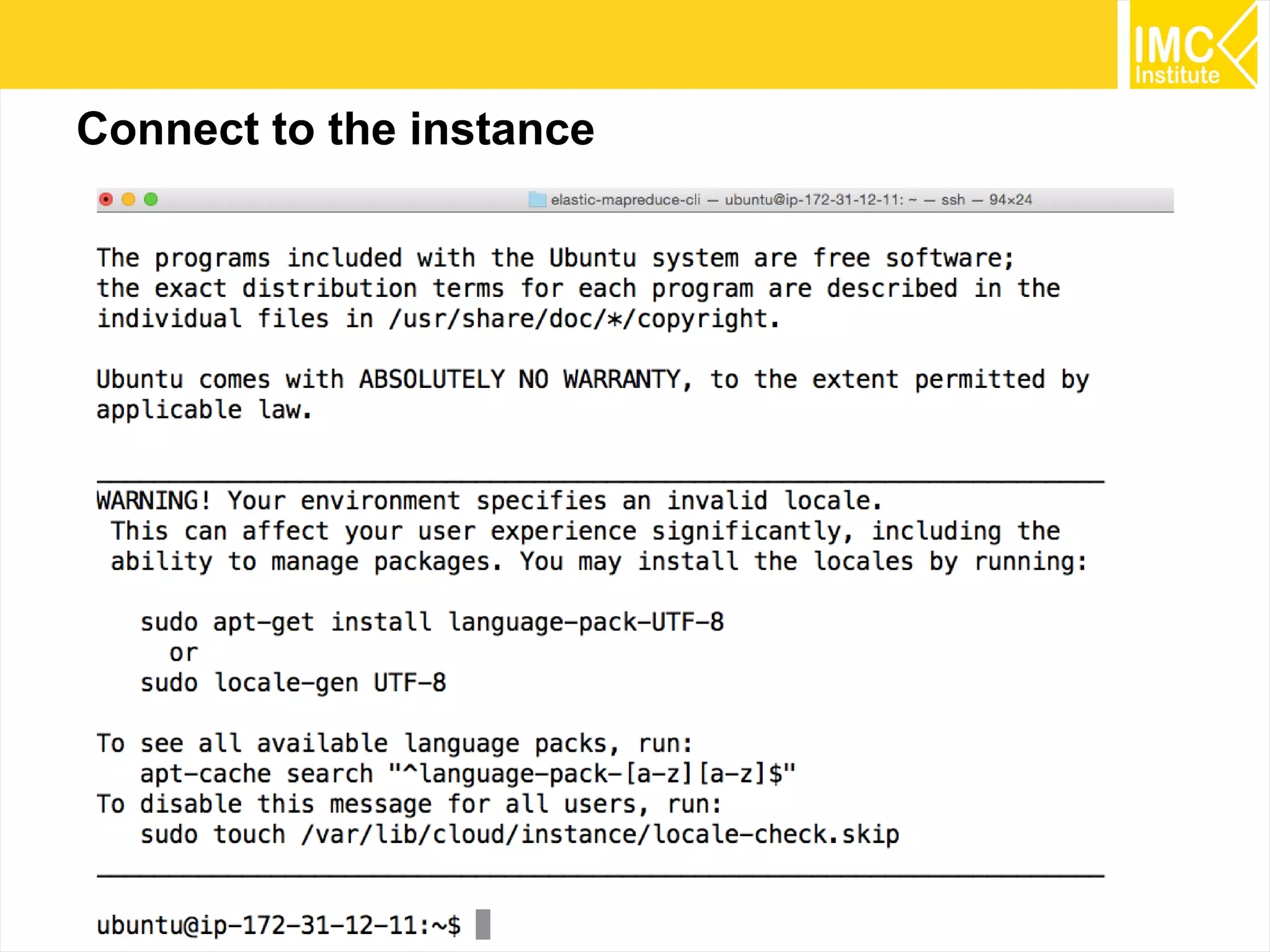

Connect to the instance

25. 25

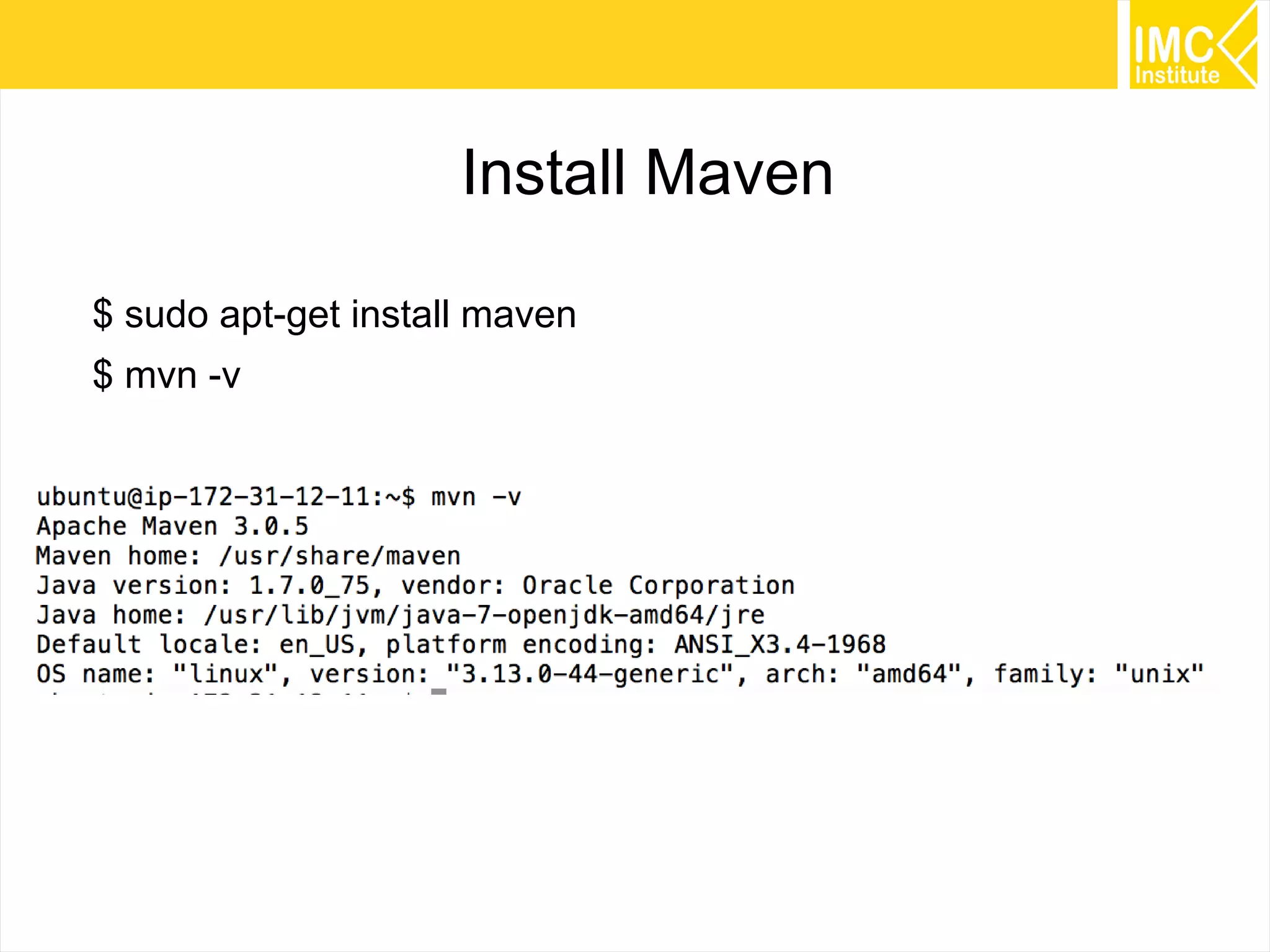

Install Maven
$ sudo apt-get install maven
$ mvn -v

26. 26

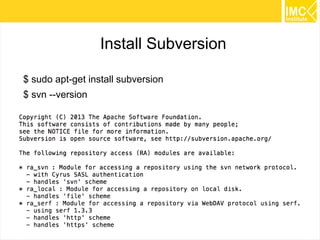

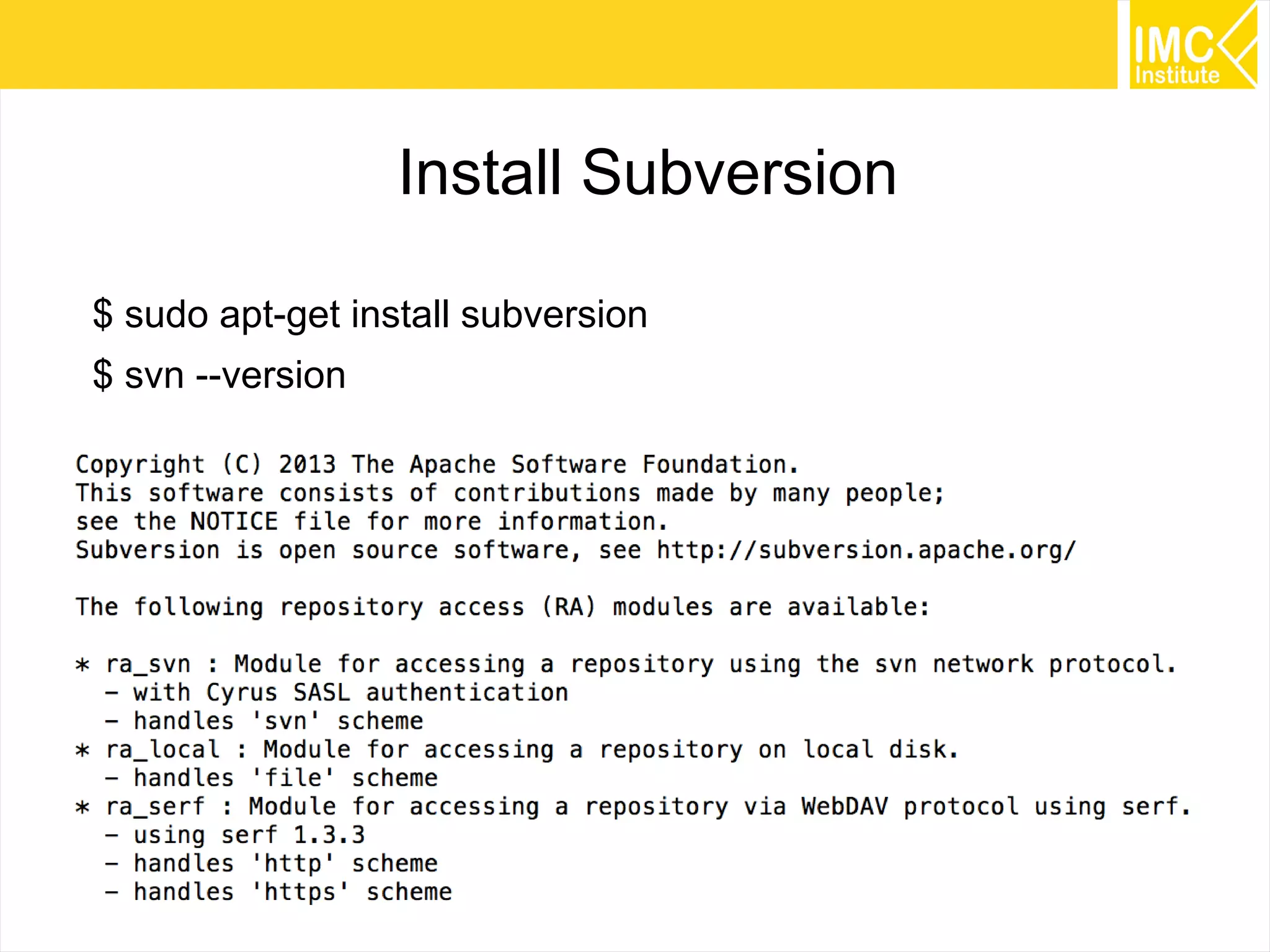

Install Subversion
$ sudo apt-get install subversion
$ svn --version

27. 27

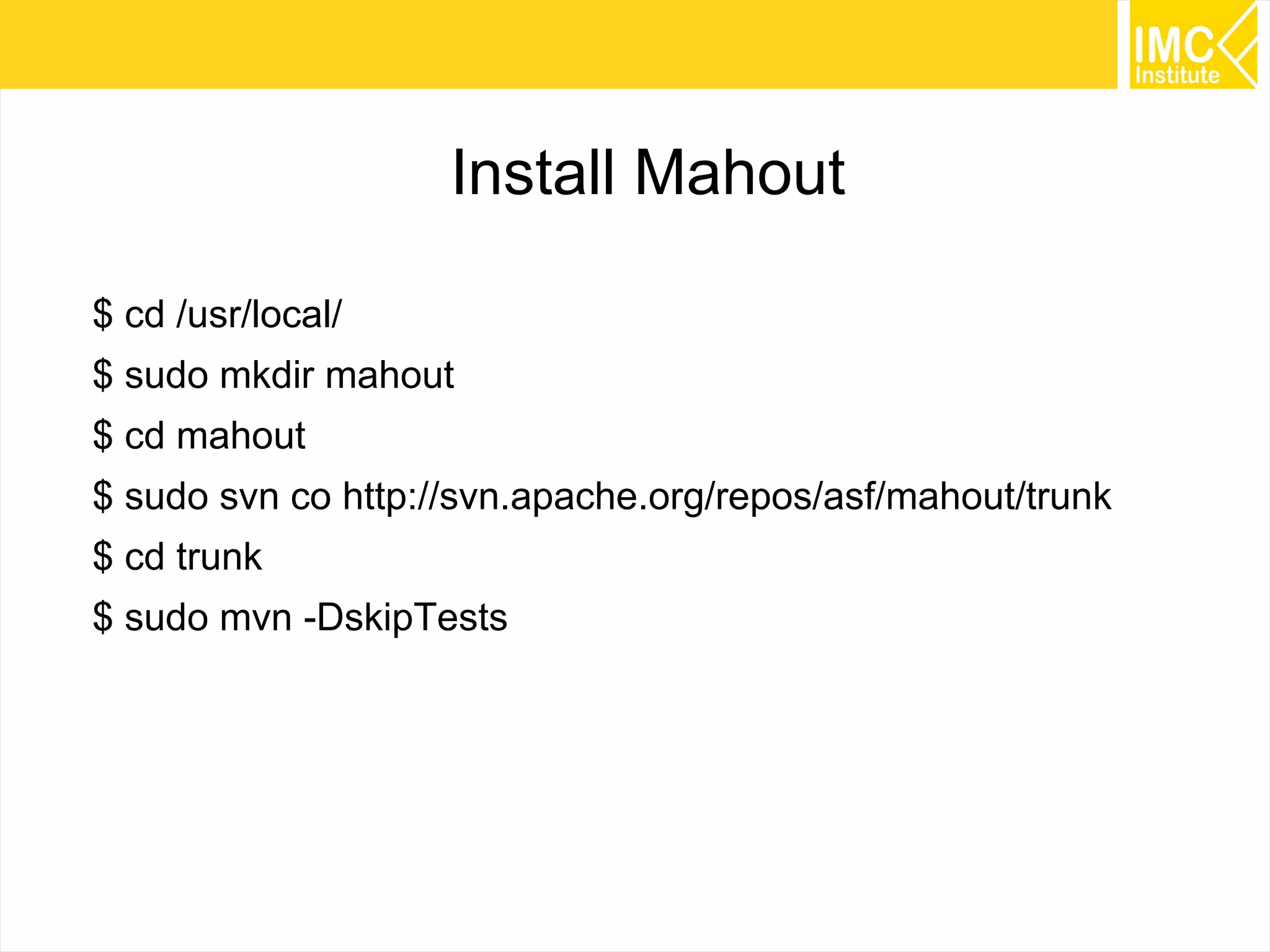

Install Mahout
$ cd /usr/local/
$ sudo mkdir mahout
$ cd mahout
$ sudo svn co http://svn.apache.org/repos/asf/mahout/trunk
$ cd trunk
$ sudo mvn -DskipTests

28. 28

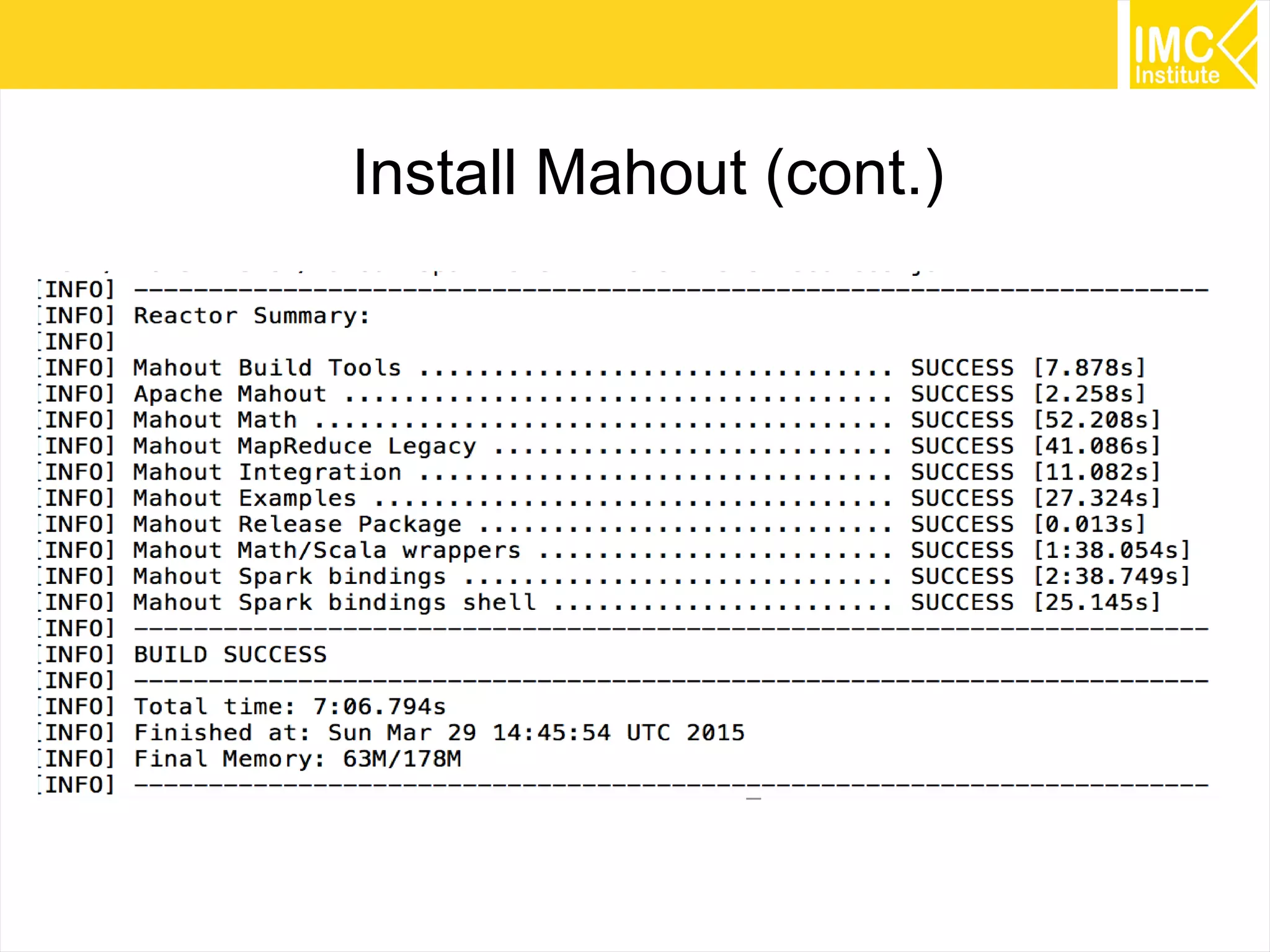

Install Mahout (cont.)

29. 29

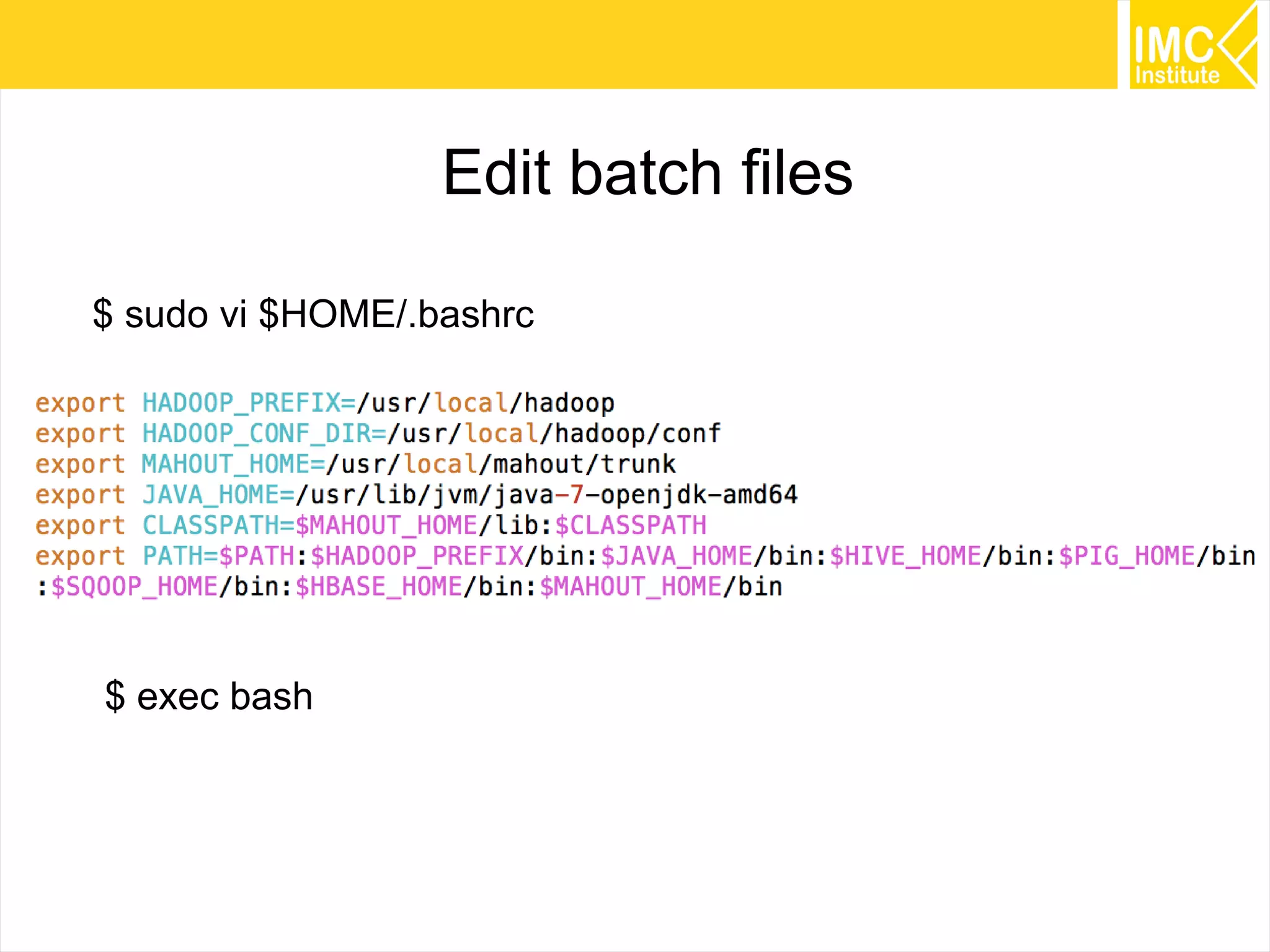

Edit batch files
$ sudo vi $HOME/.bashrc
$ exec bash

30. 30
Running
Recommendation Algorithms

31. 31

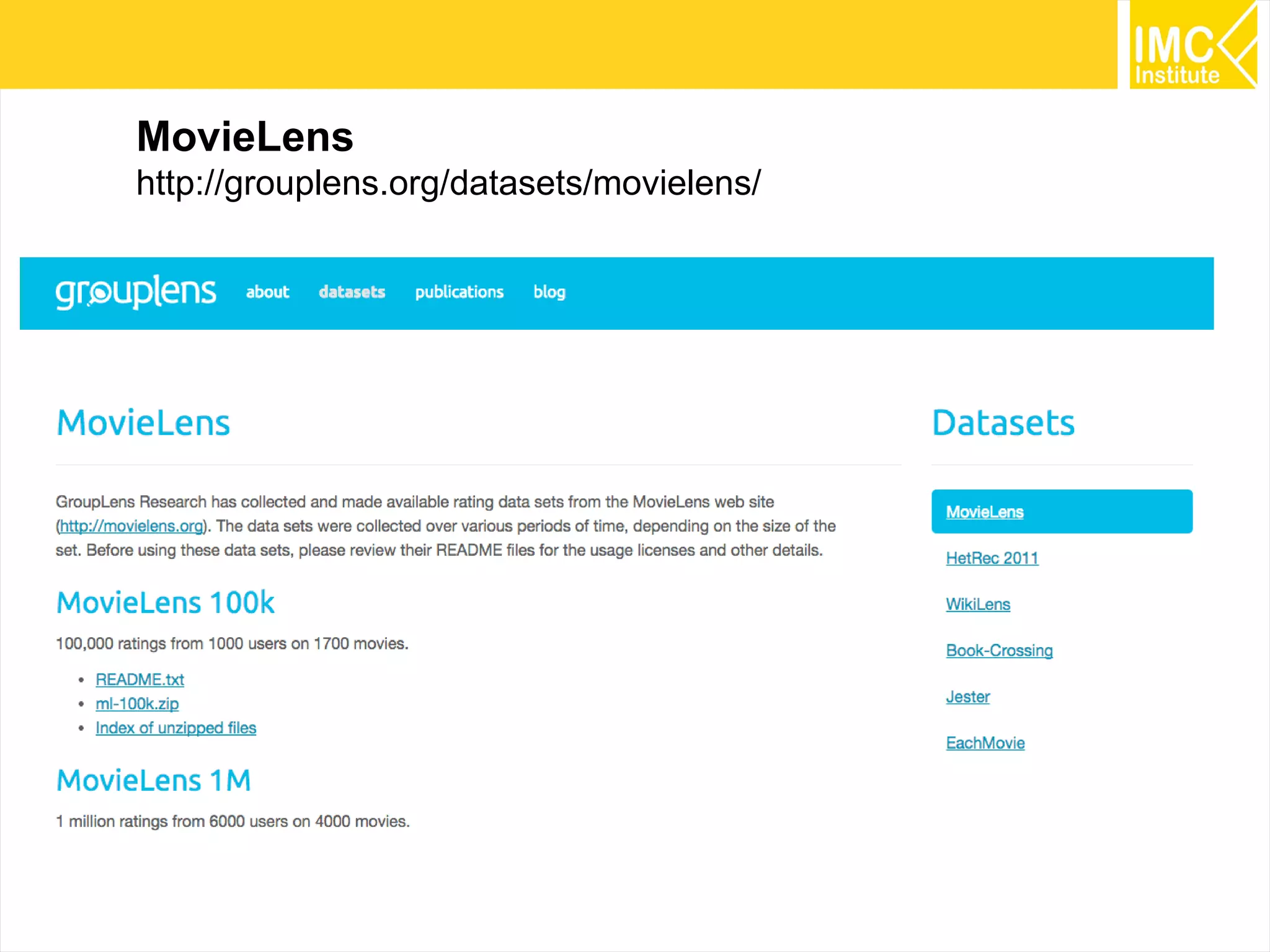

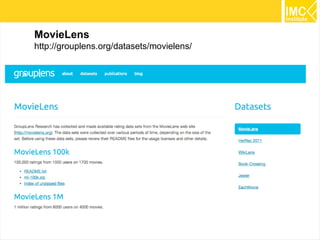

MovieLens
http://grouplens.org/datasets/movielens/

32. 32
Architecture for Recommender Engine

33. 33

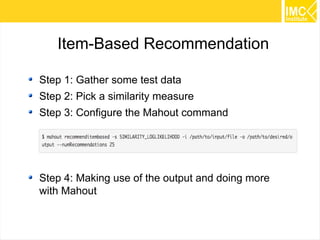

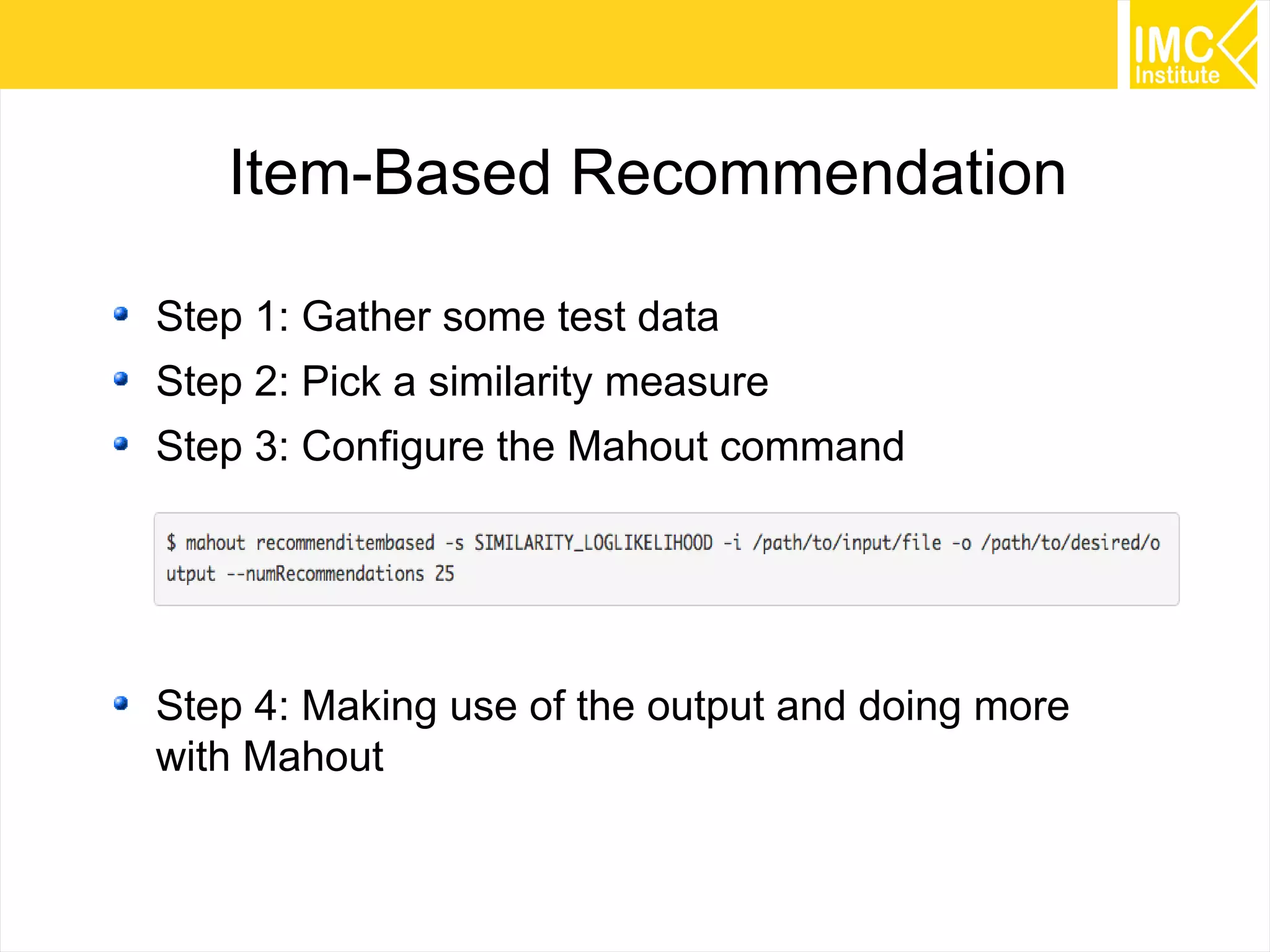

Item-Based Recommendation
Step 1: Gather some test data
Step 2: Pick a similarity measure
Step 3: Configure the Mahout command
Step 4: Making use of the output and doing more
with Mahout

34. 34

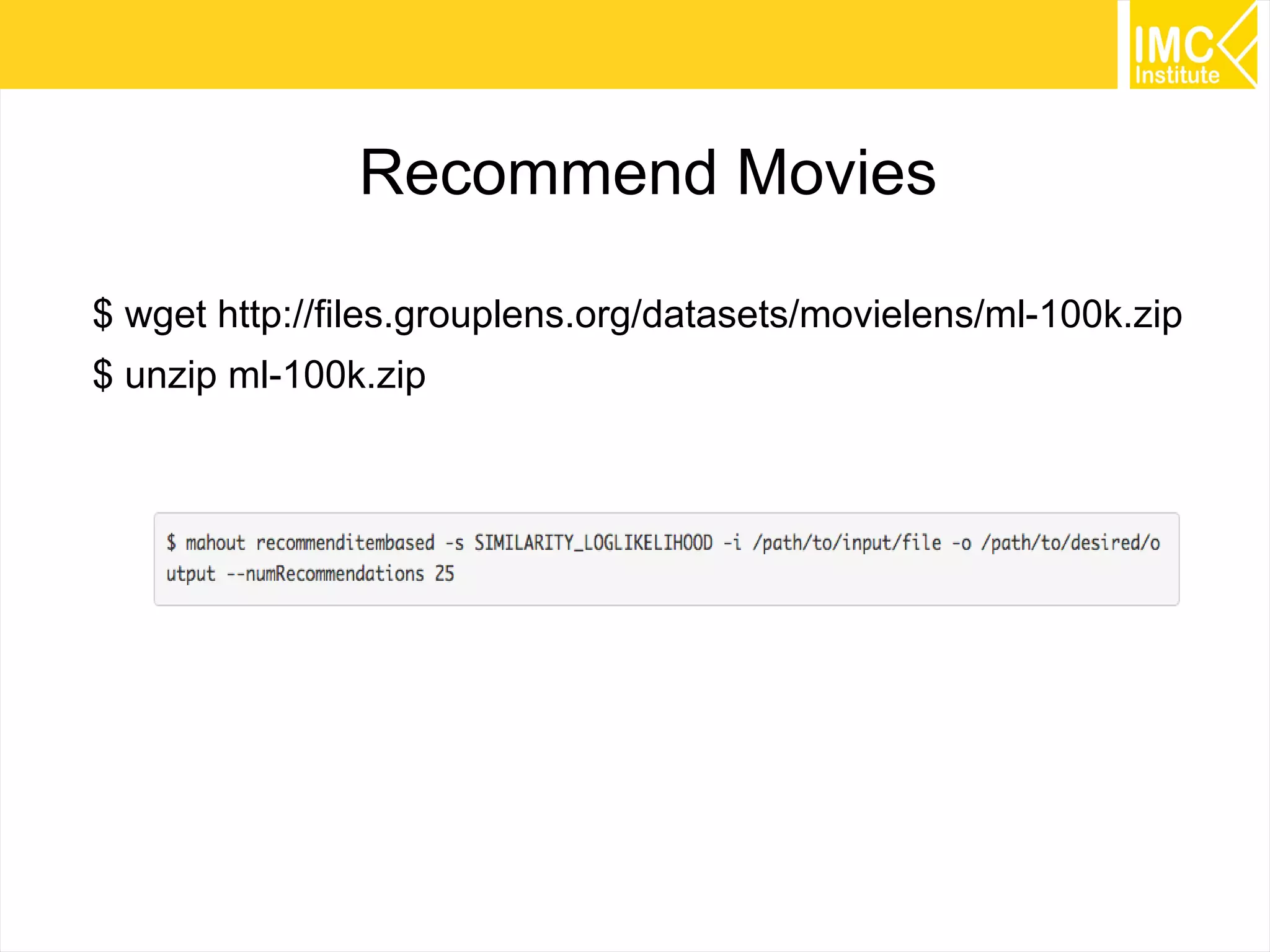

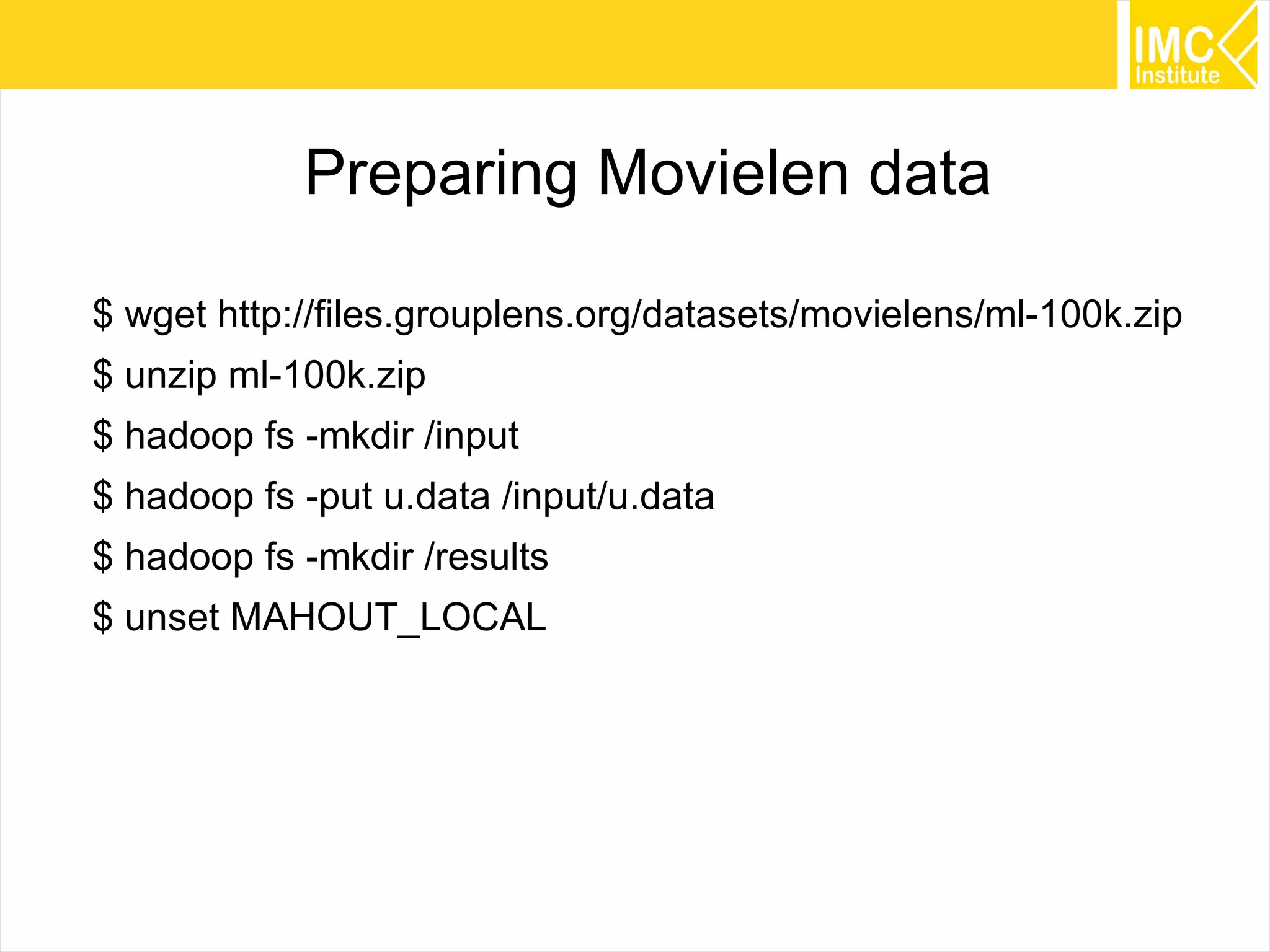

Preparing Movielen data
$ wget http://files.grouplens.org/datasets/movielens/ml-100k.zip
$ unzip ml-100k.zip
$ hadoop fs -mkdir /input
$ hadoop fs -put u.data /input/u.data
$ hadoop fs -mkdir /results
$ unset MAHOUT_LOCAL

35. 35

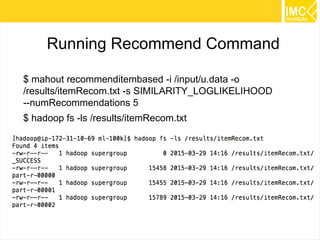

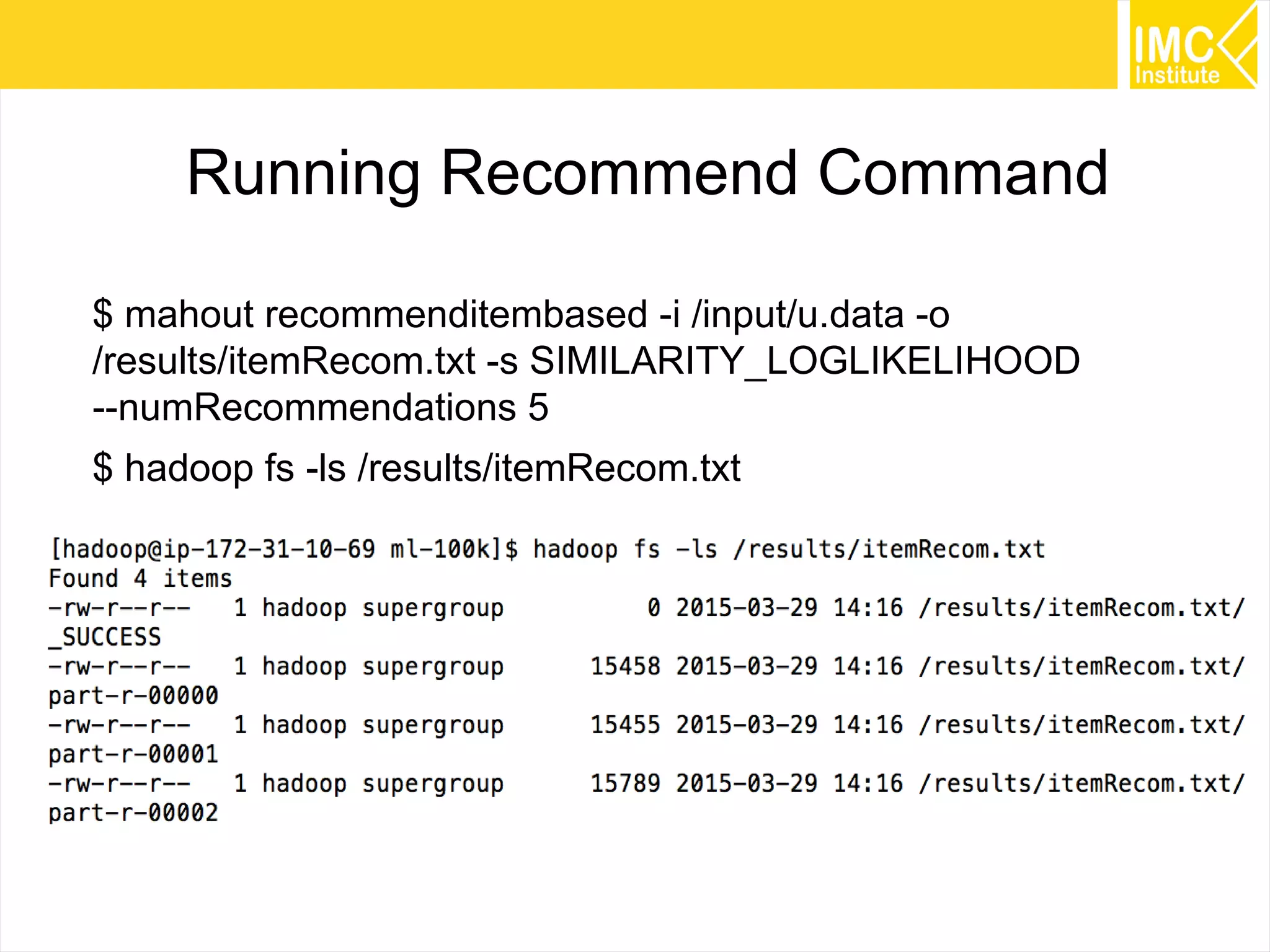

Running Recommend Command
$ mahout recommenditembased -i /input/u.data -o
/results/itemRecom.txt -s SIMILARITY_LOGLIKELIHOOD
--tempDir /temp/recommend1
$ hadoop fs -ls /results/itemRecom.txt

36. 36

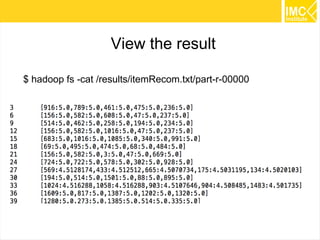

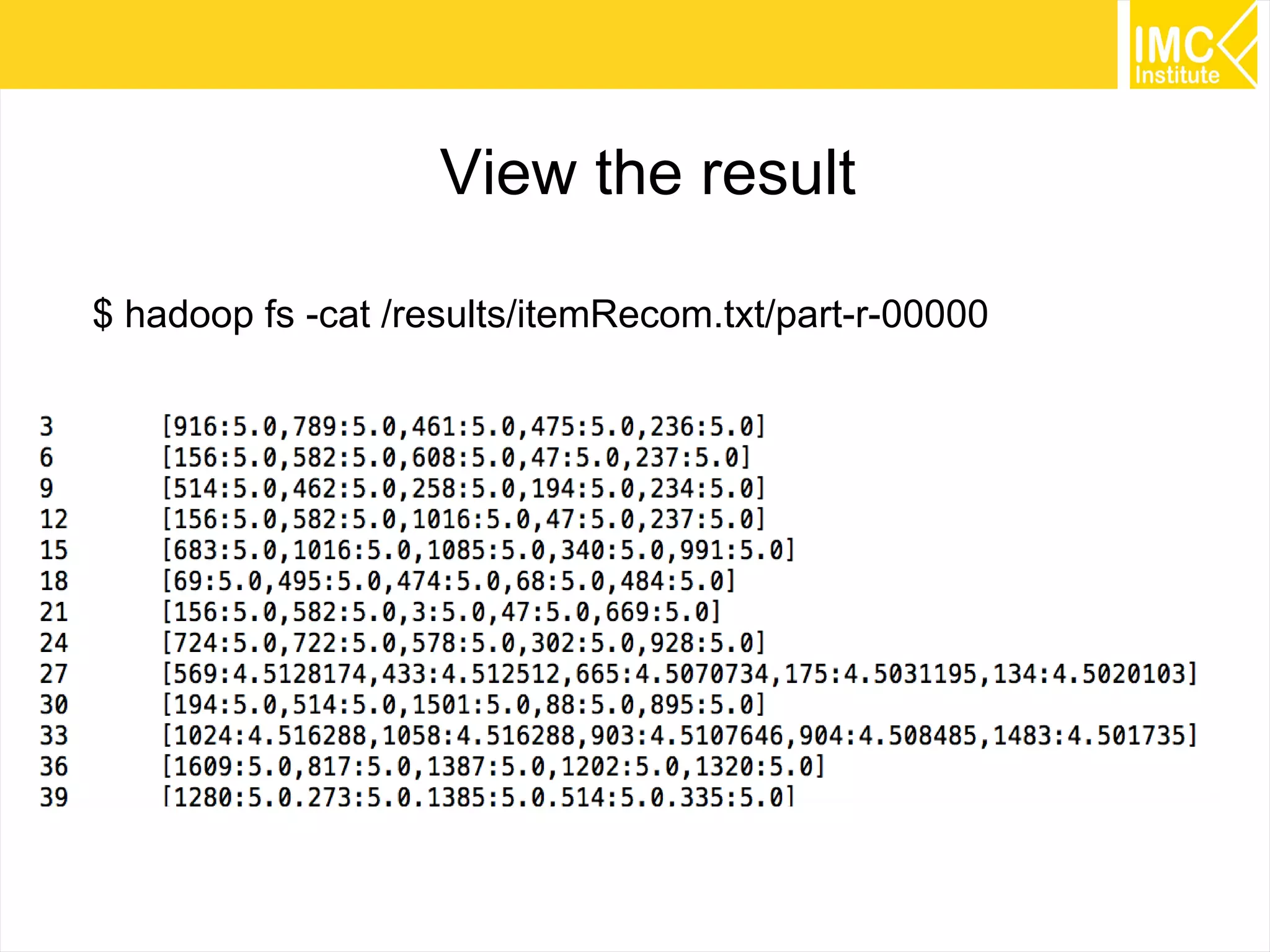

View the result
$ hadoop fs -cat /results/itemRecom.txt/part-r-00000

37. 37
Similarity Classname
SIMILARITY_COOCCURRENCE
SIMILARITY_LOGLIKELIHOOD
SIMILARITY_TANIMOTO_COEFFICIENT
SIMILARITY_CITY_BLOCK
SIMILARITY_COSINE
SIMILARITY_PEARSON_CORRELATION
SIMILARITY_EUCLIDEAN_DISTANCE

38. 38

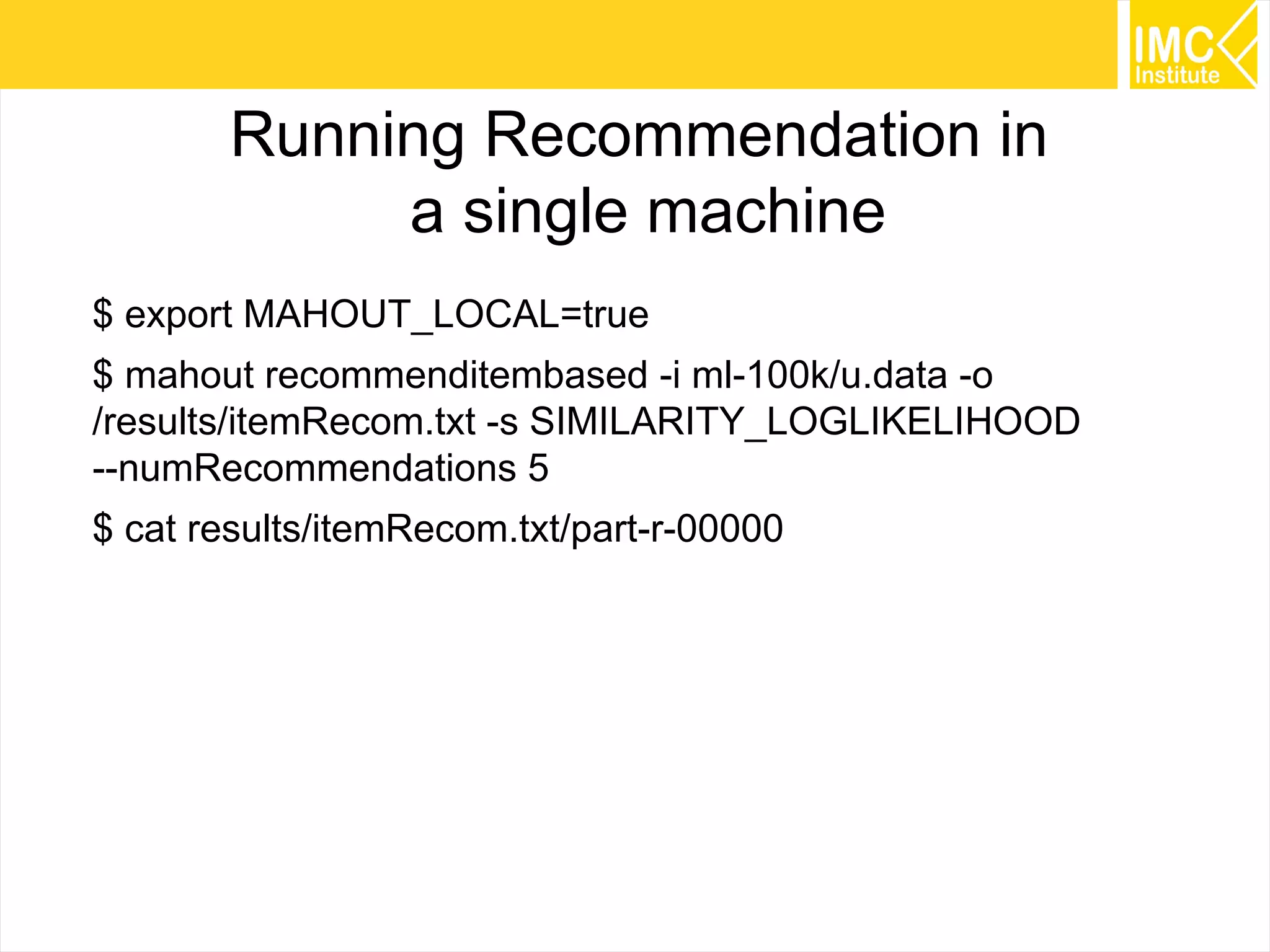

Running Recommendation in
a single machine
$ export MAHOUT_LOCAL=true
$ mahout recommenditembased -i ml-100k/u.data -o
/results/itemRecom.txt -s SIMILARITY_LOGLIKELIHOOD
--numRecommendations 5
$ cat results/itemRecom.txt/part-r-00000

39. 39
Running
Example Program
Using CBayes classifer

40. 40

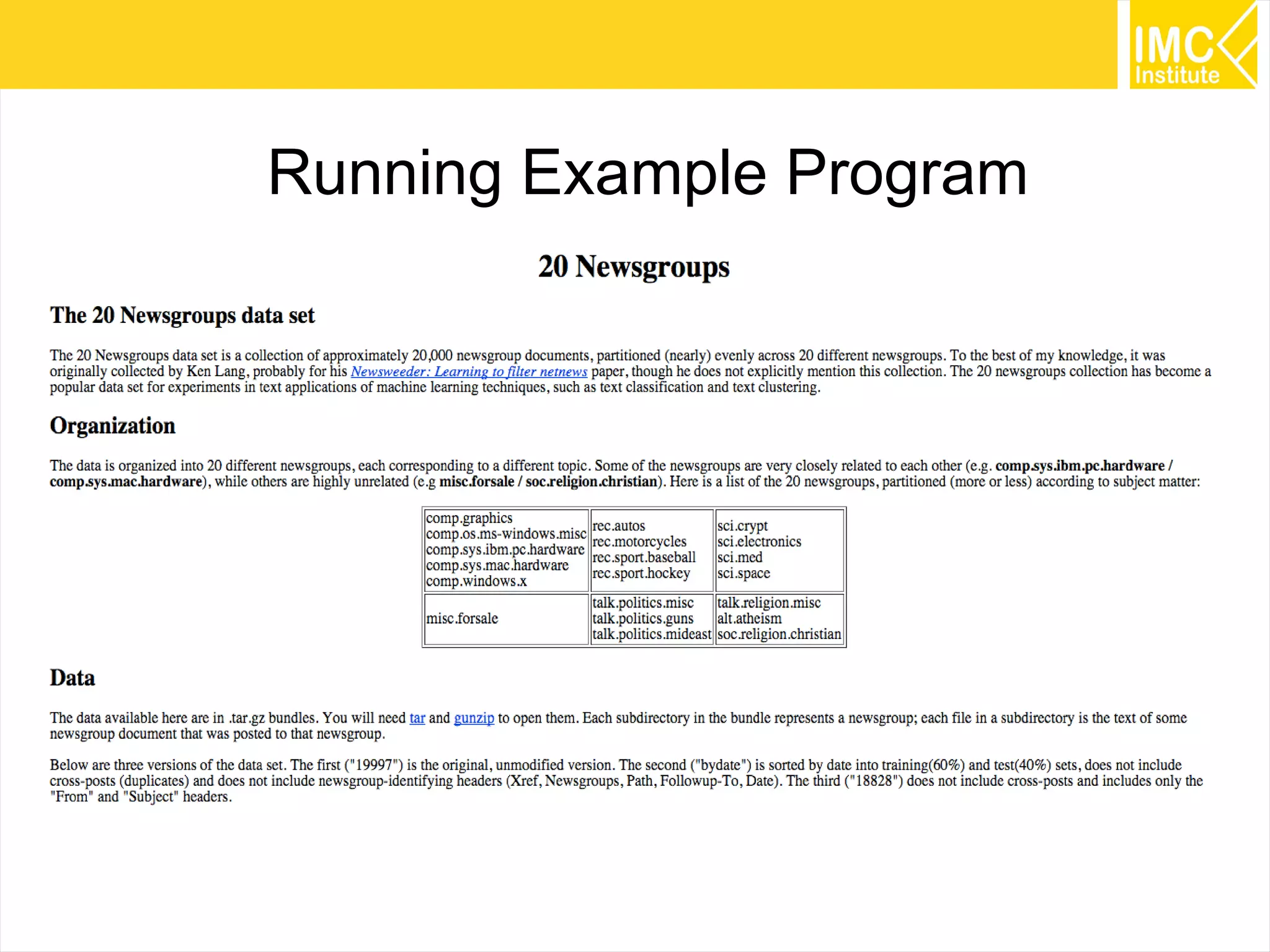

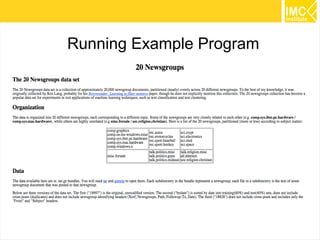

Running Example Program

41. 41

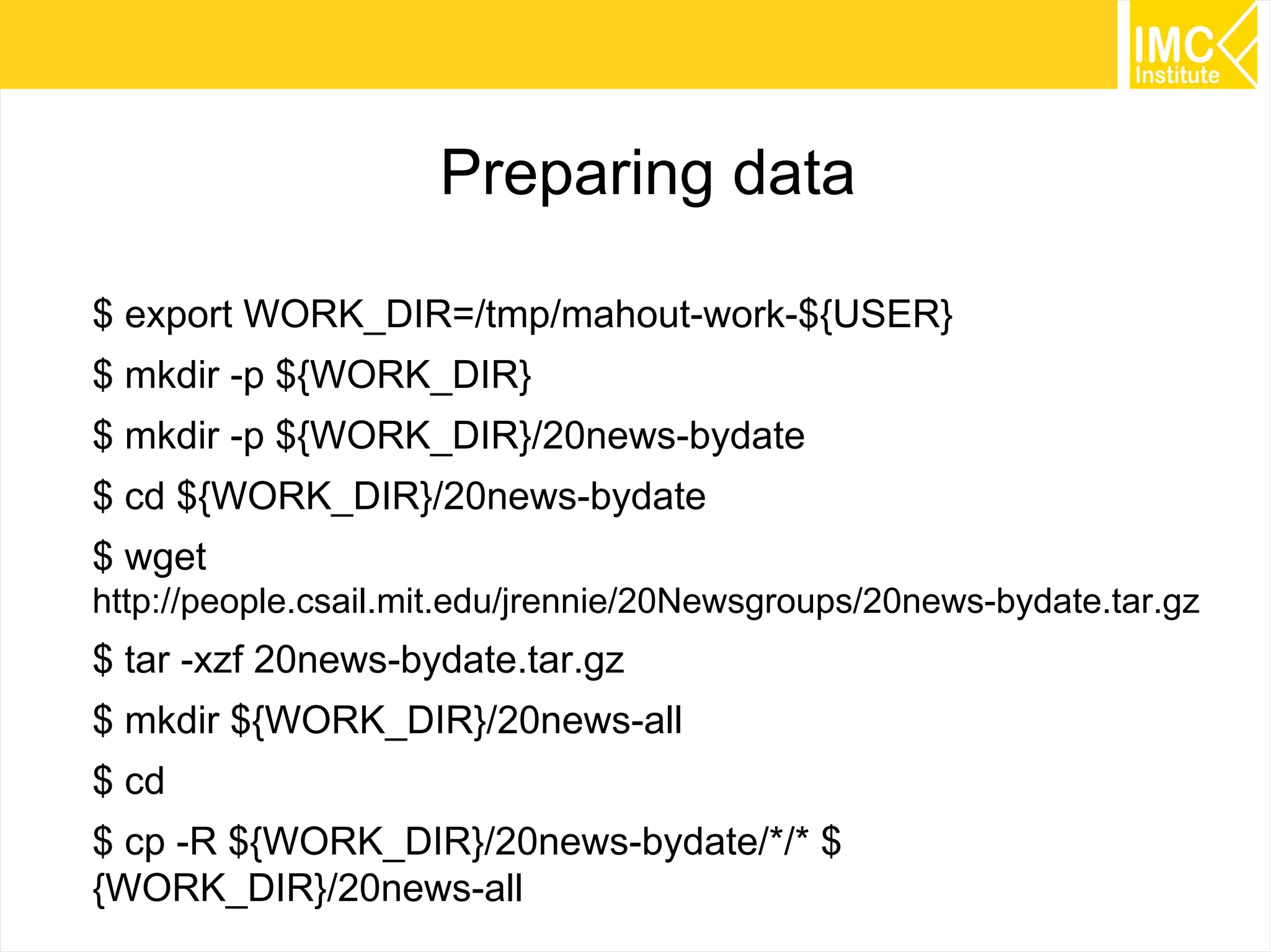

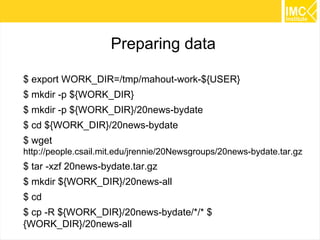

Preparing data
$ export WORK_DIR=/tmp/mahout-work-${USER}
$ mkdir -p ${WORK_DIR}
$ mkdir -p ${WORK_DIR}/20news-bydate
$ cd ${WORK_DIR}/20news-bydate
$ wget
http://people.csail.mit.edu/jrennie/20Newsgroups/20news-bydate.tar.gz
$ tar -xzf 20news-bydate.tar.gz
$ mkdir ${WORK_DIR}/20news-all
$ cd
$ cp -R ${WORK_DIR}/20news-bydate/*/* $
{WORK_DIR}/20news-all

42. 42
Note: Running on MapReduce
If you want to run onMapReduce mode, you need to run the
following commands before running the feature extraction
commands
$ unset MAHOUT_LOCAL
$ hadoop fs -put ${WORK_DIR}/20news-all $
{WORK_DIR}/20news-all

43. 43
Preparing the Sequence File
Mahout provides you a utility to convert the given input file in to a
sequence file format.
The input file directory where the original data resides.
The output file directory where the clustered data is to be stored.

44. 44
Sequence Files
Sequence files are binary encoding of key/value pairs. There is a
header on the top of the file organized with some metadata
information which includes:
– Version
– Key name
– Value name
– Compression
To view the sequential file
mahout seqdumper -i <input file> | more

45. 45
Generate Vectors from Sequence Files
Mahout provides a command to create vector files from
sequence files.
mahout seq2sparse -i <input file path> -o <output file path>
Important Options:
-lnorm Whether output vectors should be logNormalize.
-nv Whether output vectors should be NamedVectors
-wt The kind of weight to use. Currently TF or TFIDF.
Default: TFIDF

46. 46

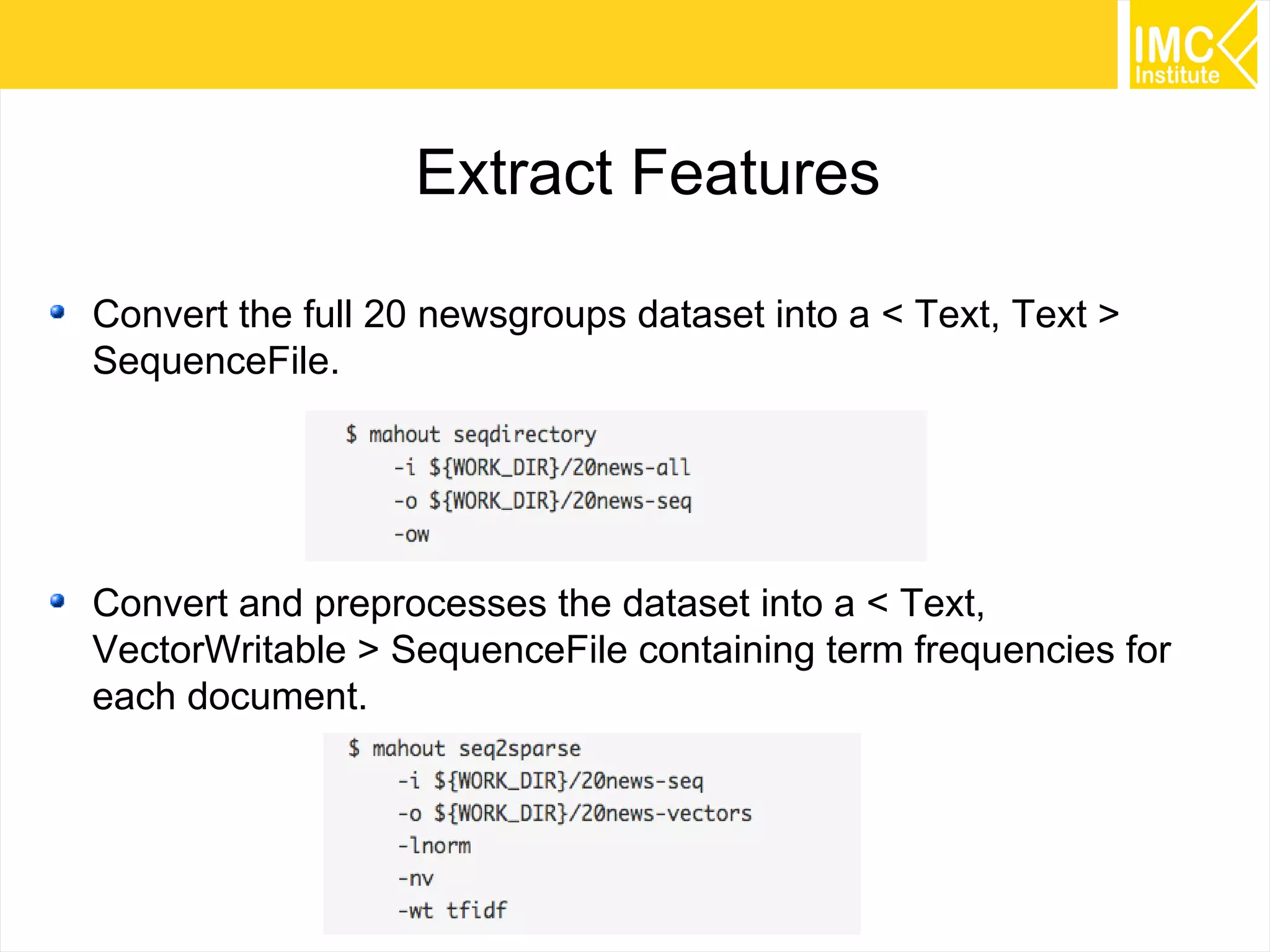

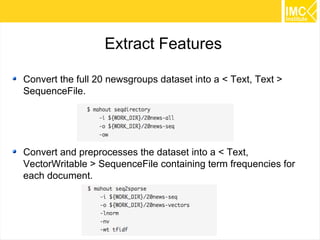

Extract Features
Convert the full 20 newsgroups dataset into a < Text, Text >
SequenceFile.
Convert and preprocesses the dataset into a < Text,
VectorWritable > SequenceFile containing term frequencies for
each document.

47. 47

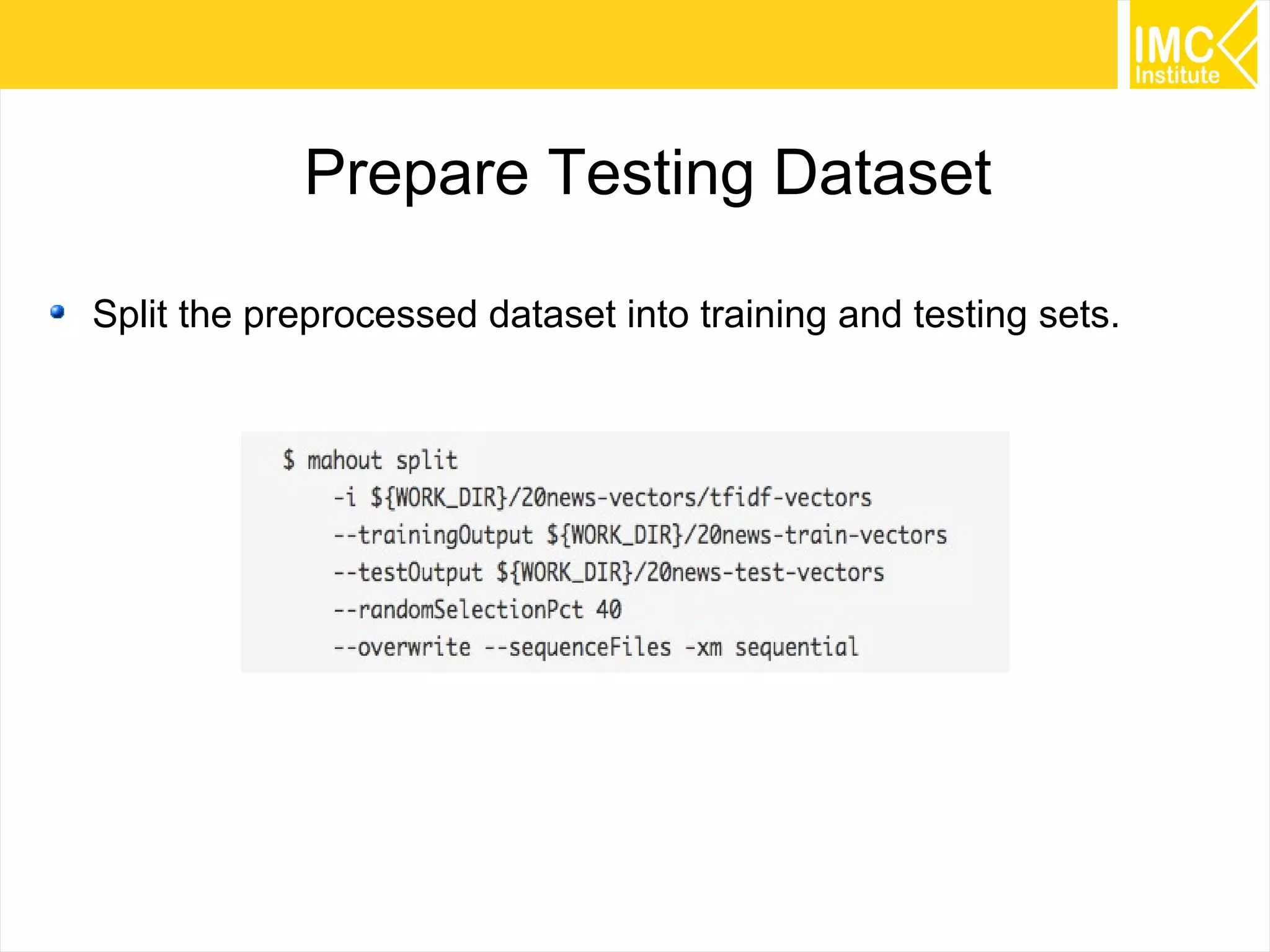

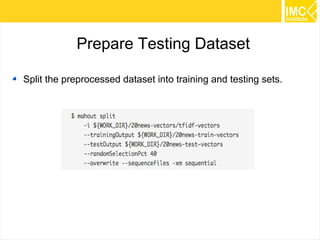

Prepare Testing Dataset
Split the preprocessed dataset into training and testing sets.

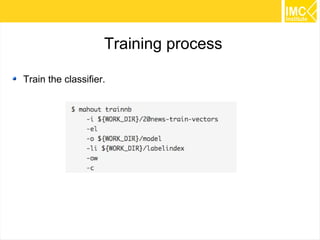

48. 48

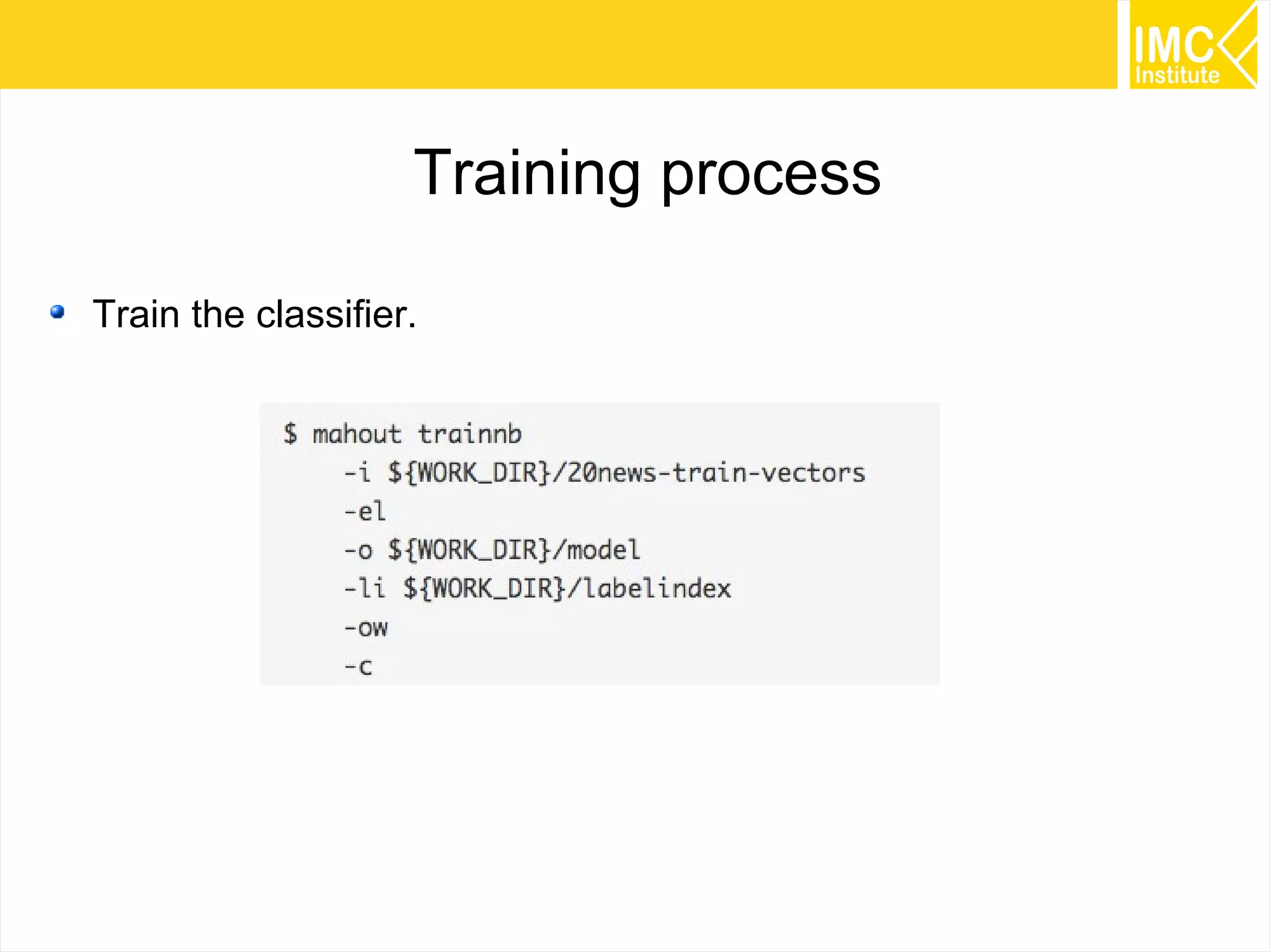

Training process
Train the classifier.

49. 49

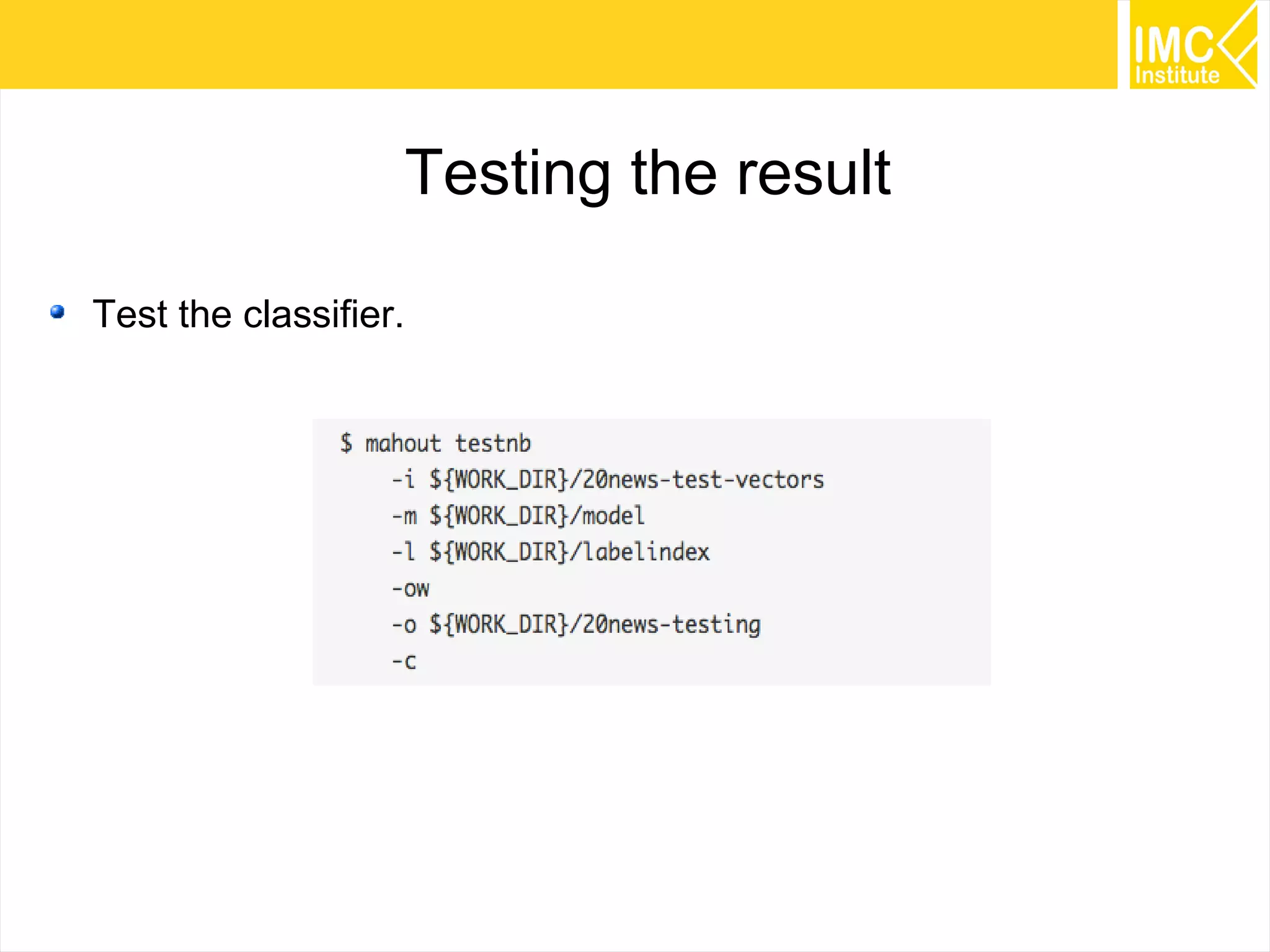

Testing the result
Test the classifier.

50. 50
Dumping a vector file
We can dump vector files to normal text ones, as fillow
mahout vectordump -i <input file> -o <output file>
Options
--useKey If the Key is a vector than dump that instead
--csv Output the Vector as CSV
--dictionary The dictionary file.

51. 51

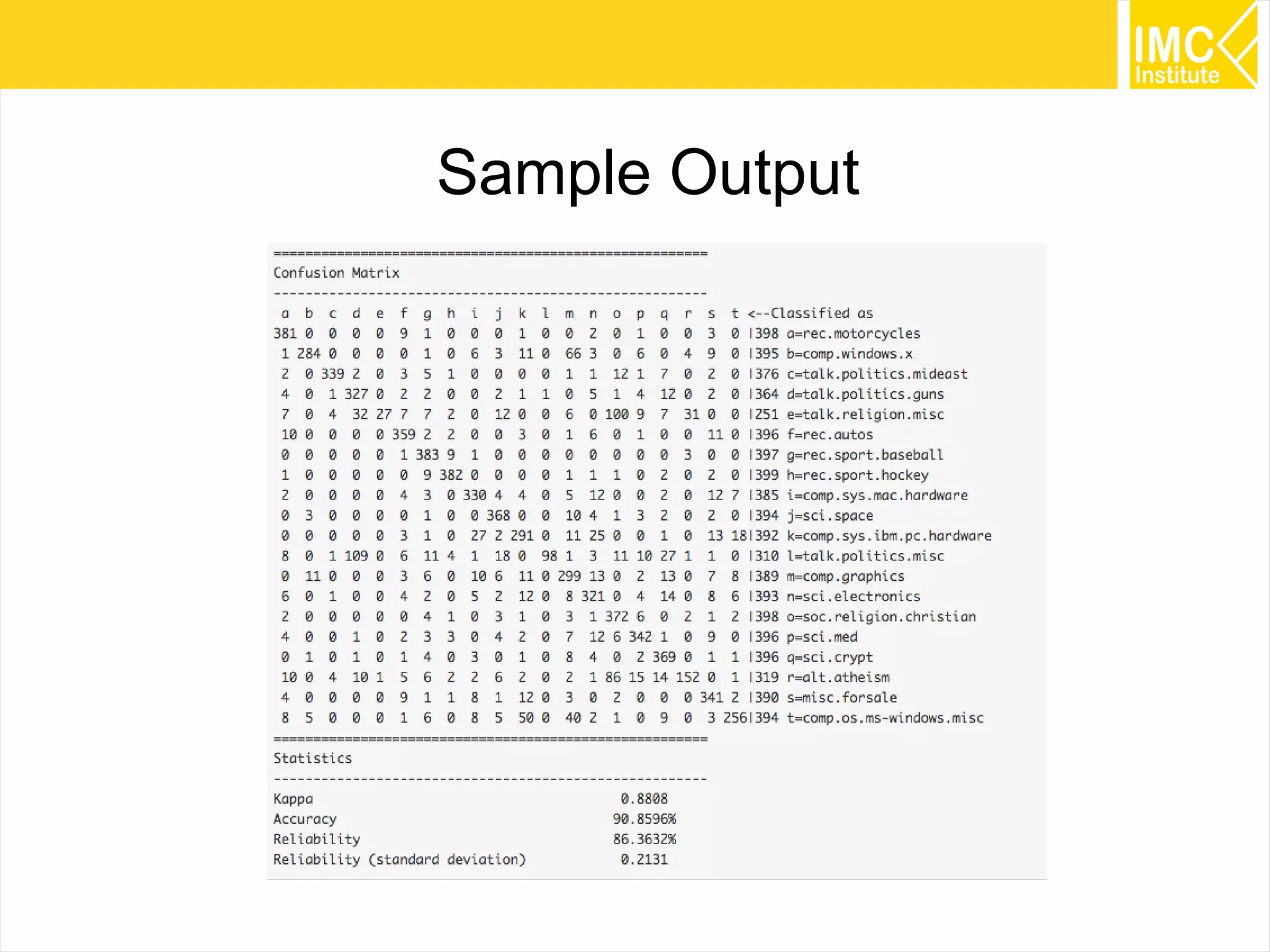

Sample Output

52. 52

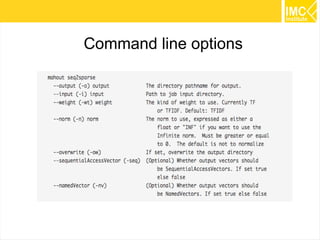

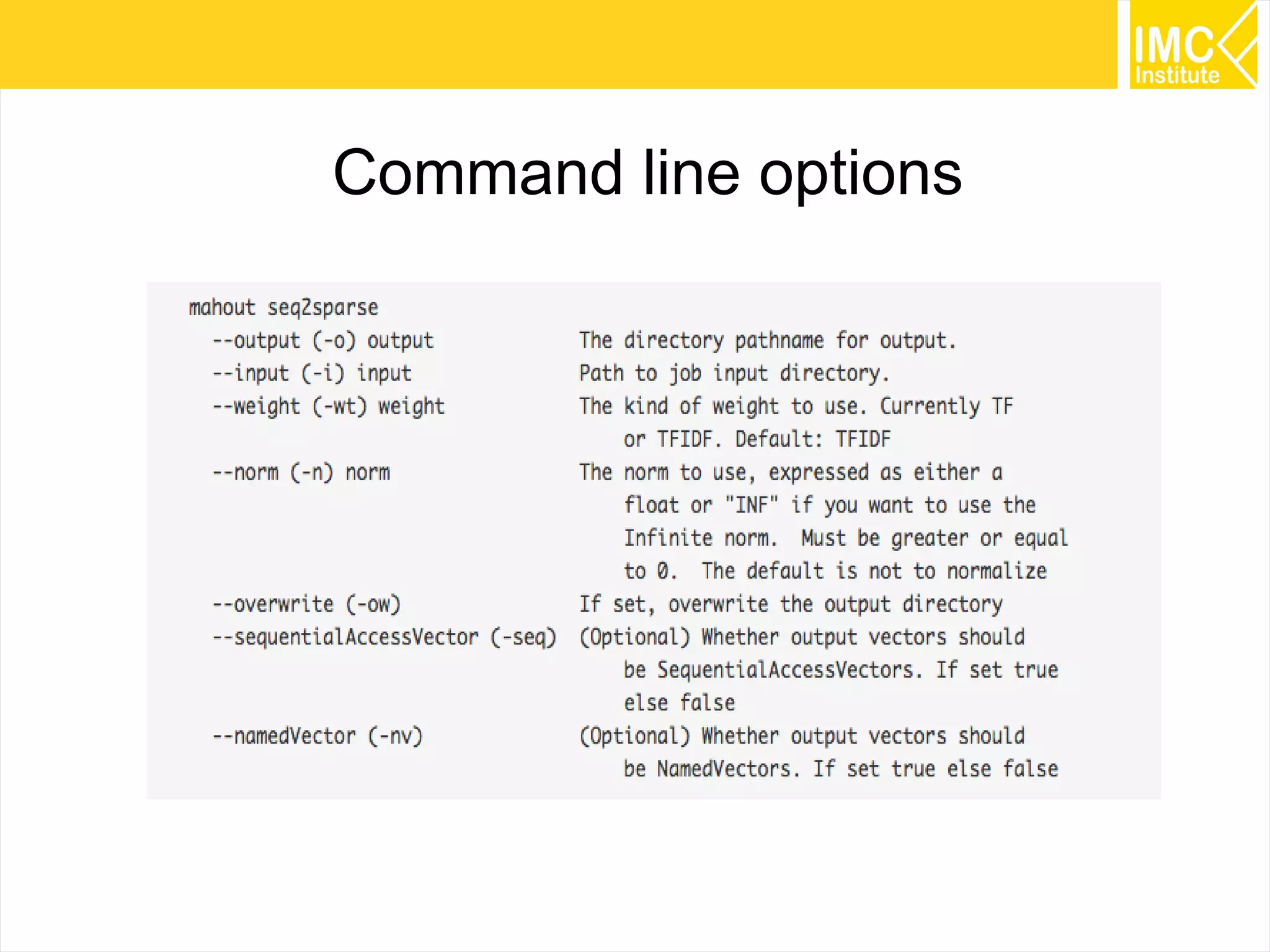

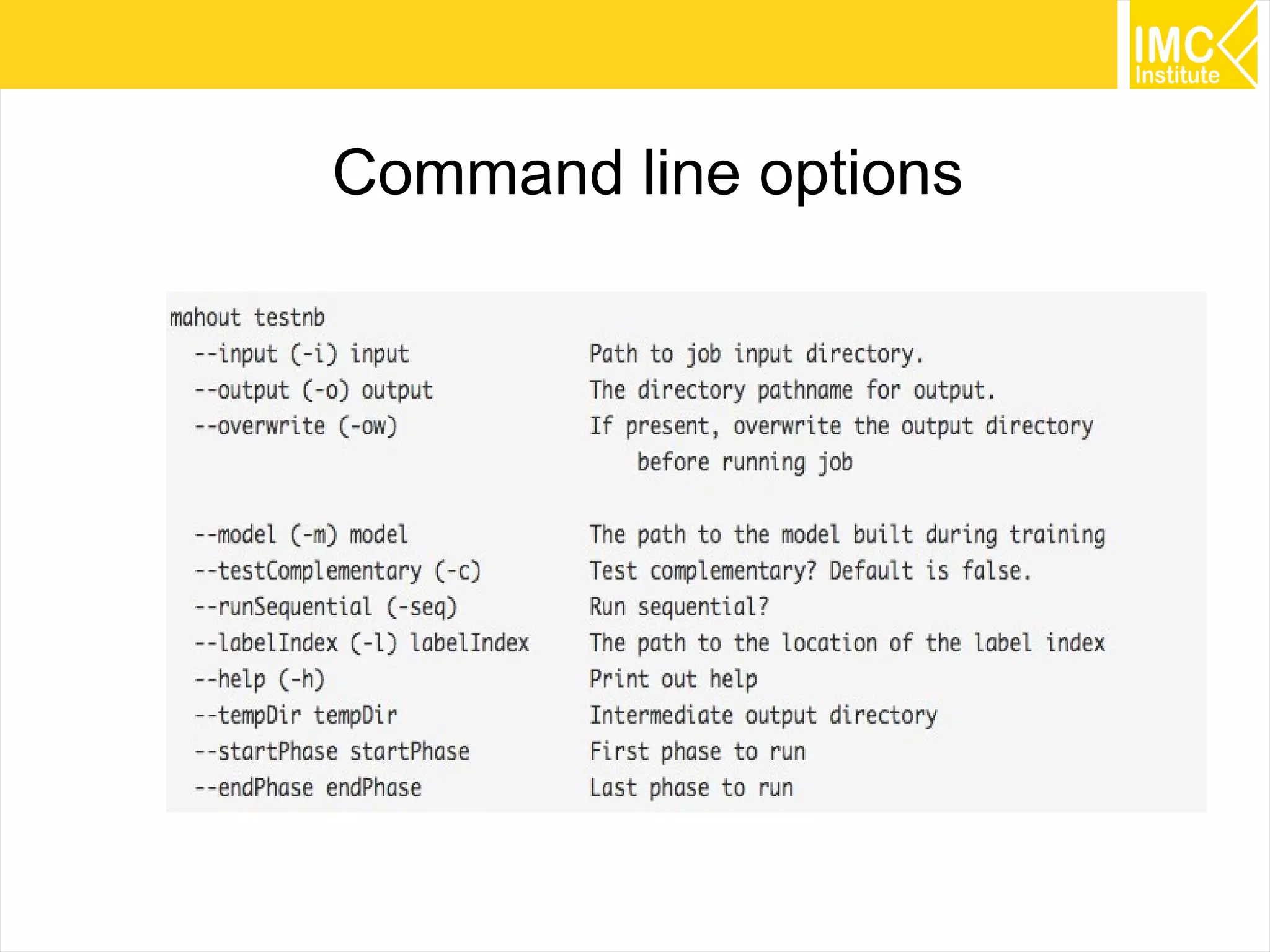

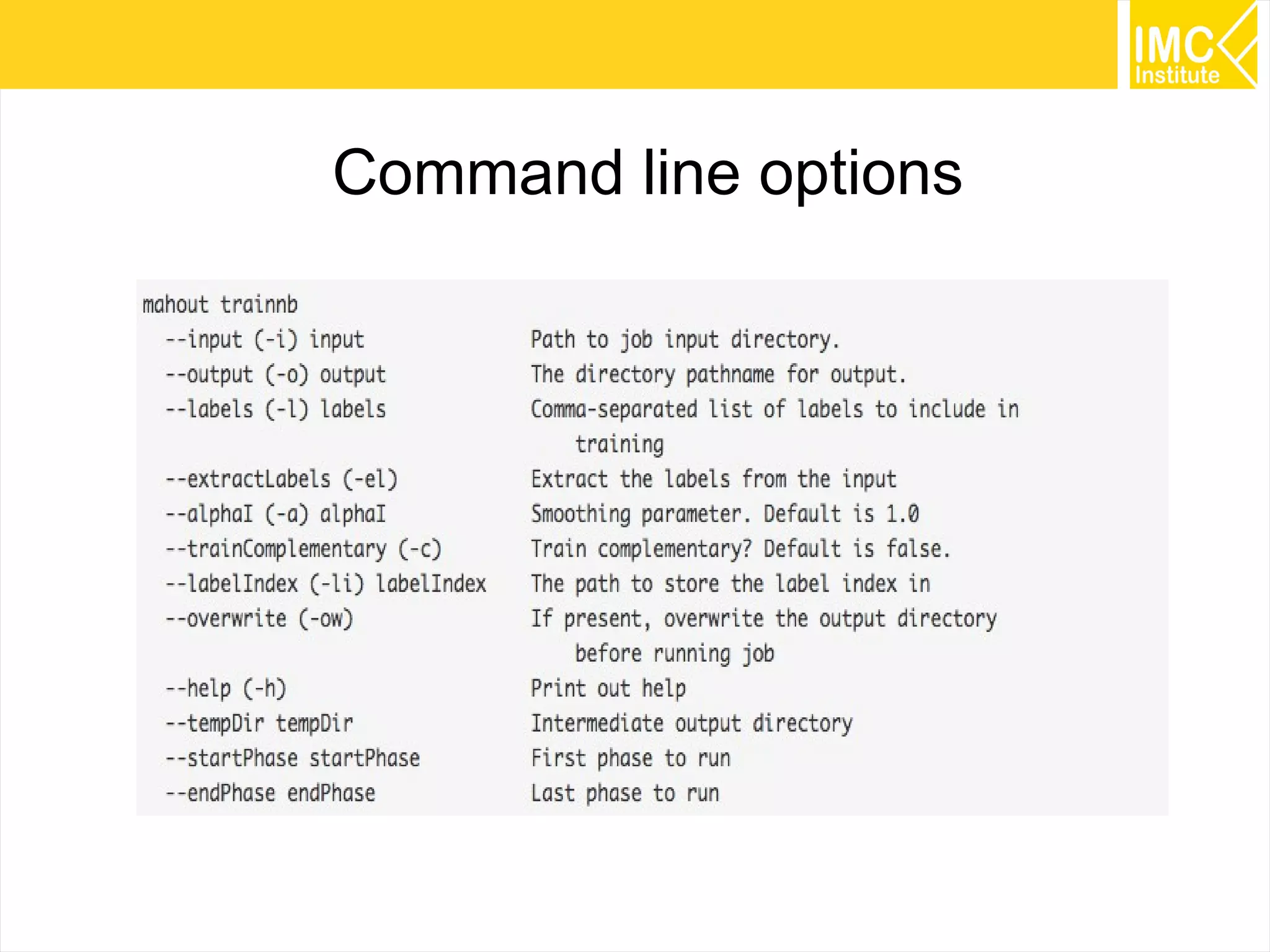

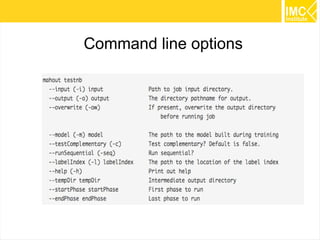

Command line options

53. 53
Command line options

54. 54
Command line options

55. 55
K-means clustering

56. 56

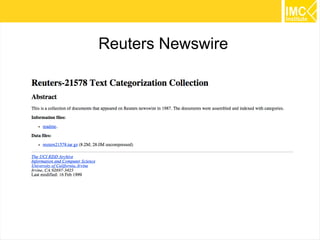

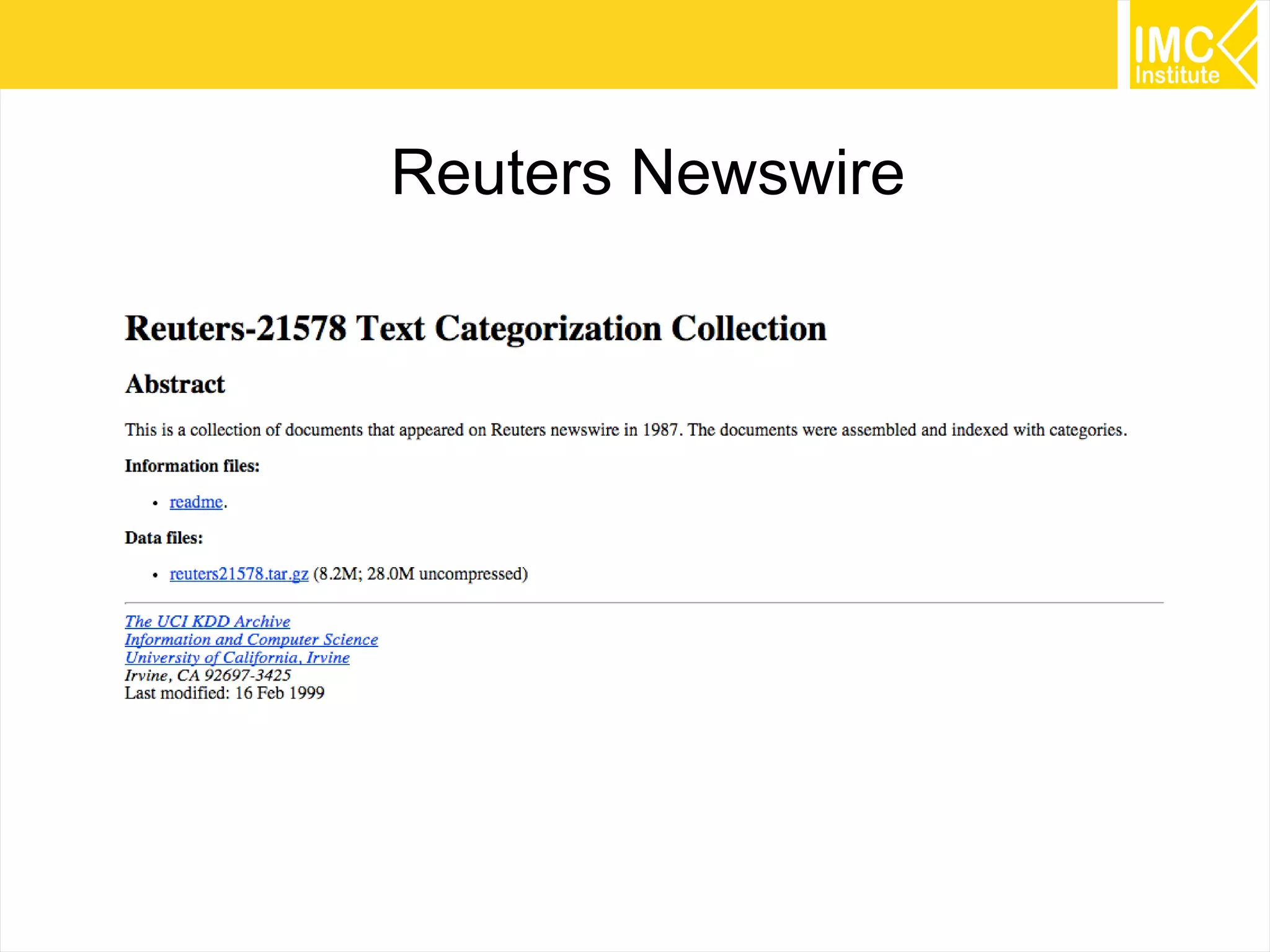

Reuters Newswire

57. 57

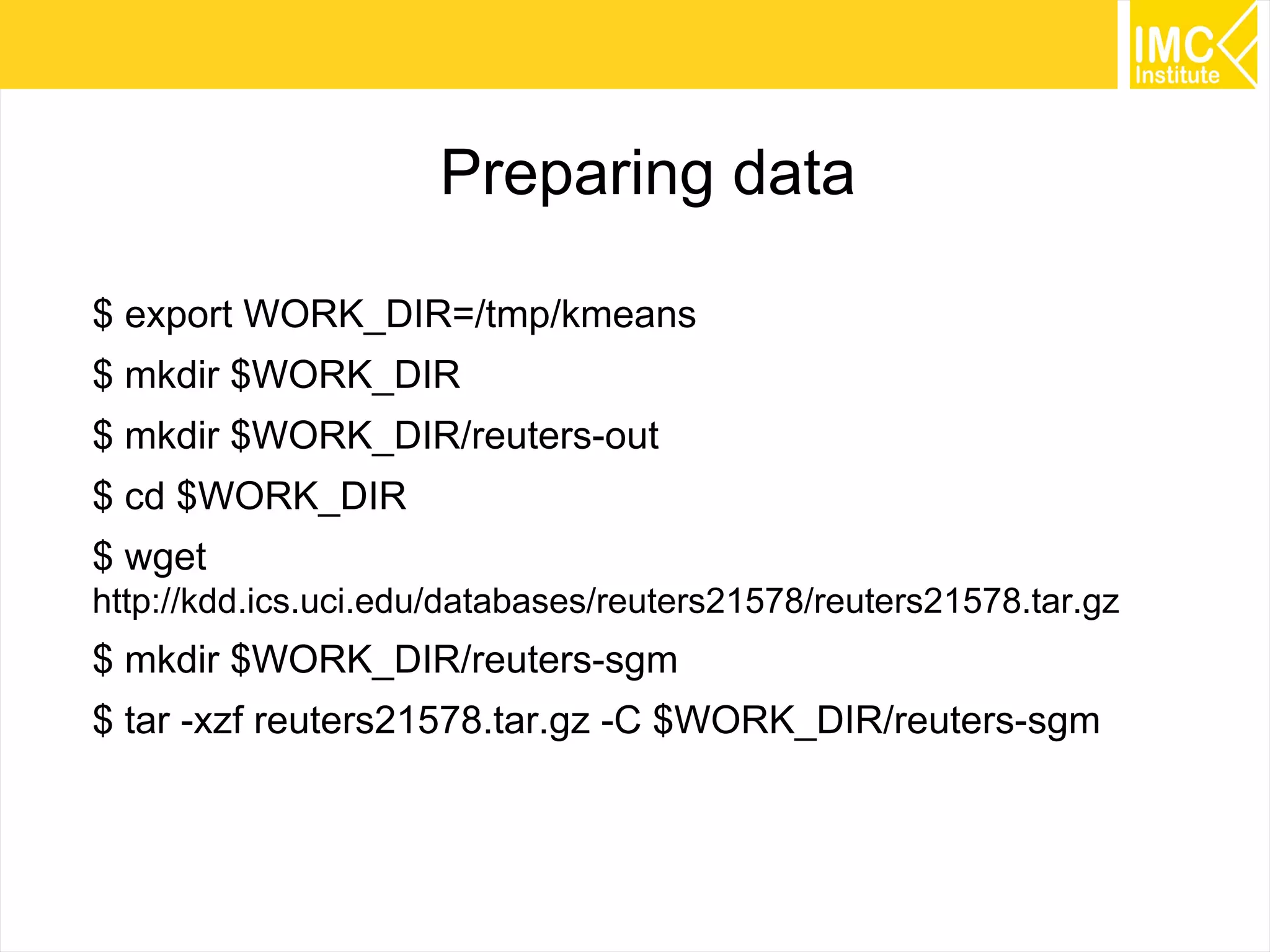

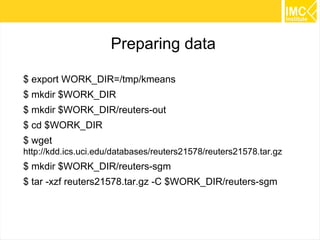

Preparing data
$ export WORK_DIR=/tmp/kmeans
$ mkdir $WORK_DIR
$ mkdir $WORK_DIR/reuters-out
$ cd $WORK_DIR
$ wget
http://kdd.ics.uci.edu/databases/reuters21578/reuters21578.tar.gz
$ mkdir $WORK_DIR/reuters-sgm
$ tar -xzf reuters21578.tar.gz -C $WORK_DIR/reuters-sgm

58. 58

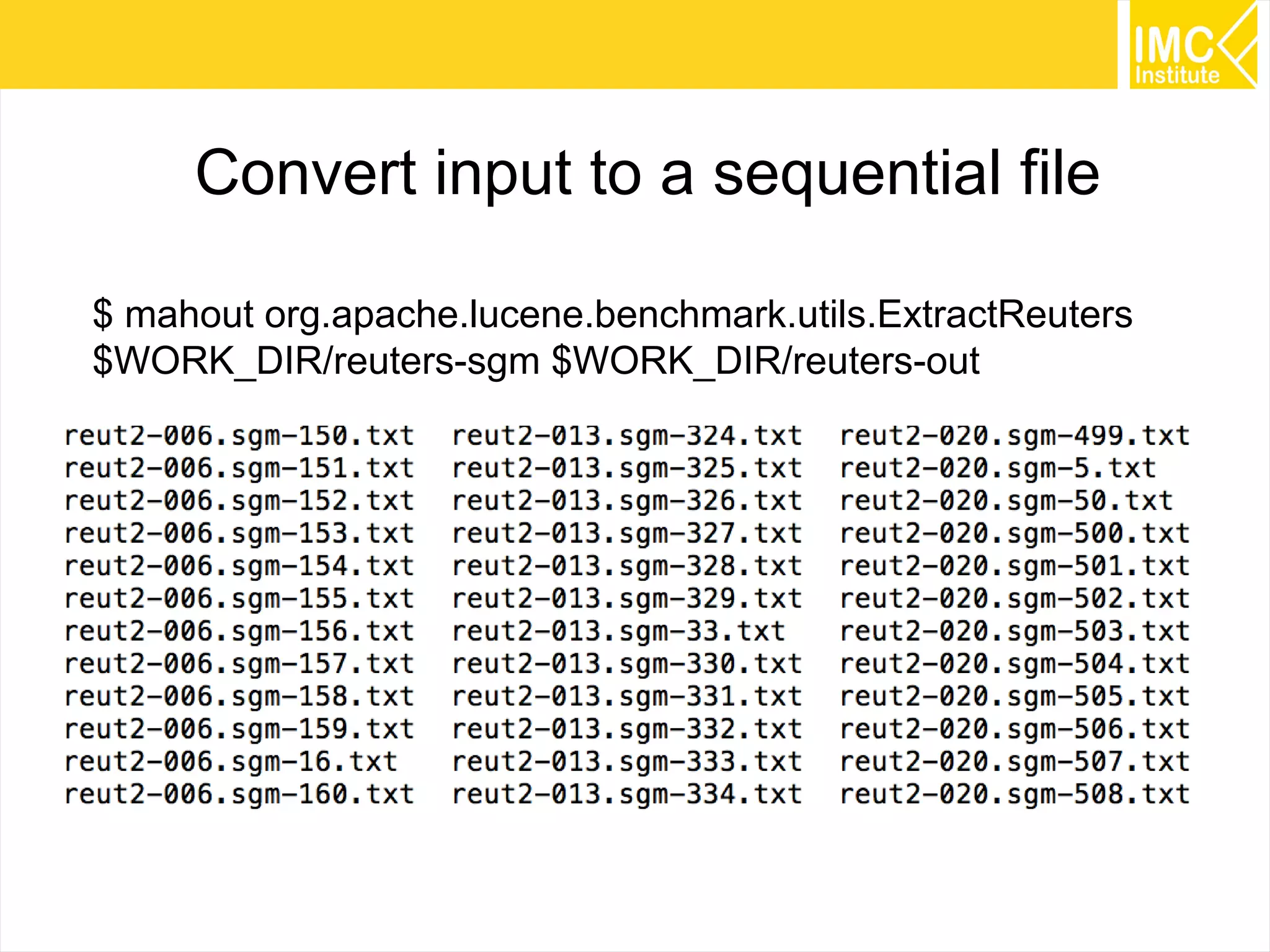

Convert input to a sequential file
$ mahout org.apache.lucene.benchmark.utils.ExtractReuters
$WORK_DIR/reuters-sgm $WORK_DIR/reuters-out

59. 59

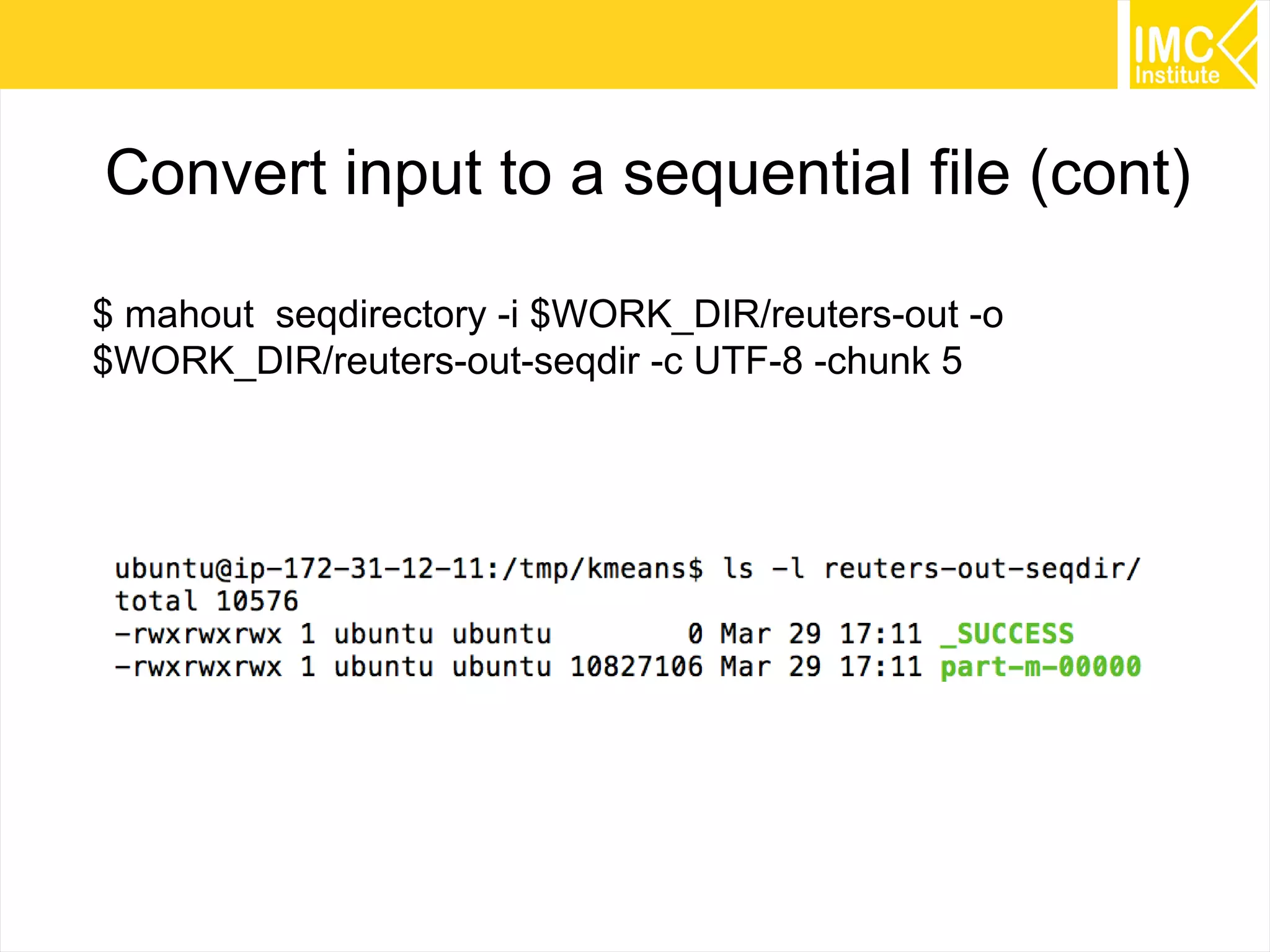

Convert input to a sequential file (cont)
$ mahout seqdirectory -i $WORK_DIR/reuters-out -o
$WORK_DIR/reuters-out-seqdir -c UTF-8 -chunk 5

60. 60

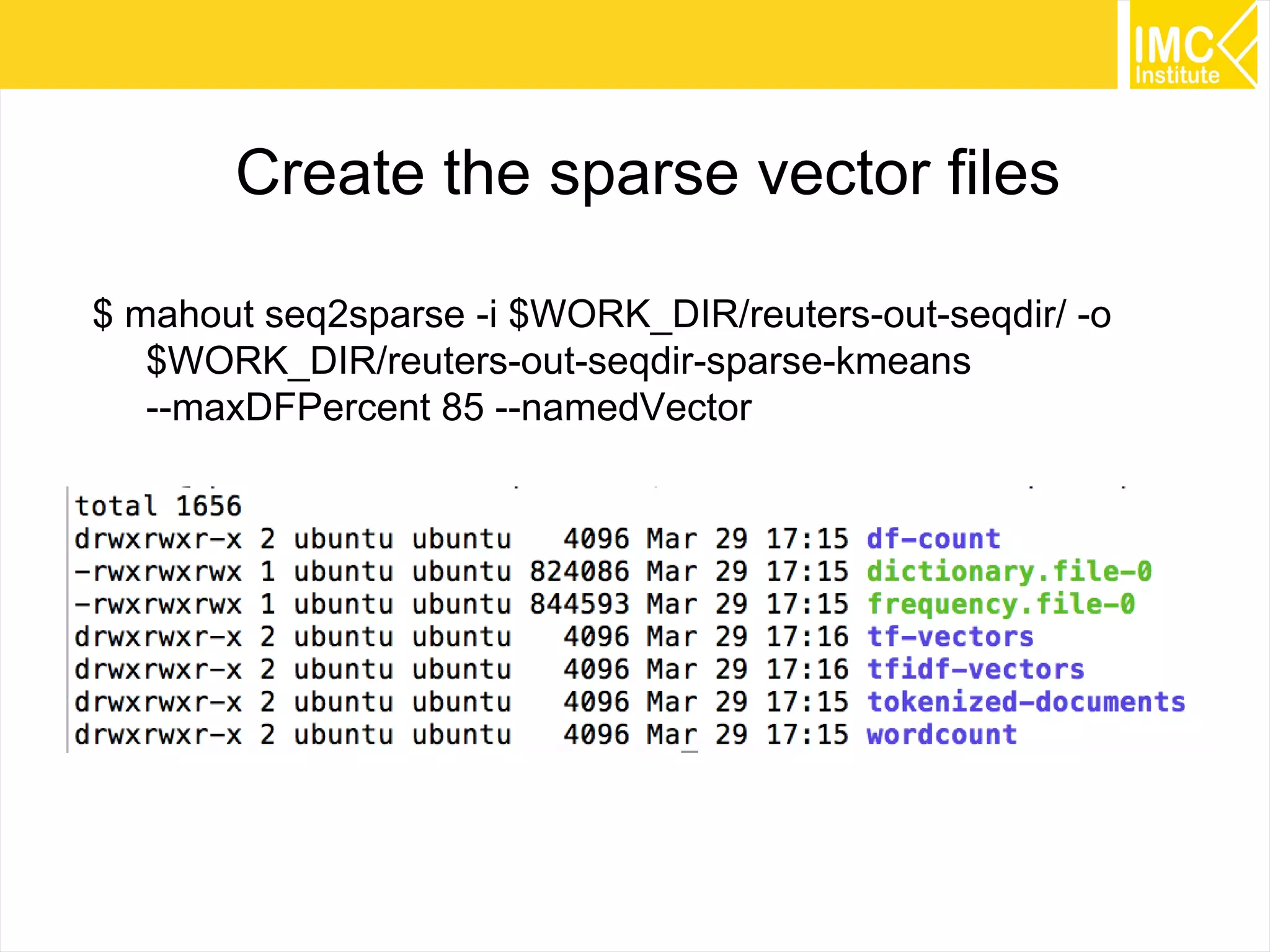

Create the sparse vector files
$ mahout seq2sparse -i $WORK_DIR/reuters-out-seqdir/ -o
$WORK_DIR/reuters-out-seqdir-sparse-kmeans
--maxDFPercent 85 --namedVector

61. 61

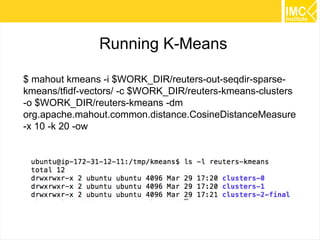

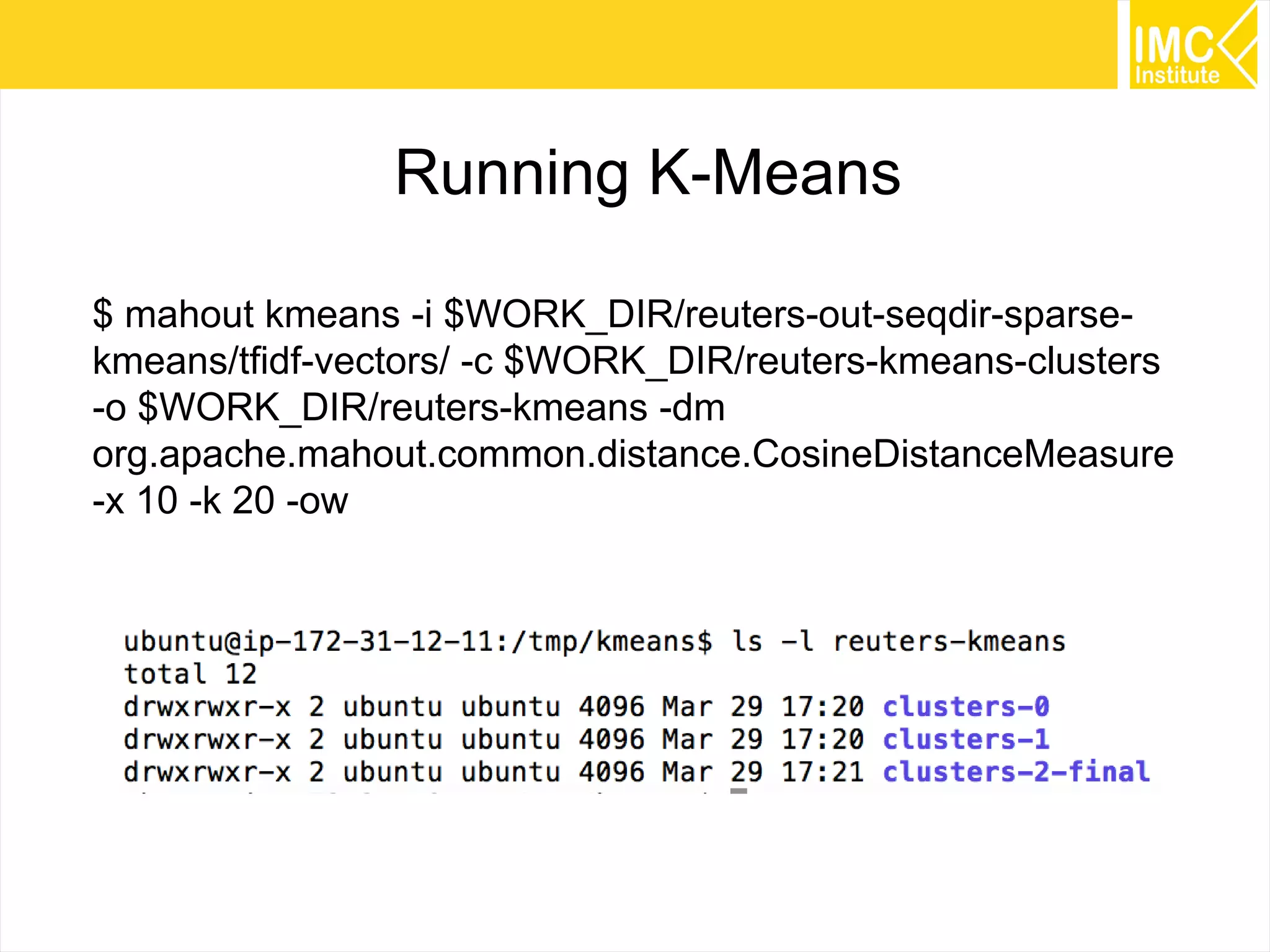

Running K-Means
$ mahout kmeans -i $WORK_DIR/reuters-out-seqdir-sparse-
kmeans/tfidf-vectors/ -c $WORK_DIR/reuters-kmeans-clusters
-o $WORK_DIR/reuters-kmeans -dm
org.apache.mahout.common.distance.CosineDistanceMeasure
-x 10 -k 20 -ow

62. 62

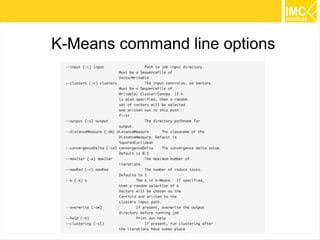

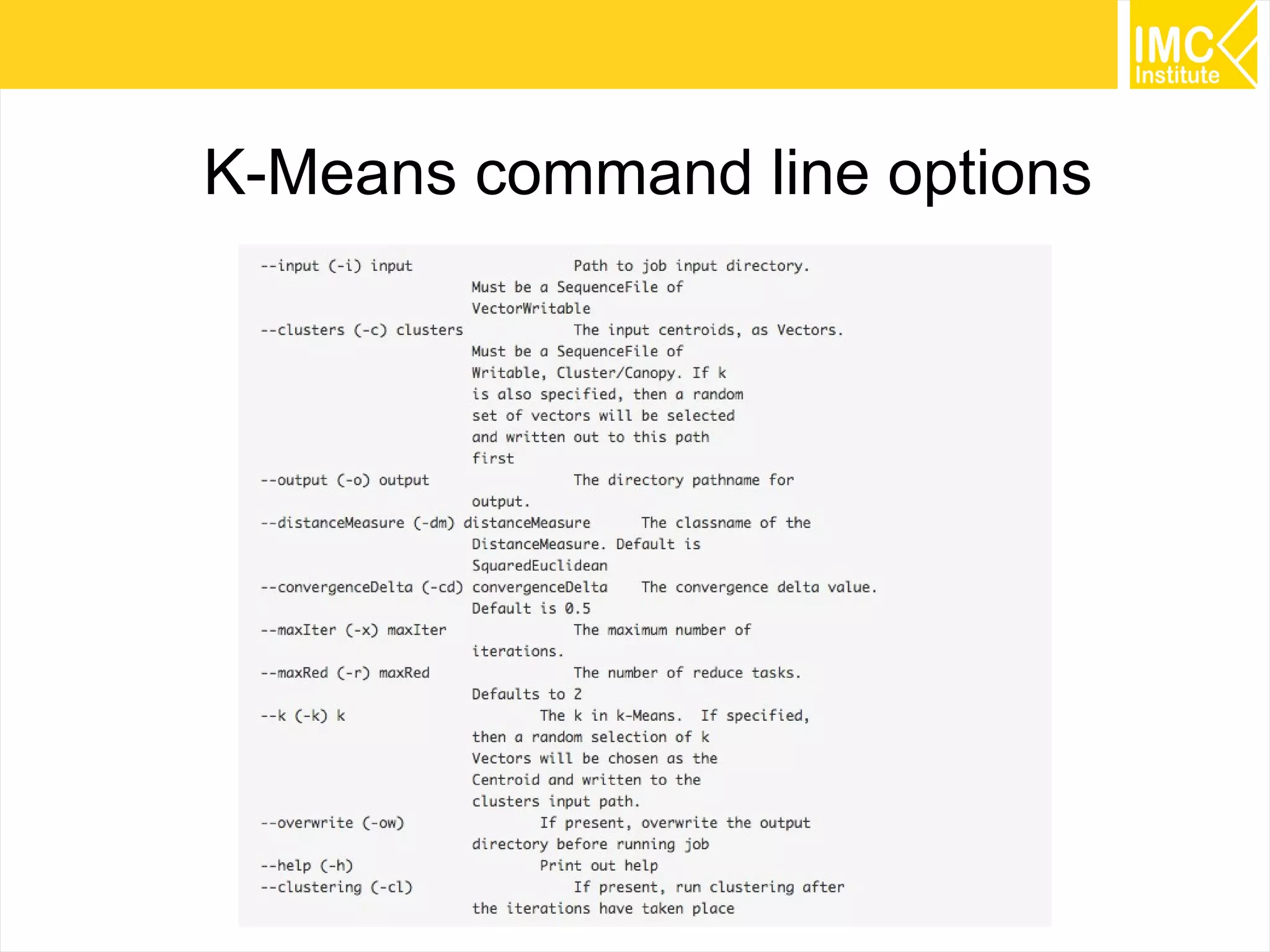

K-Means command line options

63. 63

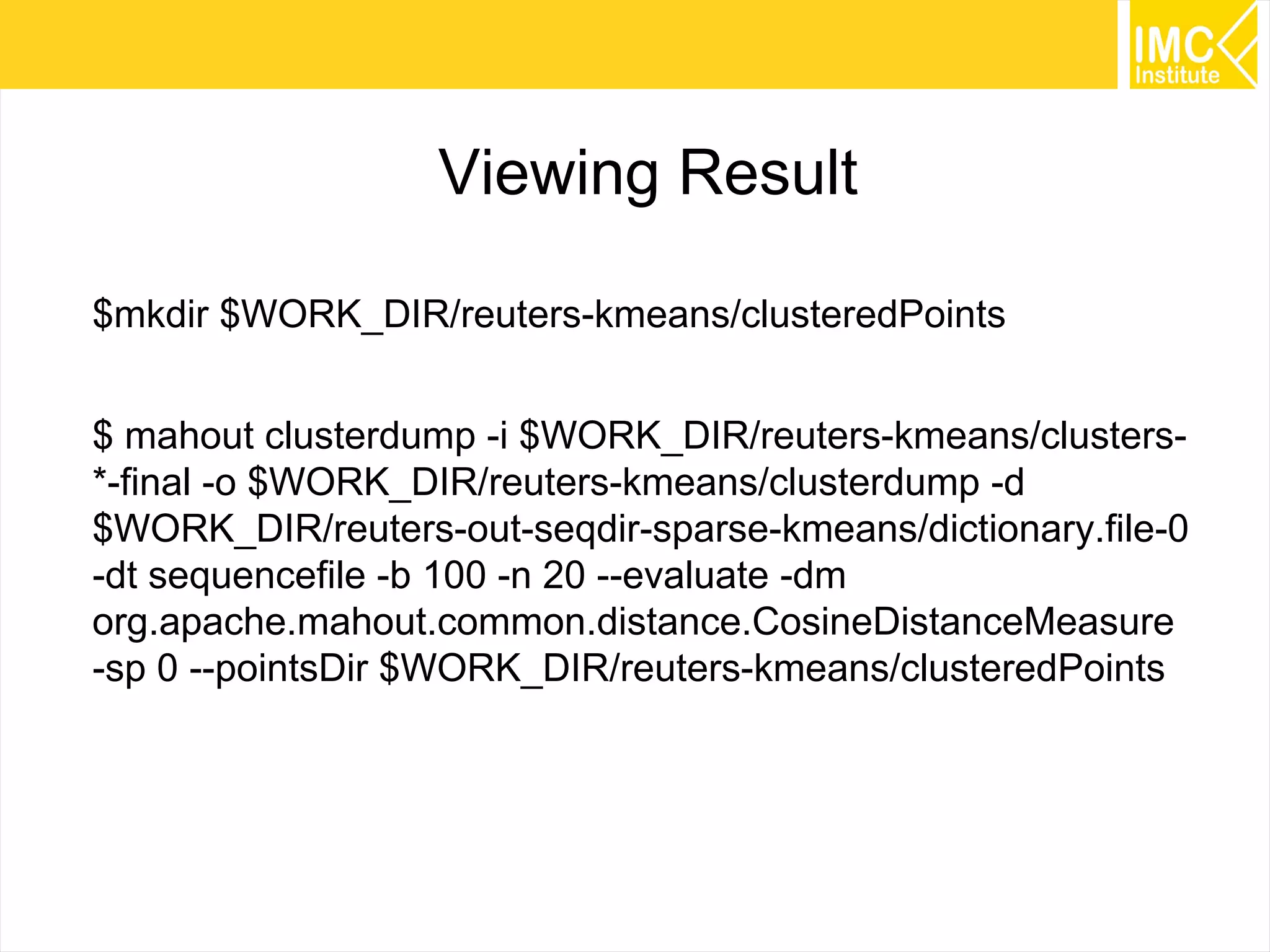

Viewing Result
$mkdir $WORK_DIR/reuters-kmeans/clusteredPoints
$ mahout clusterdump -i $WORK_DIR/reuters-kmeans/clusters-
*-final -o $WORK_DIR/reuters-kmeans/clusterdump -d
$WORK_DIR/reuters-out-seqdir-sparse-kmeans/dictionary.file-0
-dt sequencefile -b 100 -n 20 --evaluate -dm
org.apache.mahout.common.distance.CosineDistanceMeasure
-sp 0 --pointsDir $WORK_DIR/reuters-kmeans/clusteredPoints

64. 64

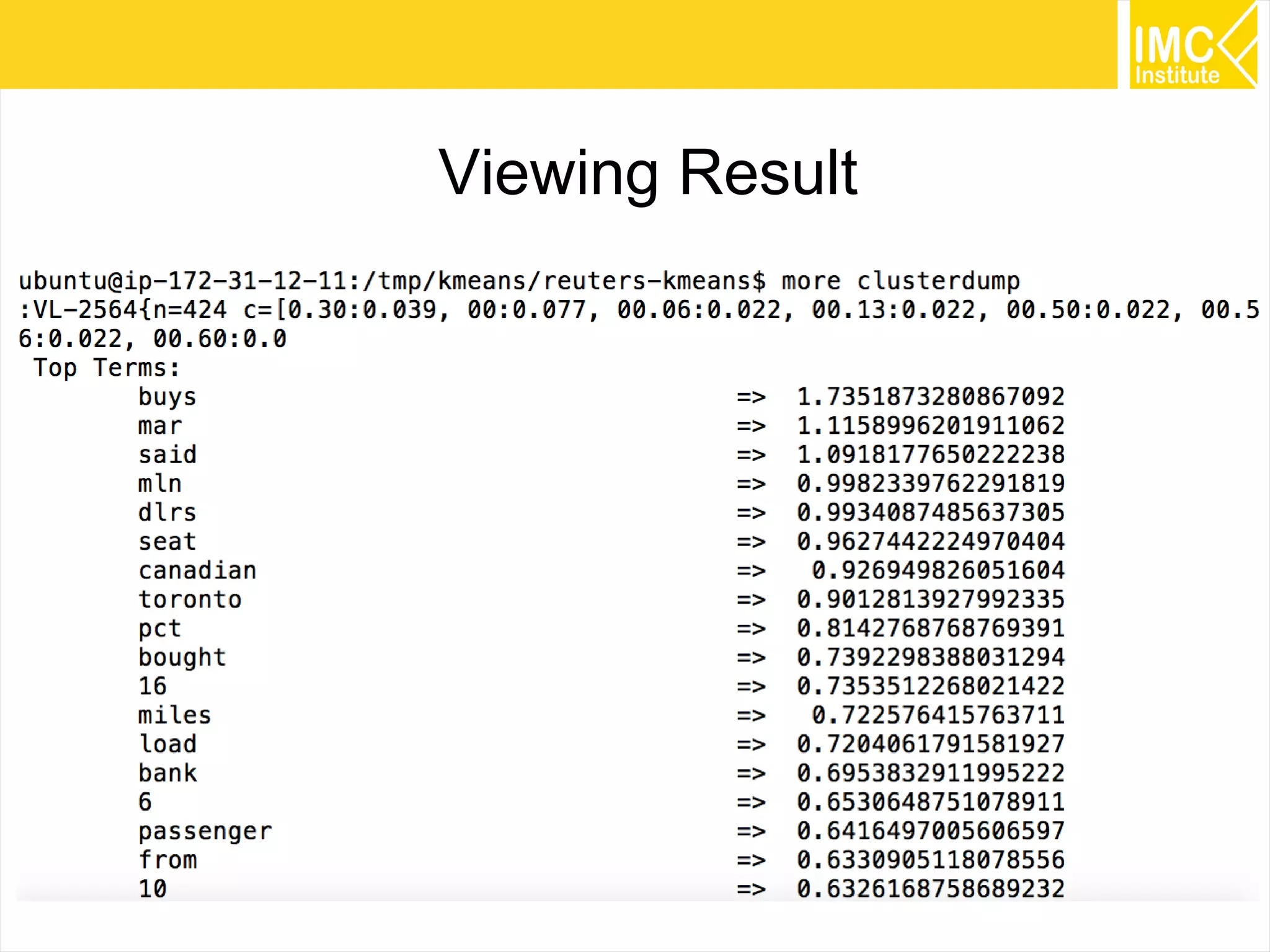

Viewing Result

65. 65
Dumping a cluster file
We can dump cluster files to normal text ones, as fillow
mahout clusterdump -i <input file> -o <output file>
Options
-of The optional output format for the results.
Options: TEXT, CSV, JSON or GRAPH_ML
-dt The dictionary file type
--evaluate Run ClusterEvaluator

66. 66
Canopy Clustering

67. 67
Fuzyy k-mean Clustering

68. 68
Command line options

69. 69

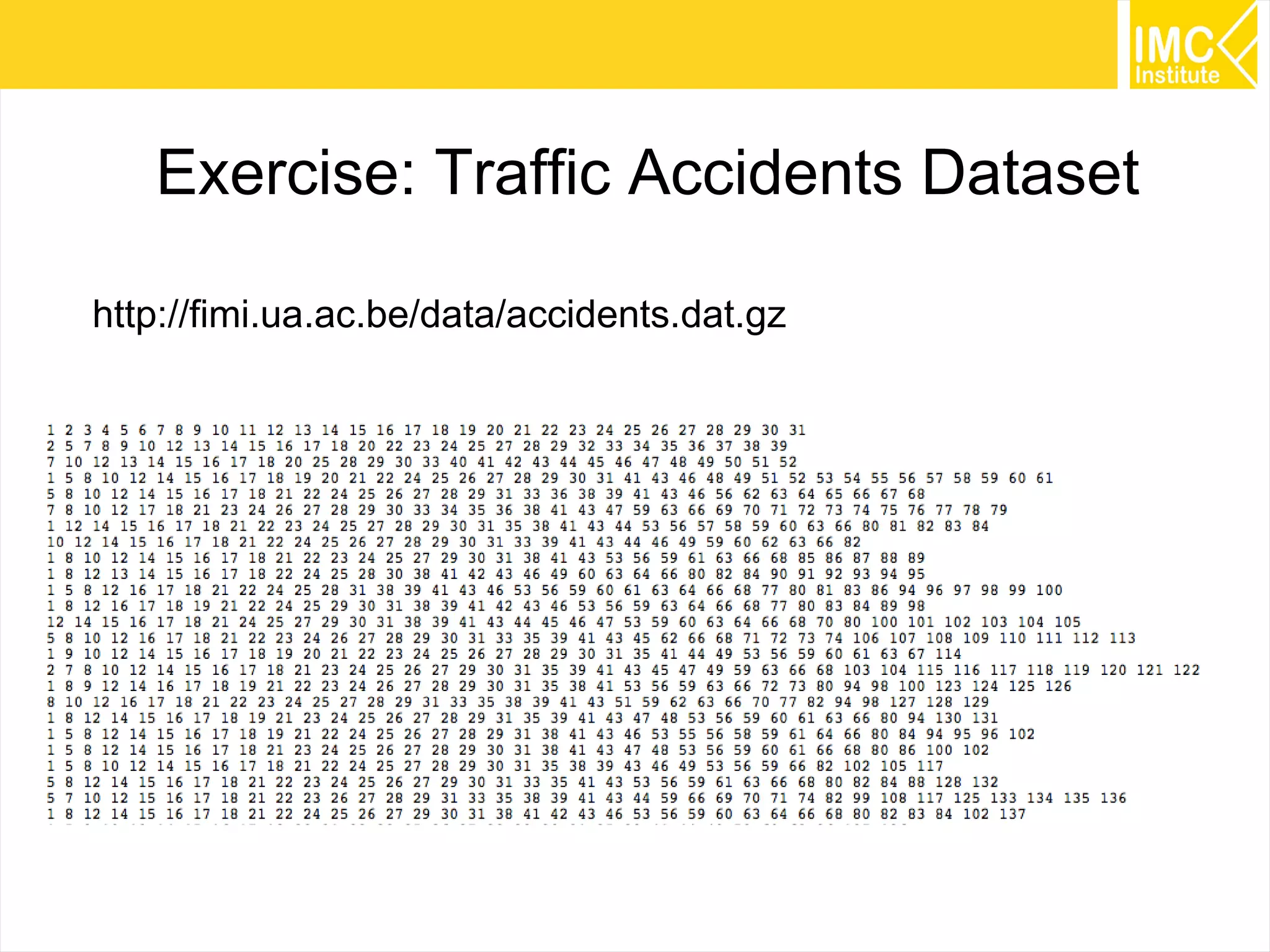

Exercise: Traffic Accidents Dataset
http://fimi.ua.ac.be/data/accidents.dat.gz

70. 70
Import-Export RDBMS data

71. 71
Sqoop Hands-On Labs
1. Loading Data into MySQL DB
2. Installing Sqoop
3. Configuring Sqoop
4. Installing DB driver for Sqoop
5. Importing data from MySQL to Hive Table
6. Reviewing data from Hive Table
7. Reviewing HDFS Database Table files

72. Thanachart Numnonda, thanachart@imcinstitute.com Feb 2015Big Data Hadoop on Amazon EMR – Hands On Workshop

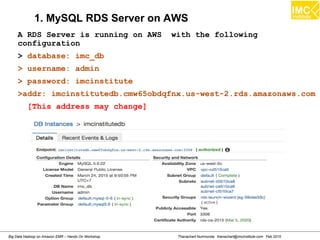

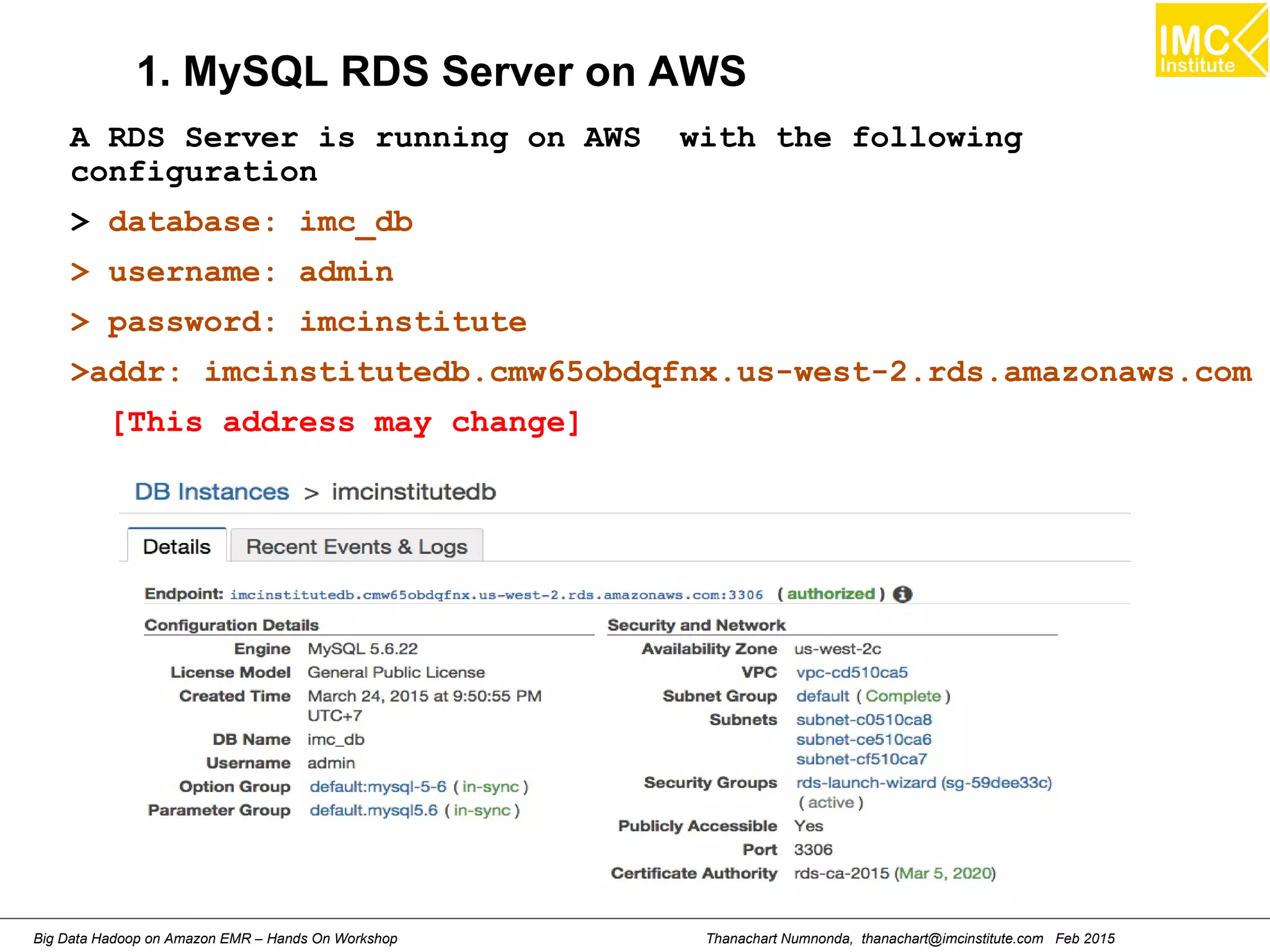

1. MySQL RDS Server on AWS
A RDS Server is running on AWS with the following
configuration
> database: imc_db
> username: admin
> password: imcinstitute
>addr: imcinstitutedb.cmw65obdqfnx.us-west-2.rds.amazonaws.com
[This address may change]

73. 73

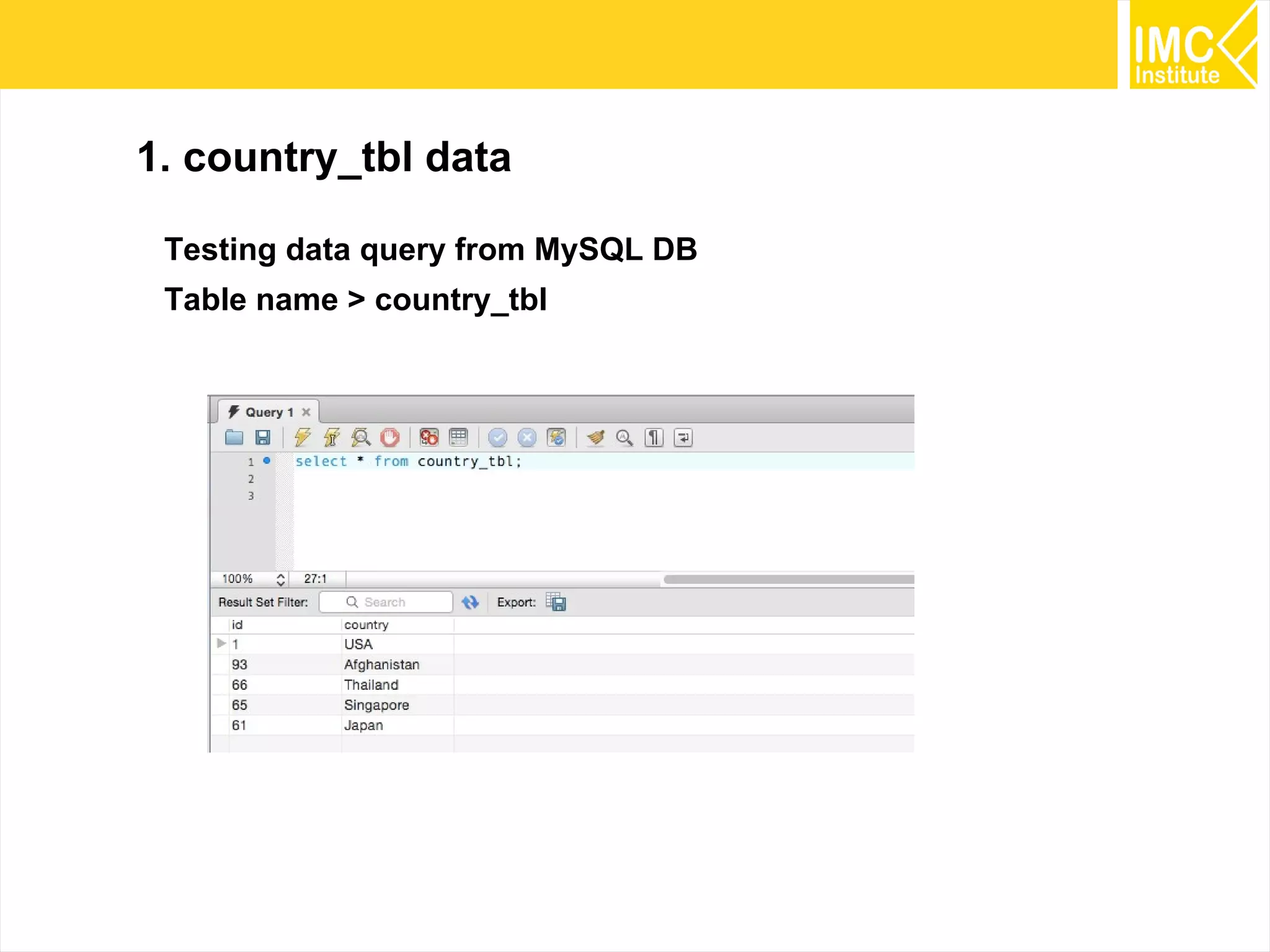

1. country_tbl data
Testing data query from MySQL DB
Table name > country_tbl

74. 74

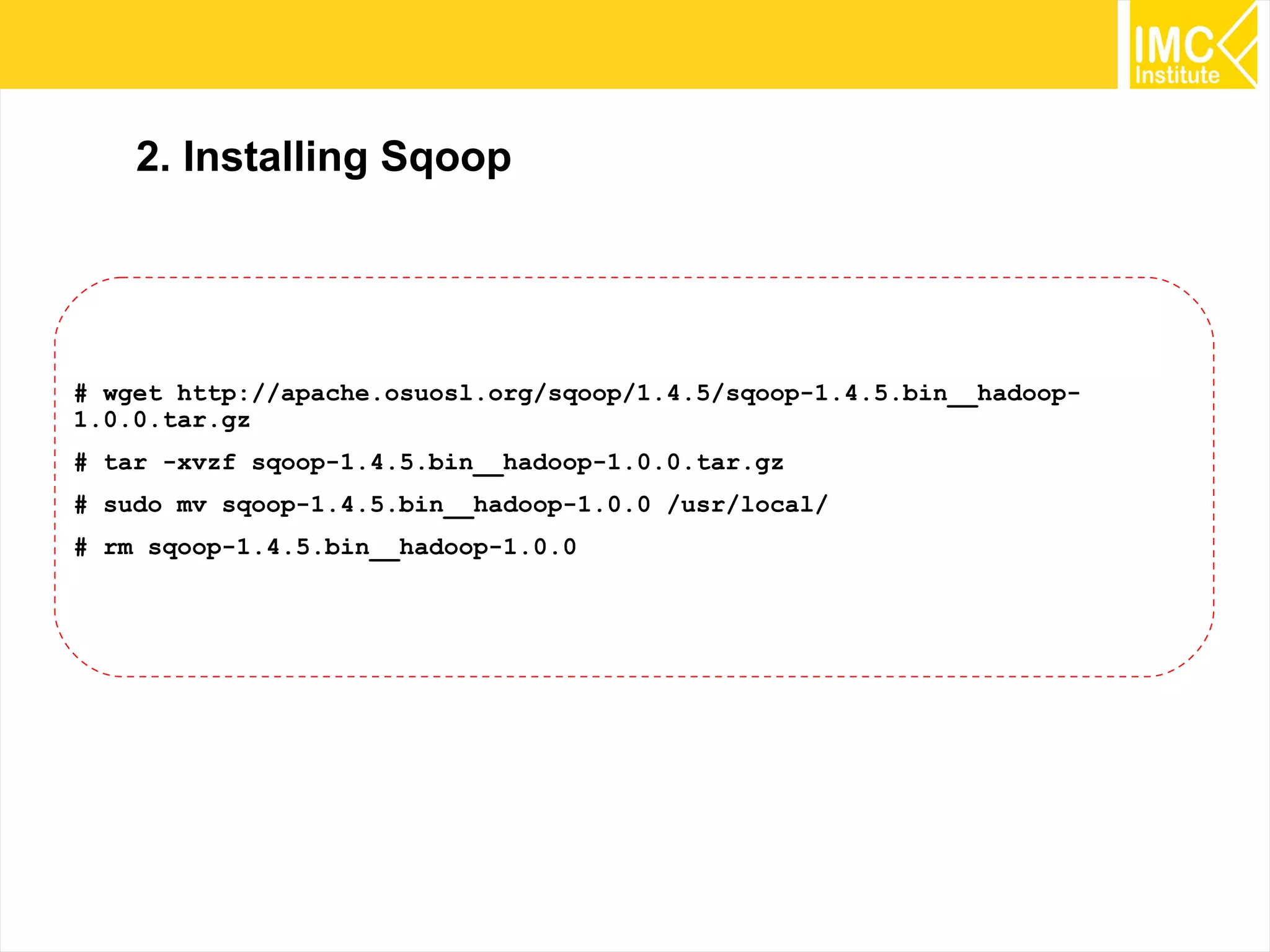

2. Installing Sqoop
# wget http://apache.osuosl.org/sqoop/1.4.5/sqoop-1.4.5.bin__hadoop-
1.0.0.tar.gz
# tar -xvzf sqoop-1.4.5.bin__hadoop-1.0.0.tar.gz
# sudo mv sqoop-1.4.5.bin__hadoop-1.0.0 /usr/local/
# rm sqoop-1.4.5.bin__hadoop-1.0.0

75. 75

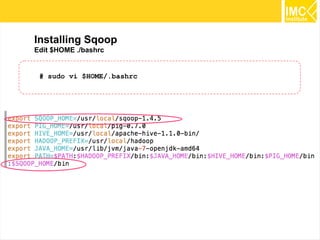

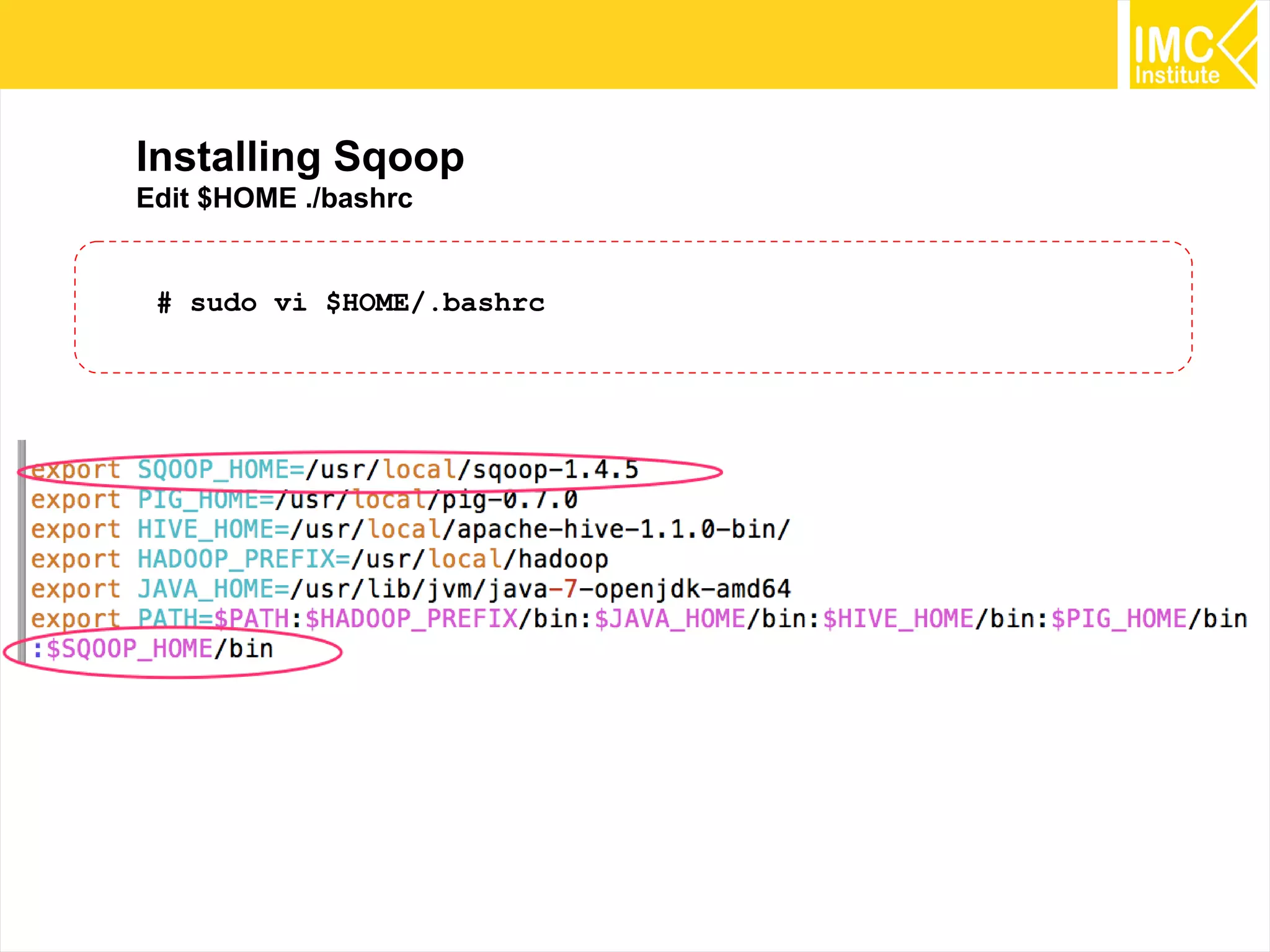

Installing Sqoop
Edit $HOME ./bashrc
# sudo vi $HOME/.bashrc

76. 76

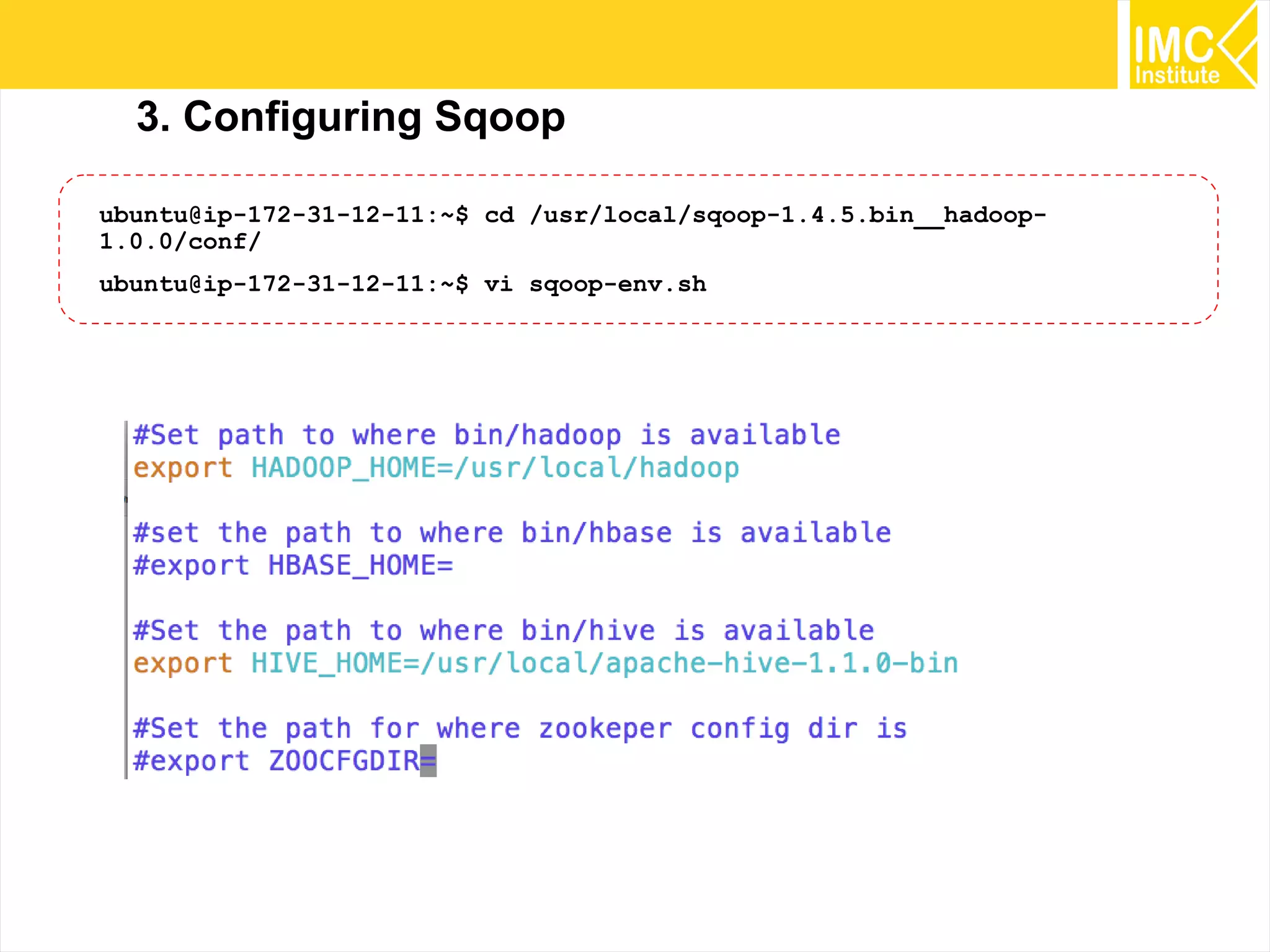

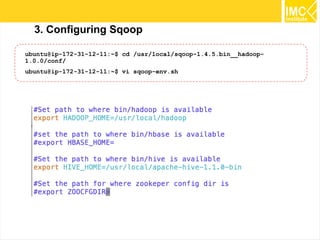

3. Configuring Sqoop
ubuntu@ip-172-31-12-11:~$ cd /usr/local/sqoop-1.4.5.bin__hadoop-
1.0.0/conf/
ubuntu@ip-172-31-12-11:~$ vi sqoop-env.sh

77. 77

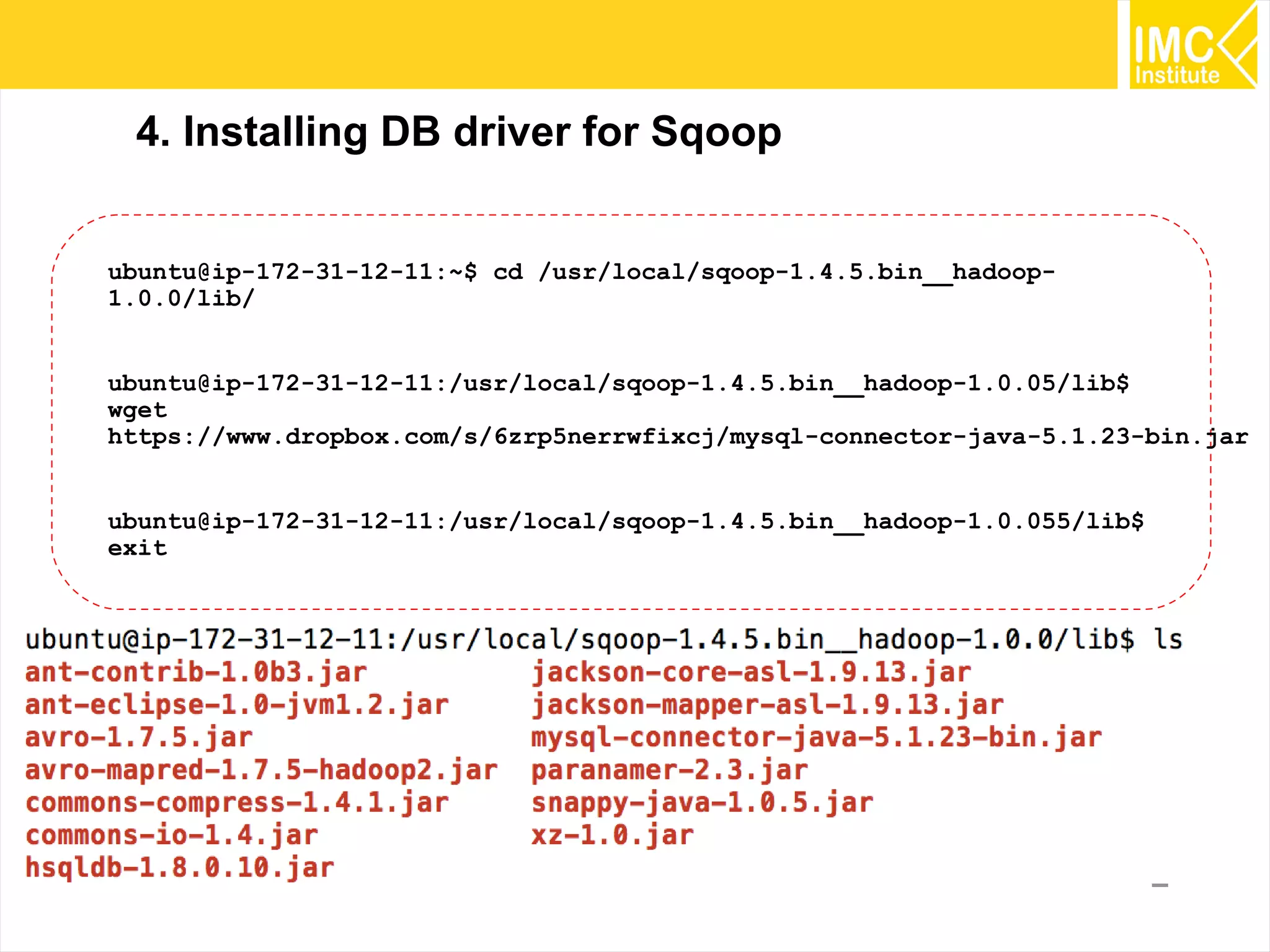

4. Installing DB driver for Sqoop
ubuntu@ip-172-31-12-11:~$ cd /usr/local/sqoop-1.4.5.bin__hadoop-
1.0.0/lib/
ubuntu@ip-172-31-12-11:/usr/local/sqoop-1.4.5.bin__hadoop-1.0.05/lib$
wget
https://www.dropbox.com/s/6zrp5nerrwfixcj/mysql-connector-java-5.1.23-bin.jar
ubuntu@ip-172-31-12-11:/usr/local/sqoop-1.4.5.bin__hadoop-1.0.055/lib$
exit

78. 78

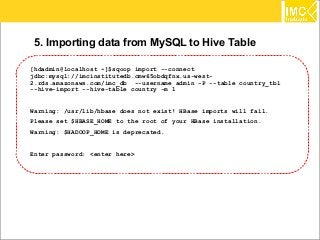

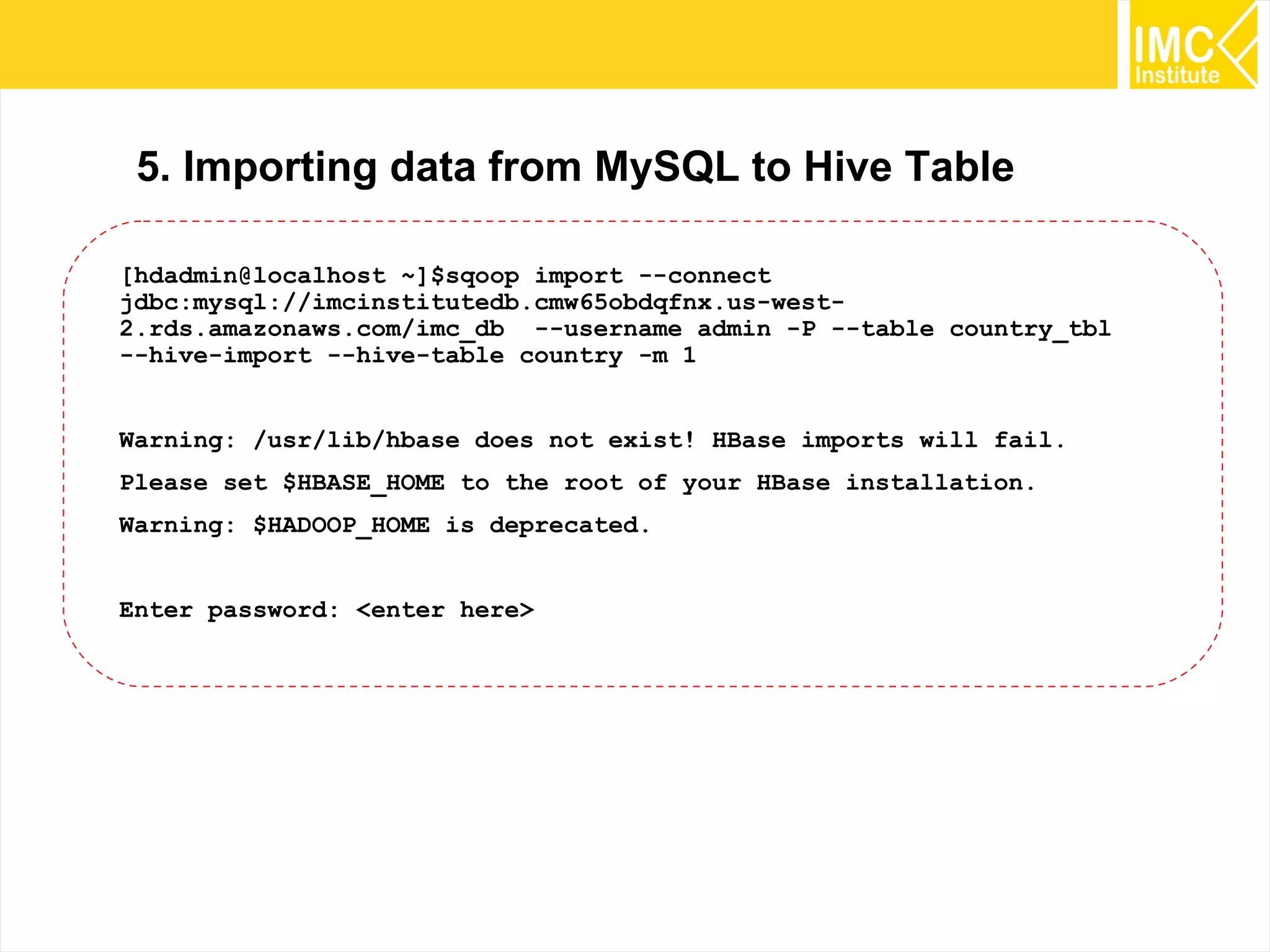

5. Importing data from MySQL to Hive Table
[hdadmin@localhost ~]$sqoop import --connect
jdbc:mysql://imcinstitutedb.cmw65obdqfnx.us-west-
2.rds.amazonaws.com/imc_db --username admin -P --table country_tbl
--hive-import --hive-table country -m 1
Warning: /usr/lib/hbase does not exist! HBase imports will fail.
Please set $HBASE_HOME to the root of your HBase installation.
Warning: $HADOOP_HOME is deprecated.
Enter password: <enter here>

79. 79

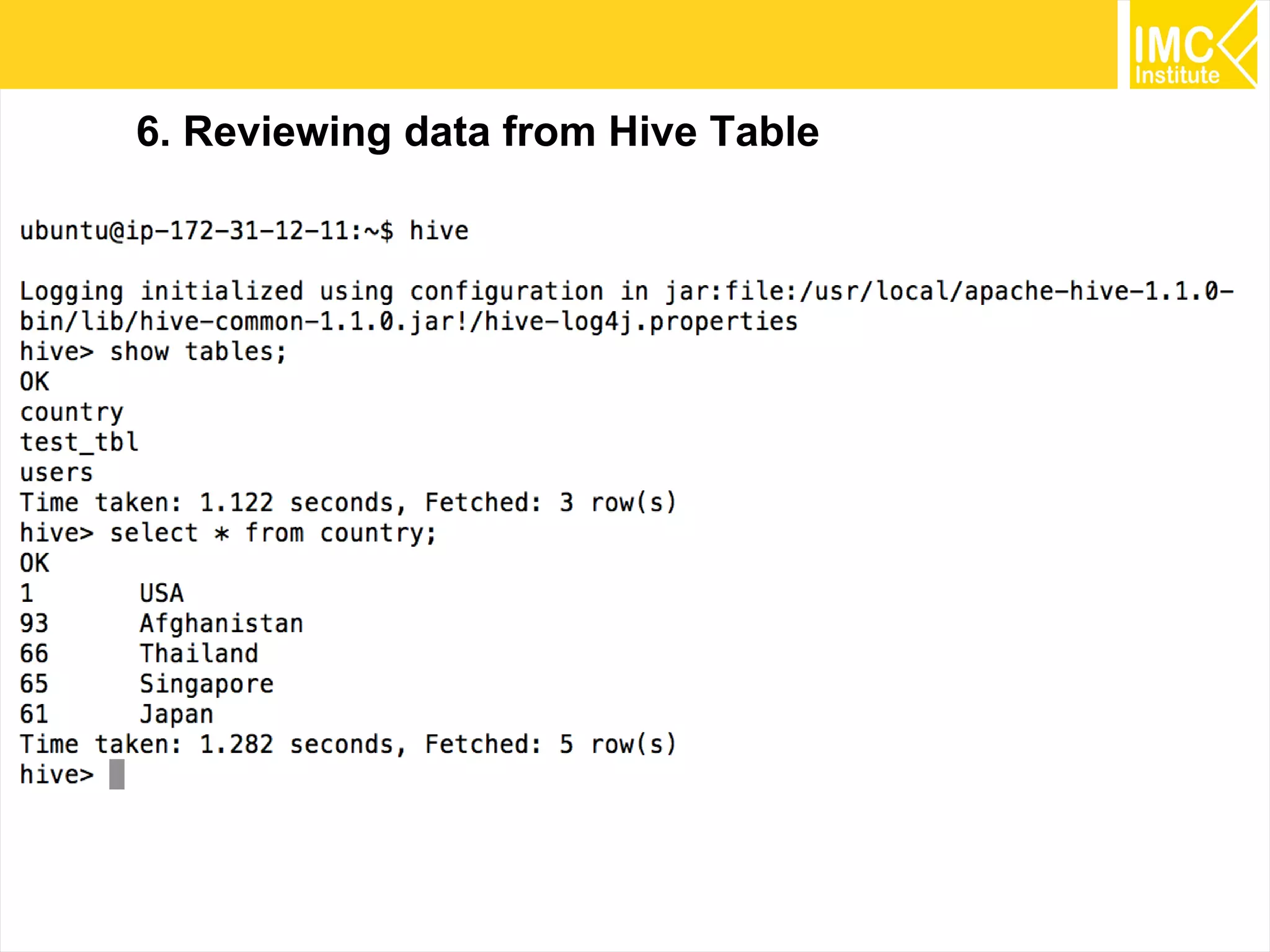

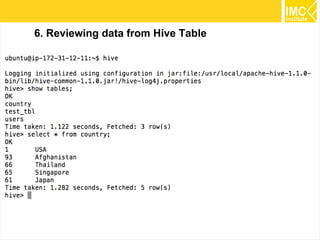

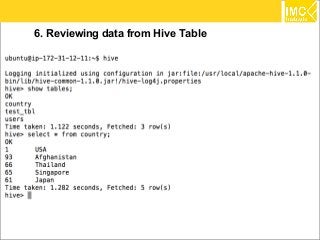

6. Reviewing data from Hive Table

80. 80

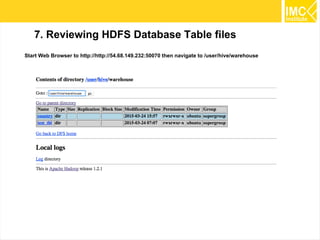

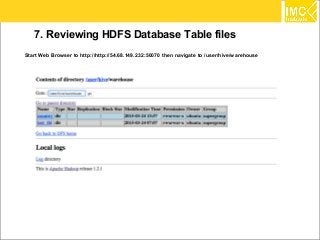

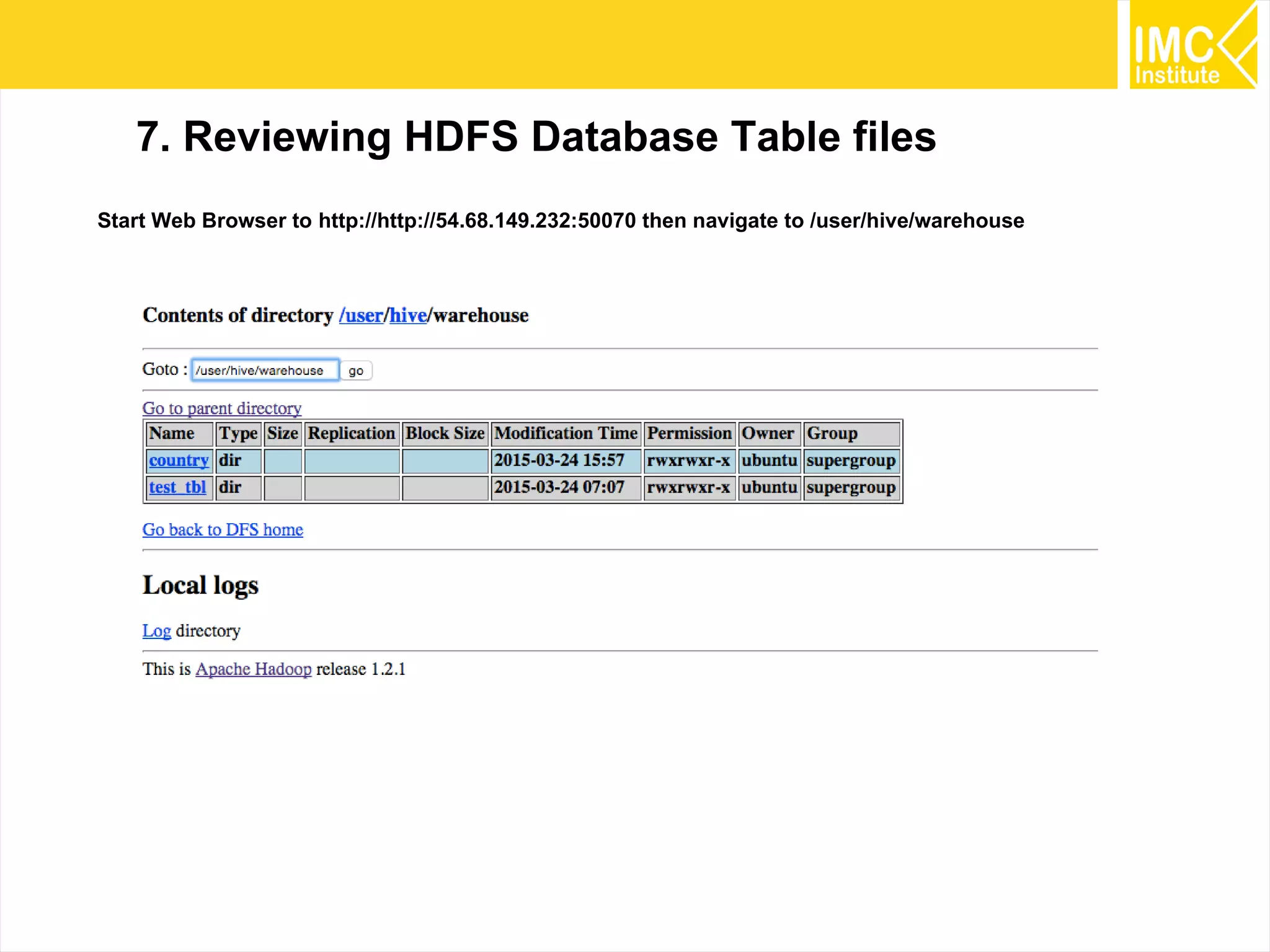

7. Reviewing HDFS Database Table files
Start Web Browser to http://http://54.68.149.232:50070 then navigate to /user/hive/warehouse

81. 81

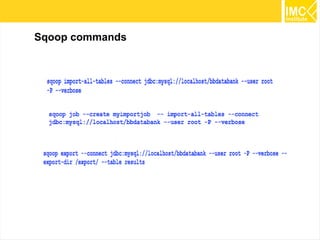

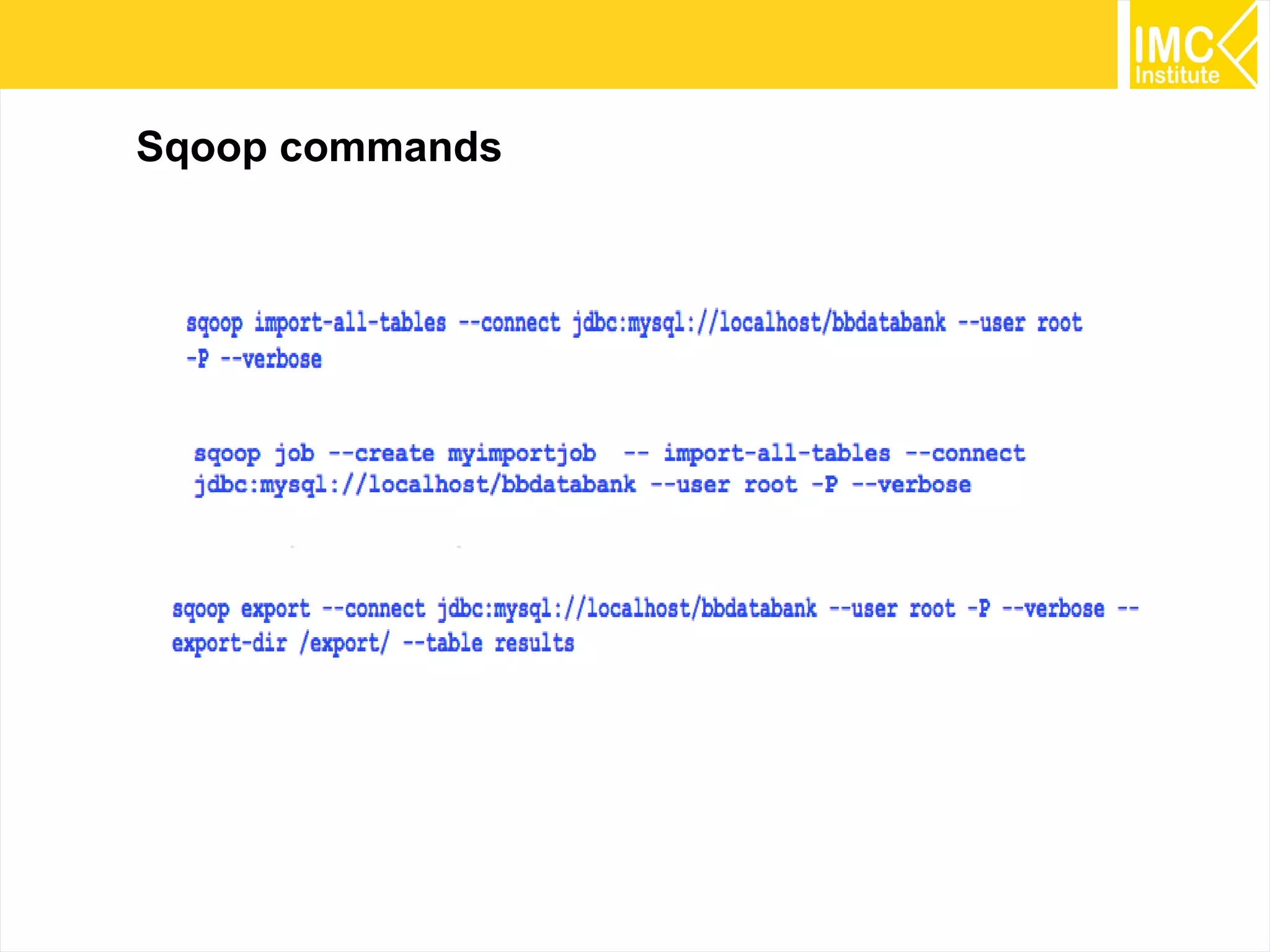

Sqoop commands

82. 82
Recommended Books

83. 83
www.facebook.com/imcinstitute

84. 84
Thank you
thanachart@imcinstitute.com
www.facebook.com/imcinstitute
www.slideshare.net/imcinstitute
www.thanachart.org
