Apache Mahout is an open source machine learning library for developing scalable algorithms. It includes algorithms for classification, clustering, recommendation engines, and frequent pattern mining. Mahout algorithms can be run locally or on Hadoop for distributed processing. Topic modeling using latent Dirichlet allocation is demonstrated for analyzing tweets and suggesting Twitter lists. While algorithms can provide benefits, some such as digital face manipulation can also be disturbing.

1. Orchestrating the Intelligent Web with Apache Mahout Presented by Aneesha Bakharia Twitter: aneesha Email: aneesha.bakharia@gmail.com

2. What is Apache Mahout? Open source Machine Learning Java library Scalable (Apache Hadoop) Framework for developing, testing and deploying large-scale algorithms http://mahout.apache.org/

3. What’s in a Name? Mahout is Hindi for Elephant Driver

4. What is Apache Mahout? Framework Vector Math/Matrices (eg SVD) Collections Hadoop Algorithms Classification, Clustering, etc Your Application??? You can orchestrate the intelligent web!!!

5. A New Breed of Developer Key Skills Databases Programming Networking Security … but now also distributed data processing is fast becoming an essential part the developer’s toolbox.

6. You never know where you will use Probability and Statistics!!!! Video snippet from Equilibrium: http://en.wikipedia.org/wiki/Equilibrium_%28film%29

7. You never know what you will discover!!!!

8. Where people swear in the United States? http://flowingdata.com/2011/01/25/where-people-swear-in-the-united-states/

9. Algorithms is Apache Mahout Recommendation (collaborative filtering) Clustering Classification Evolutionary Algorithms

10. Algorithms is Apache Mahout Top 10 algorithms in data mining Wu, X., Kumar, V., Ross Quinlan, J., Ghosh, J., Yang, Q., Motoda, H., et al. (2008). Top 10 algorithms in data mining. Knowledge and Information Systems, 14(1), 1-37. k-Means, Apriori (fp-growth), kNN, Naive Bayes , SVM (coming) Already supported

11. Requirements Java 1.6 java -version Maven 2.2 mvn -- version Hadoop 0.2

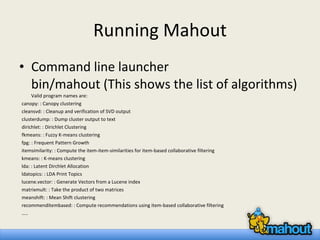

12. Running Mahout Command line launcher bin/mahout (This shows the list of algorithms) Valid program names are: canopy: : Canopy clustering cleansvd: : Cleanup and verification of SVD output clusterdump: : Dump cluster output to text dirichlet: : Dirichlet Clustering fkmeans: : Fuzzy K-means clustering fpg: : Frequent Pattern Growth itemsimilarity: : Compute the item-item-similarities for item-based collaborative filtering kmeans: : K-means clustering lda: : Latent Dirchlet Allocation ldatopics: : LDA Print Topics lucene.vector: : Generate Vectors from a Lucene index matrixmult: : Take the product of two matrices meanshift: : Mean Shift clustering recommenditembased: : Compute recommendations using item-based collaborative filtering … ..

13. Running Mahout Run any algorithm eg kmeans locally bin/mahout kmeans –help Job-Specific Options: --input (-i) input --output (-o) output --distanceMeasure (-dm) eg SquaredEuclidean --numClusters (-k) k

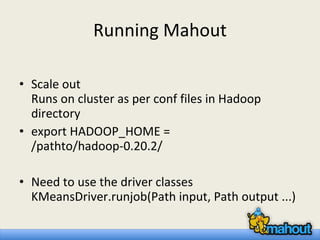

14. Running Mahout Scale out Runs on cluster as per conf files in Hadoop directory export HADOOP_HOME = /pathto/hadoop-0.20.2/ Need to use the driver classes KMeansDriver.runjob(Path input, Path output ...)

15. Clustering Unsupervised Machine Learning technique Organise items in to clusters/groups based upon similarity Good for finding patterns and exploring data

16. Clustering Lots of Algorithms: k-means, Fuzzy K-means, Mean Shift, Canopy, Dirichlet Process, Latent Dirichlet Allocation Similarity Distance Measures Euclidean Cosine Tanimoto Manhattan

17. Vectors Documents Bag of words word1 => 10 word2 => 2 word3 => 4 Resulting vector [10.0, 2.0, 4.0, .... ]

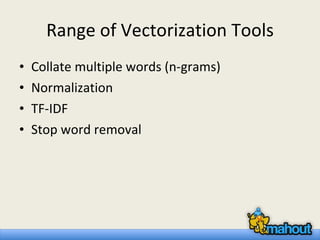

18. Range of Vectorization Tools Collate multiple words (n-grams) Normalization TF-IDF Stop word removal

19. kmeans Example Set of text files in a directory Use seqdirectory to convert files to vectors bin/mahout seqdirectory -i <input> -o <seq-output> Use seq2sparse to convert to sparse vector bin/mahout seq2sparse -i seq-output -o <vector-output> Run kmeans with k=5 bin/mahout kmeans -i<vector-output> -c <cluster-temp> -o <cluster-output> -k 5 View output bin/mahout clusterdump

20. Easy enough, but How do you know k? Data Exploration is required to find the k for your purposes Similarity distance for your purpose Role for the Data Scientist Explore, Model, Test and Evaluate

21. Recommender Engines Encounter the most Recommend products (books, movies, etc) based upon past actions Infer tastes and preferences to identify unknown items of interest

22. Recomendation Algorithms: user and item recommendation Framework for storage, online and offline computation Similarity Measures Cosine Tanimoto Pearson

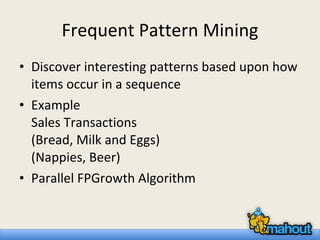

23. Frequent Pattern Mining Discover interesting patterns based upon how items occur in a sequence Example Sales Transactions (Bread, Milk and Eggs) (Nappies, Beer) Parallel FPGrowth Algorithm

24. Classification Set of classes/categories (observed pattern) Decide if a new input matches a category Supervised technique – need training Eg spam or not

25. Classification Algorithms: Naive Bayes, Random Forest Decision Tree, SVM coming Learn a model from a manually trained dataset Predict the class of an unseen object based on features

26. Latent Dirichlet Allocation Convert text to term-document matrix LDA produces word-theme mapping theme-document mapping Allows topic overlap Need to specify number of Topics (k)

27. Latent Dirichlet Allocation LDA Tweet 1 Tweet 2 Tweet 3 Term-Document Matrix Specify No Themes (k) Topic to Word Mapping X Tweet to Topic Mapping Word 1 Word 2 Word n Doc 1 1 0 2 Doc 2 0 1 0 Doc 3 0 1 1 Word 1 Word 2 Word n Topic 1 0.5 0 1 Topic 2 0 0.5 0 Topic 1 Topic 2 Doc 1 1 0 Doc 2 0 1 Doc 3 0 1

28. Latent Dirichlet Allocation Run LDA bin/mahout lda -input <PATH> ‐output <PATH> –numTopics 20 View Topics bin/mahout LDAPrintTopics ‐input <PATH> ‐output <PATH> ‐dictonaryType sequencefile

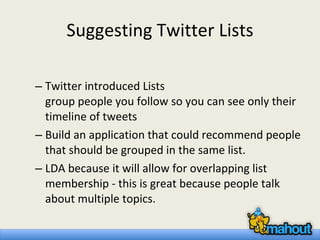

29. Suggesting Twitter Lists Twitter introduced Lists group people you follow so you can see only their timeline of tweets Build an application that could recommend people that should be grouped in the same list. LDA because it will allow for overlapping list membership - this is great because people talk about multiple topics.

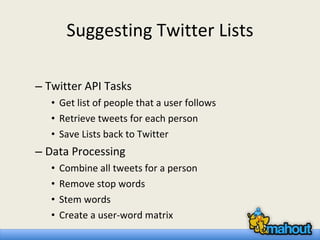

30. Suggesting Twitter Lists Twitter API Tasks Get list of people that a user follows Retrieve tweets for each person Save Lists back to Twitter Data Processing Combine all tweets for a person Remove stop words Stem words Create a user-word matrix

31. Suggesting Twitter Lists Web UI Authenticate to Twitter Display suggested lists (based on estimate of k) (Could also display the important tweets that place the person in the group?) Allow users to change k ie decide on the number of Lists Allow group re-organisation with jquery sortables

32. Gently Getting into Machine Learning and Data Mining Programming Collective Intelligence by Toby Segaram Mahout in Action by Owen, Anil, Dunning and Friedman

33. Summary Mahout offers good abstraction for building intelligent web applications Skills in data analysis and exploration are now more important than ever Mahout is a good platform for distributed algorithm development

34. Fascinating Algorithms My Top 3 algorithms Some interesting and some disturbing and interesting at the same time

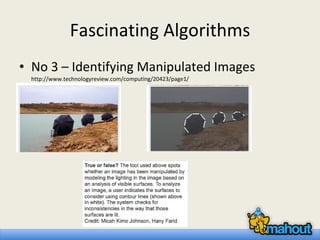

35. Fascinating Algorithms No 3 – Identifying Manipulated Images http://www.technologyreview.com/computing/20423/page1/

36. Fascinating Algorithms No 2 – Seam Carving Content Aware Resizing Example http://swieskowski.net/carve/

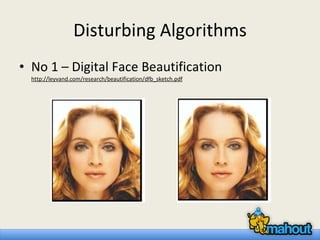

37. Disturbing Algorithms No 1 – Digital Face Beautification http://leyvand.com/research/beautification/dfb_sketch.pdf

38. Disturbing Algorithms No 1 – Digital Face Beautification http://leyvand.com/research/beautification/dfb_sketch.pdf

39. Disturbing Algorithms No 1 – Digital Face Beautification http://leyvand.com/research/beautification/dfb_sketch.pdf Image from Shrek Copyright Dreamworks

40. Discussion/Questions What will you build?
