It is special type of concrete that can take the bending stresses. It consist of special type of materials that makes it flexible. It was developed by the Professor Victor Li at the University of Michigan. Its engineering name is Engineered Cementitious Composite (ECC). It exhibits the property of a ductile material instead of a brittle material which is shown by the conventional concrete. This material can bring the revolution because of its some special quality such as flexibility, self-healing, lighter weight, etc. In some countries such as Japan, Korea, U.S.A, etc the flexible concrete is used in many structure. But in India it is still a new material and requires proper research for its use in India. Soon we may saw the use of flexible concrete in many structure. For more info Visit this link: http://civildigital.com/all-about-flexible-concrete-bendable-concrete-engineered-cementitious-composite-ecc/ Image Courtesy: https://3c1703fe8d.site.internapcdn.net/newman/gfx/news/hires/2016/1-newbendablec.jpg

1. BENDABLE CONCRETE

2. Contents:
➔ Introduction
➔ ECC
➔ Composition of ECC
➔ Environment Friendliness
➔ Applications
➔ Advantages and Disadvantages
➔ Conclusion
➔ References

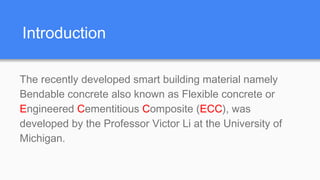

3. Introduction
The recently developed smart building material namely
Bendable concrete also known as Flexible concrete or
Engineered Cementitious Composite (ECC), was
developed by the Professor Victor Li at the University of
Michigan.

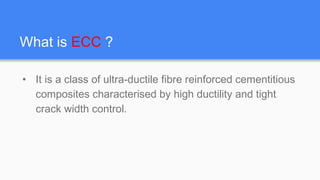

4. What is ECC ?
• It is a class of ultra-ductile fibre reinforced cementitious
composites characterised by high ductility and tight
crack width control.

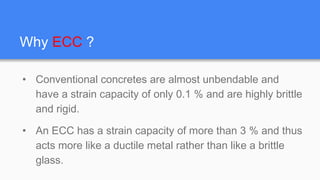

5. Why ECC ?
• Conventional concretes are almost unbendable and
have a strain capacity of only 0.1 % and are highly brittle
and rigid.
• An ECC has a strain capacity of more than 3 % and thus
acts more like a ductile metal rather than like a brittle
glass.

6. Composition of ECC
• Bendable concrete is composed of all the ingredients of a traditional
concrete minus coarse aggregates and is reinforced with polymer
fibres.
• It contains cement,sand, water, fibres, and admixtures.
• Polyvinyl Alcohol-fibres covered with a very thin (nanometer thick),
slick coating which prevents the fibre from rupturing.Thus ECC
deforms much more than a normal concrete but without fracturing.

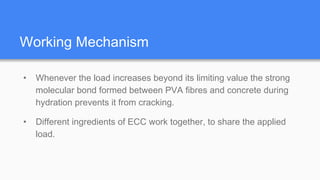

8. Working Mechanism
• Whenever the load increases beyond its limiting value the strong
molecular bond formed between PVA fibres and concrete during
hydration prevents it from cracking.
• Different ingredients of ECC work together, to share the applied
load.

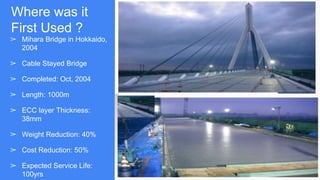

9. Where was it
First Used ?
➢ Mihara Bridge in Hokkaido,
2004
➢ Cable Stayed Bridge
➢ Completed: Oct, 2004
➢ Length: 1000m
➢ ECC layer Thickness:
38mm
➢ Weight Reduction: 40%
➢ Cost Reduction: 50%
➢ Expected Service Life:
100yrs

12. Environment Friendliness
• ECC is a green construction material.
• ECC is 37% less expensive, consumes 40% less energy, and
produces 39% less carbon dioxide than regular concrete.
• ECC incorporates high volumes of industrial wastes including fly
ash, sands and wastes from metal casting processes, wasted
cement kiln dust from cement production.
• Reduced emission of Greenhouse gases.

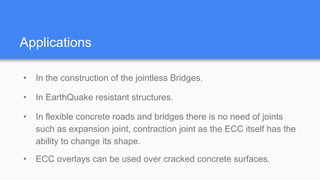

13. Applications
• In the construction of the jointless Bridges.
• In EarthQuake resistant structures.
• In flexible concrete roads and bridges there is no need of joints
such as expansion joint, contraction joint as the ECC itself has the
ability to change its shape.
• ECC overlays can be used over cracked concrete surfaces.

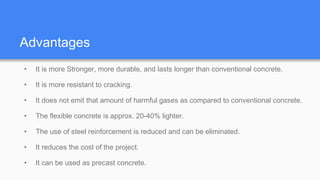

14. Advantages
• It is more Stronger, more durable, and lasts longer than conventional concrete.
• It is more resistant to cracking.
• It does not emit that amount of harmful gases as compared to conventional concrete.
• The flexible concrete is approx. 20-40% lighter.
• The use of steel reinforcement is reduced and can be eliminated.
• It reduces the cost of the project.
• It can be used as precast concrete.

15. Disadvantages
• It has a high initial cost as compared to conventional concrete.
• It requires skilled labour for its construction.
• It needs some special type of materials which can be difficult to find in
some areas.
• Its quality depend upon the material used and the condition under which it
is made.

16. Conclusion
 ECC is the upcoming advancement in technology which
will almost replace the Conventional concrete in
countries which are more prone to Natural disaster.
 But in India it is still a new material and requires proper
research for its use in India.

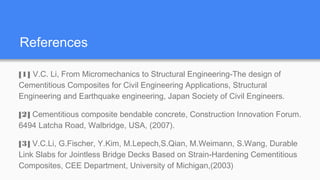

17. References
[1] V.C. Li, From Micromechanics to Structural Engineering-The design of
Cementitious Composites for Civil Engineering Applications, Structural
Engineering and Earthquake engineering, Japan Society of Civil Engineers.
[2] Cementitious composite bendable concrete, Construction Innovation Forum.
6494 Latcha Road, Walbridge, USA, (2007).
[3] V.C.Li, G.Fischer, Y.Kim, M.Lepech,S.Qian, M.Weimann, S.Wang, Durable
Link Slabs for Jointless Bridge Decks Based on Strain-Hardening Cementitious
Composites, CEE Department, University of Michigan,(2003)

18. “ Science is about knowing;
Engineering is about doing. ”
- Henry Petroski

19. Thank You.
Any Questions ??????
