This presentation explains about Beanshell scripting in Apache JMeter. This presentation walkthroughs with examples and sample code to understand the concept better.
2. Introduction to Beanshell
• BeanShell is a Java-like scripting language, invented by Patrick Niemeyer.
• Pure Java
• Free
• Runs in the Java Runtime Environment and uses Java syntax
• BeanShell is small and embeddable, so you can call BeanShell from your Java applications to
execute Java code dynamically at run-time
• standalone BeanShell scripts to manipulate Java applications; working with Java objects and
APIs dynamically.
• Runs in four modes: Command Line, Console, Applet, Remote Session Server.
• With BeanShell you can create custom outputs, perform logical operations, manipulate
variables, etc.

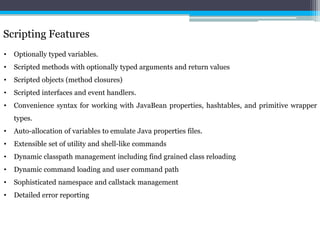

3. Scripting Features
• Optionally typed variables.
• Scripted methods with optionally typed arguments and return values
• Scripted objects (method closures)
• Scripted interfaces and event handlers.
• Convenience syntax for working with JavaBean properties, hashtables, and primitive wrapper
types.
• Auto-allocation of variables to emulate Java properties files.
• Extensible set of utility and shell-like commands
• Dynamic classpath management including find grained class reloading
• Dynamic command loading and user command path
• Sophisticated namespace and callstack management
• Detailed error reporting
4. Bean Shell Sampler
• In order to manipulate and work on the response data, Bean Shell sampler would be a great
element.
• To add Bean Shell sampler, right click, Add > Sampler > Bean Shell Sampler.

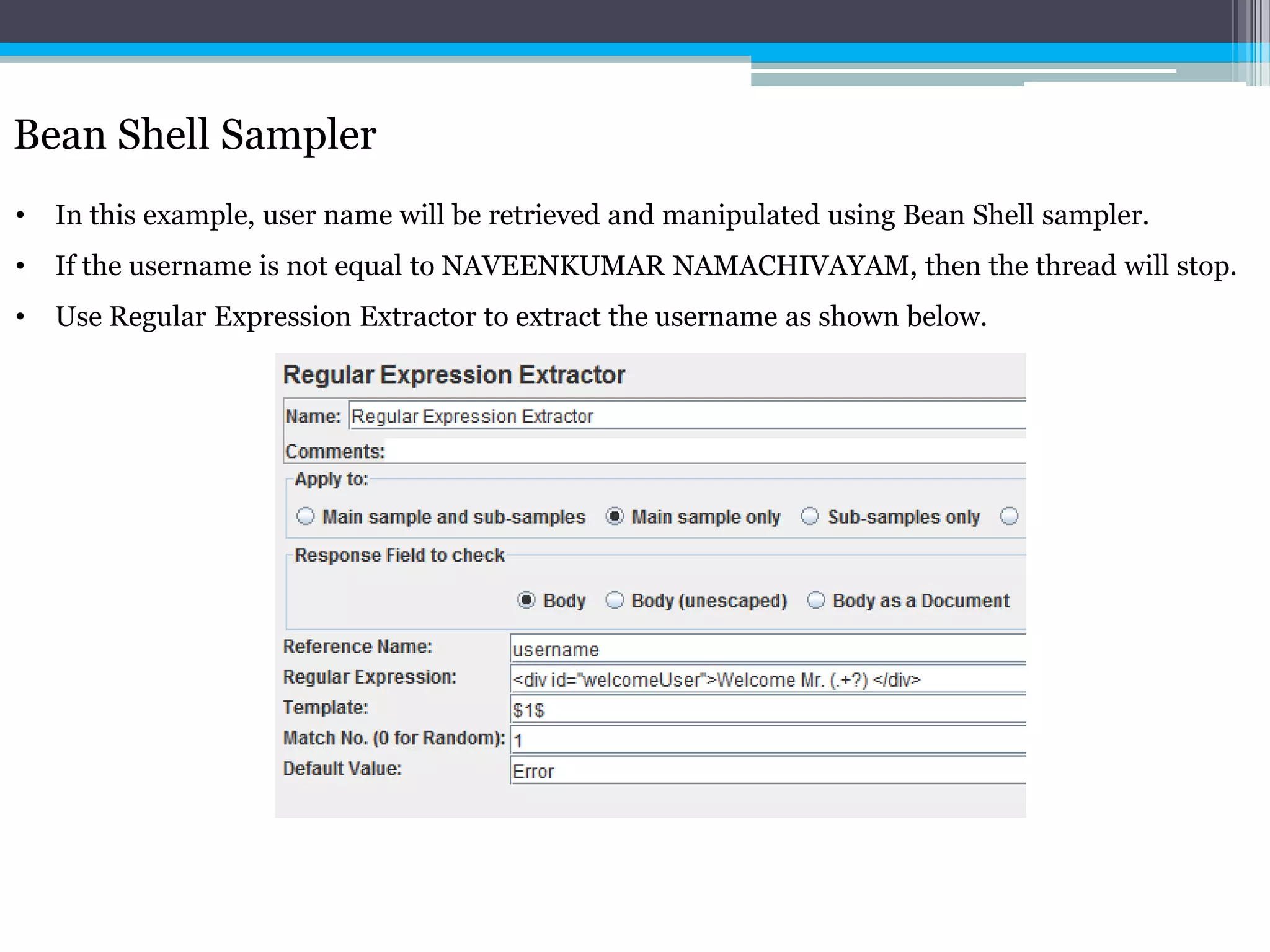

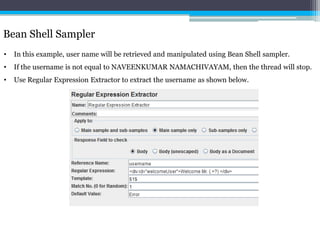

5. Bean Shell Sampler
• In this example, user name will be retrieved and manipulated using Bean Shell sampler.
• If the username is not equal to NAVEENKUMAR NAMACHIVAYAM, then the thread will stop.
• Use Regular Expression Extractor to extract the username as shown below.
6. Bean Shell Sampler
• Once the username is extracted, add Bean Shell Sampler to manipulate.
• Here the username will be stored in username variable.
• To get the extracted value in Bean Shell sampler, use below syntax.
• String userName = vars.get("username");
• Next step is to check the condition using if statement.
• if (userName != "NAVEENKUMAR NAMACHIVAYAM")
• You can use Data set config file variable too, if you do not want to hard code the user name.
• Now, if the condition is true, following statement will be used to terminate the execution.
• SampleResult.setStopThread(true);
• Below statement will be used to return the value.
• return userName

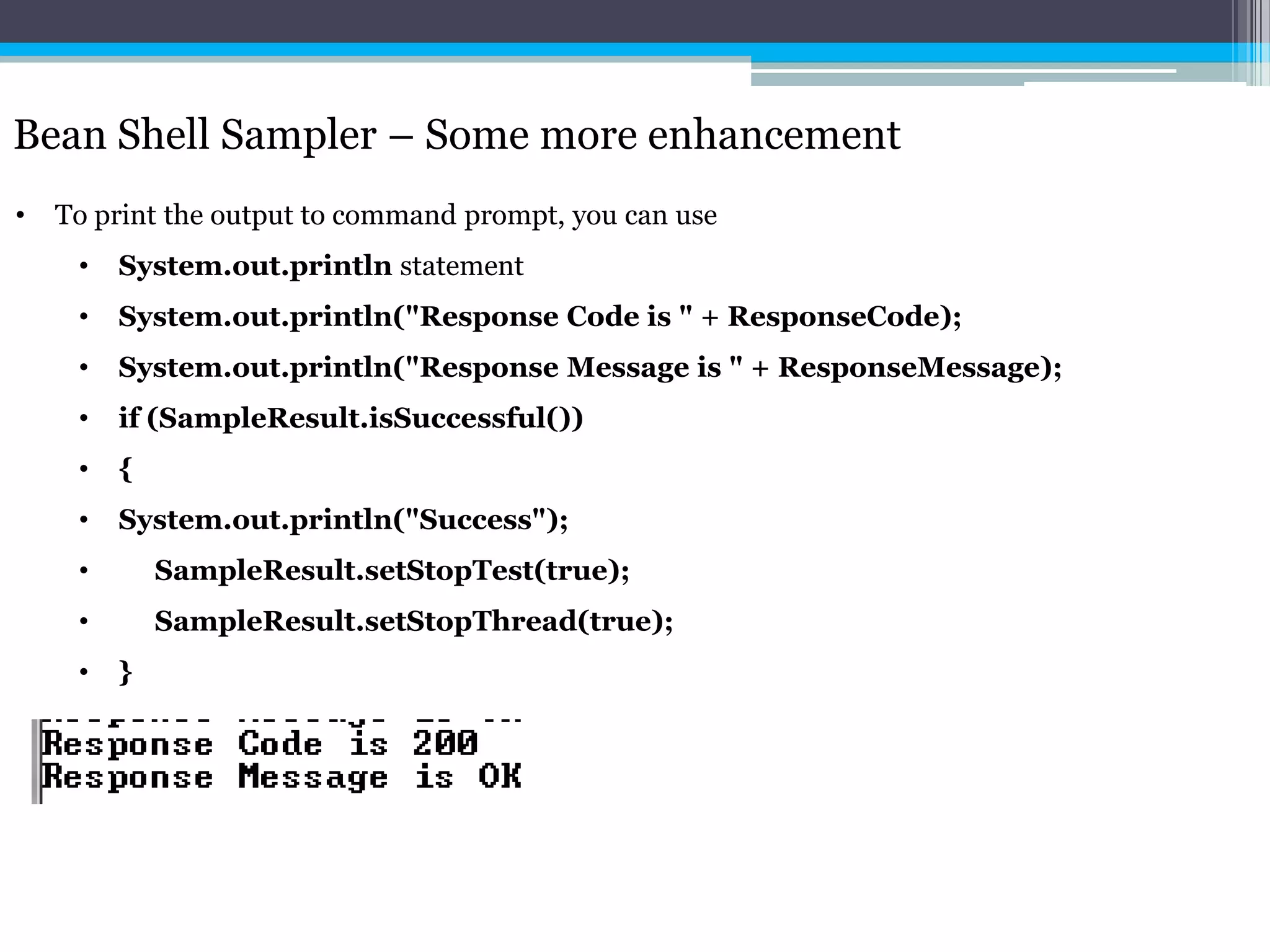

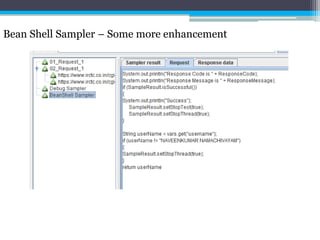

9. Bean Shell Sampler – Some more enhancement
• To print the output to command prompt, you can use
• System.out.println statement
• System.out.println("Response Code is " + ResponseCode);
• System.out.println("Response Message is " + ResponseMessage);
• if (SampleResult.isSuccessful())
• {
• System.out.println("Success");
• SampleResult.setStopTest(true);
• SampleResult.setStopThread(true);
• }
