Tomcat and Apache httpd
Objectives

version 1.1

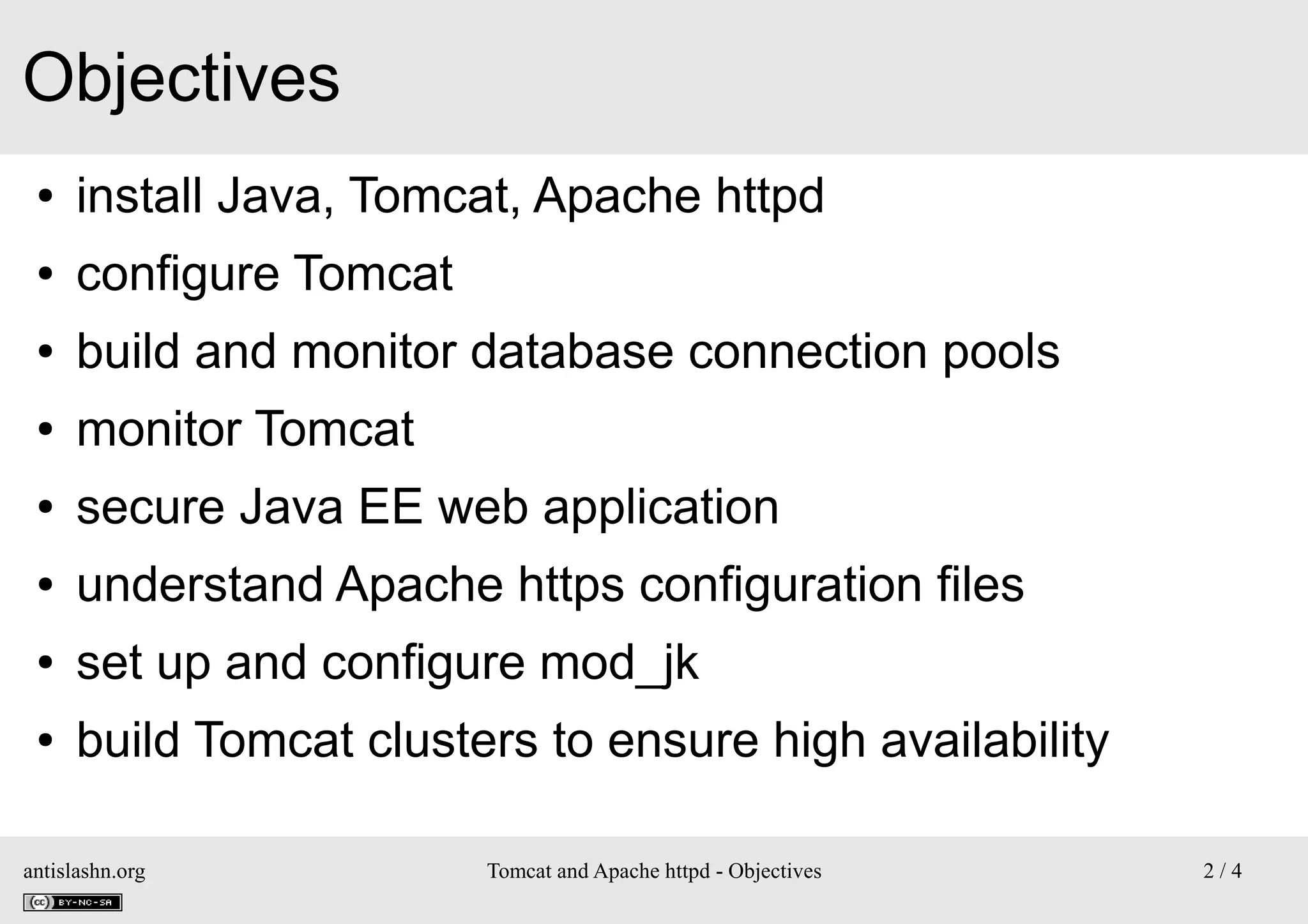

Objectives
●

install Java, Tomcat, Apache httpd

●

configure Tomcat

●

build and monitor database connection pools

●

monitor Tomcat

●

secure Java EE web application

●

understand Apache https configuration files

●

set up and configure mod_jk

●

build Tomcat clusters to ensure high availability

antislashn.org

Tomcat and Apache httpd - Objectives

2/4
Chapters
0.Objectives
1.Java EE introduction
2.Installations
3.Configuring Tomcat
4.Servlet and JSP overview
5.Tomcat valves
6.Connecting databases
7.Security with Tomcat
antislashn.org

Tomcat and Apache httpd - Objectives

3/4
Chapters
8.Memory Management and JMX
9.Virtual host with Apache httpd
10.Security with Apache
11.Tomcat cluster with mod_jk

antislashn.org

Tomcat and Apache httpd - Objectives

4/4
Introduction

version 1.1
Architecture
What we want !!!
Tomcat

internet

Apache
httpd
server
mod_jk
load balancer

Tomcat

Tomcat

static
resources

antislashn.org

Tomcat and Apache httpd - Introduction

dynamic
resources
2 / 37
The evolution of the web
●

1989 – the birth of the web
●
●

●

Tim Berners-Lee
distributed information system for CERN physicists and
engineers

1990 – the first web page
●

was about the WWW project
–

●

World Wide Web

no screen-shot of the original page

antislashn.org

Tomcat and Apache httpd - Introduction

3 / 37
The evolution of the web
●

source : http://evolutionofweb.appspot.com/

antislashn.org

Tomcat and Apache httpd - Introduction

4 / 37
Web server
●

Primary function : to deliver web pages to clients
●

●

HTTP : communication protocol between client and server

Commons features
●

Virtual hosting to serve many sites using one IP address

●

Server-side scripting to generate dynamic web pages
–

●

CGI, Fast CGI, SSI, …

Bandwidth throttling

antislashn.org

Tomcat and Apache httpd - Introduction

5 / 37
Web server
●

Market share
Product

Vendor

May 2013

Percent

Apache httpd

Apache

359 441 468

53.42 %

IIS

Microsoft

112 303 412

16.69 %

nginx

NGINX Inc.

104 411 087

15.52 %

GWS

Google

23 029 260

3.42 %

source : Wikipedia

antislashn.org

Tomcat and Apache httpd - Introduction

6 / 37
HTTP
●

Hypertext Transfert Protocol
●

request – response protocol
–
–

the client submits an HTTP request to the server
the server send an HTTP response

●

HTTP/1.0 : original version

●

HTTP/1.1 : from January 1997
–

●

RFC 2068 and 2616

HTTP/2.0 : 2014 ???
–

based on SPDY (SPeeDY)
●

antislashn.org

http://www.chromium.org/spdy/spdy-whitepaper

Tomcat and Apache httpd - Introduction

7 / 37
HTTP
●

Stateless protocol
●

the server does not retain information about each user

●

web applications implement server side session
–

●

cookies, hidden variables or query string parameters

Default port : 80
●

HTTPS : 443

antislashn.org

Tomcat and Apache httpd - Introduction

8 / 37
HTTP
●

Conversation sample
●

client request

●

server response

antislashn.org

Tomcat and Apache httpd - Introduction

9 / 37
HTTP
●

Request methods
●

GET : requests a resource

●

HEAD : like GET request but without the response body

●

POST : requests that the server accept the entity enclose
in the request
–

might be a form

●

PUT : requests that the enclose entity be store

●

DELETE : deletes the resource

antislashn.org

Tomcat and Apache httpd - Introduction

10 / 37
HTTP
●

HTTP methods (continuation)
●

TRACE : echoes back the received request
–

●

●

OPTIONS : returns the HTTP methods that the server
supports
CONNECT : uses a proxy like a communication tunnel
–

●

for debug

for SSL

PATCH : uses to apply partial modification to a resource

antislashn.org

Tomcat and Apache httpd - Introduction

11 / 37
HTTP
●

●

GET and POST are the most widely used by web
applications
RESTful web service uses
●

GET

●

POST

●

PUT

●

PATCH

●

DELETE

antislashn.org

Tomcat and Apache httpd - Introduction

12 / 37
HTTP
●

HTTP response status codes
●

1xx : informational

●

2xx : success
–

●

3xx : redirection
–
–

●

301 Moved permanently
304 Not Modified

4xx : client error
–

●

200 OK

404 Not Found

5xx : server error
–

antislashn.org

500 Internal Server Error
Tomcat and Apache httpd - Introduction

13 / 37
HTTP
●

HTTP authentications
●

BASIC access authentication
–

the username and password are combined into a string
●

–
●

username:password

this string is then encoded using Base64

DIGEST access authentication
–
–

antislashn.org

uses MD cryptographic hashing
the password is not used directly

Tomcat and Apache httpd - Introduction

14 / 37
Java evolution
●

Language issued from a Sun project
●
●

named “Stealth” and supervised by Patrick Naugthon

●

●

1990
James Gosling and Mike Sheridan arrived in 1994

1996 : first JDK publication
–

JDK : Java Development Kit

●

2009 : Oracle bought Sun

●

2010 : James Gosling quits Oracle

antislashn.org

Tomcat and Apache httpd - Introduction

15 / 37
Java evolution
●

JDK 1.0 – 1996 (23 of January) : 201 classes et 8 packages

●

JDK 1.1 – 1997 (19 of February) : 503 classes et 23 packages

●

J2SE 1.2 – 1998 (9 of December) : 1 520 classes et 59 packages

●

J2SE 1.3 – 2000 (8 of May) : 1 840 classes et 76 packages

●

J2SE 1.4 – 2002 (6 of February) : 2 990 classes et 135 packages

●

J2SE 5.0 – 2004 (30 of September) : 3 280 classes et 166 packages

●

Java SE 6 – 2006 (11 of December) : 3780 classes et 202 packages

●

Java SE 7 – 2011 (7 of July) : 4 024 classes et 209 packages

●

Java SE 8 – 2014

●

Java SE 9 - 2016

antislashn.org

Tomcat and Apache httpd - Introduction

16 / 37
Java acronyms
●

JRE : Java Runtime Environment

●

JDK : Java Development Kit

●

JVM : Java Virtual Machine

●

Java SE : Java Standard Edition
●

●

Java ME : Java Micro Edition
●

●

earlier J2SE
earlier J2ME

Java EE : Enterprise Edition
●

antislashn.org

earlier J2EE
Tomcat and Apache httpd - Introduction

17 / 37
Java acronyms
●

JSR : Java Specification Request
●

●

JCP : Java Community Process
●

●

consortium which manage the Java evolutions

EJB : Enterprise Java Bean
●

●

users can ask new features in the Java platforms

JavaBean component handles by a Java EE server

POJO : Plain Old Java Object
●

a very simple Java component

antislashn.org

Tomcat and Apache httpd - Introduction

18 / 37
Java platforms
●

Java SE
●

standalone applications

●

executed when launching the JVM
–

●

Java EE
●

●

java tool

the application is handled in a server

Java ME
●

embedded applications

●

executed in a particular JVM : the KVM

antislashn.org

Tomcat and Apache httpd - Introduction

19 / 37
Development cycle
●

Simple view of development cycle
source Java code
file Toto.java

compilation with
javac tool

Java bytecode
Toto.class

execution in the JVM
java tool
antislashn.org

Tomcat and Apache httpd - Introduction

20 / 37
Java EE overview

source : Oracle

antislashn.org

Tomcat and Apache httpd - Introduction

21 / 37
Java EE overview
●

Java EE defines
●

an architecture for implementing services as multitier
applications
–
–
–

scalability
accessibility
manageability

source : Oracle

antislashn.org

Tomcat and Apache httpd - Introduction

22 / 37
Java EE overview
●

Java EE components
●

clients
–

web clients (or thin client)
●

–

application clients
●

antislashn.org

web brother which renders the page received from the server
runs on a client machine
– GUI created with Swing

Tomcat and Apache httpd - Introduction

23 / 37
Java EE overview
●

Web components
●

JSP and servlets

source : Oracle

antislashn.org

Tomcat and Apache httpd - Introduction

24 / 37
Java EE overview
●

Business components

Enterprise
Information
System

source : Oracle

antislashn.org

Tomcat and Apache httpd - Introduction

25 / 37
Java EE overview
●

Java EE containers
●

container services, provides :
–

JNDI – Java Naming and Directory Interface
●

–

Java EE security model
●

–

antislashn.org

configures a web component or EJB so that resources are accessed only
by authorized users

Java EE transaction
●

–

the application components can access the services by their names

specifies relationships among methods that make up a single transaction
so that all methods in one transaction are treated as a single unit

JMS, Java EE remote connectivity, mail, data sources, ...

Tomcat and Apache httpd - Introduction

26 / 37
Java EE overview
●

Container types

source : Oracle

antislashn.org

Tomcat and Apache httpd - Introduction

27 / 37
Java EE overview
●

Packaging application
●

application is delivered in a Java Archive (JAR) file
–
–

WAR : Web Archive
EAR : Enterprise Archive
●

contains Java EE modules

source : Oracle

antislashn.org

Tomcat and Apache httpd - Introduction

28 / 37
Java EE overview
●

Java EE 6 APIs

source : Oracle

antislashn.org

Tomcat and Apache httpd - Introduction

29 / 37
Java EE overview
●

Profiles
●

configurations of the Java EE platform targeted at specific
classes of applications
–
–

antislashn.org

Web Profile
Full Profile

Tomcat and Apache httpd - Introduction

30 / 37
Java EE overview
●

Web Profile includes EJB Lite
●

not the full EJB API

antislashn.org

Tomcat and Apache httpd - Introduction

31 / 37
Tomcat overview
●

Open source server
●
●

●

Java based web application container
run servlet and JPS

Major versions on Tomcat coincide with versions of
Java Servlet specification
Tomcat

JSP API

JDK

7.0

3.0

2.2

1.6

6.0

2.5

2.1

1.5

5.5

antislashn.org

Servlet API

2.4

2.0

1.4

Tomcat and Apache httpd - Introduction

32 / 37
Architecture of Tomcat
Server
Service
port 8080

Connector
HTTP

Engine

port 8443

Connector
HTTPS

Host
Context

port 8009

antislashn.org

Context

Connector
AJP

Tomcat and Apache httpd - Introduction

33 / 37
Architecture of Tomcat
●

Tomcat instance is the top-level component
●

only one instance per JVM
–

●

multiple instances can run on separate JVM and network ports

server.xml provides an XML representation of
relationships between the different containers
<Server>
<Service>
<Connector />
<Engine>
<Host>
<Context></Context>
</Host>
</Engine>
</Service>
</Server>

antislashn.org

Tomcat and Apache httpd - Introduction

34 / 37
Architecture of Tomcat
●

<Server> represents the entire Catalina server
engine
●
●

●

Catalina is the Java servlet container implementation
may contain one or more <Service> containers

<Service> holds a collection of <Connector>
●

●

connectors share one <Engine>

<Connector> defines the port for handling request
and response

antislashn.org

Tomcat and Apache httpd - Introduction

35 / 37
Architecture of Tomcat
●

●

<Engine> handles all requests received by the
connectors
<Host> defines virtual hosts
●
●

●

the virtual hosts are contained in an instance of engine
each host can be a parent to one or more <Context>
component

<Context> represents a web application

antislashn.org

Tomcat and Apache httpd - Introduction

36 / 37
Tomcat overview
●

Tomcat is not
●

a Web Profile server

●

a httpd server
–

●

Tomcat is
●

●

Apache httpd is better

just a Java EE web container

Tomcat is part of many projects
●

JBoss

●

TomEE

●

...

antislashn.org

Tomcat and Apache httpd - Introduction

37 / 37
Installation
Java – Tomcat – Apache httpd

version 1.0
Installing Java
●

Installing Java on CentOS 6.4
●

download Sun/Oracle Java JDK
–

–
●

http://www.oracle.com/technetwork/java/javase/downloads/jdk7-downloads-1880260.html

select rpm

in the Terminal
–

change to root user
●

–

rpm -Uvh /path/to/binary/jdk-7u45-linux-x64.rpm

verify the installation
●

antislashn.org

sudo -i

install Java JDK package
●

–

su - or

java -version

Tomcat and Apache httpd - Installation

2 / 16
Installing Java
●

Installing Java on CentOS 6.4 (continuation)
●

setup JAVA_HOME
–

add JAVA_HOME in /etc/profile
export JAVA_HOME="/usr/java/latest"

–

restart the computer and verify
echo $JAVA_HOME

antislashn.org

Tomcat and Apache httpd - Installation

3 / 16
Installing Tomcat
●

Download Tomcat distribution
●

http://tomcat.apache.org/download-70.cgi

●

download the code distribution

antislashn.org

Tomcat and Apache httpd - Installation

4 / 16
Installing Tomcat
●

After downloaded, validate the distribution
●

each distribution had a PGP signature and a MD5
checksum
md5sum Downloads/apache-tomcat-7.0.47.zip

●

Extract the download file onto /opt
●

you need to be root
unzip apache-tomcat-7.0.47.zip -d /opt

or
tar zxvf apache-tomcat-7.0.47.tar.gz
mkdir /opt/apache-tomcat-7.0.47
cp -R apache-tomcat-7.0.47/* /opt/apache-tomcat-7.0.47
antislashn.org

Tomcat and Apache httpd - Installation

5 / 16
Installing Tomcat
●

Setup CATALINA_HOME
●

add CATALINA_HOME in /etc/profile
–

you need to be root
export CATALINA_HOME="/opt/apache-tomcat-7.0.47"

●

perhaps you need to change the tomcat folder owner
–

antislashn.org

chown -R franck apache-tomcat-7.0.47/

Tomcat and Apache httpd - Installation

6 / 16
Installing Tomcat
●

Starting Tomcat
cd /opt/apache-tomcat-7.0.47/bin/
./startup.sh

●

verifying the good installation
●

open localhost:8080

antislashn.org

Tomcat and Apache httpd - Installation

7 / 16
Installing Tomcat
●

Stopping Tomcat
cd /opt/apache-tomcat-7.0.47/bin/
./shutdown.sh

antislashn.org

Tomcat and Apache httpd - Installation

8 / 16
Tomcat directories

antislashn.org

Tomcat and Apache httpd - Installation

9 / 16
Tomcat directories
●

●

bin : contains the scripts for starting and stopping
Tomcat
conf : contains the configuration files
●
●

●

server.xml : general server configuration file
web.xml, context.xml : global web application
configuration files
tomcat-user.xml : default user list for file-based
authentication

antislashn.org

Tomcat and Apache httpd - Installation

10 / 16
Tomcat directories
●

lib : contains jar files used by Tomcat

●

logs : contains server logs

●

webapps : contains web applications
●

contains some default web applications
–

●

includes Tomcat manager application

deployment directory

●

temp : contains temporary files

●

work : contains compiled JSP pages

antislashn.org

Tomcat and Apache httpd - Installation

11 / 16
Installing Apache httpd
●

Apache httpd server is installed with CentOS by
default
●

if you need to install Apache httpd
yum install httpd

●

Starting Apache httpd
●

in root mode
/etc/init.d/httpd start

or
apachectl start

antislashn.org

Tomcat and Apache httpd - Installation

12 / 16
Installing Apache httpd
●

Stopping Apache httpd
●

as root user
/etc/init.d/httpd stop

or
apachectl stop
●

Setting the Apache service to start on boot
●

as root user
chkconfig --levels 235 httpd on

antislashn.org

Tomcat and Apache httpd - Installation

13 / 16
Installing Apache httpd
●

Testing Apache httpd
●

open http://localhost

antislashn.org

Tomcat and Apache httpd - Installation

14 / 16
Installing Apache httpd
●

Configuration file
●

●

/etc/http/conf/httpd.conf

Configure a new default web site
●

create a new folder in your home
–
–

named www for example
create a default index.html page

●

open httpd.conf in root mode

●

change
–
–

antislashn.org

DocumentRoot entry
and <Directory "/var/www/html"> directive
Tomcat and Apache httpd - Installation

15 / 16
Installing Apache httpd
●

From the httpd.conf file
...
# DocumentRoot: The directory out of which you will serve your
# documents. By default, all requests are taken from this directory, but
# symbolic links and aliases may be used to point to other locations.
#
DocumentRoot "/opt/www"
...
#
# This should be changed to whatever you set DocumentRoot to.
#
<Directory "/opt/www">
...

●

Restart Apache httpd

antislashn.org

Tomcat and Apache httpd - Installation

16 / 16
Tomcat
architecture and configuration

version 1.0
Architecture overview
●

Tomcat consists of a nested hierarchy of components
Server
Service
connector
connector

Engine

Logger
Logger
Logger

Host
Host
Host

Valve
Logger
Valve

Realm

Logger
Logger
Logger

Valve
Valve
Valve

Realm

Valve
Valve
Valve

Realm

Context
Context
Context

Valve
Valve
Wrapper

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

2 / 33
Architecture overview
●

Server
●

the server is Tomcat itself
–

it owns a port used for shut down the server
<Server port="8005" shutdown="SHUTDOWN">

●

only one instance by JVM
–

separate servers can be set up on the same machine
●
●

antislashn.org

separate JVM and servers configured with different ports
could be secure web application
– one web application per server
● if the JVM crashes, only one application is affected

Tomcat and Apache httpd - Tomcat configuration

3 / 33
Architecture overview
●

Service
●
●

contains one or more Connectors

●

●

contains a single container Engine
the service is named for easily identify log messages

Connectors
●

they connect the applications to clients

●

they represent the point at which request are received

●

they are assigned a port on the server

●

Coyote : default connector for HTTP/1.1

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

4 / 33
Architecture overview
●

Engine
●

●

●

it is a request-processing component thats represents the
Catalina Servlet engine
it examines th HTTP headers to determine the context to
which request should be passed

Realm
●
●

manages user authentication and authorization
by default a user must still authenticate separately to each
web application
–

antislashn.org

we will see how this can be change, using sing sign-on
Tomcat and Apache httpd - Tomcat configuration

5 / 33
Architecture overview
●

Valves
●

enable Tomcat to intercept a request and preprocess
–

like filter of Servlet Specification but they are specific to Tomcat

●

Hosts, Contexts and Engines may contains Valves

●

they are commonly used to
–
–

●

enable SSO
log requests

a Valve is a reusable component which could be add or
remove
–

antislashn.org

inclusion is transparent to web application
Tomcat and Apache httpd - Tomcat configuration

6 / 33
Architecture overview
●

Loggers
●

●

report on the internal state of a component

Host
●

Engine may contains one or more Host
–
–

one default host
zero or more virtual hosts
●

antislashn.org

in Tomcat virtual hosts are differentiates by a fully qualified hots name
– www.example.com and www.example.net can both reside in the same
server

Tomcat and Apache httpd - Tomcat configuration

7 / 33
Architecture overview
●

Context
●

this is the web application
–

it becomes parent of servelts and filters
●

●

a web application could include
–
–

●

a web.xml
a context.xml

supports dynamic reload
–

●

as StandardWrapper objects

classes that have been changed are reloaded into memory

may include specific error pages

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

8 / 33
Files in $CATALINA_HOME/conf
●

server.xml
●

main configuration file

●

Tomcat reads this file at startup
–

●

application-level context should not be made in this file
–

●

components configured in this file affect the entire Tomcat
instance
use a per-application context.xml

tomcat-user.xml
●

contains user authentication and role-mapping

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

9 / 33
Files in $CATALINA_HOME/conf
●

context.xml
●
●

default application context for any web applications
could be contains components for all the web applications
deployed in Tomcat
–
–
–

●

JDBC DataSource connection
realm
etc.

application can customized and override this file with their
own context.xml file

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

10 / 33
Files in $CATALINA_HOME/conf
●

web.xml
●
●

provides basic servlet definition and MIME mappings

●

●

default deployment descriptor for all web applications
applications usually have their own web.xml

catalina.policy
●

Java SE security model
–

●

controls the permission to access resources

default policy file for running Tomcat in secured mode

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

11 / 33
Files in $CATALINA_HOME/conf
●

catalina.properties
●
●

●

this file is read at startup
provides for internal packages access and definition
control

logging.properties
●

configuration file for logging
–

antislashn.org

Tomcat uses its own implementation of Java Logging

Tomcat and Apache httpd - Tomcat configuration

12 / 33
<Server> component
●

in server.xml

●

key attributes
●

●

port : TCP port to listen for the command specified by the
shutdown attribute
shutdown : command text string used for shutting down
–

can be telnet to the port 8005 with SHUTDONW to take the
server down
●

antislashn.org

cannot be done remotely for security reasons

Tomcat and Apache httpd - Tomcat configuration

13 / 33
<Server> component
●

key sub-elements
●

<Service>
–

●

<Listener>
–

●

a grouping of Connectors associated with an Engine
life-cycle listeners for interception of the server's life-cycle events

<GlobalNamingResources>
–

antislashn.org

JNDI global resources

Tomcat and Apache httpd - Tomcat configuration

14 / 33
<Service> component
●

key attributes
●

className : classe name for the service
–

●

name : name for the service
–

●

org.apache.catalina.core.StandardService by default
used in logging, administration, management

key elements
●

<Connector> : one or more
–

●

component that handles external client connections

<Engine> : request-processing component (Catalina)

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

15 / 33
Web application configuration
●

A web application consist of
●

static content
–

●

dynamic content
–

●

HTML pages, image files, PDF files, …
servlets, JSP, Java classes

Web applications are usually installed under the
webapps directory
●

deployed in a directory named after the web application
–

antislashn.org

this name is also used in the web application URL

Tomcat and Apache httpd - Tomcat configuration

16 / 33
Web application configuration
●

Web application structure
developer's project
war file

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

17 / 33
Web application configuration
●

URL parsing
Coyote connector
/conf/server.xml
Virtual host name
/conf/server.xml

http://www.example.com/bovoyage/addCaddy/5

context path

processed by servlet

servlet mapping
/WEB-INF/web.xml

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

18 / 33
Web application configuration
●

ROOT web application
●

installed under /webapps

●

default web application
–

no context path needs to be specified
●

antislashn.org

http://localhost:8080/

Tomcat and Apache httpd - Tomcat configuration

19 / 33
Web application configuration
●

WEB-INF directory contains
●

web.xml file
–

●

classes directory
–

●

deployment descriptor
contains all compiled Java classes

lib directory
–

contains packaged Java libraries (.jar)
●

●

if the libraries are to be accessed across web applications, they should be
placed under <TOMCAT_HOME>/lib

tag directory (optional)
–

antislashn.org

contains files for tags libraries
Tomcat and Apache httpd - Tomcat configuration

20 / 33
Web application configuration
●

META-INF directory contains optional files
●

●

context.xml file contains the specific configuration for the
web application
MANIFEST.MF file
–

antislashn.org

version, vendor, …

Tomcat and Apache httpd - Tomcat configuration

21 / 33
Deployment descriptor web.xml
●

Application-specific deployement file

●

key elements
●

<context-param> : mechanism used for setting
application-initialization parameters
–

●

contains <param-name> , <param-value>

<filter> : reusable component that intercept the client
request and response and apply some type of processing
–
–

antislashn.org

compression, …
contains <filter-name>, <filter-class>

Tomcat and Apache httpd - Tomcat configuration

22 / 33
Deployment descriptor web.xml
●

key elements
●

<listener> : component design to respond to event in
an application
–

●

session start and stop, application start and stop, …

<servlet> : a servlet is declared by assigning it a unique
name which references its fully qualified class name

<servlet>
<servlet-name>controleur</servlet-name>
<servlet-class>org.bovoyage.servlet.ControleurServlet</servlet-class>
</servlet>

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

23 / 33
Deployment descriptor web.xml
●

key elements
●

<servlet-mapping> : specifies the mapping between a
servlet and a URL pattern
<servlet-mapping>
<servlet-name>controleur</servlet-name>
<url-pattern>/controleur</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>controleur</servlet-name>
<url-pattern>/index.jsp</url-pattern>
</servlet-mapping>

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

24 / 33
Deployment descriptor web.xml
●

key elements
●

<session-config> and <session-timeout>
–

●

used to set a session timeout value (mn)

<welcome-file-list> : defines the default resource, il
no resource is specified in the URL
–

for example http://localhost:8080/bovoyage request the index.jsp
resource
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

25 / 33
Deployment descriptor web.xml
●

key elements
●

<error-page> : error pages configuration
–

the cause may be a HTTP error or a Java exception
<error-page>
<error-code>404</error-code>
<location>/errors/oops.jsp</location>
</error-page>
<error-page>
<error-code>java.lang.NullPointerException</error-code>
<location>/errors/appProblem.jsp</location>
</error-page>

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

26 / 33
Deployment descriptor web.xml
●

key elements
●
●
●

<security-constraint>
<security-role>
<login-config>
–
–

antislashn.org

these elements relate to the configuration of login authentication
in the application
we shall see in detail later

Tomcat and Apache httpd - Tomcat configuration

27 / 33
Deployment descriptor web.xml
●

key elements
●
●
●

<resource-ref>
<resource-env-ref>
<env-entry>
–

are provided for configuring resources for the web application
●

antislashn.org

a database-connection pooling, ...

Tomcat and Apache httpd - Tomcat configuration

28 / 33
Tomcat manager application
●

manager application is a web application
●

three way to interact with the manager application
–
–

using the web interface
using HTTP requests
●
●

–
●

via the browser
via scripts

using Ant-based interface

Access to the manager application is restricted to
authorized users

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

29 / 33
Tomcat manager application
●

Summary of some tasks that the manager application
can perform
●

deploy a new web application

●

manage th currently web applications

●

list the available global JNDI resources

●

list the available security roles

●

display session statistics

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

30 / 33
Tomcat manager application
●

Enabling access to the manager application
●

this example use the User Database Realm
–
–

but any realm implementation can be used
the username, password and roles are initialized at startup from
the conf/tomcat-users.xml configuration file
●
●

this file needs to be edited to add a user with a role manager-gui
Tomcat need to be restarted

<tomcat-users>
<role rolename="manager-gui"/>
<user username="admin" password="adminpw" roles="manager-gui"/>
</tomcat-users>

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

31 / 33
Tomcat manager application
●

Using HTTP requests
●

URL format :

http://[hostname]:[port]/manager/text/command?parameters
●

commands
–
–

●

list, sessions, start, stop, install, remove, deploy, undeploy,
reload, serverinfo, roles, resources
the list depends of the Tomcat version – see documentation

parameters
–
–
–

antislashn.org

file:/absolute/path/to/a/directory
file:/absolute/path/to/a/webapp.war
jar:file:/absolute/path/to/a/webapp.war!
Tomcat and Apache httpd - Tomcat configuration

32 / 33
Tomcat manager application
●

Using HTTP request
●

needed to add the role manager-script
<role rolename="manager-gui"/>
<role rolename="manager-script"/>
<user username="admin" password="adminpw" roles="manager-gui,manager-script"/>

●

example :
–

antislashn.org

http://localhost:8080/manager/text/list

Tomcat and Apache httpd - Tomcat configuration

33 / 33
Servlet and JSP

version 1.1
Servlet
●

Platform-independent web application component
●

●

communicate with web client using request/response

The developer extends the HttpServlet class
●

javax.servlet and javax.servlet.http
public class HelloServlet extends HttpServlet {
public void init(ServletConfig config) throws ServletException {
}
public void destroy() {
}
protected void doGet(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
}
protected void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
}
}

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

2 / 12
Servlet
●

The servlet is declared in the web.xml
●

the developer compiles the servlet and deployed it in the
WEB-INF/classes directory
<servlet>
<servlet-name>HelloServlet</servlet-name>
<servlet-class>org.bovoyage.servlet.HelloServlet</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>HelloServlet</servlet-name>
<url-pattern>/hello</url-pattern>
</servlet-mapping>

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

3 / 12
Servlet
●

Life-cycle
class
loaded

HTTP request

no

the servlet is instantiate

yes

destroy()

yes

class
changed

no

the servlet is unloaded

antislashn.org

service()

Tomcat and Apache httpd - Servlet and JSP

init()

4 / 12
Servlet
●

When the HttpServlet.service() method is
invoked
●

it reads the HTTP method type in the request

●

it uses this value to determine which method to invoke
HTTP Method
GET

doGet(HttpServletRequest,HttpServletResponse)

POST

doPost(HttpServletRequest,HttpServletResponse)

PUT

doPut(HttpServletRequest,HttpServletResponse)

DELETE

doDelete(HttpServletRequest,HttpServletResponse)

HEAD

doHead(HttpServletRequest,HttpServletResponse)

OPTIONS

doOptions(HttpServletRequest,HttpServletResponse)

TRACE

antislashn.org

HttpServlet class method

doTrace(HttpServletRequest,HttpServletResponse)

Tomcat and Apache httpd - Servlet and JSP

5 / 12
Servlet
●

Servlet API 3.0 allows us to configure the servlet
details using annotations, instead XML
@WebServlet(
name="HelloServlet",
urlPatterns="/hello")
public class HelloServlet extends HttpServlet{
...
}

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

6 / 12
JSP
●

Java Server Page

●

Simple technology
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Hello JSP</title>
</head>
<body>
<h2>Hello, world</h2>
</body>
</html>

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

7 / 12
JSP
●

Life-cycle
●

translation
–

●

compilation
–

●

the JSP file is translated to Java servlet source
the generated servlet class is compiled

loading
–

the compiled servlet is loaded in memory

●

instantiation

●

initialization

●

servicing request

●

destruction

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

8 / 12
JSP
●

Life-cycle
request

no

class
loaded
yes

yes

JSP
changed

instance is unloaded

translation

jspInit()

the class is instantiate

no

response

antislashn.org

jspService()

Tomcat and Apache httpd - Servlet and JSP

9 / 12
Components of a JSP
●

Page directive
●

provide global information about a JSP page

<%@ page language="java" contentType="text/html; charset=UTF-8"

●

pageEncoding="UTF-8"%>

Include directive
●

to insert file (text or JSP) at translation time
<%@ include file="header.jsp" %>

●

Taglib directive
●

to use a custom tag library
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

10 / 12
Component of a JSP
●

Declarations
●

used to define Java variables and methods in the JSP
page
<%! String name="toto"; %>
<%! String getHello(){ return "Hello";} %>

●

Expressions
●

the expression is replaced with the resulting value of the
container evaluation
<%= getHello() %> <%= name %>

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

11 / 12
JSP Expression Language (EL)
●

EL is a powerful feature introduced with the version
2.0
●

it enable developers to easily access Java objects
destinations is collection of POJO

...
<table>
<c:forEach items="${destinations}" var="destination">
<tr>
<td>${destination.region }</td>
<td><a href='controleur?cde=det&id=${destination.id }'>détails</a></td>
</tr>
</c:forEach>
</table>
...
destination is a POJO

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

12 / 12
Tomcat
valves and filters

version 1.1
Valves and Filters
●

The purpose of theses components is intercepting
requests for one or more web application

●

Valve is a proprietary Tomcat technology

●

Filter is a server-independent technology

●

We need a mechanism to preprocess request before it
reaches the web application
●

login about requests

●

allowing access from certain remote IPs

●

data compression

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

2 / 16
Valves and Filters
●

Theses requirements are independent of applications

●

Tomcat Valves vs. Servlet Filters
●

Filter is a servlet specification
–
–
–

●

it is platform-independent
filter-chaining functionality is very useful
it can only be configured on a web application level

Valve can be better performing and robust
–
–

antislashn.org

because Valve is part of the Tomcat engine API
it can be configured on the engine or host level

Tomcat and Apache httpd - Tomcat valves and filters

3 / 16
Tomcat Valves
●

Tomcat uses valves internally
●
●

to maintain SSL information in a request

●

●

to manage authentication
to log request details

Some valves are configured internally y Tomcat
●

BasicAuthentificationValve for the BASIC
authentication

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

4 / 16
Tomcat Valves
●

Implementing a Valve

public class SimpleLoggingValve extends ValveBase {
@Override
public void invoke(Request request, Response response) throws IOException,ServletException {
String remoteAddress = request.getRemoteAddr();
String requestUri = request.getRequestURI();
System.out.println(">>> VALVE - URI : " + requestUri + " from "+remoteAddress);
Valve nextValve = getNext();
if(nextValve!=null){
nextValve.invoke(request, response);
}
}
}

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

5 / 16
Tomcat Valves
●

Adding the valve to Tomcat
●
●

●

package the valve in a jar file
copy the jar file in <TOMCAT_HOME>/lib

Configure the valve to be executed for all requests
●

modify the conf/server.xml
–

in the <Host> element
<Valve className="org.antislashn.tomcat.valves.SimpleLoggingValve" />

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

6 / 16
Access Log Valve
●

Tomcat prepackaged Valve

●

It creates log files to track client access information
●

can be associated with Engin, Host or Context

●

its configuration is in server.xml file
<Valve className="org.apache.catalina.valves.AccessLogValve"
directory="logs" pattern="%h %l %u %t &quot;%r&quot; %s %b"
prefix="localhost_access_log."
suffix=".txt"/>

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

7 / 16
Remote Access Valve
●

Allow you to compare th IP address of the requesting
client against one or more regular expression
●

allow or prevent the request from continuing
–

two attributes
●
●

access
deny – a HTTP status code 403

<Valve className="org.apache.catalina.valves.RemoteAddrValve" deny="127.*"/>

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

8 / 16
Crawler Session Manager Valve
●

Search engines employ special programs to discover
and index the web sites
●
●

●

crawler or spiders
when hundred of separate crawler processes access the
web site, a user session will be created for each of them
this valve ensures that each unique web crawler is
associated with on user session
<Valve className="org.apache.catalina.valves.CrawlerSessionManagerValve"
crawlerUserAgents="[bB]ot.*|*Yahoo! Slurp.*|.*Feedfetcher-Google.*."
sessionInactiveInterval="3600" />

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

9 / 16
Dead Thread Detection Valve
●

Each request from a single user is processed by a
separate Java thread
●

sometimes these threads get stuck
–
–

●

network problems
bugs

this valve helps to detect the stuck threads
–

threshold attribute
<Valve className="org.apache.catalina.valves.DeadThreadDetectionValve"
threshold="300" />

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

10 / 16
Servlet Filters
●

Interface javax.servlet.Filter
●

methods
–

init(FilterConfig)
●

–

doFilter(ServletRequest, ServletResponse,
FilterChain)
●
●

–

this method is executed for every request
must call filterChain.doFilter(...)

destroy()
●

antislashn.org

initialize the filter – it is called once

call once, when the web application is undeployed

Tomcat and Apache httpd - Tomcat valves and filters

11 / 16
Servlet Filter
●

Implementing a Filter

public class TimeFilter implements Filter {
private FilterConfig config = null;
public void destroy() {
config = null;
}
public void doFilter(ServletRequest request, ServletResponse response,
FilterChain chain) throws IOException, ServletException {
long debut = System.currentTimeMillis();
config.getServletContext().log(">>> avant appel servlet");
chain.doFilter(request, response);
long fin = System.currentTimeMillis();
config.getServletContext().log(">>> après appel servlet");
config.getServletContext().log(">>> TEMPS : " + (fin-debut) + " ms");
}
public void init(FilterConfig fConfig) throws ServletException {
config = fConfig;
}
}
antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

12 / 16
Servlet Filter
●

Filter configuration
●

in the WEB-INF/web.xml
<filter>
<display-name>TimeFilter</display-name>
<filter-name>TimeFilter</filter-name>
<filter-class>org.antislashn.web.TimeFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>TimeFilter</filter-name>
<url-pattern>/test</url-pattern>
<dispatcher>REQUEST</dispatcher>
</filter-mapping>

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

13 / 16
Servlet Filter
●

Filter configuration
●

<dispatcher> selects one of the following dispatcher
types :
–

REQUEST : only when the request comes directly from the client

–

FORWARD : only when the request has been forwarded to a
component
INCLUDE : only when the request is being processed by a
included component
ERROR : only when the request is being processed with the error
page mechanism

–

–

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

14 / 16
Request Dumper Filter
●

This built in filter dumps the entire
HttpServletRequest to the Tomcat log
<filter>
<filter-name>DumperFilter</filter-name>
<filter-class>org.apache.catalina.filters.RequestDumper</filter-class>
</filter>
<filter-mapping>
<filter-name>DumperFilter</filter-name>
<url-pattern>/*.jsp</url-pattern>
</filter-mapping>

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

15 / 16
Expires Filter
●

It controls the HTTP expires header
<filter>
<filter-name>ExpiresFilter</filter-name>
<filter-class>org.apache.catalina.filters.ExpiresFilter</filter-class>
<init-param>
<param-name>ExpiresByType image</param-name>
<param-value>access plus 10 minutes</param-value>
</init-param>
<init-param>
<param-name>ExpiresByType text/css</param-name>
<param-value>access plus 10 minutes</param-value>
</init-param>
<init-param>
<param-name>ExpiresByType application/javascript</param-name>
<param-value>access plus 10 minutes</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>ExpiresFilter</filter-name>
<url-pattern>/*</url-pattern>
<dispatcher>REQUEST</dispatcher>
</filter-mapping>

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

16 / 16
Tomcat logging

version 1.1
Java Logging Framework
●

●

Since Java 1.4, Java itself comes with the capable
logging package java.util.logging
Since Tomcat 6, Tomcat itself uses Java Logging
instead Commons Logging API
●

Tomcat 6 has done away with the <Logger> element
–

●

use the conf/logging.properties file

Tomcat developers extend the functionality of the
standard Java logging framework
●

this implementation is known as JULI
–

antislashn.org

Java Util Logging Interface
Tomcat and Apache httpd - Tomcat logging

2 / 14
Java Logging overview
●

To instantiate a logger instance in th Java code, you
will use static factory method, and construct a logger
with the selected name
Logger log = Logger.getLogger("org.antislashn");

●

Each logger accept messages with different logging
level
●

based on their importance
log.severe("Message niveau severe");
log.info("Message niveau info");
log.finest("Message niveau finest");

antislashn.org

Tomcat and Apache httpd - Tomcat logging

3 / 14
Java Logging overview
●

Logging levels
●

SEVERE : used to log exceptions, errors, ...

●

WARNING : used to log warning messages

●

INFO : used to log information messages

●

●

CONFIG : used to log configuration messages,
initializations, ...
FINE : used to log detailed information, useful for
debugging purposes

●

FINER : more information than FINE

●

FINEST : logs all messages

antislashn.org

Tomcat and Apache httpd - Tomcat logging

4 / 14
Java Logging overview
●

Handlers
●

each logger has a list of handlers associated with it
–

●

represented by an abstract class
java.util.logging.Handler

three main handlers are available
–

ConsoleHandler : outputs the logged messages to
System.err

–

FileHandler : writes the messages to a file
●

–

antislashn.org

supporting file rotation

SocketHandler : writes messages to the network socket

Tomcat and Apache httpd - Tomcat logging

5 / 14
Java Logging overview
●

Formatter
●

each handler has one formatter
–
–

format the log messages
two formatters are available
●

SimpleFormatter
– logs message with date, time, information
Infos: Initializing ProtocolHandler ["http-bio-8080"]
nov. 14, 2013 11:50:03 AM org.apache.coyote.AbstractProtocol init

●

antislashn.org

XMLFormatter
– writes messages
in XML format

<record>
<date>2013-11-14T11:54:48</date>
<millis>1384426488187</millis>
<sequence>2</sequence>
<logger>org.antislashn</logger>
<level>FINEST</level>
<class>org.antislashn.formation.log.Logger_03</class>
<method>main</method>
<thread>1</thread>
<message>Message niveau finest</message>
</record>

Tomcat and Apache httpd - Tomcat logging

6 / 14
Java Logging overview
●

Formatter
●

JULI adds three formatters
–

–

–

antislashn.org

OneLineFormatter : same format as SimpleFormatter, but
written in a single line
VerbatimFormatter : writes the log message only, without any
additional information
JdkLoggerFormatter : uses a compact output format with
timestamps

Tomcat and Apache httpd - Tomcat logging

7 / 14
Java Logging overview

application

Logger

Handler

out

Formatter

antislashn.org

Tomcat and Apache httpd - Tomcat logging

8 / 14
Java Logging overview
●

Logging configuration
●

typically specified int the file logging.properties
handlers= java.util.logging.ConsoleHandler
java.util.logging.ConsoleHandler.level = ALL
java.util.logging.ConsoleHandler.formatter = java.util.logging.XMLFormatter

–

#1 : defines all handlers (comma separator)
●
●

–
–

antislashn.org

handler is specified by his class name
there is only one instance by JVM

#2 : default logging level for this handler
#3 : formatter for this handler

Tomcat and Apache httpd - Tomcat logging

9 / 14
JULI configuration
●

●

Java Logging Framework guarantees than only one
handler is instantiated by JVM
JULI supports one handler per class loader
●

a prefix is add to each handler type
–
–
–

starts with a number
and an arbitrary string
and ends with a period "."

handlers = 1catalina.org.apache.juli.FileHandler, 2localhost.org.apache.juli.FileHandler

antislashn.org

Tomcat and Apache httpd - Tomcat logging

10 / 14
JULI configuration
●

The defaults handlers are defined with the
.handlers property
●

will be used for loggers that do not have a specific handler
configured
.handlers = 1catalina.org.apache.juli.FileHandler, java.util.logging.ConsoleHandler

●

Each handler is configured
●

name of the handler followed by the property
1catalina.org.apache.juli.FileHandler.level = FINE
1catalina.org.apache.juli.FileHandler.directory = ${catalina.base}/logs
1catalina.org.apache.juli.FileHandler.prefix = catalina.

antislashn.org

Tomcat and Apache httpd - Tomcat logging

11 / 14
JULI configuration
●

Rotating logs
●

log file rotation is enable by default
1catalina.org.apache.juli.FileHandler.rotatable = true

●

the format is {prefix}.{date}.{suffix}

●

the rotation an only rotate daily

antislashn.org

Tomcat and Apache httpd - Tomcat logging

12 / 14
Servlet Logging
●

Servlet API defines the logging API to be used
●

●

the logging based is performed by calls to
ServletContext.log(String message) method
developers prefer using frameworks
–

●

Servlet API Logging has become obsolete

In Tomcat, all messages logged to Servlet log are
intercepted
●

Tomcat provides handlers for ServletContext logs
–

antislashn.org

for each engine, host and context

Tomcat and Apache httpd - Tomcat logging

13 / 14
Servlet Logging
●

The names follows the convention
org.apache.catalina.core.ContainerBase.[ENGINE].[HOST].[CONTEXT]
●

ENGINE : engine name

●

HOST : host name

●

CONTEXT : context name (application)

●

and ends with the property
defined in server.xml
application name

org.apache.catalina.core.ContainerBase.[Catalina].[localhost].[/manager].level = INFO
org.apache.catalina.core.ContainerBase.[Catalina].[localhost].[/manager].handlers =
3manager.org.apache.juli.FileHandler

antislashn.org

Tomcat and Apache httpd - Tomcat logging

14 / 14
Connecting databases

version 1.1
JDBC overview
●

JDBC – Java DataBase Connectivity
●
●

Java base data access technology
provides methods for querying and updating data in
database
Java application
Java API calls

JDBC library

MySQL
JDBC
driver

antislashn.org

Oracle
JDBC
driver

SQLServer
JDBC
driver

Tomcat and Apache httpd - Connectiong databases

2 / 16
JDBC overview
●

In JDBC programming, developers typically perform
the following steps
1.obtain a connection to the remote database server
2.create and prepare SQL statement for execution
3.execute SQL statement
4.obtain the return result set and work with it
5.disconnect from the remote database

antislashn.org

Tomcat and Apache httpd - Connectiong databases

3 / 16
JDBC overview
●

Example
String
String
String
String

driver = "com.mysql.jdbc.Driver";
url = "jdbc:mysql://localhost:3306/bovoyage";
user = "toto";
pswd = "totopw";

// 1 - load the driver and obtain a connection
Class.forName(driver);
Connection conn = DriverManager.getConnection(url, user, pswd);
// 2 - create and prepare a SQL statement
String sql = "SELECT * FROM destinations";
Statement statement = conn.createStatement();
// 3 - execute SQL statement and obtain the result set
ResultSet rs = statement.executeQuery(sql);
// 4 - work on the result set
while(rs.next()){
System.out.println(rs.getString("region"));
}
// 5 - disconnect from the remote database
conn.close();
antislashn.org

Tomcat and Apache httpd - Connectiong databases

4 / 16
JDBC overview
●

The driver is loaded by his name
●
●

●

String type - it is usually a parameter

the developer don't know the database used

"com.mysql.jdbc.Driver"

The database is selected by a pseudo URL
●

●

DriverManager is responsible for establish the
connection to the database through the driver
the name and location of database is given as a URL
jdbc:mysql://localhost:3306/bovoyage
protocol

antislashn.org

sub-protocol

machine holding
the database

Tomcat and Apache httpd - Connectiong databases

path to the database
on the machine

5 / 16
JDBC overview
●

Database connection pooling
●

when a web application uses JDBC
–

a physical JDBC connection is establish between the application
and the database
●

–

establish such a connection is
●
●
●

–

CPU-intensive
memory-intensive
execution time-intensive

how long hold the connection
●
●

antislashn.org

via a TCP/IP connection

request ?
session ?

Tomcat and Apache httpd - Connectiong databases

6 / 16
JDBC overview
●

Database connection pooling
●

connection pooling reduces expensive session establish
times
–

●

●

●

connects, disconnects and reconnects

a pool of physical connections is created when the system
starts up
when the application requires a connection one of these
physical connection is provided
when the application "closes" the connection
–
–

antislashn.org

it is disconnected
the physical connection is merely returned to the pool
Tomcat and Apache httpd - Connectiong databases

7 / 16
JDBC overview
●

Database connection pooling
Database connections
pool manager

web application

antislashn.org

Tomcat and Apache httpd - Connectiong databases

8 / 16
JDBC overview
●

The pool manager
●

creates the initial physical connections

●

manages the distribution of the physical connections
–
–

the web application receive a logical connection
closing a logical connection does not close the physical
connection

●

returns and close physical connections

●

handles any exception or error

antislashn.org

Tomcat and Apache httpd - Connectiong databases

9 / 16
JDBC overview
●

The pool manager functionality may be provide by
●

an application server
–

Tomcat, JBoss, Geronimo, GlassFish, …

●
●

●

a third-party pool manager vendor
a JDBC driver vendor

Tomcat enables running web application to :
●

access JDBC data sources using JNDI lookup

●

use connection pooling value-added service

antislashn.org

Tomcat and Apache httpd - Connectiong databases

10 / 16
Configuring the database connection
●

The database connection is configured as a JNDI
resource
●

as part of the <Context> element
–

●

making the resource available only to the web application in the
specified context

in the <GlobalNamingResources> section in the
server.xml file
–

antislashn.org

the resource will be available to all the web applications deployed
on the Tomcat instance

Tomcat and Apache httpd - Connectiong databases

11 / 16
Configuring the database connection
●

JNDI resource for MySQL
<Context reloadable="true">
<Resource
name='jdbc/bovoyage'
auth='Container'
type='javax.sql.DataSource'
driverClassName='com.mysql.jdbc.Driver'
url='jdbc:mysql:///bovoyage'
username='toto'
password='totopw'
maxActive='20'
maxIdle='10'
maxWait='10000'
removeAbandoned='true' />
</Context>

antislashn.org

Tomcat and Apache httpd - Connectiong databases

12 / 16
Configuring the database connection
●

key attributes
●

●

name : the name of the resource will be used to reference
the same resource in the web application
auth : specifies whether the sign-on to the resource
manager to access to the resource is done by
–
–

the server, "Container" value
th application, "Application" value

●

type : type of resource factory

●

driverClassName : the database vendor class name

antislashn.org

Tomcat and Apache httpd - Connectiong databases

13 / 16
Configuring the database connection
●

key attributes
●

url : database connection URL

●

usename and password : for database connection

●

●

●

validationQuery : the server executes this query each
time just before it passes the connection to the application,
to check the accessibility of the database
maxActive : maximum number of active connections
maxIdle : maximum number of connections that should
be kept in the pool at all times

antislashn.org

Tomcat and Apache httpd - Connectiong databases

14 / 16
Accessing the JNDI DataSource
●
●

The JNDI DataSource resource is available in Tomcat
We need to create a reference to the configured JNDI
resource in the web deployment descriptor web.xml

<resource-ref>
<res-ref-name>jdbc/bovoyage</res-ref-name>
<res-type>javax.sql.DataSource</res-type>
<res-auth>Container</res-auth>
</resource-ref>

antislashn.org

Tomcat and Apache httpd - Connectiong databases

15 / 16
Accessing the JNDI DataSource
●

JNDI
●

●
●

the name specified is relative to the root naming context,
which is define as java:comp/env
the name of the resource is jdbc/bovoyage
the full JNDI name of the resource will be
java:comp/env/jdbc/bovoyage

Context contexteJndi = new InitialContext();
DataSource dataSource = (DataSource) contexteJndi.lookup("java:comp/env/jdbc/bovoyage");

antislashn.org

Tomcat and Apache httpd - Connectiong databases

16 / 16
Security with Tomcat

version 1.1
Security Realms
●

Mechanism for protecting web application resources.
●

a resource is protected with a defined security constraint
–

●

user role that can access to the resource

Tomcat's realm is
●

collection of user names and passwords

●

collection of roles associated with each user

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

2 / 38
Security Realm
●

Realm available in Tomcat
●

●

●

●

●

MemoryRealm : simple implementation that uses an xml
file (tomcat-users.xml)
JDBCRealm : supports storing username, passwords and
roles in a SQL database
JNDIRealm : implementation backed by JNDI
DataSourceRealm : realm backed by a JNDIconfigured
JDBC datasource
UserDatabaseRealm : realm backed by a custom
UserDatabase configured by JNDI

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

3 / 38
Security Realm
●

Realm available in Tomcat
●

JaasRealm : authentication using JAAS
–

●

●

Java Authentication and Authorization Service

CombinedRealm : realm that allows usage of multiple
realm at the same time
LockOutRealm : extends CombinedRealm, to lock out
users if too many incorrect login tries are detected
–

antislashn.org

prevent pure force server attack

Tomcat and Apache httpd - Security with Tomcat

4 / 38
MemoryRealm
●

The simplest realm available in Tomcat
●

uses an in-memory database which is read from an XML
file
–

on server startup
<tomcat-users>
<role rolename="tomcat" />
<role rolename="role1" />
<user username="tomcat" password="tomcat" roles="tomcat" />
<user username="both" password="tomcat" roles="tomcat,role1" />
<user username="role1" password="tomcat" roles="role1" />
</tomcat-users>

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

5 / 38
MemoryRealm
●

Protected a resource with a MemoryRealm
●

enable MemoryRealm in the conf/server.xml file
●

in Engine, Host or Context element
● Engine : for all the web applications
● Host : for all the web applications within that host
● Context : only this web application
<Realm className="org.apache.catalina.realm.MemoryRealm" />

●

configure the application to use the configured MemoryRealm
●

in the web.xml
● add a security constraint
● define a login mechanism
● declare the roles used by the security constraint

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

6 / 38
MemoryRealm
●

Configure the application
●

add the security constraint in the web.xml file
<security-constraint>
<web-resource-collection>
<web-resource-name>Administration</web-resource-name>
<description>Exemple de sécurisation de ressources WEB</description>
<url-pattern>/admin/*</url-pattern>
</web-resource-collection>
<auth-constraint>
<role-name>admin</role-name>
</auth-constraint>
</security-constraint>

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

7 / 38
MemoryRealm
●

Configure the application
●

define the login mechanism in the web.xml file
<login-config>
<auth-method>BASIC</auth-method>
<realm-name>Site exemple</realm-name>
</login-config>

●

declare the roles used
–

in the web.xml file
<security-role>
<role-name>admin</role-name>
</security-role>

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

8 / 38
MemoryRealm
●

Restart Tomcat to apply the changes

●

Navigate the browser to the URL
●

a login windows is shown in the browser

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

9 / 38
Authentication types
●

BASIC
●
●

●

client authenticates by entering a username and password
the browser sends the informations in plain text, Base64
encoded

DIGEST
●

similarly to BASIC

●

username and password are digested-encoded using MD5

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

10 / 38
Authentication types
●

FORM
●

client authenticates using a HTML form
–

●

●

input filed names and form action are defined as part of Java
Servlet specification

the sending mechanism are customizable

CLIENT_CERT
●

uses SSL (Secure Socket Layer)

●

client and server have their own SSL certificate

●

uses a mutual authentication

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

11 / 38
LockOutRealm
●

Protection against the brute force attacks
●

the LockOutRealm wraps another realm
how many failed
attempts

how long the user
will be lock out (in
seconds)

<Realm className="org.apache.catalina.realm.LockOutRealm"
faiureCount="3" lockoutTime="3600">
<Realm className="org.apache.catalina.realm.MemoryRealm" />
</Realm>

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

12 / 38
UserDatabaseRealm
●

Advanced version of MemoryRealm
●

can be configurable via JNDI

●

that allows clients to lookup objects by the know name

●

in the server.xml

<GlobalNamingResources>
<Resource auth="Container" description="User database that can be updated and saved"
factory="org.apache.catalina.users.MemoryUserDatabaseFactory"
name="UserDatabase" pathname="conf/tomcat-users.xml"
type="org.apache.catalina.UserDatabase"/>
</GlobalNamingResources>

●

and used by the Context

<Realm className="org.apache.catalina.realm.UserDatabaseRealm" resourceName="UserDatabase"/>

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

13 / 38
JDBCRealm
●

Simple like the MemoryRealm, but the JDBCRealm
stores all the informations in a
user-defined and JDBC-compliant database
●

we need two tables
–
–

antislashn.org

one for user and password
one for user and role

Tomcat and Apache httpd - Security with Tomcat

14 / 38
JDBCRealm
●

Add the configuration in server.xml
<JDBCRealm driverName="com.mysql.jdbc.Driver"
connectionURL="jdbc:mysql://localhost/authority?user=toto;password=totopw"
userTable="users" userNameCol="user_name" userCredCol="user_pass"
userRoleTable="user_roles" roleNameCol="role_name" />

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

15 / 38
DataSourceRealm
●

DataSourceRealm is the upgraded version of
JDBCRealm
●

●

allows configuration of the database connection as the
JNDI resource
similar to UserDataBaseRealm which is a JNDI
configurable version of MemoryRealm

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

16 / 38
DataSourceRealm
●

Configuring DataSourceRealm in server.xml file
<GlobalNamingResources>
<Resource name="jdbc/authority" auth="Container"
type="javax.sql.DataSource"
maxActive="100" maxIdle="30" maxWait="10000"
username="toto"
password="totopw"
driverClassName="com.mysql.jdbc.Driver"
url="jdbc:mysql://localhost:3306/authenticate" />
</GlobalNamingResources>

●

Configuring DataSourceRealm in the Context
<Realm className="org.apache.catalina.realm.DataSourceRealm"
dataSourceName="jdbc/authority"
userTable="users" userNameCol="user_name" userCredCol="user_pass"
userRoleTable="user_roles" roleNameCol="role_name" />

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

17 / 38
FORM-Based authentication
●

A user request a protected resource
●

a login form is displayed
–

●

the user can enter a username and password

Tomcat checks the entered details
–

if the entered user credentials are match in the realm
●

–

if the user has the required role the required page is displayed
●

–

authorization

if user does not have the role, an error page is displayed
●

antislashn.org

user is authenticated

code 403

Tomcat and Apache httpd - Security with Tomcat

18 / 38
FORM-Based authentication
BASIC authenticate

FORM authenticate

source : Oracle

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

19 / 38
FORM-Based authentication
●

Configuration
●

create a login page

●

create an error page

●

configure web.xml

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

20 / 38
FORM-Based authentication
●

Login page
Java Servlet
specification

<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Login</title>
</head>
<body>
<form action="j_security_check" method="POST">
<table>
<tr><td>Identifiant : </td><td><input type="text" name="j_username" /></td></tr>
<tr><td>Mot de passe : </td><td><input type="password" name="j_password" /></td></tr>
<tr><td colspan="2"><input type="submit" value="ENVOYER" /></td></tr>
</table>
</form>
</body>
</html>

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

21 / 38
FORM-Based authentication
●

Error page
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Erreur</title>
</head>
<body>
<h3>Erreur d'authentification</h3>
</body>
</html>

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

22 / 38
FORM-Based authentication
●

Configuration in the web.xml file
<login-config>
<auth-method>FORM</auth-method>
<form-login-config>
<form-login-page>/auth/login.jsp</form-login-page>
<form-error-page>/auth/erreur.jsp</form-error-page>
</form-login-config>
</login-config>

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

23 / 38
DIGEST authenticate
●

UserDataBaseRealm can be configure to use
DIGEST authenticate
●

●

of course, the others realms can be secure in the same
way
we need to
–

select the DIGEST algorithm
●

–
–

create the DIGEST password
add this password to the Realm
●

–

here the tomcat-users.xml file

configure the login-config
●

antislashn.org

in the server.xml file

in the web.xml file
Tomcat and Apache httpd - Security with Tomcat

24 / 38
DIGEST authenticate
●

Select the DIGEST algorithm
●

in server.xml file
<Realm className="org.apache.catalina.realm.UserDatabaseRealm"
resourceName="UserDatabase" digest="sha"/>

●

Create the DIGEST password
●

Java supports two digest algorithm
–

●

MD5 and SHA

"totopw" is the textplain password
digest -a sha totopw
totopw:557860fea134517d63080a07c1d507c9dde15621

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

25 / 38
DIGEST authenticate
●

Add this password to the Realm
●

tomcat-users.xml file
–

<tomcat-users>
<role rolename="admin" />
<user username="toto" password="totopw" roles="admin" />
</tomcat-users>

–

●

old file
now

<tomcat-users>
<role rolename="admin" />
<user username="toto" roles="admin"
password="557860fea134517d63080a07c1d507c9dde15621" />
</tomcat-users>

Configure the login-config
●

web.xml file

antislashn.org

<login-config>
<auth-method>DIGEST</auth-method>
<realm-name>Site exemple</realm-name>
</login-config>

Tomcat and Apache httpd - Security with Tomcat

26 / 38
Securing with SSL
●

SSL – Secure Socket Layer
●

was first developed by Netscape
–

more recently the IETF developed TSL – Transport Level
Security is based on SSL
●

●

●

IETF : Internet Engineering Task Force

guarantee that no one can eavesdrop on or tamper with
the communication between a browser and a server
SSL is a cryptographic protocol
–

antislashn.org

using symmetric pair of keys to encrypt and decrypt traffic

Tomcat and Apache httpd - Security with Tomcat

27 / 38
Securing with SSL
●

Symmetric pair of keys
●

a same key is used for encryption of plaintext and
decryption of ciphertext
the same key is shared

encryption
Alice

decryption
Bob

?
stole the key
Chuck

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

28 / 38
Securing with SSL
●

Symmetric pair of keys
●

the algorithms are fast

●

the algorithms are simple

●

how to share the key ????

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

29 / 38
Securing with SSL
●

Asymmetric pair of keys
●

or public-key cryptography

●

two separate keys
–

one is private
●

–

one is public
●
●

●

used for decryption
used for encryption
this key is shared

the two keys are generated by a key generation program

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

30 / 38
Securing with SSL
●

Asymmetric pair of keys
●

the public key is used for encryption of plaintext

●

the private key is used for decryption of ciphertext

encryption
Alice

decryption
Bob

?
stole the key

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

31 / 38
Securing with SSL
●

Digital certificate
●
●

a serial number

●

the owner's name

●

●

contains keys

validity period

Keystore
●

contains multiple certificates, keys

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

32 / 38
Securing with SSL
Navigator

Web server
hello

symmetric key
generation

encryption

decryption

decryption
encryption

decryption
encryption
all the messages use
a symmetric encryption

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

33 / 38
Securing with SSL
●

Configuring Tomcat with SSL
●

create our own certificate
–

self-signed certificate
●

–

it will not be verified with an independent CA (Certificate Authority)

the certificates are stored in a repository called keystore

●

configuring Tomcat's SSL connector

●

configuring resources in web application
–

antislashn.org

forcing Tomcat send resources over SSL

Tomcat and Apache httpd - Security with Tomcat

34 / 38
Securing with SSL
●

Create a self-signed certificate
●

use keytool
–

JAVA_HOME/bin

–
keytool -genkeypair -alias tomcat -keylag RSA -keystore <TOMCAT_HOME>/conf/tomcat.keystore
●

enter the required details
keystore
certificate 1

tomcat.keystore file
with its is own password
each certificate has an alias
and a password

certificate 2

certificate n

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

35 / 38
Securing with SSL
●

Configuring Tomcat's SSL connector
●

in server.xml file
<Connector port="8443" protocol="HTTP/1.1"
SSLEnabled="true"
maxThreads="150"
scheme="https" secure="true"
clientAuth="false"
sslProtocol="TLS"
keystoreFile="conf/tomcat.keystore"
keystorePass="azerty"
keyAlias="tomcat"
keyPass="abc123" />

antislashn.org

used by HttpServletRequest.isSecure()
no use of CLIENT_CERT

Tomcat and Apache httpd - Security with Tomcat

36 / 38
Securing with SSL
●

Configuring resources in web application
●

in the web.xml

<security-constraint>
<web-resource-collection>
<web-resource-name>Administration</web-resource-name>
<url-pattern>/admin/*</url-pattern>
</web-resource-collection>
<auth-constraint>
<role-name>admin</role-name>
</auth-constraint>
<user-data-constraint>
<transport-guarantee>CONFIDENTIAL</transport-guarantee>
</user-data-constraint>
</security-constraint>

server.xml
<Connector connectionTimeout="20000" port="8080"
protocol="HTTP/1.1"
redirectPort="8443" />
antislashn.org

Tomcat and Apache httpd - Security with Tomcat

37 / 38
Securing with SSL
●

Try the URL … and accept the security alert

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

38 / 38
JMX
Java Management eXtension

version 1.1
JMX overview
●

Java Management eXtension
●
●

●

specification add in Java 5
used to manage servers, applications, JVM

JMX architecture
●

three levels
–

instrumentation
●

–
–

antislashn.org

MBean probe object

agent
distributed services

Tomcat and Apache httpd - JMX

2 / 16
JMX overview

antislashn.org

Tomcat and Apache httpd - JMX

3 / 16
JMX overview
JMX client

client level

Connectors and adapters
JMX agent

Services :
●Timers
●Notification

MBean server

instrumentation

antislashn.org

MBean

MBean

MBean

Tomcat and Apache httpd - JMX

4 / 16
JMX overview
●

MBeans are software modules
●

●

expose the capabilities of a hardware device or software
component
different types of MBean
–

Standard MBean
●

–
–
–
–

antislashn.org

only this one will be discussed here

Dynamic MBean
Model MBean
Open MBean
MXBean

Tomcat and Apache httpd - JMX

5 / 16
JMX – Standard MBean
●

Simple
●

an Java interface
–
–
–

●

same name than implementation
class suffixed with MBean
getter → read property
setter → write property

an Java implementation class

antislashn.org

Tomcat and Apache httpd - JMX

6 / 16
JMX – Standard MBean
●

The MBean is identified by its unique name
●

ObjectName class

●

two parts
–
–
–

domain
properties
both separate by a colon character
jboss.deployment:flavor=URL,type=DeploymentScanner

antislashn.org

Tomcat and Apache httpd - JMX

7 / 16
JMX – Standard MBean
●

Java interface
public interface HelloMBean {
// properties
String getName();
String getColor();
void setColor(String color);
// operations
void sayHello();
double add(double a, double b);
}

antislashn.org

Tomcat and Apache httpd - JMX

8 / 16
JMX – Standard MBean
●

Java implementation class
public class Hello implements HelloMBean {
private String name ="Toto Standard MBean";
private String color = "vert";
@Override public String getName() {
return name;
}
@Override public String getColor() {
return color;
}
@Override public void setColor(String color) {
this.color = color;
}
@Override public void sayHello() {
System.out.println(">>> Standard MBean "+name+" - "+color);
}

}

antislashn.org

@Override public double add(double a, double b) {
return a+b;
}

Tomcat and Apache httpd - JMX

9 / 16
JMX – Standard MBean
●

Agent level - main steps
●

recovering a MBean server
MBeanServer mbs = ManagementFactory.getPlatformMBeanServercreating();

●

instantiating an ObejctName
ObjectName mBeanName = new ObjectName("antislashn.jmx:bean=Hello,type=standard");

●

recording the MBean in the server
HelloMBean mBean = new Hello();
mbs.registerMBean(mBean, mBeanName);

antislashn.org

Tomcat and Apache httpd - JMX

10 / 16
JMX – Standard MBean
●

For securing reasons, we need to activate the JMX
access
●

-Dcom.sun.management.jmxremote

●

other properties could be defined
–
–

mandatory if remote JMX access
see the password template file in <JRE_HOME>/lib/management

java -Dcom.sun.management.jmxremote.port=3333
-Dcom.sun.management.jmxremote.ssl=false
-Dcom.sun.management.jmxremote.authenticate=false
MonAppliJava

antislashn.org

Tomcat and Apache httpd - JMX

11 / 16
JMX – Standard MBean
●

We can now use jconsole or jvisualvm

antislashn.org

Tomcat and Apache httpd - JMX

12 / 16
Tomcat and JMX
●

Working with the JMX proxy
●

add the role manager-jmx

●

the URL for accessing the JMX proxy is as follow
–
–

http://<host>:<port>/manager/jmxproxy/<operation details>
example
●

antislashn.org

http://localhost:8080/manager/jmxproxy/list

Tomcat and Apache httpd - JMX

13 / 16
Tomcat and JMX
●

Using jconsole to monitor Tomcat
●

we must enable the JMX support inside Tomcat
–

add a file called
●
●

–

setenv.sh in Linux
setenv.bat in Windows

with the following line
set CATALINA_OPTS=-Dcom.sun.management.jmxremote

●

restart Tomcat

antislashn.org

Tomcat and Apache httpd - JMX

14 / 16
Tomcat and JMX
●

Start jconsole

antislashn.org

Tomcat and Apache httpd - JMX

15 / 16
Tomcat and JMX
●

Go to the mbeans tab

antislashn.org

Tomcat and Apache httpd - JMX

16 / 16
Configuring Apache httpd

version 1.1
Configuration files
●

Main configuration file
●

usually called httpd.conf
–
–
–

<apache_home>/conf/httpd.conf in Windows
/etc/httpd/conf/httpd.conf in CentOS
/etc/apache2/httpd.conf in Unbuntu
●

●

the file references the modules folder
– enabled directory

other configuration files can be added with using the
Include directive

●

MIME document types are defined in mime.type file

●

.htaccess file contains directives for one web site

antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

2 / 12
Configuration files
●

●

Directives placed in httpd.conf file apply to the entire
server
To change the configuration for only a part of the
server
●

placing the directives in one of the following sections
–
–

Files, FilesMatch

–

Location, LocationMatch

–

antislashn.org

Directory, DirectoryMatch

VirtualHost

Tomcat and Apache httpd - Configuring Apache httpd

3 / 12
Configuration
●

Syntax
●

one directive per line
–
–

backslash "" must be used as the last character on one line to
indicate that the directive continue onto the next line
some directives are block directives
<Directory "/var/www/cgi-bin">
AllowOverride None
Options None
Order allow,deny
Allow from all
</Directory>

●

hash "#" on the begin of a line indicates a comment
–

●

comments may not be included on a line after a directive

directives are case-sensitive

antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

4 / 12
Configuration
●

Terms used to describe directives
●

description

●

syntax

●

default

●

context
–
–
–

–

antislashn.org

server configuration : the directive may be used only in httpd.conf
virtual host
directory : the directive may be used inside <Directory>,
<Location>, <Files> and <Proxy>
.htaccess
Tomcat and Apache httpd - Configuring Apache httpd

5 / 12
Configuration
●

Terms used to describe directives
●

status
–
–
–
–
–

core : the directive is part of the server
MPM : Multi-Processing Module
base : standards Apache module
extension : modules included with Apache, but not enabled
experimental

●

module

●

compatibility

●

comments

antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

6 / 12
Configuration
●

Examples

antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

7 / 12
Configuration
●

Binding to listen on a specific addresses and port
●

Listen directive
–
–

●

Listen 80
default
examples Listen 90

Listen 192.168.0.45:80

Modules
●

extended feature are available through modules

●

a module can be loaded by the LoadModule directive

antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

8 / 12
Default web site
●

The default web site
●

DocumentRoot directive
–

●

DocumentRoot "/opt/www/"

if DocumentRoot changed, you need to change the
<Directory ...> directive to the same directory
<Directory "/opt/www/">
Options Indexes FollowSymLinks
AllowOverride None
Order allow,deny
Allow from all
</Directory>

antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

9 / 12
Default resource
●

DirectoryIndex
●

set the list of resources to look for when the client request
a default one
–

http://www.example.com/
DirectoryIndex index.html index.php

●

if none of the resources exist and Indexes option is set,
the server will generate its own listing of the directory
–

antislashn.org

see the Options directives

Tomcat and Apache httpd - Configuring Apache httpd

10 / 12
Log files
●

Default location
●

●

CentOS : /var/log/httpd

ErrorLog directive
●

LogLevel directive
–

debug, info, notice, warn, error, crit, alert, emerg
●

●

default : warn

LogFormat directive defines format nickname
LogFormat "%h %l %u %t "%r" %>s %b" common

antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

11 / 12
Log files
●

Server error log is the most important log file

●

Other logs use CustomLog directive
●

or TransferLog directive
–
–

●

does not allow the log format to specified
uses the mots recently defined LogFormat

access log configuration

LogFormat "%h %l %u %t "%r" %>s %b "%{Referer}i" "%{User-Agent}i"" combined
CustomLog logs/access_log combined

::1 - - [20/Nov/2013:03:41:22 -0800] "GET / HTTP/1.1" 304 - "-" "Mozilla/5.0
(X11; Linux x86_64; rv:17.0) Gecko/20131029 Firefox/17.0"
antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

12 / 12
Apache httpd
Virtual host

version 1.0
Virtual host overview
●

Practice of running more than web site on a single
machine
●

can be
–

IP-based
●

–

name-based
●

antislashn.org

an IP address per web site
more than web site per IP address

Tomcat and Apache httpd - Virtual host with Apache httpd

2/6
Name-based virtual hosts
●

You must have DNS entries
●

use hosts file
–

/etc/hosts in CentOS

127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1
localhost localhost.localdomain localhost6 localhost6.localdomain6

–

C:WindowsSystem32driversetchosts in Windows
127.0.0.1
::1

antislashn.org

localhost toto.exemple
localhost toto.exemple

Tomcat and Apache httpd - Virtual host with Apache httpd

3/6
Name-based virtual hosts
NameVirtualHost *:80
<VirtualHost *:80>
DocumentRoot /www/example1
ServerName www.toto.exemple
ServerAlias www.toto.example toto.example
</VirtualHost>
<VirtualHost *:80>
DocumentRoot /www/example2
ServerName www.example.org
</VirtualHost>

antislashn.org

Tomcat and Apache httpd - Virtual host with Apache httpd

4/6
IP-based virtual hosts
●

the server has two IP
addresses
●

●

Listen 80

on one (172.20.30.40) we
will serve the "main"
(server.domain.com)
on the other
(172.20.30.50) we will
serve two or more virtual
hosts

# This is the "main" server running on 172.20.30.40
ServerName server.domain.com
DocumentRoot /www/mainserver
# This is the other address
NameVirtualHost 172.20.30.50
<VirtualHost 172.20.30.50>
DocumentRoot /www/example1
ServerName www.example.com
# Other directives here ...
</VirtualHost>
<VirtualHost 172.20.30.50>
DocumentRoot /www/example2
ServerName www.example.org
# Other directives here ...
</VirtualHost>

antislashn.org

Tomcat and Apache httpd - Virtual host with Apache httpd

5/6
IP-based virtual hosts
<VirtualHost 192.168.0.1:80>
ServerAdmin webmaster@smallco.example.com
DocumentRoot /groups/smallco/www
ServerName smallco.example.com
ErrorLog /groups/smallco/logs/error_log
TransferLog /groups/smallco/logs/access_log
</VirtualHost>
<VirtualHost 192.168.0.2:80>
ServerAdmin webmaster@baygroup.example.org
DocumentRoot /groups/baygroup/www
ServerName baygroup.example.com
ErrorLog /groups/baygroup/logs/error_log
TransferLog /groups/baygroup/logs/access_log
</VirtualHost>

antislashn.org

Tomcat and Apache httpd - Virtual host with Apache httpd

6/6
Apache httpd
Security

version 1.1
Security tips
●

Keep up to date

●

Permissions an ServerRoot directories
●
●

Apache is started by the root user
it switches to the user defines by the User directive to serve
hits
–

in httpd.conf

User apache
Group apache

●

Beware of SSI, CGI, aliases

●

Watching your logs

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

2 / 31
Options directive
●

Controls which server features are available in a
particular directory
●

●

Syntax

Options [+|-] option [[+|-] option] ...

option can be set to
●

None : none of the extra features are enabled

●

All : all options except for MultiView is permitted

●

ExecCGI : execution of CGI scripts is permitted
–

●

cf. mod_cgi module

FollowSymLinks : the server will follow symbolic links

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

3 / 31
Options directive
●

option can be set to
●

Include : server-side includes (SSI) are permitted
–

●
●

cf. mod_include module

IncludeNOEXEC : SSI is permitted but CGI are disabled
Indexes : if no default resource match with
DirectoryIndexe, the server will return a formatted listing of
the directory
–

antislashn.org

cf. mod_include module

Tomcat and Apache httpd - Security with Apache httpd

4 / 31
Options directive
●

option can be set to
●

MultiViews : content negotiated is allowed
–
–

cf. mod_negotiation module
the server can choose the best presentation of a resource based
on the browsed-supplied preferences
●

●

language, encoding, charset

SymLinksIsOwnerMatch : server only follows symbolic
links if the target resource is owned by the same user as
the link

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

5 / 31
Allow directive
●

Affects which hosts can access resources
●

access can be controlled by
–
–
–

●

hostname
IP address, IP range address
other characteristics of the client request captured in the
environment variables

syntax
Allow from all|host|env=[!]env-variable [host|env=[!]env-variable] ...

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

6 / 31
Allow directive
●

The first argument is always from
Allow from all

all hosts are allowed access
(subject to the configuration of the Deny and Order directives)
hosts whose name match, or end in, with the string are
allowed access
this configuration will cause Apache to perform a double DNS
lookup per client access

Allow from example.org
Allow from .com toto.net

Allow from 10.1.2.3
Allow from 192.168.1.104 192.168.1.205

an IP address of a host allowed access

Allow from 10.1
Allow from 10 172.20 192.168.2

the first 1 to 3 bytes of an IP address

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

7 / 31
Allow directive
●

Examples

Allow from 10.1.10.0.0/255.255.0.0
Allow from 2001::db8::a00::20ff::fea7::ccea

SetEnvIf User-Agent ^KnockKnock/2.0 let_me_in
<Directory /docroot>
Order Deny,Allow
Deny from all
Allow from env=let_me_in
</Directory>

antislashn.org

a network a.b.c.d and a netmask w.x.y.z
IP v6 addresses

browsers with a user-agent string
beginning with KnockKnock/2.0 will
be allowed to access
all others will be denied

Tomcat and Apache httpd - Security with Apache httpd

8 / 31
Deny Directive
●

This directive allows access to the server to be
restricted on hostname, IP address or environment
variable
●

the arguments for the Deny directive are identical to the
arguments for the Allow directive

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

9 / 31
Order Directive
●

This directive, along with the Allow and Deny
directives, controls a three pass access control
●

first pass processes all Allow and Deny directives
–

●

●

as specified by the Order directives

second pass parses the rest of the directives (Deny or
Allow)
third pass applies to all request which do not match either
the first two

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

10 / 31
Order Directive
●

Ordering is one of :
●

no whitespace is allowed between keywords

Allow,Deny

First all Allow directives are evaluated, at least one must match, or the
request is rejected
Next all Deny directives are evaluated, if any match the request is rejected
Last any request which not match an Allow or Deny are denied by default

Deny,Allow

First all Deny directives are evaluated, if any match, the request is denied
unless it also matches an Allow directives
All request which do not match any Allow or Deny directives are permitted

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

11 / 31
Order directive
●

Summary

Match

Allow,Deny result

Deny,Allow result

match Allow only

request allowed

request allowed

match Deny only

request denied

request denied

no match

default to second directive :
DENIED

default to second directive :
ALLOWED

match both Allow and Deny

final match controls : DENIED

final match controls : ALLOWED

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

12 / 31
Order directive
●

Examples

Order Deny,Allow
Deny from all
Allow from example.com

Order Allow,Deny
Allow from example.com
Deny from foo.example.com

antislashn.org

all hosts in example.com domain are allowed access
all other hosts are denied access

all hosts in the example.com domain are allowed access,
except the hosts which are in foo.example.com subdomain
all hosts not in the example.com domain are denied access

Tomcat and Apache httpd - Security with Apache httpd

13 / 31
Authentication
●

Authentication is simple
●
●

●

●

client sends his name and password
server looks up of names and passwords

It is also possible to group a number of people into
named groups
Each username-password pair is valid for a particular
realm

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

14 / 31
Authentication
●
●

The browser asks for an URL
The server sends back "Authentication Required" and
the realm
●

●

code 401

If the browser already has a username-password for
that realm, it sends the request again with the
username-password
●

if not, it prompts the user and sends that

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

15 / 31
Authentication

web site

realm
(AuthName directive)

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

16 / 31
Authentication
●

Two authentication type
●

see the AuthType directive

●

Basic
–

●

Digest
–

●

mod_auth_basic module
mod_auth_digest module

Based on two fundamental informations
●

authentication provider
–

●

AuthDigestProvider, AuthBasicProvider directives

authorization
–

antislashn.org

Require directive
Tomcat and Apache httpd - Security with Apache httpd

17 / 31
Authentication
●

Example
<Directory d:/www/autorise>
AuthName "Royaume secret"
AuthType Basic
require valid-user
AuthUserFile D:/passwords
</Directory>

●

AuthName : name of the realm

●

AuthType : Basic or Digest

●

AuthUserFile : passwords file

●

Required : group, user or valid-user

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

18 / 31
Authenticate
●

<Limit> directive
●

●

access controls are normally effective for all HTTP
methods
this directive restricts the access of the access control to
the nominated HTTP methods
<Limit POST PUT DELETE>
Require valid-user
</Limit>

●

see also <LimitExcept> directive

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

19 / 31
Basic authentication
●

AuthType Basic directive
●
●

●

client authenticates by entering a username and password
the browser sends the informations in plain-text, Base64
encoded

Steps
●
●

●

create a password file
configure the server to request a password and tell the
server which user are allowed access
optional : create a group-users file

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

20 / 31
Basic authentication
●

Create the password file
●

the file is placed somewhere not accessible from the web

●

use the htpasswd utility that came with Apache
–
–

●

in CentOs : /usr/bin directory
in Ubuntu : /usr/local/apache2/bin

see htpasswd documentation
–

http://httpd.apache.org/docs/2.2/programs/htpasswd.html

htpasswd [ -c ] [ -m ] [ -D ] passwdfile username
htpasswd -b [ -c ] [ -m | -d | -p | -s ] [ -D ] passwdfile username password

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

21 / 31
Basic authentication
●

Create the group file
●
●

simple text-plain
each line of group contains a groupname followed by the
list of user groups
– mygroup: bob joe anne

●

Configure the server
<Directory d:/www/autorise>
AuthName "Royaume secret"
AuthType Basic
require group chef
AuthUserFile D:/htpasswd
AuthGroupFile D:/htgroup
</Directory>

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

22 / 31
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training
Tomcat and apache httpd training

More Related Content

What's hot

Weblogic application server
Weblogic application serverWeblogic application server
Weblogic application server
Anuj Tomar

Server monitoring using grafana and prometheus
Server monitoring using grafana and prometheusServer monitoring using grafana and prometheus
Server monitoring using grafana and prometheus
Celine George

Introduction to Maven
Introduction to MavenIntroduction to Maven
Introduction to Maven
Onkar Deshpande

Spring Framework - Data Access
Spring Framework - Data AccessSpring Framework - Data Access
Spring Framework - Data Access
Dzmitry Naskou

Maven
MavenMaven
Maven
Emprovise

Jenkins CI
Jenkins CIJenkins CI
Jenkins CI
Viyaan Jhiingade

Prometheus Overview
Prometheus OverviewPrometheus Overview
Prometheus Overview
Brian Brazil

Quarkus k8s
Quarkus   k8sQuarkus   k8s
Oracle WebLogic Server Basic Concepts
Oracle WebLogic Server Basic ConceptsOracle WebLogic Server Basic Concepts
Oracle WebLogic Server Basic Concepts
James Bayer

Springboot Microservices
Springboot MicroservicesSpringboot Microservices
Springboot Microservices
NexThoughts Technologies

Oracle WebLogic Diagnostics & Perfomance tuning
Oracle WebLogic Diagnostics & Perfomance tuningOracle WebLogic Diagnostics & Perfomance tuning
Oracle WebLogic Diagnostics & Perfomance tuning
Michel Schildmeijer

Jenkins Overview
Jenkins OverviewJenkins Overview
Jenkins Overview
Ahmed M. Gomaa

Helm - Package manager in K8S
Helm - Package manager in K8SHelm - Package manager in K8S
Helm - Package manager in K8S
Piotr Perzyna

Introduction to Maven
Introduction to MavenIntroduction to Maven
Introduction to Maven
Mindfire Solutions

Prometheus - Intro, CNCF, TSDB,PromQL,Grafana
Prometheus - Intro, CNCF, TSDB,PromQL,GrafanaPrometheus - Intro, CNCF, TSDB,PromQL,Grafana
Prometheus - Intro, CNCF, TSDB,PromQL,Grafana
Sridhar Kumar N

Introducción a Wiremock
Introducción a WiremockIntroducción a Wiremock
Introducción a Wiremock
Jose Ortiz

2017 red hat open stack(rhosp) function overview (samuel,2017-0516)
2017 red hat open stack(rhosp) function overview (samuel,2017-0516)2017 red hat open stack(rhosp) function overview (samuel,2017-0516)
2017 red hat open stack(rhosp) function overview (samuel,2017-0516)
SAMUEL SJ Cheon

Infrastructure & System Monitoring using Prometheus
Infrastructure & System Monitoring using PrometheusInfrastructure & System Monitoring using Prometheus
Infrastructure & System Monitoring using Prometheus
Marco Pas

Maven ppt
Maven pptMaven ppt
Maven ppt
natashasweety7

Ceph Month 2021: RADOS Update
Ceph Month 2021: RADOS UpdateCeph Month 2021: RADOS Update
Ceph Month 2021: RADOS Update
Ceph Community


What's hot (20)

Weblogic application server
Weblogic application serverWeblogic application server
Weblogic application server

Server monitoring using grafana and prometheus
Server monitoring using grafana and prometheusServer monitoring using grafana and prometheus
Server monitoring using grafana and prometheus

Introduction to Maven
Introduction to MavenIntroduction to Maven
Introduction to Maven

Spring Framework - Data Access
Spring Framework - Data AccessSpring Framework - Data Access
Spring Framework - Data Access

Maven
MavenMaven
Maven

Jenkins CI
Jenkins CIJenkins CI
Jenkins CI

Prometheus Overview
Prometheus OverviewPrometheus Overview
Prometheus Overview

Quarkus k8s
Quarkus   k8sQuarkus   k8s
Quarkus k8s

Oracle WebLogic Server Basic Concepts
Oracle WebLogic Server Basic ConceptsOracle WebLogic Server Basic Concepts
Oracle WebLogic Server Basic Concepts

Springboot Microservices
Springboot MicroservicesSpringboot Microservices
Springboot Microservices

Oracle WebLogic Diagnostics & Perfomance tuning
Oracle WebLogic Diagnostics & Perfomance tuningOracle WebLogic Diagnostics & Perfomance tuning
Oracle WebLogic Diagnostics & Perfomance tuning

Jenkins Overview
Jenkins OverviewJenkins Overview
Jenkins Overview

Helm - Package manager in K8S
Helm - Package manager in K8SHelm - Package manager in K8S
Helm - Package manager in K8S

Introduction to Maven
Introduction to MavenIntroduction to Maven
Introduction to Maven

Prometheus - Intro, CNCF, TSDB,PromQL,Grafana
Prometheus - Intro, CNCF, TSDB,PromQL,GrafanaPrometheus - Intro, CNCF, TSDB,PromQL,Grafana
Prometheus - Intro, CNCF, TSDB,PromQL,Grafana

Introducción a Wiremock
Introducción a WiremockIntroducción a Wiremock
Introducción a Wiremock

2017 red hat open stack(rhosp) function overview (samuel,2017-0516)
2017 red hat open stack(rhosp) function overview (samuel,2017-0516)2017 red hat open stack(rhosp) function overview (samuel,2017-0516)
2017 red hat open stack(rhosp) function overview (samuel,2017-0516)

Infrastructure & System Monitoring using Prometheus
Infrastructure & System Monitoring using PrometheusInfrastructure & System Monitoring using Prometheus
Infrastructure & System Monitoring using Prometheus

Maven ppt
Maven pptMaven ppt
Maven ppt

Ceph Month 2021: RADOS Update
Ceph Month 2021: RADOS UpdateCeph Month 2021: RADOS Update
Ceph Month 2021: RADOS Update


Similar to Tomcat and apache httpd training

Java troubleshooting thread dump
Java troubleshooting thread dumpJava troubleshooting thread dump
Java troubleshooting thread dump
ejlp12

Apache Web Services
Apache Web ServicesApache Web Services
Apache Web Services
lkurriger

CON6423: Scalable JavaScript applications with Project Nashorn
CON6423: Scalable JavaScript applications with Project NashornCON6423: Scalable JavaScript applications with Project Nashorn
CON6423: Scalable JavaScript applications with Project Nashorn
Michel Graciano

JavaOne 2014 - Scalable JavaScript Applications with Project Nashorn [CON6423]
JavaOne 2014 - Scalable JavaScript Applications with Project Nashorn [CON6423]JavaOne 2014 - Scalable JavaScript Applications with Project Nashorn [CON6423]
JavaOne 2014 - Scalable JavaScript Applications with Project Nashorn [CON6423]
Leonardo Zanivan

Станислав Сидоренко «DeviceHive Java Server – миграция на Spring Boot»
Станислав Сидоренко «DeviceHive Java Server – миграция на Spring Boot»Станислав Сидоренко «DeviceHive Java Server – миграция на Spring Boot»
Станислав Сидоренко «DeviceHive Java Server – миграция на Spring Boot»
DataArt

Introduction to Apache Tomcat 7 Presentation
Introduction to Apache Tomcat 7 PresentationIntroduction to Apache Tomcat 7 Presentation
Introduction to Apache Tomcat 7 Presentation
Tomcat Expert

eXo Platform SEA - Play Framework Introduction
eXo Platform SEA - Play Framework IntroductioneXo Platform SEA - Play Framework Introduction
eXo Platform SEA - Play Framework Introduction
vstorm83

ODN - Technical introduction of the platform
ODN - Technical introduction of the platformODN - Technical introduction of the platform
ODN - Technical introduction of the platform
Comsode - FP7 project

Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
OpenShift Origin

Spring Boot 3 And Beyond
Spring Boot 3 And BeyondSpring Boot 3 And Beyond
Spring Boot 3 And Beyond
VMware Tanzu

1java Introduction
1java Introduction1java Introduction
1java Introduction
Adil Jafri

JDK 8 and JDK 8 Updates in OpenJDK
JDK 8 and JDK 8 Updates in OpenJDKJDK 8 and JDK 8 Updates in OpenJDK
JDK 8 and JDK 8 Updates in OpenJDK
Wolfgang Weigend

An introduction to Node.js application development
An introduction to Node.js application developmentAn introduction to Node.js application development
An introduction to Node.js application development
shelloidhq

Web Component Development Using Servlet & JSP Technologies (EE6) - Chapter 1...
 Web Component Development Using Servlet & JSP Technologies (EE6) - Chapter 1... Web Component Development Using Servlet & JSP Technologies (EE6) - Chapter 1...
Web Component Development Using Servlet & JSP Technologies (EE6) - Chapter 1...
WebStackAcademy

Dockerizing the Hard Services: Neutron and Nova
Dockerizing the Hard Services: Neutron and NovaDockerizing the Hard Services: Neutron and Nova
Dockerizing the Hard Services: Neutron and Nova
clayton_oneill

Tomcat next
Tomcat nextTomcat next
Tomcat next
Jean-Frederic Clere

QConSP 2018 - Java Module System
QConSP 2018 - Java Module SystemQConSP 2018 - Java Module System
QConSP 2018 - Java Module System
Leonardo Zanivan

03_clere-HTTP2 HTTP3 the State of the Art in Our Servers.pdf
03_clere-HTTP2 HTTP3 the State of the Art in Our Servers.pdf03_clere-HTTP2 HTTP3 the State of the Art in Our Servers.pdf
03_clere-HTTP2 HTTP3 the State of the Art in Our Servers.pdf
Jean-Frederic Clere

Node.js Web Apps @ ebay scale
Node.js Web Apps @ ebay scaleNode.js Web Apps @ ebay scale
Node.js Web Apps @ ebay scale
Dmytro Semenov

Introduction to Apache Roller
Introduction to Apache RollerIntroduction to Apache Roller
Introduction to Apache Roller
Matt Raible


Similar to Tomcat and apache httpd training (20)

Java troubleshooting thread dump
Java troubleshooting thread dumpJava troubleshooting thread dump
Java troubleshooting thread dump

Apache Web Services
Apache Web ServicesApache Web Services
Apache Web Services

CON6423: Scalable JavaScript applications with Project Nashorn
CON6423: Scalable JavaScript applications with Project NashornCON6423: Scalable JavaScript applications with Project Nashorn
CON6423: Scalable JavaScript applications with Project Nashorn

JavaOne 2014 - Scalable JavaScript Applications with Project Nashorn [CON6423]
JavaOne 2014 - Scalable JavaScript Applications with Project Nashorn [CON6423]JavaOne 2014 - Scalable JavaScript Applications with Project Nashorn [CON6423]
JavaOne 2014 - Scalable JavaScript Applications with Project Nashorn [CON6423]

Станислав Сидоренко «DeviceHive Java Server – миграция на Spring Boot»
Станислав Сидоренко «DeviceHive Java Server – миграция на Spring Boot»Станислав Сидоренко «DeviceHive Java Server – миграция на Spring Boot»
Станислав Сидоренко «DeviceHive Java Server – миграция на Spring Boot»

Introduction to Apache Tomcat 7 Presentation
Introduction to Apache Tomcat 7 PresentationIntroduction to Apache Tomcat 7 Presentation
Introduction to Apache Tomcat 7 Presentation

eXo Platform SEA - Play Framework Introduction
eXo Platform SEA - Play Framework IntroductioneXo Platform SEA - Play Framework Introduction
eXo Platform SEA - Play Framework Introduction

ODN - Technical introduction of the platform
ODN - Technical introduction of the platformODN - Technical introduction of the platform
ODN - Technical introduction of the platform

Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...
Extending OpenShift Origin: Build Your Own Cartridge with Bill DeCoste of Red...

Spring Boot 3 And Beyond
Spring Boot 3 And BeyondSpring Boot 3 And Beyond
Spring Boot 3 And Beyond

1java Introduction
1java Introduction1java Introduction
1java Introduction

JDK 8 and JDK 8 Updates in OpenJDK
JDK 8 and JDK 8 Updates in OpenJDKJDK 8 and JDK 8 Updates in OpenJDK
JDK 8 and JDK 8 Updates in OpenJDK

An introduction to Node.js application development
An introduction to Node.js application developmentAn introduction to Node.js application development
An introduction to Node.js application development

Web Component Development Using Servlet & JSP Technologies (EE6) - Chapter 1...
 Web Component Development Using Servlet & JSP Technologies (EE6) - Chapter 1... Web Component Development Using Servlet & JSP Technologies (EE6) - Chapter 1...
Web Component Development Using Servlet & JSP Technologies (EE6) - Chapter 1...

Dockerizing the Hard Services: Neutron and Nova
Dockerizing the Hard Services: Neutron and NovaDockerizing the Hard Services: Neutron and Nova
Dockerizing the Hard Services: Neutron and Nova

Tomcat next
Tomcat nextTomcat next
Tomcat next

QConSP 2018 - Java Module System
QConSP 2018 - Java Module SystemQConSP 2018 - Java Module System
QConSP 2018 - Java Module System

03_clere-HTTP2 HTTP3 the State of the Art in Our Servers.pdf
03_clere-HTTP2 HTTP3 the State of the Art in Our Servers.pdf03_clere-HTTP2 HTTP3 the State of the Art in Our Servers.pdf
03_clere-HTTP2 HTTP3 the State of the Art in Our Servers.pdf

Node.js Web Apps @ ebay scale
Node.js Web Apps @ ebay scaleNode.js Web Apps @ ebay scale
Node.js Web Apps @ ebay scale

Introduction to Apache Roller
Introduction to Apache RollerIntroduction to Apache Roller
Introduction to Apache Roller


More from Franck SIMON

Distribuer une librairie via maven
Distribuer une librairie via mavenDistribuer une librairie via maven
Distribuer une librairie via maven
Franck SIMON

Java 9 modules
Java 9    modulesJava 9    modules
Java 9 modules
Franck SIMON

Java 8 - lambda
Java 8 - lambdaJava 8 - lambda
Java 8 - lambda
Franck SIMON

Java 8 - interfaces
Java 8 - interfacesJava 8 - interfaces
Java 8 - interfaces
Franck SIMON

Java 8 - DateTime
Java 8 - DateTimeJava 8 - DateTime
Java 8 - DateTime
Franck SIMON

Java 8 - collections et stream
Java 8 - collections et streamJava 8 - collections et stream
Java 8 - collections et stream
Franck SIMON

Gwt jetty et sources de données
Gwt   jetty et sources de donnéesGwt   jetty et sources de données
Gwt jetty et sources de données
Franck SIMON

Description d'un fichier de prélèvements SEPA minimum
Description d'un fichier de prélèvements SEPA minimumDescription d'un fichier de prélèvements SEPA minimum
Description d'un fichier de prélèvements SEPA minimum
Franck SIMON

Android ORMLite
Android   ORMLiteAndroid   ORMLite
Android ORMLite
Franck SIMON

JBoss - chapitre JMX
JBoss - chapitre JMXJBoss - chapitre JMX
JBoss - chapitre JMX
Franck SIMON

Java - programmation concurrente
Java - programmation concurrenteJava - programmation concurrente
Java - programmation concurrente
Franck SIMON

Android Input Method Editor
Android   Input Method EditorAndroid   Input Method Editor
Android Input Method Editor
Franck SIMON

Squid
SquidSquid
Architectures distribuées
Architectures distribuéesArchitectures distribuées
Architectures distribuées
Franck SIMON

Android NDK
Android   NDKAndroid   NDK
Android NDK
Franck SIMON

Développement Android
Développement AndroidDéveloppement Android
Développement Android
Franck SIMON

jQuery
jQueryjQuery
jQuery
Franck SIMON

Java scripting api
Java scripting apiJava scripting api
Java scripting api
Franck SIMON


More from Franck SIMON (18)

Distribuer une librairie via maven
Distribuer une librairie via mavenDistribuer une librairie via maven
Distribuer une librairie via maven

Java 9 modules
Java 9    modulesJava 9    modules
Java 9 modules

Java 8 - lambda
Java 8 - lambdaJava 8 - lambda
Java 8 - lambda

Java 8 - interfaces
Java 8 - interfacesJava 8 - interfaces
Java 8 - interfaces

Java 8 - DateTime
Java 8 - DateTimeJava 8 - DateTime
Java 8 - DateTime

Java 8 - collections et stream
Java 8 - collections et streamJava 8 - collections et stream
Java 8 - collections et stream

Gwt jetty et sources de données
Gwt   jetty et sources de donnéesGwt   jetty et sources de données
Gwt jetty et sources de données

Description d'un fichier de prélèvements SEPA minimum
Description d'un fichier de prélèvements SEPA minimumDescription d'un fichier de prélèvements SEPA minimum
Description d'un fichier de prélèvements SEPA minimum

Android ORMLite
Android   ORMLiteAndroid   ORMLite
Android ORMLite

JBoss - chapitre JMX
JBoss - chapitre JMXJBoss - chapitre JMX
JBoss - chapitre JMX

Java - programmation concurrente
Java - programmation concurrenteJava - programmation concurrente
Java - programmation concurrente

Android Input Method Editor
Android   Input Method EditorAndroid   Input Method Editor
Android Input Method Editor

Squid
SquidSquid
Squid

Architectures distribuées
Architectures distribuéesArchitectures distribuées
Architectures distribuées

Android NDK
Android   NDKAndroid   NDK
Android NDK

Développement Android
Développement AndroidDéveloppement Android
Développement Android

jQuery
jQueryjQuery
jQuery

Java scripting api
Java scripting apiJava scripting api
Java scripting api


Recently uploaded

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
RaminGhanbari2

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx
SynapseIndia

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase
Jimmy Lai

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus
Zilliz

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
ArgaBisma

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf
HackersList

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes..."Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
Anant Gupta

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf
Tatiana Al-Chueyr

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Zilliz

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
aslasdfmkhan4750

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
digitalxplive

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf
ChristopherTHyatt

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Mydbops


Recently uploaded (20)

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

How Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdfHow Social Media Hackers Help You to See Your Wife's Message.pdf
How Social Media Hackers Help You to See Your Wife's Message.pdf

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes..."Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops


Tomcat and apache httpd training

  • 1. Tomcat and Apache httpd Objectives version 1.1
  • 2. Objectives ● install Java, Tomcat, Apache httpd ● configure Tomcat ● build and monitor database connection pools ● monitor Tomcat ● secure Java EE web application ● understand Apache https configuration files ● set up and configure mod_jk ● build Tomcat clusters to ensure high availability antislashn.org Tomcat and Apache httpd - Objectives 2/4
  • 3. Chapters 0.Objectives 1.Java EE introduction 2.Installations 3.Configuring Tomcat 4.Servlet and JSP overview 5.Tomcat valves 6.Connecting databases 7.Security with Tomcat antislashn.org Tomcat and Apache httpd - Objectives 3/4
  • 4. Chapters 8.Memory Management and JMX 9.Virtual host with Apache httpd 10.Security with Apache 11.Tomcat cluster with mod_jk antislashn.org Tomcat and Apache httpd - Objectives 4/4
  • 6. Architecture What we want !!! Tomcat internet Apache httpd server mod_jk load balancer Tomcat Tomcat static resources antislashn.org Tomcat and Apache httpd - Introduction dynamic resources 2 / 37
  • 7. The evolution of the web ● 1989 – the birth of the web ● ● ● Tim Berners-Lee distributed information system for CERN physicists and engineers 1990 – the first web page ● was about the WWW project – ● World Wide Web no screen-shot of the original page antislashn.org Tomcat and Apache httpd - Introduction 3 / 37
  • 8. The evolution of the web ● source : http://evolutionofweb.appspot.com/ antislashn.org Tomcat and Apache httpd - Introduction 4 / 37
  • 9. Web server ● Primary function : to deliver web pages to clients ● ● HTTP : communication protocol between client and server Commons features ● Virtual hosting to serve many sites using one IP address ● Server-side scripting to generate dynamic web pages – ● CGI, Fast CGI, SSI, … Bandwidth throttling antislashn.org Tomcat and Apache httpd - Introduction 5 / 37
  • 10. Web server ● Market share Product Vendor May 2013 Percent Apache httpd Apache 359 441 468 53.42 % IIS Microsoft 112 303 412 16.69 % nginx NGINX Inc. 104 411 087 15.52 % GWS Google 23 029 260 3.42 % source : Wikipedia antislashn.org Tomcat and Apache httpd - Introduction 6 / 37
  • 11. HTTP ● Hypertext Transfert Protocol ● request – response protocol – – the client submits an HTTP request to the server the server send an HTTP response ● HTTP/1.0 : original version ● HTTP/1.1 : from January 1997 – ● RFC 2068 and 2616 HTTP/2.0 : 2014 ??? – based on SPDY (SPeeDY) ● antislashn.org http://www.chromium.org/spdy/spdy-whitepaper Tomcat and Apache httpd - Introduction 7 / 37
  • 12. HTTP ● Stateless protocol ● the server does not retain information about each user ● web applications implement server side session – ● cookies, hidden variables or query string parameters Default port : 80 ● HTTPS : 443 antislashn.org Tomcat and Apache httpd - Introduction 8 / 37
  • 13. HTTP ● Conversation sample ● client request ● server response antislashn.org Tomcat and Apache httpd - Introduction 9 / 37
  • 14. HTTP ● Request methods ● GET : requests a resource ● HEAD : like GET request but without the response body ● POST : requests that the server accept the entity enclose in the request – might be a form ● PUT : requests that the enclose entity be store ● DELETE : deletes the resource antislashn.org Tomcat and Apache httpd - Introduction 10 / 37
  • 15. HTTP ● HTTP methods (continuation) ● TRACE : echoes back the received request – ● ● OPTIONS : returns the HTTP methods that the server supports CONNECT : uses a proxy like a communication tunnel – ● for debug for SSL PATCH : uses to apply partial modification to a resource antislashn.org Tomcat and Apache httpd - Introduction 11 / 37
  • 16. HTTP ● ● GET and POST are the most widely used by web applications RESTful web service uses ● GET ● POST ● PUT ● PATCH ● DELETE antislashn.org Tomcat and Apache httpd - Introduction 12 / 37
  • 17. HTTP ● HTTP response status codes ● 1xx : informational ● 2xx : success – ● 3xx : redirection – – ● 301 Moved permanently 304 Not Modified 4xx : client error – ● 200 OK 404 Not Found 5xx : server error – antislashn.org 500 Internal Server Error Tomcat and Apache httpd - Introduction 13 / 37
  • 18. HTTP ● HTTP authentications ● BASIC access authentication – the username and password are combined into a string ● – ● username:password this string is then encoded using Base64 DIGEST access authentication – – antislashn.org uses MD cryptographic hashing the password is not used directly Tomcat and Apache httpd - Introduction 14 / 37
  • 19. Java evolution ● Language issued from a Sun project ● ● named “Stealth” and supervised by Patrick Naugthon ● ● 1990 James Gosling and Mike Sheridan arrived in 1994 1996 : first JDK publication – JDK : Java Development Kit ● 2009 : Oracle bought Sun ● 2010 : James Gosling quits Oracle antislashn.org Tomcat and Apache httpd - Introduction 15 / 37
  • 20. Java evolution ● JDK 1.0 – 1996 (23 of January) : 201 classes et 8 packages ● JDK 1.1 – 1997 (19 of February) : 503 classes et 23 packages ● J2SE 1.2 – 1998 (9 of December) : 1 520 classes et 59 packages ● J2SE 1.3 – 2000 (8 of May) : 1 840 classes et 76 packages ● J2SE 1.4 – 2002 (6 of February) : 2 990 classes et 135 packages ● J2SE 5.0 – 2004 (30 of September) : 3 280 classes et 166 packages ● Java SE 6 – 2006 (11 of December) : 3780 classes et 202 packages ● Java SE 7 – 2011 (7 of July) : 4 024 classes et 209 packages ● Java SE 8 – 2014 ● Java SE 9 - 2016 antislashn.org Tomcat and Apache httpd - Introduction 16 / 37
  • 21. Java acronyms ● JRE : Java Runtime Environment ● JDK : Java Development Kit ● JVM : Java Virtual Machine ● Java SE : Java Standard Edition ● ● Java ME : Java Micro Edition ● ● earlier J2SE earlier J2ME Java EE : Enterprise Edition ● antislashn.org earlier J2EE Tomcat and Apache httpd - Introduction 17 / 37
  • 22. Java acronyms ● JSR : Java Specification Request ● ● JCP : Java Community Process ● ● consortium which manage the Java evolutions EJB : Enterprise Java Bean ● ● users can ask new features in the Java platforms JavaBean component handles by a Java EE server POJO : Plain Old Java Object ● a very simple Java component antislashn.org Tomcat and Apache httpd - Introduction 18 / 37
  • 23. Java platforms ● Java SE ● standalone applications ● executed when launching the JVM – ● Java EE ● ● java tool the application is handled in a server Java ME ● embedded applications ● executed in a particular JVM : the KVM antislashn.org Tomcat and Apache httpd - Introduction 19 / 37
  • 24. Development cycle ● Simple view of development cycle source Java code file Toto.java compilation with javac tool Java bytecode Toto.class execution in the JVM java tool antislashn.org Tomcat and Apache httpd - Introduction 20 / 37
  • 25. Java EE overview source : Oracle antislashn.org Tomcat and Apache httpd - Introduction 21 / 37
  • 26. Java EE overview ● Java EE defines ● an architecture for implementing services as multitier applications – – – scalability accessibility manageability source : Oracle antislashn.org Tomcat and Apache httpd - Introduction 22 / 37
  • 27. Java EE overview ● Java EE components ● clients – web clients (or thin client) ● – application clients ● antislashn.org web brother which renders the page received from the server runs on a client machine – GUI created with Swing Tomcat and Apache httpd - Introduction 23 / 37
  • 28. Java EE overview ● Web components ● JSP and servlets source : Oracle antislashn.org Tomcat and Apache httpd - Introduction 24 / 37
  • 29. Java EE overview ● Business components Enterprise Information System source : Oracle antislashn.org Tomcat and Apache httpd - Introduction 25 / 37
  • 30. Java EE overview ● Java EE containers ● container services, provides : – JNDI – Java Naming and Directory Interface ● – Java EE security model ● – antislashn.org configures a web component or EJB so that resources are accessed only by authorized users Java EE transaction ● – the application components can access the services by their names specifies relationships among methods that make up a single transaction so that all methods in one transaction are treated as a single unit JMS, Java EE remote connectivity, mail, data sources, ... Tomcat and Apache httpd - Introduction 26 / 37
  • 31. Java EE overview ● Container types source : Oracle antislashn.org Tomcat and Apache httpd - Introduction 27 / 37
  • 32. Java EE overview ● Packaging application ● application is delivered in a Java Archive (JAR) file – – WAR : Web Archive EAR : Enterprise Archive ● contains Java EE modules source : Oracle antislashn.org Tomcat and Apache httpd - Introduction 28 / 37
  • 33. Java EE overview ● Java EE 6 APIs source : Oracle antislashn.org Tomcat and Apache httpd - Introduction 29 / 37
  • 34. Java EE overview ● Profiles ● configurations of the Java EE platform targeted at specific classes of applications – – antislashn.org Web Profile Full Profile Tomcat and Apache httpd - Introduction 30 / 37
  • 35. Java EE overview ● Web Profile includes EJB Lite ● not the full EJB API antislashn.org Tomcat and Apache httpd - Introduction 31 / 37
  • 36. Tomcat overview ● Open source server ● ● ● Java based web application container run servlet and JPS Major versions on Tomcat coincide with versions of Java Servlet specification Tomcat JSP API JDK 7.0 3.0 2.2 1.6 6.0 2.5 2.1 1.5 5.5 antislashn.org Servlet API 2.4 2.0 1.4 Tomcat and Apache httpd - Introduction 32 / 37
  • 37. Architecture of Tomcat Server Service port 8080 Connector HTTP Engine port 8443 Connector HTTPS Host Context port 8009 antislashn.org Context Connector AJP Tomcat and Apache httpd - Introduction 33 / 37
  • 38. Architecture of Tomcat ● Tomcat instance is the top-level component ● only one instance per JVM – ● multiple instances can run on separate JVM and network ports server.xml provides an XML representation of relationships between the different containers <Server> <Service> <Connector /> <Engine> <Host> <Context></Context> </Host> </Engine> </Service> </Server> antislashn.org Tomcat and Apache httpd - Introduction 34 / 37
  • 39. Architecture of Tomcat ● <Server> represents the entire Catalina server engine ● ● ● Catalina is the Java servlet container implementation may contain one or more <Service> containers <Service> holds a collection of <Connector> ● ● connectors share one <Engine> <Connector> defines the port for handling request and response antislashn.org Tomcat and Apache httpd - Introduction 35 / 37
  • 40. Architecture of Tomcat ● ● <Engine> handles all requests received by the connectors <Host> defines virtual hosts ● ● ● the virtual hosts are contained in an instance of engine each host can be a parent to one or more <Context> component <Context> represents a web application antislashn.org Tomcat and Apache httpd - Introduction 36 / 37
  • 41. Tomcat overview ● Tomcat is not ● a Web Profile server ● a httpd server – ● Tomcat is ● ● Apache httpd is better just a Java EE web container Tomcat is part of many projects ● JBoss ● TomEE ● ... antislashn.org Tomcat and Apache httpd - Introduction 37 / 37
  • 42. Installation Java – Tomcat – Apache httpd version 1.0
  • 43. Installing Java ● Installing Java on CentOS 6.4 ● download Sun/Oracle Java JDK – – ● http://www.oracle.com/technetwork/java/javase/downloads/jdk7-downloads-1880260.html select rpm in the Terminal – change to root user ● – rpm -Uvh /path/to/binary/jdk-7u45-linux-x64.rpm verify the installation ● antislashn.org sudo -i install Java JDK package ● – su - or java -version Tomcat and Apache httpd - Installation 2 / 16
  • 44. Installing Java ● Installing Java on CentOS 6.4 (continuation) ● setup JAVA_HOME – add JAVA_HOME in /etc/profile export JAVA_HOME="/usr/java/latest" – restart the computer and verify echo $JAVA_HOME antislashn.org Tomcat and Apache httpd - Installation 3 / 16
  • 45. Installing Tomcat ● Download Tomcat distribution ● http://tomcat.apache.org/download-70.cgi ● download the code distribution antislashn.org Tomcat and Apache httpd - Installation 4 / 16
  • 46. Installing Tomcat ● After downloaded, validate the distribution ● each distribution had a PGP signature and a MD5 checksum md5sum Downloads/apache-tomcat-7.0.47.zip ● Extract the download file onto /opt ● you need to be root unzip apache-tomcat-7.0.47.zip -d /opt or tar zxvf apache-tomcat-7.0.47.tar.gz mkdir /opt/apache-tomcat-7.0.47 cp -R apache-tomcat-7.0.47/* /opt/apache-tomcat-7.0.47 antislashn.org Tomcat and Apache httpd - Installation 5 / 16
  • 47. Installing Tomcat ● Setup CATALINA_HOME ● add CATALINA_HOME in /etc/profile – you need to be root export CATALINA_HOME="/opt/apache-tomcat-7.0.47" ● perhaps you need to change the tomcat folder owner – antislashn.org chown -R franck apache-tomcat-7.0.47/ Tomcat and Apache httpd - Installation 6 / 16
  • 48. Installing Tomcat ● Starting Tomcat cd /opt/apache-tomcat-7.0.47/bin/ ./startup.sh ● verifying the good installation ● open localhost:8080 antislashn.org Tomcat and Apache httpd - Installation 7 / 16
  • 49. Installing Tomcat ● Stopping Tomcat cd /opt/apache-tomcat-7.0.47/bin/ ./shutdown.sh antislashn.org Tomcat and Apache httpd - Installation 8 / 16
  • 50. Tomcat directories antislashn.org Tomcat and Apache httpd - Installation 9 / 16
  • 51. Tomcat directories ● ● bin : contains the scripts for starting and stopping Tomcat conf : contains the configuration files ● ● ● server.xml : general server configuration file web.xml, context.xml : global web application configuration files tomcat-user.xml : default user list for file-based authentication antislashn.org Tomcat and Apache httpd - Installation 10 / 16
  • 52. Tomcat directories ● lib : contains jar files used by Tomcat ● logs : contains server logs ● webapps : contains web applications ● contains some default web applications – ● includes Tomcat manager application deployment directory ● temp : contains temporary files ● work : contains compiled JSP pages antislashn.org Tomcat and Apache httpd - Installation 11 / 16
  • 53. Installing Apache httpd ● Apache httpd server is installed with CentOS by default ● if you need to install Apache httpd yum install httpd ● Starting Apache httpd ● in root mode /etc/init.d/httpd start or apachectl start antislashn.org Tomcat and Apache httpd - Installation 12 / 16
  • 54. Installing Apache httpd ● Stopping Apache httpd ● as root user /etc/init.d/httpd stop or apachectl stop ● Setting the Apache service to start on boot ● as root user chkconfig --levels 235 httpd on antislashn.org Tomcat and Apache httpd - Installation 13 / 16
  • 55. Installing Apache httpd ● Testing Apache httpd ● open http://localhost antislashn.org Tomcat and Apache httpd - Installation 14 / 16
  • 56. Installing Apache httpd ● Configuration file ● ● /etc/http/conf/httpd.conf Configure a new default web site ● create a new folder in your home – – named www for example create a default index.html page ● open httpd.conf in root mode ● change – – antislashn.org DocumentRoot entry and <Directory "/var/www/html"> directive Tomcat and Apache httpd - Installation 15 / 16
  • 57. Installing Apache httpd ● From the httpd.conf file ... # DocumentRoot: The directory out of which you will serve your # documents. By default, all requests are taken from this directory, but # symbolic links and aliases may be used to point to other locations. # DocumentRoot "/opt/www" ... # # This should be changed to whatever you set DocumentRoot to. # <Directory "/opt/www"> ... ● Restart Apache httpd antislashn.org Tomcat and Apache httpd - Installation 16 / 16
  • 59. Architecture overview ● Tomcat consists of a nested hierarchy of components Server Service connector connector Engine Logger Logger Logger Host Host Host Valve Logger Valve Realm Logger Logger Logger Valve Valve Valve Realm Valve Valve Valve Realm Context Context Context Valve Valve Wrapper antislashn.org Tomcat and Apache httpd - Tomcat configuration 2 / 33
  • 60. Architecture overview ● Server ● the server is Tomcat itself – it owns a port used for shut down the server <Server port="8005" shutdown="SHUTDOWN"> ● only one instance by JVM – separate servers can be set up on the same machine ● ● antislashn.org separate JVM and servers configured with different ports could be secure web application – one web application per server ● if the JVM crashes, only one application is affected Tomcat and Apache httpd - Tomcat configuration 3 / 33
  • 61. Architecture overview ● Service ● ● contains one or more Connectors ● ● contains a single container Engine the service is named for easily identify log messages Connectors ● they connect the applications to clients ● they represent the point at which request are received ● they are assigned a port on the server ● Coyote : default connector for HTTP/1.1 antislashn.org Tomcat and Apache httpd - Tomcat configuration 4 / 33
  • 62. Architecture overview ● Engine ● ● ● it is a request-processing component thats represents the Catalina Servlet engine it examines th HTTP headers to determine the context to which request should be passed Realm ● ● manages user authentication and authorization by default a user must still authenticate separately to each web application – antislashn.org we will see how this can be change, using sing sign-on Tomcat and Apache httpd - Tomcat configuration 5 / 33
  • 63. Architecture overview ● Valves ● enable Tomcat to intercept a request and preprocess – like filter of Servlet Specification but they are specific to Tomcat ● Hosts, Contexts and Engines may contains Valves ● they are commonly used to – – ● enable SSO log requests a Valve is a reusable component which could be add or remove – antislashn.org inclusion is transparent to web application Tomcat and Apache httpd - Tomcat configuration 6 / 33
  • 64. Architecture overview ● Loggers ● ● report on the internal state of a component Host ● Engine may contains one or more Host – – one default host zero or more virtual hosts ● antislashn.org in Tomcat virtual hosts are differentiates by a fully qualified hots name – www.example.com and www.example.net can both reside in the same server Tomcat and Apache httpd - Tomcat configuration 7 / 33
  • 65. Architecture overview ● Context ● this is the web application – it becomes parent of servelts and filters ● ● a web application could include – – ● a web.xml a context.xml supports dynamic reload – ● as StandardWrapper objects classes that have been changed are reloaded into memory may include specific error pages antislashn.org Tomcat and Apache httpd - Tomcat configuration 8 / 33
  • 66. Files in $CATALINA_HOME/conf ● server.xml ● main configuration file ● Tomcat reads this file at startup – ● application-level context should not be made in this file – ● components configured in this file affect the entire Tomcat instance use a per-application context.xml tomcat-user.xml ● contains user authentication and role-mapping antislashn.org Tomcat and Apache httpd - Tomcat configuration 9 / 33
  • 67. Files in $CATALINA_HOME/conf ● context.xml ● ● default application context for any web applications could be contains components for all the web applications deployed in Tomcat – – – ● JDBC DataSource connection realm etc. application can customized and override this file with their own context.xml file antislashn.org Tomcat and Apache httpd - Tomcat configuration 10 / 33
  • 68. Files in $CATALINA_HOME/conf ● web.xml ● ● provides basic servlet definition and MIME mappings ● ● default deployment descriptor for all web applications applications usually have their own web.xml catalina.policy ● Java SE security model – ● controls the permission to access resources default policy file for running Tomcat in secured mode antislashn.org Tomcat and Apache httpd - Tomcat configuration 11 / 33
  • 69. Files in $CATALINA_HOME/conf ● catalina.properties ● ● ● this file is read at startup provides for internal packages access and definition control logging.properties ● configuration file for logging – antislashn.org Tomcat uses its own implementation of Java Logging Tomcat and Apache httpd - Tomcat configuration 12 / 33
  • 70. <Server> component ● in server.xml ● key attributes ● ● port : TCP port to listen for the command specified by the shutdown attribute shutdown : command text string used for shutting down – can be telnet to the port 8005 with SHUTDONW to take the server down ● antislashn.org cannot be done remotely for security reasons Tomcat and Apache httpd - Tomcat configuration 13 / 33
  • 71. <Server> component ● key sub-elements ● <Service> – ● <Listener> – ● a grouping of Connectors associated with an Engine life-cycle listeners for interception of the server's life-cycle events <GlobalNamingResources> – antislashn.org JNDI global resources Tomcat and Apache httpd - Tomcat configuration 14 / 33
  • 72. <Service> component ● key attributes ● className : classe name for the service – ● name : name for the service – ● org.apache.catalina.core.StandardService by default used in logging, administration, management key elements ● <Connector> : one or more – ● component that handles external client connections <Engine> : request-processing component (Catalina) antislashn.org Tomcat and Apache httpd - Tomcat configuration 15 / 33
  • 73. Web application configuration ● A web application consist of ● static content – ● dynamic content – ● HTML pages, image files, PDF files, … servlets, JSP, Java classes Web applications are usually installed under the webapps directory ● deployed in a directory named after the web application – antislashn.org this name is also used in the web application URL Tomcat and Apache httpd - Tomcat configuration 16 / 33
  • 74. Web application configuration ● Web application structure developer's project war file antislashn.org Tomcat and Apache httpd - Tomcat configuration 17 / 33
  • 75. Web application configuration ● URL parsing Coyote connector /conf/server.xml Virtual host name /conf/server.xml http://www.example.com/bovoyage/addCaddy/5 context path processed by servlet servlet mapping /WEB-INF/web.xml antislashn.org Tomcat and Apache httpd - Tomcat configuration 18 / 33
  • 76. Web application configuration ● ROOT web application ● installed under /webapps ● default web application – no context path needs to be specified ● antislashn.org http://localhost:8080/ Tomcat and Apache httpd - Tomcat configuration 19 / 33
  • 77. Web application configuration ● WEB-INF directory contains ● web.xml file – ● classes directory – ● deployment descriptor contains all compiled Java classes lib directory – contains packaged Java libraries (.jar) ● ● if the libraries are to be accessed across web applications, they should be placed under <TOMCAT_HOME>/lib tag directory (optional) – antislashn.org contains files for tags libraries Tomcat and Apache httpd - Tomcat configuration 20 / 33
  • 78. Web application configuration ● META-INF directory contains optional files ● ● context.xml file contains the specific configuration for the web application MANIFEST.MF file – antislashn.org version, vendor, … Tomcat and Apache httpd - Tomcat configuration 21 / 33
  • 79. Deployment descriptor web.xml ● Application-specific deployement file ● key elements ● <context-param> : mechanism used for setting application-initialization parameters – ● contains <param-name> , <param-value> <filter> : reusable component that intercept the client request and response and apply some type of processing – – antislashn.org compression, … contains <filter-name>, <filter-class> Tomcat and Apache httpd - Tomcat configuration 22 / 33
  • 80. Deployment descriptor web.xml ● key elements ● <listener> : component design to respond to event in an application – ● session start and stop, application start and stop, … <servlet> : a servlet is declared by assigning it a unique name which references its fully qualified class name <servlet> <servlet-name>controleur</servlet-name> <servlet-class>org.bovoyage.servlet.ControleurServlet</servlet-class> </servlet> antislashn.org Tomcat and Apache httpd - Tomcat configuration 23 / 33
  • 81. Deployment descriptor web.xml ● key elements ● <servlet-mapping> : specifies the mapping between a servlet and a URL pattern <servlet-mapping> <servlet-name>controleur</servlet-name> <url-pattern>/controleur</url-pattern> </servlet-mapping> <servlet-mapping> <servlet-name>controleur</servlet-name> <url-pattern>/index.jsp</url-pattern> </servlet-mapping> antislashn.org Tomcat and Apache httpd - Tomcat configuration 24 / 33
  • 82. Deployment descriptor web.xml ● key elements ● <session-config> and <session-timeout> – ● used to set a session timeout value (mn) <welcome-file-list> : defines the default resource, il no resource is specified in the URL – for example http://localhost:8080/bovoyage request the index.jsp resource <welcome-file-list> <welcome-file>index.jsp</welcome-file> </welcome-file-list> antislashn.org Tomcat and Apache httpd - Tomcat configuration 25 / 33
  • 83. Deployment descriptor web.xml ● key elements ● <error-page> : error pages configuration – the cause may be a HTTP error or a Java exception <error-page> <error-code>404</error-code> <location>/errors/oops.jsp</location> </error-page> <error-page> <error-code>java.lang.NullPointerException</error-code> <location>/errors/appProblem.jsp</location> </error-page> antislashn.org Tomcat and Apache httpd - Tomcat configuration 26 / 33
  • 84. Deployment descriptor web.xml ● key elements ● ● ● <security-constraint> <security-role> <login-config> – – antislashn.org these elements relate to the configuration of login authentication in the application we shall see in detail later Tomcat and Apache httpd - Tomcat configuration 27 / 33
  • 85. Deployment descriptor web.xml ● key elements ● ● ● <resource-ref> <resource-env-ref> <env-entry> – are provided for configuring resources for the web application ● antislashn.org a database-connection pooling, ... Tomcat and Apache httpd - Tomcat configuration 28 / 33
  • 86. Tomcat manager application ● manager application is a web application ● three way to interact with the manager application – – using the web interface using HTTP requests ● ● – ● via the browser via scripts using Ant-based interface Access to the manager application is restricted to authorized users antislashn.org Tomcat and Apache httpd - Tomcat configuration 29 / 33
  • 87. Tomcat manager application ● Summary of some tasks that the manager application can perform ● deploy a new web application ● manage th currently web applications ● list the available global JNDI resources ● list the available security roles ● display session statistics antislashn.org Tomcat and Apache httpd - Tomcat configuration 30 / 33
  • 88. Tomcat manager application ● Enabling access to the manager application ● this example use the User Database Realm – – but any realm implementation can be used the username, password and roles are initialized at startup from the conf/tomcat-users.xml configuration file ● ● this file needs to be edited to add a user with a role manager-gui Tomcat need to be restarted <tomcat-users> <role rolename="manager-gui"/> <user username="admin" password="adminpw" roles="manager-gui"/> </tomcat-users> antislashn.org Tomcat and Apache httpd - Tomcat configuration 31 / 33
  • 89. Tomcat manager application ● Using HTTP requests ● URL format : http://[hostname]:[port]/manager/text/command?parameters ● commands – – ● list, sessions, start, stop, install, remove, deploy, undeploy, reload, serverinfo, roles, resources the list depends of the Tomcat version – see documentation parameters – – – antislashn.org file:/absolute/path/to/a/directory file:/absolute/path/to/a/webapp.war jar:file:/absolute/path/to/a/webapp.war! Tomcat and Apache httpd - Tomcat configuration 32 / 33
  • 90. Tomcat manager application ● Using HTTP request ● needed to add the role manager-script <role rolename="manager-gui"/> <role rolename="manager-script"/> <user username="admin" password="adminpw" roles="manager-gui,manager-script"/> ● example : – antislashn.org http://localhost:8080/manager/text/list Tomcat and Apache httpd - Tomcat configuration 33 / 33
  • 92. Servlet ● Platform-independent web application component ● ● communicate with web client using request/response The developer extends the HttpServlet class ● javax.servlet and javax.servlet.http public class HelloServlet extends HttpServlet { public void init(ServletConfig config) throws ServletException { } public void destroy() { } protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { } protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { } } antislashn.org Tomcat and Apache httpd - Servlet and JSP 2 / 12
  • 93. Servlet ● The servlet is declared in the web.xml ● the developer compiles the servlet and deployed it in the WEB-INF/classes directory <servlet> <servlet-name>HelloServlet</servlet-name> <servlet-class>org.bovoyage.servlet.HelloServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>HelloServlet</servlet-name> <url-pattern>/hello</url-pattern> </servlet-mapping> antislashn.org Tomcat and Apache httpd - Servlet and JSP 3 / 12
  • 94. Servlet ● Life-cycle class loaded HTTP request no the servlet is instantiate yes destroy() yes class changed no the servlet is unloaded antislashn.org service() Tomcat and Apache httpd - Servlet and JSP init() 4 / 12
  • 95. Servlet ● When the HttpServlet.service() method is invoked ● it reads the HTTP method type in the request ● it uses this value to determine which method to invoke HTTP Method GET doGet(HttpServletRequest,HttpServletResponse) POST doPost(HttpServletRequest,HttpServletResponse) PUT doPut(HttpServletRequest,HttpServletResponse) DELETE doDelete(HttpServletRequest,HttpServletResponse) HEAD doHead(HttpServletRequest,HttpServletResponse) OPTIONS doOptions(HttpServletRequest,HttpServletResponse) TRACE antislashn.org HttpServlet class method doTrace(HttpServletRequest,HttpServletResponse) Tomcat and Apache httpd - Servlet and JSP 5 / 12
  • 96. Servlet ● Servlet API 3.0 allows us to configure the servlet details using annotations, instead XML @WebServlet( name="HelloServlet", urlPatterns="/hello") public class HelloServlet extends HttpServlet{ ... } antislashn.org Tomcat and Apache httpd - Servlet and JSP 6 / 12
  • 97. JSP ● Java Server Page ● Simple technology <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> <title>Hello JSP</title> </head> <body> <h2>Hello, world</h2> </body> </html> antislashn.org Tomcat and Apache httpd - Servlet and JSP 7 / 12
  • 98. JSP ● Life-cycle ● translation – ● compilation – ● the JSP file is translated to Java servlet source the generated servlet class is compiled loading – the compiled servlet is loaded in memory ● instantiation ● initialization ● servicing request ● destruction antislashn.org Tomcat and Apache httpd - Servlet and JSP 8 / 12
  • 99. JSP ● Life-cycle request no class loaded yes yes JSP changed instance is unloaded translation jspInit() the class is instantiate no response antislashn.org jspService() Tomcat and Apache httpd - Servlet and JSP 9 / 12
  • 100. Components of a JSP ● Page directive ● provide global information about a JSP page <%@ page language="java" contentType="text/html; charset=UTF-8" ● pageEncoding="UTF-8"%> Include directive ● to insert file (text or JSP) at translation time <%@ include file="header.jsp" %> ● Taglib directive ● to use a custom tag library <%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %> antislashn.org Tomcat and Apache httpd - Servlet and JSP 10 / 12
  • 101. Component of a JSP ● Declarations ● used to define Java variables and methods in the JSP page <%! String name="toto"; %> <%! String getHello(){ return "Hello";} %> ● Expressions ● the expression is replaced with the resulting value of the container evaluation <%= getHello() %> <%= name %> antislashn.org Tomcat and Apache httpd - Servlet and JSP 11 / 12
  • 102. JSP Expression Language (EL) ● EL is a powerful feature introduced with the version 2.0 ● it enable developers to easily access Java objects destinations is collection of POJO ... <table> <c:forEach items="${destinations}" var="destination"> <tr> <td>${destination.region }</td> <td><a href='controleur?cde=det&id=${destination.id }'>détails</a></td> </tr> </c:forEach> </table> ... destination is a POJO antislashn.org Tomcat and Apache httpd - Servlet and JSP 12 / 12
  • 104. Valves and Filters ● The purpose of theses components is intercepting requests for one or more web application ● Valve is a proprietary Tomcat technology ● Filter is a server-independent technology ● We need a mechanism to preprocess request before it reaches the web application ● login about requests ● allowing access from certain remote IPs ● data compression antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 2 / 16
  • 105. Valves and Filters ● Theses requirements are independent of applications ● Tomcat Valves vs. Servlet Filters ● Filter is a servlet specification – – – ● it is platform-independent filter-chaining functionality is very useful it can only be configured on a web application level Valve can be better performing and robust – – antislashn.org because Valve is part of the Tomcat engine API it can be configured on the engine or host level Tomcat and Apache httpd - Tomcat valves and filters 3 / 16
  • 106. Tomcat Valves ● Tomcat uses valves internally ● ● to maintain SSL information in a request ● ● to manage authentication to log request details Some valves are configured internally y Tomcat ● BasicAuthentificationValve for the BASIC authentication antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 4 / 16
  • 107. Tomcat Valves ● Implementing a Valve public class SimpleLoggingValve extends ValveBase { @Override public void invoke(Request request, Response response) throws IOException,ServletException { String remoteAddress = request.getRemoteAddr(); String requestUri = request.getRequestURI(); System.out.println(">>> VALVE - URI : " + requestUri + " from "+remoteAddress); Valve nextValve = getNext(); if(nextValve!=null){ nextValve.invoke(request, response); } } } antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 5 / 16
  • 108. Tomcat Valves ● Adding the valve to Tomcat ● ● ● package the valve in a jar file copy the jar file in <TOMCAT_HOME>/lib Configure the valve to be executed for all requests ● modify the conf/server.xml – in the <Host> element <Valve className="org.antislashn.tomcat.valves.SimpleLoggingValve" /> antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 6 / 16
  • 109. Access Log Valve ● Tomcat prepackaged Valve ● It creates log files to track client access information ● can be associated with Engin, Host or Context ● its configuration is in server.xml file <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs" pattern="%h %l %u %t &quot;%r&quot; %s %b" prefix="localhost_access_log." suffix=".txt"/> antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 7 / 16
  • 110. Remote Access Valve ● Allow you to compare th IP address of the requesting client against one or more regular expression ● allow or prevent the request from continuing – two attributes ● ● access deny – a HTTP status code 403 <Valve className="org.apache.catalina.valves.RemoteAddrValve" deny="127.*"/> antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 8 / 16
  • 111. Crawler Session Manager Valve ● Search engines employ special programs to discover and index the web sites ● ● ● crawler or spiders when hundred of separate crawler processes access the web site, a user session will be created for each of them this valve ensures that each unique web crawler is associated with on user session <Valve className="org.apache.catalina.valves.CrawlerSessionManagerValve" crawlerUserAgents="[bB]ot.*|*Yahoo! Slurp.*|.*Feedfetcher-Google.*." sessionInactiveInterval="3600" /> antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 9 / 16
  • 112. Dead Thread Detection Valve ● Each request from a single user is processed by a separate Java thread ● sometimes these threads get stuck – – ● network problems bugs this valve helps to detect the stuck threads – threshold attribute <Valve className="org.apache.catalina.valves.DeadThreadDetectionValve" threshold="300" /> antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 10 / 16
  • 113. Servlet Filters ● Interface javax.servlet.Filter ● methods – init(FilterConfig) ● – doFilter(ServletRequest, ServletResponse, FilterChain) ● ● – this method is executed for every request must call filterChain.doFilter(...) destroy() ● antislashn.org initialize the filter – it is called once call once, when the web application is undeployed Tomcat and Apache httpd - Tomcat valves and filters 11 / 16
  • 114. Servlet Filter ● Implementing a Filter public class TimeFilter implements Filter { private FilterConfig config = null; public void destroy() { config = null; } public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException { long debut = System.currentTimeMillis(); config.getServletContext().log(">>> avant appel servlet"); chain.doFilter(request, response); long fin = System.currentTimeMillis(); config.getServletContext().log(">>> après appel servlet"); config.getServletContext().log(">>> TEMPS : " + (fin-debut) + " ms"); } public void init(FilterConfig fConfig) throws ServletException { config = fConfig; } } antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 12 / 16
  • 115. Servlet Filter ● Filter configuration ● in the WEB-INF/web.xml <filter> <display-name>TimeFilter</display-name> <filter-name>TimeFilter</filter-name> <filter-class>org.antislashn.web.TimeFilter</filter-class> </filter> <filter-mapping> <filter-name>TimeFilter</filter-name> <url-pattern>/test</url-pattern> <dispatcher>REQUEST</dispatcher> </filter-mapping> antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 13 / 16
  • 116. Servlet Filter ● Filter configuration ● <dispatcher> selects one of the following dispatcher types : – REQUEST : only when the request comes directly from the client – FORWARD : only when the request has been forwarded to a component INCLUDE : only when the request is being processed by a included component ERROR : only when the request is being processed with the error page mechanism – – antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 14 / 16
  • 117. Request Dumper Filter ● This built in filter dumps the entire HttpServletRequest to the Tomcat log <filter> <filter-name>DumperFilter</filter-name> <filter-class>org.apache.catalina.filters.RequestDumper</filter-class> </filter> <filter-mapping> <filter-name>DumperFilter</filter-name> <url-pattern>/*.jsp</url-pattern> </filter-mapping> antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 15 / 16
  • 118. Expires Filter ● It controls the HTTP expires header <filter> <filter-name>ExpiresFilter</filter-name> <filter-class>org.apache.catalina.filters.ExpiresFilter</filter-class> <init-param> <param-name>ExpiresByType image</param-name> <param-value>access plus 10 minutes</param-value> </init-param> <init-param> <param-name>ExpiresByType text/css</param-name> <param-value>access plus 10 minutes</param-value> </init-param> <init-param> <param-name>ExpiresByType application/javascript</param-name> <param-value>access plus 10 minutes</param-value> </init-param> </filter> <filter-mapping> <filter-name>ExpiresFilter</filter-name> <url-pattern>/*</url-pattern> <dispatcher>REQUEST</dispatcher> </filter-mapping> antislashn.org Tomcat and Apache httpd - Tomcat valves and filters 16 / 16
  • 120. Java Logging Framework ● ● Since Java 1.4, Java itself comes with the capable logging package java.util.logging Since Tomcat 6, Tomcat itself uses Java Logging instead Commons Logging API ● Tomcat 6 has done away with the <Logger> element – ● use the conf/logging.properties file Tomcat developers extend the functionality of the standard Java logging framework ● this implementation is known as JULI – antislashn.org Java Util Logging Interface Tomcat and Apache httpd - Tomcat logging 2 / 14
  • 121. Java Logging overview ● To instantiate a logger instance in th Java code, you will use static factory method, and construct a logger with the selected name Logger log = Logger.getLogger("org.antislashn"); ● Each logger accept messages with different logging level ● based on their importance log.severe("Message niveau severe"); log.info("Message niveau info"); log.finest("Message niveau finest"); antislashn.org Tomcat and Apache httpd - Tomcat logging 3 / 14
  • 122. Java Logging overview ● Logging levels ● SEVERE : used to log exceptions, errors, ... ● WARNING : used to log warning messages ● INFO : used to log information messages ● ● CONFIG : used to log configuration messages, initializations, ... FINE : used to log detailed information, useful for debugging purposes ● FINER : more information than FINE ● FINEST : logs all messages antislashn.org Tomcat and Apache httpd - Tomcat logging 4 / 14
  • 123. Java Logging overview ● Handlers ● each logger has a list of handlers associated with it – ● represented by an abstract class java.util.logging.Handler three main handlers are available – ConsoleHandler : outputs the logged messages to System.err – FileHandler : writes the messages to a file ● – antislashn.org supporting file rotation SocketHandler : writes messages to the network socket Tomcat and Apache httpd - Tomcat logging 5 / 14
  • 124. Java Logging overview ● Formatter ● each handler has one formatter – – format the log messages two formatters are available ● SimpleFormatter – logs message with date, time, information Infos: Initializing ProtocolHandler ["http-bio-8080"] nov. 14, 2013 11:50:03 AM org.apache.coyote.AbstractProtocol init ● antislashn.org XMLFormatter – writes messages in XML format <record> <date>2013-11-14T11:54:48</date> <millis>1384426488187</millis> <sequence>2</sequence> <logger>org.antislashn</logger> <level>FINEST</level> <class>org.antislashn.formation.log.Logger_03</class> <method>main</method> <thread>1</thread> <message>Message niveau finest</message> </record> Tomcat and Apache httpd - Tomcat logging 6 / 14
  • 125. Java Logging overview ● Formatter ● JULI adds three formatters – – – antislashn.org OneLineFormatter : same format as SimpleFormatter, but written in a single line VerbatimFormatter : writes the log message only, without any additional information JdkLoggerFormatter : uses a compact output format with timestamps Tomcat and Apache httpd - Tomcat logging 7 / 14
  • 127. Java Logging overview ● Logging configuration ● typically specified int the file logging.properties handlers= java.util.logging.ConsoleHandler java.util.logging.ConsoleHandler.level = ALL java.util.logging.ConsoleHandler.formatter = java.util.logging.XMLFormatter – #1 : defines all handlers (comma separator) ● ● – – antislashn.org handler is specified by his class name there is only one instance by JVM #2 : default logging level for this handler #3 : formatter for this handler Tomcat and Apache httpd - Tomcat logging 9 / 14
  • 128. JULI configuration ● ● Java Logging Framework guarantees than only one handler is instantiated by JVM JULI supports one handler per class loader ● a prefix is add to each handler type – – – starts with a number and an arbitrary string and ends with a period "." handlers = 1catalina.org.apache.juli.FileHandler, 2localhost.org.apache.juli.FileHandler antislashn.org Tomcat and Apache httpd - Tomcat logging 10 / 14
  • 129. JULI configuration ● The defaults handlers are defined with the .handlers property ● will be used for loggers that do not have a specific handler configured .handlers = 1catalina.org.apache.juli.FileHandler, java.util.logging.ConsoleHandler ● Each handler is configured ● name of the handler followed by the property 1catalina.org.apache.juli.FileHandler.level = FINE 1catalina.org.apache.juli.FileHandler.directory = ${catalina.base}/logs 1catalina.org.apache.juli.FileHandler.prefix = catalina. antislashn.org Tomcat and Apache httpd - Tomcat logging 11 / 14
  • 130. JULI configuration ● Rotating logs ● log file rotation is enable by default 1catalina.org.apache.juli.FileHandler.rotatable = true ● the format is {prefix}.{date}.{suffix} ● the rotation an only rotate daily antislashn.org Tomcat and Apache httpd - Tomcat logging 12 / 14
  • 131. Servlet Logging ● Servlet API defines the logging API to be used ● ● the logging based is performed by calls to ServletContext.log(String message) method developers prefer using frameworks – ● Servlet API Logging has become obsolete In Tomcat, all messages logged to Servlet log are intercepted ● Tomcat provides handlers for ServletContext logs – antislashn.org for each engine, host and context Tomcat and Apache httpd - Tomcat logging 13 / 14
  • 132. Servlet Logging ● The names follows the convention org.apache.catalina.core.ContainerBase.[ENGINE].[HOST].[CONTEXT] ● ENGINE : engine name ● HOST : host name ● CONTEXT : context name (application) ● and ends with the property defined in server.xml application name org.apache.catalina.core.ContainerBase.[Catalina].[localhost].[/manager].level = INFO org.apache.catalina.core.ContainerBase.[Catalina].[localhost].[/manager].handlers = 3manager.org.apache.juli.FileHandler antislashn.org Tomcat and Apache httpd - Tomcat logging 14 / 14
  • 134. JDBC overview ● JDBC – Java DataBase Connectivity ● ● Java base data access technology provides methods for querying and updating data in database Java application Java API calls JDBC library MySQL JDBC driver antislashn.org Oracle JDBC driver SQLServer JDBC driver Tomcat and Apache httpd - Connectiong databases 2 / 16
  • 135. JDBC overview ● In JDBC programming, developers typically perform the following steps 1.obtain a connection to the remote database server 2.create and prepare SQL statement for execution 3.execute SQL statement 4.obtain the return result set and work with it 5.disconnect from the remote database antislashn.org Tomcat and Apache httpd - Connectiong databases 3 / 16
  • 136. JDBC overview ● Example String String String String driver = "com.mysql.jdbc.Driver"; url = "jdbc:mysql://localhost:3306/bovoyage"; user = "toto"; pswd = "totopw"; // 1 - load the driver and obtain a connection Class.forName(driver); Connection conn = DriverManager.getConnection(url, user, pswd); // 2 - create and prepare a SQL statement String sql = "SELECT * FROM destinations"; Statement statement = conn.createStatement(); // 3 - execute SQL statement and obtain the result set ResultSet rs = statement.executeQuery(sql); // 4 - work on the result set while(rs.next()){ System.out.println(rs.getString("region")); } // 5 - disconnect from the remote database conn.close(); antislashn.org Tomcat and Apache httpd - Connectiong databases 4 / 16
  • 137. JDBC overview ● The driver is loaded by his name ● ● ● String type - it is usually a parameter the developer don't know the database used "com.mysql.jdbc.Driver" The database is selected by a pseudo URL ● ● DriverManager is responsible for establish the connection to the database through the driver the name and location of database is given as a URL jdbc:mysql://localhost:3306/bovoyage protocol antislashn.org sub-protocol machine holding the database Tomcat and Apache httpd - Connectiong databases path to the database on the machine 5 / 16
  • 138. JDBC overview ● Database connection pooling ● when a web application uses JDBC – a physical JDBC connection is establish between the application and the database ● – establish such a connection is ● ● ● – CPU-intensive memory-intensive execution time-intensive how long hold the connection ● ● antislashn.org via a TCP/IP connection request ? session ? Tomcat and Apache httpd - Connectiong databases 6 / 16
  • 139. JDBC overview ● Database connection pooling ● connection pooling reduces expensive session establish times – ● ● ● connects, disconnects and reconnects a pool of physical connections is created when the system starts up when the application requires a connection one of these physical connection is provided when the application "closes" the connection – – antislashn.org it is disconnected the physical connection is merely returned to the pool Tomcat and Apache httpd - Connectiong databases 7 / 16
  • 140. JDBC overview ● Database connection pooling Database connections pool manager web application antislashn.org Tomcat and Apache httpd - Connectiong databases 8 / 16
  • 141. JDBC overview ● The pool manager ● creates the initial physical connections ● manages the distribution of the physical connections – – the web application receive a logical connection closing a logical connection does not close the physical connection ● returns and close physical connections ● handles any exception or error antislashn.org Tomcat and Apache httpd - Connectiong databases 9 / 16
  • 142. JDBC overview ● The pool manager functionality may be provide by ● an application server – Tomcat, JBoss, Geronimo, GlassFish, … ● ● ● a third-party pool manager vendor a JDBC driver vendor Tomcat enables running web application to : ● access JDBC data sources using JNDI lookup ● use connection pooling value-added service antislashn.org Tomcat and Apache httpd - Connectiong databases 10 / 16
  • 143. Configuring the database connection ● The database connection is configured as a JNDI resource ● as part of the <Context> element – ● making the resource available only to the web application in the specified context in the <GlobalNamingResources> section in the server.xml file – antislashn.org the resource will be available to all the web applications deployed on the Tomcat instance Tomcat and Apache httpd - Connectiong databases 11 / 16
  • 144. Configuring the database connection ● JNDI resource for MySQL <Context reloadable="true"> <Resource name='jdbc/bovoyage' auth='Container' type='javax.sql.DataSource' driverClassName='com.mysql.jdbc.Driver' url='jdbc:mysql:///bovoyage' username='toto' password='totopw' maxActive='20' maxIdle='10' maxWait='10000' removeAbandoned='true' /> </Context> antislashn.org Tomcat and Apache httpd - Connectiong databases 12 / 16
  • 145. Configuring the database connection ● key attributes ● ● name : the name of the resource will be used to reference the same resource in the web application auth : specifies whether the sign-on to the resource manager to access to the resource is done by – – the server, "Container" value th application, "Application" value ● type : type of resource factory ● driverClassName : the database vendor class name antislashn.org Tomcat and Apache httpd - Connectiong databases 13 / 16
  • 146. Configuring the database connection ● key attributes ● url : database connection URL ● usename and password : for database connection ● ● ● validationQuery : the server executes this query each time just before it passes the connection to the application, to check the accessibility of the database maxActive : maximum number of active connections maxIdle : maximum number of connections that should be kept in the pool at all times antislashn.org Tomcat and Apache httpd - Connectiong databases 14 / 16
  • 147. Accessing the JNDI DataSource ● ● The JNDI DataSource resource is available in Tomcat We need to create a reference to the configured JNDI resource in the web deployment descriptor web.xml <resource-ref> <res-ref-name>jdbc/bovoyage</res-ref-name> <res-type>javax.sql.DataSource</res-type> <res-auth>Container</res-auth> </resource-ref> antislashn.org Tomcat and Apache httpd - Connectiong databases 15 / 16
  • 148. Accessing the JNDI DataSource ● JNDI ● ● ● the name specified is relative to the root naming context, which is define as java:comp/env the name of the resource is jdbc/bovoyage the full JNDI name of the resource will be java:comp/env/jdbc/bovoyage Context contexteJndi = new InitialContext(); DataSource dataSource = (DataSource) contexteJndi.lookup("java:comp/env/jdbc/bovoyage"); antislashn.org Tomcat and Apache httpd - Connectiong databases 16 / 16
  • 150. Security Realms ● Mechanism for protecting web application resources. ● a resource is protected with a defined security constraint – ● user role that can access to the resource Tomcat's realm is ● collection of user names and passwords ● collection of roles associated with each user antislashn.org Tomcat and Apache httpd - Security with Tomcat 2 / 38
  • 151. Security Realm ● Realm available in Tomcat ● ● ● ● ● MemoryRealm : simple implementation that uses an xml file (tomcat-users.xml) JDBCRealm : supports storing username, passwords and roles in a SQL database JNDIRealm : implementation backed by JNDI DataSourceRealm : realm backed by a JNDIconfigured JDBC datasource UserDatabaseRealm : realm backed by a custom UserDatabase configured by JNDI antislashn.org Tomcat and Apache httpd - Security with Tomcat 3 / 38
  • 152. Security Realm ● Realm available in Tomcat ● JaasRealm : authentication using JAAS – ● ● Java Authentication and Authorization Service CombinedRealm : realm that allows usage of multiple realm at the same time LockOutRealm : extends CombinedRealm, to lock out users if too many incorrect login tries are detected – antislashn.org prevent pure force server attack Tomcat and Apache httpd - Security with Tomcat 4 / 38
  • 153. MemoryRealm ● The simplest realm available in Tomcat ● uses an in-memory database which is read from an XML file – on server startup <tomcat-users> <role rolename="tomcat" /> <role rolename="role1" /> <user username="tomcat" password="tomcat" roles="tomcat" /> <user username="both" password="tomcat" roles="tomcat,role1" /> <user username="role1" password="tomcat" roles="role1" /> </tomcat-users> antislashn.org Tomcat and Apache httpd - Security with Tomcat 5 / 38
  • 154. MemoryRealm ● Protected a resource with a MemoryRealm ● enable MemoryRealm in the conf/server.xml file ● in Engine, Host or Context element ● Engine : for all the web applications ● Host : for all the web applications within that host ● Context : only this web application <Realm className="org.apache.catalina.realm.MemoryRealm" /> ● configure the application to use the configured MemoryRealm ● in the web.xml ● add a security constraint ● define a login mechanism ● declare the roles used by the security constraint antislashn.org Tomcat and Apache httpd - Security with Tomcat 6 / 38
  • 155. MemoryRealm ● Configure the application ● add the security constraint in the web.xml file <security-constraint> <web-resource-collection> <web-resource-name>Administration</web-resource-name> <description>Exemple de sécurisation de ressources WEB</description> <url-pattern>/admin/*</url-pattern> </web-resource-collection> <auth-constraint> <role-name>admin</role-name> </auth-constraint> </security-constraint> antislashn.org Tomcat and Apache httpd - Security with Tomcat 7 / 38
  • 156. MemoryRealm ● Configure the application ● define the login mechanism in the web.xml file <login-config> <auth-method>BASIC</auth-method> <realm-name>Site exemple</realm-name> </login-config> ● declare the roles used – in the web.xml file <security-role> <role-name>admin</role-name> </security-role> antislashn.org Tomcat and Apache httpd - Security with Tomcat 8 / 38
  • 157. MemoryRealm ● Restart Tomcat to apply the changes ● Navigate the browser to the URL ● a login windows is shown in the browser antislashn.org Tomcat and Apache httpd - Security with Tomcat 9 / 38
  • 158. Authentication types ● BASIC ● ● ● client authenticates by entering a username and password the browser sends the informations in plain text, Base64 encoded DIGEST ● similarly to BASIC ● username and password are digested-encoded using MD5 antislashn.org Tomcat and Apache httpd - Security with Tomcat 10 / 38
  • 159. Authentication types ● FORM ● client authenticates using a HTML form – ● ● input filed names and form action are defined as part of Java Servlet specification the sending mechanism are customizable CLIENT_CERT ● uses SSL (Secure Socket Layer) ● client and server have their own SSL certificate ● uses a mutual authentication antislashn.org Tomcat and Apache httpd - Security with Tomcat 11 / 38
  • 160. LockOutRealm ● Protection against the brute force attacks ● the LockOutRealm wraps another realm how many failed attempts how long the user will be lock out (in seconds) <Realm className="org.apache.catalina.realm.LockOutRealm" faiureCount="3" lockoutTime="3600"> <Realm className="org.apache.catalina.realm.MemoryRealm" /> </Realm> antislashn.org Tomcat and Apache httpd - Security with Tomcat 12 / 38
  • 161. UserDatabaseRealm ● Advanced version of MemoryRealm ● can be configurable via JNDI ● that allows clients to lookup objects by the know name ● in the server.xml <GlobalNamingResources> <Resource auth="Container" description="User database that can be updated and saved" factory="org.apache.catalina.users.MemoryUserDatabaseFactory" name="UserDatabase" pathname="conf/tomcat-users.xml" type="org.apache.catalina.UserDatabase"/> </GlobalNamingResources> ● and used by the Context <Realm className="org.apache.catalina.realm.UserDatabaseRealm" resourceName="UserDatabase"/> antislashn.org Tomcat and Apache httpd - Security with Tomcat 13 / 38
  • 162. JDBCRealm ● Simple like the MemoryRealm, but the JDBCRealm stores all the informations in a user-defined and JDBC-compliant database ● we need two tables – – antislashn.org one for user and password one for user and role Tomcat and Apache httpd - Security with Tomcat 14 / 38
  • 163. JDBCRealm ● Add the configuration in server.xml <JDBCRealm driverName="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://localhost/authority?user=toto;password=totopw" userTable="users" userNameCol="user_name" userCredCol="user_pass" userRoleTable="user_roles" roleNameCol="role_name" /> antislashn.org Tomcat and Apache httpd - Security with Tomcat 15 / 38
  • 164. DataSourceRealm ● DataSourceRealm is the upgraded version of JDBCRealm ● ● allows configuration of the database connection as the JNDI resource similar to UserDataBaseRealm which is a JNDI configurable version of MemoryRealm antislashn.org Tomcat and Apache httpd - Security with Tomcat 16 / 38
  • 165. DataSourceRealm ● Configuring DataSourceRealm in server.xml file <GlobalNamingResources> <Resource name="jdbc/authority" auth="Container" type="javax.sql.DataSource" maxActive="100" maxIdle="30" maxWait="10000" username="toto" password="totopw" driverClassName="com.mysql.jdbc.Driver" url="jdbc:mysql://localhost:3306/authenticate" /> </GlobalNamingResources> ● Configuring DataSourceRealm in the Context <Realm className="org.apache.catalina.realm.DataSourceRealm" dataSourceName="jdbc/authority" userTable="users" userNameCol="user_name" userCredCol="user_pass" userRoleTable="user_roles" roleNameCol="role_name" /> antislashn.org Tomcat and Apache httpd - Security with Tomcat 17 / 38
  • 166. FORM-Based authentication ● A user request a protected resource ● a login form is displayed – ● the user can enter a username and password Tomcat checks the entered details – if the entered user credentials are match in the realm ● – if the user has the required role the required page is displayed ● – authorization if user does not have the role, an error page is displayed ● antislashn.org user is authenticated code 403 Tomcat and Apache httpd - Security with Tomcat 18 / 38
  • 167. FORM-Based authentication BASIC authenticate FORM authenticate source : Oracle antislashn.org Tomcat and Apache httpd - Security with Tomcat 19 / 38
  • 168. FORM-Based authentication ● Configuration ● create a login page ● create an error page ● configure web.xml antislashn.org Tomcat and Apache httpd - Security with Tomcat 20 / 38
  • 169. FORM-Based authentication ● Login page Java Servlet specification <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1"> <title>Login</title> </head> <body> <form action="j_security_check" method="POST"> <table> <tr><td>Identifiant : </td><td><input type="text" name="j_username" /></td></tr> <tr><td>Mot de passe : </td><td><input type="password" name="j_password" /></td></tr> <tr><td colspan="2"><input type="submit" value="ENVOYER" /></td></tr> </table> </form> </body> </html> antislashn.org Tomcat and Apache httpd - Security with Tomcat 21 / 38
  • 170. FORM-Based authentication ● Error page <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1"> <title>Erreur</title> </head> <body> <h3>Erreur d'authentification</h3> </body> </html> antislashn.org Tomcat and Apache httpd - Security with Tomcat 22 / 38
  • 171. FORM-Based authentication ● Configuration in the web.xml file <login-config> <auth-method>FORM</auth-method> <form-login-config> <form-login-page>/auth/login.jsp</form-login-page> <form-error-page>/auth/erreur.jsp</form-error-page> </form-login-config> </login-config> antislashn.org Tomcat and Apache httpd - Security with Tomcat 23 / 38
  • 172. DIGEST authenticate ● UserDataBaseRealm can be configure to use DIGEST authenticate ● ● of course, the others realms can be secure in the same way we need to – select the DIGEST algorithm ● – – create the DIGEST password add this password to the Realm ● – here the tomcat-users.xml file configure the login-config ● antislashn.org in the server.xml file in the web.xml file Tomcat and Apache httpd - Security with Tomcat 24 / 38
  • 173. DIGEST authenticate ● Select the DIGEST algorithm ● in server.xml file <Realm className="org.apache.catalina.realm.UserDatabaseRealm" resourceName="UserDatabase" digest="sha"/> ● Create the DIGEST password ● Java supports two digest algorithm – ● MD5 and SHA "totopw" is the textplain password digest -a sha totopw totopw:557860fea134517d63080a07c1d507c9dde15621 antislashn.org Tomcat and Apache httpd - Security with Tomcat 25 / 38
  • 174. DIGEST authenticate ● Add this password to the Realm ● tomcat-users.xml file – <tomcat-users> <role rolename="admin" /> <user username="toto" password="totopw" roles="admin" /> </tomcat-users> – ● old file now <tomcat-users> <role rolename="admin" /> <user username="toto" roles="admin" password="557860fea134517d63080a07c1d507c9dde15621" /> </tomcat-users> Configure the login-config ● web.xml file antislashn.org <login-config> <auth-method>DIGEST</auth-method> <realm-name>Site exemple</realm-name> </login-config> Tomcat and Apache httpd - Security with Tomcat 26 / 38
  • 175. Securing with SSL ● SSL – Secure Socket Layer ● was first developed by Netscape – more recently the IETF developed TSL – Transport Level Security is based on SSL ● ● ● IETF : Internet Engineering Task Force guarantee that no one can eavesdrop on or tamper with the communication between a browser and a server SSL is a cryptographic protocol – antislashn.org using symmetric pair of keys to encrypt and decrypt traffic Tomcat and Apache httpd - Security with Tomcat 27 / 38
  • 176. Securing with SSL ● Symmetric pair of keys ● a same key is used for encryption of plaintext and decryption of ciphertext the same key is shared encryption Alice decryption Bob ? stole the key Chuck antislashn.org Tomcat and Apache httpd - Security with Tomcat 28 / 38
  • 177. Securing with SSL ● Symmetric pair of keys ● the algorithms are fast ● the algorithms are simple ● how to share the key ???? antislashn.org Tomcat and Apache httpd - Security with Tomcat 29 / 38
  • 178. Securing with SSL ● Asymmetric pair of keys ● or public-key cryptography ● two separate keys – one is private ● – one is public ● ● ● used for decryption used for encryption this key is shared the two keys are generated by a key generation program antislashn.org Tomcat and Apache httpd - Security with Tomcat 30 / 38
  • 179. Securing with SSL ● Asymmetric pair of keys ● the public key is used for encryption of plaintext ● the private key is used for decryption of ciphertext encryption Alice decryption Bob ? stole the key antislashn.org Tomcat and Apache httpd - Security with Tomcat 31 / 38
  • 180. Securing with SSL ● Digital certificate ● ● a serial number ● the owner's name ● ● contains keys validity period Keystore ● contains multiple certificates, keys antislashn.org Tomcat and Apache httpd - Security with Tomcat 32 / 38
  • 181. Securing with SSL Navigator Web server hello symmetric key generation encryption decryption decryption encryption decryption encryption all the messages use a symmetric encryption antislashn.org Tomcat and Apache httpd - Security with Tomcat 33 / 38
  • 182. Securing with SSL ● Configuring Tomcat with SSL ● create our own certificate – self-signed certificate ● – it will not be verified with an independent CA (Certificate Authority) the certificates are stored in a repository called keystore ● configuring Tomcat's SSL connector ● configuring resources in web application – antislashn.org forcing Tomcat send resources over SSL Tomcat and Apache httpd - Security with Tomcat 34 / 38
  • 183. Securing with SSL ● Create a self-signed certificate ● use keytool – JAVA_HOME/bin – keytool -genkeypair -alias tomcat -keylag RSA -keystore <TOMCAT_HOME>/conf/tomcat.keystore ● enter the required details keystore certificate 1 tomcat.keystore file with its is own password each certificate has an alias and a password certificate 2 certificate n antislashn.org Tomcat and Apache httpd - Security with Tomcat 35 / 38
  • 184. Securing with SSL ● Configuring Tomcat's SSL connector ● in server.xml file <Connector port="8443" protocol="HTTP/1.1" SSLEnabled="true" maxThreads="150" scheme="https" secure="true" clientAuth="false" sslProtocol="TLS" keystoreFile="conf/tomcat.keystore" keystorePass="azerty" keyAlias="tomcat" keyPass="abc123" /> antislashn.org used by HttpServletRequest.isSecure() no use of CLIENT_CERT Tomcat and Apache httpd - Security with Tomcat 36 / 38
  • 185. Securing with SSL ● Configuring resources in web application ● in the web.xml <security-constraint> <web-resource-collection> <web-resource-name>Administration</web-resource-name> <url-pattern>/admin/*</url-pattern> </web-resource-collection> <auth-constraint> <role-name>admin</role-name> </auth-constraint> <user-data-constraint> <transport-guarantee>CONFIDENTIAL</transport-guarantee> </user-data-constraint> </security-constraint> server.xml <Connector connectionTimeout="20000" port="8080" protocol="HTTP/1.1" redirectPort="8443" /> antislashn.org Tomcat and Apache httpd - Security with Tomcat 37 / 38
  • 186. Securing with SSL ● Try the URL … and accept the security alert antislashn.org Tomcat and Apache httpd - Security with Tomcat 38 / 38
  • 188. JMX overview ● Java Management eXtension ● ● ● specification add in Java 5 used to manage servers, applications, JVM JMX architecture ● three levels – instrumentation ● – – antislashn.org MBean probe object agent distributed services Tomcat and Apache httpd - JMX 2 / 16
  • 189. JMX overview antislashn.org Tomcat and Apache httpd - JMX 3 / 16
  • 190. JMX overview JMX client client level Connectors and adapters JMX agent Services : ●Timers ●Notification MBean server instrumentation antislashn.org MBean MBean MBean Tomcat and Apache httpd - JMX 4 / 16
  • 191. JMX overview ● MBeans are software modules ● ● expose the capabilities of a hardware device or software component different types of MBean – Standard MBean ● – – – – antislashn.org only this one will be discussed here Dynamic MBean Model MBean Open MBean MXBean Tomcat and Apache httpd - JMX 5 / 16
  • 192. JMX – Standard MBean ● Simple ● an Java interface – – – ● same name than implementation class suffixed with MBean getter → read property setter → write property an Java implementation class antislashn.org Tomcat and Apache httpd - JMX 6 / 16
  • 193. JMX – Standard MBean ● The MBean is identified by its unique name ● ObjectName class ● two parts – – – domain properties both separate by a colon character jboss.deployment:flavor=URL,type=DeploymentScanner antislashn.org Tomcat and Apache httpd - JMX 7 / 16
  • 194. JMX – Standard MBean ● Java interface public interface HelloMBean { // properties String getName(); String getColor(); void setColor(String color); // operations void sayHello(); double add(double a, double b); } antislashn.org Tomcat and Apache httpd - JMX 8 / 16
  • 195. JMX – Standard MBean ● Java implementation class public class Hello implements HelloMBean { private String name ="Toto Standard MBean"; private String color = "vert"; @Override public String getName() { return name; } @Override public String getColor() { return color; } @Override public void setColor(String color) { this.color = color; } @Override public void sayHello() { System.out.println(">>> Standard MBean "+name+" - "+color); } } antislashn.org @Override public double add(double a, double b) { return a+b; } Tomcat and Apache httpd - JMX 9 / 16
  • 196. JMX – Standard MBean ● Agent level - main steps ● recovering a MBean server MBeanServer mbs = ManagementFactory.getPlatformMBeanServercreating(); ● instantiating an ObejctName ObjectName mBeanName = new ObjectName("antislashn.jmx:bean=Hello,type=standard"); ● recording the MBean in the server HelloMBean mBean = new Hello(); mbs.registerMBean(mBean, mBeanName); antislashn.org Tomcat and Apache httpd - JMX 10 / 16
  • 197. JMX – Standard MBean ● For securing reasons, we need to activate the JMX access ● -Dcom.sun.management.jmxremote ● other properties could be defined – – mandatory if remote JMX access see the password template file in <JRE_HOME>/lib/management java -Dcom.sun.management.jmxremote.port=3333 -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.authenticate=false MonAppliJava antislashn.org Tomcat and Apache httpd - JMX 11 / 16
  • 198. JMX – Standard MBean ● We can now use jconsole or jvisualvm antislashn.org Tomcat and Apache httpd - JMX 12 / 16
  • 199. Tomcat and JMX ● Working with the JMX proxy ● add the role manager-jmx ● the URL for accessing the JMX proxy is as follow – – http://<host>:<port>/manager/jmxproxy/<operation details> example ● antislashn.org http://localhost:8080/manager/jmxproxy/list Tomcat and Apache httpd - JMX 13 / 16
  • 200. Tomcat and JMX ● Using jconsole to monitor Tomcat ● we must enable the JMX support inside Tomcat – add a file called ● ● – setenv.sh in Linux setenv.bat in Windows with the following line set CATALINA_OPTS=-Dcom.sun.management.jmxremote ● restart Tomcat antislashn.org Tomcat and Apache httpd - JMX 14 / 16
  • 201. Tomcat and JMX ● Start jconsole antislashn.org Tomcat and Apache httpd - JMX 15 / 16
  • 202. Tomcat and JMX ● Go to the mbeans tab antislashn.org Tomcat and Apache httpd - JMX 16 / 16
  • 204. Configuration files ● Main configuration file ● usually called httpd.conf – – – <apache_home>/conf/httpd.conf in Windows /etc/httpd/conf/httpd.conf in CentOS /etc/apache2/httpd.conf in Unbuntu ● ● the file references the modules folder – enabled directory other configuration files can be added with using the Include directive ● MIME document types are defined in mime.type file ● .htaccess file contains directives for one web site antislashn.org Tomcat and Apache httpd - Configuring Apache httpd 2 / 12
  • 205. Configuration files ● ● Directives placed in httpd.conf file apply to the entire server To change the configuration for only a part of the server ● placing the directives in one of the following sections – – Files, FilesMatch – Location, LocationMatch – antislashn.org Directory, DirectoryMatch VirtualHost Tomcat and Apache httpd - Configuring Apache httpd 3 / 12
  • 206. Configuration ● Syntax ● one directive per line – – backslash "" must be used as the last character on one line to indicate that the directive continue onto the next line some directives are block directives <Directory "/var/www/cgi-bin"> AllowOverride None Options None Order allow,deny Allow from all </Directory> ● hash "#" on the begin of a line indicates a comment – ● comments may not be included on a line after a directive directives are case-sensitive antislashn.org Tomcat and Apache httpd - Configuring Apache httpd 4 / 12
  • 207. Configuration ● Terms used to describe directives ● description ● syntax ● default ● context – – – – antislashn.org server configuration : the directive may be used only in httpd.conf virtual host directory : the directive may be used inside <Directory>, <Location>, <Files> and <Proxy> .htaccess Tomcat and Apache httpd - Configuring Apache httpd 5 / 12
  • 208. Configuration ● Terms used to describe directives ● status – – – – – core : the directive is part of the server MPM : Multi-Processing Module base : standards Apache module extension : modules included with Apache, but not enabled experimental ● module ● compatibility ● comments antislashn.org Tomcat and Apache httpd - Configuring Apache httpd 6 / 12
  • 209. Configuration ● Examples antislashn.org Tomcat and Apache httpd - Configuring Apache httpd 7 / 12
  • 210. Configuration ● Binding to listen on a specific addresses and port ● Listen directive – – ● Listen 80 default examples Listen 90 Listen 192.168.0.45:80 Modules ● extended feature are available through modules ● a module can be loaded by the LoadModule directive antislashn.org Tomcat and Apache httpd - Configuring Apache httpd 8 / 12
  • 211. Default web site ● The default web site ● DocumentRoot directive – ● DocumentRoot "/opt/www/" if DocumentRoot changed, you need to change the <Directory ...> directive to the same directory <Directory "/opt/www/"> Options Indexes FollowSymLinks AllowOverride None Order allow,deny Allow from all </Directory> antislashn.org Tomcat and Apache httpd - Configuring Apache httpd 9 / 12
  • 212. Default resource ● DirectoryIndex ● set the list of resources to look for when the client request a default one – http://www.example.com/ DirectoryIndex index.html index.php ● if none of the resources exist and Indexes option is set, the server will generate its own listing of the directory – antislashn.org see the Options directives Tomcat and Apache httpd - Configuring Apache httpd 10 / 12
  • 213. Log files ● Default location ● ● CentOS : /var/log/httpd ErrorLog directive ● LogLevel directive – debug, info, notice, warn, error, crit, alert, emerg ● ● default : warn LogFormat directive defines format nickname LogFormat "%h %l %u %t "%r" %>s %b" common antislashn.org Tomcat and Apache httpd - Configuring Apache httpd 11 / 12
  • 214. Log files ● Server error log is the most important log file ● Other logs use CustomLog directive ● or TransferLog directive – – ● does not allow the log format to specified uses the mots recently defined LogFormat access log configuration LogFormat "%h %l %u %t "%r" %>s %b "%{Referer}i" "%{User-Agent}i"" combined CustomLog logs/access_log combined ::1 - - [20/Nov/2013:03:41:22 -0800] "GET / HTTP/1.1" 304 - "-" "Mozilla/5.0 (X11; Linux x86_64; rv:17.0) Gecko/20131029 Firefox/17.0" antislashn.org Tomcat and Apache httpd - Configuring Apache httpd 12 / 12
  • 216. Virtual host overview ● Practice of running more than web site on a single machine ● can be – IP-based ● – name-based ● antislashn.org an IP address per web site more than web site per IP address Tomcat and Apache httpd - Virtual host with Apache httpd 2/6
  • 217. Name-based virtual hosts ● You must have DNS entries ● use hosts file – /etc/hosts in CentOS 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 – C:WindowsSystem32driversetchosts in Windows 127.0.0.1 ::1 antislashn.org localhost toto.exemple localhost toto.exemple Tomcat and Apache httpd - Virtual host with Apache httpd 3/6
  • 218. Name-based virtual hosts NameVirtualHost *:80 <VirtualHost *:80> DocumentRoot /www/example1 ServerName www.toto.exemple ServerAlias www.toto.example toto.example </VirtualHost> <VirtualHost *:80> DocumentRoot /www/example2 ServerName www.example.org </VirtualHost> antislashn.org Tomcat and Apache httpd - Virtual host with Apache httpd 4/6
  • 219. IP-based virtual hosts ● the server has two IP addresses ● ● Listen 80 on one (172.20.30.40) we will serve the "main" (server.domain.com) on the other (172.20.30.50) we will serve two or more virtual hosts # This is the "main" server running on 172.20.30.40 ServerName server.domain.com DocumentRoot /www/mainserver # This is the other address NameVirtualHost 172.20.30.50 <VirtualHost 172.20.30.50> DocumentRoot /www/example1 ServerName www.example.com # Other directives here ... </VirtualHost> <VirtualHost 172.20.30.50> DocumentRoot /www/example2 ServerName www.example.org # Other directives here ... </VirtualHost> antislashn.org Tomcat and Apache httpd - Virtual host with Apache httpd 5/6
  • 220. IP-based virtual hosts <VirtualHost 192.168.0.1:80> ServerAdmin webmaster@smallco.example.com DocumentRoot /groups/smallco/www ServerName smallco.example.com ErrorLog /groups/smallco/logs/error_log TransferLog /groups/smallco/logs/access_log </VirtualHost> <VirtualHost 192.168.0.2:80> ServerAdmin webmaster@baygroup.example.org DocumentRoot /groups/baygroup/www ServerName baygroup.example.com ErrorLog /groups/baygroup/logs/error_log TransferLog /groups/baygroup/logs/access_log </VirtualHost> antislashn.org Tomcat and Apache httpd - Virtual host with Apache httpd 6/6
  • 222. Security tips ● Keep up to date ● Permissions an ServerRoot directories ● ● Apache is started by the root user it switches to the user defines by the User directive to serve hits – in httpd.conf User apache Group apache ● Beware of SSI, CGI, aliases ● Watching your logs antislashn.org Tomcat and Apache httpd - Security with Apache httpd 2 / 31
  • 223. Options directive ● Controls which server features are available in a particular directory ● ● Syntax Options [+|-] option [[+|-] option] ... option can be set to ● None : none of the extra features are enabled ● All : all options except for MultiView is permitted ● ExecCGI : execution of CGI scripts is permitted – ● cf. mod_cgi module FollowSymLinks : the server will follow symbolic links antislashn.org Tomcat and Apache httpd - Security with Apache httpd 3 / 31
  • 224. Options directive ● option can be set to ● Include : server-side includes (SSI) are permitted – ● ● cf. mod_include module IncludeNOEXEC : SSI is permitted but CGI are disabled Indexes : if no default resource match with DirectoryIndexe, the server will return a formatted listing of the directory – antislashn.org cf. mod_include module Tomcat and Apache httpd - Security with Apache httpd 4 / 31
  • 225. Options directive ● option can be set to ● MultiViews : content negotiated is allowed – – cf. mod_negotiation module the server can choose the best presentation of a resource based on the browsed-supplied preferences ● ● language, encoding, charset SymLinksIsOwnerMatch : server only follows symbolic links if the target resource is owned by the same user as the link antislashn.org Tomcat and Apache httpd - Security with Apache httpd 5 / 31
  • 226. Allow directive ● Affects which hosts can access resources ● access can be controlled by – – – ● hostname IP address, IP range address other characteristics of the client request captured in the environment variables syntax Allow from all|host|env=[!]env-variable [host|env=[!]env-variable] ... antislashn.org Tomcat and Apache httpd - Security with Apache httpd 6 / 31
  • 227. Allow directive ● The first argument is always from Allow from all all hosts are allowed access (subject to the configuration of the Deny and Order directives) hosts whose name match, or end in, with the string are allowed access this configuration will cause Apache to perform a double DNS lookup per client access Allow from example.org Allow from .com toto.net Allow from 10.1.2.3 Allow from 192.168.1.104 192.168.1.205 an IP address of a host allowed access Allow from 10.1 Allow from 10 172.20 192.168.2 the first 1 to 3 bytes of an IP address antislashn.org Tomcat and Apache httpd - Security with Apache httpd 7 / 31
  • 228. Allow directive ● Examples Allow from 10.1.10.0.0/255.255.0.0 Allow from 2001::db8::a00::20ff::fea7::ccea SetEnvIf User-Agent ^KnockKnock/2.0 let_me_in <Directory /docroot> Order Deny,Allow Deny from all Allow from env=let_me_in </Directory> antislashn.org a network a.b.c.d and a netmask w.x.y.z IP v6 addresses browsers with a user-agent string beginning with KnockKnock/2.0 will be allowed to access all others will be denied Tomcat and Apache httpd - Security with Apache httpd 8 / 31
  • 229. Deny Directive ● This directive allows access to the server to be restricted on hostname, IP address or environment variable ● the arguments for the Deny directive are identical to the arguments for the Allow directive antislashn.org Tomcat and Apache httpd - Security with Apache httpd 9 / 31
  • 230. Order Directive ● This directive, along with the Allow and Deny directives, controls a three pass access control ● first pass processes all Allow and Deny directives – ● ● as specified by the Order directives second pass parses the rest of the directives (Deny or Allow) third pass applies to all request which do not match either the first two antislashn.org Tomcat and Apache httpd - Security with Apache httpd 10 / 31
  • 231. Order Directive ● Ordering is one of : ● no whitespace is allowed between keywords Allow,Deny First all Allow directives are evaluated, at least one must match, or the request is rejected Next all Deny directives are evaluated, if any match the request is rejected Last any request which not match an Allow or Deny are denied by default Deny,Allow First all Deny directives are evaluated, if any match, the request is denied unless it also matches an Allow directives All request which do not match any Allow or Deny directives are permitted antislashn.org Tomcat and Apache httpd - Security with Apache httpd 11 / 31
  • 232. Order directive ● Summary Match Allow,Deny result Deny,Allow result match Allow only request allowed request allowed match Deny only request denied request denied no match default to second directive : DENIED default to second directive : ALLOWED match both Allow and Deny final match controls : DENIED final match controls : ALLOWED antislashn.org Tomcat and Apache httpd - Security with Apache httpd 12 / 31
  • 233. Order directive ● Examples Order Deny,Allow Deny from all Allow from example.com Order Allow,Deny Allow from example.com Deny from foo.example.com antislashn.org all hosts in example.com domain are allowed access all other hosts are denied access all hosts in the example.com domain are allowed access, except the hosts which are in foo.example.com subdomain all hosts not in the example.com domain are denied access Tomcat and Apache httpd - Security with Apache httpd 13 / 31
  • 234. Authentication ● Authentication is simple ● ● ● ● client sends his name and password server looks up of names and passwords It is also possible to group a number of people into named groups Each username-password pair is valid for a particular realm antislashn.org Tomcat and Apache httpd - Security with Apache httpd 14 / 31
  • 235. Authentication ● ● The browser asks for an URL The server sends back "Authentication Required" and the realm ● ● code 401 If the browser already has a username-password for that realm, it sends the request again with the username-password ● if not, it prompts the user and sends that antislashn.org Tomcat and Apache httpd - Security with Apache httpd 15 / 31
  • 236. Authentication web site realm (AuthName directive) antislashn.org Tomcat and Apache httpd - Security with Apache httpd 16 / 31
  • 237. Authentication ● Two authentication type ● see the AuthType directive ● Basic – ● Digest – ● mod_auth_basic module mod_auth_digest module Based on two fundamental informations ● authentication provider – ● AuthDigestProvider, AuthBasicProvider directives authorization – antislashn.org Require directive Tomcat and Apache httpd - Security with Apache httpd 17 / 31
  • 238. Authentication ● Example <Directory d:/www/autorise> AuthName "Royaume secret" AuthType Basic require valid-user AuthUserFile D:/passwords </Directory> ● AuthName : name of the realm ● AuthType : Basic or Digest ● AuthUserFile : passwords file ● Required : group, user or valid-user antislashn.org Tomcat and Apache httpd - Security with Apache httpd 18 / 31
  • 239. Authenticate ● <Limit> directive ● ● access controls are normally effective for all HTTP methods this directive restricts the access of the access control to the nominated HTTP methods <Limit POST PUT DELETE> Require valid-user </Limit> ● see also <LimitExcept> directive antislashn.org Tomcat and Apache httpd - Security with Apache httpd 19 / 31
  • 240. Basic authentication ● AuthType Basic directive ● ● ● client authenticates by entering a username and password the browser sends the informations in plain-text, Base64 encoded Steps ● ● ● create a password file configure the server to request a password and tell the server which user are allowed access optional : create a group-users file antislashn.org Tomcat and Apache httpd - Security with Apache httpd 20 / 31
  • 241. Basic authentication ● Create the password file ● the file is placed somewhere not accessible from the web ● use the htpasswd utility that came with Apache – – ● in CentOs : /usr/bin directory in Ubuntu : /usr/local/apache2/bin see htpasswd documentation – http://httpd.apache.org/docs/2.2/programs/htpasswd.html htpasswd [ -c ] [ -m ] [ -D ] passwdfile username htpasswd -b [ -c ] [ -m | -d | -p | -s ] [ -D ] passwdfile username password antislashn.org Tomcat and Apache httpd - Security with Apache httpd 21 / 31
  • 242. Basic authentication ● Create the group file ● ● simple text-plain each line of group contains a groupname followed by the list of user groups – mygroup: bob joe anne ● Configure the server <Directory d:/www/autorise> AuthName "Royaume secret" AuthType Basic require group chef AuthUserFile D:/htpasswd AuthGroupFile D:/htgroup </Directory> antislashn.org Tomcat and Apache httpd - Security with Apache httpd 22 / 31
