- 1. Baraka Gitari Masters Thesis Proposal Part 1 of 3 BACTERIAL CELLULOSE: THE PERFECT MEDIUM 1
- 2. -Goal -History (Literature) - Subcellular processes - Hestrin Schramm Medium with modifications - Extracting cellulose -Plan -Synthesizing -Processing (Extracting, electrospinning) -Characterizing (DSC, SEM, XRD, TGA, OM) -Hurdles -Aseptic procedure OUTLINE 2

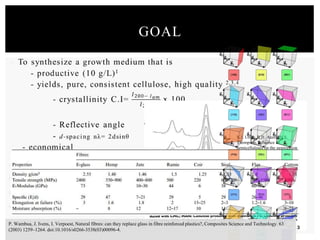

- 3. GOAL K.I. Uhlin, R.H. Atalla, N.S. Thompson, Influence of hemicelluloses on the aggregation patterns of bacterial cellulose, Cellulose. 2 (1995) 129–144. doi:10.1007/bf00816385. 3 P. Wambua, J. Ivens, I. Verpoest, Natural fibres: can they replace glass in fibre reinforced plastics?, Composites Science and Technology. 63 (2003) 1259–1264. doi:10.1016/s0266-3538(03)00096-4.

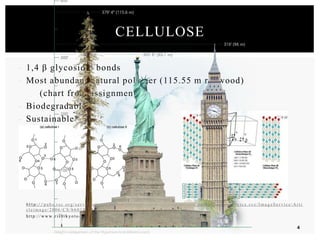

- 4. - 1,4 β glycosidic bonds - Most abundant natural polymer (115.55 m redwood) (chart from assignment 2) - Biodegradable - Sustainable* - http:// pubs.r s c .or g/ s er vi c e s/ i ma ge s/ RS Cp ub s. eP l a t fo r m. S er vi c e. Fr e e Co nt e nt .I ma g eS er vi c e. s vc /I ma g eS e r vi c e / Ar ti cleima ge/ 2006 /C S/b6 01872 f/b 601872 f - f2 . gi f - http:// ww w. r is h. kyo to - u. a c.j p/ W / LB M I/ r e s e ar c h/I a ib_ S.j p g CELLULOSE 4
- 5. -Intracellular polymerization, extracellular crystallization - Gluconacetobacter xylinus - Bacterial Cellulose Synthase5 - activated by ci-di-GMP - Substrate UDP-Glucose - BcsA/B/C/D subunits from BcsI and BcsII opersons - Mutations6 - G. xylinus NBRC 3288,(frameshift bcsBI and transposon insertion bcsCII) - K. hansenii ATCC 23769 (IS cellulose synthase) - Acetobacter tropicalis SKU1100 (R to S via single C deletion or insertion polE) - complete genome sequencing - Basics of protein function and mechanisms 5. J .L.W. Morgan, J .T. Mcnamara, J . Zimmer, Mechanism of activation of bacterial cellulose synthase by cyclic di - GMP, Nat Struct Mol Biol Nature Structural &Amp; Molecular Biology. 21 (2014) 489 –496. doi:10.1038/nsmb.2803 . 6. M. Matsutani, K. Ito, Y. Azuma, H. Ogino, M. Shirai, T. Yakushi, et al., Adaptive mutation related to cellulose producibility in Komagataeibacter medellinensis (Gluconacetobacter xylinus) NBRC 3288, Appl Microbiol Biotechnol Applied Microbiology and Biotechnology. 99 (2015) 7229 –7240. doi:10.1007/s00253 -015-6598-x. HISTORY: SUBCELLULAR ci-di-GMP UDP-Glucose 5
- 6. 7. K. J i, W . W ang, B . Zeng, S. Chen, Q. Zhao, Y. Chen, et al., Bacteria l cellulos e synt hes i s mecha ni s m of facul t ati v e anaerob e Enteroba ct e r sp. FY -07, Sci. Rep. Scienti fi c Reports. 6 (2016) 21863. doi:10.1038/srep 21863 . HISTORY: SUBCELLULAR 6

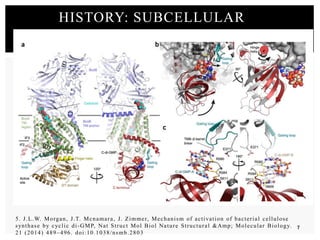

- 7. 5. J.L.W. Morgan, J.T. Mcnamara, J. Zimmer, Mechanism of activation of bacterial cellulose synthase by cyclic di-GMP, Nat Struct Mol Biol Nature Structural &Amp; Molecular Biology. 21 (2014) 489–496. doi:10.1038/nsmb.2803 HISTORY: SUBCELLULAR 7
- 8. - Hestrin Schramm Medium8 (1954) (% w/v) - glucose 2.0 - bactopeptone 0.5 - yeast extract 0.5 - di-sodium hydrogen phosphate* Na2HPO4 0.27 - citric acid* 0.12 - starting pH 6.0 - Modifications -sugars (sucrose, fructose) - Alcohols -micronutrients (P, S, K, Mg, Ca , Fe) - antioxidants (lignosulfonate) - pH 8 . M. Schramm, S. Hestrin , Factors affecting Production of Cellulose at the Air/ Liquid Interface of a Culture of Acetobacter xylinum, Journal of General Microbio lo gy. 11 (1954) 123 –129. doi:10.109 9/0 02 212 87 -1 1-1 -1 23. https://ndb.nal .usda .go v/ ndb/ foo ds/sho w/ 87 34? fo r ma t= F u l l& re por t f m t=p df&p df Qvs= % 7 B % 7D HISTORY: GROWTH MEDIUM 8
- 9. A. Kurosumi, C. Sasaki, Y. Yamashita, Y. Nakamura, Utilization of various fruit juices as carbon source for production of bacterial cellulose by Acetobacter xylinum NBRC 13693, Carbohydrate Polymers. 76 (2009) 333–335. doi:10.1016/j.carbpol.2008.11.009. 9 Micronutrient Orange Juice Pineapple Juice Calcium 10.89 mg 13 mg Iron 0.20 mg 0.29 mg Magnesium 10.89 mg 12 mg Potassium 200 mg 109 mg

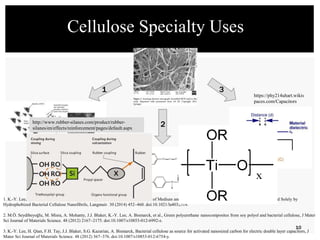

- 10. 10 Cellulose Specialty Uses https://phy214uhart.wikis paces.com/Capacitors 1. K.-Y. Lee, J.J. Blaker, R. Murakami, J.Y.Y. Heng, A. Bismarck, Phase Behavior of Medium and High Internal Phase Water-in-Oil Emulsions Stabilized Solely by Hydrophobized Bacterial Cellulose Nanofibrils, Langmuir. 30 (2014) 452–460. doi:10.1021/la4032514. 2. M.Ö. Seydibeyoğlu, M. Misra, A. Mohanty, J.J. Blaker, K.-Y. Lee, A. Bismarck, et al., Green polyurethane nanocomposites from soy polyol and bacterial cellulose, J Mater Sci Journal of Materials Science. 48 (2012) 2167–2175. doi:10.1007/s10853-012-6992-z. 3. K.-Y. Lee, H. Qian, F.H. Tay, J.J. Blaker, S.G. Kazarian, A. Bismarck, Bacterial cellulose as source for activated nanosized carbon for electric double layer capacitors, J Mater Sci Journal of Materials Science. 48 (2012) 367–376. doi:10.1007/s10853-012-6754-y. 1 2 3 http://www.rubber-silanes.com/product/rubber- silanes/en/effects/reinforcement/pages/default.aspx

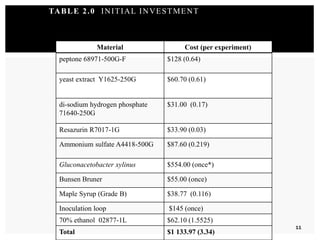

- 11. TABLE 2.0 INITIAL INVESTMENT Material Cost (per experiment) peptone 68971-500G-F $128 (0.64) yeast extract Y1625-250G $60.70 (0.61) di-sodium hydrogen phosphate 71640-250G $31.00 (0.17) Resazurin R7017-1G $33.90 (0.03) Ammonium sulfate A4418-500G $87.60 (0.219) Gluconacetobacter xylinus $554.00 (once*) Bunsen Bruner $55.00 (once) Maple Syrup (Grade B) $38.77 (0.116) Inoculation loop $145 (once) 70% ethanol 02877-1L $62.10 (1.5525) Total $1 133.97 (3.34) 11
- 12. TABLE 1.0 GROWTH MEDIUM SOURCE AND BACTERIAL FUNCTION Element Medium Source Function Carbon -Grade B Maple Syrup -peptone, yeast extract - Backbone of organic molecules Oxygen -Oxygen in air - organic compounds - Last acceptor in ETC - Organic molecules Nitrogen - Peptone, - Yeast extract - Ammonium sulfate - Proteins - Nucleic acids - Coenzymes Hydrogen -organic compounds - H2 in air -Organic molecules Phosphorous - Na2HPO4 (di-sodium hydrogen phosphate) -Nucleic acids -Phospholipids - Lipopolysaccharides (LPS) Sulfur NH4SO4 - Amino Acids with Sulfur - Coenzyme Potassium -Grade B Maple Syrup -intracellular cation -cytoplasmic signaling -incorporation of sulfur into protein - Cofactor (pyruvate kinase) Magnesium -Grade B Maple Syrup - Cofactor (pyruvate kinase) - Stabilizes (ATP, nucleic acids, RNA, membrane) Calcium -Grade B Maple Syrup - Intracellular signaling hypothesized Iron -Grade B Maple Syrup - Cytochrome ETC 12
- 13. PLAN: EXPERIMENTAL PROCEDURE autoclave Bunsen burner ShakerΔT 53524 centrifuge 13

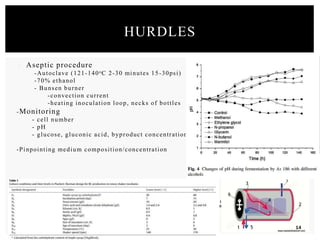

- 14. - Aseptic procedure - clean bench -Autoclave (121-140oC 2-30 minutes 15-30psi) -70% ethanol - Bunsen burner -convection current -heating inoculation loop, necks of bottles -Monitoring - cell number - pH - glucose, gluconic acid, byproduct concentration, cellulose production -Pinpointing medium composition/concentration http:// ww w. e xpl a i nt ha t st uf f. co m/ a uto c l a ve s. ht ml http:// ww w. s t er il i z er s. c o m/ a u to cl a v e-t i me -t e mp e r at ur e -pr e s s ur e -c h ar t. h t ml Table 1.0 X. Zeng, D.P. Smal l, W. Wan, Statist ica l optimiza t i on of culture conditions for bacterial cellulose production by Acetobacter xylinum BPR 2001 from maple syrup, Carbohydrate Polymers. 85 (2011) 506 –513. doi:10.1016/ j .ca rbp o l. 20 11. 02 .0 34. HURDLES 14
