The frame is an integral structural part of an automobile.
It supports power plant , transmission system, wheels and tyres etc.
The body is also fitted on it.
Attachment of all these parts and systems may be rigid or flexible.
The front and rear wheels are connected with the frame by means of spring shackles.
Frames are supported by a suspension system which is attached to the wheels.
This is done for comfortable driving.
simple chassis design considerations used for the purpose of presentations in colleges as well as in any industries. i also gives the classification of chassis.
vapor absorption system,three fluid vapor absorption system,water and ammonia vapor absorption system water and lithium bromide vapor absorption system
What Exactly Is The Common Rail Direct Injection System & How Does It WorkMotor Cars International
Learn about Common Rail Direct Injection (CRDi) - the revolutionary technology that has made diesel engines more efficient. Explore its workings, advantages like enhanced fuel efficiency and increased power output, along with drawbacks such as complexity and higher initial cost. Compare CRDi with traditional diesel engines and discover why it's the preferred choice for modern engines.
What Does the PARKTRONIC Inoperative, See Owner's Manual Message Mean for You...Autohaus Service and Sales
Learn what "PARKTRONIC Inoperative, See Owner's Manual" means for your Mercedes-Benz. This message indicates a malfunction in the parking assistance system, potentially due to sensor issues or electrical faults. Prompt attention is crucial to ensure safety and functionality. Follow steps outlined for diagnosis and repair in the owner's manual.
In this presentation, we have discussed a very important feature of BMW X5 cars… the Comfort Access. Things that can significantly limit its functionality. And things that you can try to restore the functionality of such a convenient feature of your vehicle.
What Does the Active Steering Malfunction Warning Mean for Your BMWTanner Motors
Discover the reasons why your BMW’s Active Steering malfunction warning might come on. From electrical glitches to mechanical failures and software anomalies, addressing these promptly with professional inspection and maintenance ensures continued safety and performance on the road, maintaining the integrity of your driving experience.
Core technology of Hyundai Motor Group's EV platform 'E-GMP'Hyundai Motor Group
What’s the force behind Hyundai Motor Group's EV performance and quality?
Maximized driving performance and quick charging time through high-density battery pack and fast charging technology and applicable to various vehicle types!
Discover more about Hyundai Motor Group’s EV platform ‘E-GMP’!
𝘼𝙣𝙩𝙞𝙦𝙪𝙚 𝙋𝙡𝙖𝙨𝙩𝙞𝙘 𝙏𝙧𝙖𝙙𝙚𝙧𝙨 𝙞𝙨 𝙫𝙚𝙧𝙮 𝙛𝙖𝙢𝙤𝙪𝙨 𝙛𝙤𝙧 𝙢𝙖𝙣𝙪𝙛𝙖𝙘𝙩𝙪𝙧𝙞𝙣𝙜 𝙩𝙝𝙚𝙞𝙧 𝙥𝙧𝙤𝙙𝙪𝙘𝙩𝙨. 𝙒𝙚 𝙝𝙖𝙫𝙚 𝙖𝙡𝙡 𝙩𝙝𝙚 𝙥𝙡𝙖𝙨𝙩𝙞𝙘 𝙜𝙧𝙖𝙣𝙪𝙡𝙚𝙨 𝙪𝙨𝙚𝙙 𝙞𝙣 𝙖𝙪𝙩𝙤𝙢𝙤𝙩𝙞𝙫𝙚 𝙖𝙣𝙙 𝙖𝙪𝙩𝙤 𝙥𝙖𝙧𝙩𝙨 𝙖𝙣𝙙 𝙖𝙡𝙡 𝙩𝙝𝙚 𝙛𝙖𝙢𝙤𝙪𝙨 𝙘𝙤𝙢𝙥𝙖𝙣𝙞𝙚𝙨 𝙗𝙪𝙮 𝙩𝙝𝙚 𝙜𝙧𝙖𝙣𝙪𝙡𝙚𝙨 𝙛𝙧𝙤𝙢 𝙪𝙨.
Over the 10 years, we have gained a strong foothold in the market due to our range's high quality, competitive prices, and time-lined delivery schedules.
5 Warning Signs Your BMW's Intelligent Battery Sensor Needs AttentionBertini's German Motors
IBS monitors and manages your BMW’s battery performance. If it malfunctions, you will have to deal with an array of electrical issues in your vehicle. Recognize warning signs like dimming headlights, frequent battery replacements, and electrical malfunctions to address potential IBS issues promptly.
Comprehensive program for Agricultural Finance, the Automotive Sector, and Empowerment . We will define the full scope and provide a detailed two-week plan for identifying strategic partners in each area within Limpopo, including target areas.:
1. Agricultural : Supporting Primary and Secondary Agriculture
• Scope: Provide support solutions to enhance agricultural productivity and sustainability.
• Target Areas: Polokwane, Tzaneen, Thohoyandou, Makhado, and Giyani.
2. Automotive Sector: Partnerships with Mechanics and Panel Beater Shops
• Scope: Develop collaborations with automotive service providers to improve service quality and business operations.
• Target Areas: Polokwane, Lephalale, Mokopane, Phalaborwa, and Bela-Bela.
3. Empowerment : Focusing on Women Empowerment
• Scope: Provide business support support and training to women-owned businesses, promoting economic inclusion.
• Target Areas: Polokwane, Thohoyandou, Musina, Burgersfort, and Louis Trichardt.
We will also prioritize Industrial Economic Zone areas and their priorities.
Sign up on https://profilesmes.online/welcome/
To be eligible:
1. You must have a registered business and operate in Limpopo
2. Generate revenue
3. Sectors : Agriculture ( primary and secondary) and Automative
Women and Youth are encouraged to apply even if you don't fall in those sectors.
"Trans Failsafe Prog" on your BMW X5 indicates potential transmission issues requiring immediate action. This safety feature activates in response to abnormalities like low fluid levels, leaks, faulty sensors, electrical or mechanical failures, and overheating.
Why Is Your BMW X3 Hood Not Responding To Release CommandsDart Auto
Experiencing difficulty opening your BMW X3's hood? This guide explores potential issues like mechanical obstruction, hood release mechanism failure, electrical problems, and emergency release malfunctions. Troubleshooting tips include basic checks, clearing obstructions, applying pressure, and using the emergency release.
Symptoms like intermittent starting and key recognition errors signal potential problems with your Mercedes’ EIS. Use diagnostic steps like error code checks and spare key tests. Professional diagnosis and solutions like EIS replacement ensure safe driving. Consult a qualified technician for accurate diagnosis and repair.
Things to remember while upgrading the brakes of your carjennifermiller8137
Upgrading the brakes of your car? Keep these things in mind before doing so. Additionally, start using an OBD 2 GPS tracker so that you never miss a vehicle maintenance appointment. On top of this, a car GPS tracker will also let you master good driving habits that will let you increase the operational life of your car’s brakes.

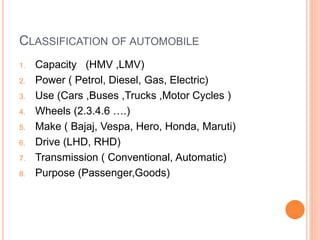

4. CHASSIS
Chasis is a French term which denotes the whole
vehicle except body in case of heavy vehicles.
Chassis consists of engine, brakes, steering
system & wheel mounted on the frame, differential,
suspension.
Propel and control a automobile
6. FUNCTION OF VEHICLE SYSTEMS
Vehicle System Function
Body • Provide durable attachment for other major systems
• Provide safe and pleasant seating environment for all passengers
• Protect passengers from crashes
Chassis • Provide capability to steer the vehicle
• Provide capability to brake the vehicle safely
• Provide isolation between road and passengers
Powertrain • Provide capability to accelerate the vehicle by transferring torque to wheels
• Provide capability to control vehicle speed
• Meet regulatory exhaust requirement
Climate Control • Maintain comfortable temperature distribution for passengers
• Provide windshield defrost capability
Electrical & Electronics • Provide power supply where needed
• Provide desirable entertainment system
• Provide functional censors and controls
7. GENERAL CONSIDERATION RELATING TO
CHASSIS
Body of most vehicle should fulfil the following
requirements:
1. The body should be light.
2. It should have minimum number of components.
3. It should provide sufficient space for passengers and
luggage.
4. It should withstand vibrations while in motion.
5. It should offer minimum resistance to air.
6. It should be cheap and easy in manufacturing.
7. It should be attractive in shape and colour.
8. It should have uniformly distributed load.
9. It should have long fatigue life
10.It should provide good vision and ventilation.
12. CHASSIS CLASSIFICATION BASED ON ENGINE
LOCATION
Engine fitted at front
Engine fitted at Back
Engine fitted at centre
Engine fitted at front but crosswise
CHASSIS CLASSIFICATION BASED ON Number of
Wheels fitted in the vehicles and the
number of driving wheels
•4x2 drive chassis vehicle.
•4x4 drive chassis vehicle.
•6x2 drive chassis vehicle.
•6x4 drive chassis vehicle.
13. FITTED AT FRONT & DRIVE IS GIVEN TO THE
WHEELS FROM THE “REAR”
1. Enough space is available for luggage behind the
rear seat
2. The weight of vehicles is well balance
3. Increased efficiency of cooling system
Engine is fitted at front & drive is given to
front wheel
1. Low floor is available.
2. Vehicle has more road holding capacity.
3. clutch , gear box & differential are usually made
as one unit, thereby cost is reduced.
15. ENGINE FITTED AT THE CENTRE OF THE
CHASSIS:
Drive is given to the rear
As in royal tiger world master buses
This arrangement provide full space of floor for use
16. ENGINE FITTED AT BACK
1. Flat floor is available since long propeller shafts are
eliminated
2. With elimination of propeller shaft the centre of gravity
lowered giving stable driving
3. Better adhesion on road specially when climbing hill.
4. While Climbing hills proper adhesion may be affected
since the weight of vehicles moves to the rear , thereby
reducing the weight on the front wheel.
5. As a result of grouping of the engine with clutch, gear
box and differential, the repair and adjustment become
difficult due to congestion at the rear.
18. TYPES OF CHASSIS FRAMES:
THERE ARE THREE TYPES OF FRAMES
1. CONVENTIONAL FRAME
2. INTEGRAL FRAME
3. SEMI-INTEGRAL FRAME
19. CONVENTIONAL FRAME
a.Channel Section - Good resistance to bending
b. Tabular Section - Good resistance to Torsion
c. Box Section - Good resistance to both bending
and Torsion
20. INTEGRAL FRAME (FRAMELESS)
used now a days in most of the cars
no frame and all the assembly units are attached to
the body
Due to elimination of long frame it is cheaper
Only disadvantage is repairing is difficult.

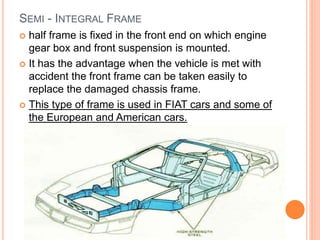

21. SEMI - INTEGRAL FRAME
half frame is fixed in the front end on which engine
gear box and front suspension is mounted.
It has the advantage when the vehicle is met with
accident the front frame can be taken easily to
replace the damaged chassis frame.
This type of frame is used in FIAT cars and some of
the European and American cars.
22. SOME OF IMPORTANT CHASSIS FRAMES ARE:
Ladder Frame
Tabular Space Frame
Monocoque Frame
Aluminum Space Frame
Carbon Fibre frame

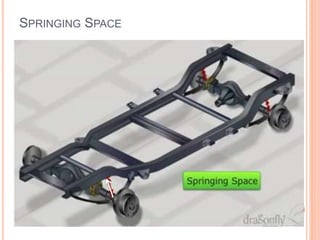

23. LADDER FRAME:
The ladder frame is the simplest and oldest of all
designs.
This design offers good beam resistance because
of its continuous rails from front to rear
poor resistance to torsion
30. TUBULAR SPACE FRAME:
It is 3-dimensional design
Tubular space frame chassis employs dozens of circular,
rectangular etc section tube, positions in different directions to
provide mechanical strength against force from anywhere.
These tubes are welded & forms a very complex structure.
31. TUBULAR
ADVANTAGES
Very strong in any direction (compared with ladder
chassis and Monocoque chassis)
DISADVANTAGES
Very complex , costly and time consuming to be
built.
32. MONOCOQUE
Monocoque is a one-piece structure which defines
overall shape of the car. while ladder , tabular &
backbone provide only stress members
Today 99% car produced in this planet are made of
Monocoque chassis.
Chassis are made by welding of several pieces.(Spot
winding).
33.
34. MONOCOQUE
DISADVANTAGES
1. It has very complex design .
2. Impossible for small volume production.
ADVANTAGES
1. Space-efficiency (the whole structure is actually an
outer shell.)
2. Monocoque chassis benefit crash (reproduction)
production because it uses a lot of metal.
3. Cheap for mass production.
35.

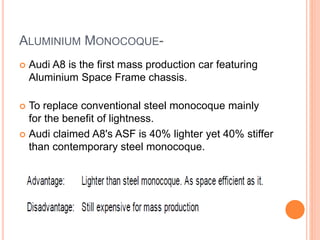

36. ALUMINIUM MONOCOQUE-
Audi A8 is the first mass production car featuring
Aluminium Space Frame chassis.
To replace conventional steel monocoque mainly
for the benefit of lightness.
Audi claimed A8's ASF is 40% lighter yet 40% stiffer
than contemporary steel monocoque.
37. CARBON-FIBER MONOCOQUE
Carbon Fiber is the most sophisticated material
using in aircrafts, spaceships and racing cars
because of its superior rigidity-to-weight
ratio.
Road cars featuring Carbon-Fiber body panels,
such as Ferrari 288GTO and Porsche 959.There
are several Carbon-fibers commonly used in motor
industry.
Kevlar, which was developed by Du Pont, offers
the highest rigidity-to-weight ratio among them.
Because of this, army's helmets are made of
Kevlar. Kevlar can also be found in the body panels
of many exotic cars, although most of them
simultaneously use other kinds of carbon-fiber in
even larger amount.
38. CARBON FIBRE MONOCOQUE
Production process
Carbon-fiber panels are made by growing carbon-
fiber sheets (something look like textile) in either
side of an aluminium foil.
The foil, which defines the shape of the panel, is
sticked with several layers of carbon fiber sheets
impregnated with resin, then cooked in a big oven
for 3 hours at 120°C and 90 psi pressure.
After that, the carbon fiber layers will be melted and
form a uni-formal, rigid body panel
39. CARBON FIBRE PANELS
Where is the carbon-fiber used ? Body panels or Chassis ?
Since body panels do nothing to provide mechanical strength,
the use of carbon fiber over aluminium can barely save
weight.
The stress member remains to be the chassis, which is
usually in heavier and weaker steel tubular frame.
40. COMPARISON LADDER AND MONOCOQUE
Performance -
The monocoque is a lighter design which is a plus for fuel efficiency,
It has more torsional stiffness and is by far the better chassis for
performance oriented vehicles.
The heavy nature of the ladder chassis makes it tough and it is much
better than the monocoque for carrying heavy loads and towing heavier
objects.
Design -
A unibody bodyshell is difficult to design, build and modify (platform
sharing) when compared to the body on frame but computer aided
design (CAD) makes unibody platform sharing much easier.
For body on frame vehicles its easy to build another body even from
another bodystyle and place it on a ladder chassis as long as they are
of similar dimensions.
Materials -
Unitary bodyshells can be made from a variety of materials steel and
steel alloys, aluminium and aluminium alloys and even carbon fiber or
combinations of these materials whereas ladder chassis are usually
built from steel.

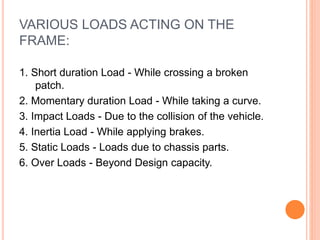

42. VARIOUS LOADS ACTING ON THE
FRAME:
1. Short duration Load - While crossing a broken
patch.
2. Momentary duration Load - While taking a curve.
3. Impact Loads - Due to the collision of the vehicle.
4. Inertia Load - While applying brakes.
5. Static Loads - Loads due to chassis parts.
6. Over Loads - Beyond Design capacity.
43. MATERIALS- WHY IMPORTANT
As fuel economy restrictions become tighter,
manufacturers must find new ways to meet them.
This has led them away from using so much steel in
the vehicles, and more and more are moving
towards aluminum.
44. A BASIC COMPARISON
Two common alloys used in car manufacturing:
For Aluminum:
For Steel:
Density of Steel: 7.88 g/cm3
Density of Aluminum: 2.7 g/cm3
Aluminum is about 3 times lighter than steel per unit volume, but can
be made just as strong using certain alloys/shapes/bonding
methods.
Because of this, AL parts can be thicker, and thus stronger, than their
steel counterparts, all while weighing less.
Steel Al
Yield Strength
(MPa) 294.8 395
UTS (MPa) 394.7 420
Hardness
(HB500) 104 58
45. THE COST ISSUE
While Al may seem like a miracle metal for car
production, there is a reason not all cars are made from
Al... It costs a lot more than Steel.

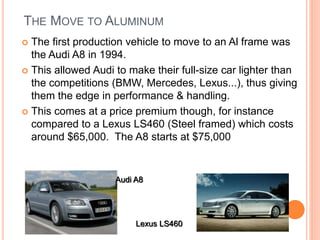

46. THE MOVE TO ALUMINUM
The first production vehicle to move to an Al frame was
the Audi A8 in 1994.
This allowed Audi to make their full-size car lighter than
the competitions (BMW, Mercedes, Lexus...), thus giving
them the edge in performance & handling.
This comes at a price premium though, for instance
compared to a Lexus LS460 (Steel framed) which costs
around $65,000. The A8 starts at $75,000
Audi A8
Lexus LS460
47. CARS UTILIZING AL FRAMES
Audi A8
Jaguar XJ
Corvette Z06
(GM)
Honda NSX
Audi A2
Audi R8
48. SOME OTHER ADVANTAGES...
There are some manufacturing
methods that can only be done with
aluminum, such as
extrusions.
These extrusions allows the Al Space
Frame to have about half the amount
of parts as a traditional steel
monocoque.
Because of all this, Al is already a
cheaper material to use for low volume
production cars (under 100,000 units a
year or so).
49. IN THE FUTURE
While Aluminum may be the wave of the future for now,
some exotic car companies are already looking ahead to
composite materials.
Take for example Porsche Carrera GT, which used a
completely Carbon-Fiber monocoque construction in
addition to Carbon-Fiber body panels.
50. VEHICLE ATTRIBUTES
Vehicle Attributes Description
Cost Lowest production, assembly and distribution cost compared to
competitive vehicles
Weight Lowest curb weight compared to competitive vehicles in its weight
class
Package Best use of the space to provide comfort and amenities to passengers
Safety 5* crash rating from the Federal Motor Vehicle Safety Standard
(FMVSS)
Dynamics Best ride & handling performance compared to competitive vehicles
Durability Highest reliability and high mileage durability compared to
competitive vehicles
NVH Lowest noise, vibration and harshness compared to competitive
vehicles

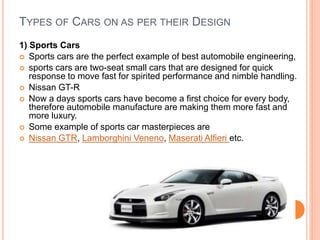

51. TYPES OF CARS ON AS PER THEIR DESIGN
1) Sports Cars
Sports cars are the perfect example of best automobile engineering,
sports cars are two-seat small cars that are designed for quick
response to move fast for spirited performance and nimble handling.
Nissan GT-R
Now a days sports cars have become a first choice for every body,
therefore automobile manufacture are making them more fast and
more luxury.
Some example of sports car masterpieces are
Nissan GTR, Lamborghini Veneno, Maserati Alfieri etc.
52. 2) Muscle Cars
A type of car designed for powerful and high performance
automobile lovers, These cars have powerful engine, mostly V-8
and above with 2-door.
Apart form this their performance and their look is muscular and
aggressive.
Some common example are Ford Mustang, Chevrolet
Camaro etc.

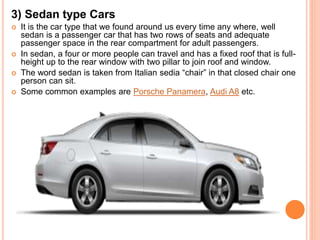

53. 3) Sedan type Cars
It is the car type that we found around us every time any where, well
sedan is a passenger car that has two rows of seats and adequate
passenger space in the rear compartment for adult passengers.
In sedan, a four or more people can travel and has a fixed roof that is full-
height up to the rear window with two pillar to join roof and window.
The word sedan is taken from Italian sedia “chair” in that closed chair one
person can sit.
Some common examples are Porsche Panamera, Audi A8 etc.
54. 4) SUVs type Cars
A sport utility vehicle (SUV) is a estate car mostly available
in four wheel drive to drive on-road or off-road having
large passenger carrying space.
If you wish to further categorize the SUV car they are sub
divided in many type as par their size like Compact SUV,
Mid-size SUV, Full size SUV etc.
Some popular SUV’s are BMW X4, Porsche
Macan, Maserati Levante etc.
55. 5) Multi-utility vehicles: MUVs
Usually based on either a mid-sized car or mini-van
platform.
Usually two-wheel drive "people movers". They have
higher ceilings, more storage than a sedan, some of the
utility of a SUV with a similar ride,
though from a construction standpoint not as robust.
Great for larger families of 4-5 and comfortable.
In India a good example is the Honda Mobilio
