1. Automated and secure service activation at
the network edge with zero touch
provisioning
April 10, 2018

2. © 2018 ADVA Optical Networking. All rights reserved.22

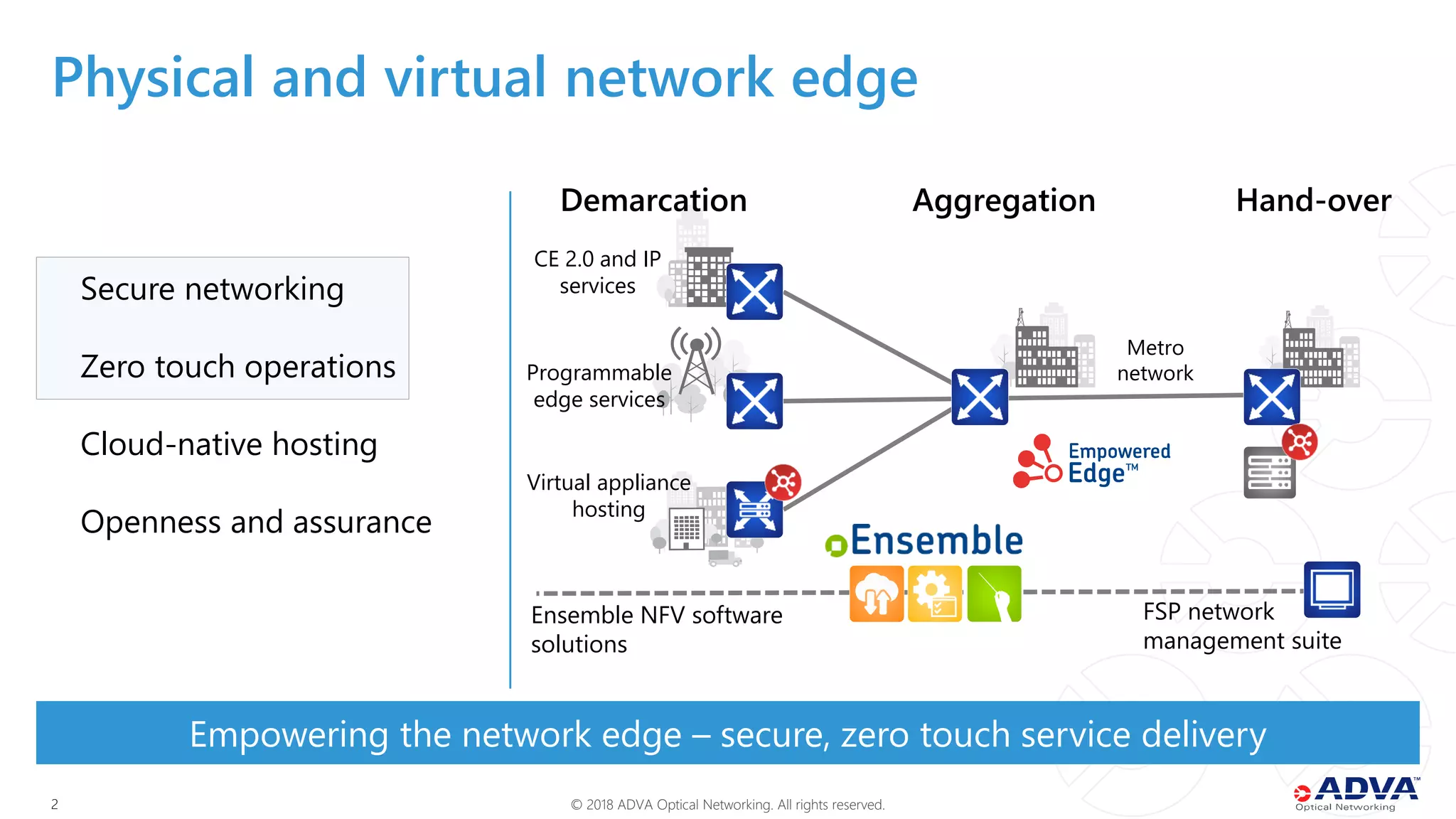

Empowering the network edge – secure, zero touch service delivery
Physical and virtual network edge
Secure networking
Zero touch operations
Cloud-native hosting
Openness and assurance
Aggregation Hand-overDemarcation
Virtual appliance
hosting
Programmable
edge services
CE 2.0 and IP
services
Ensemble NFV software
solutions
Metro
network
FSP network
management suite

3. © 2018 ADVA Optical Networking. All rights reserved.33
NFV and SDN create business
opportunities but adds complexity
 Relieve provisioning work load
Minimizing manual processes for faster innovation and lower production cost
IoT and 5G increase the number of
intelligent edge devices
 Minimize cost of installation
Configuration but also functionality of
edge devices need to adapt to changes
 Automated
configuration/provisioning
Site visits create cost and take time;
manual configuration is failure prone
 Reduce need for human input
Intelligent edge devices Time to revenue
Increasing complexity High number of devices
What’s driving the need for zero touch operation?
Motivation: Automation at the network edge

4. © 2018 ADVA Optical Networking. All rights reserved.44
Manual steps:
- Install device
- Plug in network connection
- Power it up
Automated processes:
- Network connectivity
- Upload/install software updates
- Load and activate configuration
- Service test and activation
High-volume products need to self-start without human intervention
Zero touch service activation
Simplifying operations

5. © 2018 ADVA Optical Networking. All rights reserved.55
• Human-driven activation
and commissioning:
security relies upon skilled
and trustworthy field
engineers
• Automated provisioning:
security mechanisms are
needed to mitigate lack of
human control
Automation needs to come with security controls mitigating new attack vectors
Elimination of manual processes increases attack surface
Threat landscape at the automated edge
Cloud and
internet access
Rogue user installs
manipulated device
Fake server provides
corrupted firmware
Malicious
software installed
during shipment

6. © 2018 ADVA Optical Networking. All rights reserved.66
Vendor
• Provides hardware and
software
• Runs private CA for own
products and servers
Service provider
• Runs NOC
• Operates software server
with boot-images, config
Public CA creates certificates
for vendor and service provider
(optional)
Edge devices need to be securely authenticated and provisioned
Three stakeholder model: vendor, service provider and CA
Use case: Zero touch provisioning
Communication service
provider’s NOC
Software
server
Untrusted
connectivity
network
On-premises
edge device
Certification authority (optional, not considered
in the following, simplified case)

7. © 2018 ADVA Optical Networking. All rights reserved.77
The device requests a secure
connection to Ensemble
authentication server
The device knows the
server’s IP address and has
trust anchor certificate of
server
Trust relation established
with mutual authentication
Mutual authentication
ZTP with FSP 150 ProNID and Ensemble
authentication server #1
UNI Service provider
access/core network
DHCP
File
Server

8. © 2018 ADVA Optical Networking. All rights reserved.88
Creating a device identity:
entering UID and
credentials
Using the UID as a key the
correct onboarding
information is sent to the
NID
With established trust
relation and secured
connection, the onboarding
information staged on the
server might be unsigned
Device authorization through User ID (UID)
ZTP with FSP 150 ProNID and Ensemble
authentication server #2
UNI Service provider
access/core network
DHCP
File
Server

9. © 2018 ADVA Optical Networking. All rights reserved.99
The onboarding
information contains
configuration information
as well as post-
configuration script
NID uses down ECPA on
network port to test the
connection
The PE‘s port facing the
NID is preconfigured with
facility loopback on and will
loop back ECPA test frames
Post-configuration script to test the physical bearer
Automated service pre-activation testing
UNI
Customer xyz
PE
ECPA

10. © 2018 ADVA Optical Networking. All rights reserved.1010
Automated device
configuration and
activation of business
services
Zero touch instantiation
of virtual network
functions with uCPE
Applicable with electrical
and optical products
ZTP is a unifying feature across our wider product portfolio
Automation is widely applicable
Demarcation
Virtual appliance
hosting
Programmable
edge services
High bandwidth
business access
FSP network
management suite

11. © 2018 ADVA Optical Networking. All rights reserved.1111
Eliminating time-
consuming and failure-
prone manual processes
Cryptography becomes
essential competence for
ZTP as well as IoT
Available with FSP 150
and Ensemble software
solutions
Improving network security and operational efficiency with ZTP
Standard compliant for easy integration
Summary: ZTP, an essential step towards ZT operations
