1. MEF Presto for SDN-enabled service lifecycle
automation
April 10, 2018

2. © 2018 ADVA Optical Networking. All rights reserved.22
Commerciallynon-binding
Striving towards autonomous networking
SDN is high on the agenda
Automated networking simplifies operation and speeds-up
service activation
Seamless integration into cloud-centric environment for
common resource control across technologies and vendors
Standardized protocols and architectures addressing
any aspect of service lifecycles for future-proof networking

3. © 2018 ADVA Optical Networking. All rights reserved.33
Commerciallynon-binding

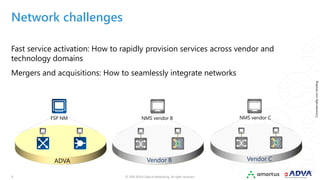

Network challenges
Fast service activation: How to rapidly provision services across vendor and
technology domains
Mergers and acquisitions: How to seamlessly integrate networks
NMS vendor C
Vendor C
NMS vendor B
Vendor B
FSP NM
ADVA

4. © 2018 ADVA Optical Networking. All rights reserved.44
Commerciallynon-binding
SDN is the answer
NMS vendor C
Vendor C
NMS vendor B
Vendor B
FSP NM
ADVA
Multi-domain,
multi-layer
orchestrator
• Open SDN interfaces, common across all
vendors
• Automated control across multiple layers
(activation, inventory, status reporting)

5. © 2018 ADVA Optical Networking. All rights reserved.55
Commerciallynon-binding
Not just a new interface but a framework for successful execution
MEF 3.0 paves the way for autonomous networking

6. © 2018 ADVA Optical Networking. All rights reserved.66
Commerciallynon-binding
Building on widely accepted MEF LSO
(lifecycle service orchestration) architecture
Enabling end-to-end orchestration across
operator and technology domains
Easy integration with standardized east-
west and north-south interfaces
Backed-up by major service providers and
cooperation with leading open source
communities as well as SDOs
Transforming networks into open service production factories
Demo outline: Setting the scene

7. © 2018 ADVA Optical Networking. All rights reserved.77
Commerciallynon-binding
Building on a globally accepted architecture – verifying recently published APIs
MEF LSO architecture
Domain controller
(Vendor/layer/region)
Global orchestrator
SNMP/NETCONF

8. © 2018 ADVA Optical Networking. All rights reserved.88
Commerciallynon-binding
Presto NRP (network
resource provisioning) API
from February 2018
Resource and topology
discovery across Presto
Automated, end-to-end
service provisioning
Service-level orchestration over vendor/technology agnostic interface
MEF 3.0 Presto showcase
Data center
Web portal
FSP 150 connectivity
network
FSP NM – ProVision
Infrastructure control and management
Service orchestration functionality
MEF Presto API
MEF Presto API

9. © 2018 ADVA Optical Networking. All rights reserved.99
Commerciallynon-binding
MEF 60 Presto network
resource provisioning API
released in January 2018
• Based on ONF T-API (TR-527)
• Service
provisioning/modification
• Topology
• Notifications
YANG models over IETF
RESTCONF interface
Embedded into lifecycle service
orchestration architecture
Hierarchical resource abstraction over standardized interfaces
MEF 3.0 Presto showcase: Stakeholders
Service orchestration functionality
MEF Presto API
MEF Presto API
FSP NM – ProVision
Infrastructure control and management
FSP 150 connectivity
network

10. © 2018 ADVA Optical Networking. All rights reserved.1010
Commerciallynon-binding
Demo flow
1. Log in to Service Orchestrator
2. Select and deploy service blueprint
3. Execute service workflow to send the service activation
request to the ICM
4. Log in to Pro-Vision to show the created, active service
5. Go back to SOF and execute the updated service
workflow: Modify BW profile
6. See the updated service in Pro-Vision
7. Go back to SOF and execute the updated service workflow: Add
another endpoint
8. See the updated service in Pro-Vision
9. Back in SOF, execute the uninstall workflow to delete the service
10. Move back to Pro-Vision to show the removed service

11. © 2018 ADVA Optical Networking. All rights reserved.1111
Commerciallynon-binding
• Real-world solution
showcasing automated
service activation
• Latest Presto API from
MEF 3.0 lifecycle
services architecture
• Multi-stakeholder
cooperation using
field-proven
technologies
Automated connectivity for the cloud, mobile and IoT
Unleashing the power of SDN

12. Thank you
