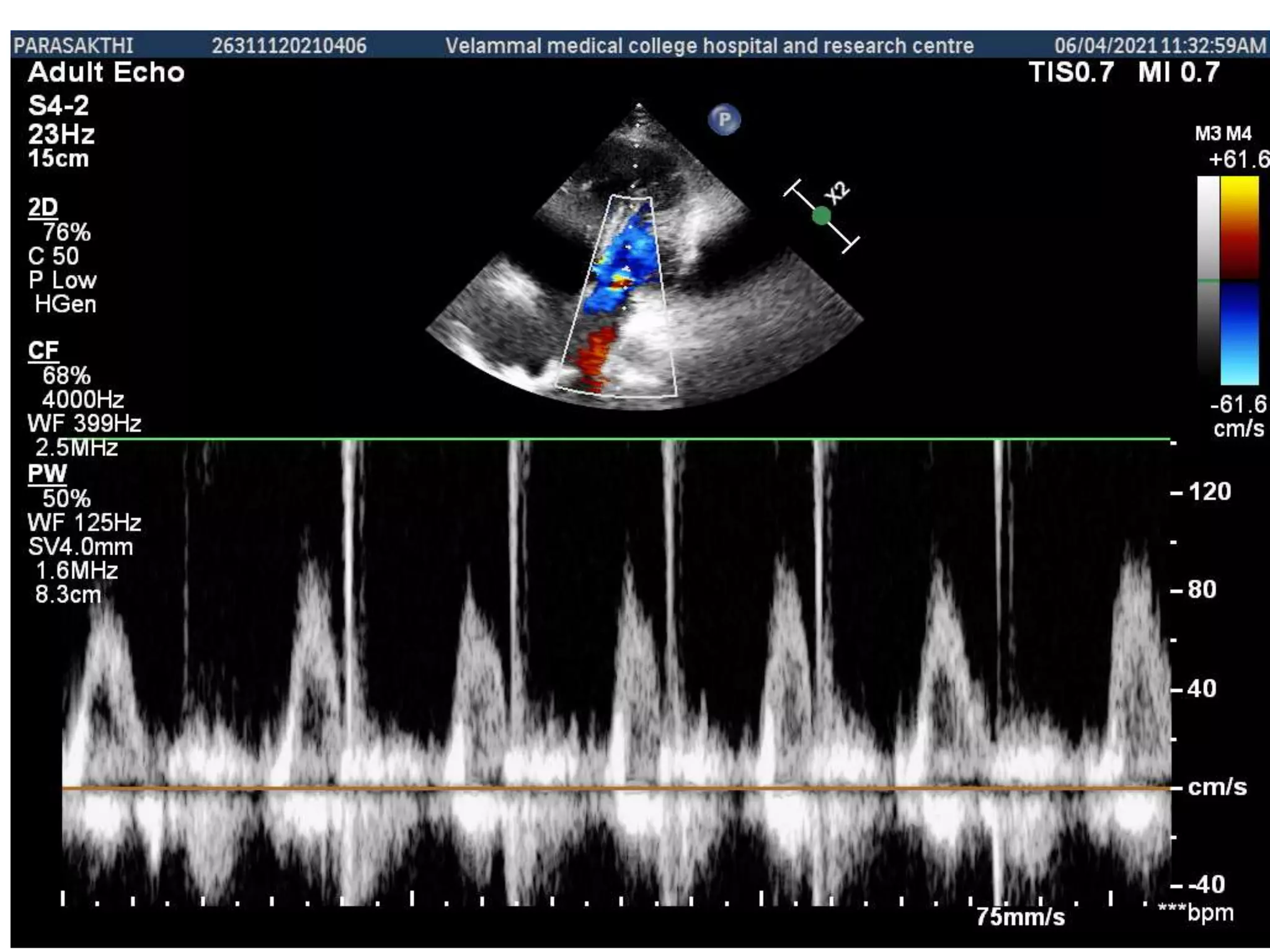

A 45 year old woman presented with shortness of breath on exertion. Echocardiography showed an atrial septal defect (ASD). ASDs are congenital heart defects where the wall separating the left and right atria is incomplete. The most common type is secundum ASD, which accounts for 70-75% of cases. ASDs allow blood to shunt from the left to the right atrium, overloading the right heart and lungs over time if not repaired. Echocardiography is the primary test to diagnose ASDs.

1. A 45 year old woman Parasakthi
came with complaints of shortness
of breath which increased while
climbing stairs and on exertion.
There was no associated clubbing or
cyanosis. The following are her

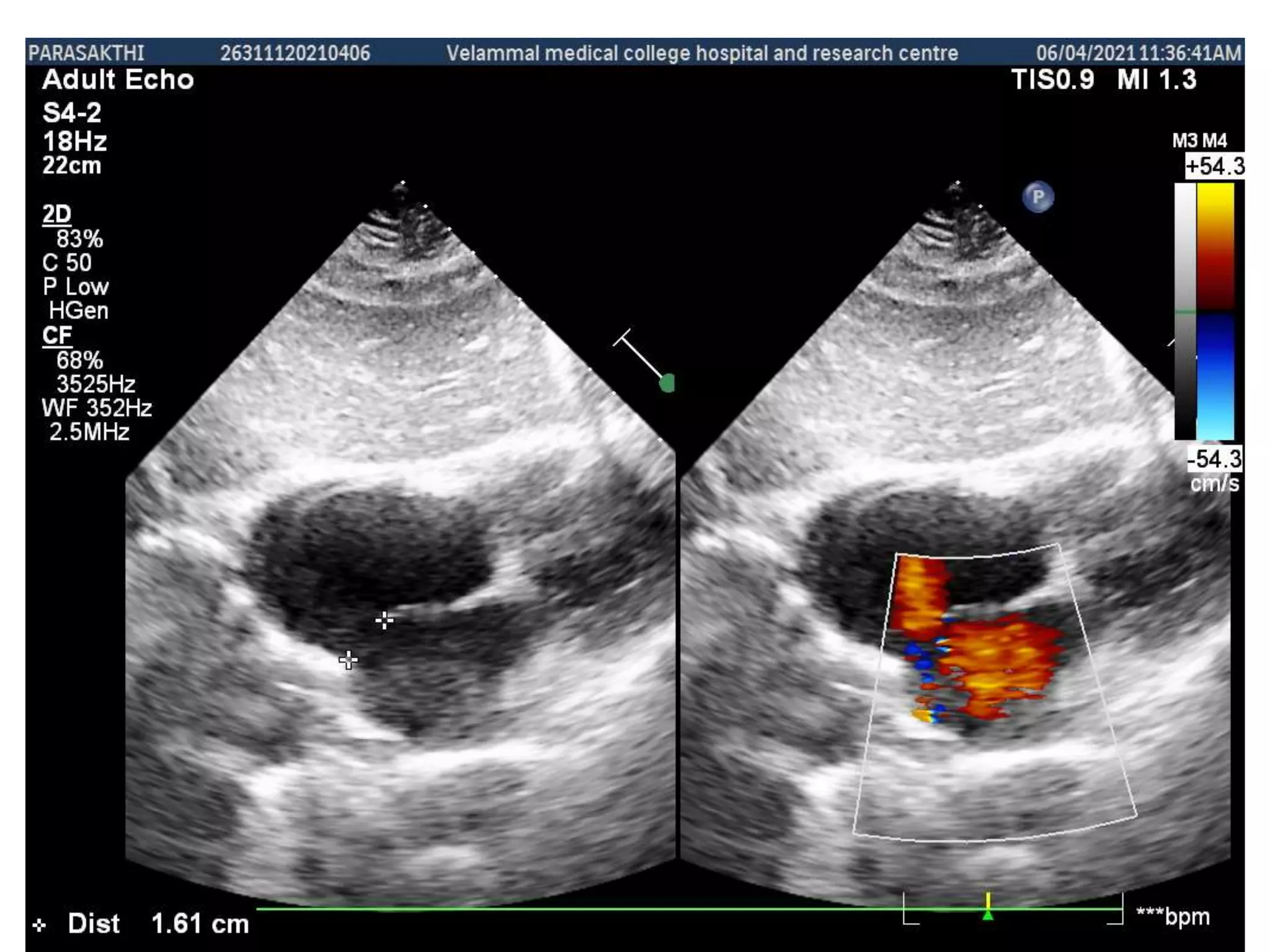

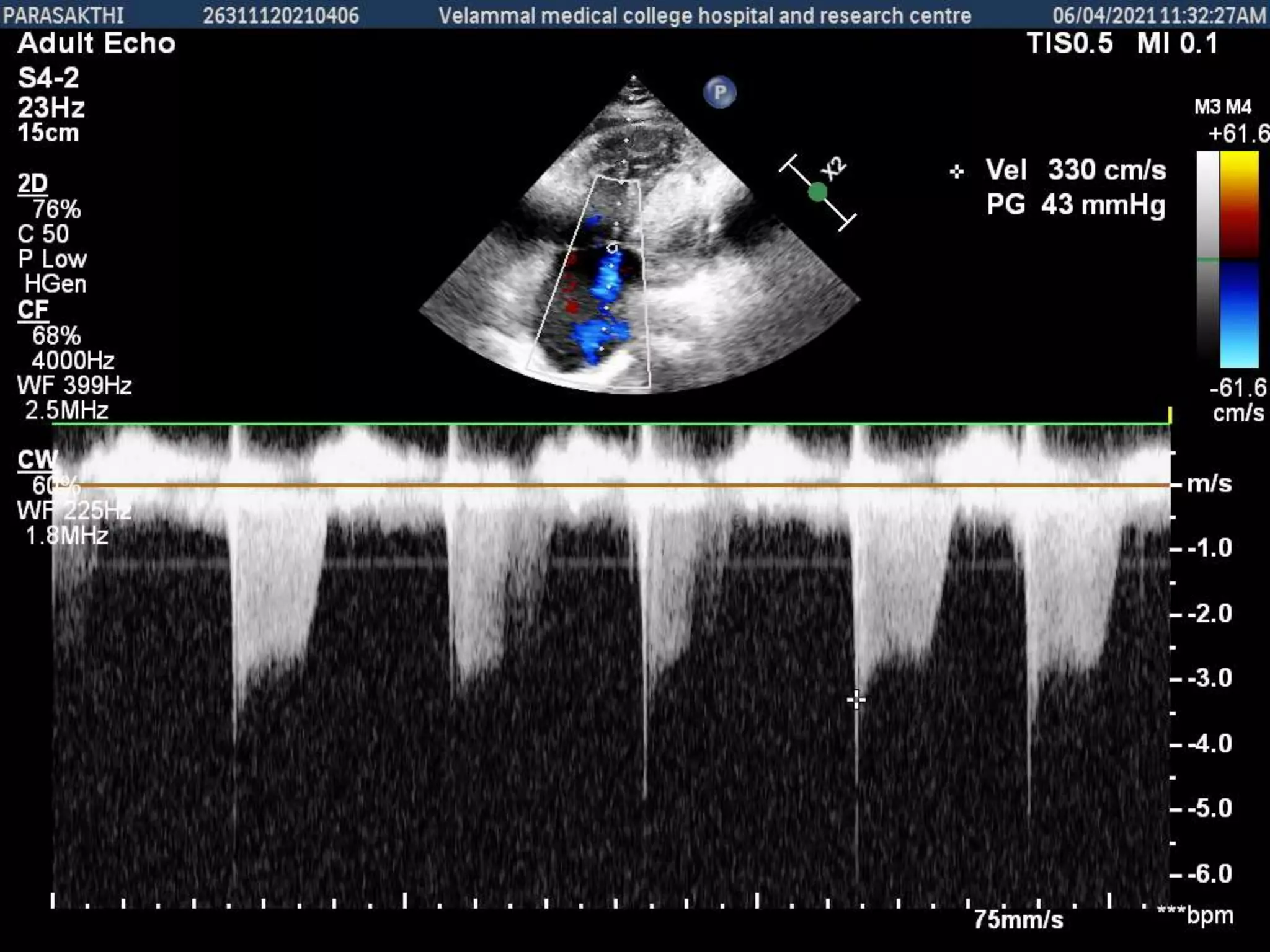

echocardiographic images. What is
your probable diagnosis ??

7. Atrial septal defect
Dr.S.R.Sruthi
Meenaxshi,MBBS,MD,PDF

8. • Atrial septal defect (ASD) is the most common
congenital heart lesion in adults and is often
asymptomatic until adulthood.
• Diagnosis is important, as timely ASD repair
improves outcomes

9. EMBRYOLOGY AND CLASSIFICATION
• ASDs result from lack of sufficient tissue to
completely septate the atria and are classified
according to their location in the atrial
septum.
• The location of the defect in relation to
adjacent cardiac structures defines the
anomalies associated with the ASD and
impacts the natural history and requirements
for repair.

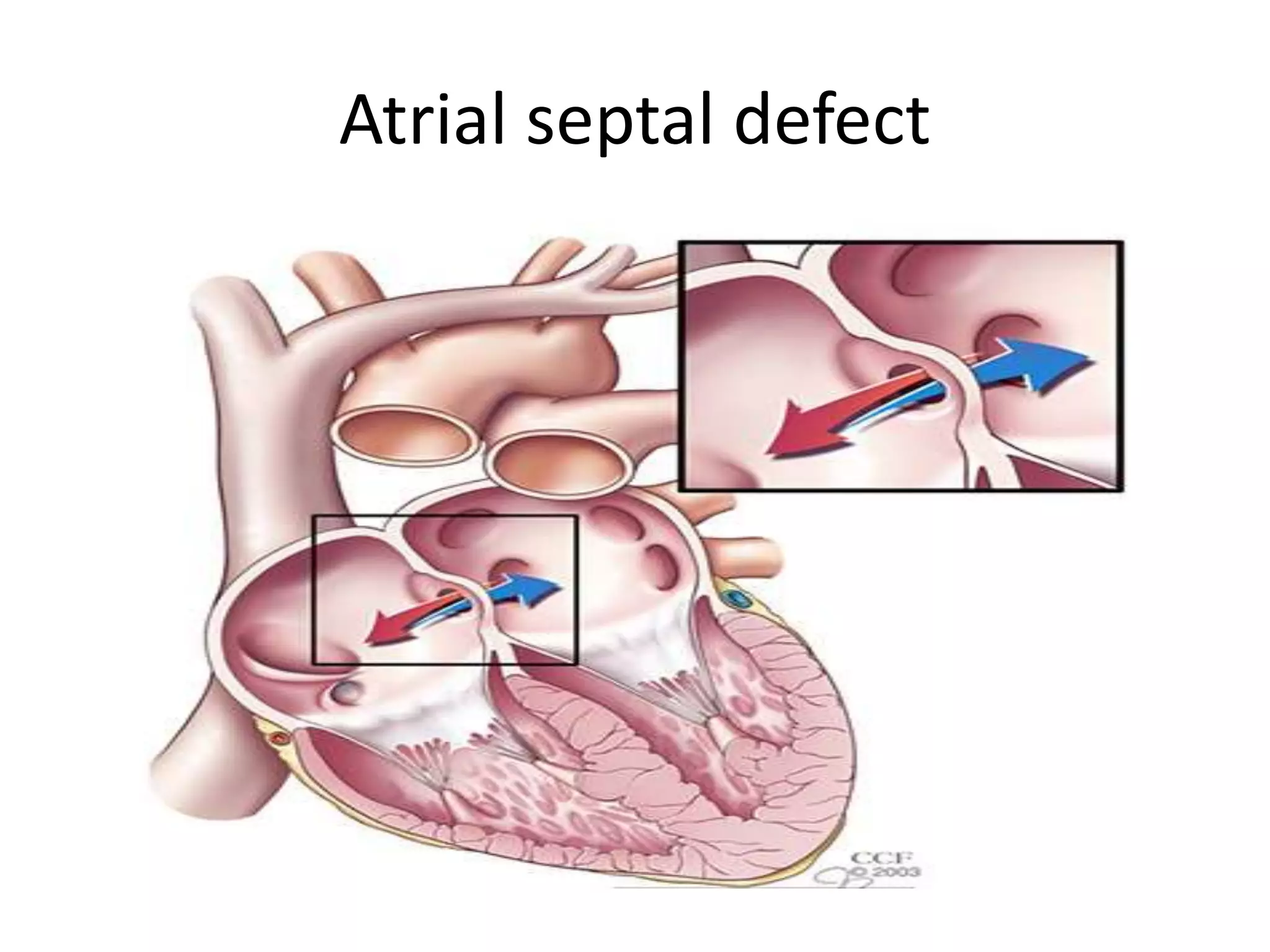

11. Atrial septal defect

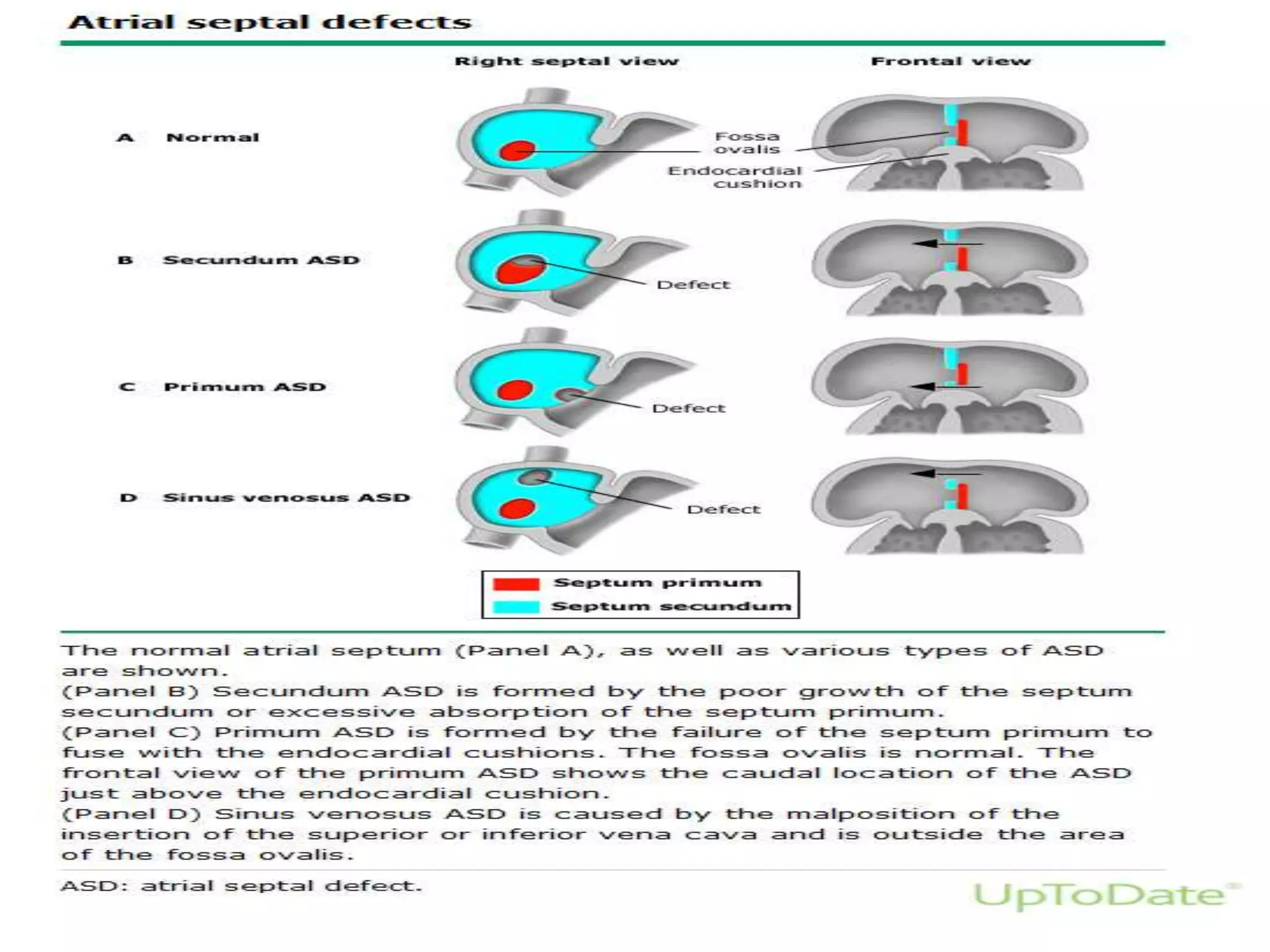

12. Types of atrial septal defect

16. Asd ostium secundum with possible
drop out of interatrial septum
predominant left to right shunt

17. • The location of the defect in relation to
adjacent cardiac structures defines the
anomalies associated with the ASD and
impacts the natural history and requirements
for repair.

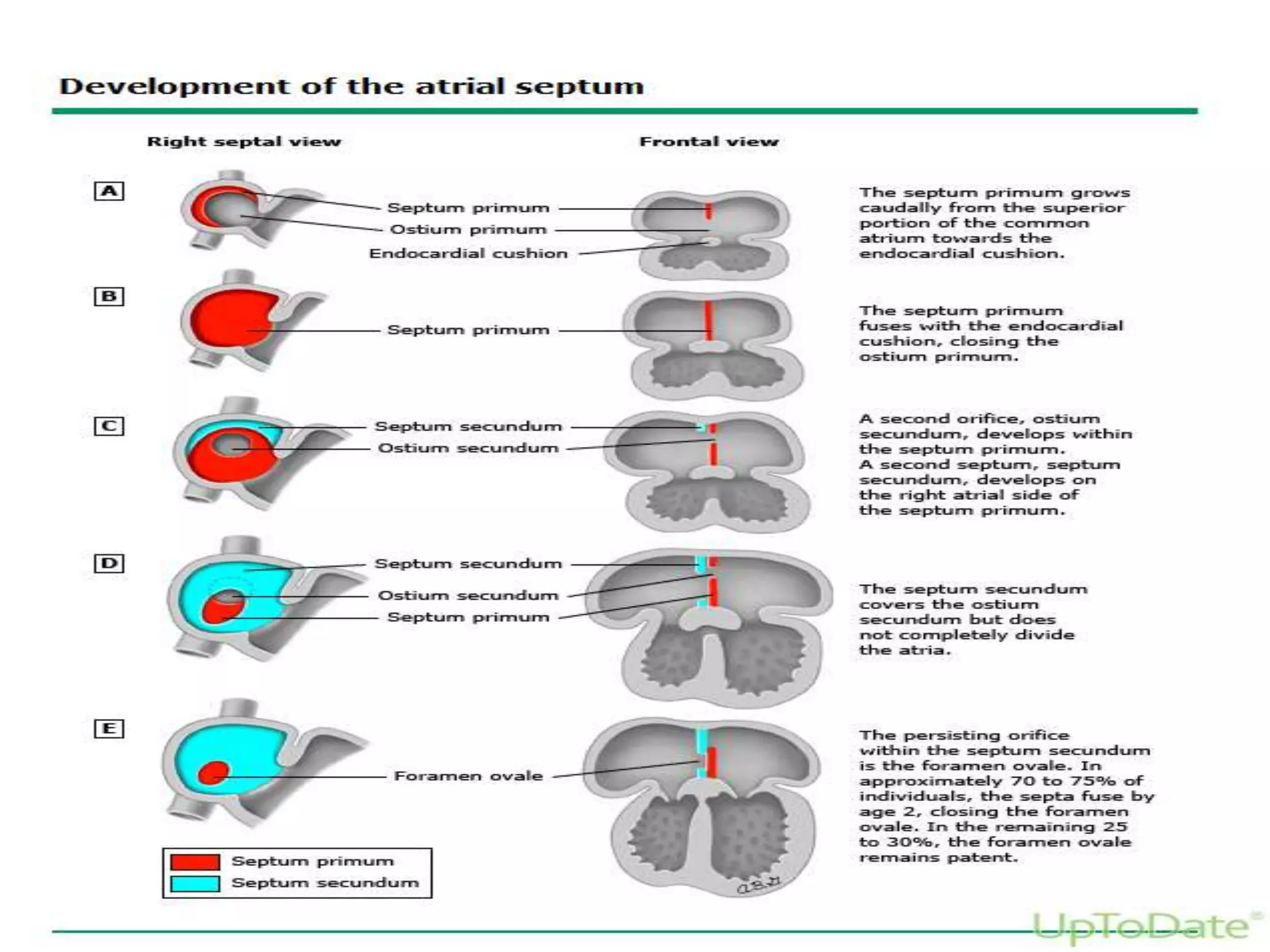

18. • Atrial septation begins as early as the fifth
week of gestation.
• The septum primum arises from the superior
portion of the common atrium and grows
caudally to the endocardial cushions located
between the atria and ventricles, eventually
closing the orifice (ostium primum) between
the atria

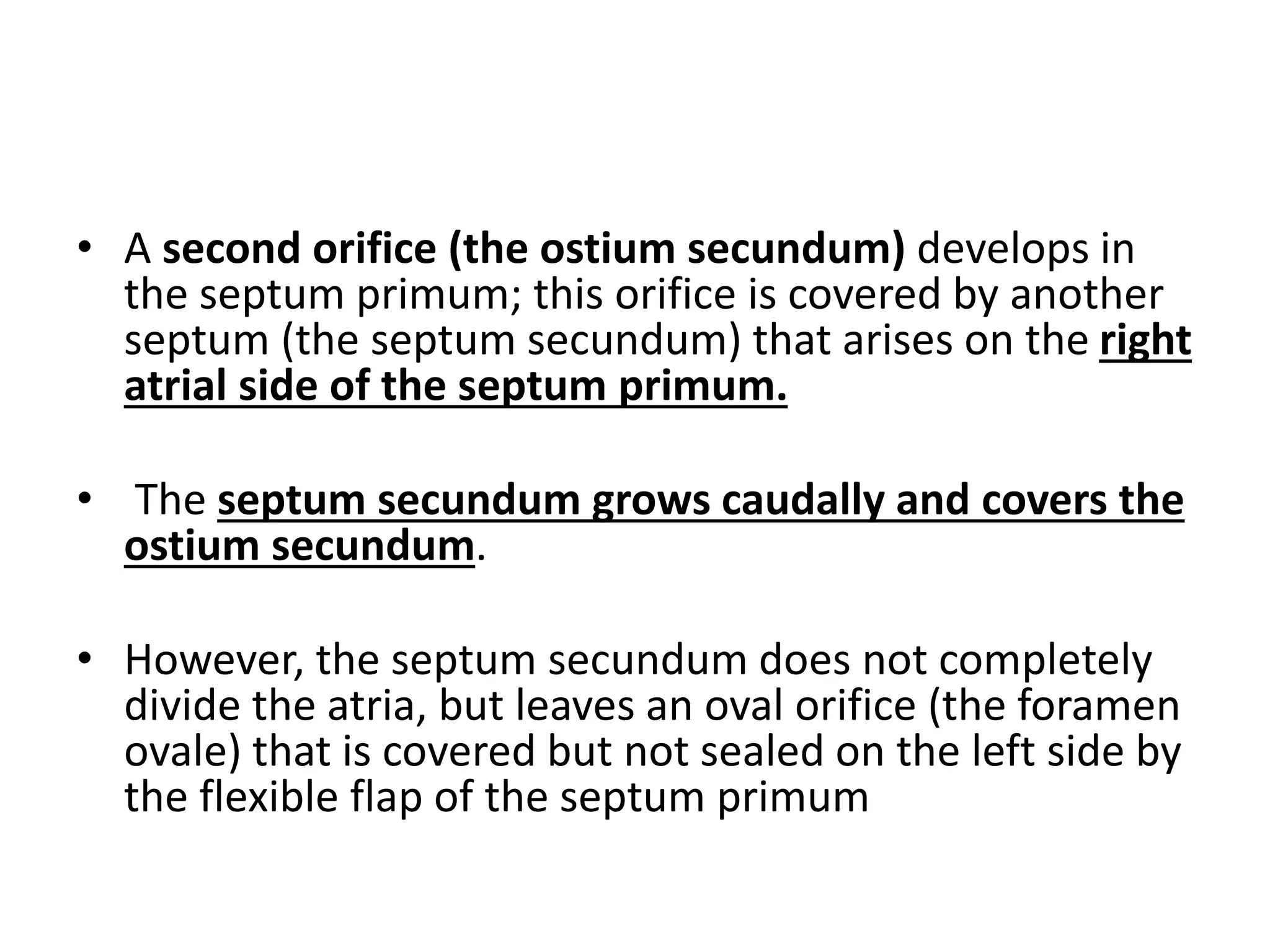

19. • A second orifice (the ostium secundum) develops in
the septum primum; this orifice is covered by another
septum (the septum secundum) that arises on the right
atrial side of the septum primum.
• The septum secundum grows caudally and covers the
ostium secundum.
• However, the septum secundum does not completely
divide the atria, but leaves an oval orifice (the foramen
ovale) that is covered but not sealed on the left side by
the flexible flap of the septum primum

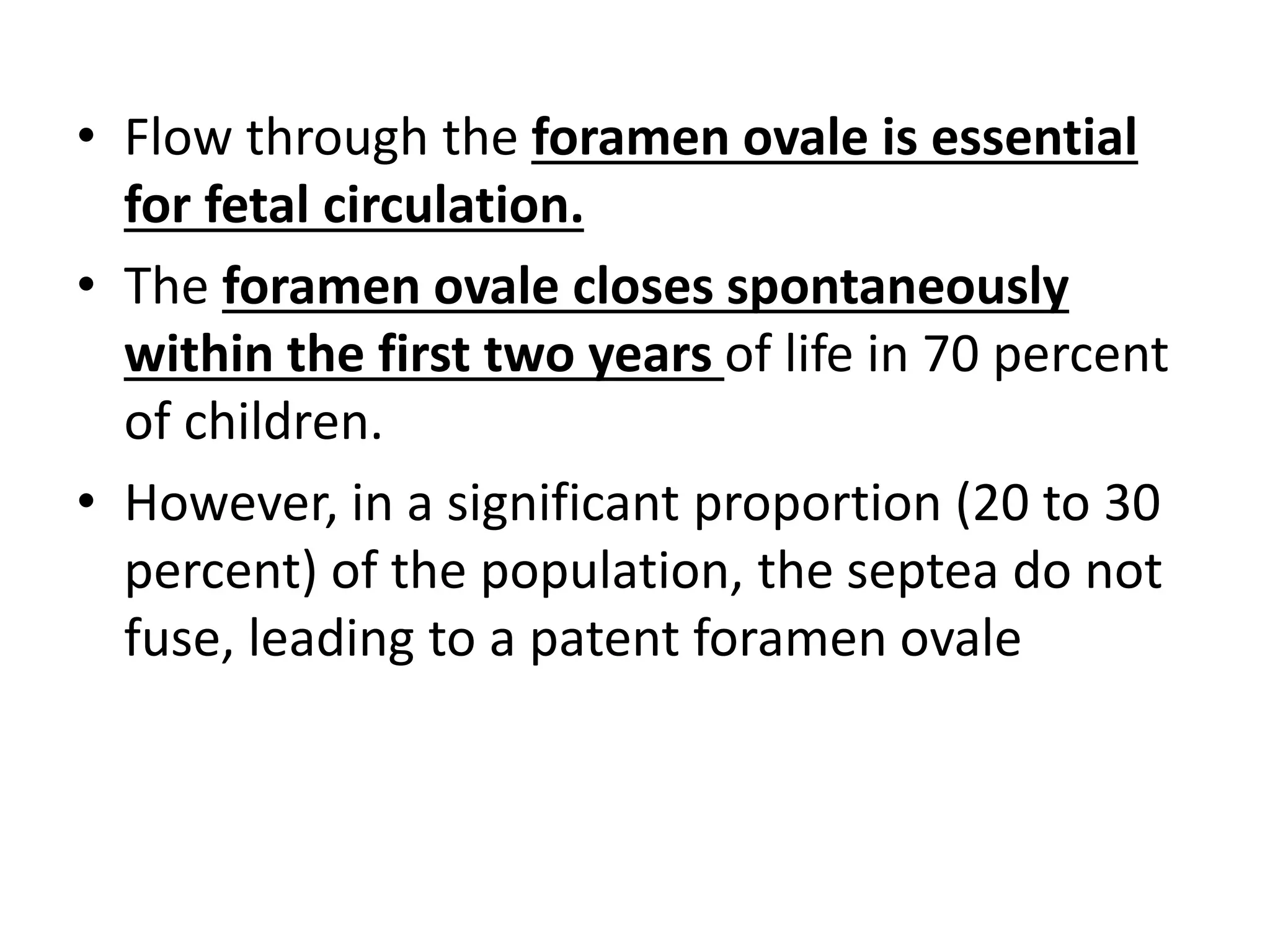

20. • Flow through the foramen ovale is essential
for fetal circulation.
• The foramen ovale closes spontaneously
within the first two years of life in 70 percent
of children.
• However, in a significant proportion (20 to 30
percent) of the population, the septea do not
fuse, leading to a patent foramen ovale

21. Secundum ASD
• Secundum ASD accounts for 70 to 75 percent of all
ASDs.
• Secundum ASD is a defect in the septum primum
resulting from poor growth of the secundum septum or
excessive absorption of the septum
• Although most secundum ASDs are isolated defects,
familial forms exist, some of which are associated with
other congenital cardiac and extracardiac
abnormalities.
• Other genes linked to familial isolated secundum ASD
include GATA 4,MYH6, NKX2-5. These syndromes
typically present in childhood or adolescence

22. The genetic disorder associated with secundum ASD is the HOLT
ORAM SYNDROME (also known as heart-hand syndrome) which
is caused by various mutations, most commonly mutations in
the TBX5 gene

23. Holt oram syndrome

24. ASD with rheumatic mitral stenosis –
LUTEMBACHER SYNDROME

25. • Secundum ASDs are occasionally associated
with partial anomalous pulmonary venous
connection and/or pulmonary stenosis.
• The rare combination of an ASD with
rheumatic mitral stenosis is known as
Lutembacher syndrome.

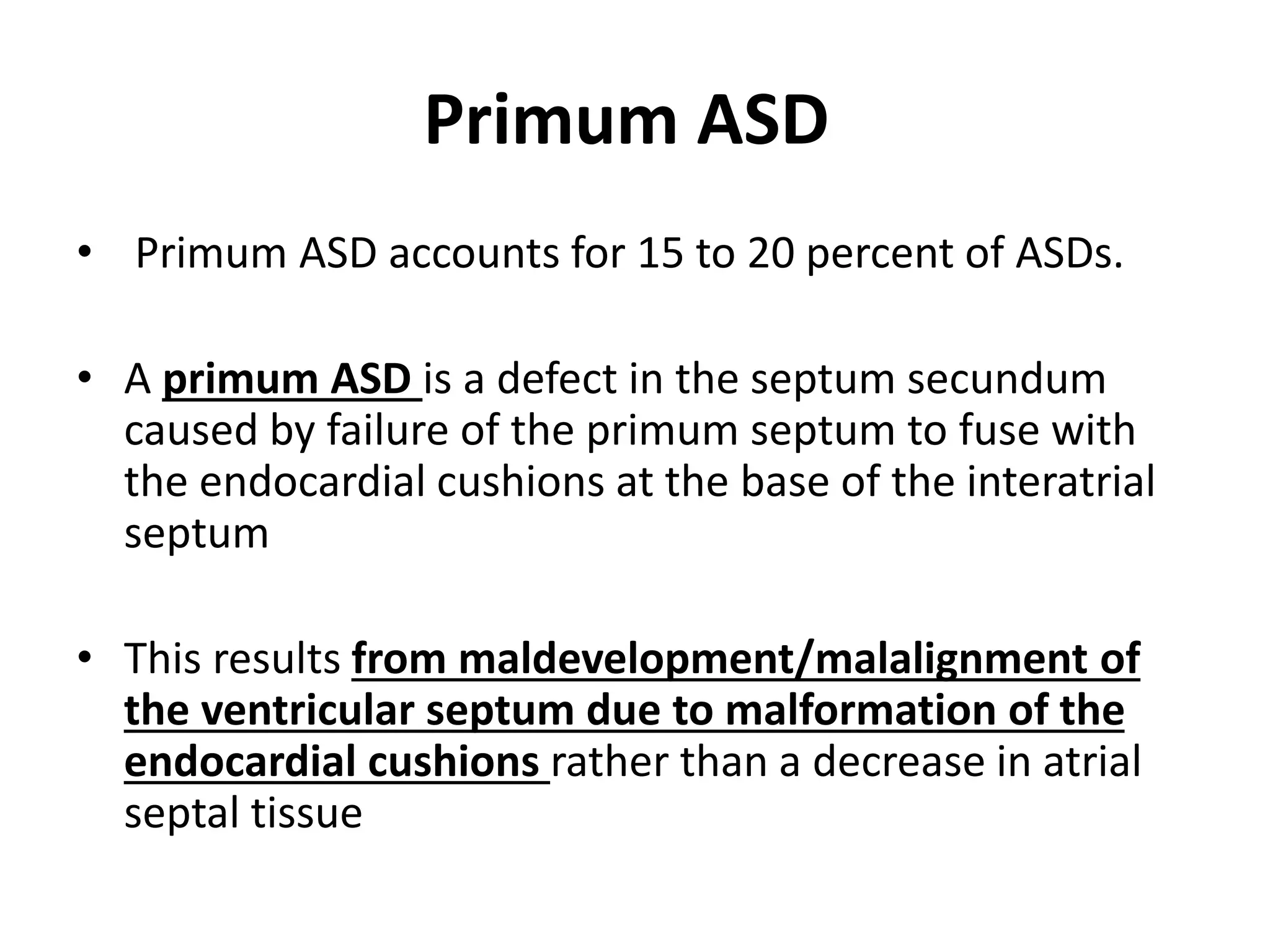

26. Primum ASD
• Primum ASD accounts for 15 to 20 percent of ASDs.
• A primum ASD is a defect in the septum secundum
caused by failure of the primum septum to fuse with
the endocardial cushions at the base of the interatrial
septum
• This results from maldevelopment/malalignment of
the ventricular septum due to malformation of the
endocardial cushions rather than a decrease in atrial
septal tissue

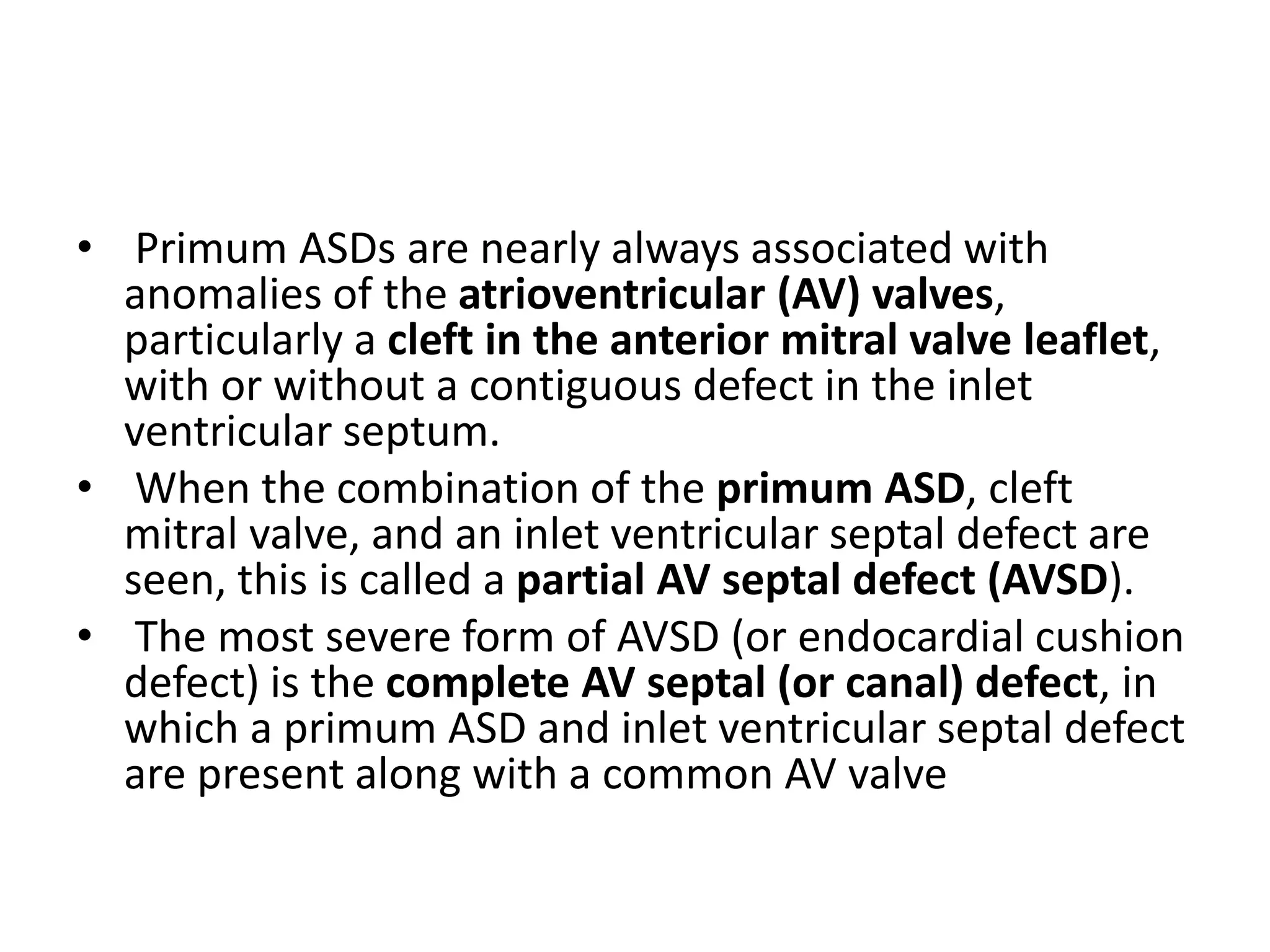

27. • Primum ASDs are nearly always associated with
anomalies of the atrioventricular (AV) valves,
particularly a cleft in the anterior mitral valve leaflet,
with or without a contiguous defect in the inlet
ventricular septum.
• When the combination of the primum ASD, cleft
mitral valve, and an inlet ventricular septal defect are
seen, this is called a partial AV septal defect (AVSD).
• The most severe form of AVSD (or endocardial cushion
defect) is the complete AV septal (or canal) defect, in
which a primum ASD and inlet ventricular septal defect
are present along with a common AV valve

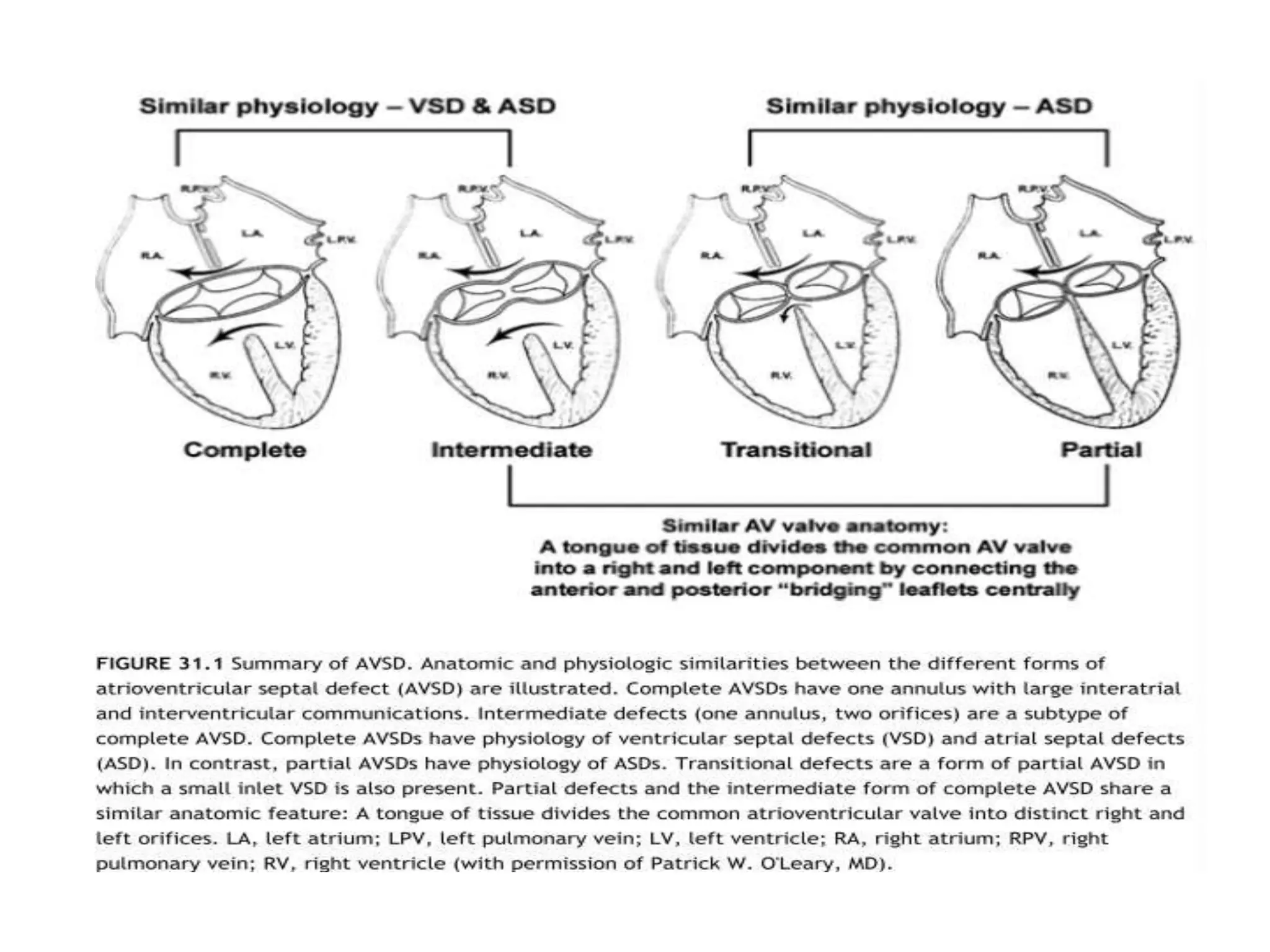

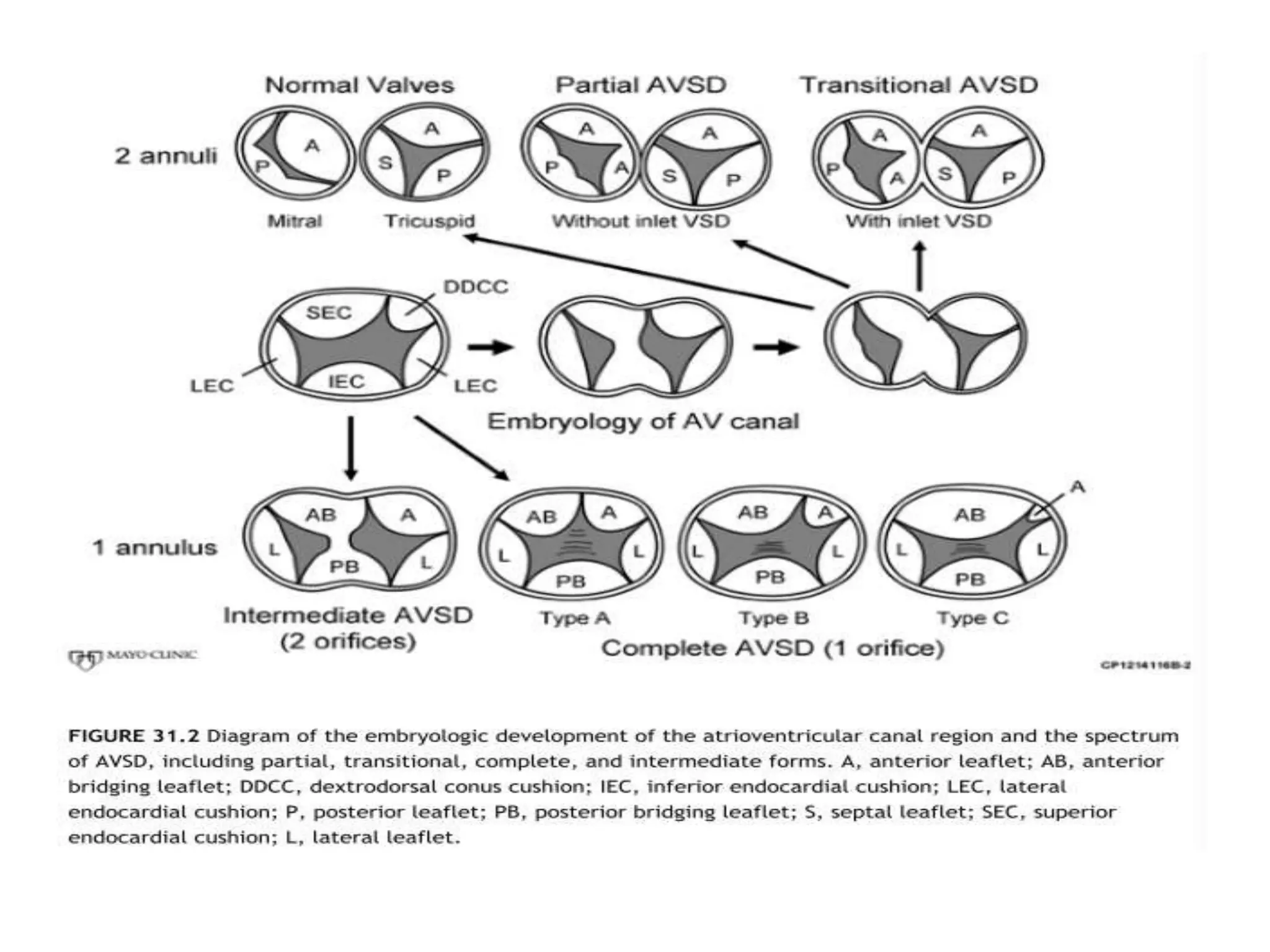

28. Complete av canal defect

29. Av canal defect

30. • Discrete subaortic stenosis as well as
elongation (often referred to as a "goose-neck
deformity") of the left ventricular outflow
tract are often seen in association with
endocardial cushion defects.
• Endocardial cushion defects are often noted in
patients with Trisomy 21 down syndrome

34. Sinus venosus defect
• Sinus venosus defects account for 5 to 10 percent of ASDs and are located
in the venoatrial portion of the atrial septum.
• Sinus venosus defects represent an abnormality in the insertion of the
superior or inferior vena cava, which overrides the interatrial septum;
the interatrial communication is then formed within the mouth of the
overriding vein and is outside the area of the fossa ovalis .
• Thus, sinus venosus defects are technically not ASDs since the defect is
within the sinus venosus septum.
• An anomalous connection involving one or more pulmonary veins is
present in most patients with sinus venosus ASD
• Sinus venosus defects are of two types

35. • Superior sinus venosus defects are located
immediately below the orifice of the superior
vena cava.
• The right upper lobe and middle lobe
pulmonary veins often connect to the junction
of the superior vena cava and right atrium or
on the superior vena cava, resulting in a
partial anomalous pulmonary venous
connection

36. Inferior sinus venosus defects
• Inferior sinus venosus defects, also known as
inferior vena caval defects, are much less
common.
• They are located immediately above the
orifice of the inferior vena cava.
• These defects are also often associated with
partial anomalous connection of the right
pulmonary veins to the junction of the right
atrium and inferior vena cava.

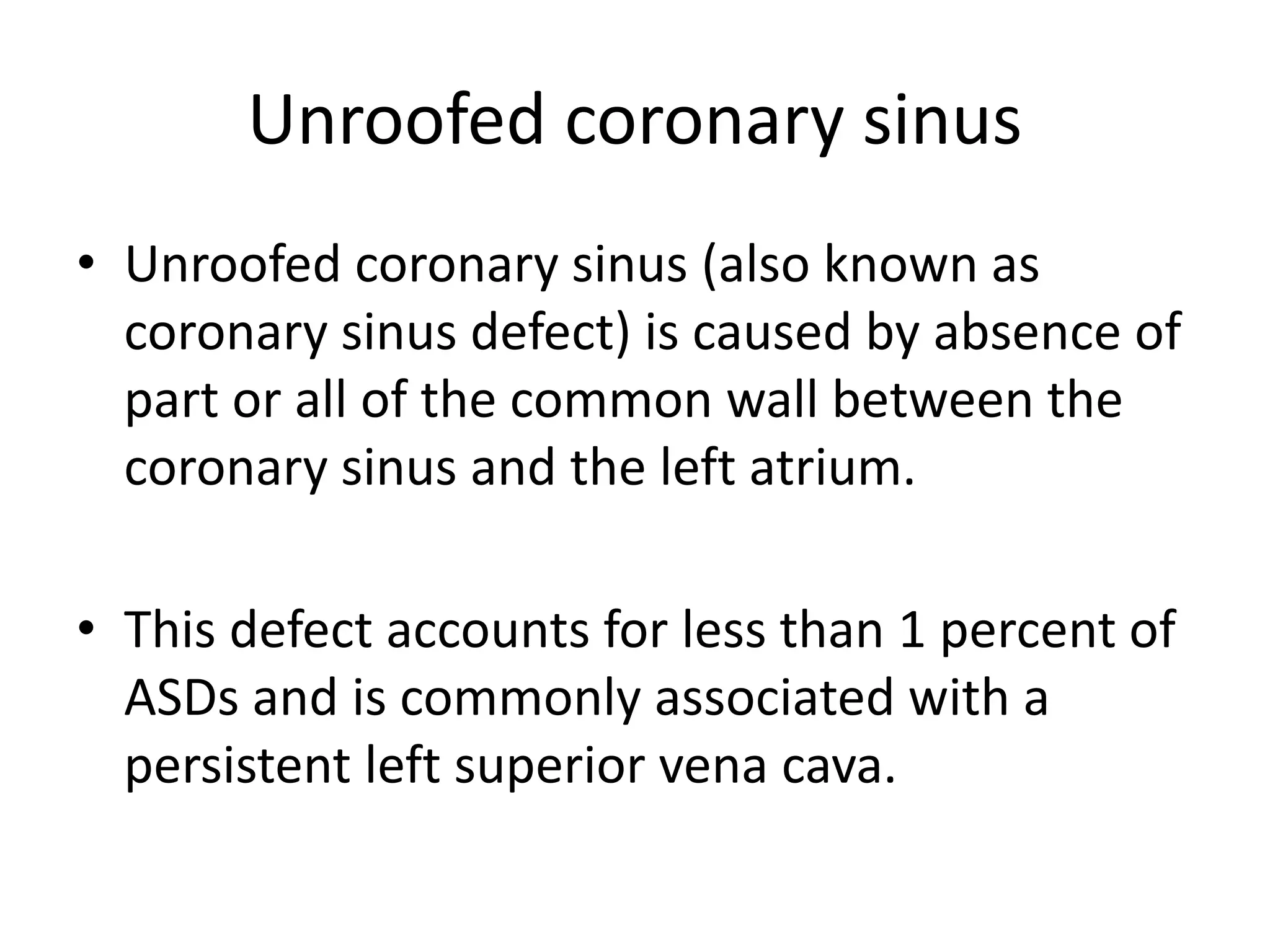

37. Unroofed coronary sinus
• Unroofed coronary sinus (also known as
coronary sinus defect) is caused by absence of
part or all of the common wall between the
coronary sinus and the left atrium.
• This defect accounts for less than 1 percent of
ASDs and is commonly associated with a
persistent left superior vena cava.

38. PATHOPHYSIOLOGY
• ASDs in adults are associated with left-to-right shunt causing
volume overload of the right heart chambers
• The severity of the shunt is determined by the size of the defect
and atrial and ventricular compliance and pressure.
• The left-to-right shunting occurs primarily in late ventricular
systole and early diastole, with some augmentation during atrial
systole.
• The shunt flow due to an ASD moves from the left to the right
atrium, right ventricle (RV), pulmonary circulation, back to the left
atrium, and through the defect back to the right atrium.
• This leads to volume overload of the right heart chambers and
pulmonary arteries with possible late development of progressive
pulmonary vascular obstructive disease and pulmonary
hypertension when the degree of shunting is substantial and, more
commonly, in sinus venosus defects and primum ASDs.

40. • In addition, there is transient right-to-left
shunting at the onset of ventricular contraction,
particularly under conditions of bradycardia
and/or decreased intrathoracic pressure
• This explains the possibility of paradoxical
embolism in the setting of ASD.
• Significant right-to-left shunting can develop
later in life if severe pulmonary hypertension or
tricuspid regurgitation develops.

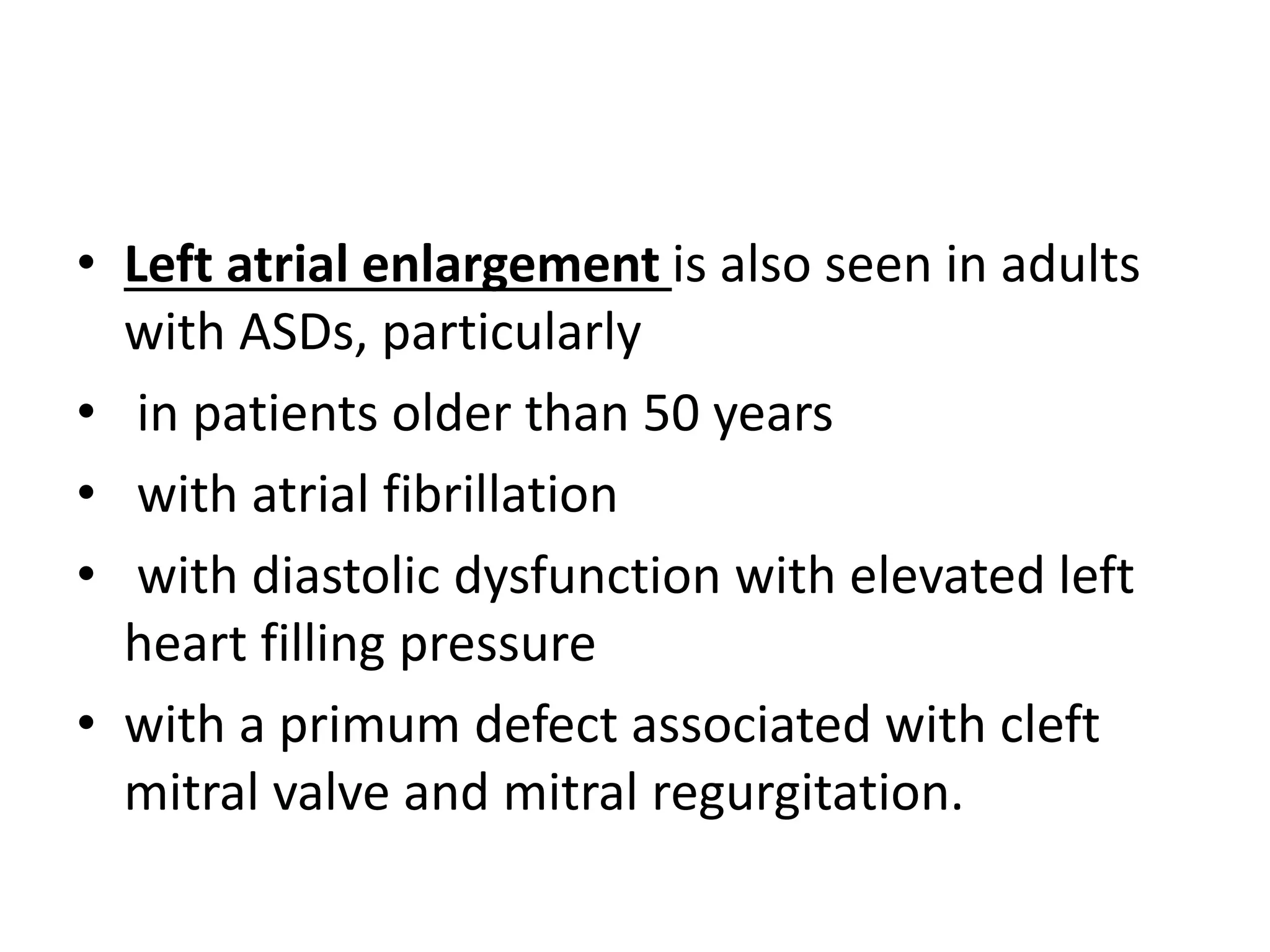

41. • Left atrial enlargement is also seen in adults
with ASDs, particularly
• in patients older than 50 years
• with atrial fibrillation
• with diastolic dysfunction with elevated left
heart filling pressure
• with a primum defect associated with cleft
mitral valve and mitral regurgitation.

42. NATURAL HISTORY
• The natural course of isolated ASDs varies from
spontaneous closure in secundum ASDs to
asymptomatic right ventricular enlargement and to
increasing symptoms with age.
• Spontaneous closure of ASDs, noted in approximately
40 percent of secundum ASDs, mostly occurs when
ASDs are small, usually less than 8 mm in diameter,
and in childhood. Secundum ASDs ≥8 mm in diameter
and those in adults do not typically close
spontaneously.
• Primum ASDs, sinus venosus defects, and coronary
sinus defects do not close spontaneously.

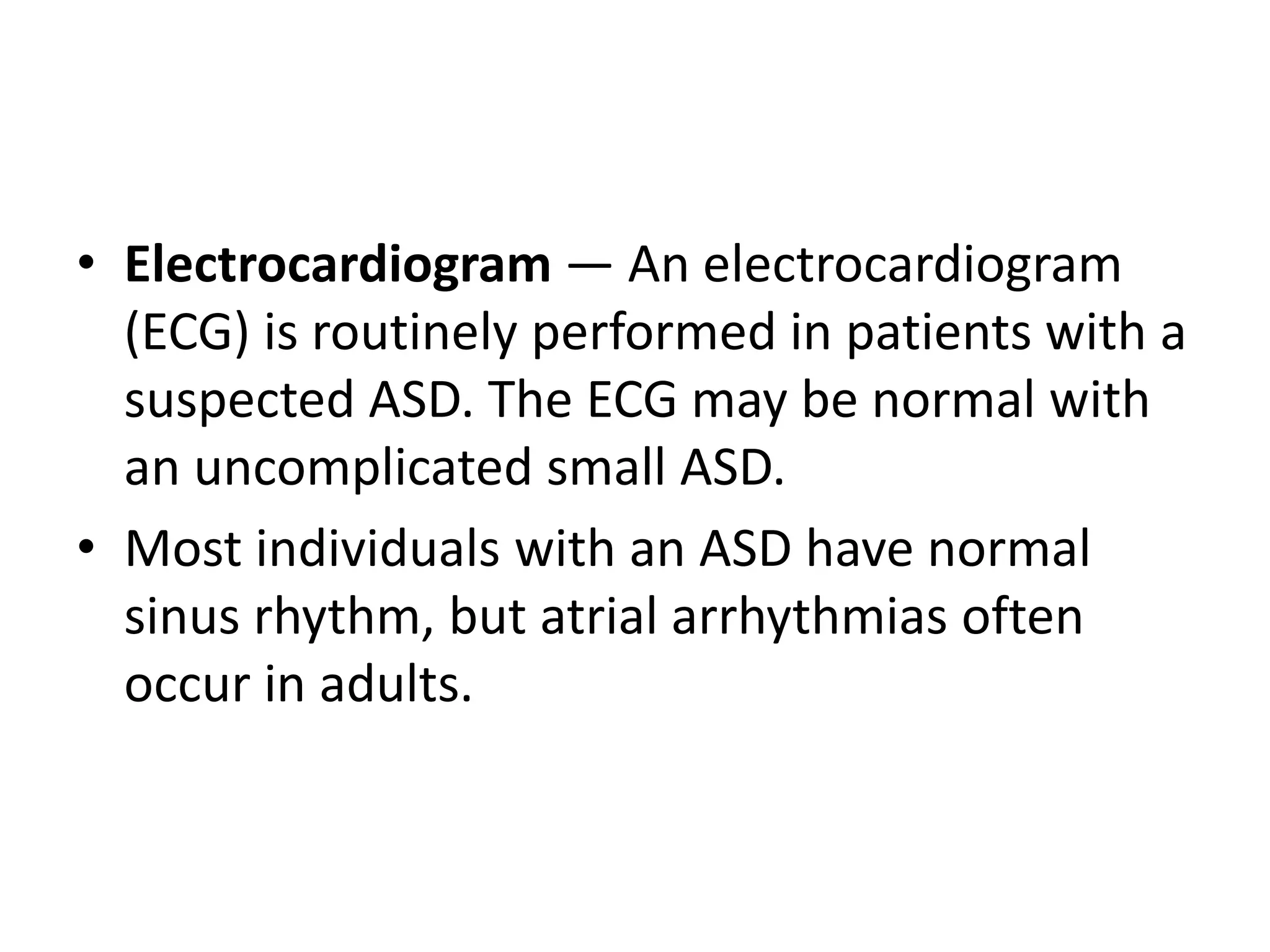

43. • Electrocardiogram — An electrocardiogram
(ECG) is routinely performed in patients with a
suspected ASD. The ECG may be normal with
an uncomplicated small ASD.
• Most individuals with an ASD have normal
sinus rhythm, but atrial arrhythmias often
occur in adults.

44. • The frontal plane QRS axis often ranges from
+95 to +135° (right axis deviation) with a
clockwise loop.
• A northwest (right superior) QRS axis (an axis
from -90 to ±180°) usually suggests the
presence of an AV canal defect.

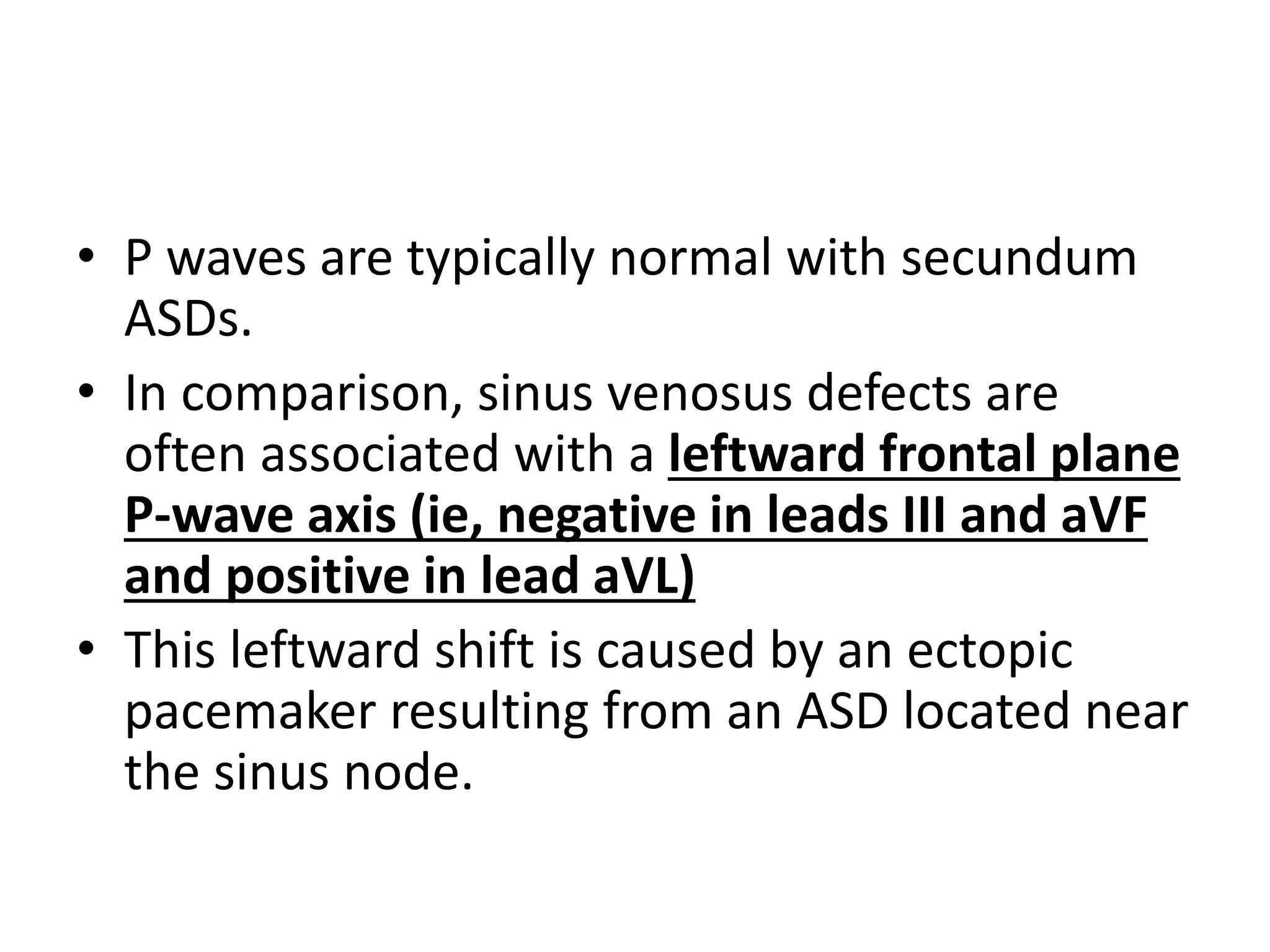

45. • P waves are typically normal with secundum
ASDs.
• In comparison, sinus venosus defects are
often associated with a leftward frontal plane
P-wave axis (ie, negative in leads III and aVF
and positive in lead aVL)
• This leftward shift is caused by an ectopic
pacemaker resulting from an ASD located near
the sinus node.

46. • First-degree AV block can occur in any type of
ASD but is classically present in ostium primum
defects in association with complete right
bundle branch block and left anterior fascicular
block.
• The rim of the ostium primum defect is in close
spatial relationship to the His bundle, accounting
for abnormalities of impulse conduction through
this area.

47. • The QRS complex is often slightly prolonged and has a
characteristic rSr' or rsR' pattern that is thought to
result from disproportionate thickening of the right
ventricular outflow tract, which is the last portion of
the ventricle to depolarize.
• Patients with increasing severity of pulmonary
hypertension tend to lose the rSr' pattern in V1 and
develop a tall monophasic R wave with a deeply
inverted T wave as right ventricular hypertrophy
develops.

48. • A notch on the R wave in the inferior leads (a
pattern called "crochetage") has also been
suggested as a sensitive and specific ECG sign
of secundum ASD

50. notched r waves in inferior leads

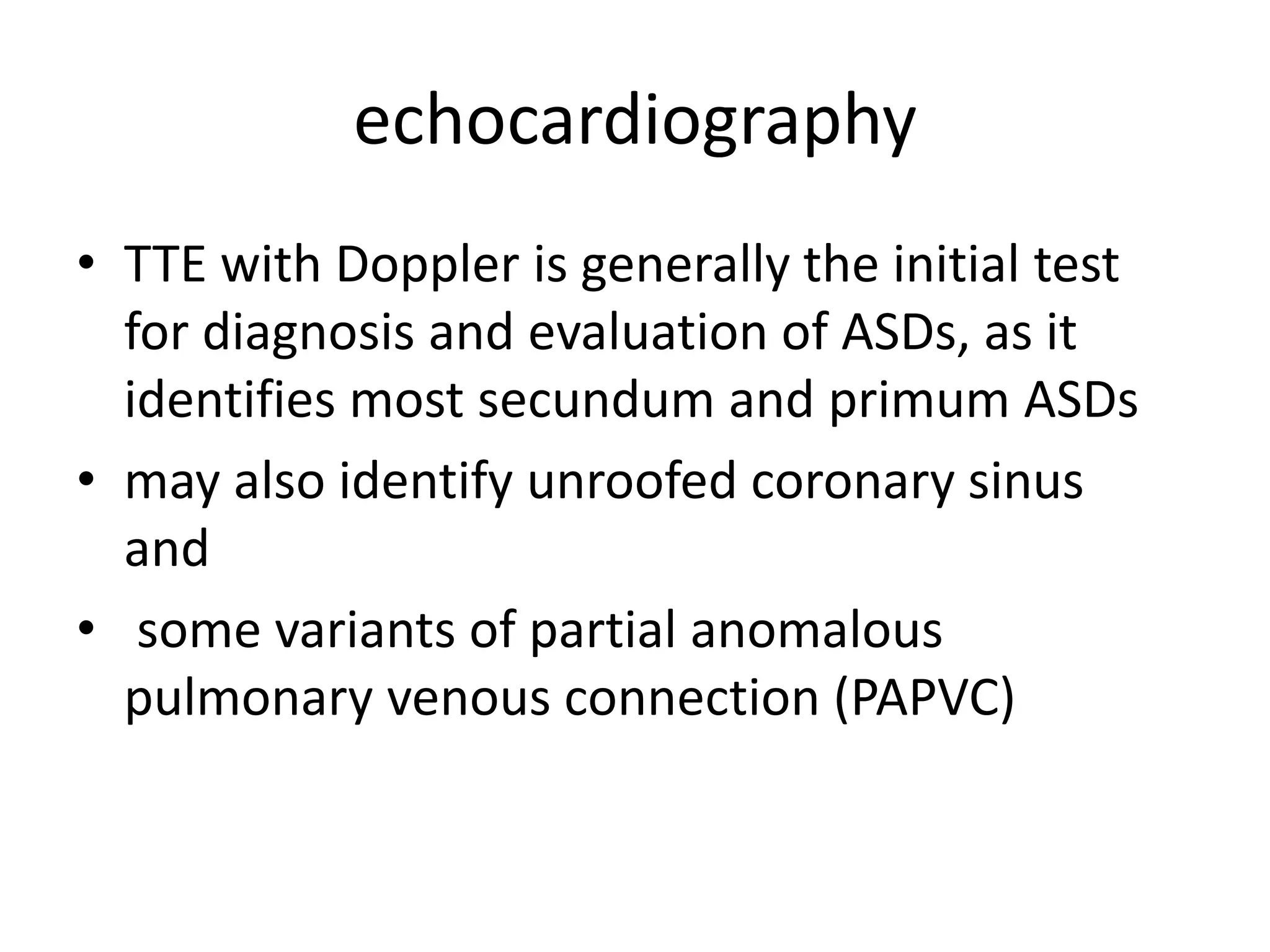

51. echocardiography
• TTE with Doppler is generally the initial test
for diagnosis and evaluation of ASDs, as it
identifies most secundum and primum ASDs
• may also identify unroofed coronary sinus
and
• some variants of partial anomalous
pulmonary venous connection (PAPVC)

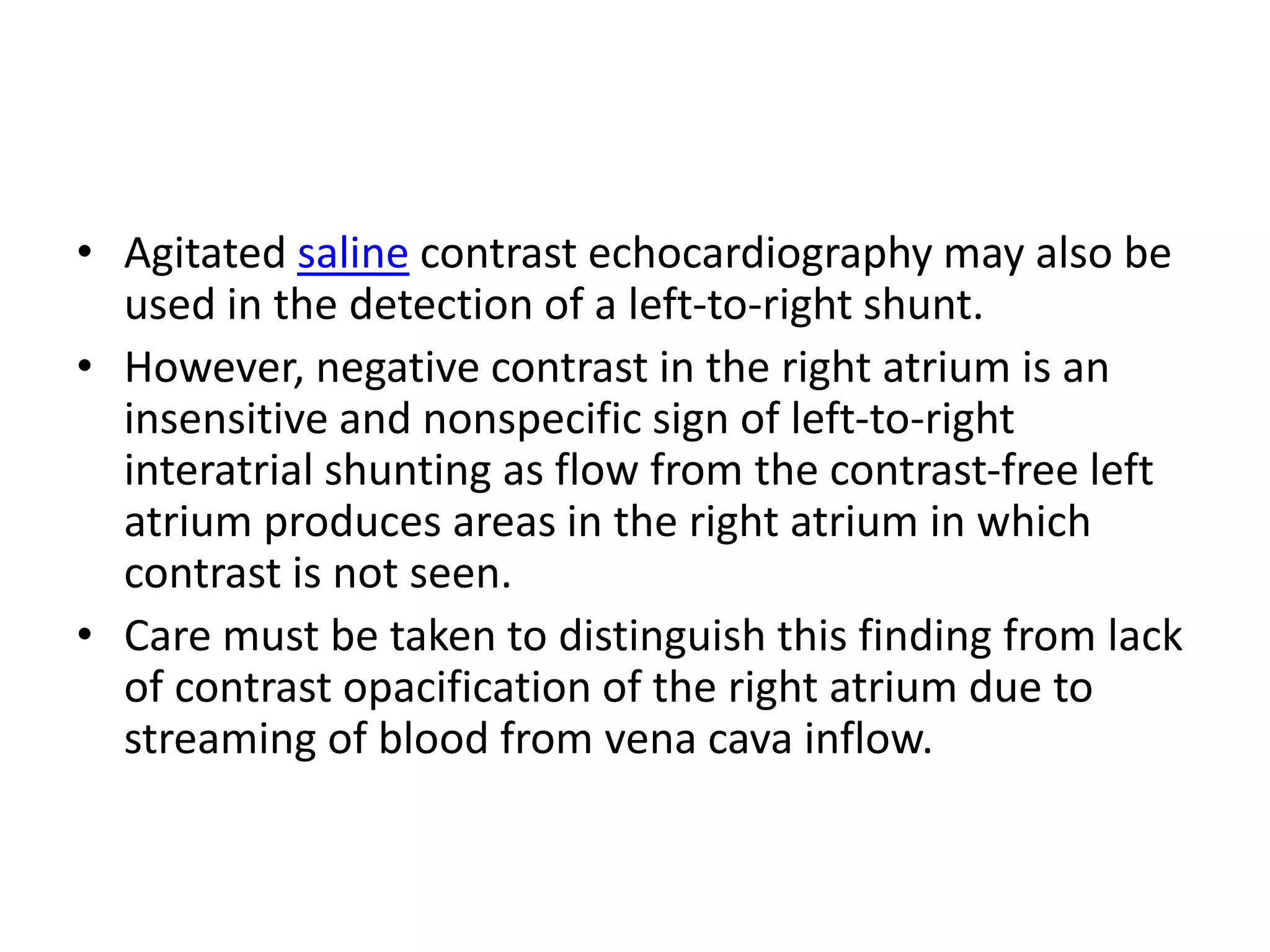

52. contrast echocardiography –
• If comprehensive TTE is not conclusive for ASD,
echocardiography with agitated saline contrast
with maneuvers (Valsalva and cough) may be
helpful to identify an intracardiac shunt
• Agitated saline contrast in a left upper extremity
vein is also helpful for identifying persistent left
superior vena cava (which commonly
accompanies unroofed coronary sinus.

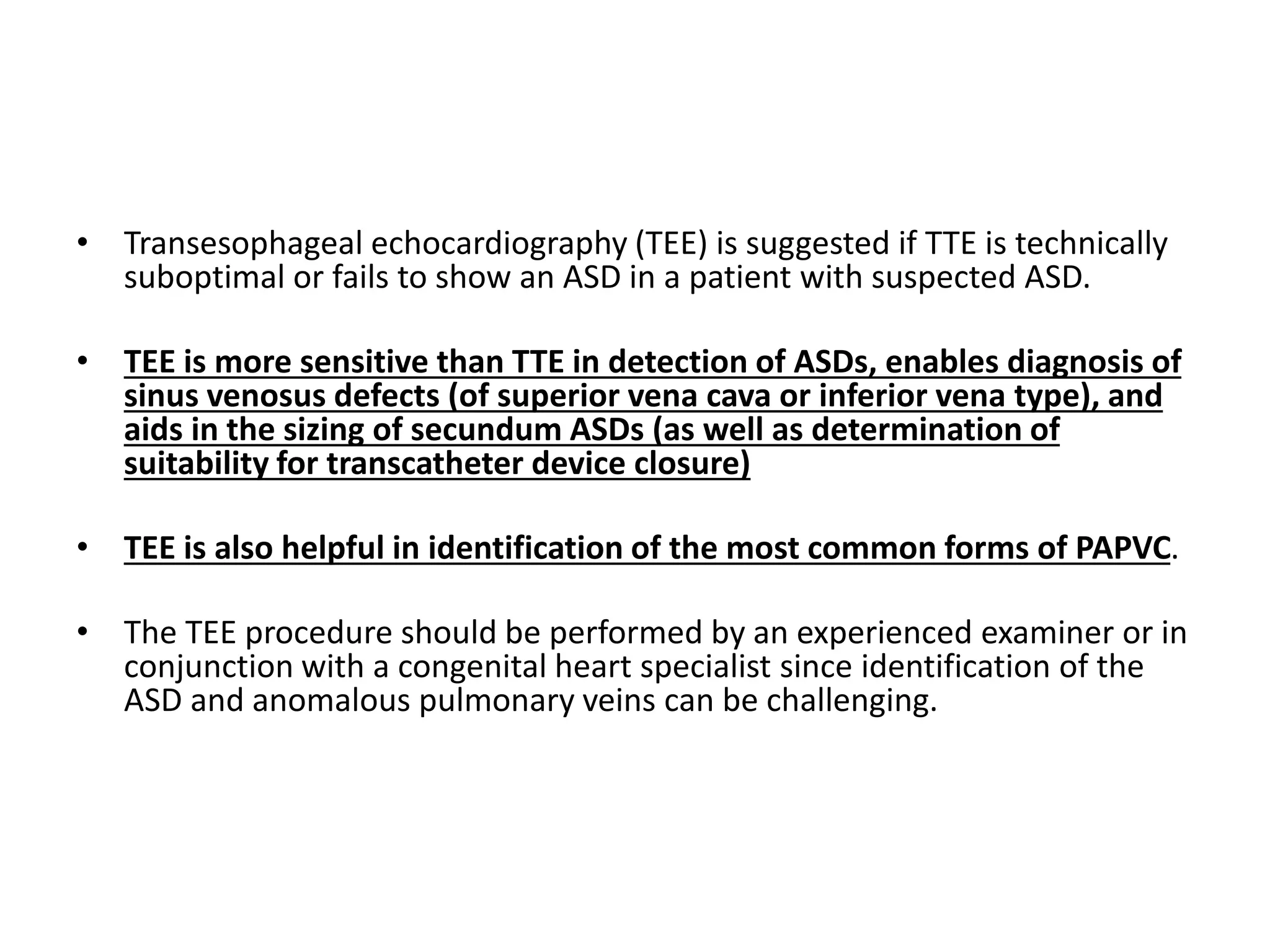

53. • Transesophageal echocardiography (TEE) is suggested if TTE is technically
suboptimal or fails to show an ASD in a patient with suspected ASD.
• TEE is more sensitive than TTE in detection of ASDs, enables diagnosis of
sinus venosus defects (of superior vena cava or inferior vena type), and
aids in the sizing of secundum ASDs (as well as determination of
suitability for transcatheter device closure)
• TEE is also helpful in identification of the most common forms of PAPVC.
• The TEE procedure should be performed by an experienced examiner or in
conjunction with a congenital heart specialist since identification of the
ASD and anomalous pulmonary veins can be challenging.

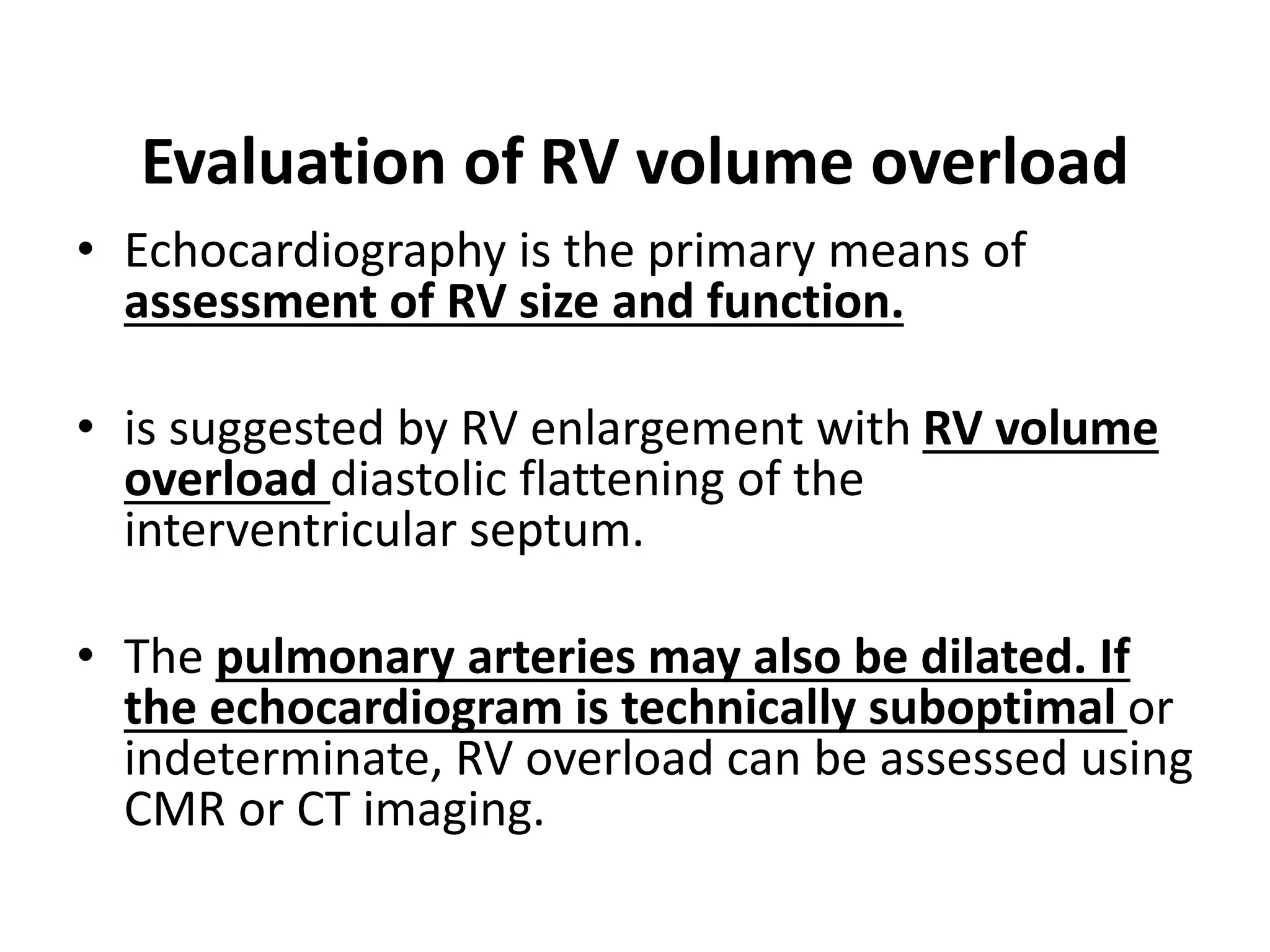

54. Evaluation of RV volume overload
• Echocardiography is the primary means of
assessment of RV size and function.
• is suggested by RV enlargement with RV volume
overload diastolic flattening of the
interventricular septum.
• The pulmonary arteries may also be dilated. If
the echocardiogram is technically suboptimal or
indeterminate, RV overload can be assessed using
CMR or CT imaging.

55. Evaluation of pulmonary artery
pressure
• Pulmonary pressures should be assessed in all patients with
ASDs.
• RV and pulmonary artery systolic pressures are estimated
using Doppler echocardiography by obtaining the peak
tricuspid regurgitation continuous-wave Doppler signal,
using the modified Bernoulli equation, and adding the
estimated right atrial pressure
• RV volume overload is suggested by diastolic flattening of
the interventricular septum
• RV pressure overload is suggested by systolic (or systolic
and diastolic) flattening of the interventricular septum

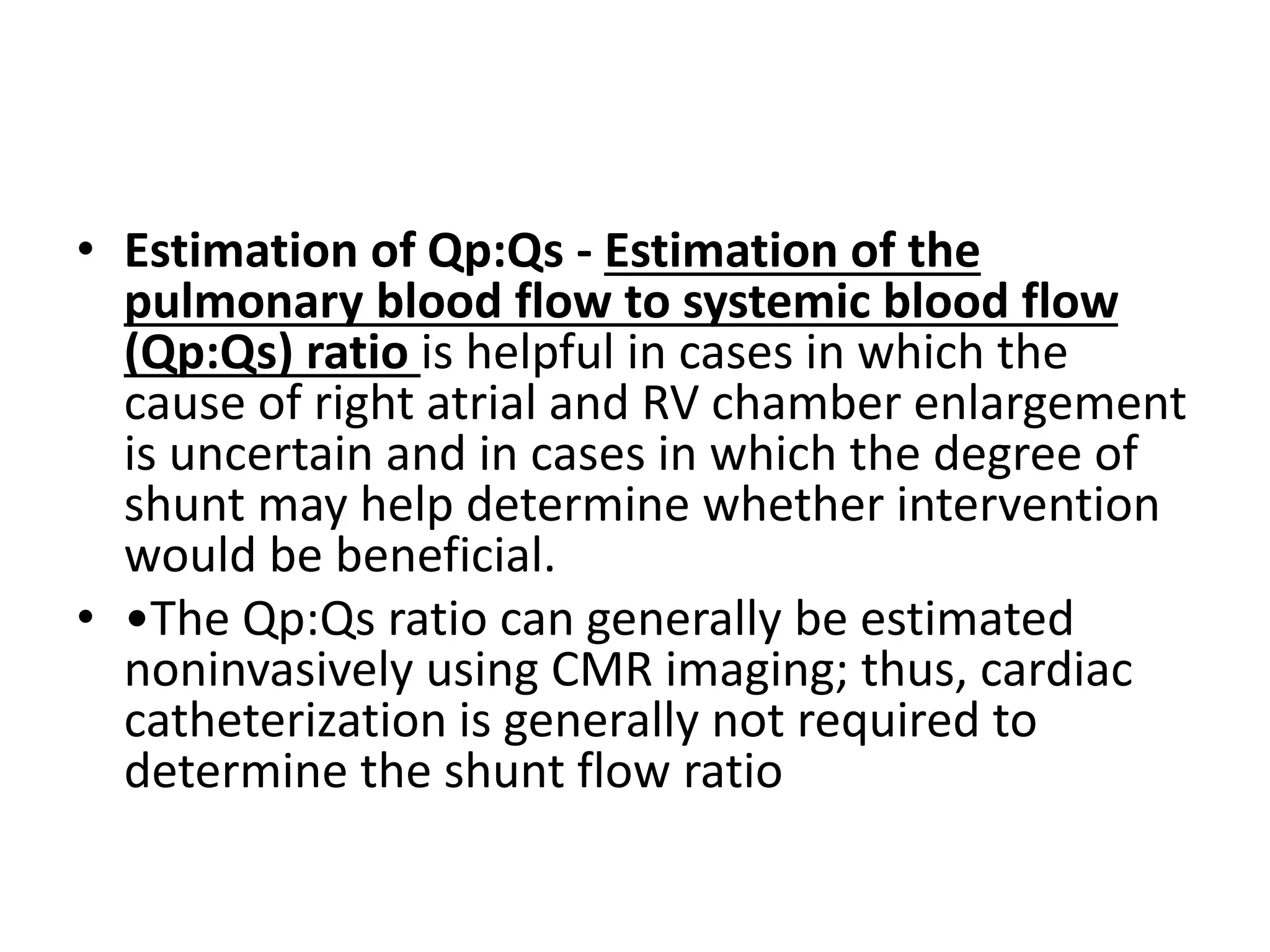

56. • Estimation of Qp:Qs - Estimation of the
pulmonary blood flow to systemic blood flow
(Qp:Qs) ratio is helpful in cases in which the
cause of right atrial and RV chamber enlargement
is uncertain and in cases in which the degree of
shunt may help determine whether intervention
would be beneficial.
• •The Qp:Qs ratio can generally be estimated
noninvasively using CMR imaging; thus, cardiac
catheterization is generally not required to
determine the shunt flow ratio

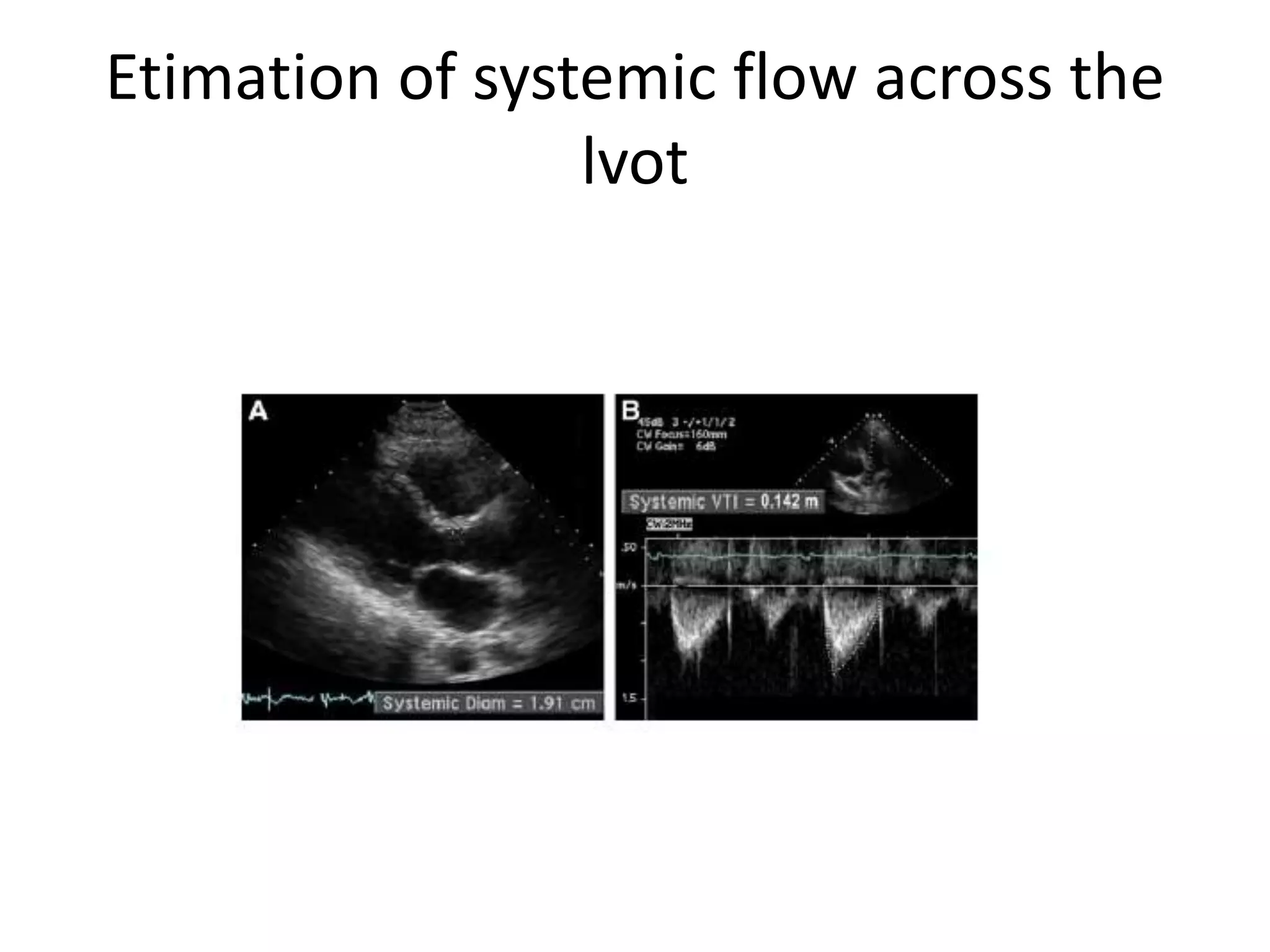

58. Etimation of systemic flow across the
lvot

59. Pulmonary flow across the rvot

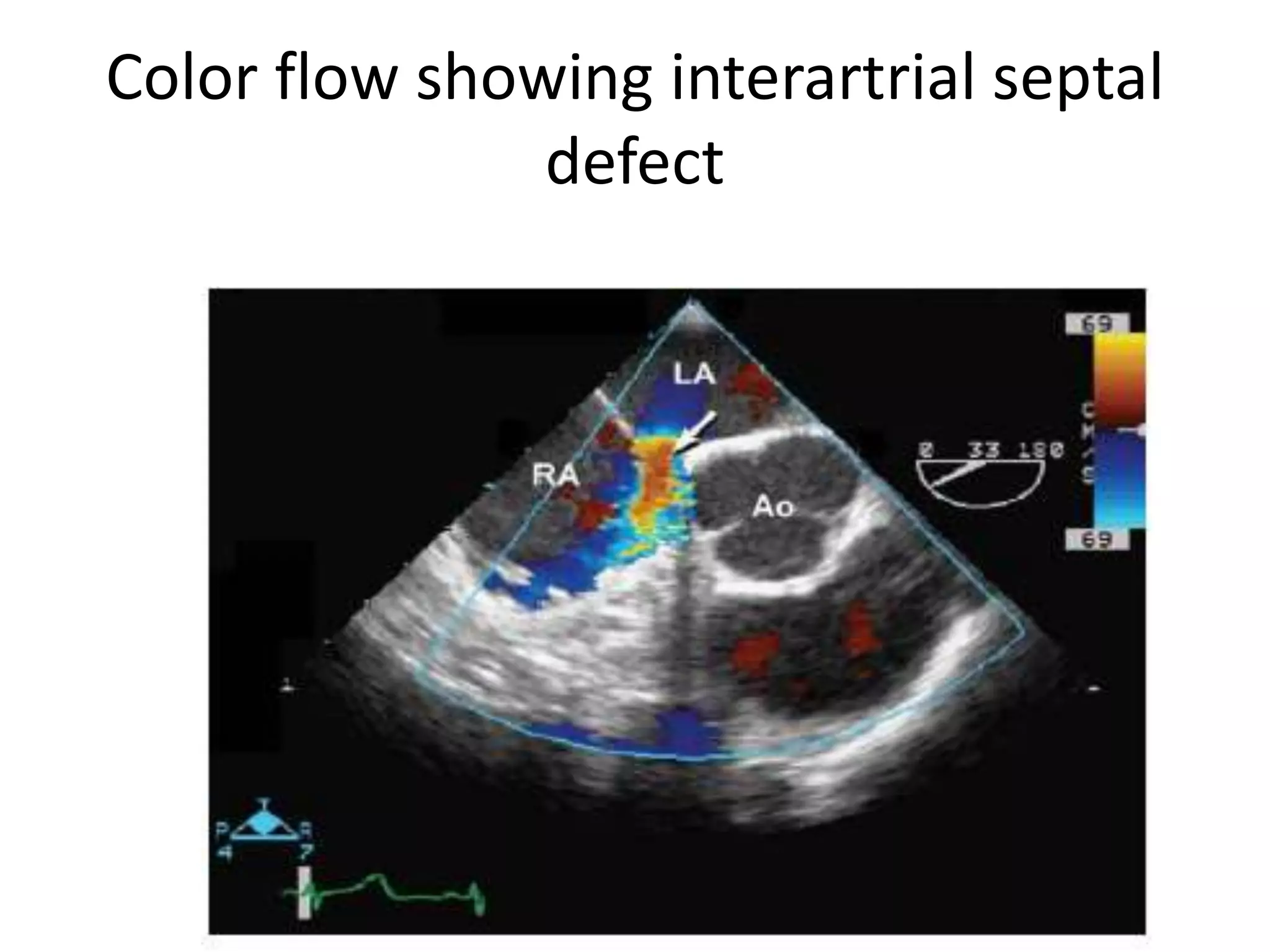

60. Color flow showing interartrial septal
defect

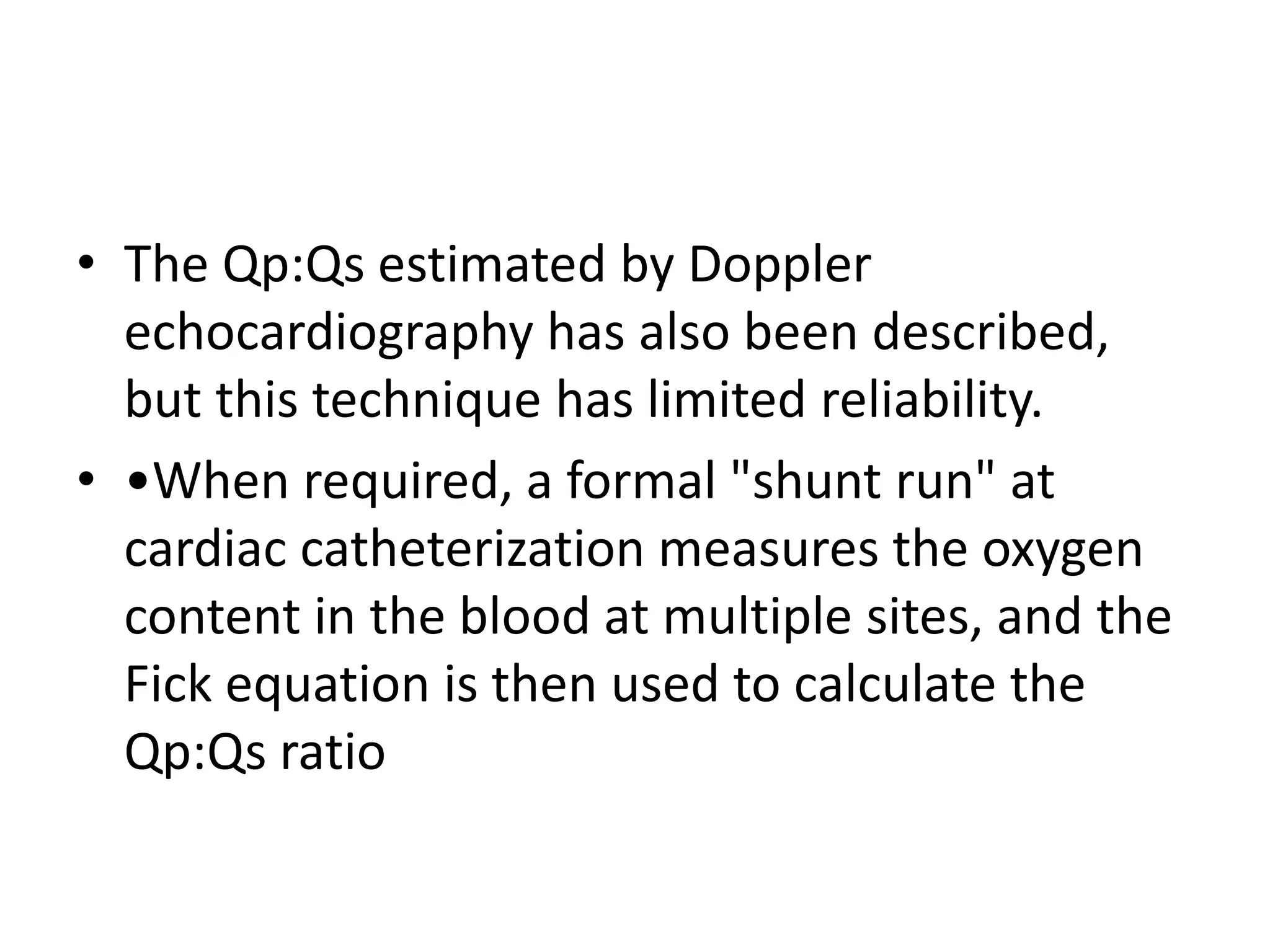

61. • The Qp:Qs estimated by Doppler
echocardiography has also been described,
but this technique has limited reliability.
• •When required, a formal "shunt run" at
cardiac catheterization measures the oxygen
content in the blood at multiple sites, and the
Fick equation is then used to calculate the
Qp:Qs ratio

62. Echocardiography
• Echocardiography is the imaging modality of
choice for the diagnosis of ASDs, as it generally
identifies and characterizes the ASD as well as
associated abnormalities and complications.
• Since the sensitivity of echocardiography varies
with technology, acoustic windows, and
operator/patient factors, negative suboptimal or
noncomprehensive echocardiograms do not
exclude an ASD.

63. ASD and associated flow
• TTE is usually diagnostic for secundum and primum ASDs when a
complete examination (including multiple precordial windows) is
performed by a trained sonographer/imager, unless the shunt is
very small or images are technically suboptimal.
• Clues to the presence of a secundum or primum defect include
abrupt discontinuity or drop out of the interatrial septum.
• Hypermobility of the septum, particularly in association with an
abrupt discontinuity, is also suggestive of secundum defect.
• TTE may also detect unroofed coronary sinus defects.

64. • The interatrial septum is often best visualized in
the subcostal view in which the ultrasound beam
is generally nearly perpendicular to the atrial
septum
• However, this view is suboptimal in some
individuals, particularly in obese subjects.
• Off-axis apical, parasternal short axis, and other
nonstandard views are frequently necessary to
interrogate the whole interatrial septum.

65. • Contrast echocardiography using peripheral
vein injection of agitated saline, when
performed, identified all defects missed by
two-dimensional TTE.

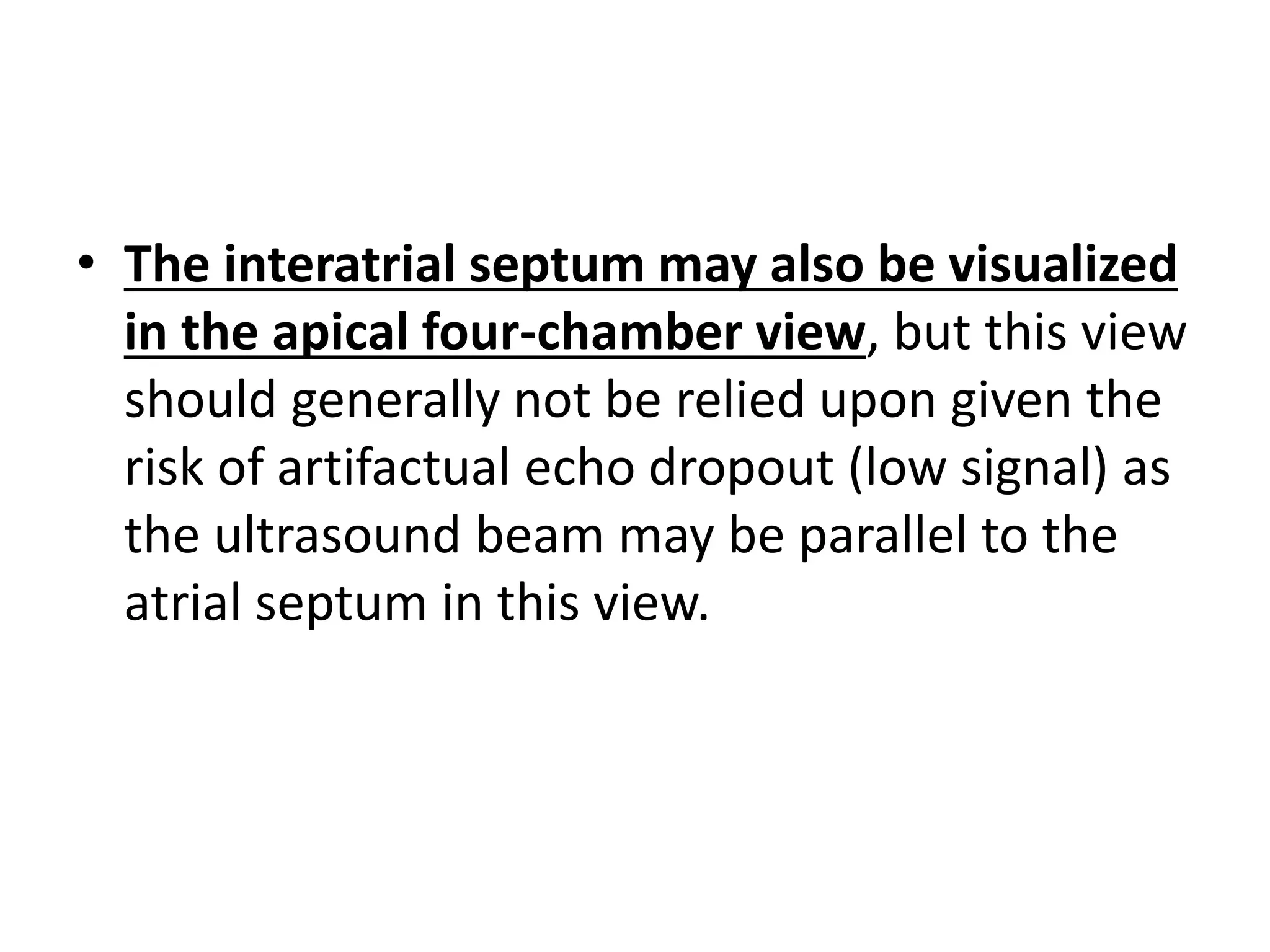

66. • The interatrial septum may also be visualized
in the apical four-chamber view, but this view
should generally not be relied upon given the
risk of artifactual echo dropout (low signal) as
the ultrasound beam may be parallel to the
atrial septum in this view.

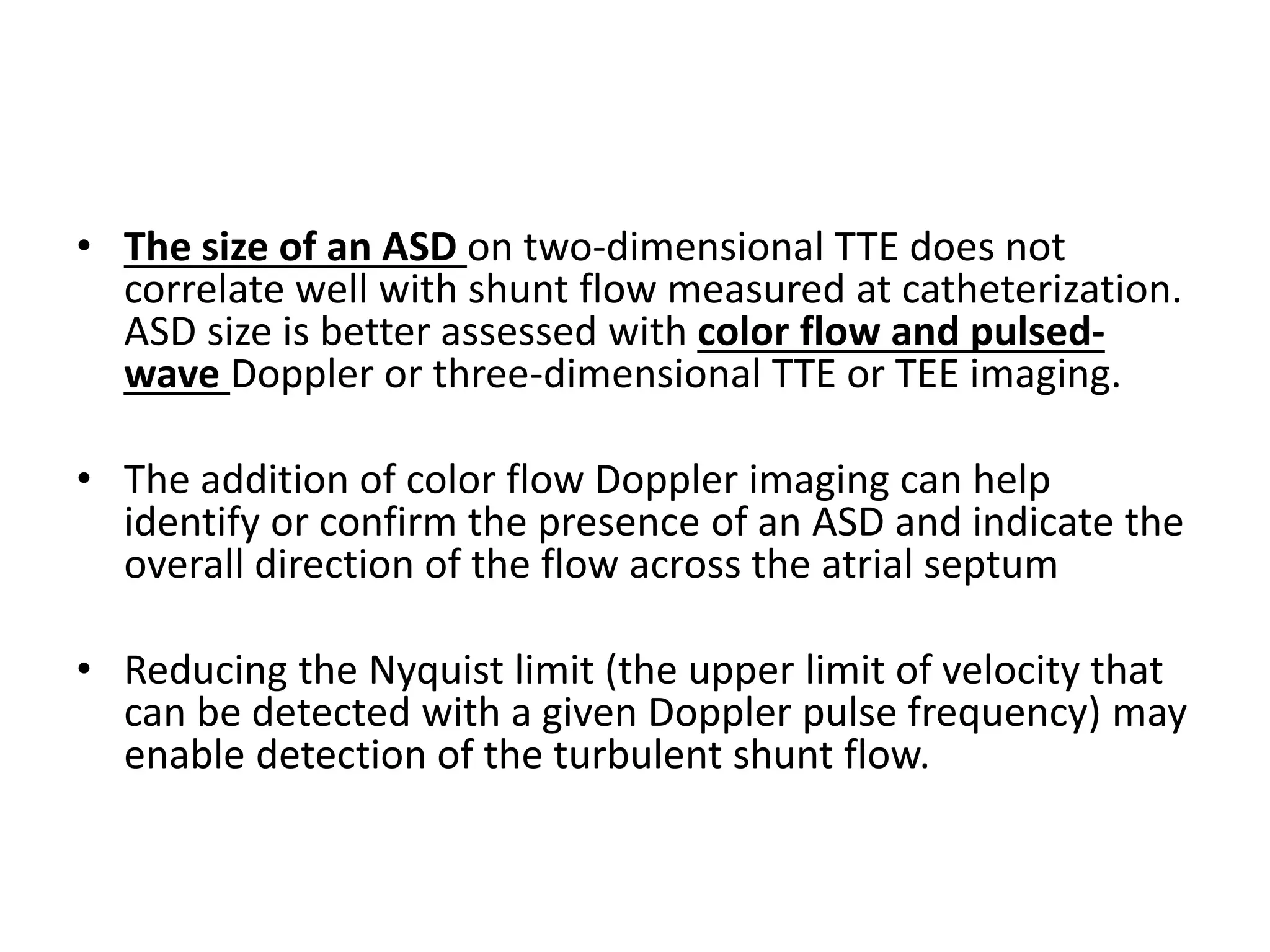

67. • The size of an ASD on two-dimensional TTE does not
correlate well with shunt flow measured at catheterization.
ASD size is better assessed with color flow and pulsed-
wave Doppler or three-dimensional TTE or TEE imaging.
• The addition of color flow Doppler imaging can help
identify or confirm the presence of an ASD and indicate the
overall direction of the flow across the atrial septum
• Reducing the Nyquist limit (the upper limit of velocity that
can be detected with a given Doppler pulse frequency) may
enable detection of the turbulent shunt flow.

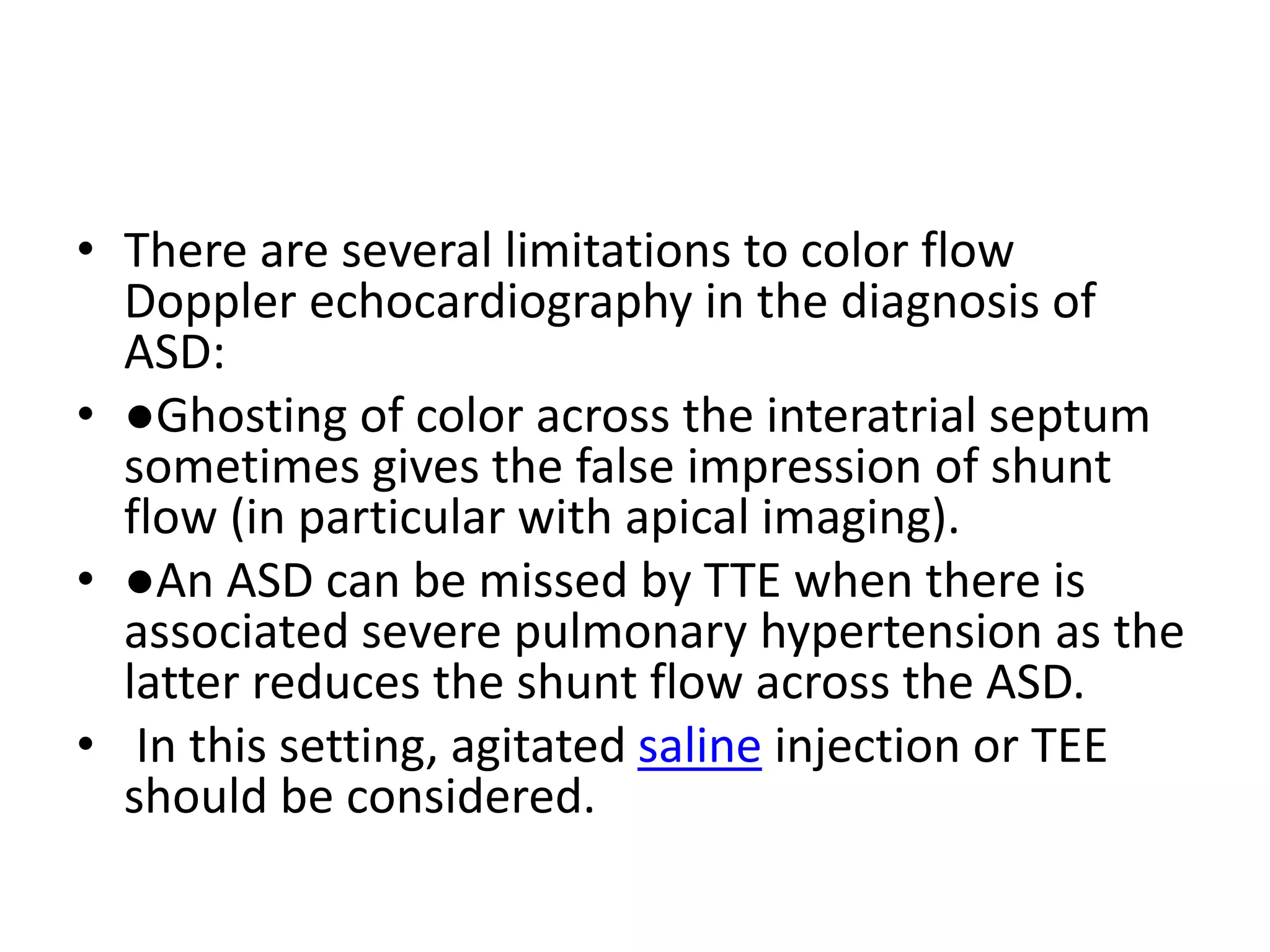

68. • There are several limitations to color flow
Doppler echocardiography in the diagnosis of
ASD:
• ●Ghosting of color across the interatrial septum
sometimes gives the false impression of shunt
flow (in particular with apical imaging).
• ●An ASD can be missed by TTE when there is
associated severe pulmonary hypertension as the
latter reduces the shunt flow across the ASD.
• In this setting, agitated saline injection or TEE
should be considered.

69. Associated findings
Since initial imaging of the interatrial septum may
be inconclusive, other evidence of ASD such as right
atrial and ventricular enlargement due to volume
overload (ie, diastolic interventricular septal
flattening and increased pulmonary artery
velocities without anatomic stenosis) and
pulmonary artery dilatation should be sought.
Continuous-wave Doppler echocardiography is
used to estimate the RV and (thus indirectly)
pulmonary artery systolic pressures.

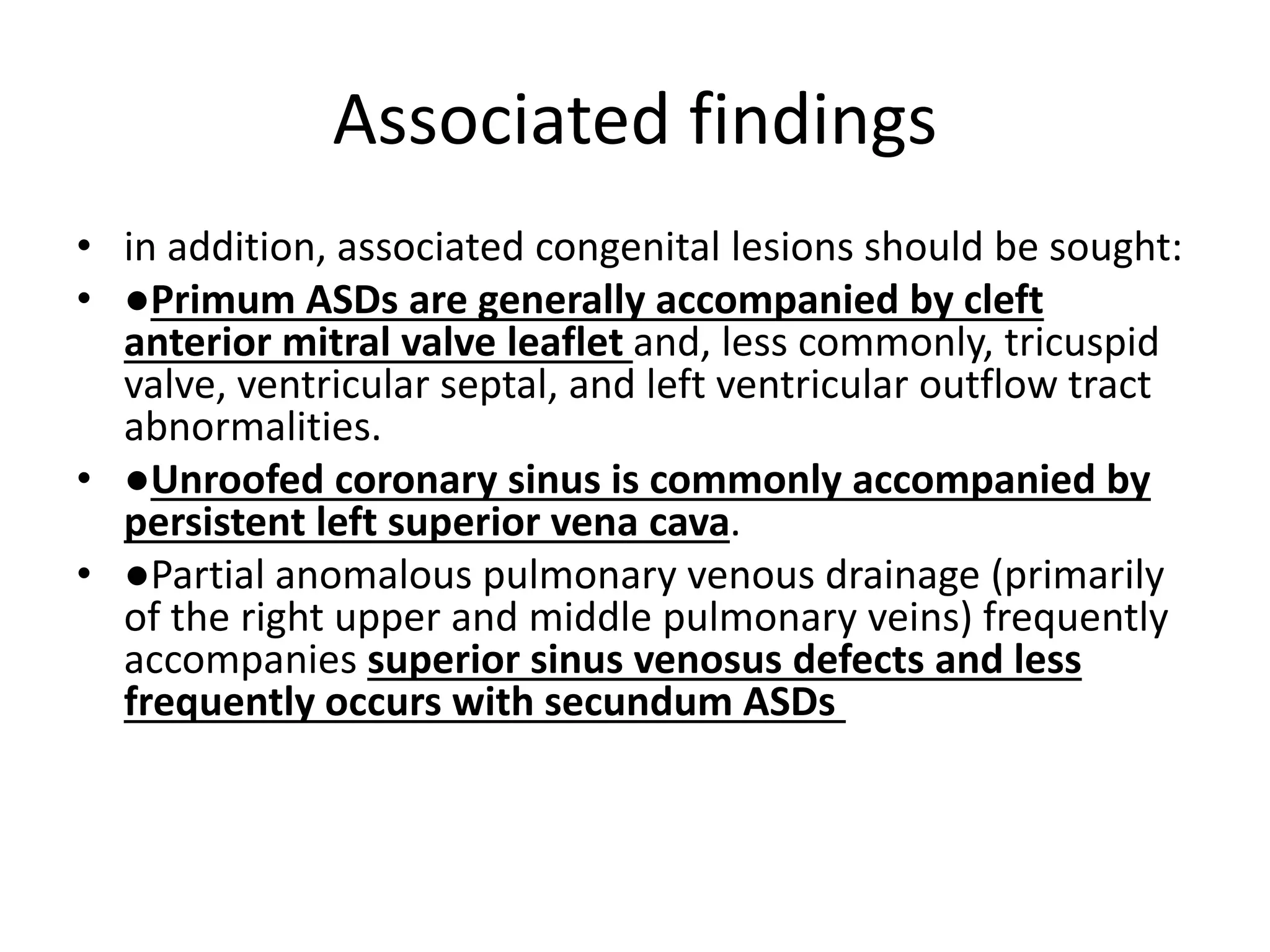

70. Associated findings
• in addition, associated congenital lesions should be sought:
• ●Primum ASDs are generally accompanied by cleft
anterior mitral valve leaflet and, less commonly, tricuspid
valve, ventricular septal, and left ventricular outflow tract
abnormalities.
• ●Unroofed coronary sinus is commonly accompanied by
persistent left superior vena cava.
• ●Partial anomalous pulmonary venous drainage (primarily
of the right upper and middle pulmonary veins) frequently
accompanies superior sinus venosus defects and less
frequently occurs with secundum ASDs

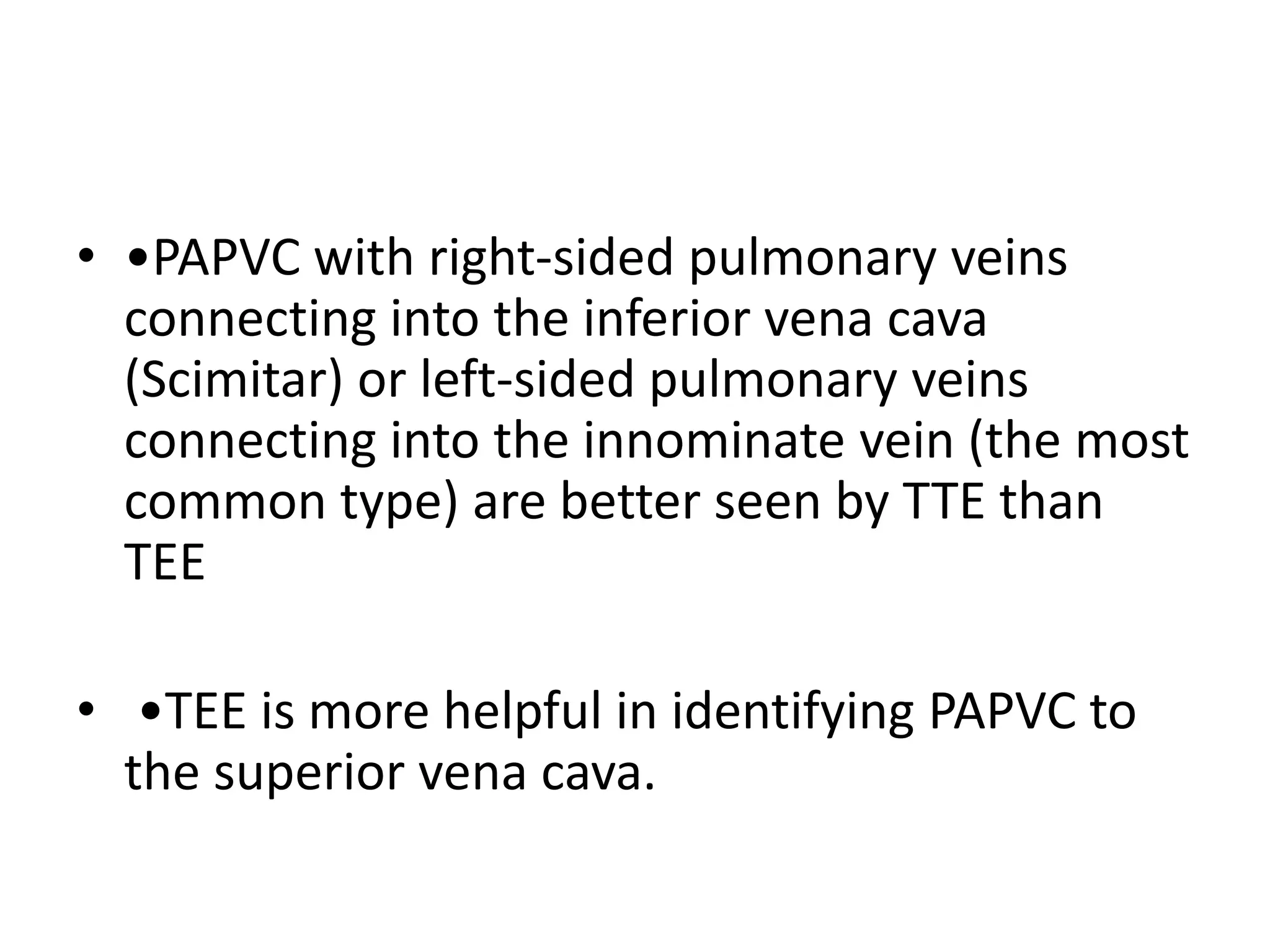

71. • •PAPVC with right-sided pulmonary veins
connecting into the inferior vena cava
(Scimitar) or left-sided pulmonary veins
connecting into the innominate vein (the most
common type) are better seen by TTE than
TEE
• •TEE is more helpful in identifying PAPVC to
the superior vena cava.

72. Agitated saline contrast
• If comprehensive TTE with two-dimensional and color Doppler
imaging is not conclusive for ASD, imaging following
agitated saline contrast injection in a peripheral vein at rest and
with one or more maneuvers (Valsalva or cough) is helpful to
confirm the diagnosis
• Agitated saline contrast can be performed with TTE or TEE imaging
(movie 3).
• Contrast injection can be via any peripheral vein, but a left upper
extremity injection site is required to assess persistent left superior
vena cava (commonly associated with unroofed coronary sinus).
• The presence of unroofed coronary sinus with persistent left
superior vena cava is identified after intravenous
agitated saline injection in the left arm by detection of contrast in
the left atrium before or simultaneous to the right atrium.

73. Agitated saline contrast in asd

74. • An adequate contrast injection causes opacification of the right
atrium and ventricle. If there is a right-to-left interatrial shunt
(transient or net), early appearance of contrast can be seen in the
left atrium".)
• A right-to-left interatrial shunt can be detected by contrast
echocardiography in three circumstances:
• ●Patent foramen ovale, with no or net left-to-right shunt, with
transient elevation in right atrial pressure above left atrial pressure
(generally timed during the end of the T wave)
• ●With an uncomplicated ASD with net left-to-right shunt, when
flow is temporarily reversed with transient increases in right atrial
pressure relative to left atrial pressure (eg, with a Valsalva
maneuver or coughing) or briefly during the onset of left ventricular
contraction

75. • Agitated saline contrast echocardiography may also be
used in the detection of a left-to-right shunt.
• However, negative contrast in the right atrium is an
insensitive and nonspecific sign of left-to-right
interatrial shunting as flow from the contrast-free left
atrium produces areas in the right atrium in which
contrast is not seen.
• Care must be taken to distinguish this finding from lack
of contrast opacification of the right atrium due to
streaming of blood from vena cava inflow.

76. Stages of closure with amplatzer
