This document describes an ATM system project. The key functions of an ATM include balance inquiries, cash withdrawals, and changing PIN numbers. The hardware requirements include a 32-bit screen with high resolution and sufficient storage capabilities. The software is developed using C++ with graphics. The system allows transactions, maintains and updates master files, and generates documents. It also describes screens for authentication, selecting account type, withdrawing amounts, and confirmation screens.

1. PROJECT TITLE
PRESENTED BY-:
Desai Chintan p
S.Y.BBA(ITM)
ROLL NO :-06

2. ATM SYSTEM
 Automatic Teller Machine
 The main function an ATM system
performs are classified as -:
PRIMARY -: SECONDARY-:
Balance Enquiry Changing pin no
Cash Withdraw  Others Information

3. HARDWARE
REQUIREMENTS
AND
 The technology include
SOFTWARE
REQUIREMENTS resolution,14”
- 32 bit screen with high
- TVSE GOLD KEY-BOARD
- The technologies include all sufficient storage &
capabilities for high performance.
 SOFTWARE REQUIREMENTS : C++ WITH GRAPHICS

4. SYSTEM DESCRIPTION
 MAIN ACTIVITIES OF SYSTEM
 TRANSACTIONS
 MAINTAINING AND UPDATING MASTER
FILE
 DOCUMENT GENERATION

5.  WITHDRAWAL -: Debits cash from the
respective account holder’s account.
 Multiples of Rs. 100/500

6.  CHANGING THE PIN NO -: Acts as 4 digited
password for account holder.Can be changed
in conditions of risk or for security.
 OTHERS -: It includes processes like :-
Statement Requirement..

7.  MAINTAINING AND UPDATING
MASTER FILES-: All the transactions that are
performed by account holders are recorded in
transaction file and updating the master is the
day end process.
 DAY END PROCESS-: According to the no and
type of transactions that takes place till the
end of 24 hours the master file is updated that
is the balances are calculated according to
amount and previous balances.

8. INPUT SCREEN 1
This screen represents the main screen of the ATM system

9. INPUT SCREEN 2
This is the main menu for the options

10. INPUT SCREEN 3
It is used for selection of the type of account

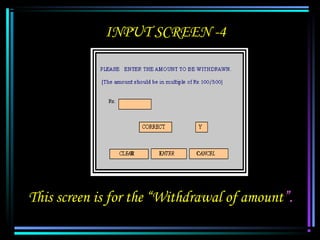

11. INPUT SCREEN -4
This screen is for the “Withdrawal of amount”.

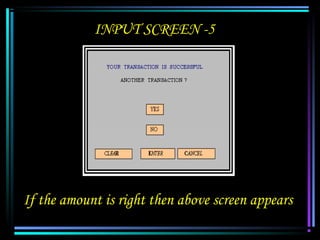

12. INPUT SCREEN -5
If the amount is right then above screen appears
