Application Automation with Habitat
The document discusses Habitat, an open source tool for automating the packaging, deployment, and management of applications. It describes how Habitat packages applications and all of their dependencies into artifacts called "packages" that can run on any Linux system. It also explains how Habitat uses supervisors to deploy packages, form service groups, and provide update strategies and REST APIs for managing applications in a continuous delivery model.
More Related Content
Similar to Application Automation with Habitat
Application Automation with Habitat

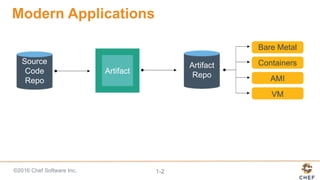

- 2. ©2016 Chef SoftwareInc. 1-2 Modern Applications Source Code Repo Artifact Bare Metal Containers AMI VM Artifact Repo
- 3. ©2016 Chef SoftwareInc. 1-3 Immutable Infrastructure
- 4. ©2016 Chef SoftwareInc. 1-4 Immutable Infrastructure Applications
- 5. ©2016 Chef SoftwareInc. 1-5 Dependencies!
- 6. ©2016 Chef SoftwareInc. 1-6 Packaging and Deployment
- 7.
- 8. Starts with aplan

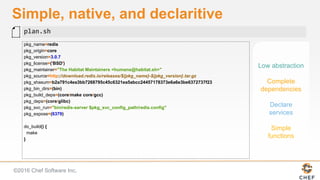

- 9. ©2016 Chef SoftwareInc. Simple, native, and declaritive pkg_name=redis pkg_origin=core pkg_version=3.0.7 pkg_license=('BSD') pkg_maintainer="The Habitat Maintainers <humans@habitat.sh>" pkg_source=http://download.redis.io/releases/${pkg_name}-${pkg_version}.tar.gz pkg_shasum=b2a791c4ea3bb7268795c45c6321ea5abcc24457178373e6a6e3be6372737f23 pkg_bin_dirs=(bin) pkg_build_deps=(core/make core/gcc) pkg_deps=(core/glibc) pkg_svc_run="bin/redis-server $pkg_svc_config_path/redis.config" pkg_expose=(6379) do_build() { make } plan.sh Low abstraction Complete dependencies Declare services Simple functions
- 10. Clean room environment Safeby default Installs dependences Built in a studio
- 11. Central location Publicly hosted Lightweightviews Stored in a depot
- 12.
- 13.
- 14.
- 15. Run on any64-bit Linux Easily support proprietary software
- 16. Installs automatically Keeps thingsrunning Manages configuration Supervisor runs services
- 17. Print config options 12-Factorstyle Externally enforced Environment configuration
- 18. More flexible thanenvironment Universal location Externally enforced File configuration

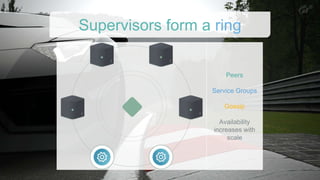

- 19. Supervisors form aring Peers Service Groups Gossip Availability increases with scale

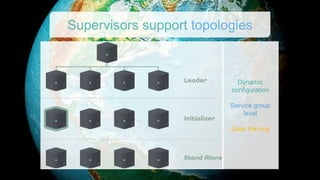

- 20. Supervisors support topologies Dynamic configuration Servicegroup level Uses the ring
- 21. Supervisors provide updatestrategies Topology aware Tracks views in the depot Ideal for Continuous Delivery

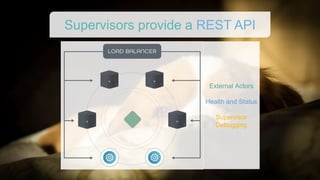

- 22. Supervisors provide aREST API External Actors Health and Status Supervisor Debugging
- 23. Automation travels withthe application Existing & Cloud Native Software Application Automation
- 24. It’s all opensource Apache License
- 25.
Editor's Notes
- #3 This is what building modern applications should look like. Start by writing source code that is stored in a source code repository. Build an artifact from that source code. Rebuilding the same source code should generate the same outcome. Artifacts get stored in a repository. Artifacts can be installed and/or run as services in all environments, bare metal, containers, cloud instances, or virtual machines.
- #4 The “immutable infrastructure pattern” is a thing that’s hard to ignore. Knowing what’s out there is exactly what you deployed is pretty powerful. It seems great until you need it to be more flexible. Small config changes add additional overhead on spinning new images/containers. What about running an app in multiple environments, each with their own settings? Immutable is great, but there has to be a blend between immutable and configuration management.
- #5 The “immutable infrastructure pattern” is a thing that’s hard to ignore. Knowing what’s out there is exactly what you deployed is pretty powerful. It seems great until you need it to be more flexible. Small config changes add additional overhead on spinning new images/containers. What about running an app in multiple environments, each with their own settings? Immutable is great, but there has to be a blend between immutable and configuration management.
- #6 What packages does your application implicitly rely on that are installed on your OS base image? What if that base image changes? What if you target a different runtime (bare metal, container, etc.)? We must eliminate hidden dependencies in our applications.
- #7 Packaging and deployment mechanisims need to be easy-to-use and understand Packaging and deployment should not be tied to the language or framework of the application
- #8 Optimize the culture and technology around Fast, efficient, software driven Build, Deploy, Manage of Applications Fast, efficient, software driven Could would we Build, Deploy, Manage All the software, enterprise and cloud The same way? https://flic.kr/p/fqhYE4
- #9 Prepare software for Habitat Build Configuration runtime hooks https://flic.kr/p/bX4sLL
- #11 Only has what you need Installs dependencies Safe, auditable Multiple types - flexible abstraction https://flic.kr/p/6psAb2
- #12 Stores packages; like apt, yum, rubygems, or cpan Uses origins for ownership Built for CD https://flic.kr/p/DgftTL
- #13 hab NOUN VERB hab install hab install adam/redis https://flic.kr/p/7b6nj9
- #14 Grouped under /hab hab install core/redis ls -la /hab/pkgs/core/redis Deps, Build Deps, config, binaries https://flic.kr/p/xzEadt
- #15 Any package! https://flic.kr/p/piD2pu
- #16 Modern-ish kernel - 2.6.32+ Deps, Build Deps, config, binaries You can still get the management benefits, even if the software deps and isolation don't work https://flic.kr/p/cQC8U3
- #17 Installs packages Starts the service we defined Manages the lifecycle Reconfigures Adds data we use in our configuration - data is the api https://flic.kr/p/nC6Fmk
- #18 lowest common denominator hab sup config adam/redis ENV HAB_REDIS="tcp-backlog = 128" hab start adam/redis Brittle; hard to change Hard to set a bunch of things at once No support for complex configuration https://flic.kr/p/fqpYjH
- #19 We can inject files, change them later Universal config file location - no more guessing! Still essentially externally managed What happens if I launch two? How can we make consistent, dynamic configuration? https://flic.kr/p/ao7jBT
- #20 Supervisors connect to each other Share information Gossip and infection Availability https://flic.kr/p/e8yk3m
- #21 Static! Not a thousand different topologies What we talk about anyway in teams https://flic.kr/p/9WdfTj
- #22 Detects when a new release is available Works with the service group to deploy it You specify the pattern, the supervisors execute it Only the first is implemented https://flic.kr/p/cpLKpJ
- #23 Easy to query from outside habitat Great for debugging https://flic.kr/p/rkvmJR
- #24 Application Automation - app point of view Automation travels with the app - no external entities required Existing and cloud native We don't rewrite the world to fix our management struggles https://flic.kr/p/getU6Y
- #25 https://flic.kr/p/oqocGB
