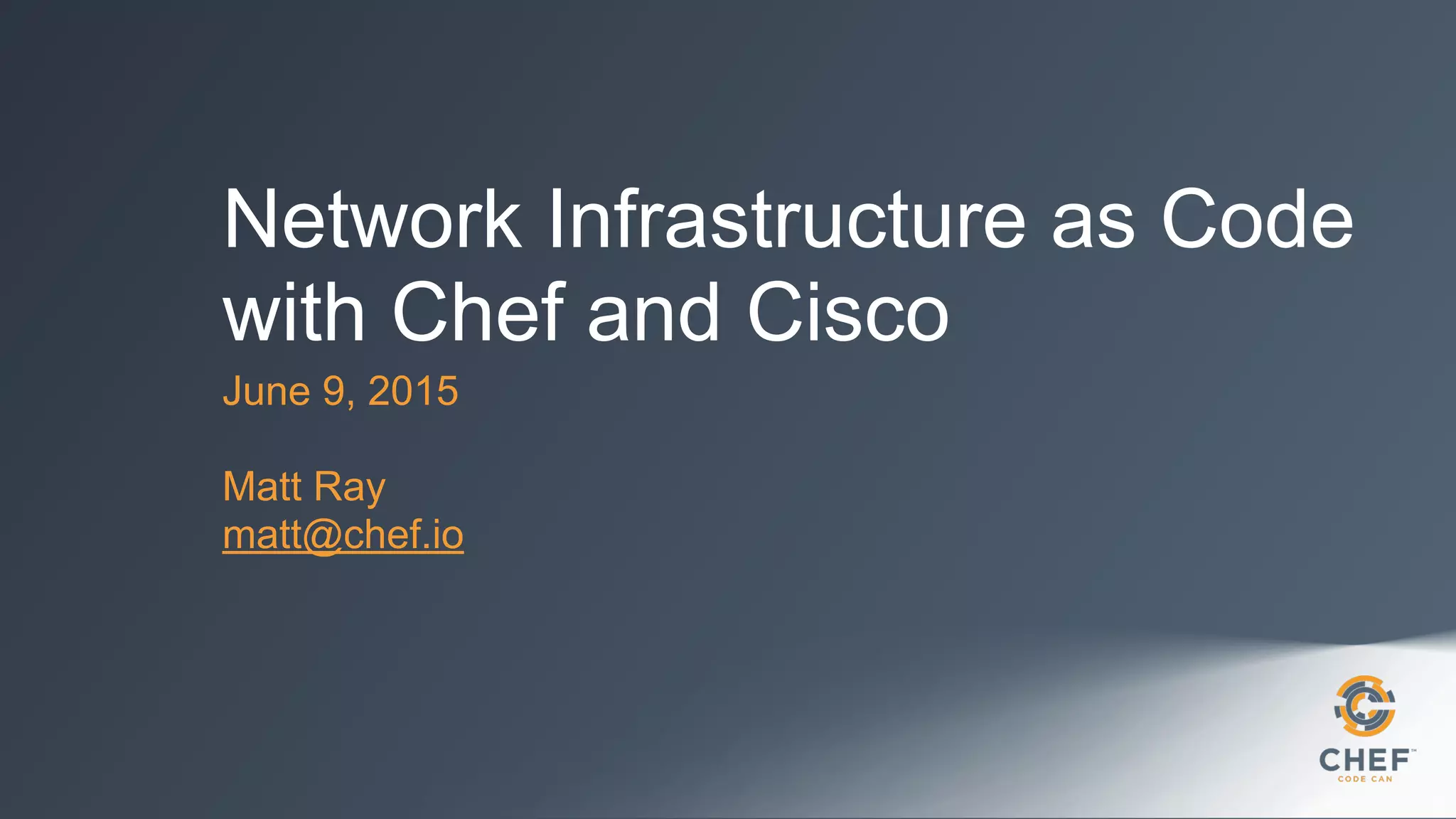

1. Network Infrastructure as Code
with Chef and Cisco
June 9, 2015
Matt Ray
matt@chef.io

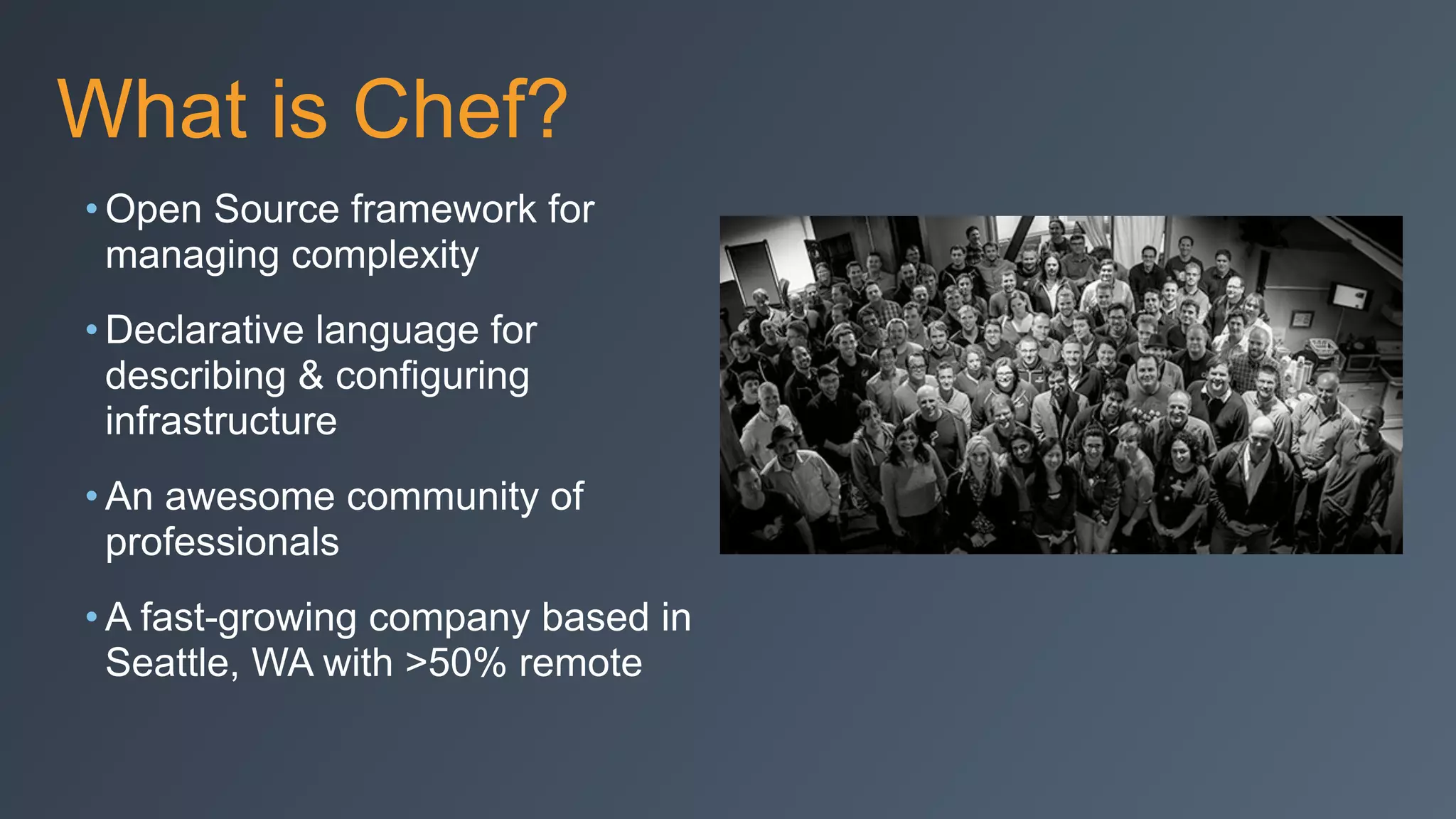

2. What is Chef?
• Open Source framework for
managing complexity
• Declarative language for
describing & configuring
infrastructure
• An awesome community of
professionals
• A fast-growing company based in
Seattle, WA with >50% remote

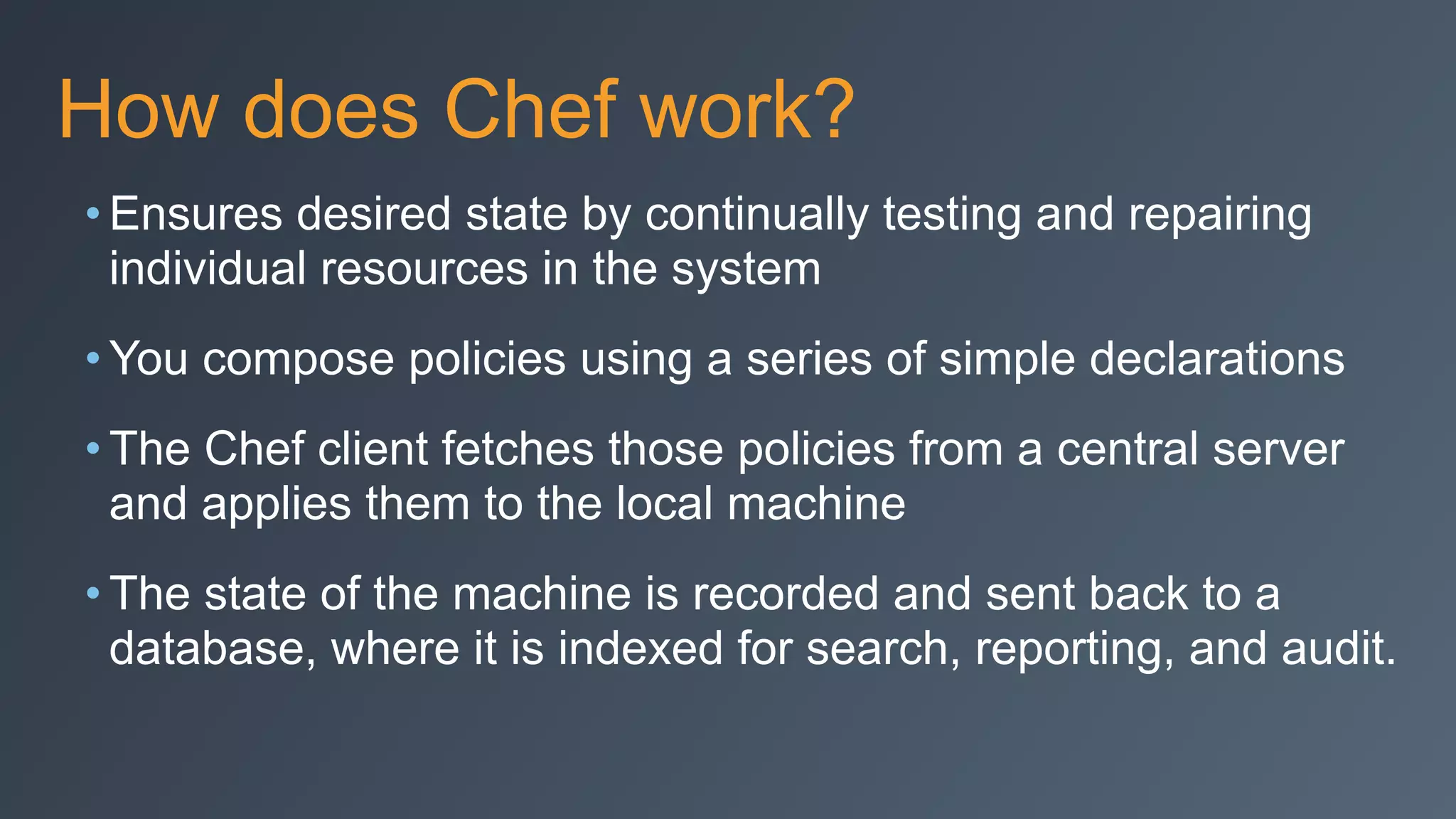

3. How does Chef work?
• Ensures desired state by continually testing and repairing
individual resources in the system
• You compose policies using a series of simple declarations
• The Chef client fetches those policies from a central server
and applies them to the local machine
• The state of the machine is recorded and sent back to a
database, where it is indexed for search, reporting, and audit.

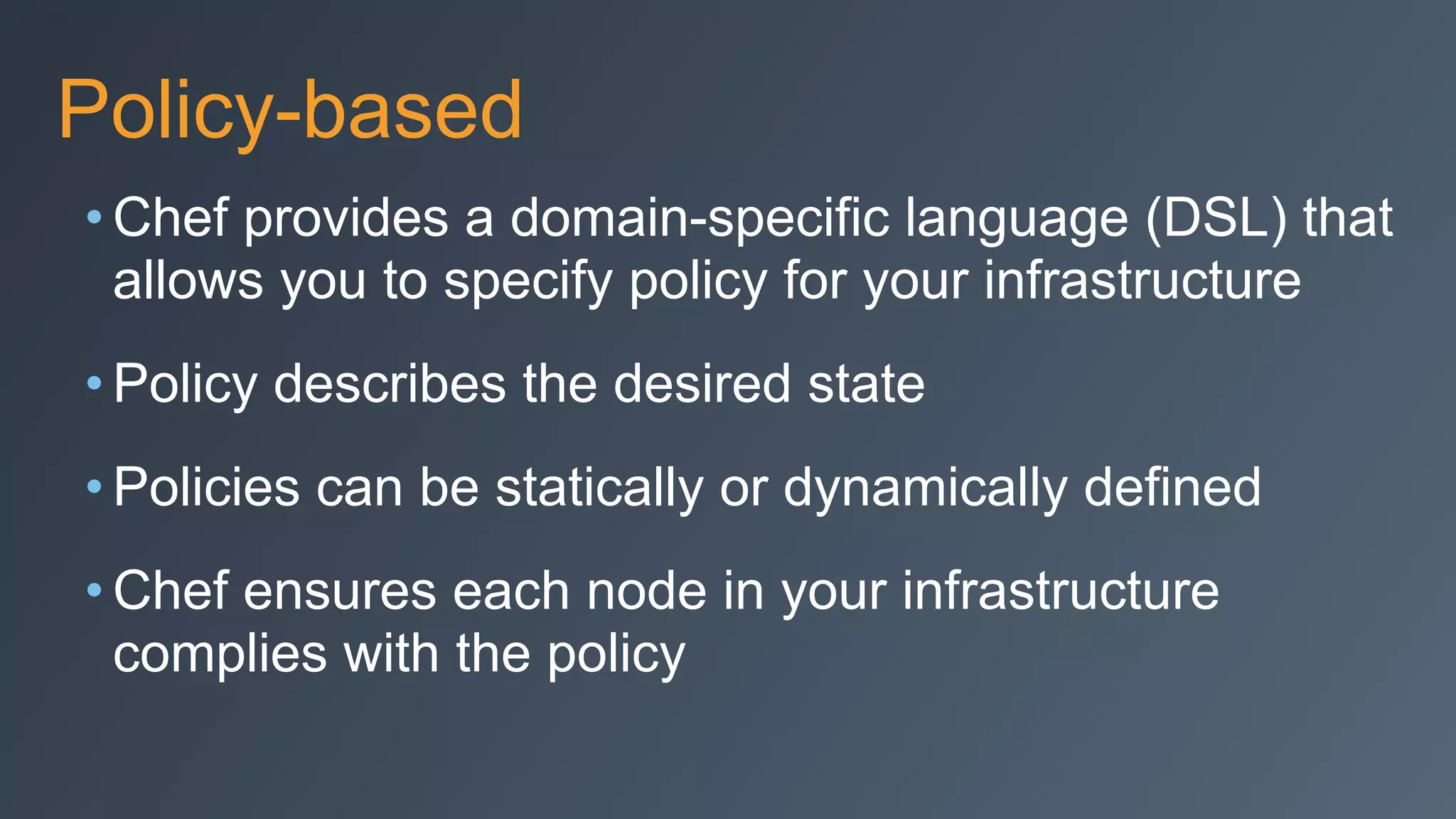

4. Policy-based
• Chef provides a domain-specific language (DSL) that
allows you to specify policy for your infrastructure
• Policy describes the desired state
• Policies can be statically or dynamically defined
• Chef ensures each node in your infrastructure
complies with the policy

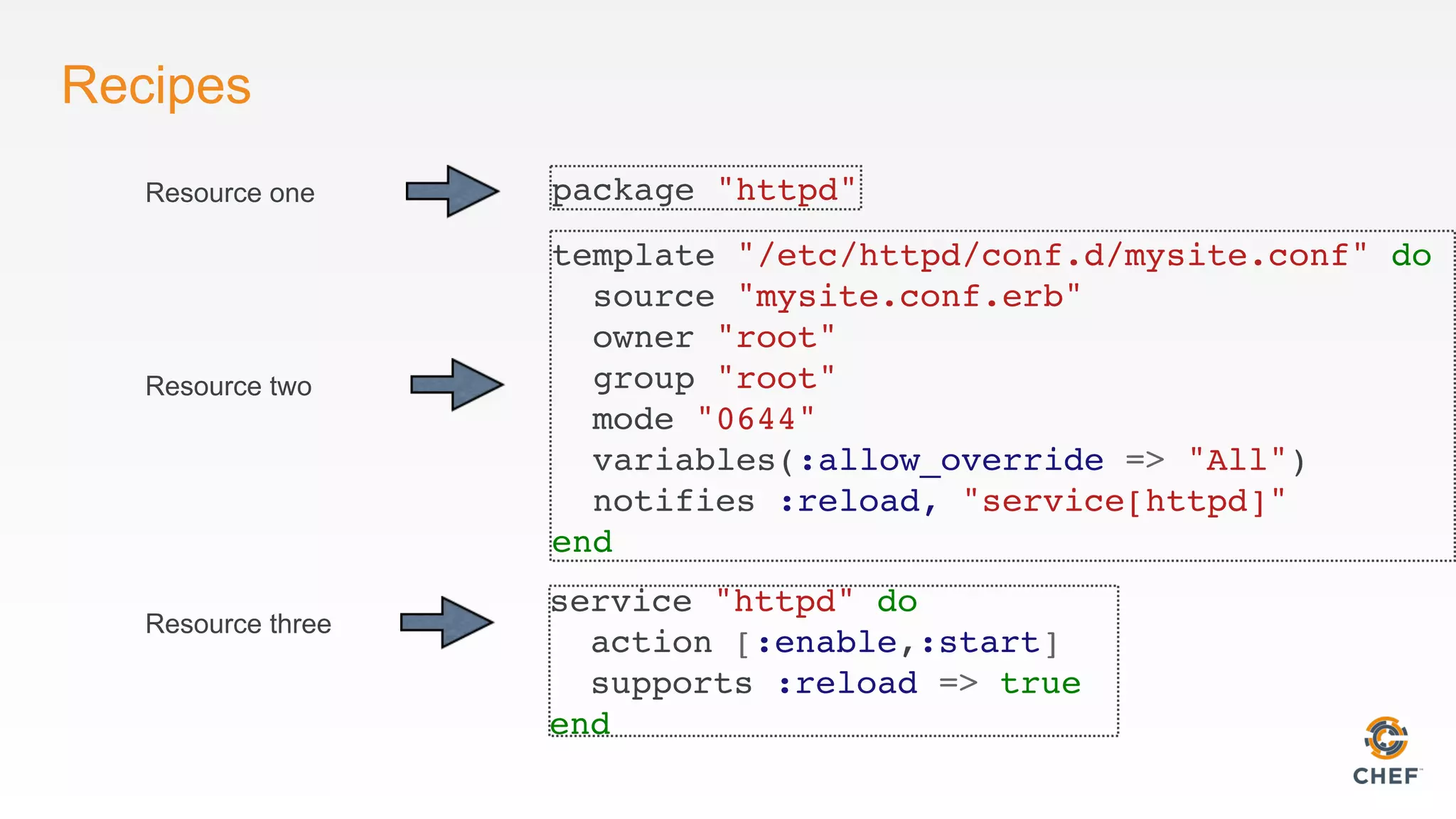

5. Recipes
package "httpd"
template "/etc/httpd/conf.d/mysite.conf" do
source "mysite.conf.erb"
owner "root"
group "root"
mode "0644"
variables(:allow_override => "All")
notifies :reload, "service[httpd]"
end
service "httpd" do
action [:enable,:start]
supports :reload => true
end
Resource one
Resource two
Resource three

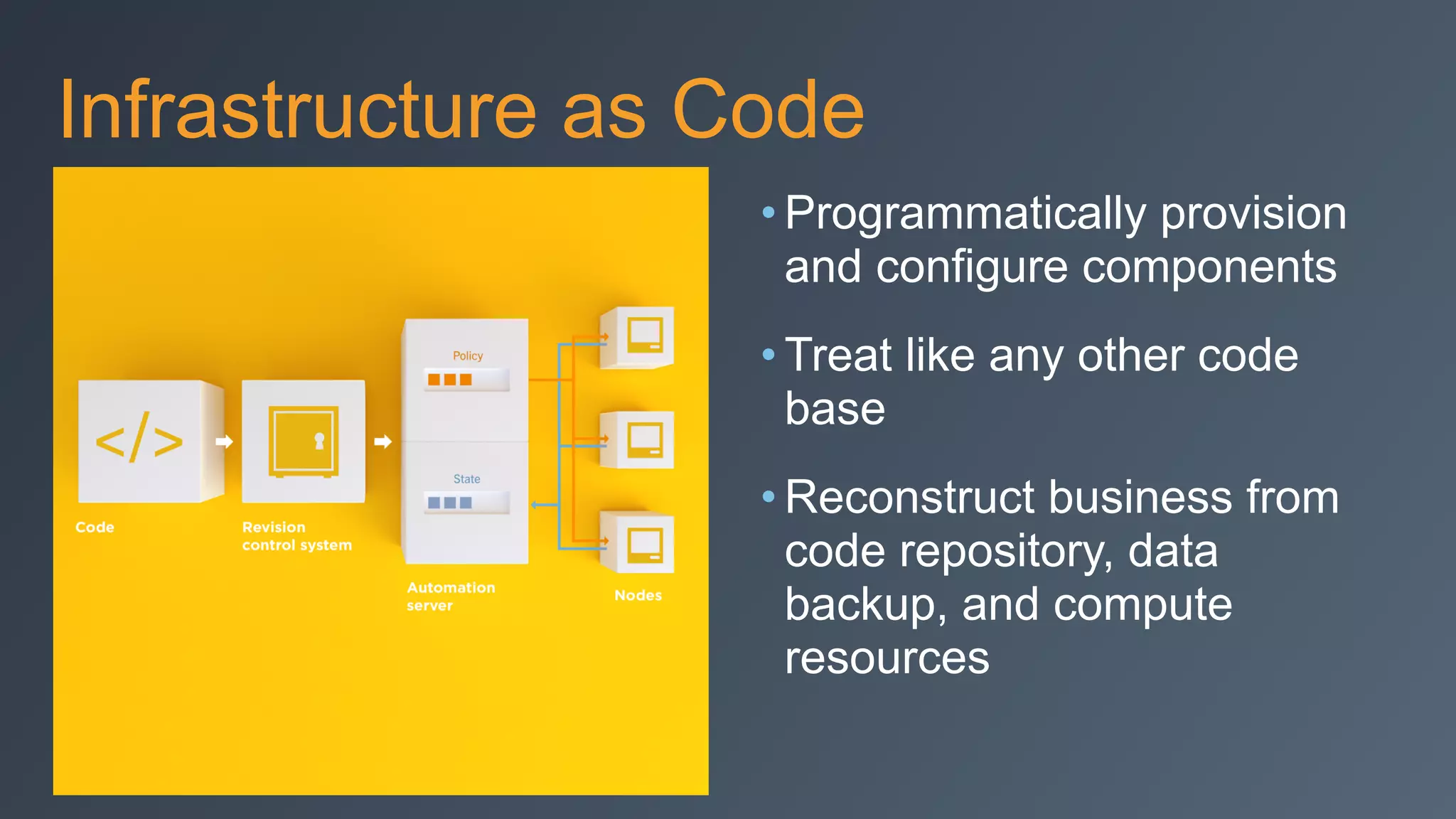

6. Infrastructure as Code
• Programmatically provision
and configure components
• Treat like any other code
base
• Reconstruct business from
code repository, data
backup, and compute
resources

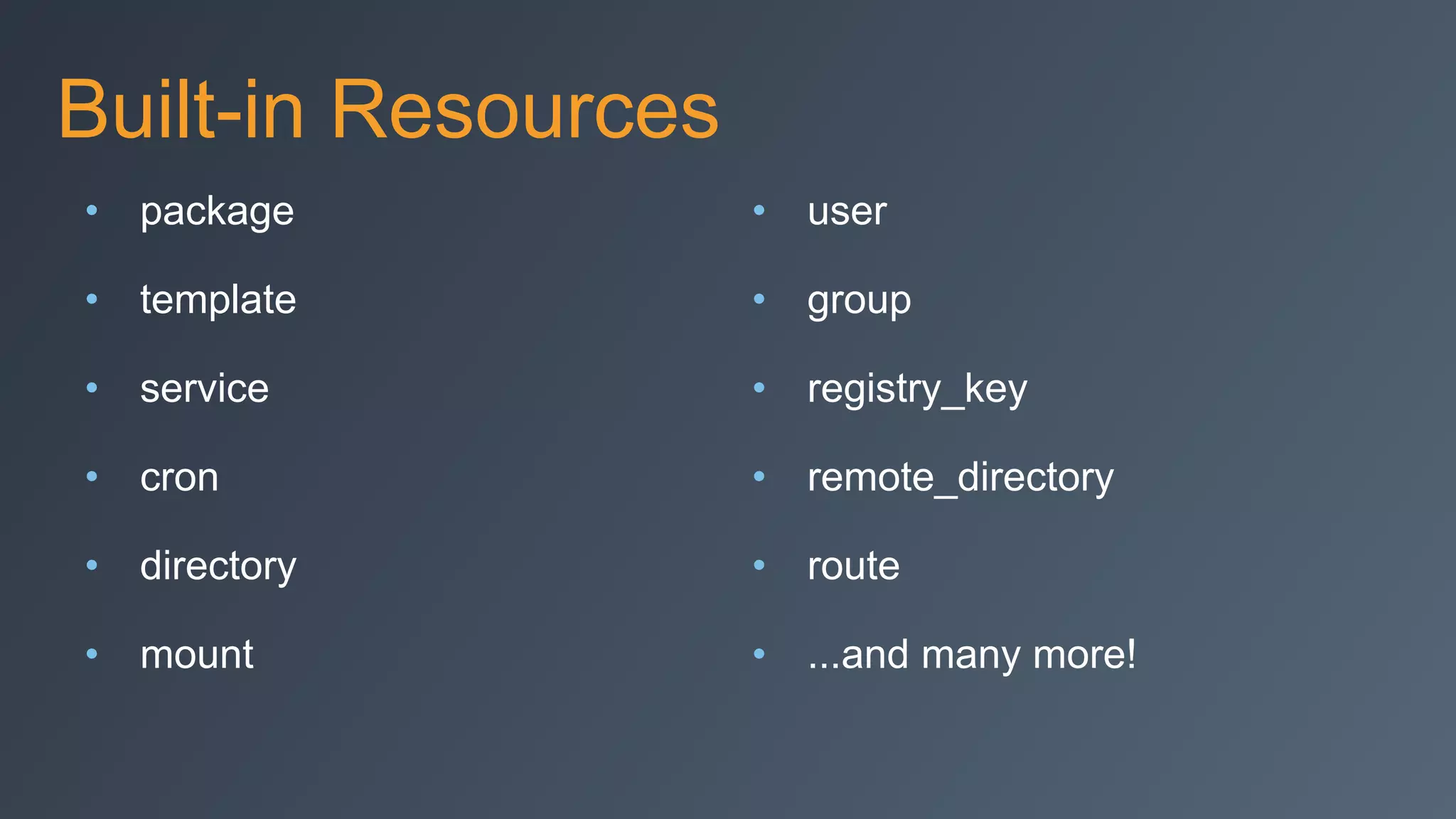

7. Built-in Resources
• package
• template
• service
• cron
• directory
• mount
• user
• group
• registry_key
• remote_directory
• route
• ...and many more!

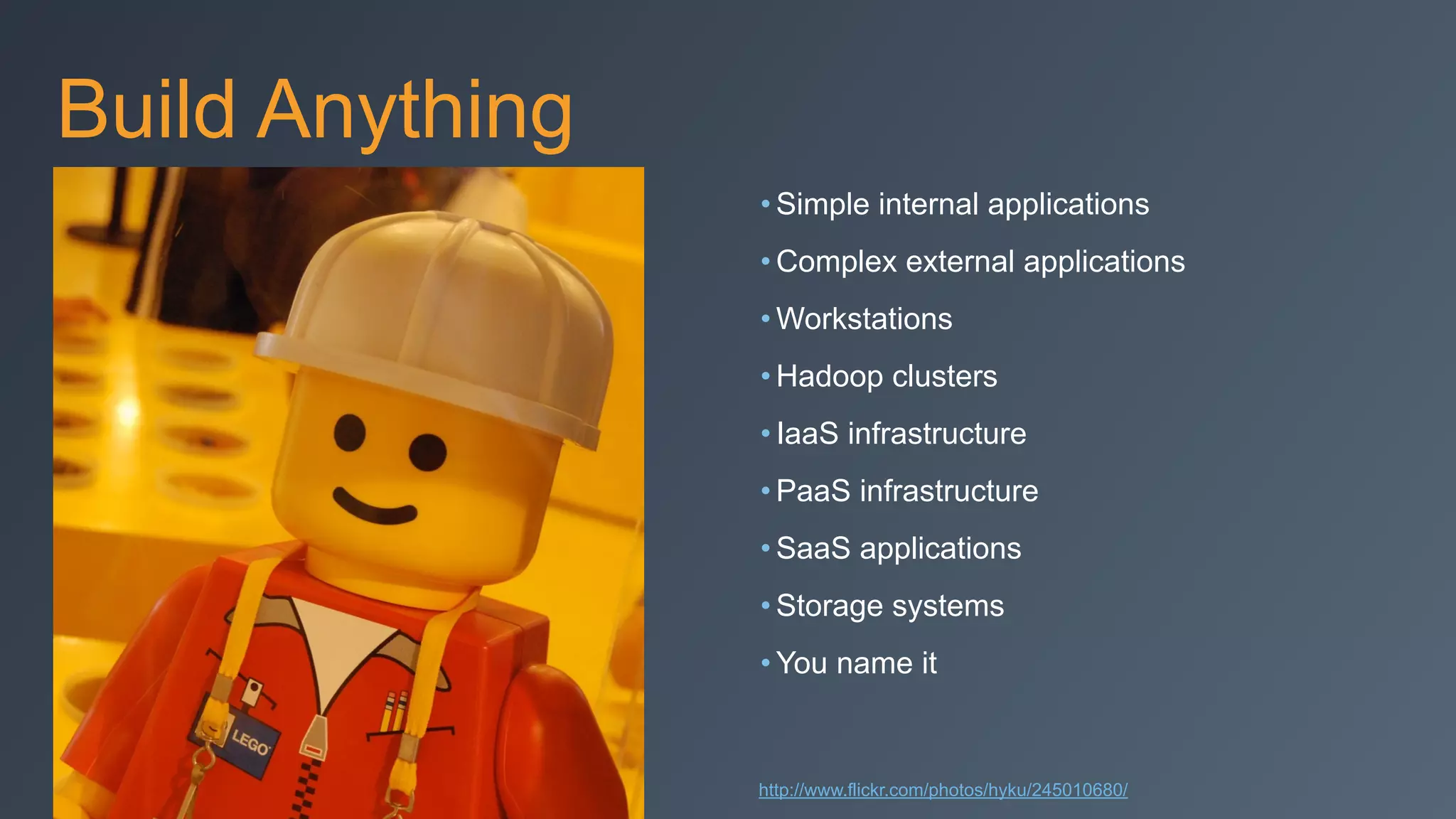

8. Build Anything
• Simple internal applications
• Complex external applications
• Workstations
• Hadoop clusters
• IaaS infrastructure
• PaaS infrastructure
• SaaS applications
• Storage systems
• You name it
http://www.flickr.com/photos/hyku/245010680/

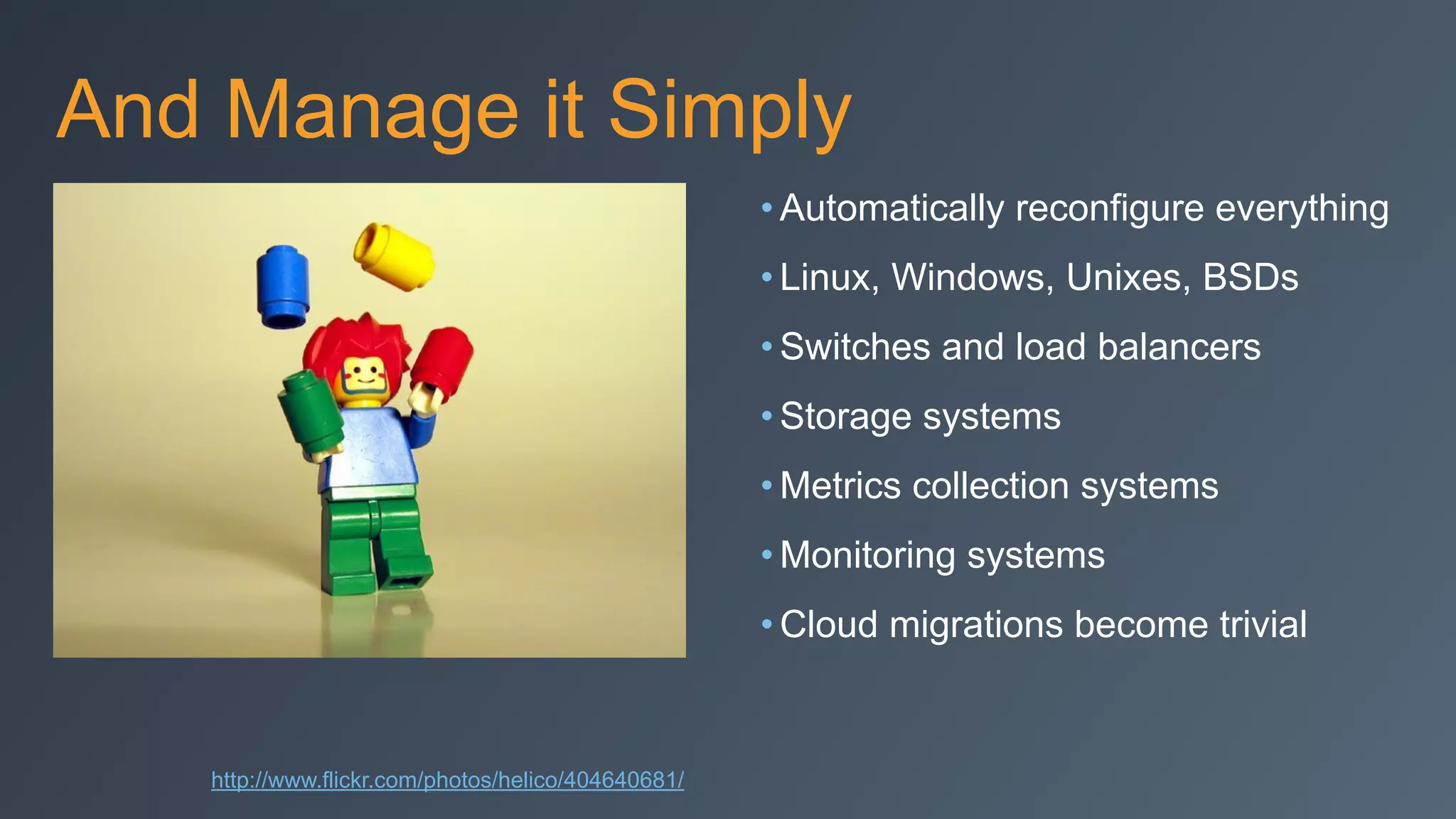

9. And Manage it Simply
• Automatically reconfigure everything
• Linux, Windows, Unixes, BSDs
• Switches and load balancers
• Storage systems
• Metrics collection systems
• Monitoring systems
• Cloud migrations become trivial
http://www.flickr.com/photos/helico/404640681/

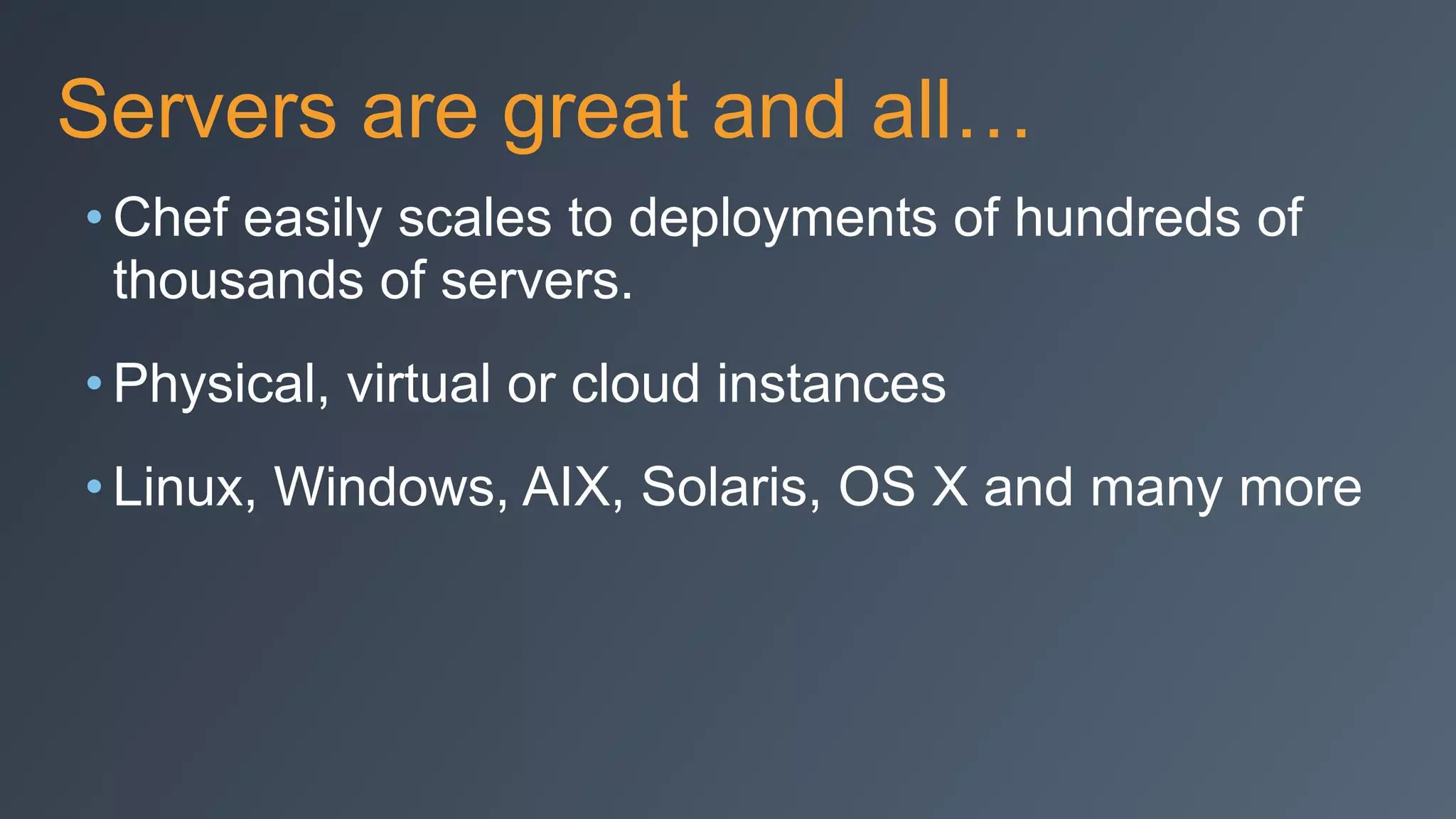

10. Servers are great and all…
• Chef easily scales to deployments of hundreds of
thousands of servers.
• Physical, virtual or cloud instances
• Linux, Windows, AIX, Solaris, OS X and many more

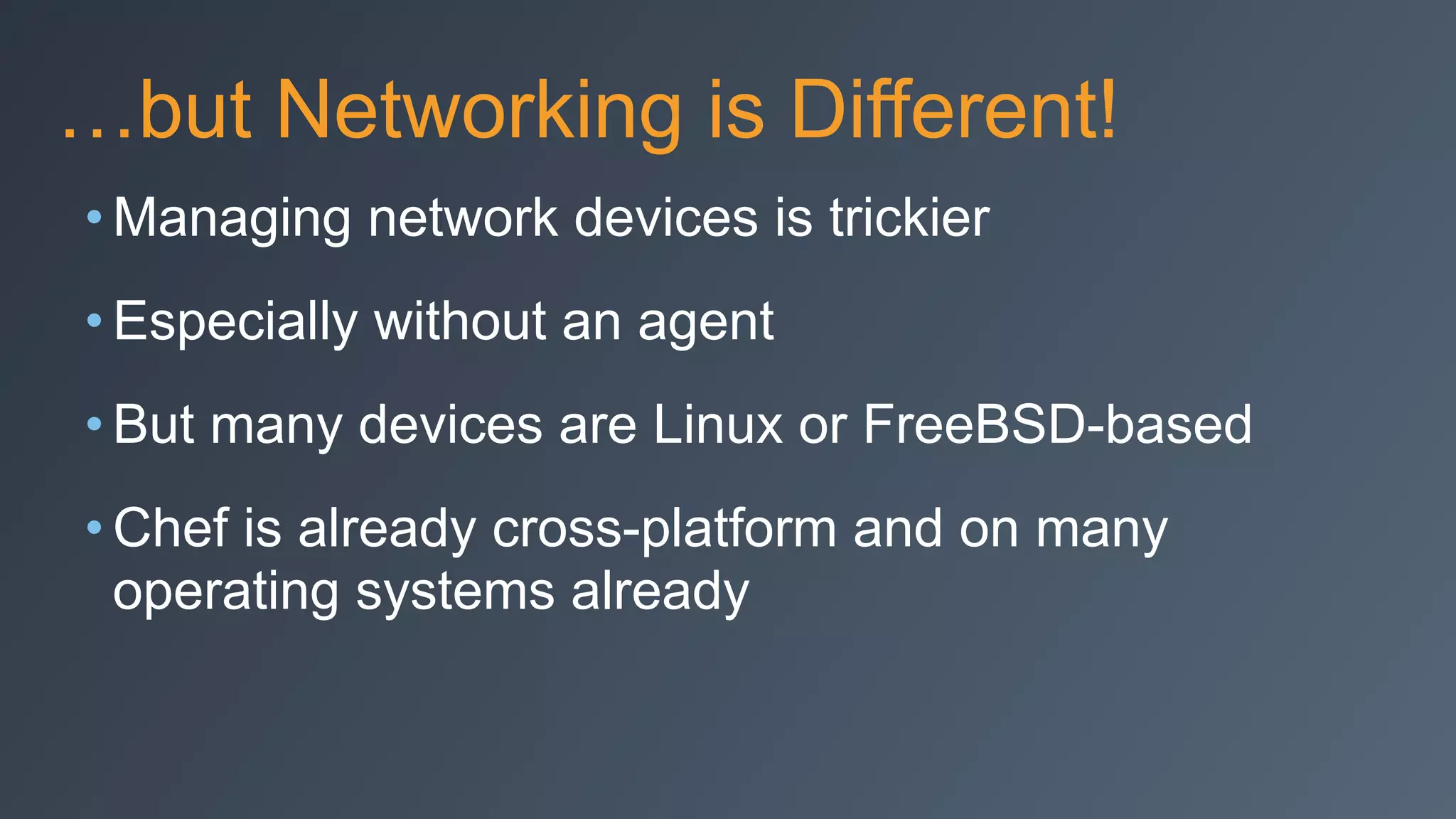

11. …but Networking is Different!
• Managing network devices is trickier
• Especially without an agent
• But many devices are Linux or FreeBSD-based
• Chef is already cross-platform and on many
operating systems already

12. Chef & Cisco

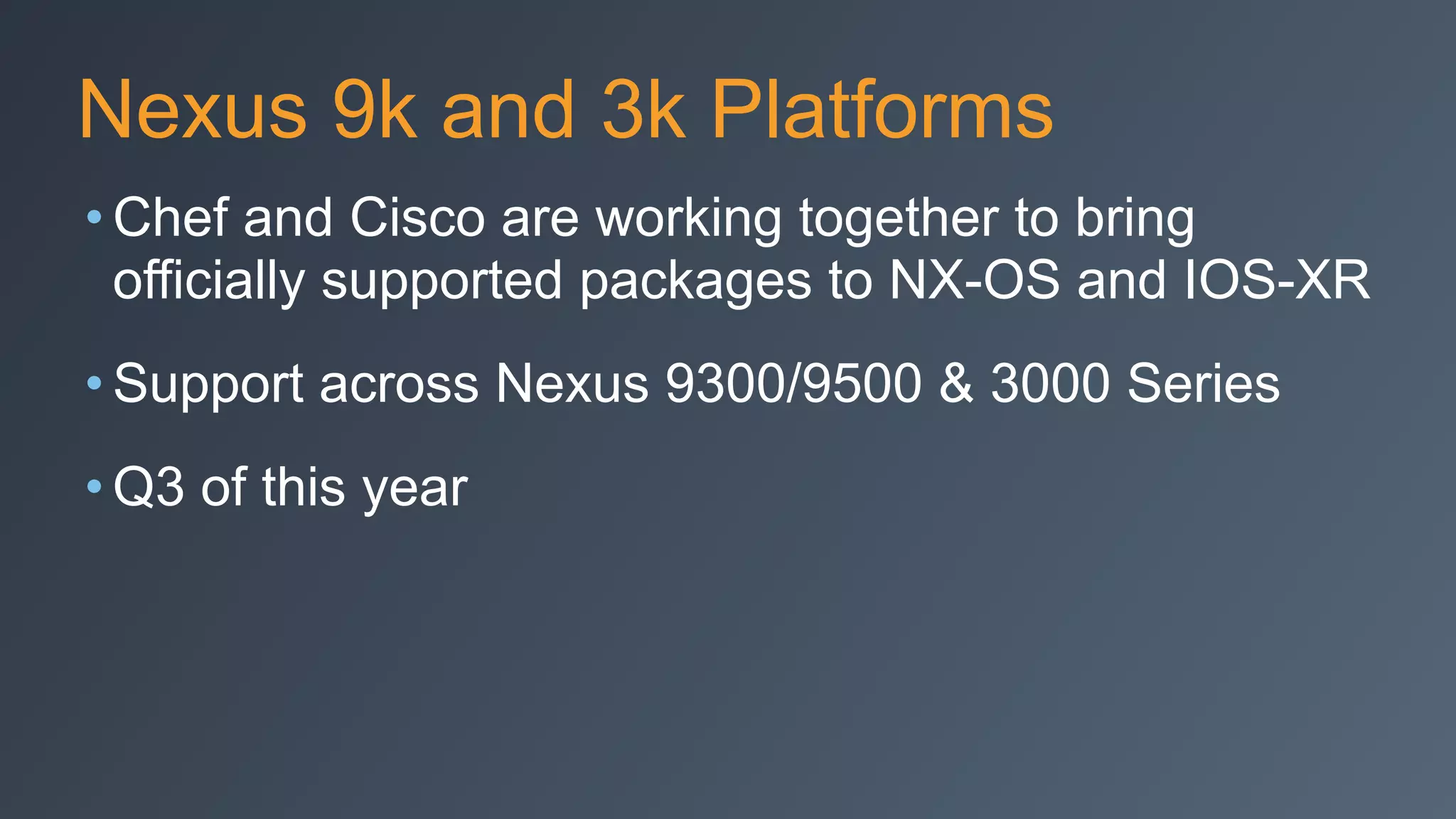

13. Nexus 9k and 3k Platforms
• Chef and Cisco are working together to bring
officially supported packages to NX-OS and IOS-XR
• Support across Nexus 9300/9500 & 3000 Series
• Q3 of this year

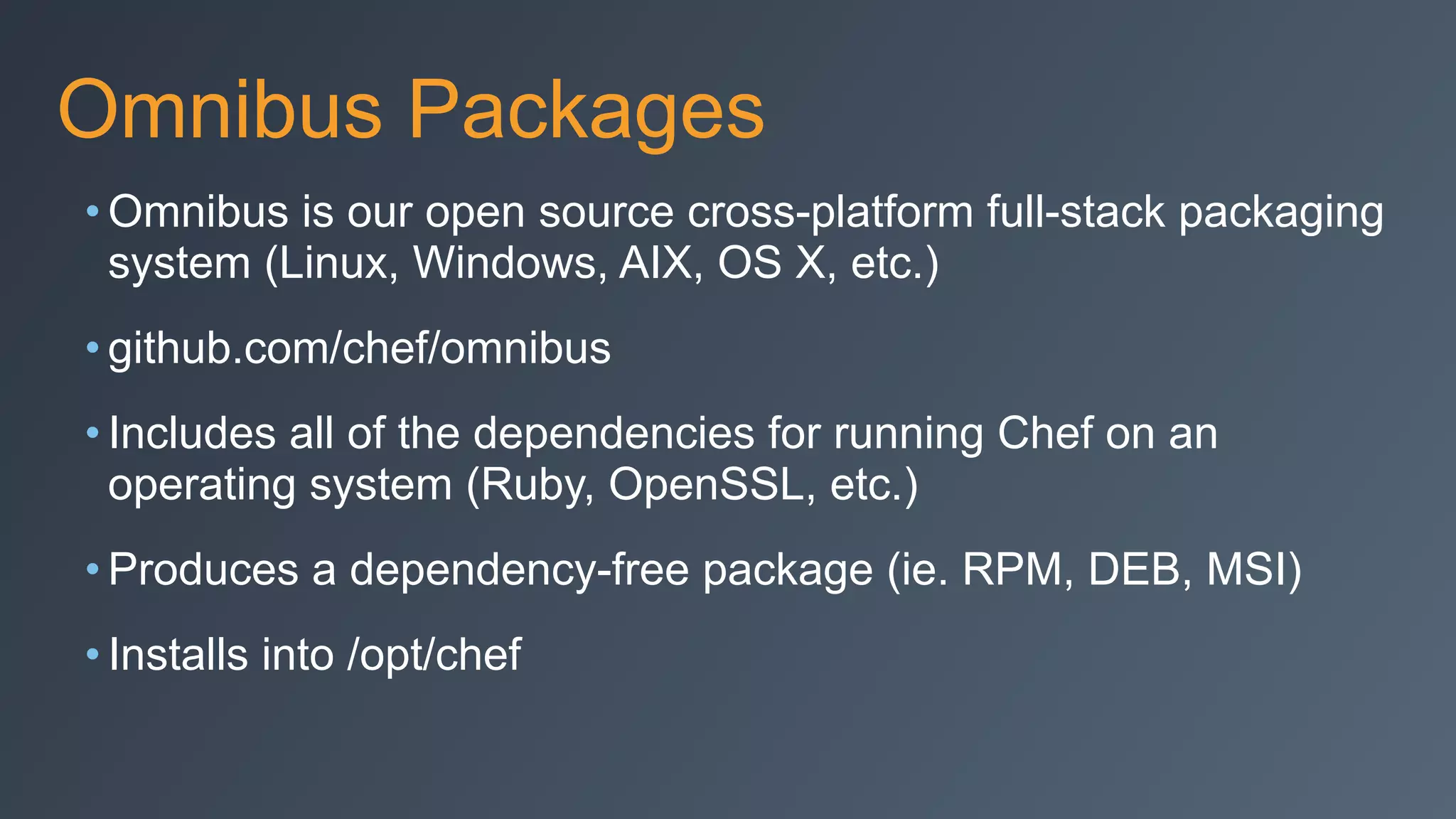

14. Omnibus Packages
• Omnibus is our open source cross-platform full-stack packaging
system (Linux, Windows, AIX, OS X, etc.)
• github.com/chef/omnibus
• Includes all of the dependencies for running Chef on an
operating system (Ruby, OpenSSL, etc.)
• Produces a dependency-free package (ie. RPM, DEB, MSI)
• Installs into /opt/chef

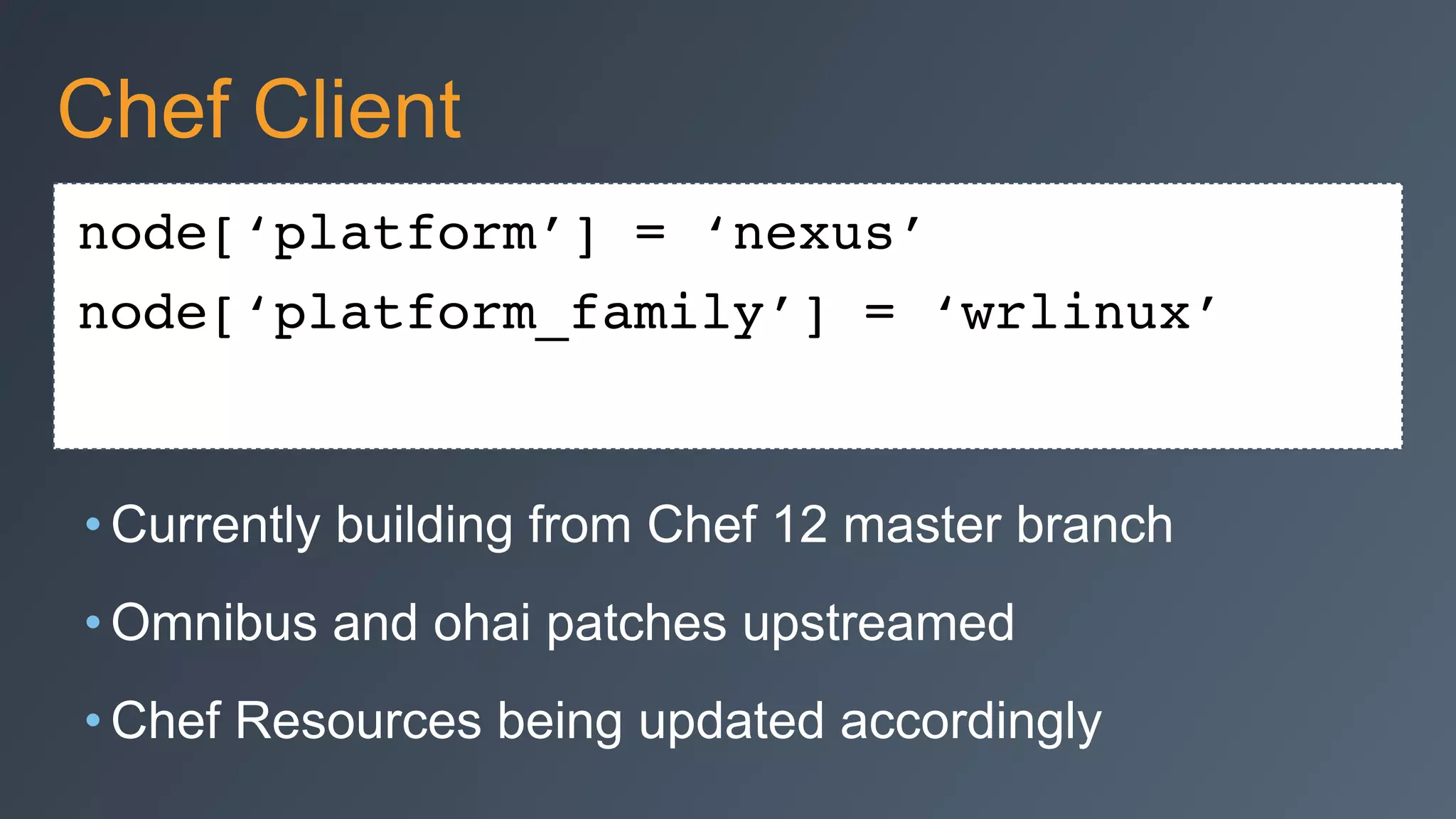

15. node[‘platform’] = ‘nexus’
node[‘platform_family’] = ‘wrlinux’
Chef Client
• Currently building from Chef 12 master branch
• Omnibus and ohai patches upstreamed
• Chef Resources being updated accordingly

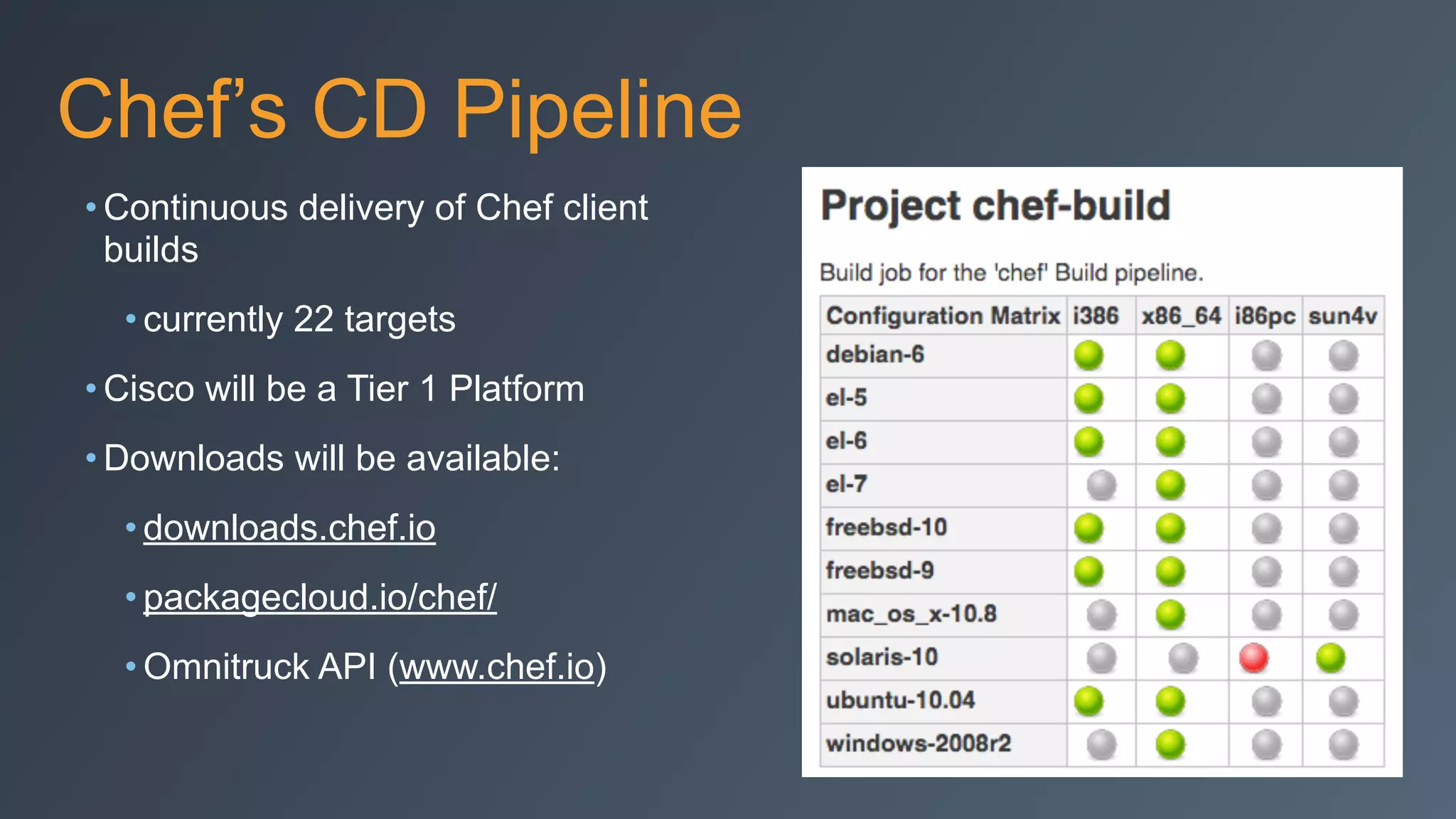

16. Chef’s CD Pipeline
• Continuous delivery of Chef client
builds
• currently 22 targets
• Cisco will be a Tier 1 Platform
• Downloads will be available:
• downloads.chef.io
• packagecloud.io/chef/
• Omnitruck API (www.chef.io)

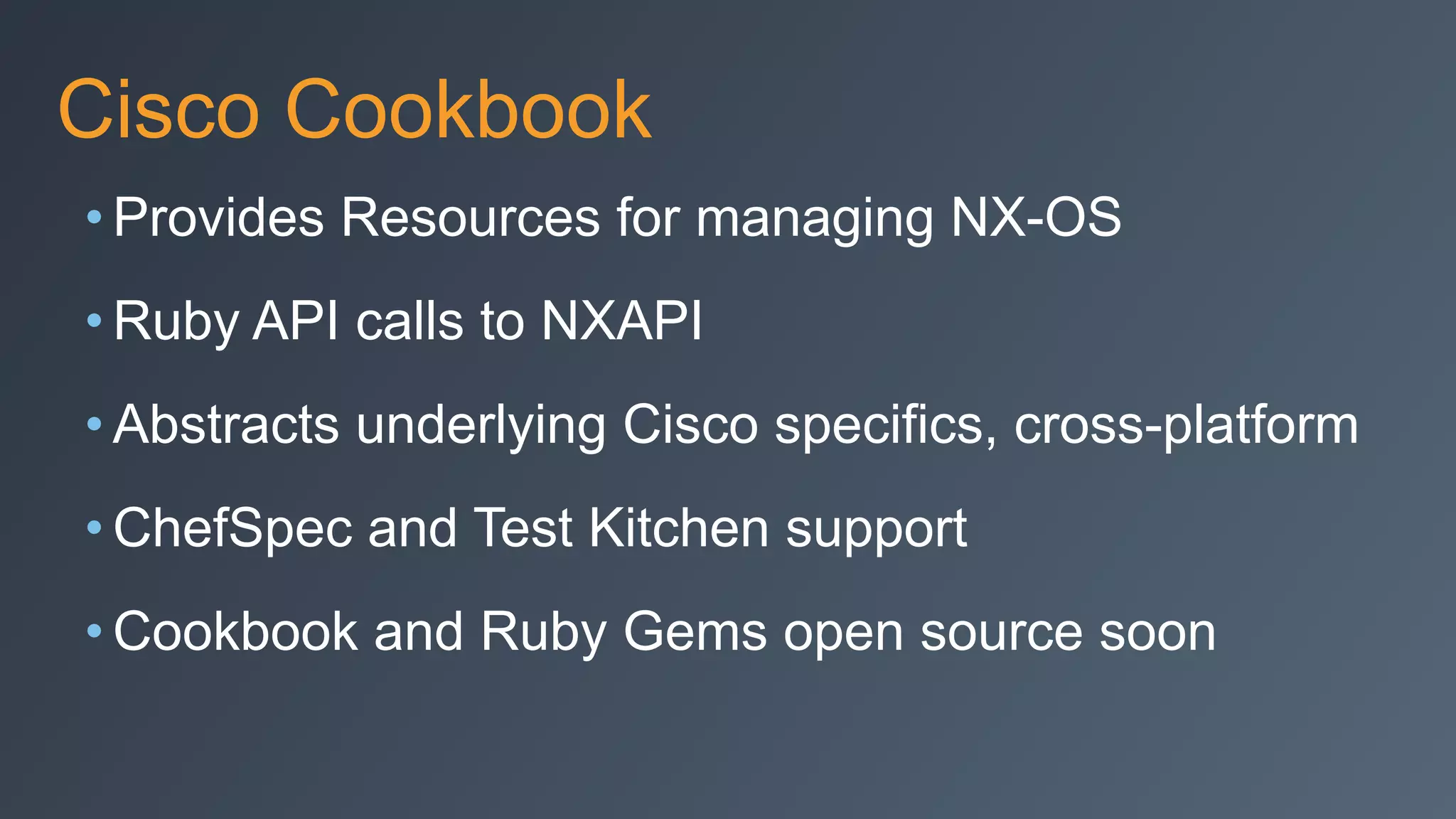

17. Cisco Cookbook
• Provides Resources for managing NX-OS
• Ruby API calls to NXAPI
• Abstracts underlying Cisco specifics, cross-platform
• ChefSpec and Test Kitchen support
• Cookbook and Ruby Gems open source soon

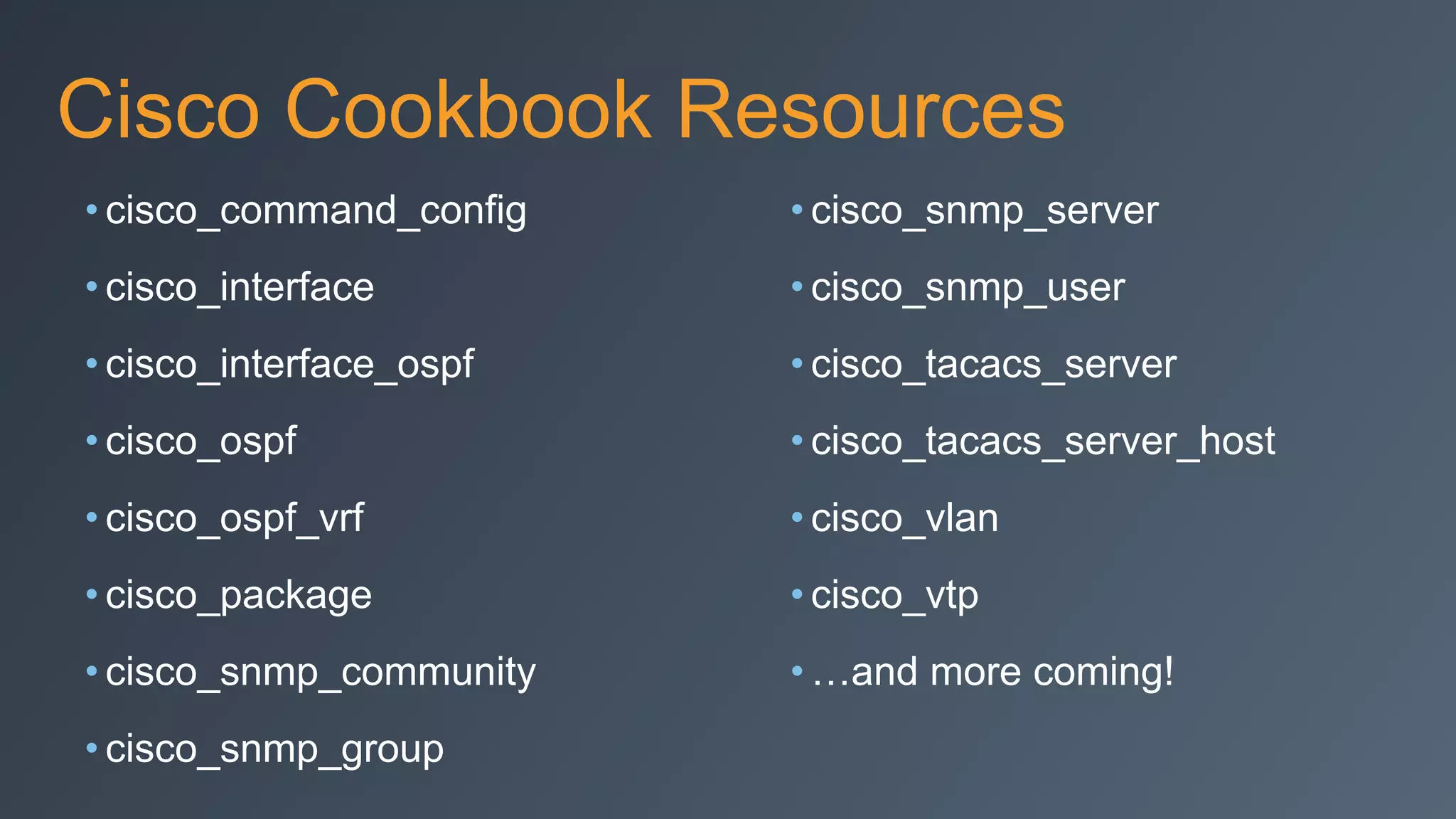

18. Cisco Cookbook Resources
• cisco_command_config
• cisco_interface
• cisco_interface_ospf
• cisco_ospf
• cisco_ospf_vrf
• cisco_package
• cisco_snmp_community
• cisco_snmp_group
• cisco_snmp_server
• cisco_snmp_user
• cisco_tacacs_server
• cisco_tacacs_server_host
• cisco_vlan
• cisco_vtp
• …and more coming!

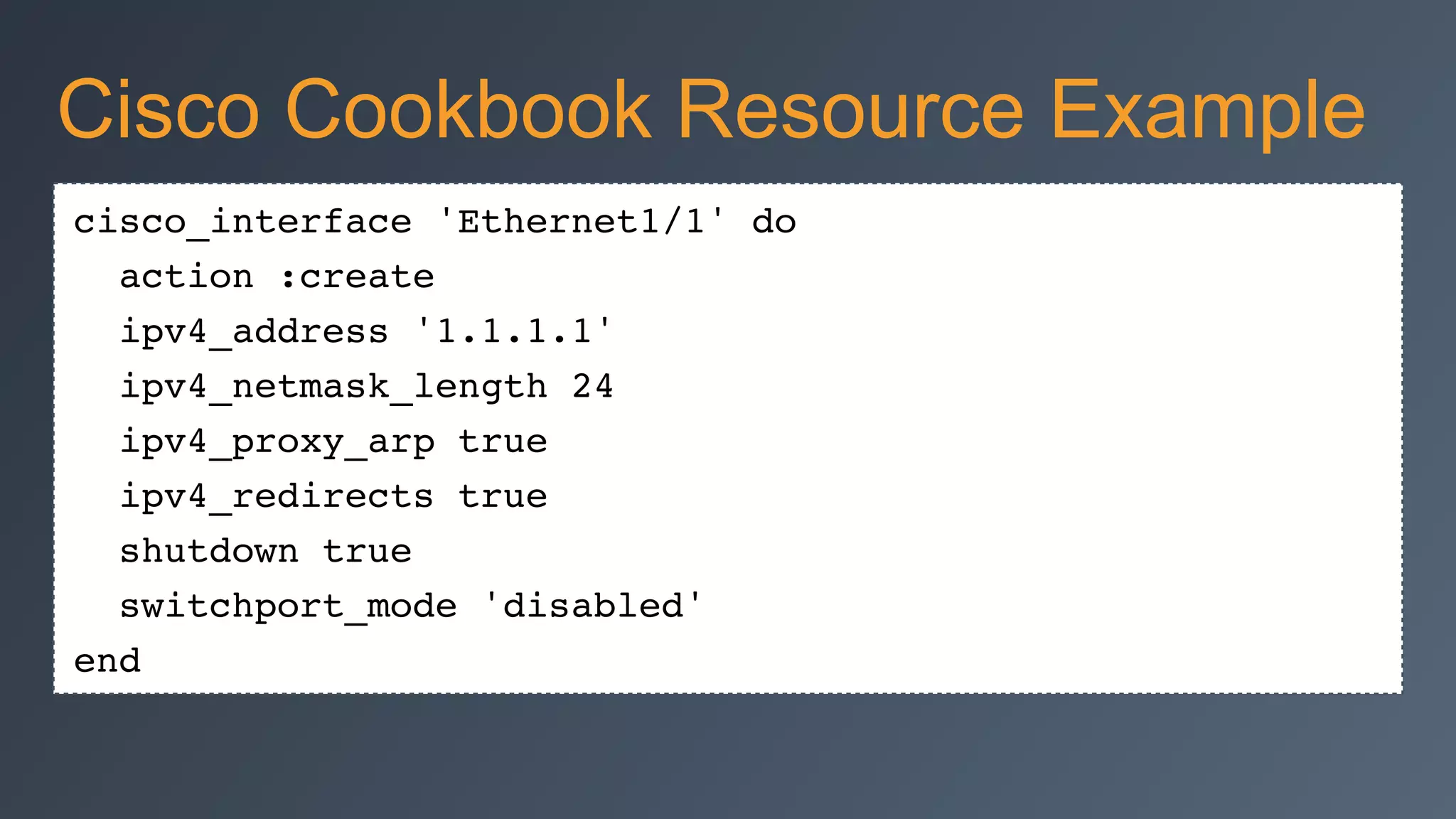

19. cisco_interface 'Ethernet1/1' do
action :create
ipv4_address '1.1.1.1'
ipv4_netmask_length 24
ipv4_proxy_arp true
ipv4_redirects true
shutdown true
switchport_mode 'disabled'
end
Cisco Cookbook Resource Example

20. Test Driven Infrastructure
• Versioning is baked into Chef
Cookbooks and Environments
• Infrastructure as Code should
be treated like code
• Version control
• Testing
• Continuous Delivery

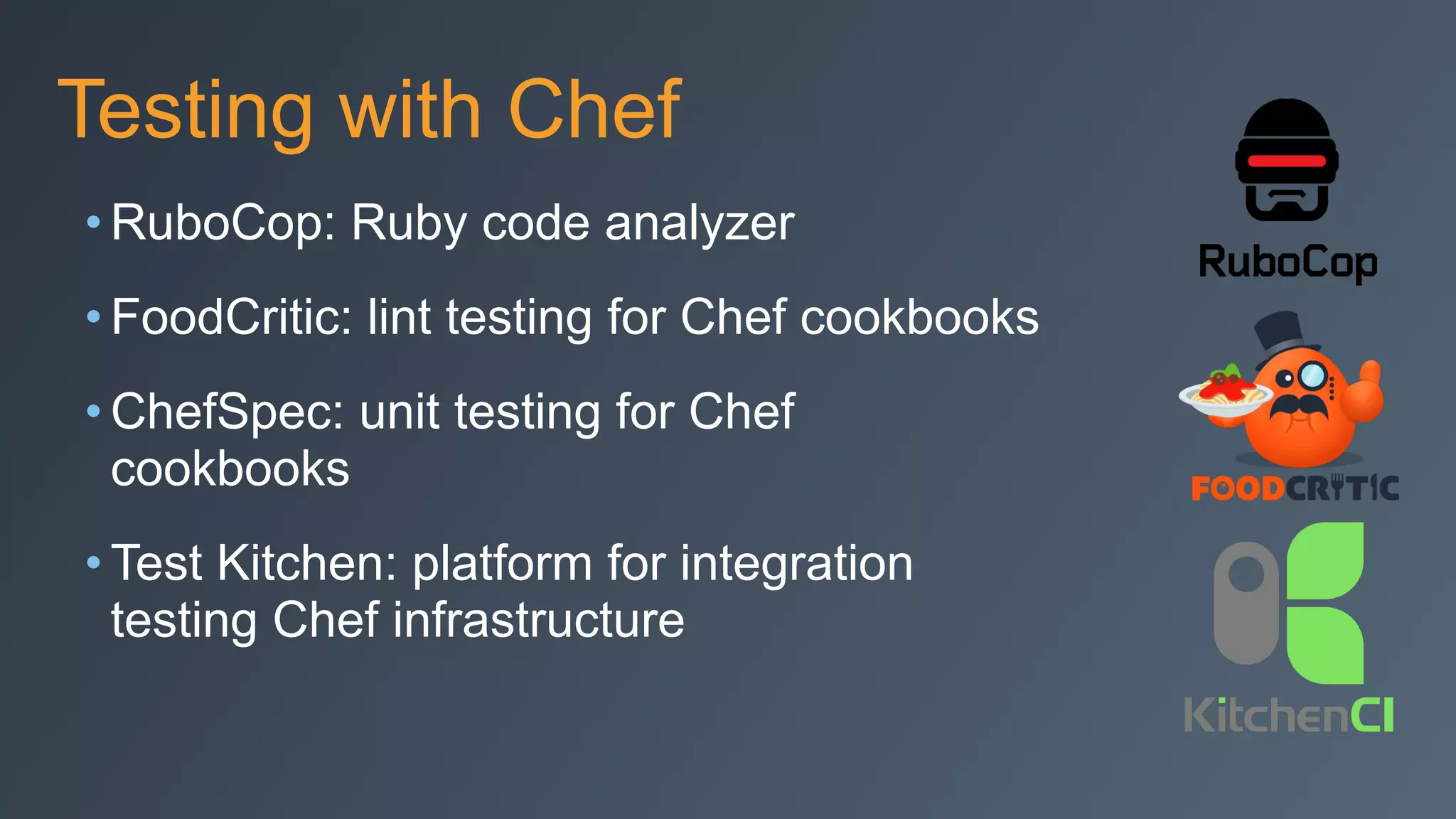

21. Testing with Chef
• RuboCop: Ruby code analyzer
• FoodCritic: lint testing for Chef cookbooks
• ChefSpec: unit testing for Chef
cookbooks
• Test Kitchen: platform for integration
testing Chef infrastructure

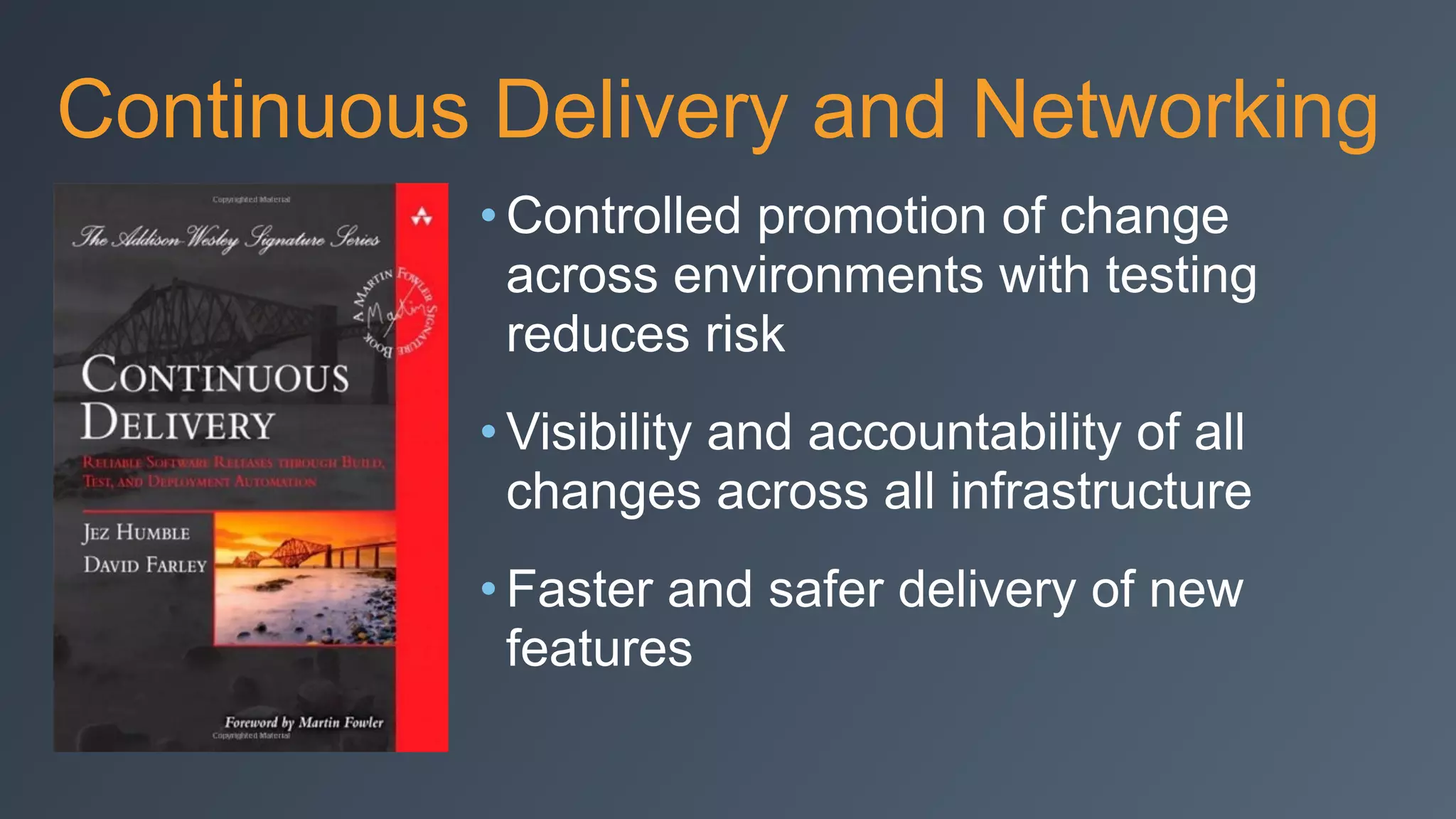

22. Continuous Delivery and Networking
• Controlled promotion of change
across environments with testing
reduces risk
• Visibility and accountability of all
changes across all infrastructure
• Faster and safer delivery of new
features

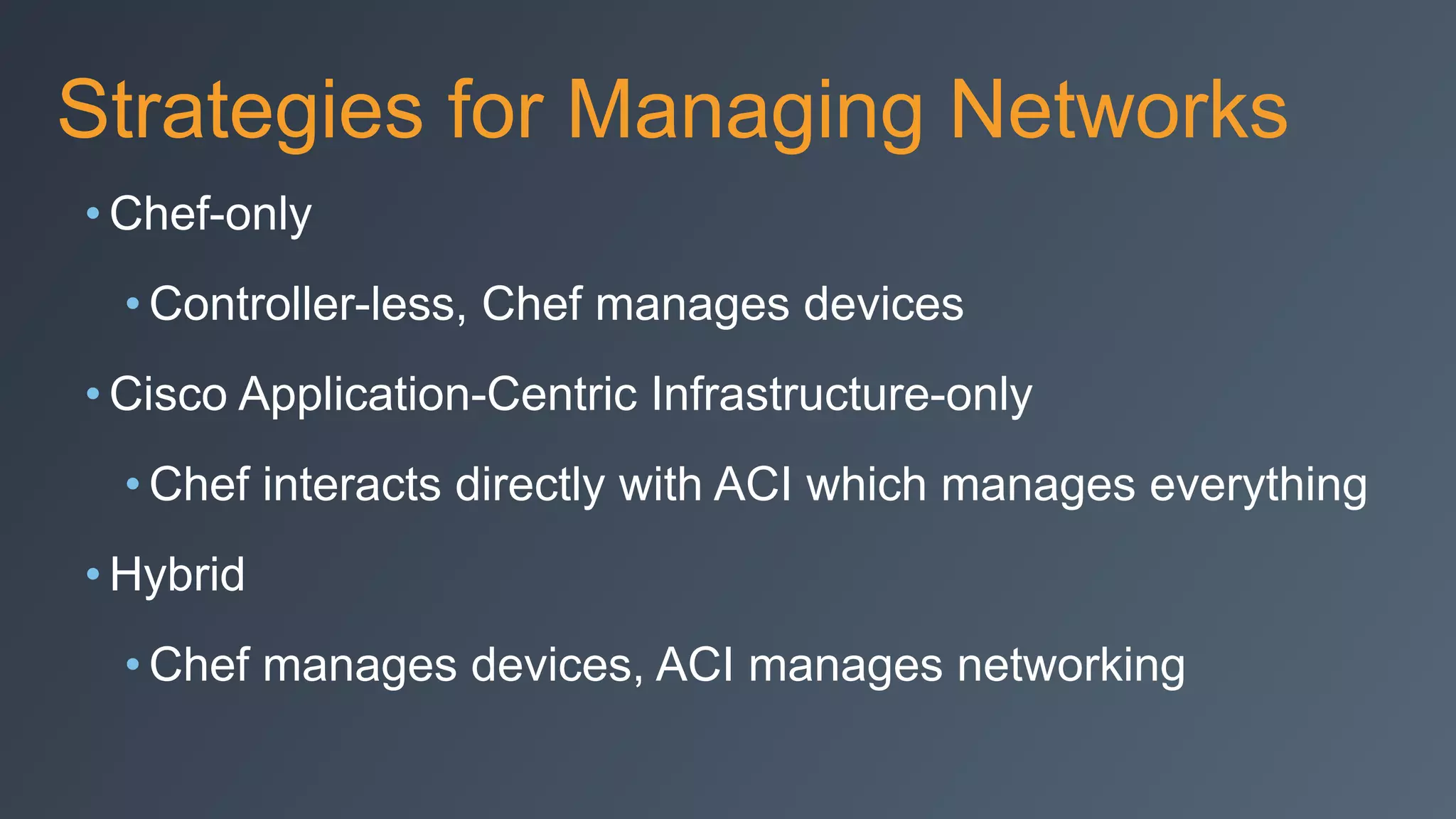

23. Strategies for Managing Networks
• Chef-only
• Controller-less, Chef manages devices
• Cisco Application-Centric Infrastructure-only
• Chef interacts directly with ACI which manages everything
• Hybrid
• Chef manages devices, ACI manages networking

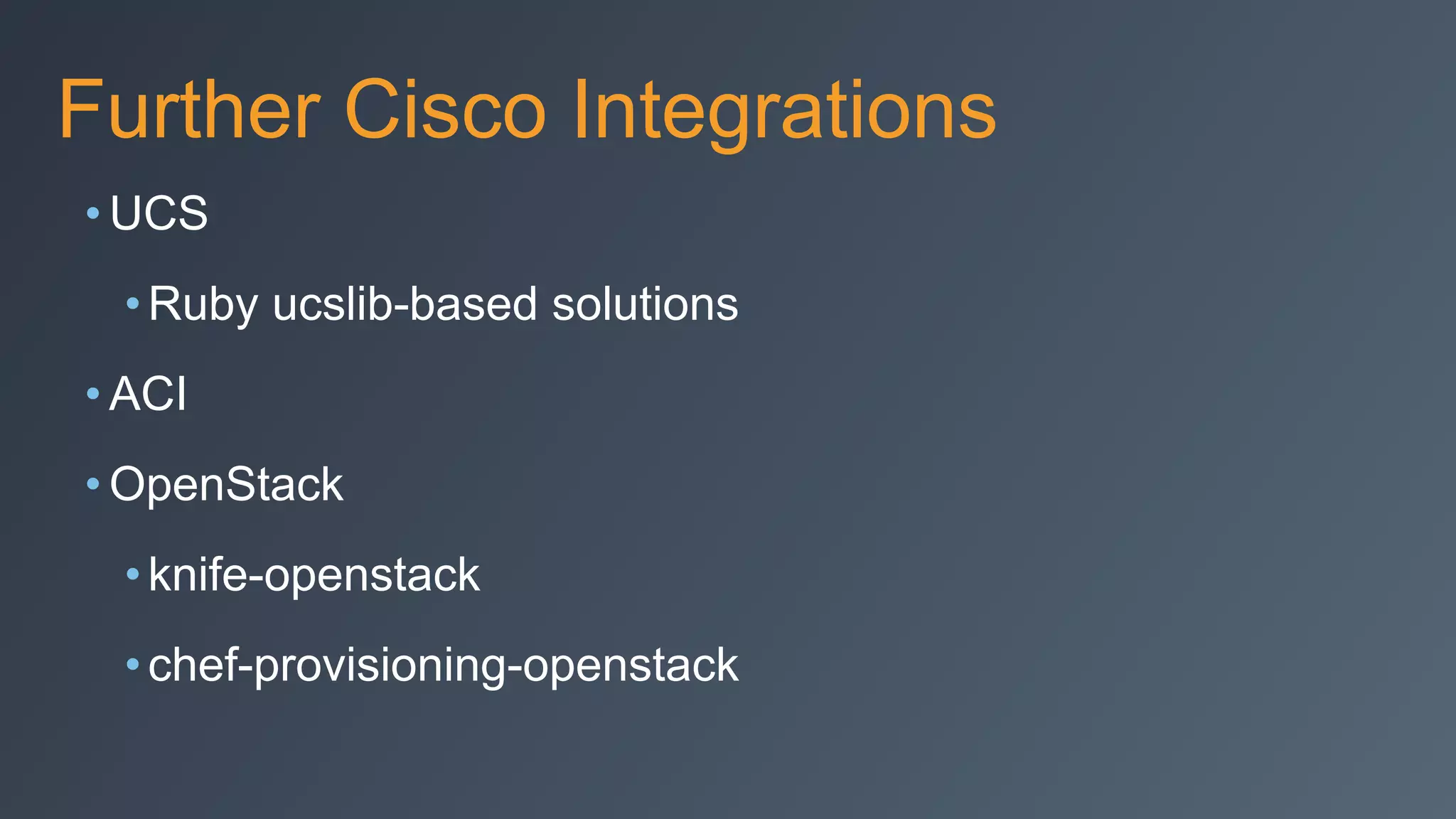

24. Further Cisco Integrations
• UCS
•Ruby ucslib-based solutions
• ACI
• OpenStack
•knife-openstack
•chef-provisioning-openstack

25. Thanks!
Matt Ray
matt@chef.io
@mattray
