2. Chef for OpenStack
Matt Ray & JJ Asghar
OSCON
July 24, 2014

3. Introductions
• Matt Ray
• Director of Partner
Engineering
• matt@getchef.com
• mattray GitHub|IRC|Twitter

4. Introductions
• JJ Asghar
• Sr. Partner Engineer
• jj@getchef.com
• jjasghar GitHub and Twitter
• j^2 on IRC

5. Chef
•Open Source configuration management
and systems automation framework
•Infrastructure as Code, written in Ruby
•Abstractions of Resources on the
systems
•Client/server model over REST APIs
•Huge, vibrant community of contributors
™

6. OpenStack Controls Compute, Storage & Networking

7. Architecture

8. Architecture

9. Overview & Current Status of
Chef for OpenStack

10. Chef for OpenStack: Project
• Community around the automated deployment and
management of OpenStack
• Reduce fragmentation and increase collaboration
• Deploying OpenStack is not "Secret Sauce"
• Project, not a 'Product'
• Apache 2 License

11. Community
• #openstack-chef on irc.freenode.net
• groups.google.com/group/opscode-chef-openstack
• Google Hangout weekly status meetings (Monday
11am EST)
• @chefopenstack
• Stackalytics (stackforge->chef-group)

12. Who's Involved?
• AT&T
• Bluebox
• Chef
• Dell
• DreamHost
• HP
• IBM
• Korea Telecom
• Rackspace
• SUSE
• and many more

14. Chef Requirements
• Chef 11
• Ruby 1.9.x
• Foodcritic, Rubocop, ChefSpec for
testing
• attribute-driven by Environments
• platform logic in attributes
• currently packages-only installation

15. StackForge: Cookbooks
• "Official" OpenStack repositories
•github.com/stackforge/cookbook-openstack-*
•gated by review.openstack.org
• OpenStack services for Grizzly, Havana and Icehouse cookbooks
•block-storage, common, compute, dashboard, data-processing,
database, identity, image, network, object-storage, orchestration,
telemetry
• Operational support cookbooks
•ceph, client, integration-testing, ops-database, ops-messaging

16. Launchpad
• Blueprints
•https://blueprints.launchpad.net/
openstack-chef
• Bugs
•https://bugs.launchpad.net/
openstack-chef

17. StackForge: Deployment
• Chef repository for deploying Grizzly, Havana, or Icehouse
•example Environments and Roles
•example "All-in-One" Vagrant deployment
•github.com/stackforge/openstack-chef-repo
• Gated by review.openstack.org
•More single and multi-node testing coming

18. Reference Implementation
• Deployment examples in documentation
•All-in-One Compute
•Single Controller + N Compute
•more coming
• Will provide example HA configurations
• Operations outside of scope of core repository
•logging, monitoring, provisioning

19. docs.getchef.com/
openstack.html

20. Documentation
• docs.getchef.com/openstack.html
•Architecture
•Deployment Prerequisites
•Installation
•Development
•Cookbooks and Repositories
•Example Deployments
• github.com/opscode/chef-docs
•Creative Commons, no CLA required

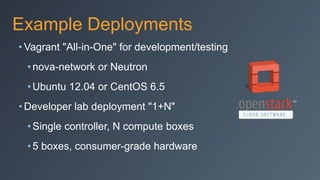

21. Example Deployments
• Vagrant "All-in-One" for development/testing
•nova-network or Neutron
•Ubuntu 12.04 or CentOS 6.5
• Developer lab deployment "1+N"
•Single controller, N compute boxes
•5 boxes, consumer-grade hardware

22. StackForge: Grizzly Status
• branch ‘stable/grizzly’
• Operating Systems: Ubuntu 12.04, SLES 11 SP2
• Databases: MySQL, SQLite (testing)
• Messaging: RabbitMQ
• Compute: KVM, LXC, Qemu
• Network: Nova + Quantum (Open vSwitch)
• Block Storage: LVM
• Object Storage: Swift
• Dashboard: Apache or Nginx

23. StackForge: Havana Status
• branch ‘stable/havana’
• Operating Systems: Ubuntu 12.04, SLES 11 SP3, RHEL 6
• Databases: DB2, MySQL, SQLite (testing)
• Messaging: Qpid, RabbitMQ
• Compute: KVM, LXC, QEMU
• Network: Nova, Neutron (Open vSwitch)
• Block Storage: LVM, NetApp, others
• Object Storage: Swift
• Dashboard: Apache or Nginx

24. StackForge: Icehouse Status
• branch ‘master’
• Operating Systems: Ubuntu 12.04/14.04, SLES 11 SP3, RHEL 6
• Databases: DB2, MySQL Postgres, SQLite (testing)
• Messaging: Qpid, RabbitMQ
• Compute: KVM, LXC, QEMU
• Network: Nova, Neutron (Open vSwitch)
• Block Storage: LVM, NetApp, others
• Object Storage: Swift
• Dashboard: Apache or Nginx

25. StackForge: Roadmap
• branching for Juno (tomorrow?)
•'master' move to ‘stable/icehouse’
•Havana available in ‘stable/havana'
•Grizzly available in ‘stable/grizzly'
• More contributors!

26. StackForge: Roadmap
• Operating Systems: Debian
• Compute: Baremetal, Docker, ESX,
Hyper-V, Xen
• Network: NSX, OpenDaylight
• Block Storage: Ceph
• Object Storage: Ceph
• Source builds via Omnibus

27. OpenStack Ops Mid-Cycle Meetup
• Operators mini summit
• August 25-26, San Antonio TX
• http://www.eventbrite.com/e/
openstack-ops-mid-cycle-meetup-
tickets-12149171499

28. Chef Community Summit
• Developer/Community unconference
• October 2 & 3 in Seattle, WA

29. OpenStack Summit

30. knife-openstack

31. Available openstack subcommands: (for details, knife SUB-COMMAND --help)!
!
** OPENSTACK COMMANDS **!
knife openstack flavor list (options)!
knife openstack group list (options)!
knife openstack image list (options)!
knife openstack network list (options)!
knife openstack server create (options)!
knife openstack server delete INSTANCEID [INSTANCEID] (options)!
knife openstack server list (options)!
knife openstack server show (options)
$ knife openstack

32. Name ID Virtual CPUs RAM Disk !
m1.large 4 4 8192 MB 80 GB !
m1.medium 3 2 4096 MB 40 GB !
m1.small 2 1 2048 MB 20 GB !
m1.tiny 1 1 512 MB 10 GB !
m1.xlarge 5 8 16384 MB 160 GB
$ knife openstack flavor list

33. Name Protocol From To CIDR Description!
default tcp 22 22 0.0.0.0/0 default!
default icmp -1 -1 0.0.0.0/0 default!
haproxy tcp 22002 22002 0.0.0.0/0 22022!
$ knife openstack group list

34. Name ID Snapshot!
centos-6.5 68555833-8497-4d14-88ca-c9062e25f14b no !
coreos 83d37ea5-d9ae-44cd-9110-d4d39ad997ce no !
fedora-19 9add7e14-25e3-41d8-963a-ca744d081f2e no !
fedora-20 acb6eba5-226a-4ed5-8db6-33a6fd8cf20d no !
freebsd-10.0 0e270df7-1a02-4e91-9fc3-6f5311c58193 no !
ubuntu-12.04 ce268db5-ceda-4a90-93c8-3b987ac3705f no !
ubuntu-14.04 4a4f85bf-f164-4e54-83d8-8b2e7d0712b2 no !
Windows Server 2012 64e7cba7-7a50-443f-8fa6-a065406e0b04 no !
$ knife openstack image list

35. Name ID Tenant Shared!
external 06dc9d5a-f55a-410d-a7fd-4c7cb34ad927 5da25cc3853f4c54850898f9614c20bb true !
internal ba0fdd03-72b5-41eb-bb67-fef437fd6cb4 5da25cc3853f4c54850898f9614c20bb true
$ knife openstack network list

36. Name Instance ID Public IP Private IP Flavor Image Keypair State!
os-45539345723309377 08f2d9f7-eeb0-45e7-8562-63aed8f096cc 50.56.12.229 2 737969f8-6091-4896-ba9c-f3cf63bd25c5 rs-demo active!
os-9924426691020416 43c6bbf5-b397-4986-8aec-392d955ce5b1 50.56.12.232 2 737969f8-6091-4896-ba9c-f3cf63bd25c5 rs-demo active!
os-553425714287088 c1b9e3df-e566-4378-8a52-ed998b516608 50.56.12.230 2 737969f8-6091-4896-ba9c-f3cf63bd25c5 rs-demo active!
os-07459550287500682 f3edc5da-ef99-4acb-a141-d957e09809e3 50.56.12.231 2 737969f8-6091-4896-ba9c-f3cf63bd25c5 rs-demo active
$ knife openstack server list

37. $ knife openstack server create -a -f 2 -I 737969f8-6091-4896-ba9c-f3cf63bd25c5 -S rs-demo -i ~/.ssh/rs-demo.pem -x ubuntu -r "role[base]"!
Instance Name: os-45539345723309377!
Instance ID: 08f2d9f7-eeb0-45e7-8562-63aed8f096cc!
!
Waiting for server.........!
Flavor: 2!
Image: 737969f8-6091-4896-ba9c-f3cf63bd25c5!
SSH Identity File: /Users/mray/.ssh/rs-demo.pem!
SSH Keypair: rs-demo!
Public IP Address: 10.241.0.12!
Floating IP Address: 50.56.12.229!
Waiting for sshd.....done!
Bootstrapping Chef on 50.56.12.229!
Instance Name: os-45539345723309377!
Instance ID: 08f2d9f7-eeb0-45e7-8562-63aed8f096cc!
Flavor: 2!
Image: 737969f8-6091-4896-ba9c-f3cf63bd25c5!
SSH Keypair: rs-demo!
Public IP Address: 50.56.12.229!
Environment: _default!
Run List: role[base]!
knife openstack server create

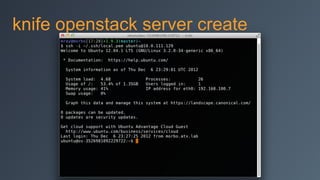

38. knife openstack server create

39. knife openstack Compatibility
• Uses the OpenStack API
• Diablo, Essex, Folsom, Grizzly, Havana, Icehouse, trunk
• BlueBox
• Cloudscaling
• Crowbar
• DreamHost
• IBM
• MetaCloud
• Nebula
• Piston
• Rackspace Private Cloud

40. knife openstack Resources
• knife openstack --help
• docs.getchef.com/
plugin_knife_openstack.html
• github.com/opscode/knife-openstack
• github.com/opscode/knife-openstack/
issues

41. knife openstack Roadmap
• Continuous Integration for Chef-
supported knife plugins soon
•Testing against multiple
deployments
• 1.0.0: common knife-cloud base class
• 1.1.0: Network enhancements
• 1.2.0 guid cleanup, other niceties

42. Test Kitchen

43. Test Kitchen
• Integration tool for developing and testing
infrastructure code and software on isolated target
platforms
• Integration test platform for your cookbooks on all the
supported platforms with virtual machines
• https://github.com/test-kitchen/kitchen-openstack

44. driver:!
name: openstack!
openstack_username: [YOUR OPENSTACK USERNAME]!
openstack_api_key: [YOUR OPENSTACK API KEY]!
openstack_auth_url: [YOUR OPENSTACK AUTH URL]!
require_chef_omnibus: latest!
image_ref: [SERVER IMAGE ID]!
flavor_ref: [SERVER FLAVOR ID]
Test Kitchen: kitchen.yml

46. Chef Metal
• Chef recipes for deploying
infrastructure
• Libraries for repeatably creating
machines and deployments with
Chef primitives
• Bootstrappers for many
infrastructure types

47. Chef Metal: Providers
• Cloud
• Digital Ocean, EC2, Fog, OpenStack
• Virtualization
• Vagrant (VirtualBox, Fusion), VSphere
• Containers
• Docker & LXC
• SSH
• PXE in progress

48. Chef Metal: Example Recipe

49. Thanks!
Any questions?
Matt Ray
matt@getchef.com
@mattray
