Effective Testing with Ansible and InSpec
- 1. Effective Testing with Ansible and InSpec Nathen Harvey

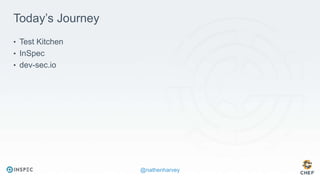

- 3. @nathenharvey Today’s Journey • Test Kitchen • InSpec • dev-sec.io
- 4. @nathenharvey Why Testing? • Move fast with a safety net • Decrease feedback cycles • Increase confidence • Prevent regressions • Scale

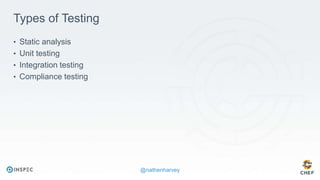

- 5. @nathenharvey Types of Testing • Static analysis • Unit testing • Integration testing • Compliance testing
- 6. @nathenharvey Testing Playbooks • Write the playbook • Execute the playbook on a system • Verify results

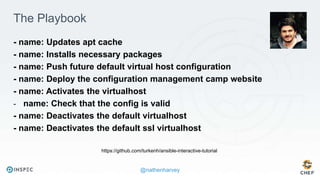

- 7. @nathenharvey The Playbook - name: Updates apt cache - name: Installs necessary packages - name: Push future default virtual host configuration - name: Deploy the configuration management camp website - name: Activates the virtualhost - name: Check that the config is valid - name: Deactivates the default virtualhost - name: Deactivates the default ssl virtualhost https://github.com/turkenh/ansible-interactive-tutorial

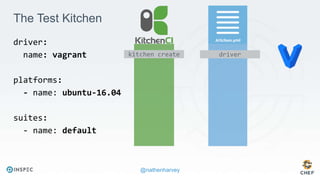

- 14. @nathenharvey The Test Kitchen driver: name: vagrant platforms: - name: ubuntu-16.04 suites: - name: default kitchen create driver

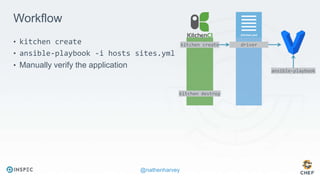

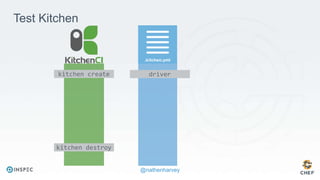

- 19. @nathenharvey Workflow • kitchen create • ansible-playbook -i hosts sites.yml • Manually verify the application kitchen create kitchen destroy driver ansible-playbook
- 20. @nathenharvey kitchen create kitchen converge kitchen destroy driver provisioner Test Kitchen
- 21. @nathenharvey Kitchen Provisioner provisioner: hosts: test-kitchen name: ansible_playbook roles_path: roles require_ansible_repo: true ansible_verbose: true ansible_version: latest require_chef_for_busser: false playbook: site.yml

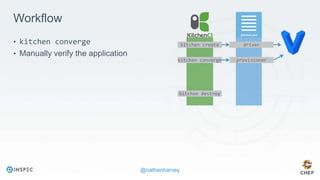

- 24. @nathenharvey Workflow • kitchen converge • Manually verify the application kitchen create kitchen destroy driver kitchen converge provisioner

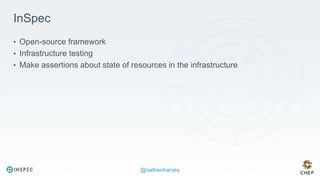

- 26. @nathenharvey InSpec • Open-source framework • Infrastructure testing • Make assertions about state of resources in the infrastructure

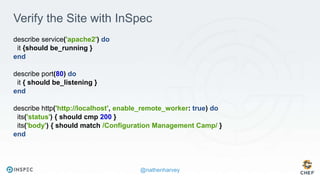

- 27. @nathenharvey Verify the Site with InSpec describe service('apache2') do it {should be_running } end describe port(80) do it { should be_listening } end describe http('http://localhost', enable_remote_worker: true) do its('status') { should cmp 200 } its('body') { should match /Configuration Management Camp/ } end
- 28. Test Locally $ inspec exec /path/to/profile

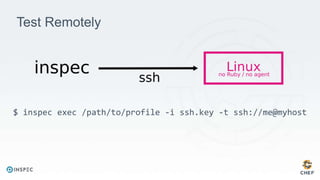

- 29. Test Remotely $ inspec exec /path/to/profile -i ssh.key -t ssh://me@myhost
- 30. @nathenharvey https://youtu.be/TKQTEhhwS4c Execute InSpec on Remote Target

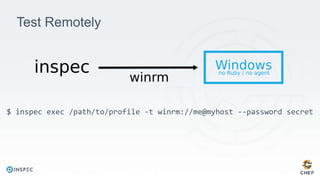

- 31. Test Remotely $ inspec exec /path/to/profile -t winrm://me@myhost --password secret

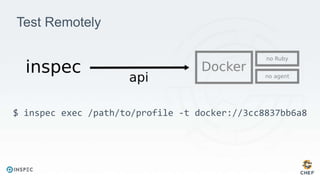

- 32. Test Remotely $ inspec exec /path/to/profile -t docker://3cc8837bb6a8

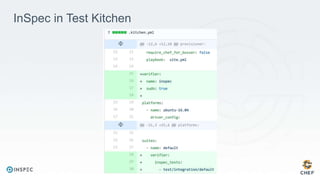

- 34. @nathenharvey InSpec in Test Kitchen

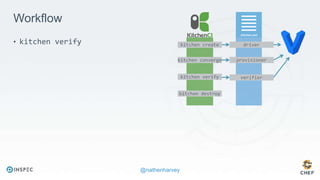

- 36. @nathenharvey Workflow • kitchen verify kitchen create kitchen destroy driver kitchen converge provisioner kitchen verify verifier
- 38. @nathenharvey

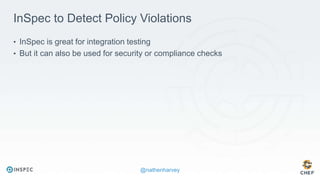

- 39. @nathenharvey InSpec to Detect Policy Violations • InSpec is great for integration testing • But it can also be used for security or compliance checks
- 40. @nathenharvey https://youtu.be/udomS3XyxQg Assert telnetd is not installed

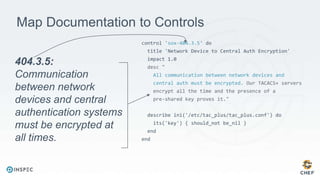

- 41. Map Documentation to Controls control 'sox-404.3.5' do title 'Network Device to Central Auth Encryption' impact 1.0 desc " All communication between network devices and central auth must be encrypted. Our TACACS+ servers encrypt all the time and the presence of a pre-shared key proves it." describe ini('/etc/tac_plus/tac_plus.conf') do its('key') { should_not be_nil } end end 404.3.5: Communication between network devices and central authentication systems must be encrypted at all times.

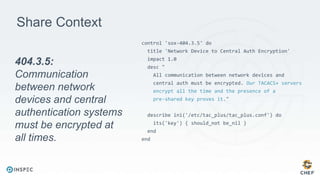

- 42. Share Context control 'sox-404.3.5' do title 'Network Device to Central Auth Encryption' impact 1.0 desc " All communication between network devices and central auth must be encrypted. Our TACACS+ servers encrypt all the time and the presence of a pre-shared key proves it." describe ini('/etc/tac_plus/tac_plus.conf') do its('key') { should_not be_nil } end end 404.3.5: Communication between network devices and central authentication systems must be encrypted at all times.

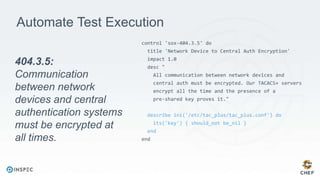

- 43. Automate Test Execution control 'sox-404.3.5' do title 'Network Device to Central Auth Encryption' impact 1.0 desc " All communication between network devices and central auth must be encrypted. Our TACACS+ servers encrypt all the time and the presence of a pre-shared key proves it." describe ini('/etc/tac_plus/tac_plus.conf') do its('key') { should_not be_nil } end end 404.3.5: Communication between network devices and central authentication systems must be encrypted at all times.
- 45. @nathenharvey Add Linux Baseline to Test Kitchen suites: - name: default verifier: inspec_tests: - test/integration/default - https://github.com/dev-sec/linux-baseline

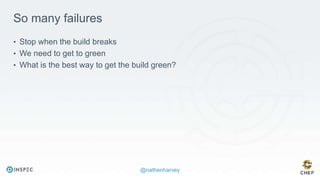

- 47. @nathenharvey So many failures • Stop when the build breaks • We need to get to green • What is the best way to get the build green?
- 48. @nathenharvey Wrap it up • Create a TODO list • One measure of technical debt • Get to green by commenting out tests?!

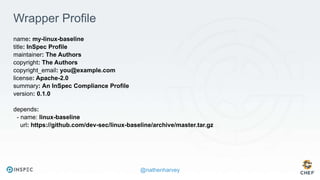

- 49. @nathenharvey Wrapper Profile name: my-linux-baseline title: InSpec Profile maintainer: The Authors copyright: The Authors copyright_email: you@example.com license: Apache-2.0 summary: An InSpec Compliance Profile version: 0.1.0 depends: - name: linux-baseline url: https://github.com/dev-sec/linux-baseline/archive/master.tar.gz

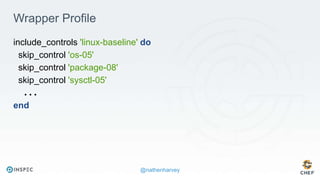

- 50. @nathenharvey Wrapper Profile include_controls 'linux-baseline' do skip_control 'os-05' skip_control 'package-08' skip_control 'sysctl-05' ... end

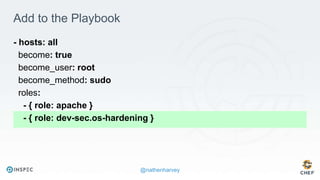

- 54. @nathenharvey Add to the Playbook - hosts: all become: true become_user: root become_method: sudo roles: - { role: apache } - { role: dev-sec.os-hardening }
- 57. @nathenharvey https://youtu.be/eMUuODXOymw How about those skipped controls?

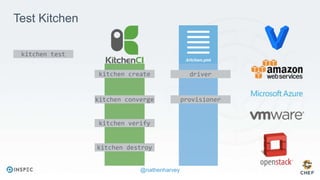

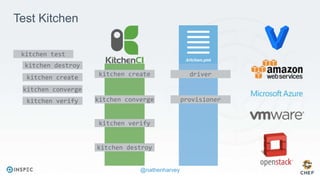

- 60. @nathenharvey kitchen create kitchen converge kitchen verify kitchen destroy driver provisioner Test Kitchen kitchen test
- 61. @nathenharvey kitchen create kitchen converge kitchen verify kitchen destroy driver provisioner Test Kitchen kitchen test kitchen destroy

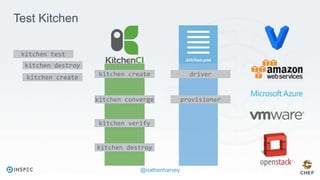

- 62. @nathenharvey kitchen create kitchen converge kitchen verify kitchen destroy driver provisioner Test Kitchen kitchen test kitchen destroy kitchen create

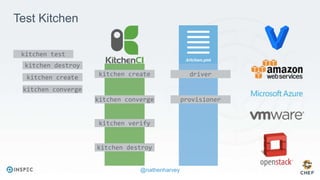

- 63. @nathenharvey kitchen create kitchen converge kitchen verify kitchen destroy driver provisioner Test Kitchen kitchen test kitchen destroy kitchen create kitchen converge
- 64. @nathenharvey kitchen create kitchen converge kitchen verify kitchen destroy driver provisioner Test Kitchen kitchen test kitchen destroy kitchen create kitchen converge kitchen verify

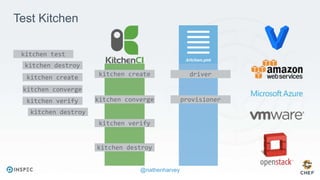

- 65. @nathenharvey kitchen create kitchen converge kitchen verify kitchen destroy driver provisioner Test Kitchen kitchen test kitchen destroy kitchen create kitchen converge kitchen verify kitchen destroy
- 67. PART OF A PROCESS OF CONTINUOUS COMPLIANCE Scan for Compliance Build & Test Locally Build & Test CI/CD Remediate Verify A SIMPLE EXAMPLE OF AN INSPEC CIS RULE InSpec ▪ Translate compliance into Code ▪ Clearly express statements of policy ▪ Move risk to build/test from runtime ▪ Find issues early ▪ Write code quickly ▪ Run code anywhere ▪ Inspect machines, data and APIs Turn security and compliance into code control ‘cis-1.4.1’ do title ‘1.4.1 Enable SELinux in /etc/grub.conf’ desc ‘ Do not disable SELinux and enforcing in your GRUB configuration. These are important security features that prevent attackers from escalating their access to your systems. For reference see … ‘ impact 1.0 expect(grub_conf.param ‘selinux’).to_not eq ‘0’ expect(grub_conf.param ‘enforcing’).to_not eq ‘0’ end

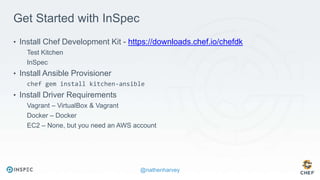

- 68. @nathenharvey Get Started with InSpec • Install Chef Development Kit - https://downloads.chef.io/chefdk Test Kitchen InSpec • Install Ansible Provisioner chef gem install kitchen-ansible • Install Driver Requirements Vagrant – VirtualBox & Vagrant Docker – Docker EC2 – None, but you need an AWS account
- 69. @nathenharvey Use, Share, Contribute! • dev-sec.io - https://github.com/dev-sec/ • InSpec – https://github.com/chef/inspec • Supermarket - https://supermarket.chef.io/tools?type=compliance_profile • Test Kitchen - https://github.com/test-kitchen • Test Kitchen Ansible Provisioner - https://github.com/neillturner/kitchen-ansible • Code from this presentation - https://github.com/nathenharvey/testing-ansible- with-inspec

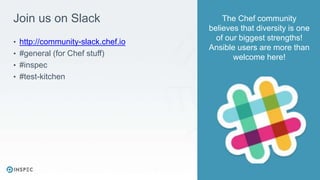

- 70. Join us on Slack • http://community-slack.chef.io • #general (for Chef stuff) • #inspec • #test-kitchen The Chef community believes that diversity is one of our biggest strengths! Ansible users are more than welcome here!
- 71. @nathenharvey InSpec Hacking - Tomorrow
- 72. @nathenharvey
- 73. Thank You! Nathen Harvey VP, Community Development Chef @nathenharvey
