BigML, Inc. provides an API and WhizzML for automating machine learning workflows, allowing for efficient model creation, evaluation, and deployment. The framework promotes code reuse, integration, and the ability to handle complex machine learning operations through a domain-specific language. Key features include server-side execution, parallel processing, and tools for managing datasets and predictive applications.
More Related Content
API, WhizzML and Apps
- 1. BigML, Inc 1 Automation PoulPetersen @pejpgrep CIO, BigML, Inc @bigmlcom API, WhizzML and Predictive Applications

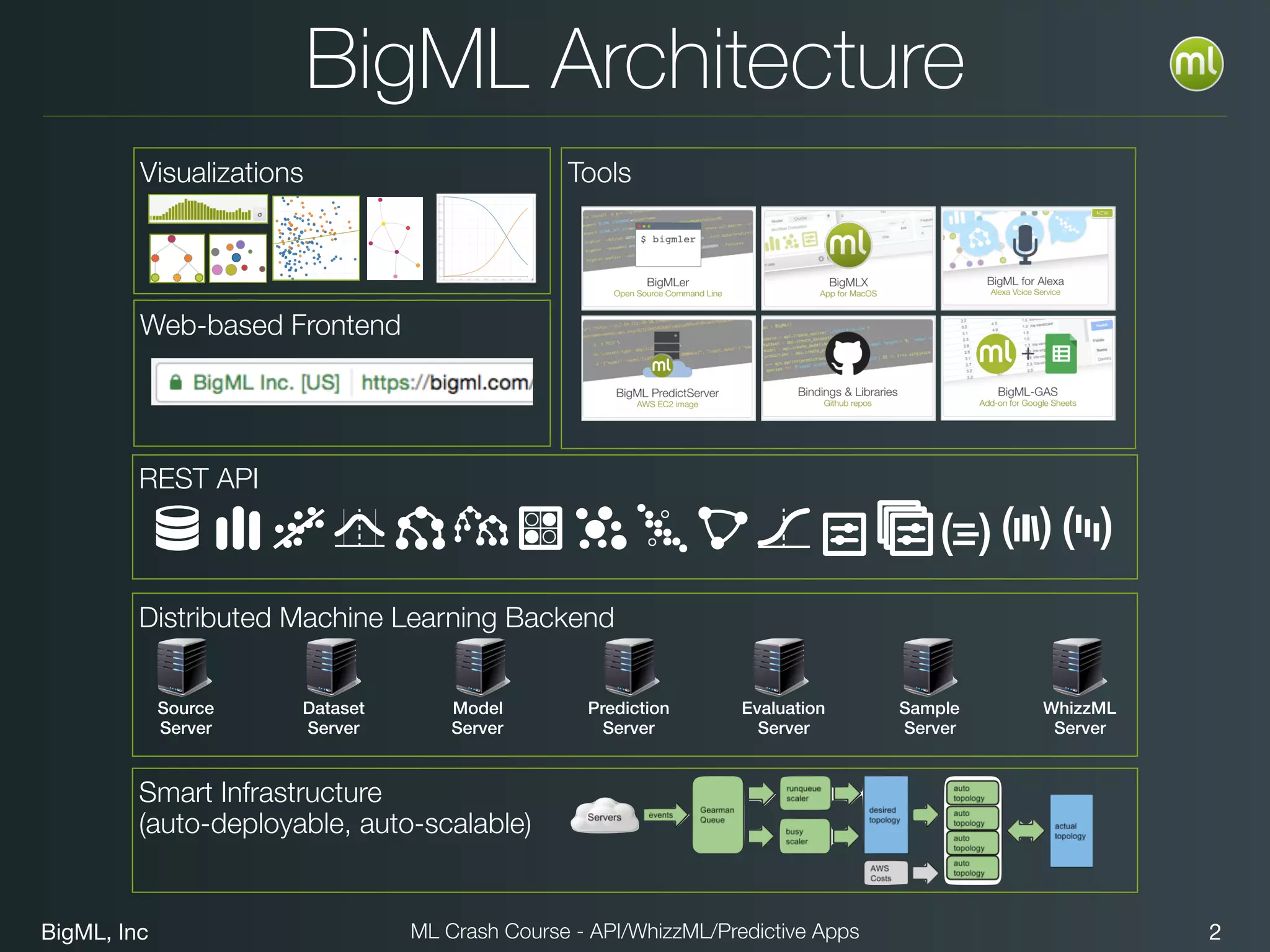

- 2. BigML, Inc 2MLCrash Course - API/WhizzML/Predictive Apps BigML Architecture Tools REST API Distributed Machine Learning Backend Source Server Dataset Server Model Server Prediction Server Sample Server WhizzML Server Evaluation Server Web-based Frontend Visualizations Smart Infrastructure (auto-deployable, auto-scalable)

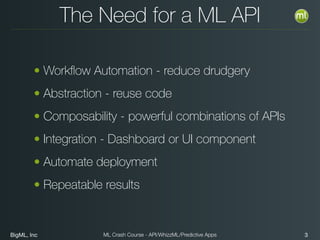

- 3. BigML, Inc 3MLCrash Course - API/WhizzML/Predictive Apps The Need for a ML API • Workflow Automation - reduce drudgery • Abstraction - reuse code • Composability - powerful combinations of APIs • Integration - Dashboard or UI component • Automate deployment • Repeatable results

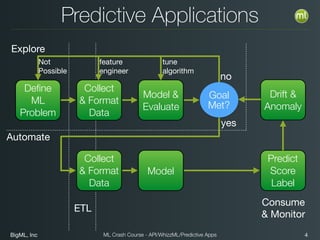

- 4. BigML, Inc 4MLCrash Course - API/WhizzML/Predictive Apps Predictive Applications Collect & Format Data Define ML Problem ETL Model & Evaluate no yes Explore Collect & Format Data Model Automate Consume & Monitor Predict Score Label Drift & Anomaly feature engineer Not Possible tune algorithm Goal Met?
- 5. BigML, Inc 5MLCrash Course - API/WhizzML/Predictive Apps BigML API Endpoint https://bigml.io/ / /{id}?{auth} source dataset model ensemble prediction batchprediction evaluation … andromeda dev dev/andromeda • Path elements: • /andromeda specifies the API version (optional) • /dev specifies development mode • if not specified, then latest API in production mode • {id} is required for PUT and DELETE • {auth} contains url parameters username and api_key • api_key can be an alternative key
- 6. BigML, Inc 6MLCrash Course - API/WhizzML/Predictive Apps BigML API Endpoint https://bigml.io/...{JSON} {JSON} Operation HTTP Method Semantics CREATE POST Creates a new resource. Returns a JSON document including a unique identifier. RETRIEVE GET Retrieves either a specific resource or a list of resources. UPDATE PUT Updates a resource. Only certain fields are putable. DELETE DELETE Deletes a resource

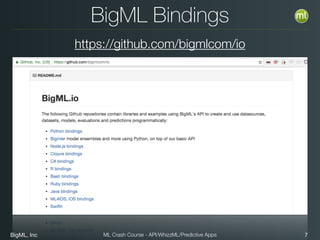

- 7. BigML, Inc 7MLCrash Course - API/WhizzML/Predictive Apps BigML Bindings https://github.com/bigmlcom/io

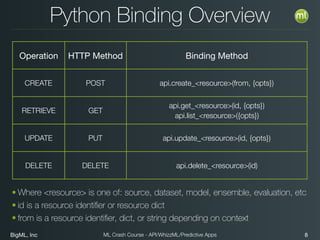

- 8. BigML, Inc 8MLCrash Course - API/WhizzML/Predictive Apps Python Binding Overview Operation HTTP Method Binding Method CREATE POST api.create_<resource>(from, {opts}) RETRIEVE GET api.get_<resource>(id, {opts}) api.list_<resource>({opts}) UPDATE PUT api.update_<resource>(id, {opts}) DELETE DELETE api.delete_<resource>(id) • Where <resource> is one of: source, dataset, model, ensemble, evaluation, etc • id is a resource identifier or resource dict • from is a resource identifier, dict, or string depending on context

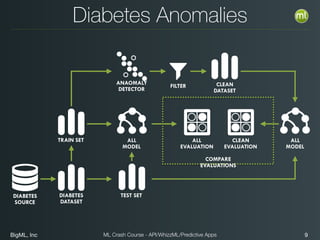

- 9. BigML, Inc 9MLCrash Course - API/WhizzML/Predictive Apps Diabetes Anomalies DIABETES SOURCE DIABETES DATASET TRAIN SET TEST SET ALL MODEL CLEAN DATASET FILTER ALL MODEL ALL EVALUATION CLEAN EVALUATION COMPARE EVALUATIONS ANAOMALY DETECTOR
- 10.
- 11. BigML, Inc 11MLCrash Course - API/WhizzML/Predictive Apps WhizzML • Complete programming language • Machine Learning operations are first-class citizens • Server-side execution abstracts infrastructure • API First! - Everything is composable • Shareable A Domain-Specific Language (DSL) for automating Machine Learning workflows.

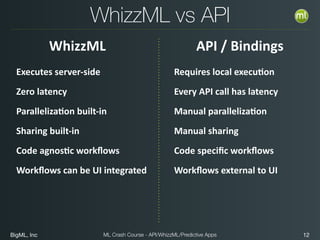

- 12. BigML, Inc 12MLCrash Course - API/WhizzML/Predictive Apps WhizzML vs API WhizzML API / Bindings Executes server-‐side Zero latency Paralleliza?on built-‐in Sharing built-‐in Code agnos?c workflows Workflows can be UI integrated Requires local execu?on Every API call has latency Manual paralleliza?on Manual sharing Code specific workflows Workflows external to UI

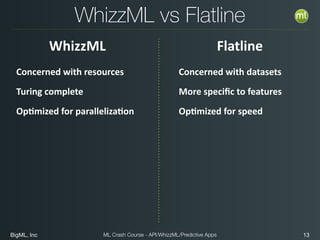

- 13. BigML, Inc 13MLCrash Course - API/WhizzML/Predictive Apps WhizzML vs Flatline WhizzML Flatline Concerned with resources Turing complete Op?mized for paralleliza?on Concerned with datasets More specific to features Op?mized for speed

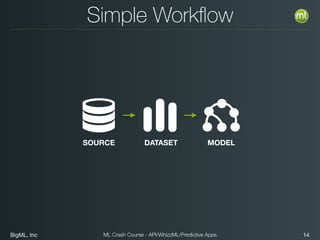

- 14. BigML, Inc 14MLCrash Course - API/WhizzML/Predictive Apps Simple Workflow SOURCE DATASET MODEL

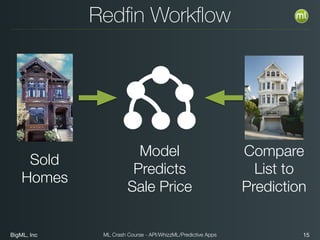

- 15. BigML, Inc 15MLCrash Course - API/WhizzML/Predictive Apps Redfin Workflow Model Predicts Sale Price Sold Homes Compare List to Prediction

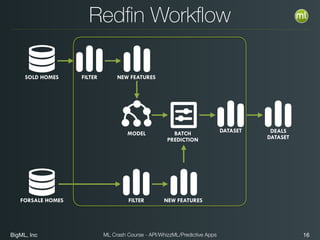

- 16. BigML, Inc 16MLCrash Course - API/WhizzML/Predictive Apps Redfin Workflow MODEL FILTERSOLD HOMES BATCH PREDICTION NEW FEATURES DATASET DEALS DATASET FILTERFORSALE HOMES NEW FEATURES
- 17. BigML, Inc 17MLCrash Course - API/WhizzML/Predictive Apps WhizzML Resources LIBRARY CITY 1 SOLD HOMES CITY 1 DEALS DATASET EXECUTION CITY 1 FORSALE HOMES SCRIPT

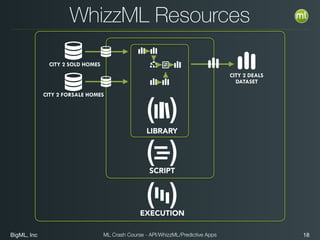

- 18. BigML, Inc 18MLCrash Course - API/WhizzML/Predictive Apps WhizzML Resources LIBRARY CITY 2 SOLD HOMES CITY 2 DEALS DATASET EXECUTION CITY 2 FORSALE HOMES SCRIPT
- 19. BigML, Inc 19MLCrash Course - API/WhizzML/Predictive Apps Scriptify • "Reifies" a resource into a WhizzML script. • Rapid prototyping meets automation.

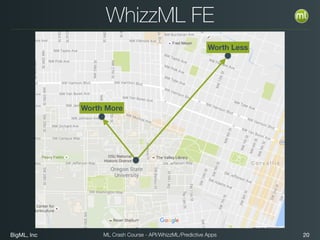

- 20. BigML, Inc 20MLCrash Course - API/WhizzML/Predictive Apps WhizzML FE Worth More Worth Less
- 21. BigML, Inc 21MLCrash Course - API/WhizzML/Predictive Apps WhizzML FE LATITUDE LONGITUDE REFERENCE LATITUDE REFERENCE LONGITUDE 44.583 -123.296775 44.5638 -123.2794 44.604414 -123.296129 44.5638 -123.2794 44.600108 -123.29707 44.5638 -123.2794 44.603077 -123.295004 44.5638 -123.2794 44.589587 -123.301154 44.5638 -123.2794 Distance (m) 700 30.4 19.38 37.8 23.39 Flatline!

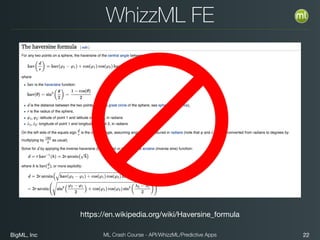

- 22. BigML, Inc 22MLCrash Course - API/WhizzML/Predictive Apps WhizzML FE https://en.wikipedia.org/wiki/Haversine_formula

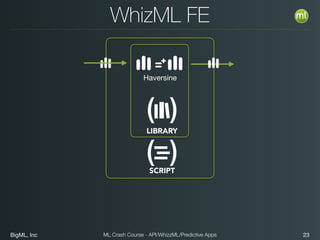

- 23. BigML, Inc 23MLCrash Course - API/WhizzML/Predictive Apps WhizML FE LIBRARY SCRIPT Haversine

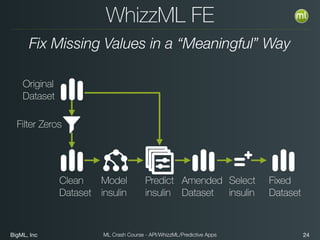

- 24. BigML, Inc 24MLCrash Course - API/WhizzML/Predictive Apps WhizzML FE Fix Missing Values in a “Meaningful” Way Filter Zeros Model insulin Predict insulin Select insulin Fixed Dataset Amended Dataset Original Dataset Clean Dataset

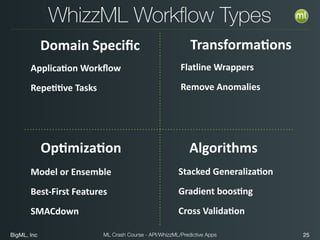

- 25. BigML, Inc 25MLCrash Course - API/WhizzML/Predictive Apps WhizzML Workflow Types Op?miza?on Model or Ensemble Best-‐First Features SMACdown Algorithms Stacked Generaliza?on Gradient boos?ng Cross Valida?on Transforma?ons Flatline Wrappers Remove Anomalies Domain Specific Applica?on Workflow Repe??ve Tasks

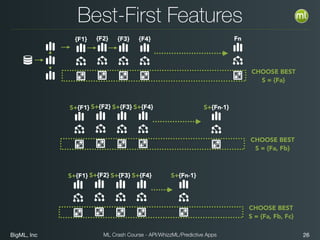

- 26. BigML, Inc 26MLCrash Course - API/WhizzML/Predictive Apps Best-First Features {F1} CHOOSE BEST S = {Fa} {F2} {F3} {F4} Fn S+{F1} S+{F2} S+{F3} S+{F4} S+{Fn-1} CHOOSE BEST S = {Fa, Fb} S+{F1} S+{F2} S+{F3} S+{F4} S+{Fn-1} CHOOSE BEST S = {Fa, Fb, Fc}

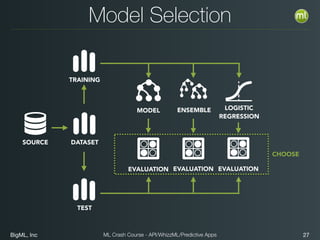

- 27. BigML, Inc 27MLCrash Course - API/WhizzML/Predictive Apps Model Selection ENSEMBLE LOGISTIC REGRESSION EVALUATION SOURCE DATASET TRAINING TEST MODEL EVALUATIONEVALUATION CHOOSE

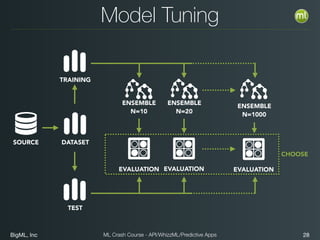

- 28. BigML, Inc 28MLCrash Course - API/WhizzML/Predictive Apps Model Tuning ENSEMBLE N=20 EVALUATION SOURCE DATASET TRAINING TEST EVALUATIONEVALUATION ENSEMBLE N=10 ENSEMBLE N=1000 CHOOSE
- 29. BigML, Inc 29MLCrash Course - API/WhizzML/Predictive Apps SMACdown • How many models? • How many nodes? • Missing splits or not? • Number of random candidates? • Balance the objective? SMACdown can tell you!
- 30. BigML, Inc 30MLCrash Course - API/WhizzML/Predictive Apps Path to Automatic ML time Automation REST API Programmable Infrastructure A Sauron • Automatic deployment and auto-‐scaling Data Generation and Filtering C Flatline • DSL for transformation and new field generation B Wintermute • Distributed Machine Learning Framework 2011 Spring 2016 Automatic Model Selection E SMACdown • Automatic parameter optimization Workflow Automation D WhizzML • DSL for programmable workflows

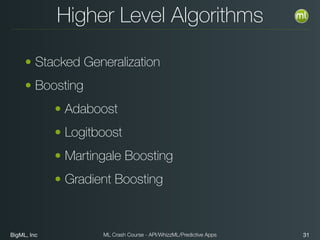

- 31. BigML, Inc 31MLCrash Course - API/WhizzML/Predictive Apps Higher Level Algorithms • Stacked Generalization • Boosting • Adaboost • Logitboost • Martingale Boosting • Gradient Boosting
- 32. BigML, Inc 32MLCrash Course - API/WhizzML/Predictive Apps Stacked Generalization ENSEMBLE LOGISTIC REGRESSION SOURCE DATASET MODEL BATCH PREDICTION BATCH PREDICTION BATCH PREDICTION EXTENDED DATASET EXTENDED DATASET EXTENDED DATASET LOGISTIC REGRESSION

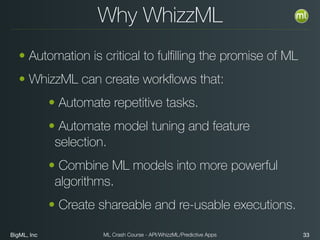

- 33. BigML, Inc 33MLCrash Course - API/WhizzML/Predictive Apps Why WhizzML • Automation is critical to fulfilling the promise of ML • WhizzML can create workflows that: • Automate repetitive tasks. • Automate model tuning and feature selection. • Combine ML models into more powerful algorithms. • Create shareable and re-usable executions.
