1. D E C E M B E R 8 - 9 , 2 0 1 6

2. BigML, Inc 2
Poul Petersen
CIO, BigML, Inc.
Basic TransformationsCreating Machine Learning Ready Data

3. BigML, Inc 3Basic Transformations
In a Perfect World…
Q: How does a physicist milk a cow?
A: Well, first let us consider a spherical cow...
Q: How does a data scientist build a model?
A: Well, first let us consider perfectly formatted data…

4. BigML, Inc 4Basic Transformations
The Dream
CSV Dataset Model Profit!

5. BigML, Inc 5Basic Transformations
The Reality
CRM
Web Accounts
Transactions
ML Ready?

6. BigML, Inc 6Basic Transformations
Obstacles
• Data Structure
• Scattered across systems
• Wrong "shape"
• Unlabelled data
• Data Value
• Format: spelling, units
• Missing values
• Non-optimal correlation
• Non-existant correlation
• Data Significance
• Unwanted: PII, Non-Preferred
• Expensive to collect
• Insidious: Leakage, obviously correlated
Data Transformation
Feature Engineering
Feature Selection

7. BigML, Inc 7Basic Transformations
The Process
• Define a clear idea of the goal.
• sometimes this comes later…
• Understand what ML tasks will achieve the goal.
• Transform the data
• where is it, how is it stored?
• what are the features?
• can you access it programmatically?
• Feature Engineering: transform the data you have into the data
you actually need.
• Evaluate: Try it on a small scale
• Accept that you might have to start over….
• But when it works, automate it!!!!

8. BigML, Inc 8
Data Transformations

9. BigML, Inc 9Basic Transformations
BigML Tasks
Goal
• Will this customer default on a loan?
• How many customers will apply for a
loan next month?
• Is the consumption of this product
unusual?
• Is the behavior of the customers
similar?
• Are these products purchased
together?
ML Task
Classification
Regression
Anomaly Detection
Cluster Analysis
Association Discovery

10. BigML, Inc 10Basic Transformations
Classification
CategoricalTrainingTesting
Predicting

11. BigML, Inc 11Basic Transformations
Regression
NumericTrainingTesting
Predicting

12. BigML, Inc 12Basic Transformations
Anomaly Detection

13. BigML, Inc 13Basic Transformations
Cluster Analysis

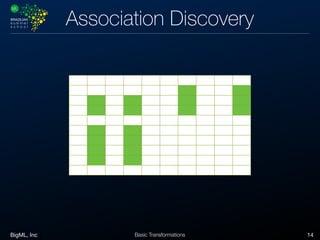

14. BigML, Inc 14Basic Transformations
Association Discovery

15. BigML, Inc 15Basic Transformations
Data Labelling
Data may not have labels needed for doing classification
Create specific metrics for adding labels
Name Month - 3 Month - 2 Month - 1
Joe Schmo 123,23 0 0
Jane Plain 0 0 0
Mary Happy 0 55,22 243,33
Tom Thumb 12,34 8,34 14,56
Un-Labelled Data
Labelled data
Name Month - 3 Month - 2 Month - 1 Default
Joe Schmo 123,23 0 0 FALSE
Jane Plain 0 0 0 TRUE
Mary Happy 0 55,22 243,33 FALSE
Tom Thumb 12,34 8,34 14,56 FALSE
Can be done at Feature
Engineering step as well

16. BigML, Inc 16Basic Transformations
ML Ready DataInstances
Fields (Features)
Tabular Data (rows and columns):
• Each row
• is one instance.
• contains all the information about that one instance.
• Each column
• is a field that describes a property of the instance.

17. BigML, Inc 17Basic Transformations
SF Restaurants Example
https://data.sfgov.org/Health-and-Social-Services/Restaurant-Scores/stya-26eb
https://blog.bigml.com/2013/10/30/data-preparation-for-machine-learning-using-mysql/
create database sf_restaurants;
use sf_restaurants;
create table businesses (business_id int, name varchar(1000), address varchar(1000), city varchar(1000), state varchar(100),
postal_code varchar(100), latitude varchar(100), longitude varchar(100), phone_number varchar(100));
load data local infile './businesses.csv' into table businesses fields terminated by ',' enclosed by '"' lines terminated by
'rn' ignore 1 lines;
create table inspections (business_id int, score varchar(10), idate varchar(8), itype varchar(100));
load data local infile './inspections.csv' into table inspections fields terminated by ',' enclosed by '"' lines terminated
by 'rn' ignore 1 lines;
create table violations (business_id int, vdate varchar(8), description varchar(1000));
load data local infile './violations.csv' into table violations fields terminated by ',' enclosed by '"' lines terminated by
'rn' ignore 1 lines;
create table legend (Minimum_Score int, Maximum_Score int, Description varchar(100));
load data local infile './legend.csv' into table legend fields terminated by ',' enclosed by '"' lines terminated by 'rn'
ignore 1 lines;

18. BigML, Inc 18Basic Transformations
Data Cleaning
Homogenize missing values and different types in the same
feature, fix input errors, correct semantic issues, types, etc.
Name Date Duration (s) Genre Plays
Highway star 1984-05-24 - Rock 139
Blues alive 1990/03/01 281 Blues 239
Lonely planet 2002-11-19 5:32s Techno 42
Dance, dance 02/23/1983 312 Disco N/A
The wall 1943-01-20 218 Reagge 83
Offside down 1965-02-19 4 minutes Techno 895
The alchemist 2001-11-21 418 Bluesss 178
Bring me down 18-10-98 328 Classic 21
The scarecrow 1994-10-12 269 Rock 734
Original data
Name Date Duration (s) Genre Plays
Highway star 1984-05-24 Rock 139
Blues alive 1990-03-01 281 Blues 239
Lonely planet 2002-11-19 332 Techno 42
Dance, dance 1983-02-23 312 Disco
The wall 1943-01-20 218 Reagge 83
Offside down 1965-02-19 240 Techno 895
The alchemist 2001-11-21 418 Blues 178
Bring me down 1998-10-18 328 Classic 21
The scarecrow 1994-10-12 269 Rock 734
Cleaned data
update violations set description = substr(description,1,instr(description,' [ date violation corrected:')-1) where instr(description,'
[ date violation corrected:') > 0;

19. BigML, Inc 19Basic Transformations
Denormalizing
business
inspections
violations
scores
Instances
Features
(millions)
join
Data is usually normalized in relational databases, ML-Ready datasets
need the information de-normalized in a single file/dataset.
create table scores select * from inspections left join businesses using (business_id);

20. BigML, Inc 20Basic Transformations
Aggregating
User Num.Playbacks Total Time Pref.Device
User001 3 830 Tablet
User002 1 218 Smartphone
User003 3 1019 TV
User005 2 521 Tablet
Aggregated data (list of users)
When the entity to model is different from the provided data, an
aggregation to get the entity might be needed.
Content Genr
e
Duration Play Time User Device
Highway
star
Rock 190 2015-05-12
16:29:33
User001 TV
Blues alive Blues 281 2015-05-13
12:31:21
User005 Tablet
Lonely
planet
Tech
no
332 2015-05-13
14:26:04
User003 TV
Dance,
dance
Disco 312 2015-05-13
18:12:45
User001 Tablet
The wall Reag
ge
218 2015-05-14
09:02:55
User002 Smartphone
Offside
down
Tech
no
240 2015-05-14
11:26:32
User005 Tablet
The
alchemist
Blues 418 2015-05-14
21:44:15
User003 TV
Bring me
down
Class
ic
328 2015-05-15
06:59:56
User001 Tablet
The
scarecrow
Rock 269 2015-05-15
12:37:05
User003 Smartphone
Original data (list of playbacks)
select business_id,vdate,count(*) as violation_num,group_concat(description) as violation_txt from violations group by business_id, vdate;
select * from scores left join violations_aggregated ON (scores.business_id=violations_aggregated.business_id) AND ( vdate=idate);
tail -n+2 playlists.csv | cut -d',' -f5 | sort | uniq -c
tail -n+2 playlist.csv | awk -F',' '{arr[$5]+=$3} END {for (i in arr) {print arr[i],i}}'

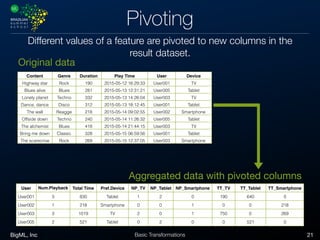

21. BigML, Inc 21Basic Transformations
Pivoting
Different values of a feature are pivoted to new columns in the
result dataset.
Content Genre Duration Play Time User Device
Highway star Rock 190 2015-05-12 16:29:33 User001 TV
Blues alive Blues 281 2015-05-13 12:31:21 User005 Tablet
Lonely planet Techno 332 2015-05-13 14:26:04 User003 TV
Dance, dance Disco 312 2015-05-13 18:12:45 User001 Tablet
The wall Reagge 218 2015-05-14 09:02:55 User002 Smartphone
Offside down Techno 240 2015-05-14 11:26:32 User005 Tablet
The alchemist Blues 418 2015-05-14 21:44:15 User003 TV
Bring me down Classic 328 2015-05-15 06:59:56 User001 Tablet
The scarecrow Rock 269 2015-05-15 12:37:05 User003 Smartphone
Original data
User Num.Playback
s
Total Time Pref.Device NP_TV NP_Tablet NP_Smartphone TT_TV TT_Tablet TT_Smartphone
User001 3 830 Tablet 1 2 0 190 640 0
User002 1 218 Smartphone 0 0 1 0 0 218
User003 3 1019 TV 2 0 1 750 0 269
User005 2 521 Tablet 0 2 0 0 521 0
Aggregated data with pivoted columns

22. BigML, Inc 22Basic Transformations
Time Windows
Create new features using values over different periods of time
Instances
Features
Time
Instances
Features
(millions)
(thousands)
t=1 t=2 t=3
select business_id, score as score_2013, idate as idate_2013 from inspections where substr(idate,1,4) = "2013";
create table scores_over_time select * from businesses left join scores_2013 USING (business_id) left join scores_2014 USING (business_id);

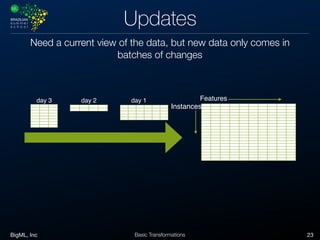

23. BigML, Inc 23Basic Transformations
Updates
Need a current view of the data, but new data only comes in
batches of changes
day 1day 2day 3
Instances
Features

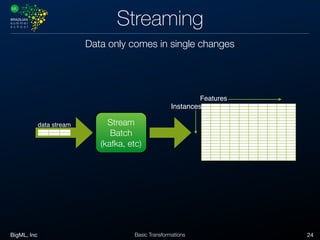

24. BigML, Inc 24Basic Transformations
Streaming
Data only comes in single changes
data stream
Instances
Features
Stream
Batch
(kafka, etc)

25. BigML, Inc 25Basic Transformations
Structuring Output
• A CSV file uses plain text to store tabular data.
• In a CSV file, each row of the file is an instance.
• Each column in a row is usually separated by a comma (,) but other
"separators" like semi-colon (;), colon (:), pipe (|), can also be used. Each
row must contain the same number of fields
• but they can be null
• Fields can be quoted using double quotes (").
• Fields that contain commas or line separators must be quoted.
• Quotes (") in fields must be doubled ("").
• The character encoding must be UTF-8
• Optionally, a CSV file can use the first line as a header to provide the
names of each field.
After all the data transformations, a CSV (“Comma-Separated
Values) file has to be generated, following the rules below:

26. BigML, Inc 26Basic Transformations
Prosper Loan Life Cycle
Submit Bids
Cancelled Withdraw
Funded
Expired
Defaulted
Paid
Current
Late
Q: Which new loans make it to funded?
Q: Which funded loans make it to paid?
Q: If funded, what will be the rate?
Classification
Regression
Classification
Goal ML Task

27. BigML, Inc 27Basic Transformations
Prosper Example
Data Provided in XML updates!!
fetch.sh
“curl”
daily
export.sh
import.py
XML
bigml.sh
Model
Predict
Share in gallery
Status
LoanStatus
BorrowerRate

28. BigML, Inc 28Basic Transformations
Prosper Example
• XML… yuck!
• MongoDB has CSV export and is record based so it is easy to
handle changing data structure.
• Feature Engineering
• There are 5 different classes of “bad” loans
• Date cleanup
• Type casting: floats and ints
• Would be better to track over time
• number of late payments
• compare predictions and actuals
• XML… yuck!
Tidbits and Lessons Learned….

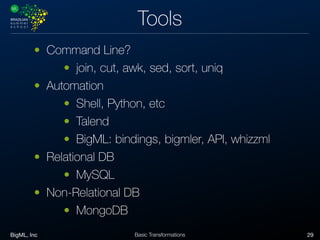

29. BigML, Inc 29Basic Transformations
Tools
• Command Line?
• join, cut, awk, sed, sort, uniq
• Automation
• Shell, Python, etc
• Talend
• BigML: bindings, bigmler, API, whizzml
• Relational DB
• MySQL
• Non-Relational DB
• MongoDB

30. BigML, Inc 30Basic Transformations
Talend
https://blog.bigml.com/2013/10/30/data-preparation-for-machine-learning-using-mysql/
Denormalization Example
