1. Automating Machine Learning
API, bindings, BigMLer and Basic Workflows
#VSSML16
September 2016
#VSSML16 Automating Machine Learning September 2016 1 / 43

2. Outline
1 Machine Learning workflows
2 Client-side workflows: REST API and bindings
3 Client-side workflows: Bigmler
4 Server-side workflows: WhizzML
5 Example Workflow Walk-throughs
#VSSML16 Automating Machine Learning September 2016 2 / 43

3. Outline
1 Machine Learning workflows
2 Client-side workflows: REST API and bindings
3 Client-side workflows: Bigmler
4 Server-side workflows: WhizzML
5 Example Workflow Walk-throughs
#VSSML16 Automating Machine Learning September 2016 3 / 43

4. Machine Learning as a System Service
The goal
Machine Learning as a system
level service
The means
• APIs: ML building blocks
• Abstraction layer over feature
engineering
• Abstraction layer over
algorithms
• Automation
#VSSML16 Automating Machine Learning September 2016 4 / 43

5. Machine Learning workflows
#VSSML16 Automating Machine Learning September 2016 5 / 43

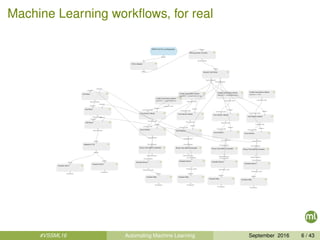

6. Machine Learning workflows, for real
#VSSML16 Automating Machine Learning September 2016 6 / 43

7. Higher-level Machine Learning
#VSSML16 Automating Machine Learning September 2016 7 / 43

8. Outline
1 Machine Learning workflows
2 Client-side workflows: REST API and bindings
3 Client-side workflows: Bigmler
4 Server-side workflows: WhizzML
5 Example Workflow Walk-throughs
#VSSML16 Automating Machine Learning September 2016 8 / 43

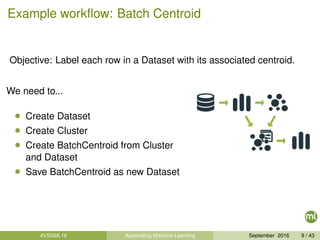

9. Example workflow: Batch Centroid
Objective: Label each row in a Dataset with its associated centroid.
We need to...
• Create Dataset
• Create Cluster
• Create BatchCentroid from Cluster
and Dataset
• Save BatchCentroid as new Dataset
#VSSML16 Automating Machine Learning September 2016 9 / 43

10. Example workflow: building blocks
curl -X POST "https://bigml.io?$AUTH/dataset"
-D '{"source": "source/56fbbfea200d5a3403000db7"}'
curl -X POST "https://bigml.io?$AUTH/cluster"
-D '{"source": "dataset/43ffe231a34fff333000b65"}'
curl -X POST "https://bigml.io?$AUTH/batchcentroid"
-D '{"dataset": "dataset/43ffe231a34fff333000b65",
"cluster": "cluster/33e2e231a34fff333000b65"}'
curl -X GET "https://bigml.io?$AUTH/dataset/1234ff45eab8c0034334"
#VSSML16 Automating Machine Learning September 2016 10 / 43

11. Example workflow: Web UI
#VSSML16 Automating Machine Learning September 2016 11 / 43

12. Example workflow: Python bindings
from bigml.api import BigML
api = BigML()
source = 'source/5643d345f43a234ff2310a3e'
# create dataset and cluster, waiting for both
dataset = api.create_dataset(source)
api.ok(dataset)
cluster = api.create_cluster(dataset)
api.ok(cluster)
# create new dataset with centroid
new_dataset = api.create_batch_centroid(cluster, dataset,
{'output_dataset': True,
'all_fields': True})
# wait again, via polling, until the job is finished
api.ok(new_dataset)
#VSSML16 Automating Machine Learning September 2016 12 / 43

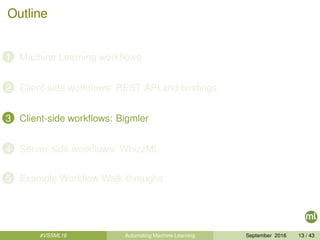

13. Outline
1 Machine Learning workflows
2 Client-side workflows: REST API and bindings
3 Client-side workflows: Bigmler
4 Server-side workflows: WhizzML
5 Example Workflow Walk-throughs
#VSSML16 Automating Machine Learning September 2016 13 / 43

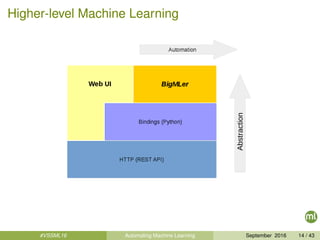

14. Higher-level Machine Learning
#VSSML16 Automating Machine Learning September 2016 14 / 43

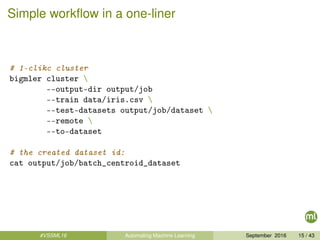

15. Simple workflow in a one-liner
# 1-clikc cluster
bigmler cluster
--output-dir output/job
--train data/iris.csv
--test-datasets output/job/dataset
--remote
--to-dataset
# the created dataset id:
cat output/job/batch_centroid_dataset
#VSSML16 Automating Machine Learning September 2016 15 / 43

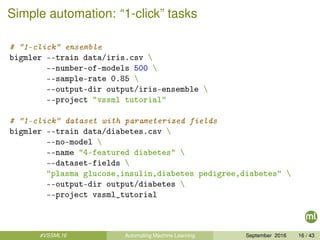

16. Simple automation: “1-click” tasks
# "1-click" ensemble
bigmler --train data/iris.csv
--number-of-models 500
--sample-rate 0.85
--output-dir output/iris-ensemble
--project "vssml tutorial"
# "1-click" dataset with parameterized fields
bigmler --train data/diabetes.csv
--no-model
--name "4-featured diabetes"
--dataset-fields
"plasma glucose,insulin,diabetes pedigree,diabetes"
--output-dir output/diabetes
--project vssml_tutorial
#VSSML16 Automating Machine Learning September 2016 16 / 43

17. Rich, parameterized workflows: cross-validation
bigmler analyze --cross-validation # parameterized input
--dataset $(cat output/diabetes/dataset)
--k-folds 3 # number of folds during validation
--output-dir output/diabetes-validation
#VSSML16 Automating Machine Learning September 2016 17 / 43

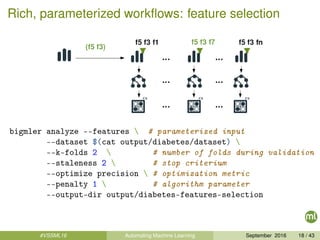

18. Rich, parameterized workflows: feature selection
bigmler analyze --features # parameterized input
--dataset $(cat output/diabetes/dataset)
--k-folds 2 # number of folds during validation
--staleness 2 # stop criterium
--optimize precision # optimization metric
--penalty 1 # algorithm parameter
--output-dir output/diabetes-features-selection
#VSSML16 Automating Machine Learning September 2016 18 / 43

19. Outline
1 Machine Learning workflows
2 Client-side workflows: REST API and bindings
3 Client-side workflows: Bigmler
4 Server-side workflows: WhizzML
5 Example Workflow Walk-throughs
#VSSML16 Automating Machine Learning September 2016 19 / 43

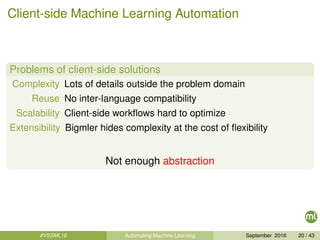

20. Client-side Machine Learning Automation
Problems of client-side solutions
Complexity Lots of details outside the problem domain
Reuse No inter-language compatibility
Scalability Client-side workflows hard to optimize
Extensibility Bigmler hides complexity at the cost of flexibility
Not enough abstraction
#VSSML16 Automating Machine Learning September 2016 20 / 43

21. Higher-level Machine Learning
#VSSML16 Automating Machine Learning September 2016 21 / 43

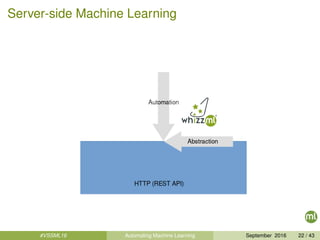

22. Server-side Machine Learning
#VSSML16 Automating Machine Learning September 2016 22 / 43

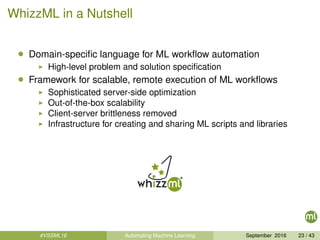

23. WhizzML in a Nutshell
• Domain-specific language for ML workflow automation
High-level problem and solution specification
• Framework for scalable, remote execution of ML workflows
Sophisticated server-side optimization
Out-of-the-box scalability
Client-server brittleness removed
Infrastructure for creating and sharing ML scripts and libraries
#VSSML16 Automating Machine Learning September 2016 23 / 43

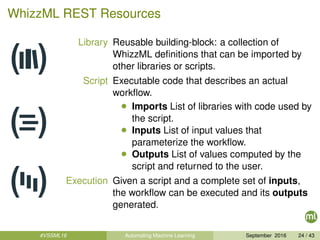

24. WhizzML REST Resources
Library Reusable building-block: a collection of
WhizzML definitions that can be imported by
other libraries or scripts.
Script Executable code that describes an actual
workflow.
• Imports List of libraries with code used by
the script.
• Inputs List of input values that
parameterize the workflow.
• Outputs List of values computed by the
script and returned to the user.
Execution Given a script and a complete set of inputs,
the workflow can be executed and its outputs
generated.
#VSSML16 Automating Machine Learning September 2016 24 / 43

25. Different ways to create WhizzML Scripts/Libraries
Github
Script editor
Gallery
Other scripts
Scriptify
−→
#VSSML16 Automating Machine Learning September 2016 25 / 43

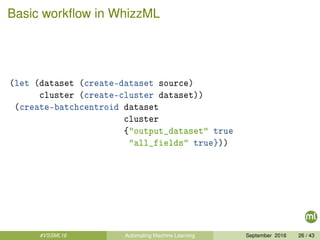

26. Basic workflow in WhizzML
(let (dataset (create-dataset source)
cluster (create-cluster dataset))
(create-batchcentroid dataset
cluster
{"output_dataset" true
"all_fields" true}))
#VSSML16 Automating Machine Learning September 2016 26 / 43

27. Basic workflow in WhizzML: Usable by any binding
from bigml.api import BigML
api = BigML()
# choose workflow
script = 'script/567b4b5be3f2a123a690ff56'
# define parameters
inputs = {'source': 'source/5643d345f43a234ff2310a3e'}
# execute
api.ok(api.create_execution(script, inputs))
#VSSML16 Automating Machine Learning September 2016 27 / 43

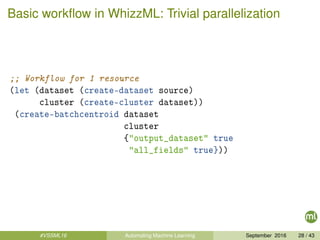

28. Basic workflow in WhizzML: Trivial parallelization
;; Workflow for 1 resource
(let (dataset (create-dataset source)
cluster (create-cluster dataset))
(create-batchcentroid dataset
cluster
{"output_dataset" true
"all_fields" true}))
#VSSML16 Automating Machine Learning September 2016 28 / 43

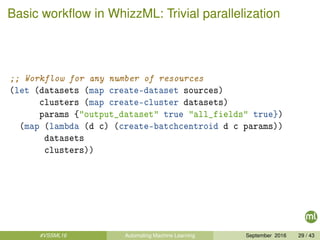

29. Basic workflow in WhizzML: Trivial parallelization
;; Workflow for any number of resources
(let (datasets (map create-dataset sources)
clusters (map create-cluster datasets)
params {"output_dataset" true "all_fields" true})
(map (lambda (d c) (create-batchcentroid d c params))
datasets
clusters))
#VSSML16 Automating Machine Learning September 2016 29 / 43

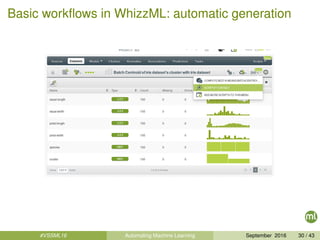

30. Basic workflows in WhizzML: automatic generation
#VSSML16 Automating Machine Learning September 2016 30 / 43

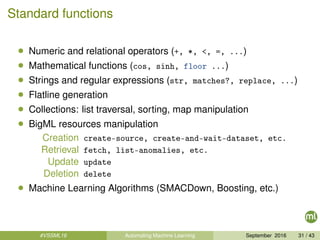

31. Standard functions
• Numeric and relational operators (+, *, <, =, ...)
• Mathematical functions (cos, sinh, floor ...)
• Strings and regular expressions (str, matches?, replace, ...)
• Flatline generation
• Collections: list traversal, sorting, map manipulation
• BigML resources manipulation
Creation create-source, create-and-wait-dataset, etc.
Retrieval fetch, list-anomalies, etc.
Update update
Deletion delete
• Machine Learning Algorithms (SMACDown, Boosting, etc.)
#VSSML16 Automating Machine Learning September 2016 31 / 43

32. Outline
1 Machine Learning workflows
2 Client-side workflows: REST API and bindings
3 Client-side workflows: Bigmler
4 Server-side workflows: WhizzML
5 Example Workflow Walk-throughs
#VSSML16 Automating Machine Learning September 2016 32 / 43

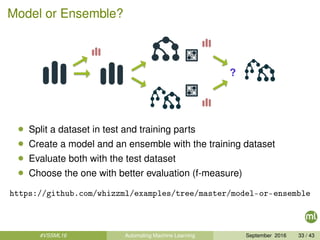

33. Model or Ensemble?
• Split a dataset in test and training parts
• Create a model and an ensemble with the training dataset
• Evaluate both with the test dataset
• Choose the one with better evaluation (f-measure)
https://github.com/whizzml/examples/tree/master/model-or-ensemble
#VSSML16 Automating Machine Learning September 2016 33 / 43

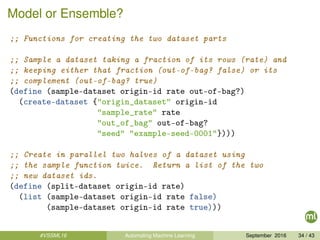

34. Model or Ensemble?
;; Functions for creating the two dataset parts
;; Sample a dataset taking a fraction of its rows (rate) and
;; keeping either that fraction (out-of-bag? false) or its
;; complement (out-of-bag? true)
(define (sample-dataset origin-id rate out-of-bag?)
(create-dataset {"origin_dataset" origin-id
"sample_rate" rate
"out_of_bag" out-of-bag?
"seed" "example-seed-0001"})))
;; Create in parallel two halves of a dataset using
;; the sample function twice. Return a list of the two
;; new dataset ids.
(define (split-dataset origin-id rate)
(list (sample-dataset origin-id rate false)
(sample-dataset origin-id rate true)))
#VSSML16 Automating Machine Learning September 2016 34 / 43

35. Model or Ensemble?
;; Functions to create an ensemble and extract the f-measure from
;; evaluation, given its id.
(define (make-ensemble ds-id size)
(create-ensemble ds-id {"number_of_models" size}))
(define (f-measure ev-id)
(let (ev-id (wait ev-id) ;; because fetch doesn't wait
evaluation (fetch ev-id))
(evaluation ["result" "model" "average_f_measure"]))
#VSSML16 Automating Machine Learning September 2016 35 / 43

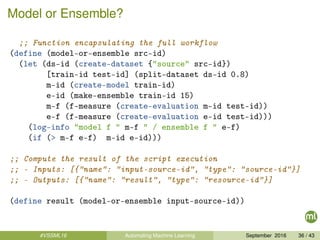

36. Model or Ensemble?
;; Function encapsulating the full workflow
(define (model-or-ensemble src-id)
(let (ds-id (create-dataset {"source" src-id})
[train-id test-id] (split-dataset ds-id 0.8)
m-id (create-model train-id)
e-id (make-ensemble train-id 15)
m-f (f-measure (create-evaluation m-id test-id))
e-f (f-measure (create-evaluation e-id test-id)))
(log-info "model f " m-f " / ensemble f " e-f)
(if (> m-f e-f) m-id e-id)))
;; Compute the result of the script execution
;; - Inputs: [{"name": "input-source-id", "type": "source-id"}]
;; - Outputs: [{"name": "result", "type": "resource-id"}]
(define result (model-or-ensemble input-source-id))
#VSSML16 Automating Machine Learning September 2016 36 / 43

37. Transforming item counts to features
basket milk eggs flour salt chocolate caviar
milk,eggs Y Y N N N N
milk,flour Y N Y N N N
milk,flour,eggs Y Y Y N N N
chocolate N N N N Y N
#VSSML16 Automating Machine Learning September 2016 37 / 43

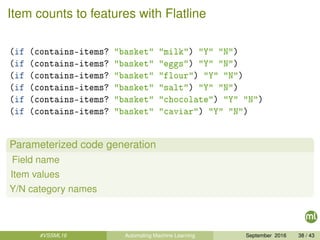

38. Item counts to features with Flatline
(if (contains-items? "basket" "milk") "Y" "N")
(if (contains-items? "basket" "eggs") "Y" "N")
(if (contains-items? "basket" "flour") "Y" "N")
(if (contains-items? "basket" "salt") "Y" "N")
(if (contains-items? "basket" "chocolate") "Y" "N")
(if (contains-items? "basket" "caviar") "Y" "N")
Parameterized code generation
Field name
Item values
Y/N category names
#VSSML16 Automating Machine Learning September 2016 38 / 43

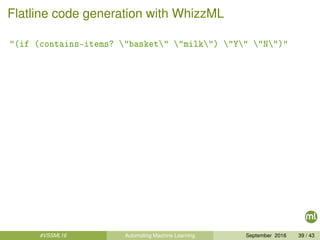

39. Flatline code generation with WhizzML
"(if (contains-items? "basket" "milk") "Y" "N")"
#VSSML16 Automating Machine Learning September 2016 39 / 43

40. Flatline code generation with WhizzML
"(if (contains-items? "basket" "milk") "Y" "N")"
(let (field "basket"
item "milk"
yes "Y"
no "N")
(flatline "(if (contains-items? {{field}} {{item}})"
"{{yes}}"
"{{no}})"))
#VSSML16 Automating Machine Learning September 2016 39 / 43

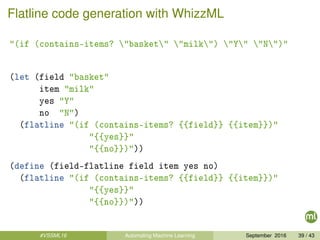

41. Flatline code generation with WhizzML
"(if (contains-items? "basket" "milk") "Y" "N")"
(let (field "basket"
item "milk"
yes "Y"
no "N")
(flatline "(if (contains-items? {{field}} {{item}})"
"{{yes}}"
"{{no}})"))
(define (field-flatline field item yes no)
(flatline "(if (contains-items? {{field}} {{item}})"
"{{yes}}"
"{{no}})"))
#VSSML16 Automating Machine Learning September 2016 39 / 43

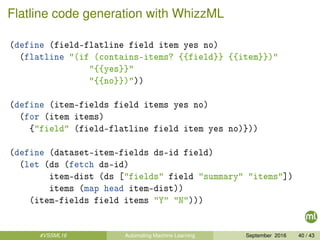

42. Flatline code generation with WhizzML
(define (field-flatline field item yes no)
(flatline "(if (contains-items? {{field}} {{item}})"
"{{yes}}"
"{{no}})"))
(define (item-fields field items yes no)
(for (item items)
{"field" (field-flatline field item yes no)}))
(define (dataset-item-fields ds-id field)
(let (ds (fetch ds-id)
item-dist (ds ["fields" field "summary" "items"])
items (map head item-dist))
(item-fields field items "Y" "N")))
#VSSML16 Automating Machine Learning September 2016 40 / 43

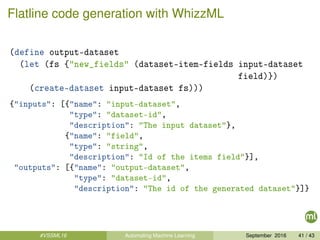

43. Flatline code generation with WhizzML
(define output-dataset
(let (fs {"new_fields" (dataset-item-fields input-dataset
field)})
(create-dataset input-dataset fs)))
{"inputs": [{"name": "input-dataset",
"type": "dataset-id",
"description": "The input dataset"},
{"name": "field",
"type": "string",
"description": "Id of the items field"}],
"outputs": [{"name": "output-dataset",
"type": "dataset-id",
"description": "The id of the generated dataset"}]}
#VSSML16 Automating Machine Learning September 2016 41 / 43

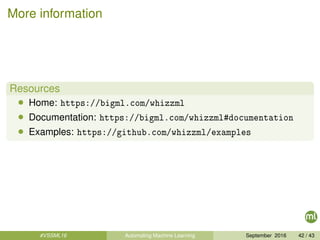

44. More information
Resources
• Home: https://bigml.com/whizzml
• Documentation: https://bigml.com/whizzml#documentation
• Examples: https://github.com/whizzml/examples
#VSSML16 Automating Machine Learning September 2016 42 / 43
