Apache Storm is a distributed, real-time computational framework used to process unbounded streams of data from sources like messaging systems or databases. It allows building topologies with spouts that act as data sources and bolts that perform computations. Data flows between nodes as tuples through streams. Apache Kafka is a distributed publish-subscribe messaging system that stores feeds of messages in topics, allowing producers to write data and consumers to read it.

1. Apache Storm
Real-Time Event Processing

2. Big Data Tools
• Data Processing
• Perform calculations on datasets e.g. Storm
• Data Transfer
• Gather & ingest data into data processing systems e.g. Kafka
• Data Storage
• Store the datasets during various data processing stages e.g. Hadoop

3. Apache Storm
Distributed, real-time computational framework, used
to process unbounded streams.
• It enables the integration with messaging and persistence
frameworks.
• It consumes the streams of data from different data sources.
• It process and transform the streams in different ways.

4. Apache Storm Concepts
Topology
Storm topology represents a graph of computations using:
• Nodes
• Represents individual computations
• Edges
• Represents data being passes between Nodes
Topology is driven through the continuous live feed of data and
perform some operation.

5. Topology
Node Edge Node Edge Node

6. Apache Storm Concepts
• Tuple
• Data send between nodes in form of Tuples.
• Stream
• Unbounded sequence of Tuples between two Nodes.
• Spout
• Source of Stream in Topology.
• Bolt
• Computational Node, accept input stream and perform
computations.

7. Topology
Spout Stream Bolt Stream BoltMessaging
System
Live feed of
data

8. Apache Storm Concepts
• Spout
• Receive data by
• Listen to message queue for incoming messages
• Listen to database changes
• Listen to other source of data feed
• Act as a source of stream
• Read data from data source
• Emit tuple to next type of node called Bolt.

9. Apache Storm Concepts
• Bolt
• Accept tuple from its input stream
• Perform computation/transformation
• Perform filtering, aggregation or perhaps join
• Emit new tuple to its output stream

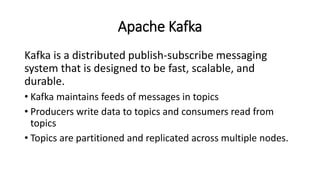

10. Apache Kafka
Kafka is a distributed publish-subscribe messaging
system that is designed to be fast, scalable, and
durable.
• Kafka maintains feeds of messages in topics
• Producers write data to topics and consumers read from
topics
• Topics are partitioned and replicated across multiple nodes.

11. Kafka Configuration
KAFKA_HOMEconfigserver.properties
# A comma seperated list of directories under which to store log
fileslog.dirs=C:/Installers/kafka/kafka-logs
KAFKA_HOMEconfigzookeeper.properties
# the directory where the snapshot is
stored.dataDir=C:/Installers/kafka/zookeeper-data

12. Kafka Commands
Start Zookeeper
$ bin/zookeeper-server-start.sh config/zookeeper.properties
$ binwindowszookeeper-server-start.bat configzookeeper.properties
Start Kafka Broker
$ bin/kafka-server-start.sh config/server.properties
$ binwindowskafka-server-start.bat configserver.properties
Create a Topic
$ bin/kafka-topics.sh --list --zookeeper localhost:2181
$ binwindowskafka-topics --list --zookeeper localhost:2181
