Introduction to
HiveQL
BY KRISTIN FERRIER

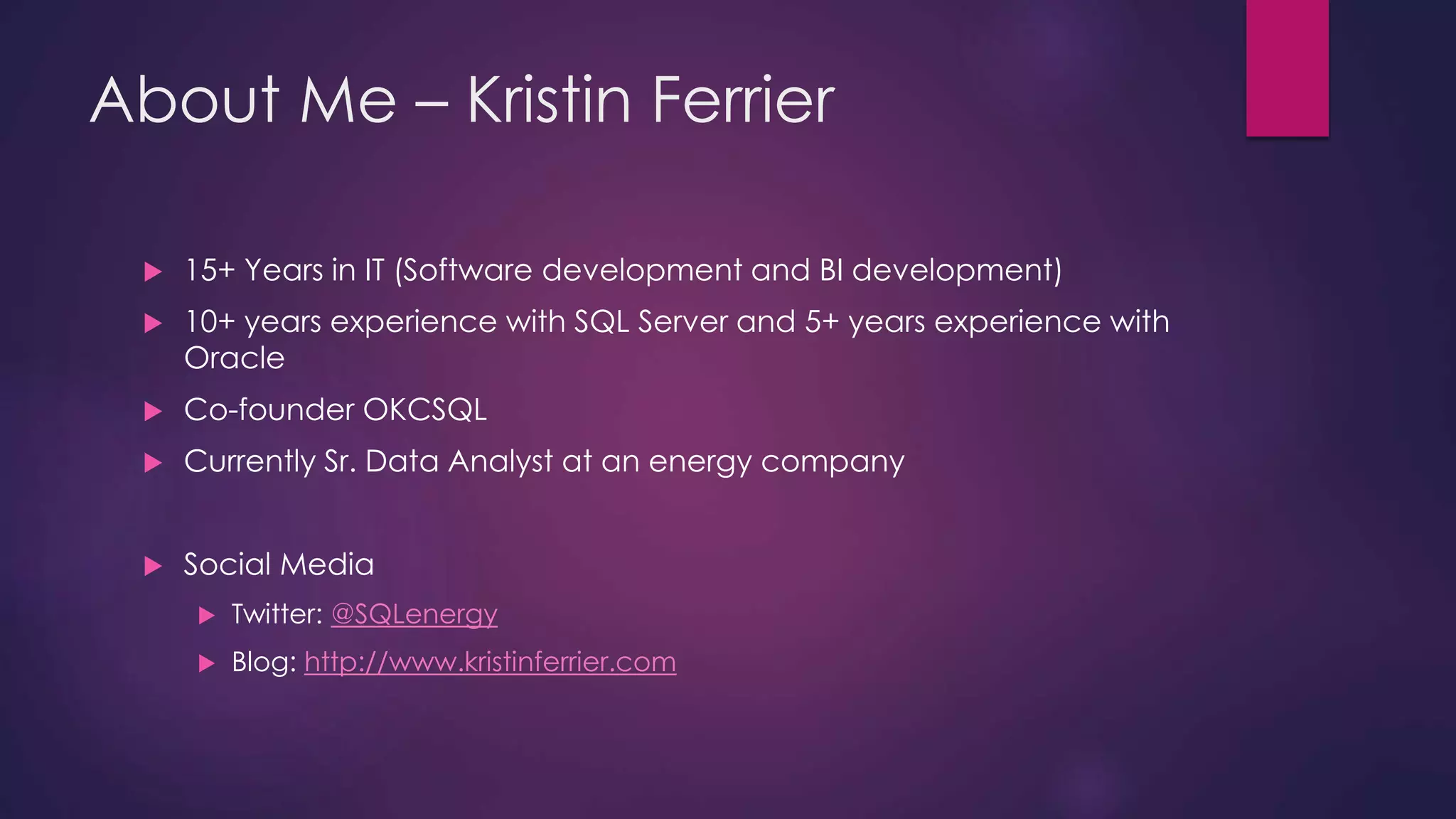

About Me – Kristin Ferrier
 15+ Years in IT (Software development and BI development)
 10+ years experience with SQL Server and 5+ years experience with
Oracle
 Co-founder OKCSQL
 Currently Sr. Data Analyst at an energy company
 Social Media
 Twitter: @SQLenergy
 Blog: http://www.kristinferrier.com
Agenda
 Hadoop – Very High Level
 Hive and HiveQL - High Level
 Getting started with Hive and HiveQL
 HiveQL examples
 Resources for getting started with HiveQL
Hadoop
 Open source software
 Popular for storing, processing, and analyzing large volumes of data
 For example, web logs or sensor data
 Main distributions
 Cloudera
 Hortonworks
 MapR (has some proprietary components)
Hadoop 2.0 Main Components
 Hadoop Distributed File System (HDFS)
 Handles the data storage
 MapReduce
 Handles the processing
 Works with key value pairs
 Often written in Java
 Can be written in any scripting language using the Streaming API of
Hadoop
Example MapReduce Code
public static class Map extends Mapper<LongWritable, Text, Text, IntWritable> {
private final static IntWritable one = new IntWritable(1);
private Text word = new Text();
public void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
String line = value.toString();
StringTokenizer tokenizer = new StringTokenizer(line);
while (tokenizer.hasMoreTokens()) {
word.set(tokenizer.nextToken());
context.write(word, one);
}
}
}
Code from Hortonworks tutorial found at http://hortonworks.com/hadoop-tutorial/introducing-apache-hadoop-developers/
Getting Started with Hadoop
 What if I don’t know Java?
 Or one of the Scripting languages using the Streaming API of Hadoop
 Example: Python
 That’s OK. If you know SQL, then Hive and HiveQL may be a great
starting point for your Hadoop learning
Hive
Hive essentially allows us to use tables
within Hadoop
 Built on top of Apache Hadoop
 Can access files stored in HDFS or HBase
 HCatalog allows you to apply table structures to the data
 HiveQL to query the data
HiveQL
HiveQL is SQL-like language for
querying data from Hive
 Follows some of the ANSI SQL-92 standard
 Offers its own extensions
 Implicitly turned into MapReduce jobs
HiveQL – Key SQL items it has
 SELECT
 FROM
 WHERE
 GROUP BY
 HAVING
 JOINS – Some kinds
HiveQL – Key differences from SQL
 No transactions
 No materialized views
 Update and delete available only with Hive 0.14 and later
 Hive 0.14 was released November 2014
Accessing Hive
 Hue
 Web interface for Hadoop
 Beeswax
 Hive UI within Hue
Hue
Beeswax
Getting Data into Hive Tables
 One way is to import a file into Hive
 Can create the table at this time
 Can import the data at this time
 File can even come from a Windows box
Importing a file
Beeswax  Tables  Create a new table from a file
Importing a file cont.
Enter Table Name and Description  .. button
Importing a file cont.
Upload a file  Select your Windows file
 Open
Importing a file cont.
After file uploads, double-click your file
Importing a file cont.
Choose a Delimiter
Importing a file cont.
Select column data types  Create Table
Importing a file cont.
Table has been created
Query Editor
 Write queries in the Query Editor
Select
SELECT * FROM WEATHER
Where, Group By, Min/Max
Where, Group By, Min/Max - Results
Aliasing, Ordering
 Standard SQL syntax for Aliasing
 SORT BY instead of ORDER BY– For ordering
Aliasing, Ordering - Results
Joins
 INNER, LEFT, RIGHT, and FULL OUTER
 Equi Joins only: (table1.key = table2.key) is allowed but not (table1.key
<> table2.key)
 Extensions exist like LEFT SEMI JOIN
INNER JOIN
INNER JOIN - Results
LEFT SEMI JOIN
 Left Semi Joins are less necessary
starting with Hive 0.13
 As of Hive 0.13 the IN/NOT
IN/EXISTS/NOT EXISTS operators are
supported using subqueries
SELECT a.key, a.value
FROM a
WHERE a.key in
(SELECT b.key
FROM B);
can be rewritten to
SELECT a.key, a.val
FROM a LEFT SEMI JOIN b ON (a.key = b.key)
Example from https://cwiki.apache.org/confluence/display/Hive/LanguageManual+Joins
Performance
 Queries can take minutes to run. Focus is on analysis of large data
sets.
 Relational databases are still a strong solution for providing the faster
performance of CRUD (create, read, update, and delete)
operations required by OLTP systems.
Summary
 Hive essentially allows us to use tables in Hadoop
 We can query them using HiveQL, which is similar to SQL
 Knowing how to write MapReduce code is not required, as the
HiveQL will be turned into MapReduce for us
Getting Started Yourself
 Hortonworks Sandbox
 Portable Hadoop environment with tutorials
 Even though the sandbox runs Hadoop on Linux, you can run the sandbox
on your Windows machine and access it via a web browser
 Available at http://hortonworks.com/sandbox
Getting Started Yourself
 Hive DML Reference
 https://cwiki.apache.org/confluence/display/hive/languageManual+dml
 Apache’s Hive Language Manual
 https://cwiki.apache.org/confluence/display/Hive/LanguageManual
 Treasure’s HiveQL Reference
 http://docs.treasuredata.com/articles/hive
 Network World – Comparing the top Hadoop Distros
 http://www.networkworld.com/article/2369327/software/comparing-the-
top-hadoop-distributions.html
Contact Info
 Social Media
 Twitter: @SQLenergy
 Blog: http://www.kristinferrier.com
