Apache Mahout Tutorial - Recommendation - 2013/2014

Apache Mahout – Tutorial (2014)
Cataldo Musto, Ph.D.

Corso di Accesso Intelligente all’Informazione ed Elaborazione del Linguaggio Naturale

Università degli Studi di Bari – Dipartimento di Informatica – A.A. 2013/2014

08/01/2014

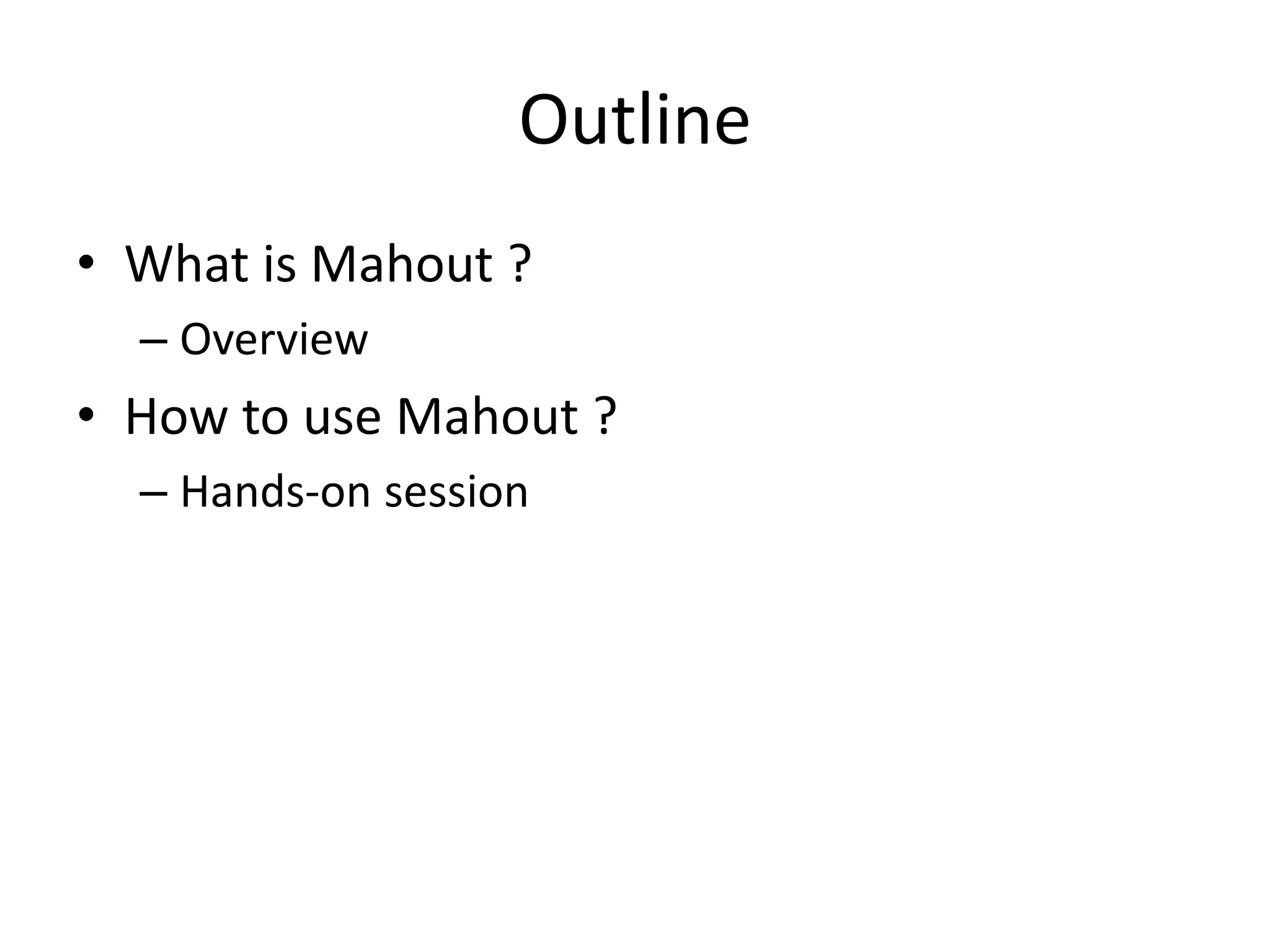

Outline
• What is Mahout ?
– Overview

• How to use Mahout ?
– Hands-on session

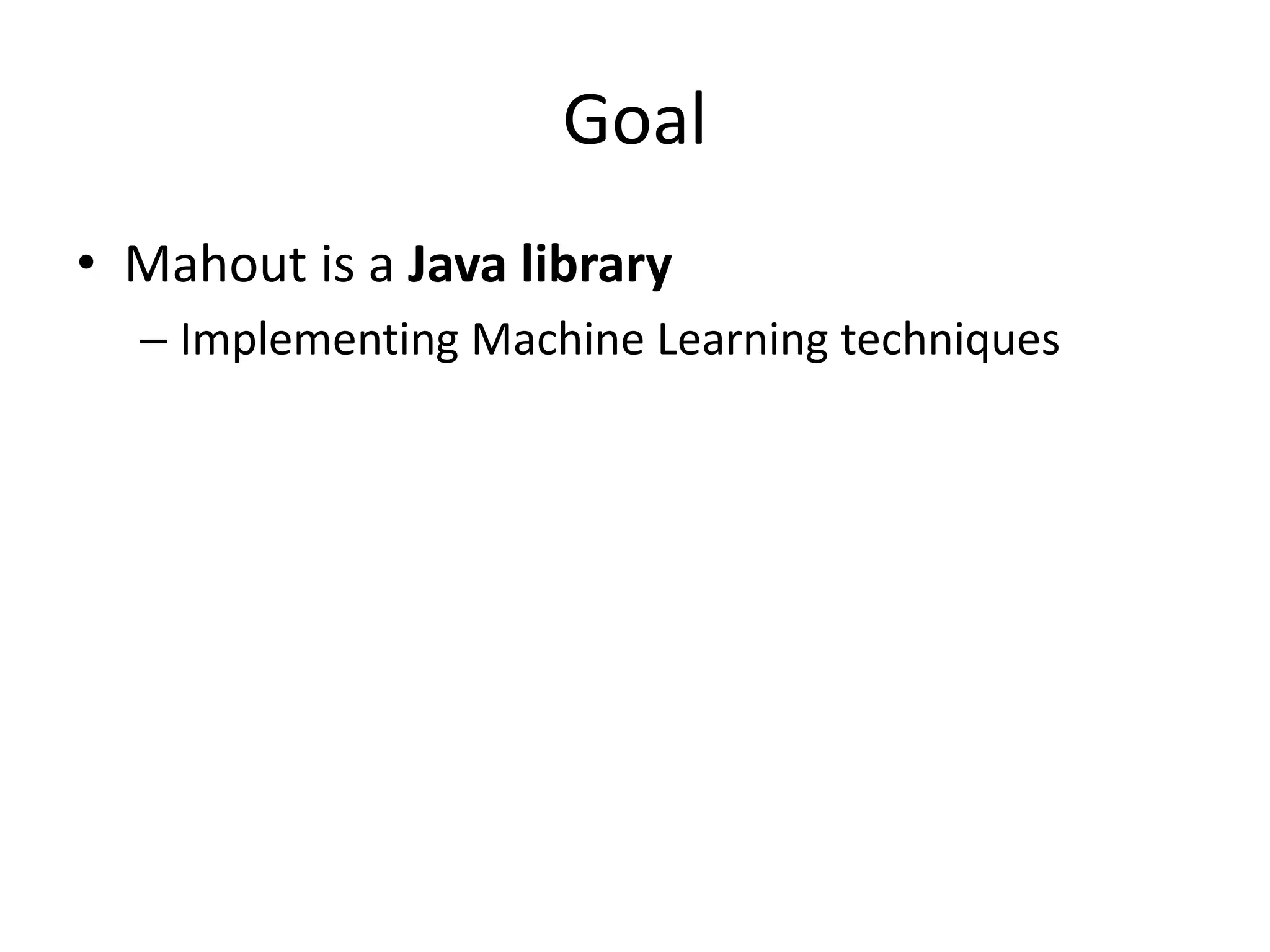

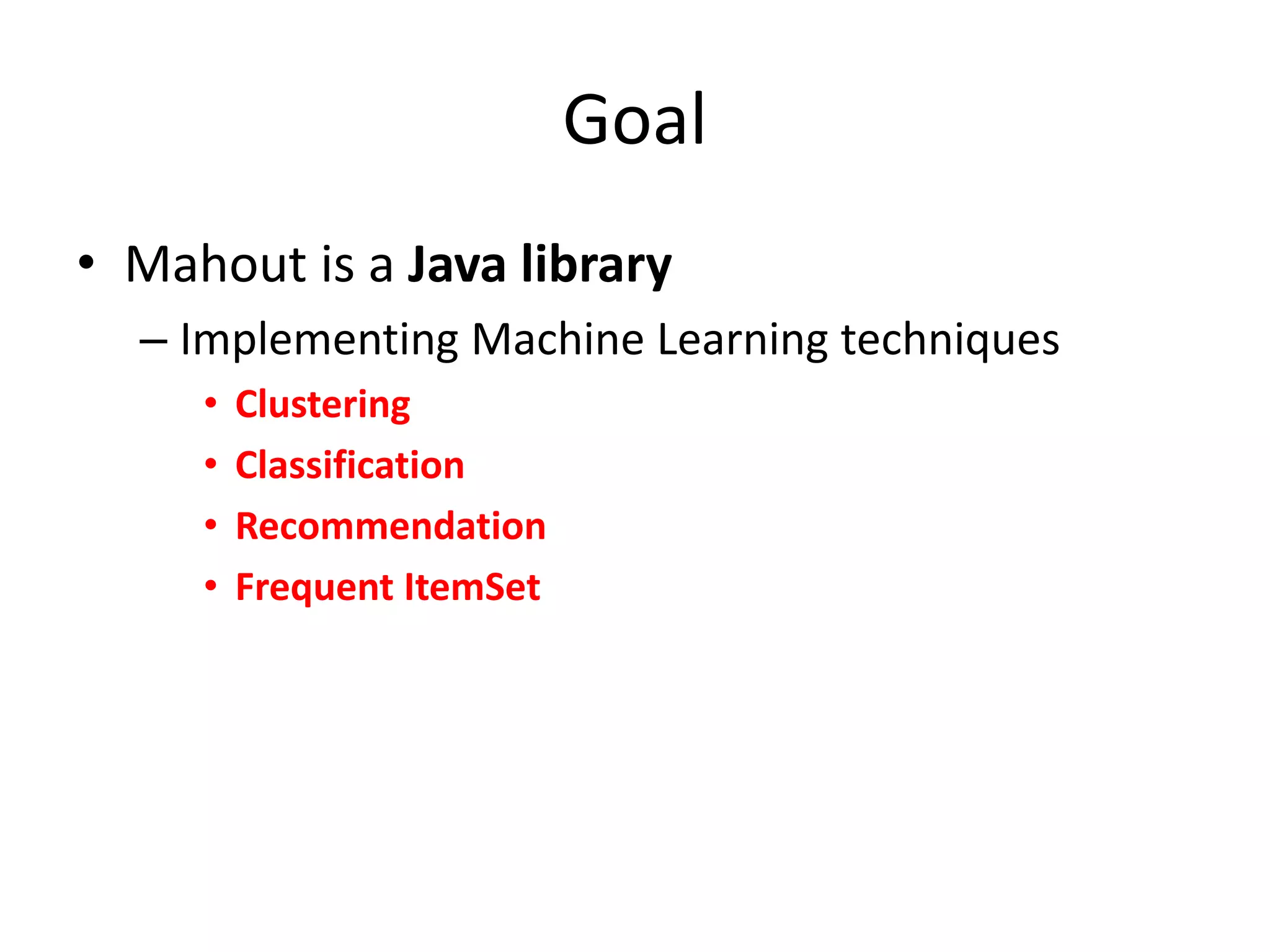

Goal
• Mahout is a Java library
– Implementing Machine Learning techniques

Goal
• Mahout is a Java library
– Implementing Machine Learning techniques
•
•
•
•

Clustering
Classification
Recommendation
Frequent ItemSet

What can we do?
• Currently Mahout supports mainly four use cases:
– Recommendation - takes users' behavior and tries to find
items users might like.
– Clustering - takes e.g. text documents and groups them
into groups of topically related documents.
– Classification - learns from existing categorized documents
what documents of a specific category look like and is able
to assign unlabelled documents to the (hopefully) correct
category.
– Frequent itemset mining - takes a set of item groups
(terms in a query session, shopping cart content) and
identifies, which individual items usually appear together.

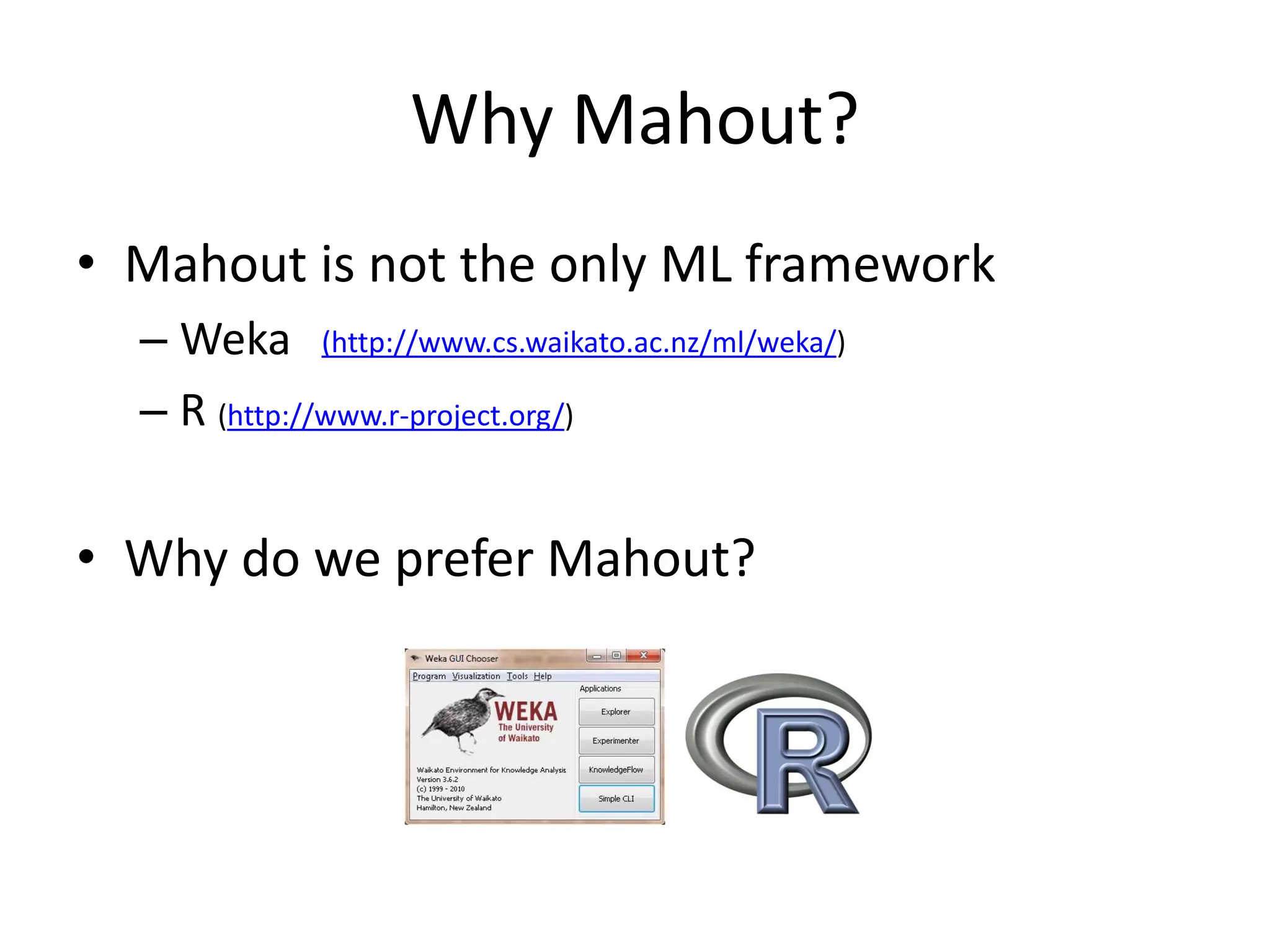

Why Mahout?
• Mahout is not the only ML framework
– Weka (http://www.cs.waikato.ac.nz/ml/weka/)
– R (http://www.r-project.org/)

• Why do we prefer Mahout?

Why Mahout?
– Apache License
– Good Community
– Good Documentation

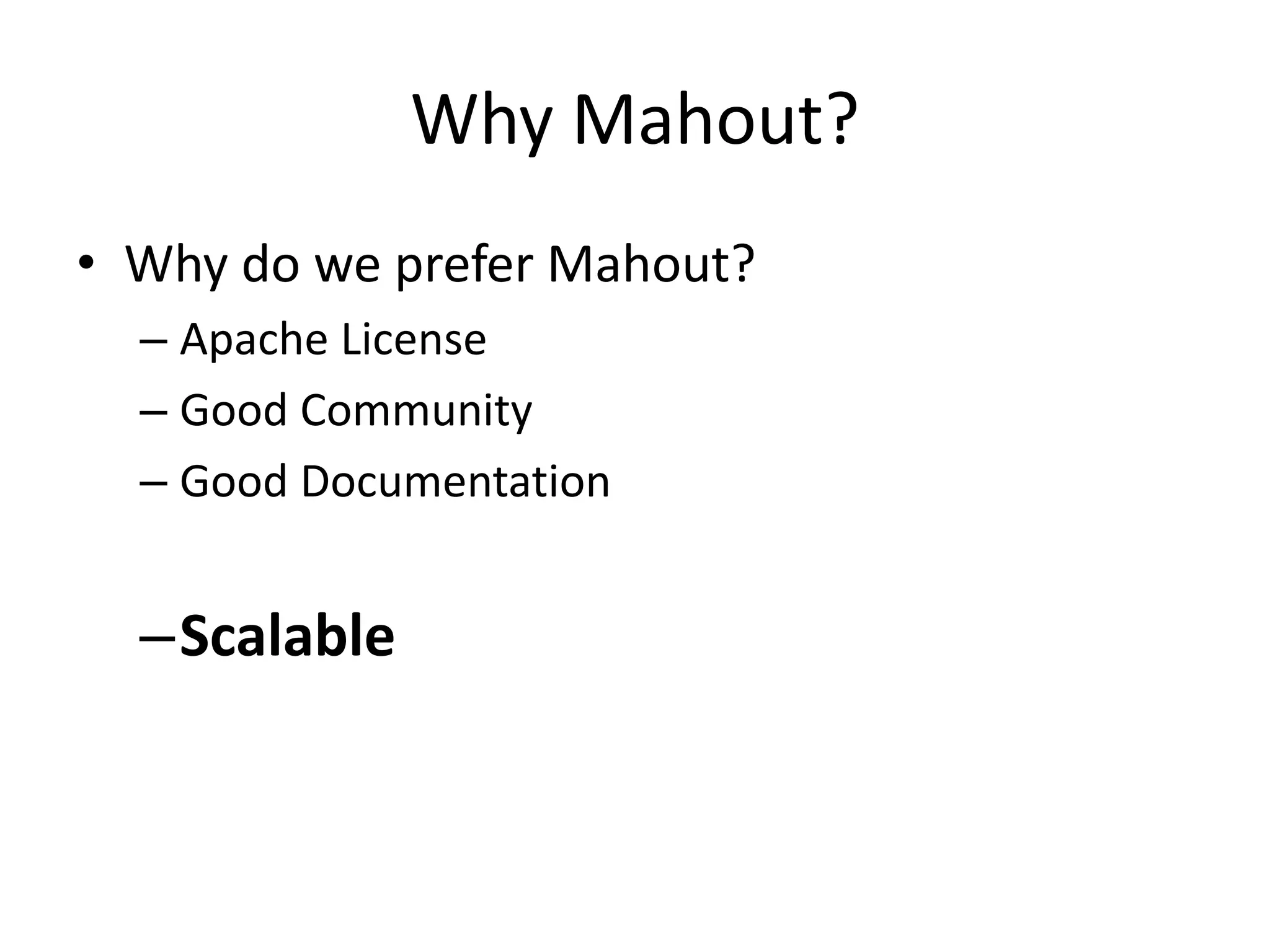

Why Mahout?
– Apache License
– Good Community

–Scalable

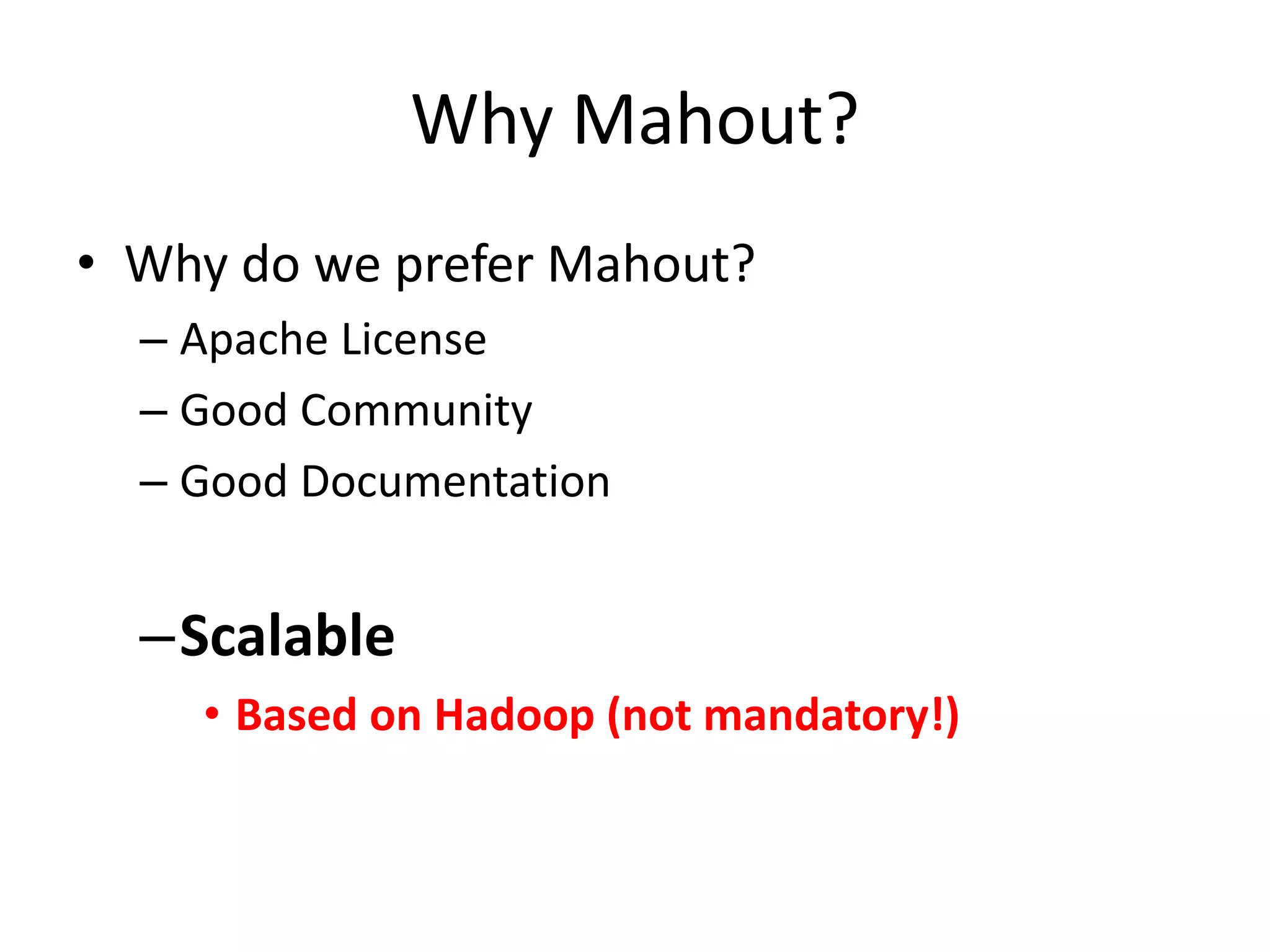

Why Mahout?
– Apache License
– Good Community

–Scalable
• Based on Hadoop (not mandatory!)

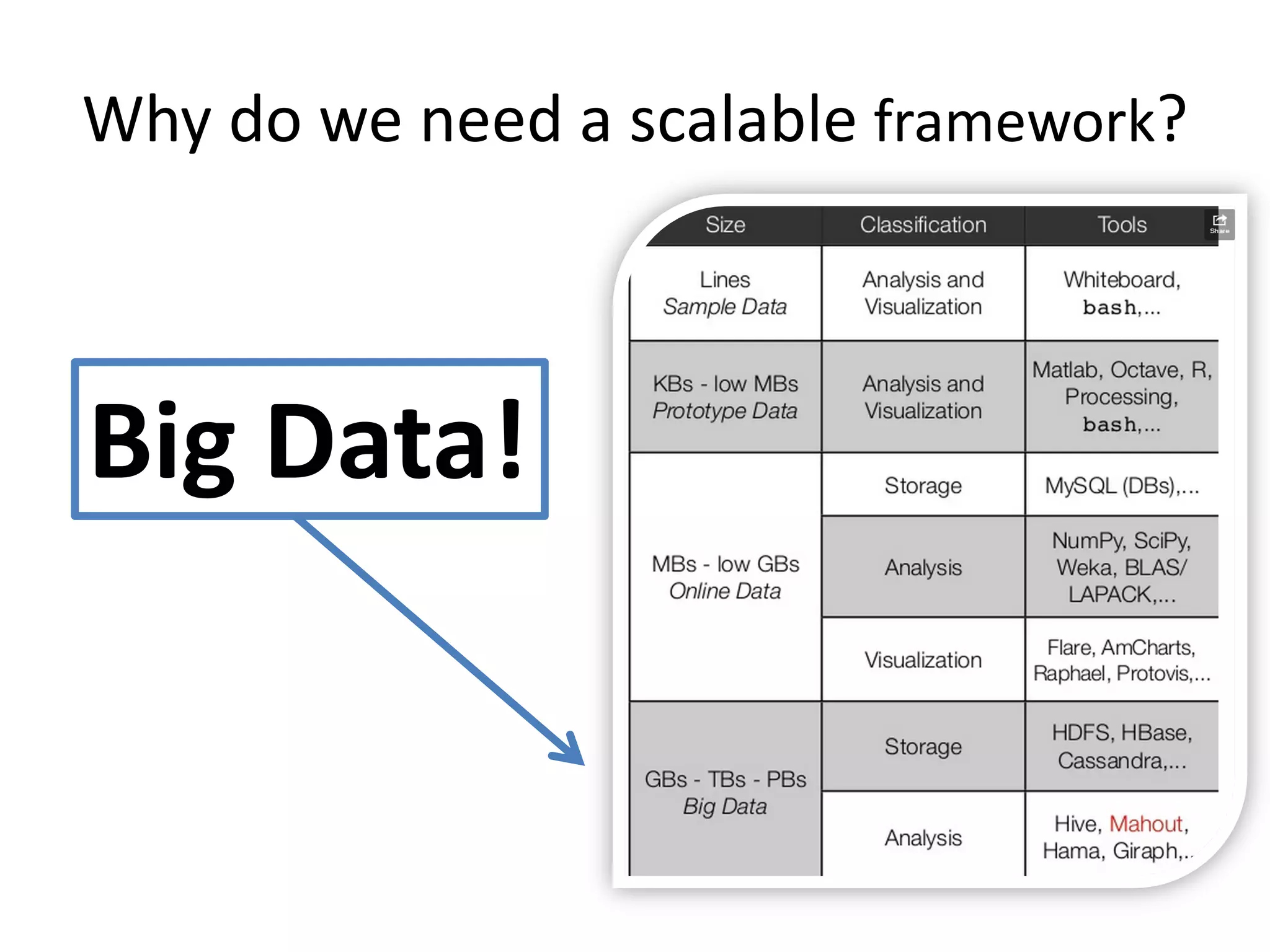

Why do we need a scalable framework?

Big Data!

Use Cases

Recommendation Engine on Foursquare

Use Cases

User Interest Modeling on Twitter

Use Cases

Pattern Mining on Yahoo! (as anti-spam)

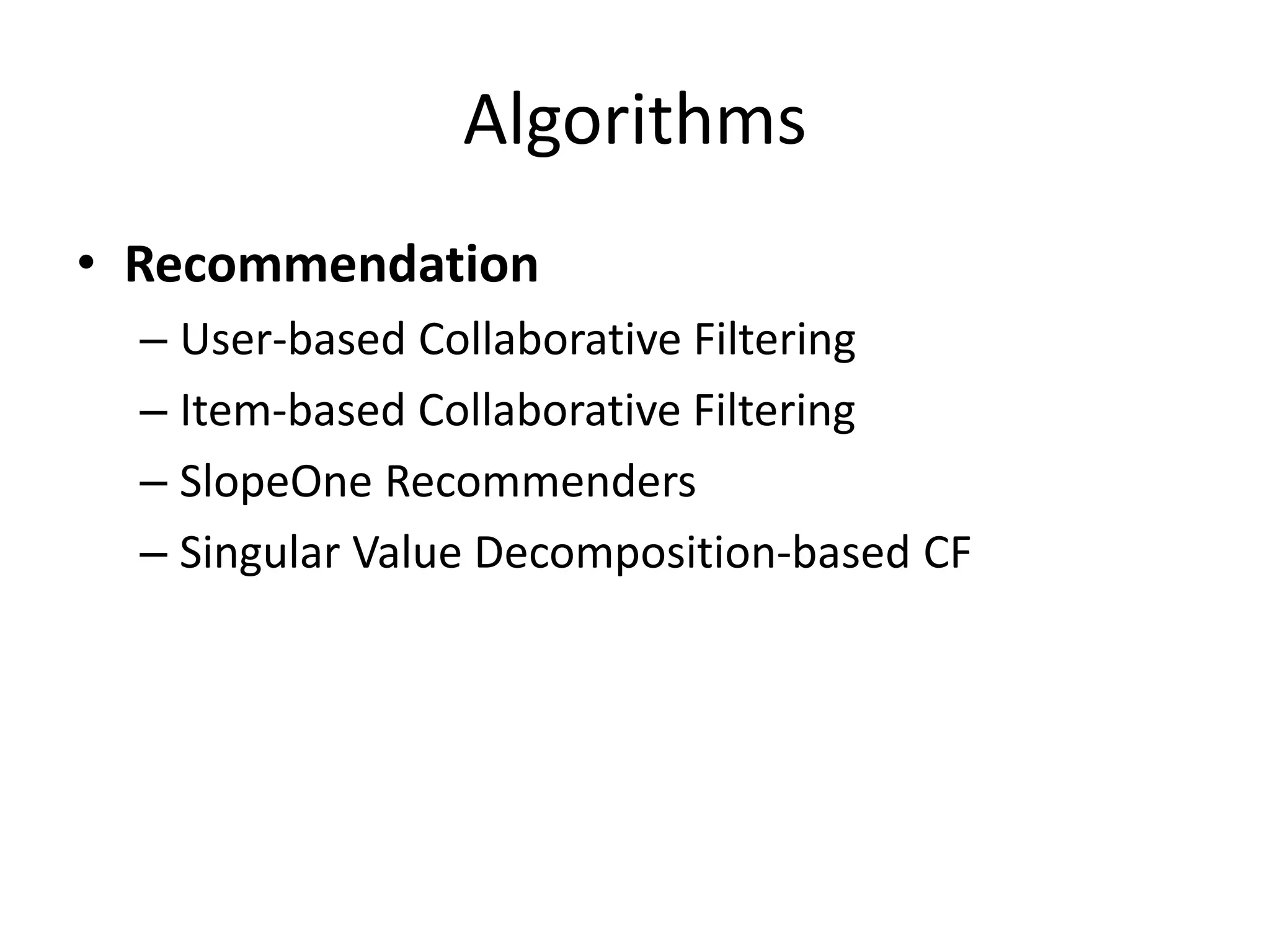

Algorithms
• Recommendation
– User-based Collaborative Filtering
– Item-based Collaborative Filtering
– SlopeOne Recommenders
– Singular Value Decomposition-based CF

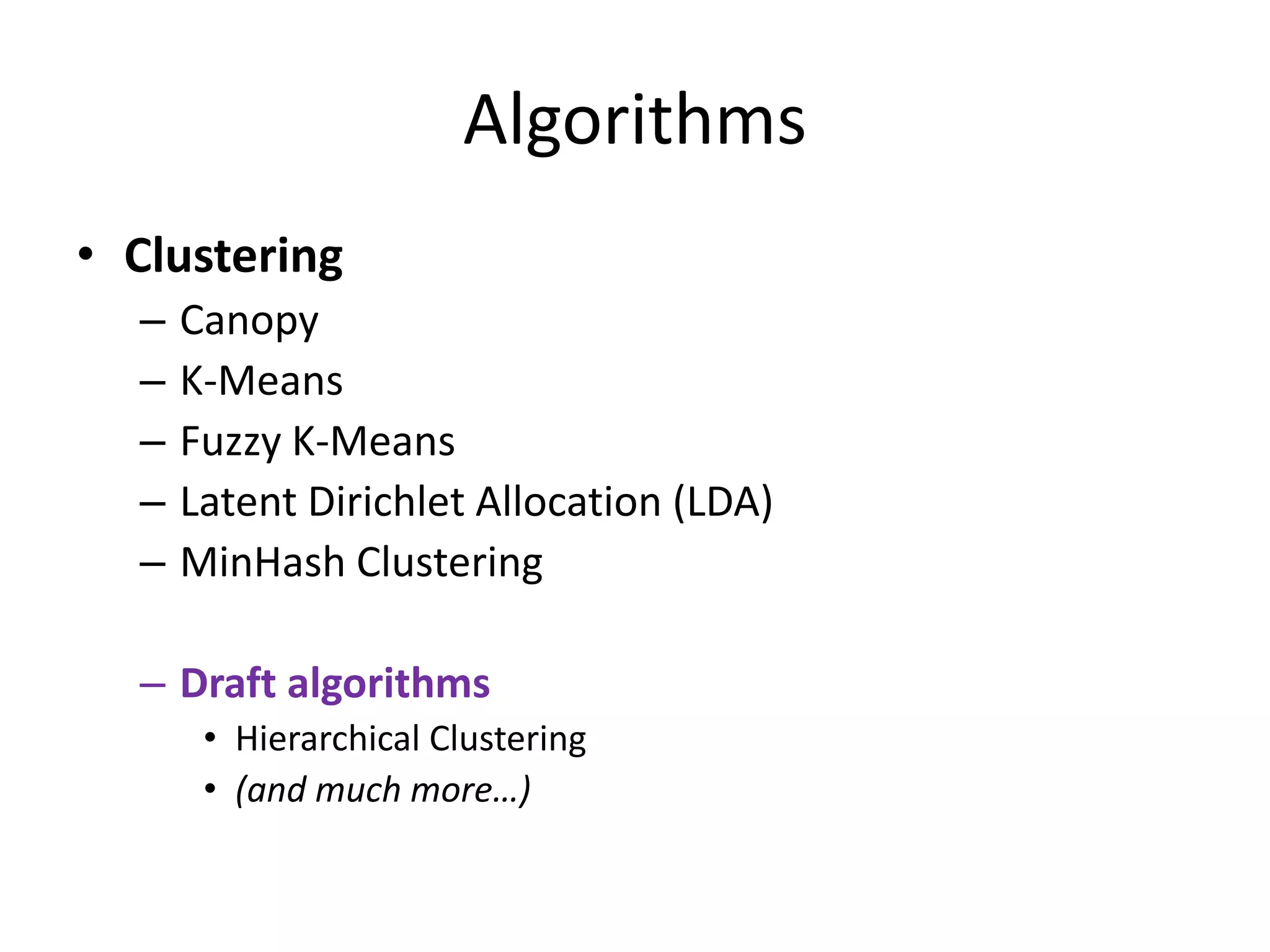

Algorithms
• Clustering
–
–
–
–
–

Canopy
K-Means
Fuzzy K-Means
Latent Dirichlet Allocation (LDA)
MinHash Clustering

– Draft algorithms
• Hierarchical Clustering
• (and much more…)

Algorithms
• Classification
–
–
–
–

Logistic Regression
Bayes
Random Forests
Hidden Markov Models

– Draft algorithms
•
•
•
•
•

Support Vector Machines
Perceptrons
Neural Networks
Restricted Boltzmann Machines
(and much more…)

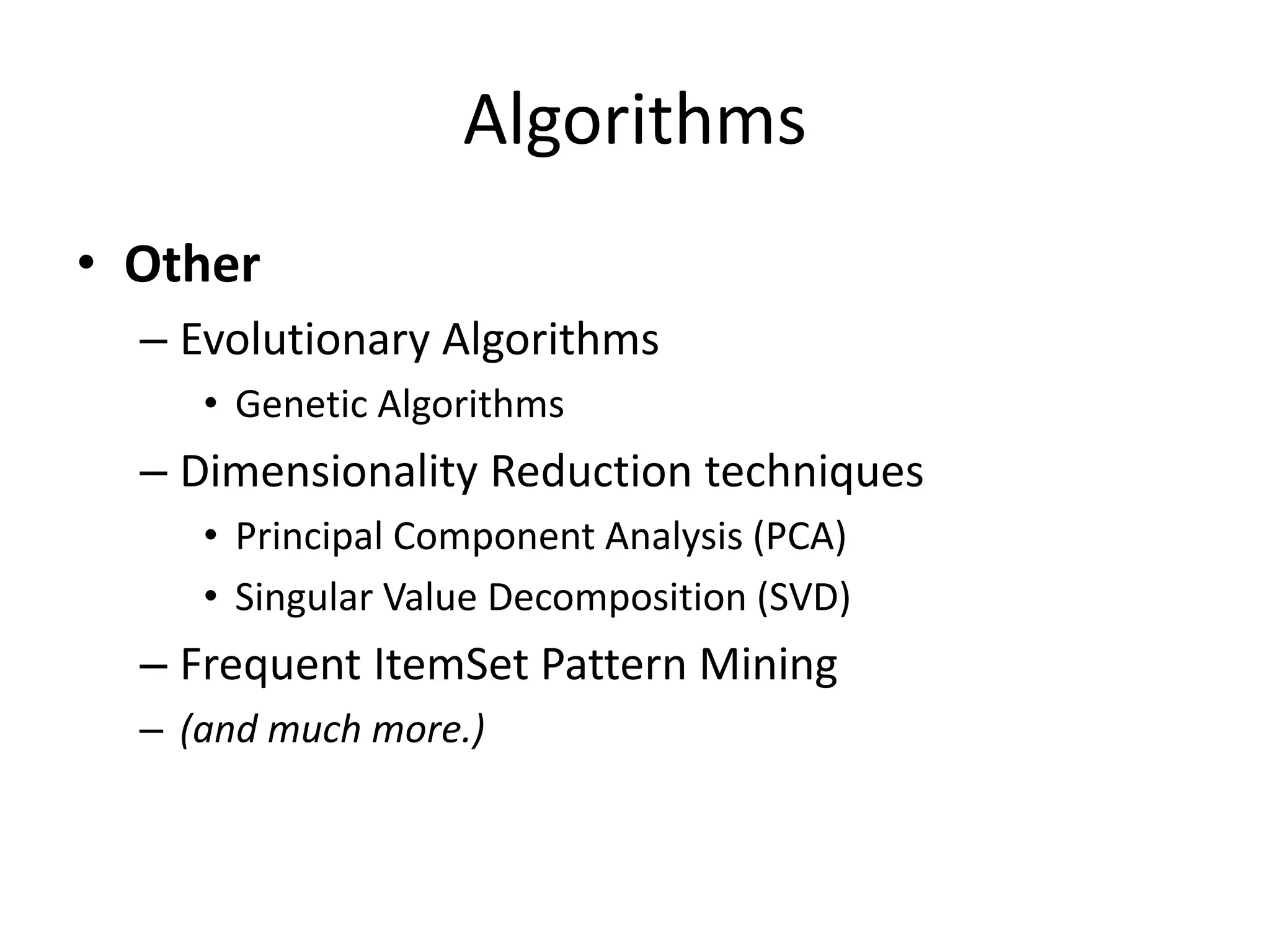

Algorithms
• Other
– Evolutionary Algorithms
• Genetic Algorithms

– Dimensionality Reduction techniques
• Principal Component Analysis (PCA)
• Singular Value Decomposition (SVD)

– Frequent ItemSet Pattern Mining
– (and much more.)

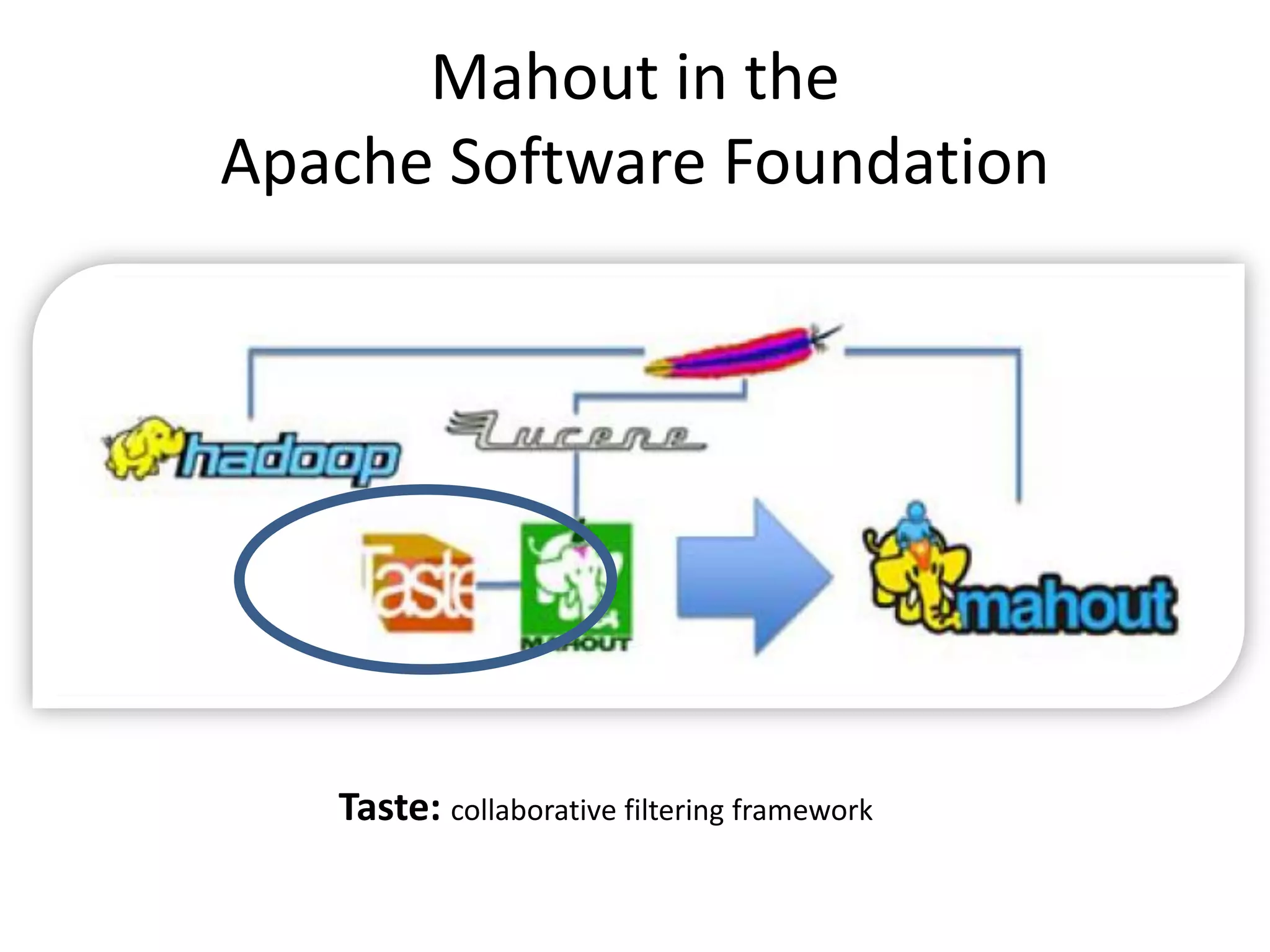

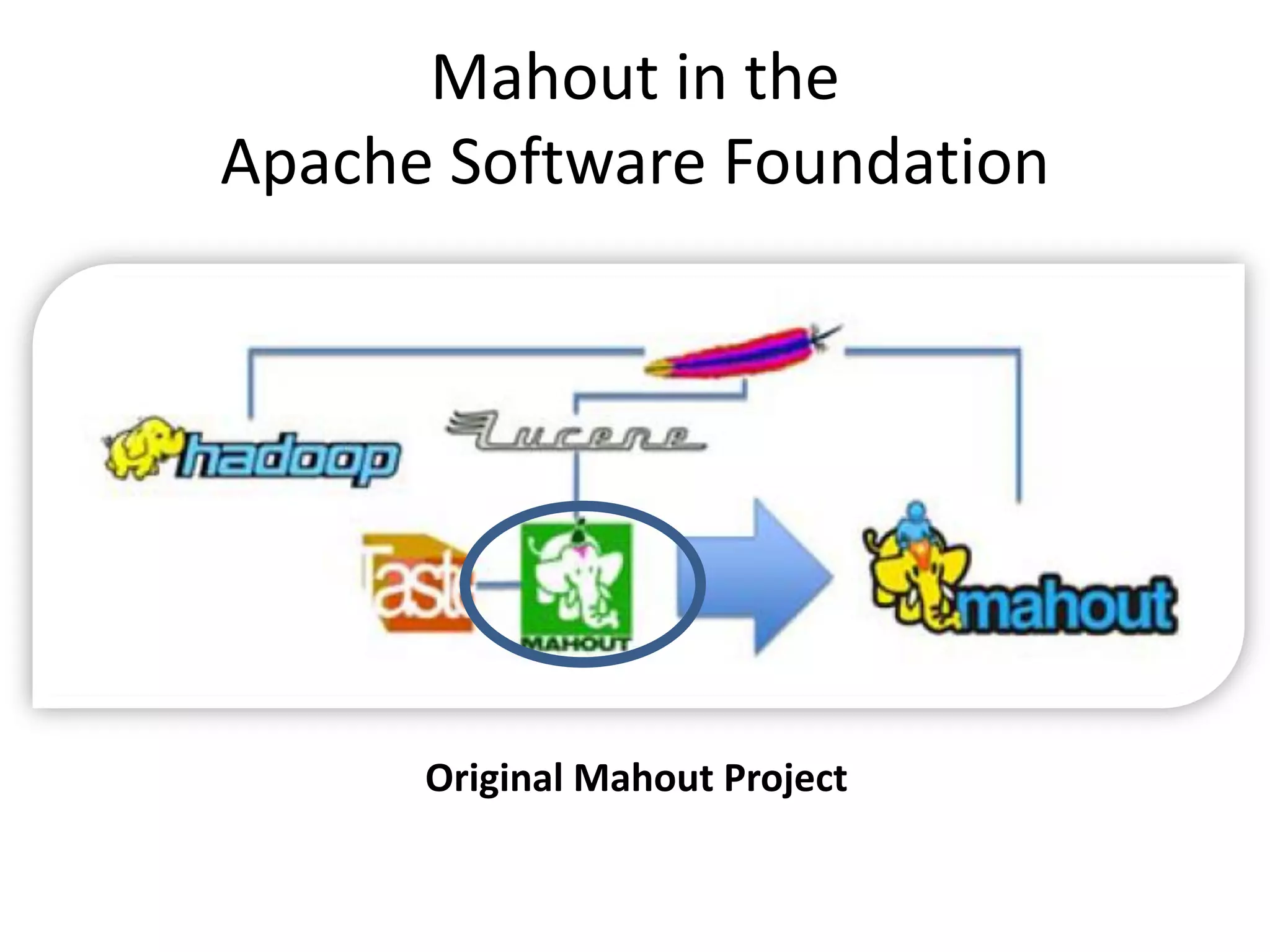

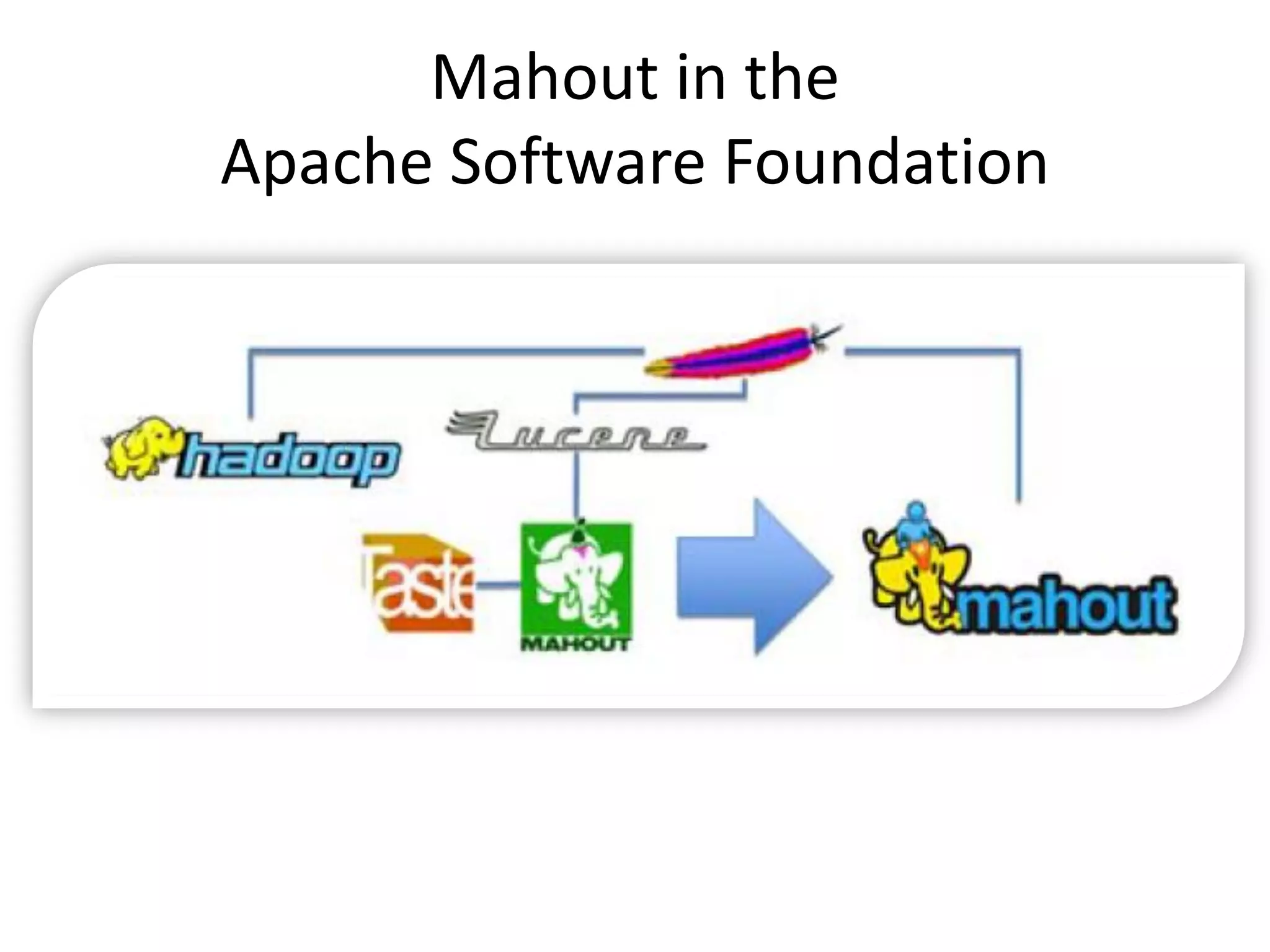

Mahout in the
Apache Software Foundation

Mahout in the

Original Mahout Project

Mahout in the

Taste: collaborative filtering framework

Mahout in the

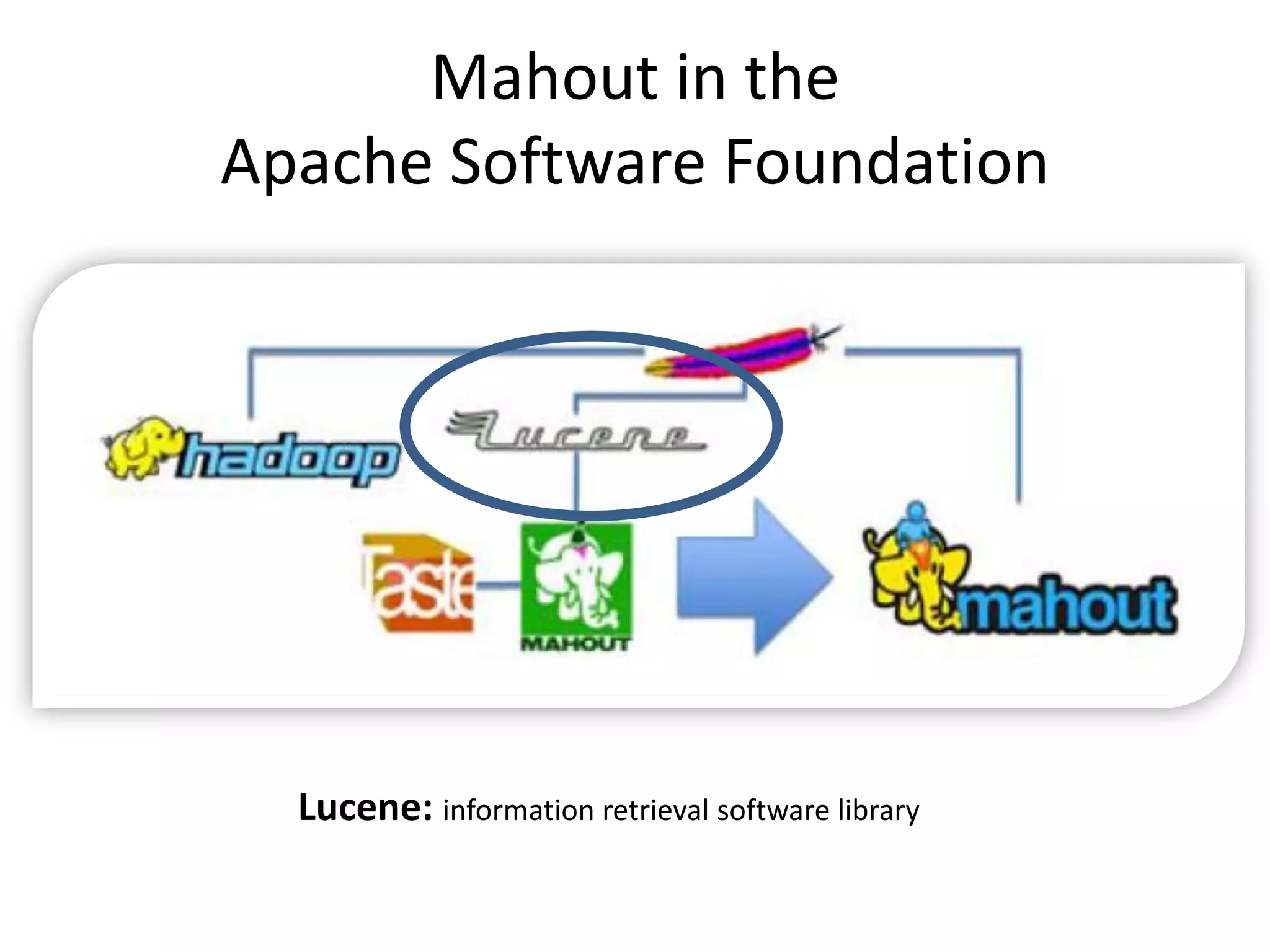

Lucene: information retrieval software library

Mahout in the

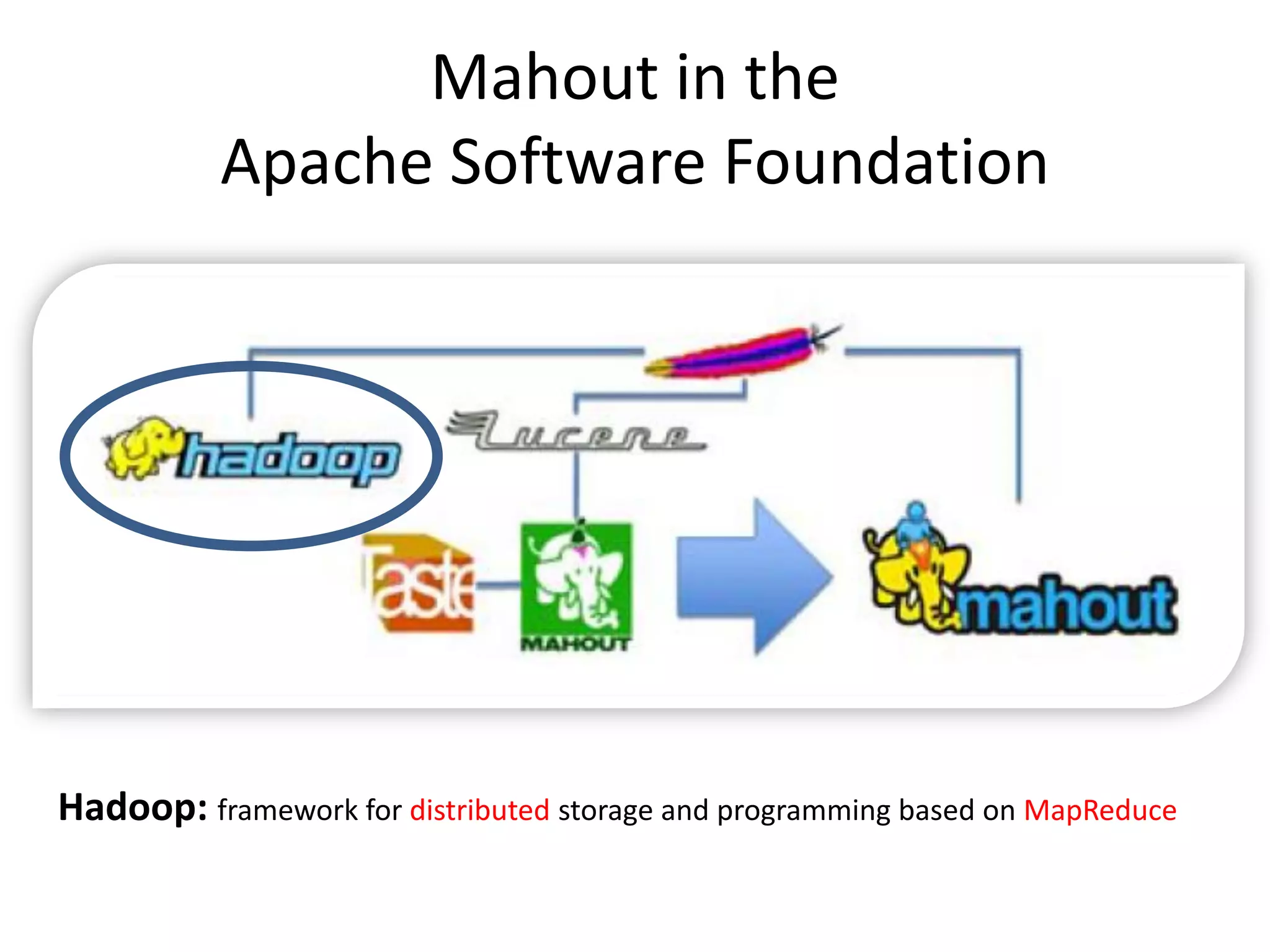

Hadoop: framework for distributed storage and programming based on MapReduce

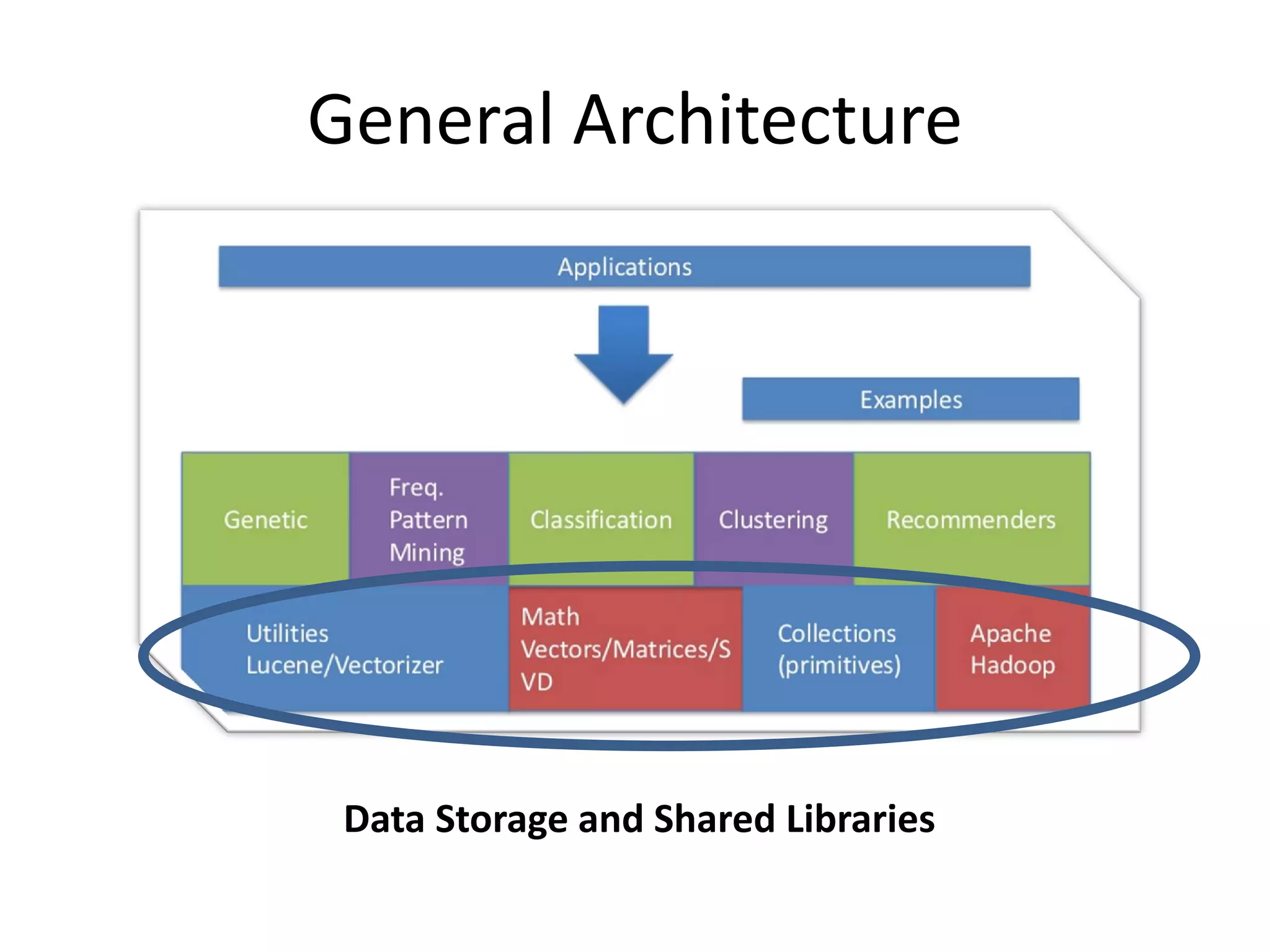

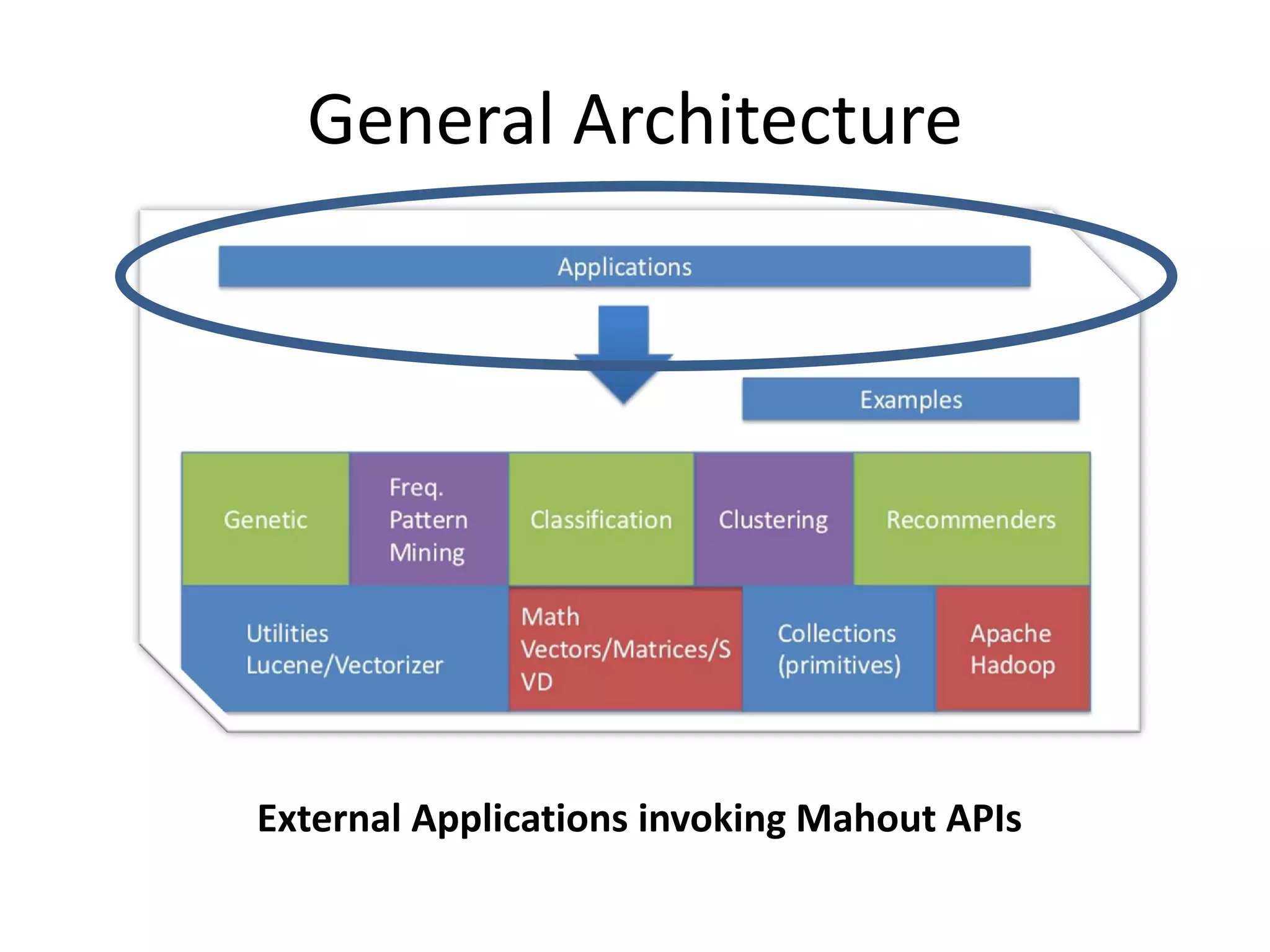

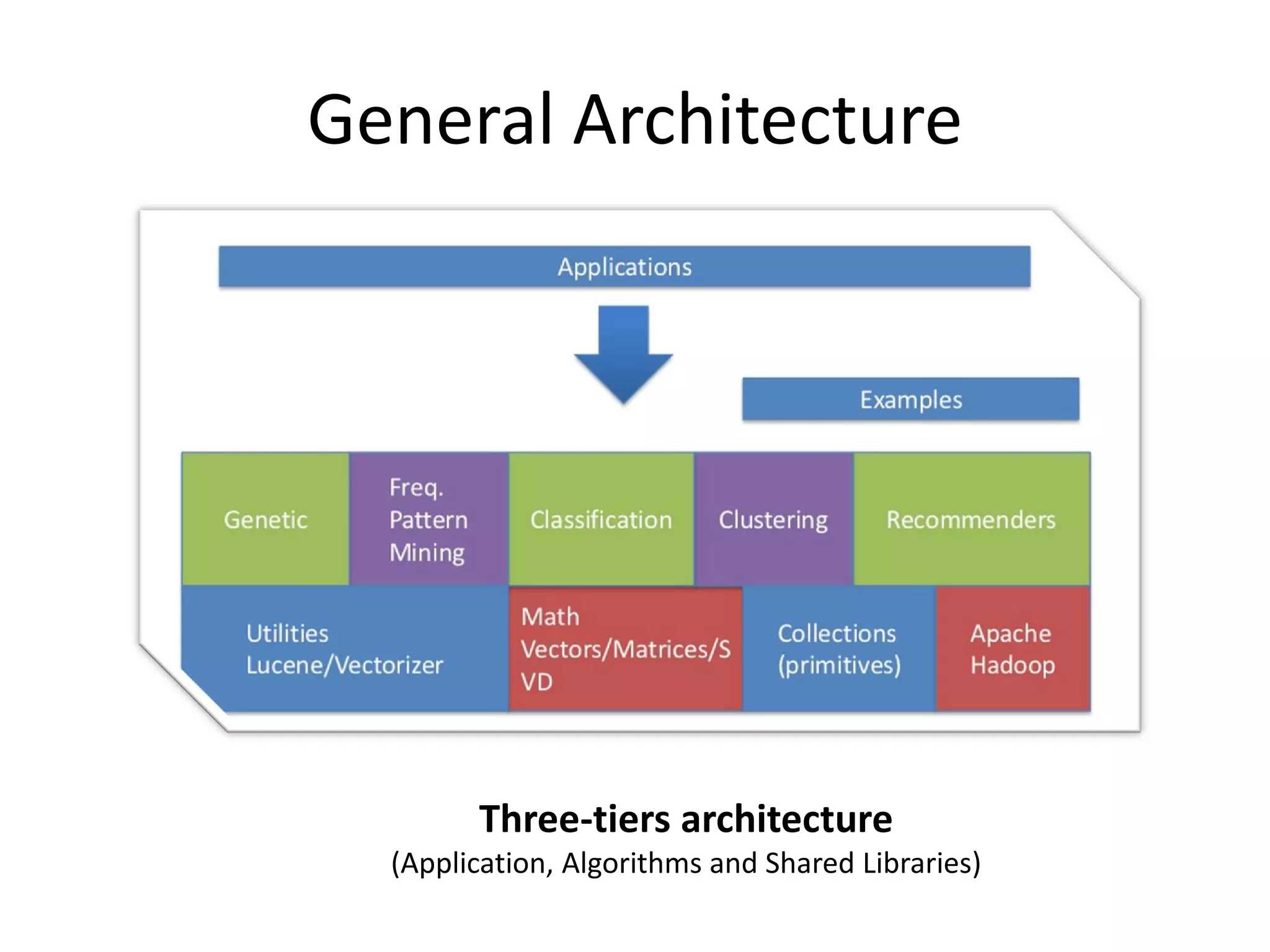

General Architecture

Three-tiers architecture
(Application, Algorithms and Shared Libraries)


Data Storage and Shared Libraries

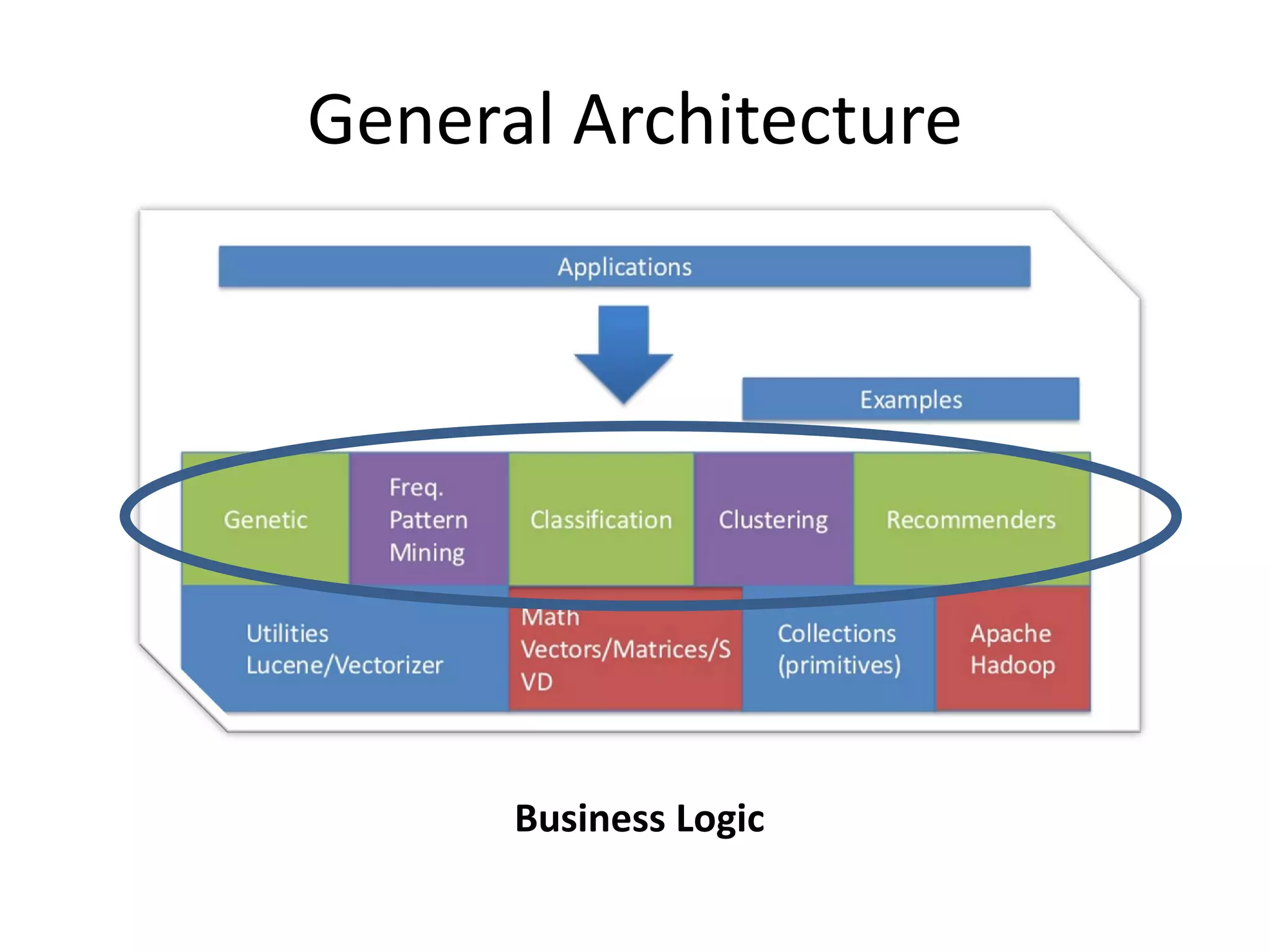

Business Logic


External Applications invoking Mahout APIs

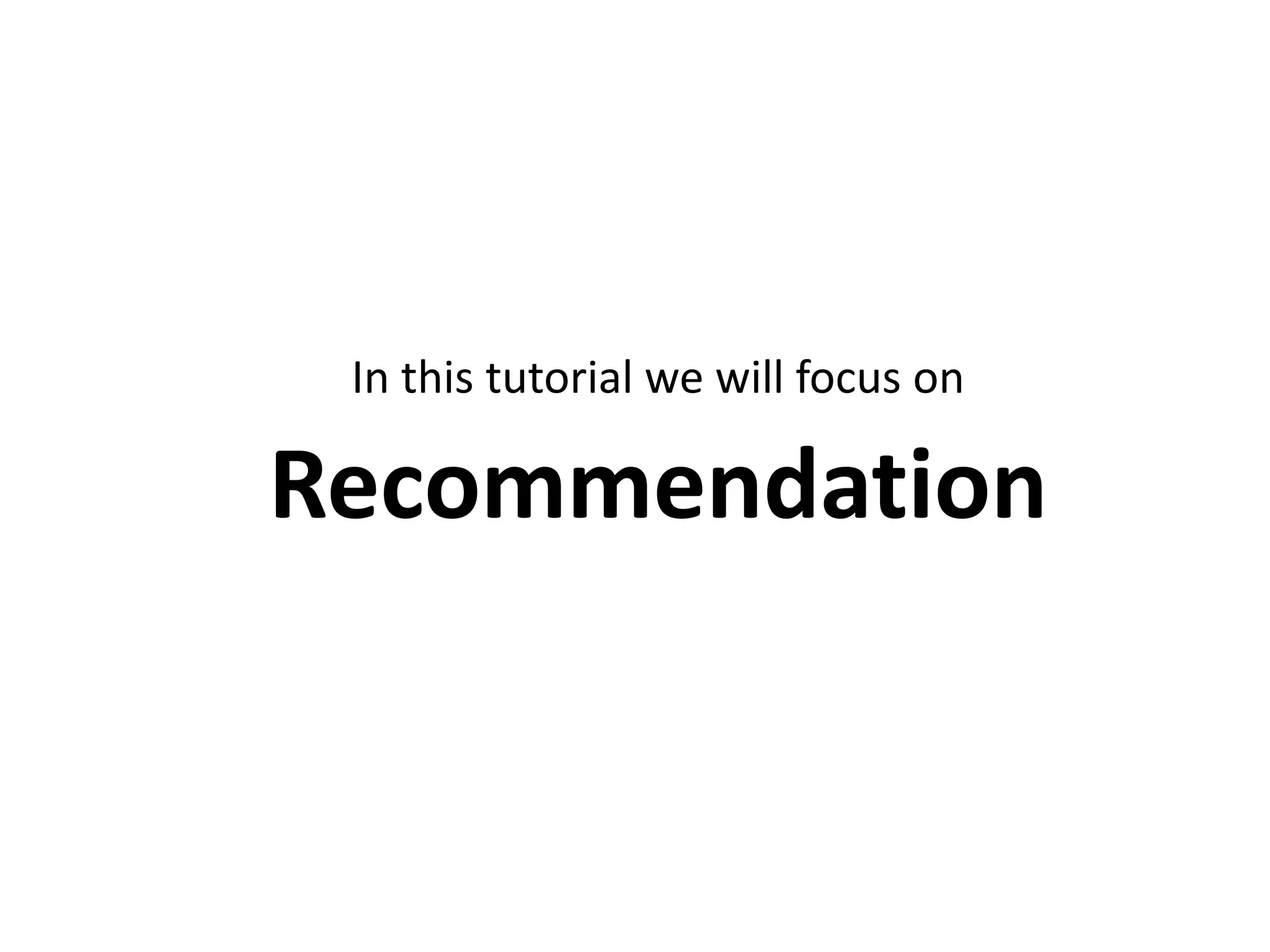

In this tutorial we will focus on

Recommendation

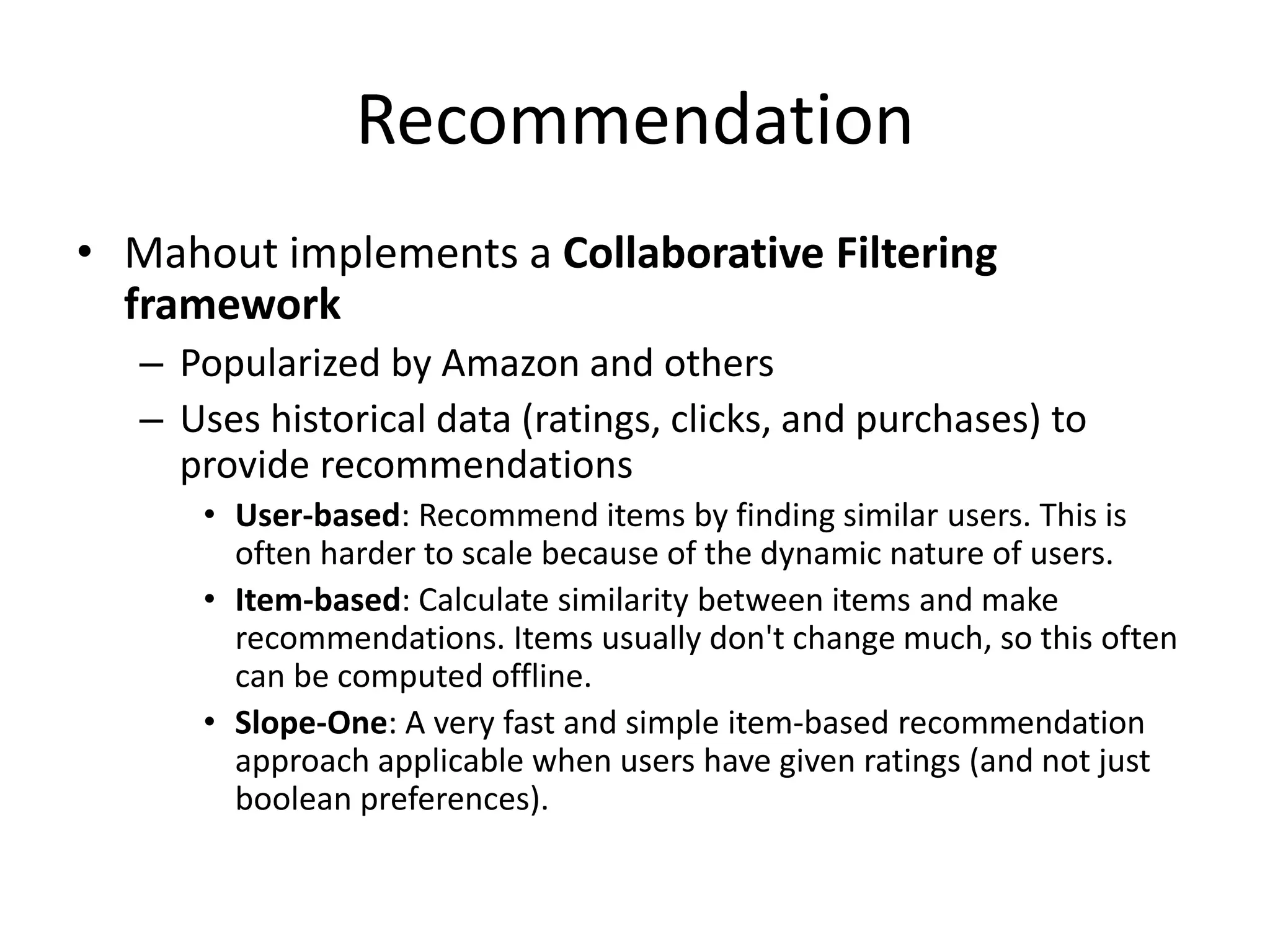

Recommendation
• Mahout implements a Collaborative Filtering
framework
– Popularized by Amazon and others
– Uses historical data (ratings, clicks, and purchases) to
provide recommendations
• User-based: Recommend items by finding similar users. This is
often harder to scale because of the dynamic nature of users.
• Item-based: Calculate similarity between items and make
recommendations. Items usually don't change much, so this often
can be computed offline.
• Slope-One: A very fast and simple item-based recommendation
approach applicable when users have given ratings (and not just
boolean preferences).

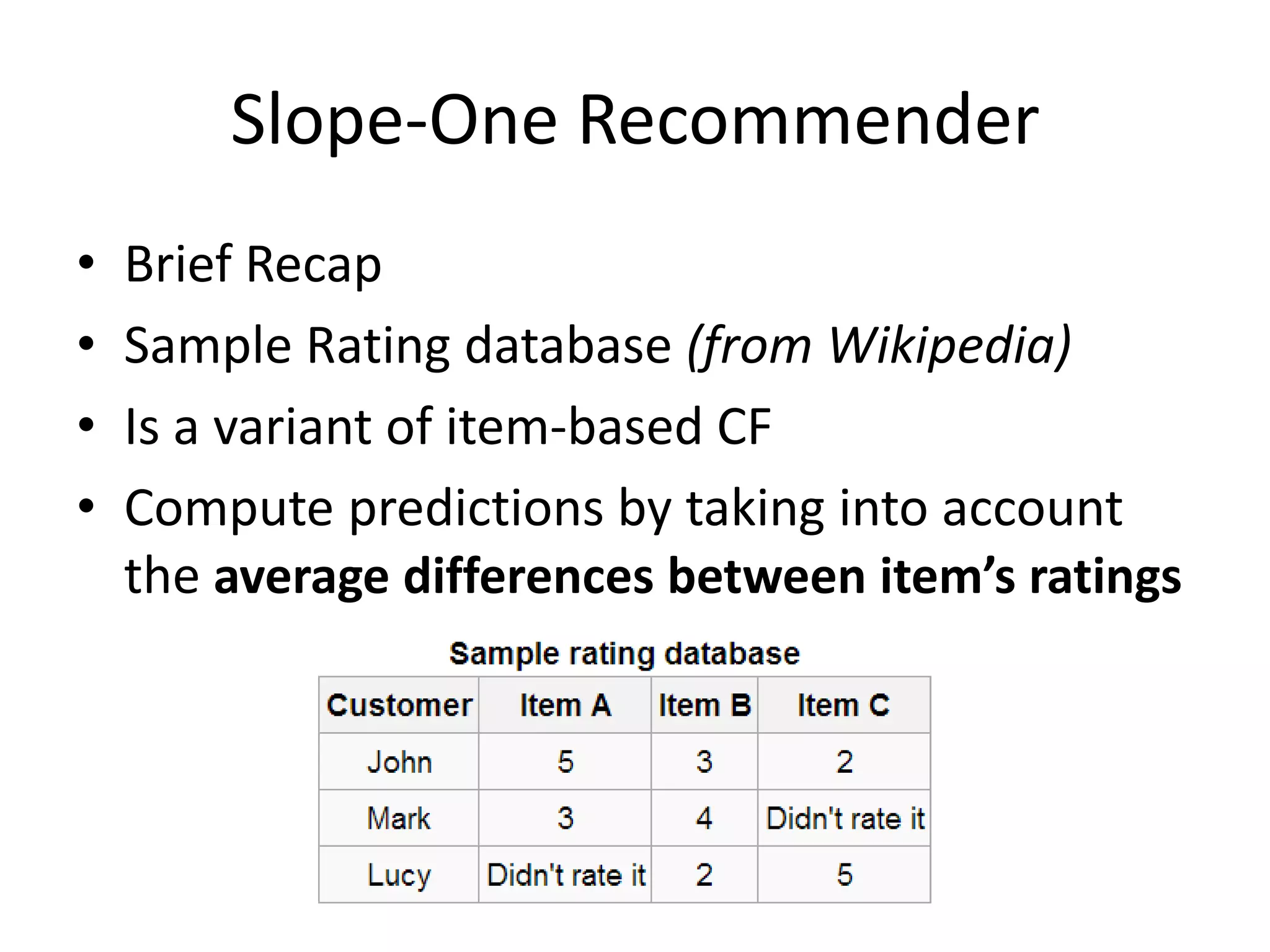

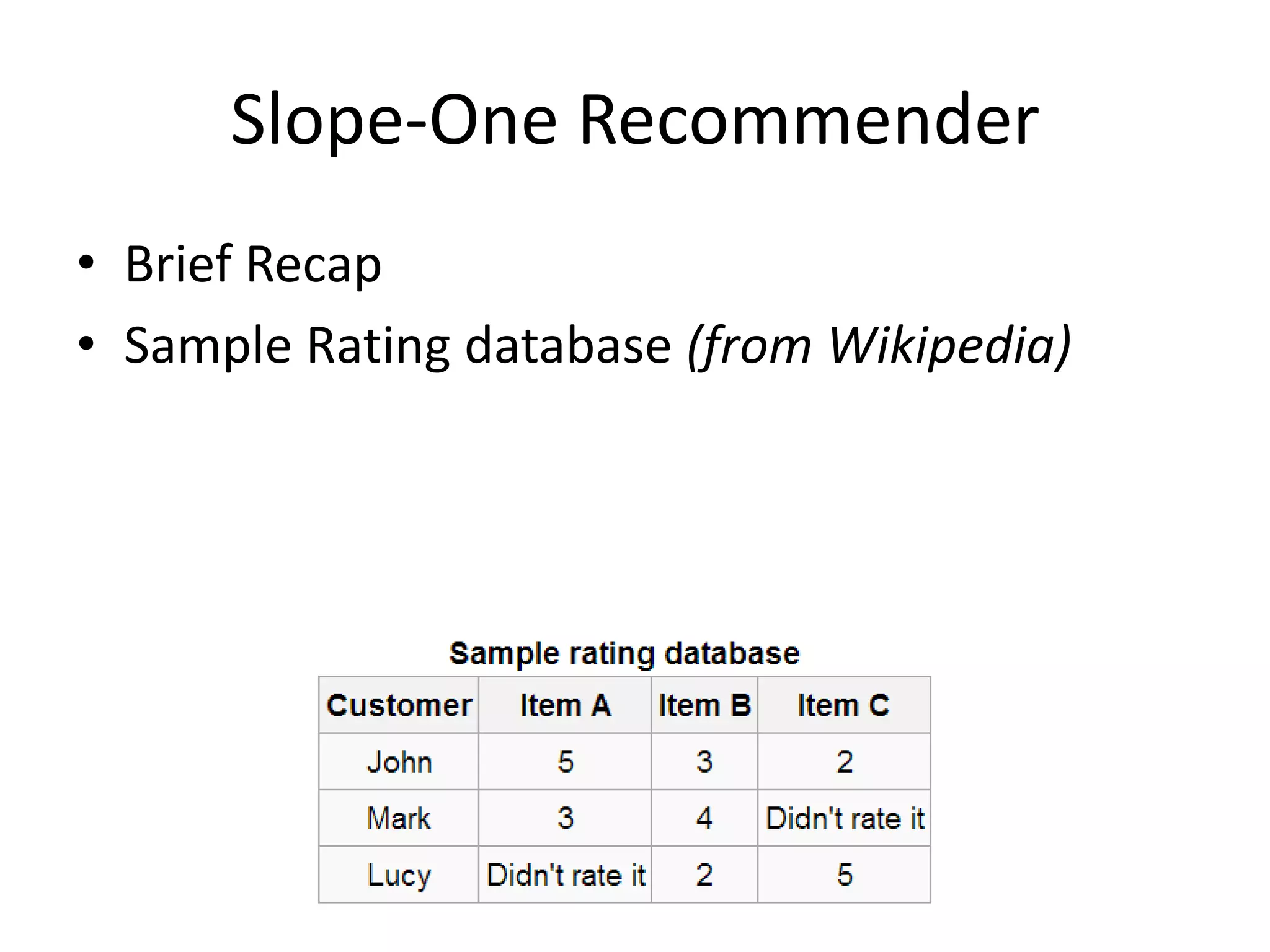

Slope-One Recommender
• Brief Recap
• Sample Rating database (from Wikipedia)

•
•
•
•

Brief Recap
Sample Rating database (from Wikipedia)
Is a variant of item-based CF
Compute predictions by taking into account
the average differences between item’s ratings

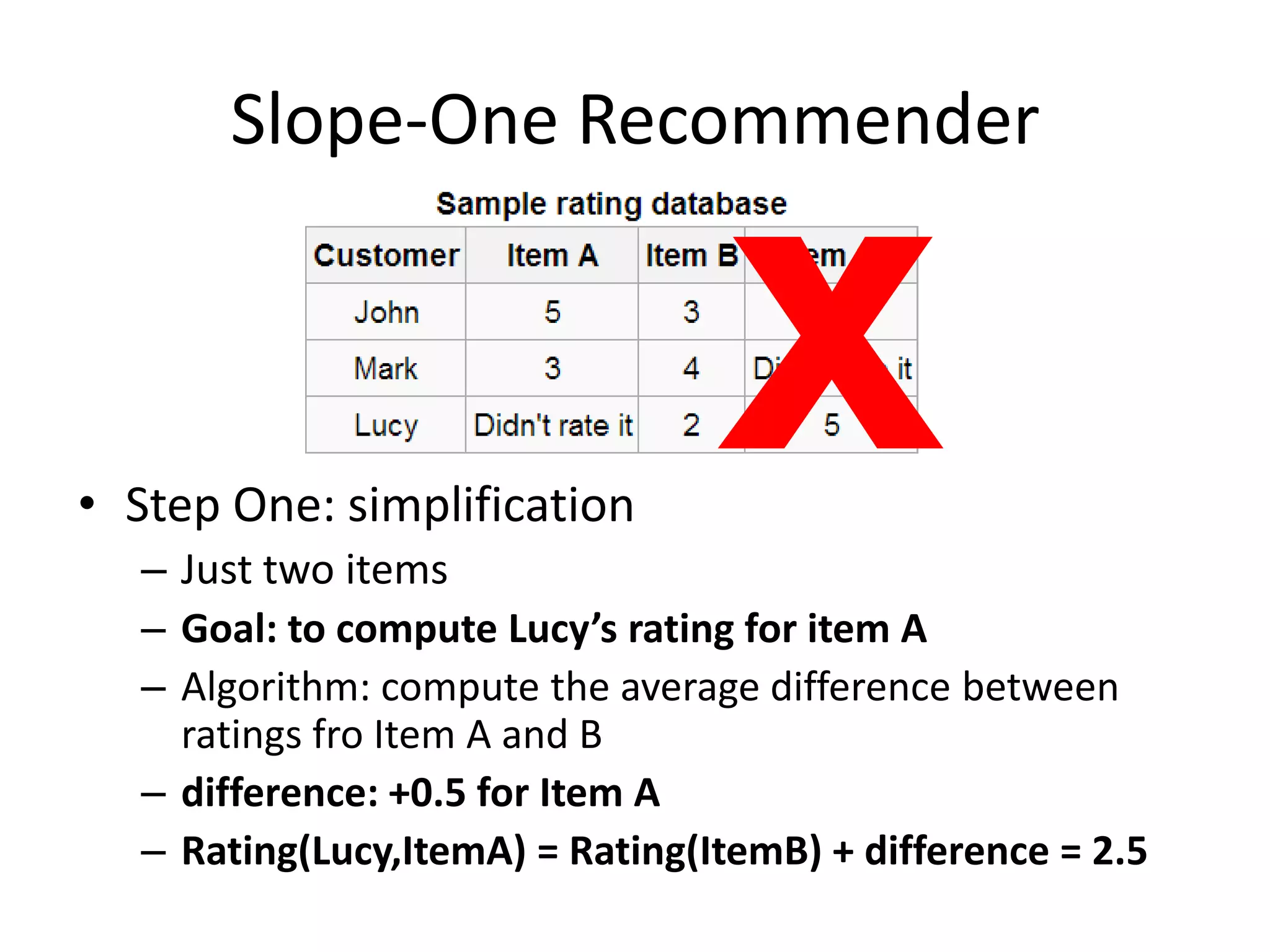

• Step One: simplification

X

– Just two items
– Goal: to compute Lucy’s rating for item A
– Algorithm: compute the average difference between
ratings fro Item A and B
– difference: +0.5 for Item A
– Rating(Lucy,ItemA) = Rating(ItemB) + difference = 2.5


X

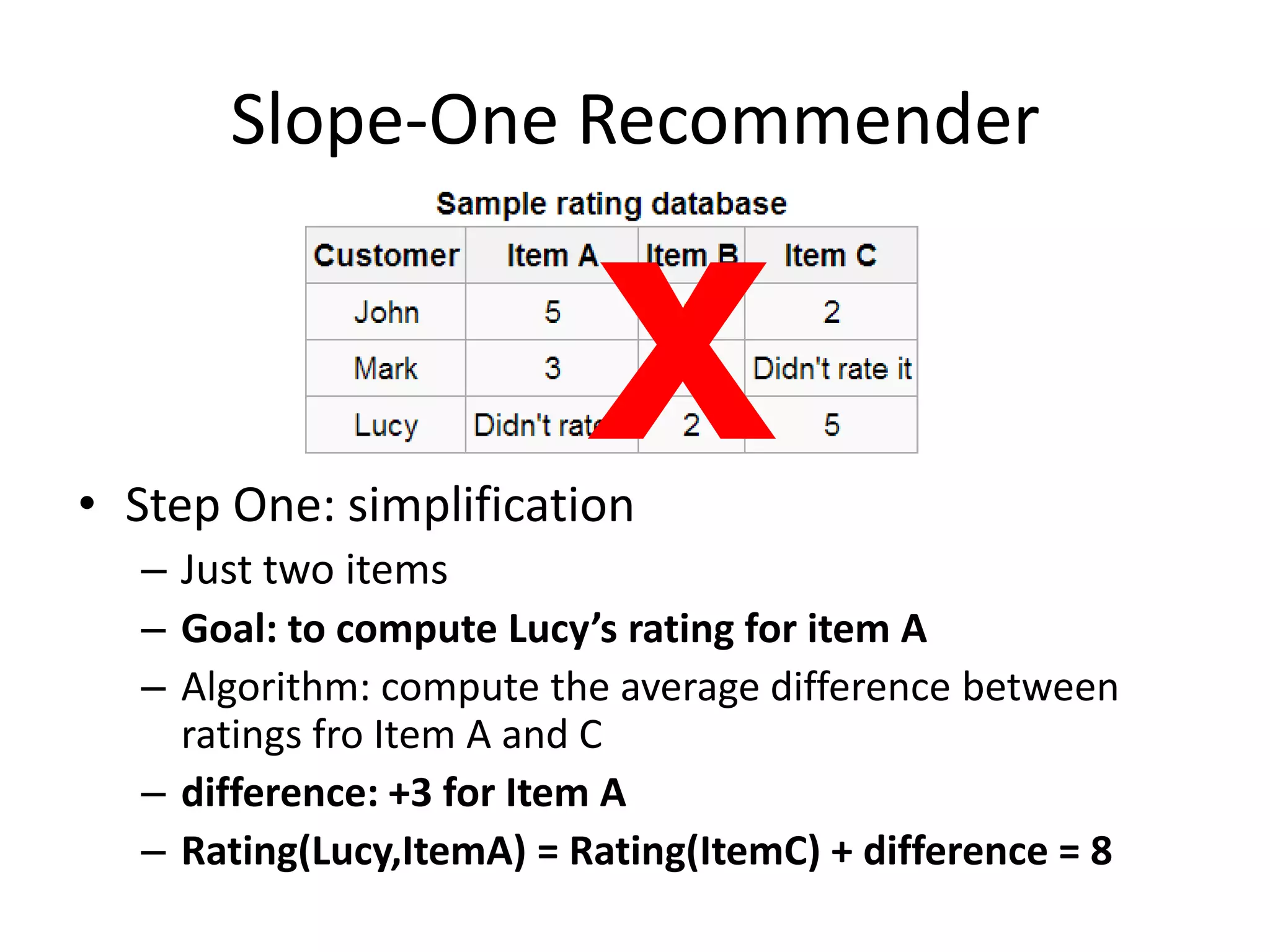

• Step One: simplification

– Just two items
– Goal: to compute Lucy’s rating for item A
– Algorithm: compute the average difference between
ratings fro Item A and C
– difference: +3 for Item A
– Rating(Lucy,ItemA) = Rating(ItemC) + difference = 8

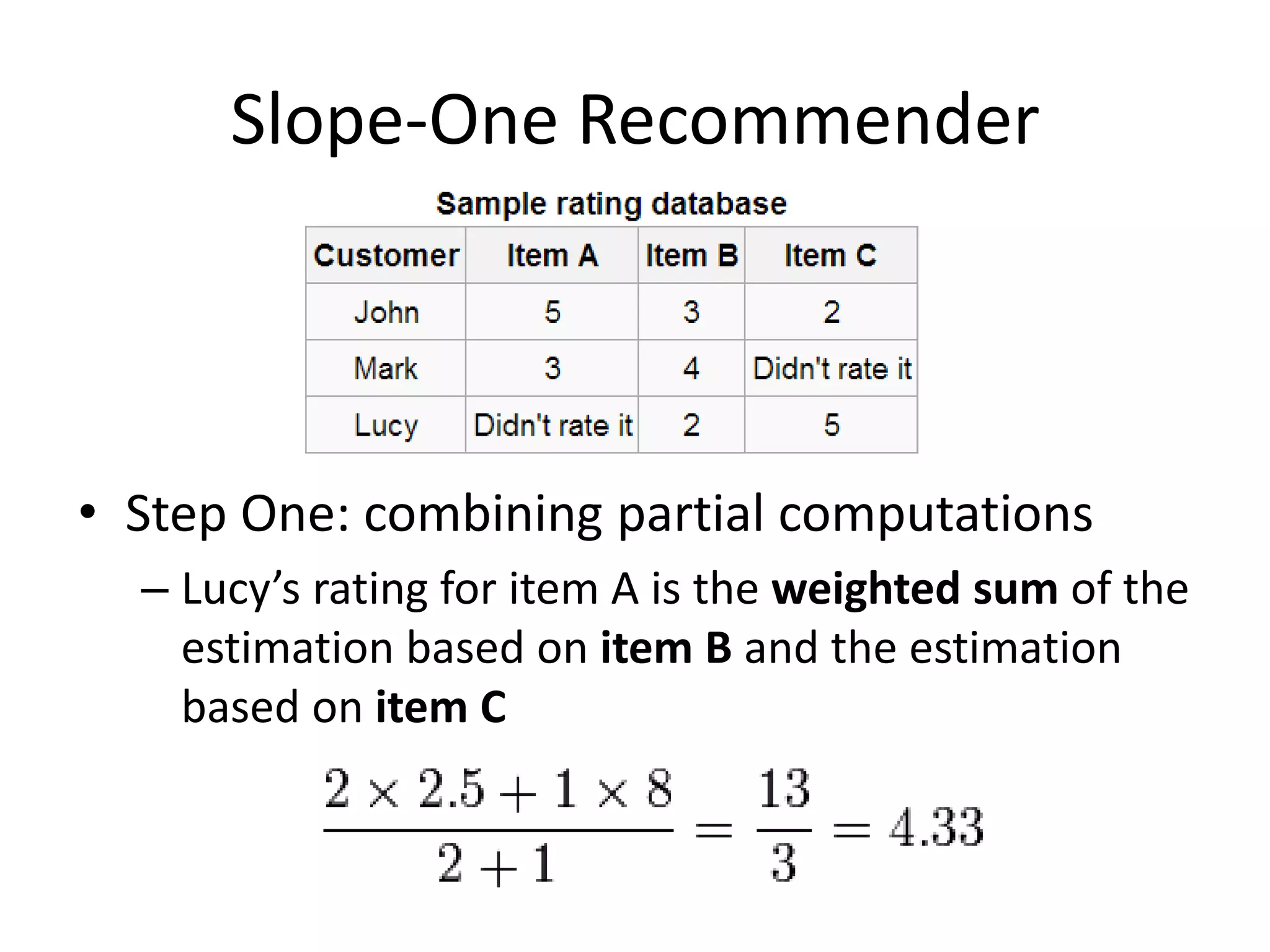

• Step One: combining partial computations
– Lucy’s rating for item A is the weighted sum of the
estimation based on item B and the estimation
based on item C

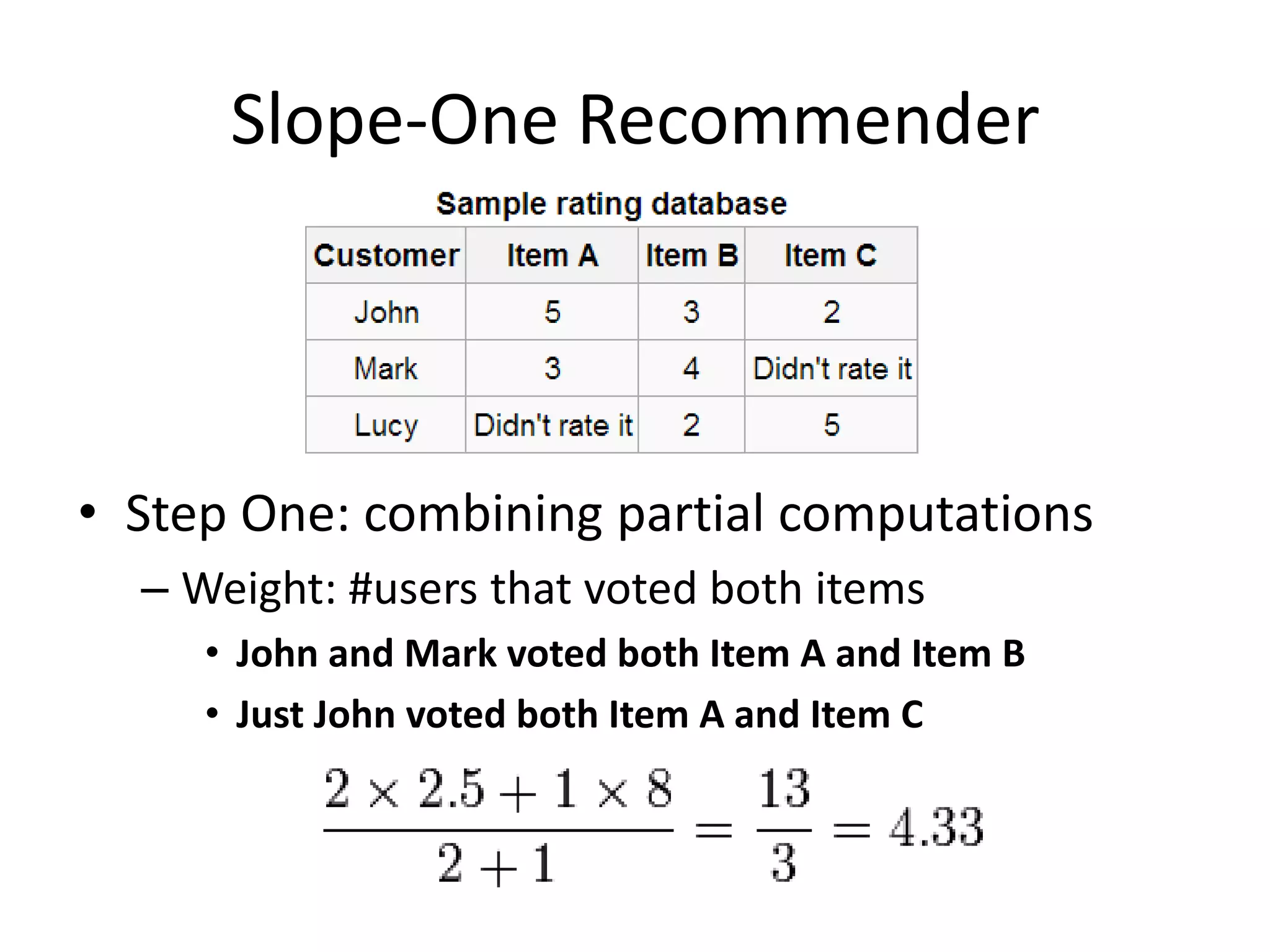

• Step One: combining partial computations
– Weight: #users that voted both items
• John and Mark voted both Item A and Item B
• Just John voted both Item A and Item C

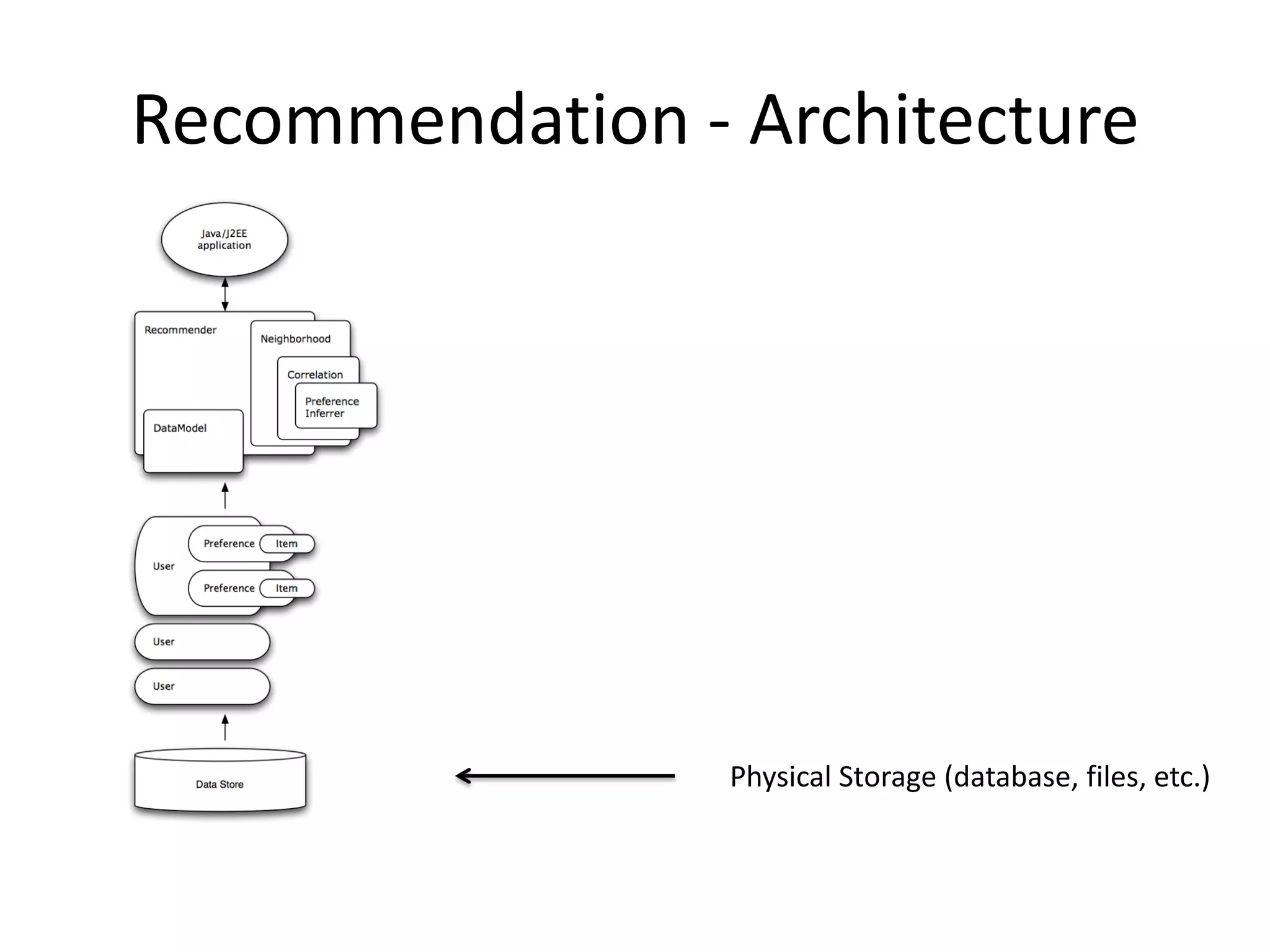

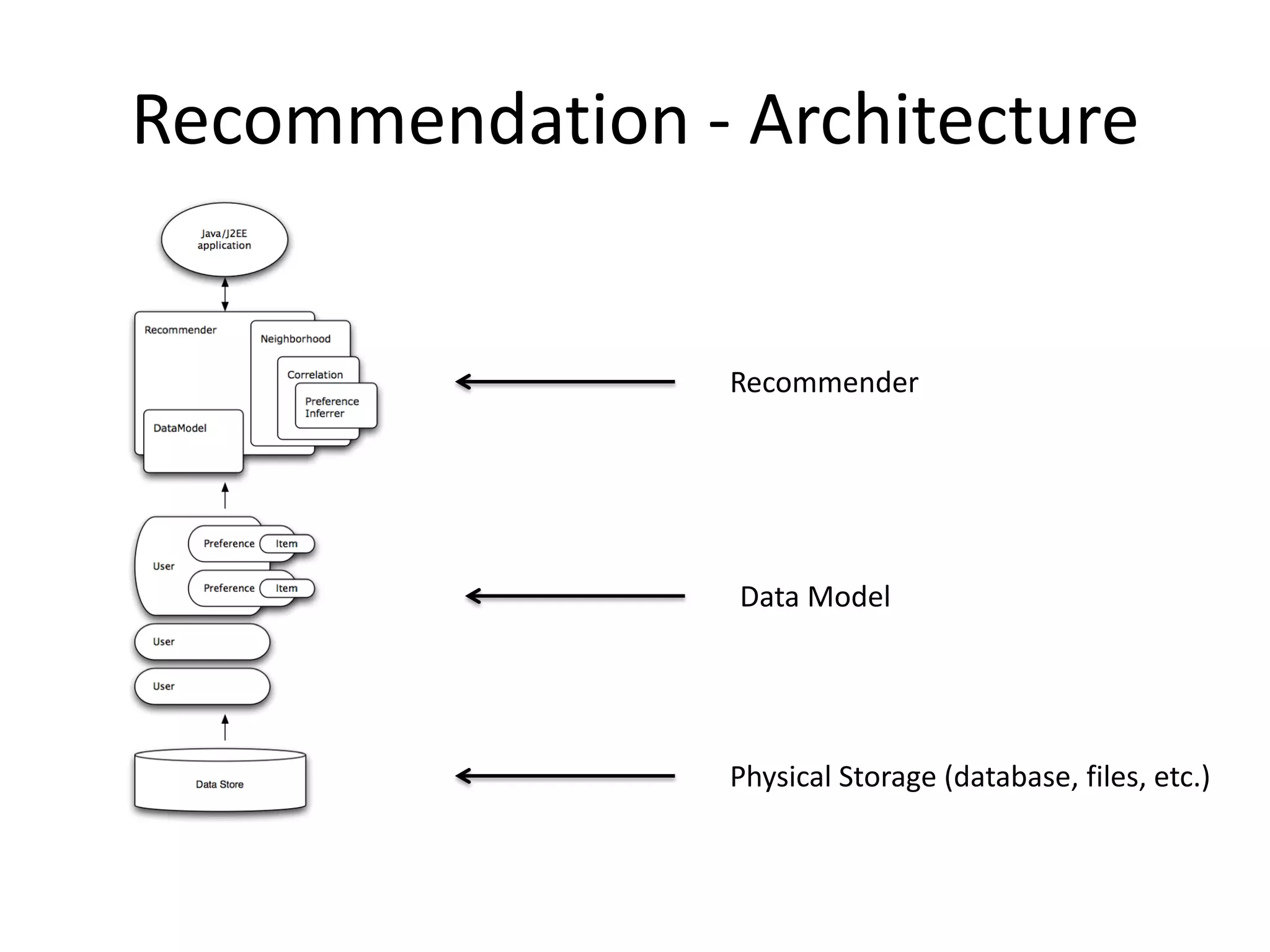

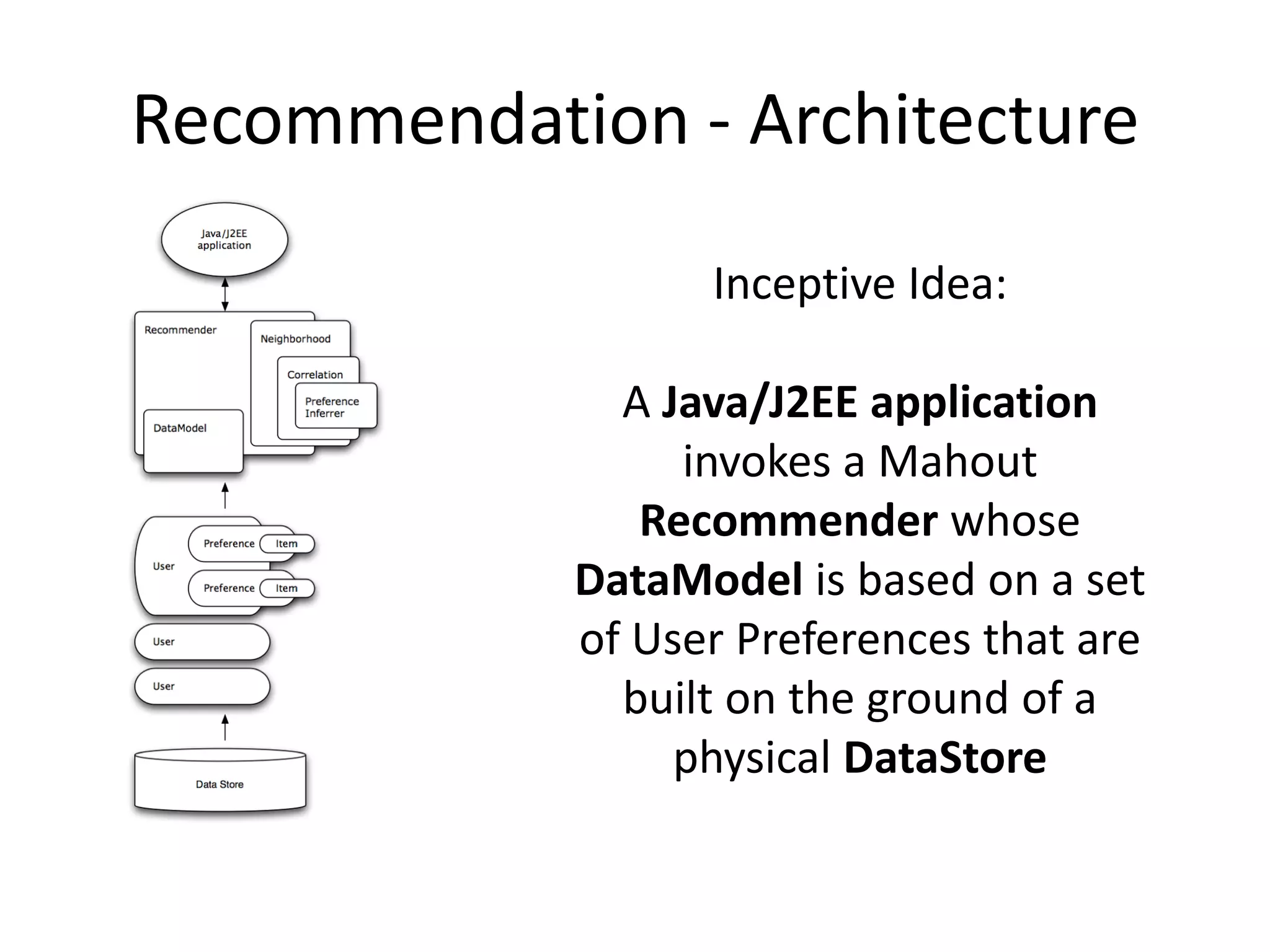

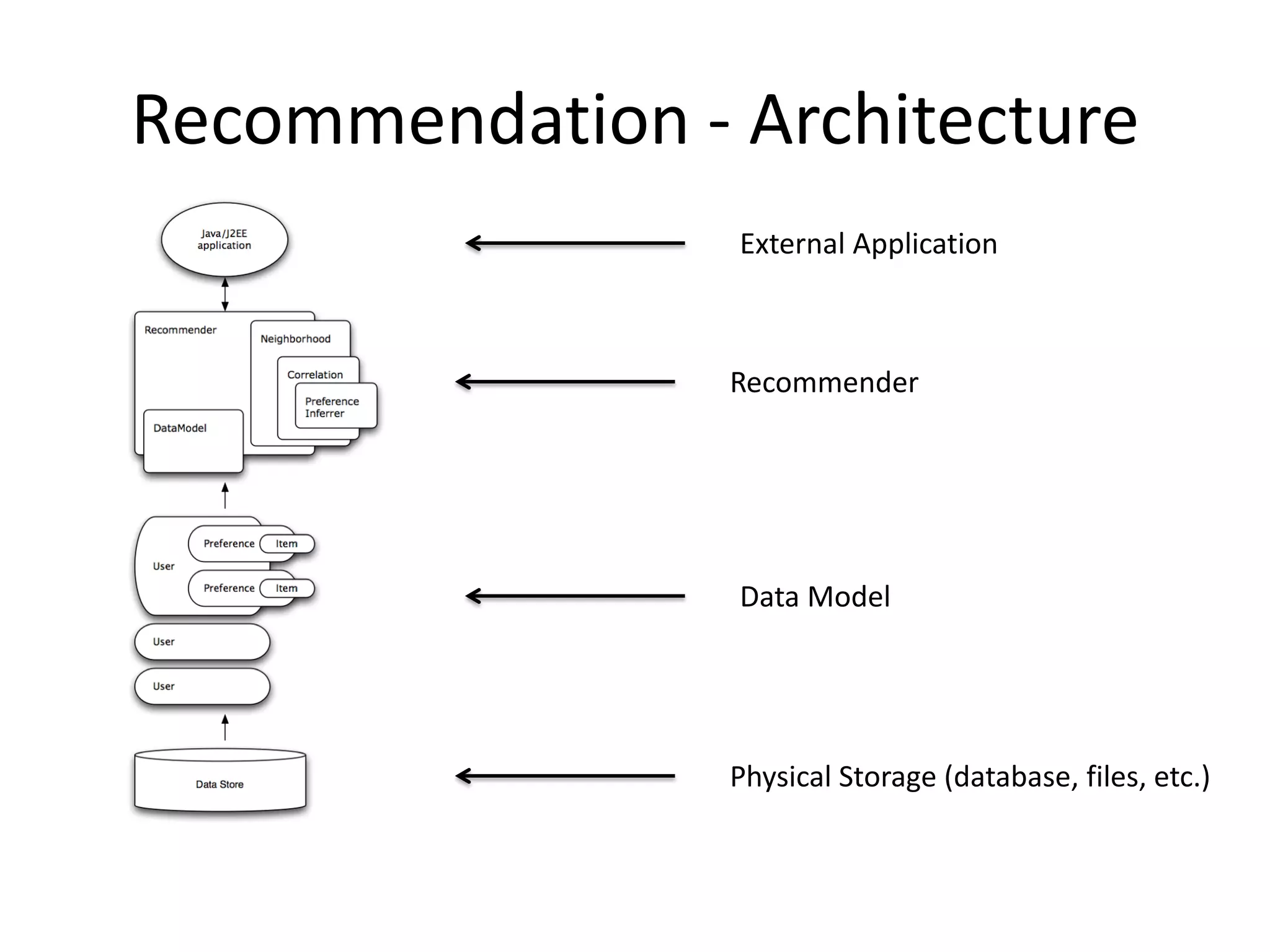

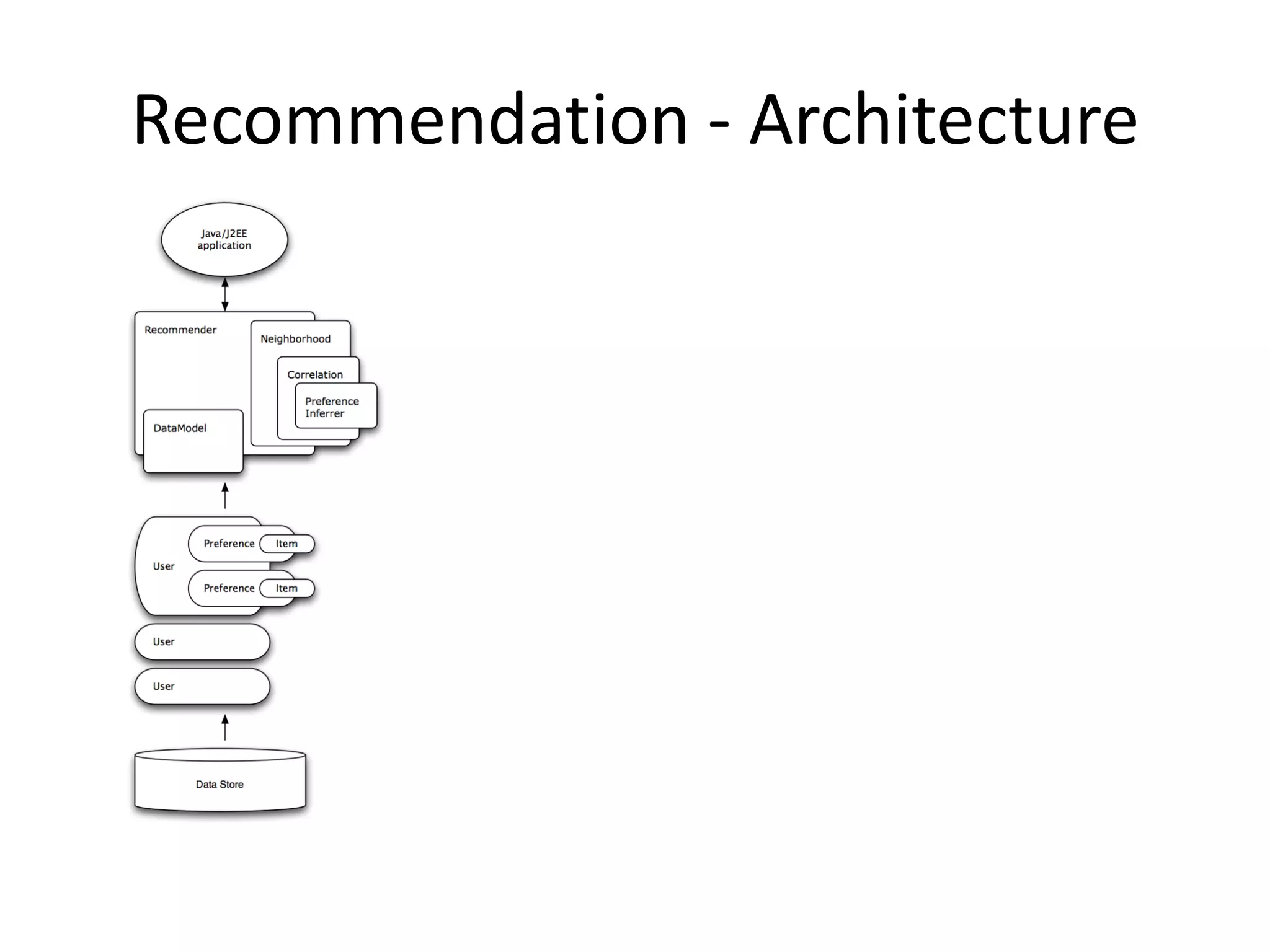

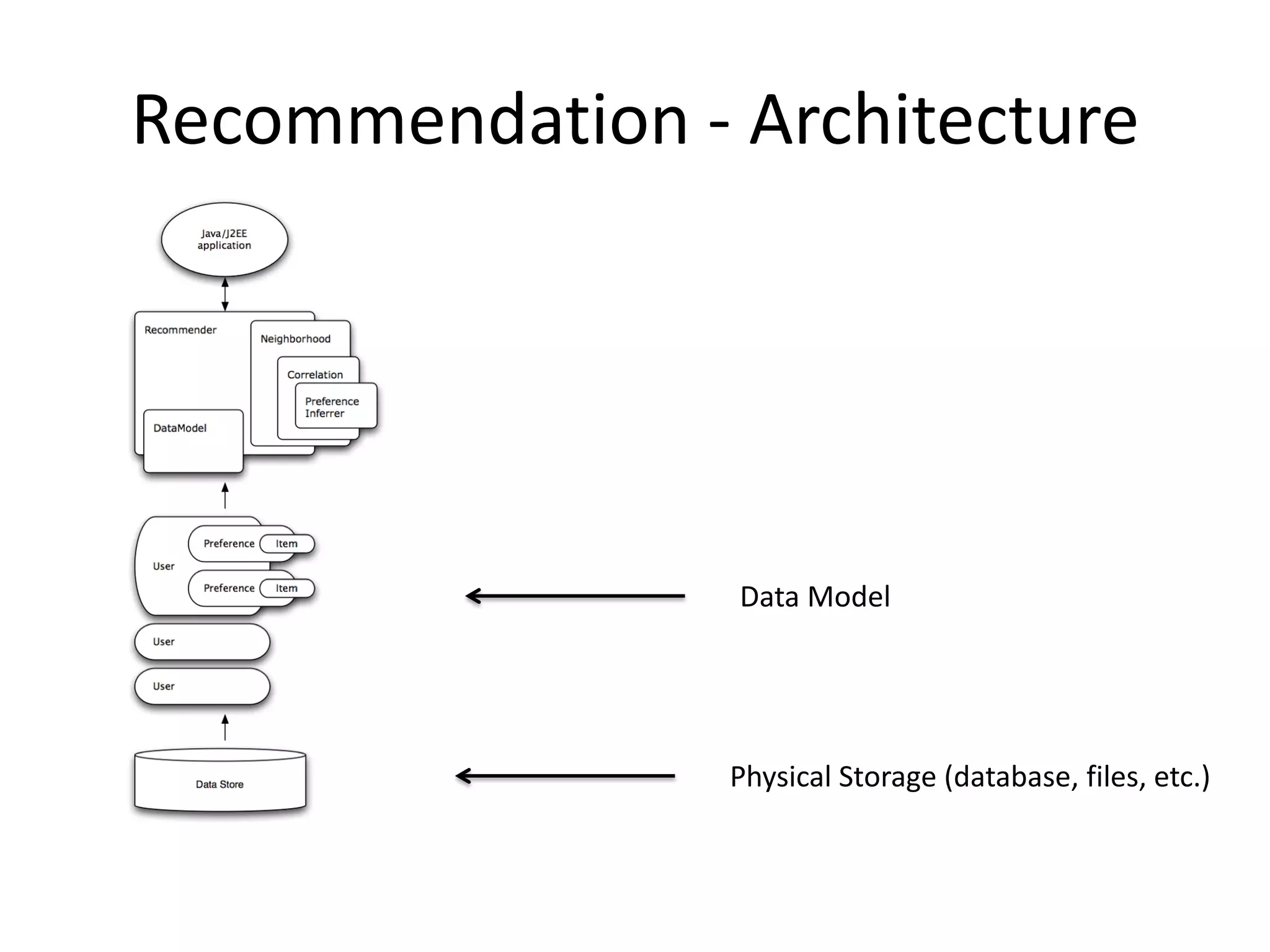

Recommendation - Architecture
Inceptive Idea:
A Java/J2EE application
invokes a Mahout
Recommender whose
DataModel is based on a set
of User Preferences that are
built on the ground of a
physical DataStore


Physical Storage (database, files, etc.)


Data Model



Recommender

Data Model


External Application

Recommender

Data Model

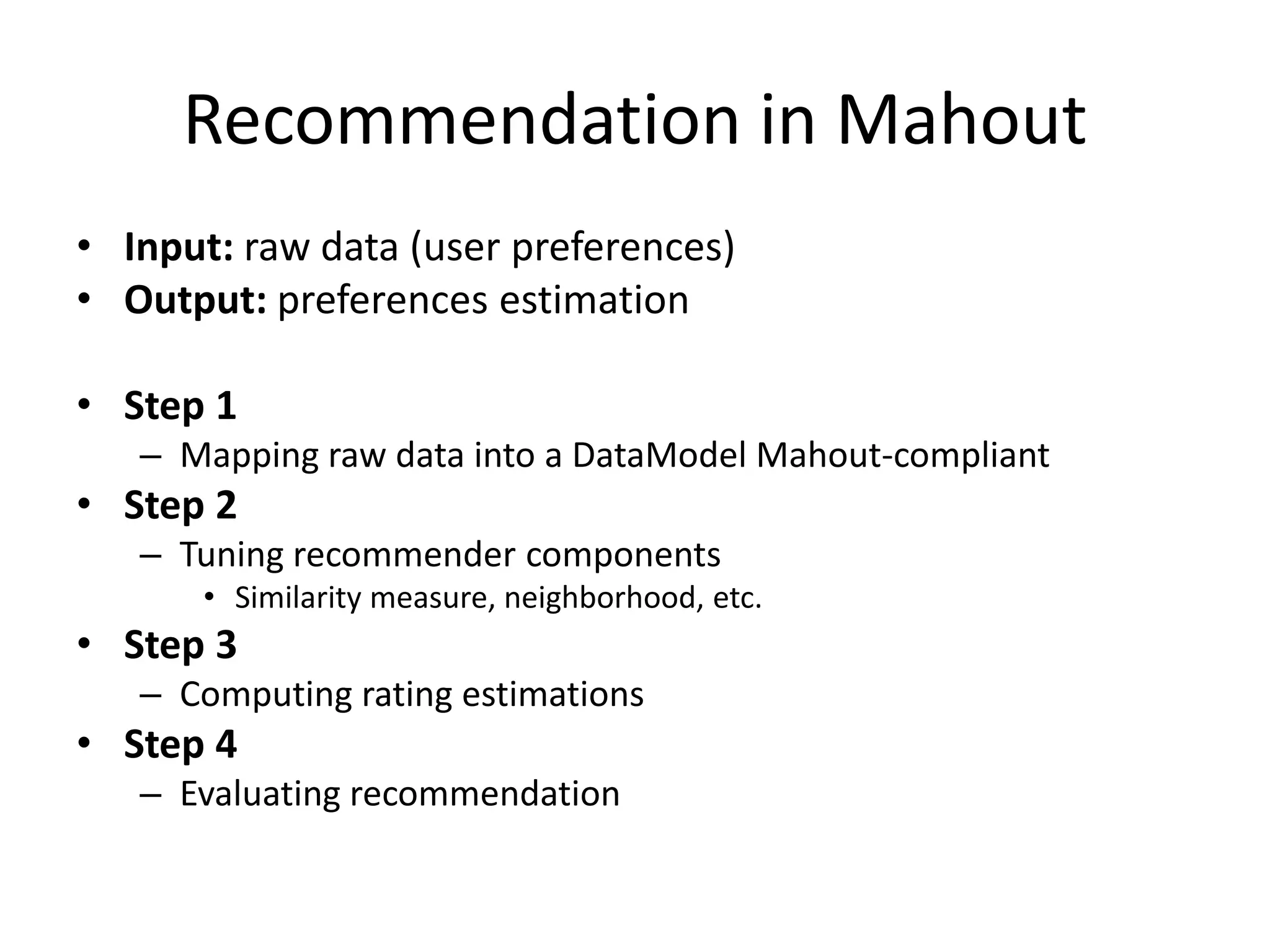

Recommendation in Mahout
• Input: raw data (user preferences)
• Output: preferences estimation
• Step 1
– Mapping raw data into a DataModel Mahout-compliant

• Step 2
– Tuning recommender components
• Similarity measure, neighborhood, etc.

• Step 3
– Computing rating estimations

• Step 4
– Evaluating recommendation

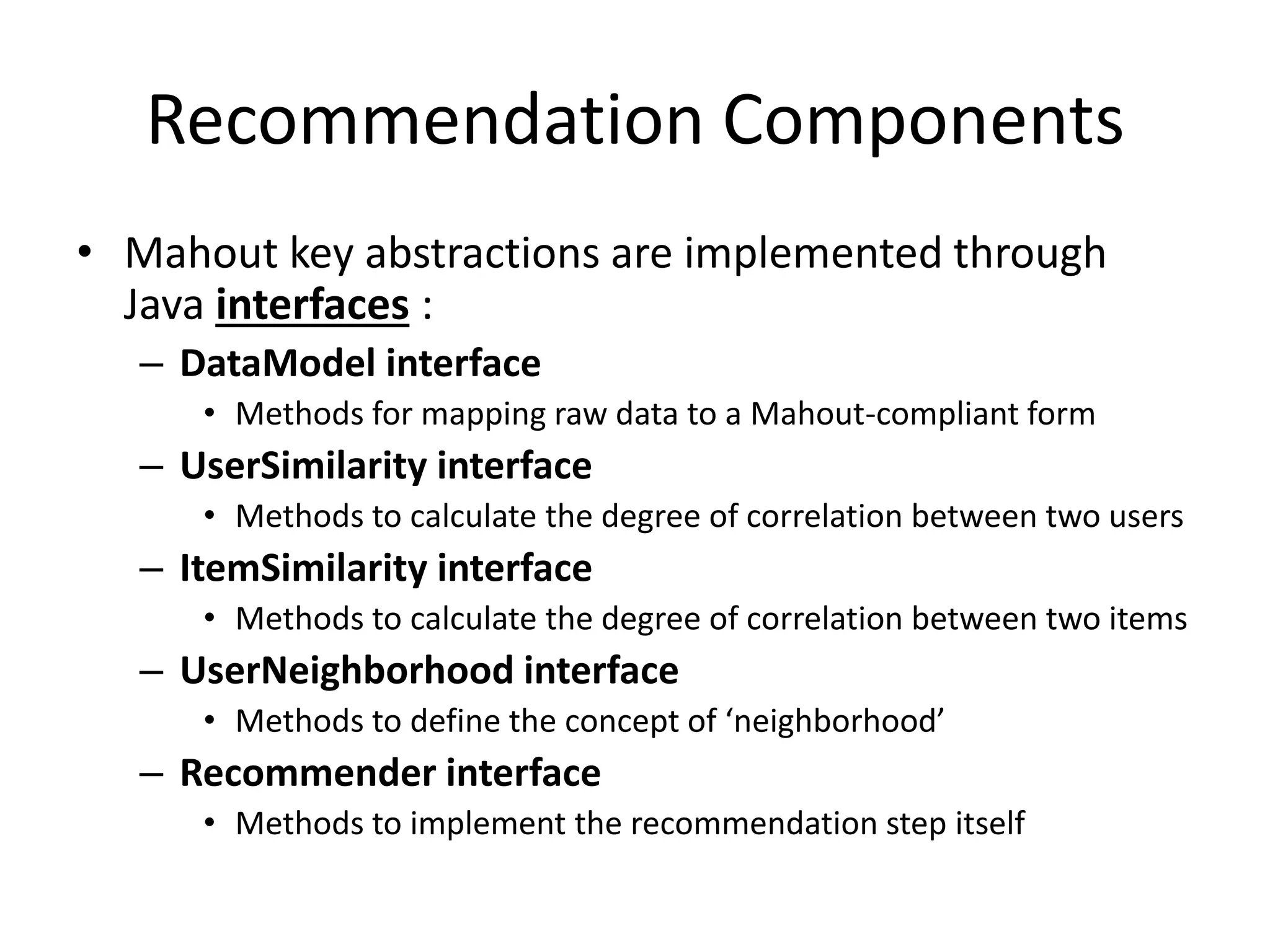

Recommendation Components
• Mahout key abstractions are implemented through
Java interfaces :
– DataModel interface
• Methods for mapping raw data to a Mahout-compliant form

– UserSimilarity interface
• Methods to calculate the degree of correlation between two users

– ItemSimilarity interface
• Methods to calculate the degree of correlation between two items

– UserNeighborhood interface
• Methods to define the concept of ‘neighborhood’

– Recommender interface
• Methods to implement the recommendation step itself

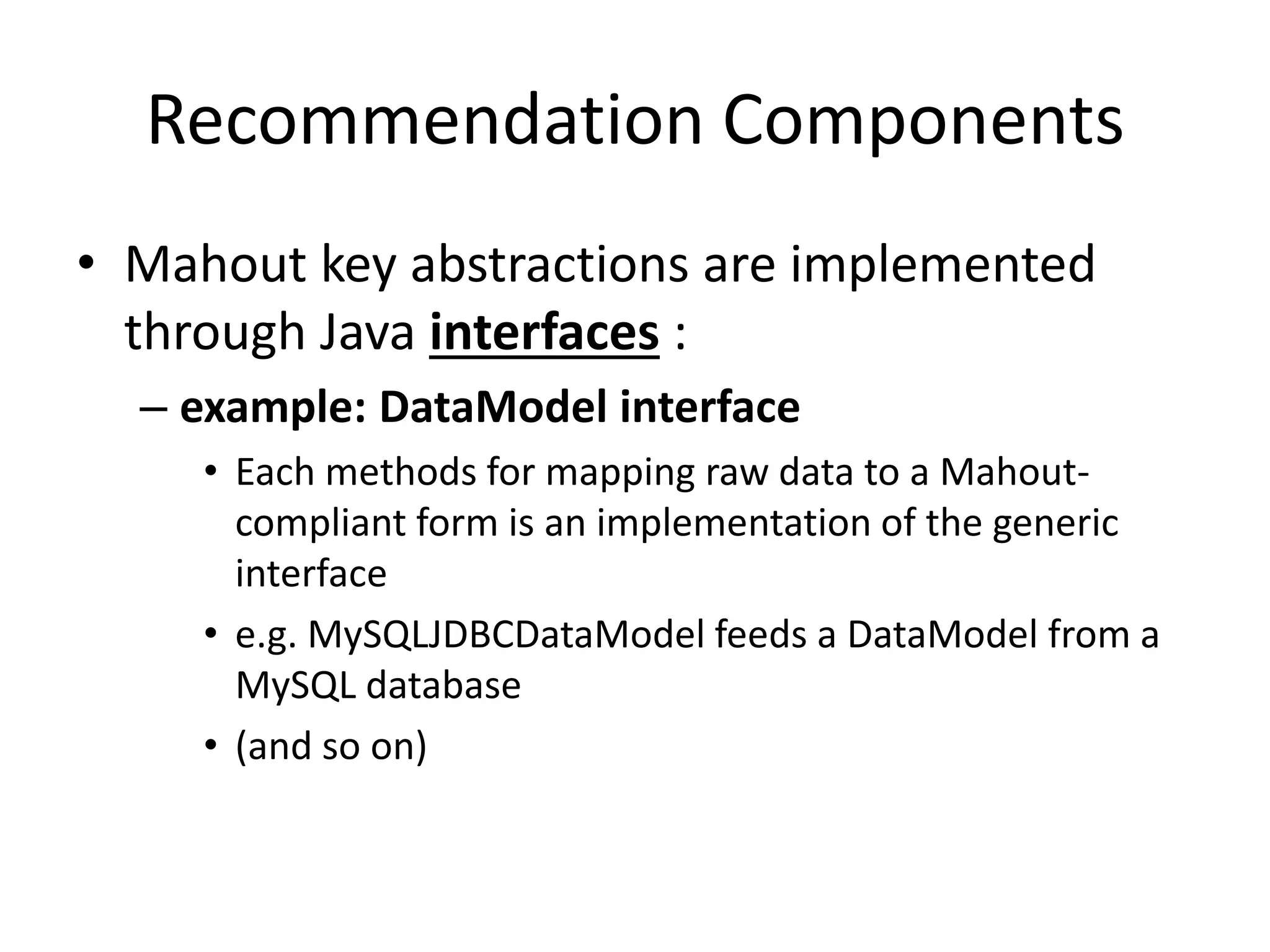

Recommendation Components
• Mahout key abstractions are implemented
through Java interfaces :
– example: DataModel interface
• Each methods for mapping raw data to a Mahoutcompliant form is an implementation of the generic
interface
• e.g. MySQLJDBCDataModel feeds a DataModel from a
MySQL database
• (and so on)

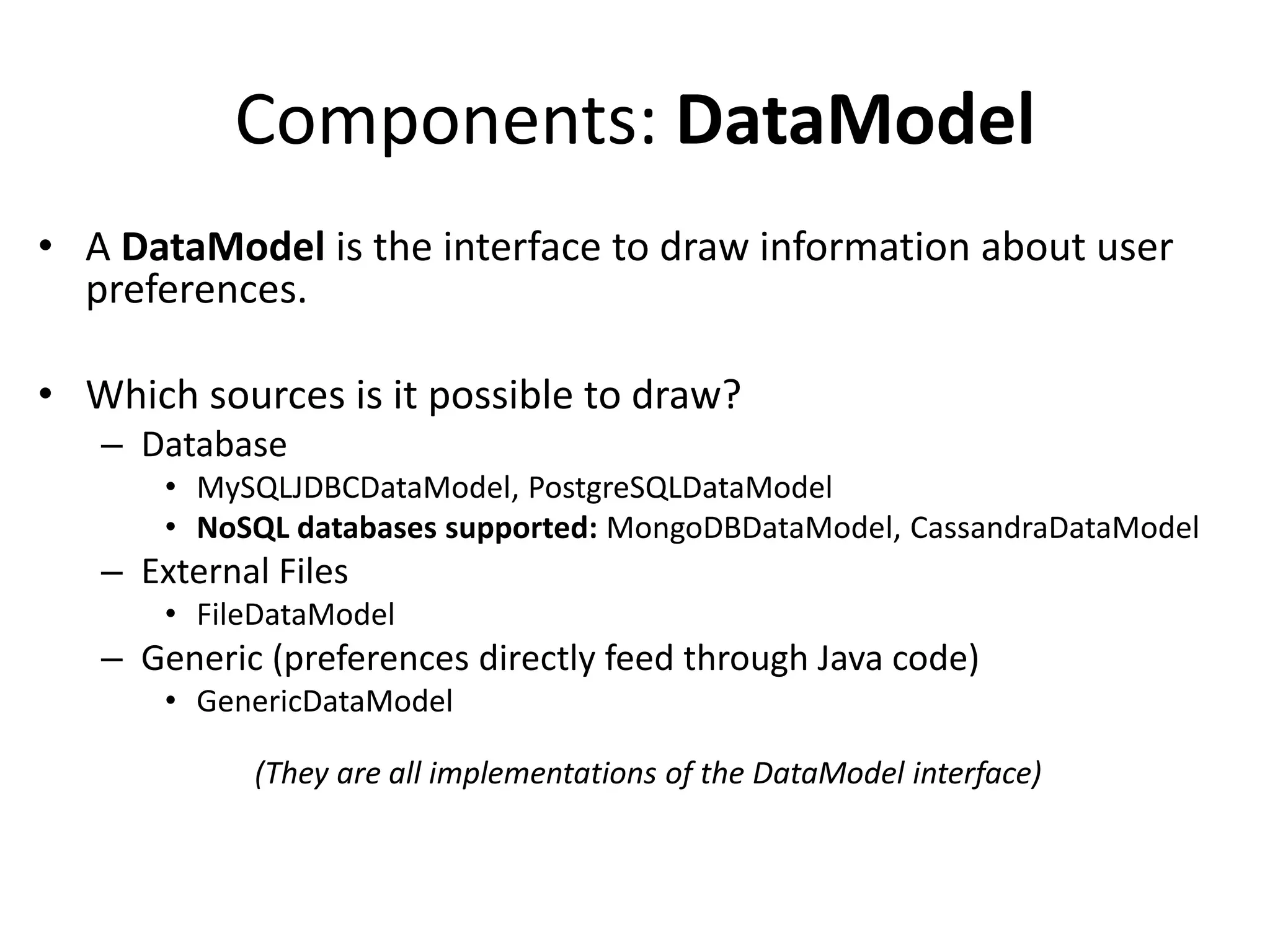

Components: DataModel
• A DataModel is the interface to draw information about user
preferences.
• Which sources is it possible to draw?
– Database
• MySQLJDBCDataModel, PostgreSQLDataModel
• NoSQL databases supported: MongoDBDataModel, CassandraDataModel

– External Files
• FileDataModel

– Generic (preferences directly feed through Java code)
• GenericDataModel

(They are all implementations of the DataModel interface)

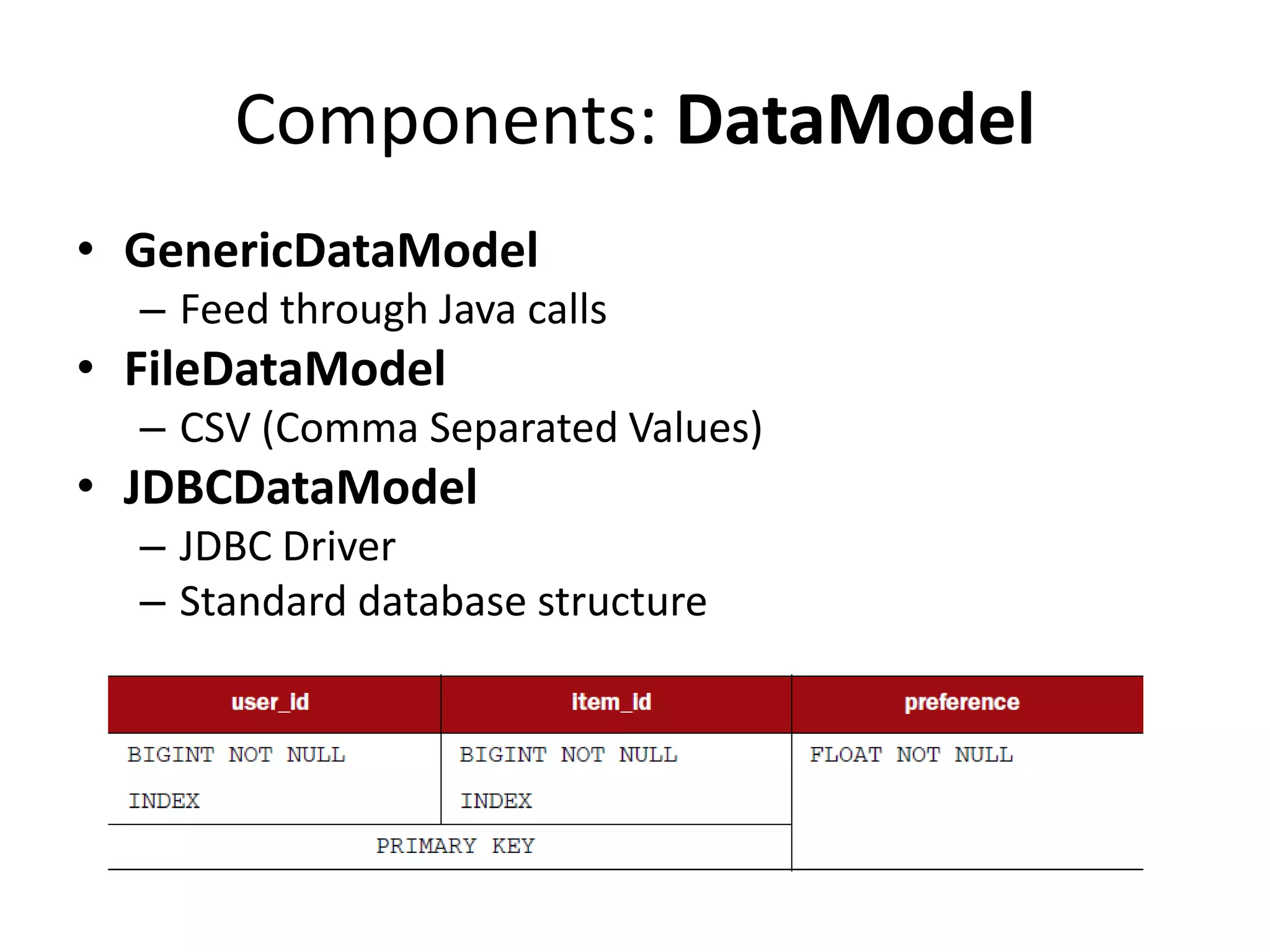

• GenericDataModel
– Feed through Java calls

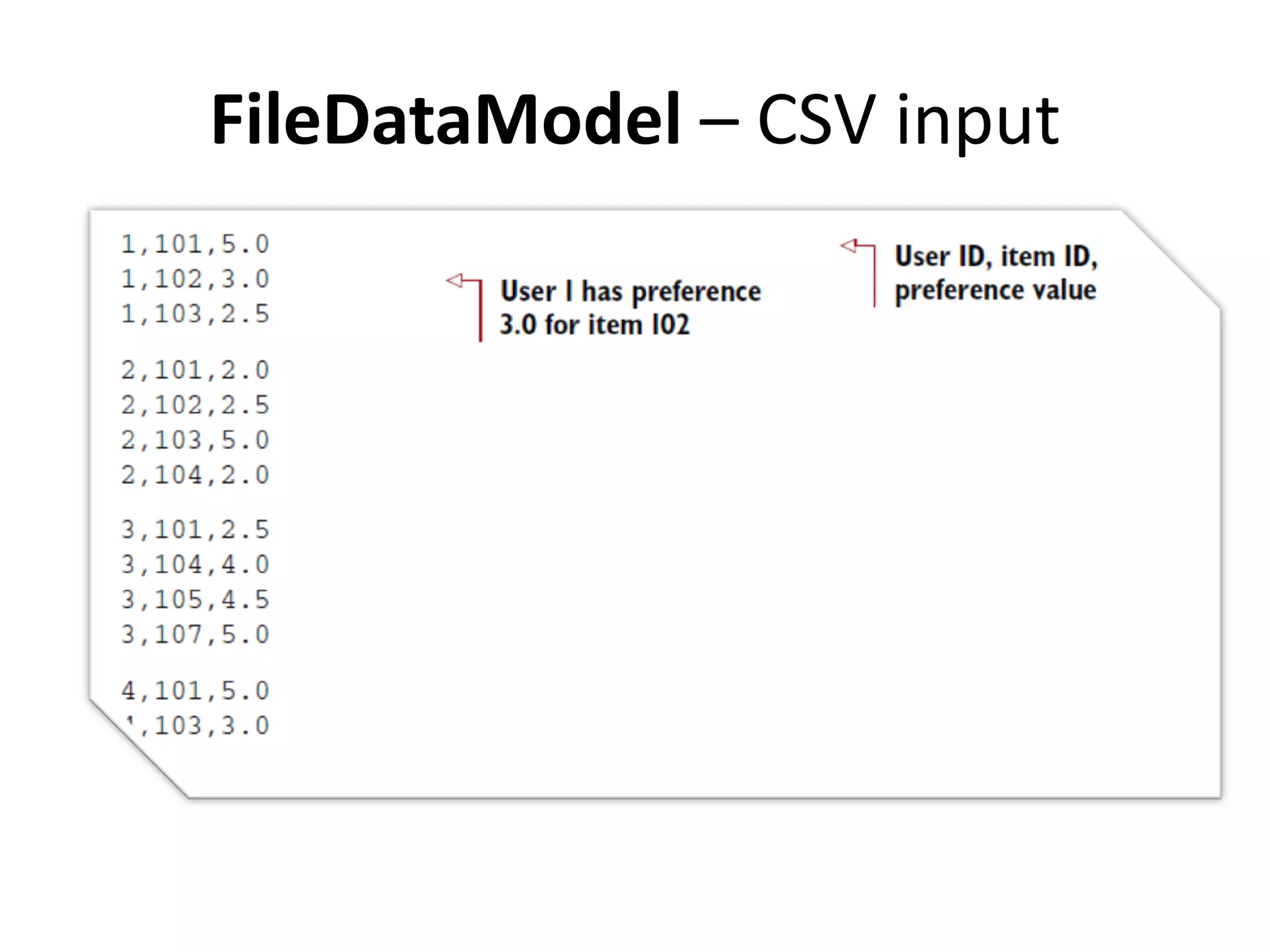

• FileDataModel
– CSV (Comma Separated Values)

• JDBCDataModel
– JDBC Driver
– Standard database structure

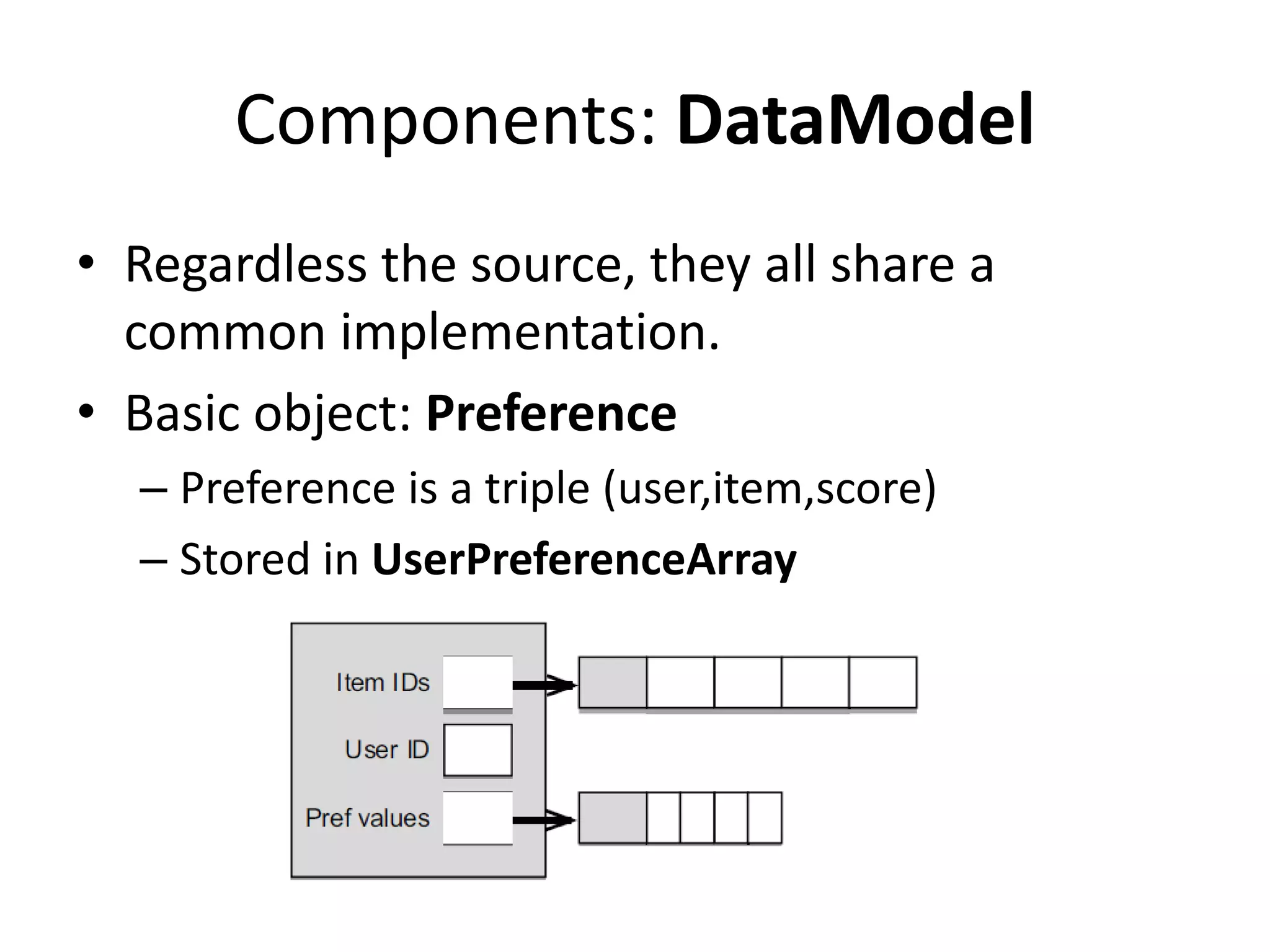

• Regardless the source, they all share a
common implementation.
• Basic object: Preference
– Preference is a triple (user,item,score)
– Stored in UserPreferenceArray

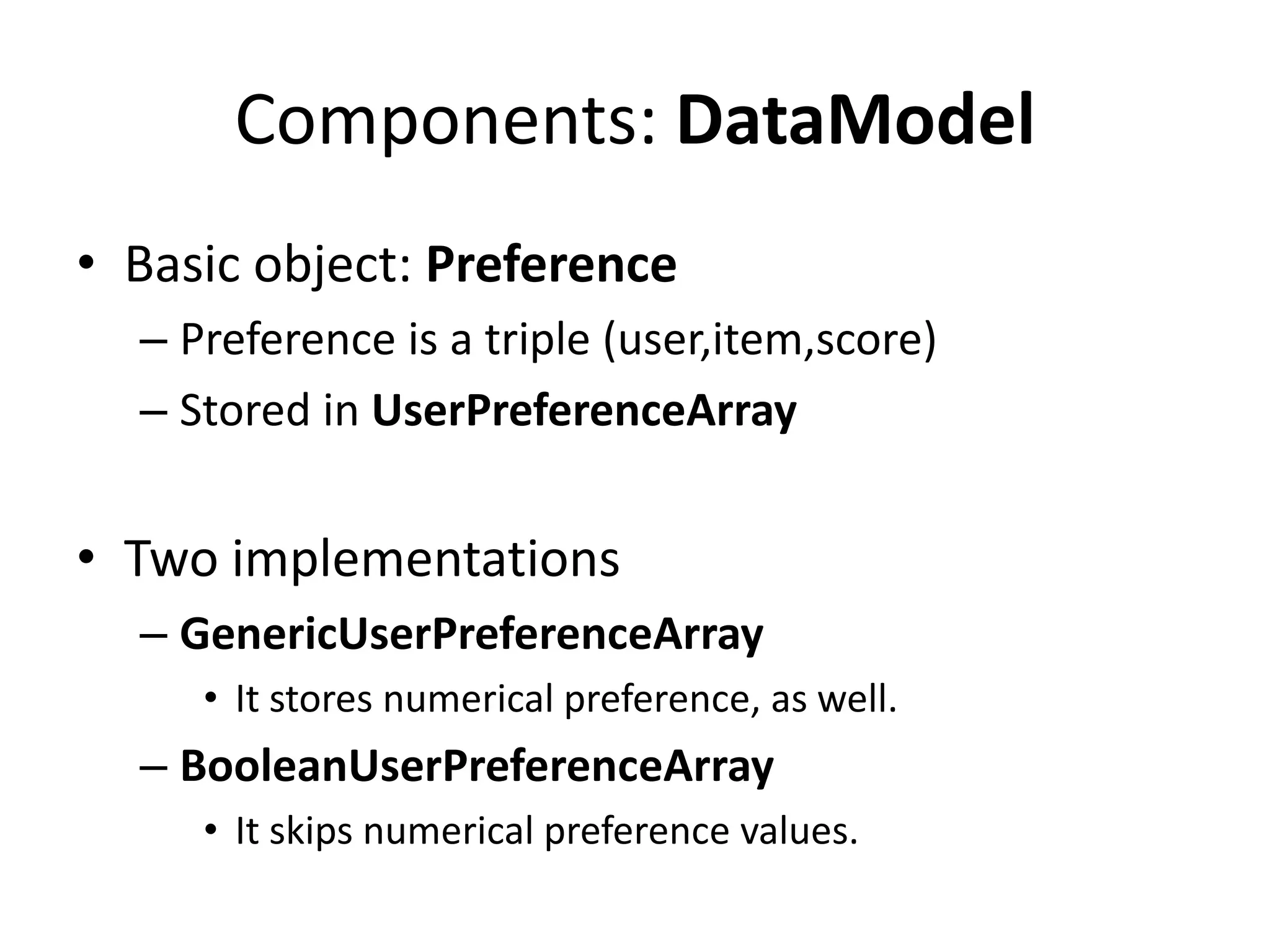

• Basic object: Preference
– Preference is a triple (user,item,score)
– Stored in UserPreferenceArray

• Two implementations
– GenericUserPreferenceArray
• It stores numerical preference, as well.

– BooleanUserPreferenceArray
• It skips numerical preference values.

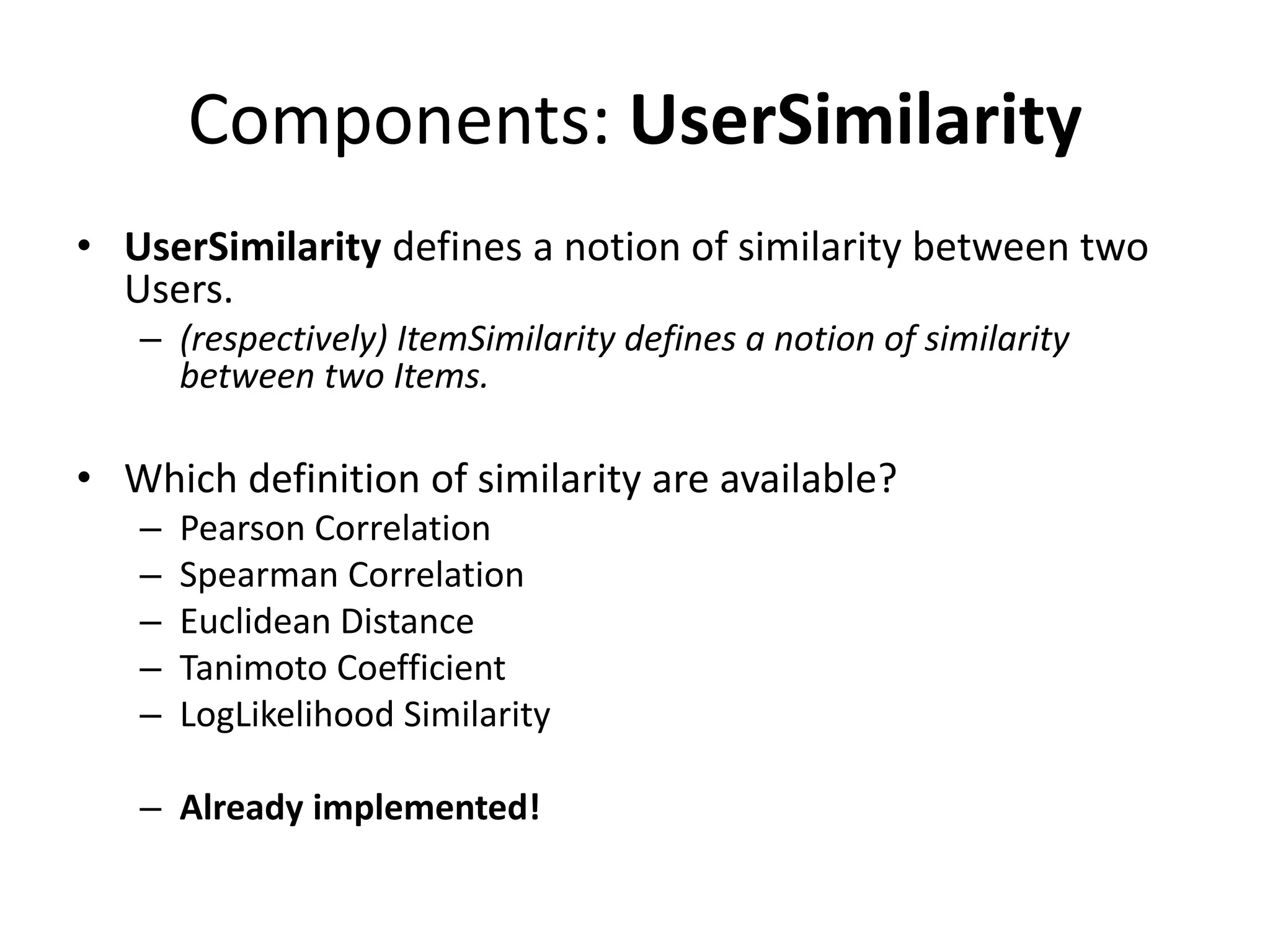

Components: UserSimilarity
• UserSimilarity defines a notion of similarity between two
Users.
– (respectively) ItemSimilarity defines a notion of similarity
between two Items.

• Which definition of similarity are available?
–
–
–
–
–

Pearson Correlation
Spearman Correlation
Euclidean Distance

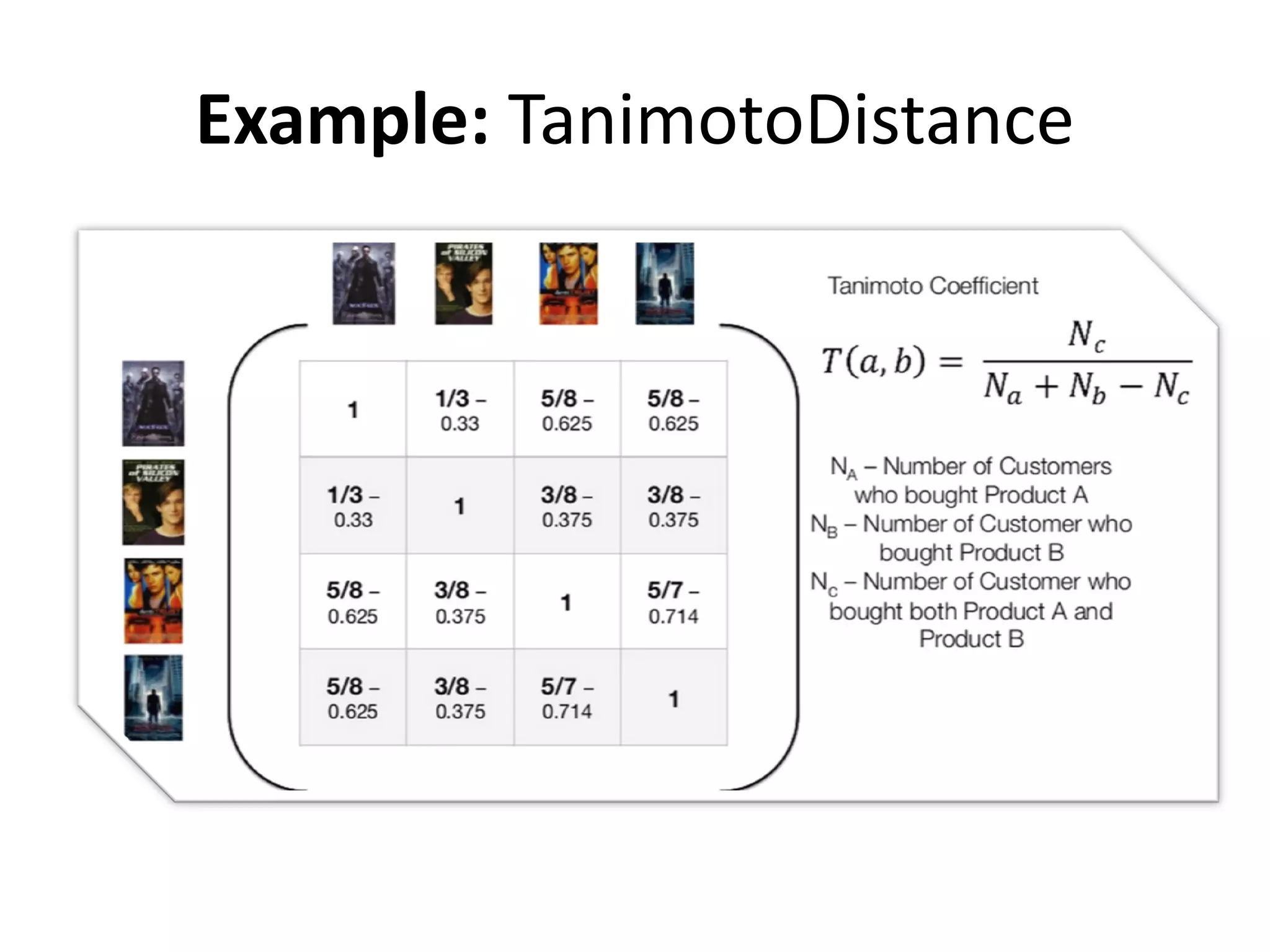

Tanimoto Coefficient
LogLikelihood Similarity

– Already implemented!

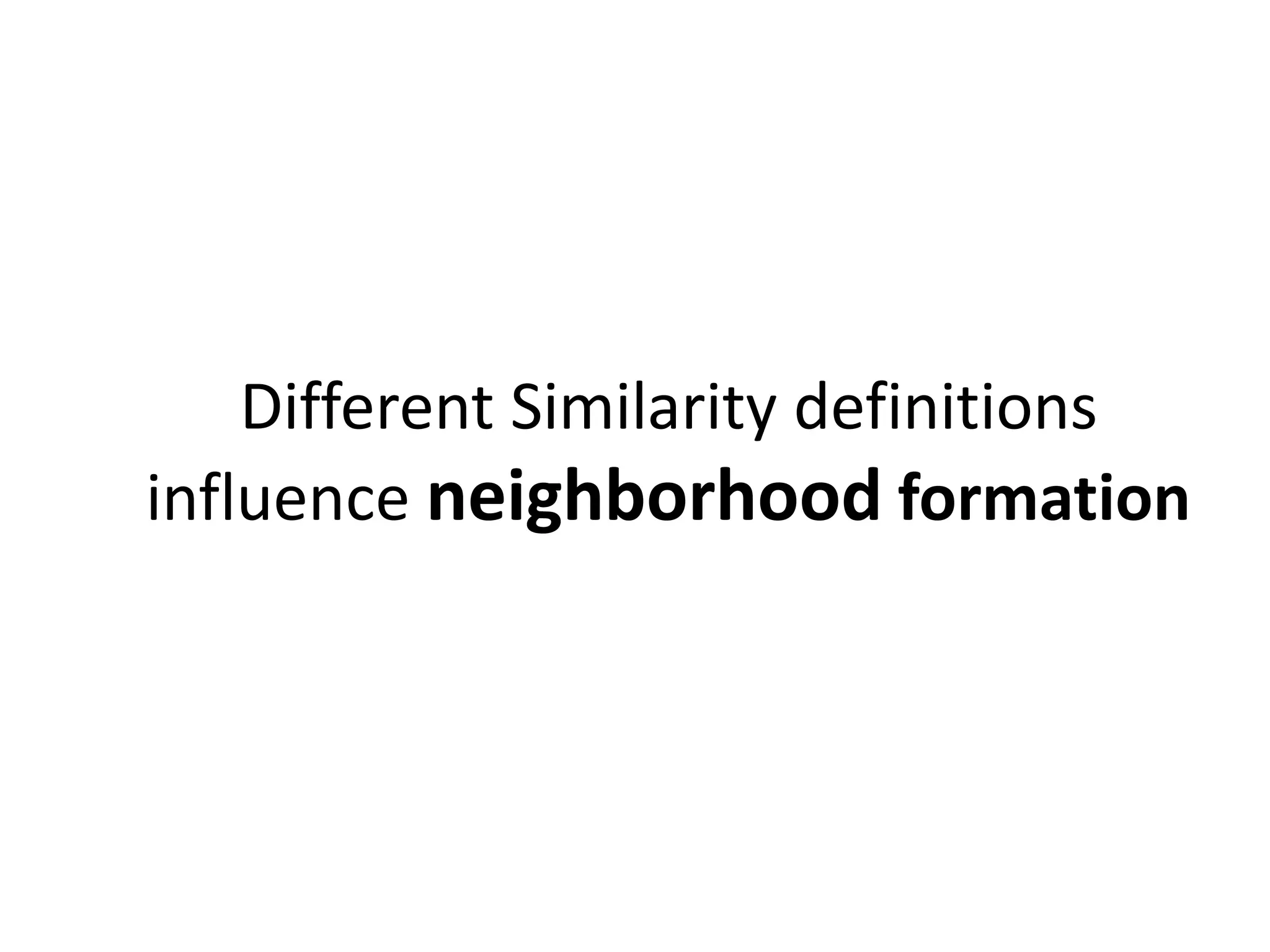

Different Similarity definitions
influence neighborhood formation

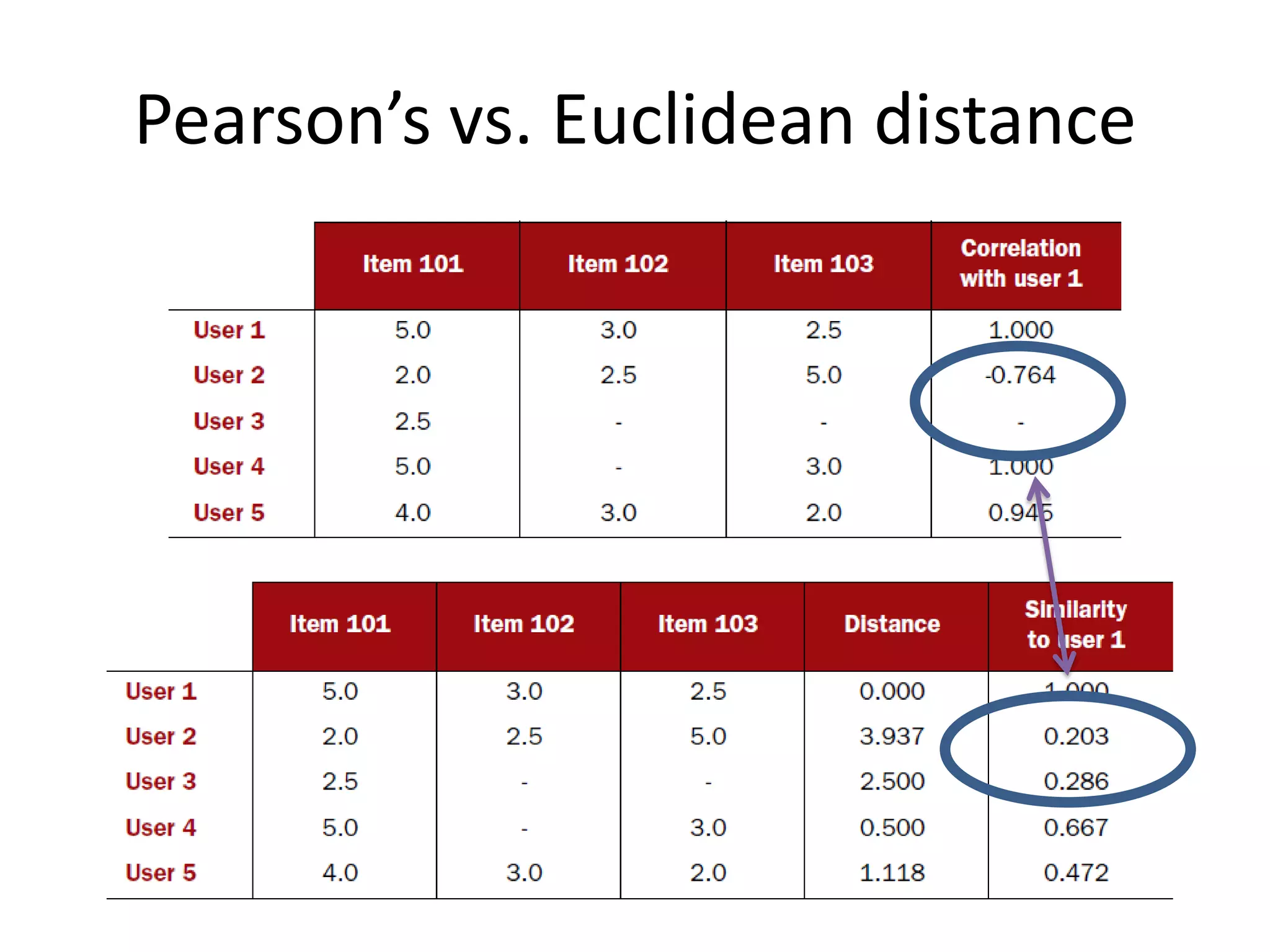

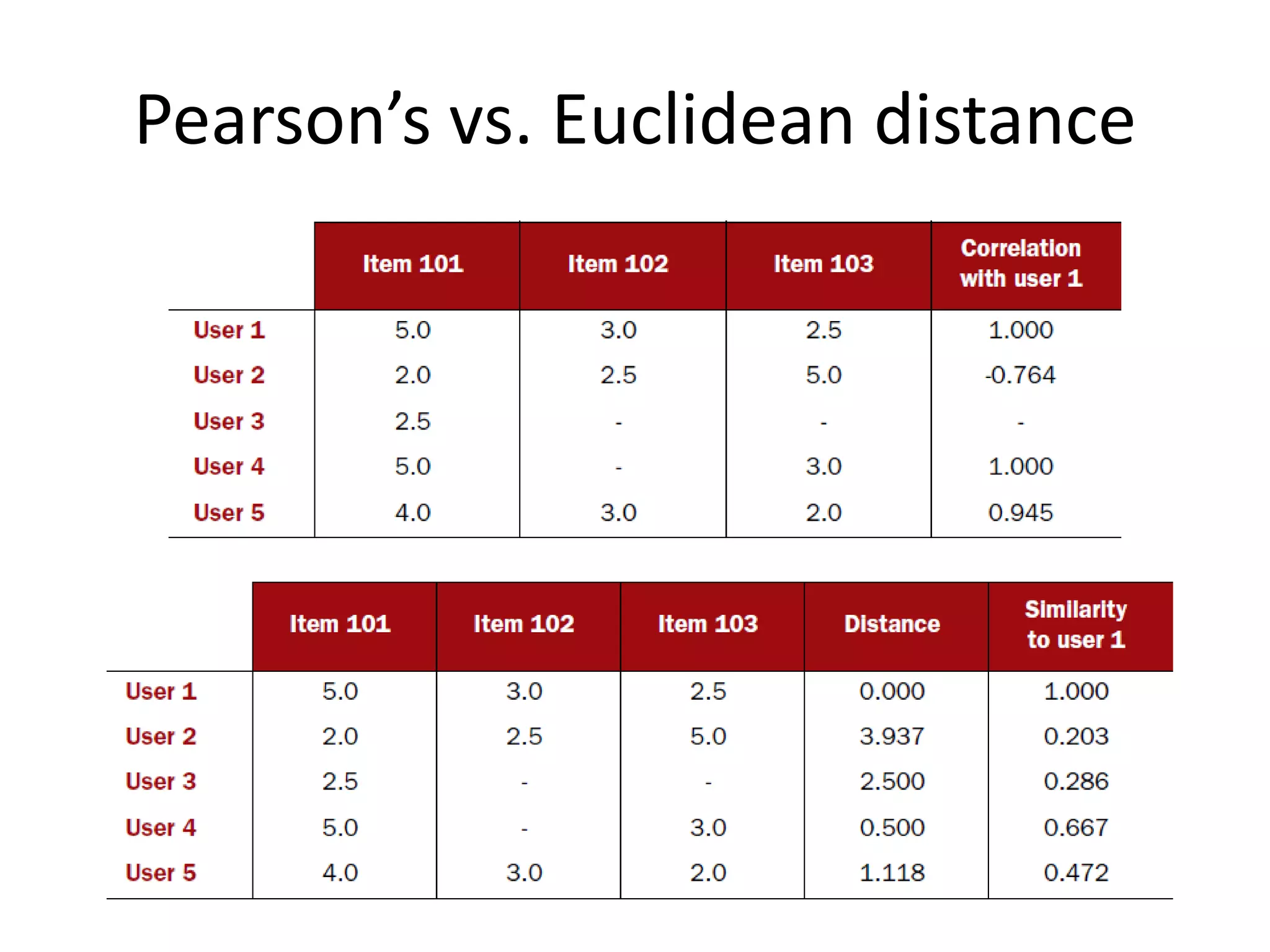

Pearson’s vs. Euclidean distance

Components: UserNeighborhood
• Which definition of neighborhood are available?
– Nearest N users
• The first N users with the highest similarity are labeled as ‘neighbors’

– Thresholds
• Users whose similarity is above a threshold are labeled as ‘neighbors’

– Already implemented!

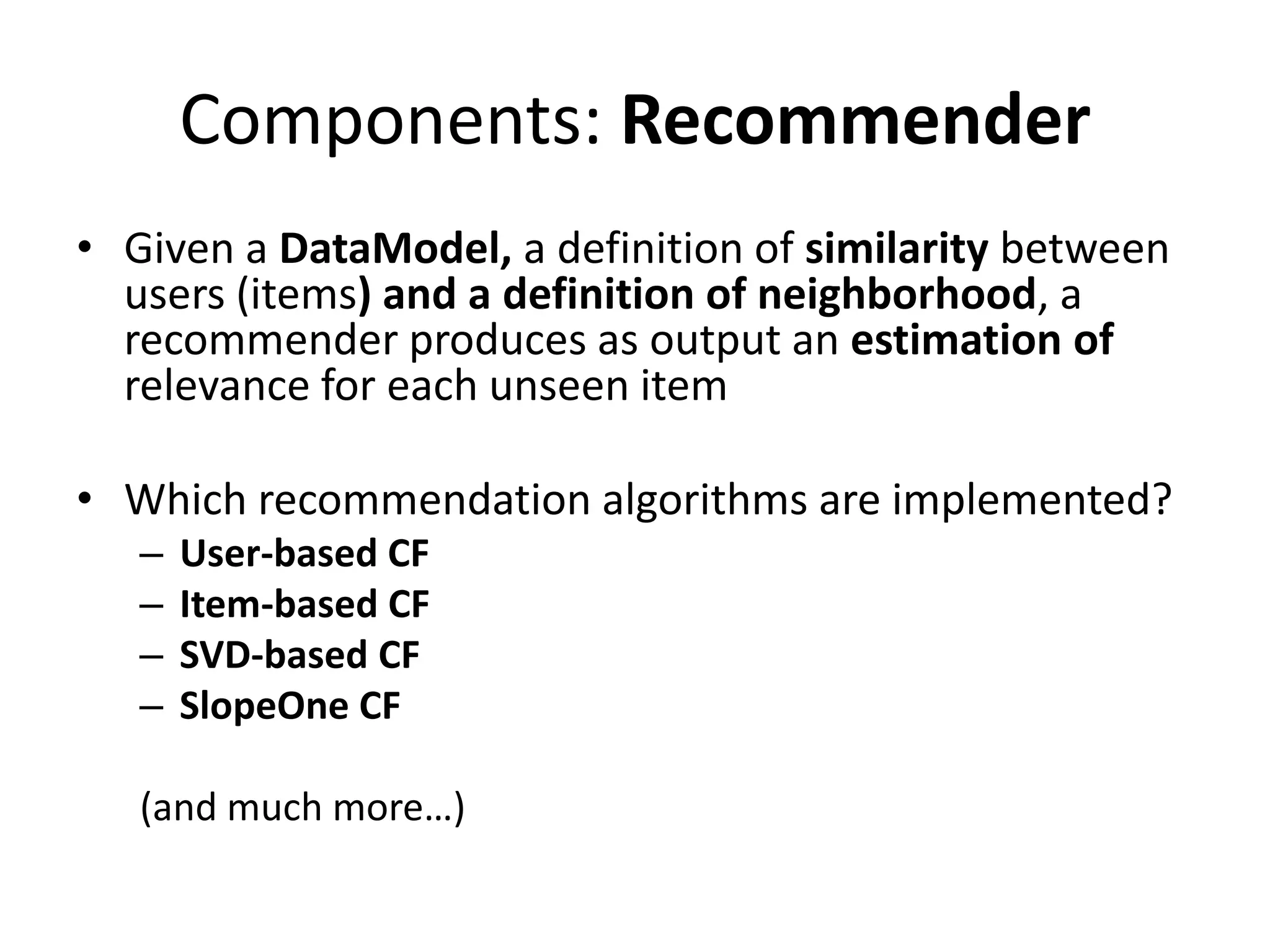

Components: Recommender
• Given a DataModel, a definition of similarity between
users (items) and a definition of neighborhood, a
recommender produces as output an estimation of
relevance for each unseen item
• Which recommendation algorithms are implemented?
–
–
–
–

User-based CF
Item-based CF
SVD-based CF
SlopeOne CF

(and much more…)

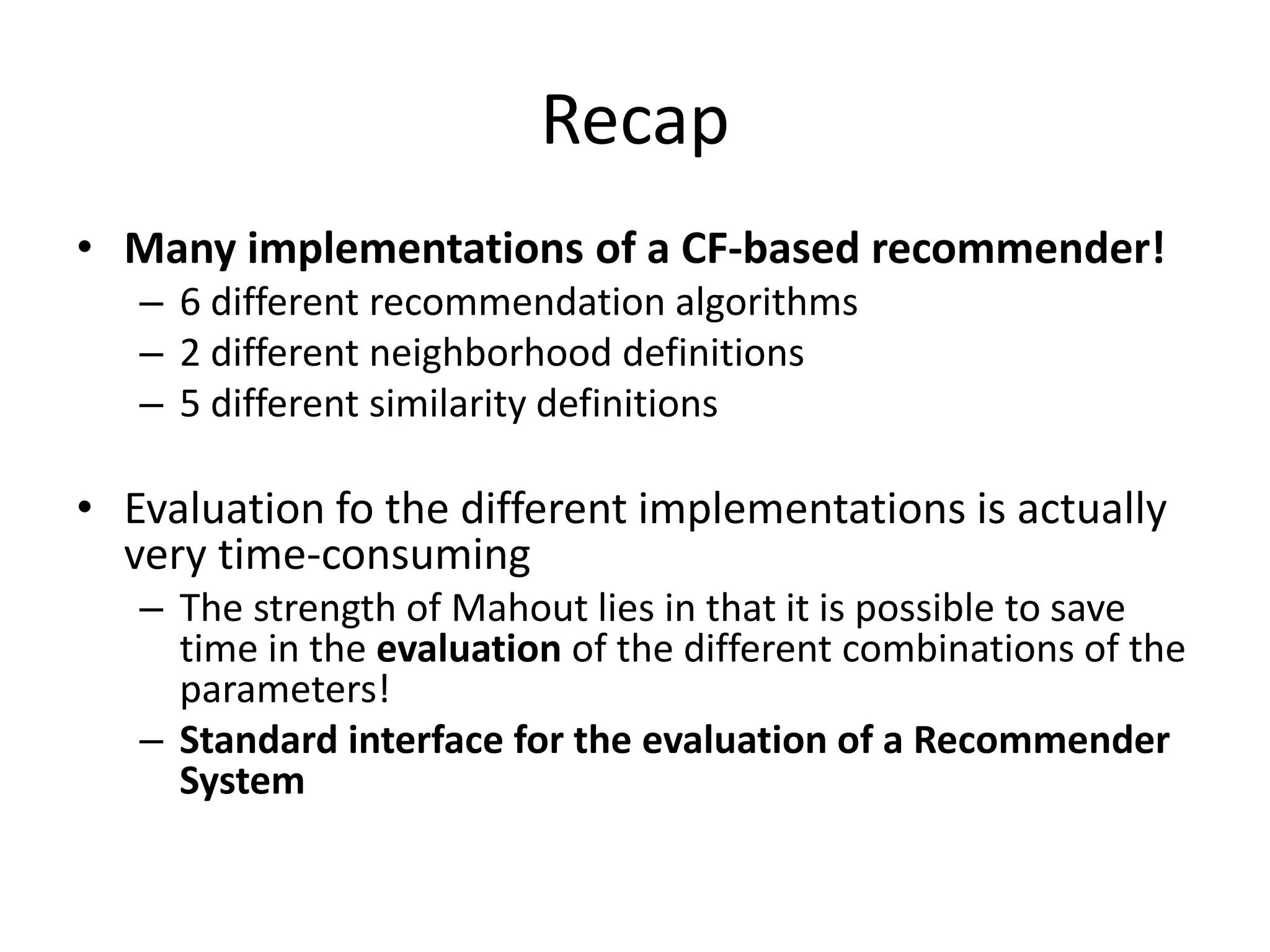

Recap
• Many implementations of a CF-based recommender!
– 6 different recommendation algorithms
– 2 different neighborhood definitions
– 5 different similarity definitions

• Evaluation fo the different implementations is actually
very time-consuming
– The strength of Mahout lies in that it is possible to save
time in the evaluation of the different combinations of the
parameters!
– Standard interface for the evaluation of a Recommender
System

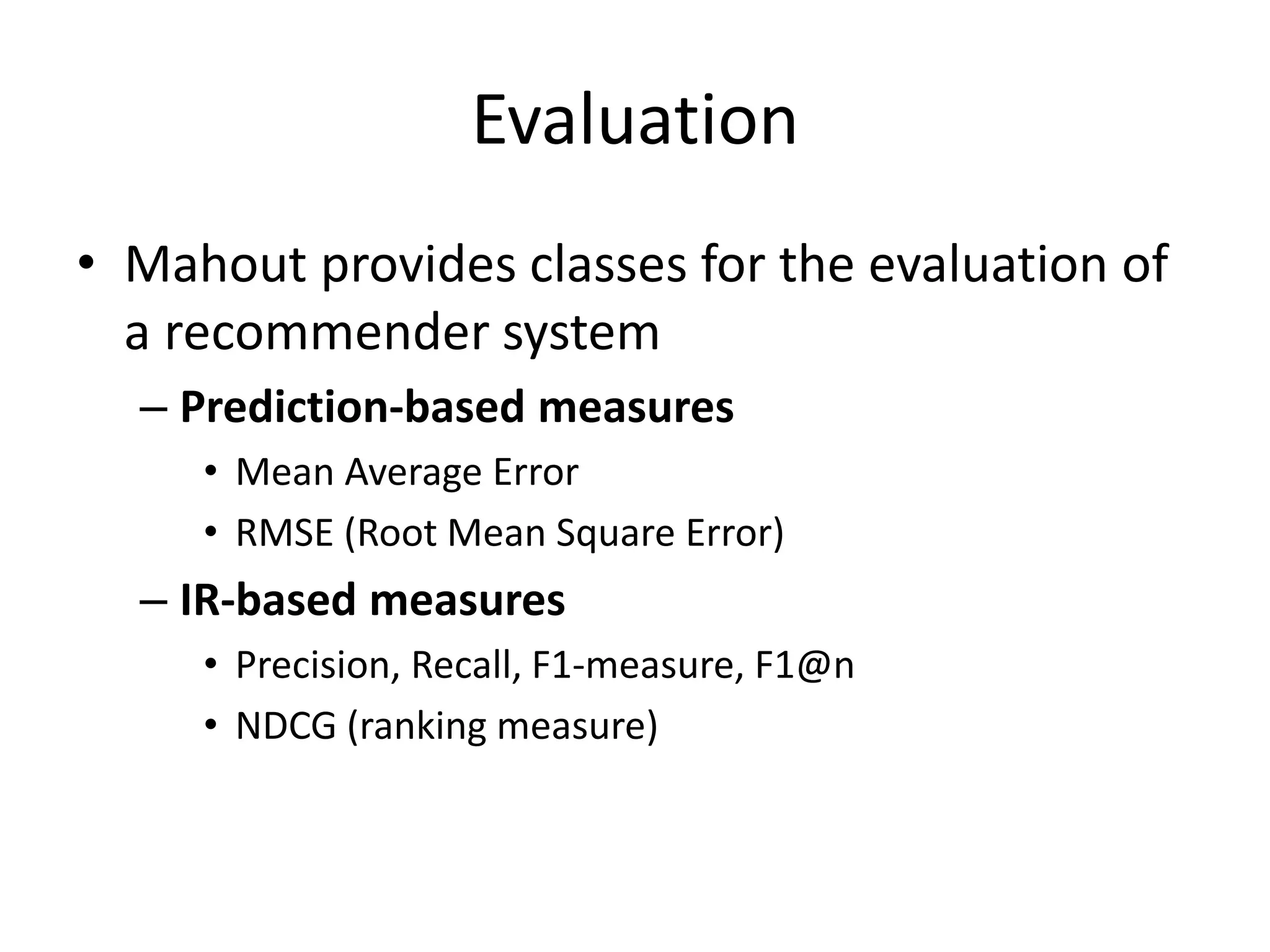

Evaluation
• Mahout provides classes for the evaluation of
a recommender system
– Prediction-based measures
• Mean Average Error
• RMSE (Root Mean Square Error)

– IR-based measures
• Precision, Recall, F1-measure, F1@n
• NDCG (ranking measure)

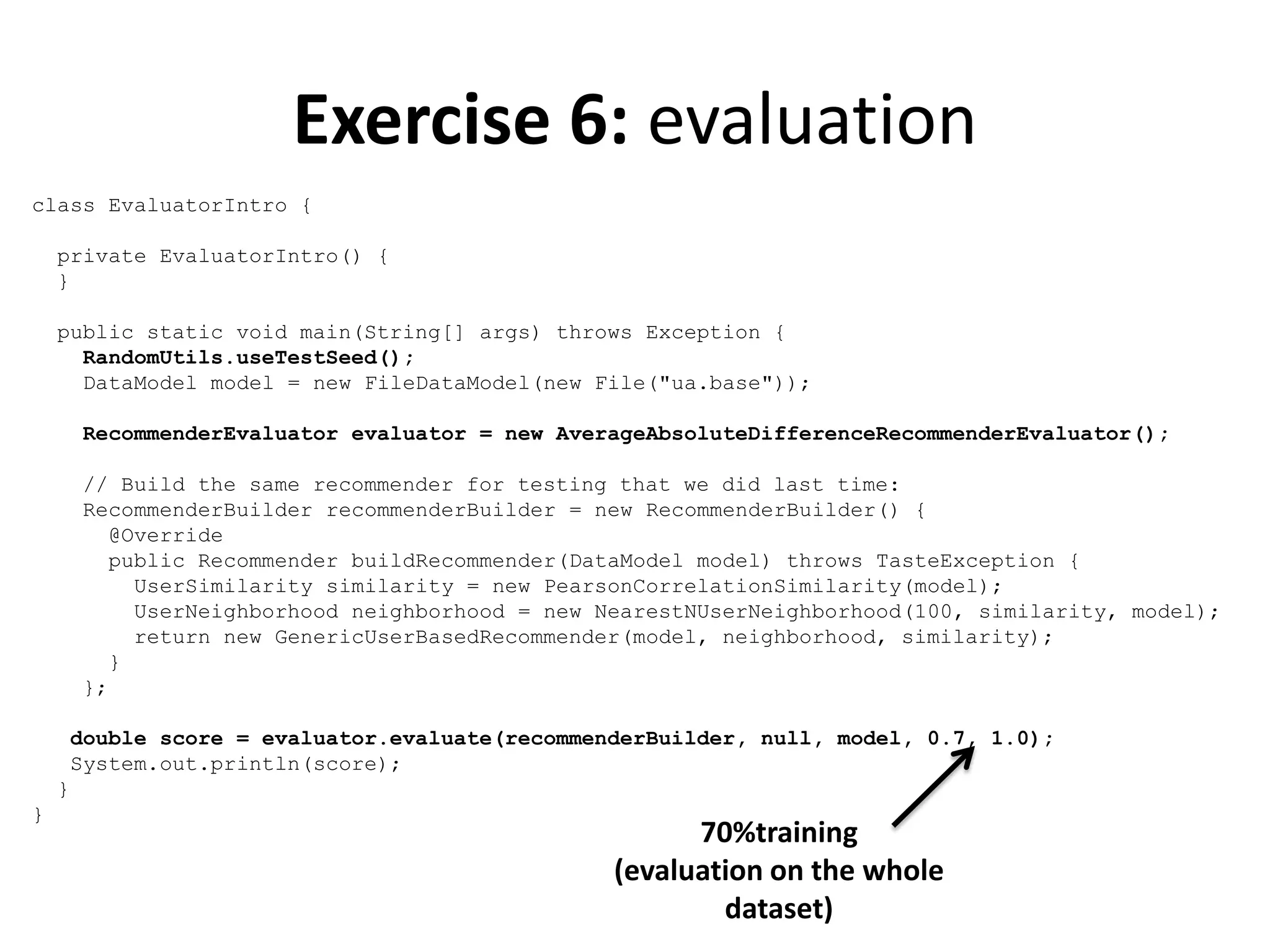

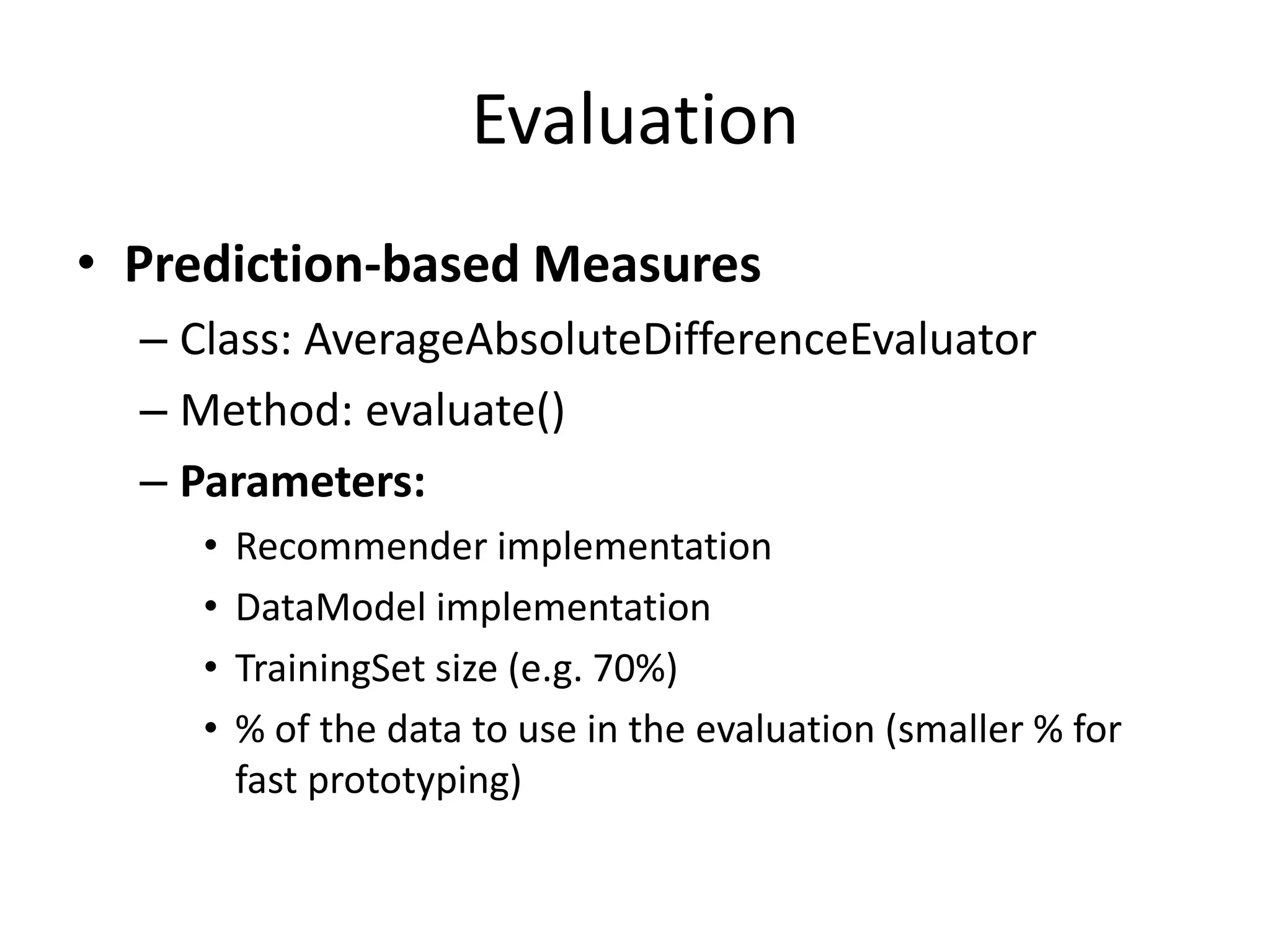

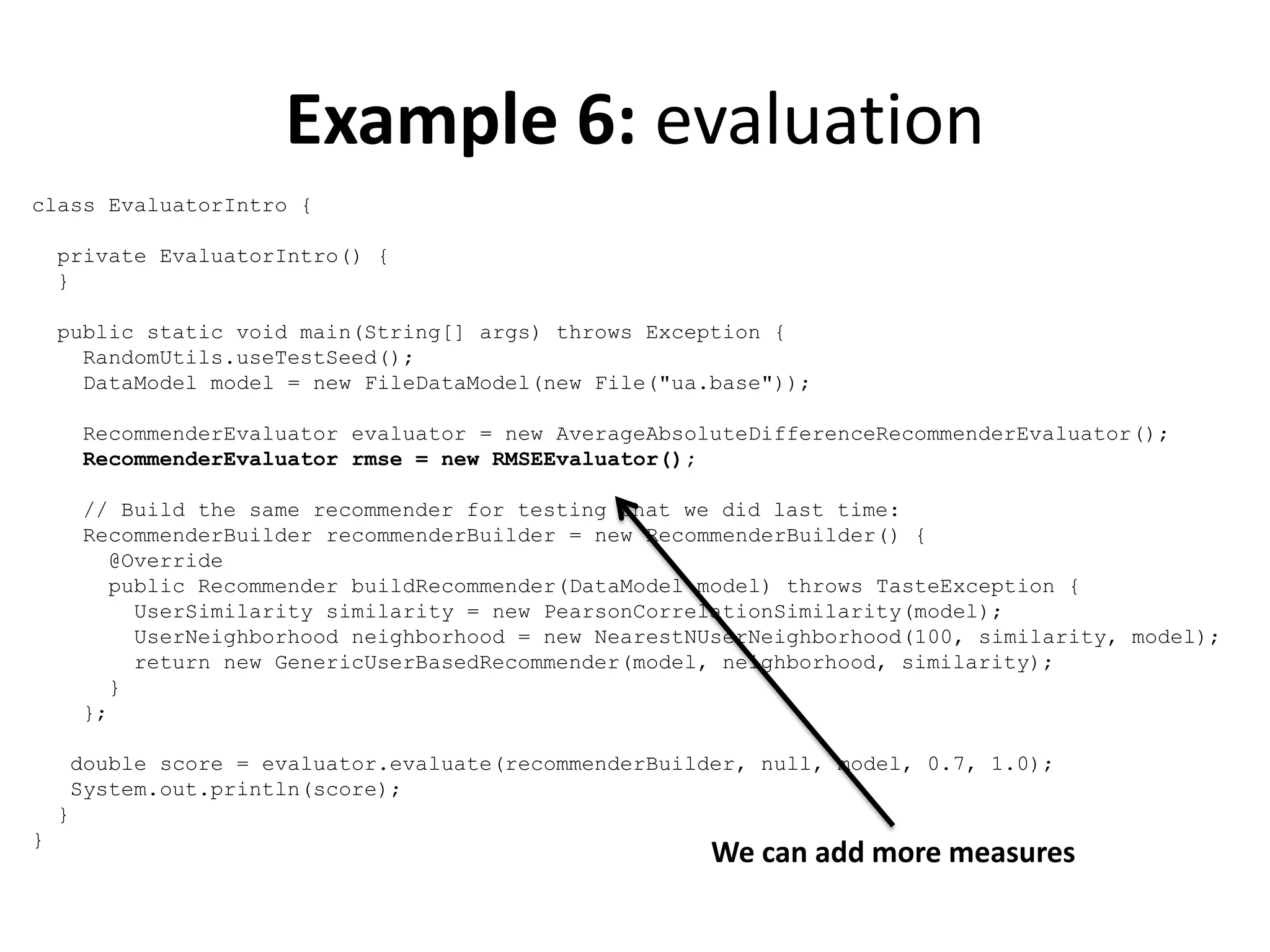

Evaluation
• Prediction-based Measures
– Class: AverageAbsoluteDifferenceEvaluator
– Method: evaluate()
– Parameters:
•
•
•
•

Recommender implementation
DataModel implementation
TrainingSet size (e.g. 70%)
% of the data to use in the evaluation (smaller % for
fast prototyping)

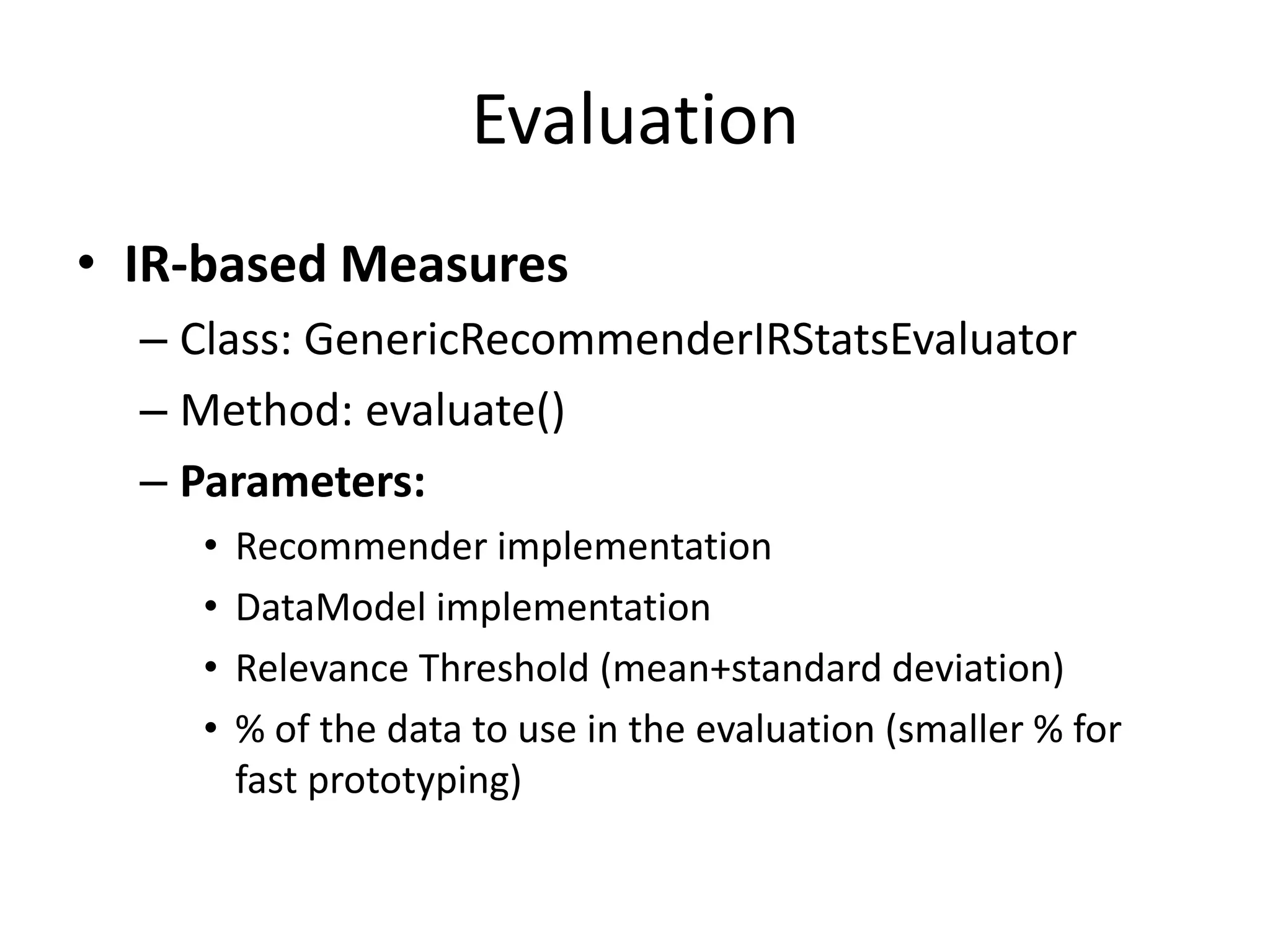

Evaluation

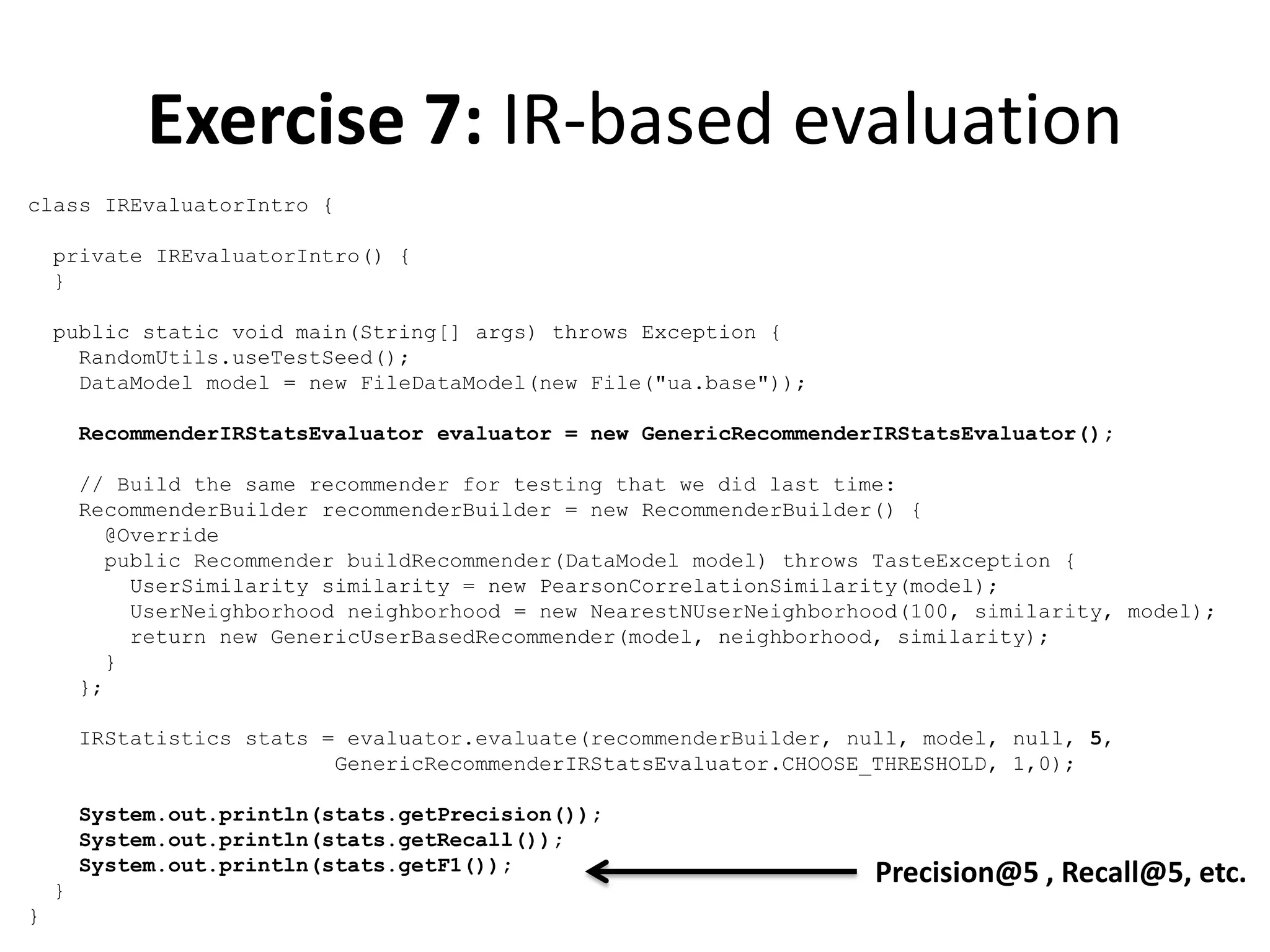

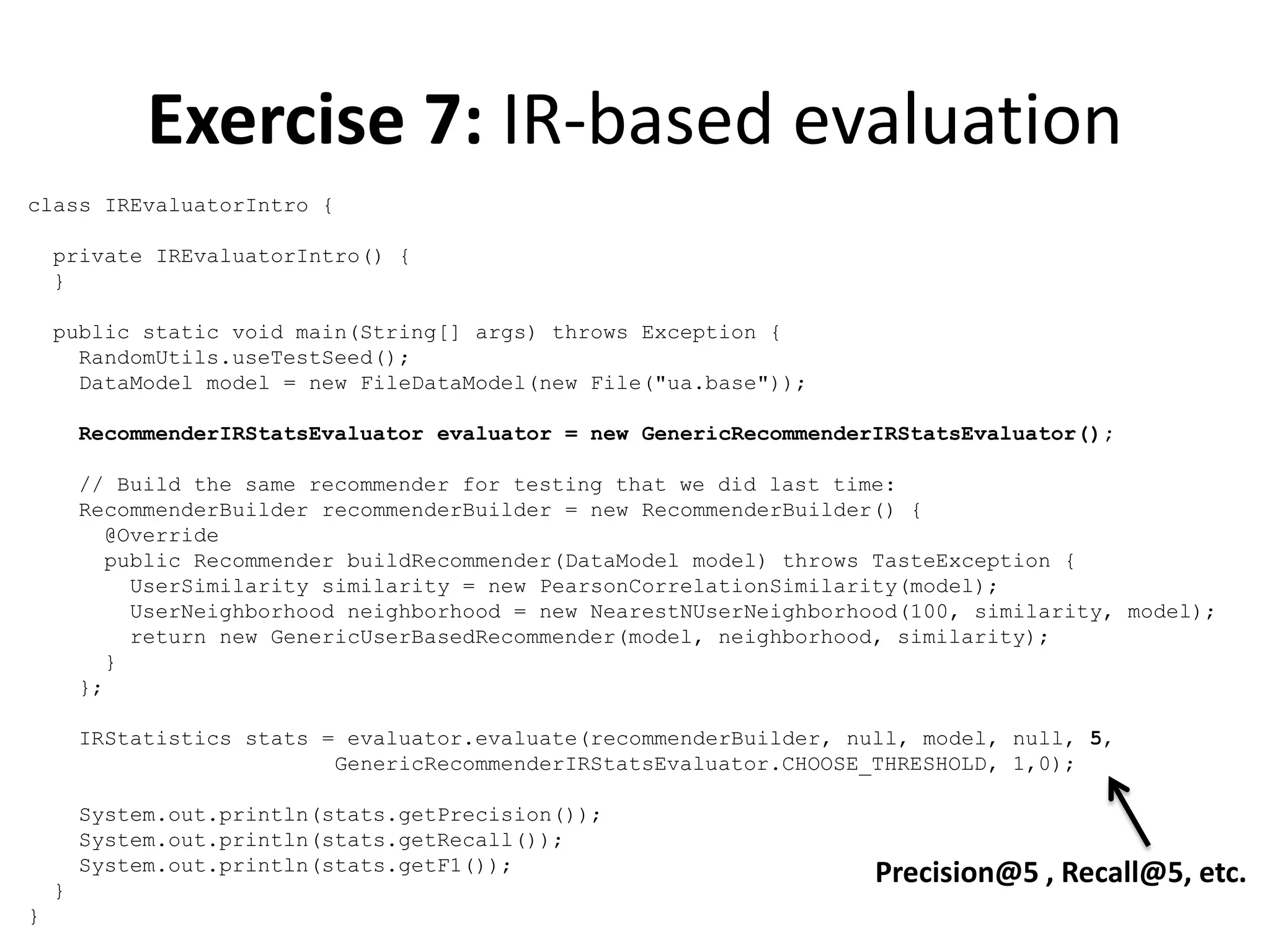

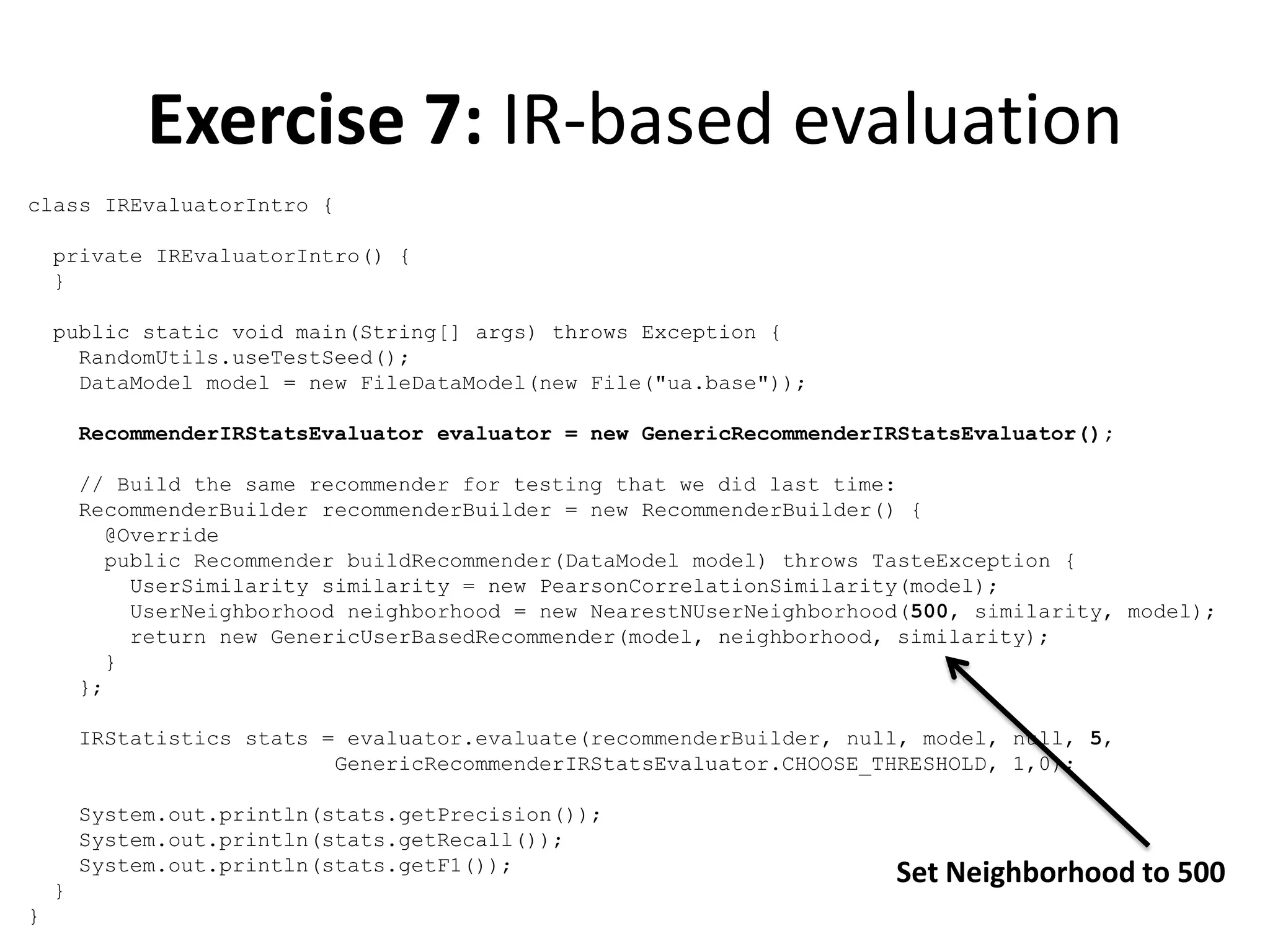

• IR-based Measures
– Class: GenericRecommenderIRStatsEvaluator
– Method: evaluate()
– Parameters:
•
•
•
•

Recommender implementation
DataModel implementation
Relevance Threshold (mean+standard deviation)
% of the data to use in the evaluation (smaller % for
fast prototyping)

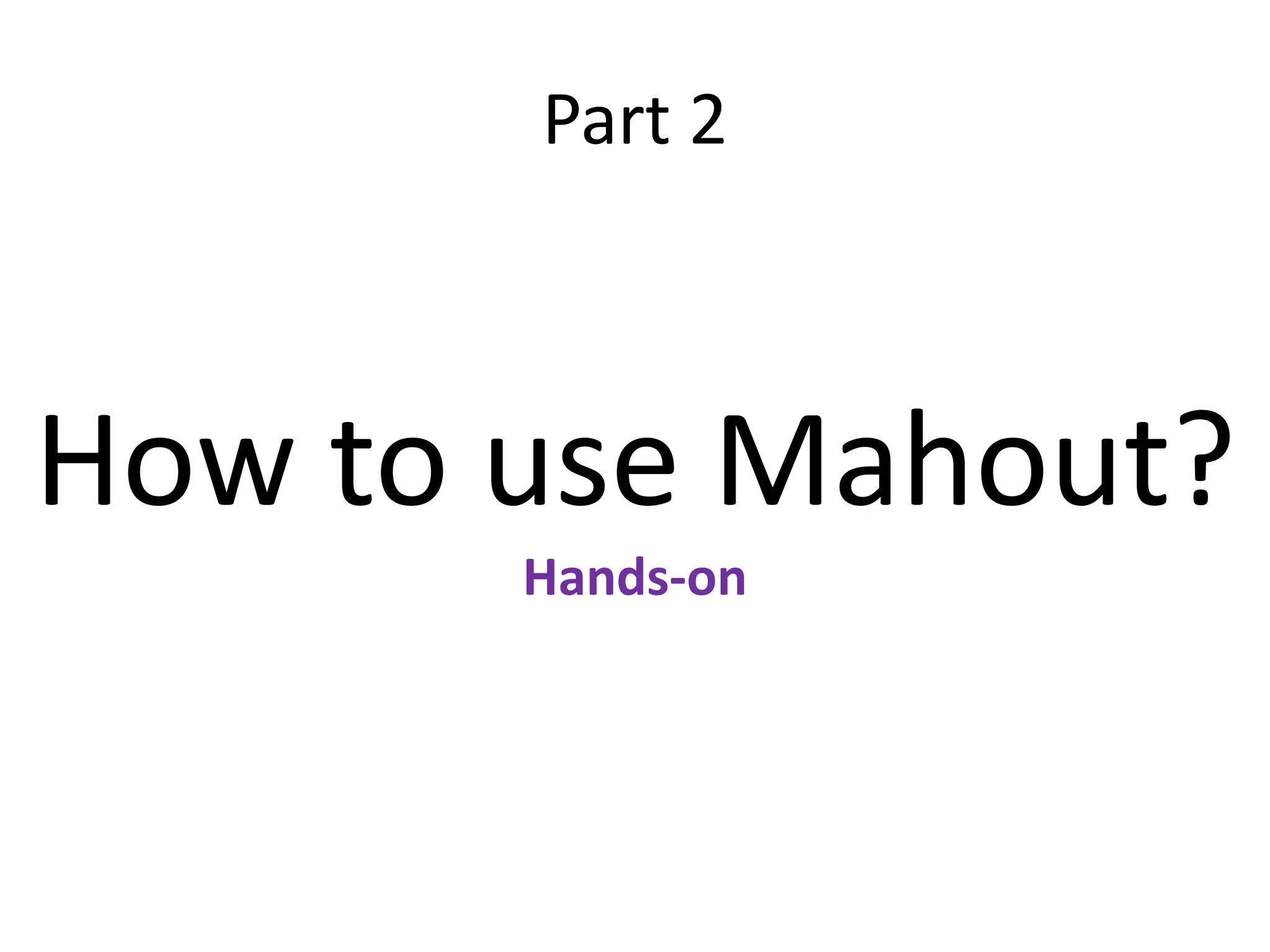

Part 2

How to use Mahout?
Hands-on

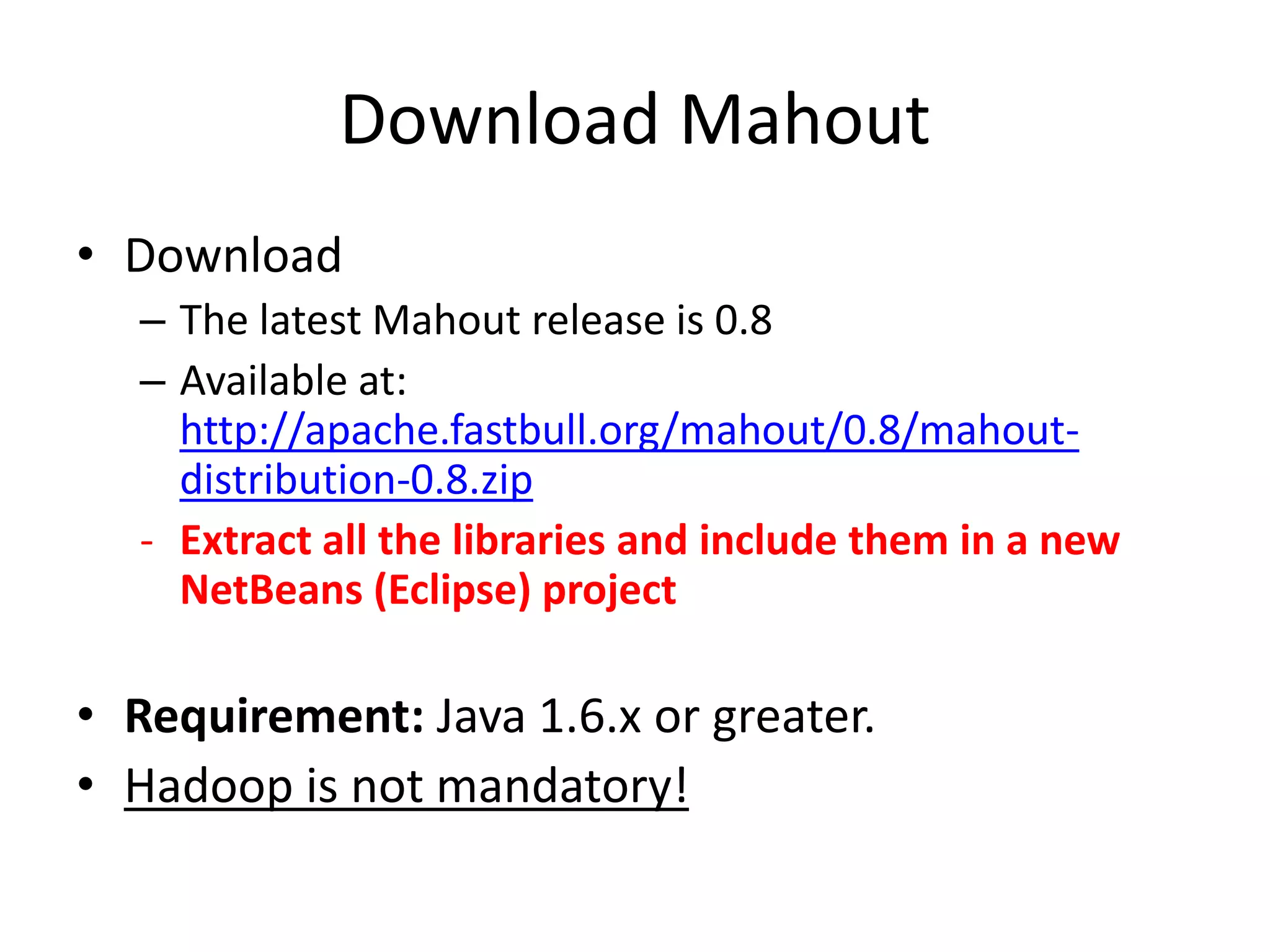

Download Mahout
• Download
– The latest Mahout release is 0.8
– Available at:
http://apache.fastbull.org/mahout/0.8/mahoutdistribution-0.8.zip
- Extract all the libraries and include them in a new
NetBeans (Eclipse) project

• Requirement: Java 1.6.x or greater.
• Hadoop is not mandatory!

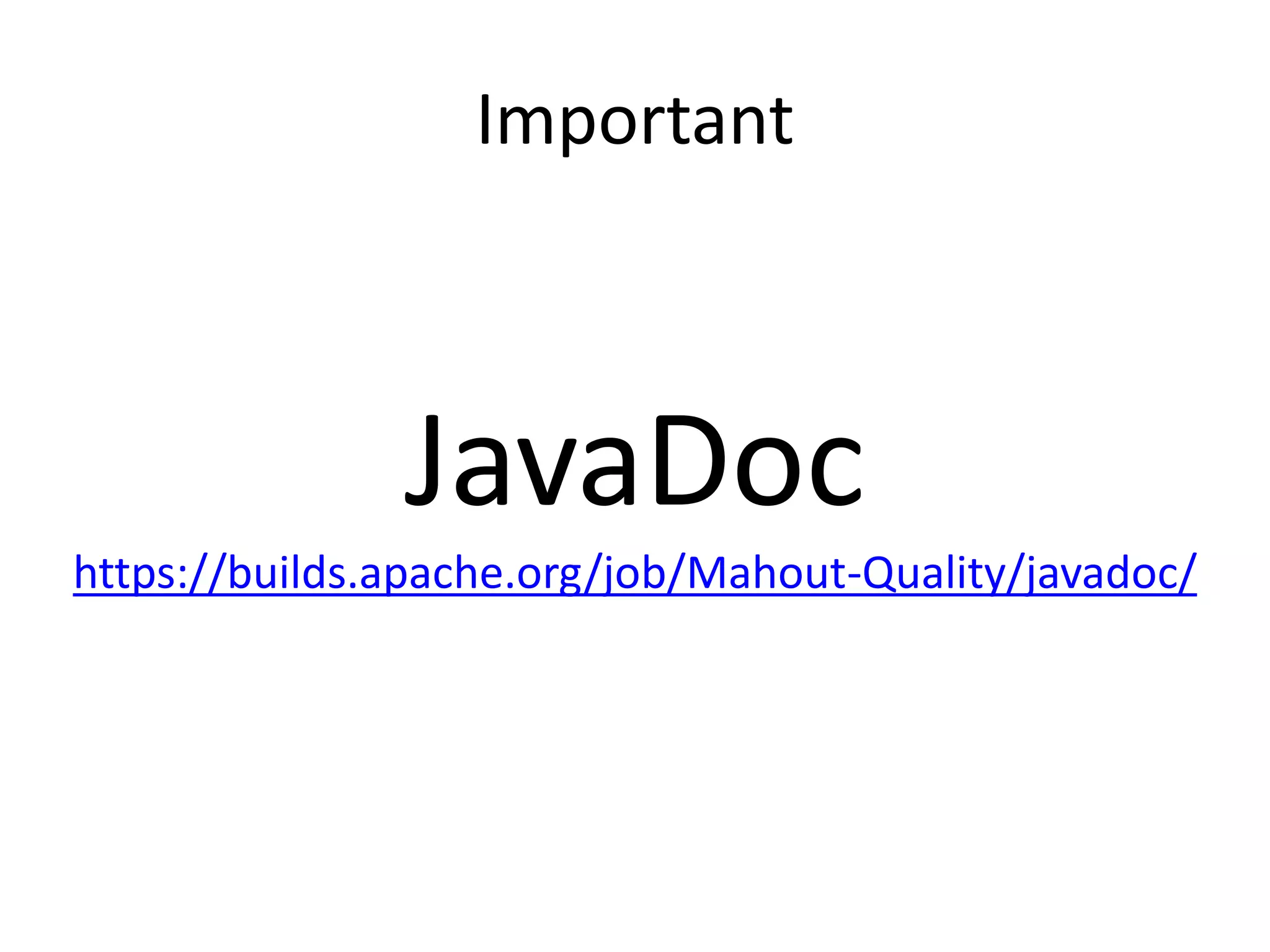

Important

JavaDoc
https://builds.apache.org/job/Mahout-Quality/javadoc/

Exercise 1
• Create a Preference object
• Set preferences through some simple Java call
• Print some statistics about preferences (how
many preferences, on which items the user
has expressed ratings, etc.)

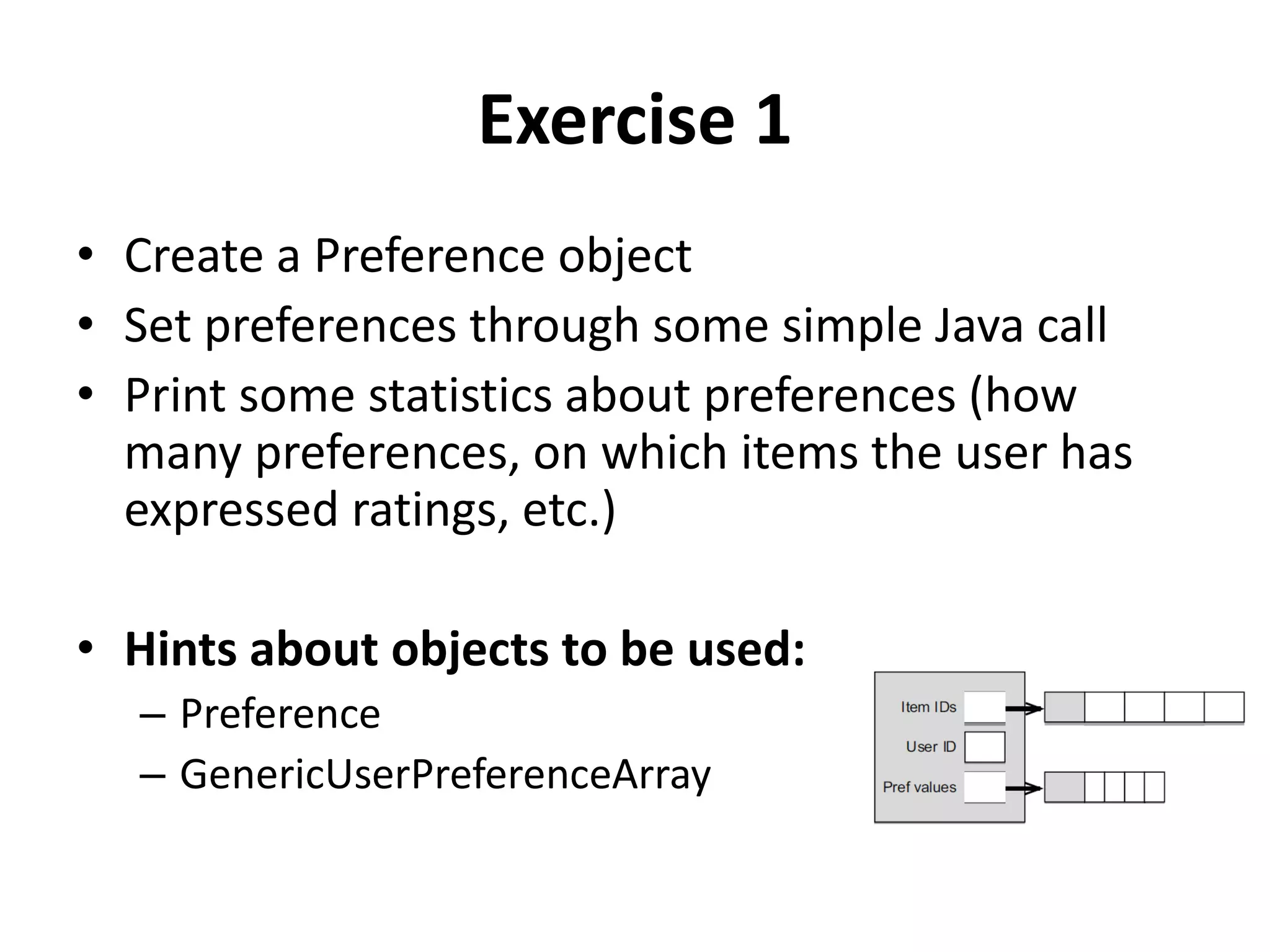

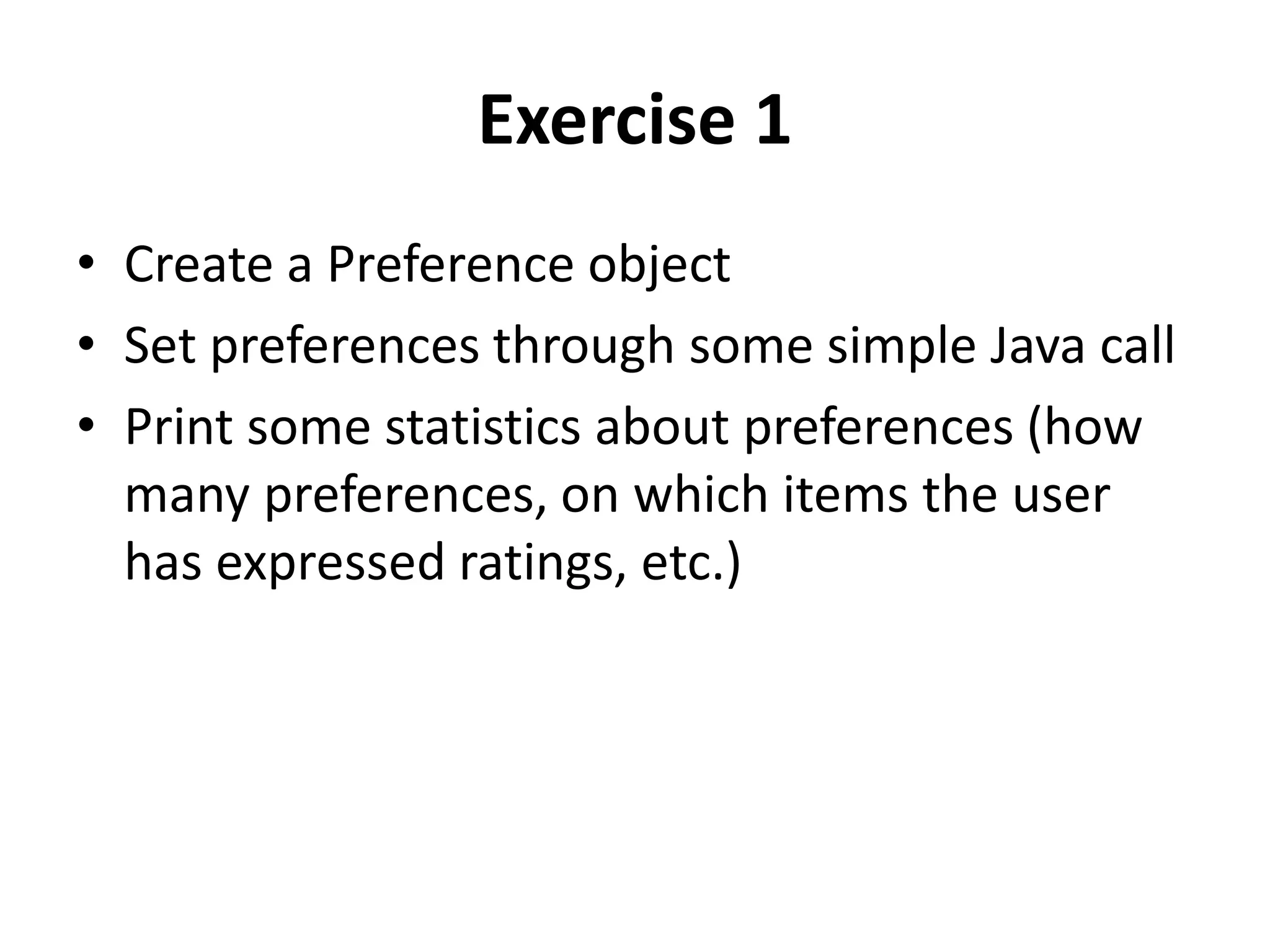

Exercise 1
• Create a Preference object
• Set preferences through some simple Java call
• Print some statistics about preferences (how
many preferences, on which items the user has
expressed ratings, etc.)
• Hints about objects to be used:
– Preference
– GenericUserPreferenceArray

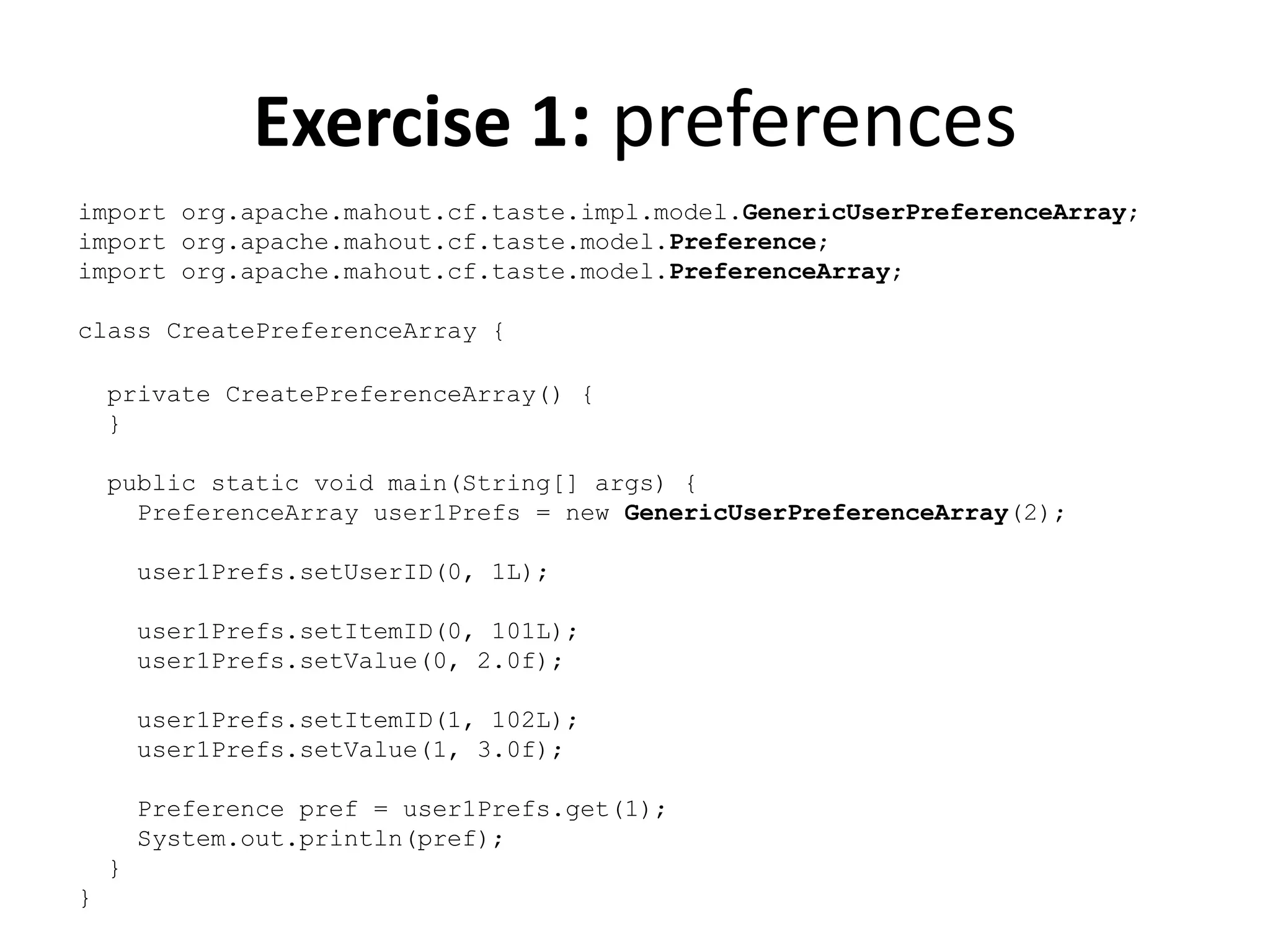

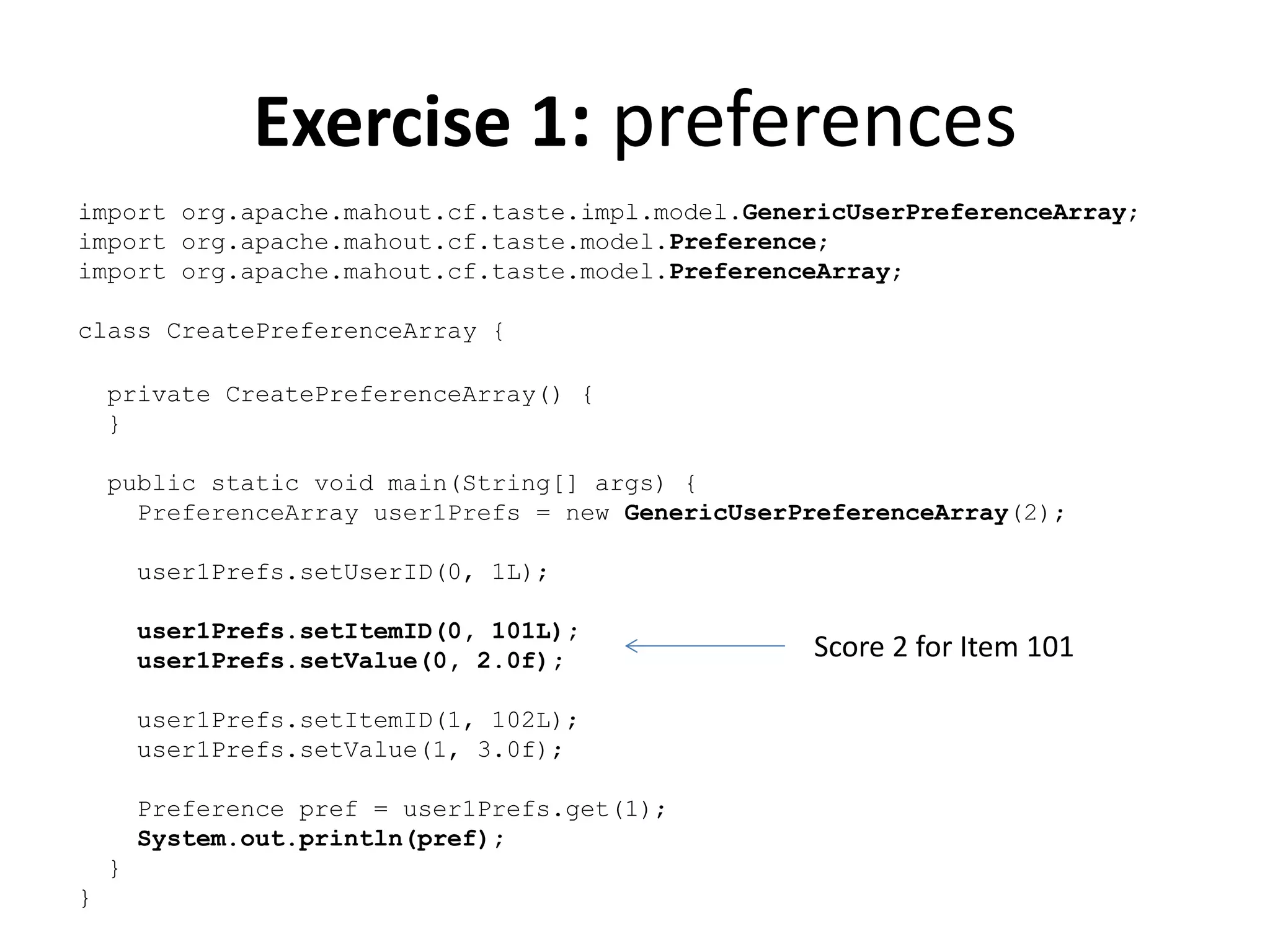

Exercise 1: preferences
import org.apache.mahout.cf.taste.impl.model.GenericUserPreferenceArray;
import org.apache.mahout.cf.taste.model.Preference;
import org.apache.mahout.cf.taste.model.PreferenceArray;
class CreatePreferenceArray {
private CreatePreferenceArray() {
}
public static void main(String[] args) {
PreferenceArray user1Prefs = new GenericUserPreferenceArray(2);

user1Prefs.setUserID(0, 1L);
user1Prefs.setItemID(0, 101L);
user1Prefs.setValue(0, 2.0f);
Preference pref = user1Prefs.get(1);
System.out.println(pref);
}
}

Exercise 1: preferences
import org.apache.mahout.cf.taste.impl.model.GenericUserPreferenceArray;
import org.apache.mahout.cf.taste.model.Preference;
import org.apache.mahout.cf.taste.model.PreferenceArray;
class CreatePreferenceArray {
private CreatePreferenceArray() {
}
PreferenceArray user1Prefs = new GenericUserPreferenceArray(2);

user1Prefs.setUserID(0, 1L);
Preference pref = user1Prefs.get(1);
System.out.println(pref);
}
}

Score 2 for Item 101

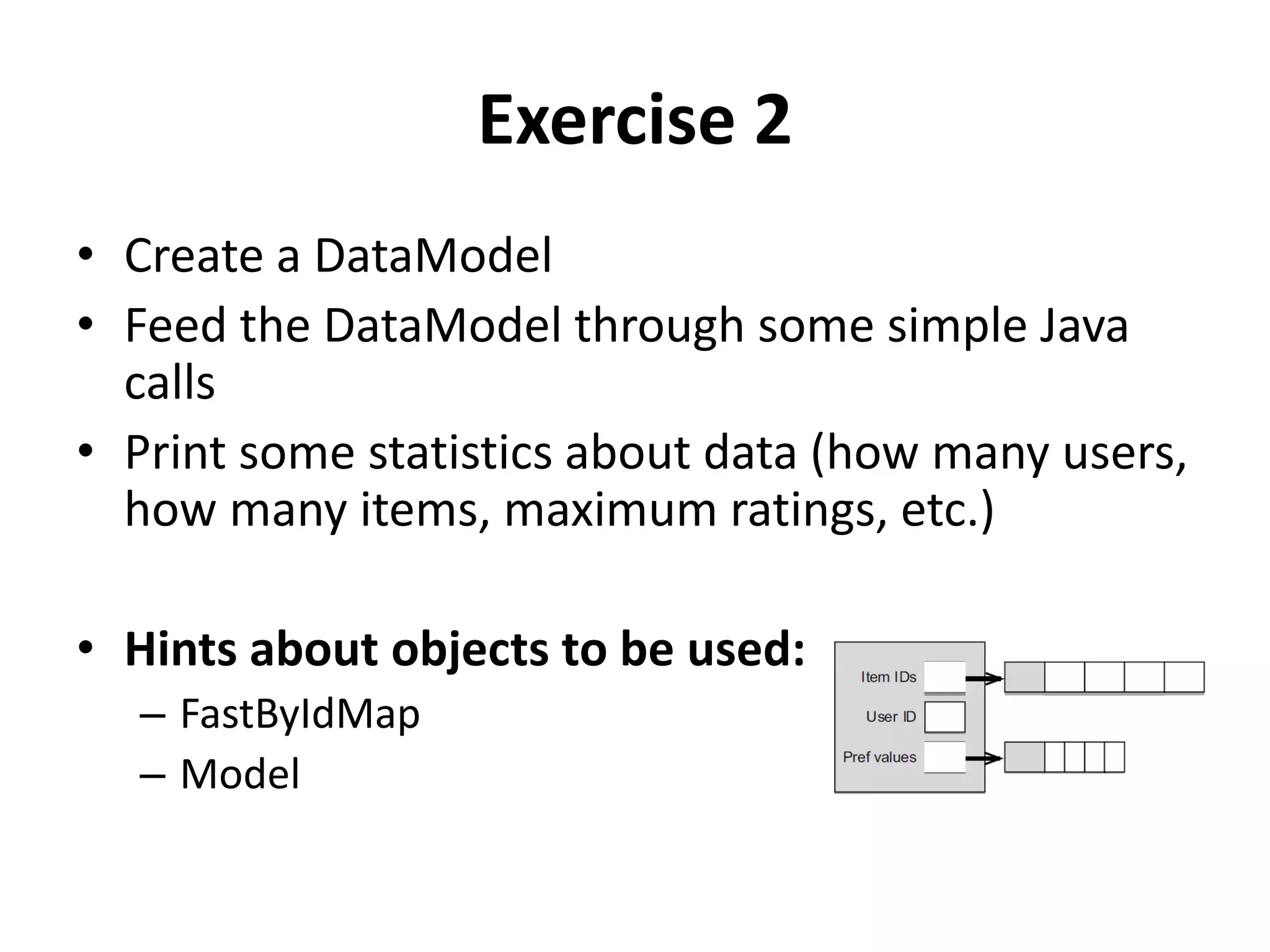

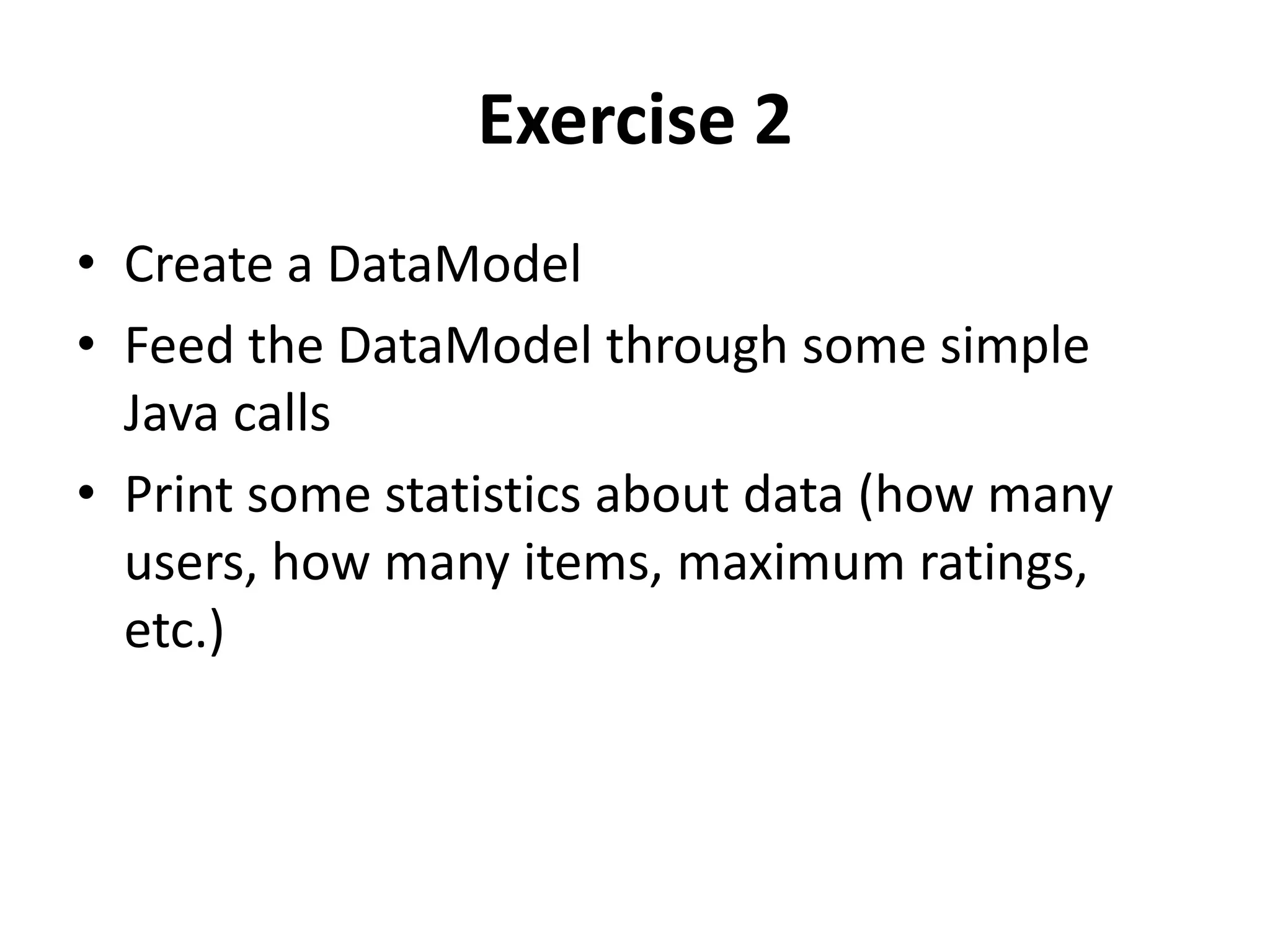

Exercise 2
• Create a DataModel
• Feed the DataModel through some simple
Java calls
• Print some statistics about data (how many
users, how many items, maximum ratings,
etc.)

Exercise 2
• Feed the DataModel through some simple Java
calls
• Print some statistics about data (how many users,
how many items, maximum ratings, etc.)
– FastByIdMap
– Model

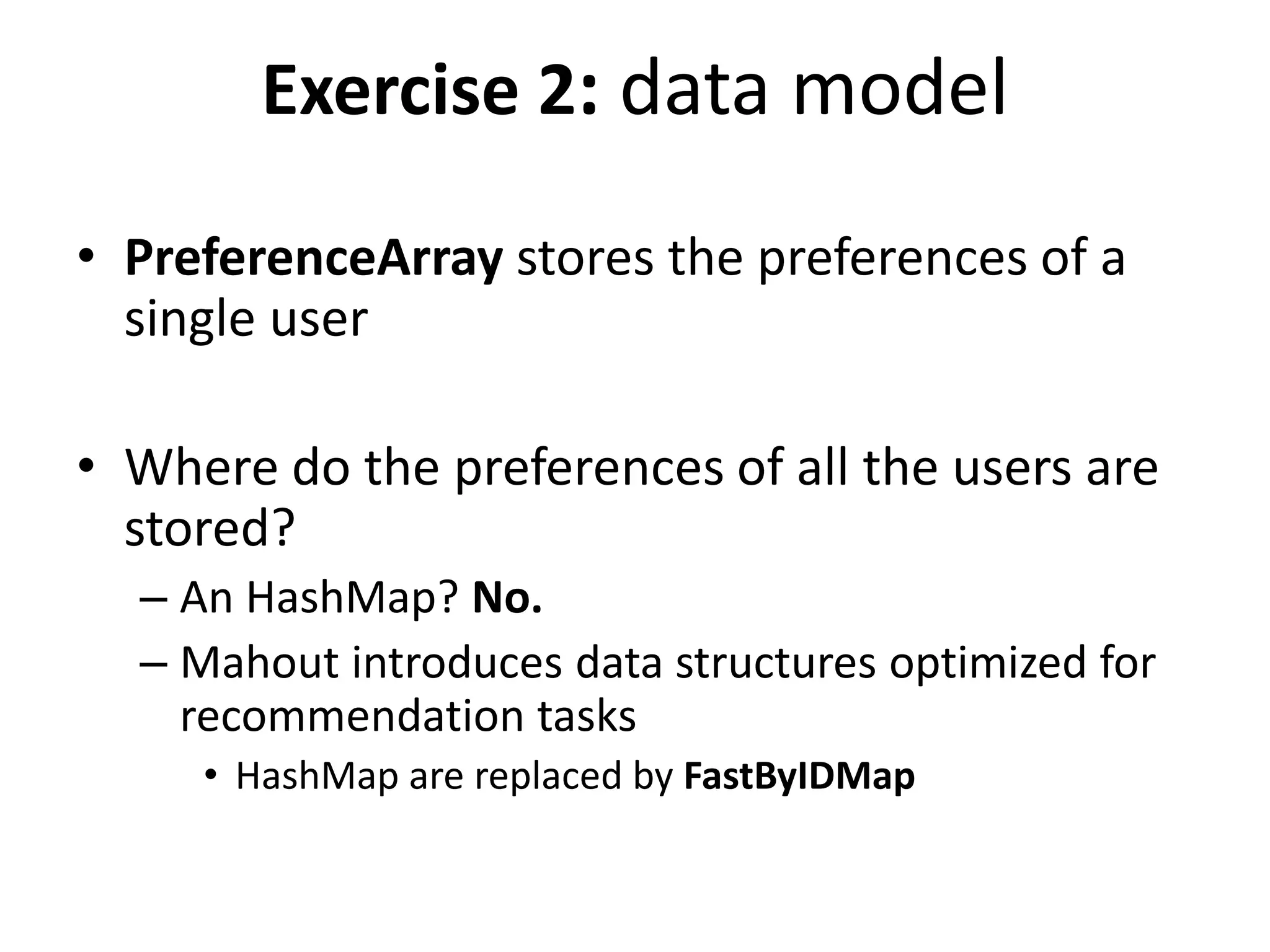

Exercise 2: data model
• PreferenceArray stores the preferences of a
single user
• Where do the preferences of all the users are
stored?
– An HashMap? No.
– Mahout introduces data structures optimized for
recommendation tasks
• HashMap are replaced by FastByIDMap

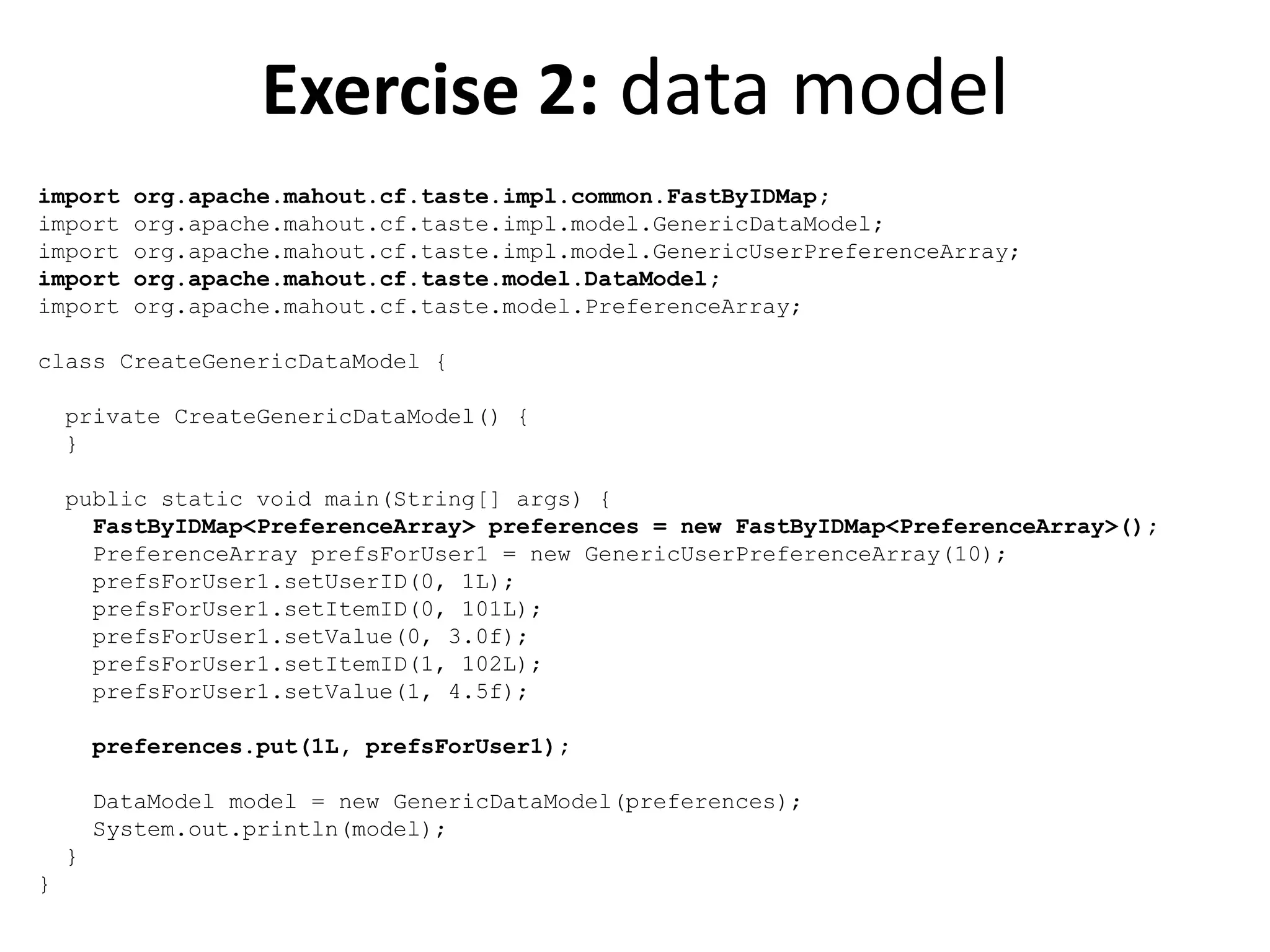

Exercise 2: data model
import
import
import
import
import

org.apache.mahout.cf.taste.impl.common.FastByIDMap;
org.apache.mahout.cf.taste.impl.model.GenericDataModel;
org.apache.mahout.cf.taste.impl.model.GenericUserPreferenceArray;
org.apache.mahout.cf.taste.model.DataModel;
org.apache.mahout.cf.taste.model.PreferenceArray;

class CreateGenericDataModel {
private CreateGenericDataModel() {
}

FastByIDMap<PreferenceArray> preferences = new FastByIDMap<PreferenceArray>();
PreferenceArray prefsForUser1 = new GenericUserPreferenceArray(10);
prefsForUser1.setUserID(0, 1L);
prefsForUser1.setItemID(0, 101L);
prefsForUser1.setValue(0, 3.0f);
prefsForUser1.setItemID(1, 102L);
prefsForUser1.setValue(1, 4.5f);
preferences.put(1L, prefsForUser1);
DataModel model = new GenericDataModel(preferences);
System.out.println(model);
}
}

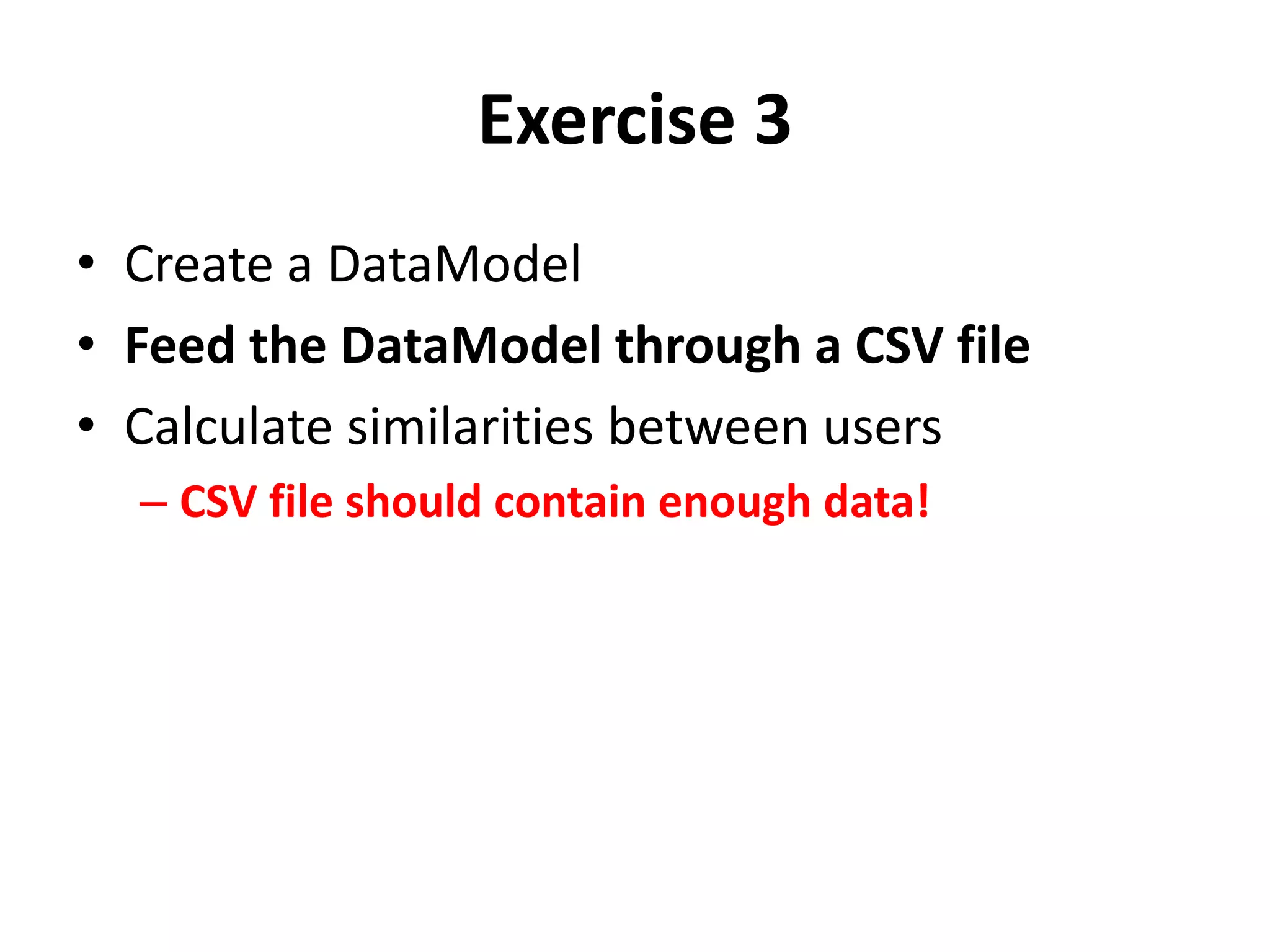

Exercise 3
• Feed the DataModel through a CSV file
• Calculate similarities between users
– CSV file should contain enough data!

Exercise 3

– FileDataModel
– PearsonCorrelationSimilarity,
TanimotoCoefficientSimilarity, etc.

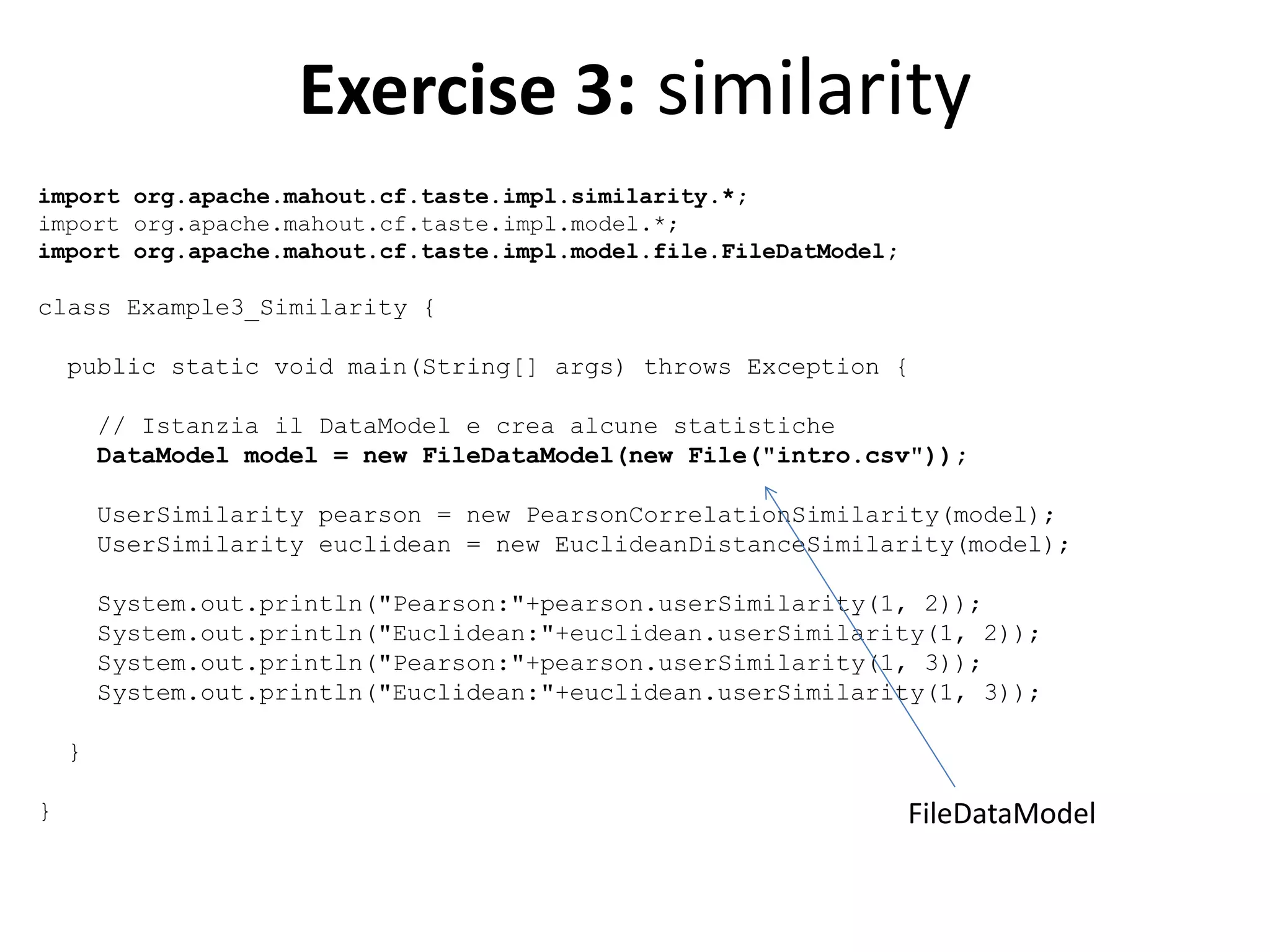

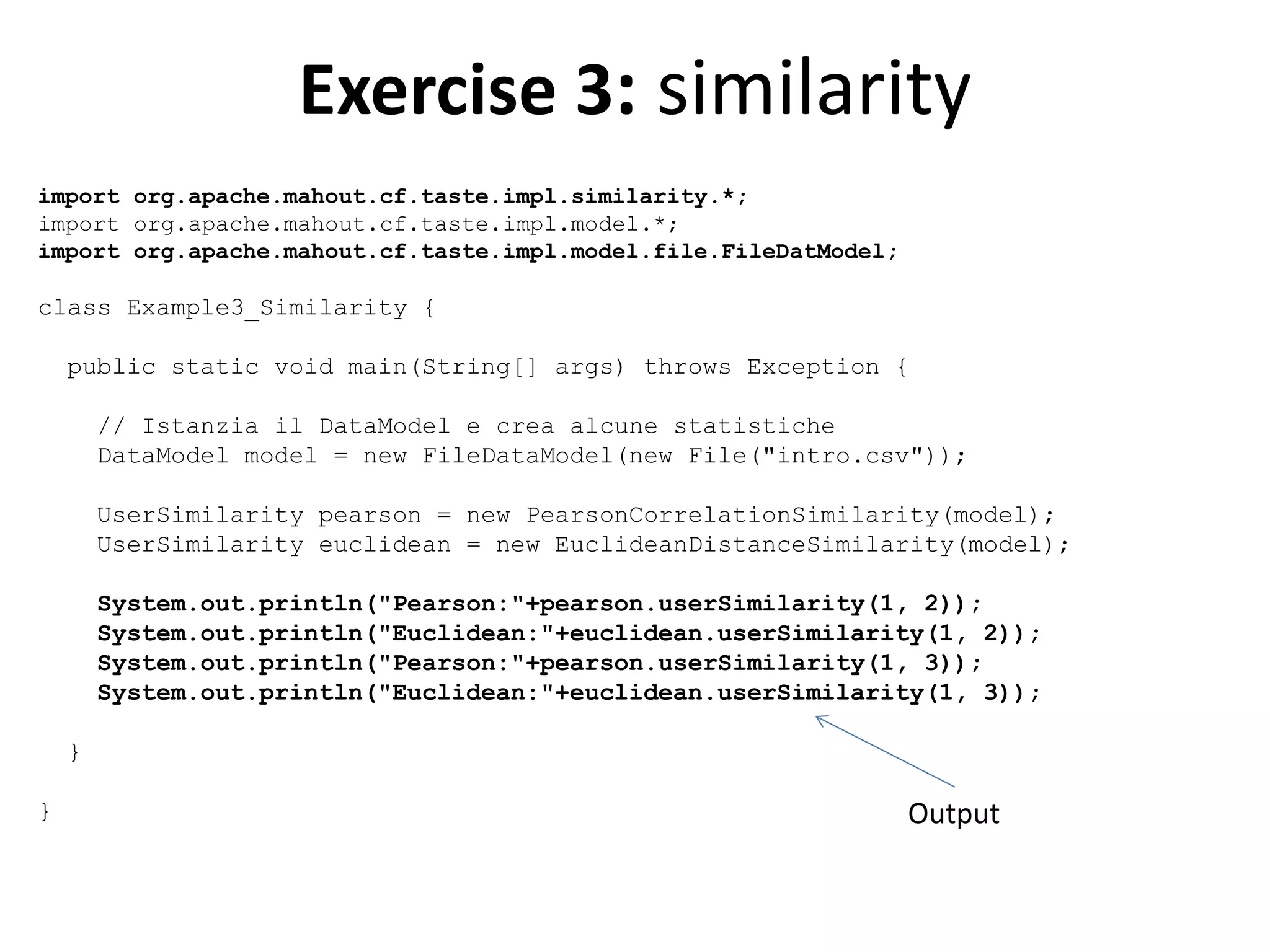

Exercise 3: similarity
import org.apache.mahout.cf.taste.impl.similarity.*;
import org.apache.mahout.cf.taste.impl.model.*;
import org.apache.mahout.cf.taste.impl.model.file.FileDatModel;

class Example3_Similarity {
public static void main(String[] args) throws Exception {
// Istanzia il DataModel e crea alcune statistiche
DataModel model = new FileDataModel(new File("intro.csv"));
UserSimilarity pearson = new PearsonCorrelationSimilarity(model);
UserSimilarity euclidean = new EuclideanDistanceSimilarity(model);
System.out.println("Pearson:"+pearson.userSimilarity(1, 2));
System.out.println("Euclidean:"+euclidean.userSimilarity(1, 2));
}
}


}
}

FileDataModel


}
}

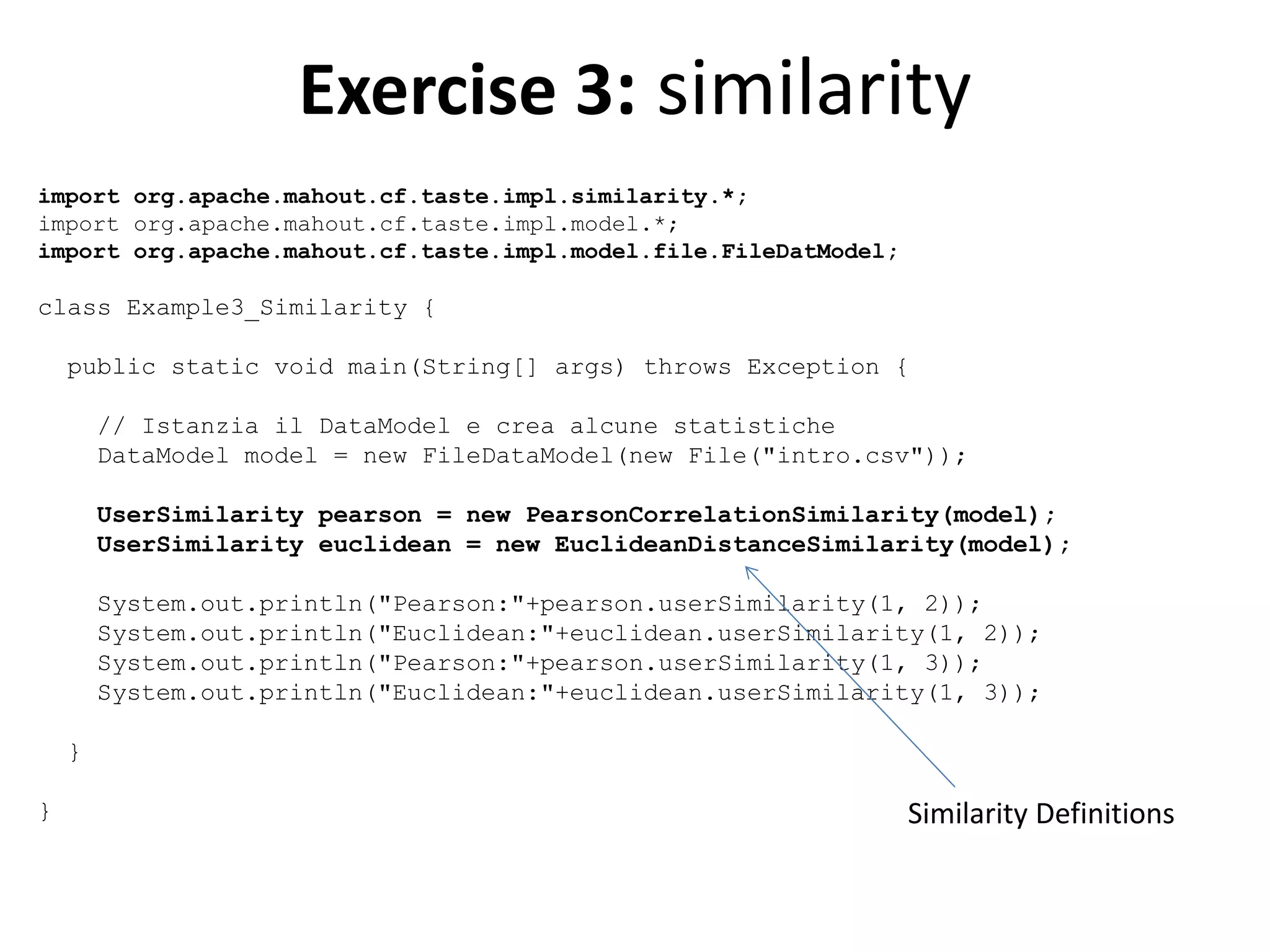

Similarity Definitions


}
}

Output

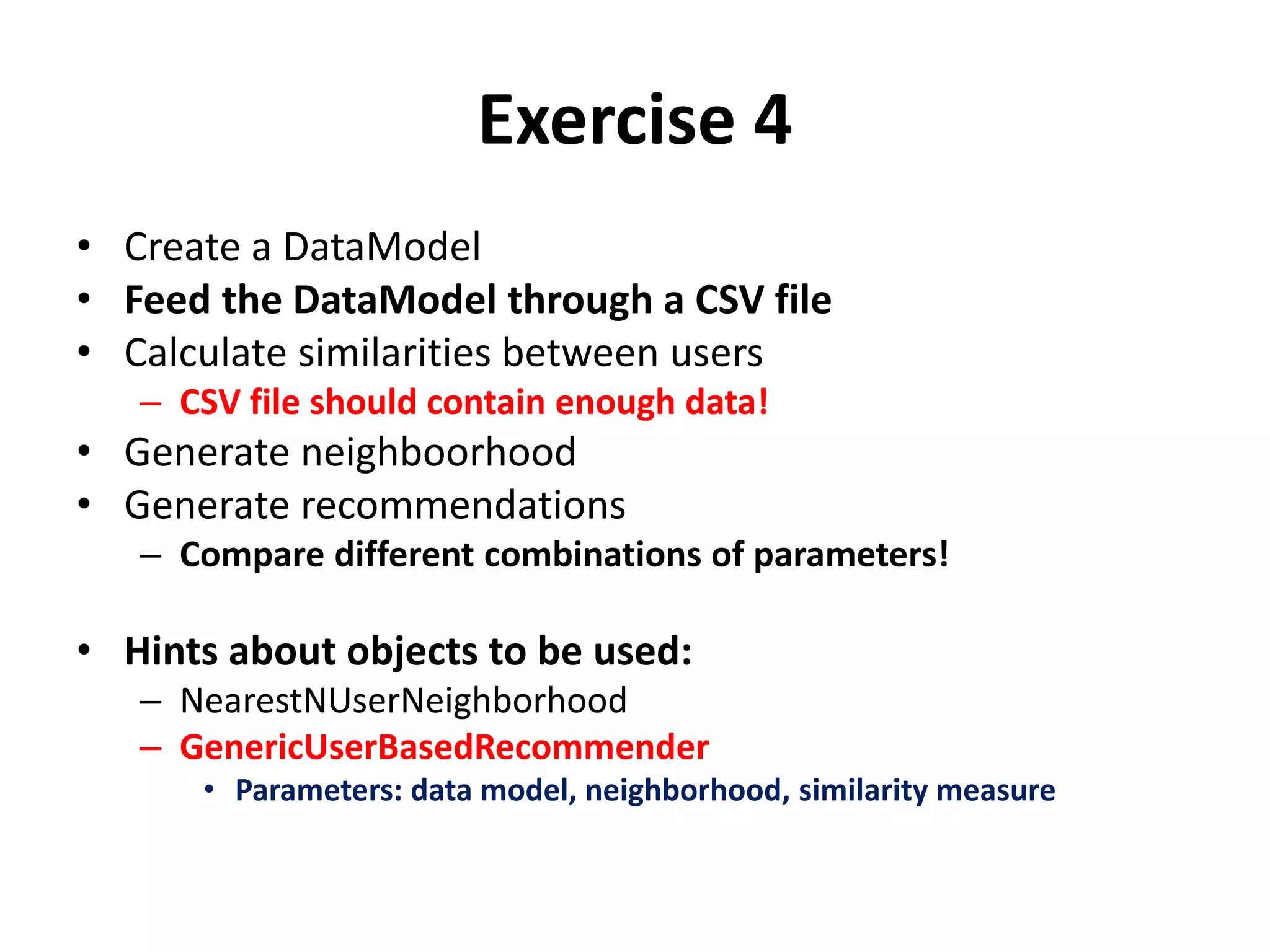

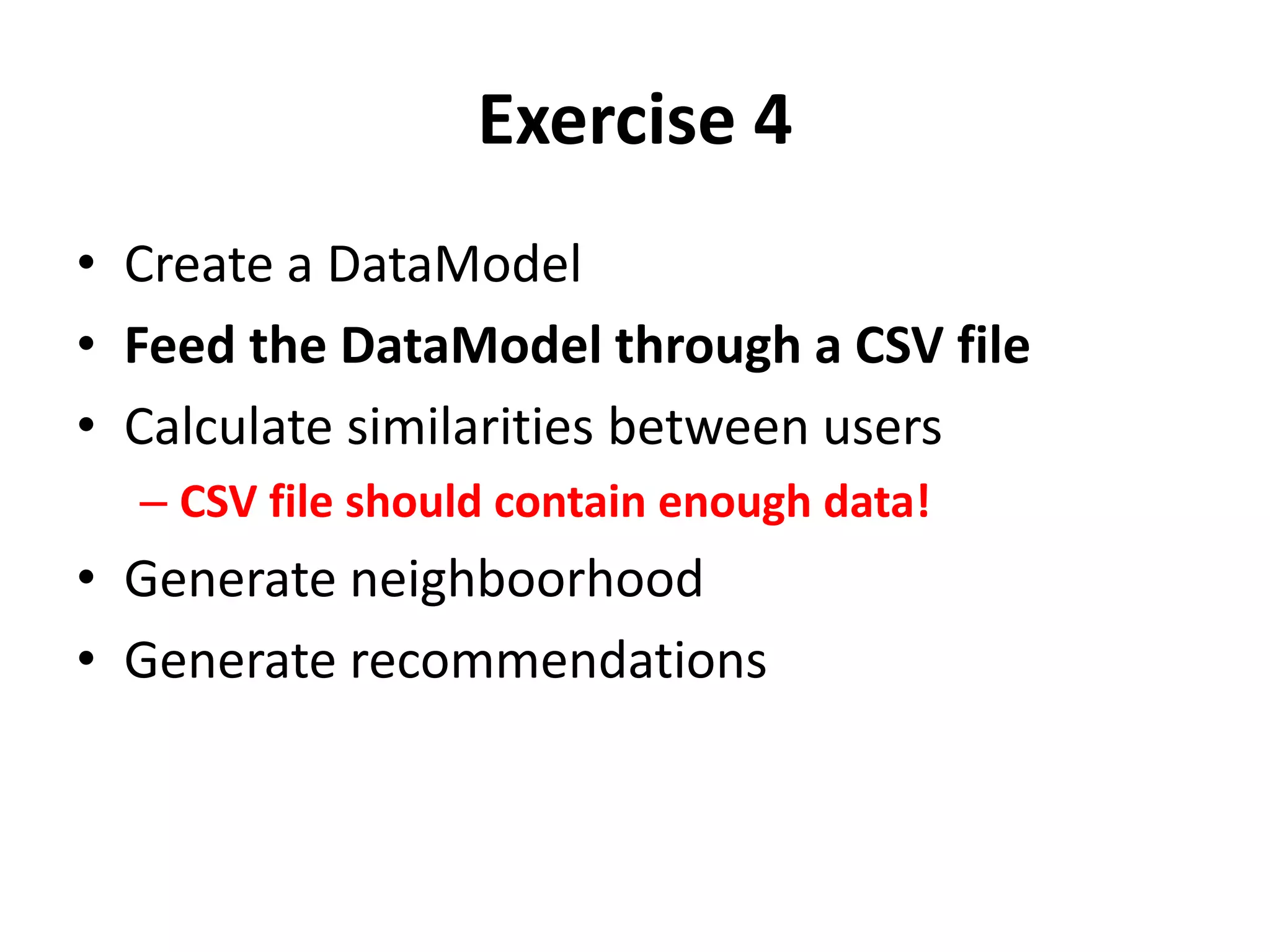

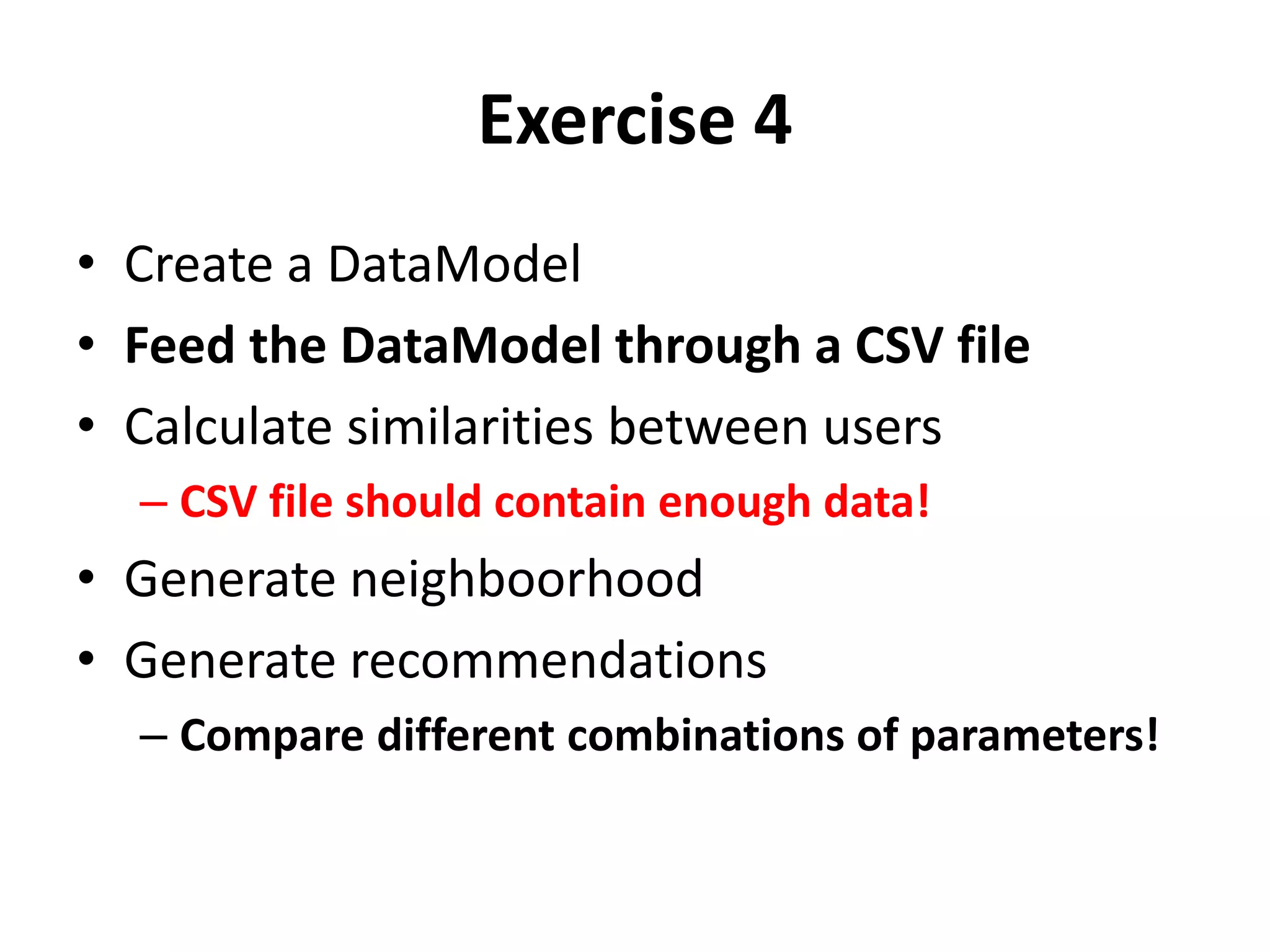

Exercise 4

• Generate neighboorhood
• Generate recommendations

Exercise 4

– Compare different combinations of parameters!

Exercise 4

– Compare different combinations of parameters!

– NearestNUserNeighborhood
– GenericUserBasedRecommender
• Parameters: data model, neighborhood, similarity measure

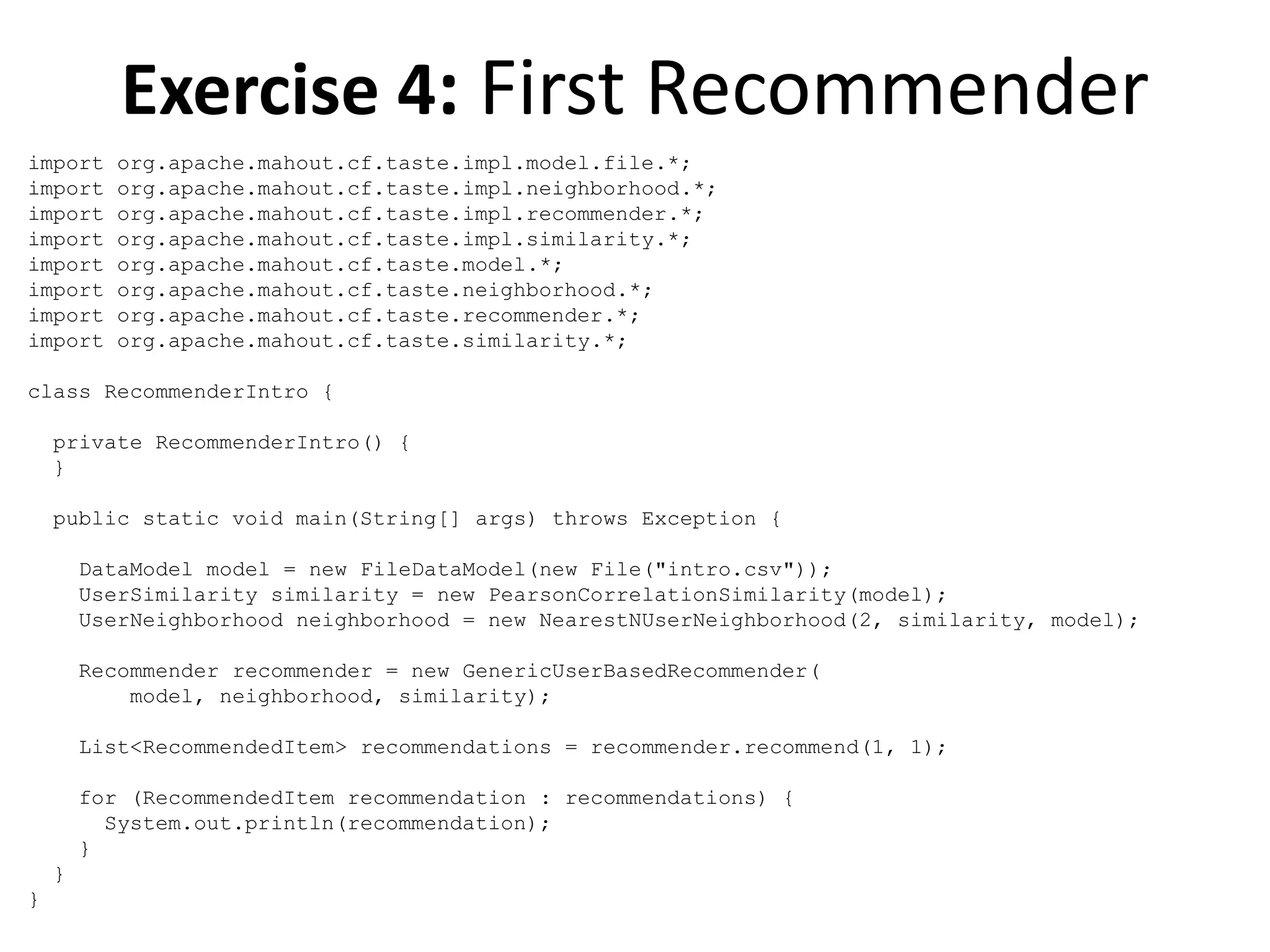

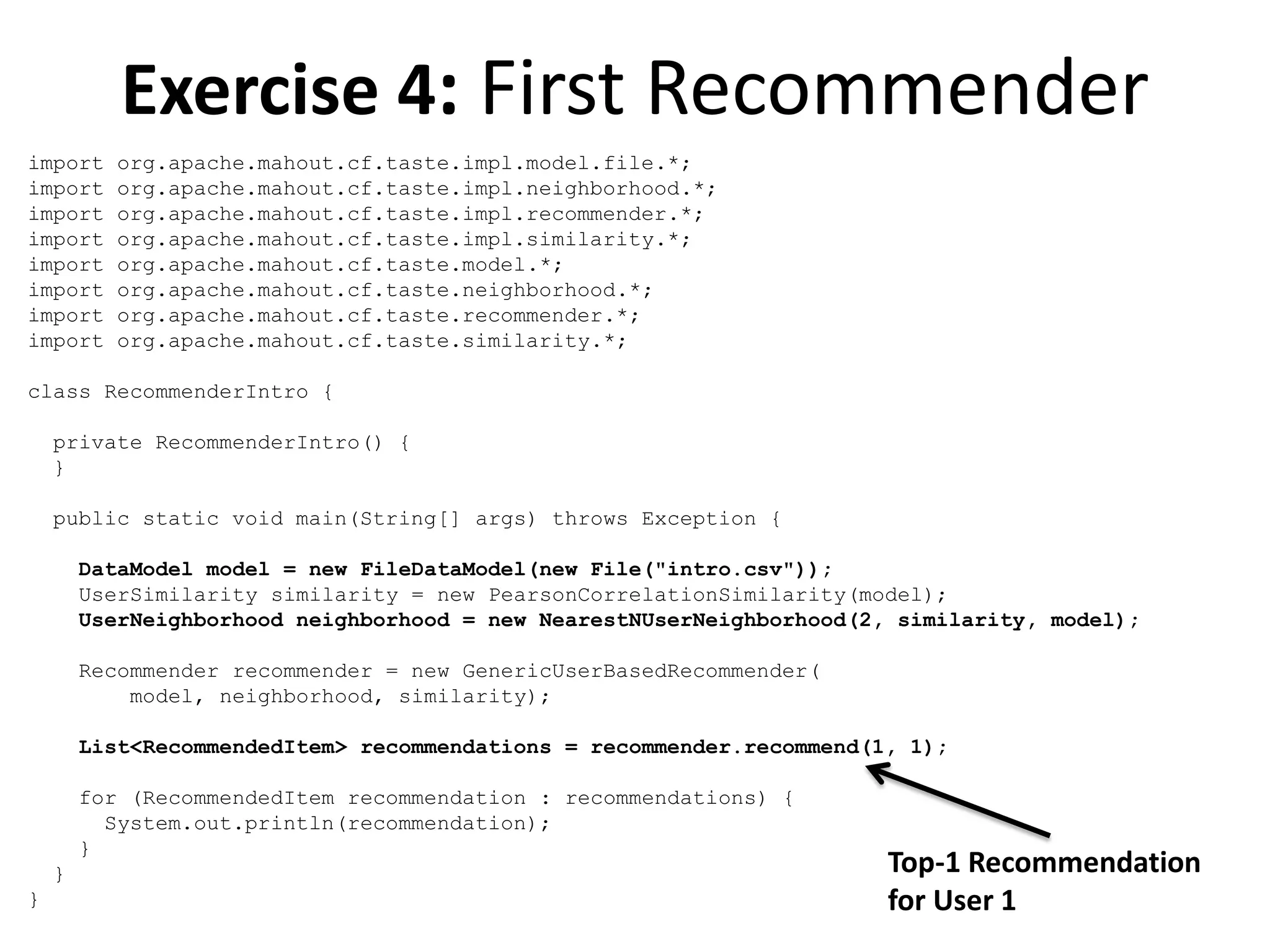

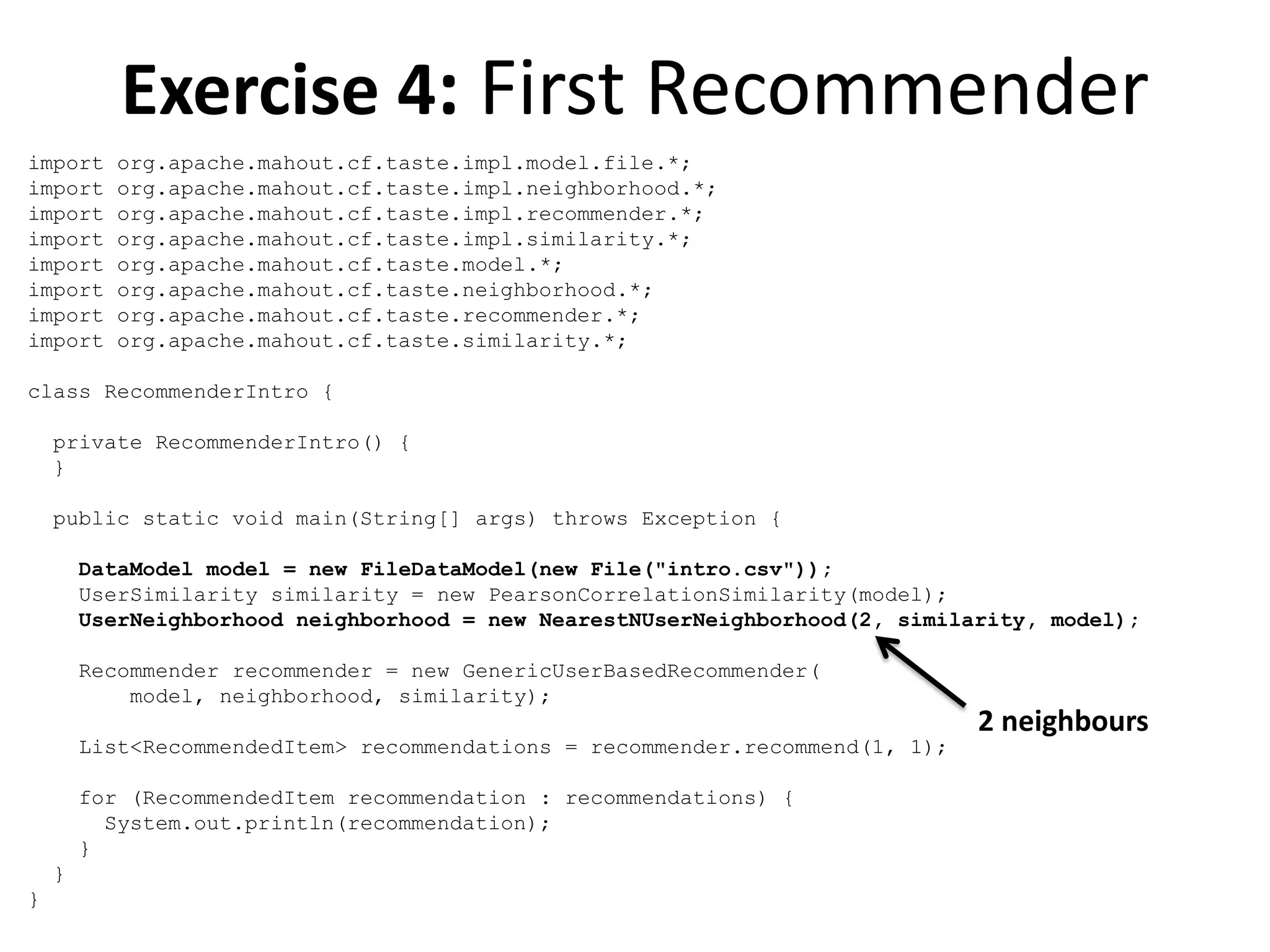

Exercise 4: First Recommender
import
import
import
import
import
import
import
import

org.apache.mahout.cf.taste.impl.model.file.*;
org.apache.mahout.cf.taste.impl.neighborhood.*;
org.apache.mahout.cf.taste.impl.recommender.*;
org.apache.mahout.cf.taste.impl.similarity.*;
org.apache.mahout.cf.taste.model.*;
org.apache.mahout.cf.taste.neighborhood.*;
org.apache.mahout.cf.taste.recommender.*;
org.apache.mahout.cf.taste.similarity.*;

class RecommenderIntro {
private RecommenderIntro() {
}
UserSimilarity similarity = new PearsonCorrelationSimilarity(model);
UserNeighborhood neighborhood = new NearestNUserNeighborhood(2, similarity, model);
Recommender recommender = new GenericUserBasedRecommender(
model, neighborhood, similarity);
List<RecommendedItem> recommendations = recommender.recommend(1, 1);
for (RecommendedItem recommendation : recommendations) {
System.out.println(recommendation);
}
}
}

import
import
import
import
import
import
import
import


}

FileDataModel
}
}
}

import
import
import
import
import
import
import
import


}
}
}
}

2 neighbours

import
import
import
import
import
import
import
import


}
}
}
}

Top-1 Recommendation
for User 1

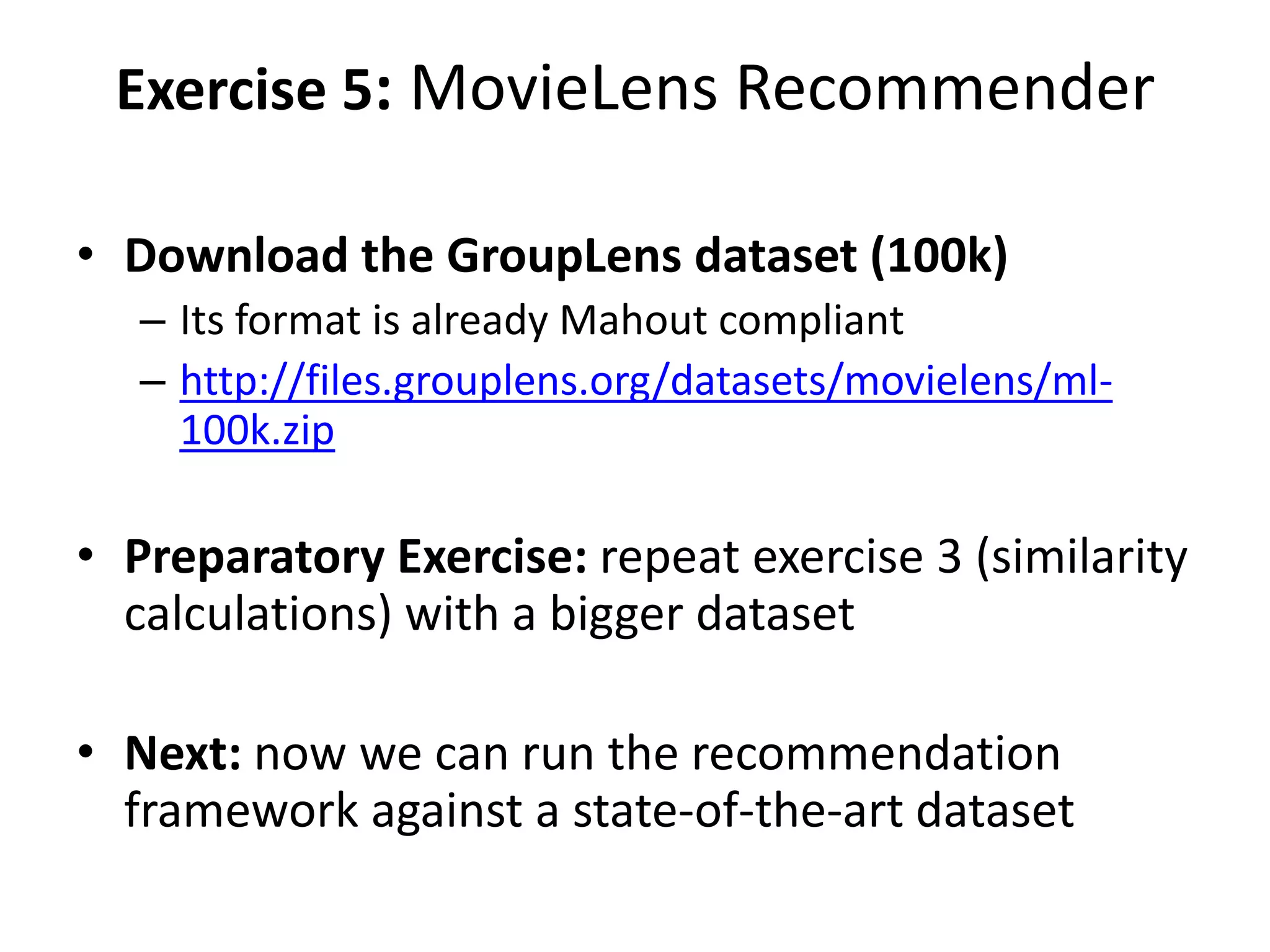

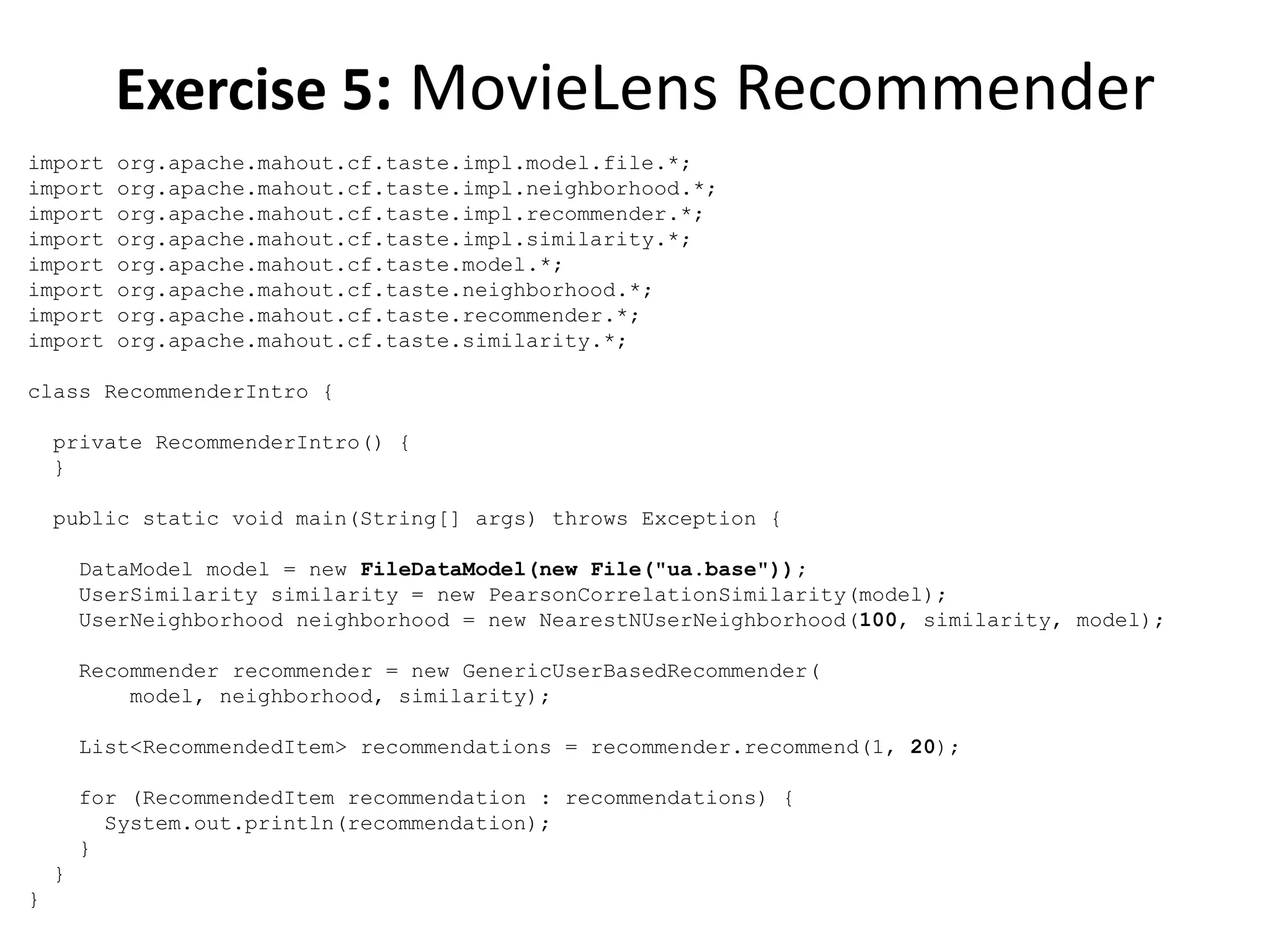

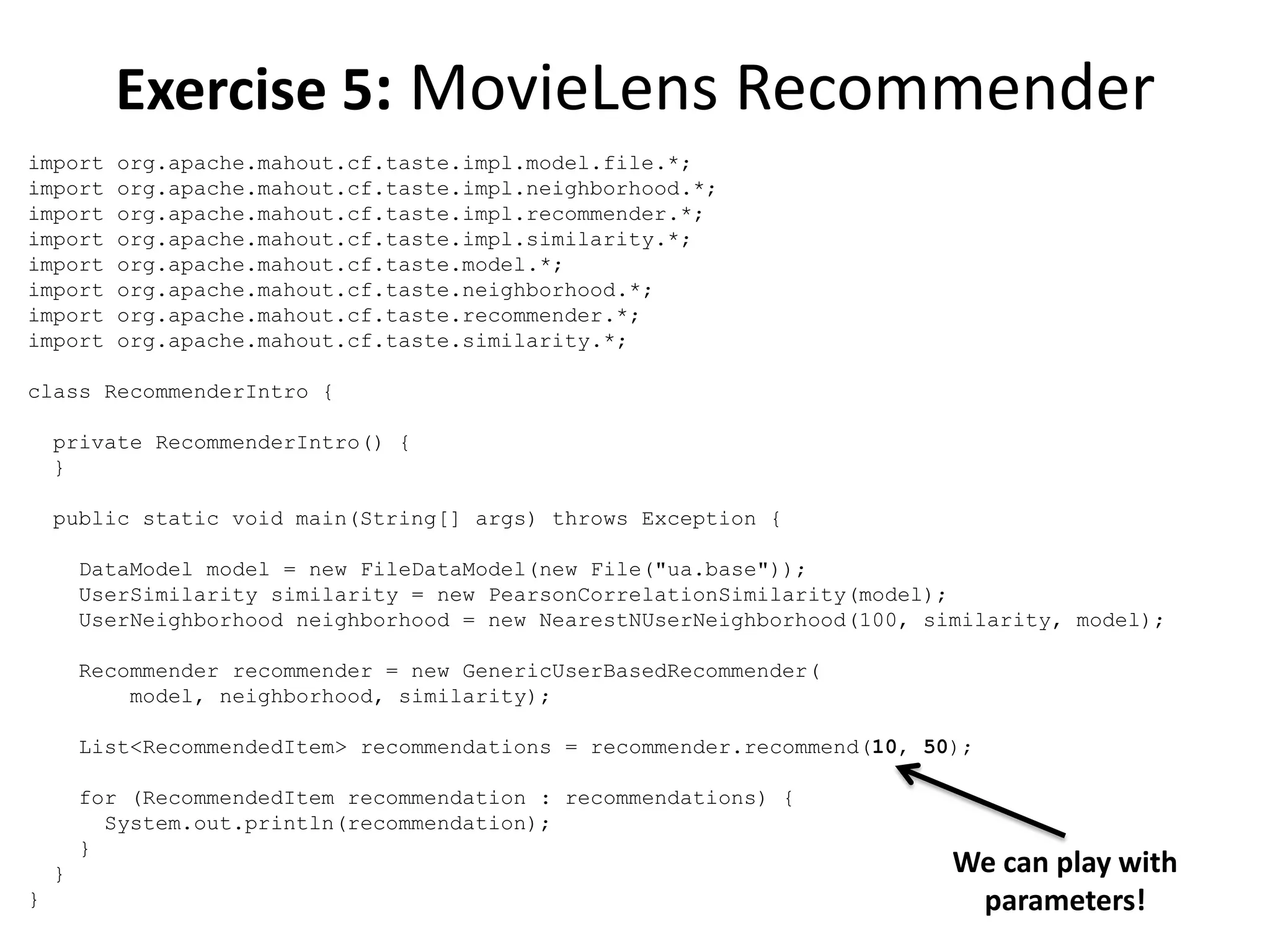

Exercise 5: MovieLens Recommender
• Download the GroupLens dataset (100k)
– Its format is already Mahout compliant
– http://files.grouplens.org/datasets/movielens/ml100k.zip

• Preparatory Exercise: repeat exercise 3 (similarity
calculations) with a bigger dataset
• Next: now we can run the recommendation
framework against a state-of-the-art dataset

import
import
import
import
import
import
import
import


}
DataModel model = new FileDataModel(new File("ua.base"));
}
}
}

import
import
import
import
import
import
import
import


}
}
}
}

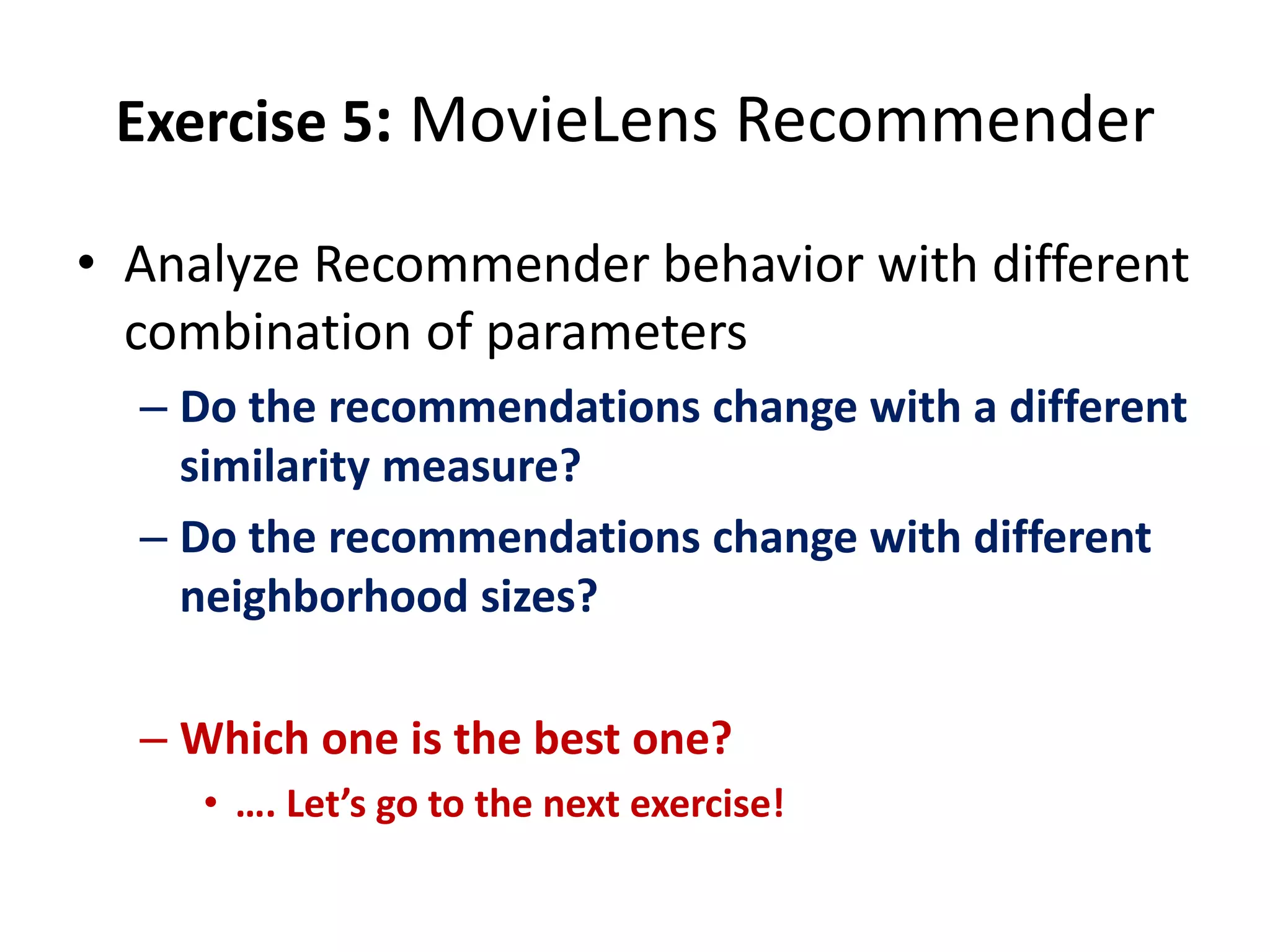

We can play with
parameters!

• Analyze Recommender behavior with different
combination of parameters
– Do the recommendations change with a different
similarity measure?
– Do the recommendations change with different
neighborhood sizes?
– Which one is the best one?
• …. Let’s go to the next exercise!

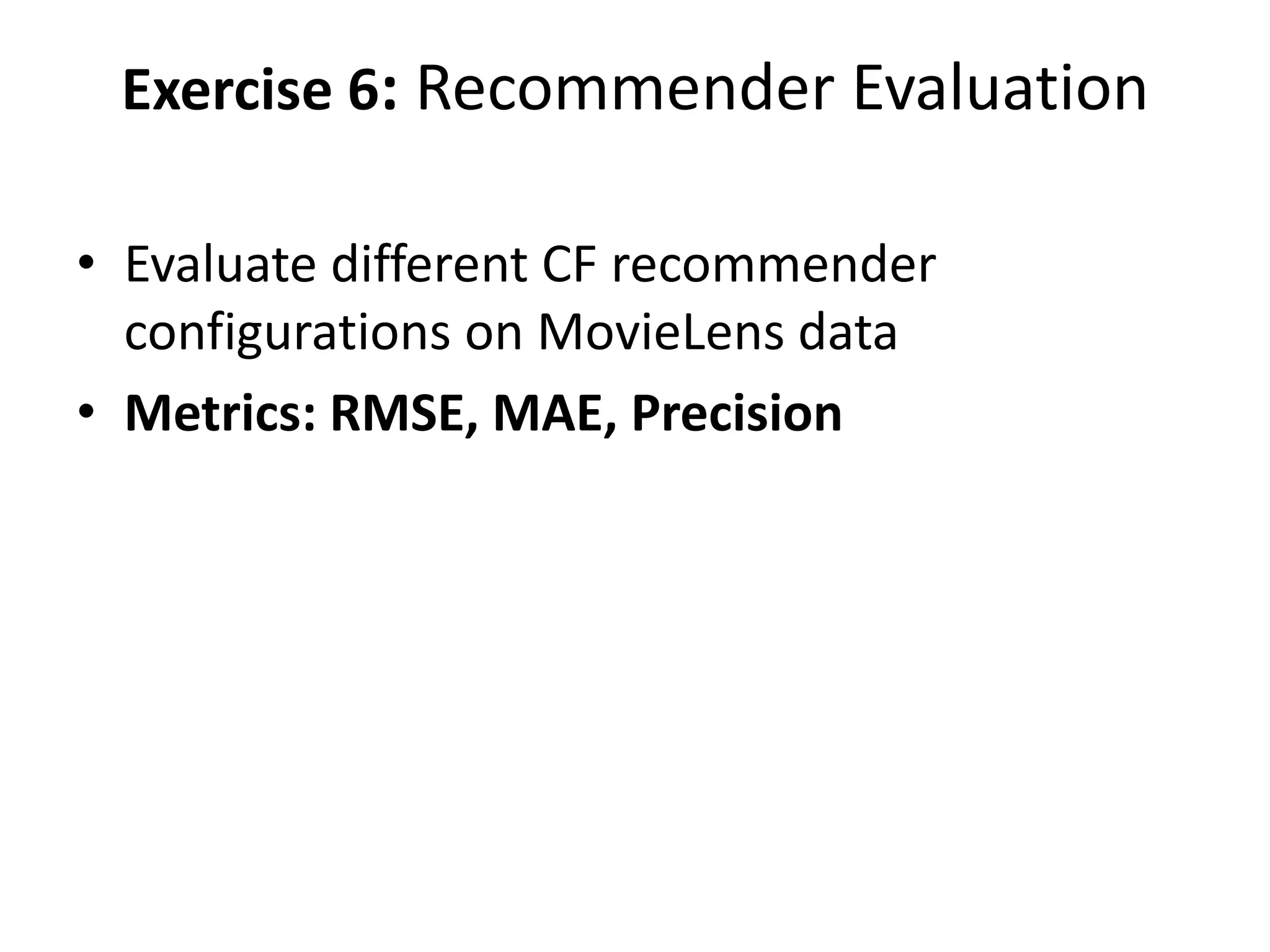

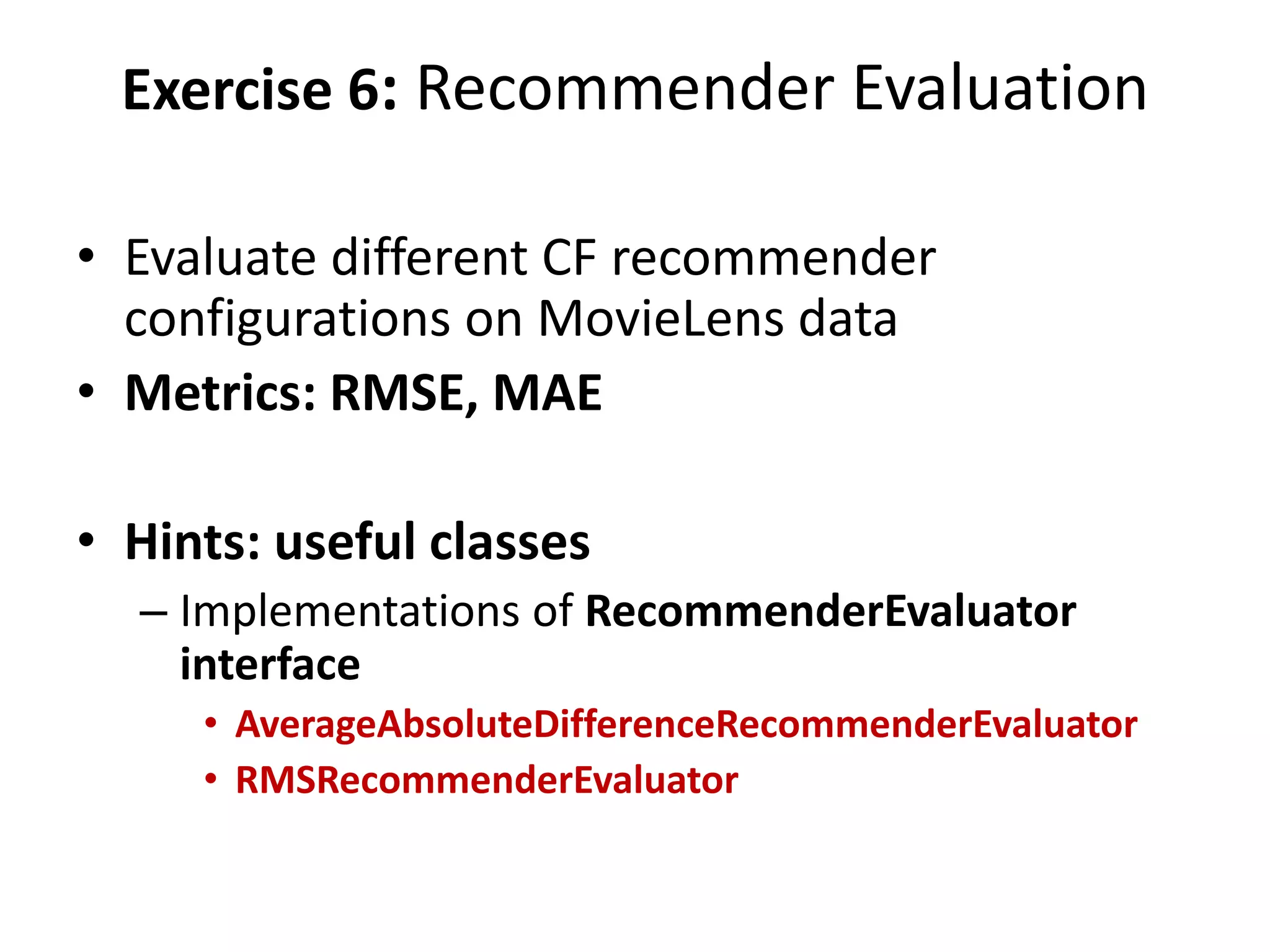

Exercise 6: Recommender Evaluation
• Evaluate different CF recommender
configurations on MovieLens data
• Metrics: RMSE, MAE, Precision

• Metrics: RMSE, MAE
• Hints: useful classes
– Implementations of RecommenderEvaluator
interface
• AverageAbsoluteDifferenceRecommenderEvaluator
• RMSRecommenderEvaluator

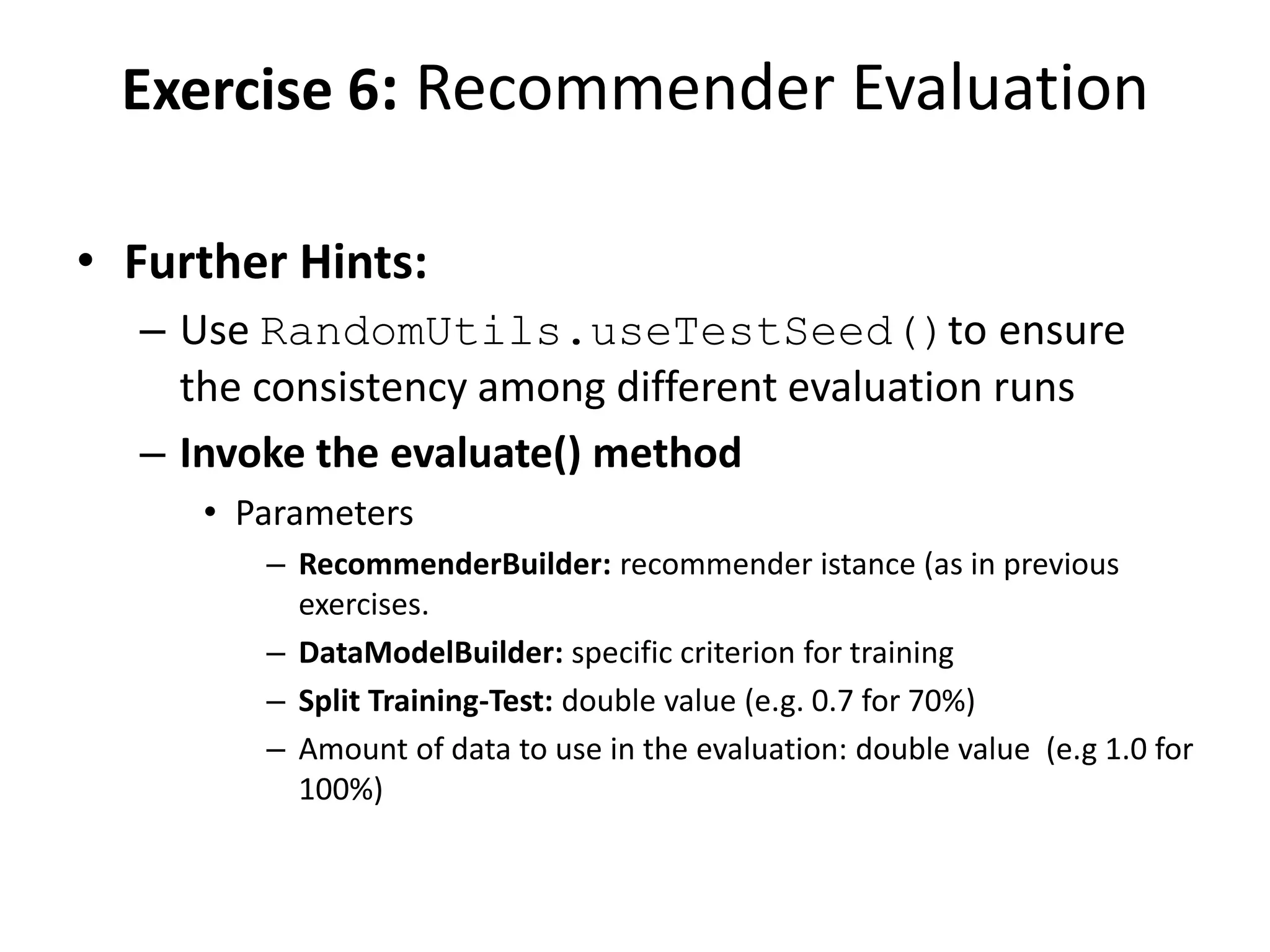

• Further Hints:
– Use RandomUtils.useTestSeed()to ensure
the consistency among different evaluation runs
– Invoke the evaluate() method
• Parameters
– RecommenderBuilder: recommender istance (as in previous
exercises.
– DataModelBuilder: specific criterion for training
– Split Training-Test: double value (e.g. 0.7 for 70%)
– Amount of data to use in the evaluation: double value (e.g 1.0 for
100%)

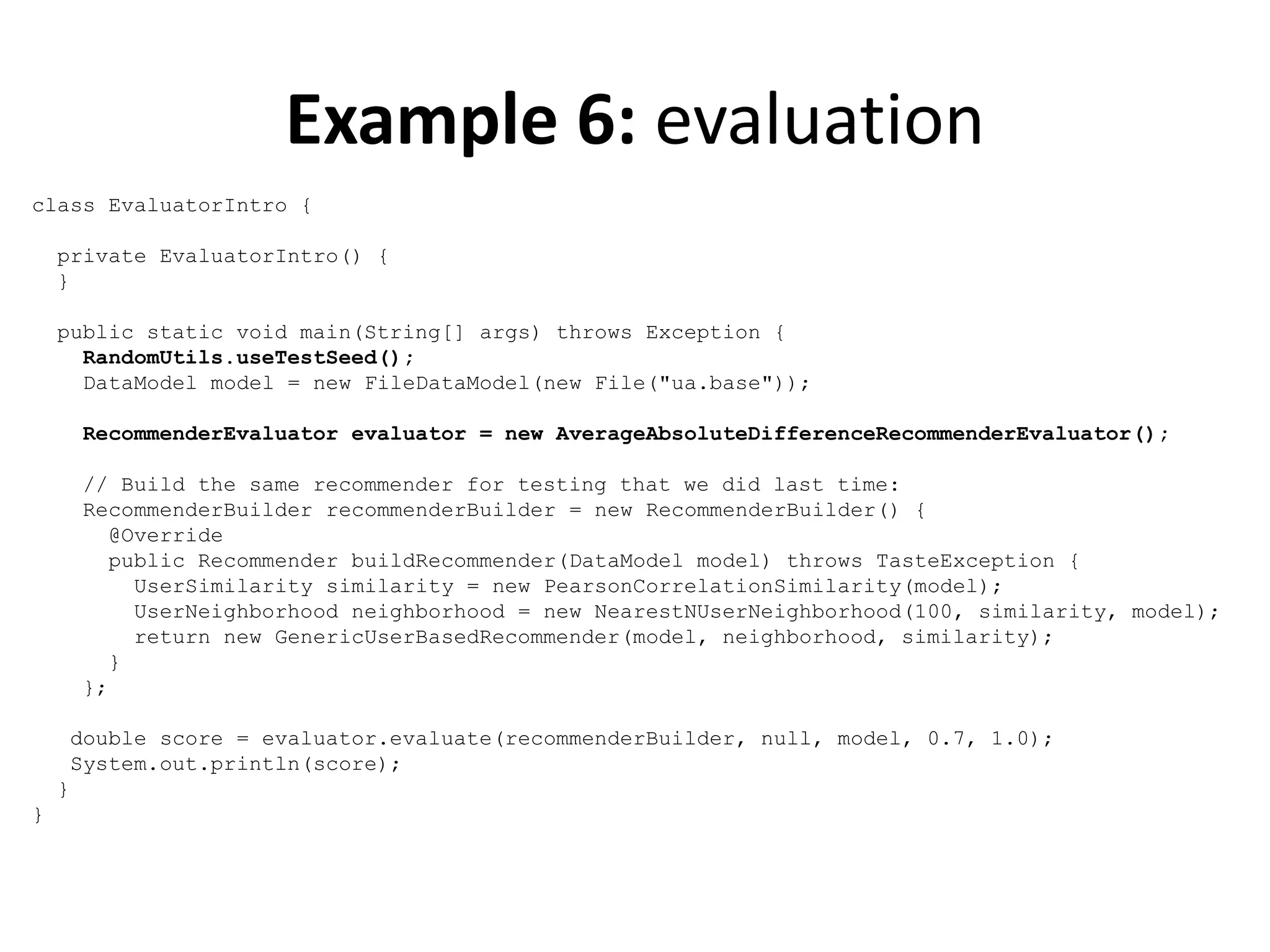

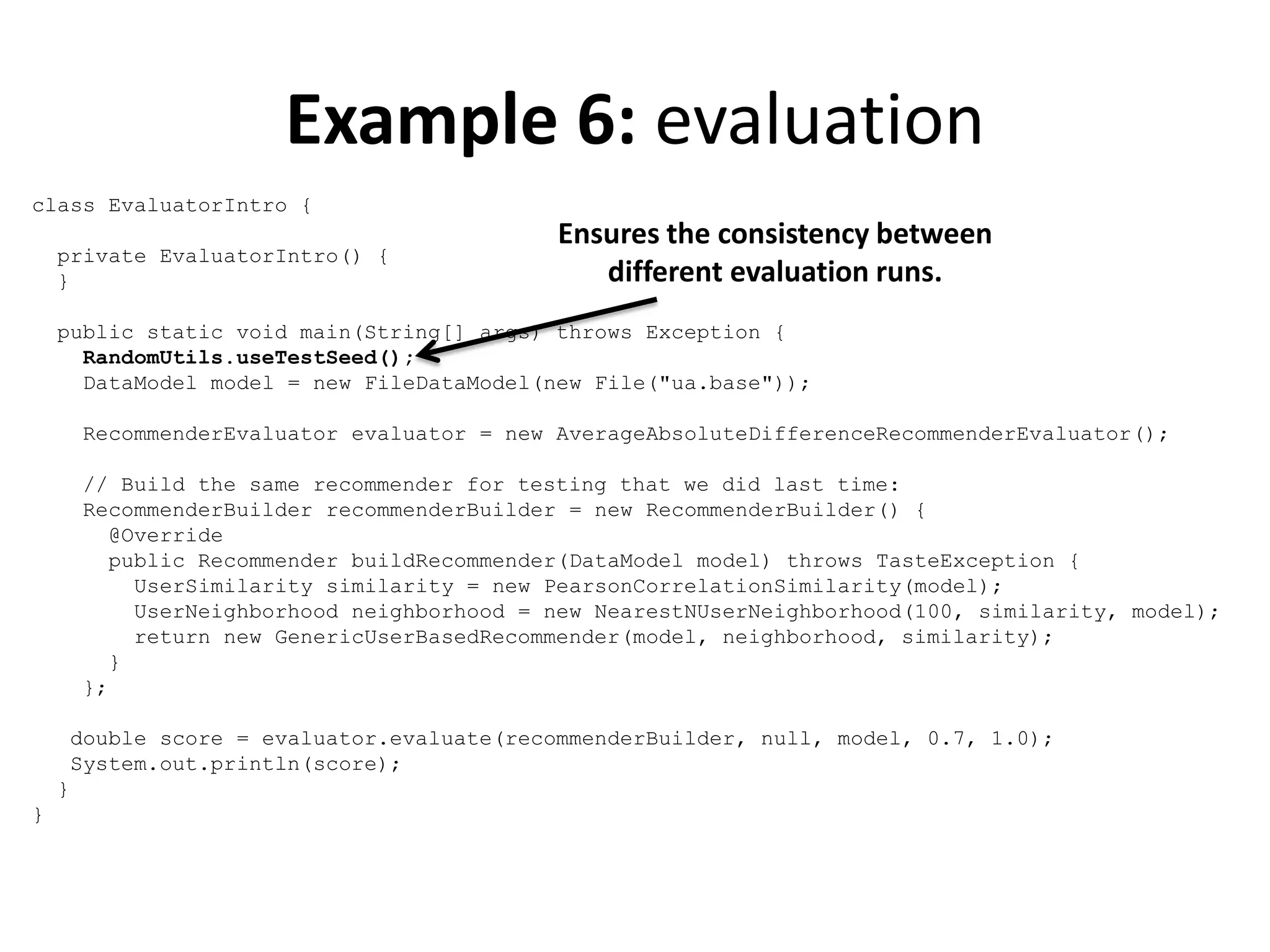

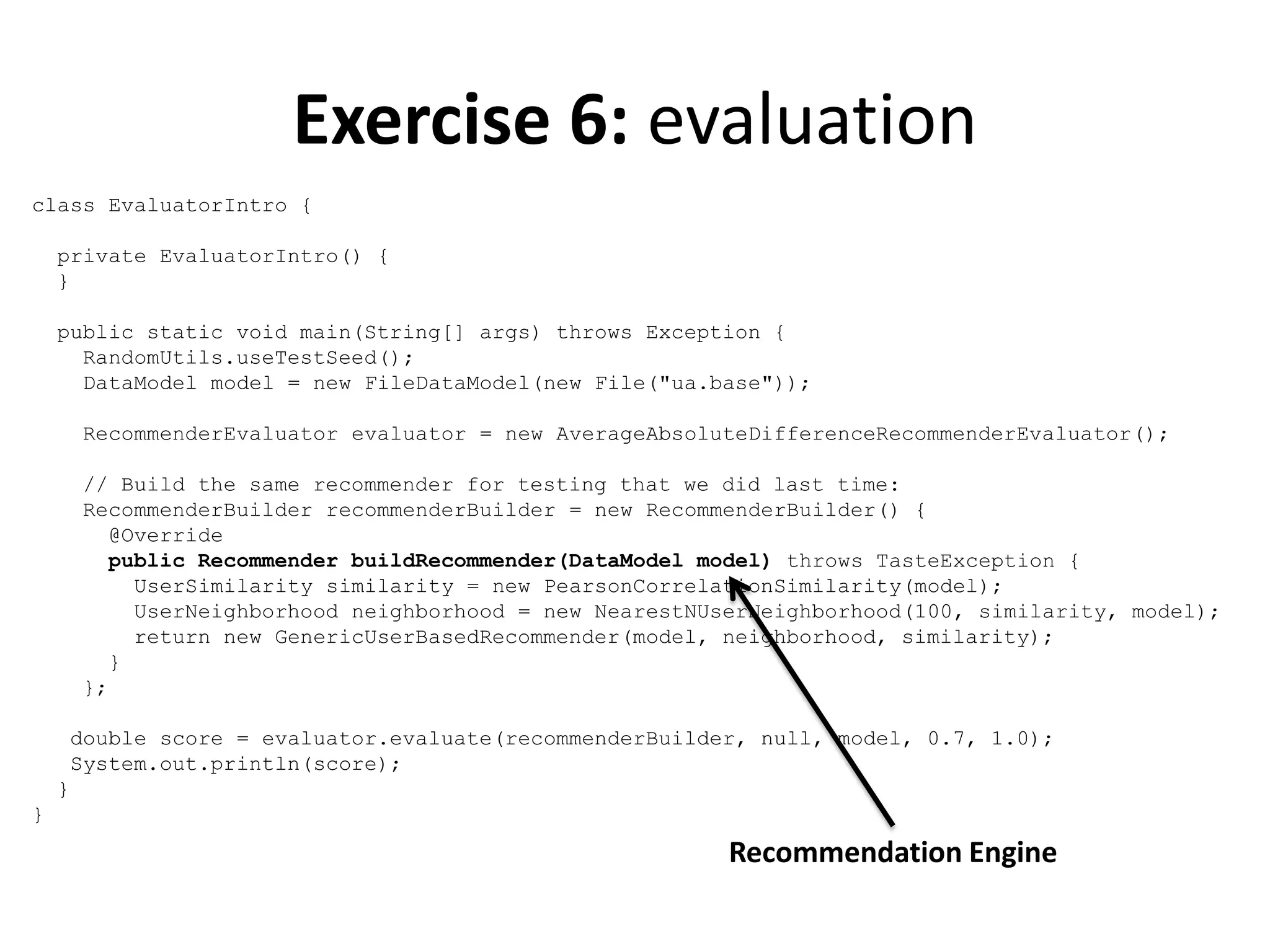

Example 6: evaluation
class EvaluatorIntro {
private EvaluatorIntro() {
}

Ensures the consistency between
different evaluation runs.

RandomUtils.useTestSeed();
RecommenderEvaluator evaluator = new AverageAbsoluteDifferenceRecommenderEvaluator();
// Build the same recommender for testing that we did last time:
RecommenderBuilder recommenderBuilder = new RecommenderBuilder() {
@Override
public Recommender buildRecommender(DataModel model) throws TasteException {
return new GenericUserBasedRecommender(model, neighborhood, similarity);
}
};
double score = evaluator.evaluate(recommenderBuilder, null, model, 0.7, 1.0);
System.out.println(score);
}
}

}
@Override
}
};
}
}

Exercise 6: evaluation
}
@Override
}
};
}
}

70%training
(evaluation on the whole
dataset)

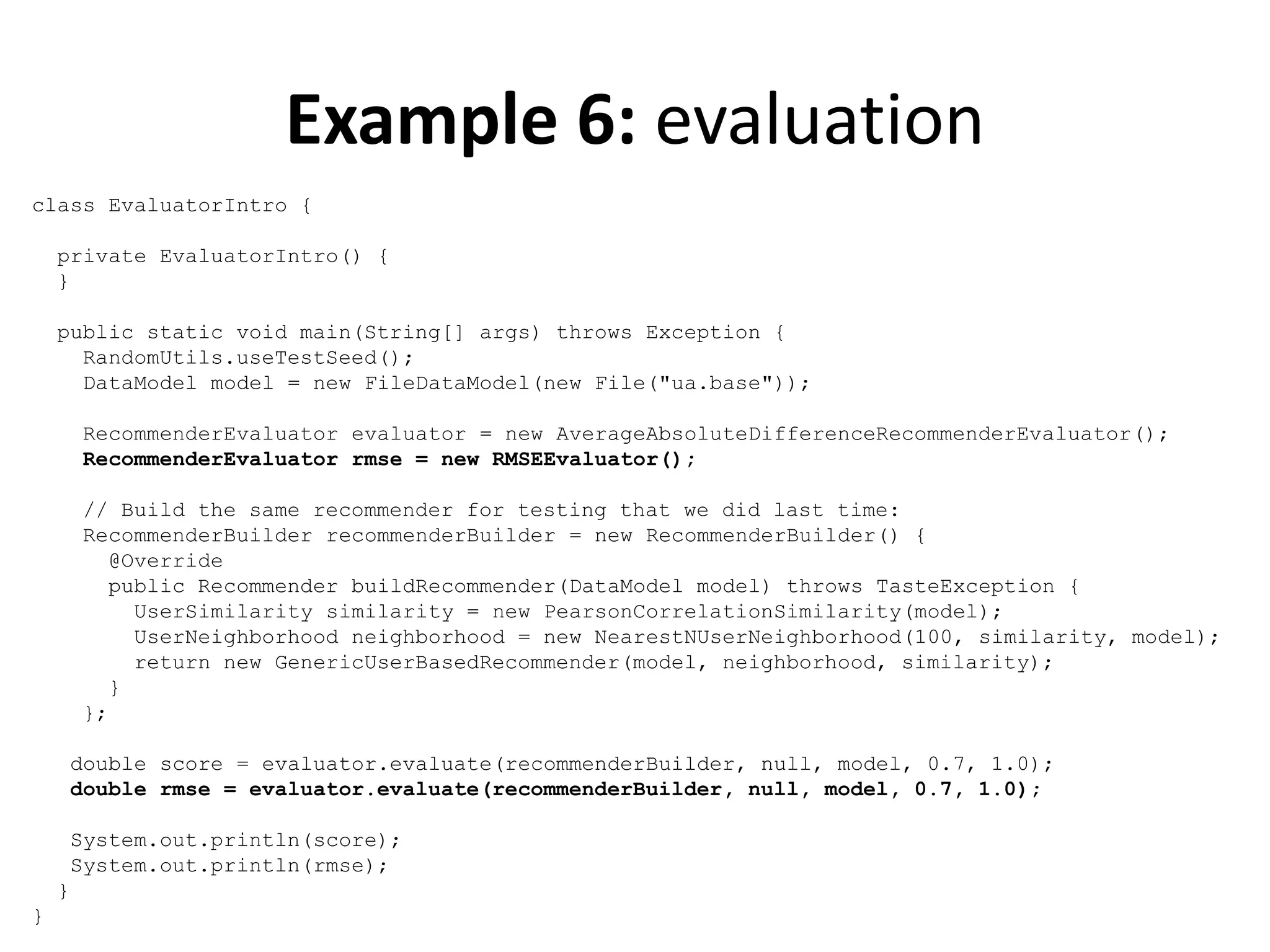

Exercise 6: evaluation
}
@Override
}
};
}
}

Recommendation Engine

}
RecommenderEvaluator rmse = new RMSEEvaluator();
@Override
}
};
}
}

We can add more measures

}
RecommenderEvaluator rmse = new RMSEEvaluator();
@Override
}
};
double rmse = evaluator.evaluate(recommenderBuilder, null, model, 0.7, 1.0);
System.out.println(rmse);
}
}

Mahout Strengths
• Fast-prototyping and evaluation
– To evaluate a different configuration of the same
algorithm we just need to update a parameter and
run again.

– Example
• Different Neighborhood Size

5 minutes to look for the
best configuration 

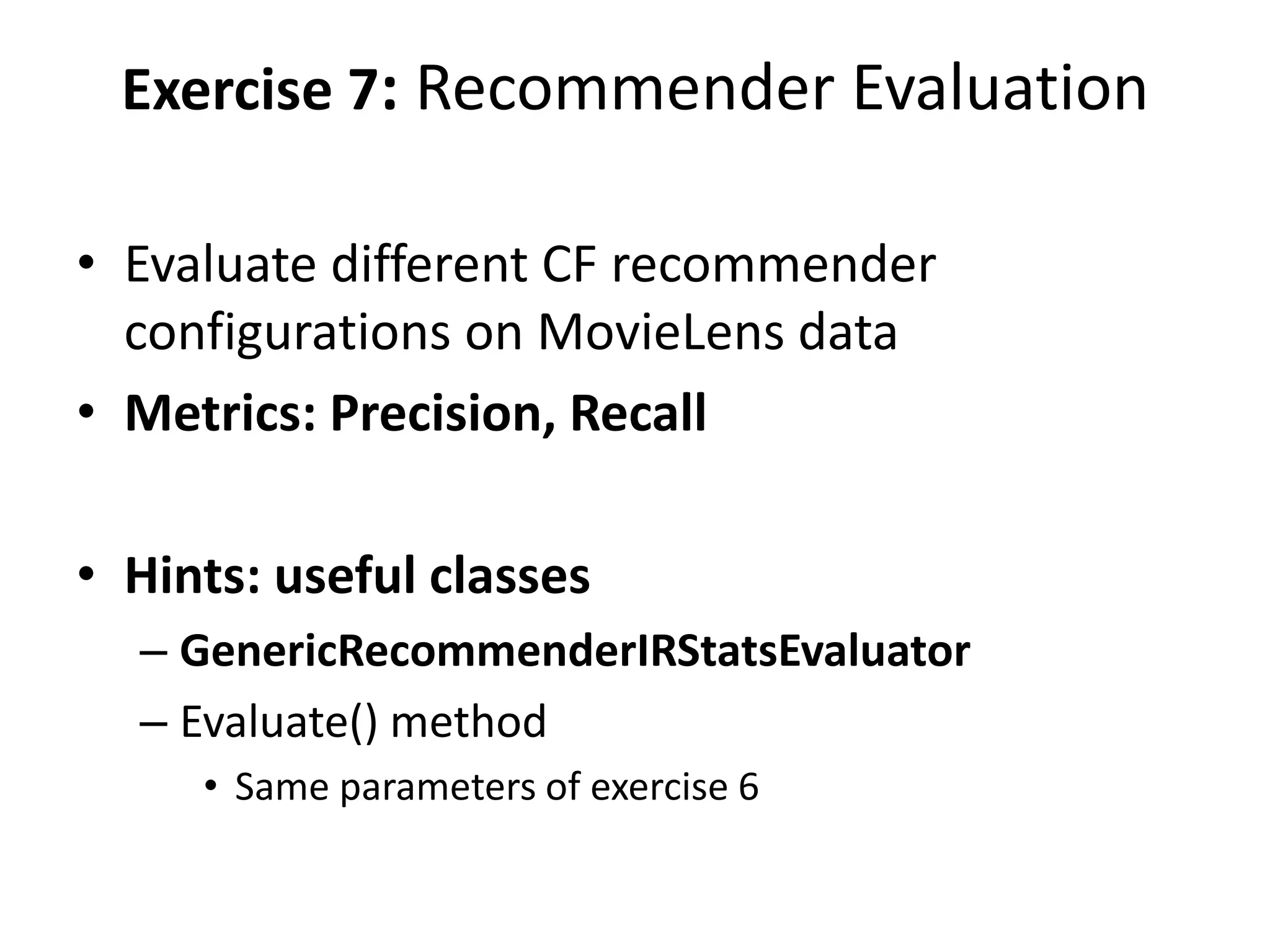

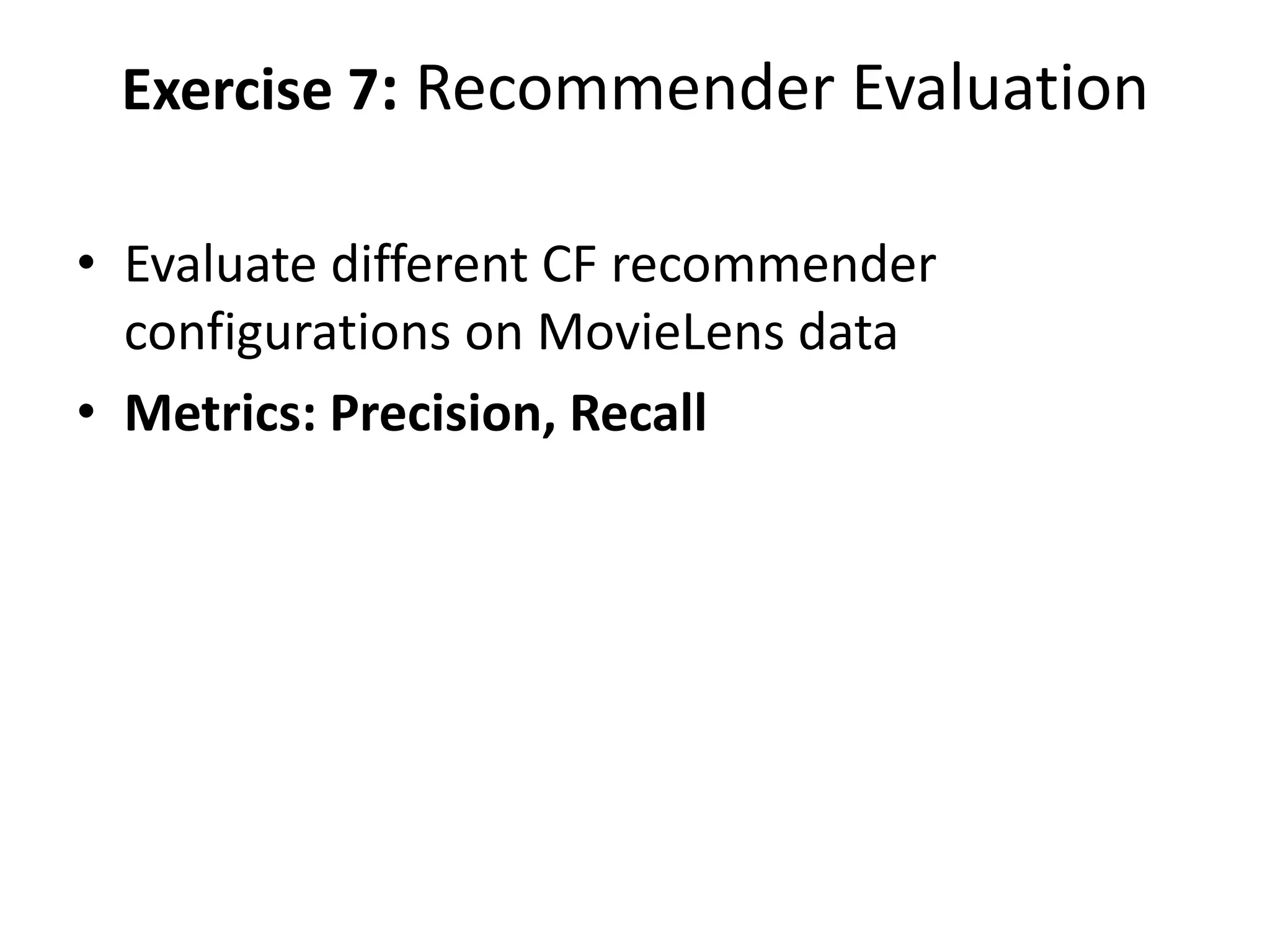

• Metrics: Precision, Recall

• Metrics: Precision, Recall
• Hints: useful classes
– GenericRecommenderIRStatsEvaluator
– Evaluate() method
• Same parameters of exercise 6

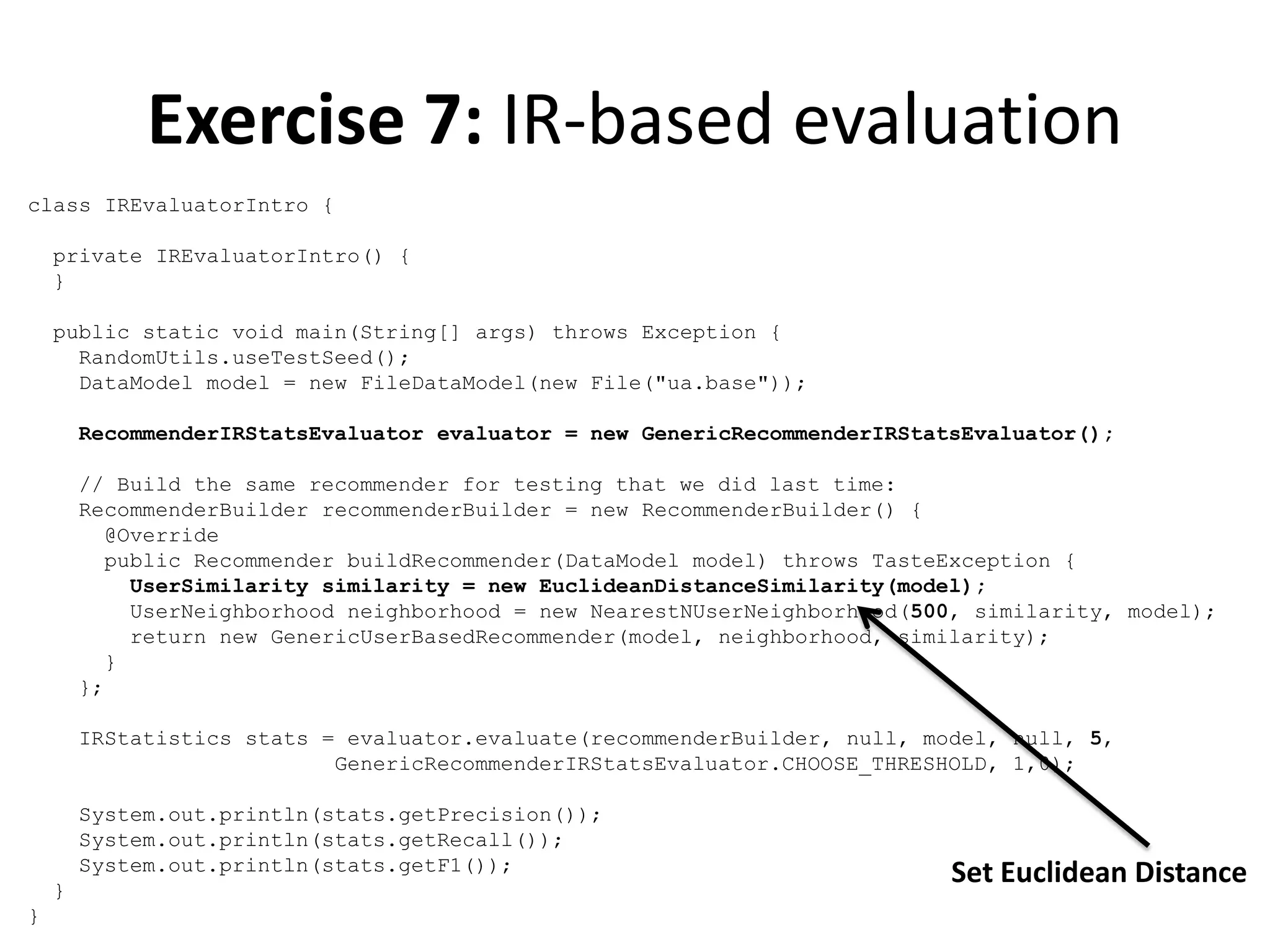

Exercise 7: IR-based evaluation
class IREvaluatorIntro {
private IREvaluatorIntro() {
}
RecommenderIRStatsEvaluator evaluator = new GenericRecommenderIRStatsEvaluator();
@Override
}
};
IRStatistics stats = evaluator.evaluate(recommenderBuilder, null, model, null, 5,
GenericRecommenderIRStatsEvaluator.CHOOSE_THRESHOLD, 1,0);
System.out.println(stats.getPrecision());
System.out.println(stats.getRecall());
System.out.println(stats.getF1());
}
}

Precision@5 , Recall@5, etc.

}
@Override
}
};
}
}

Set Neighborhood to 500

}
@Override
UserSimilarity similarity = new EuclideanDistanceSimilarity(model);
}
};
}
}

Set Euclidean Distance

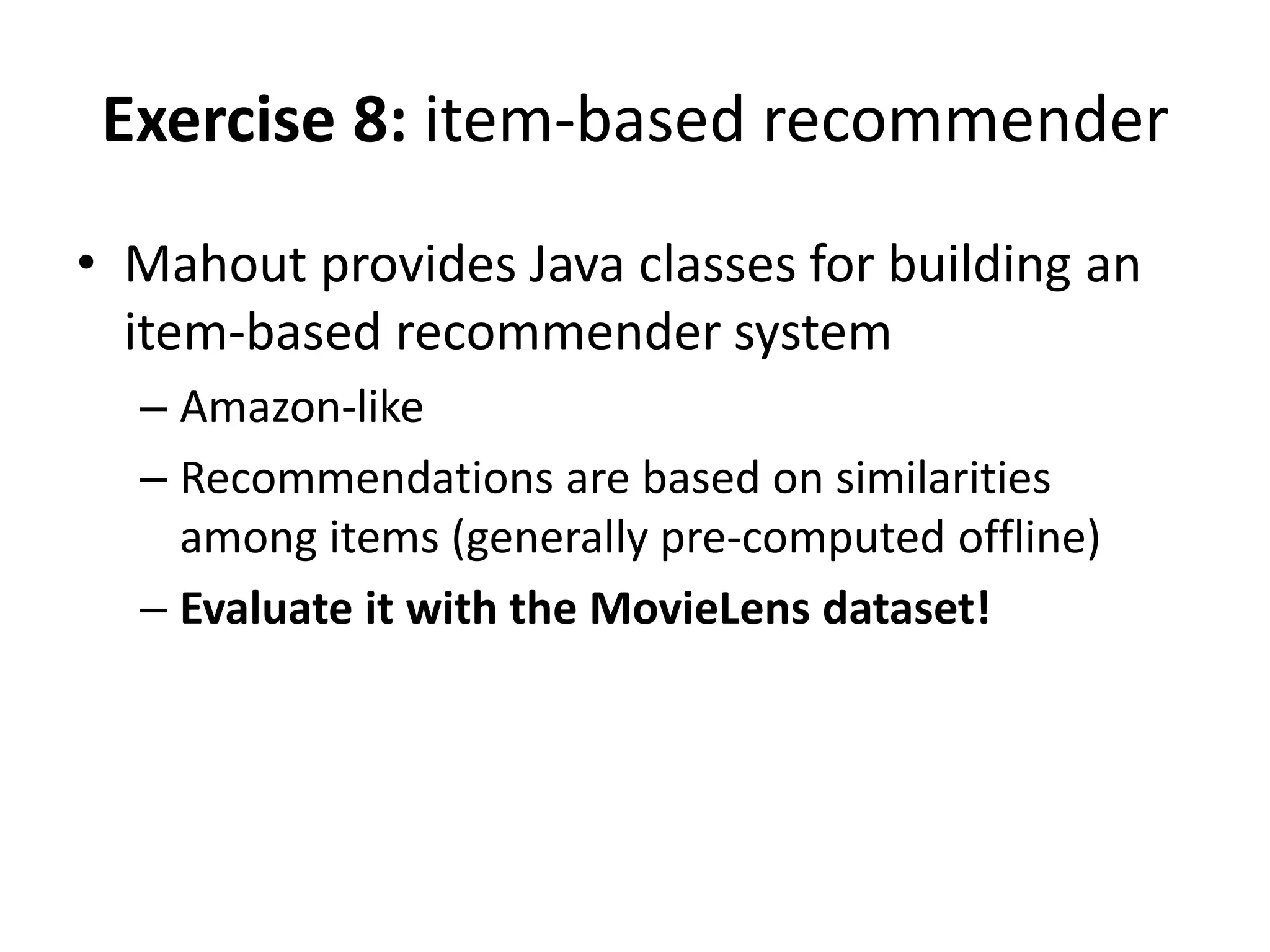

Exercise 8: item-based recommender
• Mahout provides Java classes for building an
item-based recommender system
– Amazon-like
– Recommendations are based on similarities
among items (generally pre-computed offline)
– Evaluate it with the MovieLens dataset!

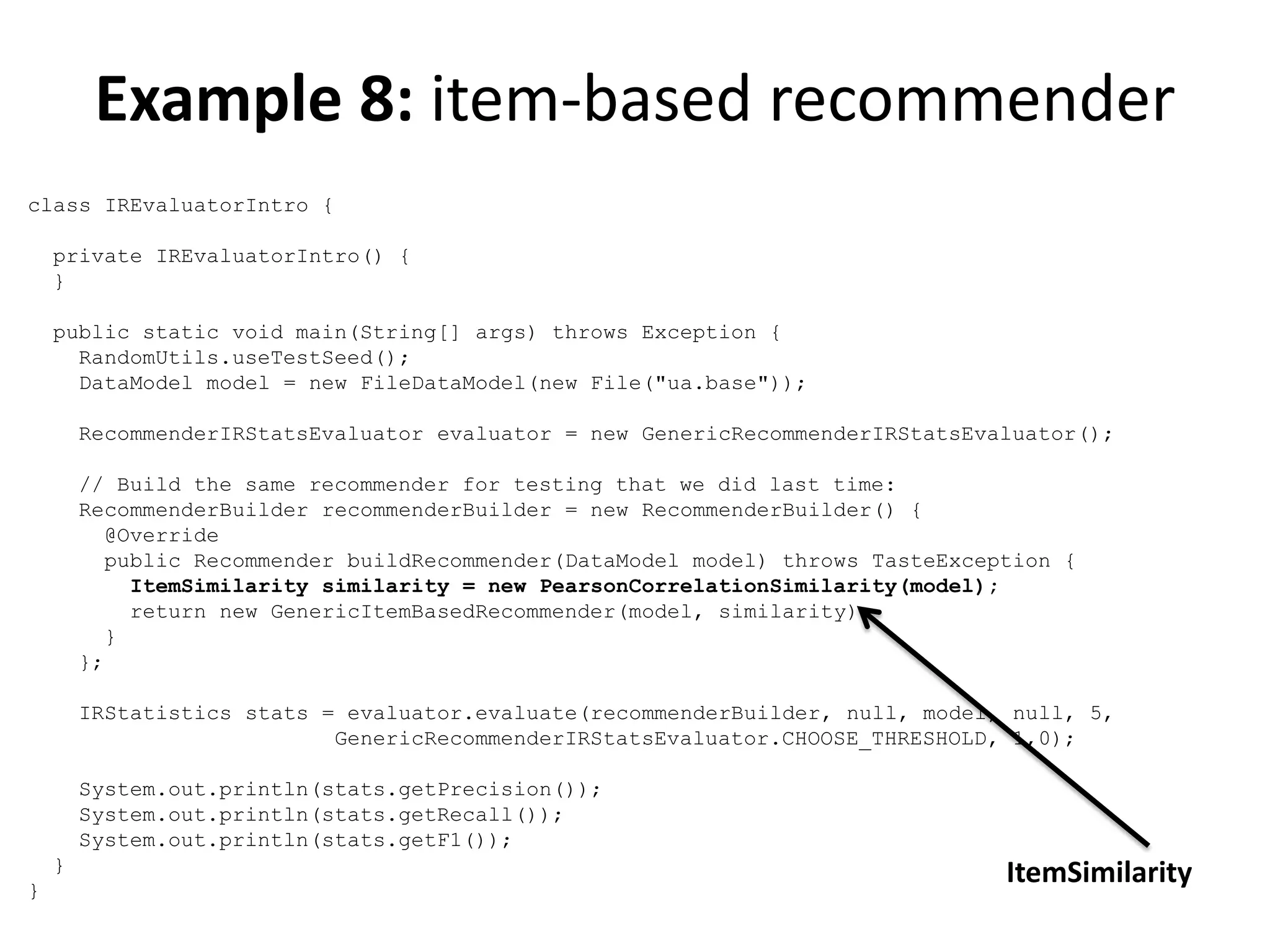

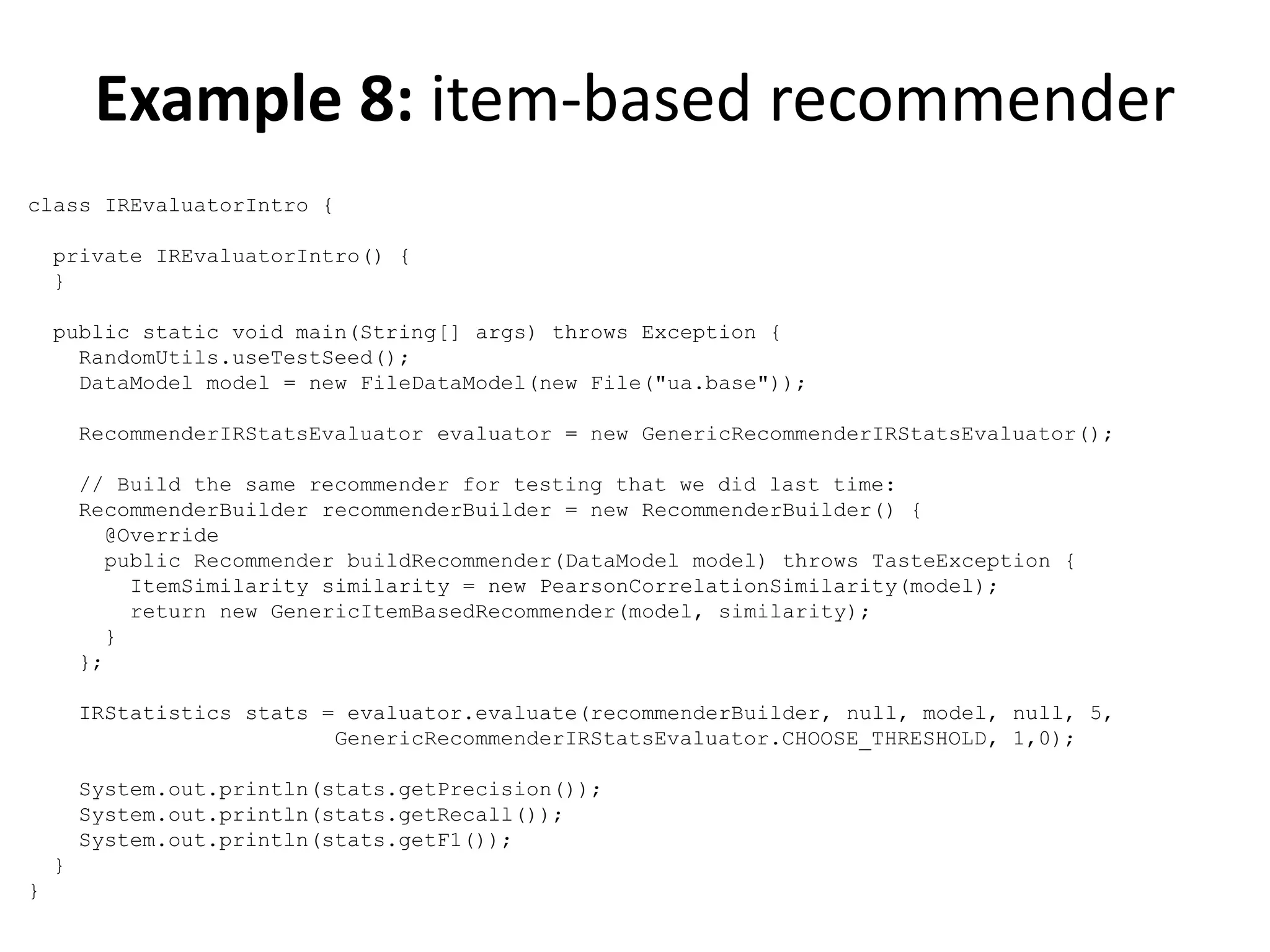

Example 8: item-based recommender
}
@Override
ItemSimilarity similarity = new PearsonCorrelationSimilarity(model);
return new GenericItemBasedRecommender(model, similarity);
}
};
}
}

}
@Override
}
};
}
}

ItemSimilarity

}
@Override
}
};
}
}

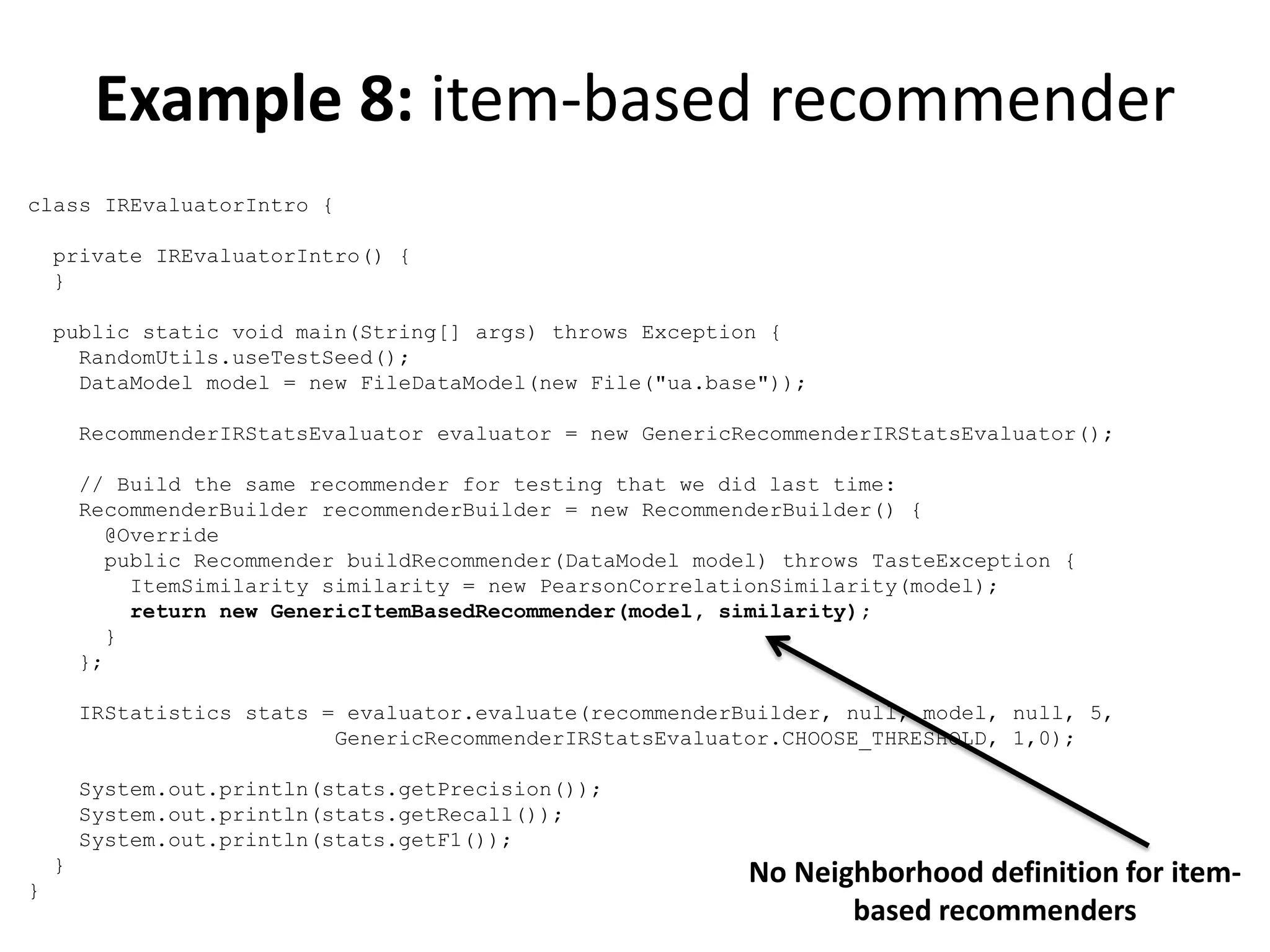

No Neighborhood definition for itembased recommenders

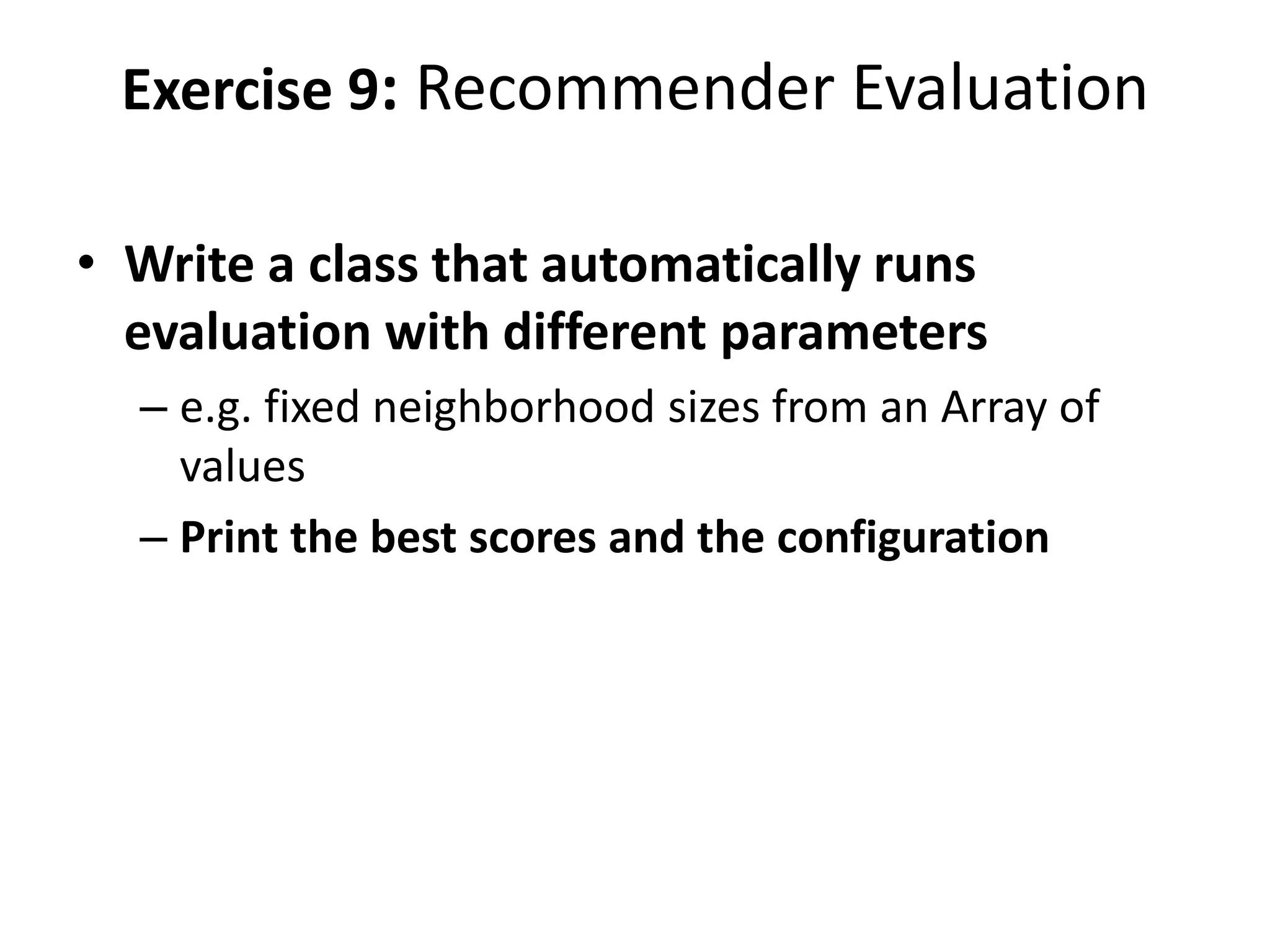

• Write a class that automatically runs
evaluation with different parameters
– e.g. fixed neighborhood sizes from an Array of
values
– Print the best scores and the configuration

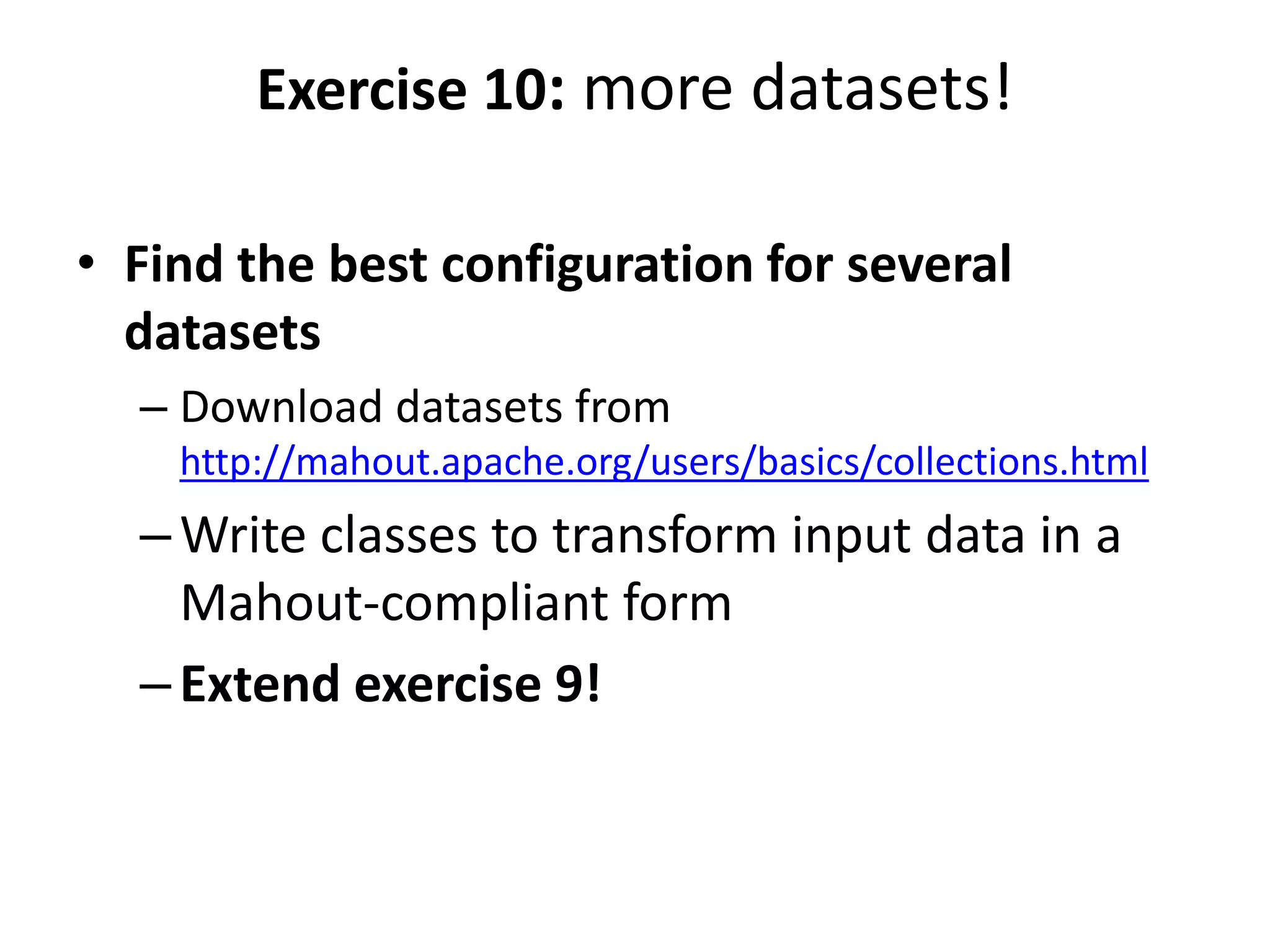

Exercise 10: more datasets!
• Find the best configuration for several
datasets
– Download datasets from
http://mahout.apache.org/users/basics/collections.html

– Write classes to transform input data in a
Mahout-compliant form
– Extend exercise 9!

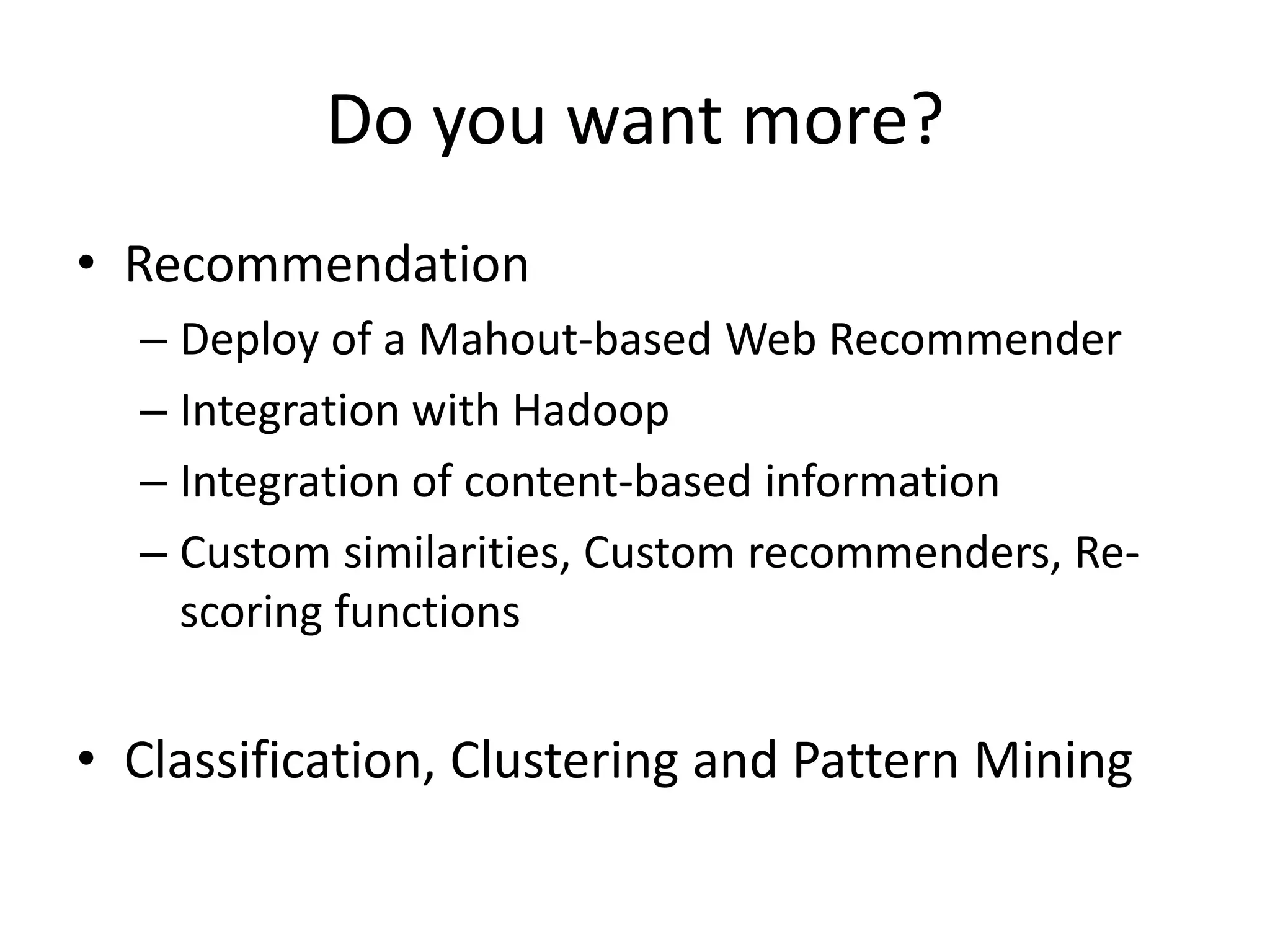

Do you want more?
• Recommendation
– Deploy of a Mahout-based Web Recommender
– Integration with Hadoop
– Integration of content-based information
– Custom similarities, Custom recommenders, Rescoring functions

• Classification, Clustering and Pattern Mining

Apache Mahout Tutorial - Recommendation - 2013/2014

More Related Content

What's hot

Viewers also liked

Similar to Apache Mahout Tutorial - Recommendation - 2013/2014

More from Cataldo Musto

Recently uploaded

Apache Mahout Tutorial - Recommendation - 2013/2014
