Ever given a thought on how machine intelligent the softwares are getting nowadays? Lets imagine a situation when you surf a video on youtube and you are not given any recommendations for similar videos, Or a situation when none of the irritating mails we get automatically go to our spam folder? Life would not be as easy as it currently is. Machine learning is getting in trend and so we thought about Integrating Apache Mahout with AEM to simply make our AEM applications smarter and interesting! Mahout helps us in 3 different ways: 1. Recommendations 2. Classification 3. Clustering We will focus on a typical use case of developing E-commerce applications in AEM and providing product recommendations on the basis of user search history.

1. APACHE SLING&FRIENDSTECHMEETUP
BERLIN, 26-28SEPTEMBER 2016
IntegratingApache Mahout with AEM
Ankit Gubrani & RimaMittal

2. adaptTo()2016 2

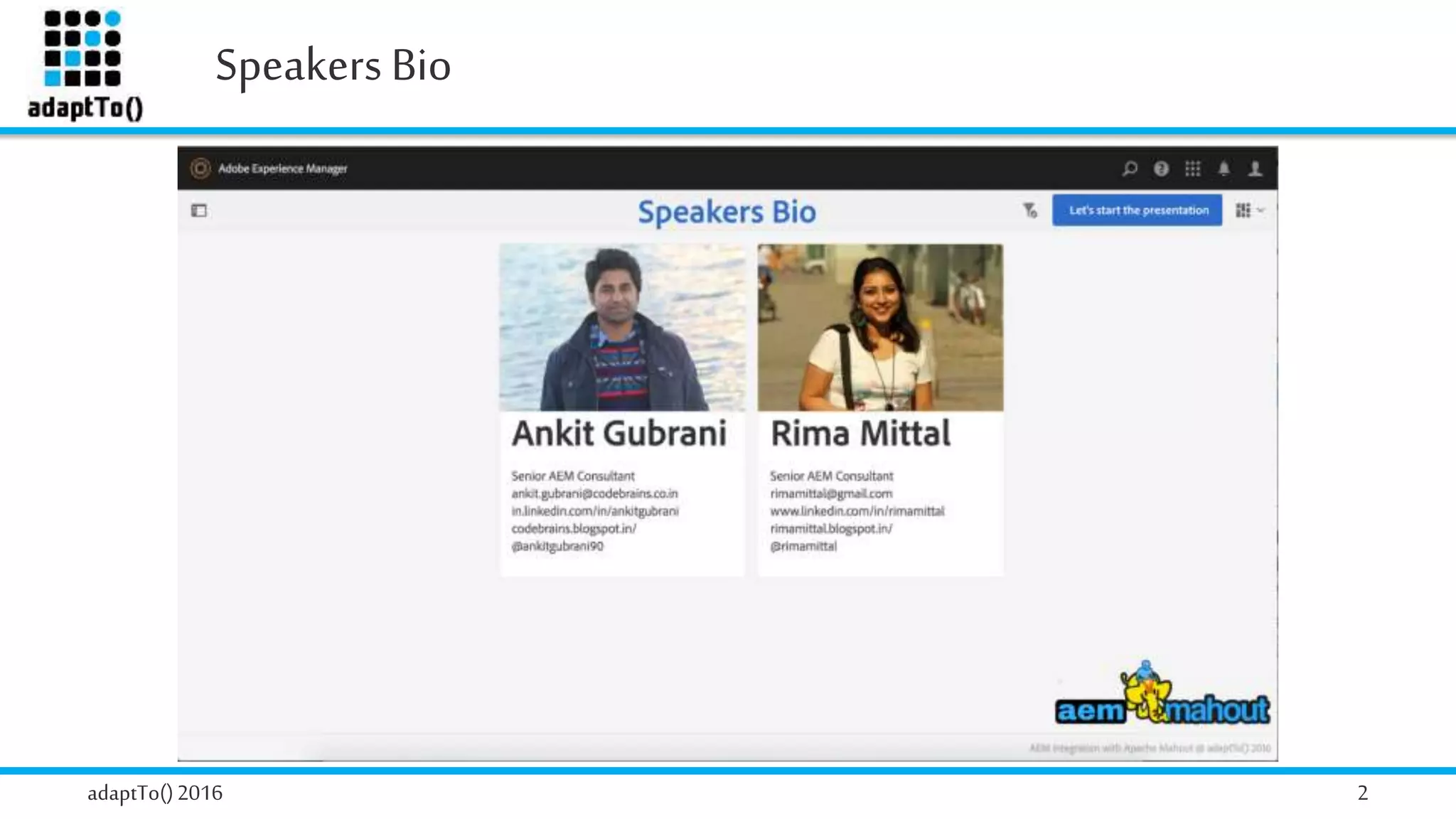

Speakers Bio

3. adaptTo()2016 3
Agenda

4. Agenda
adaptTo()2016 4
 Introduction to Apache Mahout
 MachineLearning
 Recommendations
 AEM with Apache Mahout
 Demo
 ExtensionPoints

5. adaptTo()2016 5
Introduction to Apache Mahout

6. Whatis Apache Mahout?
adaptTo()2016 6
 Project of the Apache Software
Foundation.
 Producing free implementations of
scalablemachine learning algorithms,
written in Java.

7. History
adaptTo()2016 7
 Started as a Lucenesub-project.
 Became Apache TLPin April 2010.
 Latest version – 0.12.2 – Released on 13th June 2016.

8. Why ApacheMahout?
adaptTo()2016 8
 Increasing volume of data!
 Traditional Data miningalgorithms struggle to process very
large datasets.
 Apache Mahoutto therescue!

9. TraditionalMachine Learning
adaptTo()2016 9

10. Machine LearningwithMahout
adaptTo()2016 10

11. Applications
adaptTo()2016 11
 Adobe, Facebook, LinkedIn,Twitter and Yahoo use Mahout
internally.
 Twitter uses Mahoutfor interest modelling.
 Yahoo! Uses Mahoutfor patternmining.

12. adaptTo()2016 12
MachineLearning

13. Machine Learning
adaptTo()2016 13
 Programmingcomputers to optimize a Performance Criterion
usingExample Data or PastExperience
 Branch of ArtificialIntelligence.
 Computers evolve behavior based on Empirical data.

14. Techniques
adaptTo()2016 14
 Supervised Learning
 Use Labelled training data to create a classifier that can predict
output for unseen inputs.
 Unsupervised Learning
 Use Unlabeled training data to create a function that can predict
output.

15. Machine LearningwithApache Mahout
adaptTo()2016 15
 DataScience use cases Mahoutsupports:
 Collaborative Filtering
 Clustering
 Classification

16. CollaborativeFiltering
adaptTo()2016 16
 User behavior mining tomake product
recommendations.

17. Clustering
adaptTo()2016 17
 Organizing items into naturally
occurring groups, such that items
belonging to same group are similar to
each other

18. Classification
adaptTo()2016 18
 Learning from existing categorizations
and assigningunclassified items to the
best category

19. adaptTo()2016 19
Recommendations

20. ApacheMahout RecommendationEngine
adaptTo()2016 20
 Helps users find items they mightlike based on historical
behavior and preferences.
 Mahoutprovides a rich set of componentsfrom which a
customizedrecommender system can be constructed usinga
selection ofAlgorithms.

21. Architecture
adaptTo()2016 21
 Top Level Packages
 DataModel
 UserSimilarity
 ItemSimilarity
 UserNeighboorhood
 Recommender

22. adaptTo()2016 22
AEM with Apache Mahout

23. Checklist
adaptTo()2016 23
 AEM 6.2
 Mahout as a Maven Dependency
<dependency>
<groupId>org.apache.mahout</groupId>
<artifactId>mahout-mr</artifactId>
<version>0.10.0</version>
</dependency>

24. JCRDataModel
adaptTo()2016 24
 DataModel
 Implementations representing a repository of information about
users and their associated preferences.
 AbstractDataModel, JDBCDataModel, FileDataModel,
GenericBooleanPrefDataModel, GenericDataModel.
 AEM - JCRDataModel.

25. Code(1/2)
adaptTo()2016 25
 Using The AEM JCRDataModel
public JSONArray getUserBasedRecommendations(ResourceResolver
resourceResolver, String userId, int numberOfRecommendations) {
//Creating JCRDataModel to fetch information from JCR
DataModel model = JCRDataModel.createDataModel(resourceResolver);
}

26. Code(2/2)
adaptTo()2016 26
 AEM-Mahout Recommendation steps
UserSimilarity userSimilarity = getSimilarity(model);
UserNeighborhood neighborhood = getNeighbourHood(N_NEIGHOBUR_HOOD,
userSimilarity, model);
GenericUserBasedRecommender recommender = new
GenericUserBasedRecommender(model, neighborhood, userSimilarity);
recommendations = recommender.recommend(userIdHash,
numberOfRecommedations, null, false);

27. AEMProduct Recommendation
adaptTo()2016 27
 User Based Recommendation
 Takesuser ratingsinto consideration
 Based on PearsonCorrelationSimilarity
 Uses NearestNUserNeighborhood

28. ConfiguringJCRDataModel
adaptTo()2016 28
 Configurations
 User Generated Content Path
 /content/usergenerated/asi/jcr
 Product Path
 /etc/commerce/products/geometrixx-outdoors
 Rating Resource Type
 Defaults to social/tally/components/response

29. adaptTo()2016 29
Demo

30. adaptTo()2016 30
Appendix

31. Appendix
adaptTo()2016 31
 https://mahout.apache.org/
 http://www.slideshare.net/VaradMeru/introduction-to-
mahout-and-machine-learning
 https://www.youtube.com/watch?v=iMAMYzfRiS4

32. adaptTo()2016 32
Clone thecode!

33. CodeRepository
adaptTo()2016 33
 https://github.com/rimamittal/AEMMahout.git

34. adaptTo()2016 34
Questions.

35. adaptTo()2016 35
Thankyou.
