Ansys example0110 2
This document provides steps to use ANSYS software to analyze a cantilever beam model. It describes how to create keypoints and lines to model the beam geometry, apply material properties and loads, generate a mesh, solve the model, and output results including displacement, stress, and an element table. The goal is to calculate and plot the bending moment diagram along the beam.
More Related Content
Ansys example0110 2
- 1. Course in ANSYS Example0110 ComputationalMechanics, AAU, Esbjerg ANSYS

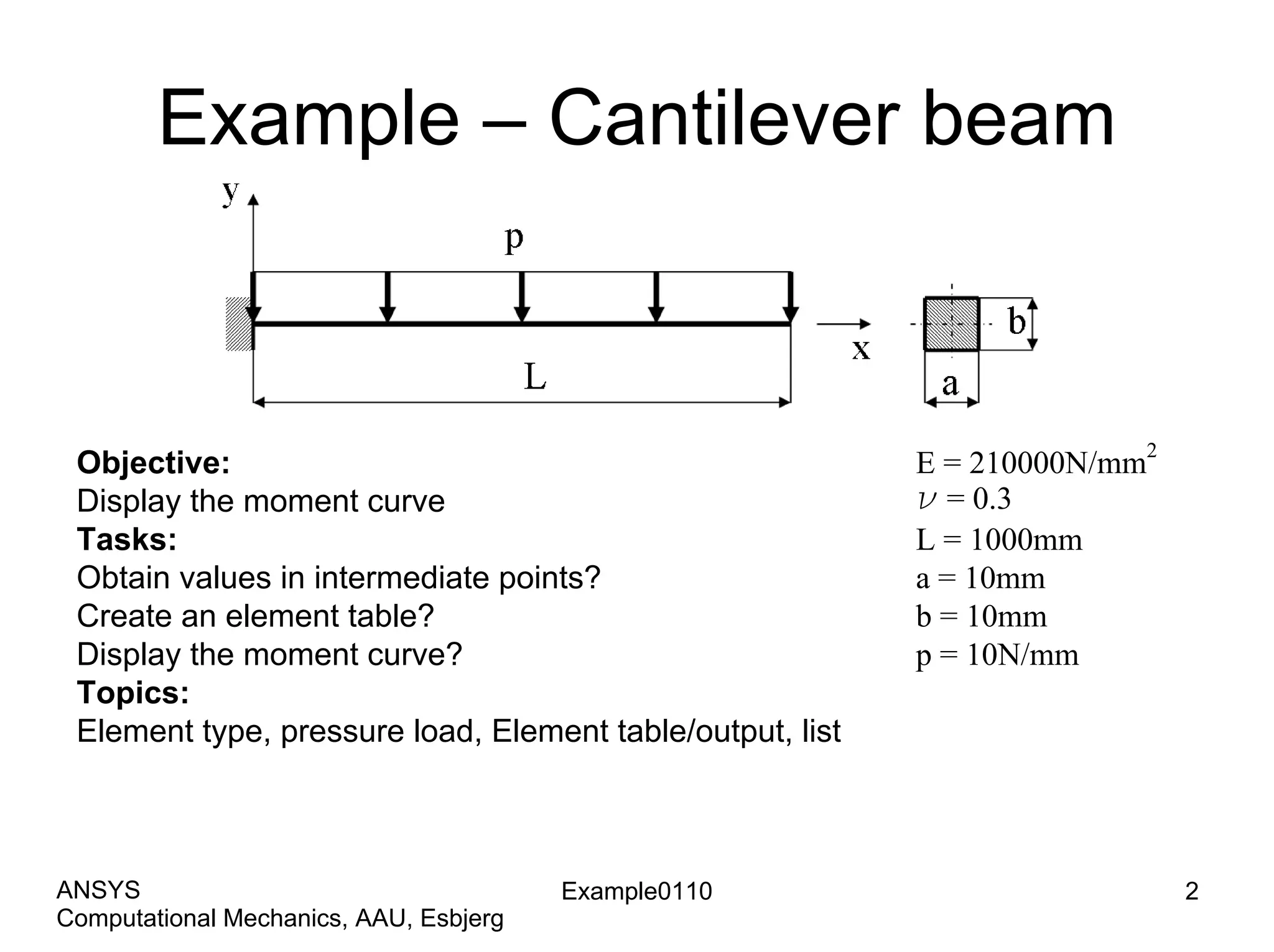

- 2. Example – Cantileverbeam Objective: Display the moment curve Tasks: Obtain values in intermediate points? Create an element table? Display the moment curve? Topics: Element type, pressure load, Element table/output, list E = 210000N/mm 2 n = 0.3 L = 1000mm a = 10mm b = 10mm p = 10N/mm Example0110 2 Computational Mechanics, AAU, Esbjerg ANSYS
- 3. Example - title UtilityMenu > File > Change Jobname /jobname, Example0110 Command line entry GUI Enter: Example0110 Utility Menu > File > Change Title /title, Cantilever beam Enter: Cantilever beam Example0110 3 Computational Mechanics, AAU, Esbjerg ANSYS

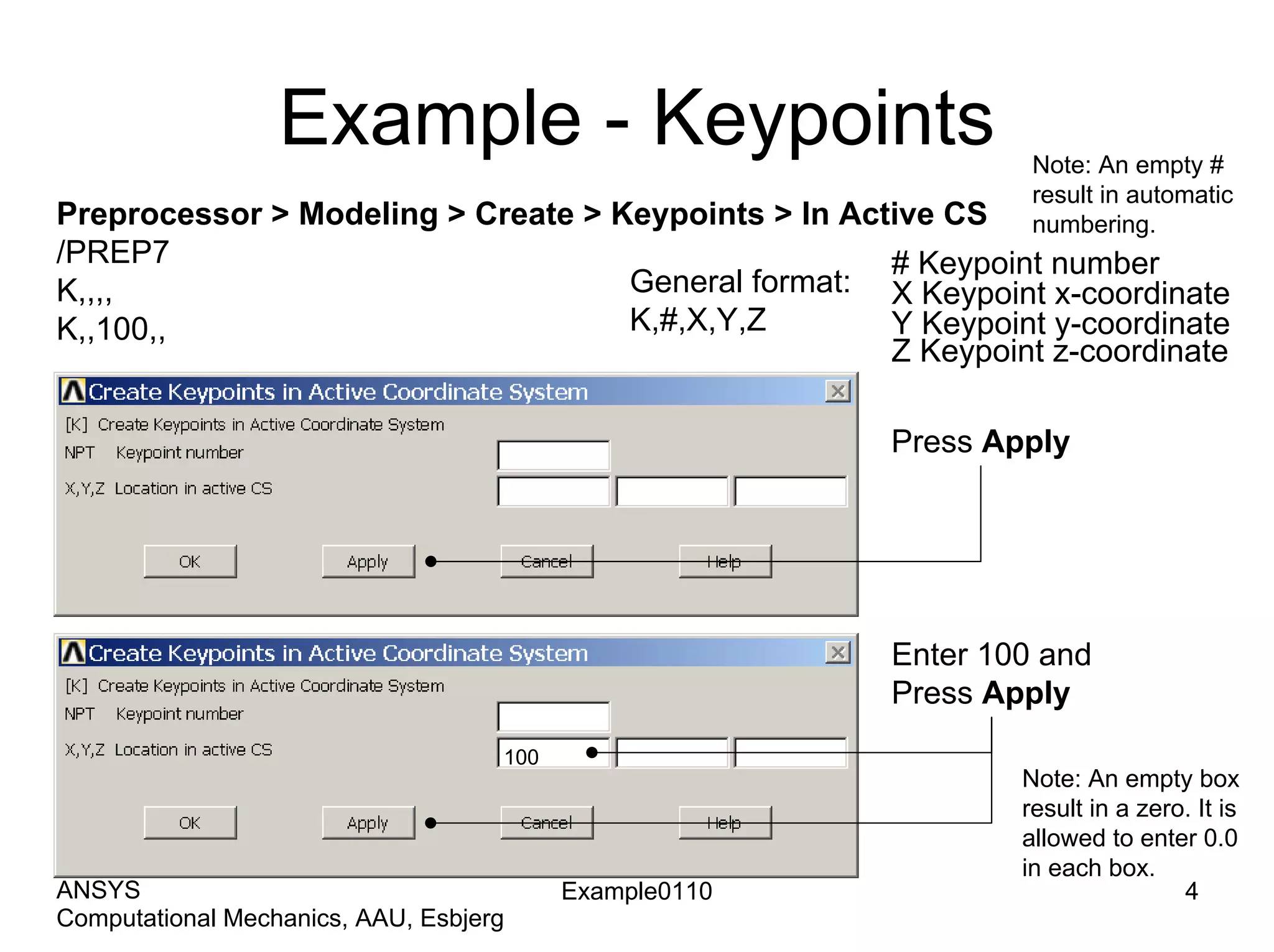

- 4. Example - Keypoints Preprocessor> Modeling > Create > Keypoints > In Active CS /PREP7 K,,,, K,,100,, General format: K,#,X,Y,Z # Keypoint number X Keypoint x-coordinate Y Keypoint y-coordinate Z Keypoint z-coordinate Note: An empty # result in automatic numbering. Press Apply Enter 100 and Press Apply Example0110 4 Computational Mechanics, AAU, Esbjerg ANSYS 100 Note: An empty box result in a zero. It is allowed to enter 0.0 in each box.

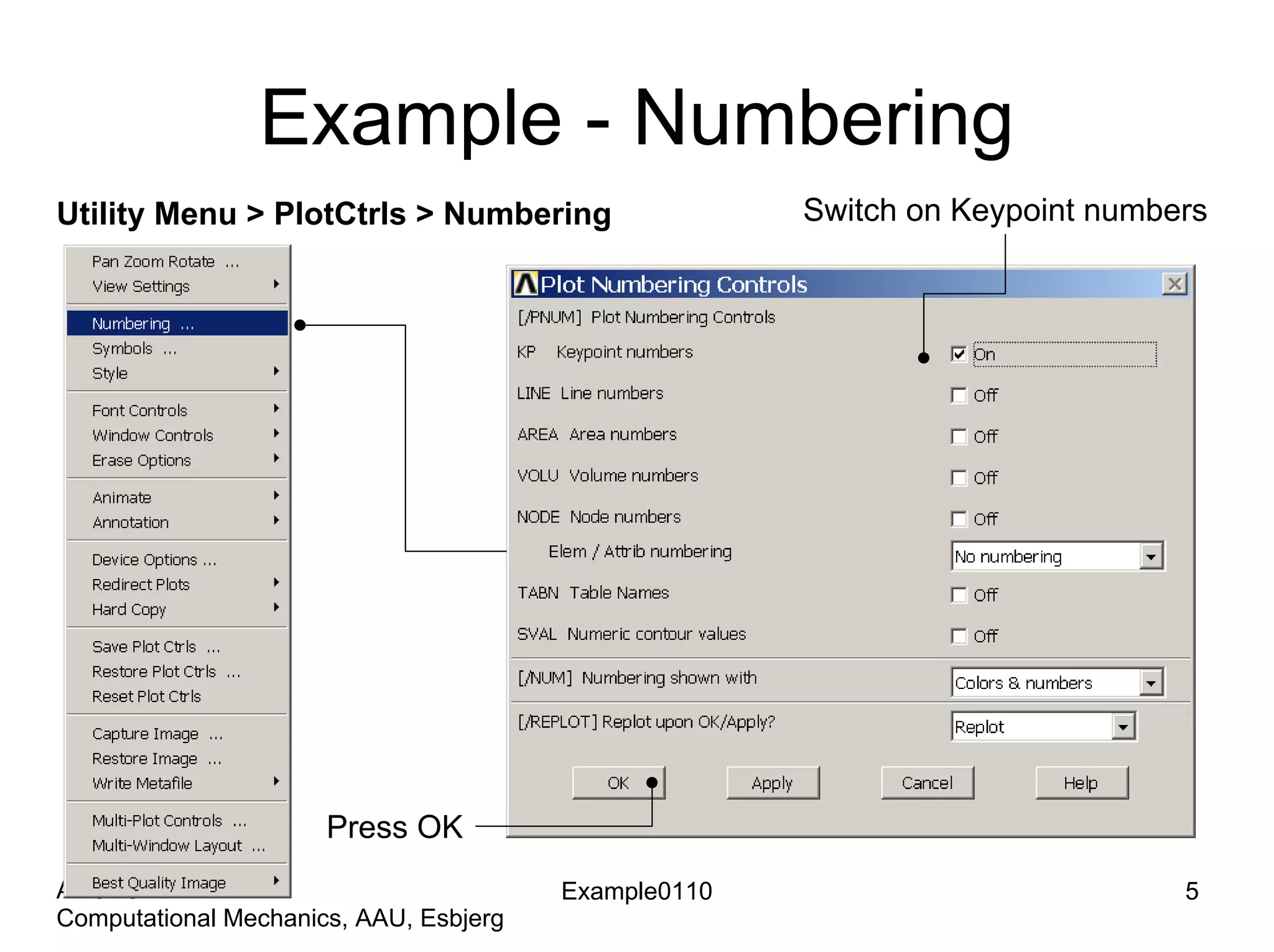

- 5. Example - Numbering Switchon Keypoint numbersUtility Menu > PlotCtrls > Numbering Example0110 5 Computational Mechanics, AAU, Esbjerg ANSYS Press OK

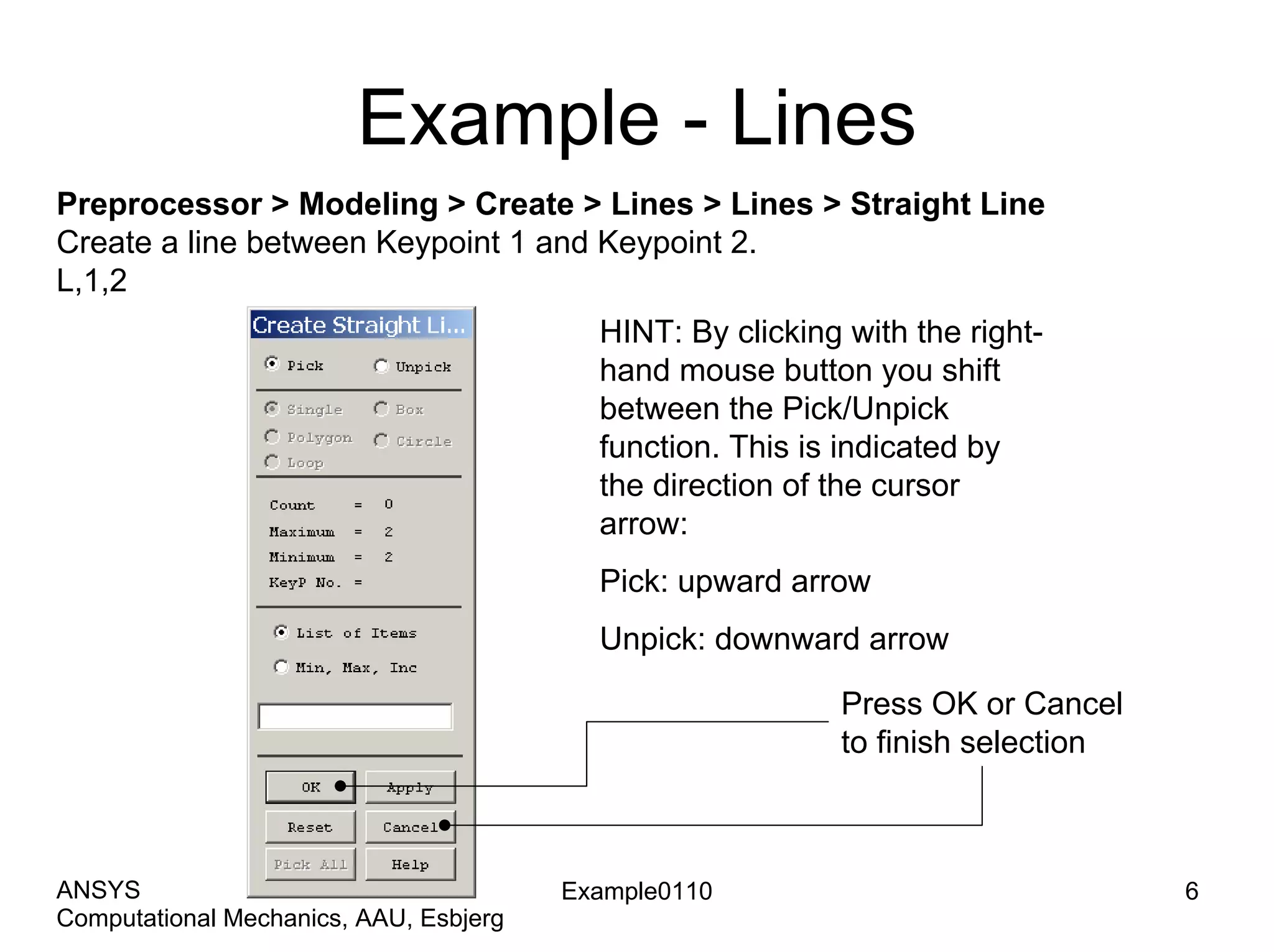

- 6. Example - Lines Preprocessor> Modeling > Create > Lines > Lines > Straight Line Create a line between Keypoint 1 and Keypoint 2. L,1,2 Example0110 6 Computational Mechanics, AAU, Esbjerg ANSYS HINT: By clicking with the right- hand mouse button you shift between the Pick/Unpick function. This is indicated by the direction of the cursor arrow: Pick: upward arrow Unpick: downward arrow Press OK or Cancel to finish selection

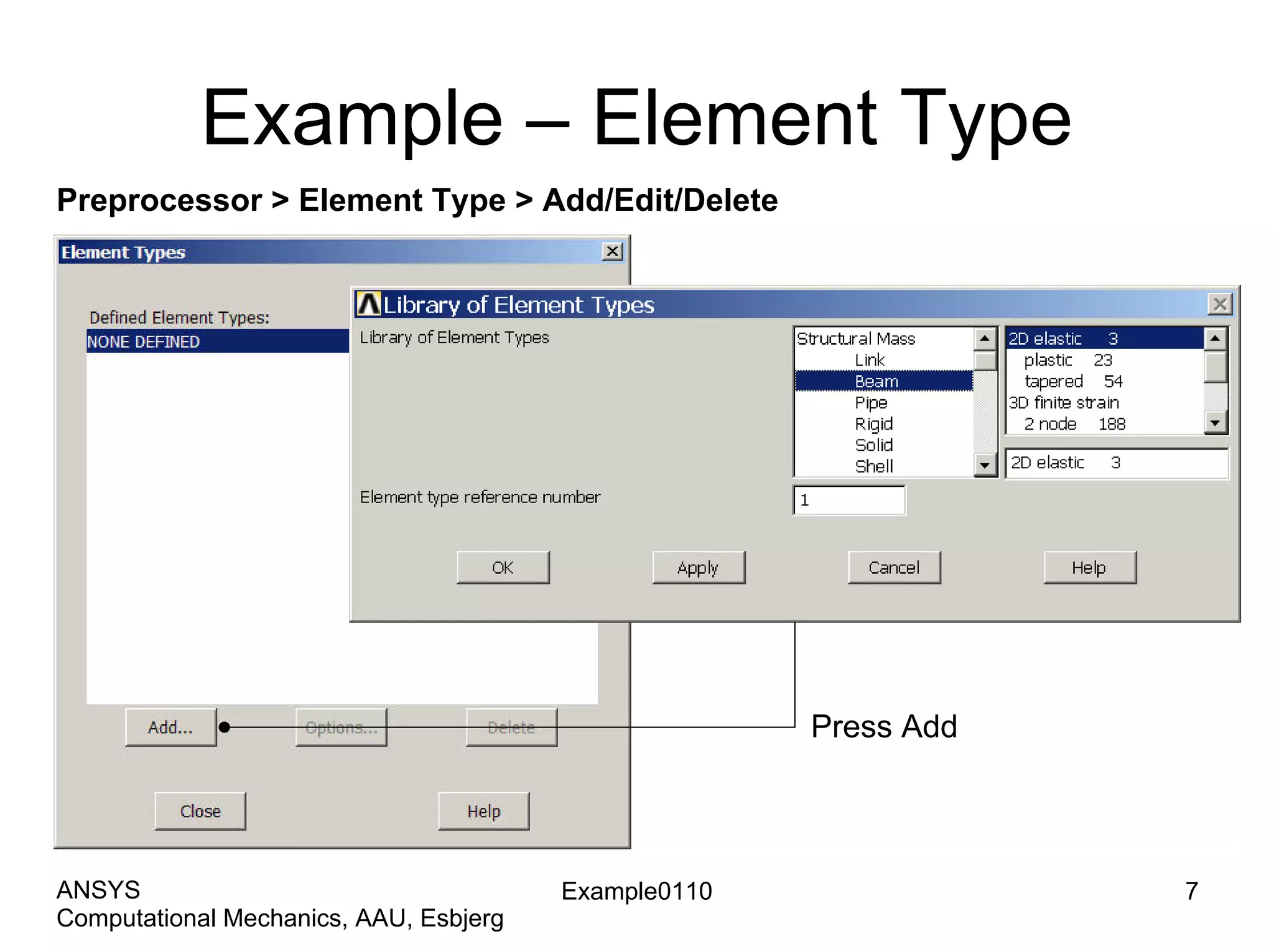

- 7. Example – ElementType Preprocessor > Element Type > Add/Edit/Delete Press Add Example0110 7 Computational Mechanics, AAU, Esbjerg ANSYS

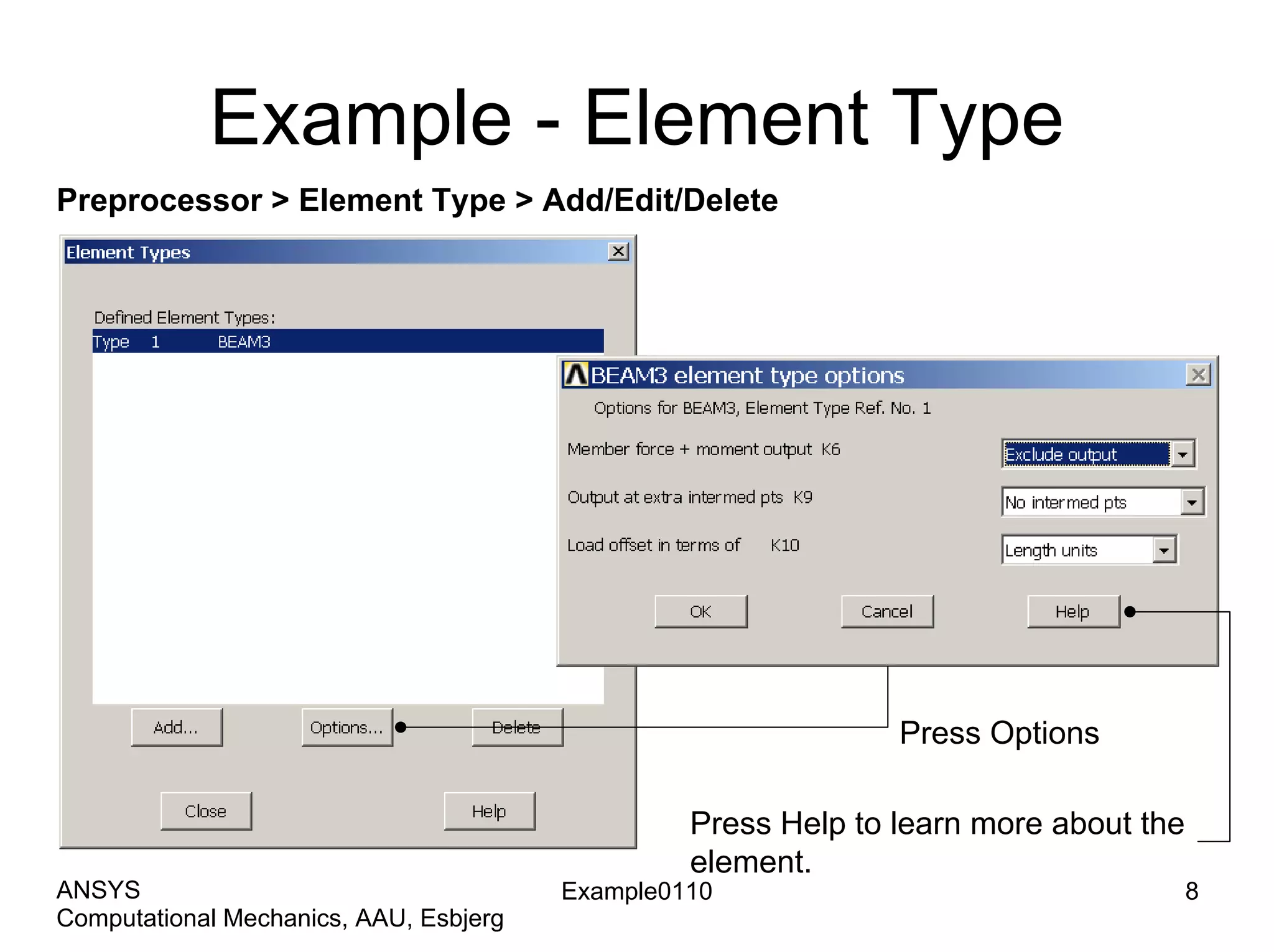

- 8. Example - ElementType Preprocessor > Element Type > Add/Edit/Delete Press Options Example0110 8 Computational Mechanics, AAU, Esbjerg ANSYS Press Help to learn more about the element.

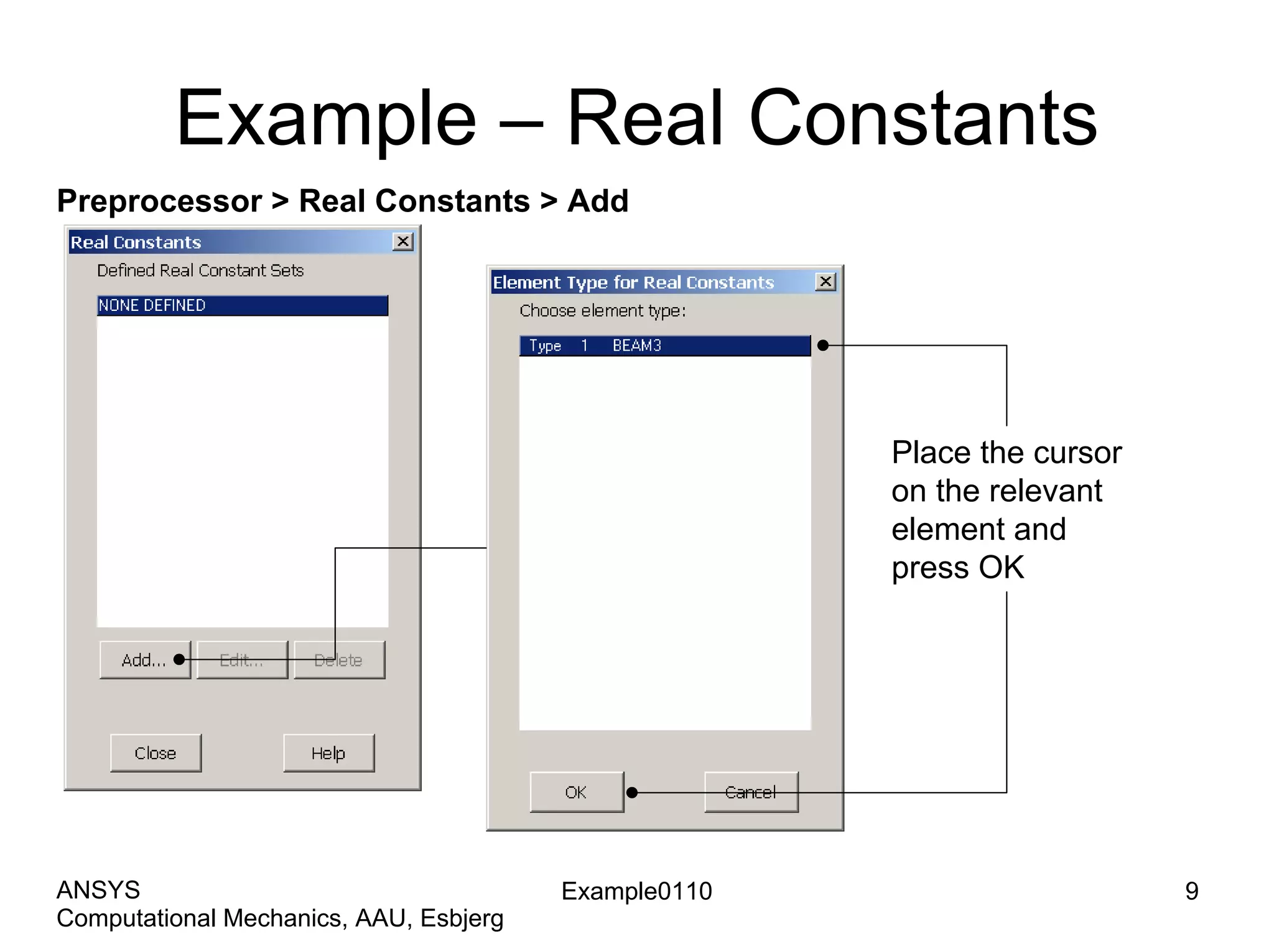

- 9. Example – RealConstants Preprocessor > Real Constants > Add Place the cursor on the relevant element and press OK Example0110 9 Computational Mechanics, AAU, Esbjerg ANSYS

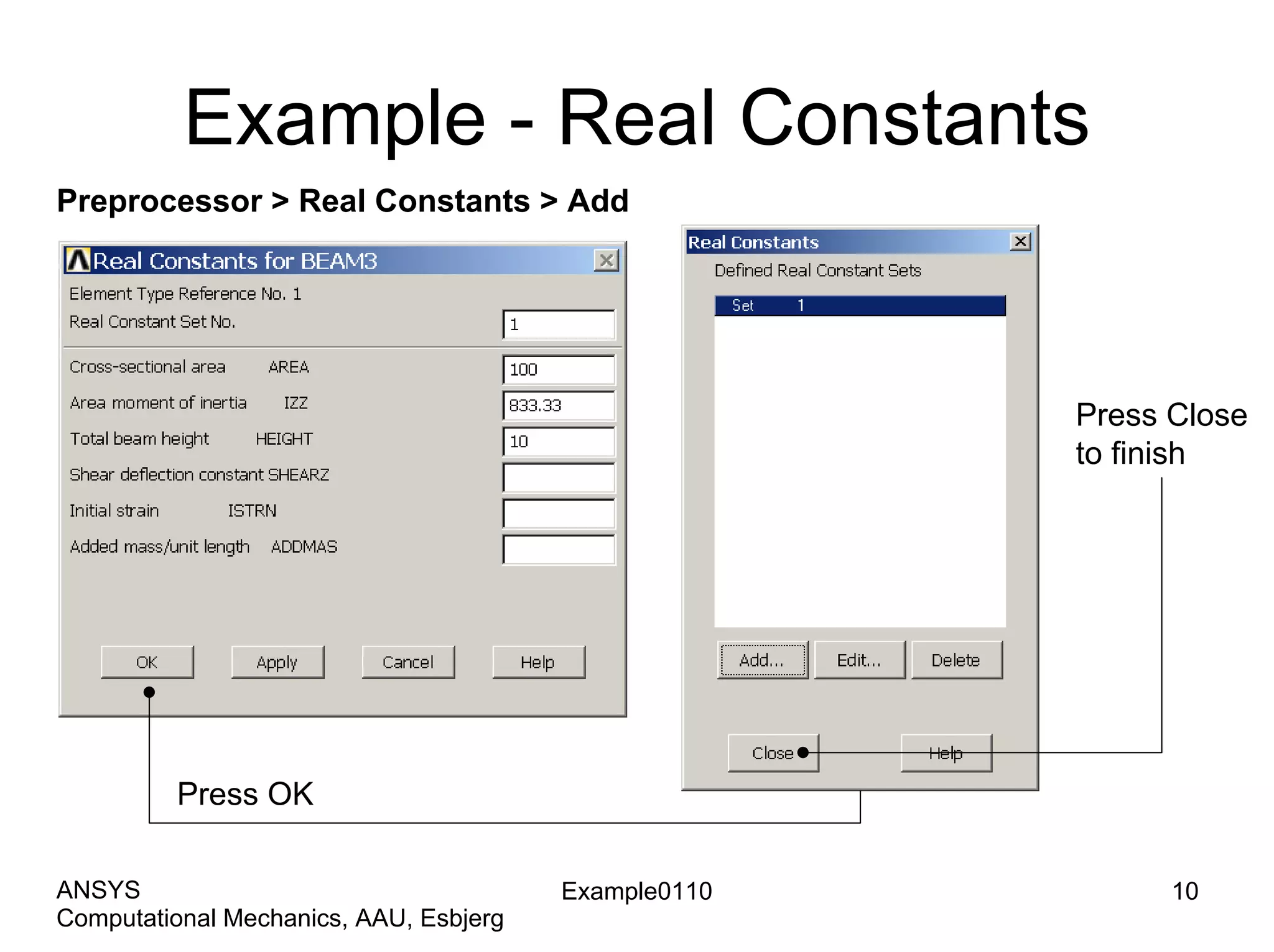

- 10. Example - RealConstants Preprocessor > Real Constants > Add Press OK Press Close to finish Example0110 10 Computational Mechanics, AAU, Esbjerg ANSYS

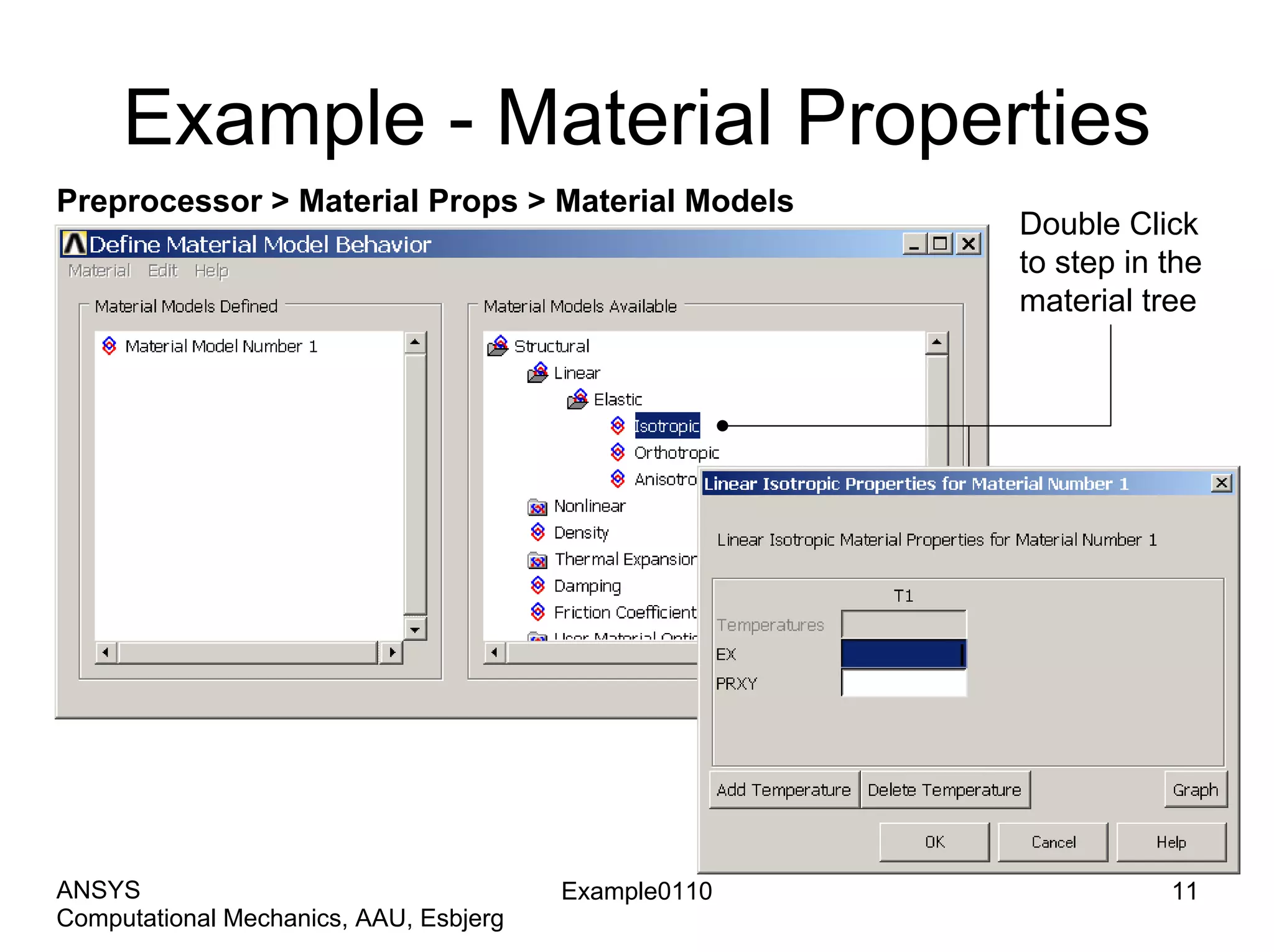

- 11. Example - MaterialProperties Preprocessor > Material Props > Material Models Double Click to step in the material tree Example0110 11 Computational Mechanics, AAU, Esbjerg ANSYS

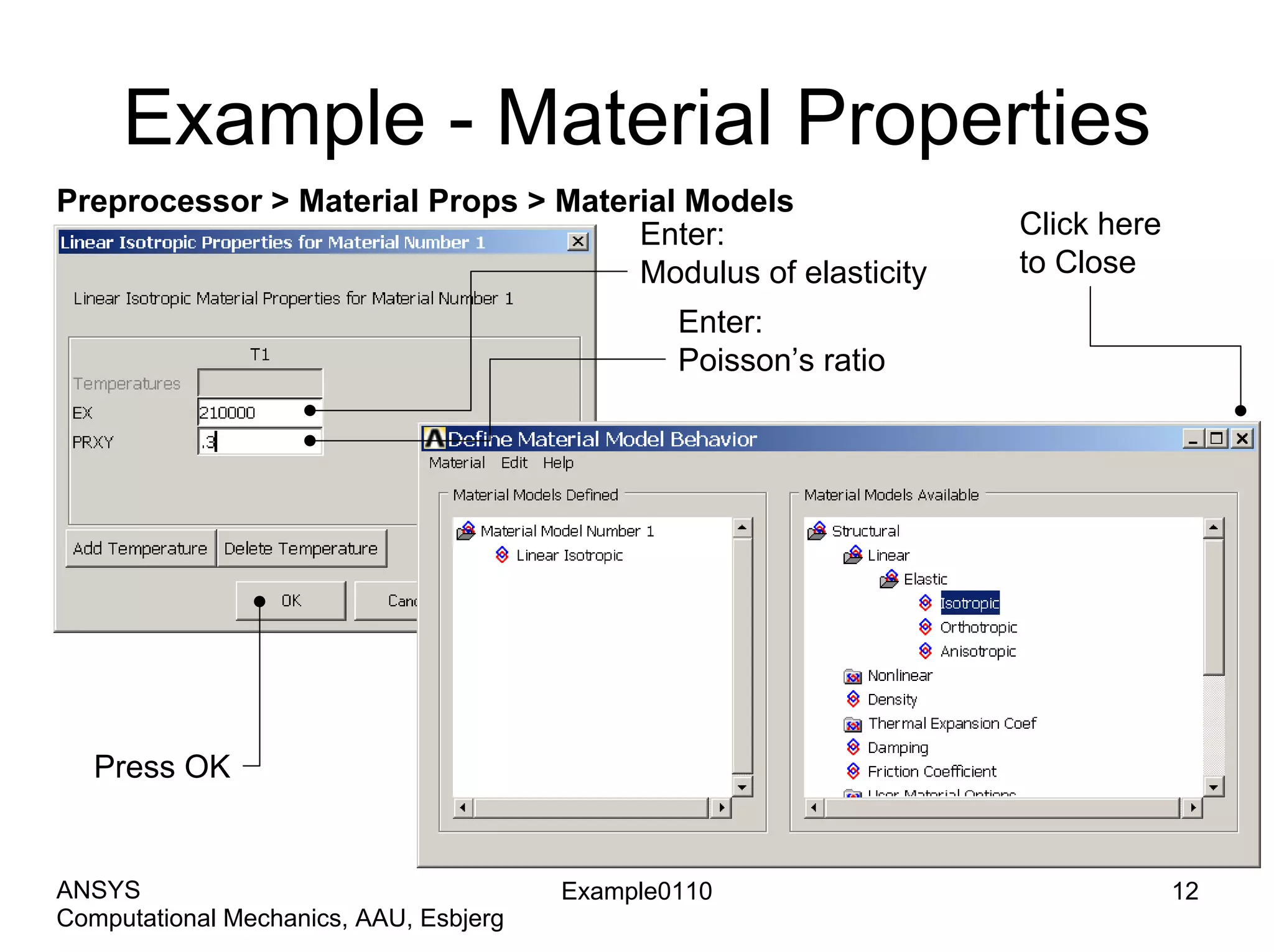

- 12. Example - MaterialProperties Preprocessor > Material Props > Material Models Enter: Modulus of elasticity Enter: Poisson’s ratio Click here to Close Press OK Example0110 12 Computational Mechanics, AAU, Esbjerg ANSYS

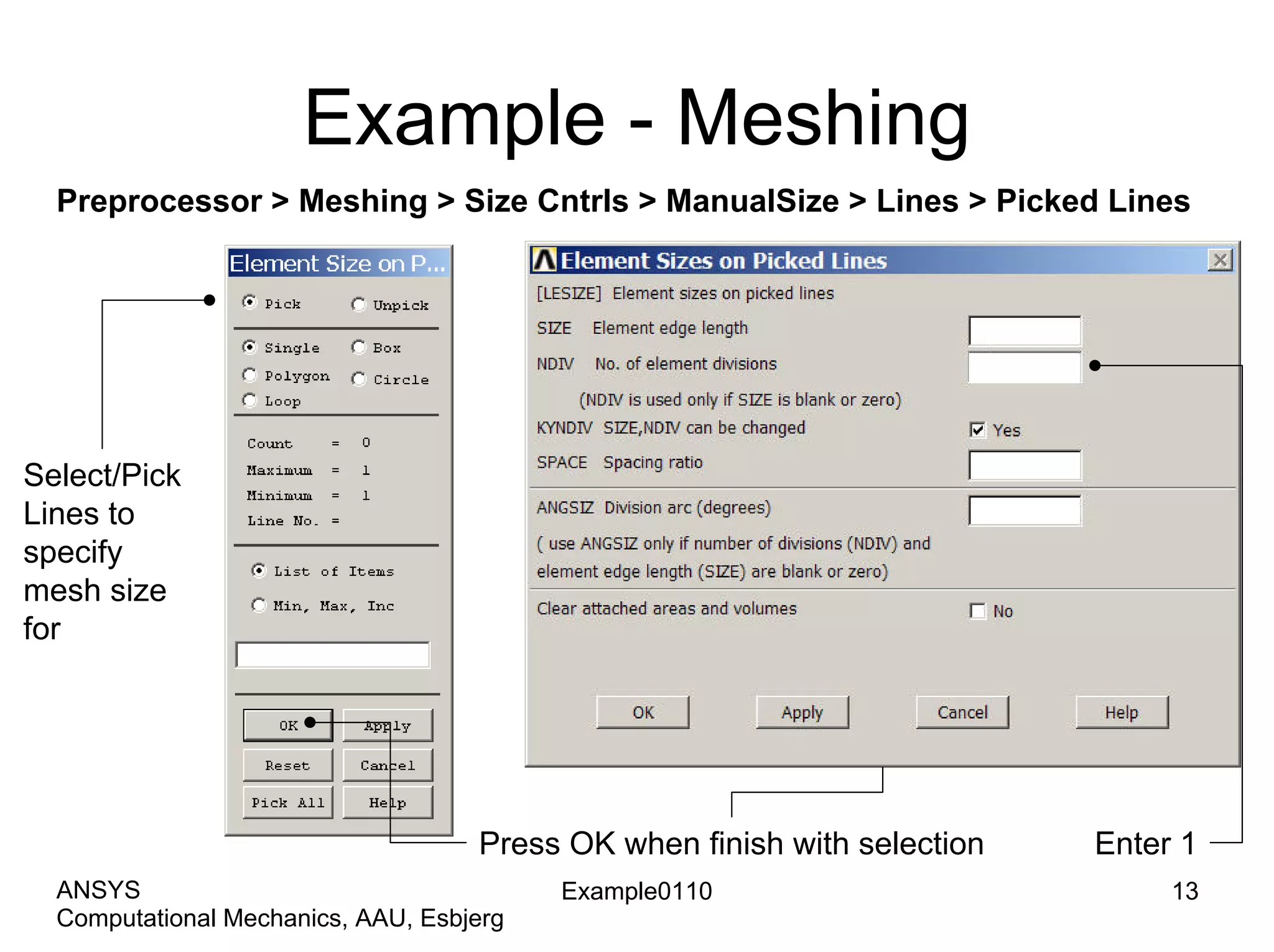

- 13. Example - Meshing Preprocessor> Meshing > Size Cntrls > ManualSize > Lines > Picked Lines Example0110 13 Computational Mechanics, AAU, Esbjerg ANSYS Select/Pick Lines to specify mesh size for Press OK when finish with selection Enter 1
- 14. Example - Meshing Preprocessor> Meshing > Mesh > Lines Select individual lines to be meshed by Picking Example0110 14 Computational Mechanics, AAU, Esbjerg ANSYS Select all lines defined to be meshed NB: It is often necessary to “Clear” the model for example if Element Type is to be changed

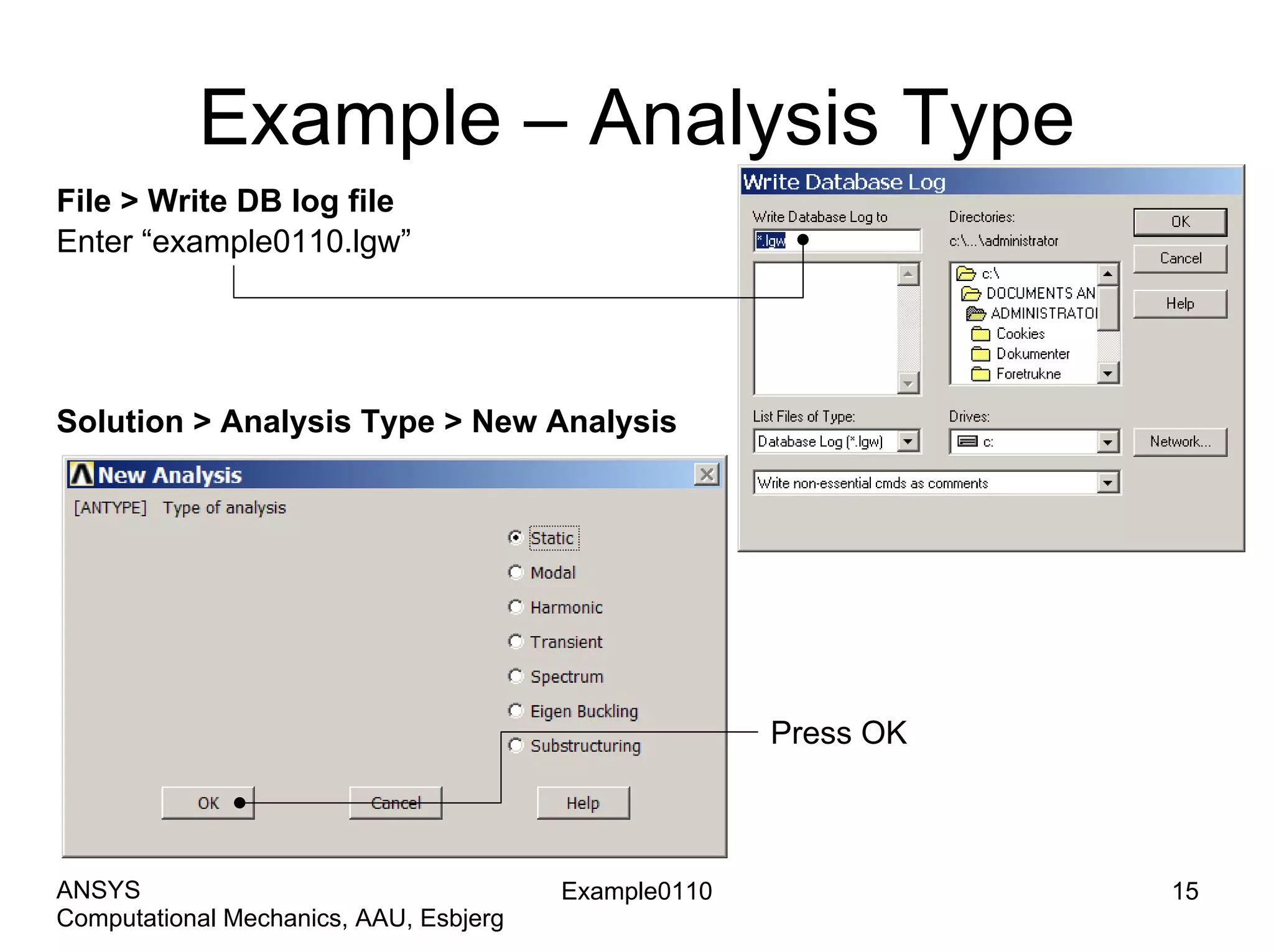

- 15. Example – AnalysisType Solution > Analysis Type > New Analysis File > Write DB log file Enter “example0110.lgw” Press OK Example0110 15 Computational Mechanics, AAU, Esbjerg ANSYS

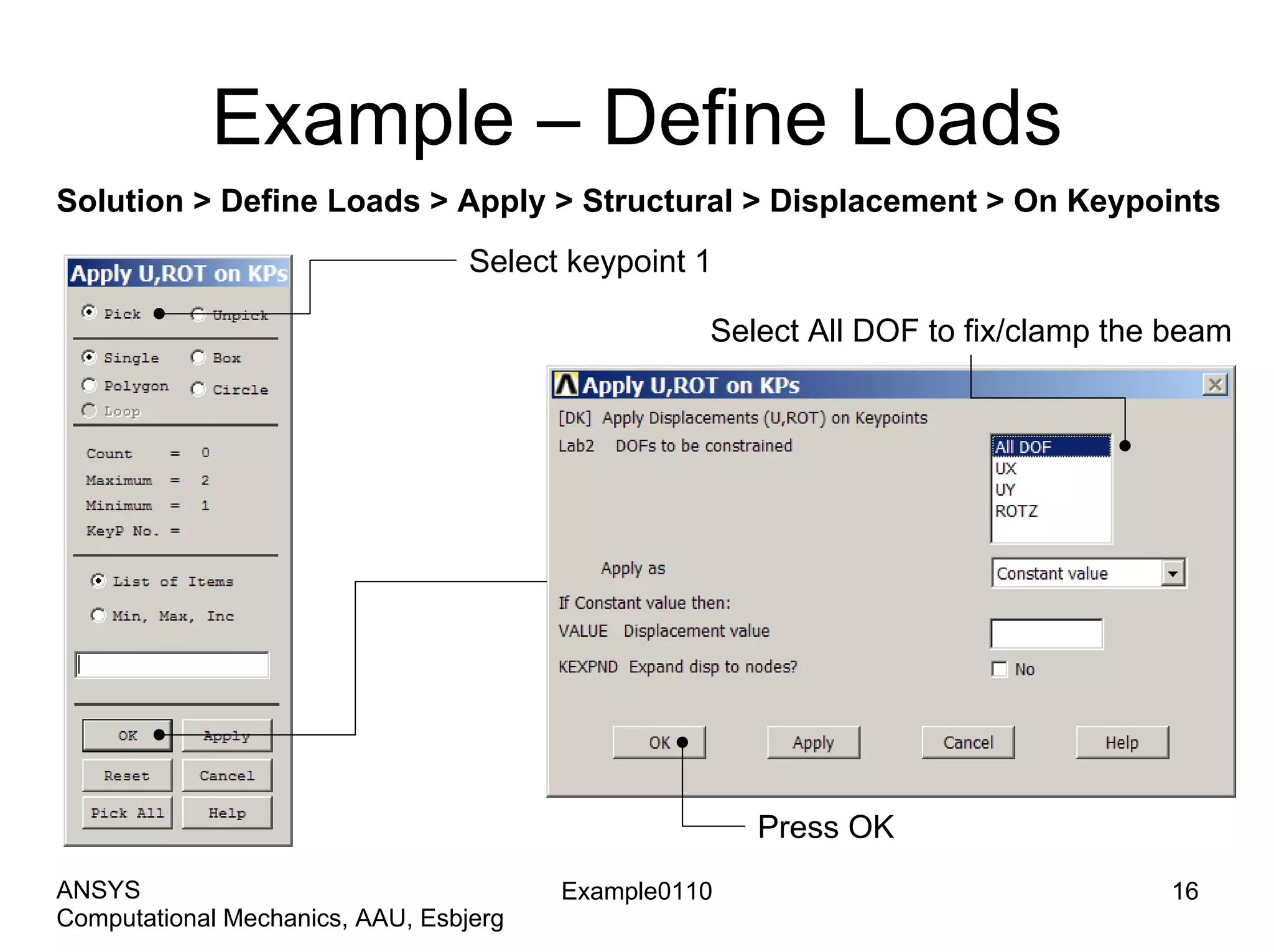

- 16. Example – DefineLoads Solution > Define Loads > Apply > Structural > Displacement > On Keypoints Select keypoint 1 Select All DOF to fix/clamp the beam Press OK Example0110 16 Computational Mechanics, AAU, Esbjerg ANSYS

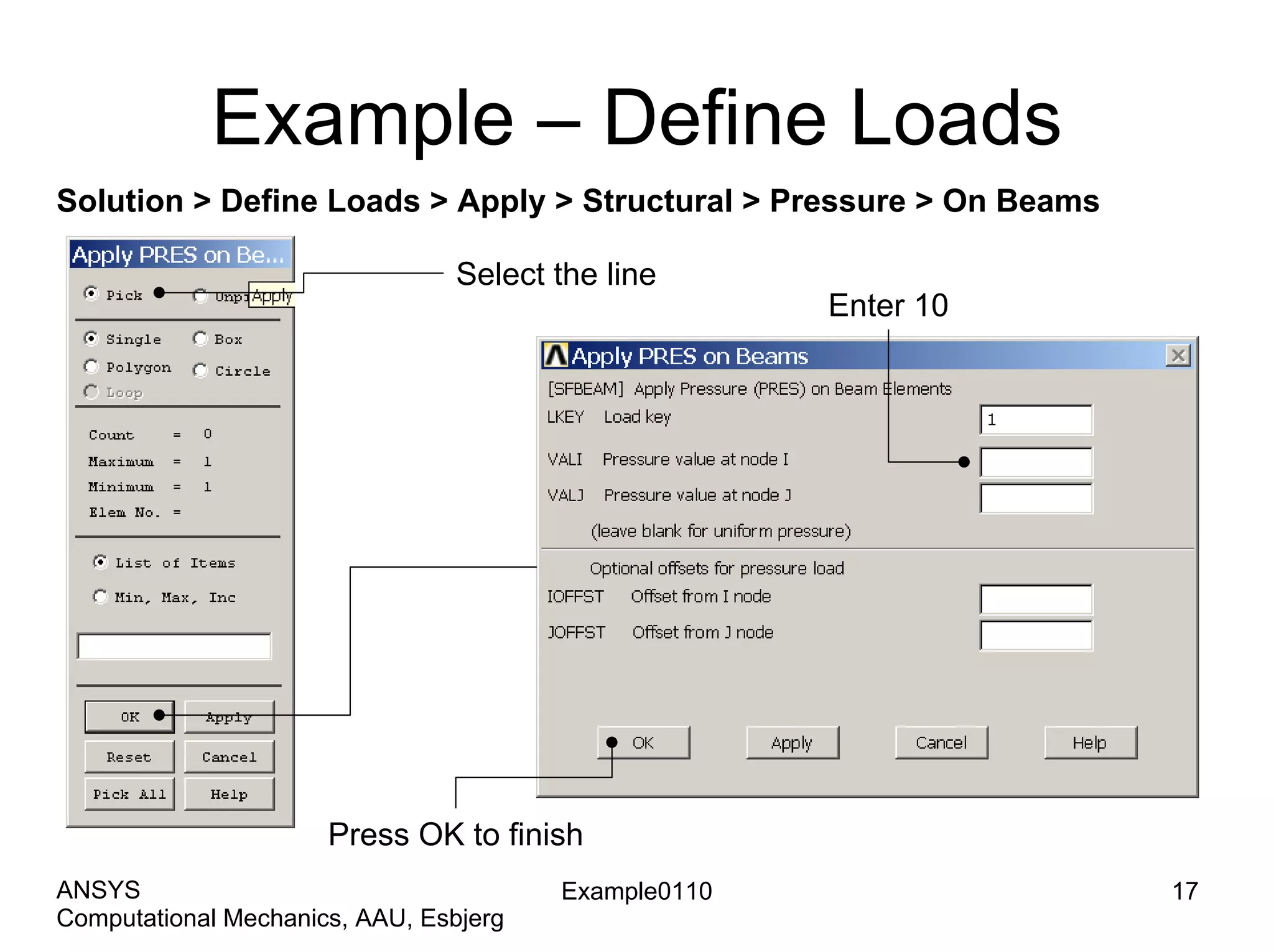

- 17. Example – DefineLoads Solution > Define Loads > Apply > Structural > Pressure > On Beams Select the line Enter 10 Press OK to finish Example0110 17 Computational Mechanics, AAU, Esbjerg ANSYS

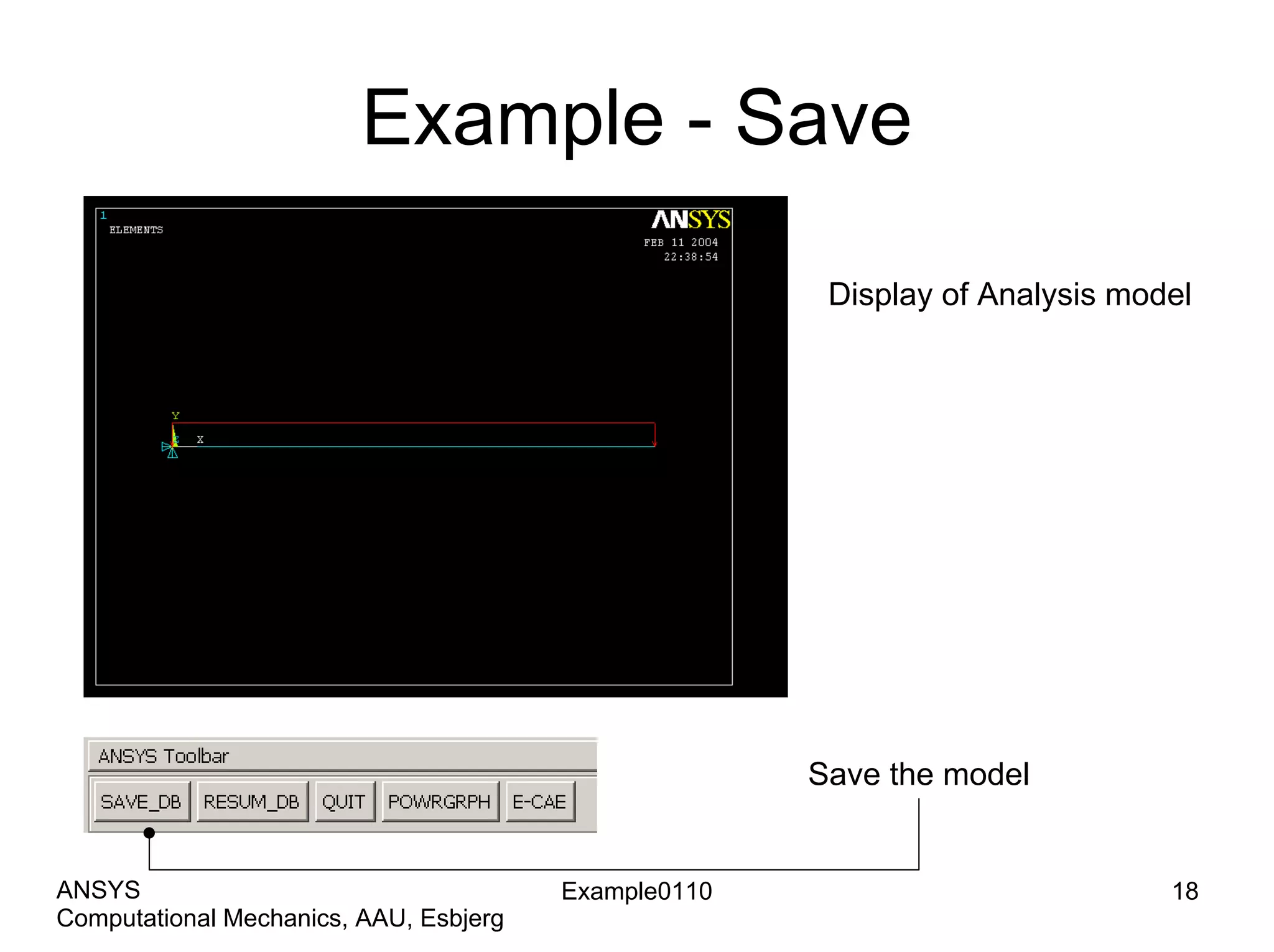

- 18. Example - Save Displayof Analysis model Save the model Example0110 18 Computational Mechanics, AAU, Esbjerg ANSYS
- 19. Example - Solve Solution> Solve > Current LS Example0110 19 Computational Mechanics, AAU, Esbjerg ANSYS Press OK

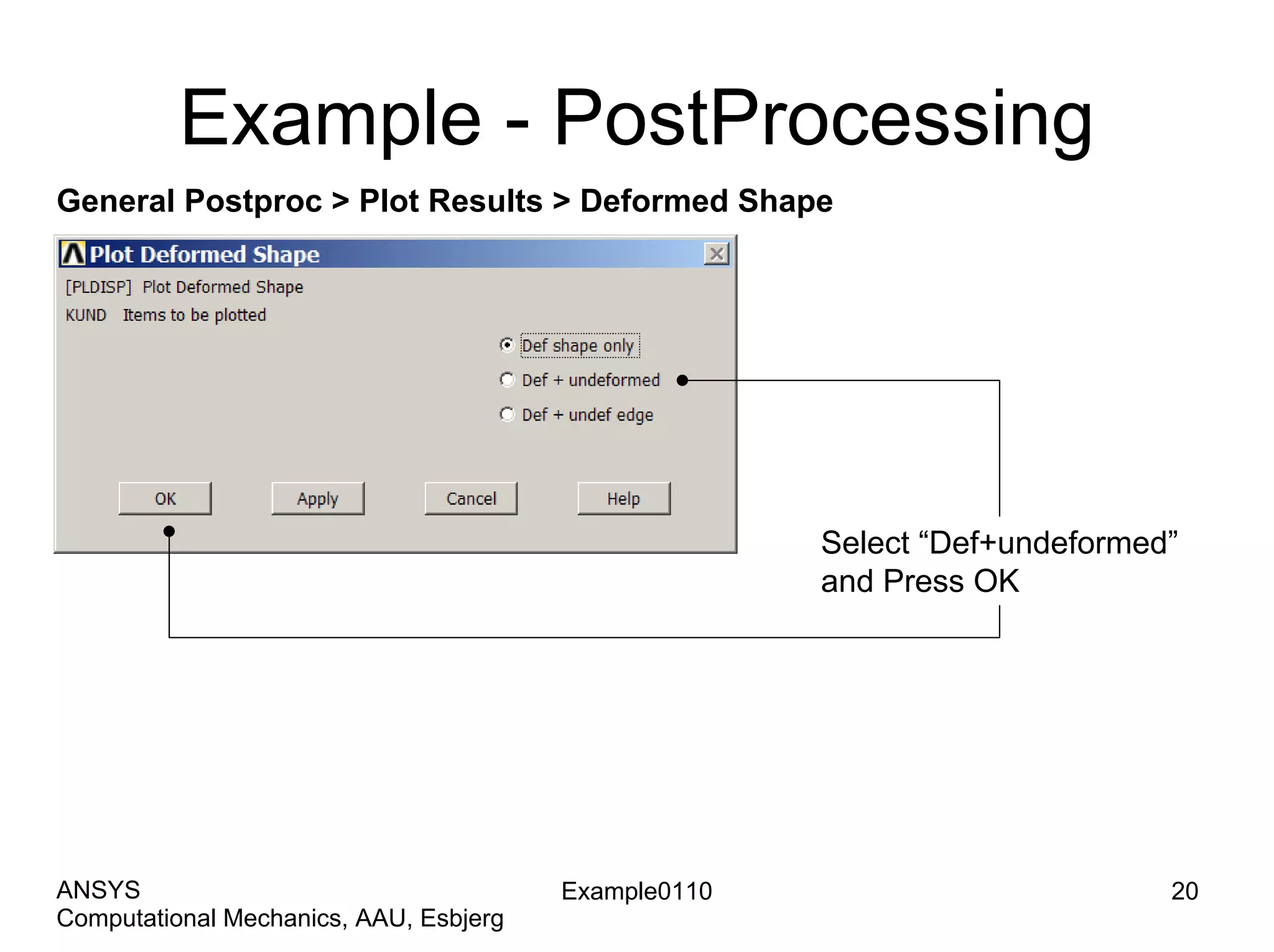

- 20. Example - PostProcessing GeneralPostproc > Plot Results > Deformed Shape Select “Def+undeformed” and Press OK Example0110 20 Computational Mechanics, AAU, Esbjerg ANSYS
- 21. Example - PostProcessing ReadMaximum displacement: DMX Example0110 21 Computational Mechanics, AAU, Esbjerg ANSYS

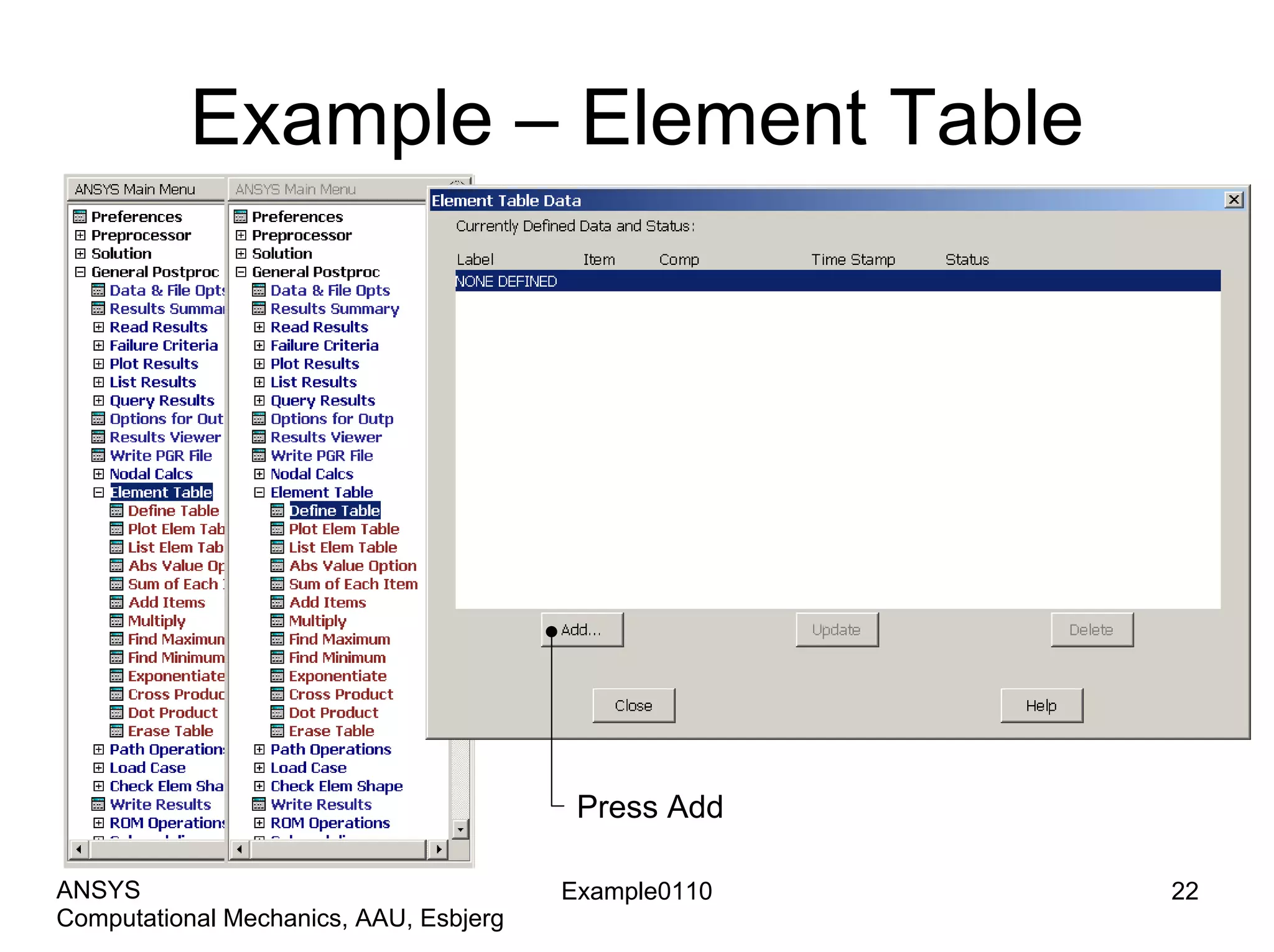

- 22. Example – ElementTable Press Add Example0110 22 Computational Mechanics, AAU, Esbjerg ANSYS

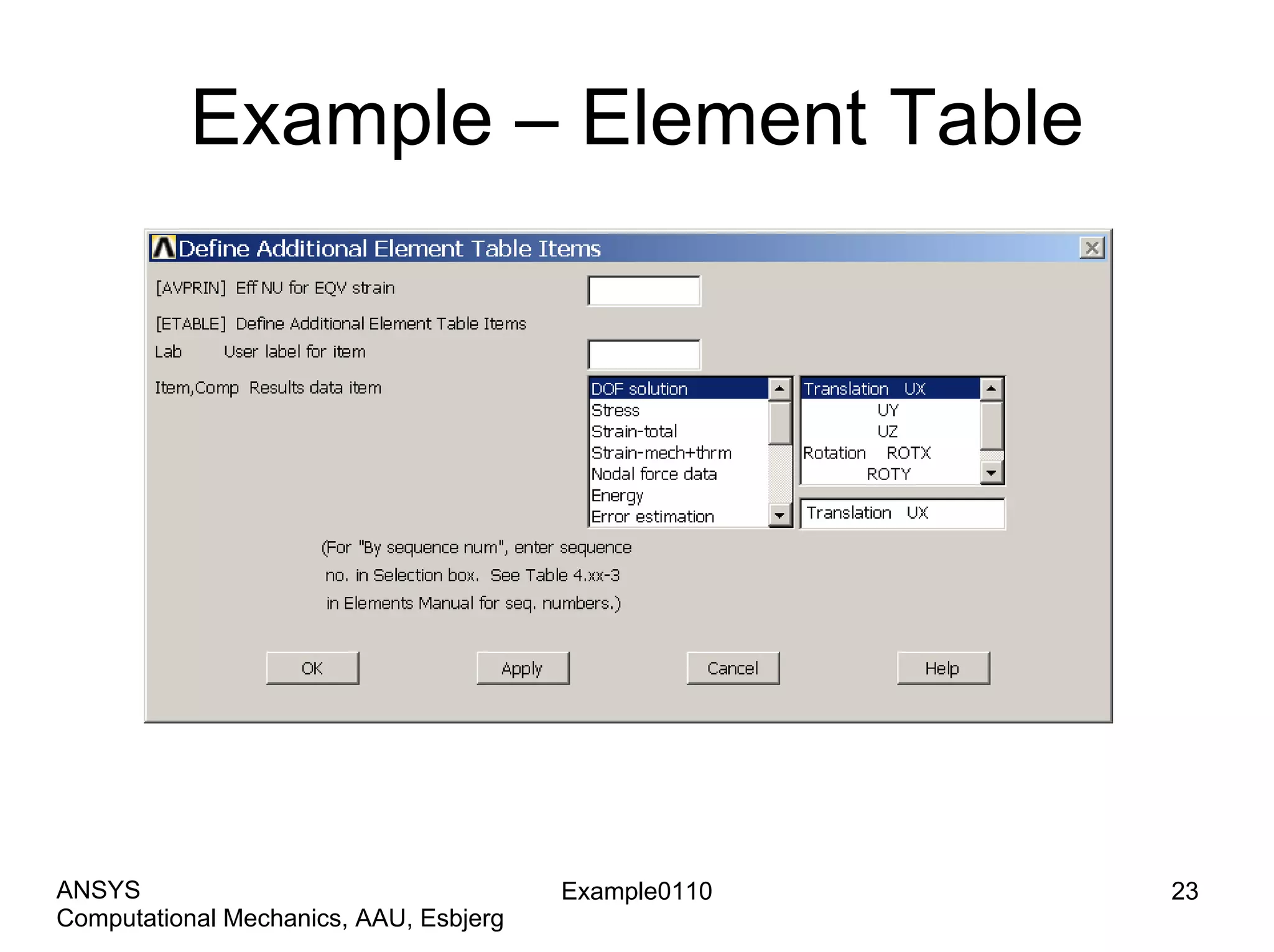

- 23. Example – ElementTable Example0110 23 Computational Mechanics, AAU, Esbjerg ANSYS

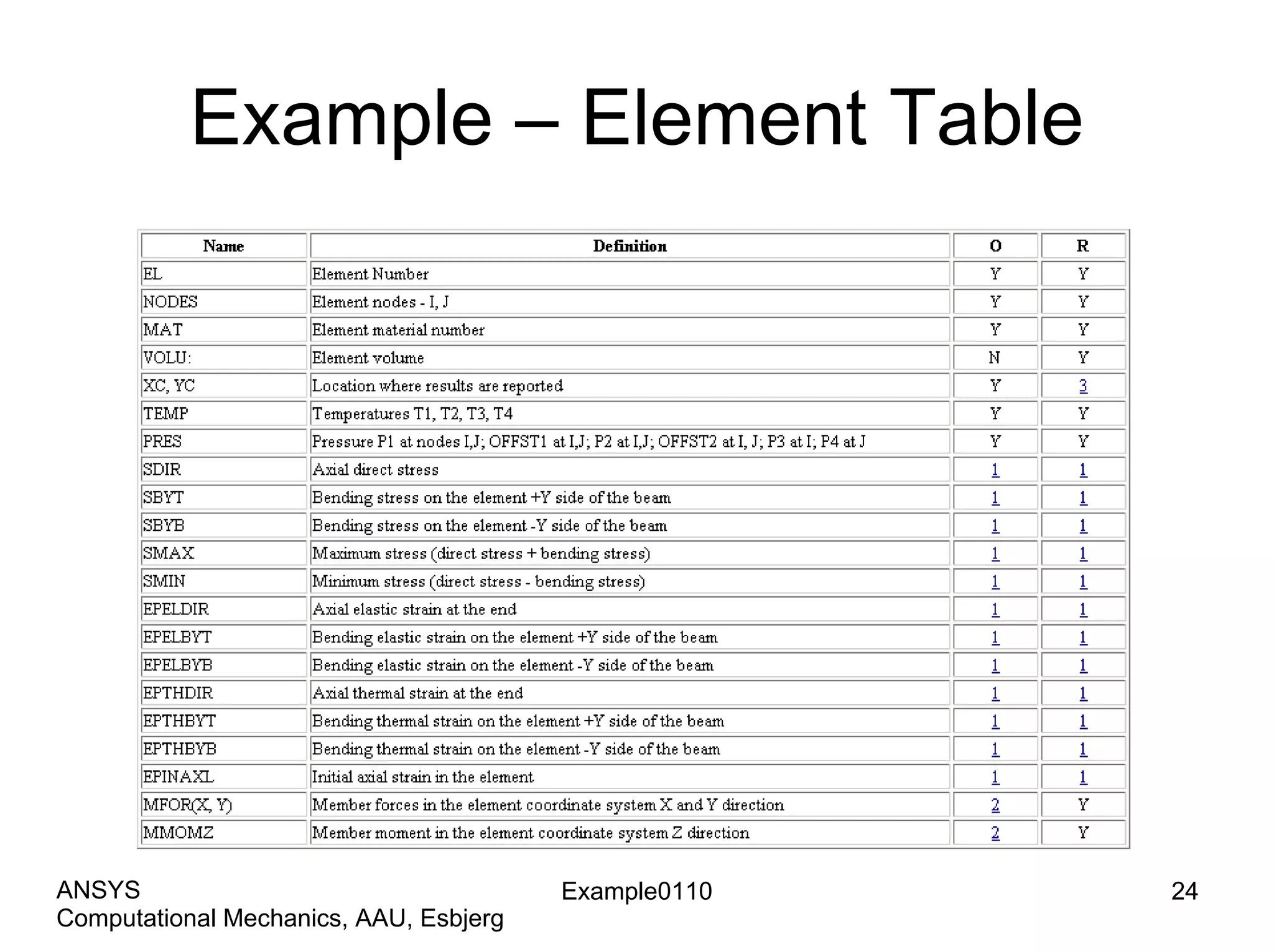

- 24. Example – ElementTable Example0110 24 Computational Mechanics, AAU, Esbjerg ANSYS

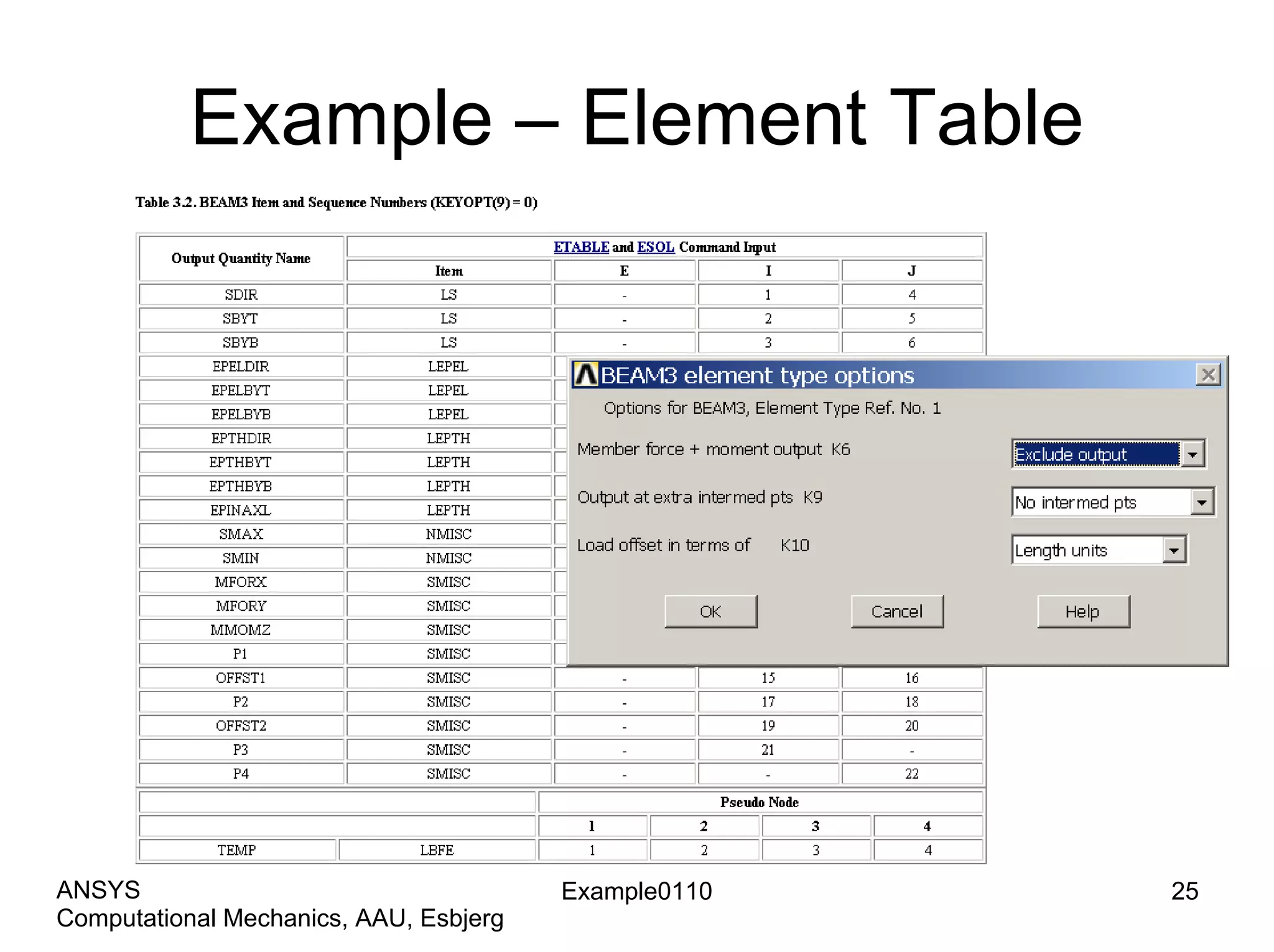

- 25. Example – ElementTable Example0110 25 Computational Mechanics, AAU, Esbjerg ANSYS

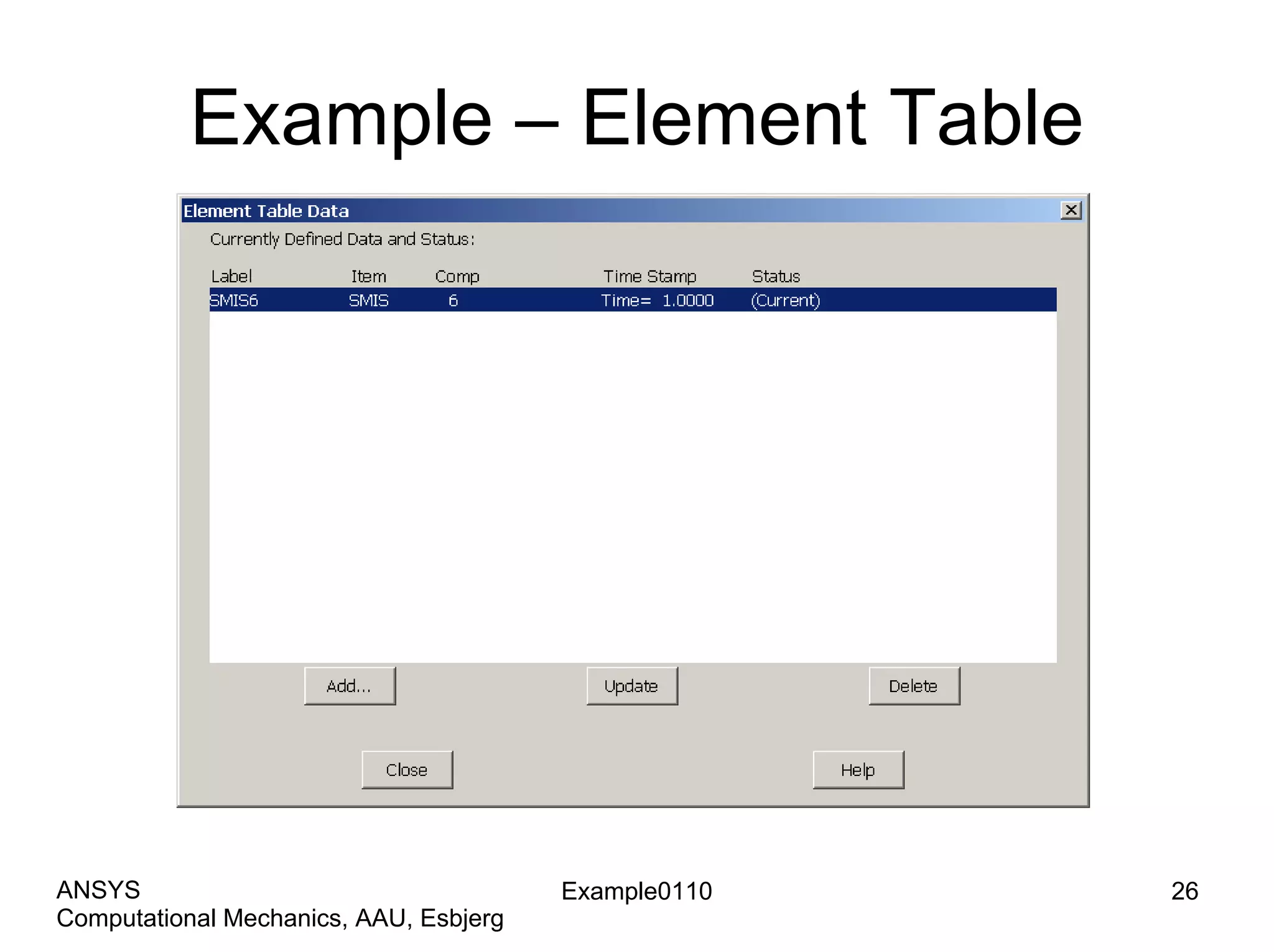

- 26. Example – ElementTable Example0110 26 Computational Mechanics, AAU, Esbjerg ANSYS

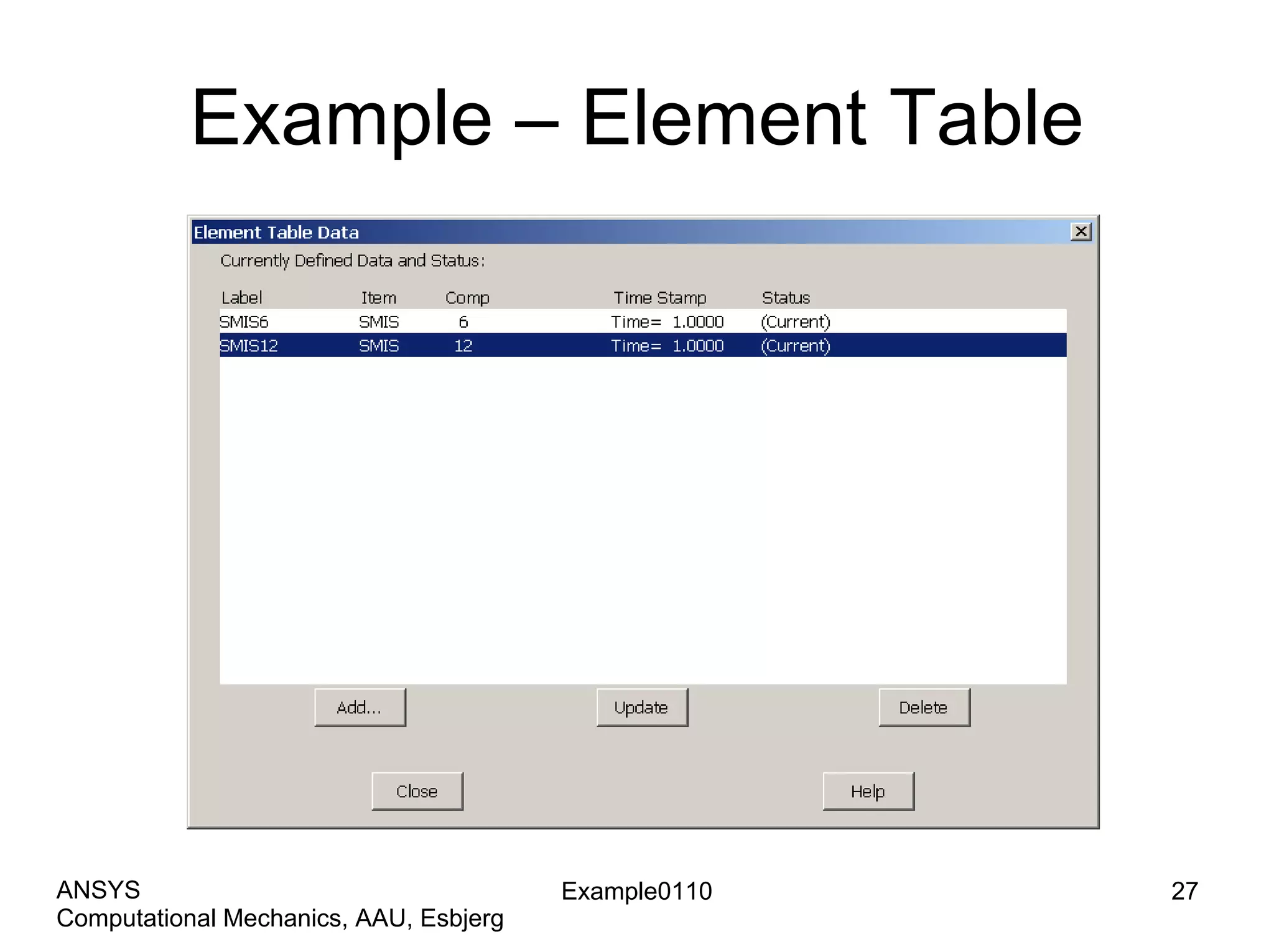

- 27. Example – ElementTable Example0110 27 Computational Mechanics, AAU, Esbjerg ANSYS

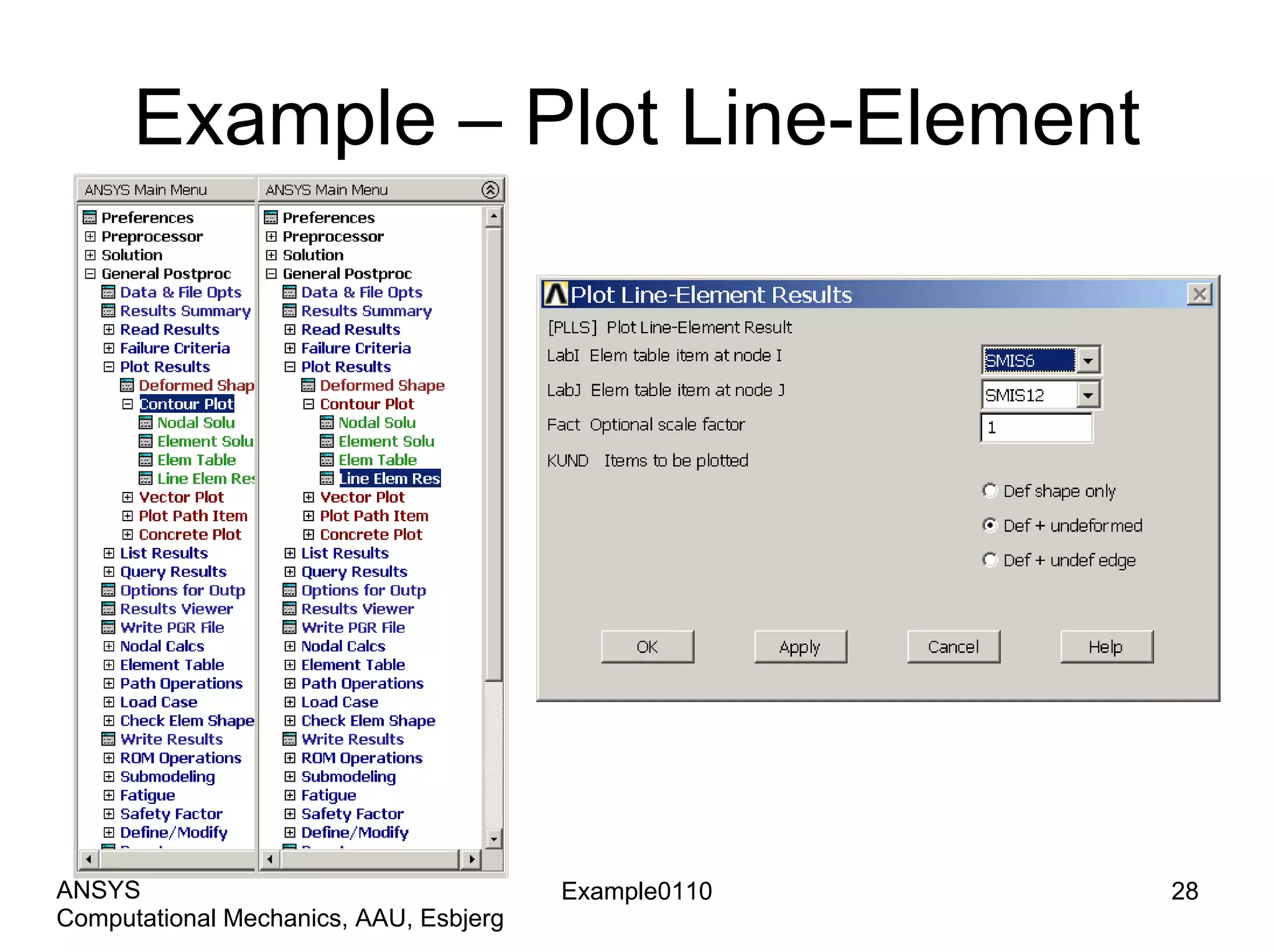

- 28. Example – PlotLine-Element Example0110 28 Computational Mechanics, AAU, Esbjerg ANSYS

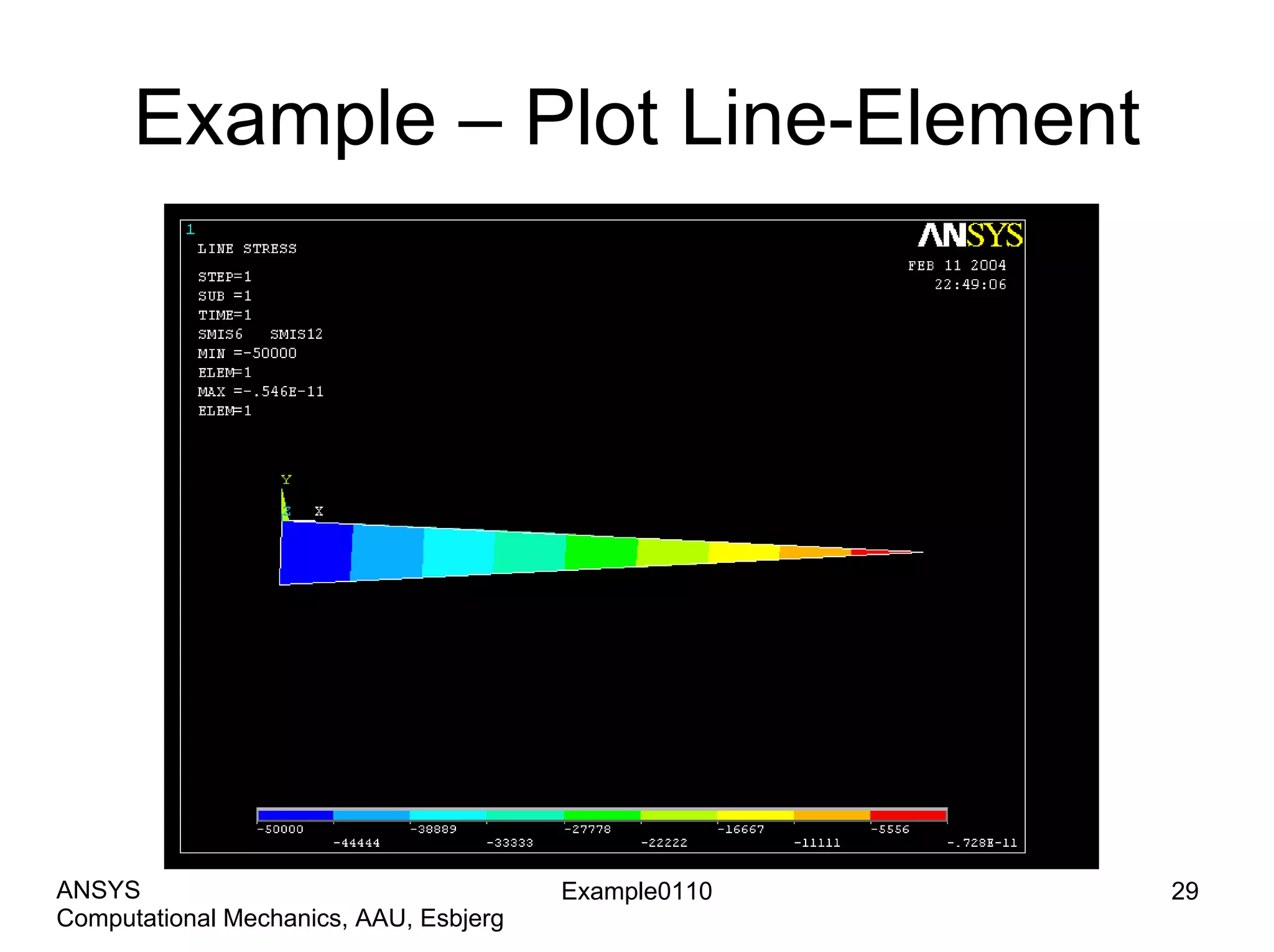

- 29. Example – PlotLine-Element Example0110 29 Computational Mechanics, AAU, Esbjerg ANSYS
