Robotium Tutorial

Robotium Tutorial

Mobile March
March 21, 2013

An Intertech Course

By Jim White, Intertech, Inc..

Course Name

Stop by Intertech’s
booth for a chance to
win FREE Training.

Or go to bit.ly.com/intertech-login

Slides & demo code available at intertech.com/blog
Copyright © Intertech, Inc. • www.Intertech.com • 800-866-9884 Slide 2

Course Name

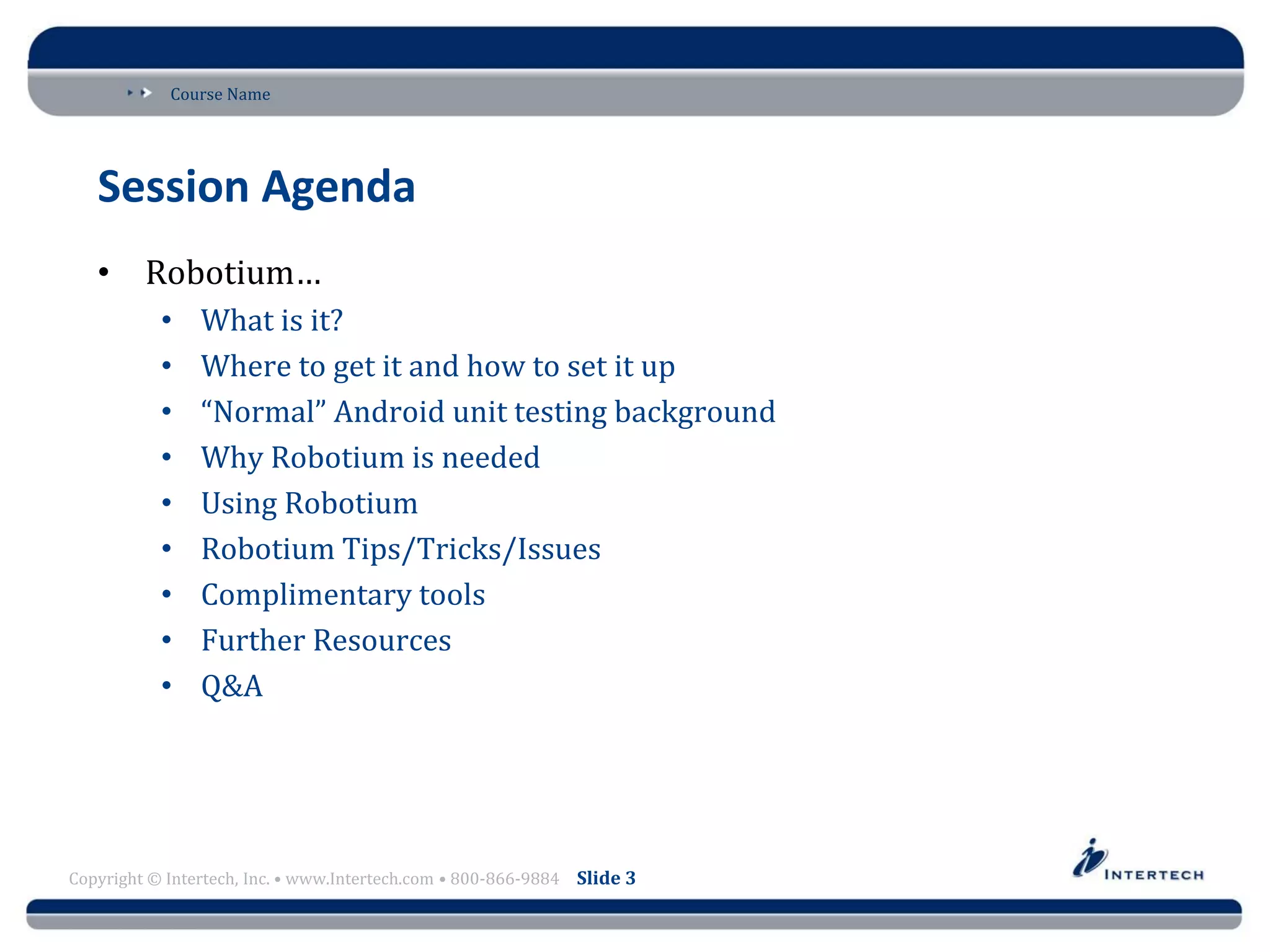

Session Agenda
• Robotium…
• What is it?
• Where to get it and how to set it up
• “Normal” Android unit testing background
• Why Robotium is needed
• Using Robotium
• Robotium Tips/Tricks/Issues
• Complimentary tools
• Further Resources
• Q&A


Course Name

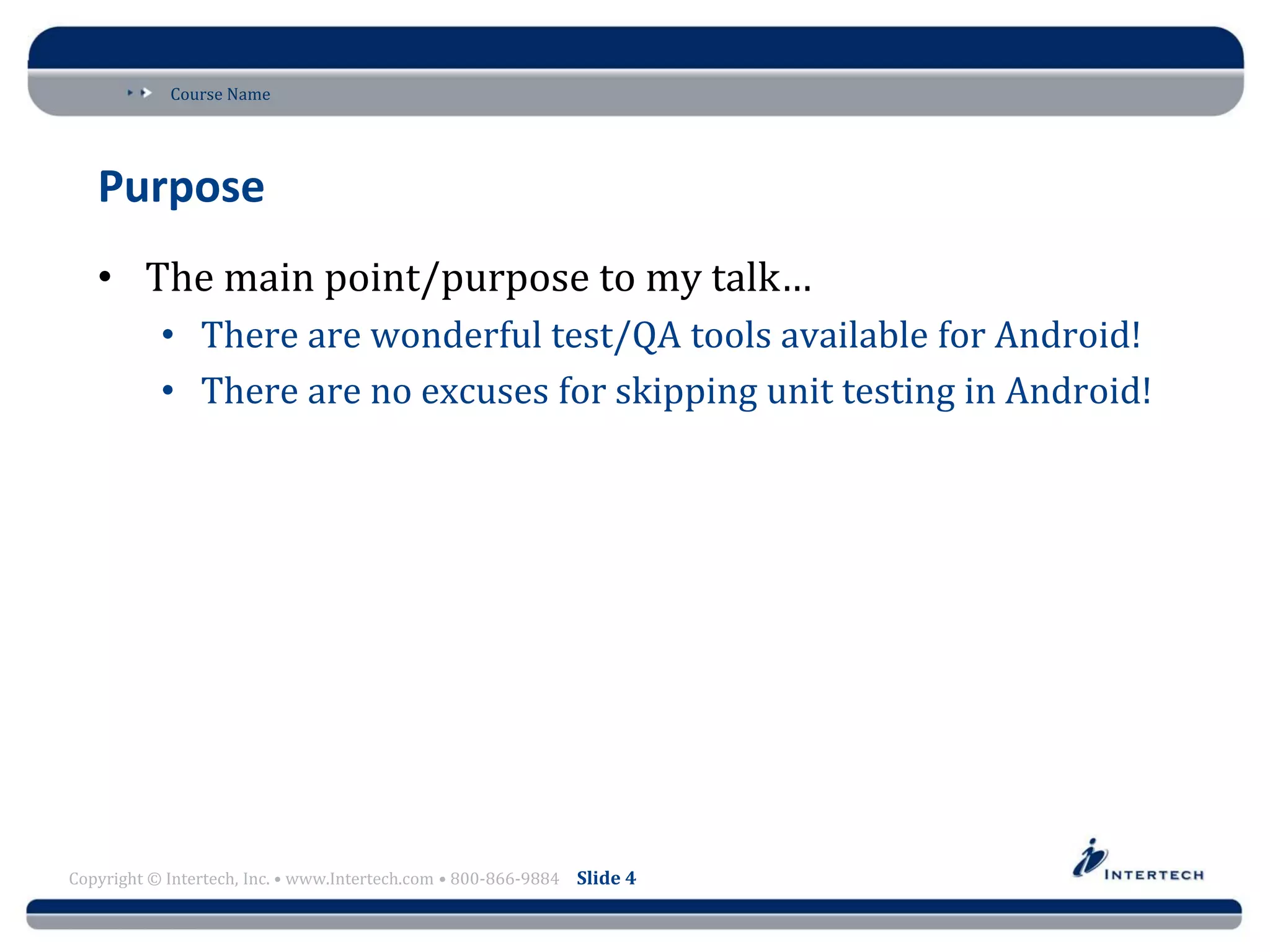

Purpose
• The main point/purpose to my talk…
• There are wonderful test/QA tools available for Android!
• There are no excuses for skipping unit testing in Android!


Course Name

Jim White Intro
• Intertech Partner,
• Dir. of Training,
• Instructor,
• Consultant
• Co-author, J2ME, Java in Small
Things (Manning)
• Device developer since before
phones were “smart”
• Java developer when “spring”
and “struts” described your
stride
• Occasional beer drinker


Course Name

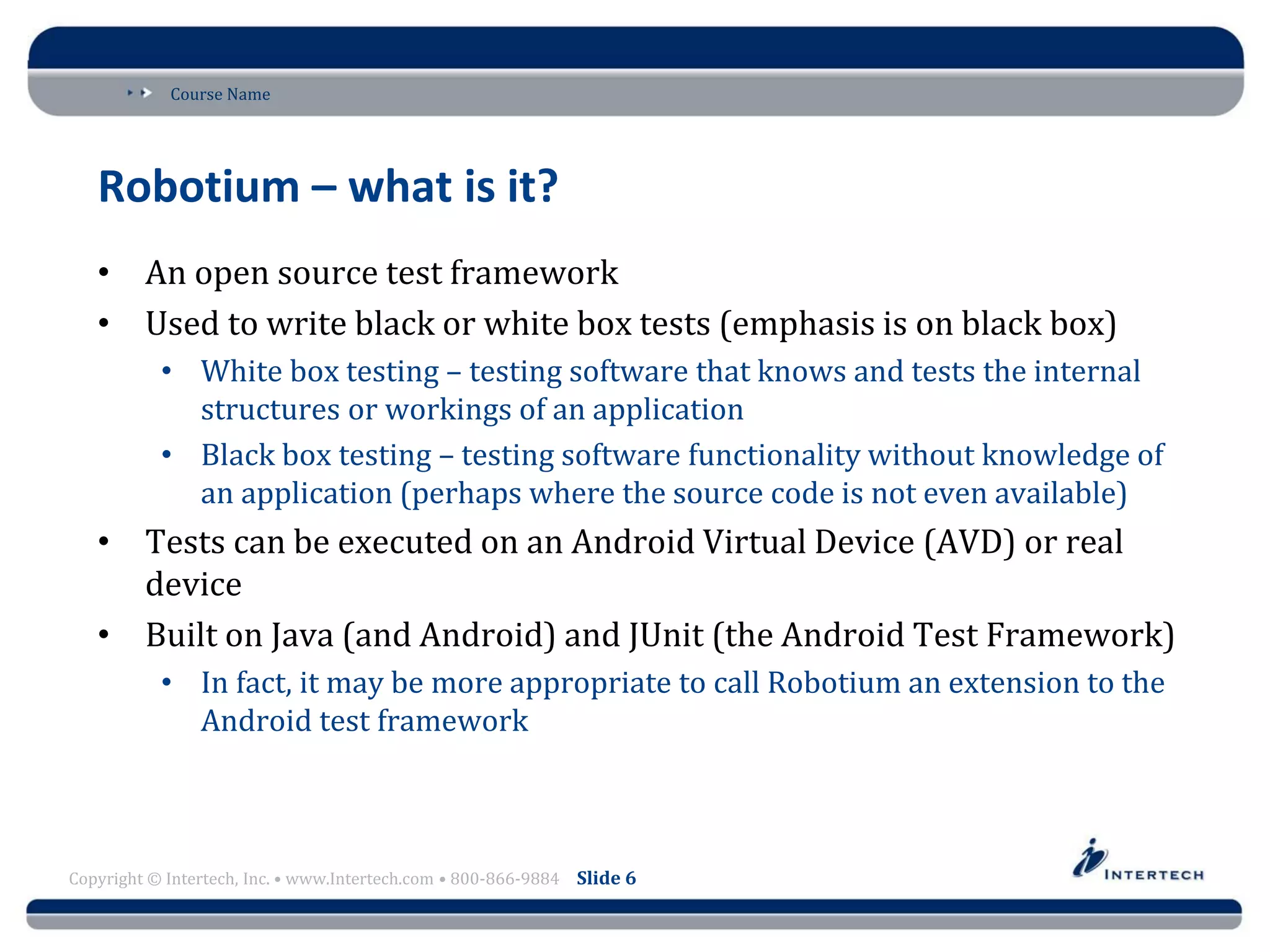

Robotium – what is it?
• An open source test framework
• Used to write black or white box tests (emphasis is on black box)
• White box testing – testing software that knows and tests the internal
structures or workings of an application
• Black box testing – testing software functionality without knowledge of
an application (perhaps where the source code is not even available)
• Tests can be executed on an Android Virtual Device (AVD) or real
device
• Built on Java (and Android) and JUnit (the Android Test Framework)
• In fact, it may be more appropriate to call Robotium an extension to the
Android test framework


Course Name

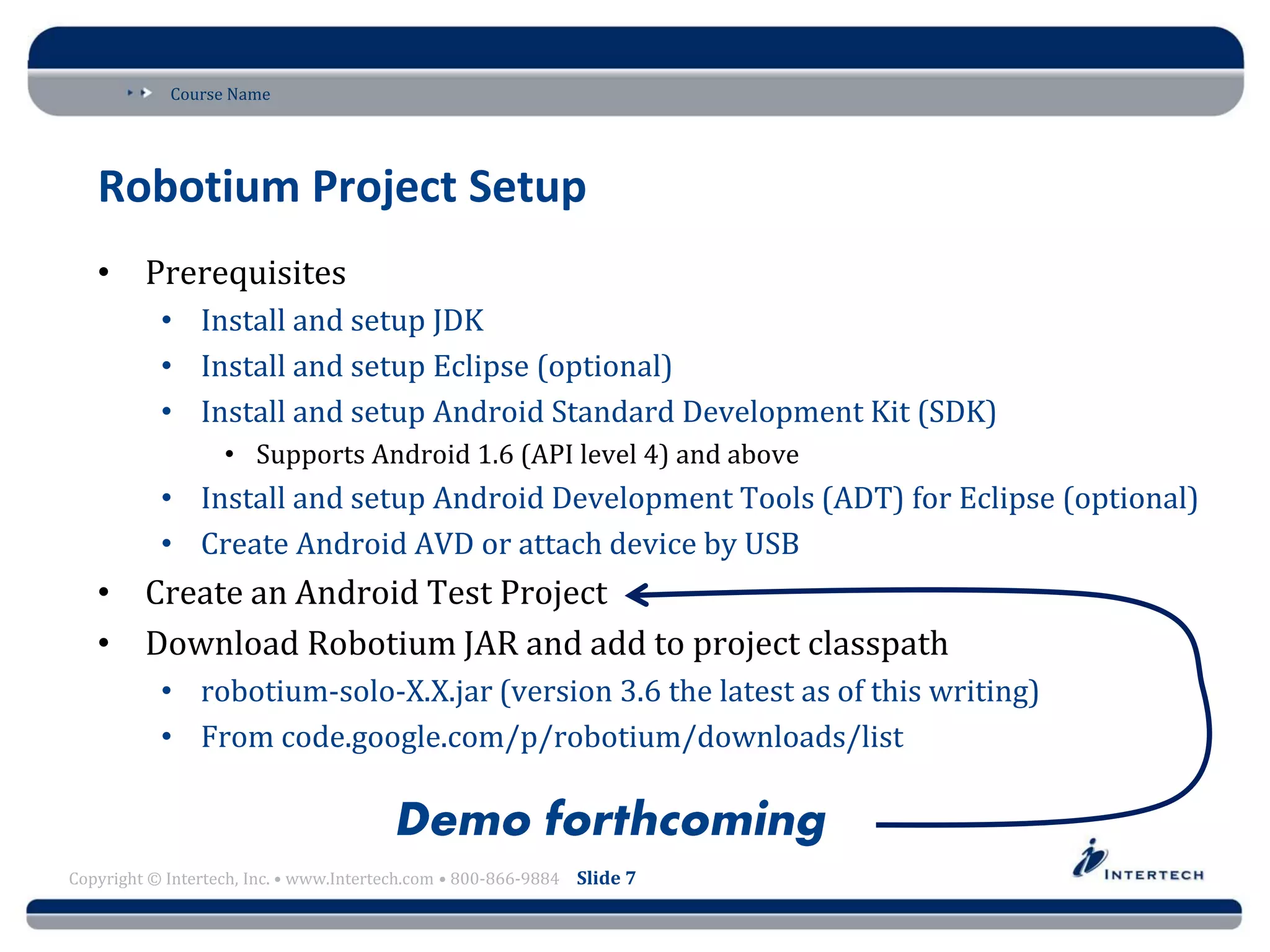

Robotium Project Setup
• Prerequisites
• Install and setup JDK
• Install and setup Eclipse (optional)
• Install and setup Android Standard Development Kit (SDK)
• Supports Android 1.6 (API level 4) and above
• Install and setup Android Development Tools (ADT) for Eclipse (optional)
• Create Android AVD or attach device by USB
• Create an Android Test Project
• Download Robotium JAR and add to project classpath
• robotium-solo-X.X.jar (version 3.6 the latest as of this writing)
• From code.google.com/p/robotium/downloads/list


Course Name

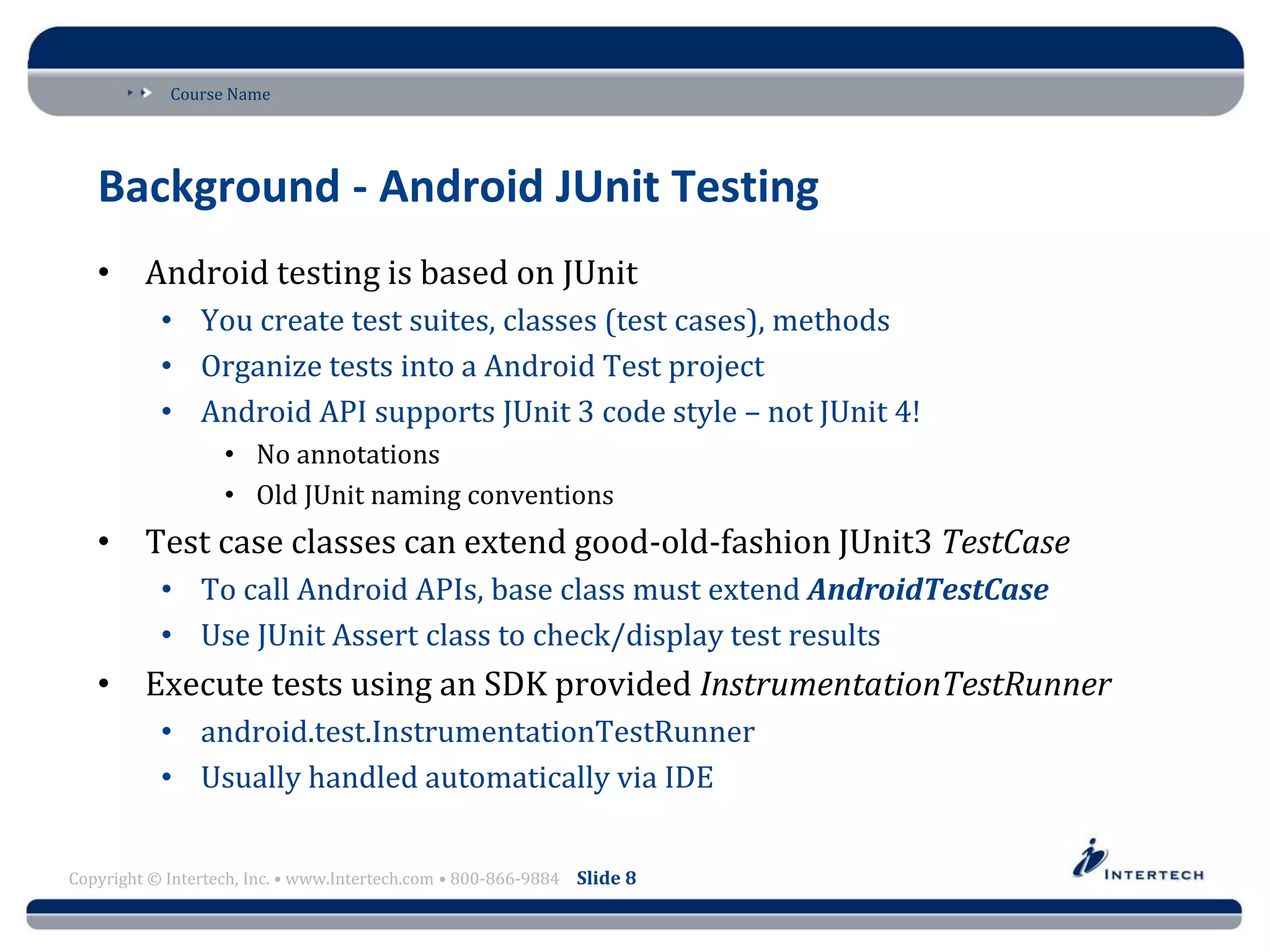

Background - Android JUnit Testing
• Android testing is based on JUnit
• You create test suites, classes (test cases), methods
• Organize tests into a Android Test project
• Android API supports JUnit 3 code style – not JUnit 4!
• No annotations
• Old JUnit naming conventions
• Test case classes can extend good-old-fashion JUnit3 TestCase
• To call Android APIs, base class must extend AndroidTestCase
• Use JUnit Assert class to check/display test results
• Execute tests using an SDK provided InstrumentationTestRunner
• android.test.InstrumentationTestRunner
• Usually handled automatically via IDE


Course Name

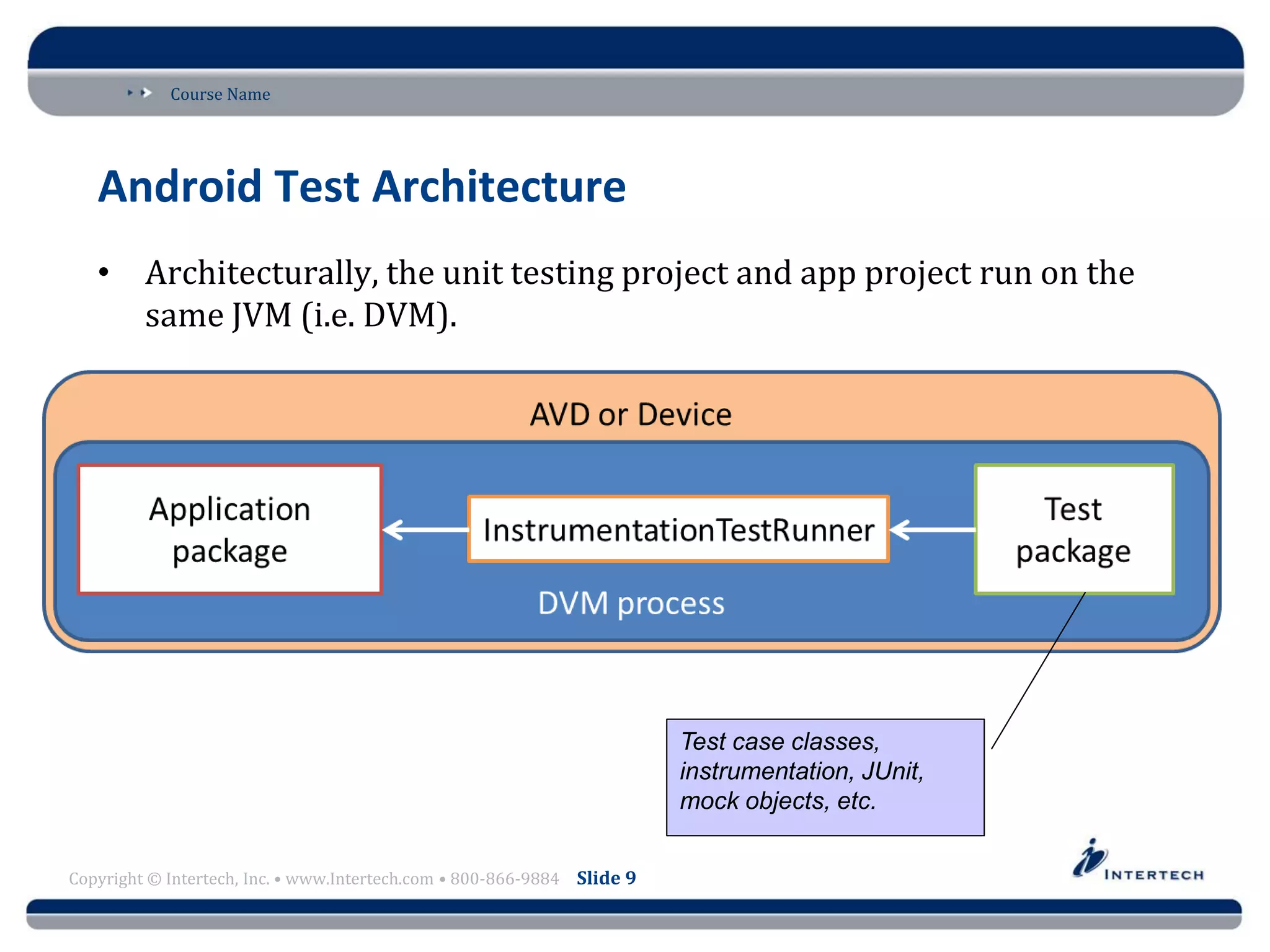

Android Test Architecture
• Architecturally, the unit testing project and app project run on the
same JVM (i.e. DVM).

Test case classes,
instrumentation, JUnit,
mock objects, etc.


Course Name

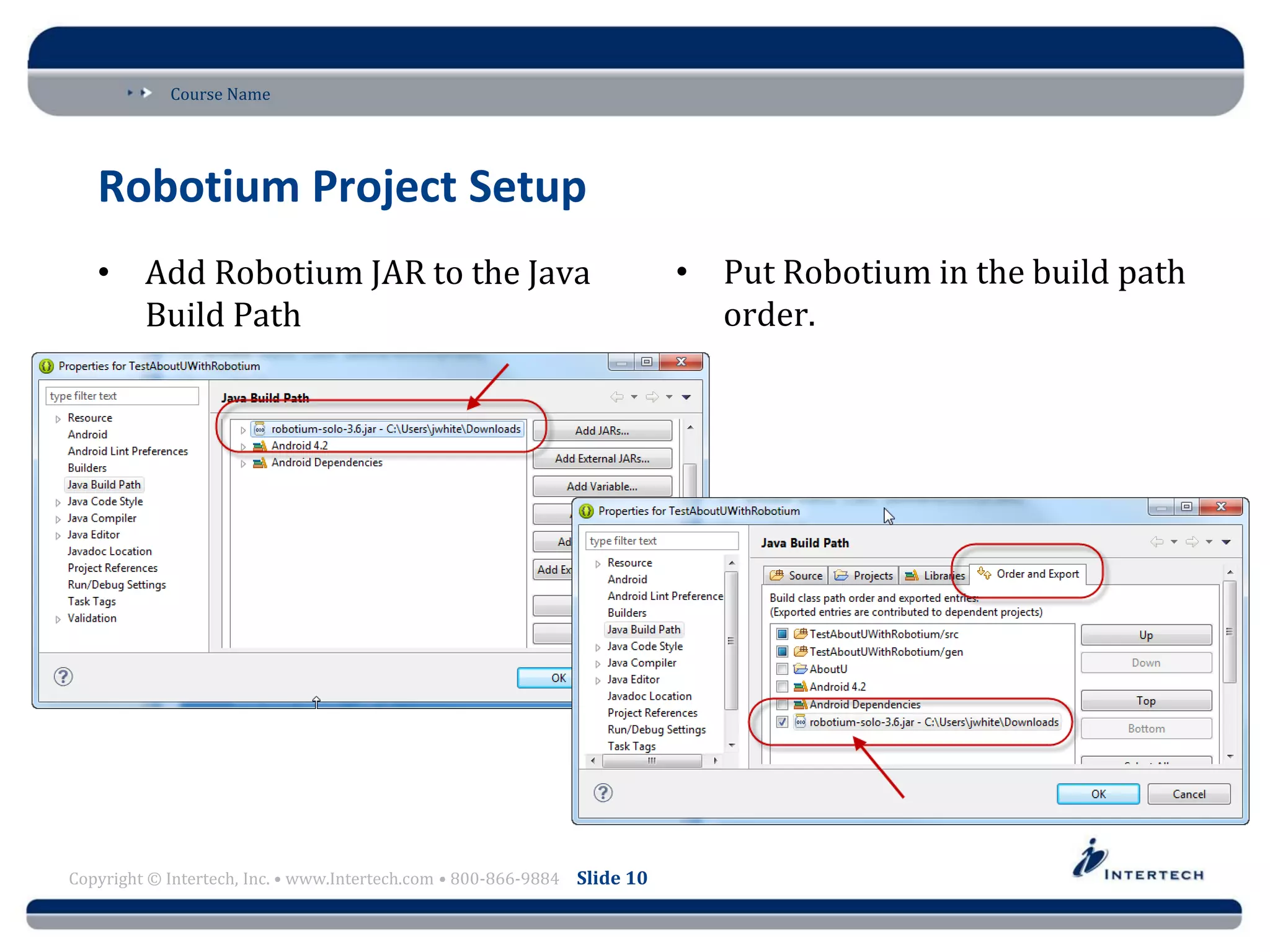

Robotium Project Setup
• Add Robotium JAR to the Java • Put Robotium in the build path
Build Path order.


Course Name

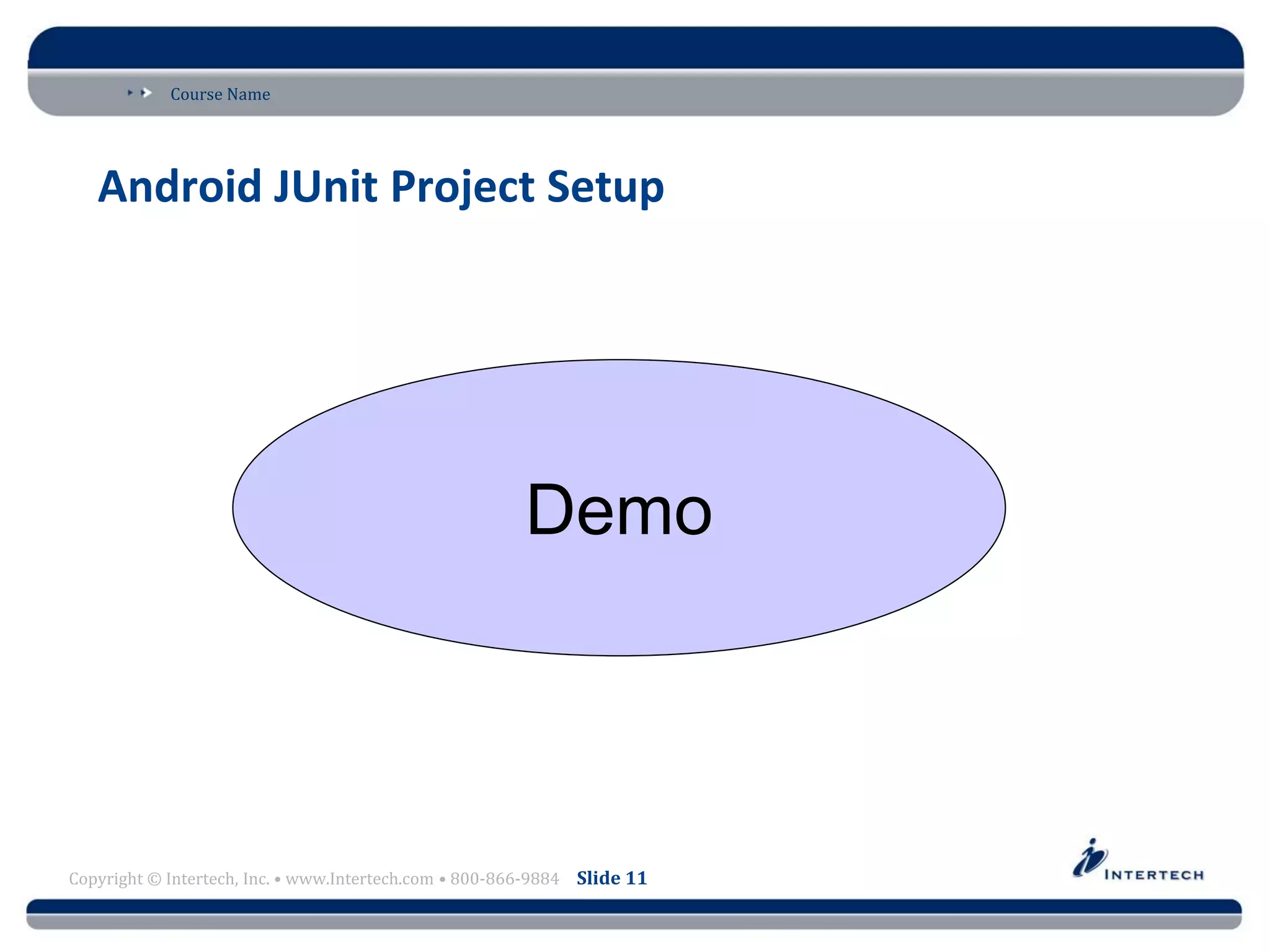

Android JUnit Project Setup

Demo


Course Name

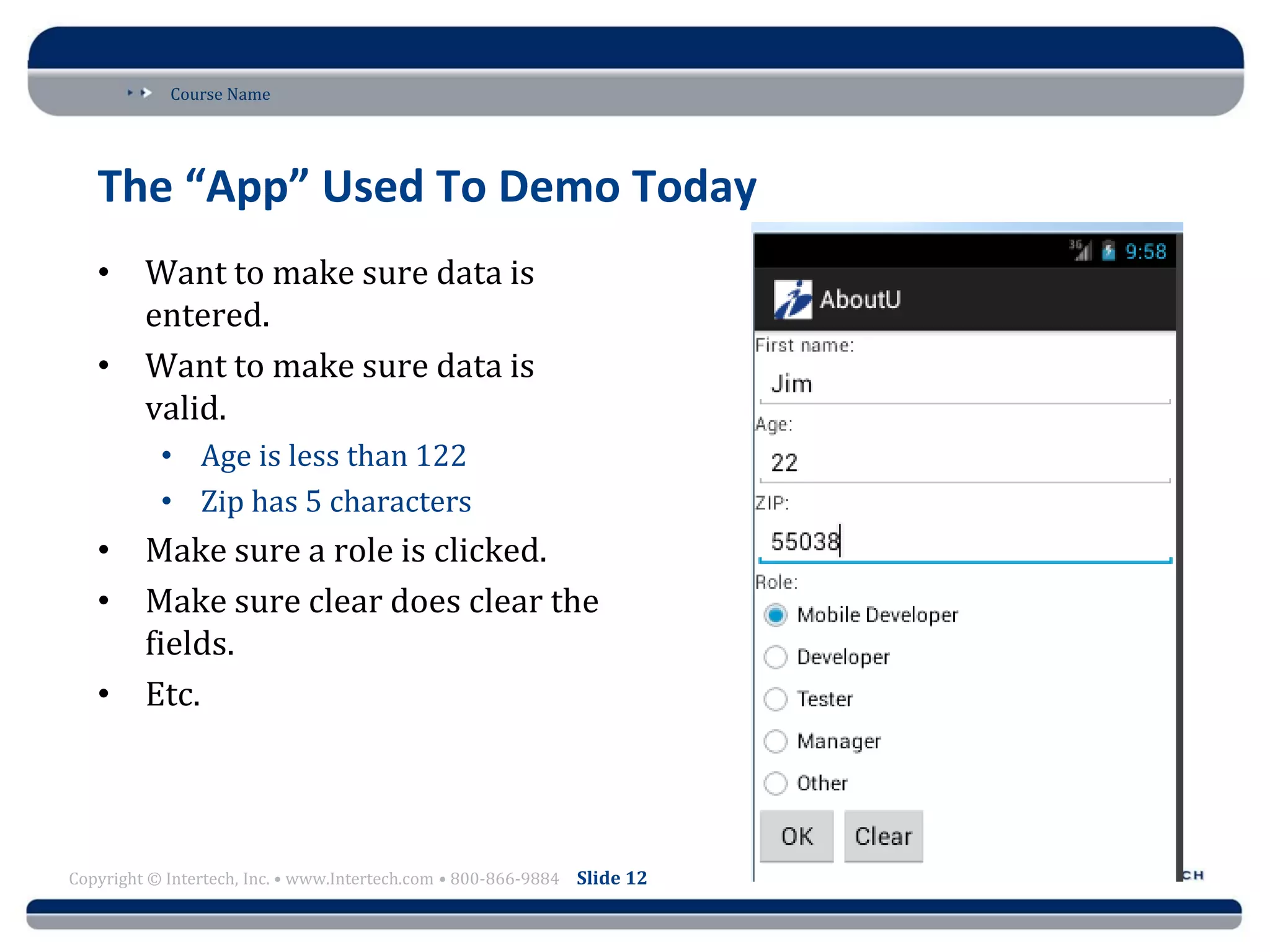

The “App” Used To Demo Today
• Want to make sure data is
entered.
• Want to make sure data is
valid.
• Age is less than 122
• Zip has 5 characters
• Make sure a role is clicked.
• Make sure clear does clear the
fields.
• Etc.


Course Name

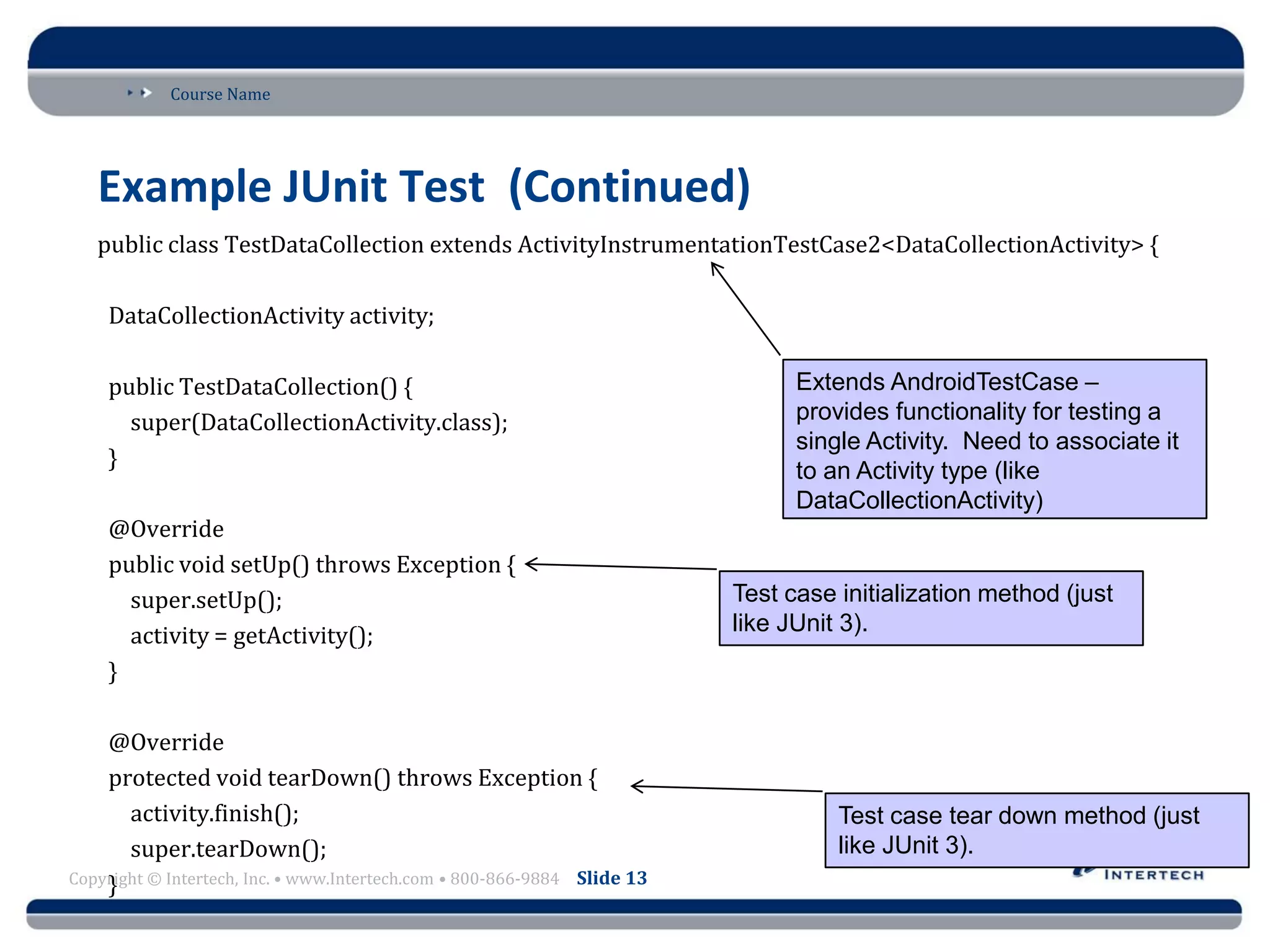

Example JUnit Test (Continued)
public class TestDataCollection extends ActivityInstrumentationTestCase2<DataCollectionActivity> {

DataCollectionActivity activity;

public TestDataCollection() { Extends AndroidTestCase –
super(DataCollectionActivity.class); provides functionality for testing a
single Activity. Need to associate it
}
to an Activity type (like
DataCollectionActivity)
@Override
public void setUp() throws Exception {
super.setUp(); Test case initialization method (just
activity = getActivity(); like JUnit 3).
}

@Override
protected void tearDown() throws Exception {
activity.finish(); Test case tear down method (just
super.tearDown(); like JUnit 3).
}

Course Name

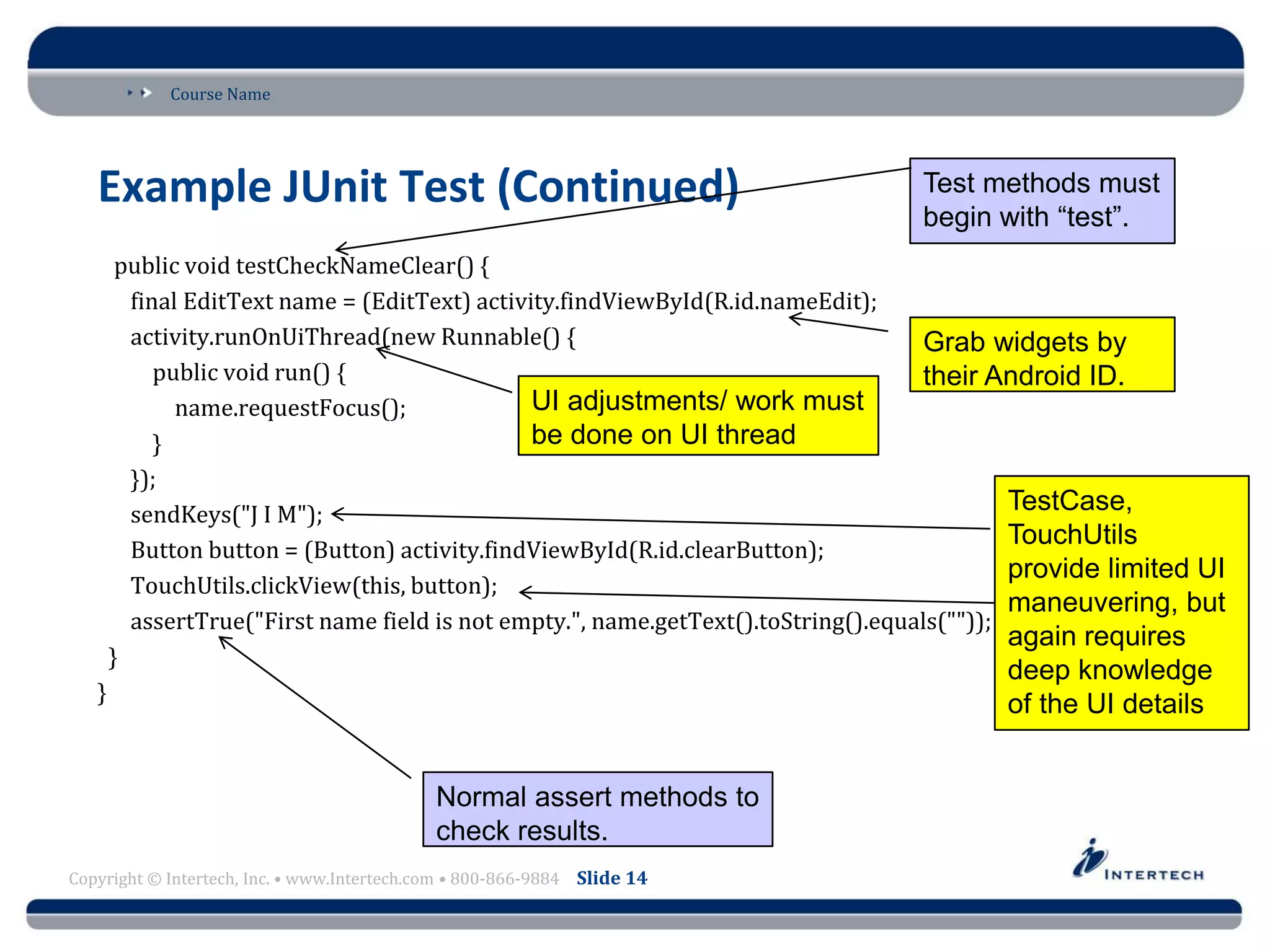

Example JUnit Test (Continued) Test methods must
begin with “test”.
public void testCheckNameClear() {
final EditText name = (EditText) activity.findViewById(R.id.nameEdit);
activity.runOnUiThread(new Runnable() { Grab widgets by
public void run() { their Android ID.
name.requestFocus(); UI adjustments/ work must
} be done on UI thread
});
sendKeys("J I M");
TestCase,
TouchUtils
Button button = (Button) activity.findViewById(R.id.clearButton);
provide limited UI
TouchUtils.clickView(this, button);
maneuvering, but
assertTrue("First name field is not empty.", name.getText().toString().equals(""));
again requires
}
deep knowledge
}
of the UI details

Normal assert methods to
check results.

Course Name


Course Name

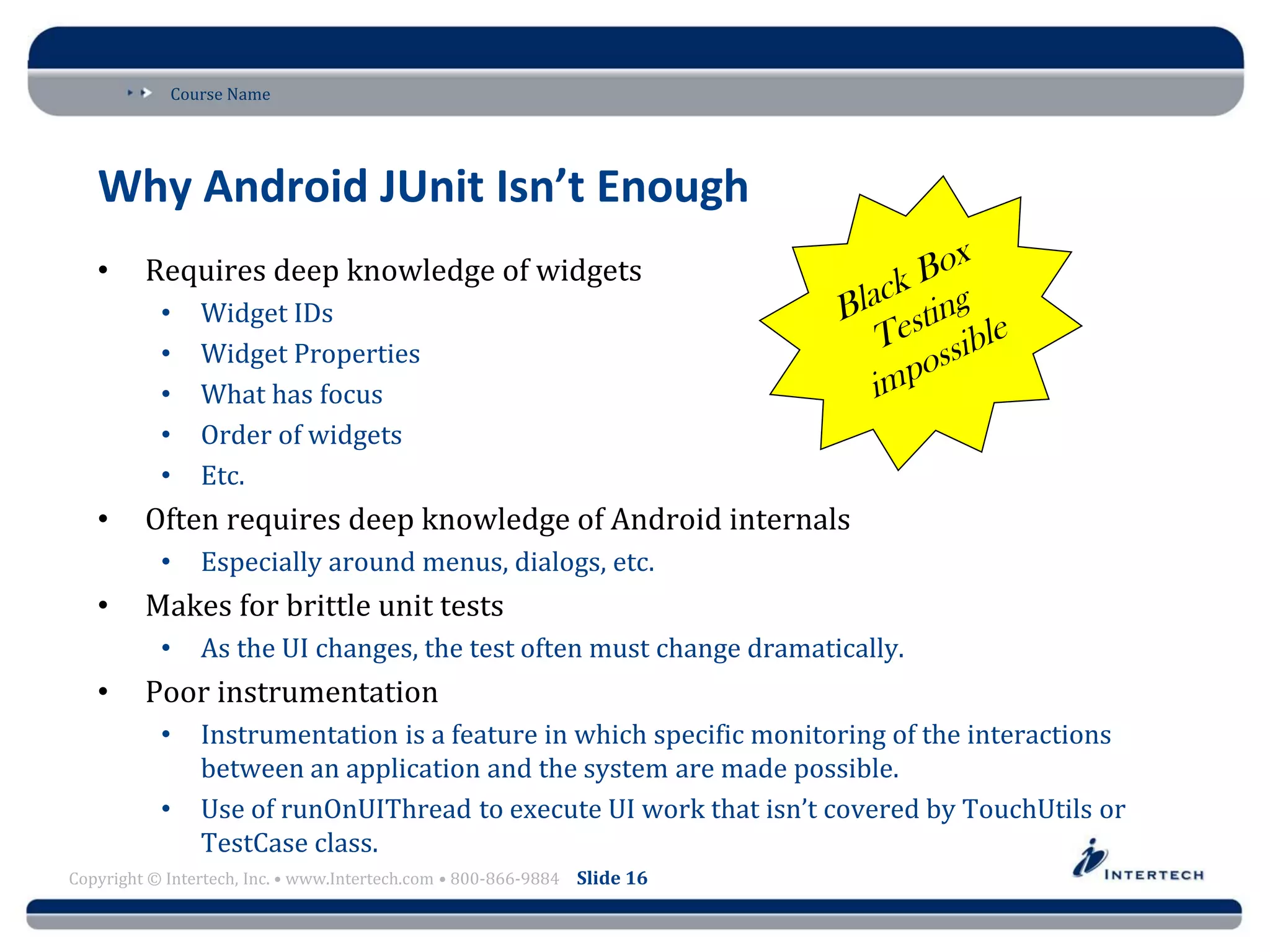

Why Android JUnit Isn’t Enough
• Requires deep knowledge of widgets
• Widget IDs
• Widget Properties
• What has focus
• Order of widgets
• Etc.
• Often requires deep knowledge of Android internals
• Especially around menus, dialogs, etc.
• Makes for brittle unit tests
• As the UI changes, the test often must change dramatically.
• Poor instrumentation
• Instrumentation is a feature in which specific monitoring of the interactions
between an application and the system are made possible.
• Use of runOnUIThread to execute UI work that isn’t covered by TouchUtils or
TestCase class.

Course Name

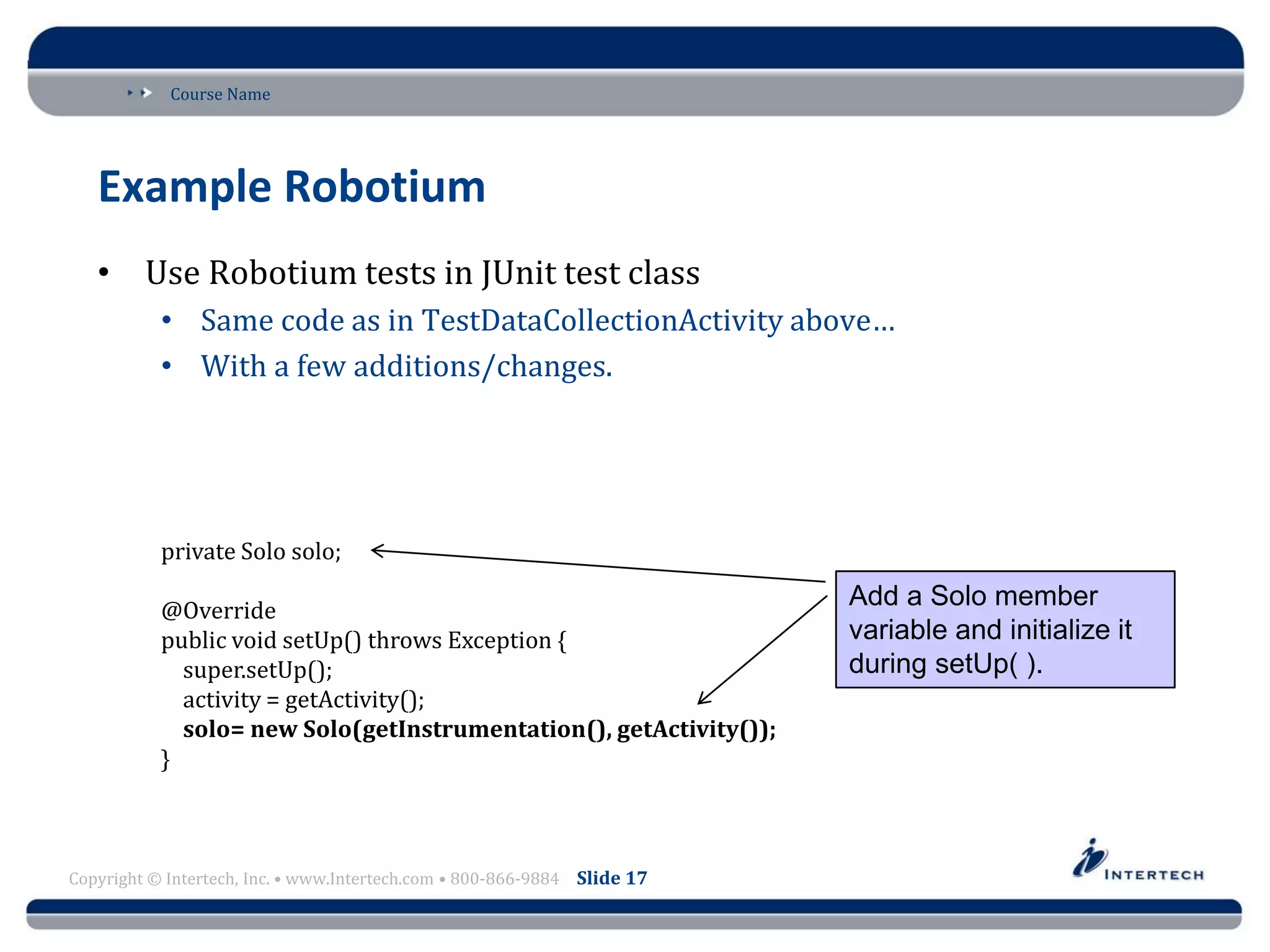

Example Robotium
• Use Robotium tests in JUnit test class
• Same code as in TestDataCollectionActivity above…
• With a few additions/changes.

private Solo solo;

@Override
Add a Solo member
public void setUp() throws Exception { variable and initialize it
super.setUp(); during setUp( ).
activity = getActivity();
solo= new Solo(getInstrumentation(), getActivity());
}


Course Name

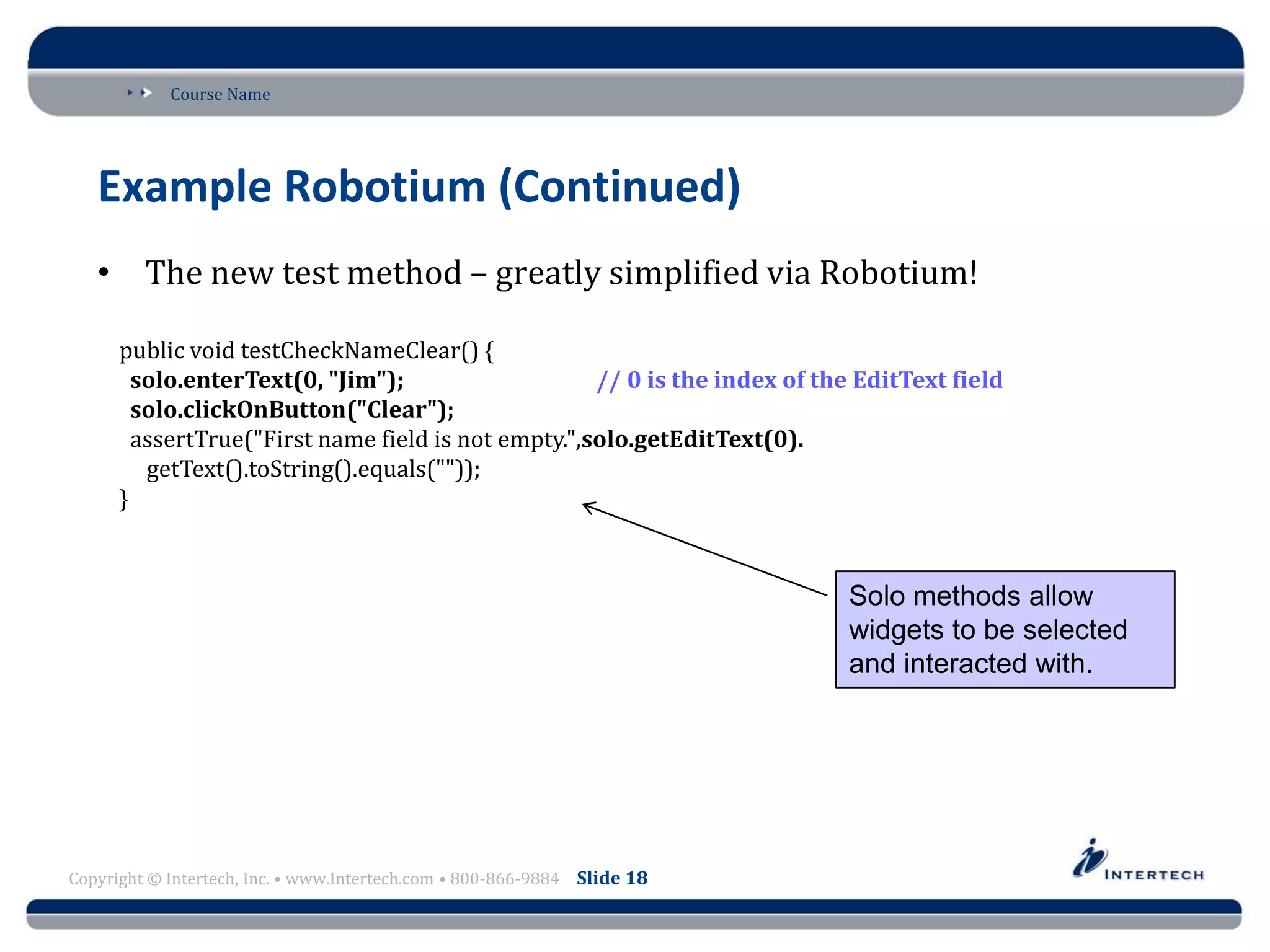

Example Robotium (Continued)
• The new test method – greatly simplified via Robotium!

public void testCheckNameClear() {
solo.enterText(0, "Jim"); // 0 is the index of the EditText field
solo.clickOnButton("Clear");
assertTrue("First name field is not empty.",solo.getEditText(0).
getText().toString().equals(""));
}

Solo methods allow
widgets to be selected
and interacted with.


Course Name


Course Name

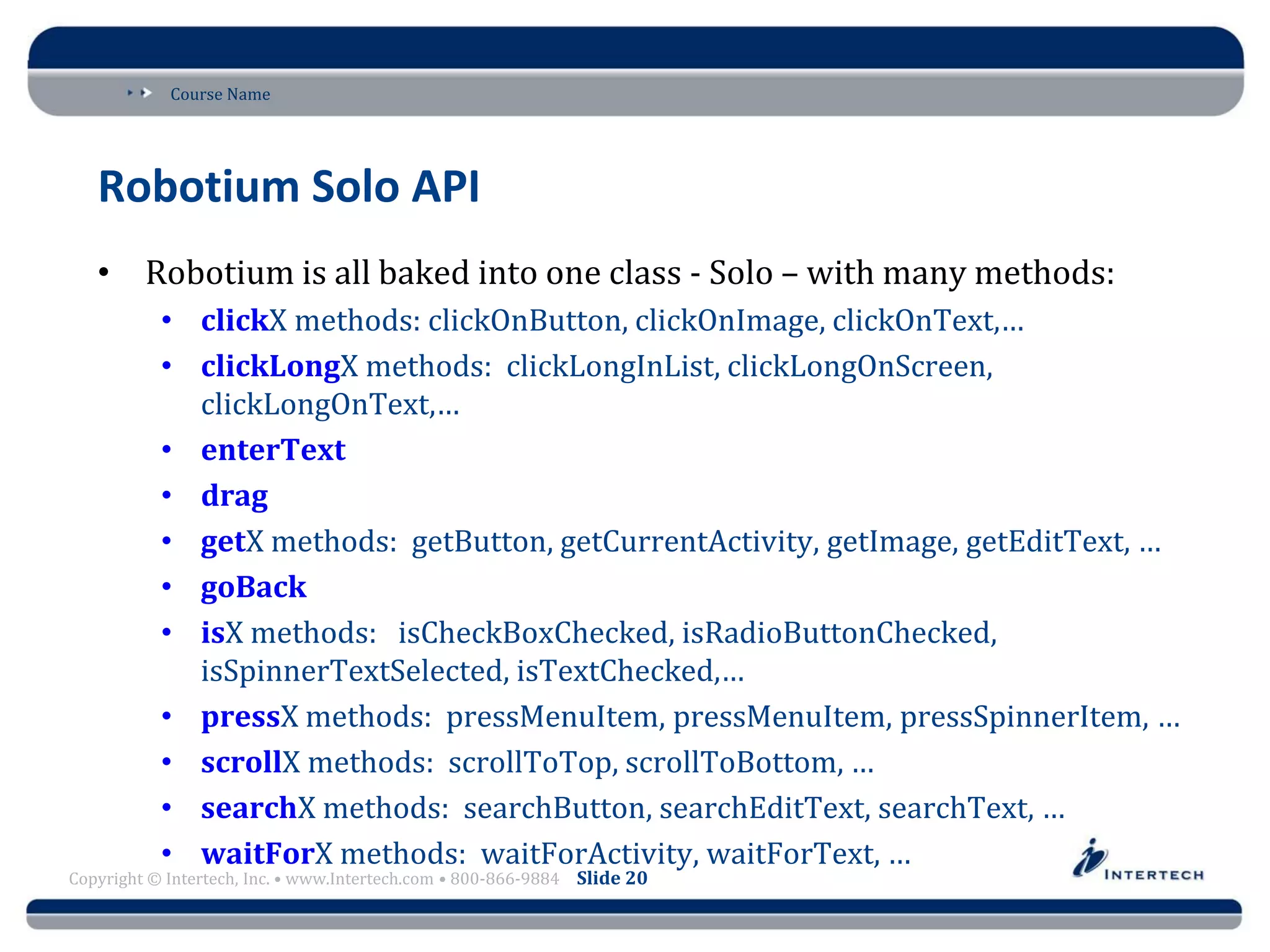

Robotium Solo API
• Robotium is all baked into one class - Solo – with many methods:
• clickX methods: clickOnButton, clickOnImage, clickOnText,…
• clickLongX methods: clickLongInList, clickLongOnScreen,
clickLongOnText,…
• enterText
• drag
• getX methods: getButton, getCurrentActivity, getImage, getEditText, …
• goBack
• isX methods: isCheckBoxChecked, isRadioButtonChecked,
isSpinnerTextSelected, isTextChecked,…
• pressX methods: pressMenuItem, pressMenuItem, pressSpinnerItem, …
• scrollX methods: scrollToTop, scrollToBottom, …
• searchX methods: searchButton, searchEditText, searchText, …
• waitForX methods: waitForActivity, waitForText, …

Course Name

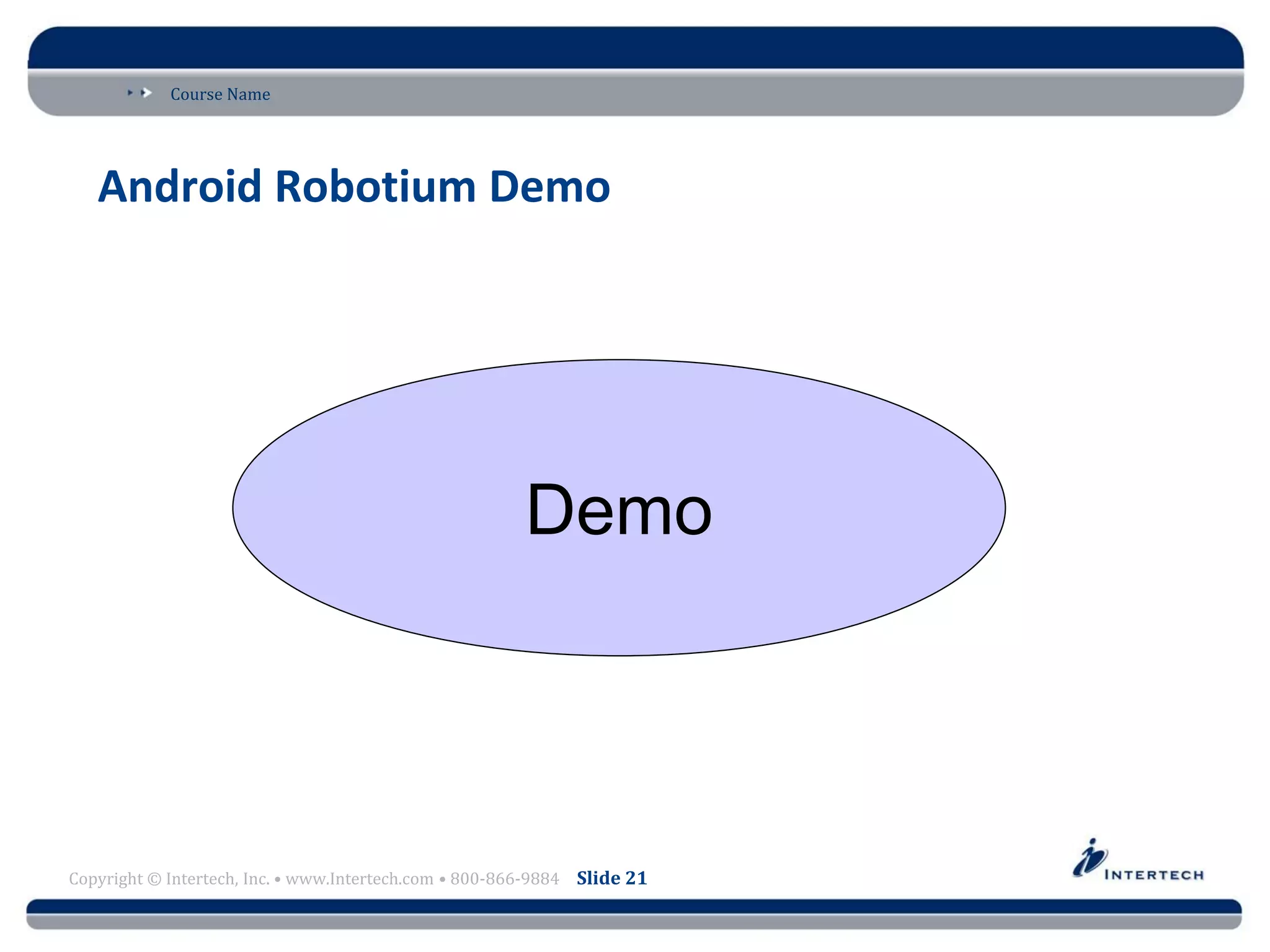

Android Robotium Demo

Demo


Course Name

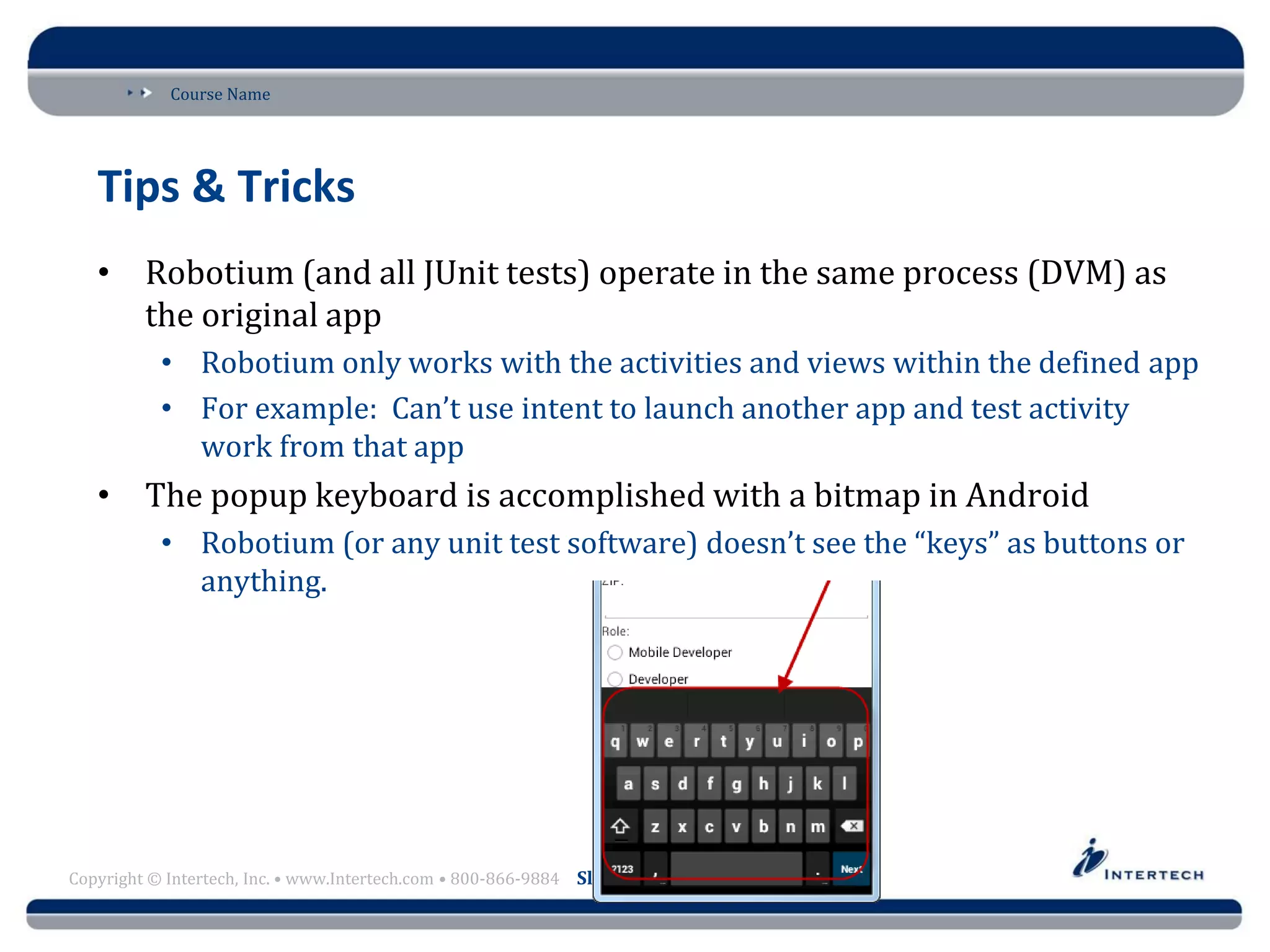

Tips & Tricks
• Robotium (and all JUnit tests) operate in the same process (DVM) as
the original app
• Robotium only works with the activities and views within the defined app
• For example: Can’t use intent to launch another app and test activity
work from that app
• The popup keyboard is accomplished with a bitmap in Android
• Robotium (or any unit test software) doesn’t see the “keys” as buttons or
anything.


Course Name

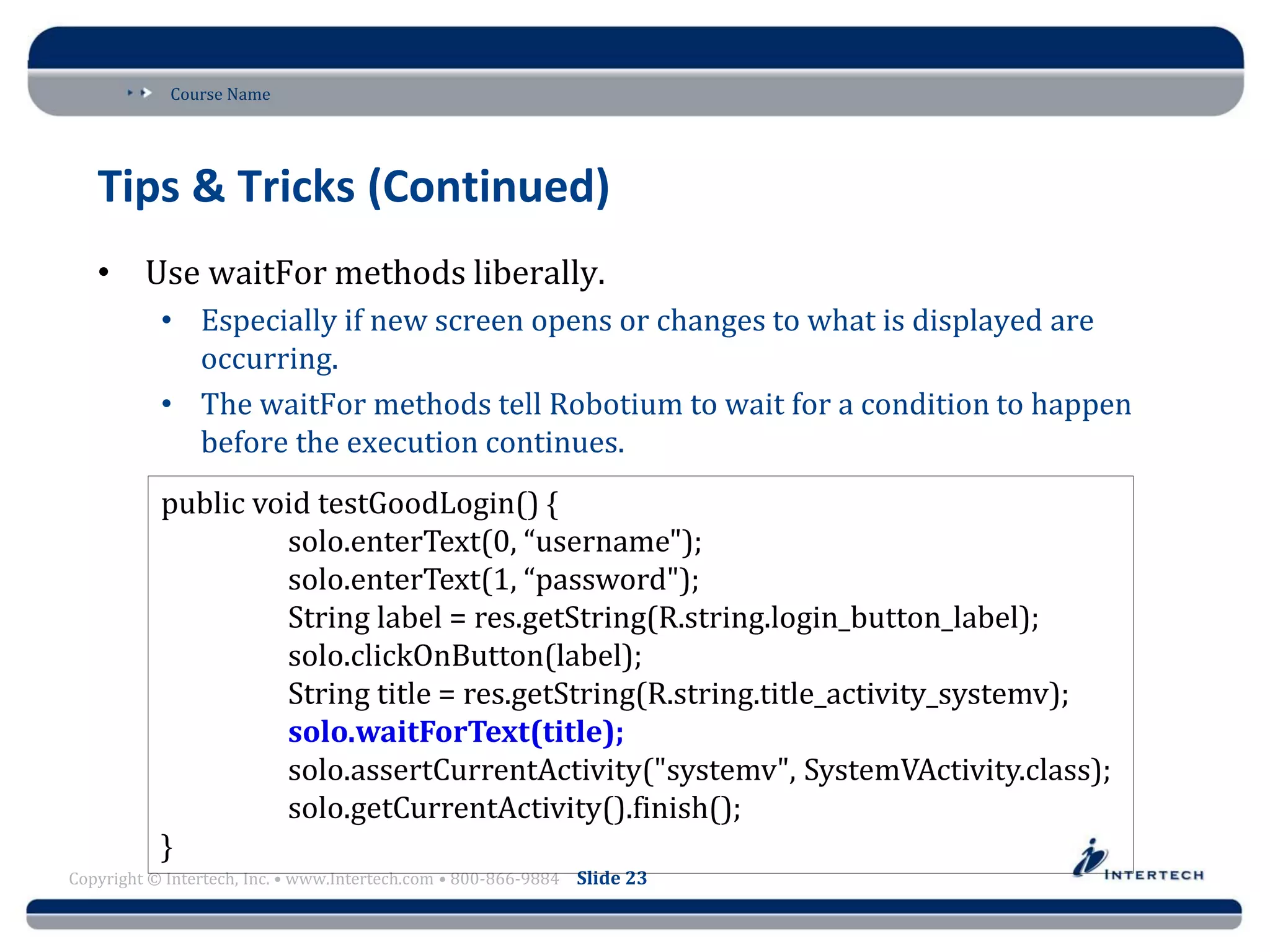

Tips & Tricks (Continued)
• Use waitFor methods liberally.
• Especially if new screen opens or changes to what is displayed are
occurring.
• The waitFor methods tell Robotium to wait for a condition to happen
before the execution continues.
public void testGoodLogin() {
solo.enterText(0, “username");
solo.enterText(1, “password");
String label = res.getString(R.string.login_button_label);
solo.clickOnButton(label);
String title = res.getString(R.string.title_activity_systemv);
solo.waitForText(title);
solo.assertCurrentActivity("systemv", SystemVActivity.class);
solo.getCurrentActivity().finish();
}

Course Name

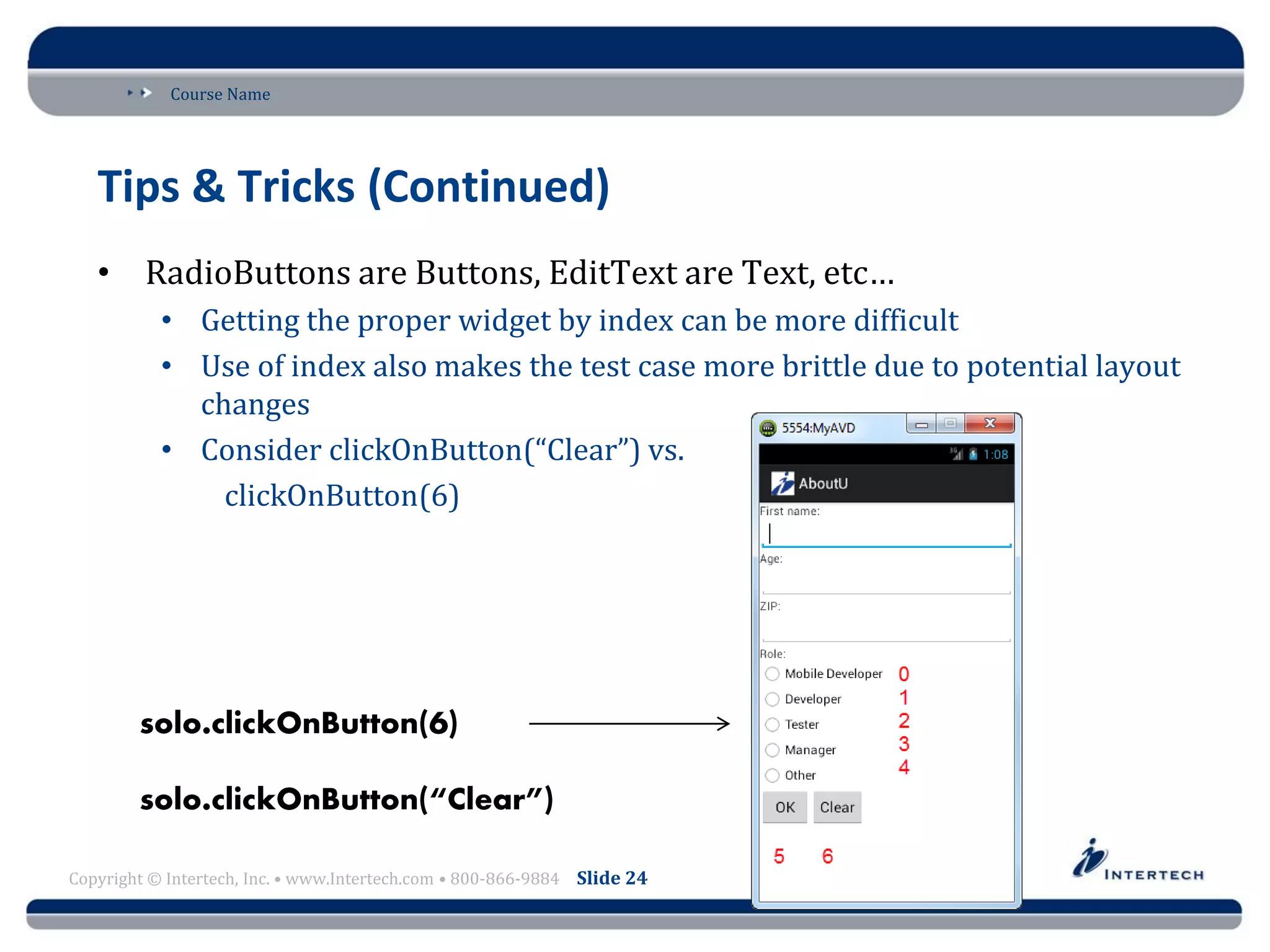

• RadioButtons are Buttons, EditText are Text, etc…
• Getting the proper widget by index can be more difficult
• Use of index also makes the test case more brittle due to potential layout
changes
• Consider clickOnButton(“Clear”) vs.
clickOnButton(6)


Course Name

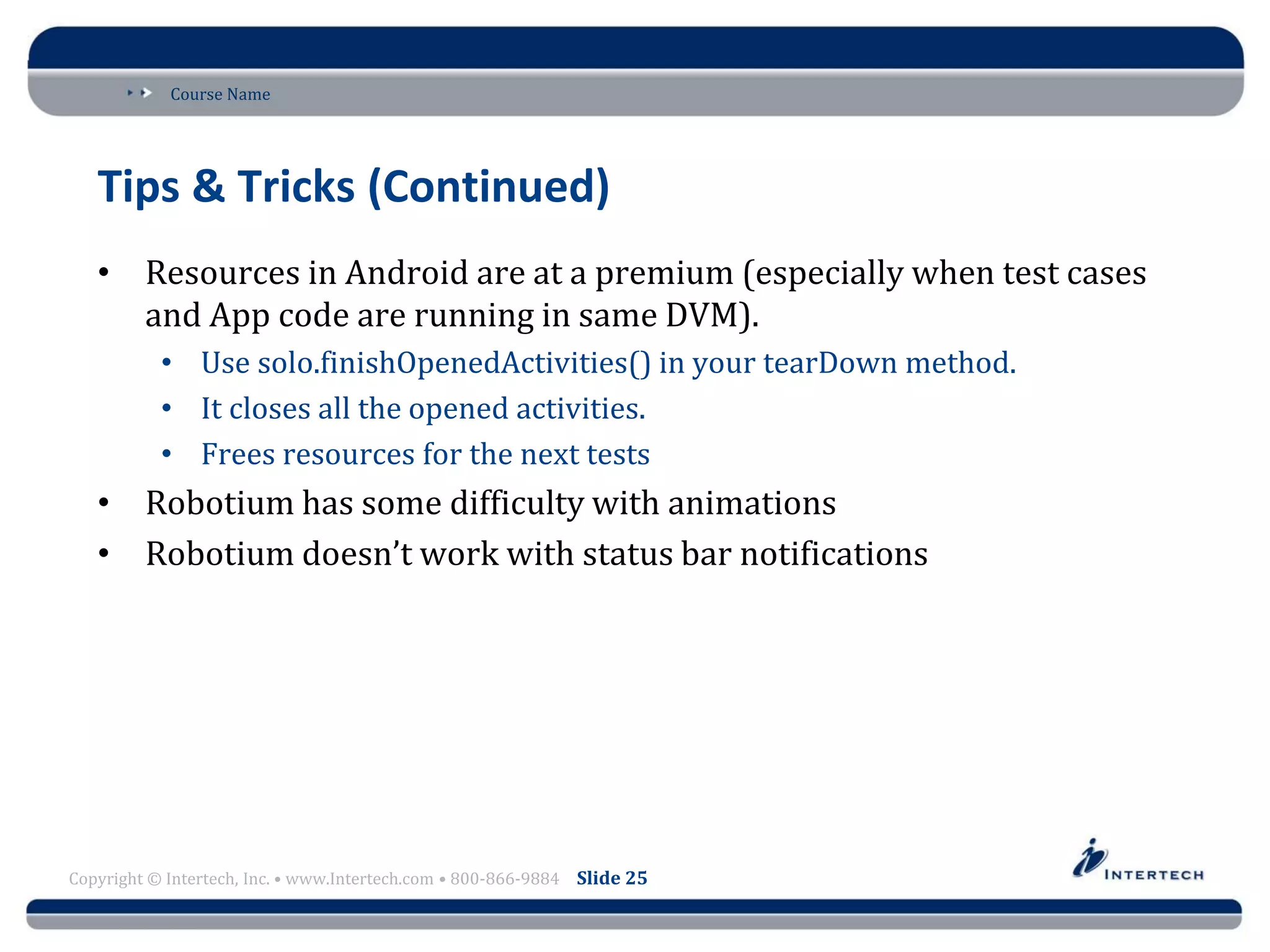

• Resources in Android are at a premium (especially when test cases
and App code are running in same DVM).
• Use solo.finishOpenedActivities() in your tearDown method.
• It closes all the opened activities.
• Frees resources for the next tests
• Robotium has some difficulty with animations
• Robotium doesn’t work with status bar notifications


Course Name

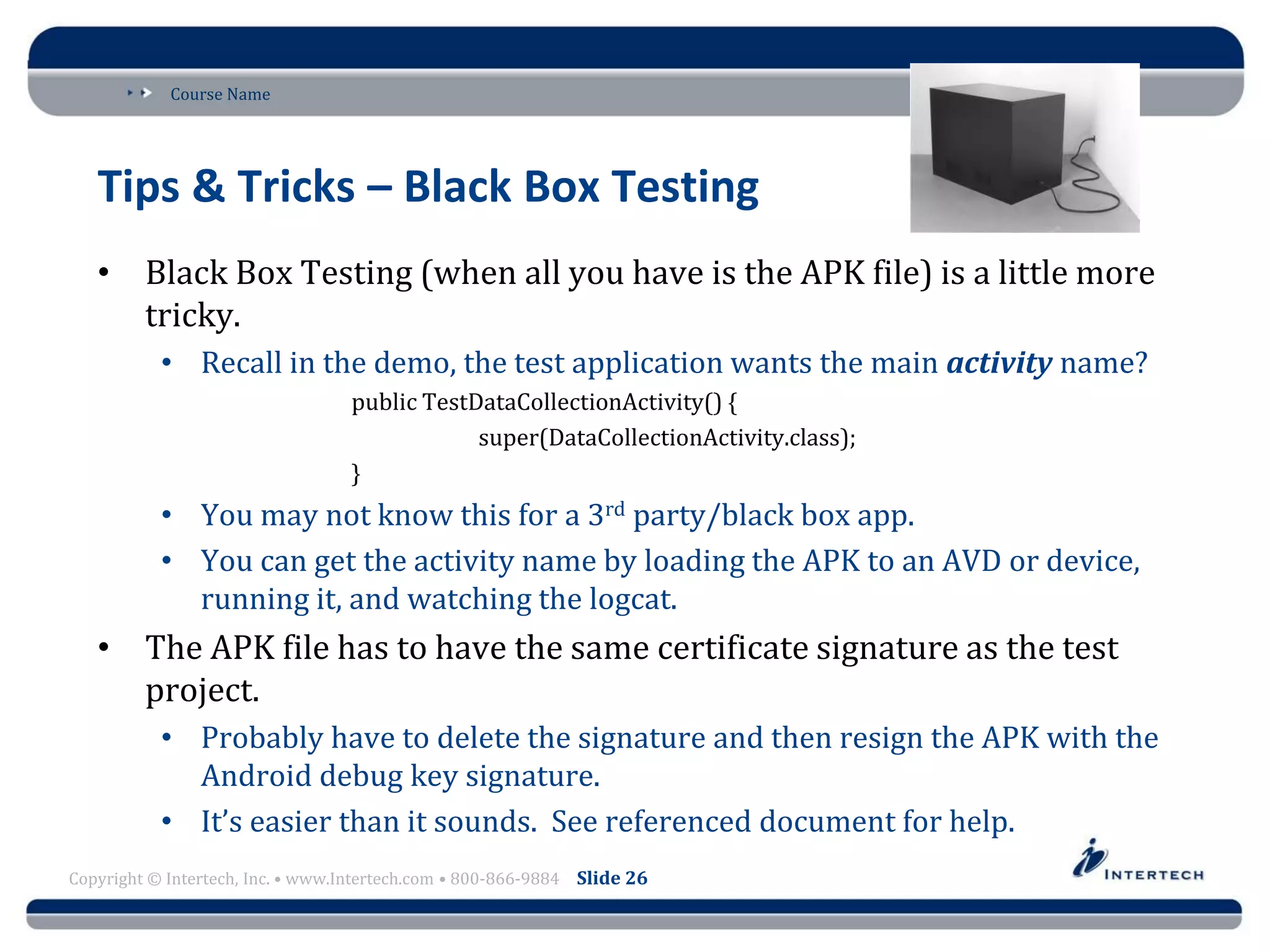

Tips & Tricks – Black Box Testing
• Black Box Testing (when all you have is the APK file) is a little more
tricky.
• Recall in the demo, the test application wants the main activity name?
public TestDataCollectionActivity() {
super(DataCollectionActivity.class);
}
• You may not know this for a 3rd party/black box app.
• You can get the activity name by loading the APK to an AVD or device,
running it, and watching the logcat.
• The APK file has to have the same certificate signature as the test
project.
• Probably have to delete the signature and then resign the APK with the
Android debug key signature.
• It’s easier than it sounds. See referenced document for help.

Course Name

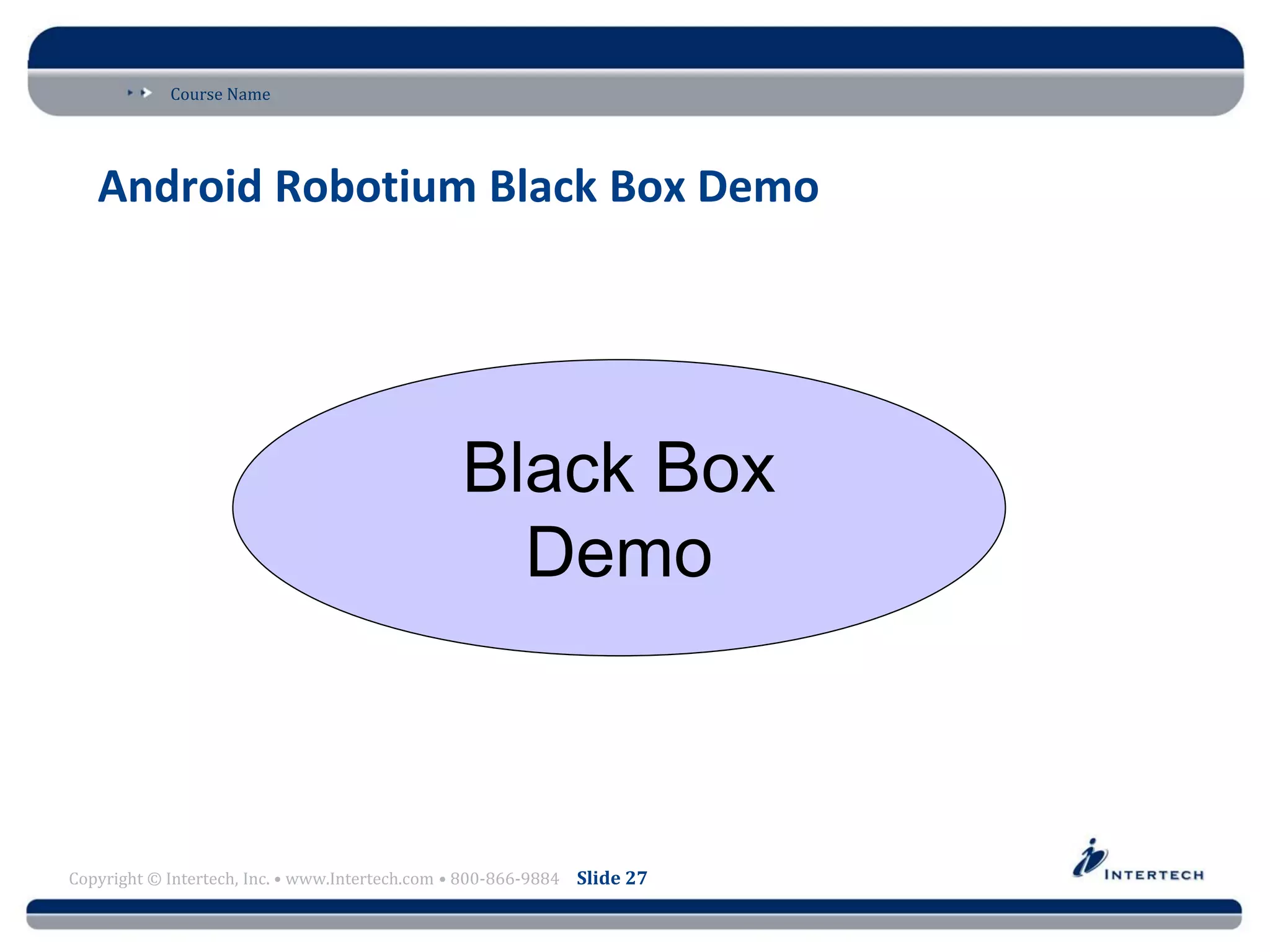

Android Robotium Black Box Demo

Black Box
Demo


Course Name

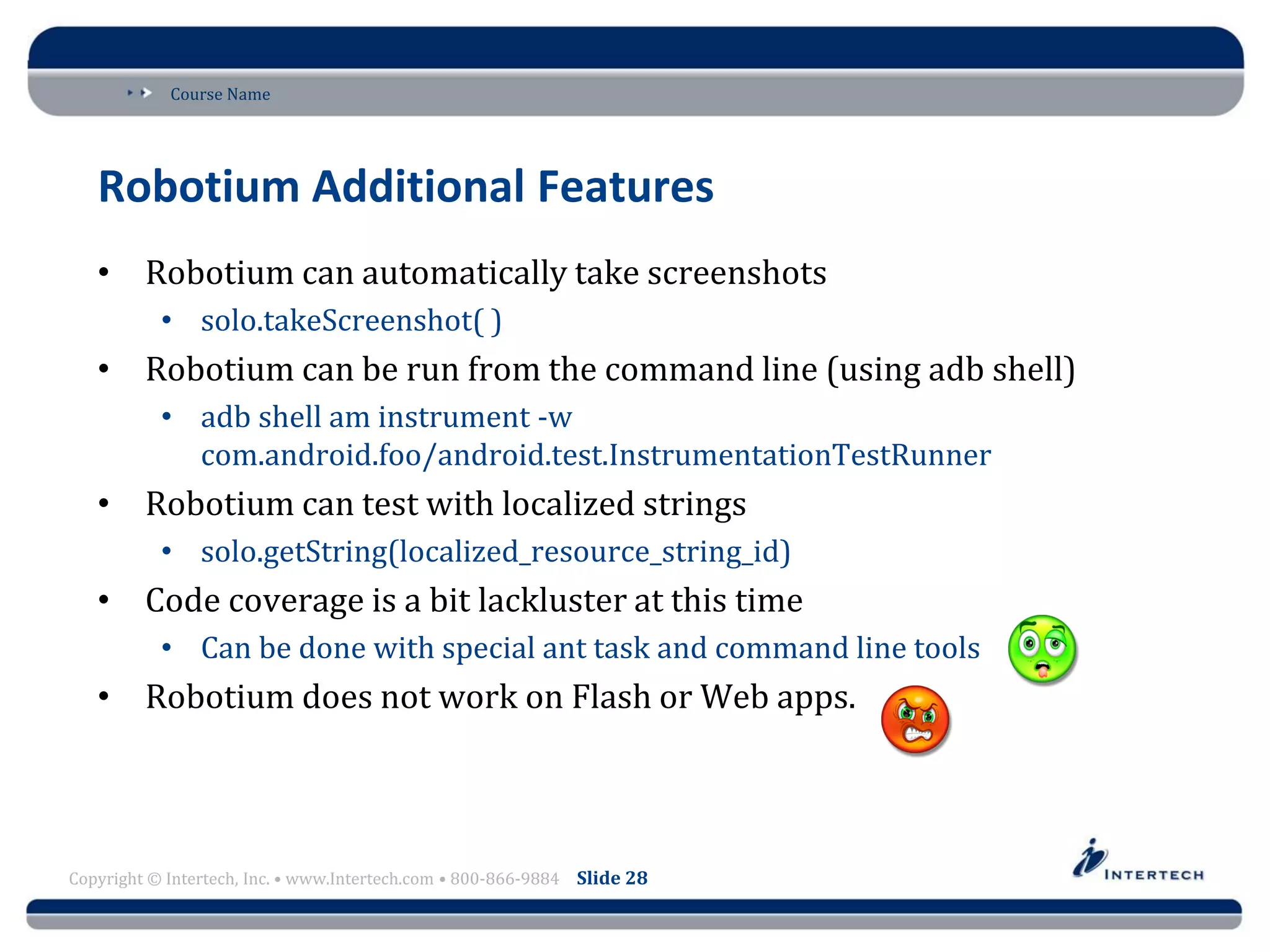

Robotium Additional Features
• Robotium can automatically take screenshots
• solo.takeScreenshot( )
• Robotium can be run from the command line (using adb shell)
• adb shell am instrument -w
com.android.foo/android.test.InstrumentationTestRunner
• Robotium can test with localized strings
• solo.getString(localized_resource_string_id)
• Code coverage is a bit lackluster at this time
• Can be done with special ant task and command line tools
• Robotium does not work on Flash or Web apps.


Course Name

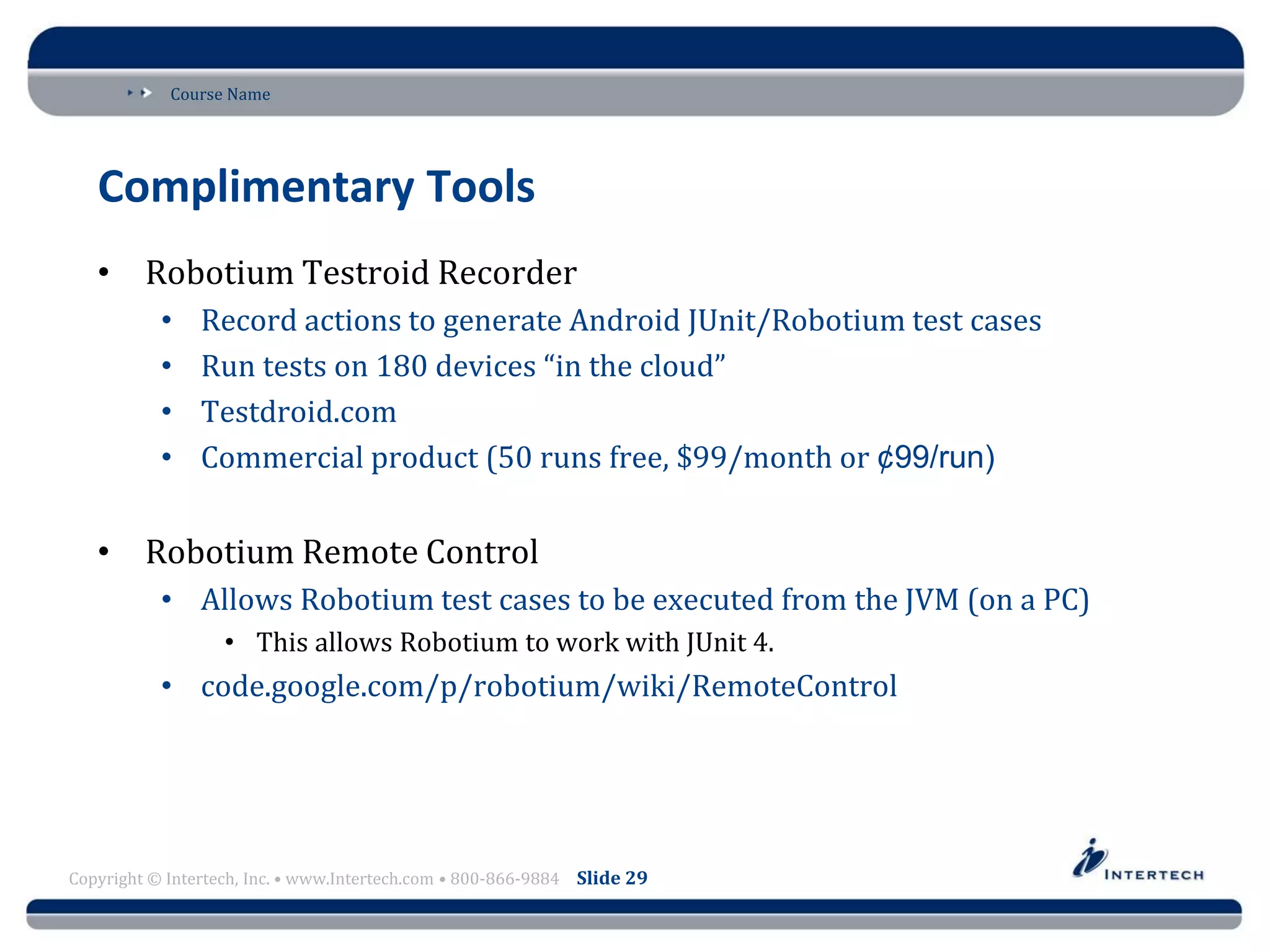

Complimentary Tools
• Robotium Testroid Recorder
• Record actions to generate Android JUnit/Robotium test cases
• Run tests on 180 devices “in the cloud”
• Testdroid.com
• Commercial product (50 runs free, $99/month or ¢99/run)

• Robotium Remote Control
• Allows Robotium test cases to be executed from the JVM (on a PC)
• This allows Robotium to work with JUnit 4.
• code.google.com/p/robotium/wiki/RemoteControl


Course Name

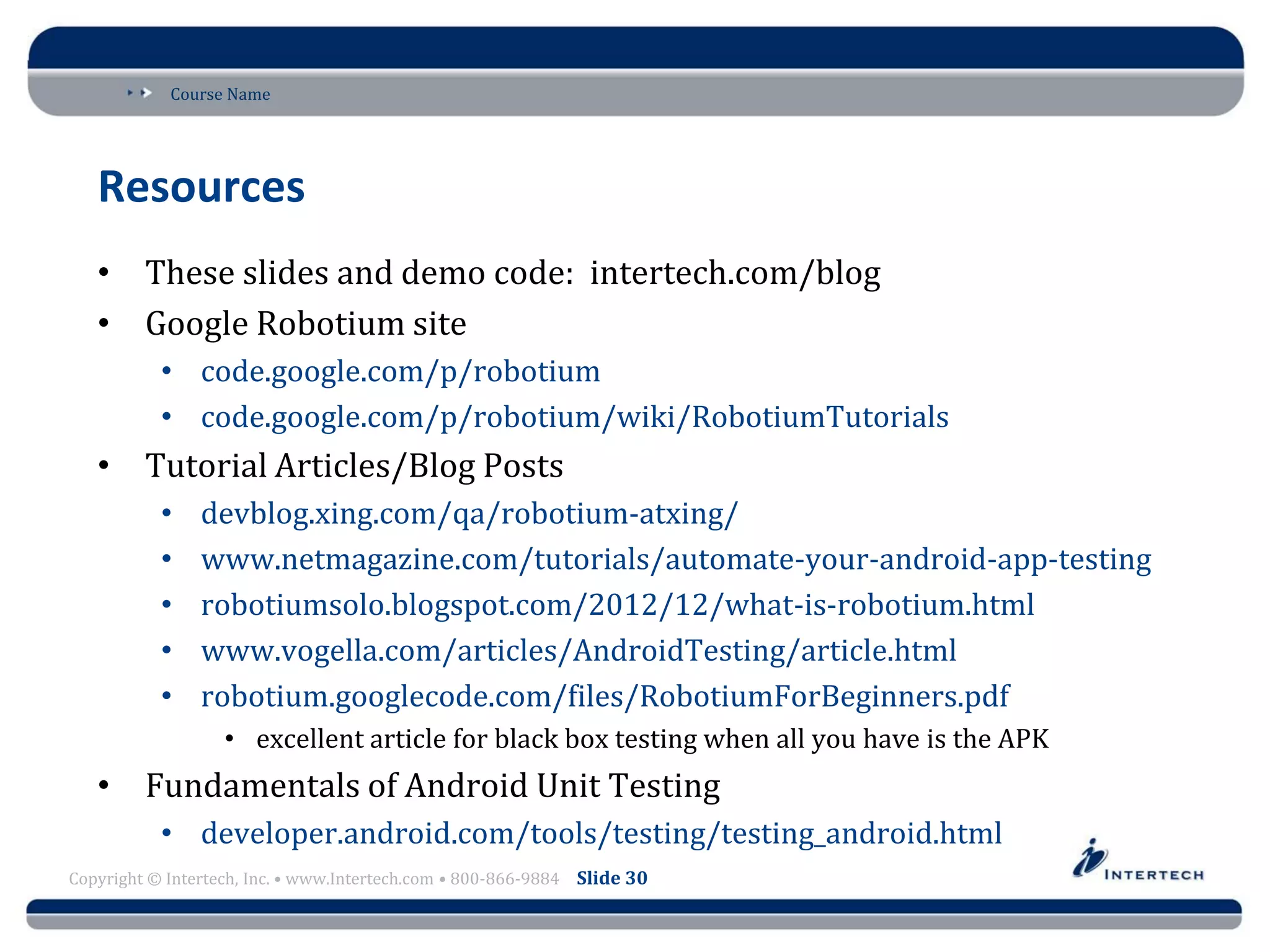

Resources
• These slides and demo code: intertech.com/blog
• Google Robotium site
• code.google.com/p/robotium
• code.google.com/p/robotium/wiki/RobotiumTutorials
• Tutorial Articles/Blog Posts
• devblog.xing.com/qa/robotium-atxing/
• www.netmagazine.com/tutorials/automate-your-android-app-testing
• robotiumsolo.blogspot.com/2012/12/what-is-robotium.html
• www.vogella.com/articles/AndroidTesting/article.html
• robotium.googlecode.com/files/RobotiumForBeginners.pdf
• excellent article for black box testing when all you have is the APK
• Fundamentals of Android Unit Testing
• developer.android.com/tools/testing/testing_android.html

Course Name

Q&A
• Questions – you got’em, I want’em


Course Name

Award-Winning Training and Consulting.

Visit www.Intertech.com for complete details.

Course Name

Intertech offers
Mobile Training On:
• Android
• HTML5
• iOS
• Java ME
• jQuery
• Windows Phone

Visit ww.Intertech.com for complete course schedule.

Course Name

Stop by Intertech’s
booth for a chance to
win FREE Training.

Or go to bit.ly.com/intertech-login


Robotium Tutorial

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Robotium Tutorial

Similar to Robotium Tutorial (20)

More from Mobile March

More from Mobile March (20)

Recently uploaded

Recently uploaded (20)

Robotium Tutorial
